Biomedicines 2019, 7(2), 31; https://doi.org/10.3390/biomedicines7020031

Review
The Potential of the Cyclotide Scaffold for Drug Development
1
Department of Pharmacology and Pharmaceutical Sciences, University of Southern California, CA 9033, USA
2
Norris Comprehensive Cancer Center, University of Southern California, Los Angeles, Los Angeles, CA 9033, USA
*
Author to whom correspondence should be addressed.
Received: 6 April 2019 / Accepted: 15 April 2019 / Published: 19 April 2019

Abstract

:
Cyclotides are a novel class of micro-proteins (≈30–40 residues long) with a unique topology containing a head-to-tail cyclized backbone structure further stabilized by three disulfide bonds that form a cystine knot. This unique molecular framework makes them exceptionally stable to physical, chemical, and biological degradation compared to linear peptides of similar size. The cyclotides are also highly tolerant to sequence variability, aside from the conserved residues forming the cystine knot, and are orally bioavailable and able to cross cellular membranes to modulate intracellular protein–protein interactions (PPIs), both in vitro and in vivo. These unique properties make them ideal scaffolds for many biotechnological applications, including drug discovery. This review provides an overview of the properties of cyclotides and their potential for the development of novel peptide-based therapeutics. The selective disruption of PPIs still remains a very challenging task, as the interacting surfaces are relatively large and flat. The use of the cell-permeable highly constrained polypeptide molecular frameworks, such as the cyclotide scaffold, has shown great promise, as it provides unique pharmacological properties. The use of molecular techniques, such as epitope grafting, and molecular evolution have shown to be highly effective for the selection of bioactive cyclotides. However, despite successes in employing cyclotides to target PPIs, some of the challenges to move them into the clinic still remain.
Keywords:
cyclotides; CCK; cystine-knot; drug design; backbone cyclized polypeptides; protein-protein interactions; cyclic peptides

1. Introduction

The selective disruption of pharmacologically relevant protein–protein interactions (PPIs) still remains a very challenging task [1,2,3]. This is mostly due to the relatively large and relatively flat nature of the binding surfaces involved in most PPIs. The most challenging of the molecular targets are in fact those involving intracellular PPIs, which, in addition, require the therapeutic agent to be able to cross the cell membrane in an efficient manner [4,5].
In general, we can consider two major structural types of therapeutic agents, small molecules and protein-based compounds, with the later also known as biologicals. Small molecules, as their name indicates, are small in molecular size (≤100 atoms) and in general show good pharmacological properties, such as stability and cell permeability. Their intrinsic small size, however, only provides a modest overall surface area available to interact with the target protein, making the identification of small molecules able to efficiently disrupt PPIs quite challenging [6,7].
On the other hand, the use of polypeptide-based molecules has been able to provide efficient therapeutic tools to modulate PPIs with high specificity and selectivity [8]. The use of therapeutic monoclonal antibodies to target extracellular protein receptors is just one example [9,10]. Antibodies, however, suffer from clear limitations: they are expensive to produce, cannot be delivered orally, show low tissue penetration, and are unable to reach intracellular targets. These issues have led to the exploration of alternative protein scaffolds as a source for novel protein-based therapeutics [11,12,13,14,15,16].
Special attention has been recently given to the use of highly constrained polypeptides for the development of novel stable polypeptide-based therapeutics [17,18,19]. Cyclotides are a fascinating emerging family of large plant-derived backbone-cyclized polypeptides (≈30–40 amino acids long) containing a 3 disulfide-stabilized core characterized by an unusual knotted structure (Figure 1) [20]. This unusual topology confers the cyclotide scaffold with unique characteristics that make them ideal for drug development (see recent reviews [21,22,23]).
Cyclotides are remarkably stable to thermal and chemical denaturation and biological degradation by proteolytic enzymes [26]. They can be easily accessible by chemical synthesis due to their relative small size and can be also recombinantly produced using standard expression vectors in different types of cells (see a recent review on the production of cyclotides [27]). Some cyclotides have been shown to be able to cross the cellular membranes of mammalian cells [28,29] to modulate intracellular PPIs, both in vitro and in vivo [5]. Even more exciting, cyclotides have shown to have biological activity when dosed orally [26,30,31].
The naturally-occurring cyclotide kalata B1, which was the first cyclotide to be discovered in plants, was used as an orally effective uterotonic [26] and several other kalata B1-based cyclotides have also been shown to be orally bioavailable [30,31]. These unusual characteristics for a polypeptide-based molecular scaffold make the cyclotide molecular framework an ideal substrate for molecular engineering and evolution strategies for the production of novel peptide-based diagnostic, therapeutic, and research tools. This article is meant to provide a brief overview of their most relevant properties and their potential to be used as a molecular scaffold for the development of peptide-based therapeutic agents.

2. Structure

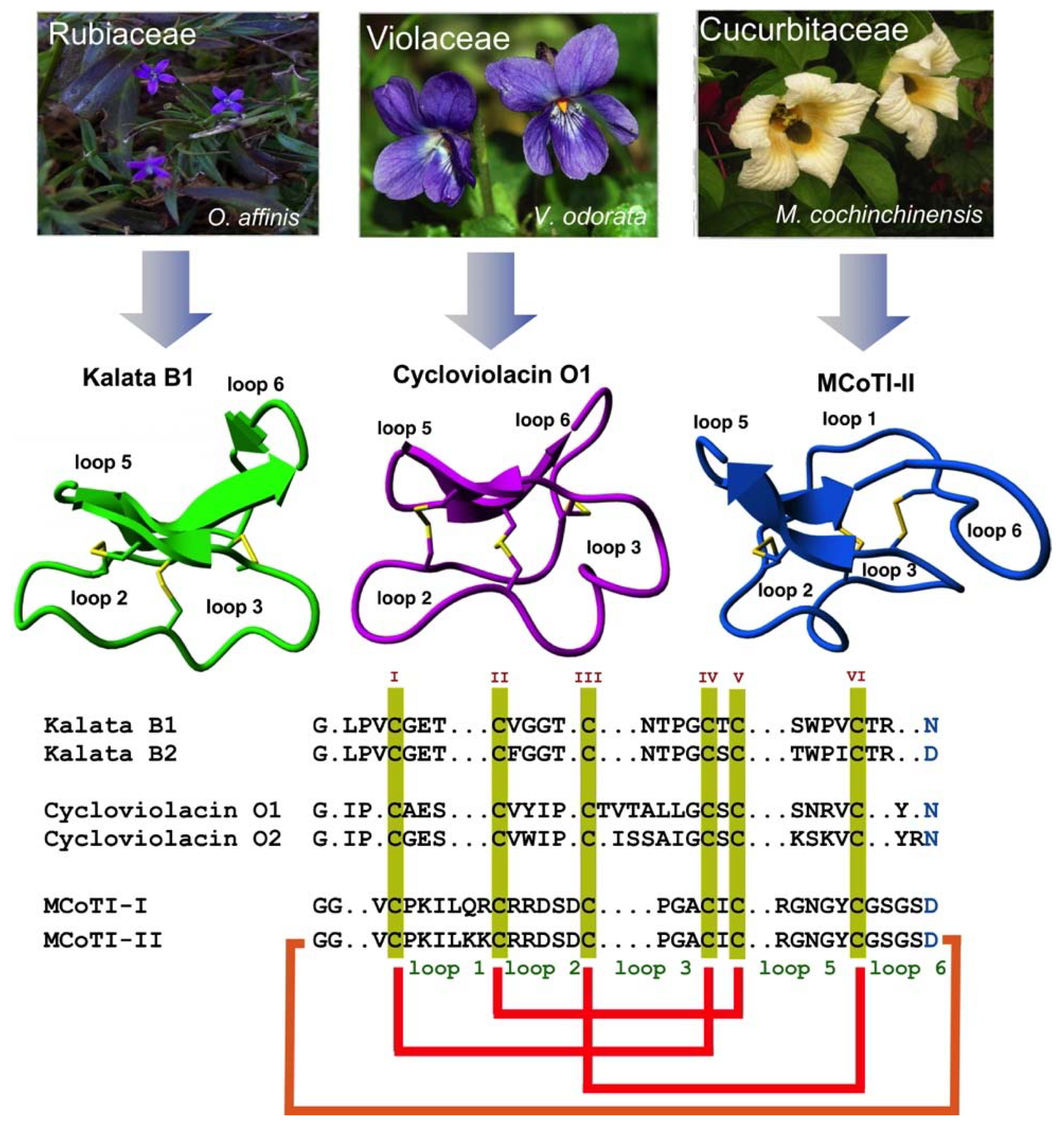

All naturally-occurring cyclotides are backbone-cyclized and contain between 27 to 37 amino acids, of which six are Cys residues. The six Cys residues form three disulfide bonds adopt a cystine-knot topology, with disulfides CysI-CysIV and CysII-CysV forming a ladder arrangement and disulfide CysIII-CysVI running through it (Figure 1). This highly interlocked cyclic cystine knot (CCK) motif makes the backbone of cyclotides very rigid and compact [32], which is responsible for their high stability to thermal, chemical, and proteolytical degradation [33,34]. This is highlighted in the case of the first cyclotide to be isolated, kalata B1, which was identified in the late 1960s by Gran when studying an indigenous traditional medical remedy in central Africa that was used to facilitate childbirth in pregnant women [35]. This traditional remedy used a tea obtained from the plant Oldelandia affinis from the Rubiaceae family [36]. The fact that the cyclotide kalata B1 was able to remain folded and biologically active even after being extracted by boiling water to produce a medicinal tea with uterotonic properties shows the remarkable stability of the cyclotide scaffold.
Cyclotides can be classified into three subfamilies, the Möbius, bracelet, and trypsin inhibitor cyclotide subfamilies [37]. All the subfamilies share the CCK topology, however, the loop composition, size, and sequence can be different among the members of the three subfamilies. Cyclotides from the Möbius sub-family, such as kalata B1, have a cis-Pro bond at loop 5 formed by a cis tryptophan–proline bond resulting in an 180° twist of the peptide backbone, while bracelet cyclotides do not have it [24].
Bracelet cyclotides are the most abundant in nature, making up ≈66% of the all the sequenced cyclotides known thus far [38]. These cyclotides are more structurally different and slightly larger in size than those from the Möbius subfamily. Bracelet cyclotides, on the other hand, are more difficult to fold in vitro than either Möbius or trypsin inhibitor cyclotides, making them more challenging to produce by using standard peptide synthesis protocols [39]. For that reason, cyclotides from the bracelet subfamily are much less used as molecular scaffolds for the production of cyclotides with novel biological activities.
The third subfamily of cyclotides, the trypsin inhibitor subfamily, contains only a small number of cyclotides isolated from the seeds of several Momordica spp plants (Cucurbitaceae family) [40,41,42]. Cyclotides from this subfamily are very potent trypsin inhibitors (Ki ≈ 20 pM) [43] that do not share significant sequence homology with cyclotides from the other two subfamilies beyond the CCK topology common to all cyclotides (Figure 1). Cyclotides from the trypsin subfamily show high sequence homology with cystine knot squash trypsin inhibitors and sometimes are referred to as cyclic knottins [44].
More recently, a new type of cyclotides with high content in positively-charged Lys residues haven also been isolated from two species of Australasian plants from the Violaceae family [45]. Unfortunately, there is not yet any information on their chemical synthesis, making it difficult to evaluate their real potential for being used as molecular frameworks in the design of novel peptide-based therapeutics.

3. Biosynthesis

Naturally-occurring cyclotides are produced by enzymatic processing from ribosomally produced precursor proteins [37]. Many cyclotides have dedicated genes encoding multiple copies of the same cyclotide or mixtures of different cyclotide sequences [46]. Not surprisingly, the first dedicated genes encoding cyclotide precursor proteins were found in the cyclotide producing plant Oldelandia affinis (Rubiaceae family), which is the source of the cyclotide kalata B1 [47,48]. Similar genes have also been found in other plants from the Violaceae and Rubiaceae [49], and more recently also in plants from the Solanaceae, Fabaceae, and Cucurbitaceae families [20,41,49,50,51]. Some of these new genes provide novel architectures for the corresponding cyclotide protein precursor, showing the high diversity used by nature to generate cyclotides.
Although the post-translational modifications required for the biosynthesis of cyclotides in nature have not been fully characterized yet [49,52], recent studies have determined that asparaginyl endopeptidase (AEP)-like ligases are involved in the C-terminal cleavage and backbone-cyclization of the linear cyclotide precursor [53,54]. For example, the co-expression of a cyclizing AEP-like ligase with a cyclotide precursor protein in non-cyclotide producing plants significantly improves the cyclization efficiency of the corresponding cyclotide linear precursor [55]. These AEP-like ligases have been shown to be able to backbone-cyclize different linear peptides in vitro, including linear cyclotide precursors and even peptides containing D-amino acids [53,55,56,57,58,59].
Despite the increasing understanding of how cyclotides are produced in plants, there is still not too much known about the N-terminal cleavage process and the corresponding associated protease. Complete understanding on how the cyclotide linear precursors are processed and identification of all the players involved should facilitate the engineering of genetically-modified organisms for the inexpensive bioproduction of cyclotides [60,61].

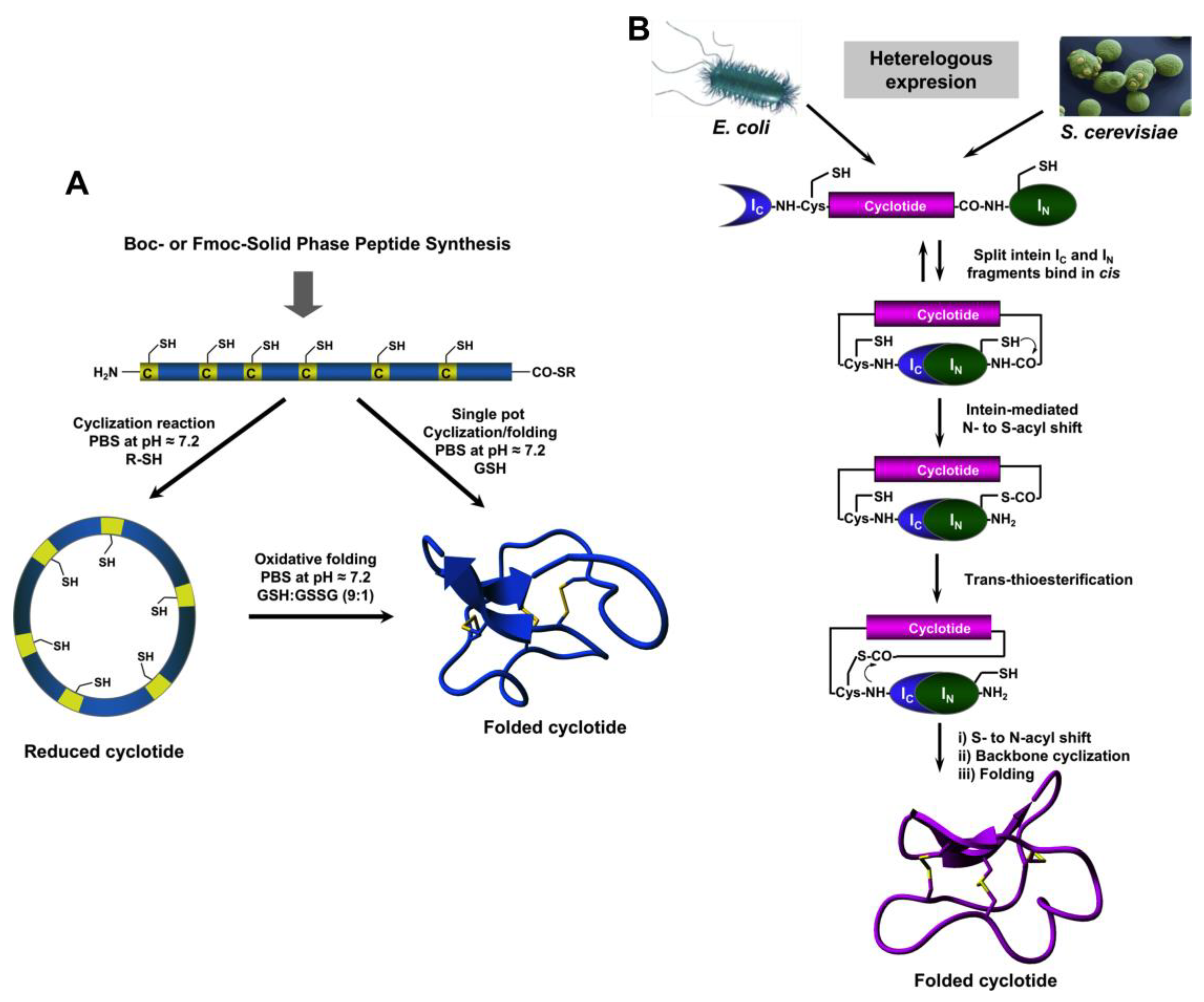

4. Chemical Synthesis

The relatively small size of cyclotides makes the synthesis of the corresponding linear precursors by chemical methods possible, using solid-phase peptide synthesis (SPPS) [27]. Backbone cyclization of the linear precursor can be easily accomplished in aqueous buffers at pH ≈7 using an intramolecular version of native chemical ligation (Figure 2A). The required peptide α-thioester can be readily generated using standard solid-phase peptide synthesis methods by either Boc- or Fmoc-based chemistry [27]. The corresponding linear precursor can be cyclized and oxidatively folded sequentially. A very convenient approach to generate chemically-produced cyclotides involves carrying out the cyclization and folding steps in a “single pot” reaction by using glutathione (GSH) as a thiol additive [62]. This approach has successfully been used to chemically generate many native and engineered cyclotides [5,62,63,64], as well as other disulfide-contained backbone-cyclized polypeptides [65,66].
Cyclotide linear precursors can be also chemoenzymatically cyclized using AEP-like ligases [53,54,59,67], which do not require the linear precursor to be natively folded for the cyclization to proceed efficiently [53]. Naturally occurring trypsin inhibitor cyclotides, such as MCoTI-I/II, can also be produced using the serine protease trypsin [68]. This is accomplished by producing a folded linear precursor bearing the P1 and P1 residues at the C- and N-termini, respectively. This approach provides a very efficient route for obtaining cyclotides with trypsin inhibitory properties with yields close to 92% for cyclotide MCoTI-II [68], however the introduction of mutations that affect the binding to the proteolytic enzyme may affect the cyclization yield [27]. Other proteases, such as the transpeptidase like sortase A (SrtA), have been also employed for the backbone cyclization of the corresponding synthetic linear precursor [69]. However, this approach, due to the sequence requirements for SrtA to work properly, leaves an extra heptapeptide motif at the cyclization site, which should be taken into consideration when producing bioactive cyclotides.

5. Recombinant Expression

The use of protein splicing units, also called inteins, in either cis or trans allows the recombinant production of backbone cyclized polypeptides (for more detailed reviews in this topic see [27,70]). Initial attempts for production of cyclotides using heterologous expression systems involved the use of modified inteins for generating α-thioester polypeptides that were then backbone-cyclized using an intramolecular version of native chemical ligation [71,72]. The use of intein-mediated protein trans-splicing (PTS) has been shown to be more effective for the production of naturally-occurring and engineered cyclotides in prokaryotic and eukaryotic expression systems (Figure 2B) [73,74,75]. In-cell production of folded cyclotides by PTS can reach intracellular concentrations in the range of 2040– μM. This corresponds to ≈ 10 mg of folded cyclotide per 100 g of wet cells in Escherichia coli expression systems producing cyclotide MCoTI-I [75]. These values are quite comparable to those obtained when using the cyclotide-producing plant O. affinis, which produces ≈ 15 mg of cyclotide kalata B1 per 100 g of wet weight when grown in vitro [76]. Given the fastest growth rate and the simplicity of working with microorganisms such as E. coli, PTS provides a very attractive alternative for a cost-effective route to produce bioactive cyclotides with therapeutic potential.
In-cell production of cyclotides also opens the exciting possibility for the generation of large genetically-encoded libraries of cyclotides, which can be rapidly screened for the selection of novel sequences able to modulate specific molecular targets [74]. In addition, having easy access to cyclotides using standard heterologous expression systems facilitates the production of cyclotides labeled with NMR active isotopes, such as 15N and 13C, in a relatively inexpensive fashion [5]. This approach was used to carry out structural studies using heteronuclear NMR on a cyclotide engineered to bind the p53 binding domain of the E3-ligases Hdm2 and HdmX, allowing elucidation of the structure of the bioactive cyclotide bound to its target (Figure 3) [5].

6. Biological Activities of Naturally-occurring Cyclotides

Naturally-occurring cyclotides from the Möbius and bracelet sub-families seem to work mainly as host-defense agents, as deduced from their activities against insects [20,47,77,78,79,80]. Cyclotides from these two subfamilies have also been shown to inhibit the growth and development of nematodes and trematodes [81,82,83], and mollusks [84]; as well as antifungal activity shown by cyclotides in Viola odorata against the agriculturally-relevant, filamentous fungus F. graminearum [85].
Möbius and bracelet cyclotides interact with the cellular membranes of the gastrointestinal tract in insects, disrupting their normal function [86]. The molecular mechanism has been well studied for the Möbius cyclotide kalata B1, involving first the specific binding of the cyclotide to the phosphatidylethanolamine phospholipids present in the cellular membrane [87,88,89]. This compromises the membrane physical integrity, triggering the formation of pores and consequent leakage of the cellular contents [90,91,92,93].
Cyclotides from the Möbius and bracelet sub-families present some amphipathic characteristics as their molecular surfaces contain well-defined hydrophobic and hydrophilic patches [92]. This molecular feature resembles, to some extent, the amphipathic character of classical antimicrobial peptides. It is not surprising then that some cyclotides of this family show antibacterial activity [94]. Cyclotides kalata B1, and circulin A and B have shown minimal inhibitory concentrations (MICs) against S. aureus at 0.26 μM, 0.19 μM, 13.5 μM, and 39 μM, respectively, under low salt conditions, but no activity under physiological salt conditions [94].
Similar activities have also been found in other cyclotides isolated from Hedyota biflora (Rubiaceae family) [95,96] and Clitoria ternatea (Fabaceae family) [51]. The cyclotide with the highest antimicrobial activity tested so far is the bracelet cyclotide cycloviolacin O2, with reported MIC values of 8.75 µM, 2.2 µM, and >50 µM agaisnt S. enterica, E. coli, and S. aureus, respectively [97]. This cyclotide has showed antibacterial activity against the Gram-positive bacterium Staphylococcus aureus in a mouse infection model [98]. Intriguingly, the antimicrobial activity of cyclotides when tested in vitro strongly depends on the buffer composition occurring only under hypotonic conditions when low ionic strength buffers are used. This suggests that the antimicrobial activity observed in animal models may be due to an indirect effect of the cyclotide. The toxicity of some of the natural cyclotides tested so far shows that at the effective antimicrobial concentration they also show high toxicity against mammalian cells [99].
Several cyclotides have shown selective cytotoxicity against several cancer cell lines, including primary cancer cell lines, when compared to normal cells [100,101,102]. More recently, several cyclotides isolated from Viola ignobilis (Violaceae family), Hedyotis diffusa (Rubiaceae family), and Pombalia calceolaria have shown cytotoxicity against HeLa [103], several prostate cancer cell lines [104,105], and breast cancer, respectively [106]. Unfortunately, the therapeutic index (i.e., the ratio between the dose required for therapeutic effects versus toxic effects on normal cells) of cytotoxic cyclotides is not optimal yet, requiring optimization before that can be developed into effective anti-cancer therapeutic agents.
As mentioned earlier, the cyclotide kalata B1 was originally discovered as an efficient uterotonic agent used in a traditional medicine remedy to facilitate childbirth [35]. Recent studies on the related cyclotide kalata B7, which is also found in the same plant where kalata B1 was originally isolated from, have shown that this cyclotide is a moderate agonist of the G protein-coupled oxytocin and vasopressin V1a receptors [107]. The activity of kalata B7, however, was modest (EC50 values ranging from 1 to 10 µM) when compared to that of the natural receptor ligands oxytocin and vasopressin (EC50 ≈ 1 nM) [107,108]. Cyclotide kalata B7, as with other kalata cyclotides (mainly kalata B1 and B2), also interacts strongly with phosphatidylethanolamine-containing lipids in cellular membranes causing its disruption [109]. This interaction is likely the cause of the hemolytic properties and cardiotoxicity observed in several cyclotides of the kalata B1 family, indicating that these types of cyclotides have to be further optimized before they can be used as potential therapeutic agents.
More recently, cyclotides isolated from an Ipecac root extract have been shown to antagonize the corticotropin releasing factor type 1 receptor (CRF1R) [110]. The most active cyclotide, caripe 8, was able to reduce corticotropin releasing factor (CRF) potency by ≈ 4.5-fold. In contrast, caripe 8 did not inhibit forskolin- or vasopressin-stimulated cAMP responses at the vasopressin V2 receptor, suggesting a CRF1R-specific mode-of-action.
Kalata B1 has been also shown to inhibit human prolyl oligopeptidase (POP) with an IC50 value of ≈ 6 µM. The inhibitory activity appeared to be selective for POP, since kalata B1 was not able to inhibit the proteolytic activity of trypsin or chymotrypsin [111]. The enzyme POP is well known for its role in memory and learning processes, and it is currently being considered as a promising therapeutic target for the cognitive deficits associated with several psychiatric and neurodegenerative diseases, such as schizophrenia and Parkinson’s disease.
The cyclotide from Viola odorata, Cycloviolacin O2, has been shown to form pores in HIV infected T-cells and monocytes. In addition, it was also able to decrease the content of p24 in the HIV viral particle, disrupting the structural integrity of the virus. These effects could help the efficacy of classical retroviral therapeutic agents, although it has not been investigated yet [112].
Other cyclotides isolated from O. affinis have also anti-plasmodial activity against Plasmodium berghei as well as anti-inflammatory activity by decreasing the expression levels of pro-inflammatory mediators such as iNO and TNF-α [112].

7. Cyclotides with Novel Biological Activities

The unique properties associated with the cyclotide scaffold make it an excellent molecular framework for the design of a novel type of peptide-based therapeutics (see Table 1) [17,18,21,22]. Cyclotides are extremely resistant to physical, chemical, and biological degradation due to the highly rigid and compact structure provided by the CCK topology. Furthermore, the cyclotide scaffold is also highly tolerant to mutations and sequence insertions, making it an ideal molecular framework for production of novel cyclotides with new biological activities using molecular evolution and grafting techniques. Cyclotides from the trypsin inhibitor family are able to cross cellular membranes allowing them to target intracellular PPIs [5] and are not toxic to mammalian cells up to concentrations of 100 µM [5,28,29].
The potential to produce engineered cyclotides with novel biological activities was first reported in two reports aimed to the development of novel anti-viral [68] and anti-cancer peptide-based therapeutics [113,114]. Targeting angiogenesis is a validated molecular target for the development of anti-cancer therapeutics, as tumor growth requires neoangiogenesis. Molecular grafting of several Arg-rich polypeptide inhibitors of the vascular endothelial growth factor A (VEGF-A) into several loops of cyclotide kalata B1 produced several cyclotides with anti-VEGF activity [113]. The most active cyclotide inhibited the VEGF-A receptor with an IC50 value ≈ 12 µM. Although the biological activity would have to be improved by several orders of magnitude for in vivo testing, this early work showed the first example of a successful functional redesign of a naturally-occurring cyclotide by using an epitope or molecular grafting approach.
Similar molecular grafting approaches using the molecular framework of kalata B1 have been reported in the literature to target bradykinin and melanocortin 4 receptors for pain and obesity management, respectively [30,115]. The kalata B1-based bradykinin antagonist was the first engineered cyclotide to show activity when dosed orally [30]. A more recent study using a point mutated kalata B1 cyclotide also showed oral bioavailability in a mouse model of multiple sclerosis [31]. The treatment with this cyclotide impeded disease progression and did not exhibit adverse effects at a dose of 20 mg/kg [31]. Despite the fact that these two studies provided detailed pharmacokinetic or pharmacodynamic data on the corresponding engineered cyclotides, these studies highlight once more the potential of the cyclotide scaffold for the development of orally-bioavailable peptide-based therapeutics.
Cyclotides from the trypsin inhibitory subfamily, mainly cyclotides MCoTI-I/II, have also been used as molecular templates to produce cyclotides with novel biological activities by employing molecular grafting (see Table 1). Cyclotide MCoTI-I has been successfully used for the design of potent antagonists for the cytokine receptor CXCR4 [116]. Many cancer cells show overexpression of the CXCR4 receptor, which is believed to drive tumor metastasis, neoangiogenesis, and tumor growth and survival [117]. CXCR4 cyclotide antagonists have also recently used bioimaging agents, showing the potential of cyclotides for this task for the first time [63]. This work used a [64Cu]-DOTA-labeled version of a CXCR4-binding MCoTI-based cyclotide for the efficient detection of tumors containing CXCR4-expressing cells in mice in combination with positron emission tomography-computed tomography (PET-CT) [63]. The results obtained in this study revealed high in vivo specificity and retention of the bioactive molecularly-targeted cyclotide, therefore also highlighting the potential of bioactive cyclotides for the development of new imaging agents that target CXCR4 [63].
Cyclotides from the trypsin inhibitor subfamily can also be used for the development of protease inhibitors with pharmacological relevance. Proteases are well-recognized drug targets, as they are involved many human diseases, including inflammatory diseases, cancer, cardiovascular, and neurodegenerative conditions [118,119]. For example, the introduction of different mutations onto loops 1 and 6 of cyclotide MCoTI-II converted it into a selective and potent foot-and-mouth-disease (FMDV) 3C protease inhibitor [68]. A similar approach was employed for the production of potent inhibitors against β-tryptase and human leukocyte elastase, which are validated targets for inflammatory disorders [114,120]. More recently, cyclotide MCoTI-II was also transformed into a highly potent kallikrein-related peptidase 4 (KLK4) inhibitor (Ki ≈ 0.1 nM) that displayed 100,000-fold selectivity over related KLKs. This was accomplished by grafting a preferred KLK4 cleavage sequence into loops 1 and 6 of cyclotide MCoTI-II [121]. The inhibitors were shown to be nontoxic to human cells and stable in human serum.
Cyclotide MCoTI-II was also used as a molecular scaffold to produce novel peptide-based inhibitors of the breakpoint cluster region protein-Abelson murine leukemia viral oncogene homolog (BCR-ABL) kinase [122]. In this case two peptide sequences derived from an optimal substrate for the Abl kinase were grafted into loops 1 or 6 of cyclotide MCoTI-II to produce several cyclotides able to show Abl kinase inhibition in vitro in the low micromolar range. However, these cyclotides did not show significant growth inhibition in an imatinib-sensitive human chronic myeloid leukemia (CML) cell line. Although this study did not investigate the inhibition of cytosolic BCR-ABL, the lack of activity suggests that more potent kinase inhibitors may be required to observe activity in cell and in vivo. Despite these results, this work represents an example of molecular grafting using two different loops to provide a novel cyclotide that was able to fold correctly and have moderate kinase inhibitory activity, which is a remarkable result.
MCoTI-grafted cyclotides have been also used to inhibit α-synuclein-induced cytotoxicity when expressed in baker’s yeast Saccharomyces cerevisiae [74]. The small lipid-binding protein α-synuclein has been linked to Parkinson’s disease by genetic evidence and abnormal presence in the Parkinson’s disease-associated intracellular aggregates, known as Lewy bodies [123], and therefore is a validated therapeutic target for Parkinson’s disease [124].

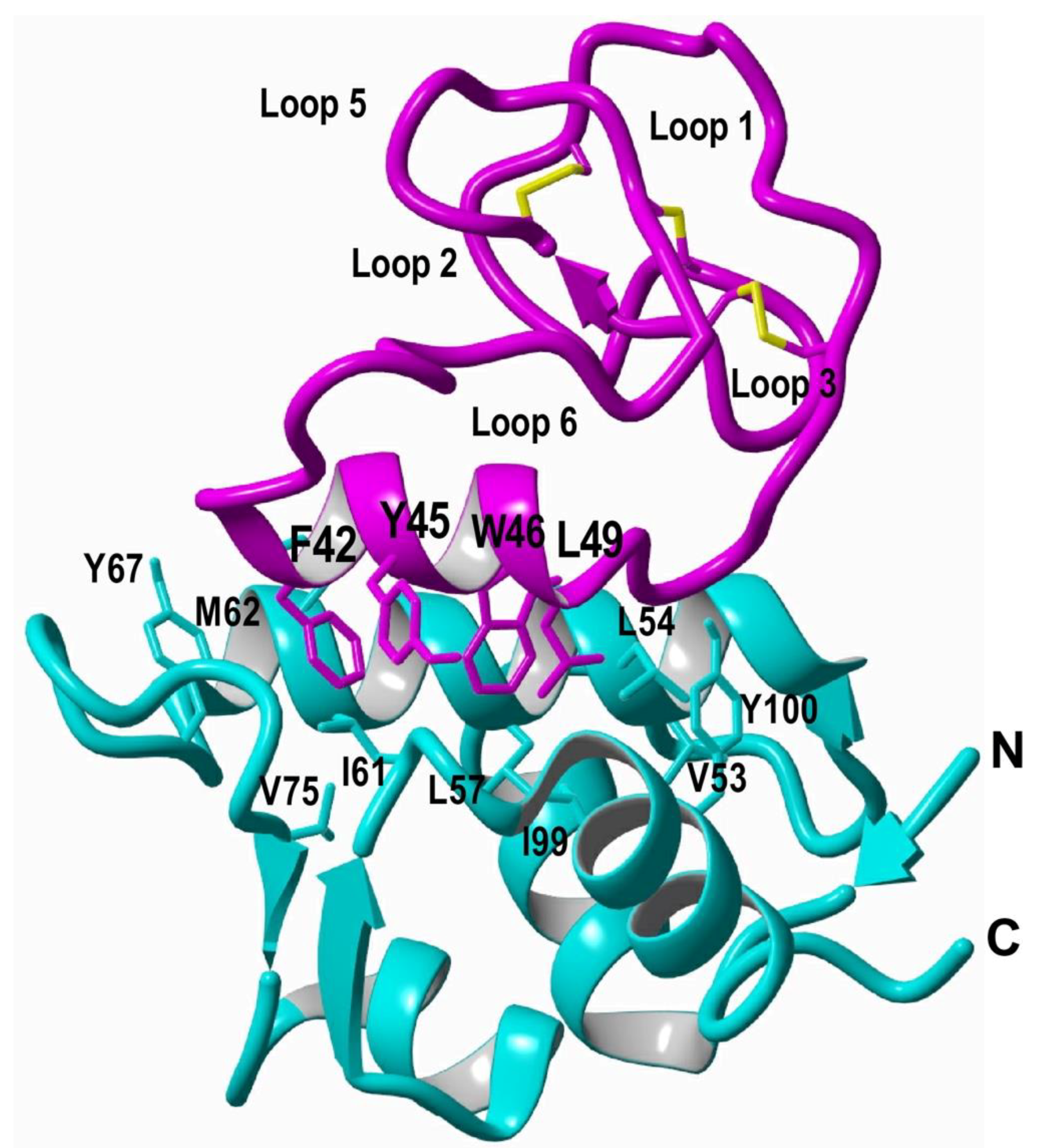

Among the unique features of the cyclotide scaffold, one of the most exciting is that some cyclotides can penetrate cells and access to cytosolic cellular fraction. This exceptional feature found in cyclotides from the trypsin inhibitor subfamily allows cyclotides to target intracellular PPIs. This was demonstrated on a report where the cyclotide MCoTI-I was engineered to produce a potent inhibitor for the interaction between p53 and the proteins Hdm2/HdmX (Figure 3) [5]. This MCoTI-based cyclotide was able to bind to the p53-binding domain of both Hdm2 and HdmX with very high affinity (Kd ≈ 2 and 10 nM for Hdm2 and HdmX, respectively), and showed high ex-vivo stability in serum. This cyclotide was cytotoxic to several wild-type p53 cancer cell lines by activating the p53 tumor suppressor pathway both in vitro and in vivo using an animal model of human colorectal carcinoma [5]. This work represents the first example of an engineered cyclotide able to target an intracellular PPI in vivo and shows the real therapeutic potential of MCoTI-based cyclotides for targeting intracellular PPIs in vivo. A similar approach but using cyclotide MCoTI-II instead was also reported to produce cyclotide antagonists of the Su(var)3-9/enhancer-of-zeste and Trithorax (SET) protein, which is overexpressed in some human cancers [125]. However, no in vivo results were reported in this study.
More recently, a point mutated cyclotide kalata B1 T20K was reported to have oral activity in a mouse model of multiple sclerosis [126]. This cyclotide has been recently shown to be able to modulate the activity of intracellular 14-3-3 proteins using chemical proteomic tools [127].
As mentioned earlier, in-cell production of natively folded cyclotides allows the production of large libraries of genetically-encoded cyclotides with complexities that could easily reach ≈ 109, i.e., around a billion different cyclotide sequences. The production of such large libraries should allow the use of selections strategies mimicking the evolutionary processes that take place in nature for the selection of sequences that can bind specific molecular targets. The first example described the biosynthesis of a small library based on cyclotide MCoTI-I, where every residue in loops 1, 2, 3, 4, and 5 was mutated to evaluate the effects on folding and trypsin binding activity of the resulting mutants [128]. This early work produced a small library containing around 30 different cyclotides with single point mutations. Most of the mutations did not negatively affect the folding of the resulting cyclotides, emphasizing the high plasticity and sequence tolerance of MCoTI-based cyclotides to mutations [128].
An acyclic version of cyclotide kalata B1 has also been used for the generation of libraries in combination with a bacterial display approach that was later screened for selecting cyclotide sequences specific for the vascular endothelial growth factor A (VEGFA)binding site on neuropilin-1 [129]. Using this approach several cyclotides with high affinity (Kd ≈ 50 nM), high proteolytic resistance, and in vitro activity inhibiting endothelial cell migration (EC50 ≈100 nM) were reported [129].
A linearized version of cyclotide MCoTI-II was also employed as a scaffold to generate a genetically-encoded library that was screened using a yeast-display approach to select sequences able to bind to the cytotoxic T lymphocyte-associated antigen 4 (CTLA-4) [130]. CTLA-4 is an inhibitory receptor expressed by T lymphocytes that functions as an immune checkpoint downregulating immune responses, and has emerged as a target for the development of checkpoint inhibitors for cancer treatment [131].
A fully folded cyclotide-based genetically-encoded library was recently used for phenotypic in eukaryotic cells [74]. In this study, a bioactive cyclotide able to reduce α-synuclein-induced cytotoxicity in baker’s yeast S. cerevisiae was rapidly selected by phenotypic screening from cells transformed with a mixture of plasmids encoding active and inactive cyclotides at a ratio of 1 to 50,000 [74]. These results show the potential to perform rapid phenotypic screening of genetically encoded cyclotide-based libraries in eukaryotic cells for the selection of bioactive compounds using activity- rather than binding-based screening assays. Expression of cyclotide-based libraries using eukaryotic expression systems also allows the production of cyclotides with different post-translational modifications that are not available in bacterial expression systems in order to increase the molecular diversity of the library.
The availability of efficient methods for the chemical production of cyclotides has also made it possible to carry out high throughput screening on chemically-produced libraries of cyclotides [62]. A small amino acid scanning library based on a CXCR4 cyclotide antagonist was recently created by using a “tea-bag” approach in combination with a high efficiency “one-pot” cyclization protocol involving concomitant cyclization and oxidative folding [62]. This protocol also includes the use of an efficient purification step to rapidly remove the non-folded cyclotides from the cyclization-folding crude. This approach can be used for the purification of cyclotide or other disulfide-rich polypeptide mixtures, therefore making it possible to produce amino acid and positional scanning libraries to carry out efficient screening of large chemical-generated libraries. A similar approach was recently used for the production of potent inhibitors of the anthrax lethal factor protease (Ki ≈ 40 nM) and TNF-α converting enzyme (TACE) (Ki ≈ 150 nM) using the disulfide-rich backbone cyclized θ-defensin RTD-1 as a molecular scaffold [66].

8. Biodistribution Studies on Cyclotides

There are some published reports on the biodistribution and potential to cross the blood brain barrier of cyclotides from the trypsin inhibitor subfamily [63,132]. These two reports confirmed that naturally-occurring cyclotides MCoTI-I/II are distributed in mice predominantly into serum and kidneys, confirming high in vivo stability, and that they are eliminated mostly through renal clearance [63,132]. In addition, it was also confirmed that cyclotide MCoTI-II cannot cross the blood brain barrier [132]. It is important to notice, however, that the biodistribution profile of cyclotides will also depend strongly on their biological activity. For example, a study on the biodistribution of a CXCR4 binding cyclotide showed major accumulation in the lungs, liver, and spleen, even after 24 h of administration [63]. This cyclotide was also mostly secreted though renal clearance, showing a peak after 90 min of administration and slowly decaying after 24 h. Similar studies have also been carried out to study the pharmacokinetic profile of cyclotide kalata B1 in rats, obtaining very similar results to those found for MCoTI-cylcotide [133].
Unfortunately, there is not much data published on the pharmacokinetic or pharmacodynamic profiles of bioactive cyclotides, which is surprising given the good in vivo biological activity of some engineered cyclotides.

9. Summary

It is becoming clear that cyclotides are now a well-studied family of micro-proteins that are starting to gain acceptance as molecular scaffolds for the potential design of novel peptide-based therapeutics and diagnostic tools based on their unique properties. Cyclotides possess a unique highly constrained structure containing a cystine-knot and circular backbone topology, which confers them an extraordinary stability to thermal and chemical denaturation, and proteolytic degradation. Some cyclotides can be dosed orally and can cross cellular membranes, allowing them to target extracellular, and more importantly intracellular, PPIs in vivo [5,30,31,127]. This highlights the high stability of the circular cystine knot topology to degradation-reduction under complex biological conditions. Cyclotides are relatively small polypeptides that can be readily accessed using standard solid-phase peptide synthesis methods, allowing the introduction of chemical modifications, such as non-natural amino acids and PEGylation, to improve their pharmacological profiles [64,116]. More importantly, naturally occurring cyclotides are also able to tolerate substantial sequence variation and have been produced using several heterologous systems, making them ideal substrates for molecular evolution for the selection of novel sequences with optimal binding and inhibitory characteristics against specific molecular targets [74,129,130]. Large scale production of bioactive cyclotides can easily be accomplished by using heterologous expression systems. The full characterization of AEP-like ligases involved in the biosynthesis of cyclotides should allow the production of genetically-modified plants able to biosynthesize cyclotides. In addition, the use of PTS-mediated backbone cyclization employing microbial expression systems, such as the bacterium E. coli, provides expression yields of cyclotides that are comparable to those found in plants when grown in vitro. The simplicity of growing bacteria, as well as their significantly faster growth rates, makes them an attractive alternative to the low-cost production of bioactive cyclotides at large scale. All these unique properties make cyclotides one of the most promising scaffolds available now for the design of novel peptide-based therapeutics.

10. Concluding Remarks

The selective and effective disruption PPIs still remains a difficult task. This is mostly due to the nature of the interacting surfaces, which are usually large and relatively flat. The cyclotide scaffold provides a cell-permeable and highly-constrained molecular framework to efficiently target both extra- and intracellular PPIs. There are proven tools available to produce cyclotides with novel biological activities by employing molecular grafting of bioactive epitopes, or even through molecular evolution techniques. Using these tools, cyclotides that can target a multitude of protein targets (see Table 1) have been designed and tested mostly in vitro, although some in animal models also [5,30,31]. A few examples have also shown the potential of cyclotides to be dosed orally to target specific molecular targets or diseases [30,31], although this property would need to be tested in any new cyclotide, as changes in sequence could have a negative effect on this interesting property.
Despite this initial success in employing the cyclotide scaffold to target specific proteins to modulate their biological activity, no cyclotides have reached human clinical trials yet. Among the different challenges that affect bioactive cyclotides before they can move into the clinic are the potential immunogenicity and oral bioavailability.
Although cyclotides are highly constrained and extremely resistant to proteolytic cleavage, which is required for proper T-epitope presentation and activation of the cellular immune response, more detailed studies on the immunogenicity of bioactive cyclotides are required. In this regard, a recent study was able to rise polyclonal antibodies against cyclotide cycloviolacin O2, however due to the poor immunogenicity of the free cyclotide conjugation to an immunogenic protein, a carrier was required [140].
As indicated earlier, some cyclotides have been proven to be orally active, however no detailed information has been released yet on their pharmacological profiles when dosed orally. It is anticipated, however, that more studies on the biopharmaceutical properties of these exciting new micro-proteins may be available very soon.

Author Contributions

J.A.C. and M.J.C. wrote the manuscript.

Funding

J.A.C. is supported by National Institutes of Health Research Grant R01-GM113363, Department of Defense Congressionally Directed Medical Research Programs in Lung Cancer Grant LC150051, BROAD Medical Research Program-Crohn’s and Colitis Foundation of America, Grant #483566, Lupus Research Institute, and Whittier Foundation.
