Using MoS₂/Fe₃O₄ as Ion-Electron Transduction Layer to Manufacture All-Solid-State Ion-Selective Electrode for Determination of Serum Potassium

Abstract

As an essential electrolyte for the human body, the potassium ion (K⁺) plays many physiological roles in living cells, so the rapid and accurate determination of serum K⁺ is of great significance. In this work, we developed a solid-contact ion-selective electrode (SC-ISE) using MoS₂/Fe₃O₄ composites as the ion-to-electron transducer to determine serum K⁺. The potential response measurement of MoS₂/Fe₃O₄/K⁺-ISE shows a Nernst response by a slope of 55.2 ± 0.1 mV/decade and a low detection limit of 6.3 × 10⁻⁶ M. The proposed electrode exhibits outstanding resistance to the interference of O₂, CO₂, light, and water layer formation. Remarkably, it also presents a high performance in potential reproducibility and long-term stability.

1. Introduction

Potassium (K⁺) is an essential element in the human body. The normal range for potassium level in the blood is 3.5 to 5.5 mM. K⁺ takes part in the metabolism and many physiological activities in the human body, such as maintaining acid-base balance, the normal functions of nerves and muscles, and even cardiac pacing [1]. Abnormal K⁺ concentration is a symptom of several diseases, including kidney diseases, alcoholism, anorexia, heart disease, diabetes, Addison’s disease [2,3]. In the modern medical community, potassium level is considered one of the most vital indicators for electrolyte detection, especially for the rescue of critically ill patients [4]. The standard methods for detection of K⁺ concentration include gravimetry, ion chromatography, flame photometry, atomic absorption spectrometry, and the ion-selective electrode method [5,6]. A blood gas analyzer based on the liquid-contact ion-selective electrode (LC-ISE) is applied to determine the serum K⁺ in clinical testing. However, LC-ISE has inner filling solutions, which leads to unfavourable storage and miniaturization [7,8].

The all-solid-state ion-selective electrode using solid-contact layer, termed solid-contact ISE (SC-ISE), does not require inner filling solutions and shows an excellent potential for portable serum K⁺ detection [9,10,11]. Cattrall et al. [12] developed the original solid-state ion-selective electrode, in which the ion-selective membrane (ISM) coats onto a metallic conductor directly. However, the primary reason hindering the widespread application and conventional analysis of ISE is the unstable response to the electrode potential. This limitation is mainly due to the effective ion-to-electron conversion between the ISM (ion conduction) and the substrate electrode (electronic conduction) [13,14]. Therefore, to overcome this limitation, an intermediate layer is designed and proposed to facilitate the ion-to-electron transduction, thus contributing to the further development of the SC-ISEs [15,16]. During the past decades, various SC functional materials have been incorporated into SC-ISEs as ion-to-electron transducers, particularly conductive polymers [9,17]. However, some SC-ISEs with conductive polymers as the SC layer are affected by the water layers and the interference of light, O₂, and CO₂ [18,19]. In contrast, nanostructured materials, such as noble metal nanomaterials, carbon nanotubes, graphene, and hybrid composites, exhibit excellent physicochemical properties [20,21,22,23]. According to two theories of the ion–electron transfer between the SC and ISM, the SC layer plays a vital role in stabilizing the interfacial potential. Meanwhile, its presence not only enlarges double-layer capacitance but also activates redox activity [24]. Therefore, it requires a high specific surface area and outstanding redox activity of composites as SC to achieve a stable electrode potential [16,17,24].

Dichalcogenides have two-dimensional (2D) structures similar to graphene. These graphene-like materials are characterized by a large effective surface area, as well as excellent mechanical and electronic properties [25]. These properties are consistent with the transducing layer materials we require. MoS₂ is a typical layered transition metal dichalcogenide widely used in supercapacitors, transistors, catalysts, and other fields [26]. Qin et al. [19] fabricated a K⁺-ISE with 3D MoS₂ nanoflowers as an SC layer, which shows a good performance in electrochemical measurements. Although the MoS₂ nanoflowers as an SC layer present excellent properties, it cannot be ignored that there is ample space between the petals of the MoS₂ nanoflowers, making their structure relatively fragile. However, the spaces can be effectively supported by filling with ultrafine nanoparticles to prevent the spatial structure of the MoS₂ nanoflowers from collapsing.

Meanwhile, we aim to further increase the redox capacitance of the SC layer by loading redox active nanomaterials. Magnetite (Fe₃O₄) is considered as a promising candidate. Some studies have shown that the specific capacitance of Fe₃O₄ nanoparticles hybridized with reduced graphene oxide (rGO) is much higher than those of pure Fe₃O₄ and Fe₃O₄/CNTs composites [27,28]. Moreover, the large specific surface area provided by ultrafine particles leads to higher ion fluxes, and the transport distance in the ultrafine particles is shorter, which can significantly improve the ion–electron conversion [29,30]. Therefore, filling MoS₂ nanoflowers with Fe₃O₄ nanoparticles may support the resulting structure and avoid its collapse. Meanwhile, it is also effective in improving the capacitance of the SC layer. In addition, MoS₂ nanoflowers are built with a layered structure to disperse Fe₃O₄ nanoparticles, thus improving their electrochemical properties effectively.

In this work, a stable K⁺-ISE was facilely manufactured with MoS₂/Fe₃O₄ nanocomposites as ion-to-electron transducers. Subsequently, the electrochemical measurements of the self-made electrode were investigated to evaluate their potential reproducibility, stability, water layer, and anti-interference performance. Finally, the electrode was successfully applied to detect the actual serum K⁺ in real samples.

2. Materials and Methods

2.1. Synthesis of the MoS₂/Fe₃O₄ Composites

The MoS₂ nanoflowers were synthesized through the hydrothermal method [26]. Typically, 1.06 g ammonium molybdate ((NH₄)₆Mo₇O₂₄·4H₂O) and 1.96 g thiourea (CH₄N₂S) were added in 30 mL ultrapure water, and they are mixed. After stirring for 30 min, the mixture turned into a uniform and stable blue solution. Subsequently, the solution was poured into the reactor, and the reactor was placed in an oven at 180 °C for 24 h. After the reactor was completely cooled, the precipitated products were obtained by filtration, and the products were washed with ultrapure water and dried under reduced pressure conditions for 12 h. In the end, white MoS₂ nanoflowers were obtained.

The MoS₂/Fe₃O₄ composite was synthesized through the solvothermal method [31]. A combination of 0.10 g of the MoS₂ nanoflowers, 0.25 g FeCl₃·6H₂O, 30 mL ethanol, and 5 mL ultrapure water was mixed by ultrasonic treatment for 2 h. Then, 0.75 g NaOAc was added to the solution. After stirring for 1 h, the mixture was poured into the reactor at 200 °C for 24 h. After the process, the black product (MoS₂/Fe₃O₄) was separated by magnetic force and washed with ultrapure water. Finally, the MoS₂/Fe₃O₄ composites were obtained after being dried in the vacuum oven for 12 h.

2.2. Fabrication of All-Solid-State Potassium Selective Electrodes

The glass-carbon disk electrode (GC, i.d. 3 mm) was polished with alumina powder (1.0, 0.3, and 0.05 μm) and then rinsed with ethanol and ultrapure water. To prepare the SC layer, the MoS₂/Fe₃O₄ composites were dissolved in water, then mixed evenly under ultrasonic treatment. Additionally, 5-μL MoS₂/Fe₃O₄ suspensions were then coated onto the GC electrode and dried in air. The above steps were repeated four times.

The composition of the membrane solution was 131.2 mg o–NPOE, 2.0 mg valinomycin, 1.2 mg NaTFPB, and 65.6 mg PVC, which was dissolved in 1.6 mL THF [32]. For the K⁺-ISE fabrication, 20 μL of the membrane solution was dripped onto the top of the GC electrode modified by the MoS₂/Fe₃O₄ transducer and left to dry naturally. This procedure was repeated 5 times. The prepared K⁺-ISE was conditioned in 1 mM KCl for more than 24 h before being used [19].

2.3. Electrochemical Measurements

The open-circuit potential measurement was performed with a CHI660B Electro-Chemical workstation (Shanghai Chenhua Apparatus Corporation, Shanghai, China) with two-electrode systems. Double liquid junction Hg/Hg₂Cl₂ was used as the reference electrode, and 1 M LiOAc was used as a salt bridge electrolyte. With 10 mL ultrapure water as the base solution, 50 μL of standard potassium ion solution with different concentrations was added per 100 s. Both electrochemical impedance spectroscopy (EIS) and chronopotentiometry tests were performed with a three-electrode system in 0.1 M KCl. The working electrode was the modified electrode, the auxiliary electrode was a platinum wire, and Ag/AgCl (3 M KCl) was used as the reference electrode. The EIS measurements were performed in the frequency range from 10⁵ Hz to 10⁻² Hz with an excitation amplitude of 20 mV with a Zahner electrochemical workstation in the case of open-circuit voltage. A chronopotentiometry test was recorded using a CHI660B electrochemical workstation. A constant current of +1 nA was applied on the working electrode for 60 s, followed by a current of −1 nA for 60 s.

3. Results and Discussion

3.1. Characterization of the Synthesized MoS₂/Fe₃O₄ Composites

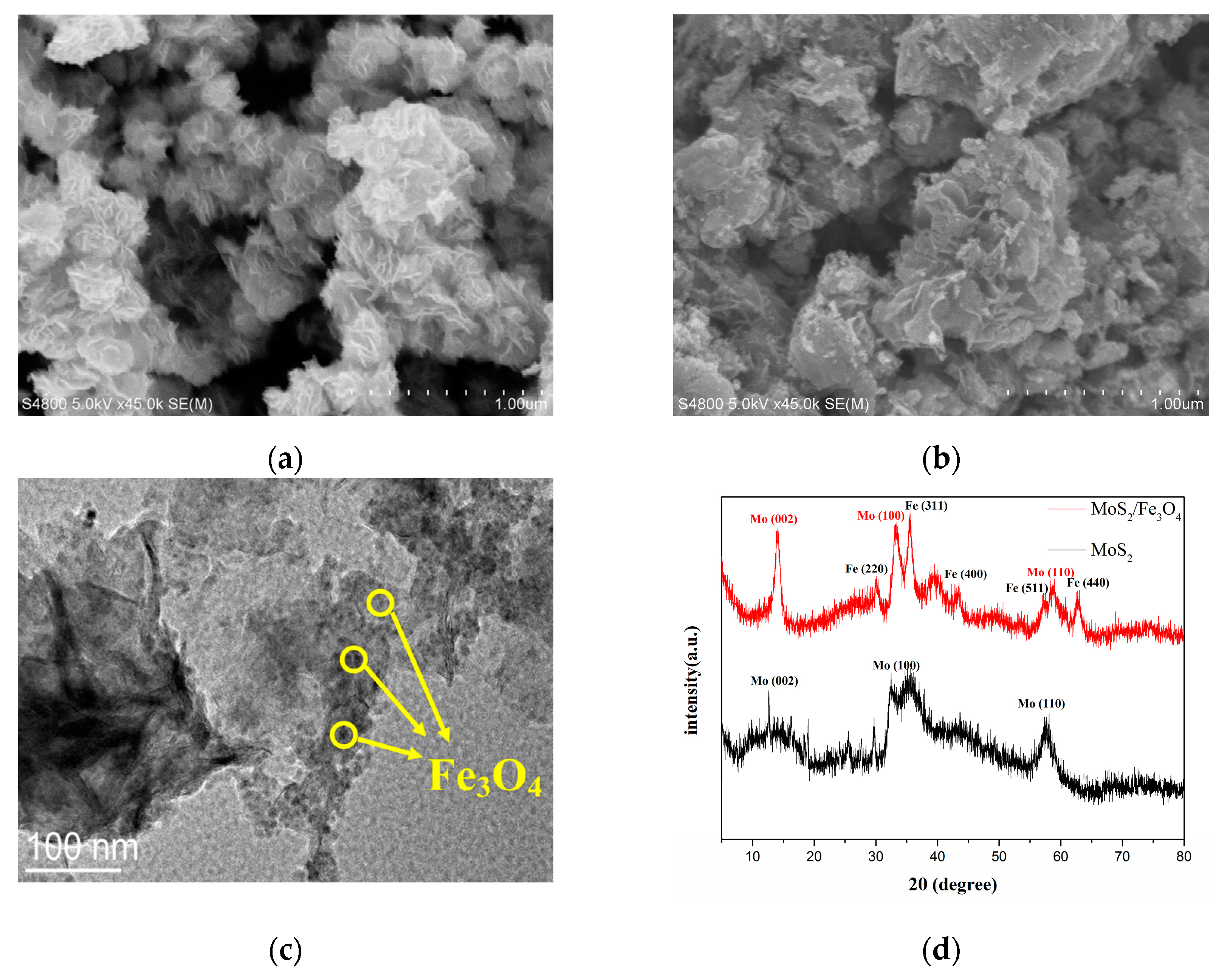

To determine the morphology and composition evolution, scanning electron microscope (SEM; S-4800, Hitachi, Tokyo, Japan), transmission electron microscopy (TEM; G2 F30 S-Twin, Hillsboro, USA), and X-ray diffraction (XRD; Rigaku smartlab 9, Tokyo, Japan) were employed. As shown in Figure 1a, MoS₂ presents as 3D nanoflowers, which are aggregated by many nanoflakes. Such construction implies increasing the surface area, facilitating effective interfacial contact between the ISM and GC electrode. In Figure 1b, it can be noted that the petals of the MoS₂ nanoflowers are decorated with many nanoparticles. Another TEM image shows that the Fe₃O₄ nanoparticles are selectively generated along the edge of the MoS₂ nanoflakes, as shown in Figure 1c. The MoS₂ and MoS₂/Fe₃O₄ were characterized by XRD, as shown in Figure 1d. Compared with pure MoS₂ whose characteristic diffraction peaks appear at 13°, 32.9°, and 58°, we also observed a series of diffraction peaks at 31.2°, 35.6°, 43°, and 57.7° in the spectrum of the MoS₂/Fe₃O₄ composites, which demonstrated the successful deposition of Fe₃O₄ on MoS₂ [29]. Thus, the composites with a high specific surface area decorated with the redox activity of nanoparticles were successfully synthesized.

3.2. Potassium Response Test

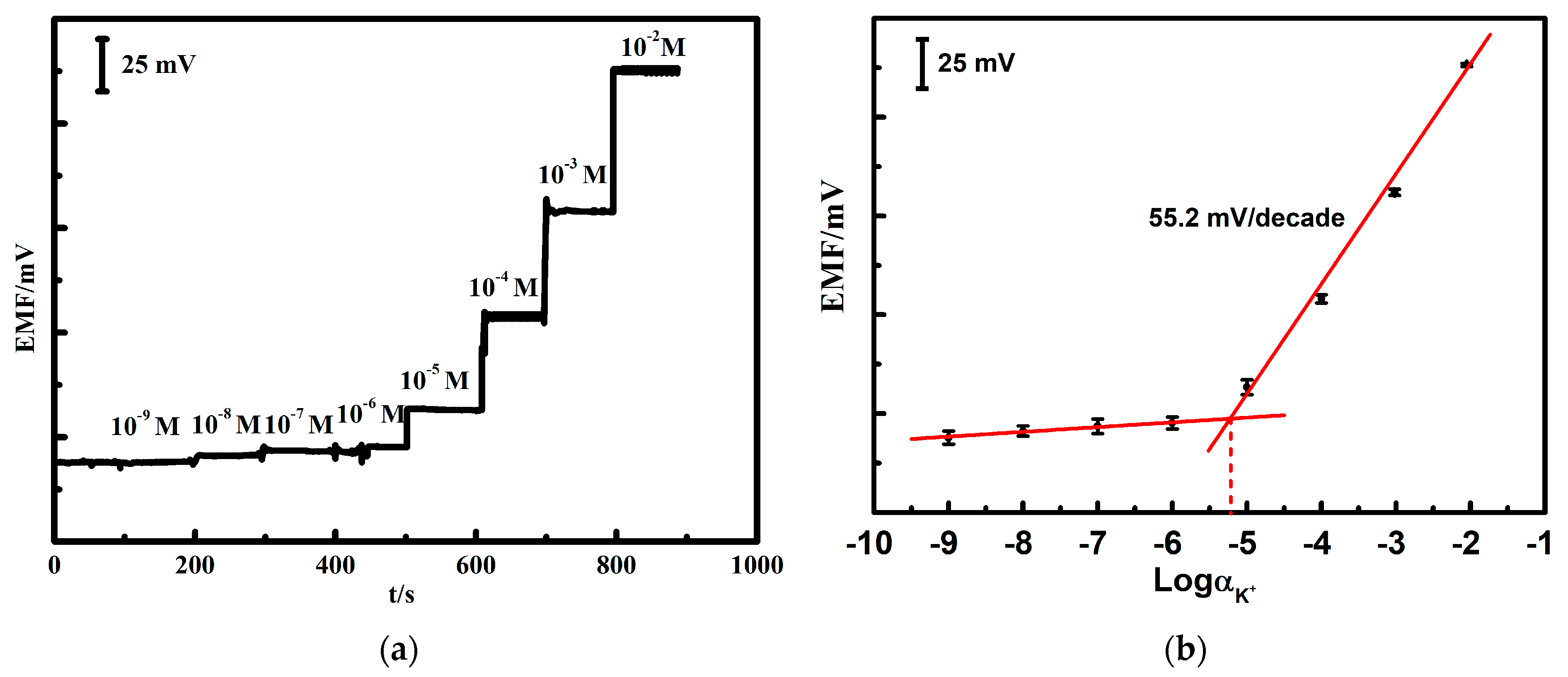

With the MoS₂/Fe₃O₄ composites as the SC layer, the potentiometric electromotive force (EMF) was applied to measure the potential response of GC/MoS₂/Fe₃O₄/K⁺-ISE. The dynamic potential response of the electrode at different K⁺ concentrations and the corresponding calibration curve are shown in Figure 2. The fabricated electrode shows a Nernst response with a slope of 55.2 ± 0.1 mV/decade with an activity range from 10⁻⁵ M to 10⁻² M and a detection limit of 6.3 × 10⁻⁶ M. Activity coefficients were calculated according to a two-parameter Debye–Hückel approximation.

3.3. Electrochemical Impedance and Chronopotentiometry Test

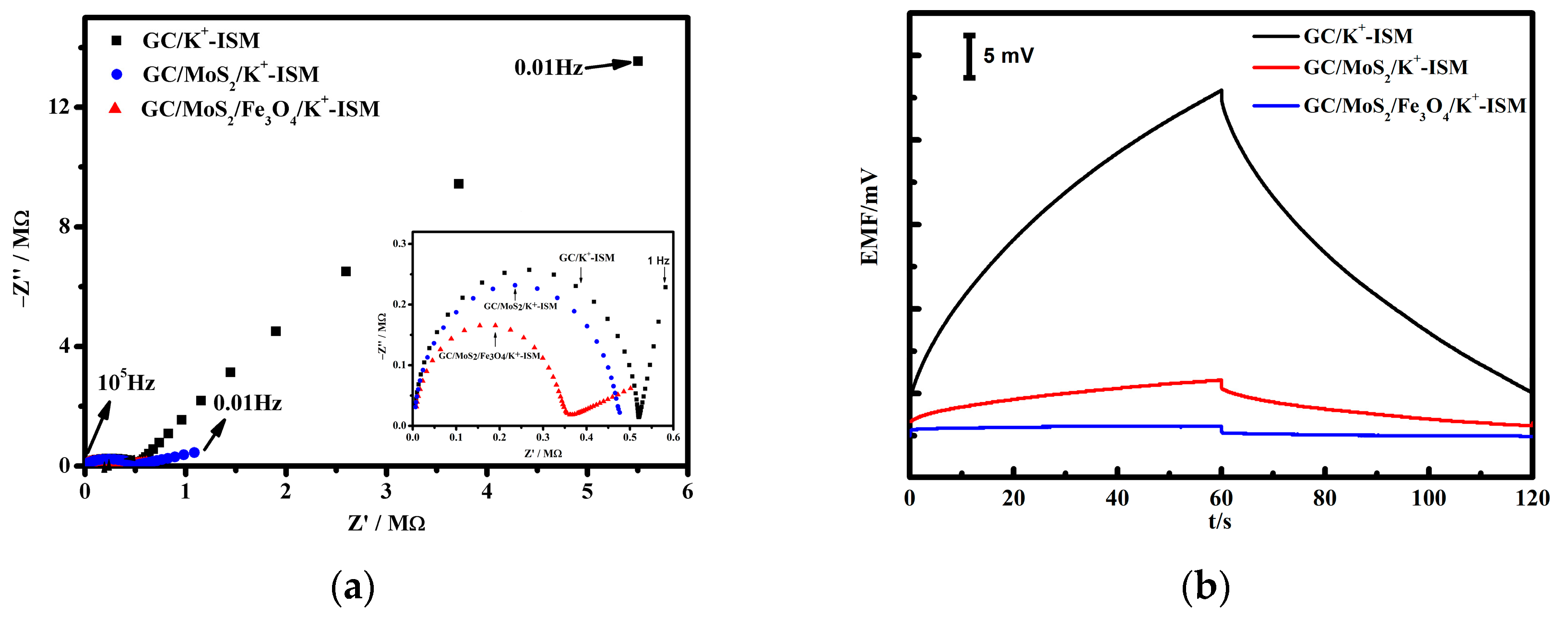

Electrochemical impedance spectroscopy was performed to verify the electrical characterization of the GC/MoS₂/Fe₃O₄/K⁺-ISE. As shown in Figure 3a, the high-frequency semicircle represents the bulk resistance of ISM and the contact resistance between the ISM and the underlying conductor.

The resistance of GC/MoS₂/Fe₃O₄/K⁺-ISE was about 0.36 MΩ, which is smaller than that of GC/MoS₂/K⁺-ISE (0.47 MΩ) and GC/K⁺-ISE (0.52 MΩ). These can be explained by the fact that the MoS₂/Fe₃O₄ layer may reduce the charge transition resistance across the interference [33]. In addition, the GC/MoS₂/Fe₃O₄/K⁺-ISE exhibited a smaller semicircle in the low-frequency region, which indicates that the electrode has a smaller transfer impedance and a larger capacitance at the “blocked” interface [16].

Chronopotentiometry was performed to monitor the potential stability of the modified electrode. As shown in Figure 3b, when the current is reversed, the potential jump occurs because of the membrane resistance [24]. The resistance of GC/MoS₂/Fe₃O₄/K⁺-ISE was calculated as 0.40 MΩ, which is consistent with the electrochemical impedance spectroscopy studies. In addition, potential drift can be applied for evaluating the material suitability for the SC layer [33]. The potential drifts of the GC/MoS₂/Fe₃O₄/K⁺-ISE, GC/MoS₂/K⁺-ISE, and GC/K⁺-ISE were 2.9, 60.0, and 457.1 μV/s, respectively. Notably, the potential drift rate for GC/MoS₂/Fe₃O₄/K⁺-ISE was much smaller than other electrodes, thus showing the excellent potential stability of the GC/MoS₂/Fe₃O₄/K⁺-ISE. According to the equation of ΔE/Δt = I/C, the corresponding capacitance values were 350.0, 16.7, and 2.2 μF, respectively. MoS₂/Fe₃O₄ composites have the feature of high capacitance, which can significantly accelerate the ion–electron transition, thus enhancing the potential stability of the sensor [33]. Moreover, it is comparable to other earlier presented SC layers, such as conducting polymers [34], carbon-based materials [35], Ag@AgCl/TMMCl [36], and MoS₂ nanoflowers [19].

3.4. Anti-Interference and Water Layer Test

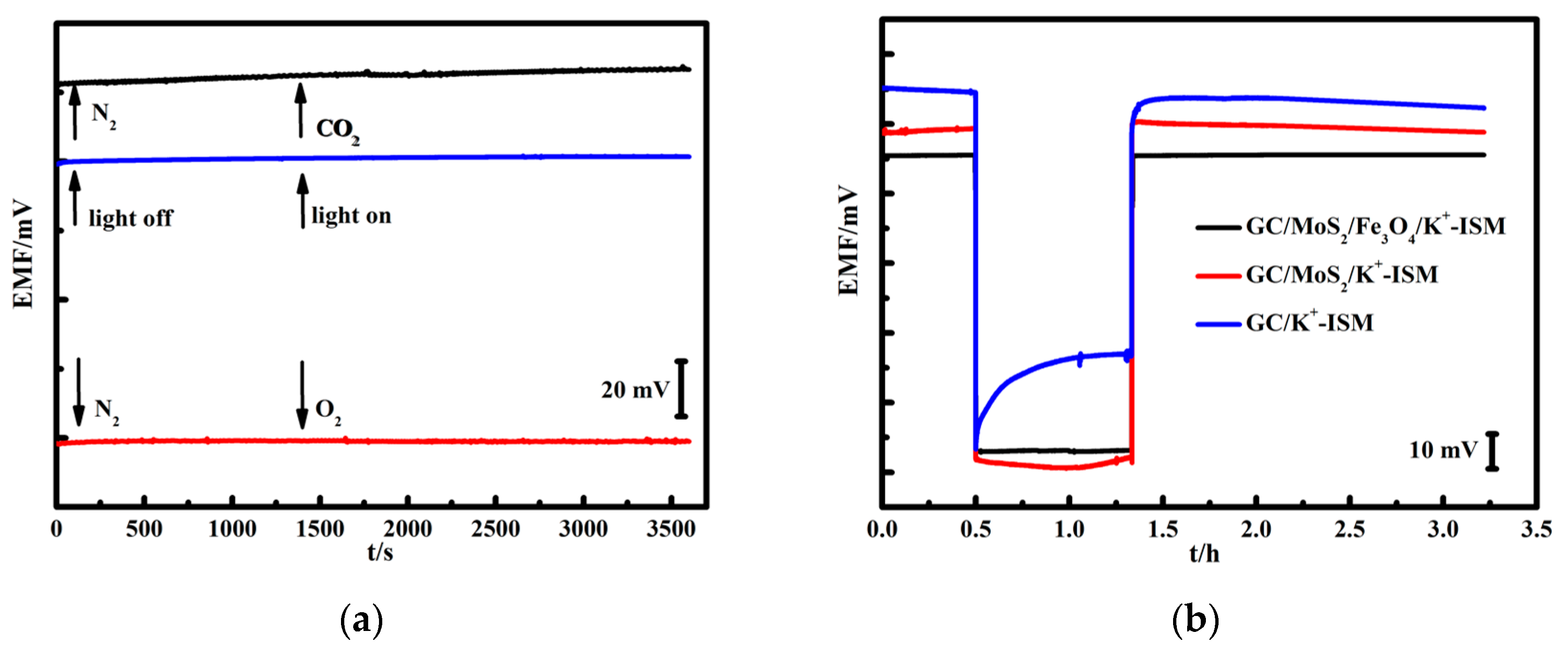

Light, O₂, and CO₂ will cause potential drifts, undesirable for the SC-ISE. Therefore, some experiments were performed to investigate the influence of these factors on GC/MoS₂/Fe₃O₄/K⁺-ISE. As shown in Figure 4a, the self-made electrode merely shows a slightly positive potential drift. The results show that the SC layer of MoS₂/Fe₃O₄ composites can effectively prevent the interference of light, O₂, and CO₂.

Since the fabricated electrode must soak in the aqueous solution before being used and during detection, this may contribute to forming a water layer between the ISM and the SC layer. The water layer interference test was conducted concerning the work of Pretsch et al. [37]. As shown in Figure 4b, by switching the electrode with the transduction layer from the KCl solution to the NaCl solution, no significant change of potential was observed. In contrast, the electrode without the transduction layer has a significant positive shift. Furthermore, when they are put into the solution containing K⁺ again, only GC/K⁺-ISE shows an apparent negative potential drift. The above results indicate the absence of a water layer in the electrodes with the transduction layer. Consequently, the electrode with MoS₂/Fe₃O₄ composites as the SC layer can be successfully used in an aqueous solution.

3.5. Potential Reproducibility and Stability Test

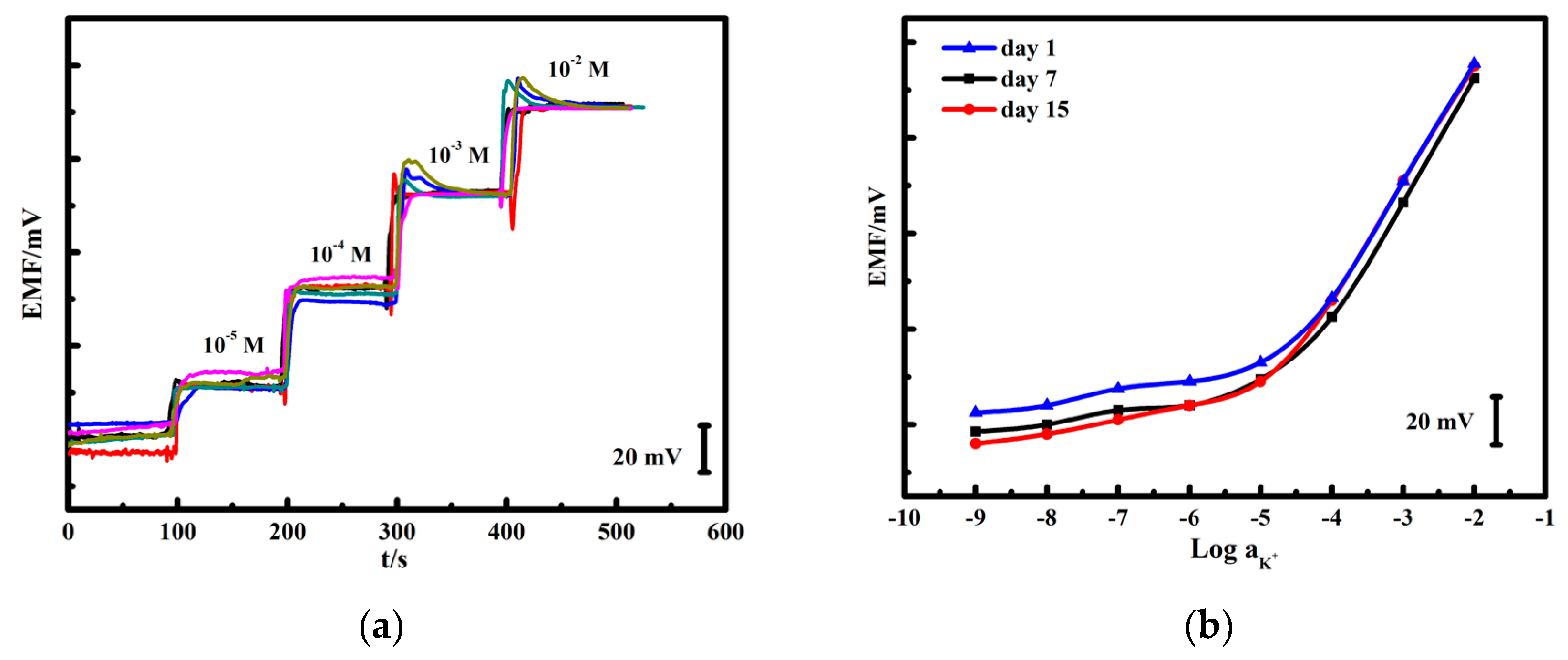

The potential reproducibility and long-term stability are important indexes to evaluate the characteristics of the SC layer [33]. Therefore, a K⁺ response test was repeated six times under different K⁺ concentrations to investigate the potential reproducibility of GC/MoS₂/Fe₃O₄/K⁺-ISE. As shown in Figure 5a, the relative standard deviation of the potential value for each solution is within 2.8% in the range from 1.0 × 10⁻⁵ to 1.0 × 10⁻² M, implying excellent reproducibility of this SC-ISE. Additionally, the long-term stability of the GC/MoS₂/Fe₃O₄/K⁺-ISE was performed by measuring the EMF on different dates and with the same SC-ISE (Figure 5b). The Nernst slope of the electrode response and detection limit has no apparent changes for 15 days, indicating that the self-made GC/MoS₂/Fe₃O₄/K⁺-ISE has good long-term potential stability.

3.6. Analytical Applications

To verify the practical potential of our method in a clinical measurement, the electrode is used to detect the concentration of K⁺ in a 5-mL serum sample. It is observed that the electrode presents a response of 511.9 ± 1.0 mV with a calculated concentration of 6.14 ± 0.24 mM (n = 6), which is highly accordant with the results obtained from the standard atomic absorption spectrometry 6.41 ± 0.18 mM with an RSD of 2.8% (n = 6). The relative deviation between these two methods is 4.2%, indicating that the proposed GC/MoS₂/Fe₃O₄/K⁺-ISE is a promising tool for detecting serum K⁺ concentrations. However, it should be pointed out that because of the large size of the electrode, the required serum for this method is still large. In our future research, we will focus on the miniaturization of the size of the electrode to speed up the practical popularization progress.

4. Conclusions

In this paper, MoS₂/Fe₃O₄ composites were introduced as an ion-to-electron transducer material in SC-ISE. The fabricated GC/MoS₂/Fe₃O₄/K⁺-ISE shows a good Nernst response with a slope of 55.2 mV/decade within the activity range from 1.0 × 10⁻⁵ to 1.0 × 10⁻² M. The potential drift of the GC/MoS₂/Fe₃O₄/K⁺-ISE was only 2.9 μV/s, and the capacitance value was 350.0 μF, which contributes to the potential stability of this SC-ISE. Notably, the electrode exhibited excellent resistance to interference from O₂, CO₂, light, and water layer formation. It also presented a high performance in potential reproducibility with the RSD within 2.8% (n = 6) and long-term stability for 15 days. Furthermore, in contrast with the atomic absorption method, the electrode allows for the accurate and quick detection of K⁺ in serum with an RSD of 4.8%. Finally, we can conclude that the proposed SC-ISE based on MoS₂/Fe₃O₄ composites as an ion–electron transduction layer would have a good application prospect in the clinical determination of serum K⁺. In the future, we will further realize the miniaturization of SC-ISEs through screen-printed electrode technology.
