Electrochemical Impedance Spectroscopy on 2D Nanomaterial MXene Modified Interfaces: Application as a Characterization and Transducing Tool

by
Juvissan Aguedo
,
Lenka Lorencova
,
Marek Barath
,
Pavol Farkas
and
Jan Tkac
*
Institute of Chemistry, Slovak Academy of Sciences, 845 38 Bratislava, Slovakia
*
Author to whom correspondence should be addressed.
Chemosensors 2020, 8(4), 127; https://doi.org/10.3390/chemosensors8040127
Submission received: 31 October 2020 / Revised: 3 December 2020 / Accepted: 4 December 2020 / Published: 7 December 2020
(This article belongs to the Special Issue Analytical (Chem and Bio)sensors Based on EIS Measurements)
Browse Figures
Review Reports Versions Notes

Abstract

:
This review presents the basic characteristics of MXene, a novel 2D nanomaterial with many outstanding properties applicable to electrochemical sensing and biosensing. The second part deals with electrochemical impedance spectroscopy (EIS) and its beneficial features applicable to ultrasensitive electrochemical sensing and label-free biosensing. The main part of the review presents recent advances in the integration of MXene to design electrochemical interfaces. EIS was used to evaluate the effect of anodic potential on MXene and the effect of the MXene preparation route and for characterization of MXene grafted with polymers. It also included the application of EIS as the main transducing tool for antibody- and aptamer-based biosensors or biosensors integrating molecularly imprinted polymers.

1. 2D Nanomaterials—MXenes

MXenes were first described in 2011 [1] and proved to be the two-dimensional (2D) nanomaterials of the future. MXenes have been used in many applications due to their exceptional physical, chemical, and structural properties, which include good electrical conductivity, high surface area, hydrophilicity, biocompatibility, biodegradability, and ease of surface functionalization [2].
MXenes consist of carbides and nitrides of transition metals, with the formula of Mn+1XnTx, where “M” represents an early transition metal, “X” represents carbon or nitrogen, and “T” represents the terminal group (−F, −OH, and =O). Typically, MXenes are produced by selective chemical acid etching of the “A” layer from MAX phases producing MX phases. MAX phases have a general synthesized formula of Mn+1AXn (“A” represents an element from groups 13 and 14 of the periodic table) [3,4]. The MAX phases consist of repeating layers with a combination of a strong M-X bond and a weaker M-A bond. The “M” layer is arranged with the “A” layer, forming an octahedral structure with the X atoms in the interstice [5].
Ti3C2 MXenes were successfully synthesized by etching Ti3AlC2 with hydrofluoric acid (HF). This synthesis route follows three steps, the first being etching, followed by delamination and, finally, by intercalation. During the etching, the MAX phases are immersed in an HF solution; next, the delamination of the nanomaterial is caused by breaking the van der Waals forces between the MXene nanosheets. Finally, during intercalation, ions and/or molecules are inserted between the layers of laminated material to increase the interlayer distance. Nearly all types of MXenes with different multi- or single-layered nanosheets can be fabricated by employing liquid-phase exfoliation, as shown in Figure 1a.
Since MXenes can be used in many applications, there is an ongoing need for improved methods for their synthesis. Alhabeb et al. [6] demonstrated that the LiF/HCl method made it possible to produce large MXene flakes of high quality. Moreover, a simple treatment of the nanomaterial with L-ascorbic acid can produce MXenes with increased electrical conductivity and enhanced stability against oxidation [7]. Fabrication of Ti3C2Tx-based devices remains challenging since interfacial TiO2 groups could be oxidized, a process that is rapid in a liquid phase and slow in a solid state [8]. Furthermore, a combination of MXene with polymeric composites [9], nanohybrids [10], and nanoparticles [11] was investigated to enhance the stability of MXene [12] by preventing oxidation and enhancing shelf life. In an effort to improve the stability of this nanomaterial, for example, a spontaneous grafting of carboxy-betaine and sulpho-betaine on MXene was demonstrated as another solution [13]. Alternatively, storage of MXene in the form of a solution can be prolonged in hermetic argon-filled vials [14].
Current studies on the biocompatibility and toxicity [15] of MXenes have shown enhanced biocompatibility after being modified with silk fibroin (SF) to obtain the SF@MXene bio-nanocomposite film working as a flexible pressure sensor (Figure 2) [16]. In addition, MXene was combined with MXene quantum dots [17] and collagen [15] in order to increase its stability.
The physiological stability and biocompatibility of 2D Nb2C nanosheets were achieved in combination with polyvinylpyrrolidone without any noticeable toxicity exhibited either in vitro or in vivo. It was also noted that 2D MXenes are the candidates of choice as theranostic agents for cancer diagnostics and therapeutics [18]. Another type of MXene, i.e., Ti3C2 was also confirmed for in vitro/in vivo photothermal ablation of a tumor using near-infrared irradiation [19]. In addition, the authors demonstrated that biocompatible soybean phospholipid (SP)-modified Ta4C3 nanosheets [20], without any apparent toxicity, were effectively employed for in vitro/in vivo photothermal ablation of a tumor. Ti3C2Tx MXene was proven as a biocompatible and safe nanomaterial during examination of its toxicity using zebrafish embryos as an in vivo model [21]. A multifunctional composite consisting of Ti3C2 patterned with paramagnetic MnOx [22] species can play an important role in theranostic medicine, e.g., for efficient magnetic resonance and photoacoustic dual-modality imaging-guided photothermal therapy to cure cancer. Nb2C quantum dots (QDs) [23] behave in a more biocompatible way to human umbilical vein endothelial cells (HUVECs) than Ti3C2 QDs, which show a cytotoxic reaction. The 2D Ti2NTx nanosheets [24] exhibited higher toxicity toward cancerous cell lines than normal ones with no toxic behavior to nonmalignant cell lines.
To date, 20+ different MXene compositions have been synthesized, comprised of Ti3C2Tx, Ti2CTx, Ti2NT, Mo2CTx, and/or Nb4C3Tx [25], 70 varieties of MAX phases have been investigated, and more MAX phases are predicted [2]. In the last 10 years, MXenes have become a very attractive material for use in a variety of applications, including biosensors [26,27], sensors with improved electrocatalytic activity [4,28,29,30], wearable sensors [31,32,33,34], MXene-based flexible microelectrode arrays for recording of neural activity [35,36], biomedical applications [37,38], energy storage technologies [39], supercapacitors [40], batteries [41], hydrogen storage devices [42], catalytic devices [43], photocatalysts [44], field-effect transistors [45], water purification systems [46], devices for environmental remediation [47], and, in addition, due to their outstanding conductivity [48], they have been employed as an electromagnetic shielding material [49].

2. Electrochemical Impedance Spectroscopy (EIS): The Right Tool for Investigating Conductive Interfaces

Electrochemistry as an interdisciplinary research area investigates electrical phenomena by chemical reactions on conductive interfaces. Since the 1990s, nanomaterials (nanoconcrete, nanofilms, nanoparticles, nanoshells, nanospheres, nanotubes, nanowires, nanoclays, and nanopolymers), due to their unique multifunctional (catalytic, electronic, chemical, magnetic, mechanical, optical, physical) properties, have become key components in numerous applications.
Electrochemical methods (cyclic voltammetry (CV), chronoamperometry, chronopotentiometry, polarographic techniques, pulse methods, electrochemical impedance spectroscopy (EIS), etc.) can be effectively applied to characterization of the interfacial properties of nanomaterials [50]. This is made possible since electrochemical methods are quick, reliable, and sensitive to interfacial changes on a nanoscale level. In particular, electrochemistry can provide information on the redox stability of nanomaterials, stability against oxidation, and resistance to biofouling, and it is also possible to monitor the success of surface modification by the use of nanomaterials. At the same time, it should be noted that such changes can be monitored in situ and in real time if required.
The electron-transfer properties of the modified conductive surfaces and associated interfacial chemical transformations can be evaluated using EIS. This technique provides mechanistic and kinetic information about conductive surfaces as key components of batteries and fuel cells and for the characterization of various coatings, corrosion processes, semiconducting electrodes, and solid-state systems.
EIS provides valuable information on whatever system is under examination, such as the resistance of the electrolyte between a working electrode (WE) and a reference one, interfacial charge transfer resistance on WE due to adsorbed species (ions, organic, and water molecules), charge transfer resistance due to Faradaic processes, diffusion processes (Warburg factor), and adsorption of the reactant/product on the interface. Such complicated redox behavior can be described by an equivalent circuit containing resistance, inductance, and capacitance contributions (Figure 3) [50].
An alternating current (AC) is employed to perturb redox processes on a WE. The EIS setup consists of the electrochemical cell, an impedance analyzer, and a computer serving to collect data. In order to obtain the EIS spectra, the conductive interface is exposed to sinusoidal AC voltage excitations with low amplitude and the resultant response of the system is recorded as the amplitude and phase of the current. The frequency of the AC signal applied to the system is varied with the overall impedance of the cell recorded as a function of an input frequency, while the impedance is monitored. Hence, it is possible to identify processes occurring on different timescales and to separate electronic from ionic processes in mixed conductors.
The impedance is represented as a complex quantity Z, i.e., Z(ω) = ZRe − jZIm consisting of a real part (ZRe = R, where R is resistance) and an imaginary part (ZIm = 1/ωC, where C is capacitance and ω is the angular frequency). The impedance facilitates the description of complex circuits by graphical representation by using two different plots: The first describes imaginary vs. real impedance at different frequencies and the second describes absolute impedance vs. frequency, titled the Nyquist plot (complex plane plot) and the Bode plot, respectively. In comparison to the Nyquist plot, the Bode plot interprets impedance more clearly as a function of a frequency [51].
A Nyquist plot, having the real impedance component (Z′) on the x-axis, and the imaginary component (Z′) on the y-axis, is fitted with equivalent electrical circuits to obtain the device properties in a quantitative way, as depicted in Figure 4 [53]. Moreover, the shape of the Nyquist plot provides information on the physical processes occurring on the conductive interfaces. For example, a line parallel to the y-axis in the Nyquist plot means that the equivalent circuit consists of only a capacitor C (Figure 4b) or a capacitor C in series with a solution resistor Rs (Figure 4c). If the Nyquist plot has a semicircular shape with an intercept, the equivalent circuit consists of a capacitor C in parallel with the interfacial resistor R (Figure 4d) or a capacitor C in parallel with the solution resistor R in series with solution resistance Rs (Figure 4e). Visual examination of the Nyquist plot combined with knowledge of the device makes it possible for an equivalent circuit model to be set up accurately, correctly detailing all the processes involved (Figure 4f,g). Data present in the Nyquist plot close to the origin are associated with the high-frequency spectrum.
On the other hand, if EIS is applied without understanding of the basic interfacial processes, it is difficult to interpret the data correctly and to choose a proper equivalent circuit.
Thus, circuit elements identified upon the fitting of a Nyquist plot can provide both qualitative and quantitative data, such as a time constant or an activation energy for each particular process [53]. Analysis of the EIS data is not always straightforward. For instance, redox properties on rough surfaces cannot be properly described with a capacitive element only, which is why a constant phase element (CPE) is used instead. For an extensive overview of the fundamental and applied aspects of EIS, the reader is referred to the literature [52].

3. Electrochemical Investigation of MXene-Modified Interfaces via EIS

EIS can be beneficially applied to the characterization of MXene interfaces using various redox probes or working electrolytes [55,56,57,58]. In order to prepare effective electrochemical (bio)sensors based on MXene-modified electrodes, it is most important to understand the electrochemical behavior of such a nanomaterial-modified electrode in an anodic and a cathodic potential window. In our initial study, the electrochemical stability window for Ti3C2Tx MXene-modified glassy carbon electrode surface (GCE/Ti3C2Tx) was examined [59]. In a subsequent study we investigated the electrochemical behavior of electrodes patterned by MXene prepared from the MAX phase using two distinct methods (HF or LiF/HCl etching) [29]. Our third study described the application of EIS to the characterization of MXene-modified interfaces grafted with polymers, which resisted nonspecific protein binding [13].

3.1. EIS for Characterization of Redox Stability of MXene-Modified Electrodes and Sensors

The Ti3C2TxMXene nanomaterial is prone to anodic oxidation when exposed to a working potential above +200 mV vs. Ag/AgCl reference electrode [59]. In order to better characterize this process, a number of techniques including electrochemical ones were used to study the electrochemical oxidation of MXene. One of the electrochemical methods used was EIS. For this examination, a Rs(Q[RctW]) Randles equivalent circuit consisting of an electrolyte resistance Rs, constant phase element Q, charge transfer resistance Rct, Warburg element W, and 5 mM ferri/ferrocyanide redox couple probe was used. The charge transfer resistance (Rct) values obtained for unmodified GCE, pristine Ti3C2Tx (T: =O, −OH, −F)-modified GCE, and oxidized Ti3C2Tx-modified GCE were (164 ± 36) Ω, (7130 ± 600) Ω, and (8500 ± 1000) Ω, respectively (Figure 5 left). The results demonstrated increased resistivity on the part of the less electrochemically active oTi3C2Tx (i.e., electrochemically oxidized Ti3C2Tx) compared to Ti3C2Tx, indicating that oTi3C2Tx is less conductive and less electrochemically accessible than Ti3C2Tx. The study also indicates that exposure of the MXene-modified GCE electrode to a working potential exceeding +200 mV vs. Ag/AgCl induces the formation of TiO2 particles at an interface between a solution and an outer MXene layer with the subsequent dissolution of such particles by F− ions. This process is irreversible from an electrochemical perspective. On the other hand, the MXene-modified interface is stable in the cathodic potential window with the application of such an interface for the reduction of H2O2 or O2. Finally, the MXene-modified electrode was employed for the ultrasensitive detection of H2O2 in the cathodic potential window with a limit of detection (LOD) of 0.7 nM and with a sensitivity of 596 mA cm−2 mM−2 [59].
Huang et al. [60] demonstrated the use of an electrochemical sensor employing titanium carbide (Ti3C2) and a multi-walled, carbon nanotubes (MWCNTs)-based nanocomposite for the detection of catechol and hydroquinone. The nanocomposite was prepared by blending Ti3C2 MXene and MWCNTs via a self-assembled 2D hierarchical process. The analytes were detected with LOD of 6.6 nM for hydroquinone and of 3.9 nM for catechol (a linear range of 2–150 µM for both analytes). Recovery values of 96.9%–104.7% and 93.1%–109.9% were obtained for hydroquinone and catechol detection in industrial wastewater samples. EIS was implemented for the analysis of Rct values on all the modified electrodes. The Rct value of 131 Ω for the bare GCE electrode was the largest. The Rct values of MXene/GCE and MWCNTs/GCE were smaller, i.e., 119 Ω and 105 Ω, respectively. The decrease in the Rct value confirmed that the presence of MXene or MWCNTs improved the electrical conductivity of the modified electrode. After the introduction of both nanomaterials, the Rct value decreased even further to 97 Ω at MXene-MWCNTs/GCE [60].
It may be concluded that EIS is an effective tool for the in situ characterization of the charge transfer resistance (or conductivity) of MXene-modified interfaces applied as sensors. In particular, EIS can provide information as to whether MXene was exposed to the potential leading to MXene oxidation, as well as information on whether it is worth combining MXene with other types of nanomaterials in order to render such a hybrid nanoparticle-modified interface more conductive.

3.2. EIS for Redox Characterization of Electrodes Modified with MXenes Prepared Using Two Etching Procedures

There are several applicable routes for the preparation of MXene from the MAX phase, either using HF, in situ-generated HF (from a mixture of LiF and HCl), or other methods [5]. Although the basic physico-chemical parameters of MXene prepared via two distinct routes (i.e., HF or LiF/HCl etching) have been extensively elucidated in a number of studies (see, for example, [5] and the references cited therein), the electrochemical behavior of MXenes prepared in two different ways has only recently been examined by our group [29].

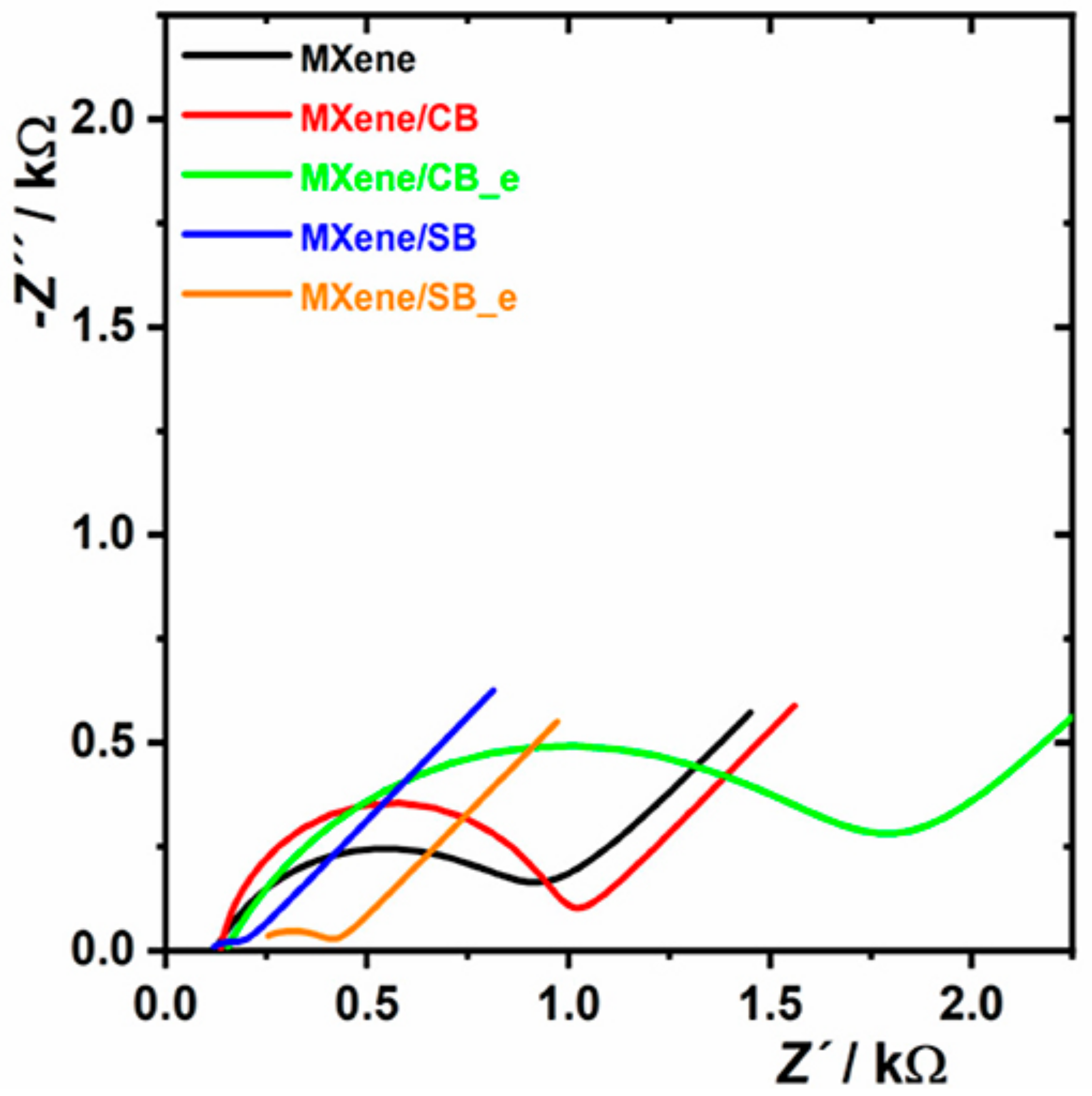

Significant differences in the redox interfacial behavior of Ti3C2Tx MXenes prepared by using two etchants, i.e., HF (MXene1) or LiF/HCl (MXene2), were observed [29]. Notably, MXene1-modified GCE did not exhibit a large anodic oxidation peak, while MXene2-modified GCE showed a significantly larger anodic peak. The study by applying redox probe (Ru(NH3)6Cl3 exhibited a higher negative charge density present in MXene2 than in MXene1. This suggests that, from an electrochemical perspective, MXene1 is oxidized with a low density of a negative charge. The application of EIS for interfacial characterization demonstrated that Rct was higher for GCE/MXene2 (5.0 ± 0.2) kΩ than for GCE/MXene1 (2.6 ± 0.3) kΩ. The inner sphere redox probe (ferricyanide/ferrocyanide redox couple) indicated a higher density of negatively charged species present on the surface of GCE/MXene2 than on GCE/MXene1 (Figure 5 right) and this may be why the MXene2-modified GCE exhibits higher Rct than the MXene1-modified GCE. The study revealed a remarkable difference in the redox properties of the MXene-modified interfaces, which are significantly influenced by the way MXene was prepared from the MAX phase. Finally, the MXene2-modified GCE was significantly more electrochemically active toward the reduction of H2O2 (215-fold) and O2 (317-fold) than the MXene1-modified GCE [29].
The EIS investigation was used successfully to better understand the interfacial properties of MXenes prepared via two distinct routes. In particular, EIS not only provided insights into the initial redox conditions but also about the density of the negative charge on MXenes prepared using two routes.

3.3. EIS for Electrochemical Characterization of MXene-Modified Electrodes with Grafted Polymers

In order to render the MXene-modified interfaces applicable to biosensing and make them available to other advanced applications, interfacial patterning of the MXene should be performed [13]. In the previous sections, it was shown that MXene prepared via the LiF/HCl method contains a significant negative charge, resembling the presence of plasmons (free electron cloud) in metallic nanoparticles such as gold nanoparticles [61,62]. Such free electrons can be used for the spontaneous reduction of polymers containing a diazonium functional group. If such a polymer also contains betaine functional groups in addition to the diazonium functional group, then the polymer grafted onto MXene can resist nonspecific protein binding [13].
In order to achieve this aim, the modification of Ti3C2Tx MXene using aryldiazonium-based grafting with derivatives bearing a sulpho-(SB) or carboxy-(CB) betaine pendant moiety was performed. MXene contains free electrons; hence, betaine derivatives can be grafted onto MXene spontaneously. Spontaneous SB and CB grafting kinetics toward MXene were investigated electrochemically confirming more rapid SB grafting than CB grafting. A number of electrochemical methods used to examine non-Faradaic and Faradaic interfacial electrochemical properties using two redox probes (ferri/ferro redox couple and Ru(NH3)63+ redox probe) as well as contact-angle measurements and secondary ion mass spectrometry (SIMS) analysis revealed significant differences for the betaine layers spontaneously grafted onto MXene. In addition to the spontaneous CB and SB grafting onto MXene, grafting induced by a redox trigger was also tested. A denser interfacial layer of CB and SB on the MXene was obtained via electrochemical grafting than by the spontaneous process. Moreover, an electrochemically grafted SB layer exhibited a much lower Rct value and an electroactive surface area than the CB layer prepared via an electrochemical grafting. Hence, the redox behavior of an MXene-modified interface can effectively be fine-tuned by adjusting the SB/CB ratio in the solution during electrochemical grafting. EIS analysis revealed that CB-modified MXene exhibited a higher Rct value (i.e., 838 Ω for MXene/CB/GCE and 1610 Ω for MXene/CB_e/GCE) than for pristine MXene/GCE (786 Ω) (Figure 6). Conversely, SB-modified MXene interfaces exhibited much lower Rct values (i.e., 88 Ω for MXene/SB/GCE and 228 Ω for MXene/SB_e/GCE) than for unmodified MXene/GCE (786 Ω) (Figure 6).
EIS investigation indicated an effective pairing of the anionic and cationic groups within the SB layer resulting in low resistance toward a ferri/ferro redox couple. The study also revealed that zwitterion-modified MXene prepared by electrochemical grafting exhibited higher Rct values than those recorded in the spontaneous process for CB (1610 Ω vs. 838 Ω) and for SB (228 Ω vs. 88 Ω), as well. It was proved that a higher density of zwitterions on the interface was induced electrochemically than in the process based on spontaneous grafting [13].

4. Electrochemical Investigation of MXene-Modified Bio-Interfaces via EIS

EIS is an ideal tool for characterizing the step-by-step build-up of a biosensing interface consisting of several subsequent incubation steps since such a modification might be monitored directly on the conductive interface in situ after each step. Accordingly, EIS is an important tool for characterizing the incremental steps needed for the successful development of biosensors.

4.1. EIS for Electrochemical Investigation of MXene-Modified Enzyme Biosensors

Zhou et al. [63] introduced a novel biosensor based on MXene and the acetylcholinesterase (AChE) enzyme for the detection of organophosphorus pesticides. In the first step, pretreated GCE was activated with 0.5 M H2SO4 then subsequently modified with the drop-casting method with dispersion consisting of Ti3C2Tx MXene nanosheets and chitosan (CS) in order to obtain CS-MXene/GCE. The CS-MXene nanocomposite, due to its high surface area, biocompatibility, nontoxicity, and the ability to form films, was used as a support to immobilize the enzyme for preparation of the AChE biosensor with enhanced activity and stability. This outstanding performance was also accomplished due to the excellent electron conductivity of the CS-MXene nanocomposites.
The biosensor could detect malathion with LOD of 0.3 × 10−14 M in a linear range of 1 × 10−14 M–1× 10−8 M [63]. The interfacial electrode properties during the stepwise preparation were examined by EIS. The CS-MXene/GCE exhibited much lower Rct than the bare GCE. It was confirmed that CS-MXene nanocomposites could significantly increase the electron transfer and enhance the diffusion of the redox probe toward the interface due to the high conductivity and high surface area attributed to the bio-nanocomposite. The Rct of the AChE/CS-MXene/GCE increased in comparison with CS-MXene/GCE, confirming that the presence of an enzyme layer is an additional barrier between the electrode and electrolyte (Figure 7) [63].

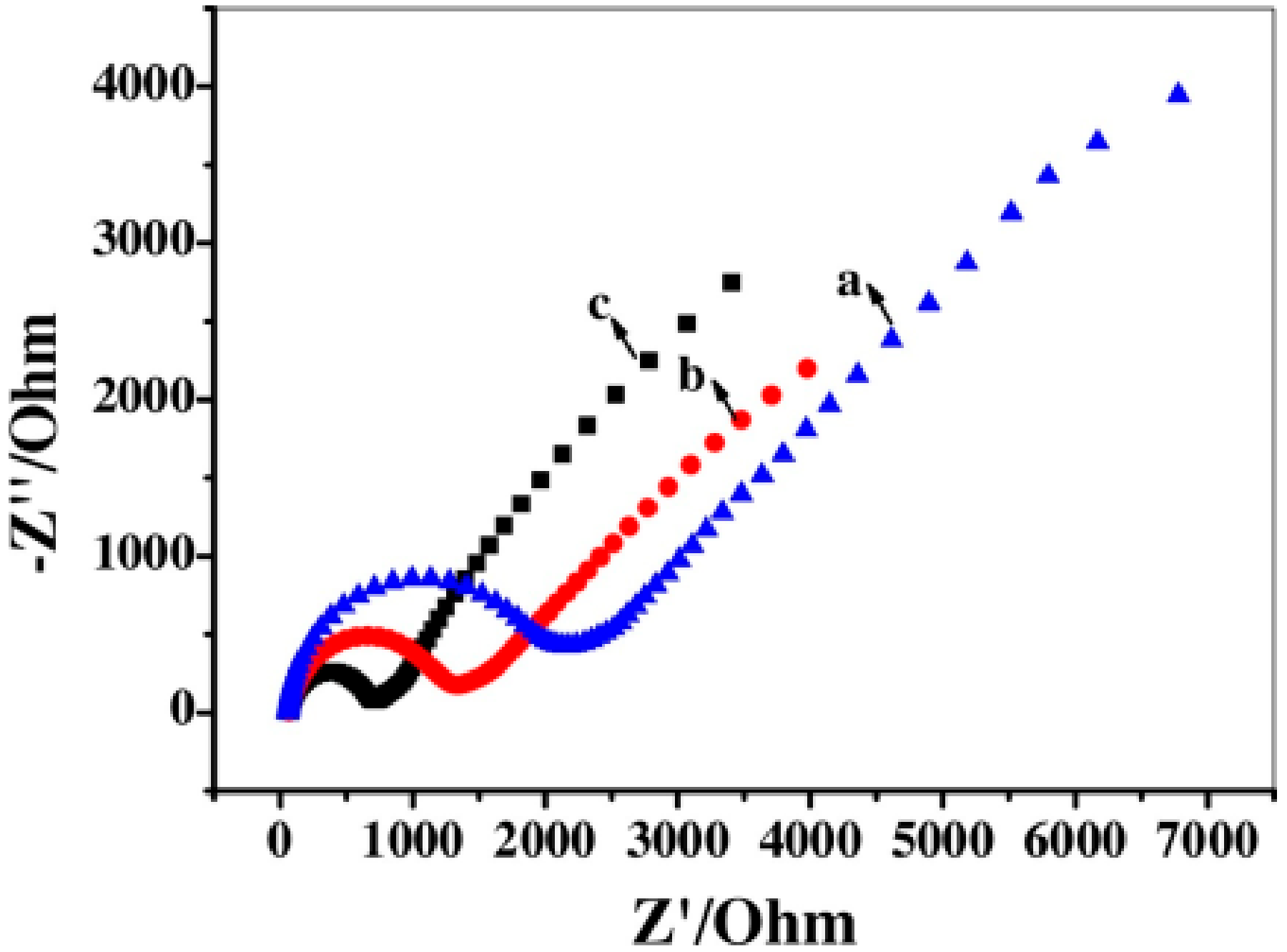

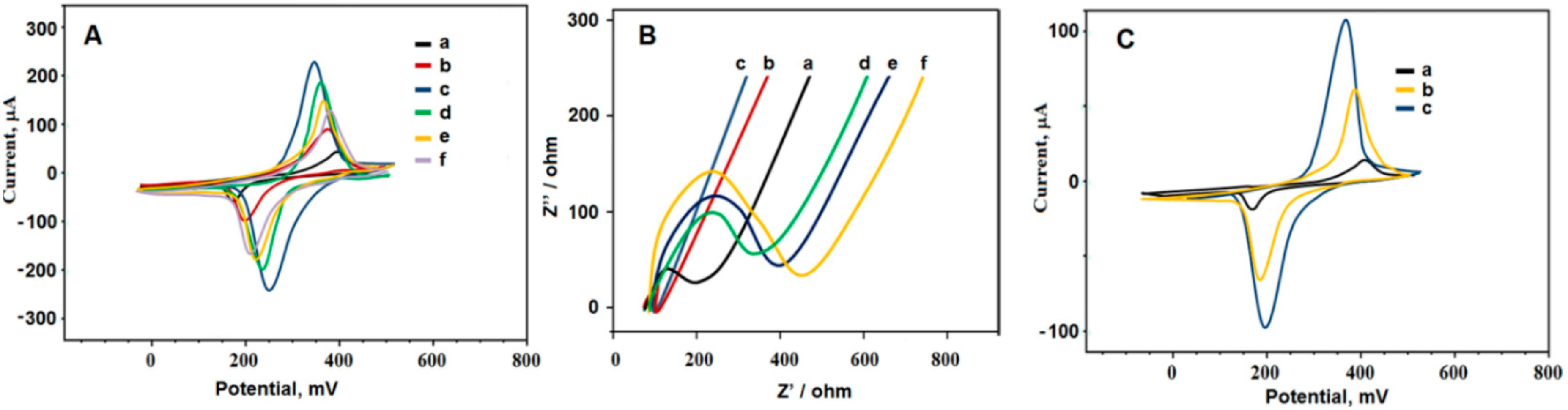

Two electrochemical methods (EIS and CV) were used to observe the build-up of the biosensing interface [63]. Both methods provided the same conclusion that modification of GCE with CS-MXene made the system more conductive while, after immobilization of the enzyme, the conductivity of the interface slightly dropped (Figure 7). This latter confirmed the successful immobilization of the enzyme on the interface.

4.2. EIS for Electrochemical Investigation of MXene-Modified Immunosensors

Medetalibeyoglu and coworkers developed an ultrasensitive electrochemical antibody-based biosensor for the detection of a prostate-specific antigen (PSA) with LOD of 3.0 fg mL−1 and a linear range of 0.01–1.0 pg mL−1 [64]. Firstly, the pretreated GCE electrode surface was modified with gold nanoparticles patterned by p-aminothiophenol (AuNPs-ATP) and further functionalized with graphene oxide (GO). In the next step, the hybrid nanocomposite was modified by adsorption of the primary anti-PSA antibodies (Ab1). In order to eliminate nonspecific protein binding, the hybrid nanocomposite was blocked with bovine serum albumin (BSA). The biosensor device thus derived was then ready to be incubated with the analyte (PSA). Subsequently, an anti-PSA secondary antibody (Ab2) immobilized on MXene/AuNP was incubated with the modified electrode, making a sandwich configuration. EIS was used as a useful characterization method [64]. The successful immobilization of proteins such as Ab1, PSA antigen, and BSA in individual steps during the biosensor assembly was confirmed by the EIS technique. EIS analysis demonstrated a decrease in resistance values after modification of GCE with GO and the AuNPs-ATPGO composite. The subsequent attachment of Ab1 to AuNPs-ATPGO/GCE resulted in an increase in resistance due to the low conductivity of Ab1. The resistance of the interface increased after blocking with BSA and incubation with PSA. EIS confirmed that the construction of the PSA/BSA/Ab1/AuNPs-ATPGO/GCE biosensor was successfully accomplished (Figure 8) [64].
Medetalibeyoglu et al. developed an ultrasensitive electrochemical sandwich-type immunoassay based on antibody-antigen recognition for procalcitonin (PCT) determination. PCT is an important biomarker related to septicemia diagnostics and for the detection of bacterial inflammations [65]. PCT (molecular mass of 13 kDa), composed of 116 amino acids, is a precursor of the hormone calcitonin, which is produced by cells in the thyroid and the neuroendocrine cells of the lung. Its amount increases, especially as a result of a pro-inflammatory stimulus. In the first step, delaminated sulphur-doped MXene (S-MXene) with =O, −OH, −F terminal groups was synthesized by etching the aluminium layer out of the polycrystalline sulphur-doped MAX phase powder (S-Ti3AlC2) in 6.0 M HCl/LiF (in situ formation of HF). This dispersion was deposited onto the pretreated GCE surface (d-S-MXene/GCE) and, after drying using infrared irradiation, the d-S-MXene/GCE was immersed into an aqueous dispersion of AuNPs, resulting in the preparation of the AuNPs/d-S-MXene/GCE composite via a sulphur-gold affinity between S-MXene and AuNPs. Preparation of the immunosensor was completed by immobilization of the monoclonal primary antibodies Ab1, and the surface was blocked with BSA to resist nonspecific interactions. The bioaffinity between the PCT and Ab1 was exploited for the determination of PCT. Finally, the electrode was incubated with the bio-nanocomposite containing a secondary antibody Ab2 attached to carboxylated graphitic carbon nitride (c-g-C3N4). The signal for the detection of PCT was generated by c-g-C3N4 having good electrocatalytic activity toward H2O2. The fabricated immunosensor was able to detect PCT with LOD of 2.0 fg mL−1 within a linear range of 0.01–1.0 pg mL−1. Out of a number of microscopic and spectroscopic techniques available, EIS provided useful information about the successful development of a biosensor in a step-by-step fashion [65].

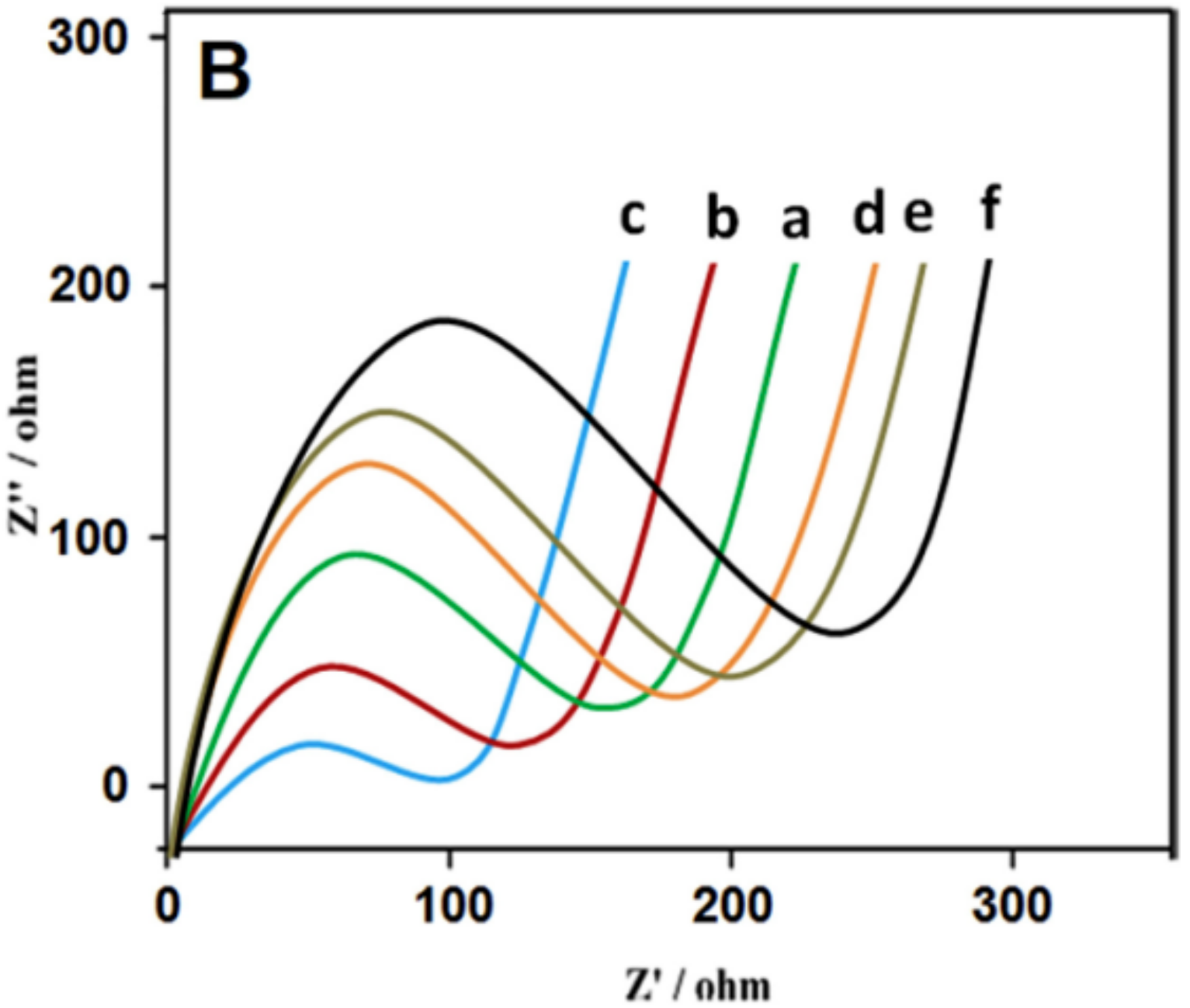

EIS (Figure 9B), as the tool of choice to examine the interfacial properties of modified, conductive layers was also independently confirmed by CV (Figure 9A,C) [65]. As shown in the Nyquist diagram, the Rct decreased after modification of GCE with delaminated sulphur-doped MXene (i.e., d-S-MXene/GCE) and AuNPs/d-S-MXene/GCE in comparison with bare GCE. The Rct increased after immobilization of Ab1 on AuNPs/d-S-Ti3C2TxMXene/GCE. After blocking by BSA, the Rct increased and then further increased after incubation with the analyte (PCT) [65].

4.3. EIS for Electrochemical Investigation of MXene-Modified Aptasensors

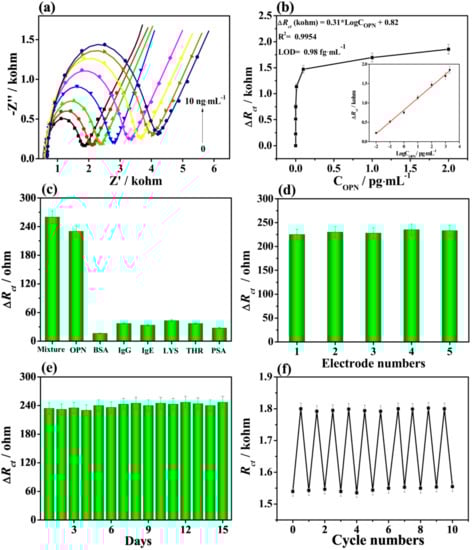

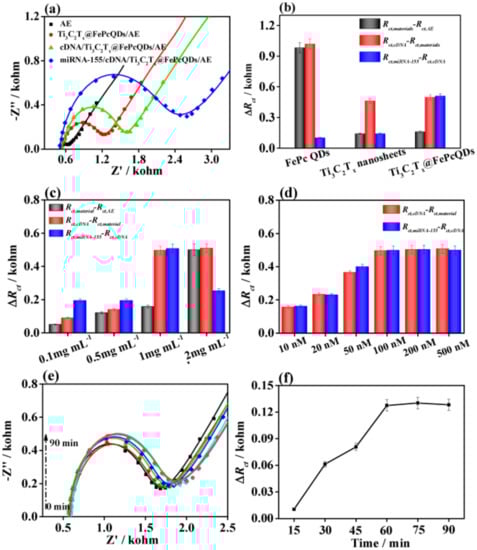

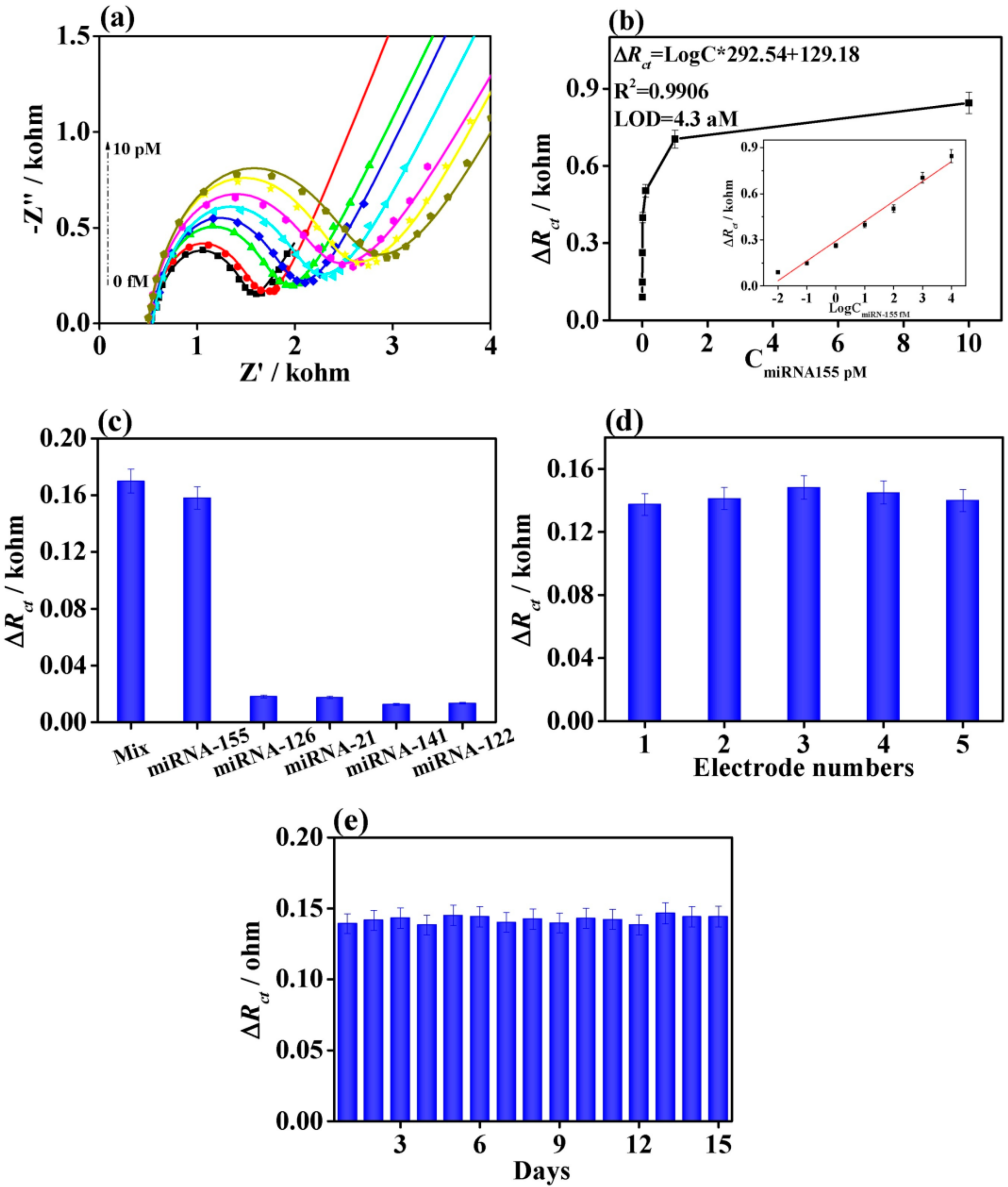

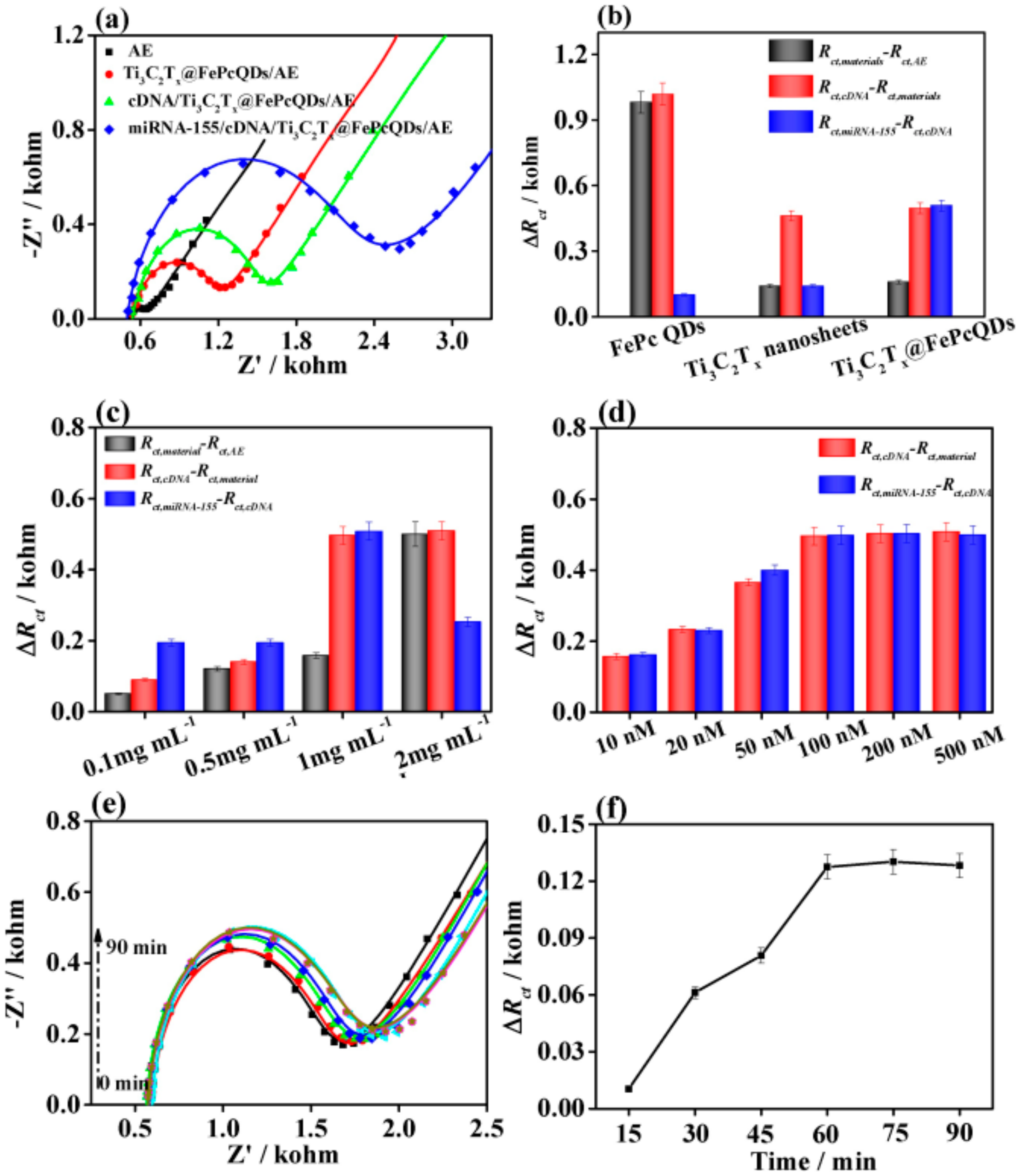

Zhou et al. [66] developed an impedimetric aptamer biosensor based on a nanostructured multicomponent hybrid consisting of Ti3C2Tx MXene nanosheets and phosphomolybdic acid nanoparticles (PMo12) integrated within a polypyrrole (PPy) matrix (PPy@Ti3C2Tx/PMo12) for the detection of osteopontin (OPN). The aptamers were immobilized via the π − π stacking, electrostatic interactions, and hydrogen bonds on such a nanocomposite. The Rct values obtained were 50 Ω, 0.35 kΩ, 1.55 kΩ, and 2.35 kΩ for the bare gold electrode (AE), the PPy@Ti3C2Tx/PMo12/AE, the Apt/PPy@Ti3C2Tx/PMo12/AE, and the OPN/Apt/PPy@Ti3C2Tx/PMo12/AE electrodes, respectively. The increase in Rct value confirmed modification of the bare electrode with the nanostructured hybrid, immobilization of the aptamer, and detection of OPN (Figure 9). In addition, EIS can be used effectively as a transducing platform for the robust detection of cancer biomarkers. The change in Rct values was used to compare the efficiency of the aptamer immobilization and to evaluate the sensitivity of the OPN detection using various aptasensors (Figure 10g). As demonstrated in the Nyquist plots, the simulated Rct values gradually increased with the increasing OPN concentration (Figure 11). The PPy@Ti3C2Tx/PMo12-based aptasensor exhibited LOD of 0.98 fg mL−1 (i.e., ~15 aM; signal to noise ratio; S/N 3, a linear range of 0.05–10,000 pg mL−1) by measuring the dependence of ∆Rct on different concentrations of OPN. In addition, the biosensor exhibited good selectivity for analyte detection, reproducibility of the assay, and storage stability and reusability of the biosensor using surface regeneration (Figure 11c,f) [66].

4.4. EIS for Electrochemical Investigation of MXene-Modified Biosensors for Detection of micro RNA (miRNA)

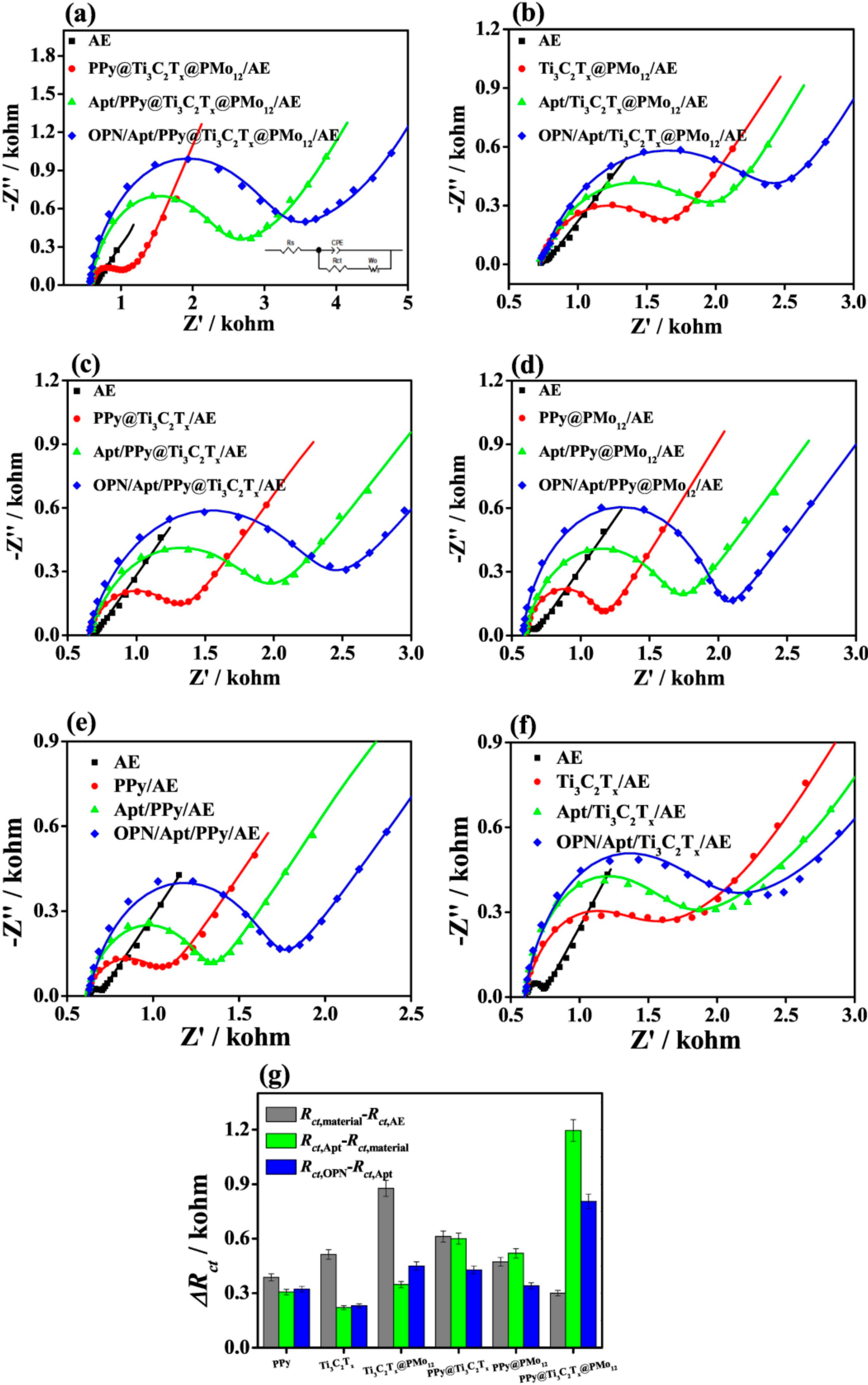

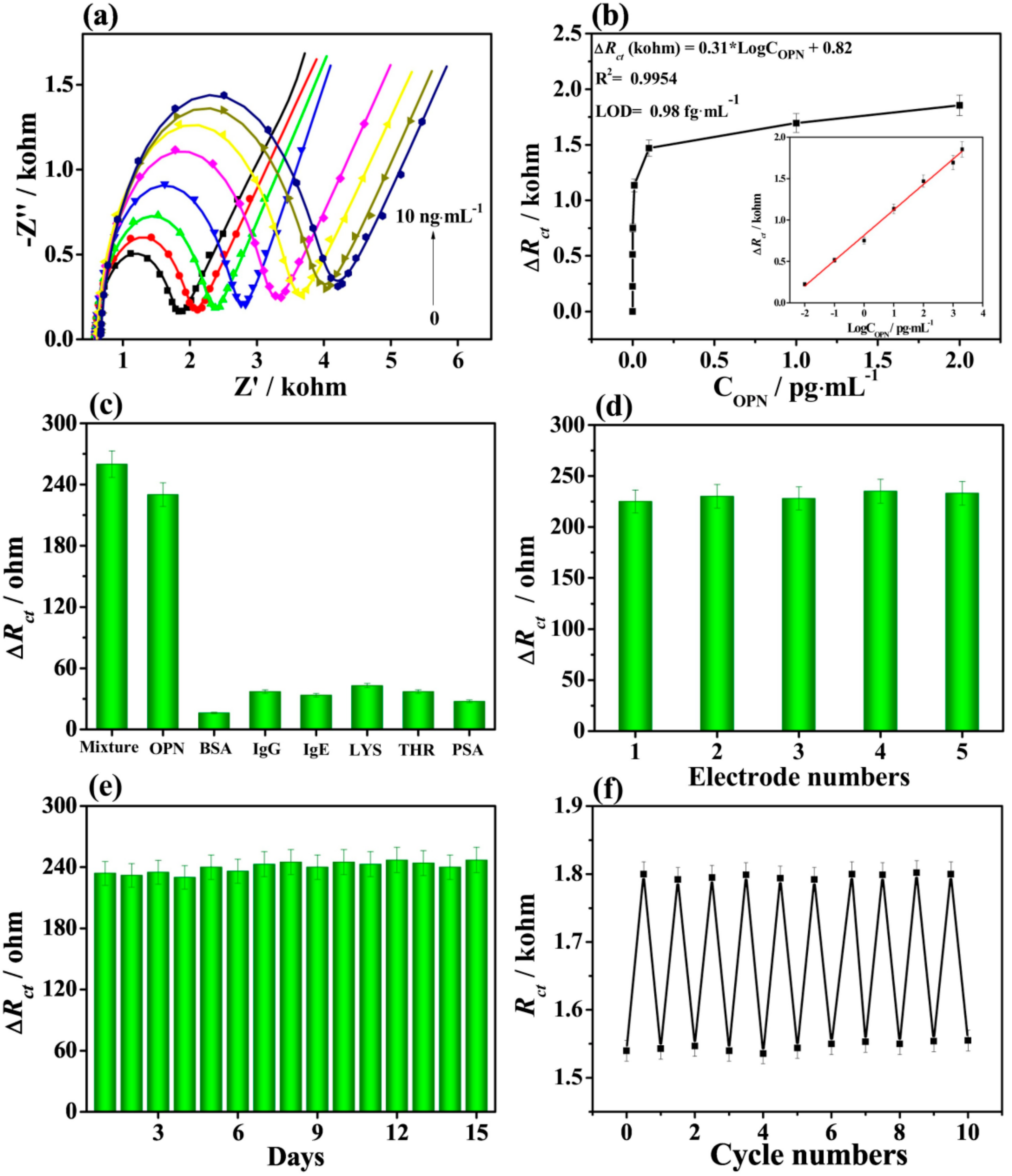

Duan et al. [67] fabricated an impedimetric aptasensor employing Ti3C2Tx MXene nanosheets patterned using iron phthalocyanine quantum dots (QDs) by π – π* stacking interactions with MXene for the determination of microRNA-155 (miRNA-155). After modification of the bare gold electrode (AuE, Rct ≈ 109 Ω) with QDs, MXene nanosheets, and MXene@QD nanohybrid, the Rct values increased. Rct values of 1.09 kΩ, 251 Ω, and 251 Ω were obtained for the QD/AuE, MXene/AuE, and MXene@QDs/AuE electrodes, respectively. The Rct values of all electrodes increased after the attachment of complementary DNA (cDNA) strands and resulted in values of 2.18 kΩ, 713 Ω, and 483 Ω for the cDNA/QDs/AuE, cDNA/MXene/AuE, and cDNA/MXene@QD/AuE, respectively. This increase in Rct was caused by the presence of a negative charge of the cDNA strands on the interface, inhibiting diffusion of a negatively charged [Fe(CN)6]3−/4− probe toward the interface. A further increase in the Rct values confirmed the hybridization of cDNA with miRNA-155 with values of 2.28 kΩ, 853 Ω, and 1.11 kΩ for the miRNA155/cDNA/QDs/AuE, miRNA-155/cDNA/MXene/AuE, and miRNA155/cDNA/MXene@QD/AuE, respectively (Figure 12). The MXene@QD nanohybrid offered more anchoring sites for the immobilization of DNA due to the large effective surface area of the assembled nanostructure. The biosensor was used for detection of the analyte over a wide concentration range of 0.01–10,000 fM with LOD of 4.3 aM using EIS (Figure 13). The biosensor again exhibited good selectivity, assay reproducibility, and storage stability (Figure 13c,e) [67].
EIS proved to be an ultrasensitive platform of detection for biosensors based on immobilized DNA for detection of the protein using an aptamer-based biosensor with LOD of 15 aM (Section 4.3) [66] and for detection of miRNA using a DNA-based biosensor with LOD of 4.3 aM (Section 4.4) [67].

4.5. EIS for Electrochemical Investigation of MXene-Modified Electrodes with Molecularly Imprinted Polymers

The amyloid-β protein contains 39–43 amino acids with an abundance of two amyloid forms such as Aβ40 or Aβ42. Özcan with co-workers [68] investigated detection of the Aβ42 protein to correlate it with a neurodegenerative disorder like Alzheimer disease via a molecularly imprinted polymer (MIP)-based biosensor based on d-Ti3C2TX MXene and MWCNTs composite. In an attempt to develop sensitive and selective sensors, a molecular imprinting technique was employed specifically to form cavities in the cross-linked polymeric matrix with specific recognition sites for the analyte. The analyte could be detected with LOD of 0.3 fg mL−1 in a linear range of 1.0 fg mL−1–100.0 fg mL−1 using the device. The colloidal solutions of MXene and MWCNTs were mixed together in a mass ratio of 3:1 to obtain the MXene/MWCNTs’ composite. The mixture consisting of pyrrole as a monomer and Aβ42 as a template was used for the preparation of all MIP-modified electrodes (MIP/GCE, MIP/MXene/GCE, and MIP/MXene/MWCNTs/GCE) by applying the CV method with 25 cycles and a scan rate of 100 mV s−1 at ambient temperature. The electrostatic interactions between the pyrrole units and Aβ42 in the matrix were broken using a desorption solution (1.0 M NaCl) in order to leach out the imprinted analyte to form the recognition cavities. Along with other analytical methods, EIS was also included to characterize MXene, MWCNTs, and MXene/MWCNTs-modified interfaces. The Rct values were of 135 Ω, 90 Ω, 52 Ω, and 25 Ω for the bare GCE, MXene/GCE, MWCNTs/GCE, and MXene/MWCNTs/GCE, respectively. The value of Rct increased to 160 Ω after the preparation of MIP/MXene/MWCNTs/GCE with Aβ42 protein present in the matrix. The Rct value decreased when the Aβ42 protein was eluted. A good correlation between CV and EIS was observed when both methods were applied to the step-by-step characterization of the MIP-based sensor build up [68].
Kadirsoy et al. [69] also successfully used delaminated sulphur-doped MXene (S-Ti3C2Tx) in combination with a molecularly imprinted quartz crystal microbalance (QCM) sensor for the detection of chlorpyrifos, one of the most frequently used organophosphate insecticides. The MIP/MXene/QCM sensor was characterized by different microscopic and spectroscopic techniques. By applying this environmentally friendly sensor for chlorpyrifos detection, LOD of 3.0 × 10−13 M was estimated (linear range 1.0 × 10−12 M–1.0 × 10−13 M). The added value of MXene is in its 2D structure, which prevents restacking, thereby limiting access of the target molecules to the QCM chip surface. The charge transfer resistance (Rct) values thus obtained were 175 Ω, 75 Ω, and 25 Ω, for bare GCE, Ti3C2Tx MXene/GCE, and d-S-Ti3C2Tx MXene/GCE, respectively [69].
Finally, EIS was chosen for the characterization of several steps needed to develop MIP-based sensor devices used in detection of the high molecular mass analyte (Aβ42 protein) [68] and low molecular mass analyte (insecticide) [69].

5. Conclusions

This review presents EIS as the tool of choice to characterize MXene-based interfaces directly in situ. EIS helped to elucidate the potential window under which MXene-patterned electrodes were stable and a mechanism behind MXene instability in the cathodic potential window. At the same time, EIS helped to characterize MXene interfaces using MXenes prepared via two distinct routes and helped understanding of the kinetics of spontaneous grafting of diazonium containing betaines onto MXene-patterned interfaces. Finally, EIS proved to be a very effective tool for monitoring the step-by-step building of biosensing interfaces for the successful construction of antibody- and aptamer-based biosensors and biosensor-integrated MIP layers. Although a good correlation between CV and EIS was observed when both methods were used to characterize the step-by-step build-up of various types of MXene-based biosensor, we would recommend using the EIS method. This is because, for EIS assays, the MXene interface is exposed to potentials, which are very close to open circuit potential or potentials, which do not induce oxidation of MXene. By contrast, for a successful run of CV, potentials significantly exceeding +200 mV vs. Ag/AgCl are needed with oxidation of the MXene negatively affecting such assays. Electrochemical methods, especially EIS, are fast, reliable, and sensitive to interfacial changes on a nanoscale level. In particular, electrochemistry can provide information on the redox stability of nanomaterials, stability against oxidation, and resistance to biofouling and it is possible to monitor the success of surface modification with nanomaterial. At the same time, it is worth noting that such changes can be monitored in situ and in real time if required.

Author Contributions

Conceptualisation, L.L. and J.T.; Formal analysis, M.B. and P.F.; Writing—original draft preparation, J.A., L.L., and J.T.; Writing—review and editing, J.A., L.L., M.B., P.F., and J.T.; Project administration, J.T.; Funding acquisition, J.T. All authors have read and agreed to the published version of the manuscript.

Funding

The authors wish to acknowledge the financial support received from the Innovative Training Network (No. 813120).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Naguib, M.; Kurtoglu, M.; Presser, V.; Lu, J.; Niu, J.; Heon, M.; Hultman, L.; Gogotsi, Y.; Barsoum, M.W. Two-Dimensional Nanocrystals Produced by Exfoliation of Ti3AlC2. Adv. Mater. 2011, 23, 4248–4253. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Khan, K.; Tareen, A.K.; Aslam, M.; Wang, R.; Zhang, Y.; Mahmood, A.; Ouyang, Z.; Zhang, H.; Guo, Z. Recent developments in emerging two-dimensional materials and their applications. J. Mater. Chem. C 2020, 8, 387–440. [Google Scholar] [CrossRef]
  3. Khan, R.; Andreescu, S. Mxenes-based bioanalytical sensors: Design, characterization, and applications. Sensors 2020, 20, 5434. [Google Scholar] [CrossRef]
  4. Lorencova, L.; Bertok, T.; Filip, J.; Jerigova, M.; Velic, D.; Kasak, P.; Mahmoud, K.A.; Tkac, J. Highly stable Ti3C2Tx (MXene)/Pt nanoparticles-modified glassy carbon electrode for H2O2 and small molecules sensing applications. Sens. Actuators B Chem. 2018, 263, 360–368. [Google Scholar] [CrossRef]
  5. Lorencova, L.; Gajdosova, V.; Hroncekova, S.; Bertok, T.; Blahutova, J.; Vikartovska, A.; Parrakova, L.; Gemeiner, P.; Kasak, P.; Tkac, J. 2D MXenes as Perspective Immobilization Platforms for Design of Electrochemical Nanobiosensors. Electroanalysis 2019, 31, 1833–1844. [Google Scholar] [CrossRef]
  6. Alhabeb, M.; Maleski, K.; Anasori, B.; Lelyukh, P.; Clark, L.; Sin, S.; Gogotsi, Y. Guidelines for Synthesis and Processing of Two-Dimensional Titanium Carbide (Ti3C2Tx MXene). Chem. Mater. 2017, 29, 7633–7644. [Google Scholar] [CrossRef]
  7. Limbu, T.B.; Chitara, B.; Orlando, J.D.; Garcia Cervantes, M.Y.; Kumari, S.; Li, Q.; Tang, Y.; Yan, F. Green synthesis of reduced Ti3C2Tx MXene nanosheets with enhanced conductivity, oxidation stability, and SERS activity. J. Mater. Chem. C 2020, 8, 4722–4731. [Google Scholar] [CrossRef]
  8. Habib, T.; Zhao, X.; Shah, S.A.; Chen, Y.; Sun, W.; An, H.; Lutkenhaus, J.L.; Radovic, M.; Green, M.J. Oxidation stability of Ti3C2Tx MXene nanosheets in solvents and composite films. NPJ 2D Mater. Appl. 2019, 3, 8. [Google Scholar] [CrossRef]
  9. Li, B.; Ma, K.; Lu, S.; Liu, X.; Ma, Z.; Zhang, L.; Wang, X.; Wang, S. Structural health monitoring for polymer composites with surface printed MXene/ink sensitive sensors. Appl. Phys. A 2020, 126, 791. [Google Scholar] [CrossRef]
  10. Chen, W.Y.; Jiang, X.; Lai, S.-N.; Peroulis, D.; Stanciu, L. Nanohybrids of a MXene and transition metal dichalcogenide for selective detection of volatile organic compounds. Nat. Commun. 2020, 11, 1302. [Google Scholar] [CrossRef] [Green Version]
  11. Liu, L.; Shangguan, C.; Guo, J.; Ma, K.; Jiao, S.; Yao, Y.; Wang, J. Ultrasensitive SERS Detection of Cancer-Related miRNA-182 by MXene/MoS2@AuNPs with Controllable Morphology and Optimized Self-Internal Standards. Adv. Opt. Mater. 2020. [Google Scholar] [CrossRef]
  12. Gogotsi, Y.; Stach, E.; Hantanasirisakul, K.; Foucher, A.C.; Anayee, M.; Sarycheva, A.; Goad, A.; Maleski, K.; Mathis, T. Modified MAX Phase Synthesis for Environmentally Stable and Highly Conductive Ti3C2 MXene. ChemRxiv 2020. [Google Scholar] [CrossRef]
  13. Lorencova, L.; Gajdosova, V.; Hroncekova, S.; Bertok, T.; Jerigova, M.; Velic, D.; Sobolciak, P.; Krupa, I.; Kasak, P.; Tkac, J. Electrochemical Investigation of Interfacial Properties of Ti3C2Tx MXene Modified by Aryldiazonium Betaine Derivatives. Front. Chem. 2020, 8, 553. [Google Scholar] [CrossRef] [PubMed]
  14. Zhang, C.J.; Pinilla, S.; McEvoy, N.; Cullen, C.P.; Anasori, B.; Long, E.; Park, S.-H.; Seral-Ascaso, A.; Shmeliov, A.; Krishnan, D.; et al. Oxidation Stability of Colloidal Two-Dimensional Titanium Carbides (MXenes). Chem. Mater. 2017, 29, 4848–4856. [Google Scholar] [CrossRef]
  15. Rozmysłowska-Wojciechowska, A.; Szuplewska, A.; Wojciechowski, T.; Poźniak, S.; Mitrzak, J.; Chudy, M.; Ziemkowska, W.; Chlubny, L.; Olszyna, A.; Jastrzębska, A.M. A simple, low-cost and green method for controlling the cytotoxicity of MXenes. Mater. Sci. Eng. C 2020, 111, 110790. [Google Scholar] [CrossRef] [PubMed]
  16. Wang, D.; Wang, L.; Lou, Z.; Zheng, Y.; Wang, K.; Zhao, L.; Han, W.; Jiang, K.; Shen, G. Biomimetic, biocompatible and robust silk Fibroin-MXene film with stable 3D cross-link structure for flexible pressure sensors. Nano Energy 2020, 78, 105252. [Google Scholar] [CrossRef]
  17. Li, X.; Liu, F.; Huang, D.; Xue, N.; Dang, Y.; Zhang, M.; Zhang, L.; Li, B.; Liu, D.; Wang, L.; et al. Nonoxidized MXene Quantum Dots Prepared by Microexplosion Method for Cancer Catalytic Therapy. Adv. Funct. Mater. 2020, 30, 2000308. [Google Scholar] [CrossRef]
  18. Lin, H.; Gao, S.; Dai, C.; Chen, Y.; Shi, J. A Two-Dimensional Biodegradable Niobium Carbide (MXene) for Photothermal Tumor Eradication in NIR-I and NIR-II Biowindows. J. Am. Chem. Soc. 2017, 139, 16235–16247. [Google Scholar] [CrossRef]
  19. Lin, H.; Wang, X.; Yu, L.; Chen, Y.; Shi, J. Two-Dimensional Ultrathin MXene Ceramic Nanosheets for Photothermal Conversion. Nano Lett. 2017, 17, 384–391. [Google Scholar] [CrossRef]
  20. Lin, H.; Wang, Y.; Gao, S.; Chen, Y.; Shi, J. Theranostic 2D Tantalum Carbide (MXene). Adv. Mater. 2018, 30, 1703284. [Google Scholar] [CrossRef]
  21. Nasrallah, G.K.; Al-Asmakh, M.; Rasool, K.; Mahmoud, K.A. Ecotoxicological assessment of Ti3C2Tx (MXene) using a zebrafish embryo model. Environ. Sci. Nano 2018, 5, 1002–1011. [Google Scholar] [CrossRef]
  22. Dai, C.; Lin, H.; Xu, G.; Liu, Z.; Wu, R.; Chen, Y. Biocompatible 2D Titanium Carbide (MXenes) Composite Nanosheets for pH-Responsive MRI-Guided Tumor Hyperthermia. Chem. Mater. 2017, 29, 8637–8652. [Google Scholar] [CrossRef]
  23. Gu, M.; Dai, Z.; Yan, X.; Ma, J.; Niu, Y.; Lan, W.; Wang, X.; Xu, Q. Comparison of toxicity of Ti3C2 and Nb2C Mxene quantum dots (QDs) to human umbilical vein endothelial cells. J. Appl. Toxicol. 2020. [CrossRef]
  24. Szuplewska, A.; Rozmysłowska-Wojciechowska, A.; Poźniak, S.; Wojciechowski, T.; Birowska, M.; Popielski, M.; Chudy, M.; Ziemkowska, W.; Chlubny, L.; Moszczyńska, D.; et al. Multilayered stable 2D nano-sheets of Ti2NTx MXene: Synthesis, characterization, and anticancer activity. J. Nanobiotechnol. 2019, 17, 114. [Google Scholar] [CrossRef] [PubMed]
  25. Wei, Y.; Soomro, R.A.; Xie, X.; Xu, B. Design of efficient electrocatalysts for hydrogen evolution reaction based on 2D MXenes. J. Energy Chem. 2021, 55, 244–255. [Google Scholar] [CrossRef]
  26. Sinha, A.; Dhanjai; Zhao, H.; Huang, Y.; Lu, X.; Chen, J.; Jain, R. MXene: An emerging material for sensing and biosensing. TRAC Trends Anal. Chem. 2018, 105, 424–435. [Google Scholar] [CrossRef]
  27. Zhu, X.; Zhang, Y.; Liu, M.; Liu, Y. 2D titanium carbide MXenes as emerging optical biosensing platforms. Biosens. Bioelectron. 2021, 171, 112730. [Google Scholar] [CrossRef]
  28. Filip, J.; Zavahir, S.; Lorencova, L.; Bertok, T.; Yousaf, A.B.; Mahmoud, K.A.; Tkac, J.; Kasak, P. Tailoring electrocatalytic properties of Pt nanoparticles grown on Ti3C2Tx MXene surface. J. Electrochem. Soc. 2019, 166, H54–H62. [Google Scholar] [CrossRef]
  29. Gajdosova, V.; Lorencova, L.; Prochazka, M.; Omastova, M.; Micusik, M.; Prochazkova, S.; Kveton, F.; Jerigova, M.; Velic, D.; Kasak, P.; et al. Remarkable differences in the voltammetric response towards hydrogen peroxide, oxygen and Ru(NH3)63+ of electrode interfaces modified with HF or LiF-HCl etched Ti3C2Tx MXene. Microchim. Acta 2020, 187, 52. [Google Scholar] [CrossRef]
  30. Shahzad, F.; Zaidi, S.A.; Naqvi, R.A. 2D Transition Metal Carbides (MXene) for Electrochemical Sensing: A Review. Crit. Rev. Anal. Chem. 2020. [Google Scholar] [CrossRef]
  31. Xin, M.; Li, J.; Ma, Z.; Pan, L.; Shi, Y. MXenes and Their Applications in Wearable Sensors. Front. Chem. 2020, 8, 297. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  32. Yang, Y.; Cao, Z.; He, P.; Shi, L.; Ding, G.; Wang, R.; Sun, J. Ti3C2Tx MXene-graphene composite films for wearable strain sensors featured with high sensitivity and large range of linear response. Nano Energy 2019, 66, 104134. [Google Scholar] [CrossRef]
  33. Guo, Y.; Zhong, M.; Fang, Z.; Wan, P.; Yu, G. A Wearable Transient Pressure Sensor Made with MXene Nanosheets for Sensitive Broad-Range Human–Machine Interfacing. Nano Lett. 2019, 19, 1143–1150. [Google Scholar] [CrossRef]
  34. Li, L.; Fu, X.; Chen, S.; Uzun, S.; Levitt, A.S.; Shuck, C.E.; Han, W.; Gogotsi, Y. Hydrophobic and Stable MXene–Polymer Pressure Sensors for Wearable Electronics. Acs Appl. Mater. Interfaces 2020, 12, 15362–15369. [Google Scholar] [CrossRef] [PubMed]
  35. Driscoll, N.; Maleski, K.; Richardson, A.G.; Murphy, B.; Anasori, B.; Lucas, T.H.; Gogotsi, Y.; Vitale, F. Fabrication of Ti3C2 MXene Microelectrode Arrays for In Vivo Neural Recording. JoVE 2020, 156, e60741. [Google Scholar]
  36. Driscoll, N.; Richardson, A.G.; Maleski, K.; Anasori, B.; Adewole, O.; Lelyukh, P.; Escobedo, L.; Cullen, D.K.; Lucas, T.H.; Gogotsi, Y.; et al. Two-Dimensional Ti3C2 MXene for High-Resolution Neural Interfaces. Acs Nano 2018, 12, 10419–10429. [Google Scholar] [CrossRef] [PubMed]
  37. Huang, H.; Jiang, R.; Yulin, F.; Ouyang, H.; Zhou, N.; Zhang, X.; Wei, Y. Recent development and prospects of surface modification and biomedical applications of MXenes. Nanoscale 2020, 12, 1325–1338. [Google Scholar] [CrossRef]
  38. Lin, H.; Chen, Y.; Shi, J. Insights into 2D MXenes for Versatile Biomedical Applications: Current Advances and Challenges Ahead. Adv. Sci. 2018, 5, 1800518. [Google Scholar] [CrossRef] [Green Version]
  39. Si, Z.; Xiaowei, Y.; Wei, P.; Zhou, J.; Jijun, Z. MXene and MBene as efficient catalysts for energy conversion: Roles of surface, edge and interface. J. Phys. Energy 2020. [Google Scholar] [CrossRef]
  40. Ma, L.; Zhao, T.; Xu, F.; You, T.; Zhang, X. A dual utilization strategy of lignosulfonate for MXene asymmetric supercapacitor with high area energy density. Chem. Eng. J. 2021, 405, 126694. [Google Scholar] [CrossRef]
  41. Niu, R.; Han, R.; Wang, Y.; Zhang, L.; Qiao, Q.; Jiang, L.; Sun, Y.; Tang, S.; Zhu, J. MXene-based porous and robust 2D/2D hybrid architectures with dispersed Li3Ti2(PO4)3 as superior anodes for lithium-ion battery. Chem. Eng. J. 2021, 405, 127049. [Google Scholar] [CrossRef]
  42. Gao, H.; Shao, Y.; Shi, R.; Liu, Y.; Zhu, J.; Liu, J.; Zhu, Y.; Zhang, J.; Li, L.; Hu, X. Effect of Few-Layer Ti3C2Tx Supported Nano-Ni via Self-Assembly Reduction on Hydrogen Storage Performance of MgH2. Acs Appl. Mater. Interfaces 2020. [Google Scholar] [CrossRef]
  43. Qu, J.; Xiao, J.; Chen, H.; Liu, X.; Wang, T.; Zhang, Q. Orbital symmetry matching: Achieving superior nitrogen reduction reaction over single-atom catalysts anchored on Mxene substrates. Chin. J. Catal. 2021, 42, 288–296. [Google Scholar] [CrossRef]
  44. Huang, K.; Li, C.; Li, H.; Ren, G.; Wang, L.; Wang, W.; Meng, X. Photocatalytic Applications of Two-Dimensional Ti3C2 MXenes: A Review. ACS Appl. Nano Mater. 2020. [Google Scholar] [CrossRef]
  45. Zhou, Y.; Zhuge, X.; An, P.; Du, S. First-principles investigations on MXene-blue phosphorene and MXene-MoS2 transistors. Nanotechnology 2020, 31, 395203. [Google Scholar] [CrossRef]
  46. Ihsanullah, D. MXenes (two-dimensional metal carbides) as emerging nanomaterials for water purification: Progress, challenges and prospects. Chem. Eng. J. 2020, 388, 124340. [Google Scholar] [CrossRef]
  47. Chen, J.; Huang, Q.; Huang, H.; Mao, L.; Liu, M.; Zhang, X.; Wei, Y. Recent progress and advances in the environmental applications of MXene related materials. Nanoscale 2020, 12, 3574–3592. [Google Scholar] [CrossRef]
  48. Shahzad, F.; Iqbal, A.; Kim, H.; Koo, C.M. 2D Transition Metal Carbides (MXenes): Applications as an Electrically Conducting Material. Adv. Mater. 2020. [Google Scholar] [CrossRef]
  49. Iqbal, A.; Shahzad, F.; Hantanasirisakul, K.; Kim, M.-K.; Kwon, J.; Hong, J.; Kim, H.; Kim, D.; Gogotsi, Y.; Koo, C.M. Anomalous absorption of electromagnetic waves by 2D transition metal carbonitride Ti3CNTx (MXene). Science 2020, 369, 446–450. [Google Scholar]
  50. Nnamchi, P.S.; Obayi, C.S. Electrochemical characterization of nanomaterials. In Characterization of Nanomaterials: Advances and Key Technologies; Woodhead Publishing: Cambridge, UK, 2018; pp. 103–127. [Google Scholar]
  51. Bertok, T.; Lorencova, L.; Chocholova, E.; Jane, E.; Vikartovska, A.; Kasak, P.; Tkac, J. Electrochemical Impedance Spectroscopy Based Biosensors: Mechanistic Principles, Analytical Examples and Challenges towards Commercialization for Assays of Protein Cancer Biomarkers. ChemElectroChem 2019, 6, 989–1003. [Google Scholar] [CrossRef] [Green Version]
  52. Barsoukov, E.; Macdonald, J.R. Impedance Spectroscopy: Theory, Experiment, and Applications; Wiley: Hoboken, NJ, USA, 2005; pp. 1–595. [Google Scholar]
  53. Ellis, C.L.C.; Smith, E.; Javaid, H.; Berns, G.; Venkataraman, D. Chapter 6—Ion Migration in Hybrid Perovskites: Evolving Understanding of a Dynamic Phenomenon. In Perovskite Photovoltaics; Thomas, S., Thankappan, A., Eds.; Academic Press: Cambridge, MA, USA, 2018; pp. 163–196. [Google Scholar]
  54. Uygun, Z.O.; Ertuğrul Uygun, H.D. A short footnote: Circuit design for faradaic impedimetric sensors and biosensors. Sens. Actuators B Chem. 2014, 202, 448–453. [Google Scholar] [CrossRef]
  55. Melchior, S.A.; Raju, K.; Ike, I.S.; Erasmus, R.M.; Kabongo, G.; Sigalas, I.; Iyuke, S.E.; Ozoemena, K.I. High-Voltage Symmetric Supercapacitor Based on 2D Titanium Carbide (MXene, Ti2CTx)/Carbon Nanosphere Composites in a Neutral Aqueous Electrolyte. J. Electrochem. Soc. 2018, 165, A501–A511. [Google Scholar] [CrossRef] [Green Version]
  56. Zhang, X.; Liu, Y.; Dong, S.; Ye, Z.; Wei, Y. Low-temperature synthesized nanocomposites with amorphous FeOOH on Ti3C2Tx for supercapacitors. J. Alloy. Compd. 2018, 744, 507–515. [Google Scholar] [CrossRef]
  57. Syamsai, R.; Grace, A.N. Ta4C3 MXene as supercapacitor electrodes. J. Alloy. Compd. 2019, 792, 1230–1238. [Google Scholar] [CrossRef]
  58. Zhao, C.; Wang, Q.; Zhang, H.; Passerini, S.; Qian, X. Two-Dimensional Titanium Carbide/RGO Composite for High-Performance Supercapacitors. Acs Appl. Mater. Interfaces 2016, 8, 15661–15667. [Google Scholar] [CrossRef] [PubMed]
  59. Lorencova, L.; Bertok, T.; Dosekova, E.; Holazova, A.; Paprckova, D.; Vikartovska, A.; Sasinkova, V.; Filip, J.; Kasak, P.; Jerigova, M.; et al. Electrochemical performance of Ti3C2Tx MXene in aqueous media: Towards ultrasensitive H2O2 sensing. Electrochim. Acta 2017, 235, 471–479. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  60. Huang, R.; Chen, S.; Yu, J.; Jiang, X. Self-assembled Ti3C2/MWCNTs nanocomposites modified glassy carbon electrode for electrochemical simultaneous detection of hydroquinone and catechol. Ecotoxicol. Environ. Saf. 2019, 184, 109619. [Google Scholar] [CrossRef]
  61. Bertok, T.; Lorencova, L.; Hroncekova, S.; Gajdosova, V.; Jane, E.; Hires, M.; Kasak, P.; Kaman, O.; Sokol, R.; Bella, V. Advanced impedimetric biosensor configuration and assay protocol for glycoprofiling of a prostate oncomarker using Au nanoshells with a magnetic core. Biosens. Bioelectron. 2019, 131, 24–29. [Google Scholar] [CrossRef]
  62. Bertok, T.; Lorencova, L.; Hroncekova, S.; Gajdosova, V.; Jane, E.; Hires, M.; Kasak, P.; Kaman, O.; Sokol, R.; Bella, V. Synthesis and characterization of Au nanoshells with a magnetic core and betaine derivatives. MethodsX 2019, 6, 1999–2012. [Google Scholar] [CrossRef]
  63. Zhou, L.; Zhang, X.; Ma, L.; Gao, J.; Jiang, Y. Acetylcholinesterase/chitosan-transition metal carbides nanocomposites-based biosensor for the organophosphate pesticides detection. Biochem. Eng. J. 2017, 128, 243–249. [Google Scholar] [CrossRef]
  64. Medetalibeyoglu, H.; Kotan, G.; Atar, N.; Yola, M.L. A novel and ultrasensitive sandwich-type electrochemical immunosensor based on delaminated MXene@AuNPs as signal amplification for prostate specific antigen (PSA) detection and immunosensor validation. Talanta 2020, 220, 121403. [Google Scholar] [CrossRef] [PubMed]
  65. Medetalibeyoglu, H.; Beytur, M.; Akyıldırım, O.; Atar, N.; Yola, M.L. Validated electrochemical immunosensor for ultra-sensitive procalcitonin detection: Carbon electrode modified with gold nanoparticles functionalized sulfur doped MXene as sensor platform and carboxylated graphitic carbon nitride as signal amplification. Sens. Actuators B Chem. 2020, 319, 128195. [Google Scholar] [CrossRef]
  66. Zhou, S.; Gu, C.; Li, Z.; Yang, L.; He, L.; Wang, M.; Huang, X.; Zhou, N.; Zhang, Z. Ti3C2Tx MXene and polyoxometalate nanohybrid embedded with polypyrrole: Ultra-sensitive platform for the detection of osteopontin. Appl. Surf. Sci. 2019, 498, 143889. [Google Scholar] [CrossRef]
  67. Duan, F.; Guo, C.; Hu, M.; Song, Y.; Wang, M.; He, L.; Zhang, Z.; Pettinari, R.; Zhou, L. Construction of the 0D/2D heterojunction of Ti3C2Tx MXene nanosheets and iron phthalocyanine quantum dots for the impedimetric aptasensing of microRNA-155. Sens. Actuators B Chem. 2020, 310, 127844. [Google Scholar] [CrossRef]
  68. Özcan, N.; Medetalibeyoglu, H.; Akyıldırım, O.; Atar, N.; Yola, M.L. Electrochemical detection of amyloid-β protein by delaminated titanium carbide MXene/multi-walled carbon nanotubes composite with molecularly imprinted polymer. Mater. Today Commun. 2020, 23, 101097. [Google Scholar] [CrossRef]
  69. Kadirsoy, S.; Atar, N.; Yola, M.L. Molecularly imprinted QCM sensor based on delaminated MXene for chlorpyrifos detection and QCM sensor validation. New J. Chem. 2020, 44, 6524–6532. [Google Scholar] [CrossRef]
Chemosensors 08 00127 g001 550

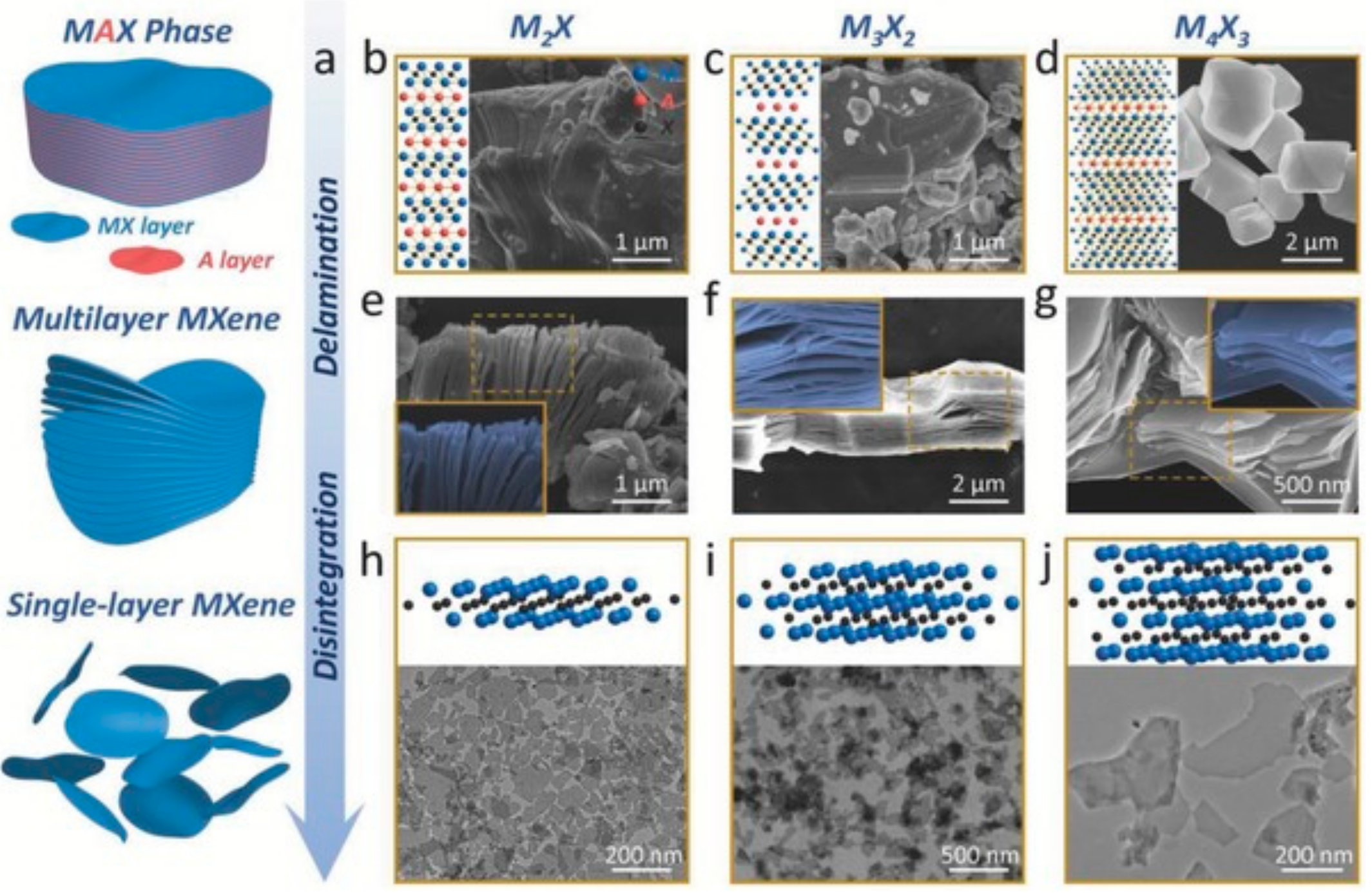

Figure 1. Methods for synthesis of MXenes for biomedical applications. (a) Synthesis of MXenes by delamination, disintegration, and, finally, by surface modification. (b) A 2D MAX phase model with corresponding scanning electron microscopy (SEM) image for M2X, (c) 2D model and corresponding SEM image of MAX phase for M3X2, (d) 2D model and corresponding SEM image for M4X3 MAX phase, (e) SEM image of M2X, (f) SEM image of M3X2, (g) SEM image of M4X3, and (h) 3D model with corresponding transmission electron microscopy (TEM) image for M2X-based MXenes, (i) 3D model and corresponding TEM image for M3X2-based MXenes, and (j) 3D model and corresponding TEM image for M4X3-based MXenes. Reprinted from ref. [15], Copyright (2020), with permission from Elsevier.
Figure 1. Methods for synthesis of MXenes for biomedical applications. (a) Synthesis of MXenes by delamination, disintegration, and, finally, by surface modification. (b) A 2D MAX phase model with corresponding scanning electron microscopy (SEM) image for M2X, (c) 2D model and corresponding SEM image of MAX phase for M3X2, (d) 2D model and corresponding SEM image for M4X3 MAX phase, (e) SEM image of M2X, (f) SEM image of M3X2, (g) SEM image of M4X3, and (h) 3D model with corresponding transmission electron microscopy (TEM) image for M2X-based MXenes, (i) 3D model and corresponding TEM image for M3X2-based MXenes, and (j) 3D model and corresponding TEM image for M4X3-based MXenes. Reprinted from ref. [15], Copyright (2020), with permission from Elsevier.
Chemosensors 08 00127 g001
Chemosensors 08 00127 g002 550

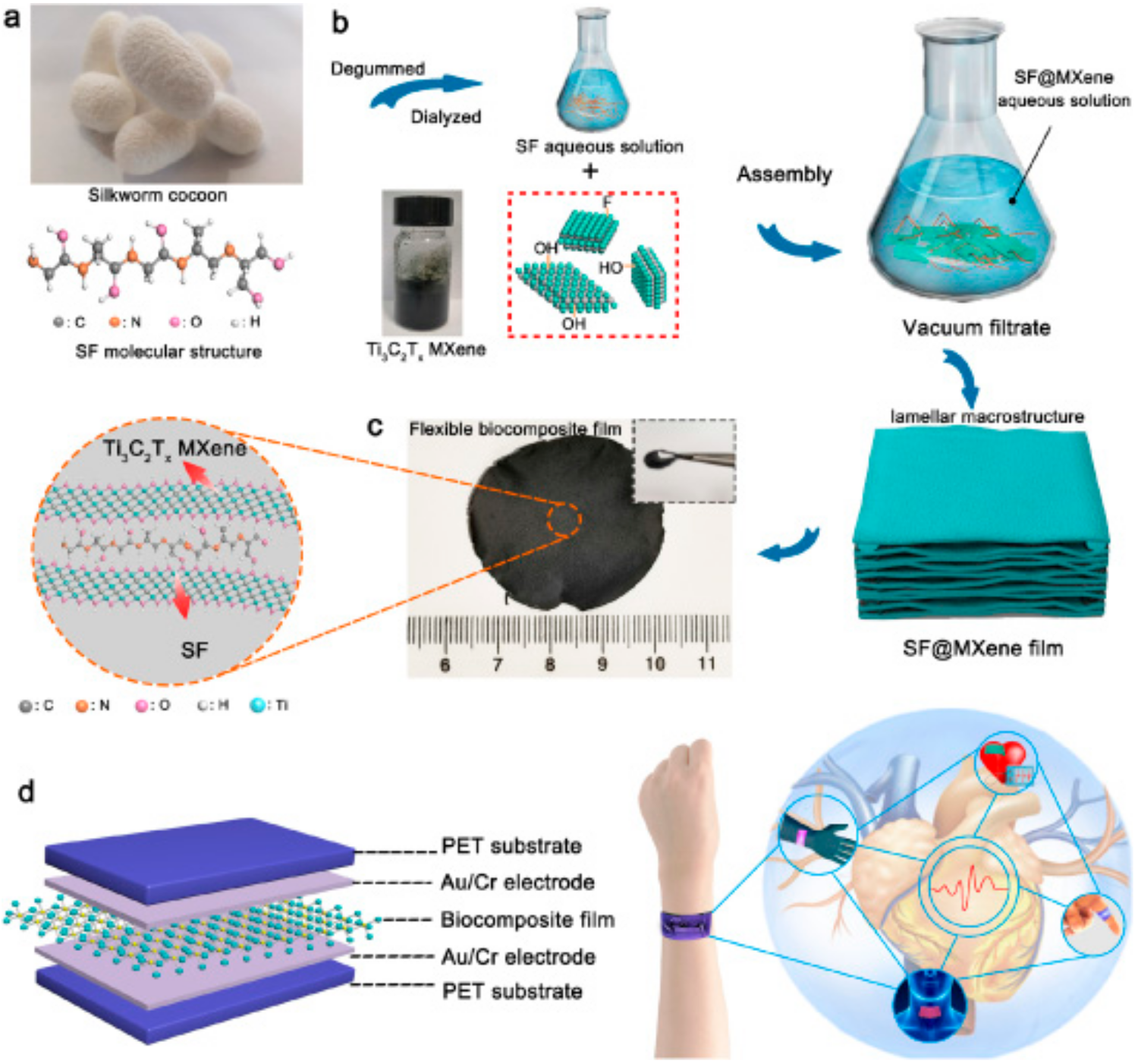

Figure 2. Preparation of the MXene-based bionanocomposite as a flexible pressure sensor. (a) Image of a silkworm cocoon with structure of a silk fibroin (SF) on a molecular level. (b) The fabrication of SF@MXene bionanocomposite film. (c) Image of SF@MXene bionanocomposite film. Inset shows SF@MXene bionanocomposite film on a molecular level. (d) Scheme of SF@MXene bionanocomposite film-based sensor applicable for monitoring of human health (right). Reprinted from ref. [16], Copyright (2020), with permission from Elsevier.
Figure 2. Preparation of the MXene-based bionanocomposite as a flexible pressure sensor. (a) Image of a silkworm cocoon with structure of a silk fibroin (SF) on a molecular level. (b) The fabrication of SF@MXene bionanocomposite film. (c) Image of SF@MXene bionanocomposite film. Inset shows SF@MXene bionanocomposite film on a molecular level. (d) Scheme of SF@MXene bionanocomposite film-based sensor applicable for monitoring of human health (right). Reprinted from ref. [16], Copyright (2020), with permission from Elsevier.
Chemosensors 08 00127 g002
Chemosensors 08 00127 g003 550

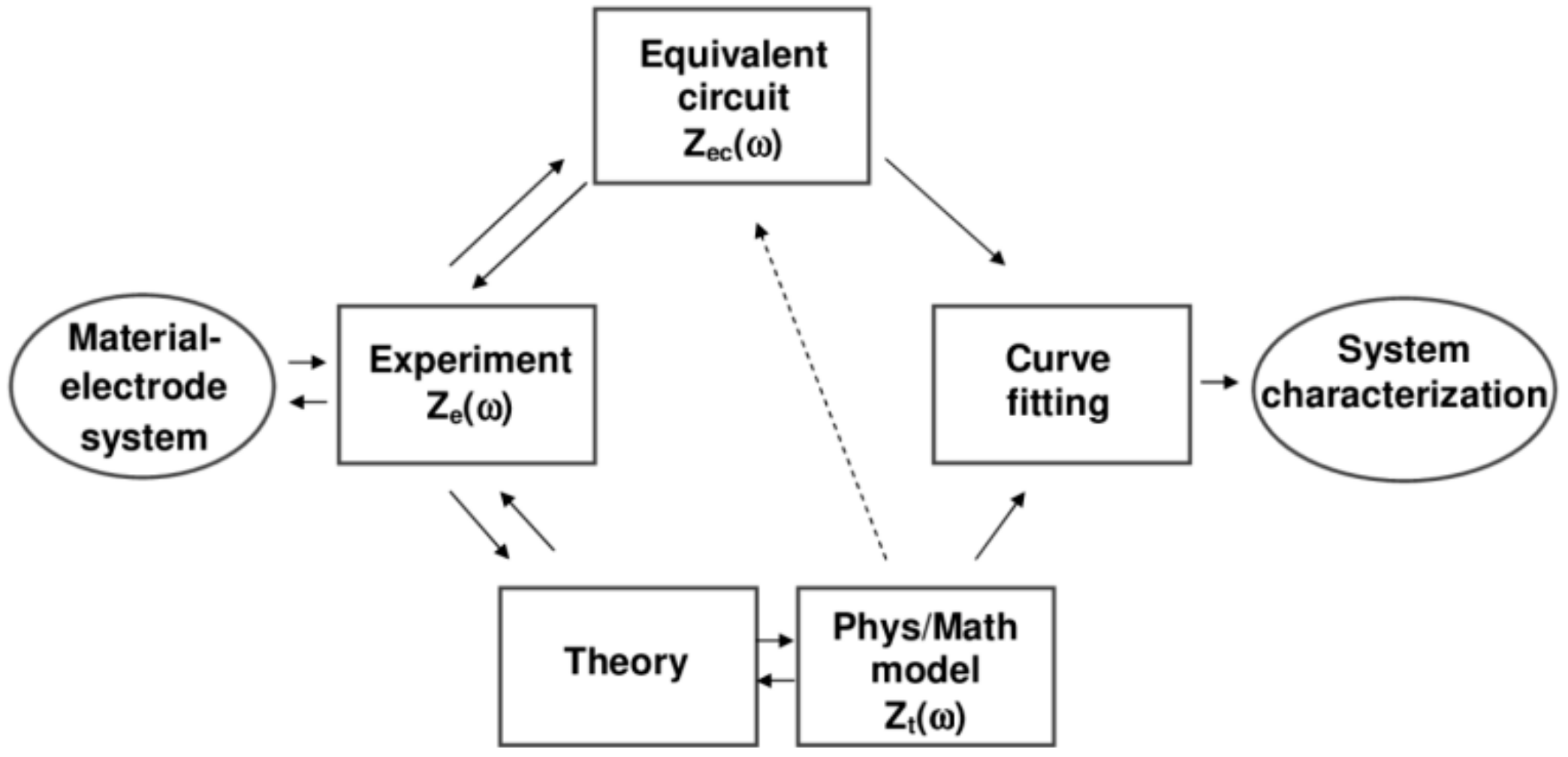

Figure 3. A scheme showing the use of electrochemical impedance spectroscopy (EIS) to investigate characteristics of a material–electrode interface. Reprinted from ref. [52], Copyright 2005, with permission from John Wiley and Sons.
Figure 3. A scheme showing the use of electrochemical impedance spectroscopy (EIS) to investigate characteristics of a material–electrode interface. Reprinted from ref. [52], Copyright 2005, with permission from John Wiley and Sons.
Chemosensors 08 00127 g003
Chemosensors 08 00127 g004 550

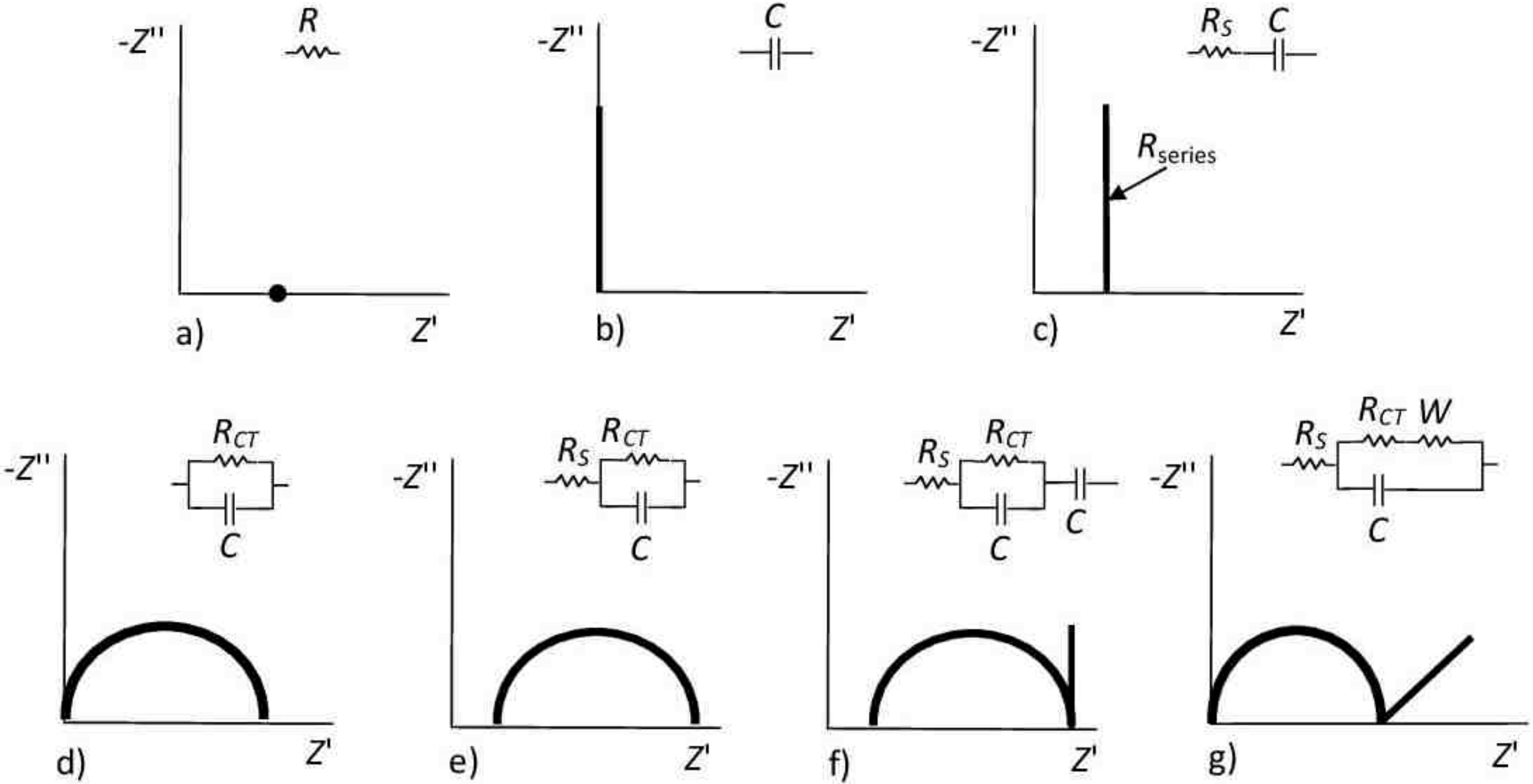

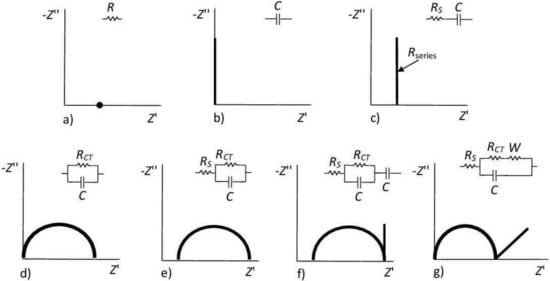

Figure 4. Typical Nyquist plots for various electrical circuits, moving from those that are the most simple to the more common. Upper row: (a) pure resistor (R, only real part of impedance); (b) pure capacitor (C, only imaginary part of impedance); (c) R and C in series connection. Lower row: (d) R and C in parallel connection; (e) R and C in parallel connection and in series with a solution resistance (RS), where RCT denotes the charge transfer resistance of the interface; (f) the same circuit with additional in-series capacitance and (g) Randles–Ershler equivalent circuit, most commonly used for fitting impedimetric biosensor data, where W stands for Warburg element (diffusion parameter for low frequencies). Adapted from ref. [54], Copyright (2014), with permission from Elsevier and reprinted from ref. [51], Copyright 2019, with permission from John Wiley and Sons.
Figure 4. Typical Nyquist plots for various electrical circuits, moving from those that are the most simple to the more common. Upper row: (a) pure resistor (R, only real part of impedance); (b) pure capacitor (C, only imaginary part of impedance); (c) R and C in series connection. Lower row: (d) R and C in parallel connection; (e) R and C in parallel connection and in series with a solution resistance (RS), where RCT denotes the charge transfer resistance of the interface; (f) the same circuit with additional in-series capacitance and (g) Randles–Ershler equivalent circuit, most commonly used for fitting impedimetric biosensor data, where W stands for Warburg element (diffusion parameter for low frequencies). Adapted from ref. [54], Copyright (2014), with permission from Elsevier and reprinted from ref. [51], Copyright 2019, with permission from John Wiley and Sons.
Chemosensors 08 00127 g004
Chemosensors 08 00127 g005 550

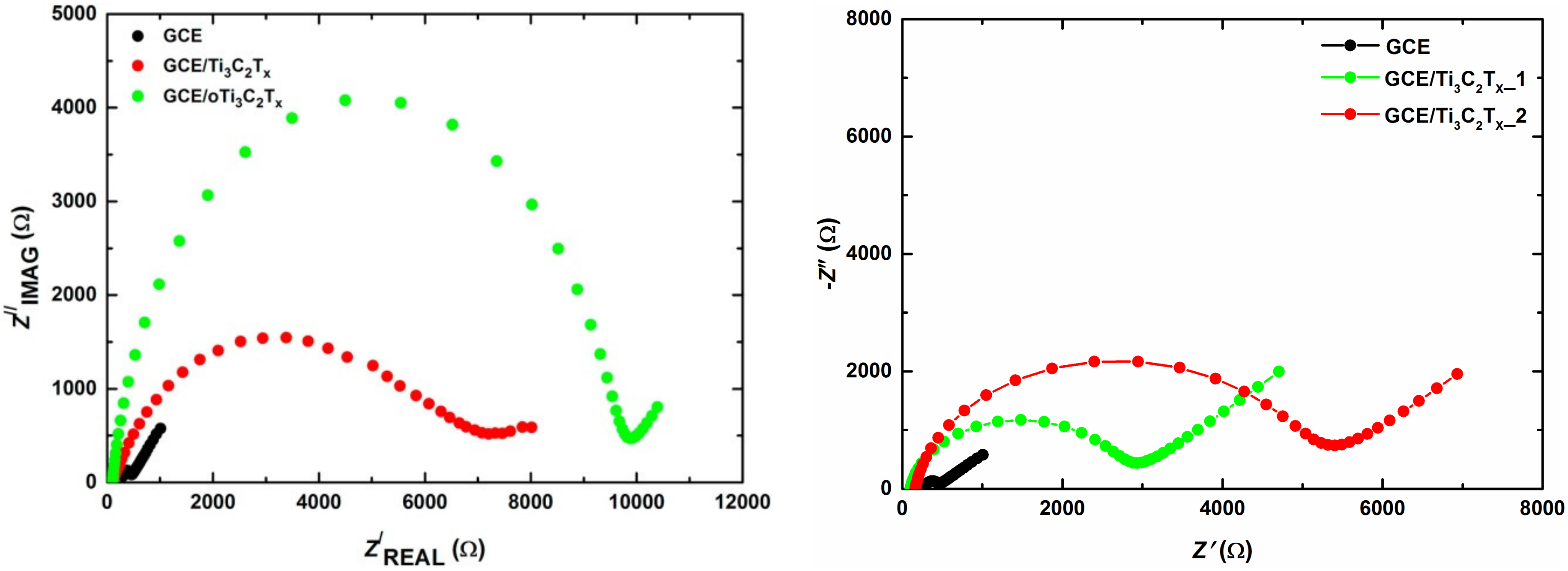

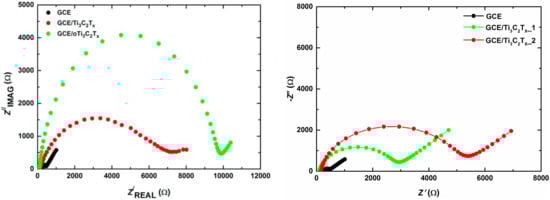

Figure 5. Nyquist plots at unmodified glassy carbon electrode (GCE), GCE/Ti3C2Tx, and GCE/oTi3C2Tx (left). Reprinted from ref. [59], Copyright (2017), with permission from Elsevier. Nyquist plots at unmodified GCE, GCE/MXene1, and GCE/MXene2 (right). Reprinted by permission from ref. [29]: Springer, Copyright (2020). In both cases EIS was run in 5 mM ferricyanide/ferrocyanide solution in 0.1 M PB pH 7.0. EIS spectra were run using 50 different frequencies (0.1 Hz–100 kHz). The experiment was performed using an Ag/AgCl reference electrode and platinum counter electrode.
Figure 5. Nyquist plots at unmodified glassy carbon electrode (GCE), GCE/Ti3C2Tx, and GCE/oTi3C2Tx (left). Reprinted from ref. [59], Copyright (2017), with permission from Elsevier. Nyquist plots at unmodified GCE, GCE/MXene1, and GCE/MXene2 (right). Reprinted by permission from ref. [29]: Springer, Copyright (2020). In both cases EIS was run in 5 mM ferricyanide/ferrocyanide solution in 0.1 M PB pH 7.0. EIS spectra were run using 50 different frequencies (0.1 Hz–100 kHz). The experiment was performed using an Ag/AgCl reference electrode and platinum counter electrode.
Chemosensors 08 00127 g005
Chemosensors 08 00127 g006 550
Figure 6. EIS investigation performed on MXene-modified electrode and on the electrode patterned by zwitterion-modified MXene. For other experimental conditions see Figure 5. EIS analysis is shown as a Nyquist plot using an equivalent circuit R[Q(RW)] for data fitting. Abbreviations: MXene/CB: MXene spontaneously modified by carboxybetaine; MXene/SB: MXene spontaneously modified by sulphobetaine; MXene/CB_e: MXene modified by carboxybetaine using a redox trigger; MXene/SB_e: MXene modified by sulphobetaine using a redox trigger. The figure is reprinted from our open access paper [13].
Figure 6. EIS investigation performed on MXene-modified electrode and on the electrode patterned by zwitterion-modified MXene. For other experimental conditions see Figure 5. EIS analysis is shown as a Nyquist plot using an equivalent circuit R[Q(RW)] for data fitting. Abbreviations: MXene/CB: MXene spontaneously modified by carboxybetaine; MXene/SB: MXene spontaneously modified by sulphobetaine; MXene/CB_e: MXene modified by carboxybetaine using a redox trigger; MXene/SB_e: MXene modified by sulphobetaine using a redox trigger. The figure is reprinted from our open access paper [13].
Chemosensors 08 00127 g006
Chemosensors 08 00127 g007 550
Figure 7. Nyquist plots recorded for unmodified GCE (a), AChE/CS-MXene/GCE (b), CS-MXene/GCE (c) in 5 mM K3[Fe(CN)6] and 0.1 M KCl mixture solution over a frequency range from 10−2 Hz to 105 Hz. CS stands for chitosan. Reprinted from ref. [63], Copyright (2017), with permission from Elsevier.
Figure 7. Nyquist plots recorded for unmodified GCE (a), AChE/CS-MXene/GCE (b), CS-MXene/GCE (c) in 5 mM K3[Fe(CN)6] and 0.1 M KCl mixture solution over a frequency range from 10−2 Hz to 105 Hz. CS stands for chitosan. Reprinted from ref. [63], Copyright (2017), with permission from Elsevier.
Chemosensors 08 00127 g007
Chemosensors 08 00127 g008 550
Figure 8. Nyquist plots at (a) unmodified GCE, (b) GO/GCE, (c) AuNPs-ATP-GO/GCE, (d) after immobilization of Ab1on AuNPs-ATP-GO/GCE, (e) after blocking of the interface by BSA, and (f) after incubation with PSA. Abbreviations: GO: graphene oxide; AuNPs: gold nanoparticles; ATP: p-aminothiophenol; BSA: bovine serum albumin; PSA: prostate specific antigen. For other abbreviations see the text. Reprinted from ref. [64], Copyright (2020), with permission from Elsevier.
Figure 8. Nyquist plots at (a) unmodified GCE, (b) GO/GCE, (c) AuNPs-ATP-GO/GCE, (d) after immobilization of Ab1on AuNPs-ATP-GO/GCE, (e) after blocking of the interface by BSA, and (f) after incubation with PSA. Abbreviations: GO: graphene oxide; AuNPs: gold nanoparticles; ATP: p-aminothiophenol; BSA: bovine serum albumin; PSA: prostate specific antigen. For other abbreviations see the text. Reprinted from ref. [64], Copyright (2020), with permission from Elsevier.
Chemosensors 08 00127 g008
Chemosensors 08 00127 g009 550
Figure 9. (A) Cyclic voltammograms (CVs) at (a) unmodified GCE, (b) d-S-MXene/GCE, (c) AuNPs/d-S-MXene/GCE, (d) Ab1/AuNPs/d-S-MXene/GCE, (e) BSA/Ab1/AuNPs/d-S-MXene/GCE, (f) PCT/BSA/Ab1/AuNPs/d-S-MXene/GCE; (B) EIS response at (a) unmodified GCE, (b) d-S-MXene/GCE, (c) AuNPs/d-S-MXene/GCE, (d) Ab1/AuNPs/d-S-MXene/GCE, (e) BSA/Ab1/AuNPs/d-S-MXene/GCE, (f) PCT/BSA/Ab1/AuNPs/d-S-MXene/GCE; (C) CVs at (a) unmodified GCE, (b) d-MXene/GCE, (c) d-S-MXene/GCE. BSA stands for bovine serum albumin and PCT stands for procalcitocin. Reprinted from ref. [65], Copyright (2020), with permission from Elsevier.
Figure 9. (A) Cyclic voltammograms (CVs) at (a) unmodified GCE, (b) d-S-MXene/GCE, (c) AuNPs/d-S-MXene/GCE, (d) Ab1/AuNPs/d-S-MXene/GCE, (e) BSA/Ab1/AuNPs/d-S-MXene/GCE, (f) PCT/BSA/Ab1/AuNPs/d-S-MXene/GCE; (B) EIS response at (a) unmodified GCE, (b) d-S-MXene/GCE, (c) AuNPs/d-S-MXene/GCE, (d) Ab1/AuNPs/d-S-MXene/GCE, (e) BSA/Ab1/AuNPs/d-S-MXene/GCE, (f) PCT/BSA/Ab1/AuNPs/d-S-MXene/GCE; (C) CVs at (a) unmodified GCE, (b) d-MXene/GCE, (c) d-S-MXene/GCE. BSA stands for bovine serum albumin and PCT stands for procalcitocin. Reprinted from ref. [65], Copyright (2020), with permission from Elsevier.
Chemosensors 08 00127 g009
Chemosensors 08 00127 g010 550
Figure 10. Nyquist plots for (a) PPy@Ti3C2Tx/PMo12-, (b) Ti3C2Tx@PMo12-, (c) PPy@Ti3C2Tx-, (d) PPy@PMo12-, (e) PPy-, and (f) Ti3C2Tx-based aptasensors and (g) their corresponding variations in ΔRct values at each stage for the OPN detection using the fabricated aptasensors based on PPy, Ti3C2Tx, Ti3C2Tx@PMO12, PPy@Ti3C2Tx, PPy@PMo12, and PPy@Ti3C2Tx/PMo12 nanohybrids. PPy stands for polypyrrole; PMo12 stands for phosphomolybdic acid nanoparticles and OPN stands for osteopontin. Reprinted from ref. [66], Copyright (2019), with permission from Elsevier.
Figure 10. Nyquist plots for (a) PPy@Ti3C2Tx/PMo12-, (b) Ti3C2Tx@PMo12-, (c) PPy@Ti3C2Tx-, (d) PPy@PMo12-, (e) PPy-, and (f) Ti3C2Tx-based aptasensors and (g) their corresponding variations in ΔRct values at each stage for the OPN detection using the fabricated aptasensors based on PPy, Ti3C2Tx, Ti3C2Tx@PMO12, PPy@Ti3C2Tx, PPy@PMo12, and PPy@Ti3C2Tx/PMo12 nanohybrids. PPy stands for polypyrrole; PMo12 stands for phosphomolybdic acid nanoparticles and OPN stands for osteopontin. Reprinted from ref. [66], Copyright (2019), with permission from Elsevier.
Chemosensors 08 00127 g010
Chemosensors 08 00127 g011 550
Figure 11. (a) Nyquist plots for the biosensor detecting OPN with concentrations from 0.05 to 10,000 pg mL−1. (b) Dependence of the ∆Rct values on OPN concentration. (c) Interference study using BSA, immunoglobulin G (IgG), immunoglobulin E (IgE), lysine (LYS), thrombin (THR), and prostate specific antigen (PSA) as interferents applied at concentration of 50.0 pg mL−1, OPN at concentration of 0.5 pg mL−1, and their mixture. (d) Reproducibility, (e) stability, and (f) regeneration of the biosensor for detection of OPN (0.5 pg mL−1). Reprinted from ref. [66], Copyright (2019), with permission from Elsevier.
Figure 11. (a) Nyquist plots for the biosensor detecting OPN with concentrations from 0.05 to 10,000 pg mL−1. (b) Dependence of the ∆Rct values on OPN concentration. (c) Interference study using BSA, immunoglobulin G (IgG), immunoglobulin E (IgE), lysine (LYS), thrombin (THR), and prostate specific antigen (PSA) as interferents applied at concentration of 50.0 pg mL−1, OPN at concentration of 0.5 pg mL−1, and their mixture. (d) Reproducibility, (e) stability, and (f) regeneration of the biosensor for detection of OPN (0.5 pg mL−1). Reprinted from ref. [66], Copyright (2019), with permission from Elsevier.
Chemosensors 08 00127 g011
Chemosensors 08 00127 g012 550
Figure 12. (a) Nyquist plots for various stages of development of the aptasensor for analysis of micro RNA-155 (miRNA-155) based on MXene@QD nanohybrid (QDs stands for quantum dots). (b) Variations of the Rct values for three different biosensor devices. (c) Variations of the Rct values for the biosensor device based on the MXene@QD nanohybrid with analyte concentrations from 0.1 to 2 mg mL−1. (d) The ΔRct values for different aptamer concentrations from 10 to 500 nM for detection of 10 fM miRNA-155using the MXene@QD-based aptasensor. (e) The influence of binding time on detecting miRNA-155 using the MXene@QD-based aptasensor. Nyquist plots of the MXene@QD-based aptasensor incubated with miRNA-155 solution (10 fM) and (f) their corresponding ΔRct values. Reprinted from ref. [67], Copyright (2020), with permission from Elsevier.
Figure 12. (a) Nyquist plots for various stages of development of the aptasensor for analysis of micro RNA-155 (miRNA-155) based on MXene@QD nanohybrid (QDs stands for quantum dots). (b) Variations of the Rct values for three different biosensor devices. (c) Variations of the Rct values for the biosensor device based on the MXene@QD nanohybrid with analyte concentrations from 0.1 to 2 mg mL−1. (d) The ΔRct values for different aptamer concentrations from 10 to 500 nM for detection of 10 fM miRNA-155using the MXene@QD-based aptasensor. (e) The influence of binding time on detecting miRNA-155 using the MXene@QD-based aptasensor. Nyquist plots of the MXene@QD-based aptasensor incubated with miRNA-155 solution (10 fM) and (f) their corresponding ΔRct values. Reprinted from ref. [67], Copyright (2020), with permission from Elsevier.
Chemosensors 08 00127 g012
Chemosensors 08 00127 g013 550
Figure 13. (a) Nyquist plots for detection of miRNA-155 from 0.01 to 10,000 fM using the MXene@QD-based aptasensor. (b) Dependence of ∆Rct on the concentration of miRNA-155. (c) The ∆Rct values of MXene@QD nanohybrid-based electrochemical aptasensor by separately adding the interferences with the concentration of 10 fM, miRNA-155 with 0.1 fM, and their mixture. (d) Reproducibility and (e) stability of the MXene@QD-based aptasensor for detecting miRNA-155 with the concentration of 0.1 fM. Reprinted from ref. [67], Copyright (2020), with permission from Elsevier.
Figure 13. (a) Nyquist plots for detection of miRNA-155 from 0.01 to 10,000 fM using the MXene@QD-based aptasensor. (b) Dependence of ∆Rct on the concentration of miRNA-155. (c) The ∆Rct values of MXene@QD nanohybrid-based electrochemical aptasensor by separately adding the interferences with the concentration of 10 fM, miRNA-155 with 0.1 fM, and their mixture. (d) Reproducibility and (e) stability of the MXene@QD-based aptasensor for detecting miRNA-155 with the concentration of 0.1 fM. Reprinted from ref. [67], Copyright (2020), with permission from Elsevier.
Chemosensors 08 00127 g013
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Aguedo, J.; Lorencova, L.; Barath, M.; Farkas, P.; Tkac, J. Electrochemical Impedance Spectroscopy on 2D Nanomaterial MXene Modified Interfaces: Application as a Characterization and Transducing Tool. Chemosensors 2020, 8, 127. https://doi.org/10.3390/chemosensors8040127

AMA Style

Aguedo J, Lorencova L, Barath M, Farkas P, Tkac J. Electrochemical Impedance Spectroscopy on 2D Nanomaterial MXene Modified Interfaces: Application as a Characterization and Transducing Tool. Chemosensors. 2020; 8(4):127. https://doi.org/10.3390/chemosensors8040127

Chicago/Turabian Style

Aguedo, Juvissan, Lenka Lorencova, Marek Barath, Pavol Farkas, and Jan Tkac. 2020. "Electrochemical Impedance Spectroscopy on 2D Nanomaterial MXene Modified Interfaces: Application as a Characterization and Transducing Tool" Chemosensors 8, no. 4: 127. https://doi.org/10.3390/chemosensors8040127

APA Style

Aguedo, J., Lorencova, L., Barath, M., Farkas, P., & Tkac, J. (2020). Electrochemical Impedance Spectroscopy on 2D Nanomaterial MXene Modified Interfaces: Application as a Characterization and Transducing Tool. Chemosensors, 8(4), 127. https://doi.org/10.3390/chemosensors8040127

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
