Zero-Hopf Bifurcation in a Generalized Genesio Differential Equation

Abstract

The purpose of the present paper is to study the presence of bifurcations of zero-Hopf type at a generalized Genesio differential equation. More precisely, by transforming such differential equation in a first-order differential system in the three-dimensional space ${\mathbb{R}}^3$, we are able to prove the existence of a zero-Hopf bifurcation from which periodic trajectories appear close to the equilibrium point located at the origin when the parameters a and c are zero and b is positive.

1. Introduction and Statement of the Main Results

In [1], the authors analyzed the presence of zero-Hopf bifurcations for the ordinary differential equation of order three

$$\stackrel{⃛}{x}+a\ddot{x}+b\dot{x}+cx-x^2=0,$$

(1)

which is commonly known as the Genesio equation.

In this work, our aim is to study the existence of bifurcations of zero-Hopf type at the so-called generalized Genesio differential equation

$$\stackrel{⃛}{x}+a\ddot{x}+b\dot{x}+cx+h\left(x\right)=0,$$

(2)

where $h\left(x\right)={\displaystyle \sum _{k=1}^n}{(-1)}^k{x}^{2k}$, where n is any natural number, and $a,b,c\in \mathbb{R}$. Note that the map $h\left(x\right)$ is defined in the maximum domain where the solutions of (2) are defined. Note that for $n=1$, we have the Genesio equation; for $n=2$, we have the simplest chaotic jerk equation and so on. We underline that the results stated in this paper can be mimetically reproduced for a smooth and even $h\left(x\right)$.

By defining of the variables $y=\dot{x}$ and $z=$$\dot{y}$, the differential Equation (2) can be written as the system of nonlinear differential equations

$$\left\{\begin{array}{c}\dot{x}=y,\hfill \\ \dot{y}=z,\hfill \\ \dot{z}=-cx-by-az-{\displaystyle \sum _{k=1}^n}{(-1)}^k{x}^{2k},\hfill \end{array}\right.$$

(3)

Our endeavor is is to analyze the presence of zero-Hopf type equilibria and the existence of zero-Hopf bifurcations in the system (3).

Definition 1.

An zero-Hopf type equilibrium for a three-dimensional autonomous differential system of first-order is an isolated equilibrium point of such a system for which its linear part has eigenvalues one equal to zero and two purely imaginary, see [2] for more details.

The main approach to prove the presence of a zero-Hopf bifurcation is to transform the system object of our study into the normal form of a zero-Hopf bifurcation. However, the treatment that we have chosen for the system (3) is via the use of the averaging theory of dynamical systems. In Section 2, a summary of the main results which play a key role in our study are stated. The averaging method has already been used to study-Hopf and zero-Hopf bifurcations for other differential systems, see for instance [3,4,5,6]. Our main results are as follows:

Proposition 1.

The differential system (3) has a unique equilibrium of zero-Hopf type located at the origin when $a=c=0$ and $b>0$.

Theorem 1.

Let us consider for the system (3), the following distribution of parameters $a=\epsilon \alpha ,b={\omega }^2+\epsilon \beta$ and $c=\epsilon \gamma$, being $\omega >0$ and ε a sufficiently small parameter. Then, (3) has a zero-Hopf type bifurcation at the origin of coordinates in its equilibrium point for $\epsilon =0$. In the case ${\gamma }^2-{\alpha }^2{\omega }^4>0$, (3) presents a unique periodic trajectory bifurcating from the origin. When $\gamma =\alpha {\omega }^2$, (3) has at most 6 periodic orbits bifurcating from the origin.

2. Preliminaries

2.1. Results from Averaging Theory

Here, we present the main results on the second-order averaging theory of dynamical systems that will play a key role in the proof of our main results Theorem 1. For more information on this interesting theory and its application, see for instance [7] or [8] and references therein. For a proof of Theorem 2 that we are going to state, see Theorem 3.5.1 of Sanders and Verhulst [2], or [9] for a formulation in modern terminology.

Consider the differential system

$$\dot{x}=\epsilon F_1(t,x)+{\epsilon }^2{F}_2(t,x)+{\epsilon }^{3}Q(t,x,\epsilon ),x\left(0\right)=x_0,$$

(4)

where $F_1,F_2:\mathbb{R}\times \mathsf{\Omega }\to {\mathbb{R}}^n$ and $Q:[0,\infty ]\times \mathsf{\Omega }\times \left(0,{\epsilon }_0\right]\to {\mathbb{R}}^n$ where $\mathsf{\Omega }$ is a subset of ${\mathbb{R}}^n$ open and $F_1,F_2$ and Q are maps periodic of period T in the first variable. We set

$$\begin{array}{ccc}\hfill F_{10}\left(x\right)& =& \frac{1}{T}{\int }_0^T{F}_1(t,x)dt,\hfill \\ \hfill F_{20}\left(x\right)& =& \frac{1}{T}{\int }_0^T\left[D_x{F}_1(t,x)·y_1(t,x)+F_2(t,x)\right]dt,\hfill \end{array}$$

(5)

where

$$y_1(t,x)={\int }_0^t{F}_1(s,x)ds,$$

Theorem 2.

In the previous conditions, assume that

(i)

$F_1,F_2,\partial F_1/\partial x$ are locally Lipschitz in x and Q is twice differentiable with respect to $\epsilon .$

(ii)

Let $V\subset \mathsf{\Omega }$ be a bounded and open set, for each $\epsilon \in \left(-{\epsilon }_f,{\epsilon }_f\right)\backslash \left\{0\right\}$, there exists $a_{\epsilon }\in V$ such that $F_{10}\left(a_{\epsilon }\right)+\epsilon F_{20}\left(a_{\epsilon }\right)=0$ and

$d_B\left(F_{10}+\epsilon F_{20},V,a_{\epsilon }\right)\ne 0$.

Thus, for sufficiently small $\epsilon >0$ there exists a T-periodic solution $\phi (·,\epsilon )$ holding $\phi (0,\epsilon )=a_{\epsilon }$.

Remark 1.

When we write $d_B\left(F_{10}+\epsilon F_{20},V,a_{\epsilon }\right)\ne 0$ means that the value of the Brouwer degree of the function $F_{10}:V\to {\mathbb{R}}^n$ at the fixed point $a_{\epsilon }$ is not zero. A sufficient condition for having the previous property is that the Jacobian of the function $F_{10}+\epsilon F_{20}$ at $a_{\epsilon }$ be non-zero. When $F_{10}\ne 0$, then the zeros of $F_{10}+\epsilon F_{20}$ are equivalent to the zeros of $F_{10}$ for sufficiently small ε. In this case, we can apply the so-called averaging theory of first-order dynamical systems. In the case $F_{10}=0$ but $F_{20}\ne 0$, the zeros of $F_{10}+\epsilon F_{20}$ are the ones of $F_{20}$ for sufficiently small ε. In such cases, we must apply second-order averaging theory.

3. Proof of Proposition 1 and Theorem 1

Proof of Proposition 1.

We are going to see that the linear part of the characteristic polynomial of system (3) at the equilibrium point $x_c=(c,0,0)$ is $q\left(\lambda \right)={\lambda }^3+a{\lambda }^2+b\lambda +c$. We shall find the values of the parameters for which q has an eigenvalue equal to zero and a pair of purely imaginary roots, i.e., values for which q is of the form $-\lambda \left({\lambda }^2+b\right)$ with $b>0$.

To simplify, let $b={\omega }^2$, with $\omega >0$. Thus, if we assume $q\left(\lambda \right)=-\lambda \left({\lambda }^2+{\omega }^2\right)$, we obtain that $a=c=0$ and $b>0$. Therefore, when $a=c=0$ and $b>0$, there exists an equilibrium point at the origin of unique coordinates of zero-Hopf type. Moreover, if we consider $b={\omega }^2$, for $\omega >0$, then the eigenvalues are equal to 0 and $\pm i\omega$, ending the proof of Proposition 1. □

Proof of Theorem 1.

We are going to use the ideas of the second-order averaging theory of dynamical systems that we have briefly exposed in Section 2.1 (see Theorem 2) for analyzing the existence of equilibrium points of zero-Hopf type at the origin. Recall that such zero-Hopf type equilibrium points bifurcate some periodic orbit by moving the parameters $a,b,c$ of system (3). In this order of ideas, let us consider $a=\epsilon \alpha ,b={\omega }^2+\epsilon \beta ,c=\epsilon \gamma$ with $\epsilon >0$ being a sufficiently small parameter. Then, the system (3) becomes

$$\left\{\begin{array}{c}\dot{x}=y,\hfill \\ \dot{y}=z,\hfill \\ \dot{z}=-\epsilon \gamma x-\left({\omega }^2+\epsilon \beta \right)y-\epsilon \alpha z-{\displaystyle \sum _{k=1}^n}{(-1)}^k{x}^{2k},\hfill \end{array}\right.$$

(6)

The first step in order to write our differential system (6) in the normal form for applying the averaging theory is to write the linear part at the origin of system (6) when $\epsilon =0$ as its real Jordan normal form, which is of the form

$$\left(\begin{array}{ccc}0& -\omega & 0\\ \omega & 0& 0\\ 0& 0& 0\end{array}\right).$$

Applying this linear change of variables $\left(x,y,z\right)\to \left(X,Y,Z\right)$ where

$$x={\displaystyle \frac{Z-\omega X}{{\omega }^2}},y=Y,z=\omega X.$$

(7)

In the new variables $\left(X,Y,Z\right)$, system (6) becomes

$$\begin{array}{ccc}\hfill \dot{X}& =& \left(\gamma {\omega }^{11}X-\alpha {\omega }^{13}X-\gamma {\omega }^{10}Z-Y{\omega }^{12}\beta \right)\epsilon /{\omega }^{13}\hfill \\ & & +\left({\omega }^6{X}^6-6{\omega }^5{X}^{5}Z-Y{\omega }^{14}-20{\omega }^3{X}^3{Z}^3\right.\hfill \\ & & +15{\omega }^2{X}^2{Z}^4+{\omega }^{10}{X}^2-2{\omega }^{9}XZ+{\omega }^8{Z}^2\hfill \\ & & -{\omega }^8{X}^4+4{\omega }^7{X}^{3}Z-6{\omega }^6{X}^2{Z}^2\hfill \\ & & +4{\omega }^{5}X{Z}^3-{\omega }^4{Z}^4-6\omega X{Z}^5+15{\omega }^4{X}^4{Z}^2\hfill \\ & & \left.+Z^6-\sum _{k=4}^n{\left(-1\right)}^k{\left(\frac{Z-\omega X}{{\omega }^2}\right)}^{2k}{\omega }^{12}\right)/{\omega }^{13},\hfill \\ \hfill \dot{Y}& =& \omega X,\hfill \\ \hfill \dot{Z}& =& \left(\gamma {\omega }^{11}X-\alpha {\omega }^{13}X-\gamma {\omega }^{10}Z-Y{\omega }^{12}\beta \right)\epsilon /{\omega }^{12}\hfill \\ & & -\left(6{\omega }^5{X}^{5}Z+15{\omega }^4{X}^4{Z}^2-20{\omega }^3{X}^3{Z}^3\right.\hfill \\ & & +15{\omega }^2{X}^2{Z}^4+{\omega }^{10}{X}^2-2{\omega }^{9}XZ+{\omega }^8{Z}^2\hfill \end{array}$$

(8)

$$\begin{array}{ccc}& & -{\omega }^8{X}^4+4{\omega }^7{X}^{3}Z-6{\omega }^6{X}^2{Z}^2\hfill \\ & & +4{\omega }^{5}X{Z}^3-{\omega }^4{Z}^4+{\omega }^6{X}^6-6\omega X{Z}^5\hfill \\ & & \left.+Z^6-\sum _{k=4}^n{\left(-1\right)}^k{\left({\displaystyle \frac{Z-\omega X}{{\omega }^2}}\right)}^{2k}{\omega }^{12}\right)/{\omega }^{12}.\hfill \end{array}$$

Doing a re-scale of the variables $(X,Y,Z)$ in the form $(X,Y,Z)\to (\epsilon u,\epsilon v,\epsilon w)$, then system (8) is expressed as follows

$$\begin{array}{ccc}\hfill \dot{u}& =& -\omega v+\left(\gamma {\omega }^{11}u-\alpha {\omega }^{13}u+{\omega }^{10}{u}^2-\gamma {\omega }^{10}w-v{\omega }^{12}\beta -2{\omega }^{9}uw+{\omega }^8{w}^2\right)\epsilon /{\omega }^{13}\hfill \\ & & +\left(-{\omega }^8{u}^4-{\omega }^4{w}^4+4{\omega }^7{u}^{3}w-6{\omega }^6{u}^2{w}^2+4{\omega }^{5}u{w}^3\right){\epsilon }^3/{\omega }^{13}\hfill \\ & & +({\omega }^6{u}^6-6{\omega }^5{u}^{5}w+15{\omega }^2{u}^2{w}^4-6\omega u{w}^5+15{\omega }^4{u}^4{w}^2\hfill \\ & & -20{\omega }^3{u}^3{w}^3+w^6){\epsilon }^5/{\omega }^{13}-\frac{1}{\omega }\sum _{k=4}^n{\left(-1\right)}^k{\left(\frac{\left(w-\omega u\right)}{{\omega }^2}\right)}^{2k}{\epsilon }^{2k-1},\hfill \\ \hfill \dot{v}& =& \omega u,\hfill \\ \hfill \dot{w}& =& \left(\gamma {\omega }^{11}u-\alpha {\omega }^{13}u-\gamma {\omega }^{10}w-v{\omega }^{12}\beta +{\omega }^{10}{u}^2-2{\omega }^{9}uw+{\omega }^8{w}^2\right)\epsilon /{\omega }^{12}\hfill \\ & & +\left(-{\omega }^8{u}^4-{\omega }^4{w}^4+4{\omega }^7{u}^{3}w-6{\omega }^6{u}^2{w}^2+4{\omega }^{5}u{w}^3\right){\epsilon }^3/{\omega }^{12}\hfill \\ & & +({\omega }^6{u}^6-6{\omega }^5{u}^{5}w+15{\omega }^2{u}^2{w}^4-6\omega u{w}^5+15{\omega }^4{u}^4{w}^2\hfill \\ & & -20{\omega }^3{u}^3{w}^3+w^6){\epsilon }^5/{\omega }^{12}-\sum _{k=4}^n{\left(-1\right)}^k{\left(\frac{\left(w-\omega u\right)}{{\omega }^2}\right)}^{2k}{\epsilon }^{2k-1}.\hfill \end{array}$$

The previous system can be written as follows

$$\begin{array}{ccc}\hfill \dot{u}& =& -\omega v+(\gamma {\omega }^{11}u-\alpha {\omega }^{13}u+{\omega }^{10}{u}^2-\gamma {\omega }^{10}w\hfill \\ & & -v{\omega }^{12}\beta -2{\omega }^{9}uw+{\omega }^8{w}^2)\epsilon /{\omega }^{13}+(-{\omega }^8{u}^4\hfill \\ & & -{\omega }^4{w}^4+4{\omega }^7{u}^{3}w-6{\omega }^6{u}^2{w}^2+4{\omega }^{5}u{w}^3){\epsilon }^3/{\omega }^{13}\hfill \\ & & +({\omega }^6{u}^6-6{\omega }^5{u}^{5}w+15{\omega }^2{u}^2{w}^4-6\omega u{w}^5\hfill \\ & & +15{\omega }^4{u}^4{w}^2-20{\omega }^3{u}^3{w}^3+w^6){\epsilon }^5/{\omega }^{13}+O\left({\epsilon }^7\right),\hfill \\ \hfill \dot{v}& =& \omega u,\hfill \\ \hfill \dot{w}& =& (\gamma {\omega }^{11}u-\alpha {\omega }^{13}u-\gamma {\omega }^{10}w-v{\omega }^{12}\beta +{\omega }^{10}{u}^2\hfill \\ & & -2{\omega }^{9}uw+{\omega }^8{w}^2)\epsilon /{\omega }^{12}+(-{\omega }^8{u}^4-{\omega }^4{w}^4\hfill \\ & & +4{\omega }^7{u}^{3}w-6{\omega }^6{u}^2{w}^2+4{\omega }^{5}u{w}^3){\epsilon }^3/{\omega }^{12}\hfill \\ & & +({\omega }^6{u}^6-6{\omega }^5{u}^{5}w+15{\omega }^2{u}^2{w}^4-6\omega u{w}^5\hfill \\ & & +15{\omega }^4{u}^4{w}^2-20{\omega }^3{u}^3{w}^3+w^6){\epsilon }^5/{\omega }^{12}+O\left({\epsilon }^7\right).\hfill \end{array}$$

(9)

Now, we express the differential system (9) in cylindrical coordinates $(r,\theta ,w)$ defined by $u=rcos\theta$ and $v=rsin\theta$, and we obtain

$$\begin{array}{ccc}\hfill \dot{r}& =& cos\left(\theta \right)(\gamma {\omega }^{11}rcos\left(\theta \right)-\alpha {\omega }^{13}rcos\left(\theta \right)+{\omega }^{10}{r}^2{\left(cos\left(\theta \right)\right)}^2\hfill \\ & & -\gamma {\omega }^{10}w-rsin\left(\theta \right){\omega }^{12}\beta -2{\omega }^{9}rcos\left(\theta \right)w+{\omega }^8{w}^2)\epsilon /{\omega }^{13}\hfill \\ & & +cos\left(\theta \right)(-{\omega }^8{r}^4{\left(cos\left(\theta \right)\right)}^4-{\omega }^4{w}^4+4{\omega }^7{r}^3{\left(cos\left(\theta \right)\right)}^{3}w\hfill \\ & & -6{\omega }^6{r}^2{\left(cos\left(\theta \right)\right)}^2{w}^2+4{\omega }^{5}rcos\left(\theta \right)w^3){\epsilon }^3/{\omega }^{13}\hfill \\ & & +cos\left(\theta \right)({\omega }^6{r}^6{\left(cos\left(\theta \right)\right)}^6-6{\omega }^5{r}^5{\left(cos\left(\theta \right)\right)}^{5}w\hfill \\ & & +15{\omega }^2{r}^2{\left(cos\left(\theta \right)\right)}^2{w}^4-6\omega rcos\left(\theta \right)w^5\hfill \\ & & +15{\omega }^4{r}^4{\left(cos\left(\theta \right)\right)}^4{w}^2-20{\omega }^3{r}^3{\left(cos\left(\theta \right)\right)}^3{w}^3\hfill \\ & & +w^6){\epsilon }^5/{\omega }^{13}+O\left({\epsilon }^7\right),\hfill \\ \hfill \dot{\theta }& =& \omega -(-sin\left(\theta \right){\omega }^{13}\alpha rcos\left(\theta \right)+sin\left(\theta \right){\omega }^{10}{r}^2{\left(cos\left(\theta \right)\right)}^2\hfill \\ & & -sin\left(\theta \right)\gamma {\omega }^{10}w+sin\left(\theta \right){\omega }^8{w}^2+{\omega }^{12}r\beta {\left(cos\left(\theta \right)\right)}^2\hfill \\ & & -{\omega }^{12}r\beta -2sin\left(\theta \right){\omega }^{9}rcos\left(\theta \right)w+sin\left(\theta \right){\omega }^{11}\gamma rcos\left(\theta \right))\epsilon /r{\omega }^{13}\hfill \\ & & -(4sin\left(\theta \right){\omega }^7{r}^3{\left(cos\left(\theta \right)\right)}^{3}w-6sin\left(\theta \right){\omega }^6{r}^2{\left(cos\left(\theta \right)\right)}^2{w}^2\hfill \\ & & +4sin\left(\theta \right){\omega }^{5}rcos\left(\theta \right)w^3-sin\left(\theta \right){\omega }^4{w}^4\hfill \\ & & -sin\left(\theta \right){\omega }^8{r}^4{\left(cos\left(\theta \right)\right)}^4){\epsilon }^3/r{\omega }^{13}\hfill \\ & & -(sin\left(\theta \right){\omega }^6{r}^6{\left(cos\left(\theta \right)\right)}^6-6sin\left(\theta \right){\omega }^5{r}^5{\left(cos\left(\theta \right)\right)}^{5}w\hfill \\ & & +15sin\left(\theta \right){\omega }^2{r}^2{\left(cos\left(\theta \right)\right)}^2{w}^4\hfill \\ & & +15sin\left(\theta \right){\omega }^4{r}^4{\left(cos\left(\theta \right)\right)}^4{w}^2-20sin\left(\theta \right){\omega }^3{r}^3{\left(cos\left(\theta \right)\right)}^3{w}^3\hfill \\ & & +sin\left(\theta \right)w^6-6sin\left(\theta \right)\omega rcos\left(\theta \right)w^5){\epsilon }^5/r{\omega }^{13}++O\left({\epsilon }^7\right),\hfill \\ \hfill \dot{w}& =& (\gamma {\omega }^{11}rcos\left(\theta \right)-\alpha {\omega }^{13}rcos\left(\theta \right)+{\omega }^{10}{r}^2{\left(cos\left(\theta \right)\right)}^2-\gamma {\omega }^{10}w\hfill \\ & & -rsin\left(\theta \right){\omega }^{12}\beta -2{\omega }^{9}rcos\left(\theta \right)w+{\omega }^8{w}^2)\epsilon /{\omega }^{12}\hfill \\ & & +(-{\omega }^8{r}^4{\left(cos\left(\theta \right)\right)}^4-{\omega }^4{w}^4+4{\omega }^7{r}^3{\left(cos\left(\theta \right)\right)}^{3}w\hfill \\ & & -6{\omega }^6{r}^2{\left(cos\left(\theta \right)\right)}^2{w}^2+4{\omega }^{5}rcos\left(\theta \right)w^3){\epsilon }^3/{\omega }^{12}\hfill \\ & & +({\omega }^6{r}^6{\left(cos\left(\theta \right)\right)}^6-6{\omega }^5{r}^5{\left(cos\left(\theta \right)\right)}^{5}w+15{\omega }^2{r}^2{\left(cos\left(\theta \right)\right)}^2{w}^4\hfill \\ & & -6\omega rcos\left(\theta \right)w^5+15{\omega }^4{r}^4{\left(cos\left(\theta \right)\right)}^4{w}^2\hfill \\ & & -20{\omega }^3{r}^3{\left(cos\left(\theta \right)\right)}^3{w}^3+w^6){\epsilon }^5/{\omega }^{12}+O\left({\epsilon }^7\right).\hfill \end{array}$$

(10)

In (10) we consider a new independent variable, and we obtain

$$\begin{array}{ccc}\hfill \frac{dr}{d\theta }& =& \epsilon F_{11}\left(\theta ,r,w\right)+\epsilon F_{21}\left(\theta ,r,w\right)+O\left({\epsilon }^2\right),\hfill \\ \hfill \frac{dw}{d\theta }& =& \epsilon F_{12}\left(\theta ,r,w\right)+\epsilon F_{22}\left(\theta ,r,w\right)+O\left({\epsilon }^2\right),\hfill \end{array}$$

(11)

where

$$\begin{array}{ccc}\hfill F_{11}\left(\theta ,r,w\right)& =& cos\left(\theta \right)(\gamma {\omega }^{3}rcos\left(\theta \right)-\alpha {\omega }^{5}rcos\left(\theta \right)+{\omega }^2{r}^2{\left(cos\left(\theta \right)\right)}^2\hfill \\ & & -\gamma {\omega }^{2}w-rsin\left(\theta \right){\omega }^4\beta -2\omega rcos\left(\theta \right)w+w^2)/{\omega }^6,\hfill \\ \hfill F_{12}\left(\theta ,r,w\right)& =& \gamma {\omega }^{3}rcos\left(\theta \right)-\alpha {\omega }^{5}rcos\left(\theta \right)+{\omega }^2{r}^2{\left(cos\left(\theta \right)\right)}^2\hfill \\ & & -\gamma {\omega }^{2}w-rsin\left(\theta \right){\omega }^4\beta -2\omega rcos\left(\theta \right)w+w^2)/{\omega }^5,\hfill \end{array}$$

and

$$\begin{array}{ccc}\hfill F_{21}\left(\theta ,r,w\right)& =& sin\left(\theta \right)cos\left(\theta \right)({\left(cos\left(\theta \right)\right)}^4{\omega }^4{r}^4-2cos\left(\theta \right){\omega }^5{\gamma }^{2}rw\hfill \\ & & +{\left(cos\left(\theta \right)\right)}^2{\omega }^6{\gamma }^2{r}^2+2sin\left(\theta \right){\omega }^9{r}^2\beta cos\left(\theta \right)\alpha \hfill \\ & & +6cos\left(\theta \right){\omega }^3\gamma r{w}^2-2{\left(cos\left(\theta \right)\right)}^2{\omega }^8\gamma r^2\alpha \hfill \\ & & -6{\left(cos\left(\theta \right)\right)}^2{\omega }^4{r}^2\gamma w+4{\left(cos\left(\theta \right)\right)}^2{\omega }^6\alpha r^{2}w\hfill \\ & & -2cos\left(\theta \right){\omega }^5\alpha r{w}^2-2{\left(cos\left(\theta \right)\right)}^3{\omega }^7\alpha r^3\hfill \\ & & -4{\left(cos\left(\theta \right)\right)}^3{\omega }^3{r}^{3}w+w^4+{\omega }^8{r}^2{\beta }^2\hfill \\ & & -4cos\left(\theta \right)\omega r{w}^3+{\omega }^4{\gamma }^2{w}^2+2cos\left(\theta \right){\omega }^7\alpha r\gamma w\hfill \\ & & -2sin\left(\theta \right){\omega }^4{w}^{2}r\beta -2sin\left(\theta \right){\omega }^6{r}^3\beta {\left(cos\left(\theta \right)\right)}^2\hfill \\ & & +2{\left(cos\left(\theta \right)\right)}^3{\omega }^5\gamma r^3+{\left(cos\left(\theta \right)\right)}^2{\omega }^{10}{\alpha }^2{r}^2\hfill \\ & & -{\left(cos\left(\theta \right)\right)}^2{\omega }^8{r}^2{\beta }^2+6{\left(cos\left(\theta \right)\right)}^2{\omega }^2{r}^2{w}^2\hfill \\ & & -2{\omega }^2{w}^3\gamma -2sin\left(\theta \right){\omega }^7{r}^2\beta cos\left(\theta \right)\gamma \hfill \\ & & +4sin\left(\theta \right){\omega }^5{r}^2\beta cos\left(\theta \right)w+2sin\left(\theta \right){\omega }^6\gamma wr\beta )/{\omega }^{12}r\hfill \\ \hfill F_{22}\left(\theta ,r,w\right)& =& sin\left(\theta \right)cos\left(\theta \right)({\left(cos\left(\theta \right)\right)}^4{\omega }^4{r}^4-2cos\left(\theta \right){\omega }^5{\gamma }^{2}rw\hfill \\ & & +{\left(cos\left(\theta \right)\right)}^2{\omega }^6{\gamma }^2{r}^2+2sin\left(\theta \right){\omega }^9{r}^2\beta cos\left(\theta \right)\alpha \hfill \\ & & +6cos\left(\theta \right){\omega }^3\gamma r{w}^2-2{\left(cos\left(\theta \right)\right)}^2{\omega }^8\gamma r^2\alpha \hfill \\ & & -6{\left(cos\left(\theta \right)\right)}^2{\omega }^4{r}^2\gamma w+4{\left(cos\left(\theta \right)\right)}^2{\omega }^6\alpha r^{2}w\hfill \\ & & -2cos\left(\theta \right){\omega }^5\alpha r{w}^2-2{\left(cos\left(\theta \right)\right)}^3{\omega }^7\alpha r^3\hfill \\ & & -4{\left(cos\left(\theta \right)\right)}^3{\omega }^3{r}^{3}w+w^4+{\omega }^8{r}^2{\beta }^2\hfill \\ & & -4cos\left(\theta \right)\omega r{w}^3+{\omega }^4{\gamma }^2{w}^2+2cos\left(\theta \right){\omega }^7\alpha r\gamma w\hfill \\ & & -2sin\left(\theta \right){\omega }^4{w}^{2}r\beta -2sin\left(\theta \right){\omega }^6{r}^3\beta {\left(cos\left(\theta \right)\right)}^2\hfill \\ & & +2{\left(cos\left(\theta \right)\right)}^3{\omega }^5\gamma r^3+{\left(cos\left(\theta \right)\right)}^2{\omega }^{10}{\alpha }^2{r}^2\hfill \\ & & -{\left(cos\left(\theta \right)\right)}^2{\omega }^8{r}^2{\beta }^2+6{\left(cos\left(\theta \right)\right)}^2{\omega }^2{r}^2{w}^2\hfill \\ & & -2{\omega }^2{w}^3\gamma -2sin\left(\theta \right){\omega }^7{r}^2\beta cos\left(\theta \right)\gamma \hfill \\ & & +4sin\left(\theta \right){\omega }^5{r}^2\beta cos\left(\theta \right)w+2sin\left(\theta \right){\omega }^6\gamma wr\beta )/{\omega }^{12}r\hfill \end{array}$$

With the notation introduced in Section 2.1, $t=\theta ,T=2\pi ,x={(r,w)}^T$ and

$$\begin{array}{ccc}\hfill F_1\left(\theta ,r,w\right)& =& \left(\begin{array}{c}{F}_{11}\left(\theta ,r,w\right)\\ F_{12}\left(\theta ,r,w\right)\end{array}\right)\mathrm{and}{F}_2\left(\theta ,r,w\right)=\left(\begin{array}{c}{F}_{21}\left(\theta ,r,w\right)\\ F_{22}\left(\theta ,r,w\right)\end{array}\right).\hfill \\ \hfill F_{10}\left(r,w\right)& =& \left(\begin{array}{c}{F}_{101}\left(r,w\right)\\ F_{102}\left(r,w\right)\end{array}\right)\mathrm{and}{F}_{20}\left(r,w\right)=\left(\begin{array}{c}{F}_{201}\left(r,w\right)\\ F_{201}\left(r,w\right)\end{array}\right).\hfill \end{array}$$

It can easily be checked that (11) satisfies all the assumptions of Theorem 2.

Computing the integrals (5), we have that

$$\begin{array}{ccc}\hfill F_{101}\left(r,w\right)& =& {\displaystyle \frac{1}{2\pi }}{\int }_0^{2\pi }{F}_{11}\left(\theta ,r,w\right)d\theta ={\displaystyle \frac{r\left(-2w+\gamma {\omega }^2-\alpha {\omega }^4\right)}{2{\omega }^5}},\hfill \\ \hfill F_{102}\left(r,w\right)& =& {\displaystyle \frac{1}{2\pi }}{\int }_0^{2\pi }{F}_{12}\left(\theta ,r,w\right)d\theta =-{\displaystyle \frac{2\gamma {\omega }^{2}w-{\omega }^2{r}^2-2w^2}{2{\omega }^5}}.\hfill \end{array}$$

Note that $F_{101}\left(r,w\right)=F_{102}\left(r,w\right)=0$ has only one solution $(r,w)$ with $r^{*}>0$, more precisely

$$r^{*}={\displaystyle \frac{\sqrt{-2{\omega }^4{\alpha }^2+2{\gamma }^2}\omega }{2}},w^{*}={\displaystyle \frac{{\omega }^2\left(\gamma -\alpha {\omega }^2\right)}{2}}$$

The Jacobian evaluated at $(r,w)$ has the form

$$det{\left.{\displaystyle \frac{\partial \left(F_{101},F_{101}\right)}{(r,w)}}\right|}_{(r,w)=(r^{*},w^{*})}={\displaystyle \frac{{\gamma }^2-{\alpha }^2{\omega }^4}{2{\omega }^6}}$$

which is nonzero by hypothesis.

From it, if ${\gamma }^2-{\alpha }^2{\omega }^4>0$ the system (6) has a unique periodic orbit bifurcating from the origin.

Note that when $\gamma =\alpha {\omega }^2$, the first-order averaging theory cannot be used. In order to apply the second-order averaging theory, we compute

$$\left(\begin{array}{cc}\frac{\partial F_{11}}{\partial r}& \frac{\partial F_{11}}{\partial w}\\ \frac{\partial F_{12}}{\partial r}& \frac{\partial F_{12}}{\partial w}\end{array}\right)\left(\begin{array}{c}{\int }_0^{\theta }{F}_{11}(s,r,w)ds\\ {\int }_0^{\theta }{F}_{12}(s,r,w)d\theta \end{array}\right)+\left(\begin{array}{c}{F}_{21}(\theta ,r,w)\\ F_{22}(\theta ,r,w)\end{array}\right).$$

Computing the integral of this expression at the interval $[0,2\pi ]$ and dividing by $2\pi$, we have

$$\begin{array}{ccc}\hfill F_{201}\left(r,w\right)& =& -r\left(r^2\pi -2\beta r{\omega }^2-3w\beta \omega -2{\omega }^2\alpha w\pi +\alpha {\omega }^5\beta \right)/{\omega }^8.\hfill \\ \hfill F_{202}\left(r,w\right)& =& -(7\beta r^2{\omega }^5+6{\omega }^3\beta w^2-4{\omega }^8\alpha \beta r+12w\beta r{\omega }^4\hfill \\ & & -8w^3\pi -6{\omega }^7\beta \alpha w-4{\omega }^8{\alpha }^{2}w\pi +2{\omega }^6\alpha r^2\pi \hfill \\ & & +12{\omega }^4\alpha w^2\pi )/4{\omega }^{10}.\hfill \end{array}$$

Let us now consider the system

$$\left\{\begin{array}{c}{F}_{201}\left(r,w\right)=0,\\ F_{202}\left(r,w\right)=0.\end{array}\right.$$

(12)

If we solve the first equation with respect to w, we obtain

$$w=\frac{r^2\pi -2\beta r{\omega }^2+{\omega }^5\alpha \beta }{\omega \left(2\alpha \pi \omega +3\beta \right)}.$$

Substituting into the second equation gives

$$\begin{array}{ccc}& & \left(\frac{2{\pi }^4}{{\omega }^{13}{\left(2\alpha \pi \omega +3\beta \right)}^3}\right)r^6-\left(\frac{12{\pi }^3\beta }{{\omega }^{11}{\left(2\alpha \pi \omega +3\beta \right)}^3}\right)r^5\hfill \\ & & +\left(-3\frac{\alpha {\pi }^3}{{\omega }^8{\left(2\alpha \pi \omega +3\beta \right)}^2}-3/2\frac{\beta {\pi }^2}{{\omega }^9{\left(2\alpha \pi \omega +3\beta \right)}^2}\right.\hfill \\ & & +\left.\frac{6\alpha {\pi }^3\beta }{{\omega }^8{\left(2\alpha \pi \omega +3\beta \right)}^3}+\frac{24{\pi }^2{\beta }^2}{{\omega }^9{\left(2\alpha \pi \omega +3\beta \right)}^3}\right)r^4\hfill \\ & & +\left(\frac{12\alpha {\pi }^2\beta }{{\omega }^6{\left(2\alpha \pi \omega +3\beta \right)}^2}-\frac{3\beta \pi }{{\omega }^7\left(2\alpha \pi \omega +3\beta \right)}\right.\hfill \\ & & -\frac{16\pi {\beta }^3}{{\omega }^7{\left(2\alpha \pi \omega +3\beta \right)}^3}+\frac{6{\beta }^2\pi }{{\omega }^7{\left(2\alpha \pi \omega +3\beta \right)}^2}\hfill \\ & & +\left.-\frac{24\alpha {\pi }^2{\beta }^2}{{\omega }^6{\left(2\alpha \pi \omega +3\beta \right)}^3}\right)r^3+\left(-\frac{\alpha \pi }{2{\omega }^4}\right.\hfill \\ & & +\frac{{\alpha }^2{\pi }^2}{{\omega }^3\left(2\alpha \pi \omega +3\beta \right)}-\frac{15{\beta }^2\alpha \pi }{{\omega }^4{\left(2\alpha \pi \omega +3\beta \right)}^2}\hfill \\ & & -\frac{7\beta }{4{\omega }^5}+\frac{3\beta \alpha \pi }{2{\omega }^4\left(2\alpha \pi \omega +3\beta \right)}+\frac{24\alpha \pi {\beta }^3}{{\omega }^4{\left(2\alpha \pi \omega +3\beta \right)}^3}\hfill \\ & & +\frac{6{\alpha }^2{\pi }^2{\beta }^2}{{\omega }^3{\left(2\alpha \pi \omega +3\beta \right)}^3}+\frac{6{\beta }^2}{{\omega }^5\left(2\alpha \pi \omega +3\beta \right)}\hfill \\ & & -\left.\frac{6{\alpha }^2{\pi }^2\beta }{{\omega }^3{\left(2\alpha \pi \omega +3\beta \right)}^2}-6\frac{{\beta }^3}{{\omega }^5{\left(2\alpha \pi \omega +3\beta \right)}^2}\right)r^2\hfill \\ & & +\left(\frac{\beta \alpha }{{\omega }^2}-\frac{12\pi {\alpha }^2{\beta }^3}{\omega {\left(2\alpha \pi \omega +3\beta \right)}^3}-\frac{2\pi {\alpha }^2\beta }{\omega \left(2\alpha \pi \omega +3\beta \right)}\right.\hfill \end{array}$$

$$\begin{array}{ccc}& & +\frac{12\pi {\alpha }^2{\beta }^2}{\omega {\left(2\alpha \pi \omega +3\beta \right)}^2}-\frac{6{\beta }^2\alpha }{{\omega }^2\left(2\alpha \pi \omega +3\beta \right)}\hfill \\ & & +\left.\frac{6{\beta }^3\alpha }{{\omega }^2{\left(2\alpha \pi \omega +3\beta \right)}^2}\right)r+\frac{3\omega {\beta }^2{\alpha }^2}{4\alpha \pi \omega +3\beta }\hfill \\ & & -\frac{3\omega {\beta }^3{\alpha }^2}{2{\left(2\alpha \pi \omega +3\beta \right)}^2}+\frac{{\omega }^2{\alpha }^3\pi \beta }{2\alpha \pi \omega +3\beta }\hfill \\ & & -\frac{3{\omega }^2{\alpha }^3\pi {\beta }^2}{{\left(2\alpha \pi \omega +3\beta \right)}^2}+\frac{2{\omega }^2{\alpha }^3\pi {\beta }^3}{{\left(2\alpha \pi \omega +3\beta \right)}^3}\hfill \\ & =& 0.\hfill \end{array}$$

The maximum number of positive solutions to this equation is 6.

Let $\overline{r}$ be one of these zeros, and $\left(\overline{r},\overline{w}\right)$ be a solution of system (12). To apply Theorem 2, the condition below is needed

$$det{\left.{\displaystyle \frac{\partial \left(F_{201},F_{202}\right)}{(r,w)}}\right|}_{(r,w)=\left(\overline{r},\overline{w}\right)}\ne 0.$$

(13)

Thus, the solutions $\left(\overline{r},\overline{w}\right)$ of the system (12) holding (13) satisfy $\left(i\right)$ and $\left(ii\right)$ of Theorem 2. Thus, by the second-order averaging theory (11) has at most 6 periodic orbits. From it, we state that system (6) has at most 6 periodic orbits bifurcating from the origin ending the proof. □

4. Numerical Verification of the Analytic Results Obtained

We consider the generalizad Genesio differential equation

$$\stackrel{...}{x}+a\stackrel{..}{x}+b\stackrel{.}{\stackrel{.}{x}+cx+{\displaystyle \sum _{k=1}^n}}{(-1)}^k{x}^{2k}=0$$

with parameters $a=\epsilon \alpha ,$ $b=\omega +\epsilon \beta ,$ $c=\epsilon \gamma .$ The numerical experiments have been made for the following parameters

$$\alpha =1,\omega =1,\beta =-0.5,\gamma =1,n=5$$

and inital conditions $x\left(0\right),$ $\stackrel{.}{x}\left(0\right)=y\left(0\right),$ $\stackrel{..}{x}\left(0\right)=z\left(0\right).$

In the following pictures and tables (see Table 1, Table 2 and Table 3 and Figure 1 and Figure 2), we obtain the initial conditions and the period of four periodic solutions for different values of $\epsilon$ with six decimal number.

Table 1. Initial conditions and periods for $\epsilon =0.0001,0.01,0.1$ and $0.5$.

	$\mathit{\epsilon }$	$\mathit{x}\left(0\right)$	$\mathit{y}\left(0\right)$	$\mathit{z}\left(0\right)$	T
Orbit 1	$0.0001$	$0.000035$	$-0.000029$	$-0.000024$	$6.281763$
Orbit 2	$0.01$	$0.000080$	$-0.00061$	$-0.00006$	$6.298837$
Orbit 3	$0.1$	$0.014919$	$-0.017764$	$-0.0116793$	$6.446567$
Orbit 4	$0.5$	$0.32917$	$-0.0186038$	$-0.184294$	$7.293240$

Table 2. Initial conditions and periods for $\epsilon =0.735,0.745,0.758$ and $0.7605$.

	$\mathit{\epsilon }$	$\mathit{x}\left(0\right)$	$\mathit{y}\left(0\right)$	$\mathit{z}\left(0\right)$	T
Orbit 5	$0.735$	$-0.381394$	$-0.0267376$	$0.402723$	$8.102655$
Orbit 6	$0.745$	$0.882003$	$-0.0312616$	$-0.305098$	$16.32508$
Orbit 7	$0.758$	$0.929685$	$-0.0278435$	$-0.268235$	$33.10797$
Orbit 8	$0.7605$	$0.938029$	$-0.0243008$	$-0.260449$	$66.43312$

Table 3. Estimation of the $\epsilon$ parameter.

Bifurcation	n	${\mathit{\epsilon }}_{\mathit{n}}$	${\mathit{\epsilon }}_{\mathit{n}}-{\mathit{\epsilon }}_{\mathit{n}-1}$	${\mathit{F}}_{\mathit{n}}$
$T\to 2T$	1	$0.745$	–	–
$2T\to 4T$	2	$0.758$	$0.013$	–
$4T\to 8T$	3	$0.7605$	$0.0025$	$5.2=F+0.6$

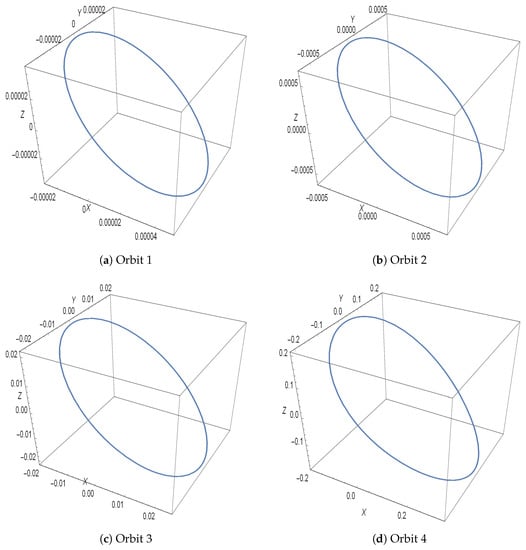

Figure 1. Orbit 1 to 4.

Figure 2. Pictures of Orbits 5 to 8.

On the other hand, we observe period doubling increasing the value of the parameter $\epsilon .$

The existence of a period doubling cascade numerically evidences the existence of chaos, as can be seen in the pictures of Orbits 5 to 8. We can estimate, by means of the Feigenbaum constant $F\approx 4.669...$, the value of the epsilon parameter ${\epsilon }^{*}$ for which such a phenomenon can occur. The following numerical calculations are carried out in order to obtain such estimation.

$${\epsilon }^{*}\approx {\epsilon }_1+\left({\epsilon }_2-{\epsilon }_1\right)\frac{F}{F-1}=0.7615.$$

5. Conclusions

The application of the averaging theory to study the existence of zero-Hopf bifurcations for a generalized Genesio differential equation gave important results about the periodic structure of these equations. Our future work will be to apply this theory to study zero-Hopf bifurcations for autonomous or nonautonomous differential equations of order n, with $n\ge 4$.
