# Probabilistic Study of the Effect of Anti-Epileptic Drugs Under Uncertainty: Cost-Effectiveness Analysis

^{1}

^{2}

^{3}

^{*}

^{†}

## Abstract

**:**

## 1. Motivation and Preliminaries

**Theorem**

**1**

## 2. Solving the Randomized Model

#### 2.1. Computing the 1-PDF of ${X}_{n}$

#### 2.1.1. 1-PDF of ${X}_{n}^{1}$

#### 2.1.2. 1-PDF of ${X}_{n}^{2}$

#### 2.1.3. 1-PDF of ${X}_{n}^{3}$

#### 2.1.4. 1-PDF of ${X}_{n}^{4}$

#### 2.2. Computing the Pdf of the Time

#### 2.2.1. PDF of ${N}_{1}$

#### 2.2.2. PDF of ${N}_{4}$

#### 2.3. Computing the Approximated Pdf of the Incremental Cost-Effectiveness Ratio (Icer)

- ${c}_{D}$ is the daily AEDs cost.
- ${c}_{A}$ is the average cost of concomitant Monotherapy.
- ${c}_{T}$ is the Titration total cost.

## 3. Numerical Example

#### 3.1. 1-Pdf of the Solution Sp

#### 3.2. Pdf of the Time

- Step 1: To sample 500,000 values of the form $({p}_{12},{p}_{13},{p}_{14})$, according with the distributions assumed for RVs ${P}_{12}$, ${P}_{13}$ and ${P}_{14}$.
- Step 2: For each sample in Step 1 we solve the non-linear equation$${\rho}_{3}=\frac{{p}_{13}({(1-{p}_{14})}^{n}-{(1-{p}_{12}-{p}_{13}-{p}_{14})}^{n})}{{p}_{12}+{p}_{13}},$$
- Step 3: To plot the histogram with the 500,000 values of n. An approximation of the PDF of ${N}_{3}$ is obtained by normalizing this histogram.

#### 3.3. 1-PDF of ICER

- Probabilities of response, partial response and discontinuation [21]. Brivaracetam: ${p}_{12}=0.02520$, ${p}_{13}=0.13765$, ${p}_{14}=0.0572$. Eslicarbazepine: ${p}_{12}=0.0112$, ${p}_{13}=0.1160$, ${p}_{14}=0.0452$. Retigabine: ${p}_{12}=0.0122$, ${p}_{13}=0.1577$, ${p}_{14}=0.0763$. These quantities will be used to calculate the different expectation in the cost and the effectiveness formulas, $\mathbb{E}\left[{X}_{j}^{i}\right]$, where ${X}_{j}^{i}$ is the solution SP in cycle j of the state i given in Formula (6).
- Probabilities of adverse events, Ataxia, Dizziness, Fatigue, Nausea and Somnolence [23] As previously, these probabilities will be considered independent absolutely continuous RVs. We choose for each RV a Beta distribution with parameters a and b calculated as before considering the following mean $\mu $. Brivaracetam: ${\mu}_{A}=0.00747$, ${\mu}_{D}=0.03198$, ${\mu}_{F}=0.02717$, ${\mu}_{N}=0.01242$, ${\mu}_{S}=0.03439$. Eslicarbazepine: ${\mu}_{A}=0.01489$, ${\mu}_{D}=0.05588$, ${\mu}_{F}=0.01489$, ${\mu}_{N}=0.02955$, ${\mu}_{S}=0.02955$. Retigabine: ${\mu}_{A}=0.01242$, ${\mu}_{D}=0.06059$, ${\mu}_{F}=0.03681$, ${\mu}_{N}=0.01735$, ${\mu}_{S}=0.03681$.
- Titration cost (Total cost) [26]. Brivaracetam: ${c}_{T}=0\u20ac$. Eslicarbazepine: ${c}_{T}=31.36\u20ac$. Retigabine: ${C}_{T}=106.56\u20ac$.
- Utility of each state in all treatments: ${u}_{1}=0.683$, ${u}_{2}=0.869$, ${u}_{3}=0.805$, ${u}_{4}={u}_{1}$.
- Utilities of adverse events [23]: ${u}_{A}=-0.28$, ${u}_{D}=-0.22$, ${u}_{F}=-0.25$, ${u}_{N}=-0.23$ and ${u}_{S}=-0.22$.

## 4. Conclusions

## Author Contributions

## Funding

## Conflicts of Interest

## References

- Magiorkinis, E.; Sidiropoulou, K.; Diamantis, A. Hallmarks in the History of Epilepsy: From Antiquity Till the Twentieth Century; Novel Aspects on Epilepsy; IntechOpen: London, UK, 2011; pp. 131–394. ISBN 978-953-307-678-2. [Google Scholar]
- García Ramos, R.; Pastor, A.; Masjuan, J.; Sánchez, C.; Gil, A. FEEN report on epilepsy in Spain. Neurología
**2011**, 26, 548–555. [Google Scholar] [CrossRef] [PubMed] - WHO. Epilepsy. Available online: http://www.who.int/mediacentre/factsheets/fs999/en/ (accessed on 8 July 2020).
- Instituto Nacional de Estadística (INE). Población Estimada en España. Available online: http://www.ine.es/inebaseDYN/cp30321 (accessed on 15 January 2015).
- Trescher, W.; Lesser, R. Epilepsias. In Neurología Clínica; Bradley, W., Daroff, R., Fenichel, G., Jankovic, J., Eds.; Elsevier Dorma SL: Barcelona, Spain, 2005; pp. 1929–1977. [Google Scholar]
- Epilepsy Overview. Encyclopedia of the Neurological Sciences; Academic Press: Cambridge, MA, USA, 2003.
- Duncan, J.; Sander, J.; Sisodiya, S.; Walker, M. Adult epilepsy. Lancet
**2006**, 367, 1087–1100. [Google Scholar] [CrossRef] - Brodie, M. Practical use of newer antiepileptic drugs as adjunctive therapy in focal epilepsy. CNS Drugs
**2015**, 29, 893–904. [Google Scholar] [CrossRef] [PubMed] - European Medicines Agency (EMA). EPARs for Authorised Medicinal Products for Human Use Stelara. Available online: http://www.emea.europa.eu/humandocs/Humans/EPAR/stelara/stelara.htm (accessed on 10 January 2016).
- Kristian, B.; Wachtmeister, K.; Stefan, F.; Forsgren, L. Retigabine as add-on treatment of refractory epilepsy—A cost-utility study in a Swedish setting. Acta Neurol. Scand.
**2013**, 127, 419–426. [Google Scholar] [CrossRef] [PubMed] - Martyn-St James, M.; Glanville, J.; McCool, R.; Duffy, S.; Cooper, J.; Hugel, P.; Lane, P.W. The efficacy and safety of retigabine and other adjunctive treatments for refractory partial epilepsy: A systematic review and indirect comparison. Seizure
**2012**, 21, 665–678. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Cortés, J.; Navarro-Quiles, A.; Romero, J.; Roselló, M. Randomizing the parameters of a Markov chain to model the stroke disease: A technical generalization of established computational methodologies towards improving real applications. J. Comput. Appl. Math.
**2017**, 324, 225–240. [Google Scholar] [CrossRef] [Green Version] - Sonnenberg, F.A.; Beck, J.R. Markov Models in Medical Decision Making: A Practical Guide. Med. Decis. Mak.
**1993**, 13, 322–338. [Google Scholar] [CrossRef] - Markov, A. Rasprostranenie zakona bol’shih chisel na velichiny, zavisyaschie drug ot druga. Izvestiya Fiziko-Matematicheskogo Obschestva Kazan. Univ.
**1906**, 15, 135–156. [Google Scholar] - Barrachina-Martínez, I.; Vivas-Consuelo, D.; Piera-Barbastre, A. Budget Impact Analysis of Brivaracetam Adjunctive Therapy for Partial-Onset Epileptic Seizures in Valencia Community, Spain. Clin. Drug Investig.
**2018**, 38, 353–363. [Google Scholar] [CrossRef] [PubMed] - Sullivan, S.; Mauskopf, J.; Augustovski, F.; Caro, J.; Lee, K.; Minchin, M.; Orlewska, E.; Penna, P.; Rodriguez Barrios, J.; Shau, W. Budget Impact Analysis Principles of Good Practice: Report of the ISPOR 2012 Budget Impact Analysis Good Practice II Task Force. Value Health
**2014**, 17, 5–14. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Cortés, J.; Navarro-Quiles, A.; Romero, J.; Roselló, M. Some results about randomized binary Markov chains: Theory, computing and applications. Int. J. Comput. Math.
**2018**, 2018, 1–16. [Google Scholar] [CrossRef] - Soong, T. Random Differential Equations in Science and Engineering; Academic Press: New York, NY, USA, 1973. [Google Scholar]
- Prieto, L.; Sacristán, J.; Antoñanzas, F.; Rubio-Terrés, C.; Pinto, J.; Rovira, J. Análisis coste-efectividad en la evaluación económica de intervenciones sanitarias. Med. Clin.
**2004**, 122, 505–510. [Google Scholar] [CrossRef] - Karlsson, G.; Johannesson, M. The decision rule of cost-effectiveness analysis. PharmacoEconomics
**1996**, 9, 113–120. [Google Scholar] [CrossRef] [PubMed] - Borghs, S. Brivaracetam-Network Meta-Analysis of Branded AEDs; UCB BresMed: Brussels, Belgium, 2015. [Google Scholar]
- Chhatwal, J.; Jayasuriya, S.; Elbasha, E. Changing Cycle Lengths State-Transition Models: Doing it the Right Way. ISPOR Connect.
**2014**, 20, 12–14. [Google Scholar] - Mulhern, B.; Rowen, D.; Snape, D.; Jacoby, A.; Marson, T.; Hughes, D.; Baker, D.; Brazier, J. Valuations of epilepsy-specific health states: A comparison of patients with epilepsy and the general population. Epilepsy Behav.
**2014**, 36, 12–17. [Google Scholar] [CrossRef] - BOE. Real Decreto-Ley 8/2010, de 20 de Mayo, Por el Que se Adoptan Medidas Extraordinarias Para la Reducción del Déficit Público. Boletín Oficial del Estado, 20 May 2010.
- de CO de BOTfarma, F.C. BOT Base de Datos del Medicamento. Available online: https://botplusweb.portalfarma.com/ (accessed on 8 July 2020).
- AEMPS. Informe de Posicionamiento Terapéutico de Brivaracetam (Briviact) en Epilepsia. Available online: https://www.aemps.gob.es/medicamentosUsoHumano/informesPublicos/docs/IPTbrivaracetam-Briviact-epilepsia.pdf (accessed on 17 January 2017).
- Sacristán, J.; Oliva, J.; Del Llano, J.; Prieto, L.; Pinto, J. ¿Qué es una tecnología sanitaria eficiente en España? Gac. Sanit.
**2002**, 4, 334–343. [Google Scholar] [CrossRef] [Green Version] - Bertram, Y.; Lauer, J.; Joncheere, K.; Edejer, T.; Hutubessy, R.; Kieny, M.; Hill, S. Cost-effectiveness thresholds: Pros and cons. Bull. World Health Organ.
**2016**, 94, 925–930. [Google Scholar] [CrossRef] [PubMed]

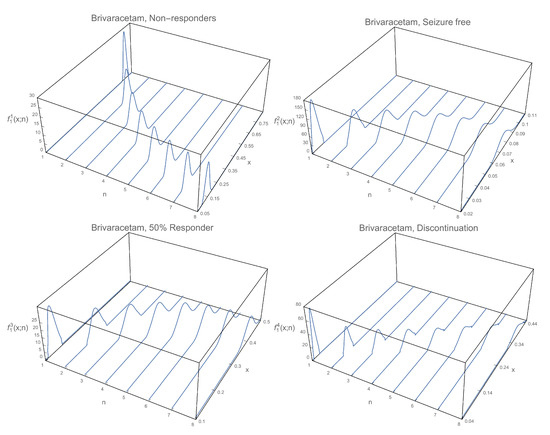

**Figure 2.**Plot of the 1-PDFs in each of the four states described in Figure 1 with the Brivaracetam treatment. (

**Up**): Non-responders (

**left**) and Seizure free population (

**right**). (

**Bottom**): Partial responders (

**left**) and population with discontinuation symptoms (

**right**).

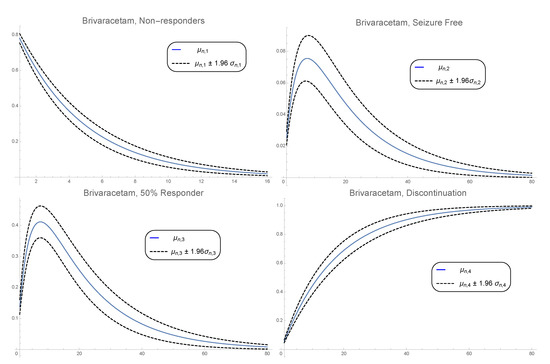

**Figure 3.**Plot of the expectation (Blue line) plus/minus 1.96 standard deviation (Black dashed line) of each of the four states described in Figure 1 with the Brivaracetam treatment, during two years. (

**Up**): Non-responders (

**left**) and Seizure free population (

**right**). (

**Bottom**): Partial responders (

**left**) and population with discontinuation symptoms (

**right**).

**Figure 4.**Plot of the expectation (Blue line) plus/minus 1.96 standard deviation (Black dashed line) of each of the four states described in Figure 1 with the Brivaracetam treatment for greater times. (

**Up**): Non-responders (

**left**) and Seizure free population (

**right**). (

**Bottom**): Partial responders (

**left**) and population with discontinuation symptoms (

**right**).

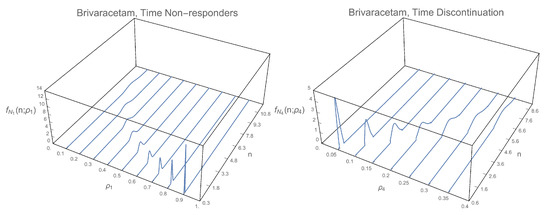

**Figure 5.**Plot of the PDFs of the times, ${N}_{1}$ and ${N}_{4}$, until given proportions, ${\rho}_{1}\in \{0.1,0.2,\dots ,0.9\}$ and ${\rho}_{4}\in \{0.05,0.1,\dots ,0.35\}$, remain in the corresponding state, respectively. (

**Left**): Non-responders. (

**Right**): Discontinuation.

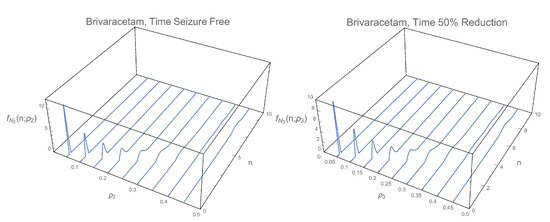

**Figure 6.**Plot of the PDFs of the times, ${N}_{2}$ and ${N}_{3}$, until given proportions, ${\rho}_{2}\in \{0.01,0.02,\dots ,0.09\}$ and ${\rho}_{3}\in \{0.05,0.1,\dots ,0.45\}$, remain in the corresponding state, respectively. (

**Left**): Seizure Free. (

**Right**): 50% Responder.

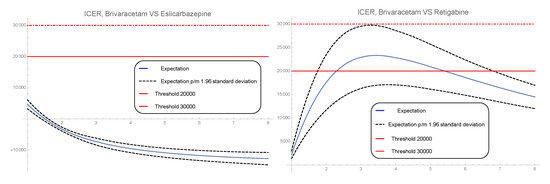

**Figure 7.**Plot of expectation plus/minus 1.96 standard deviation functions of ICER for $n\in [1,8]$. (

**Left**): Brivaracetam VS Eslicarbazepine. (

**Right**): Brivaracetam VS Retigabine. The red straight line represents the threshold value 20,000€/QALY.

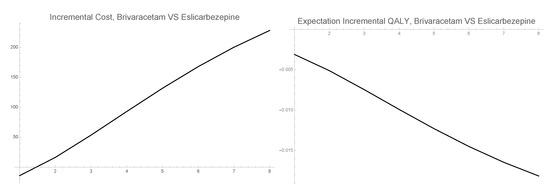

**Figure 8.**Comparison between Brivaracetam and Eslicarbazepine AEDs for $n\in [1,8]$. (

**Left**): Incremental cost. (

**Right**): Expectation incremental QALY. In both increments Eslicabazepine is considered the first treatment.

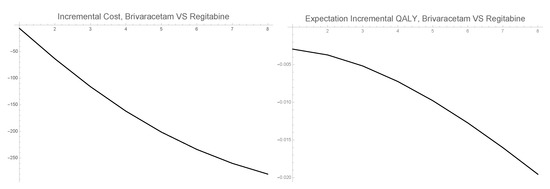

**Figure 9.**Comparison between Brivaracetam and Regitabine AEDs for $n\in [1,8]$. (

**Left**): Incremental cost. (

**Right**): Expectation incremental QALY. In both increments Regitabine is considered the first treatment.

**Table 1.**Expectation of time until a given proportion of population, ${\rho}_{1}$, remains non-responder, ${N}_{1}$.

${\mathit{\rho}}_{1}$ | $0.1$ | $0.2$ | $0.3$ | $0.4$ | $0.5$ | $0.6$ | $0.7$ | $0.8$ | $0.9$ |
---|---|---|---|---|---|---|---|---|---|

$\mathbb{E}\left[{N}_{1}\right]$ | $9.33167$ | $6.52255$ | $4.87933$ | $3.71344$ | $2.80911$ | $2.07022$ | $1.44549$ | $0.904332$ | $0.426994$ |
