# A Mathematical Model of the Transition from Normal Hematopoiesis to the Chronic and Accelerated-Acute Stages in Myeloid Leukemia

^{1}

^{2}

^{3}

^{4}

^{*}

## Abstract

**:**

## 1. Introduction

#### Medical Background

**Hematopoiesis**is the process of blood cell formation. The process starts in the intrauterine life in the mesoderm of the yolk sac and continues in the liver and the spleen during the second and seventh month. It then takes place at the level of the bone marrow, where it carries on after birth. During childhood, hematopoiesis takes place in almost all bones, gradually being replaced with growth by fat tissue. In adults, hematopoiesis occurs only in the pelvis, vertebrae, sternum (Howard et al. [43] and Young [44]), ribs, skull, proximal humerus, and femur epiphysis (Kaushansky et al. [45]).

**Leukemias**are an heterogeneous group of malignant disorders, also known as cancer, arising from one mutant hematopoietic stem cell (mHSC) (Howard et al. [43], Jilkine and Gutenkunst [35] Driessens et al. [36], Klein et al. [37], Lopez-Garcia et al. [38], and Snippert et al. [39]). In this study, we analyze the dynamics of HSCs and mHSCs by assuming that at least one mHSC can be found in the human body. Therefore, the complex biological processes on which the hematopoiesis is based are not completely involved.

**Chronic Myeloid Leukemia**(CML) is an acquired myeloproliferative disorder (Howard et al. [43] and Neiman [7]). The CML is probably the first recognized leukemia, dating back to the 1840s (Young [44]).

## 2. The Mathematical Model

#### 2.1. The Normal-Leukemic Dynamic System

**(a) Monotonicity of the solutions.**The function $x\left(t\right)$ increases during the time intervals where $dx/dt>0$, i.e., $a/(1+{b}_{1}x\left(t\right)+{b}_{2}y\left(t\right))-c>0$, or equivalently $x\left(t\right)+({b}_{2}/{b}_{1})y\left(t\right)<d$. Hence,

**(b) Steady states.**A steady state (or an equilibrium) is a constant solution, i.e., a solution for which $dx/dt=dy/dt=0$. Hence, the steady states are obtained by solving the algebraic system

**(c) Stability.**We study the stability of the steady states of the system (4)–(5) using the standard first approximation method (for details see Kaplan and Glass [60], Coddington and Levinson [61] and Jones et al. [62]). According to this method, an equilibrium $(\alpha ,\beta )$ is asymptotically stable if the Jacobian matrix $J(\alpha ,\beta )$ is a Hurwitz matrix, i.e., Re $\lambda <0$ for all its characteristic roots $\lambda $, and is unstable if Re $\lambda >0$ for at least one of its characteristic roots.

- If $D<d$, then the steady state $(d,0)$ is asymptotically stable, and the steady state $(0,D)$ is unstable.
- If $d<D<({b}_{1}/{b}_{2})d$, then the steady state $({x}^{*},{y}^{*})$ is positive and asymptotically stable, and the steady states $(d,0)$ and $(0,D)$ are unstable.
- If $D>({b}_{1}/{b}_{2})d$, then the steady state $(0,D)$ is asymptotically stable, and the steady state $(d,0)$ is unstable.

#### 2.2. The Mathematical–Biological Interpretation

## 3. Numerical Simulation of the Model

#### 3.1. Parameter Estimations

#### 3.2. Numerical Simulations

## 4. The Model Extended to Terminally Differentiated Cells

## 5. Discussion and Conclusions

- The mHSCs proliferation rate is a predictive factor for the development of the accelerated-acute state: an increased rate of proliferation of these cells in comparison to normal stem cells determines the accelerated-acute phase to occur earlier;
- The death rate of leukemic stem cells is predictive for the global evolution of the disease, influencing the shifts between the different phases of the chronic myeloid leukemia.

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## References

- Rubinow, S.I.; Lebowitz, J.L. A mathematical model of neutrophil production and control in normal man. J. Math. Biol.
**1975**, 1, 187–225. [Google Scholar] [CrossRef] - Rubinow, S.I.; Lebowitz, J.L. A mathematical model of the acute myeloblastic leukemic state in man. Biophys. J.
**1976**, 16, 897–910. [Google Scholar] [CrossRef] [Green Version] - Mackey, M.C.; Glass, L. Oscillation and chaos in physiological control systems. Science
**1977**, 197, 287–289. [Google Scholar] [CrossRef] - Mackey, M.C. Unified hypothesis of the origin of aplastic anemia and periodic hematopoiesis. Blood
**1978**, 51, 941–956. [Google Scholar] [CrossRef] [Green Version] - Djulbegovic, B.; Svetina, S. Mathematical model of acute myeloblastic leukaemia: An investigation of the relevant kinetic parameters. Cell Prolif.
**1985**, 18, 307–319. [Google Scholar] [CrossRef] - Fokas, A.S.; Keller, J.B.; Clarkson, B.D. Mathematical model of granulocytopoiesis and chronic myelogenous leukemia. Cancer Res.
**1991**, 51, 2084–2091. [Google Scholar] - Neiman, B. A Mathematical Model of Chronic Myelogenous Leukemia; Oxford University: Oxford, UK, 2000; Available online: https://core.ac.uk/download/files/69/96488.pdf (accessed on 10 May 2019).
- Andersen, L.K.; Mackey, M.C. Resonance in periodic chemotherapy: A case study of acute myelogenous leukemia. J. Theor. Biol.
**2001**, 209, 113–130. [Google Scholar] [CrossRef] [Green Version] - Colijn, C.; Mackey, M.C. A mathematical model of hematopoiesis-I. Periodic chronic myelogenous leukemia. J. Theor. Biol.
**2005**, 237, 117–132. [Google Scholar] [CrossRef] - Adimy, M.; Crauste, F.; Ruan, S. A mathematical study of the hematopoiesis process with applications to chronic myelogenous leikemia. SIAM J. Appl. Math.
**2005**, 65, 1328–1352. [Google Scholar] [CrossRef] [Green Version] - Dingli, D.; Michor, F. Successful therapy must eradicate cancer stem cells. Stem Cells
**2006**, 24, 2603–2610. [Google Scholar] [CrossRef] [Green Version] - Kim, P.S.; Lee, P.P.; Levy, D. Dynamics and potential impact of the immune response to chronic myelogenous leukemia. PLoS Comput. Biol.
**2008**, 4, e1000095. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Cucuianu, A.; Precup, R. A hypothetical-mathematical model of acute myeloid leukemia pathogenesis. Comput. Math. Methods Med.
**2010**, 11, 49–65. [Google Scholar] [CrossRef] - Doumic-Jauffret, M.; Kim, P.S.; Perthame, B. Stability analysis of a simplified yet complete model for chronic myelogenous leukemia. Bull. Math. Biol.
**2010**, 72, 1732–1759. [Google Scholar] [CrossRef] [PubMed] - Komarova, N.L. Mathematical modeling of cyclic treatments of chronic myeloid leukemia. Math. Biosci. Eng.
**2011**, 8, 289–306. [Google Scholar] - Stiehl, T.; Marciniak-Czochra, A. Mathematical modelling of leukemogenesis and cancer stem cell dynamics. Math. Mod. Nat. Phenom.
**2012**, 7, 166–202. [Google Scholar] [CrossRef] [Green Version] - MacLean, A.L.; Lo Celso, C.; Stumpf, M.P.H. Population dynamics of normal and leukaemia stem cells in the haematopoietic stem cell niche show distinct regimes where leukaemia will be controlled. J. R. Soc. Interfaces
**2013**, 10, 20120968. [Google Scholar] [CrossRef] [Green Version] - MacLean, A.L.; Filippi, S.; Stumpf, M.P.H. The ecology in the hematopoietic stem cell niche determines the clinical outcome in chronic myeloid leukemia. Proc. Natl. Acad. Sci. USA
**2014**, 111, 3882–3888. [Google Scholar] [CrossRef] [Green Version] - Radulescu, I.R.; Candea, D.; Halanay, A. A study on stability and medical implications for a complex delay model for CML with cell competition and treatment. J. Theor. Biol.
**2014**, 363, 30–40. [Google Scholar] [CrossRef] - Bianca, C.; Pennisi, M.; Motta, S.; Ragusa, M.A. Immune system network and cancer vaccine. AIP Conf. Proc.
**2011**, 1389, 945–948. [Google Scholar] - Bianca, C.; Pappalardo, F.; Pennisi, M.; Ragusa, M.A. Persistence analysis in a Kolmogorov-type model for cancer-immune system competition. AIP Conf. Proc.
**2013**, 1558, 1797–1800. [Google Scholar] - Ragusa, M.A.; Russo, G. ODEs approaches in modeling fibrosis: Comment on “Towards a unified approach in the modeling of fibrosis: A review with research perspectives” by Martine Ben Amar and Carlo Bianca. Phys. Life Rev.
**2016**, 17, 112–113. [Google Scholar] [CrossRef] [PubMed] - Vincent, P.C.; Rutzen-Loesevitz, L.; Tibken, B.; Heinze, B.; Hofer, E.P.; Fliedner, T.M. Relapse in chronic myeloid leukemia after bone marrow transplantation: Biomathematical modeling as a new approach to understanding pathogenesis. Stem Cells
**1999**, 17, 9–17. [Google Scholar] [CrossRef] [PubMed] - De Conde, R.; Kim, P.S.; Levy, D.; Lee, P.P. Post-transplantation dynamics of the immune response to chronic myelogenous leukemia. J. Theor. Biol.
**2005**, 236, 39–59. [Google Scholar] [CrossRef] [PubMed] - Kim, P.S.; Lee, P.P.; Levy, D. Mini-Transplants for Chronic Myelogenous Leukemia: A Modeling Perspective, Biology and Control Theory: Current Challenges; Lecture Notes in Control and Information Sciences; Springer: Berlin/Heidelberg, Germany, 2007; Volume 357, pp. 3–20. [Google Scholar]
- Marciniak-Czochra, A.; Stiehl, T. Mathematical models of hematopoietic reconstitution after stem cell transplantation. In Model Based Parameter Estimation: Theory and Applications; Bock, H.G., Carraro, T., Jaeger, W., Koerkel, S., Rannacher, R., Schloeder, J.P., Eds.; Springer: Berlin/Heidelberg, Germany, 2007; pp. 191–206. [Google Scholar]
- Precup, R.; Arghirescu, S.; Cucuianu, A.; Serban, M. Mathematical Modeling of cell dynamics after allogeneic bone marrow transplantation. Int. J. Biomath.
**2012**, 5, 1–18. [Google Scholar] [CrossRef] - Precup, R.; Serban, M.A.; Trif, D. Asymptotic stability for a model of cellular dynamics after allogeneic bone marrow transplantation. Nonlinear Dyn. Syst. Theory
**2013**, 13, 79–92. [Google Scholar] - Precup, R. Mathematical understanding of the autologous stem cell transplantation. Ann. Tiberiu Popoviciu Semin. Funct. Equ. Approx. Convexity
**2012**, 10, 155–167. [Google Scholar] - Stiehl, T.; Ho, A.; Marciniak-Czochra, A. The impact of CD34+ cell dose on engraftment after SCTs: Personalized estimates based on mathematical modeling. Bone Marrow Transpl.
**2014**, 49, 30–37. [Google Scholar] [CrossRef] [Green Version] - Afenya, E. Mathematical models for cancer and their relevant insights. In Handbook of Cancer Models with Applications; Tan, W.Y., Hanin, L., Eds.; World Scientific: Hackensack, NJ, USA, 2008. [Google Scholar]
- Michor, F. Mathematical models of cancer stem cells. J. Clin. Oncol.
**2008**, 26, 2854–2861. [Google Scholar] [CrossRef] [Green Version] - Foley, C.; Mackey, M.C. Dynamic hematological disease: A review. J. Math. Biol.
**2009**, 58, 285–322. [Google Scholar] [CrossRef] - Clapp, G.; Levy, D. A review of mathematical models for leukemia and lymphoma. Drug Discov. Today Dis. Models
**2015**, 16, 1–6. [Google Scholar] [CrossRef] [Green Version] - Jilkine, A.; Gutenkunst, R. Effect of dedifferentiation on time to mutation acquisition in stem cell-driven cancers. PLoS Comput. Biol.
**2014**, 10, e1003481. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Driessens, G.; Beck, B.; Caauwe, A.; Simons, B.; Blanpain, C. Defining the mode of tumour growth by clonal analysis. Nature
**2012**, 488, 527–530. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Klein, A.; Simons, B. Universal patterns of stem cell fate in cycling adult tissues. Development
**2011**, 138, 3103–3111. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Lopez-Garcia, C.; Klein, A.; Simons, B.; Winton, D. Intestinal stem cell replacement follows a pattern of neutral drift. Science
**2010**, 330, 822–825. [Google Scholar] [CrossRef] [PubMed] - Snippert, H.; van der Flier, L.; Sato, T.; van Es, J.; van den Born, M.; Kroon-Veenboer, C.; Barker, N.; Klein, A.; van Rheenen, J.; Simons, B.; et al. Intestinal crypt homeostasis results from neutral competition between symmetrically dividing Lgr5 stem cells. Cell
**2010**, 143, 134–144. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Gou, X.C.; Kong, D.; Tang, X. Contradictory relationships between cancer and normal cells and implications for anti-cancer therapy. Asian Pac. J. Cancer Prev.
**2015**, 16, 5143–5147. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Precup, R.; Serban, M.A.; Trif, D.; Cucuianu, A. A planning algorithm for correction therapies after allogeneic stem cell transplantation. J. Math. Model. Algorithm
**2012**, 11, 309–323. [Google Scholar] [CrossRef] - Michor, F.; Hughes, T.P.; Iwasa, Y.; Branford, S.; Shah, N.P.; Sawyers, C.L.; Nowak, M.A. Dynamics of chronic myeloid leukaemia. Nature
**2005**, 435, 1267–1270. [Google Scholar] [CrossRef] - Howard, M.; Hamilton, P.; Britton, R. Haematology; Churchill Livingstone: London, UK, 2013; pp. 10–120. [Google Scholar]
- Young, N. Clinical Hematology; Mosby Elsevier: Philadelphia, PA, USA, 2006; pp. 1035–1456. [Google Scholar]
- Kaushansky, K.; Lichtman, M.A.; Beutler, E.; Kipps, T.J.; Seligsohn, U.; Prchal, J.T. Williams Hematology; McGraw-Hill Medical: New York, NY, USA, 2010; pp. 1150–2439. [Google Scholar]
- Kawamoto, H.; Wada, H.; Katsura, Y. A revised scheme for developmental pathways of hematopoietic cells: The myeloid-based model. Int. Immunol.
**2010**, 22, 65–70. [Google Scholar] [CrossRef] [Green Version] - Abkowitz, J.L. Evidence that the number of hematopoietic stem cells per animal is conserved in mammals. Blood
**2002**, 100, 2665–2667. [Google Scholar] [CrossRef] - Ramalingam, P.; Poulos, M.; Butler, J. Regulation of the hematopoietic stem cell lifecycle by the endothelial niche. Comput. Curr. Opin. Hematol.
**2017**, 24, 289–299. [Google Scholar] [CrossRef] [PubMed] - Zon, L. Intrinsic and extrinsic control of haematopoietic stem-cell self-renewal. Nature
**2008**, 453, 306–313. [Google Scholar] [CrossRef] [PubMed] - Arber, D.; Orazi, A.; Hasserjian, R.; Thiele, J.; Borowitz, M.; Le Beau, M.; Bloomfield, C.; Cazzola, M.; Vardiman, J. The 2016 revision to the World Health Organization classification of myeloid neoplasms and acute leukemia. Blood
**2016**, 127, 2391–2405. [Google Scholar] [CrossRef] [PubMed] - Roeder, I.; d’Inverno, M. New experimental and theoretical investigations of hematopoietic stem cells and chronic myeloid leukemia. Blood Cells Mol. Dis.
**2009**, 43, 88–97. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Hemminki, K.; Jiang, Y. Familial myeloid leukemias from the Swedish Family-Cancer Database. Leuk. Res.
**2002**, 26, 611–613. [Google Scholar] [CrossRef] - Kantarjian, H.; O’Brien, S.; Jabbour, E.; Garcia-Manero, G.; Quintas-Cardama, A.; Shan, J.; Rios, M.; Ravandi, F.; Faderl, S.; Kadia, T.; et al. Improved survival in chronic myeloid leukemia since the introduction of imatinib therapy: A single-institution historical experience. Blood
**2012**, 119, 1981–1987. [Google Scholar] [CrossRef] - Thomas, E. Marrow transplantation for the treatment of chronic myelogenous leukemia. Ann. Intern. Med.
**1986**, 104, 155–163. [Google Scholar] [CrossRef] - Alenzi, F.Q.; Alenazi, B.Q.; Ahmad, S.Y.; Salem, M.L.; Al-Jabri, A.A.; Wyse, R.K.H. The haemopoietic stem cell: Between apoptosis and self renewal. Yale J. Biol. Med.
**2009**, 82, 7–18. [Google Scholar] - Cisneros, T.; Dillard, D.; Castro, M.; Arredondo-Guerrero, J.; Krams, S.; Esquivel, C.; Martinez, O. The role of natural killer cells in recognition and killing of stem cells and stem cell-derived hepatoblasts. Am. J. Transplant
**2017**, 17 (Suppl. 3), 115. [Google Scholar] - Domen, J. The role of apoptosis in regulating hematopoietic stem cell numbers. Apoptosis
**2001**, 6, 239–252. [Google Scholar] [CrossRef] - Riether, C.; Schürch, C.M.; Ochsenbein, A.F. Regulation of hematopoietic and leukemic stem cells by the immune system. Cell Death Differ.
**2015**, 22, 187–198. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Vivier, E.; Tomasello, E.; Baratin, M.; Walzer, T.; Ugolini, S. Functions of natural killer cells. Nat. Immunol.
**2008**, 9, 503–510. [Google Scholar] [CrossRef] [PubMed] - Kaplan, D.; Glass, L. Understanding Nonlinear Dynamics; Springer: New York, NY, USA, 1995. [Google Scholar]
- Coddington, E.A.; Levinson, N. Theory of Ordinary Differential Equations; Tata McGraw-Hill: New Delhi, India, 1972. [Google Scholar]
- Jones, D.S.; Plank, M.J.; Sleeman, B.D. Differential Equations and Mathematical Biology; CRC Press: London, UK, 2010. [Google Scholar]
- Stine, R.; Matunis, E. Stem cell competition: Finding balance in the niche. Trends Cell Biol.
**2013**, 23, 357–364. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Catlin, S.; Busque, L.; Gale, R.; Guttorp, P.; Abkowitz, J. The replication rate of human hematopoietic stem cells in vivo. Blood
**2011**, 117, 4460–4466. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Wilson, A.; Laurenti, E.; Oser, G.; van der Wath, R.; Blanco-Bose, W.; Jaworski, M.; Offner, S.; Dunant, C.; Eshkind, L.; Bockamp, E.; et al. Hematopoietic stem cells reversibly switch from dormancy to self-renewal during homeostasis and repair. Cell
**2008**, 135, 1118–1129. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Sieburg, H.; Rezner, B.; Muller-Sieburg, C. Predicting clonal self-renewal and extinction of hematopoietic stem cells. Proc. Natl. Acad. Sci. USA
**2011**, 108, 4370–4375. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Sieburg, H.; Cattarossi, G.; Muller-Sieburg, C. Lifespan differences in hematopoietic stem cells are due to imperfect repair and unstable mean-reversion. PLoS Comput. Biol.
**2013**, 9, e1003006. [Google Scholar] [CrossRef] [Green Version] - Enriquez-Navas, P.; Kam, Y.; Das, T.; Hassan, S.; Silva, A.; Foroutan, P.; Ruiz, E.; Martinez, G.; Minton, S.; Gillies, R.; et al. Exploiting evolutionary principles to prolong tumor control in preclinical models of breast cancer. Sci. Transl. Med.
**2016**, 8, 327ra24. [Google Scholar] [CrossRef] [Green Version] - Gerlinger, M.; Rowan, A.; Horswell, S.; Larkin, J.; Endesfelder, D.; Gronroos, E.; Martinez, P.; Matthews, N.; Stewart, A.; Tarpey, P.; et al. Intratumor heterogeneity and branched evolution revealed by multiregion sequencing. N. Engl. J. Med.
**2012**, 366, 883–892. [Google Scholar] [CrossRef] [Green Version]

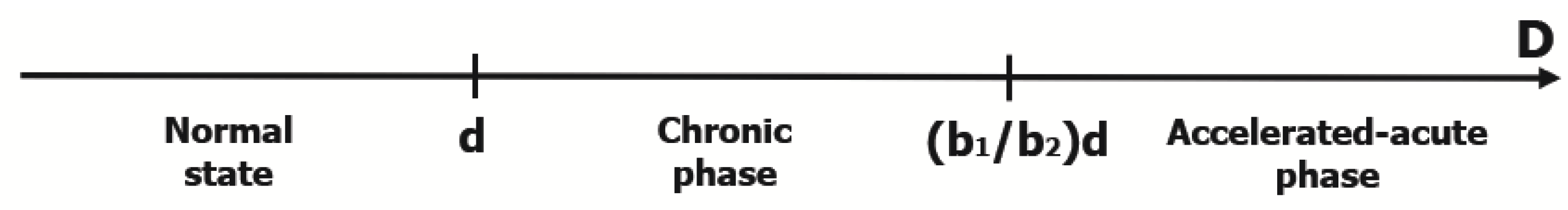

**Figure 1.**Diagram of the transition from the normal hematopoiesis to the chronic and accelerated-acute stages in myeloid leukemia. Values of D less than d correspond to the normal hematopoietic state; values of D between d and $({b}_{1}/{b}_{2})d$ correspond to the chronic phase of leukemia; values of D larger than $({b}_{1}/{b}_{2})d$ characterize the accelerated-acute phase of the disease.

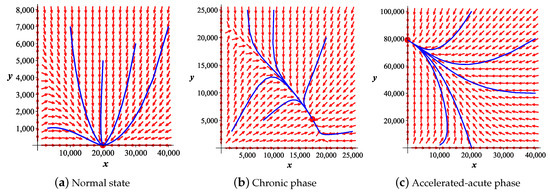

**Figure 2.**Phase portrait of the two-dimensional system (4)–(5), in the normal state (

**a**) $D<d$; in the chronic phase (

**b**) $d<D<({b}_{1}/{b}_{2})d;$ and in the accelerated-acute phase (

**c**) $({b}_{1}/{b}_{2})d<D$. The orbits $\left(x\right(t),y(t\left)\right)$ approach the unique asymptotically stable equilibrium (represented by a thickened red point): $(d,0)$, in case (

**a**); $({x}^{*},{y}^{*})$, in case (

**b**); $(0,D)$, in case (

**c**).

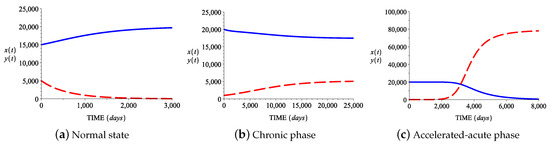

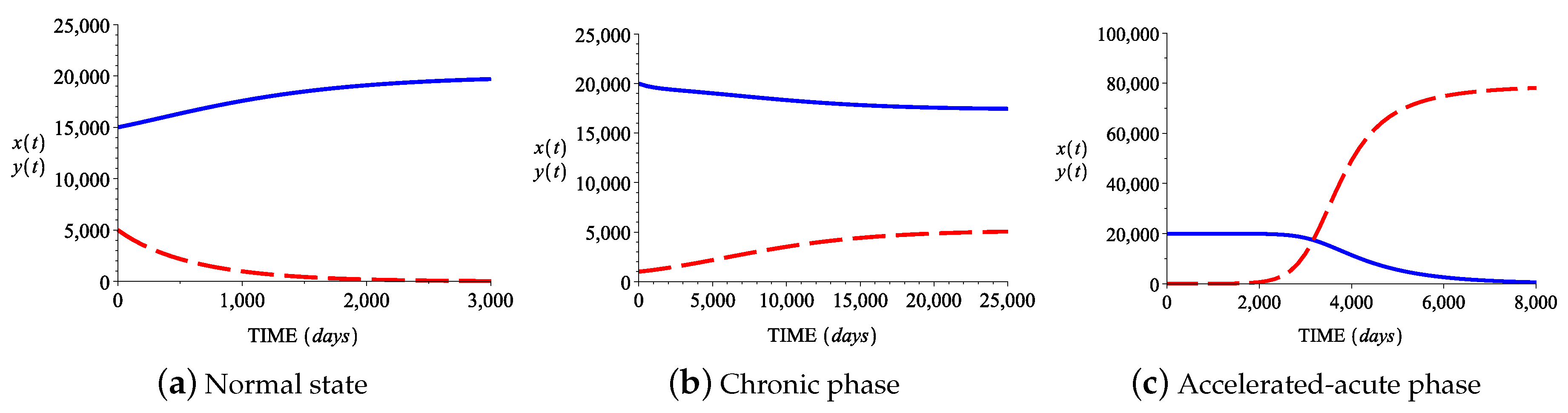

**Figure 3.**Behavior of the normal and abnormal (leukemic) stem cell populations in Case I. Initial conditions: (

**a**) $x\left(0\right)=1.5\times {10}^{4}$, $y\left(0\right)=5\times {10}^{3}$; (

**b**) $x\left(0\right)=2\times {10}^{4}$, $y\left(0\right)=1\times {10}^{3}$; (

**c**) $x\left(0\right)=2\times {10}^{4}$, $y\left(0\right)=1$.

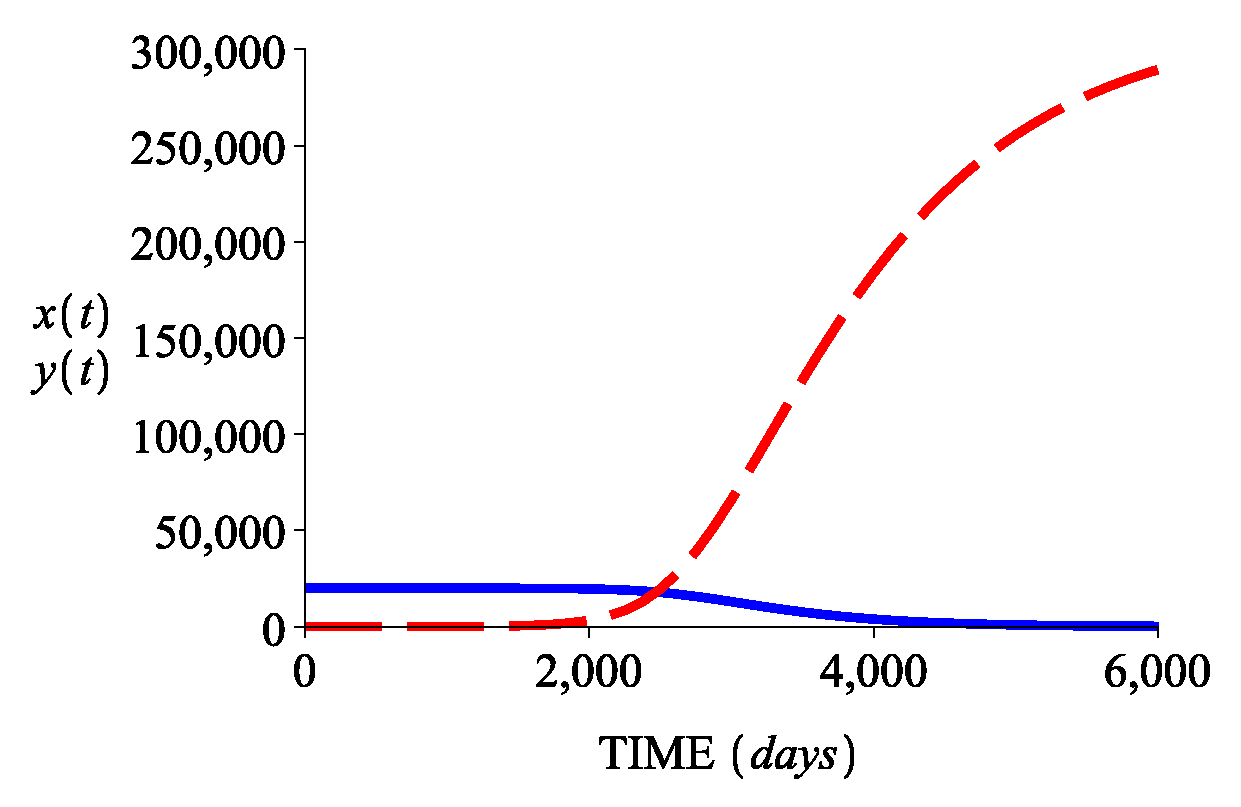

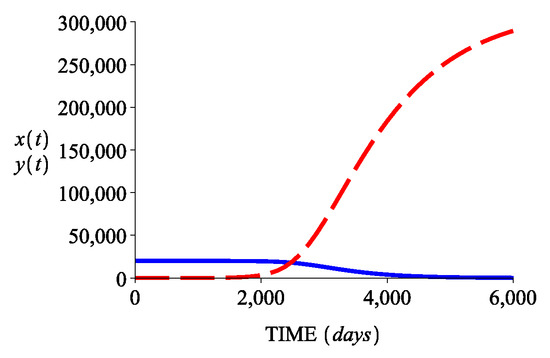

**Figure 4.**Behavior of the normal and leukemic stem cell populations in Case II (accelerated-acute phase). Initial conditions: $x\left(0\right)=2\times {10}^{4}$, $y\left(0\right)=1$.

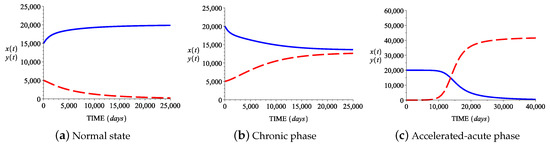

**Figure 5.**Behavior of the normal and abnormal (leukemic) stem cell populations in Case III. Initial conditions: (

**a**) $x\left(0\right)=1.5\times {10}^{4}$, $y\left(0\right)=5\times {10}^{3}$; (

**b**) $x\left(0\right)=2\times {10}^{4}$, $y\left(0\right)=5\times {10}^{3}$; (

**c**) $x\left(0\right)=2\times {10}^{4}$, $y\left(0\right)=1$.

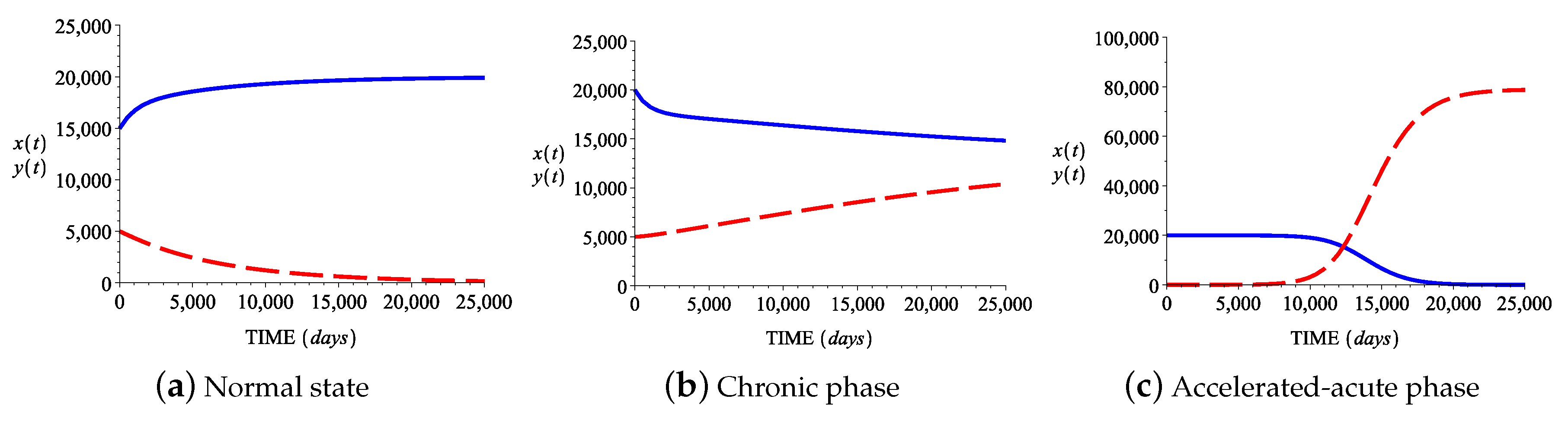

**Figure 6.**Behavior of the normal and leukemic stem cell populations in Case IV. Initial conditions: (

**a**) $x\left(0\right)=1.5\times {10}^{4}$, $y\left(0\right)=5\times {10}^{3}$; (

**b**) $x\left(0\right)=2\times {10}^{4}$, $y\left(0\right)=5\times {10}^{3}$; (

**c**) $x\left(0\right)=2\times {10}^{4}$, $y\left(0\right)=1$.

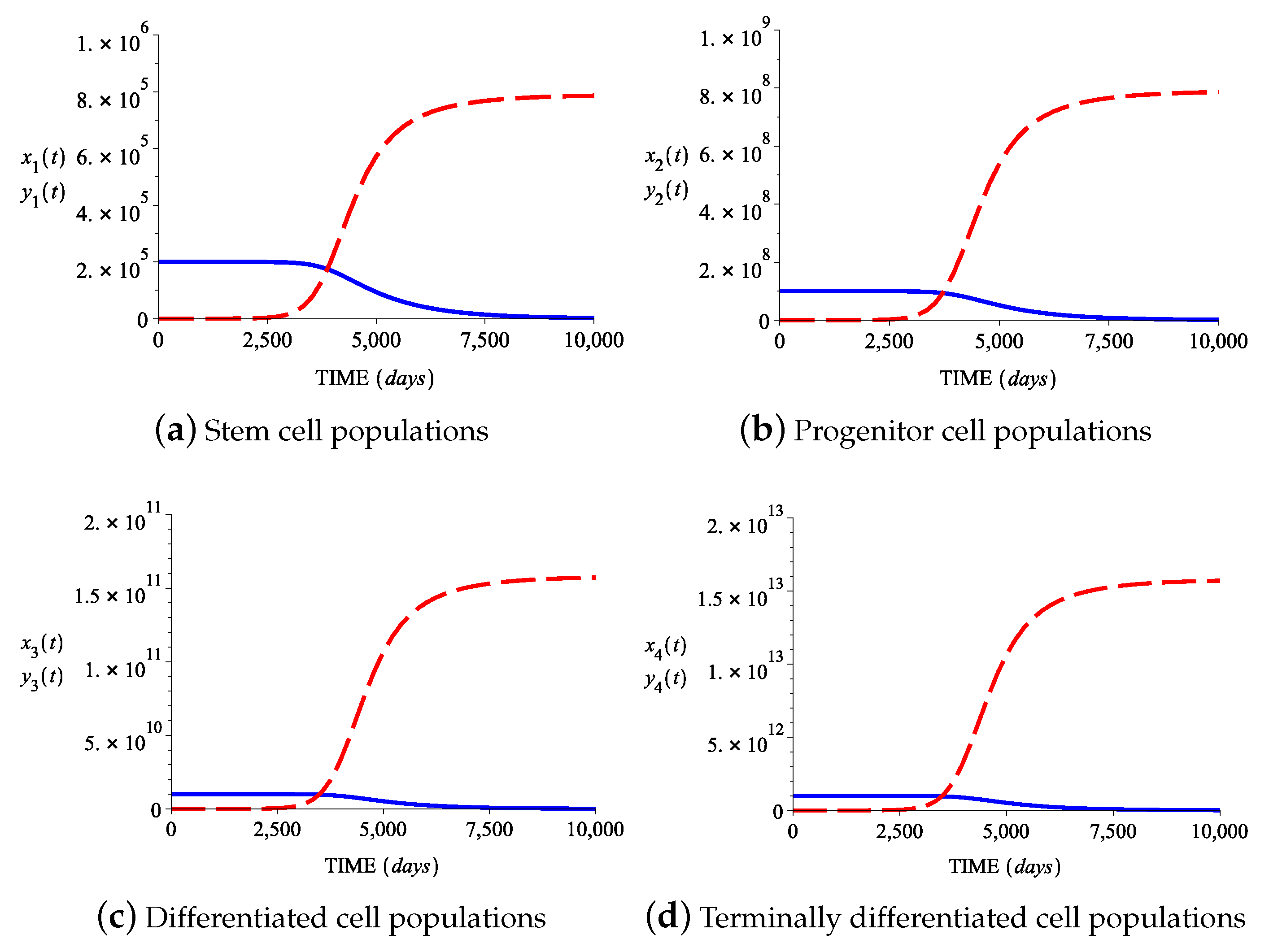

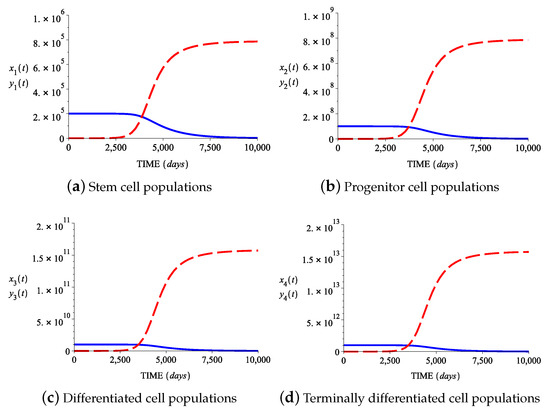

**Figure 7.**Behavior of (
