The Effect of a Linear Tuning between the Antigenic Stimulations of CD4^{+} T Cells and CD4^{+} Tregs

^{1}

^{2}

^{3}

^{4}

^{5}

^{6}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Theory

## 3. Equilibria of the Model

**Theorem**

**1.**

**Proof.**

## 4. Stability Analysis

## 5. Time Evolutions

## 6. Conclusions

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## References

- Segel, L.A.; Jäger, E.; Elias, D.; Cohen, I.R. A quantitative model of auto-immune disease and T-cell vaccination: Does more mean less? Immunol. Today
**1995**, 16, 80–84. [Google Scholar] [CrossRef] - Bluestone, J.A.; Herold, K.; Eisenbarth, G. Genetics, pathogenesis and clinical interventions in type1 diabetes. Nature
**2010**, 464, 1293–1300. [Google Scholar] [CrossRef] [Green Version] - Buljevac, D.; Flach, H.Z.; Hop, W.C.J.; Hijdra, D.; Laman, J.D.; Savelkoul, H.F.J.; van der Meché, F.G.A.; van Doorn, P.A.; Hintzen, R.Q. Prospective study on the relationship between infections and multiple sclerosis exacerbations. Brain
**2002**, 125, 952–960. [Google Scholar] [CrossRef] - Ercolini, A.M.; Miller, S.D. The role of infections in autoimmune disease. Clin. Exp. Immunol.
**2008**, 155, 1–15. [Google Scholar] [CrossRef] - Von Herrath, M.G.; Oldstone, M.B.A. Virus-induced auto immune disease. Curr. Opin. Immunol.
**1996**, 8, 878–885. [Google Scholar] [CrossRef] - Hsieh, C.-S.; Liang, Y.; Tyznik, A.J.; Self, S.G.; Liggitt, D.; Rudensky, A.Y. Recognition of the peripheral self by naturally arising CD25+ CD4+ T cell receptors. Immunity
**2004**, 21, 267–277. [Google Scholar] [CrossRef] [Green Version] - Sakaguchi, S. Naturally arising CD4+ regulatory T cells for immunological self-tolerance and negative control of immune responses. Annu. Rev. Immunol.
**2004**, 22, 531–562. [Google Scholar] [CrossRef] [PubMed] - León, K.; Perez, R.; Lage, A.; Carneiro, J. Modeling T-cell-mediated suppression dependent on interactions in multicellular conjugates. J. Theor. Biol.
**2000**, 207, 231–254. [Google Scholar] [CrossRef] [PubMed] - León, K.; Lage, A.; Carneiro, J. Tolerance and immunity in a mathematical model of T-cell mediated suppression. J. Theor. Biol.
**2003**, 225, 107–126. [Google Scholar] [CrossRef] - León, K.; Faro, J.; Lage, A.; Carneiro, J. Inverse correlation between the incidences of autoimmune disease and infection predicted by a model of T cell mediated tolerance. J. Autoimmu.
**2004**, 22, 31–42. [Google Scholar] [CrossRef] - Shevach, E.M.; McHugh, R.S.; Piccirillo, C.A.; Thornton, A.M. Control of T-cell activation by CD4+ CD25+ suppressor T cells. Immunol. Rev.
**2001**, 182, 58–67. [Google Scholar] [CrossRef] [PubMed] - Thornton, A.M.; Shevach, E.M. CD4+CD25+ immunoregulatory T cells suppress polyclonal T cell activation in vitro by inhibiting interleukine 2 production. J. Exp. Med.
**1998**, 188, 287–296. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Burroughs, N.J.; Oliveira, B.M.P.M.; Pinto, A.A. Regulatory T cell adjustment of quorum growth thresholds and the control of local immune responses. J. Theor. Biol.
**2006**, 134–141. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Eftimie, R.; Gillard, J.J.; Cantrell, D.A. Mathematical Models for Immunology: Current State of the Art and Future Research Directions. Bull Math Biol.
**2016**, 78, 2091–2134. [Google Scholar] [CrossRef] [Green Version] - Tao, L.; Reese, T.A. Making mouse models that reflect human immune responses. Trends Immunol.
**2017**, 38, 181–193. [Google Scholar] [CrossRef] [Green Version] - De Boer, R.J.; Hogeweg, P. Immunological discrimination between self and non-self by precursor depletion and memory accumulation. J. Theor. Biol.
**1987**, 124, 343. [Google Scholar] [CrossRef] [Green Version] - Callard, R.E.; Stark, J.; Yates, A.J. Fratricide: A mechanism for T memory-cell homeostasis. Trends Immunol.
**2003**, 24, 370. [Google Scholar] [CrossRef] - Pinto, A.A.; Burroughs, N.J.; Ferreira, F.; Oliveira, B.M.P.M. Dynamics of immunological models. Acta Biotheor.
**2010**, 58, 391–404. [Google Scholar] [CrossRef] - Burroughs, N.J.; Oliveira, B.M.P.M.; Pinto, A.A.; Sequeira, H.J.T. Sensibility of the quorum growth thresholds controlling local immune responses. Math. Comput. Model.
**2008**, 47, 714–725. [Google Scholar] [CrossRef] [Green Version] - Burroughs, N.J.; Ferreira, M.; Oliveira, B.M.P.M.; Pinto, A.A. A transcritical bifurcation in an immune response model. J. Differ. Equ. Appl.
**2011**, 17, 1101–1106. [Google Scholar] [CrossRef] - Burroughs, N.J.; Ferreira, M.; Oliveira, B.M.P.M.; Pinto, A.A. Autoimmunity arising from bystander proliferation of T cells in an immune response model. Math. Comput. Model.
**2011**, 53, 1389–1393. [Google Scholar] [CrossRef] - Burroughs, N.J.; Oliveira, B.M.P.M.; Pinto, A.A. Ferreira, M. Immune response dynamics. Math. Comput. Model.
**2011**, 53, 1410–1419. [Google Scholar] [CrossRef] [Green Version] - Oliveira, B.M.P.M.; Figueiredo, I.P.; Burroughs, N.J.; Pinto, A.A. Approximate equilibria for a T cell and Treg model. Appl. Math. Inf. Sci.
**2015**, 9, 2221–2231. [Google Scholar] - Oliveira, B.M.P.M.; Trinchet, R.; Otero-Espinar, M.V.; Pinto, A.; Burroughs, N. Modeling the suppression of autoimmunity after pathogen infection. Math. Methods Appl. Sci.
**2018**, 41, 8565–8570. [Google Scholar] [CrossRef] - Afsar, A.; Martins, F.; Oliveira, B.M.P.M.; Pinto, A.A. A fit of CD4
^{+}T cell immune response to an infection by lymphocytic choriomeningitis virus. Math. Biosci. Eng.**2019**, 16, 7009–7021. [Google Scholar] [CrossRef] - Nagata, S. Fas ligand-induced apoptosis. Annu. Rev. Genet.
**1999**, 3, 29–55. [Google Scholar] [CrossRef] - Michie, C.; McLean, A.; Alcock, C.; Beverley, P. Life-span of human lymphocyte subsets defined by CD45 isoforms. Nature
**1992**, 360, 264–265. [Google Scholar] [CrossRef] - Moskophidis, D.; Battegay, M.; Vandenbroek, M.; Laine, E. Hoffmannrohrer, U. Zinkernagel, R. Role of virus and host variables in virus persistence or immunopathological disease caused by a noncytolytic virus. J. Gen. Virol.
**1995**, 76, 381. [Google Scholar] [CrossRef] - Veiga-Fernandes, H.; Walter, U.; Bourgeois, C.; McLean, A.; Rocha, B. Response of naive and memory CD8+ T cells to antigen stimulation in vivo. Nat. Immunol.
**2000**, 1, 47. [Google Scholar] [CrossRef] - Anderson, P.M.; Sorenson, M.A. Effects of route and formulation on clinical pharmacokinetics of interleukine-2. Clin. Pharmacokinet
**1994**, 27, 19. [Google Scholar] [CrossRef]

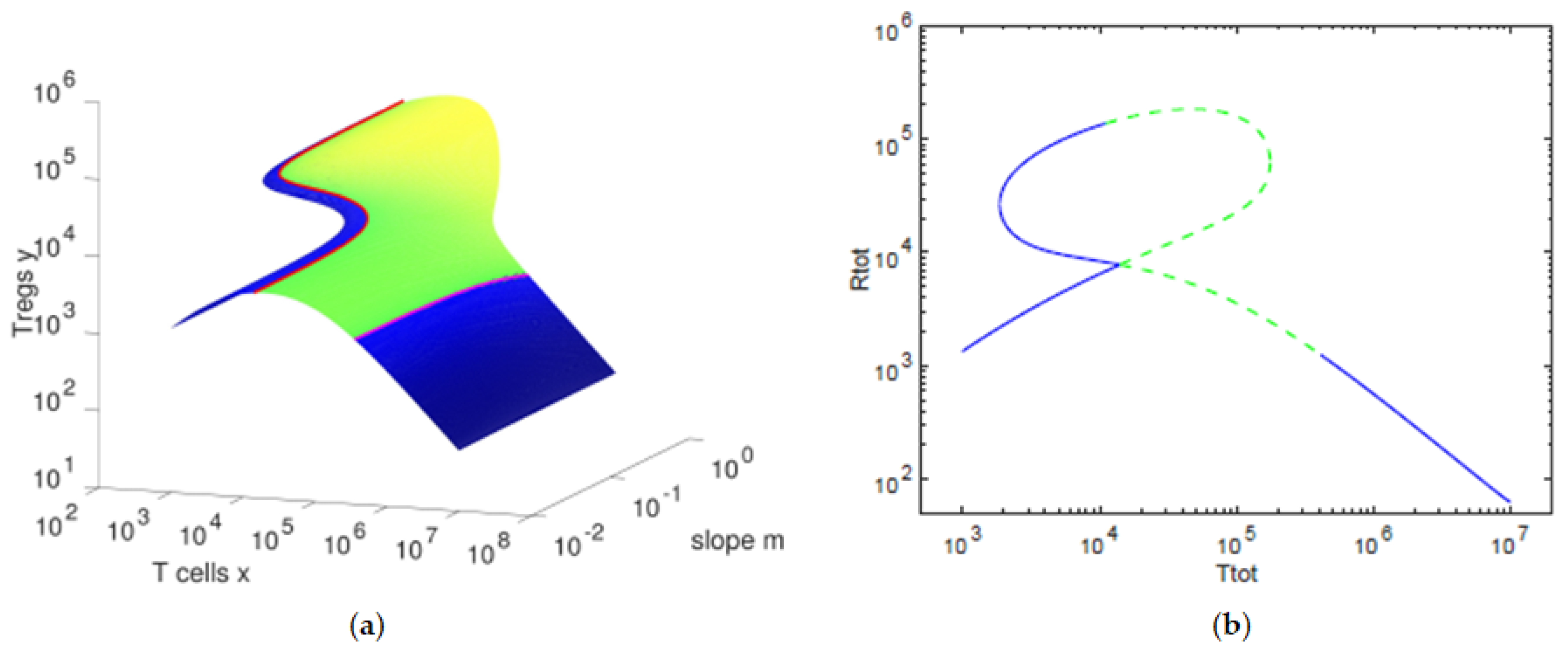

**Figure 1.**Equilibria manifold obtained from Theorem 1. (

**a**) balance between the concentration of T cells $x=T+{T}^{*}$ and that of Tregs $y=R+{R}^{*}$. The shading color indicates the real part of the largest eigenvalue $Re\left(\lambda \right)$, increasing from black to blue for stable equilibria, and unstable equilibria from green to yellow. The red and the magenta lines show the bifurcations, when $Re\left(\lambda \right)=0$. (

**b**) cross-section for $m=0.2765$. The line type indicates stable (solid) or unstable (dashes) equilibria.

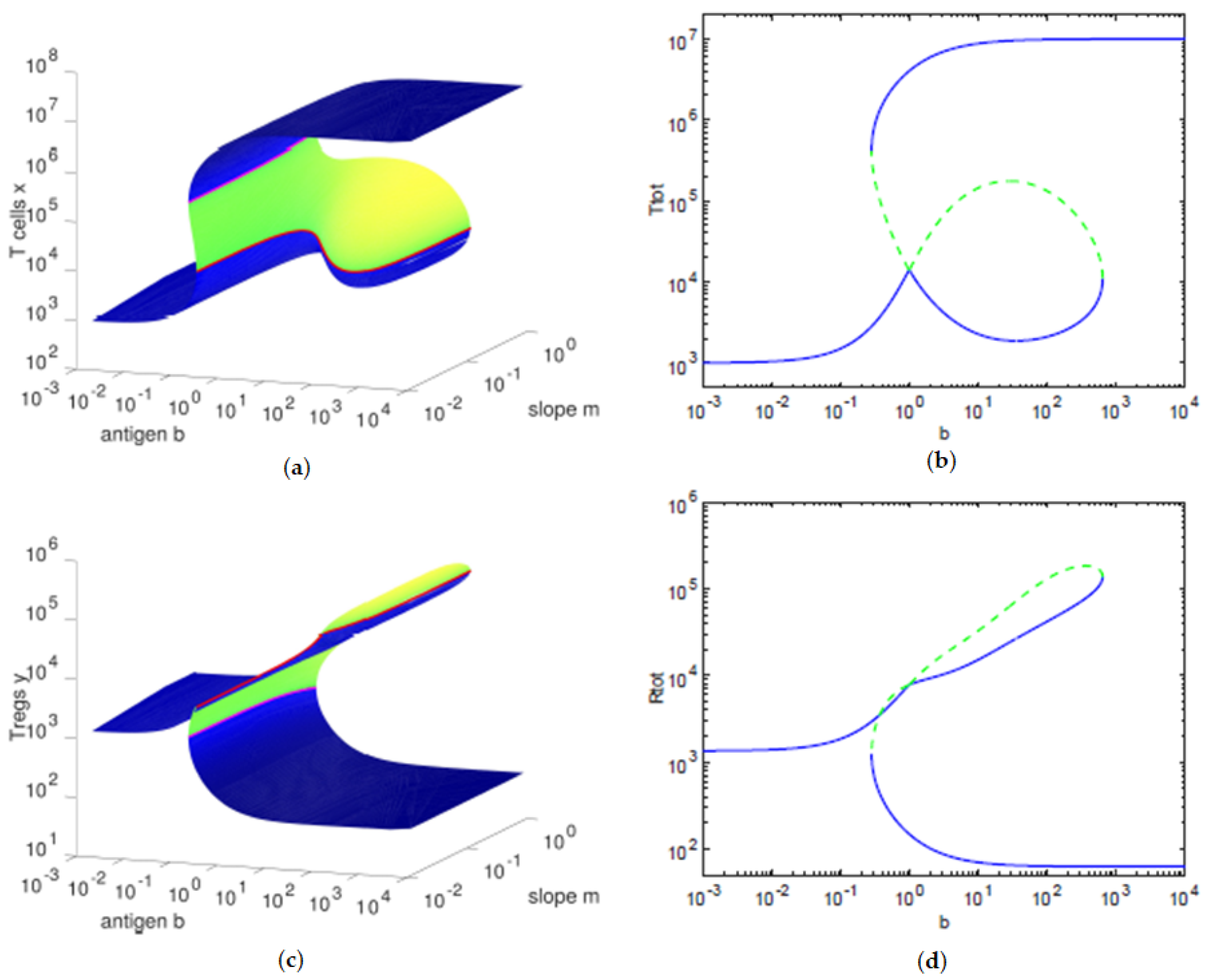

**Figure 2.**Equilibria manifold obtained from Theorem 1. (

**a**,

**b**) relationship between the antigenic stimulation b of T cells and the concentration of T cells $x=T+{T}^{*}$. (

**c**,

**d**) relationship between the antigenic stimulation b of T cells and the concentration of Tregs $y=R+{R}^{*}$. (

**a**,

**c**) the axis pointing upwards to the right is the slope parameter m. The shading color indicates the real part of the largest eigenvalue $Re\left(\lambda \right)$, increasing from black to blue for stable equilibria, and unstable equilibria from green to yellow. The red and the magenta lines show the bifurcations, when $Re\left(\lambda \right)=0$. (

**b**,

**d**) cross-sections for $m=0.2765$. The line type indicates stable (solid) or unstalbe (dashes) equilibria.

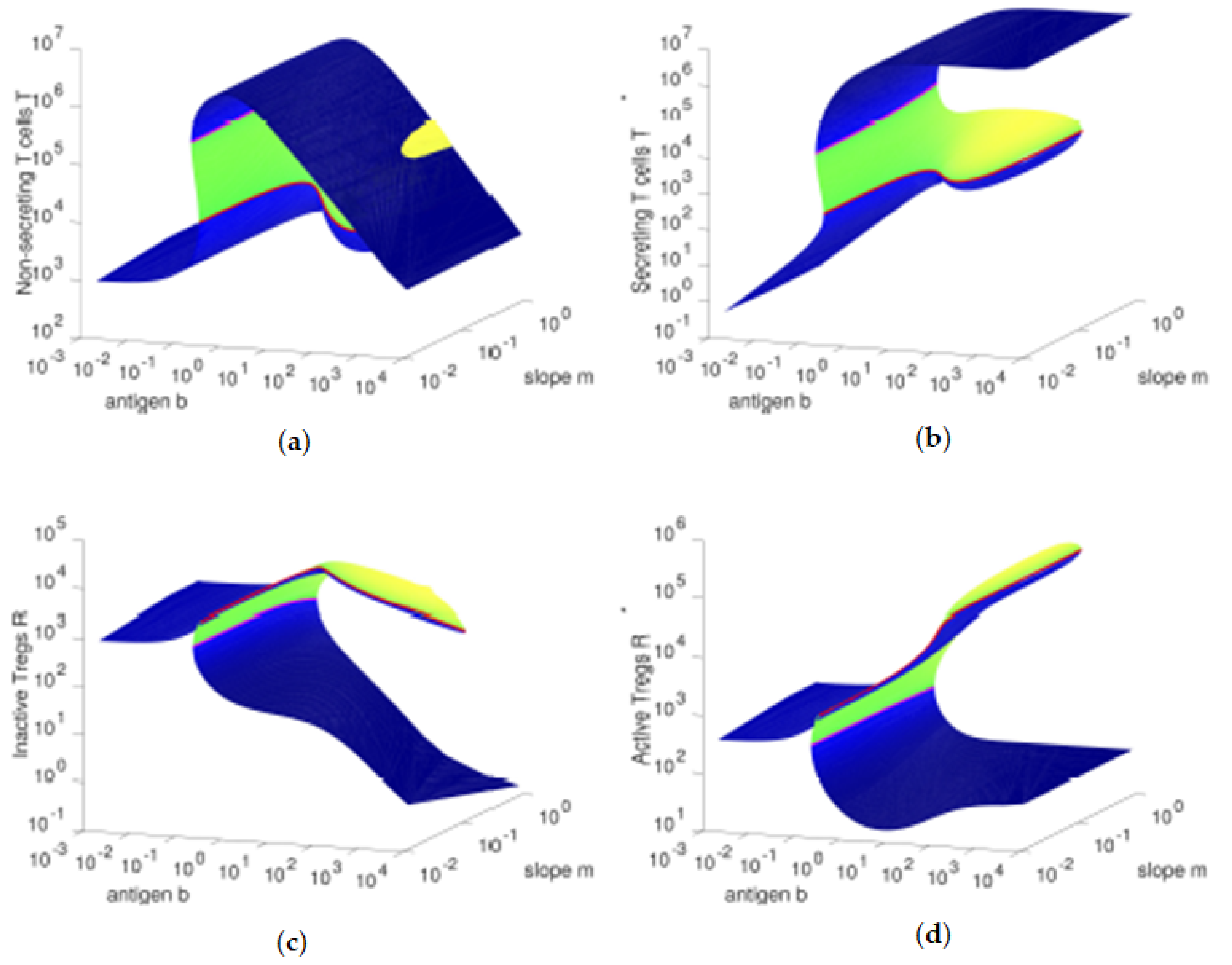

**Figure 3.**Equilibria manifold obtained from Theorem 1. Relationship between the antigenic stimulation b of T cells and (

**a**) the concentration of non-secreting T cells T, (

**b**) the concentration of secreting T cells ${T}^{*}$, (

**c**) the concentration of inactive Tregs R, and (

**d**) the concentration of active Tregs ${R}^{*}$. The axis pointing upwards to the right is the slope parameter m. The shading color indicates the real part of the largest eigenvalue $Re\left(\lambda \right)$, increasing from black to blue for stable equilibria, and from green to yellow for unstable equilibria. The red and the magenta lines show the bifurcations, when $Re\left(\lambda \right)=0$.

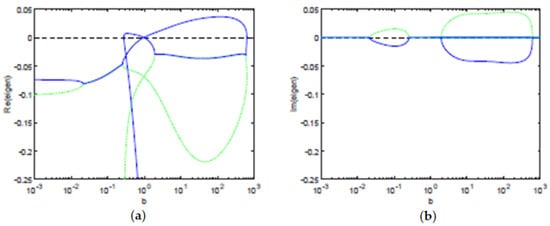

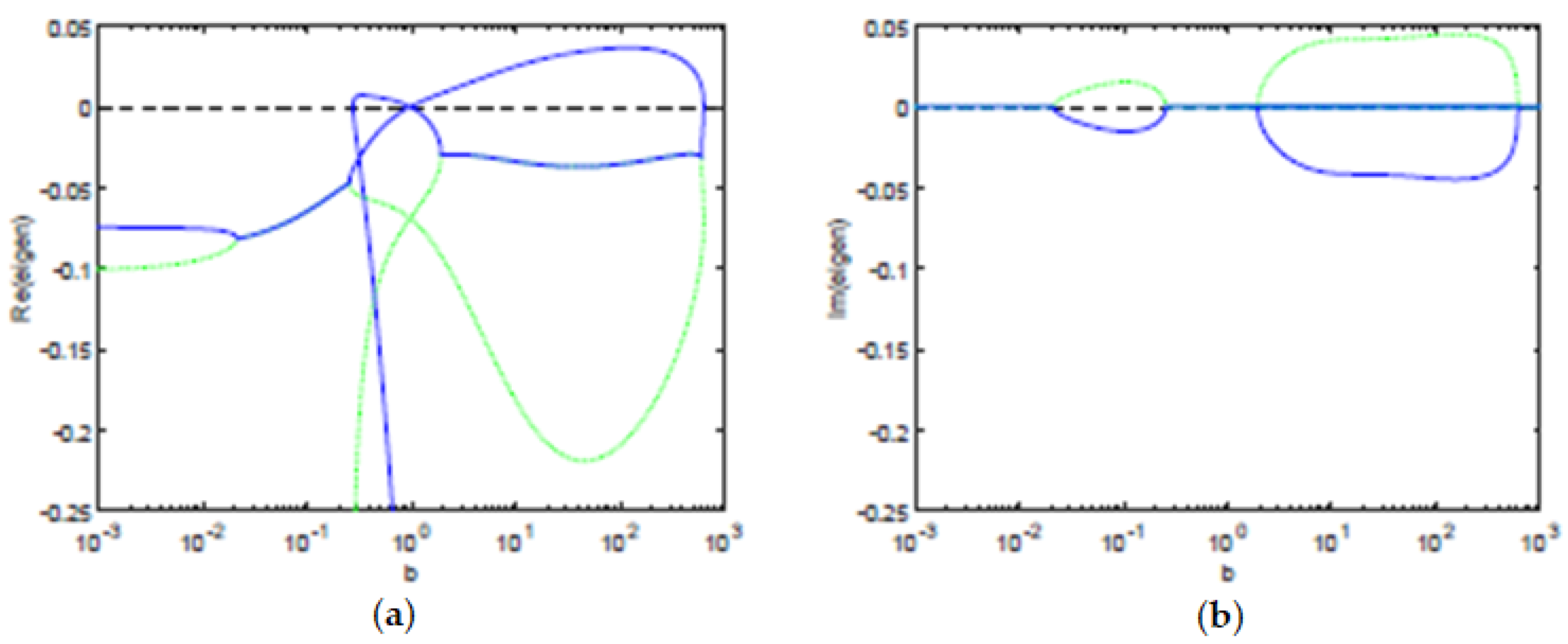

**Figure 4.**Relation between the eigenvalues ($\lambda $) with the largest real part (blue line) and the second largest real part (green dashes) with the antigenic stimulation b of T cells, for $m=0.2765$. (

**a**) the largest real part of the eigenvalues can be positive for b between ${b}_{L}\approx 2.8\times {10}^{-1}$ and ${b}_{H}\approx 6.4\times {10}^{2}$; and that the second largest real part of the eigenvalues is negative. (

**b**) the two shown eigenvalues can be complex conjugate for b between ∼$2.1\times {10}^{-2}$ and ∼$2.5\times {10}^{-2}$, and for b between ∼$1.9$ and ∼$6.1\times {10}^{2}$.

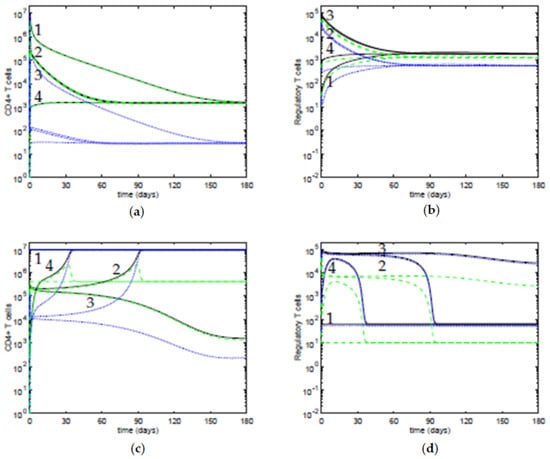

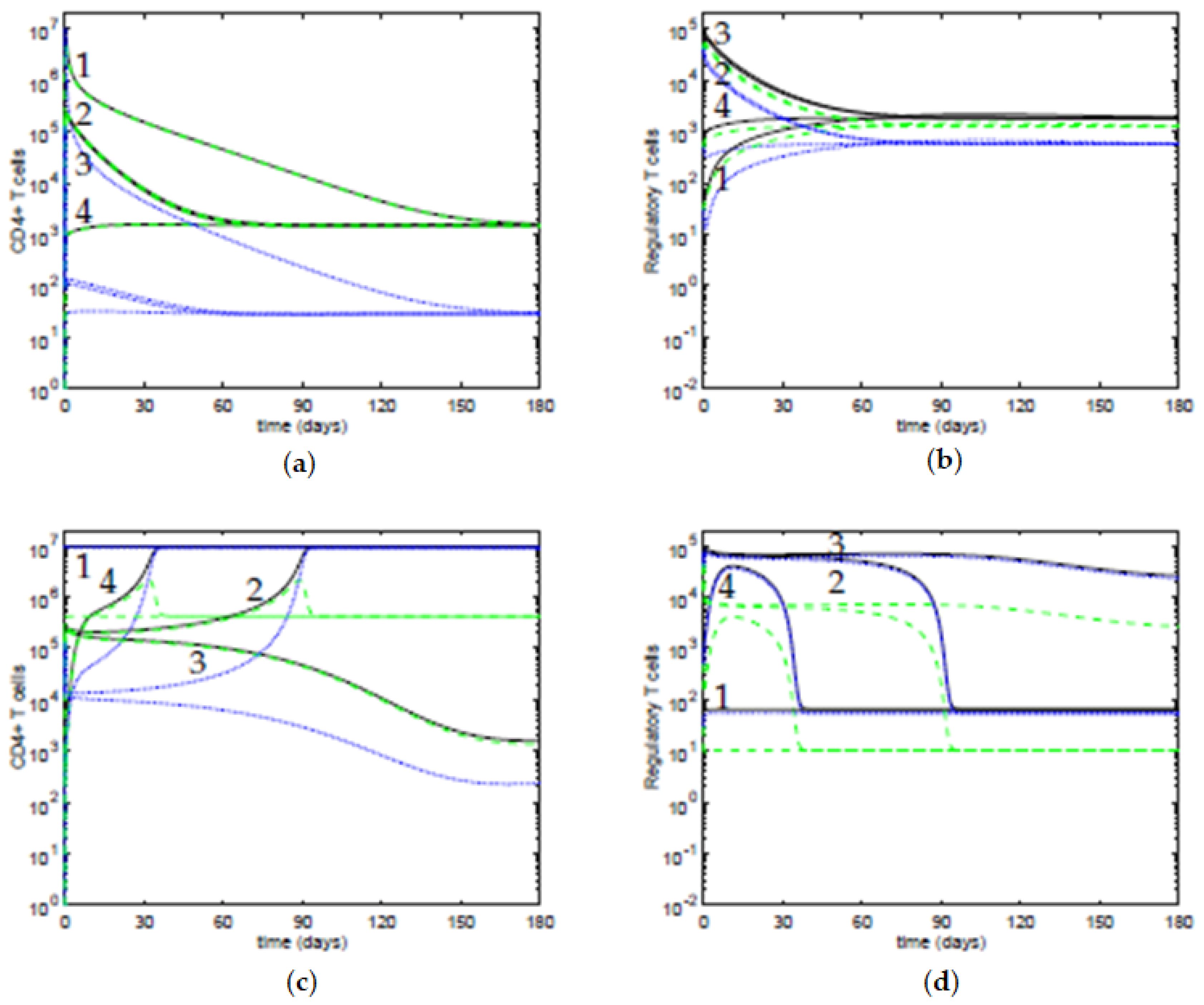

**Figure 5.**Time evolutions for two sets of values of the parameters and four initial conditions (see Table 2). (

**a**,

**b**) $b={10}^{-1}$ and $m=0.2765$. Here, the only stable steady state is the controlled state. (

**c**,

**d**) $b=30$ and $m=0.2765$. In this case, there are two stable steady states. (

**a**,

**c**) black solid lines—total concentration of T cells x; blue dots—concentration of secreting T cells ${T}^{*}$; green dashes—concentration of non-secreting T cells T. (

**b**,

**d**) black solid lines—total concentration of Tregs y; blue dots—concentration of active Tregs ${R}^{*}$; green dashes—concentration of inactive Tregs R.Time evolutions

Parameter | Symbol | Range | Value |
---|---|---|---|

T cellT, ${T}^{*}$ | |||

T cell Maximum growth rate ${}^{1}$ | $\rho /\alpha $ | $<6$day${}^{-1}$ | 4 day${}^{-1}$ |

Death rate of inactive T cells (day${}^{-1}$) | ${d}_{T}$ | 0.1–0.01 [27] | $0.1$ |

Death rate ratio of active: inactive T cells | ${d}_{{T}^{*}}/{d}_{T}$ | 0.01–100 | $0.1$ |

Capacity of T cells ${}^{2}$ | $\rho /\left(\alpha \beta \right)$ | ${10}^{6}$–${10}^{7}$ cells/ml [28] | ${10}^{7}$ cells/ml |

Input rate of inactive T cells (cells/ml/day) | ${T}_{in}$ | 0–${10}^{4}$ | 100 |

Secretion reversion (constant) ${}^{3}$ | k | hrs-days | 0.1 h${}^{-1}$ |

Antigen stimulation level | $bk$ | ${10}^{-4}$–${10}^{5}\times \widehat{k}$ | Bifurcation parameter |

TregsR, ${R}^{*}$ | |||

Growth rate ratio T${}_{reg}$:T | $\u03f5$ | $<1$ | 0.6 |

Relaxation rate | $\widehat{k}$ | hrs-days | 0.1 h${}^{-1}$ |

Death rate ratio of inactive Tregs: inactive T cells | ${d}_{R}/{d}_{T}$ | $0.01\u2013100$ | 1 |

Death rate relative ratio of Tregs: T cells | $\frac{{d}_{{R}^{*}}}{{d}_{R}}/\frac{{d}_{{T}^{*}}}{{d}_{T}}$ | 0.01–100 | 1 |

Input rate ratio of inactive Tregs: inactive T cells | ${R}_{in}/{T}_{in}$ | $0\u2013{10}^{2}$ | 1 |

Homeostatic capacity ${}^{4}$ | ${R}_{hom}$ | 10–${10}^{5}$ cells/ml | ${10}^{4}$ cells/ml |

Tregs basal antigen stimulation level (for $b=0$) | $a\widehat{k}$ | 0–10 per day | 1 per day |

Homeostatic capacity ${}^{4}$ | ${R}_{hom}$ | 10–${10}^{5}$ cells/ml | ${10}^{4}$ cells/ml |

Secretion inhibition | $\gamma $ | 0.1–100 $\times {R}_{hom}^{-1}$ | 10 ${R}_{hom}^{-1}$ |

Slope of the tuning | m | 0–1 | Bifurcation parameter |

Cytokines | |||

Max. cytokine concentration ${}^{5}$ | $1/\alpha $ | 100–500 pM | 200 pM |

IL2 secretion rate | $\sigma $ | 0.07, 2 fgrms h${}^{-1}$ [29] ${}^{6}$ | 10${}^{6}$ molecs s${}^{-1}$ cell${}^{-1}$ |

Cytokine decay rate | $\sigma \delta $ | hrs-days | 1.5 h${}^{-1}$ [30] |

**Table 2.**Initial conditions for the time evolutions. Note that the initial condition 2 has higher T cell concentrations and lower Tregs concentrations than the initial condition 3.

Initial Condition | $\mathit{R}$ | ${\mathit{R}}^{\mathbf{*}}$ | $\mathit{T}$ | ${\mathit{T}}^{\mathbf{*}}$ | $\mathit{I}$ |
---|---|---|---|---|---|

1: immune response | 30 | 30 | 0 | ${10}^{7}$ | 200 |

2: intermediate ^{+} | $4.0\times {10}^{4}$ | $4.0\times {10}^{4}$ | $1.3\times {10}^{5}$ | $1.3\times {10}^{5}$ | 6 |

3: intermediate ^{-} | $4.5\times {10}^{4}$ | $4.5\times {10}^{4}$ | $1.2\times {10}^{5}$ | $1.2\times {10}^{5}$ | 5 |

4: controlled | 500 | 500 | ${10}^{3}$ | 0 | 0 |
