# A Set Based Newton Method for the Averaged Hausdorff Distance for Multi-Objective Reference Set Problems

^{1}

^{2}

^{3}

^{4}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Background and Related Work

## 3. GD_{p} Newton Method

#### 3.1. Derivatives of $G{D}_{2}^{2}$

#### 3.1.1. Gradient of $G{D}_{2}^{2}$

- (i)
- $F\left({a}_{i}\right)={z}_{{j}_{i}},$ that is, if the image of ${a}_{i}$ is equal to one of the elements of the reference set. This is for instance never the case if Z is chosen utopian.
- (ii)
- If $F\left({a}_{i}\right)\ne {z}_{{j}_{i}}$, we have$$J{\left({a}_{i}\right)}^{T}(F\left({a}_{i}\right)-{z}_{{j}_{i}})=\sum _{l=1}^{k}\nabla {f}_{l}\left({a}_{i}\right)\underset{=:{\alpha}_{l}^{\left(i\right)}}{\underset{\u23df}{({f}_{l}\left({a}_{i}\right)-{\left({z}_{{j}_{i}}\right)}_{l})}}=\sum _{l=1}^{k}{\alpha}_{l}^{\left(i\right)}\nabla {f}_{l}\left({a}_{i}\right)=0$$

#### 3.1.2. Hessian of $G{D}_{2}^{2}$

#### 3.2. Gradient and Hessian for General $p>1$

#### 3.3. $G{D}_{2}^{2}$-Newton Method

**Proposition**

**1.**

**Proof.**

#### 3.4. Example

## 4. IGD_{p} Newton Method

#### 4.1. Gradient of $IG{D}_{p}$

- $rank\left(J\left({a}_{l}\right)\right)=k,$ then $F\left({a}_{l}\right)=\frac{{\sum}_{i\in {I}_{l}}{z}_{i}}{{m}_{l}}={C}_{l}.$
- $rank\left(J\left({a}_{l}\right)\right)=k-1,$ then $F\left({a}_{l}\right)-{C}_{l}$ is orthogonal to the linearized image of F at $F\left({a}_{l}\right)$, and orthogonal to the linearized Pareto front at $F\left({a}_{l}\right)$ in case $F\left({a}_{l}\right)-{C}_{l}{\ge}_{p}0$ and $F\left({a}_{l}\right)-{C}_{l}\ne 0$ (see Figure 5 for such a scenario).

#### 4.2. Hessian Matrix of $IG{D}_{p}$

#### 4.3. Gradient and Hessian for General $p>1$

#### 4.4. $IG{D}_{2}^{2}$ Newton Method

- if ${m}_{l}=0$ for a $l\in \{1,\dots ,N\}$ (since then $\mathcal{D}g\left({a}_{l}\right)=0$) (see also the discussion above), and
- if one element ${z}_{l}$ of Z is feasible (since then $\mathcal{D}g\left({a}_{l}\right)=J{\left({a}_{l}\right)}^{T}J\left({a}_{l}\right)$ which has a rank $\le k$, and under the assumption that $k<n$).

**Proposition**

**2.**

**Proof.**

#### 4.5. Examples

## 5. ${\mathsf{\Delta}}_{\mathbf{2}}$-Newton Method

#### 5.1. ${\mathsf{\Delta}}_{2}$-Newton Method

#### 5.2. Examples

#### 5.3. A Bootstrap Method for the Computation of the Pareto Front

- Compute the minima ${x}_{i}^{*}$ of the individual objectives ${f}_{i}$, $i=1,\dots ,k$. Let ${y}_{i}^{*}=F\left({x}_{i}^{*}\right)$, and let ${\tilde{Z}}_{0}$ be the convex hull of the ${y}_{i}^{*}$’s (also called convex hull of individual minima (CHIM) [23]). Let ${\delta}_{0}>0$ and set$${Z}_{0}={\tilde{Z}}_{0}-{\delta}_{0},$$
- In step l of the iteration, use the set ${A}^{(l-1)}$ computed in the previous iteration to compute a set ${\tilde{Z}}_{l}$. This can be done via interpolation of the elements of ${A}^{(l-1)}$ so that ${\tilde{Z}}_{l}$ only contains mutually non-dominated elements. As new reference set use$${Z}_{l}={\tilde{Z}}_{l}-{\delta}_{l},$$

## 6. Conclusions and Future Work

## Author Contributions

## Funding

## Conflicts of Interest

## References

- Stewart, T.; Bandte, O.; Braun, H.; Chakraborti, N.; Ehrgott, M.; Göbelt, M.; Jin, Y.; Nakayama, H. Real-World Applications of Multiobjective Optimization. In Multiobjective Optimization; Slowinski, R., Ed.; Lecture Notes in Computer Science; Springer: Berlin/Heidelberg, Germany, 2008; Volume 5252, pp. 285–327. [Google Scholar]
- Cui, Y.; Geng, Z.; Zhu, Q.; Han, Y. Review: Multi-objective optimization methods and application in energy saving. Energy
**2017**, 125, 681–704. [Google Scholar] [CrossRef] - Peitz, S.; Dellnitz, M. A Survey of Recent Trends in Multiobjective Optimal Control—Surrogate Models, Feedback Control and Objective Reduction. Math. Comput. Appl.
**2018**, 23, 30. [Google Scholar] [CrossRef] [Green Version] - Moghadam, M.E.; Falaghi, H.; Farhadi, M. A Novel Method of Optimal Capacitor Placement in the Presence of Harmonics for Power Distribution Network Using NSGA-II Multi-Objective Genetic Optimization Algorithm. Math. Comput. Appl.
**2020**, 25, 17. [Google Scholar] - Deb, K. Evolutionary multi-objective optimization: Past, present and future. In Proceedings of the 2020 Genetic and Evolutionary Computation Conference Companion, Cancún, Mexico, 8–12 July 2020; pp. 343–372. [Google Scholar]
- Hillermeier, C. Nonlinear Multiobjective Optimization: A Generalized Homotopy Approach; Springer Science & Business Media: Berlin/Heidelberg, Germany, 2001; Volume 135. [Google Scholar]
- Zitzler, E.; Thiele, L. Multiobjective evolutionary algorithms: A comparative case study and the strength Pareto approach. IEEE Trans. Evol. Comput.
**1999**, 3, 257–271. [Google Scholar] [CrossRef] [Green Version] - Van Veldhuizen, D.A. Multiobjective Evolutionary Algorithms: Classifications, Analyses, and New Innovations; Technical Report; Air Force Institute of Technology: Kaduna, Nigeria, 1999. [Google Scholar]
- Coello, C.A.C.; Cortés, N.C. Solving Multiobjective Optimization Problems Using an Artificial Immune System. Genet. Program. Evolvable Mach.
**2005**, 6, 163–190. [Google Scholar] [CrossRef] - Hansen, M.P.; Jaszkiewicz, A. Evaluating the Quality of Approximations of the Non-Dominated Set; IMM Technical Report IMM-REP-1998-7; Institute of Mathematical Modeling, Technical University of Denmark: Kongens Lyngby, Denmark, 1998. [Google Scholar]
- Dilettoso, E.; Rizzo, S.A.; Salerno, N. A Weakly Pareto Compliant Quality Indicator. Math. Comput. Appl.
**2017**, 22, 25. [Google Scholar] [CrossRef] [Green Version] - Schütze, O.; Esquivel, X.; Lara, A.; Coello, C.A.C. Using the averaged Hausdorff distance as a performance measure in evolutionary multi-objective optimization. IEEE Trans. Evol. Comput.
**2012**, 16, 504–522. [Google Scholar] [CrossRef] - Bogoya, J.M.; Vargas, A.; Schütze, O. The Averaged Hausdorff Distances in Multi-Objective Optimization: A Review. Mathematics
**2019**, 7, 894. [Google Scholar] [CrossRef] [Green Version] - Deb, K. Multi-Objective Optimization Using Evolutionary Algorithms; John Wiley & Sons: Chichester, UK, 2001; ISBN 0-471-87339-X. [Google Scholar]
- Deb, K.; Pratap, A.; Agarwal, S.; Meyarivan, T. A fast and elitist multiobjective genetic algorithm: NSGA-II. IEEE Trans. Evol. Comput.
**2002**, 6, 182–197. [Google Scholar] [CrossRef] [Green Version] - Coello, C.A.C.; Lamont, G.B.; Van Veldhuizen, D.A. Evolutionary Algorithms for Solving Multi-Objective Problems; Springer: Berlin/Heidelberg, Germany, 2007; Volume 5. [Google Scholar]
- Beume, N.; Naujoks, B.; Emmerich, M. SMS-EMOA: Multiobjective selection based on dominated hypervolume. Eur. J. Oper. Res.
**2007**, 181, 1653–1669. [Google Scholar] [CrossRef] - Bringmann, K.; Friedrich, T. Convergence of Hypervolume-Based Archiving Algorithms. IEEE Trans. Evol. Comput.
**2014**, 18, 643–657. [Google Scholar] [CrossRef] - Powell, M.J.D. On Search Directions for Minimization Algorithms. Math. Program.
**1973**, 4, 193–201. [Google Scholar] [CrossRef] - Nocedal, J.; Wright, S. Numerical Optimization; Springer Science & Business Media: New York, NY, USA, 2006. [Google Scholar]
- Bogoya, J.M.; Vargas, A.; Cuate, O.; Schütze, O. A (p, q)-averaged Hausdorff distance for arbitrary measurable sets. Math. Comput. Appl.
**2018**, 23, 51. [Google Scholar] [CrossRef] [Green Version] - Pascoletti, A.; Serafini, P. Scalarizing vector optimization problems. J. Optim. Theory Appl.
**1984**, 42, 499–524. [Google Scholar] [CrossRef] - Das, I.; Dennis, J.E. Normal-boundary intersection: A new method for generating the Pareto surface in nonlinear multicriteria optimization problems. SIAM J. Optim.
**1998**, 8, 631–657. [Google Scholar] [CrossRef] [Green Version] - Ehrgott, M. Multicriteria Optimization; Springer: Berlin/Heidelberg, Germany, 2005. [Google Scholar]
- Eichfelder, G. Adaptive Scalarization Methods in Multiobjective Optimization; Springer: Berlin/Heidelberg, Germany, 2008. [Google Scholar]
- Miettinen, K. Nonlinear Multi-Objective Optimization; Springer: Berlin/Heidelberg, Germany, 1999; Volume 12. [Google Scholar]
- Recchioni, M.C. A path following method for box-constrained multiobjective optimization with applications to goal programming problems. Math. Methods Oper. Res.
**2003**, 58, 69–85. [Google Scholar] [CrossRef] - Schütze, O.; Dell’Aere, A.; Dellnitz, M. On Continuation Methods for the Numerical Treatment of Multi-Objective Optimization Problems. In Practical Approaches to Multi-Objective Optimization; Branke, J., Deb, K., Miettinen, K., Steuer, R.E., Eds.; Number 04461 in Dagstuhl Seminar Proceedings; Internationales Begegnungs- und Forschungszentrum (IBFI): Schloss Dagstuhl, Germany, 2005; Available online: http://drops.dagstuhl.de/opus/volltexte/2005/349 (accessed on 16 October 2020).
- Pereyra, V.; Saunders, M.; Castillo, J. Equispaced Pareto front construction for constrained bi-objective optimization. Math. Comput. Model.
**2013**, 57, 2122–2131. [Google Scholar] [CrossRef] - Martin, B.; Goldsztejn, A.; Granvilliers, L.; Jermann, C. Certified Parallelotope Continuation for One-Manifolds. SIAM J. Numer. Anal.
**2013**, 51, 3373–3401. [Google Scholar] [CrossRef] - Martin, B.; Goldsztejn, A.; Granvilliers, L.; Jermann, C. On continuation methods for non-linear bi-objective optimization: Towards a certified interval-based approach. J. Glob. Optim.
**2016**, 64, 3–16. [Google Scholar] [CrossRef] [Green Version] - Martín, A.; Schütze, O. Pareto Tracer: A predictor-corrector method for multi-objective optimization problems. Eng. Optim.
**2018**, 50, 516–536. [Google Scholar] [CrossRef] - Schütze, O.; Cuate, O.; Martín, A.; Peitz, S.; Dellnitz, M. Pareto Explorer: A global/local exploration tool for many-objective optimization problems. Eng. Optim.
**2020**, 52, 832–855. [Google Scholar] [CrossRef] - Dellnitz, M.; Schütze, O.; Hestermeyer, T. Covering Pareto Sets by Multilevel Subdivision Techniques. J. Optim. Theory Appl.
**2005**, 124, 113–155. [Google Scholar] [CrossRef] - Jahn, J. Multiobjective search algorithm with subdivision technique. Comput. Optim. Appl.
**2006**, 35, 161–175. [Google Scholar] [CrossRef] - Schütze, O.; Vasile, M.; Junge, O.; Dellnitz, M.; Izzo, D. Designing optimal low thrust gravity assist trajectories using space pruning and a multi-objective approach. Eng. Optim.
**2009**, 41, 155–181. [Google Scholar] [CrossRef] [Green Version] - Hsu, C.S. Cell-to-Cell Mapping: A Method of Global Analysis for Nonlinear Systems; Springer Science & Business Media: Berlin/Heidelberg, Germany, 2013; Volume 64. [Google Scholar]
- Hernández, C.; Naranjani, Y.; Sardahi, Y.; Liang, W.; Schütze, O.; Sun, J.Q. Simple Cell Mapping Method for Multi-objective Optimal Feedback Control Design. Int. J. Dyn. Control.
**2013**, 1, 231–238. [Google Scholar] [CrossRef] - Sun, J.Q.; Xiong, F.R.; Schütze, O.; Hernández, C. Cell Mapping Methods—Algorithmic Approaches and Applications; Springer: Berlin/Heidelberg, Germany, 2019. [Google Scholar]
- Juárez-Smith, P.; Trujillo, L.; García-Valdez, M.; Fernández de Vega, F.; Chávez, F. Pool-Based Genetic Programming Using Evospace, Local Search and Bloat Control. Math. Comput. Appl.
**2019**, 24, 78. [Google Scholar] [CrossRef] [Green Version] - Sriboonchandr, P.; Kriengkorakot, N.; Kriengkorakot, P. Improved Differential Evolution Algorithm for Flexible Job Shop Scheduling Problems. Math. Comput. Appl.
**2019**, 24, 80. [Google Scholar] [CrossRef] [Green Version] - Ketsripongsa, U.; Pitakaso, R.; Sethanan, K.; Srivarapongse, T.A. Improved Differential Evolution Algorithm for Crop Planning in the Northeastern Region of Thailand. Math. Comput. Appl.
**2018**, 23, 40. [Google Scholar] [CrossRef] [Green Version] - Cuate, O.; Schütze, O. Variation Rate to Maintain Diversity in Decision Space within Multi-Objective Evolutionary Algorithms. Math. Comput. Appl.
**2019**, 24, 3. [Google Scholar] - Mohammadi, A.; Omidvar, M.N.; Li, X. Reference point based multi-objective optimization through decomposition. In Proceedings of the 2012 IEEE Congress on Evolutionary Computation, Brisbane, QLD, Australia, 10–15 June 2012; pp. 1–8. [Google Scholar]
- Hernandez Mejia, J.A.; Schütze, O.; Cuate, O.; Lara, A.; Deb, K. RDS-NSGA-II: A Memetic Algorithm for Reference Point Based Multi-objective Optimization. Eng. Optim.
**2017**, 49, 828–845. [Google Scholar] [CrossRef] - Emmerich, M.; Deutz, A. Time complexity and zeros of the hypervolume indicator gradient field. In EVOLVE-A Bridge between Probability, Set Oriented Numerics, and Evolutionary Computation III; Springer: Berlin/Heidelberg, Germany, 2014; pp. 169–193. [Google Scholar]
- Zitzler, E.; Thiele, L. Multiobjective optimization using evolutionary algorithms—A comparative case study. In Proceedings of the International Conference on Parallel Problem Solving from Nature, Amsterdam, The Netherlands, 27–30 September 1998; Springer: Berlin/Heidelberg, Germany, 1998; pp. 292–301. [Google Scholar]
- Hernández, V.A.S.; Schütze, O.; Wang, H.; Deutz, A.; Emmerich, M. The Set-Based Hypervolume Newton Method for Bi-Objective Optimization. IEEE Trans. Cybern.
**2018**, 50, 2186–2196. [Google Scholar] [CrossRef] - Fliege, J.; Drummond, L.G.; Svaiter, B.F. Newton’s method for multiobjective optimization. SIAM J. Optim.
**2009**, 20, 602–626. [Google Scholar] [CrossRef] [Green Version] - Baier, R.; Dellnitz, M.; von Molo, M.H.; Sertl, S.; Kevrekidis, I.G. The computation of convex invariant sets via Newton’s method. J. Comput. Dyn.
**2014**, 1, 39–69. [Google Scholar] [CrossRef] - Chong, E.K.; Zak, S.H. An Introduction to Optimization; John Wiley & Sons: Hoboken, NJ, USA, 2004. [Google Scholar]
- Fonseca, C.M.; Fleming, P.J. An overview of evolutionary algorithms in multiobjective optimization. Evol. Comput.
**1995**, 3, 1–16. [Google Scholar] [CrossRef] - Witting, K. Numerical Algorithms for the Treatment of Parametric Multiobjective Optimization Problems and Applications. Ph.D. Thesis, Deptartment of Mathematics, University of Paderborn, Paderborn, Germany, 2012. [Google Scholar]
- Ishibuchi, H.; Imada, R.; Setoguchi, Y.; Nojima, Y. Reference point specification in inverted generational distance for triangular linear Pareto front. IEEE Trans. Evol. Comput.
**2018**, 22, 961–975. [Google Scholar] [CrossRef] - Ishibuchi, H.; Imada, R.; Setoguchi, Y.; Nojima, Y. How to specify a reference point in hypervolume calculation for fair performance comparison. Evol. Comput.
**2018**, 26, 411–440. [Google Scholar] [CrossRef] - Li, M.; Yao, X. Quality evaluation of solution sets in multiobjective optimisation: A survey. ACM Comput. Surv.
**2019**, 52, 1–38. [Google Scholar] [CrossRef] - Schütze, O.; Domínguez-Medina, C.; Cruz-Cortés, N.; de la Fraga, L.G.; Sun, J.Q.; Toscano, G.; Landa, R. A scalar optimization approach for averaged Hausdorff approximations of the Pareto front. Eng. Optim.
**2016**, 48, 1593–1617. [Google Scholar] [CrossRef] - Ishibuchi, H.; Setoguchi, Y.; Masuda, H.; Nojima, Y. Performance of decomposition-based many-objective algorithms strongly depends on Pareto front shapes. IEEE Trans. Evol. Comput.
**2016**, 21, 169–190. [Google Scholar] [CrossRef]

**Figure 1.**Pareto fronts with different shapes together with their best approximations in the sense of (5) for $p=2$ and $N=20$, and where Z is an approximation of the Pareto front.

**Figure 2.**Geometrical interpretation of the optimality condition (ii) for $G{D}_{2}^{2}$. Note that $\alpha $ is orthogonal to the linearized Pareto front. (

**a**) shows this behavior on a concave Pareto front, (

**b**) on a convex Pareto front, and (

**c**) on a concave/convex Pareto front.

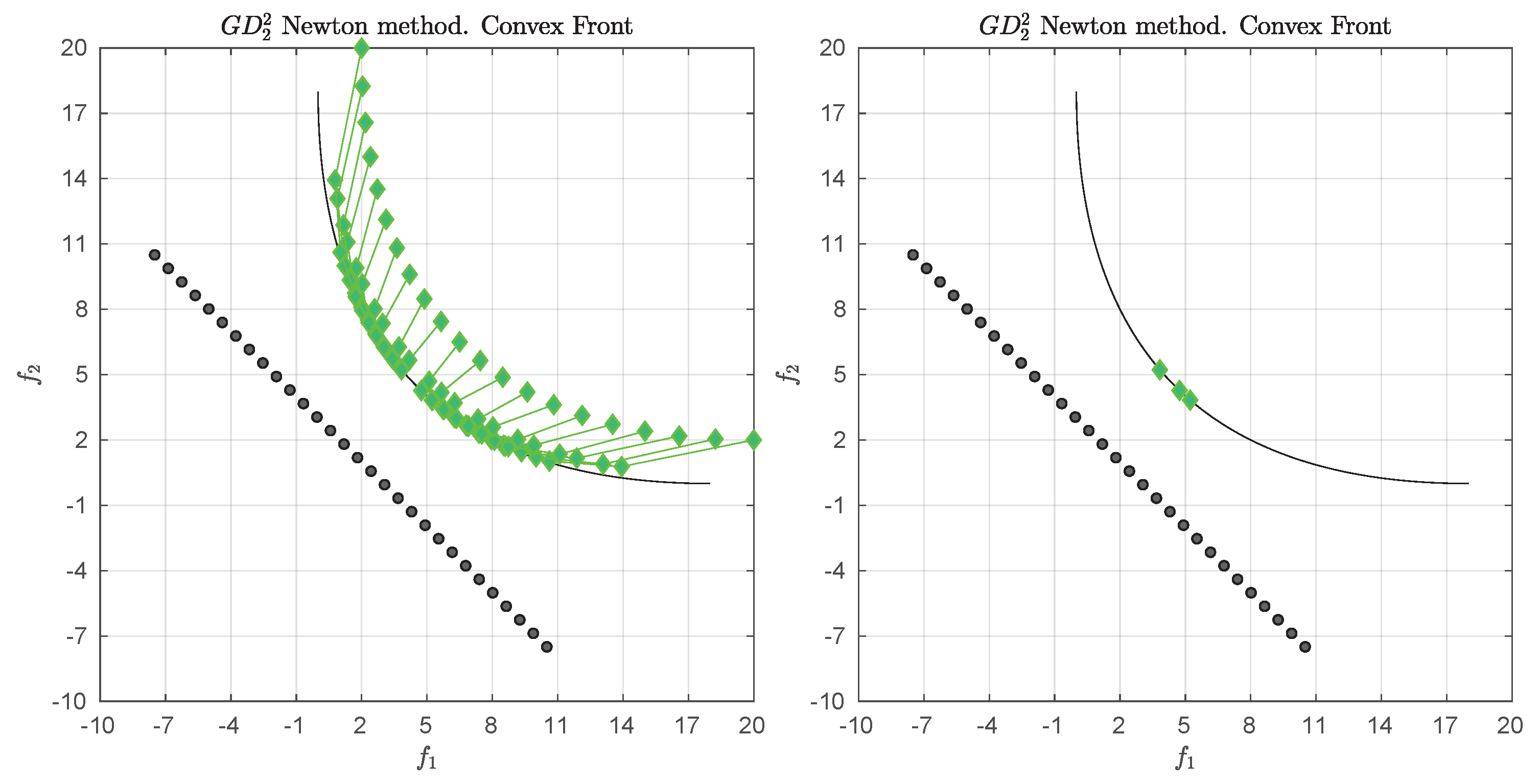

**Figure 3.**(

**Left**) application of the $G{D}_{2}^{2}$ Newton method on bi-objective oriented problem (BOP) (27). (

**Right**) only the final archive is shown.

**Figure 4.**Example of a relation between the reference set Z and the approximation set $F\left(A\right)$.

**Figure 5.**Geometric interpretation when $F\left({a}_{l}\right)-C$ is orthogonal to the linearized Pareto front.

**Figure 6.**Potential problem of the Inverted Generational Distance (IGD) Newton method: if ${m}_{l}=0$ (here it is ${m}_{2}=0$) then the l-th sub-gradient is equal to zero, and ${a}_{l}$ will stay fixed under the Newton iteration.

**Figure 7.**Dominance and distance are different concepts. (

**Left**) an example where ${a}_{1}$ and ${a}_{2}$ are mutually non-dominated, but where $\mid {I}_{2}\mid =0.$ (

**Right**) an example where ${a}_{1}\prec {a}_{2}$, but $\mid {I}_{l}\mid \ne 0$ for $l\in \{1,2\}.$

**Figure 8.**(

**Left**) application of the $IG{D}_{2}^{2}$-Newton method on BOP (27). (

**Right**) image of the final archive (green) together with the images for those ${m}_{l}=0$ (red).

**Figure 9.**(

**Left**) application of the $IG{D}_{2}^{2}$-Newton method on BOP (50). (

**Right**) the image of the final archive (green) together with the images for which ${m}_{l}=0$.

**Figure 10.**(

**Left**) application of the $IG{D}_{2}^{2}$-Newton method on BOP (51). (

**Right**) only the final archive is shown.

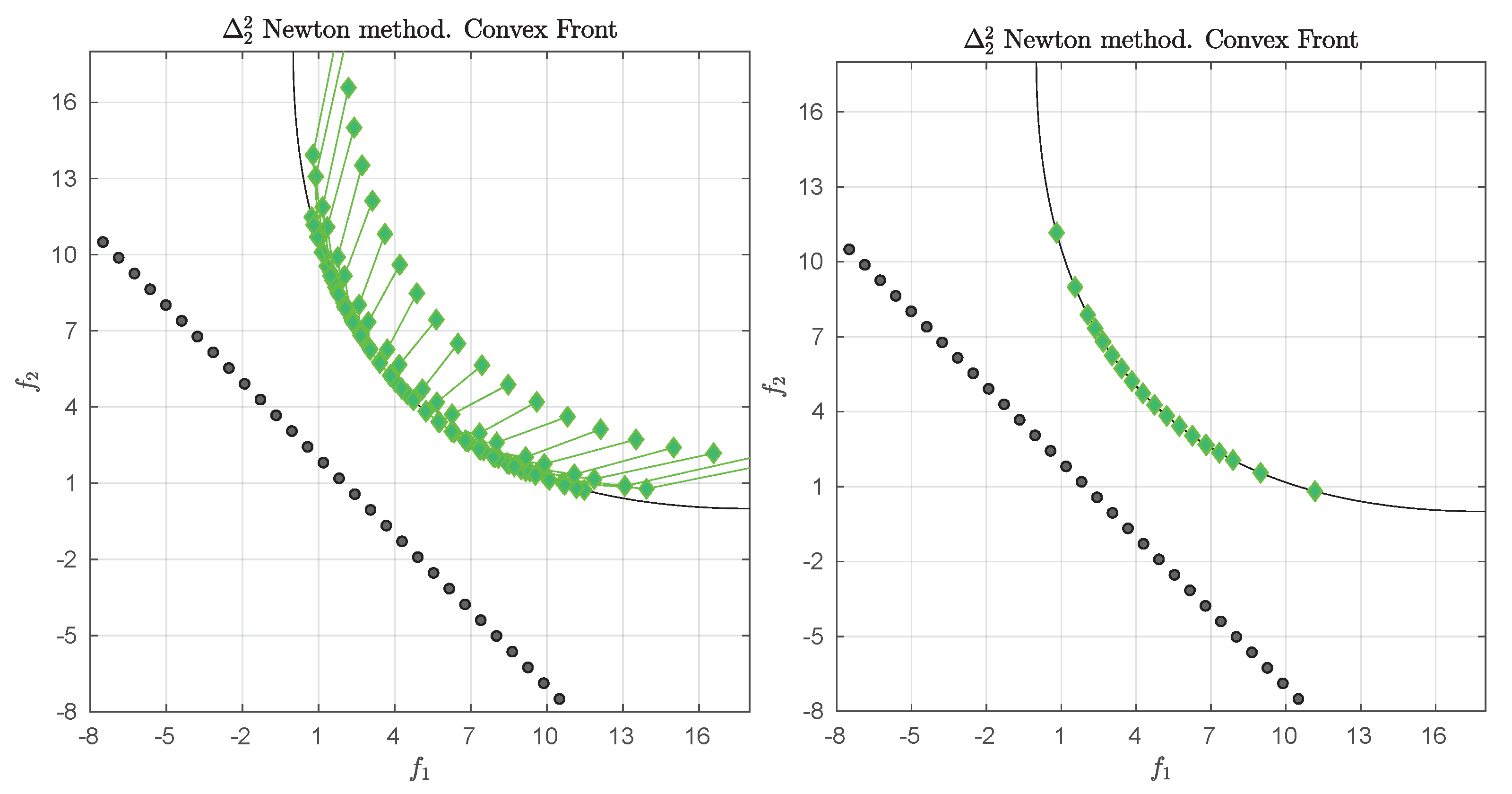

**Figure 11.**(

**Left**) application of the ${\mathsf{\Delta}}_{2}$-Newton method on BOP (27). (

**Right**) the final archive.

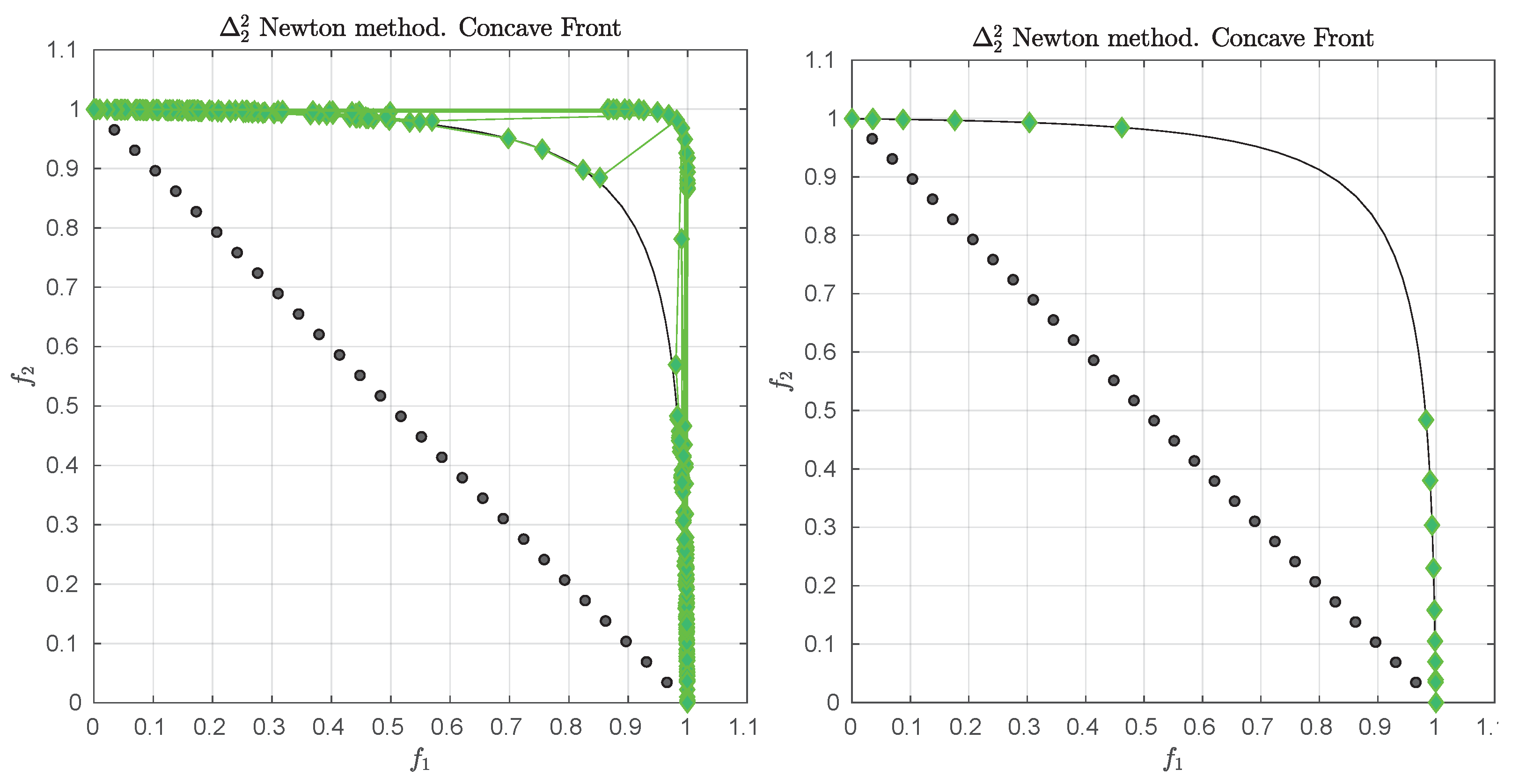

**Figure 12.**(

**Left**) application of the ${\mathsf{\Delta}}_{2}^{2}$-Newton method on BOP (50). (

**Right**) the final archive.

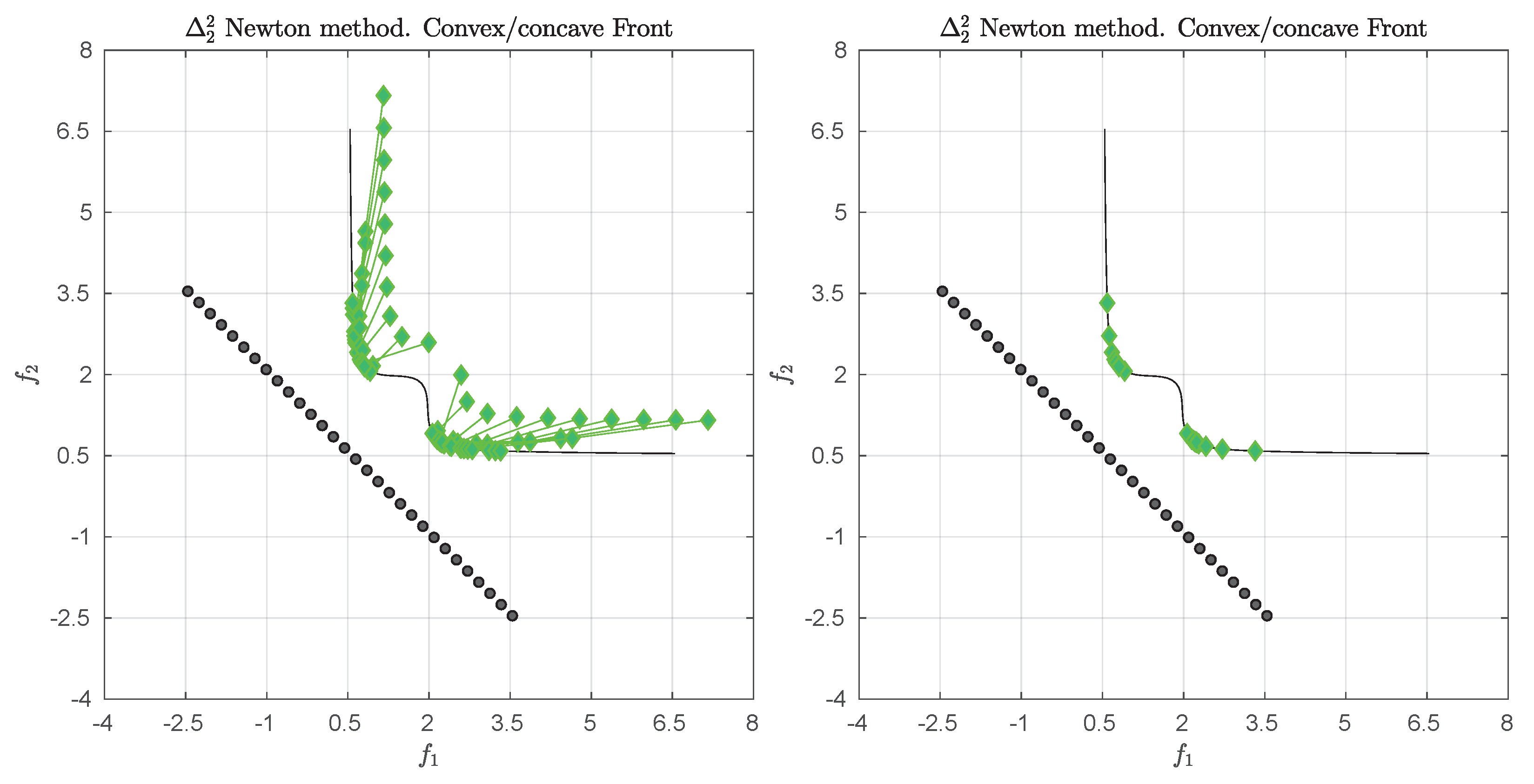

**Figure 13.**(

**Left**) application of the ${\mathsf{\Delta}}_{2}$-Newton method on BOP (51). (

**Right**) the final archive.

**Figure 15.**Result of the ${\mathsf{\Delta}}_{2}^{2}$-Newton method for MOP (53), where Z is a triangle (two different views of the same result).

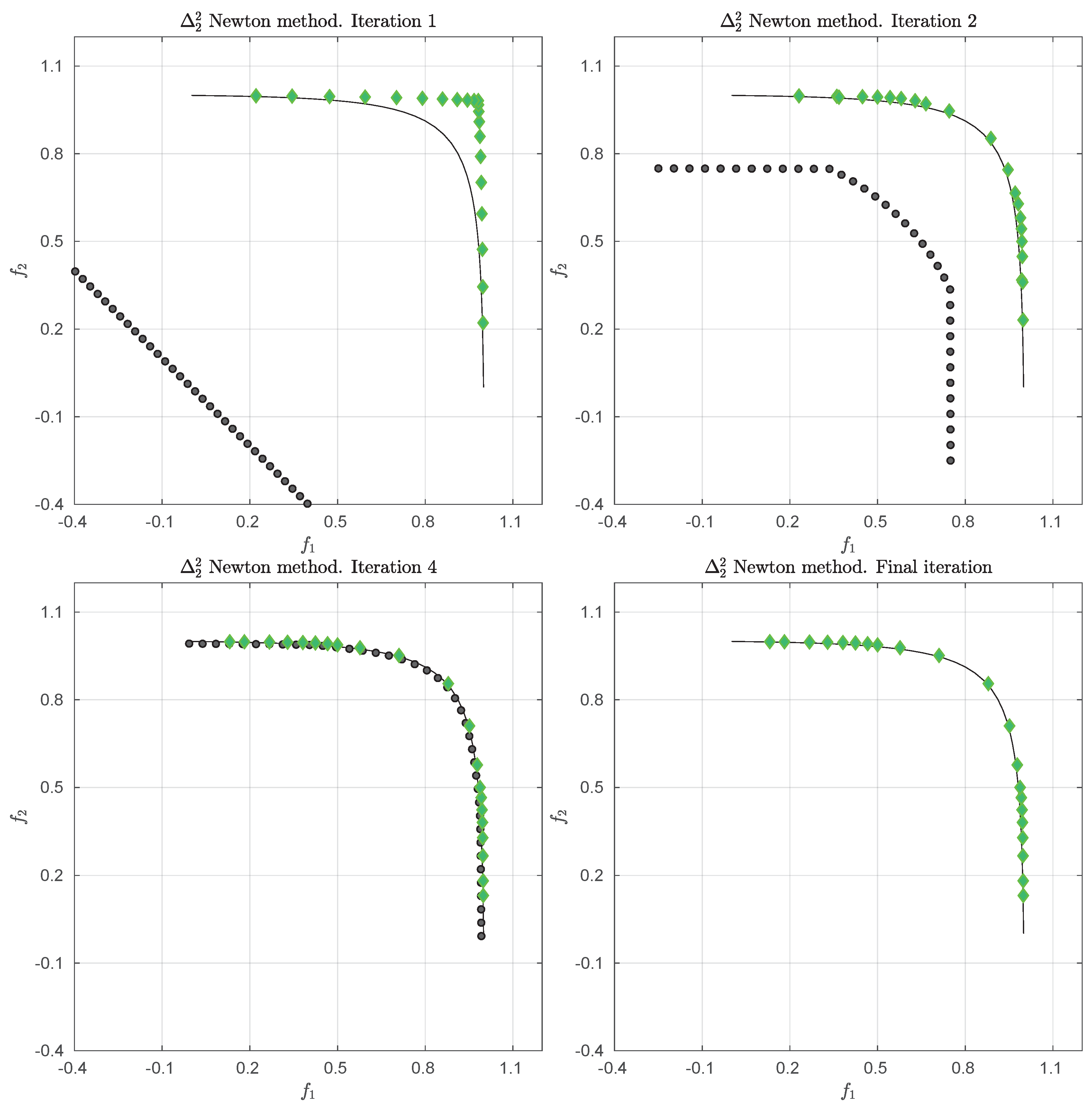

**Figure 16.**Different iterations of the ${\mathsf{\Delta}}_{2}^{2}$-Newton method to obtain the Pareto front of MOP (27) via the bootstrapping method.
