Low-Complexity One-Dimensional Parallel Semi-Systolic Structure for Field Montgomery Multiplication Algorithm Perfect for Small IoT Edge Nodes
Abstract
:1. Introduction
1.1. Literature Review
1.2. Paper Contribution
1.3. Paper Organization
2. Montgomery Multiplication in GF()
Algorithm 1 Montgomery Multiplication Algorithm in GF() |
Input: C, D, R−1 = α−(m − 1)/2, and F Output: P Initialization: A0 ← 0, B0 ← 0 Algorithm:
|
Algorithm 2 Montgomery Multiplication Algorithm in the bit-level formate |
Input: C = (cm − 1cm − 2 ⋯ c0), D = (dm − 1dm − 2 ⋯ d00), F = (fm − 1fm − 2 ⋯ f0), Output: P = (pm − 1pm − 2 ⋯ p0) Initialization: A0 = ( ⋯) ← (00 ⋯ 0) B0 = ( ⋯) ← (00 ⋯ 00) Algorithm:
|
3. Dependency Graph

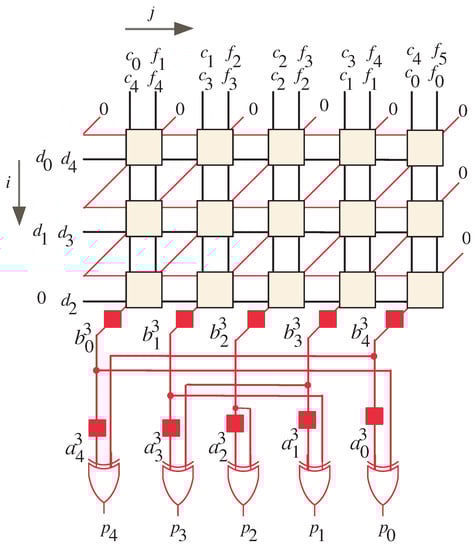

4. Exploration of the Semi-Systolic Multiplier Layout
4.1. Scheduling Function
4.2. Projection Function

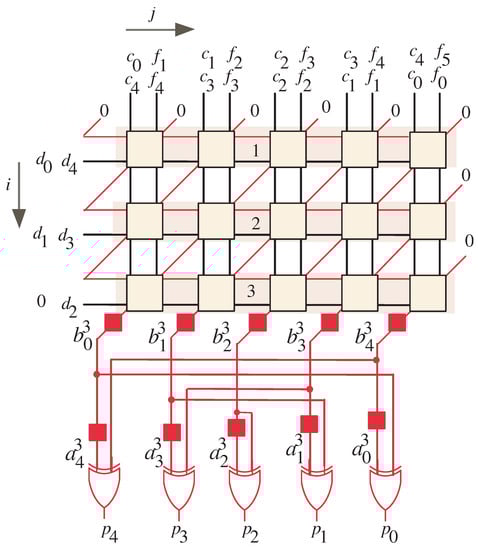

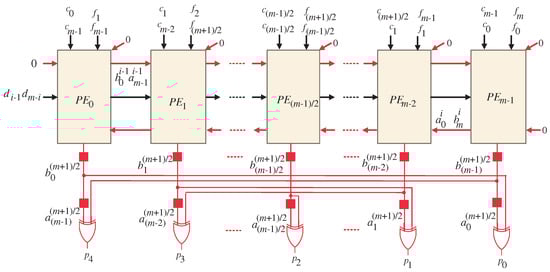

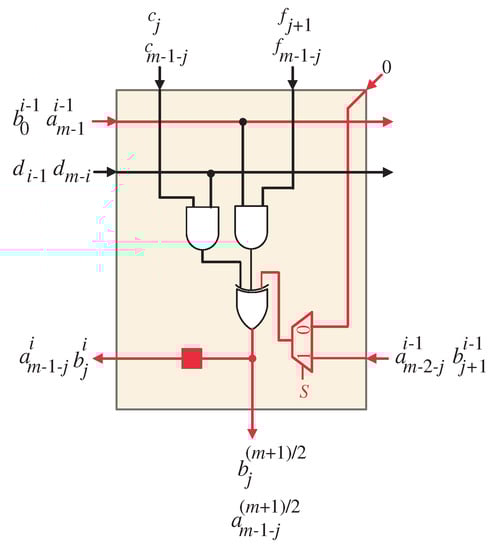

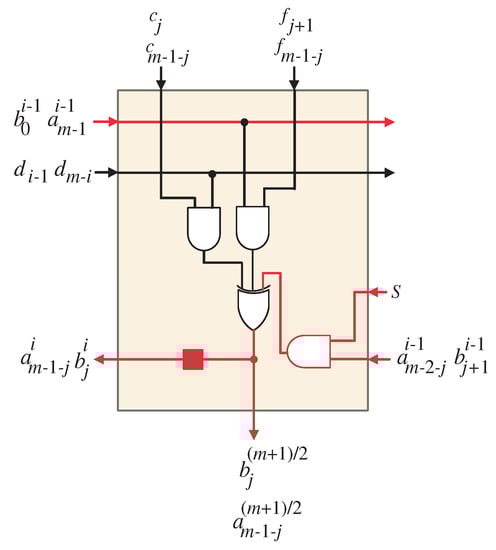

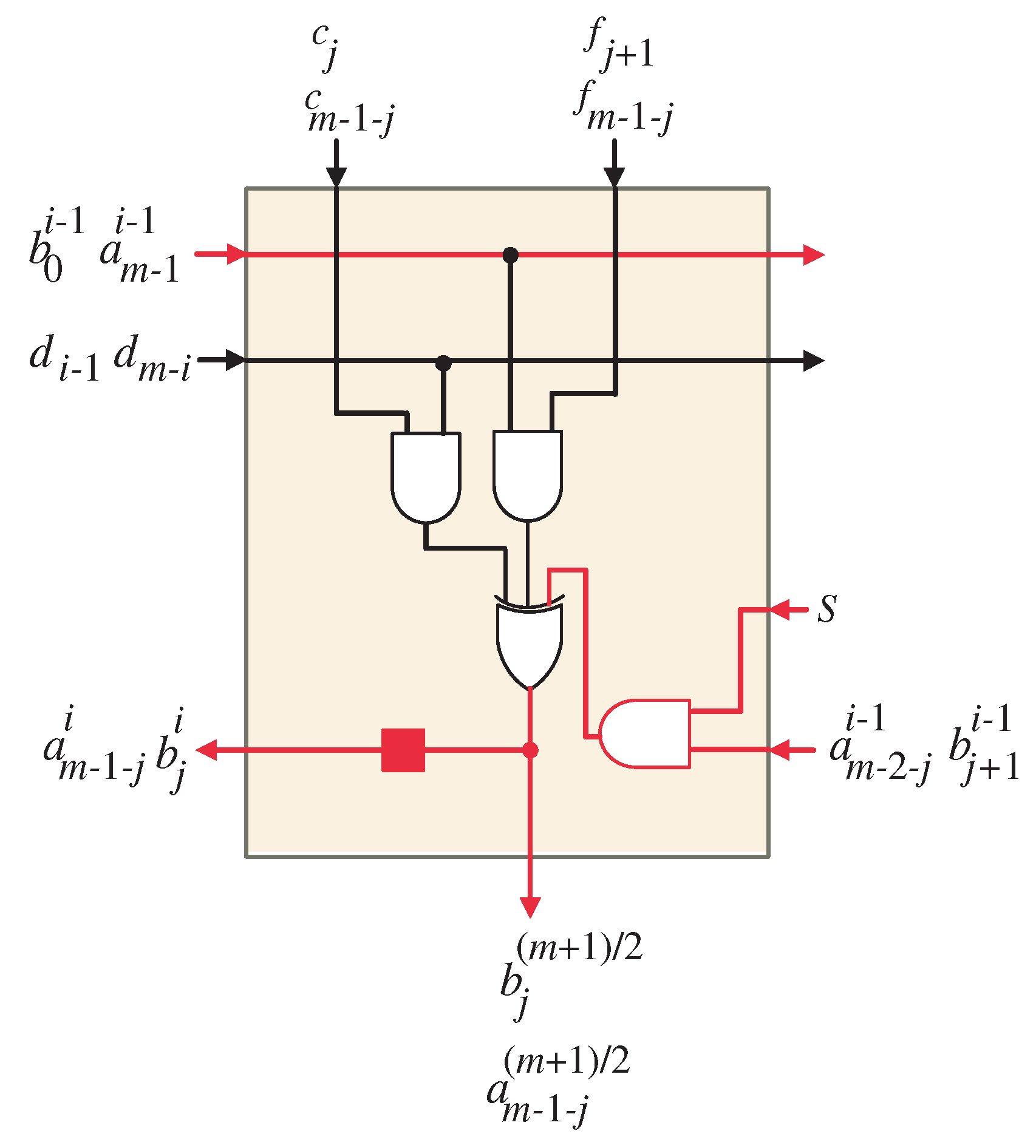

4.3. Semi-Systolic Multiplier Architecture
- Through the first two clock periods, select signal S is deactivated () to enforce the zero input bits of and , , to be localized in each PE. When S is equal to zero, the AND gate output will equal zero, which represents the initial values of and , . When S activates to one, the AND gate output will represent the intermediate values of the partial results of and , . At the same clock periods, the input bits of and are fed in sequence to go through all the PEs.
- The PEs produce the internal bit values and , and , sequentially, over the forthcoming clock periods. Additionally, all PEs receive input bits in a bit sequence from and , .
- The resultant output bits of the product P, , are produced in parallel at the outputs of XOR gates shown in Figure 3. They are generated at the last clock period .
5. Results and Discussion
5.1. Complexity Analysis
5.2. Implementation Results
- The suggested semi-systolic multiplier structure uses slightly less space and power than competing designs [34,39]. The average savings of area for are ranging from 2% to 6.6% and ranging from 2.1% to 7.4% for . The achievable average reduction in power consumptions for of the developed multiplier structure over the competitive multiplier structures are ranging from 4.9% to 13.4% and ranging from 6.8% to 11.8% for . The reduction in area and power is mainly due to the slightly lower gate counts and wire area of the proposed design over the competitive ones.
- The suggested semi-systolic multiplier structure has significant savings in delay over the competitive designs of [34,39]. This is attributed to the significant reduction in latency of the proposed designs over the competitive ones. The average savings of delay for are ranging from 49.2% to 50.0% and ranging from 45.9% to 46.4% for ;
- The ADP and PDP of the developed semi-systolic structure are significantly lower than those of the rival designs of [34,39]; The average reductions of ADP at are ranging from 50.2% to 53.3% and ranging from 47.0% to 50.4% for ; The achievable average reduction of PDP of the offered multiplier structure over the competitive ones for is ranging from 51.7% to 56.7% and ranging from 49.5% to 52.8% for .
6. Summary and Conclusions
