Modeling and Fatigue Characteristic Analysis of the Gear Flexspline of a Harmonic Reducer
Abstract
:1. Introduction

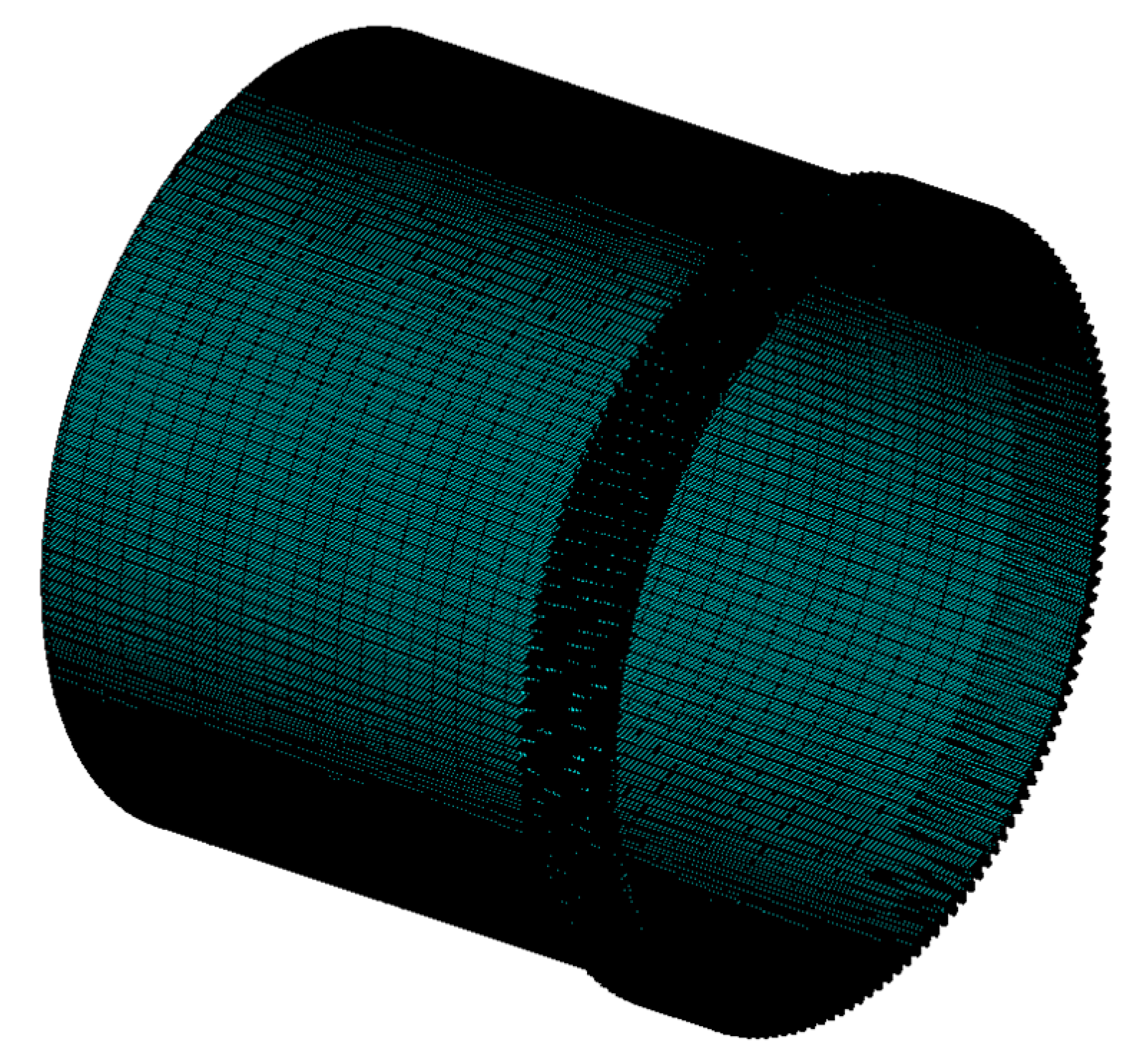

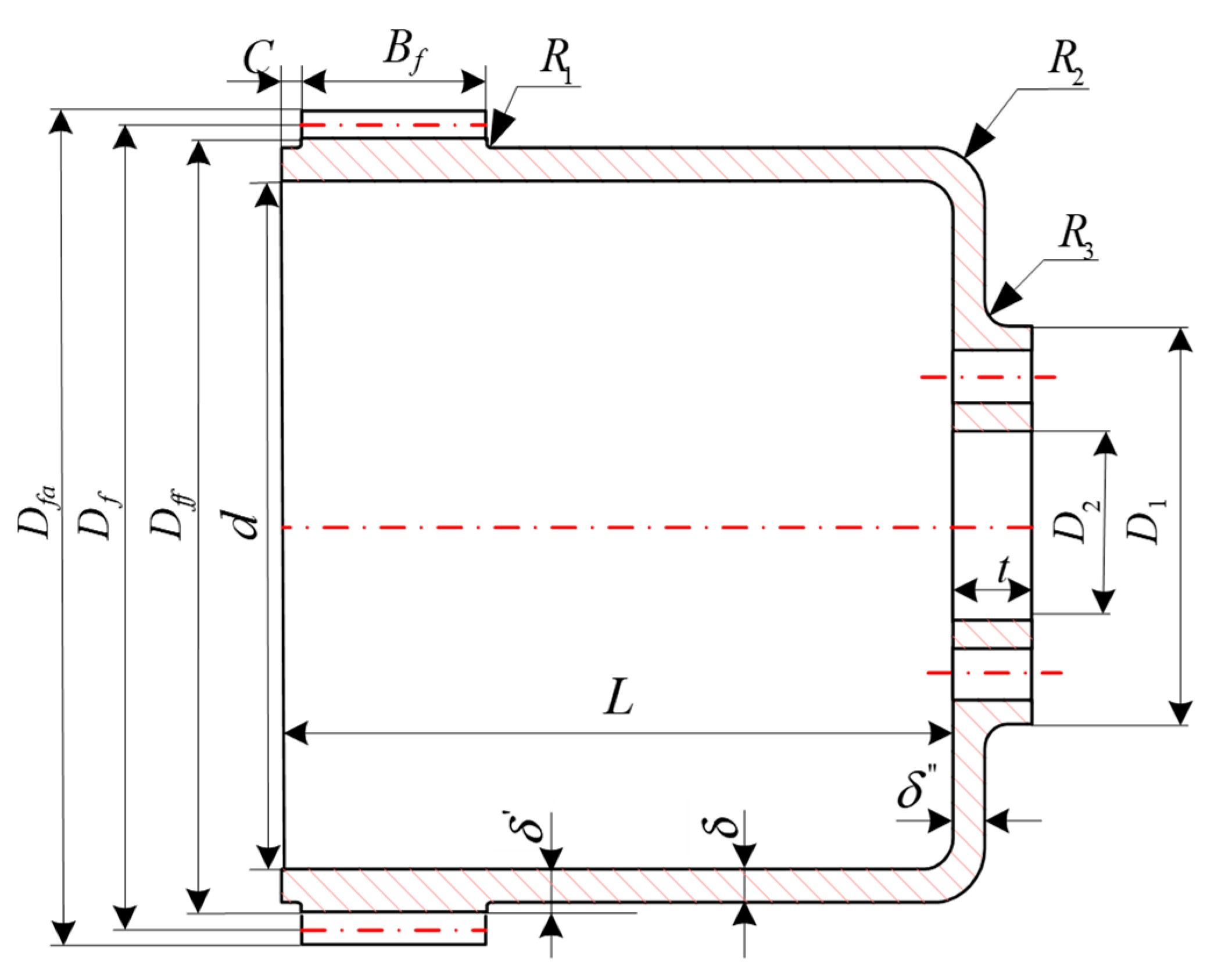

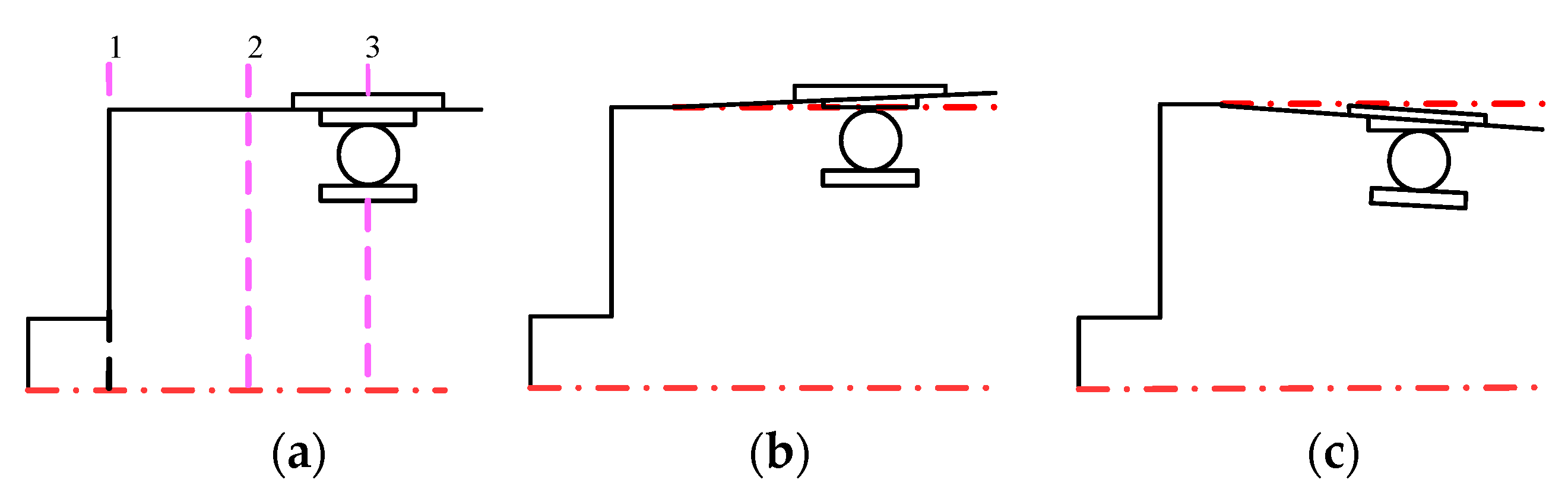

2. Structure Design and Model Establishment of a Harmonic Gear Reducer Flexible Wheel
3. Verification of the Finite Element Model

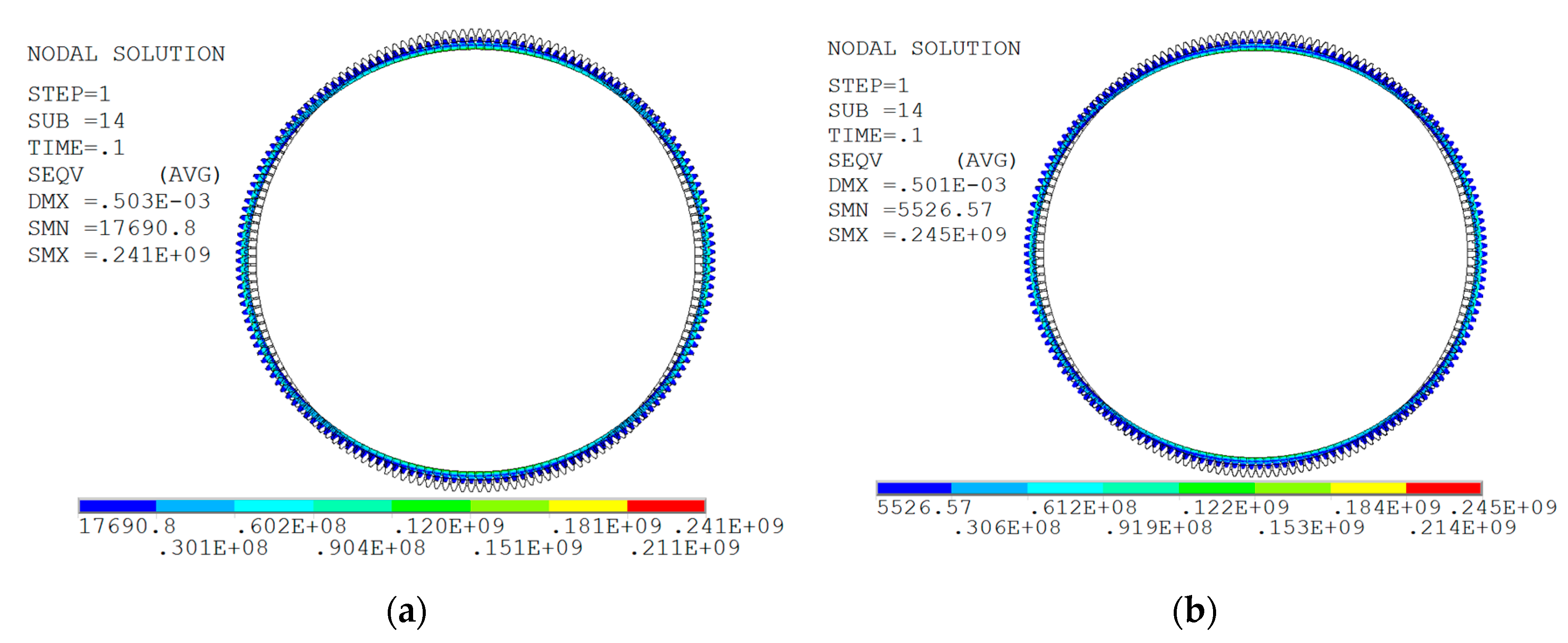

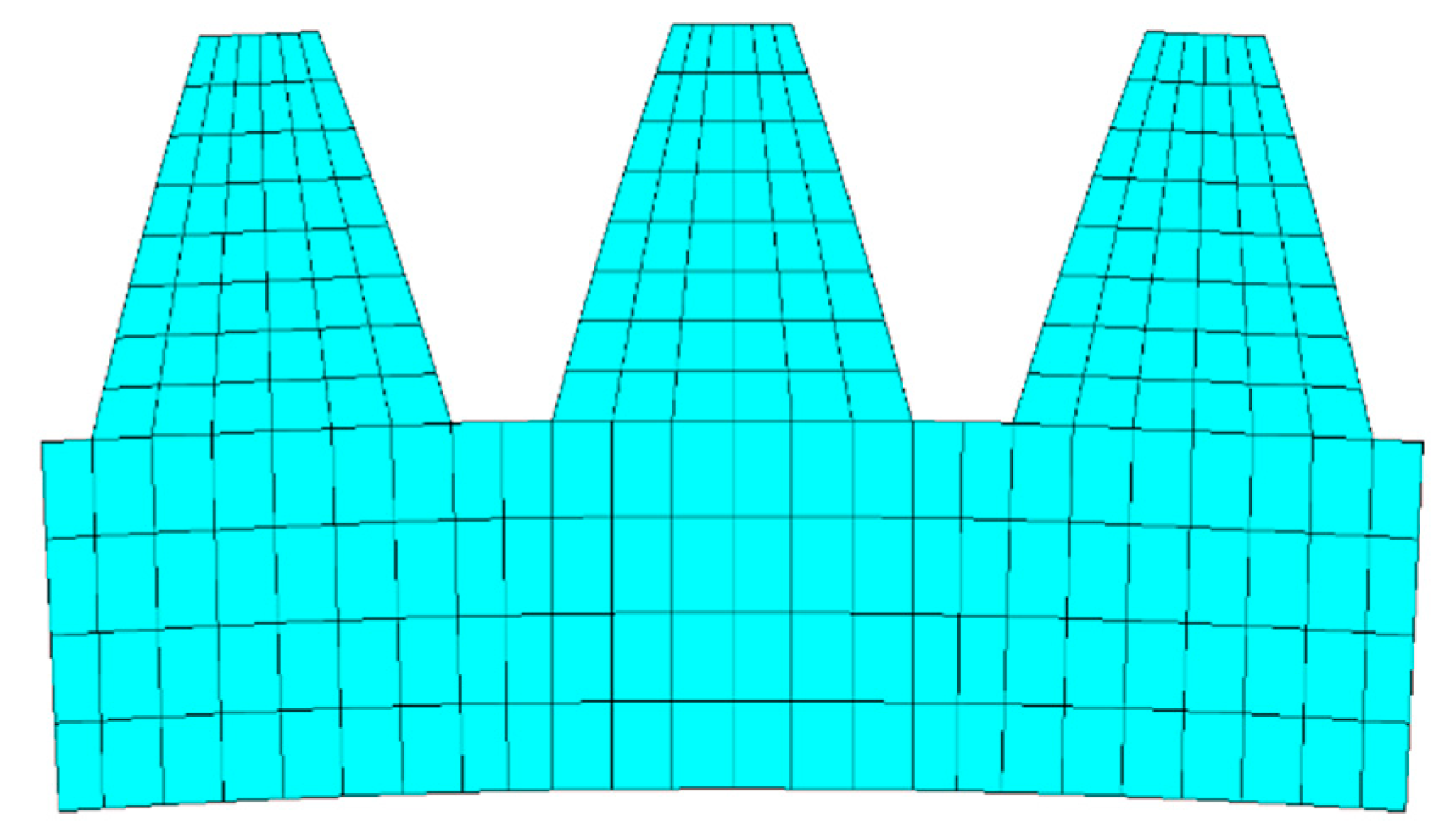

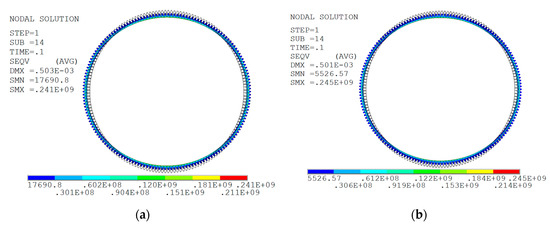

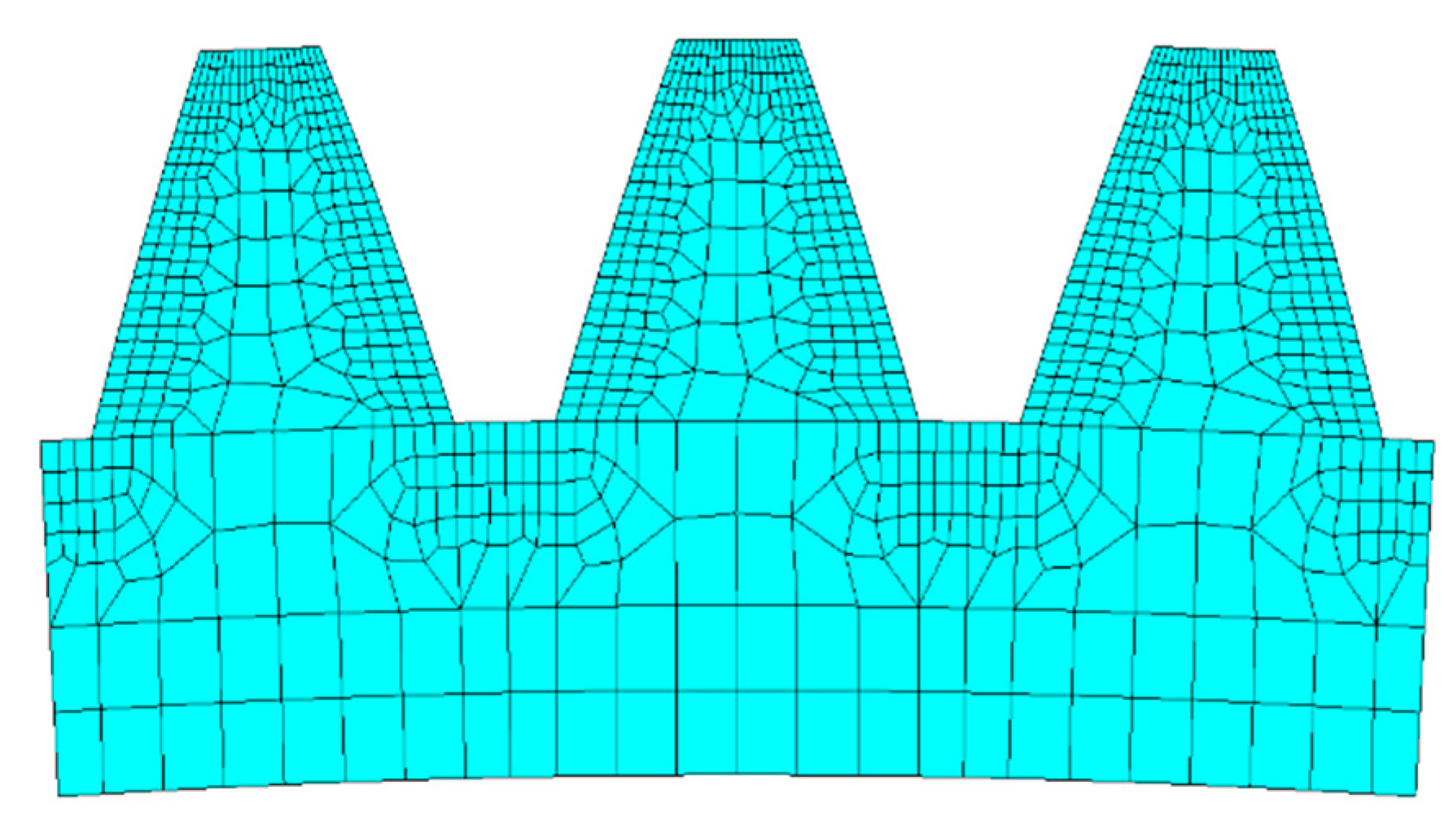

3.1. Simplification of the Mesh Model of the Flexspline Tooth Profile

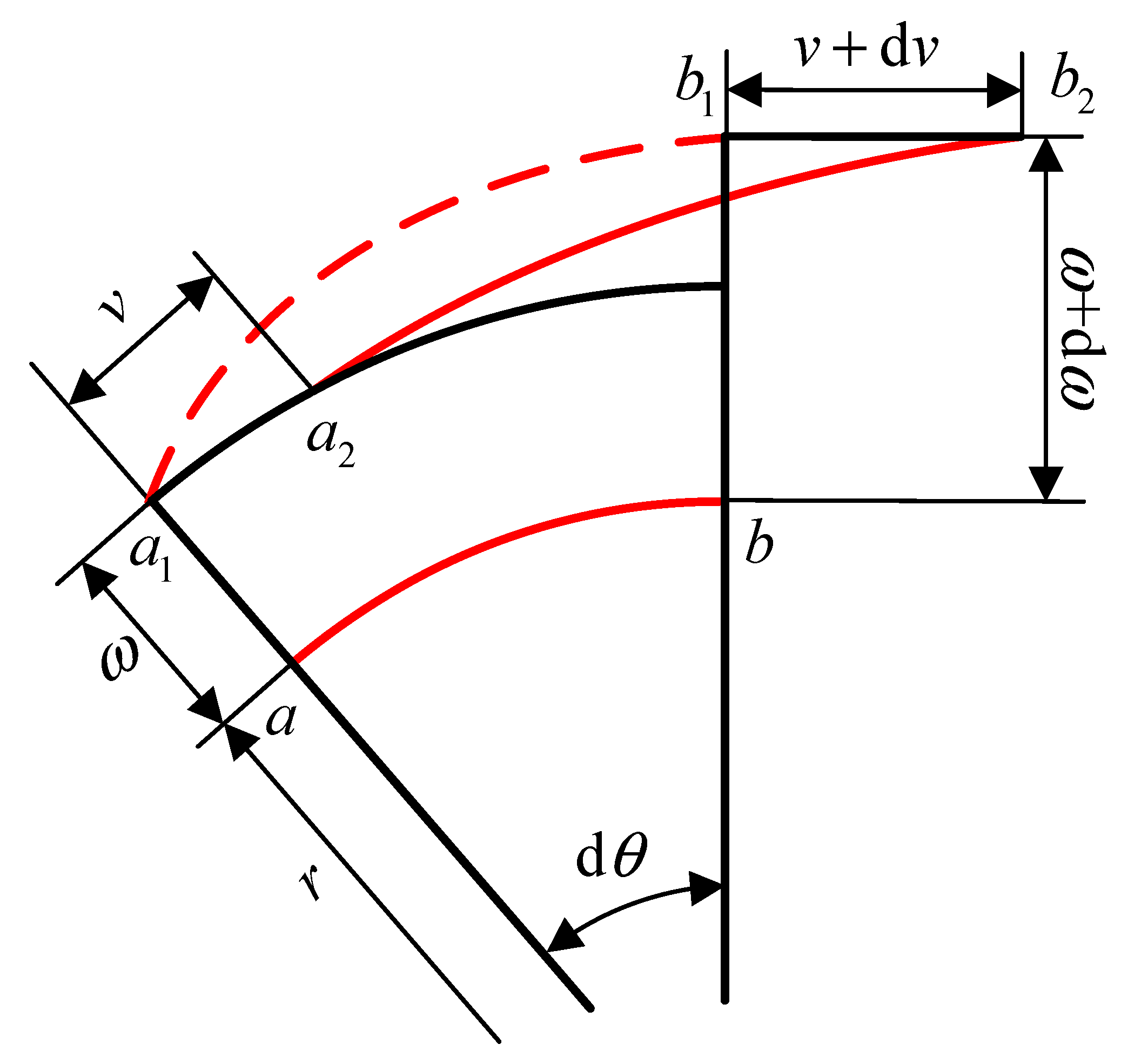

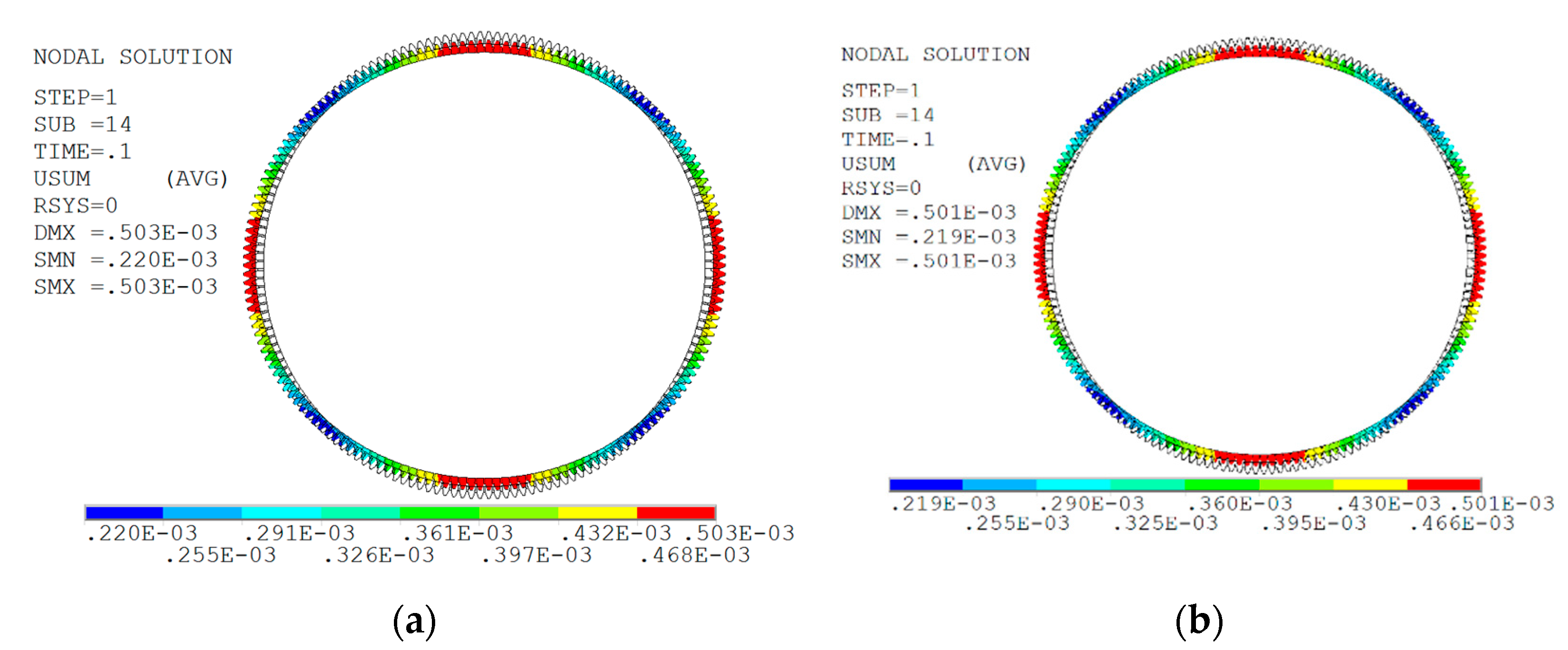

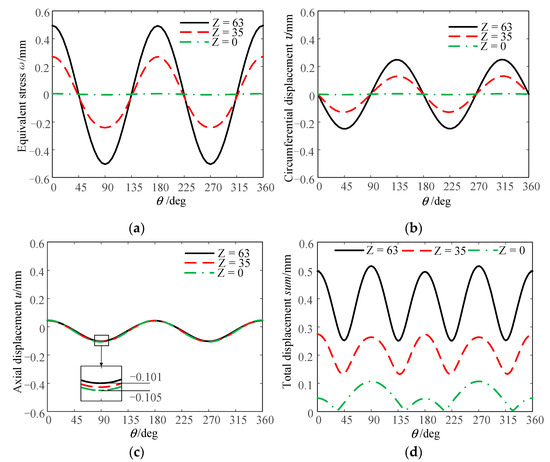

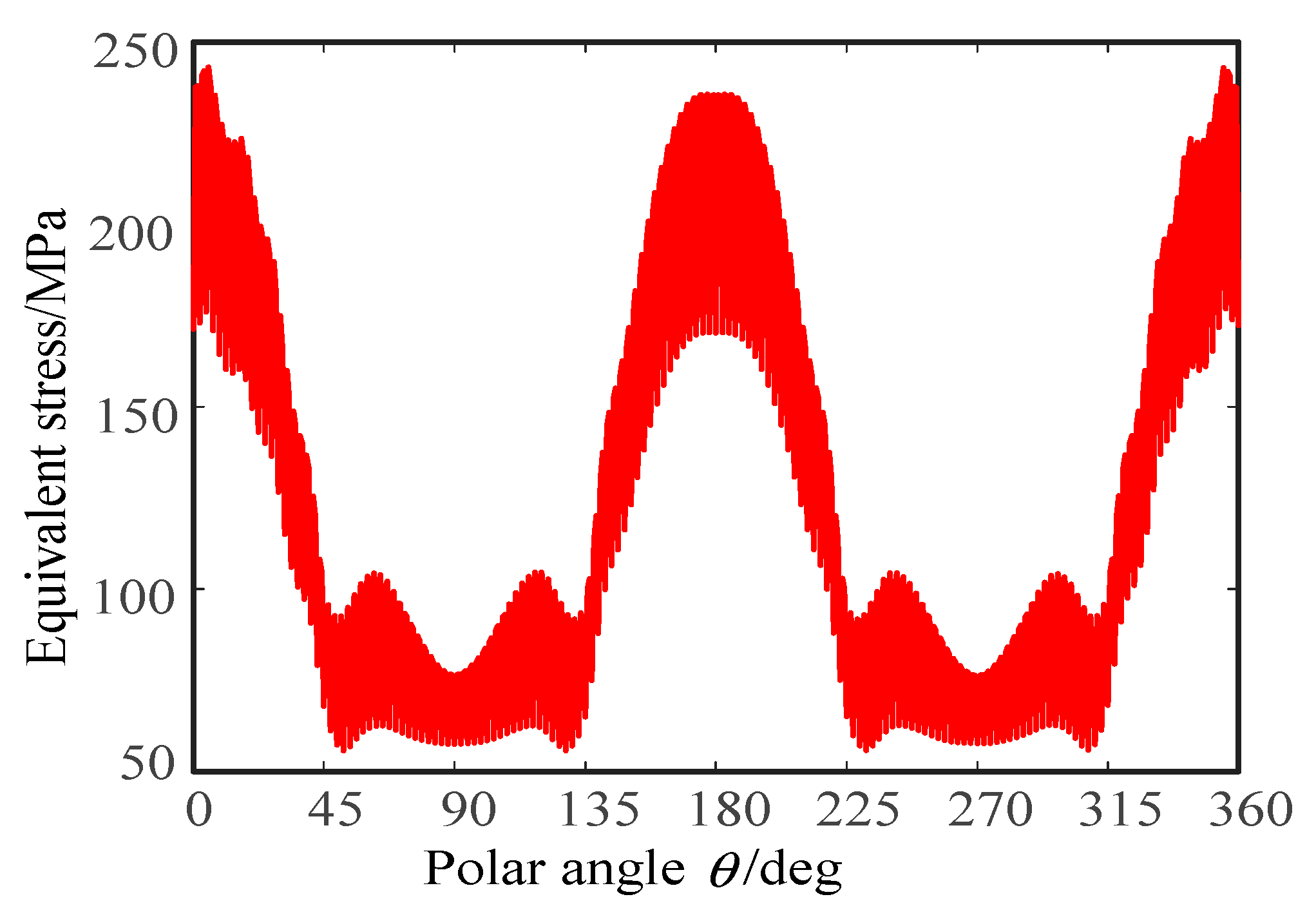

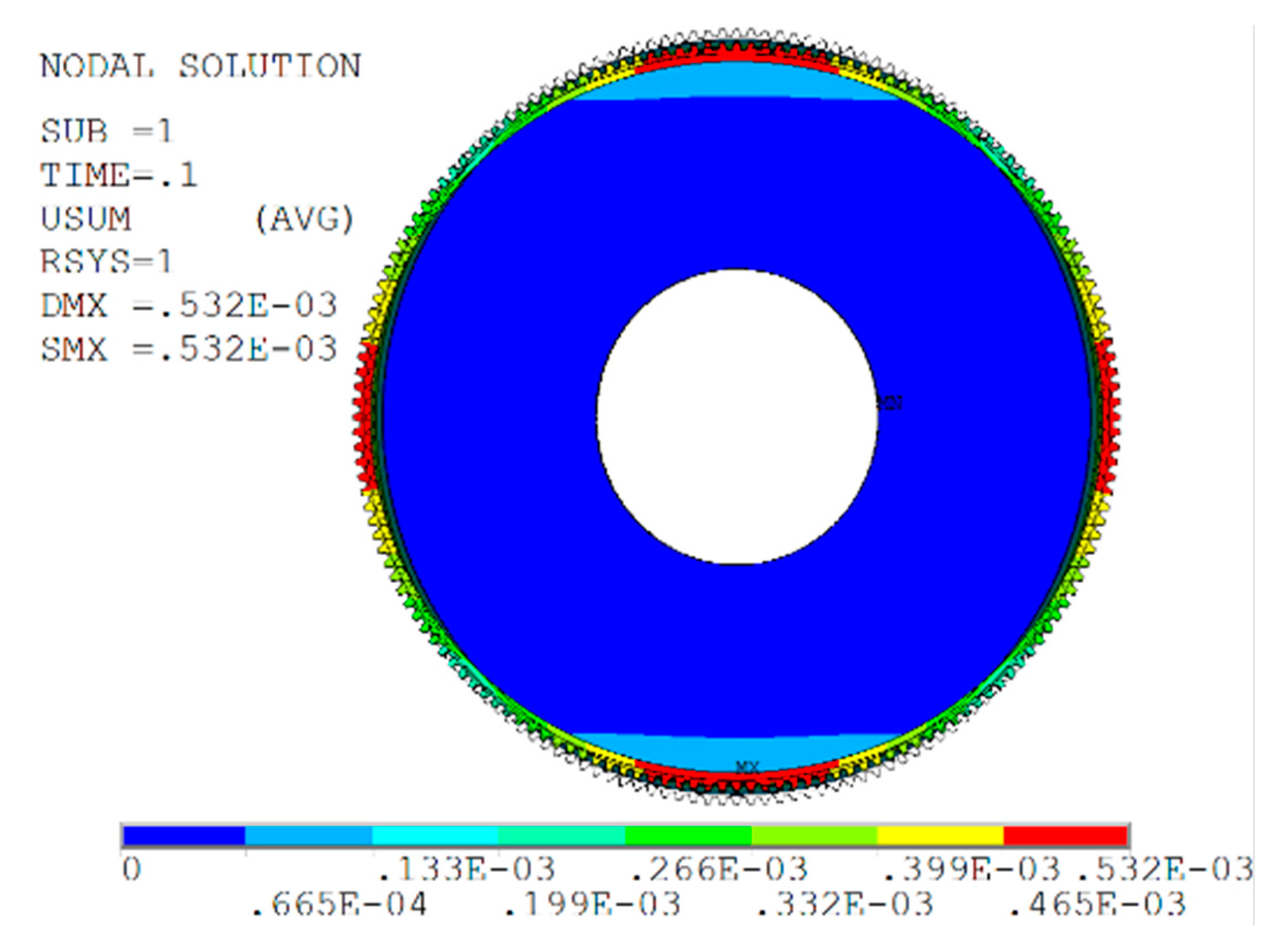

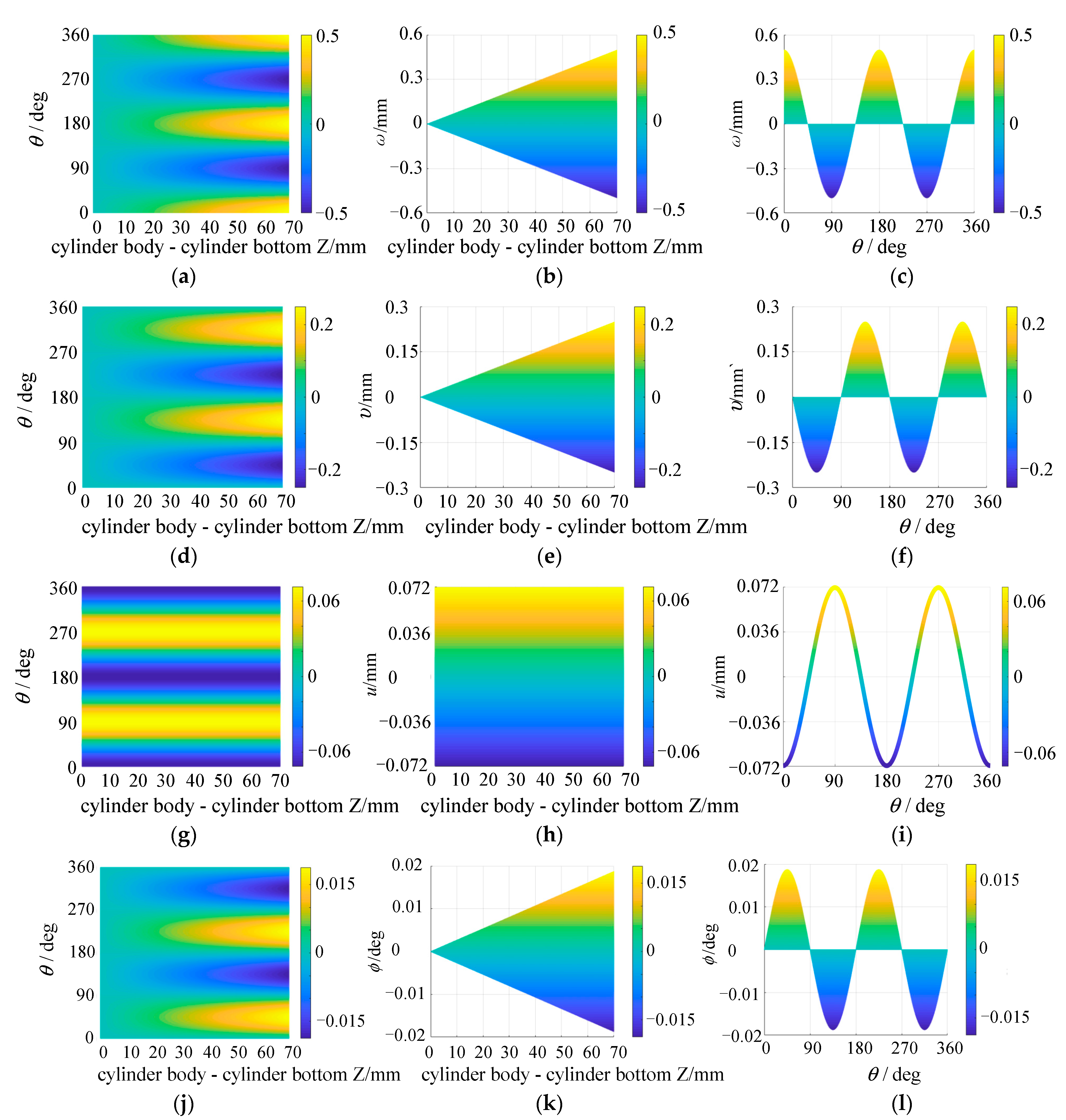

3.2. Mechanical Analysis of the Flexspline under Cosine Cam

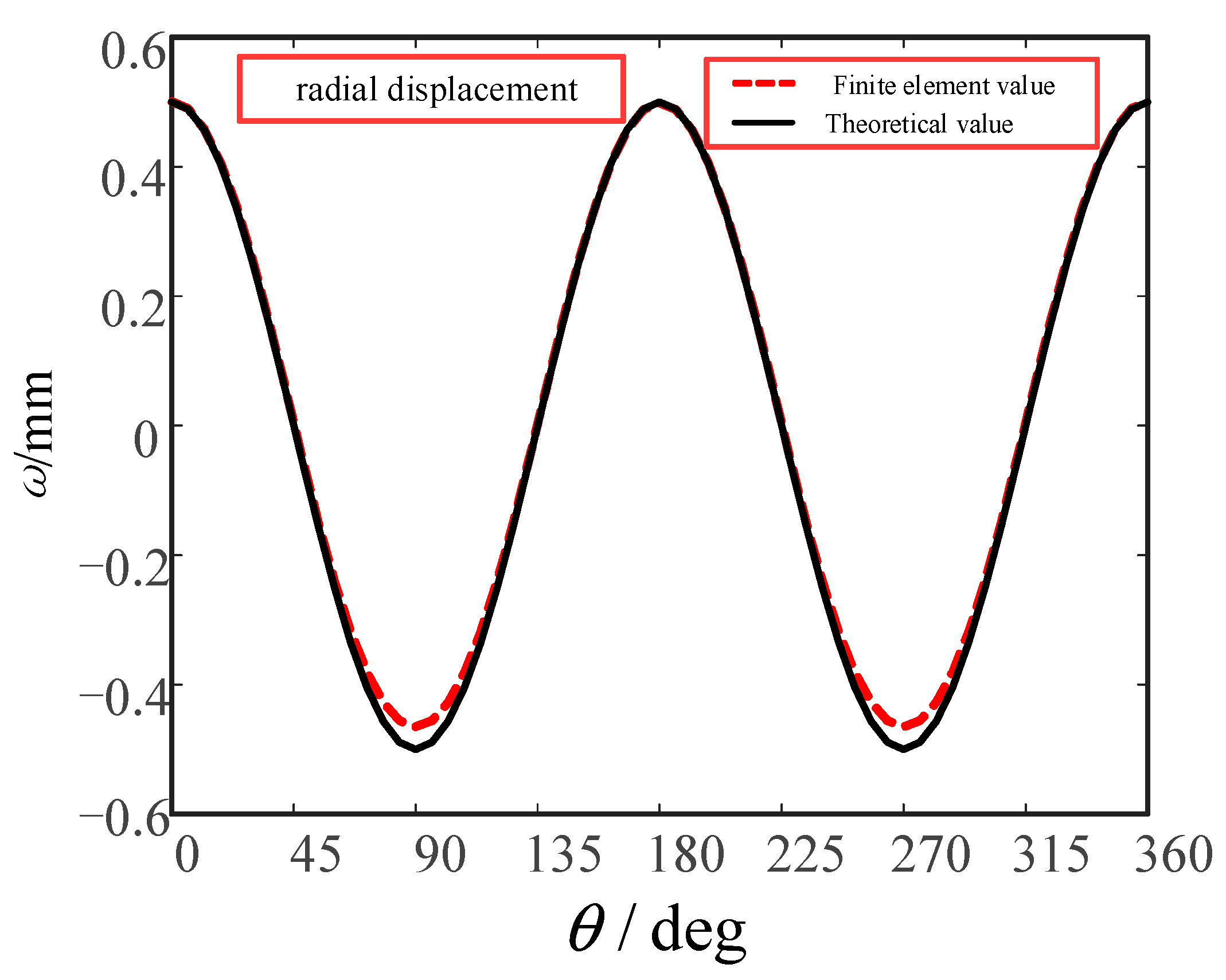

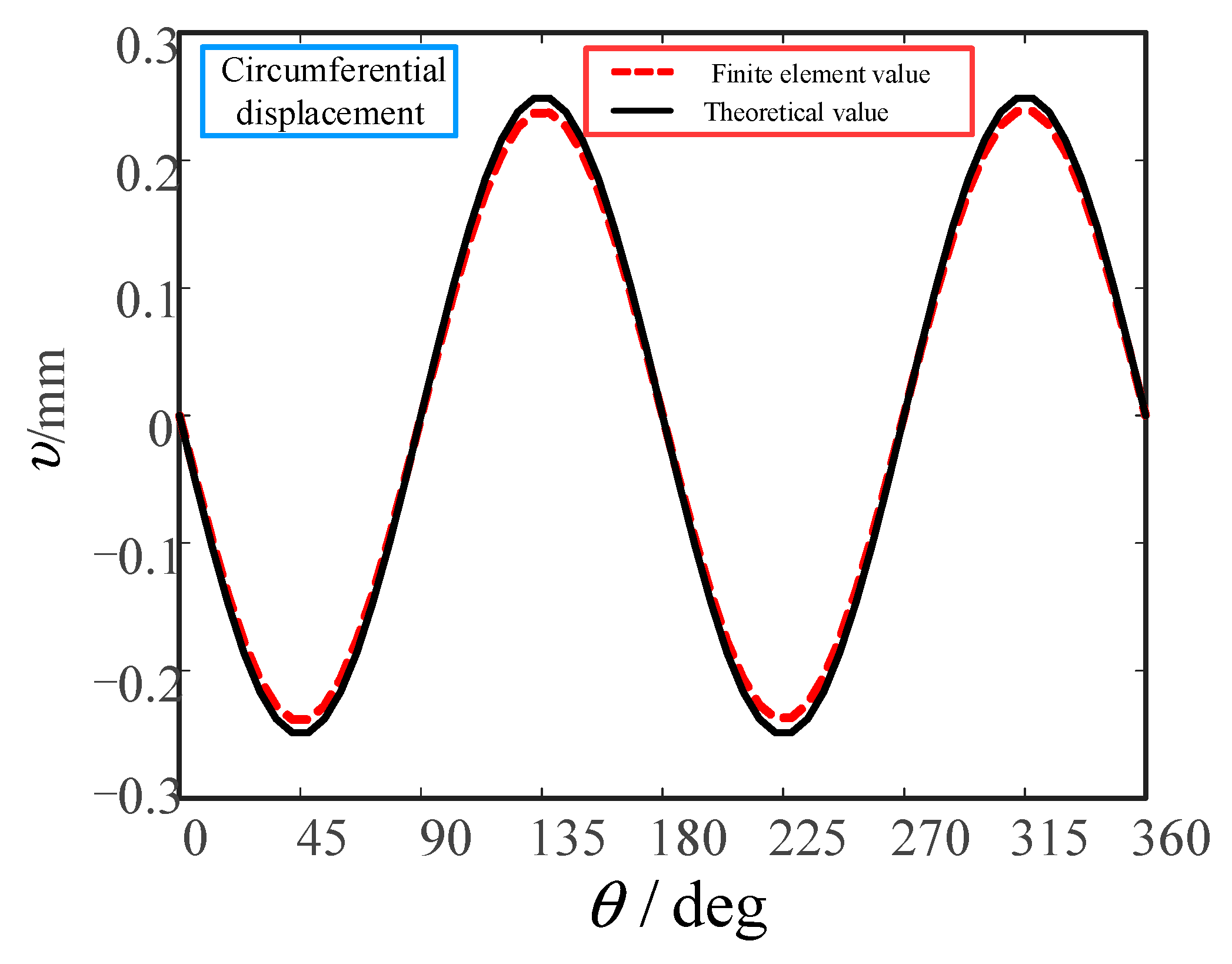

3.3. Comparison between Simulation Results and Theoretical Calculations
4. Sensitivity Calculation of Stress Characteristics and Fatigue Life Analysis of the Flexspline

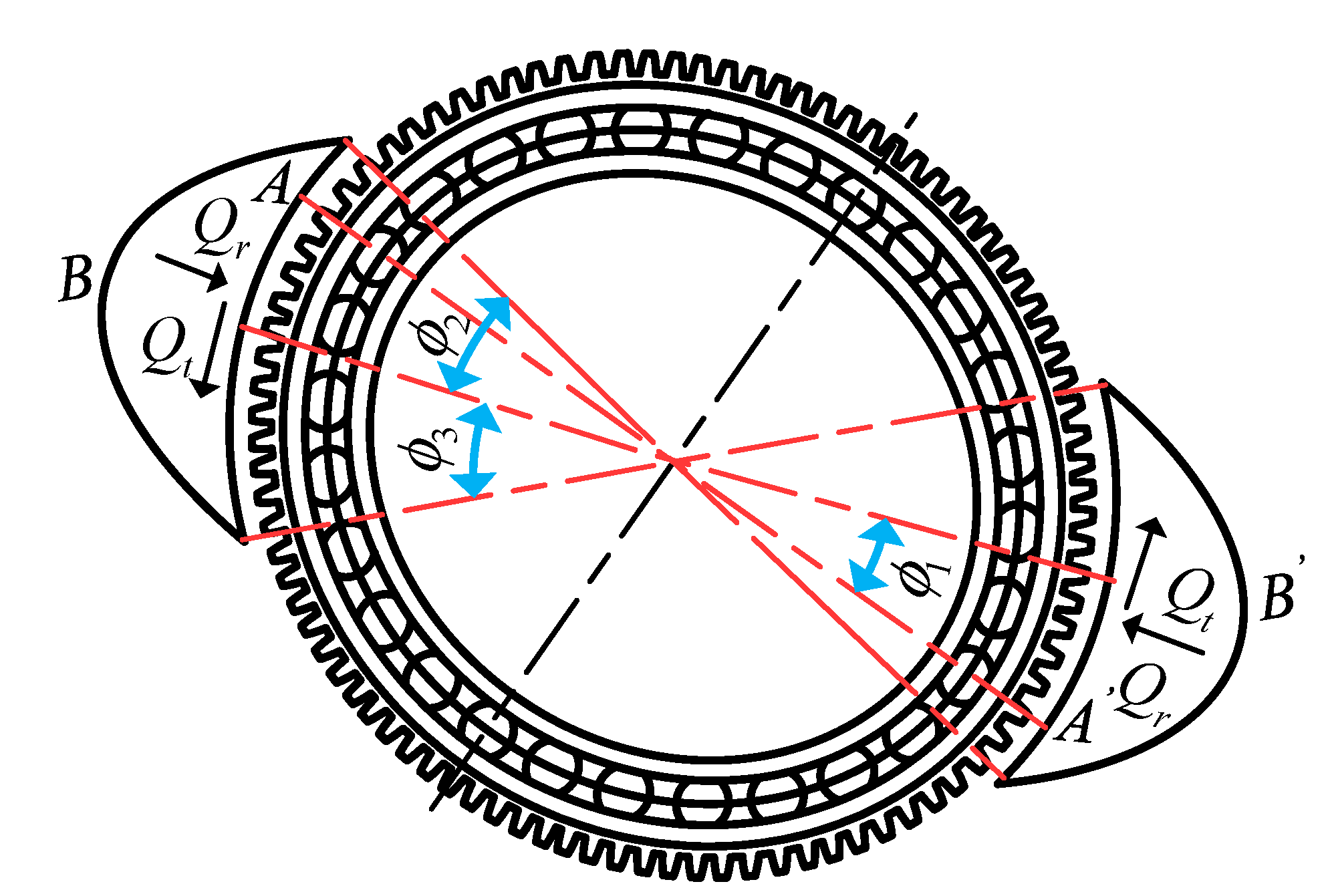

4.1. Calculation of Meshing Force of the Flexspline Teeth

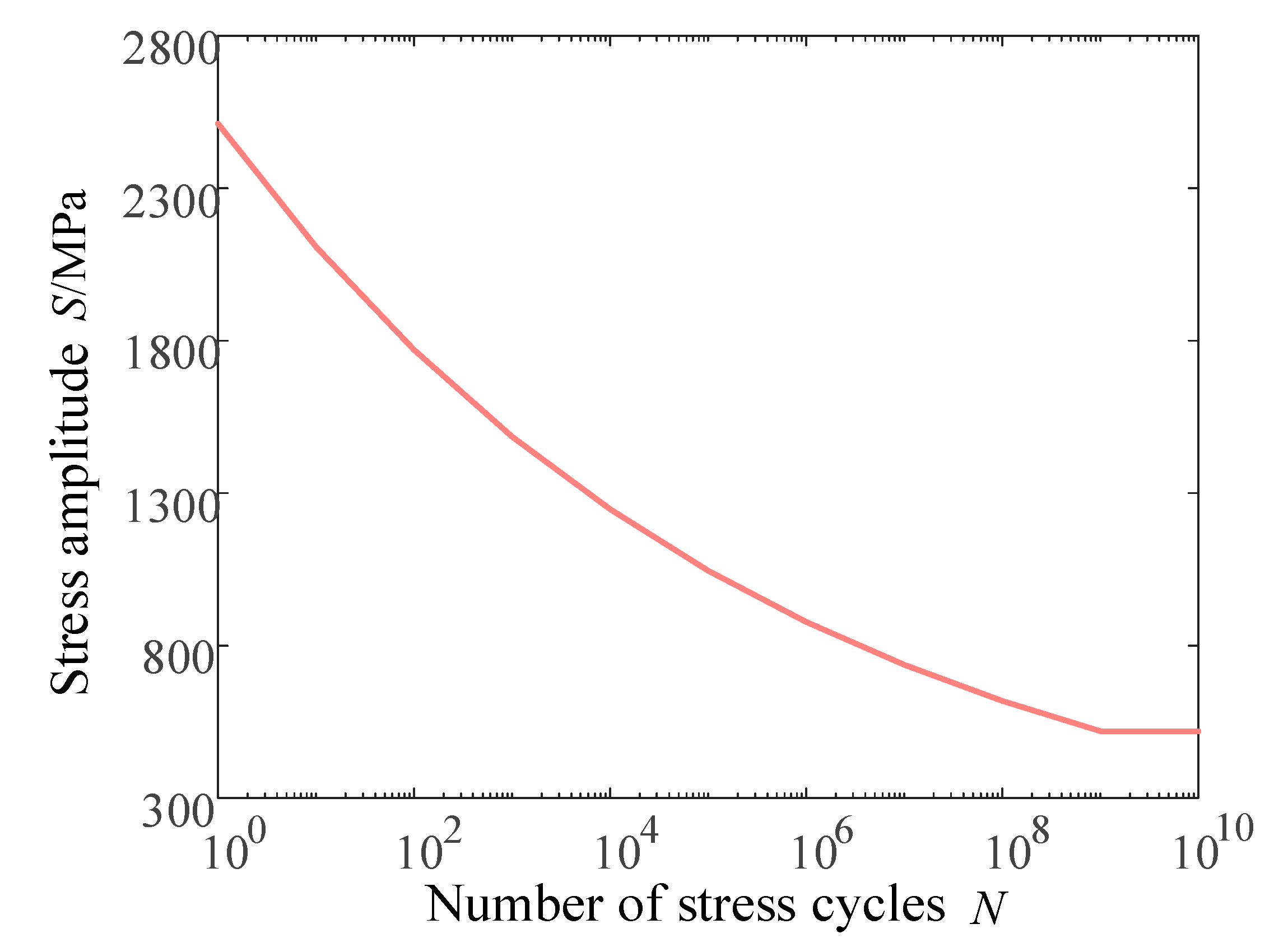

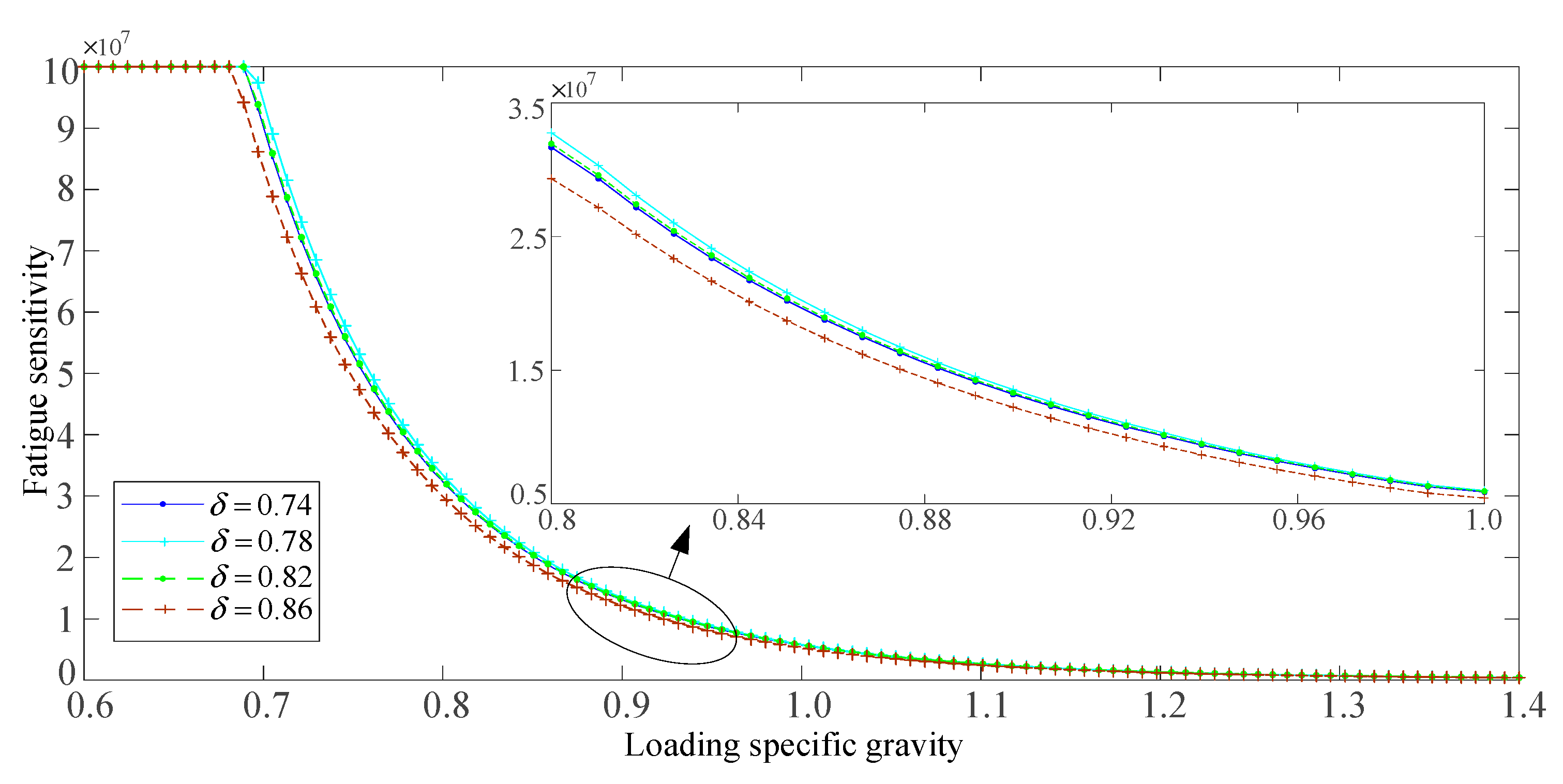

4.2. Fatigue Life Analysis of the Flexspline
4.3. Analysis of the Influence of Cylinder Length on the Flexspline

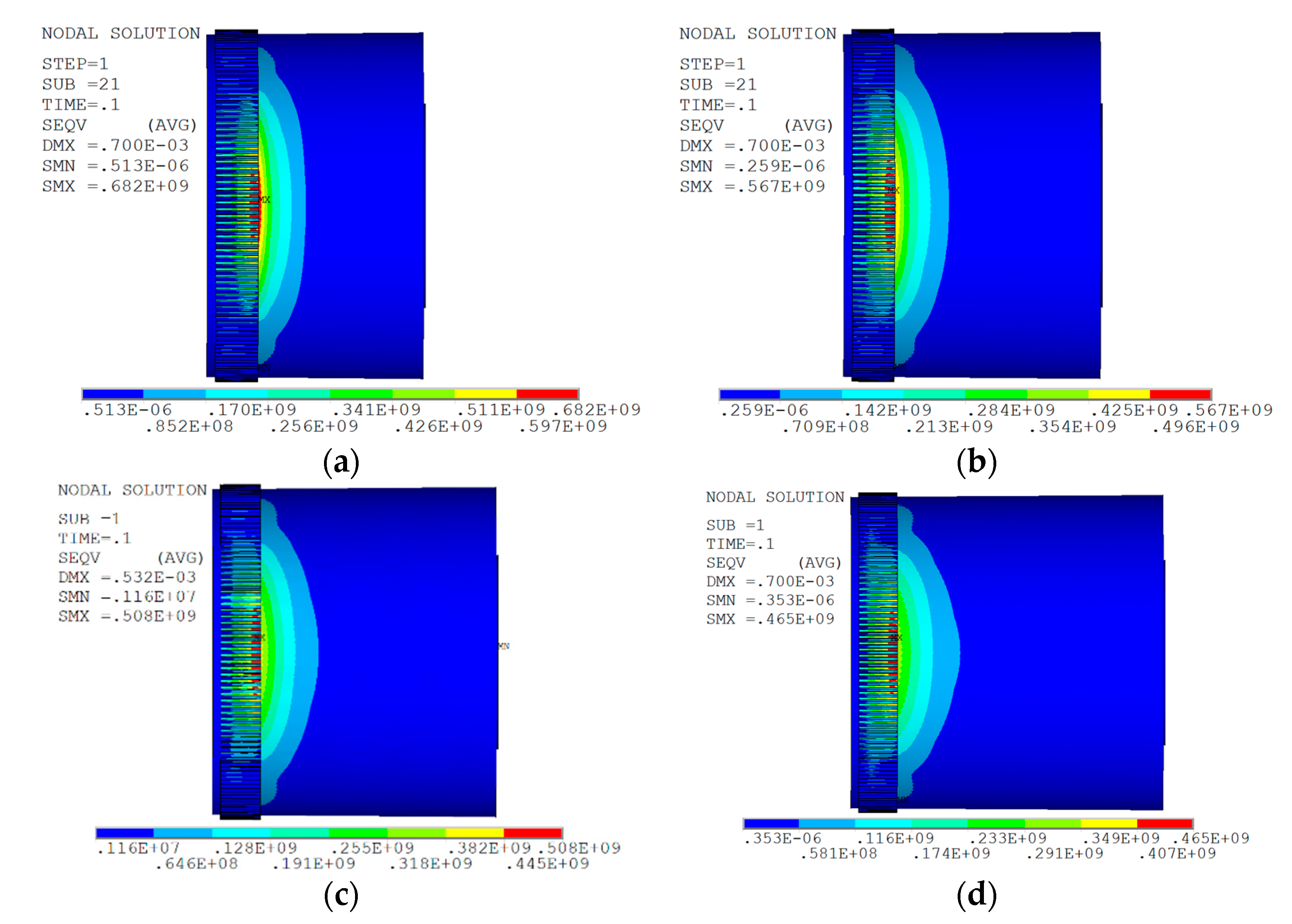

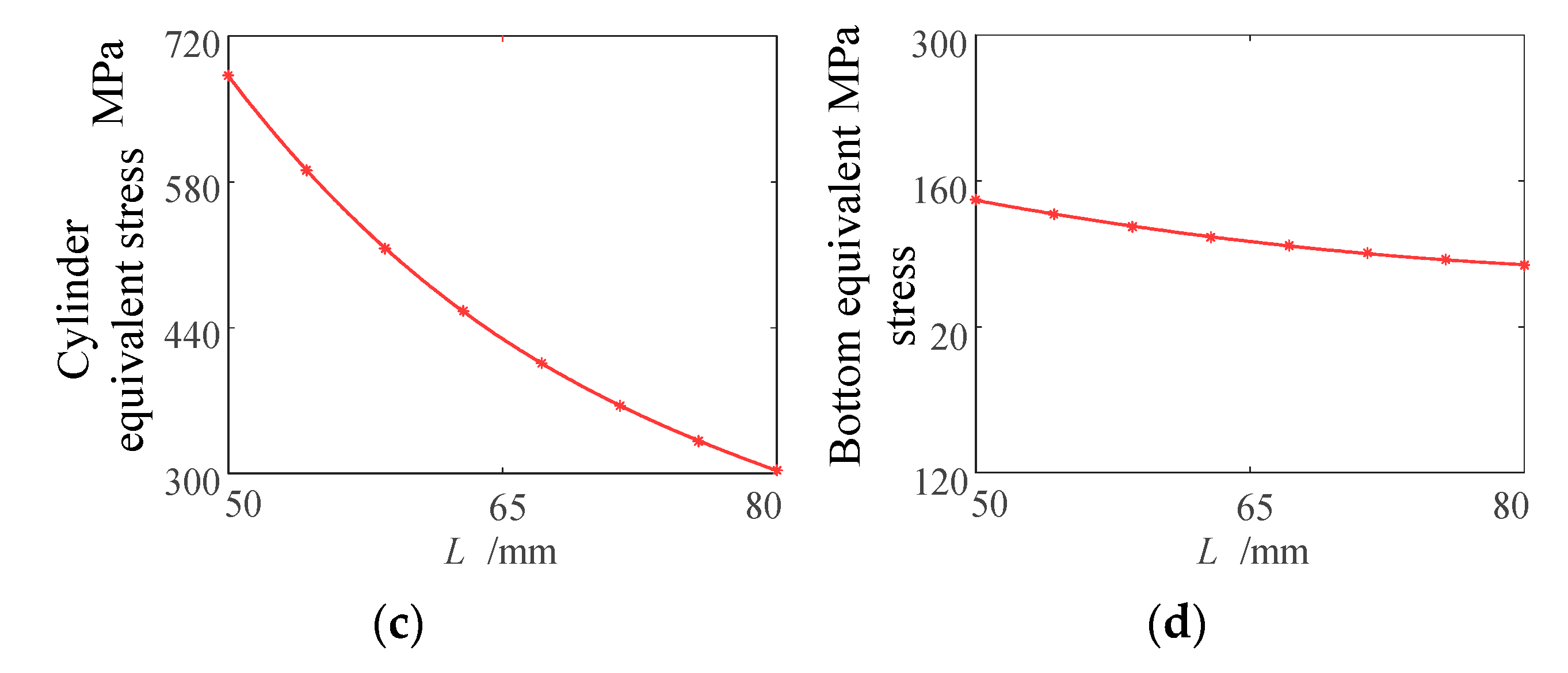

4.3.1. Analysis of the Influence of Cylinder Length on Flexspline Stress

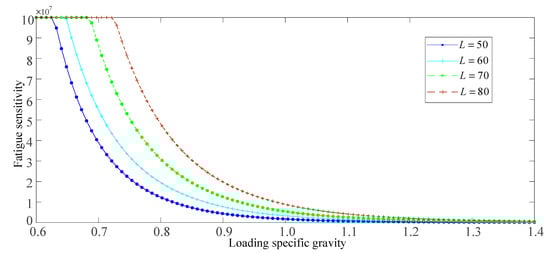

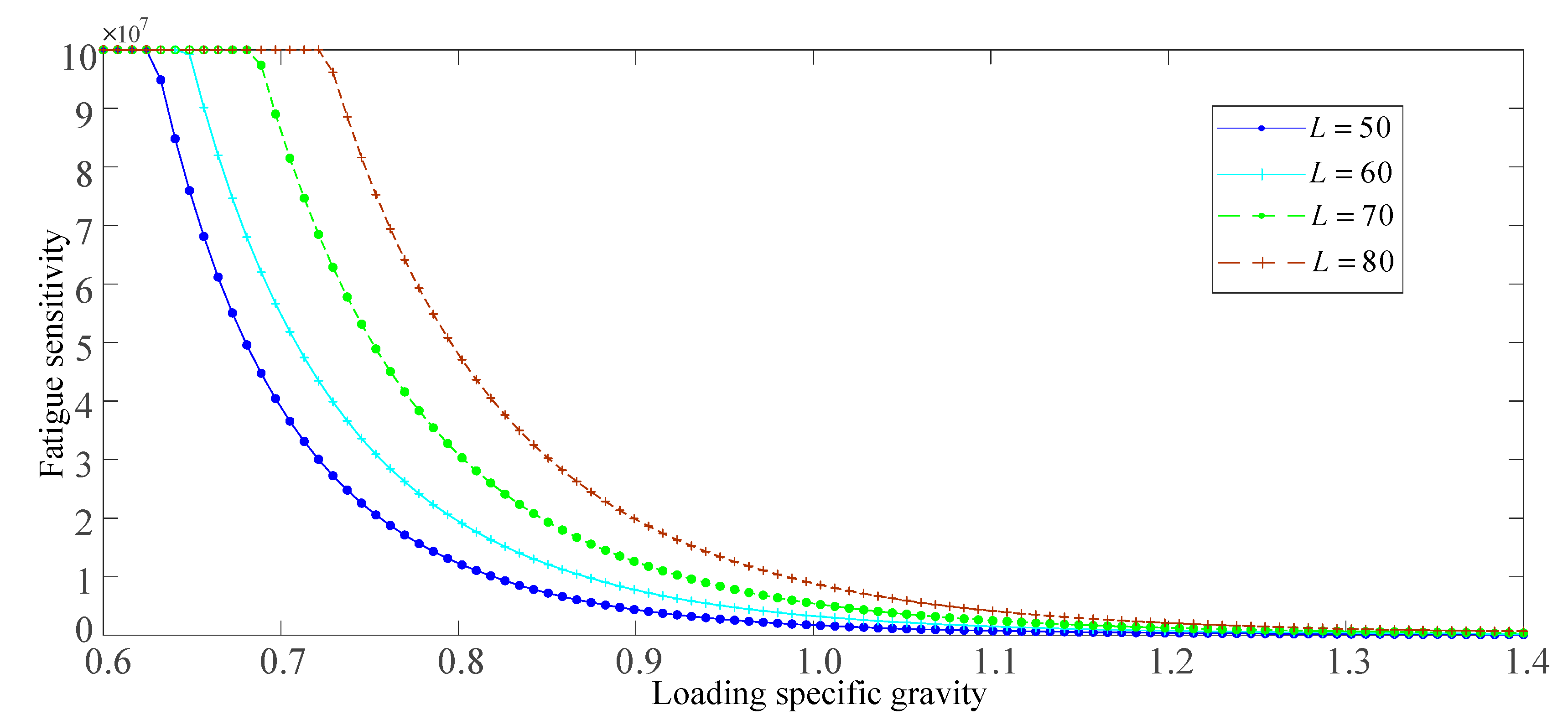

4.3.2. Influence of Cylinder Length on Fatigue Life
4.4. Analysis of the Influence of Smooth Cylinder Wall Thickness on the Flexspline

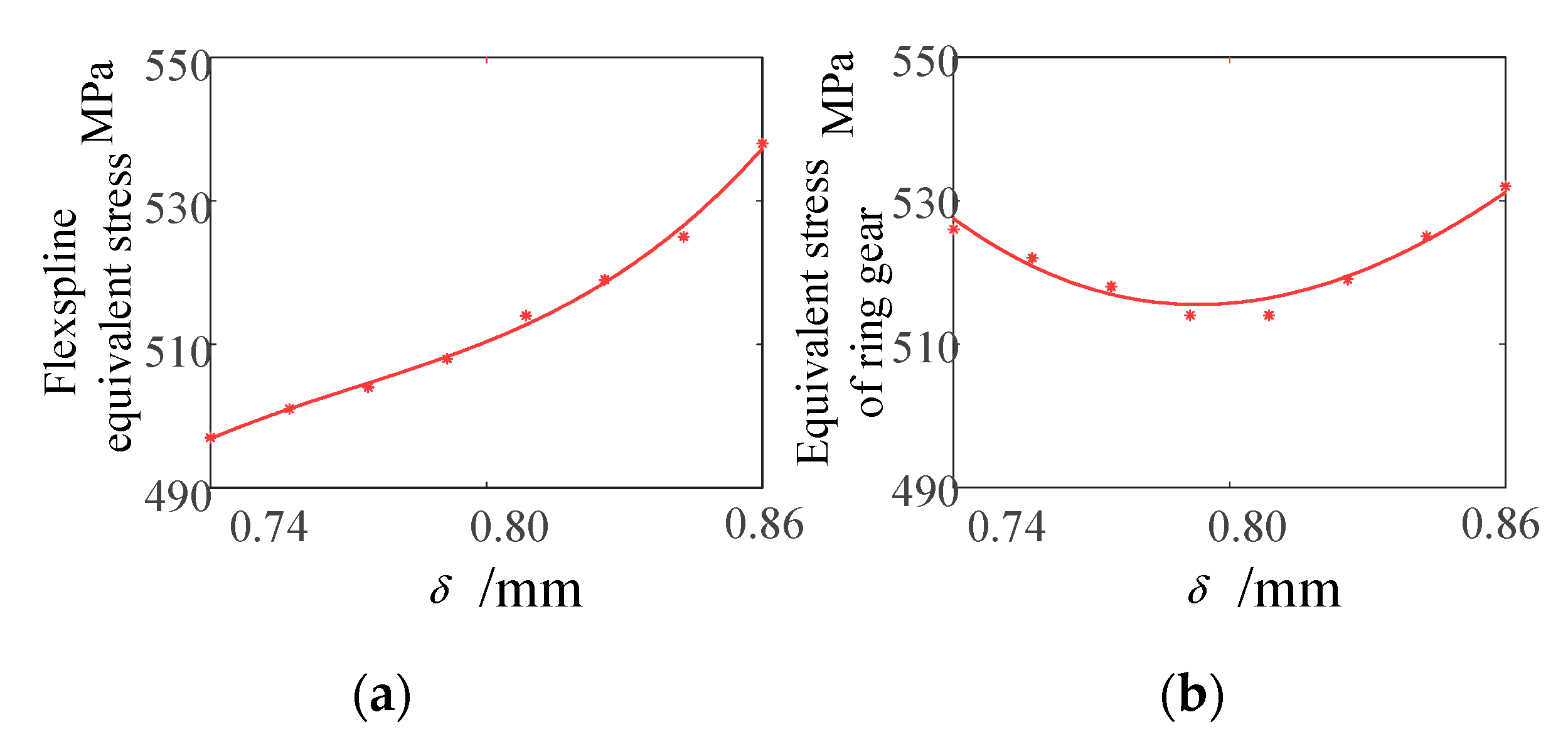

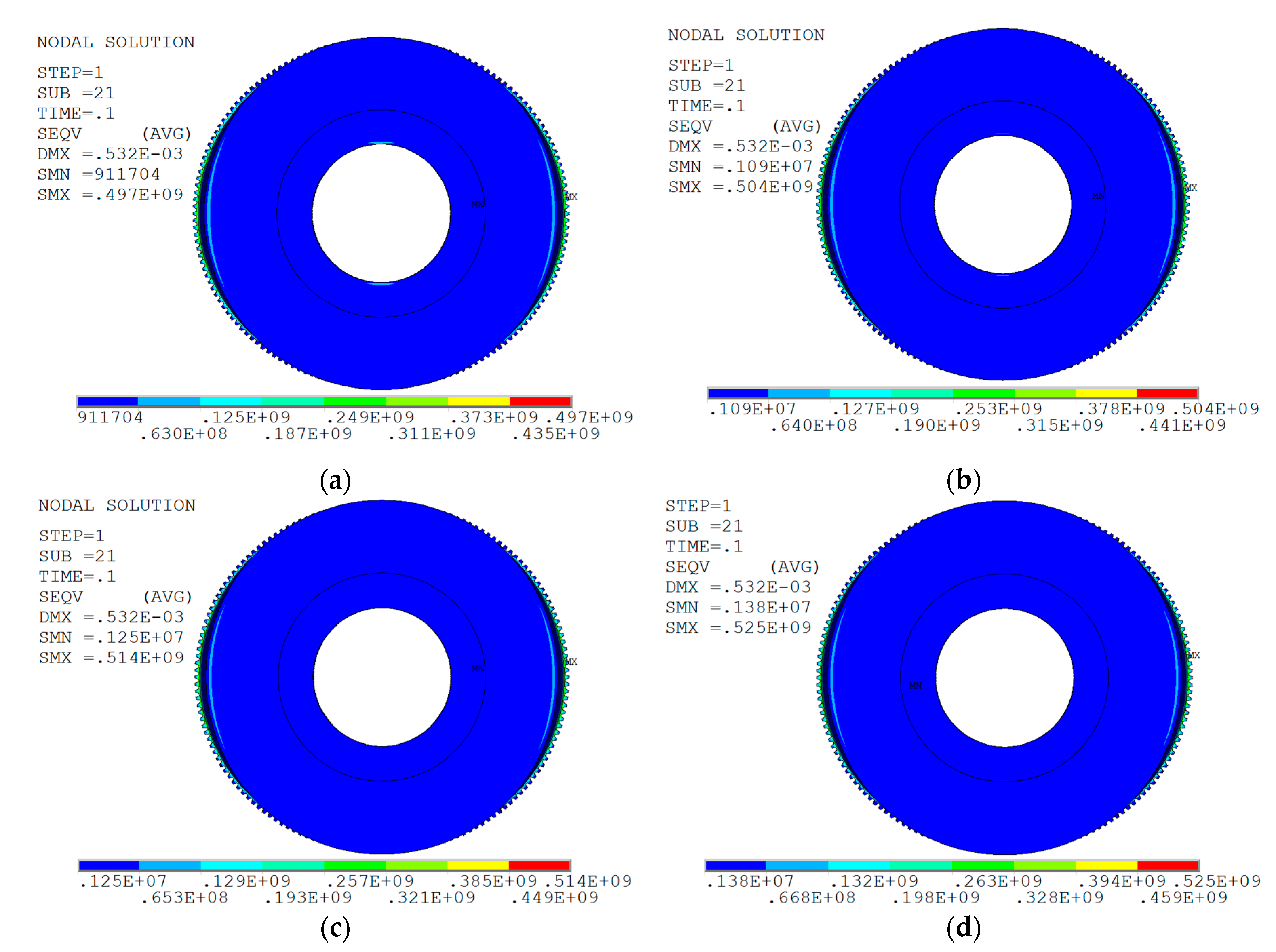

4.4.1. Analysis of the Influence of Smooth Cylinder Wall Thickness on Flexspline Stress
4.4.2. Influence of Wall Thickness of Smooth Cylinder on Fatigue Life
5. Conclusions
- (1)

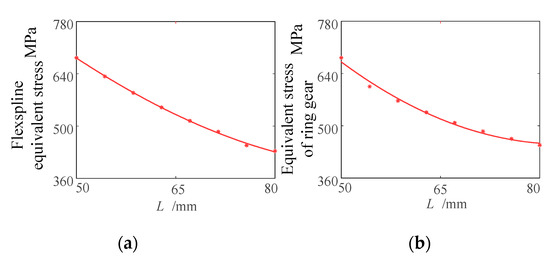

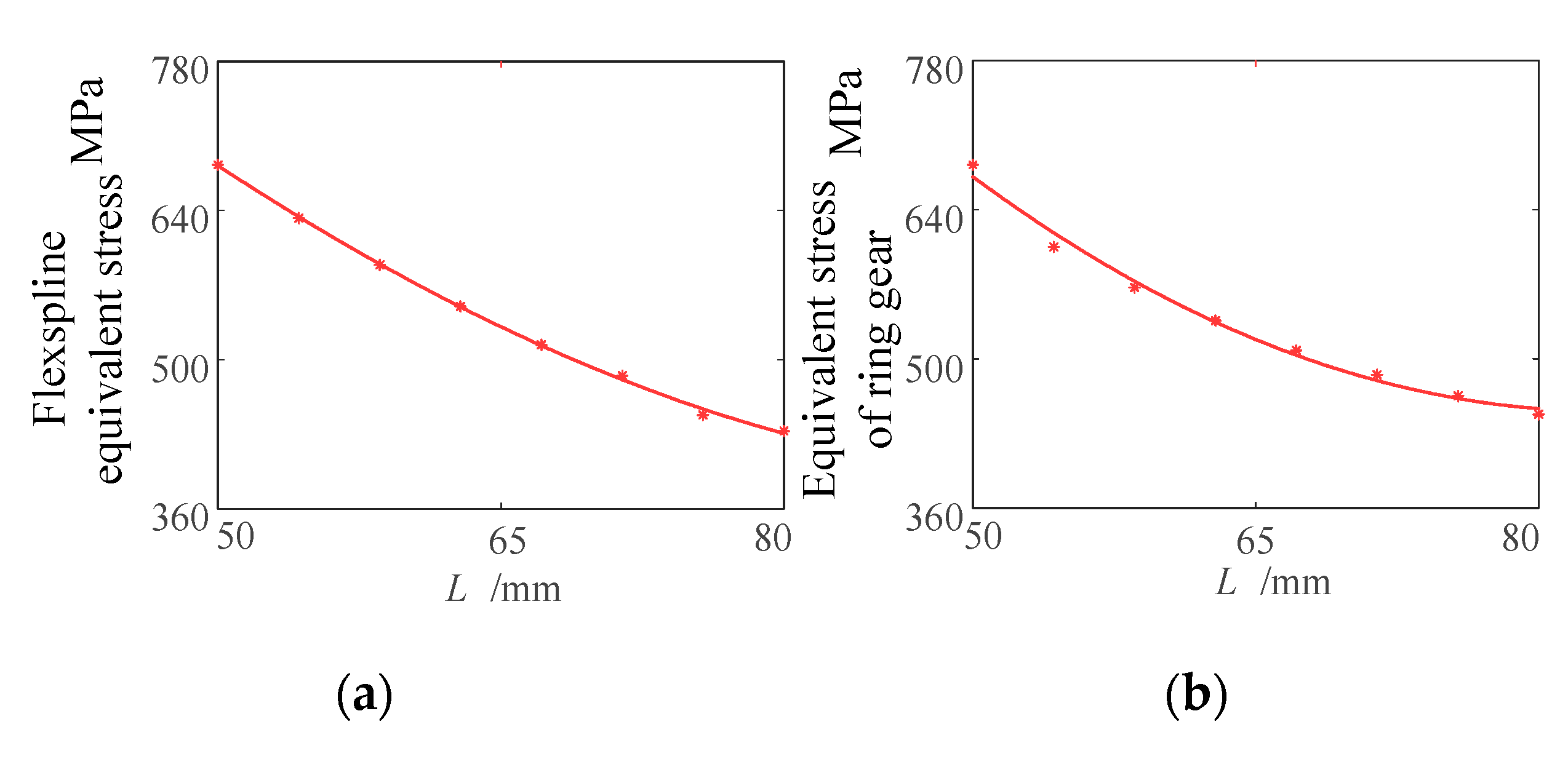

- With the increase in the length of the cylinder, the maximum equivalent stress value of the flexspline decreases and the service life is evidently prolonged. Therefore, the stress condition of the flexspline can be improved by increasing the length of the cylinder, but the increase in the cylinder length will lead to an increase in volume and a decrease in torsional stiffness.
- (2)

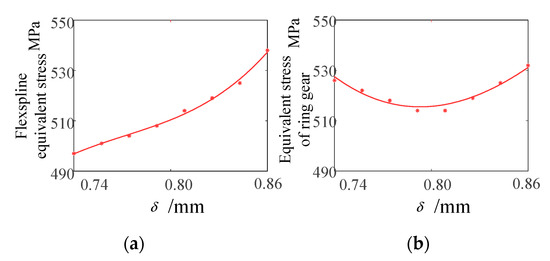

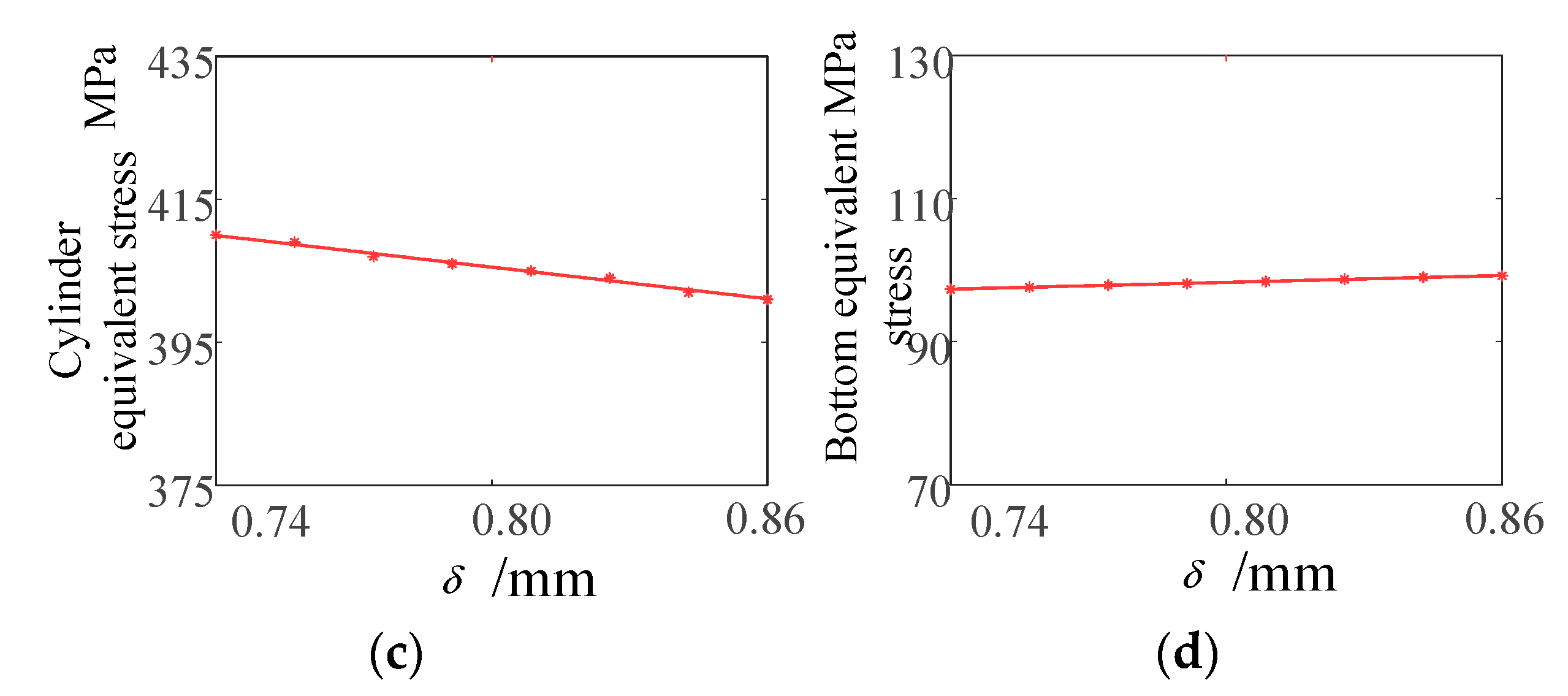

- With the increase in smooth cylinder wall thickness, the maximum equivalent stress value of the flexspline body increases, but the increasing trend is not evident.
- (3)
- Compared with the wall thickness at the bottom of the cylinder and the wall thickness of the smooth cylinder, the length of the flexible cylinder has a greater impact on its fatigue life. The increase in flexible wheel cylinder length can significantly prolong its service life, but the increase in flexible wheel cylinder length will lead to an increase in volume and a decrease in torsional stiffness.
