Dynamical Investigation, Electronic Circuit Realization and Emulation of a Fractional-Order Chaotic Three-Echelon Supply Chain System

Abstract

This study is concerned with dynamical investigation, electrical circuit realization, and emulation of a fractional three-echelon supply chain system. In the financial realm, long-term memory effects play important roles. On the other hand, most financial systems are uncertain with unknown nonlinear dynamics. However, most studies on nonlinear supply chains neither consider the fractional calculus nor take advantage of state-of-the-art emulation methods. These issues motivated the current study. A fractional-order chaotic three-echelon supply chain system is studied. At first, the system’s dynamic is studied through Lyapunov exponent and bifurcation diagrams. It is shown that a slight deferent in some parameters of the system can dramatically change the behavior of the system. Then, a real-time analog circuit is designed and implemented to investigate the system’s chaotic behavior. This way, the system’s chaotic attractors are empirically demonstrated. Finally, emulation and interpolation of the fractional-order chaotic system using the Gaussian process have been studied, and its luminous results have been presented.

1. Introduction

Supply chains are nonlinear dynamical systems triggered by various uncertain factors such as customer demands [1,2,3,4,5,6]. In recent years, several studies have been devoted to understanding the mechanism of supply chain systems [7,8,9]. A supply chain’s goal is to meet consumer needs in the right place, at the right time, and at the right service level, while requiring the least amount of money [10,11]. Because of rising customer expectations and fierce competition in global markets, business enterprises have always tried to achieve the best operation by managing their supply chain networks [12]. Although the success of supply chains depends on various factors, including transportation fleets, machinery, and equipment, the effectiveness of such systems is primarily determined by the quality of management decisions [13,14,15]. However, uncertainties in such systems make their control and management demanding tasks [16,17,18].

Since management and control of financial systems play a vital role in human life, this field of study has recently received extensive attention [19,20,21,22,23,24,25,26,27,28,29,30,31,32]. Due to the complexity of today’s financial systems, applying state-of-the-art control techniques to them will be beneficial [33]. However, the identification and prediction of nonlinear systems always play key roles in their control [34,35,36,37,38,39,40,41,42,43,44,45,46,47,48,49]. The more we know about the dynamical behavior of real-world financial systems, the more reliable results can be provided by management’s decisions [50]. Actually, to move towards the best management decisions, we should enhance our understanding of systems and processes. Although many techniques are proposed for the regulation and synchronization of these systems, by taking advantage of control theory, some important matters are entirely ignored in this field of study. For instance, where chaos occurs, and which parameters can change the behavior of the three-echelon supply chain system, are yet to be studied.

On the other hand, most of the time we have limited observations of financial systems, and available data are noisy [51,52]. Hence, to be able to forecast and interpolate these systems, strong emulation and regression methods are required [53]. The Gaussian process (GP) is one of the best emulation and regression methods for nonlinear systems [54,55]. Nonetheless, to the best of our knowledge, there is no study in the literature investigating the GP for a three-echelon supply chain system. Motivated by this, in the last part of the current study, we have investigated the application of GP to a three-echelon supply chain system.

The remainder of this paper is arranged as follows: In Section 2, the governing equations of the fractional-order supply chain are presented, and its dynamical behavior is illustrated. In Section 3, to investigate the behavior of the nonlinear system empirically, an electrical circuit of the system is performed. In Section 4, GP is presented and applied for emulation and regression of the system. Finally, concluding remarks are presented in Section 5.

2. Literature Review

In Reference [56], various classes that have been proposed for modeling the dynamics of supply chains have been studied. In that study, all approaches were categorized as follows: discrete event models, discrete-time difference models, continuous-time differential equation models, and classical operational methods. Additionally, from another point of view, modeling of supply chains can be classified based on the deterministic and stochastic properties. In Reference [57], models of supply chains are classified as: deterministic models, where all the parameters are known; stochastic models, where at least one parameter is unknown, but follows a probabilistic distribution; economic game-theoretic models; and models based on simulation, which evaluate the performance of various supply chain strategies. The vast majority of these models are steady-state models based on average performance, or steady-state static models. In

Table 1. Some important studies on nonlinear supply chains.

The Reference	Methodology	Disadvantage/Limitation/Possible Direction for Improvement
[58]	The study has proposed a nonlinear model supply chain network, which is now the most popular model for these systems.	It is supposed we know all parameters of the system. Fractional calculus is not used.
[59]	A supply chain network where the evaluation of the causes of uncertainties within the network is considered.	Assumes we know all parameters of the system. Fractional calculus is not used.
[60]	This study has used a system dynamic simulation to investigate how agility is built into supply chains.	Fractional calculus is not used.
[61]	A robust controller method has been proposed, ensuring that shipment flows in supply chain networks remain robustly stable in the face of interruptions.	For the controller, the effects of nonlinear external disturbances have not been considered.
[62]	A mathematical model for a supply chain, incorporating a computer-aided digital manufacturing process, has been presented and controlled.	The controller is not robust.
[63]	A feedback control law has been designed for inventory control, and several mixed inventory control strategies have been proposed for the model.	For the feedback control law, all parameters of the system need to be known.
[64]	A new supply chain model has been proposed assuming that demand of a product does not increase monotonically with the increase in inventory.	Fractional calculus is not used.
[65]	Effects of cooperation mechanism on the chaotic behaviors in nonlinear supply chains have been studied.	Fractional calculus is not used.
[66]	A metaheuristic method, called hybrid bat algorithm, has been used to find a near-optimum solution.	The model is considered to be fully deterministic. Fractional calculus is not used.
[67]	A revised ant algorithm for solving location-allocation problem with risky demand in a multi-echelon supply chain network has been proposed.	The model is considered to be fully deterministic. Fractional calculus is not used.

, some important studies on modeling, control, and investigation of supply chains are presented.

Up to now, many scholars have attempted to model supply chain networks (see Table 1). Additionally, in the literature, there are some useful studies that assess and propose simulation (dynamic) models of supply chains. For instance, the specialized program anyLogistix, built based on a simulation model, does an excellent job of modeling supply chains of varying complexity (see [68,69,70]). Among the models presented for supply chain networks, the nonlinear model proposed by Anne et al. [58] has attracted a lot of attention. That model considers a nonlinear supply chain model that takes into account safety stock, information distortion, and retailer order fulfillment. Nonetheless, there is still room for modeling and investigation of these systems. For instance, since long memory of systems is important in supply chain systems, the application of fractional calculus can bring about luminous results for these systems. In comparison with integer-order derivatives, fractional ones have benefits in describing the long memory of systems.

Motivated by the issues and possible directions in Table 1, in the current study we investigate a fractional-order model. The effects of various parameters, including fractional derivatives, are studied on the nonlinear dynamics of the system. To realize the chaotic behavior of the system, a real-time analog circuit is designed and implemented.

Last but not least, from a management point of view, we want to design control strategies or manage supply chains as efficiently as possible, even if we have limited data from these systems. In this condition, rare data cannot work well for management purposes, and this is an obstacle in the management of these systems. In the last part of the current study, we want to propose a method to tackle this issue. One interesting way provided in the literature for other systems (no supply chains) is to use surrogate modeling approaches. Using surrogate methods, we can predict the behavior of the system even in unseen conditions. There are many surrogate models in the literature, and each has its advantages and disadvantages. Among all surrogate models, GP is known as one of the best methods when data are rare, which is the case in some supply chains. Motivated by this, the current study as a pioneer uses GP for surrogate modeling of fractional order supply chain systems.

3. Fractional-Order Three-Echelon Supply Chain

Inspired by [58], we investigate a fractional-order supply chain system as follows

$$\begin{array}{c}{}_0{}^{C}D_t^q{x}_1=m x_2-\left(n+1\right)x_1+d_1\\ {}_0{}^{C}D_t^q{x}_2=r x_1-x_2-x_1{x}_3+d_2\\ {}_0{}^{C}D_t^q{x}_3=x_1 x_2+\left(k-1\right)x_3+d_3\end{array}$$

(1)

where $q_i$ $\left(i=1,2,3\right)$ denotes fractional derivative. The parameters of the model are listed in

Table 2. Parameters of the systems as well their definition and value.

Parameter	Definition	Value
${\mathit{q}}_{\mathit{i}}$	Fractional derivative	0.97
$\mathit{m}$	Rate of customer demand satisfaction at retailer.	13
$\mathit{n}$	Distributors’ inventory levels	10
$\mathit{r}$	Rate of product information distortion requested by retailers	42
$\mathit{k}$	Manufacturer’s safety stock coefficient	−1

.

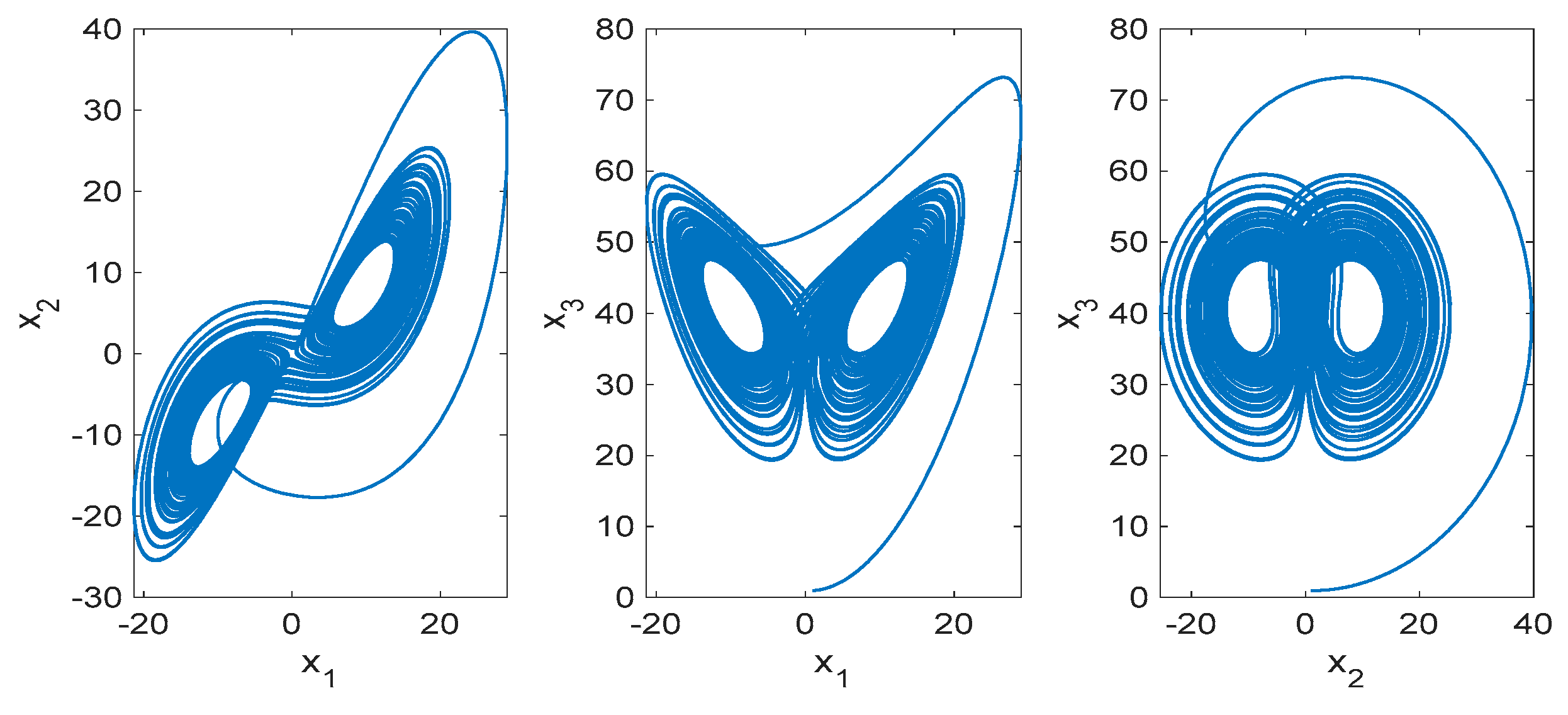

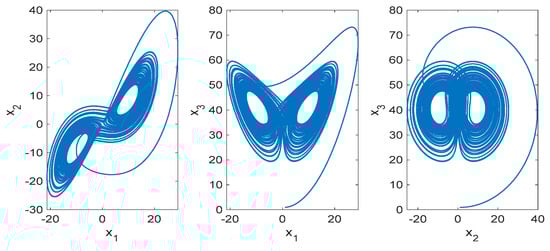

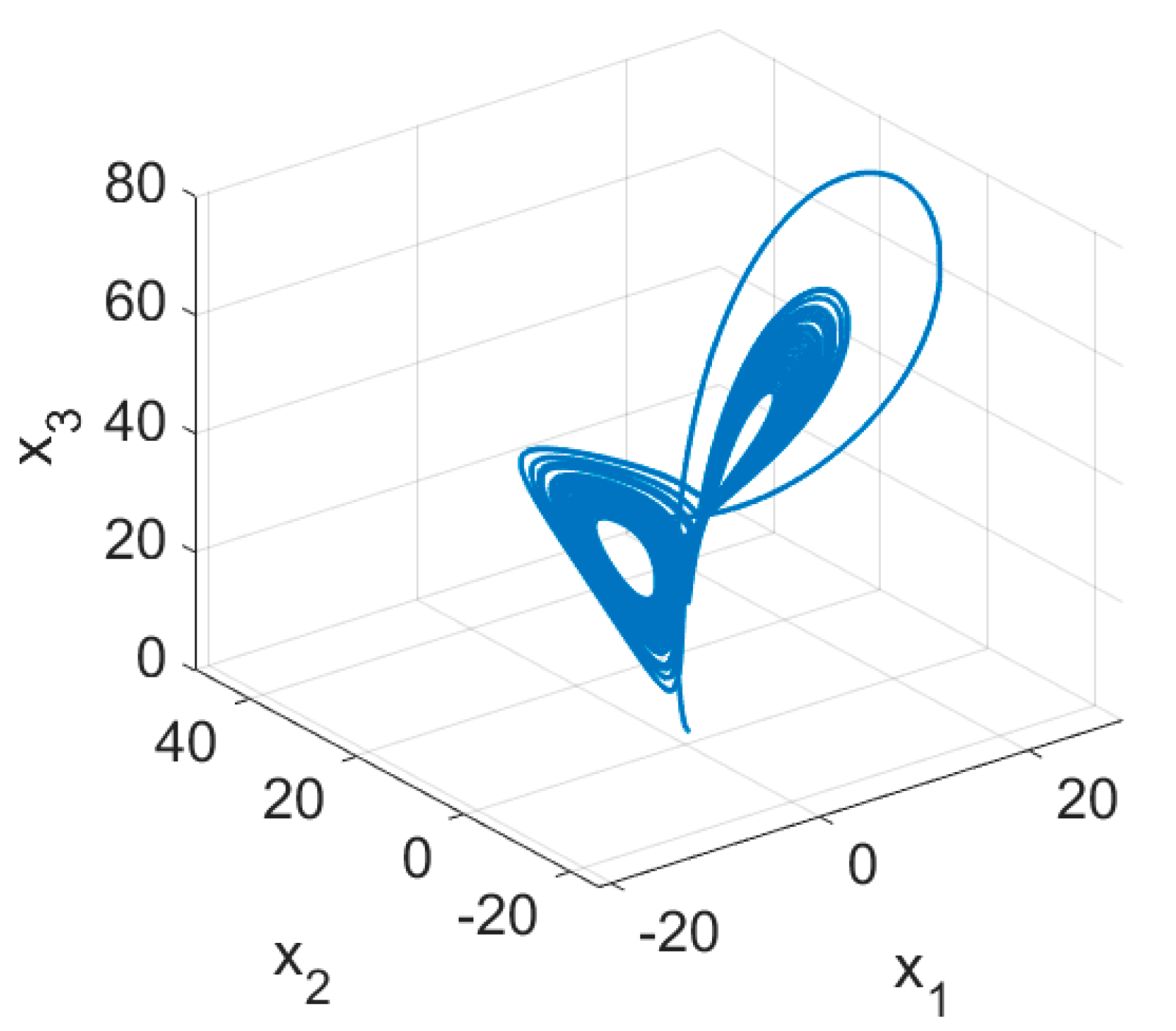

Figure 1 and Figure 2 show the chaotic attractors of the proposed system. In the current study, MATLAB 2021b has been used for numerical simulation. The initial conditions are considered as $\left(x_1\left(0\right), x_2\left(0\right), x_3\left(0\right)\right)=\left(1, 1, 1\right)$. As demonstrated in these figures, the proposed system acts chaotically in this condition.

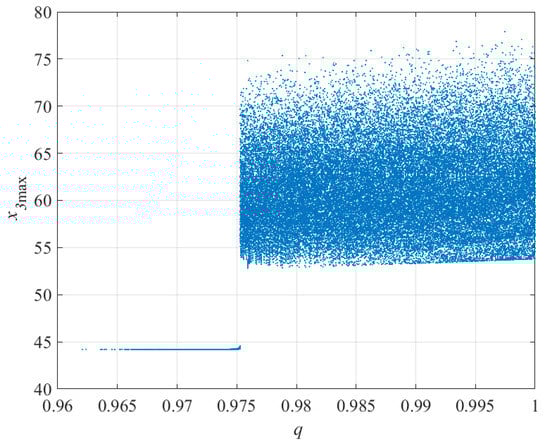

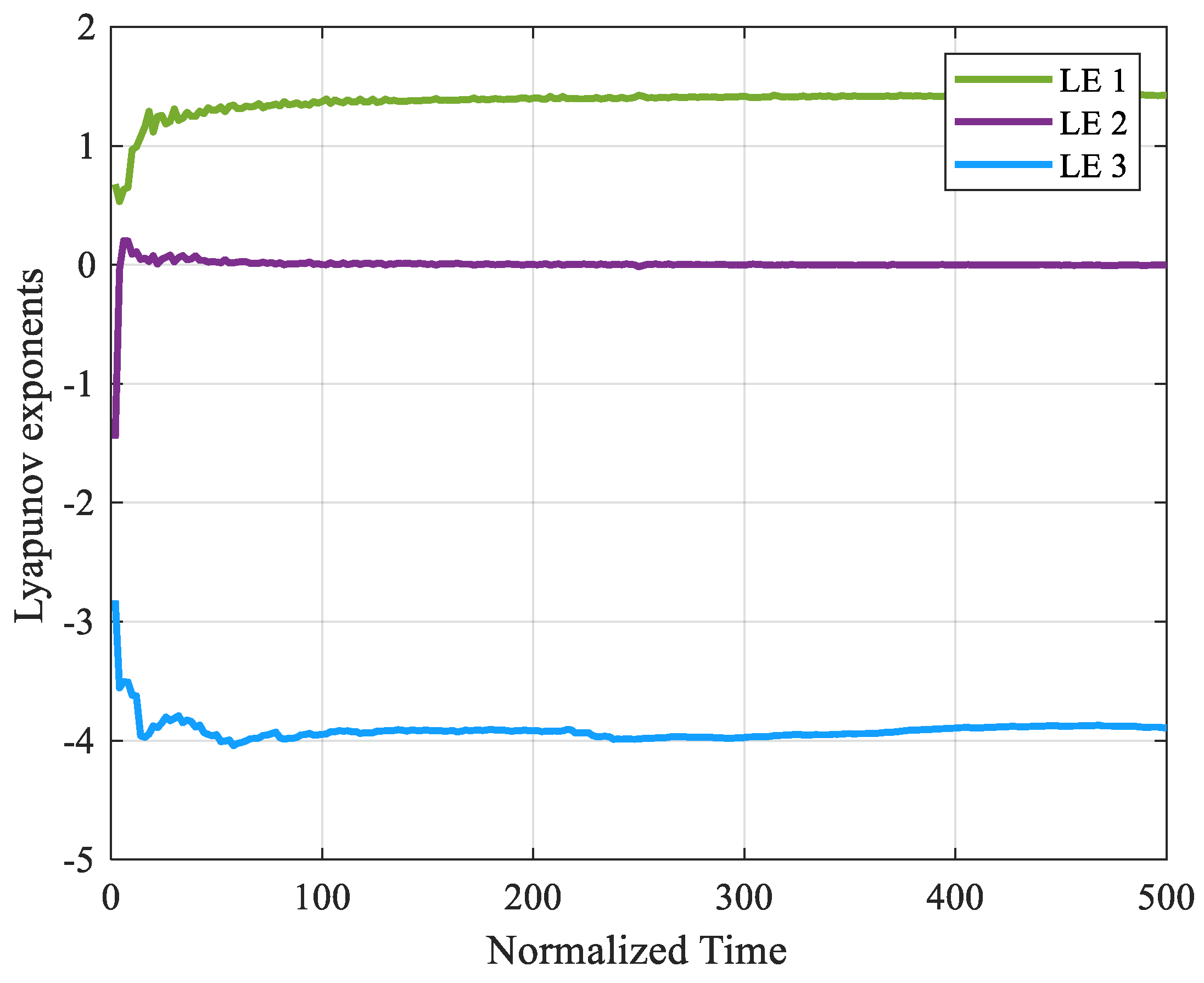

Lyapunov exponents and bifurcation diagrams are used to better understand the impact of variable-order derivatives and various parameters on the behavior of the system. The Lyapunov exponents of the system are shown in Figure 3, indicating that the system is chaotic. In addition, the effects of the variable derivative on the behavior of the system are seen in Figure 3. The system enters chaos for $\alpha >0.971$, according to the bifurcation diagram in Figure 4.

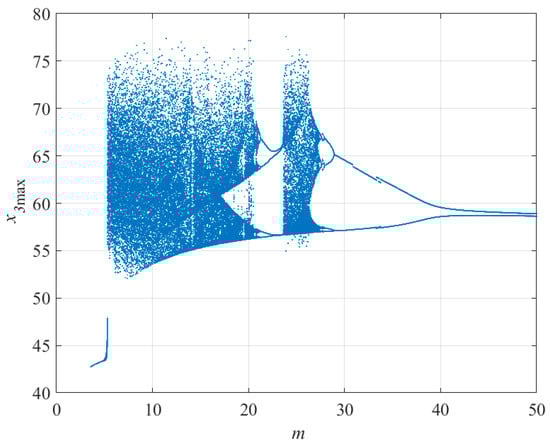

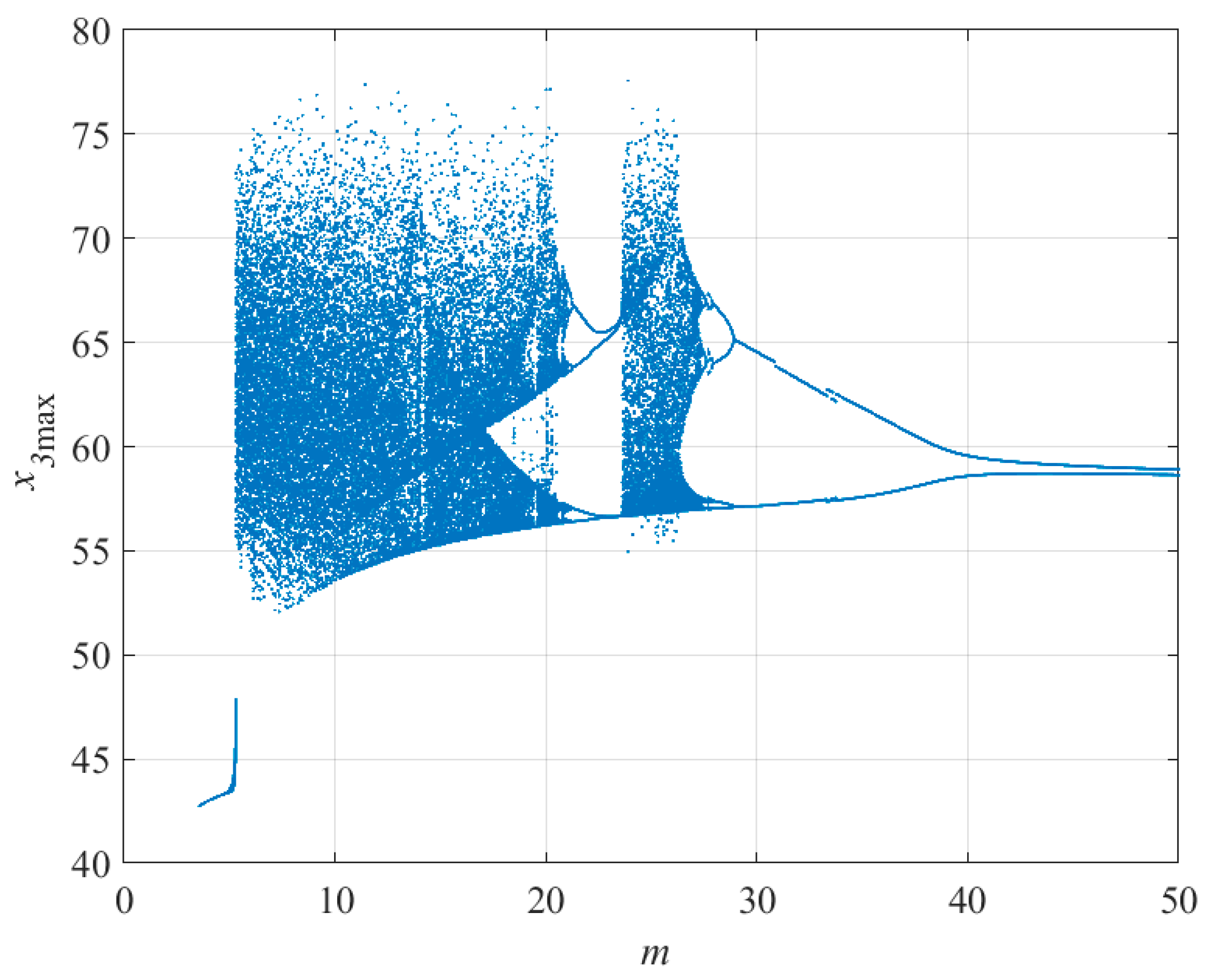

Figure 5 shows the bifurcation diagram by changing the value of parameter m. As illustrated, when m ∈ [5.42, 21.15]∪[23.12, 27.77], the system acts chaotically. As shown in the bifurcation diagram, parameter m considerably affects the behavior of the system.

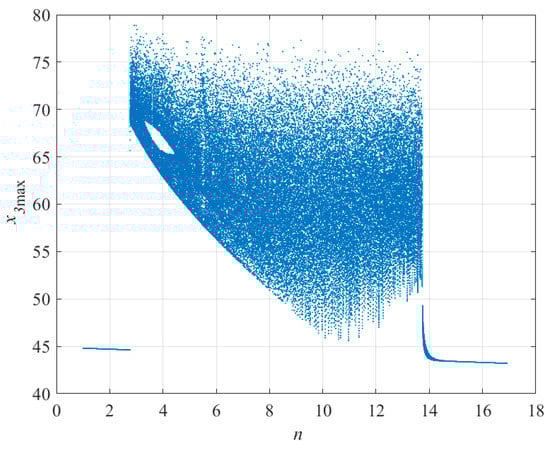

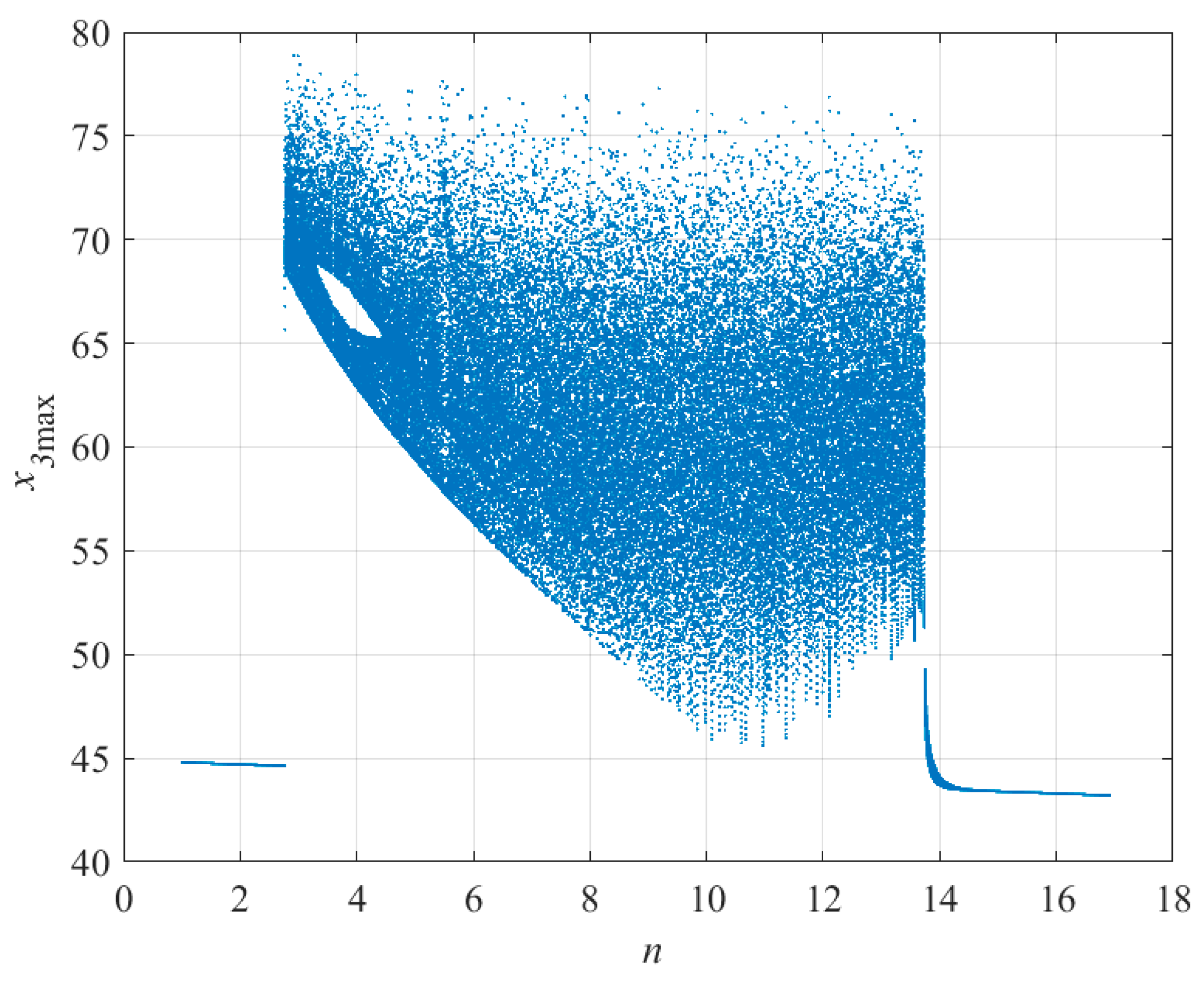

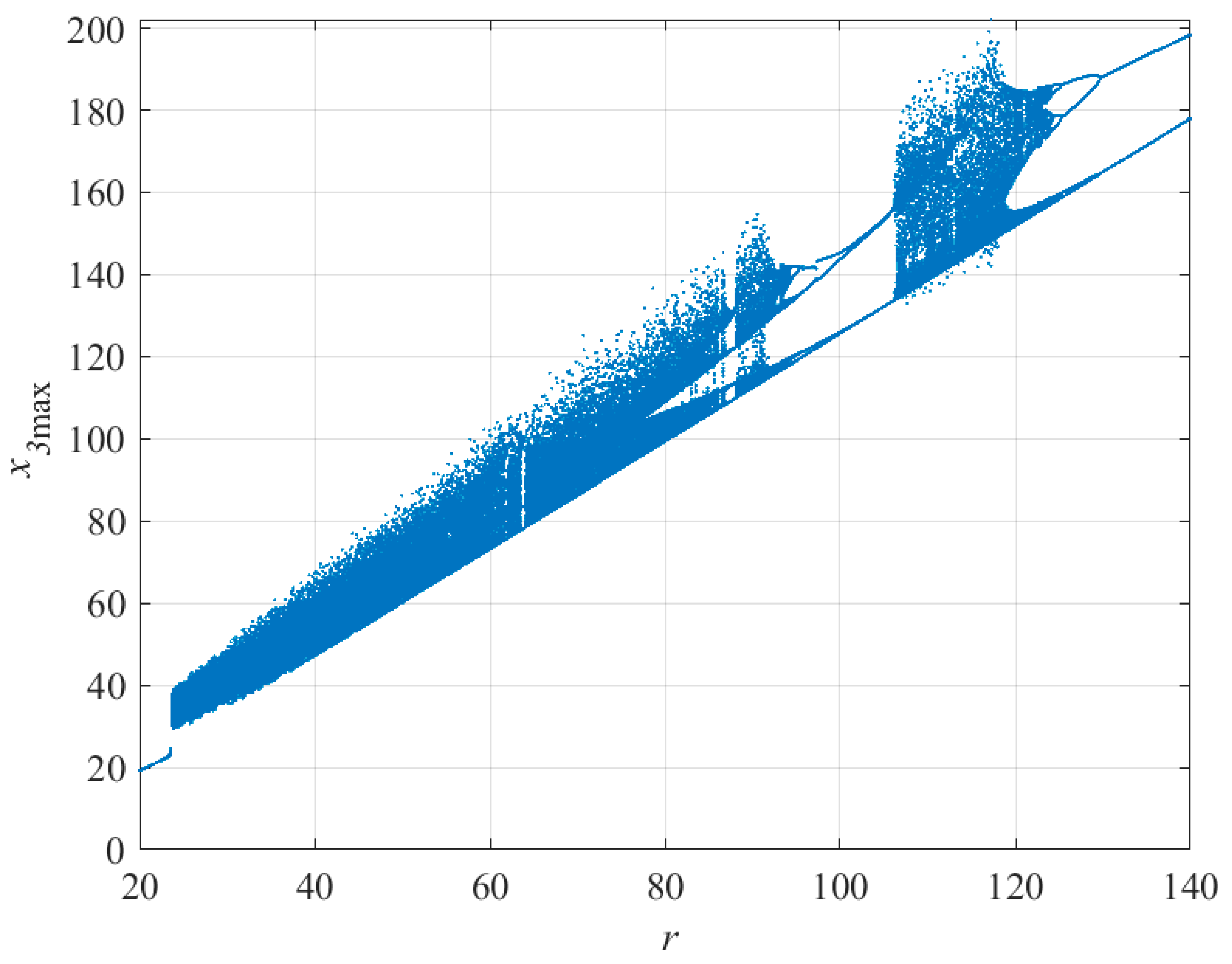

To investigate the effects of all parameters on the behavior of the system, we have continued extracting different bifurcation diagrams. Figure 6 illustrates the bifurcation diagram by changing the value of parameter n. As demonstrated, when the value of n is between 2.81 and 13.87, the system acts chaotically. The bifurcation relating to parameter r is displayed in Figure 7. As shown in this figure, in this situation the system exhibits antimonotonicity phenomenon for r ∈ [24.20, 93.14]∪[107.27, 123.292], which means that the chaotic and periodic orbits are created and annihilated.

Remark 1.

There is no ground truth to be compared with both integer and fractional models, but when we use the fractional-order model without any doubt, it will act better, since this model has one more degree of freedom in comparison with the integer one. Additionally, in the fractional-order model, when the fractional-order derivative approaches1, it acts like the integer one. Therefore, in summary, the fractional-order model has more degrees of freedom and is better than the integer one, and in some cases, the integer one can provide the same results as the fractional-order model.

4. Electrical Circuit

Here, we dealt with the realization of the fractional integrator of the chain system $\left(q_1,q_2,q_3\right)=\left(0.97, 0.97, 0.97\right).$ In [71], Ahmat et al. designed the Bode plot approximation chart in the frequency domain with maximum error of 2 and 3 dB. Following this approach, we realized the approximation transfer function of $\frac{1}{s^{0.97}}$ at 1 dB approximation error in the frequency domain. According to Reference [72], we can obtain:

$$\frac{1}{s^{0.97}}\approx \frac{1.2974s+1459.13}{s^2+1422.5s+16}$$

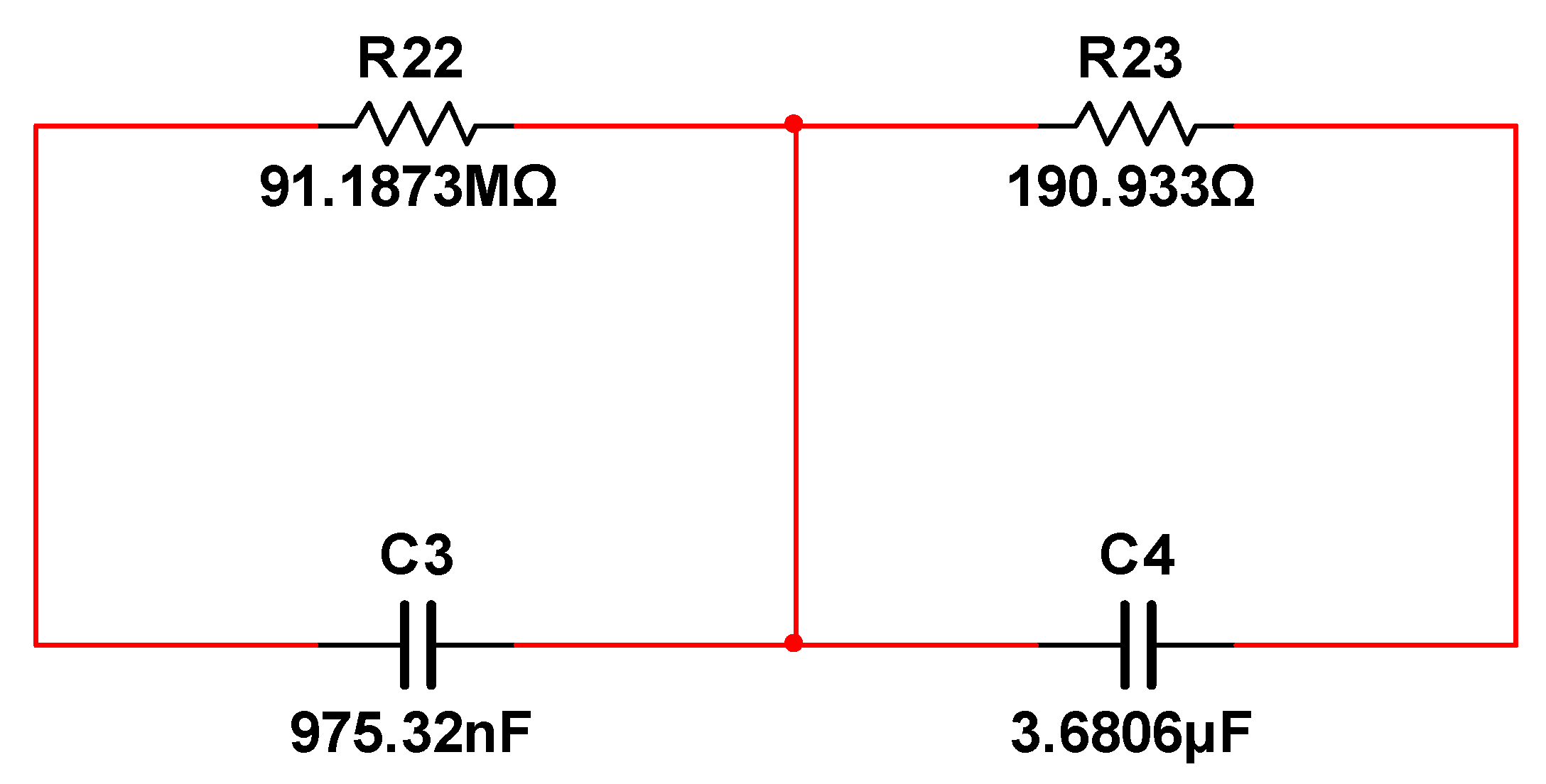

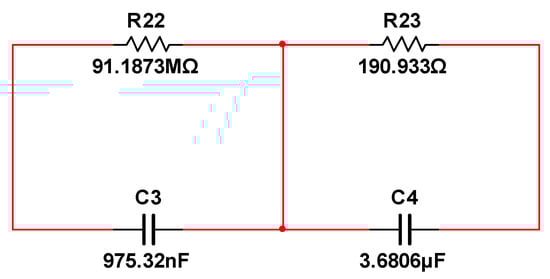

A circuit design where resistors and capacitors are connected in parallel was proposed in Reference [73] to realize fractional calculus. When $q=0.97$, the fractional-order chain circuit unit is as shown in Figure 8.

By using Electronics Workbench’s MultiSIM Software, we selected LF353D as the amplifier and AD633JN as the multiplier to design the fractional-order circuits. In order to restrict the change in state variables to the operating voltage of the analog circuit, the state variables are reduced by 20 times, i.e., $\left(x1, x2, x3\right) \to \left(20X1, 20X2, 20X3\right)$. As a result, the new chain system can be rewritten as:

$$\begin{array}{c}\frac{d^{q}X1}{dt}=13X2-11X1\\ \frac{d^{q}X2}{dt}=42X1-X2-20X3\\ \frac{d^{q}X3}{dt}=20X1X2-2X3\end{array}$$

(2)

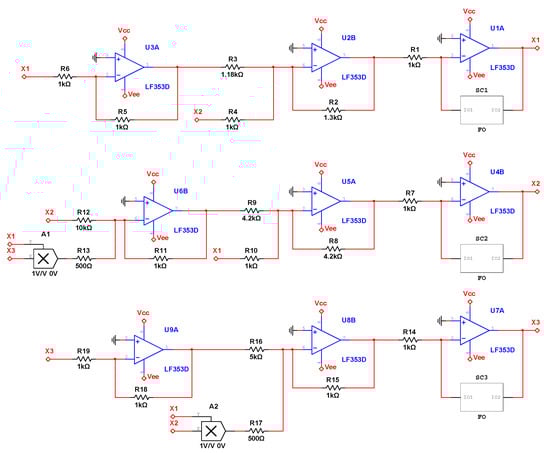

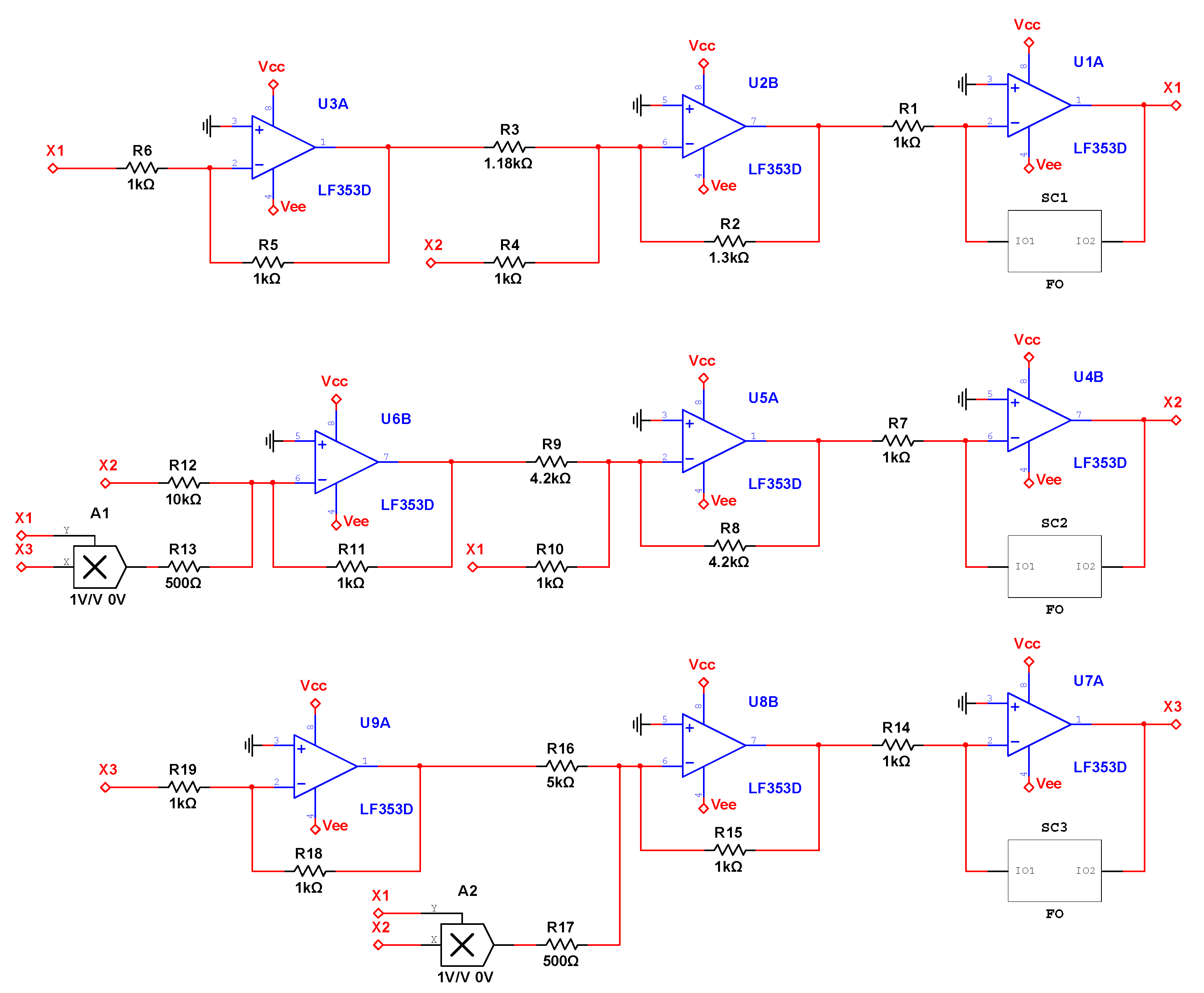

The schematic circuit of the fractional-order chain system is demonstrated by Figure 9.

The circuit equation is as follows:

$$\begin{array}{c}\frac{d^{q}X1}{dt}=\frac{R_2}{R_1{R}_4}X2-\frac{R_2{R}_5}{R_1{R}_3{R}_6}X1\\ \frac{d^{q}X2}{dt}=\frac{R_8}{R_7{R}_{10}}X1-\frac{R_8{R}_{11}}{R_7{R}_9{R}_{12}}X2-\frac{R_8{R}_{11}}{R_7{R}_9{R}_{13}}X1X3\\ \frac{d^{q}X3}{dt}=\frac{R_{15}}{R_{14}{R}_{17}}X1X2-\frac{R_{15}{R}_{18}}{R_{14}{R}_{16}{R}_{19}}X3\end{array}$$

(3)

The input supplies are: V_cc = +9 V, and V_ee = −9 V. The values of the electronic components in Figure 4 are chosen to match the known parameters of the system:

R₁ = R₄ = R₅ = R₆ = R₇ = R₁₀ = R₁₁ = R₁₃ = R₁₄ = R₁₅ = R₁₇ = R₁₈ = R₁₉ = 1 kΩ, R₂ = 1.3 kΩ, R₃ = 1.18 kΩ, R₈ = R₉ = 4.2 kΩ, R₁₂ = 10 kΩ, R₁₆ = 5 kΩ.

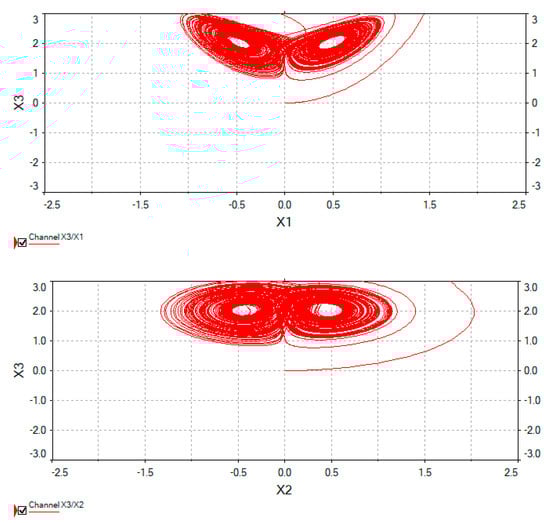

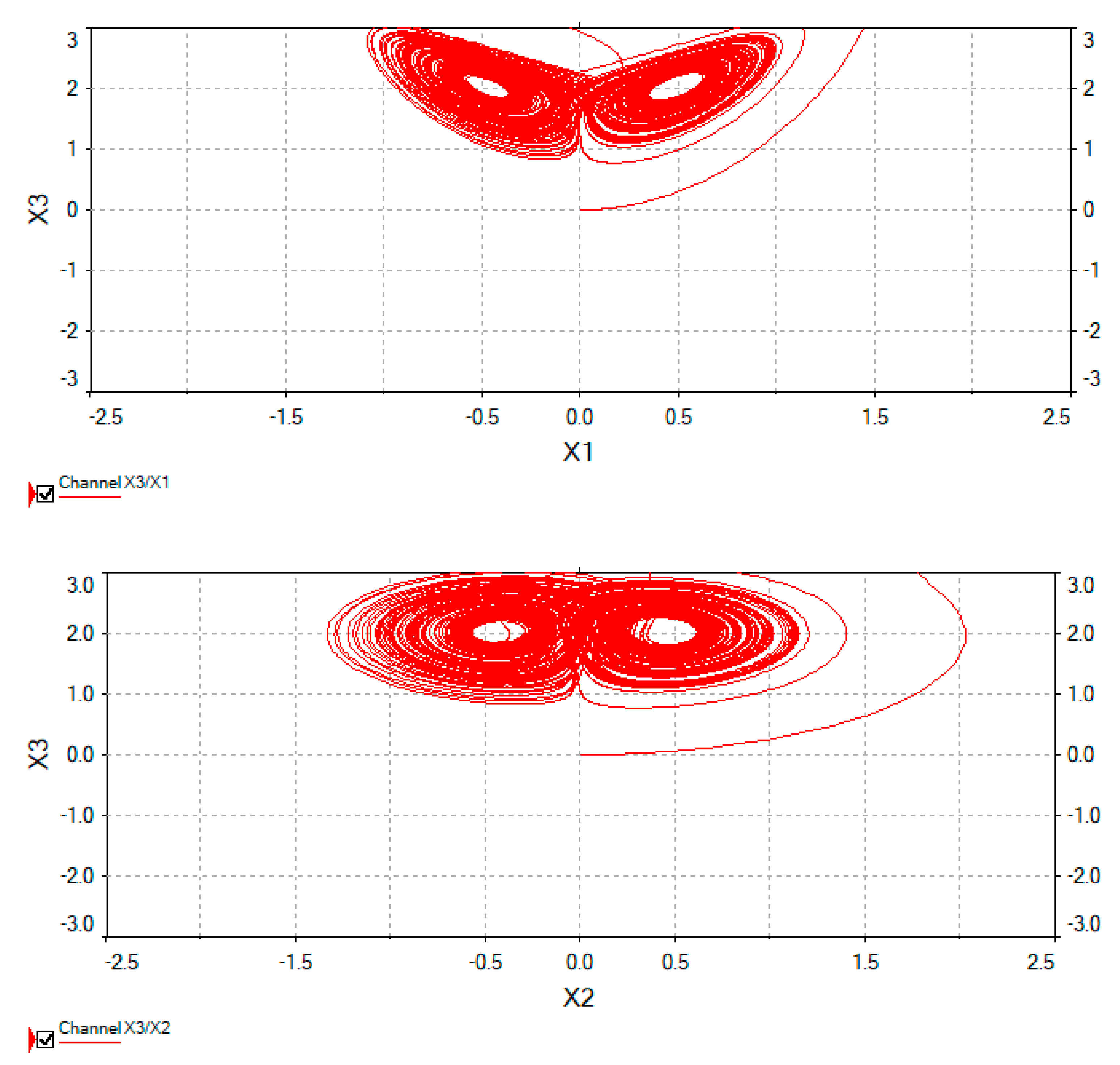

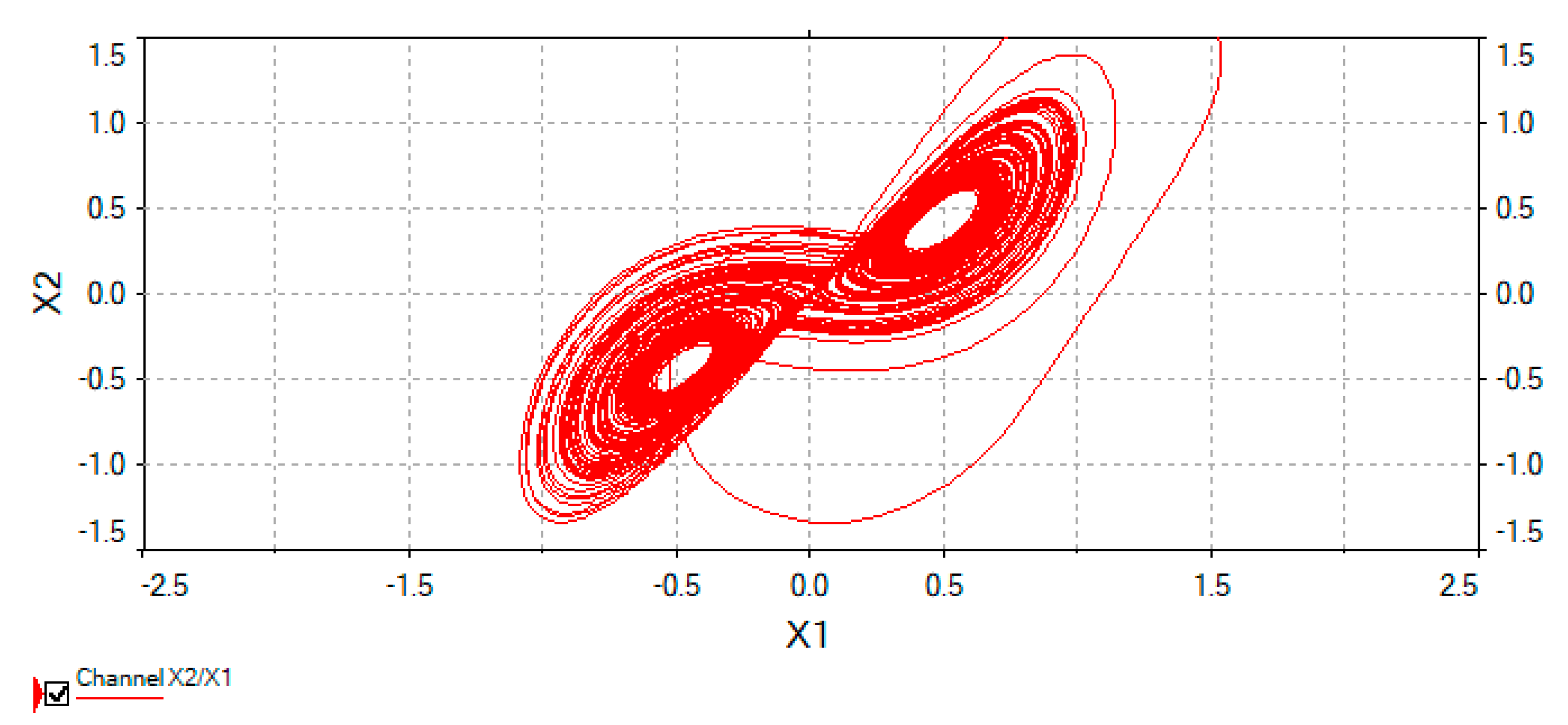

The proposed circuit is drawn using Electronic Work Bench (EWB). Figure 10 shows the obtained phase portraits in (X1, X2)-plane, (X1, X3)-plane, and (X2, X3)-plane, respectively.

5. GP for Regression and Emulation

Mathematical models have been extensively used in science and technology fields to visualize complex dynamic processes. However, accurate models are frequently so complex that they necessitate a considerable amount of computing time or other resources to function. Therefore, emulators have recently attracted a lot of attention. Emulators are known as techniques that focus on creating a mathematical description of the systems and processes. Emulators generally try to use available data, either noisy or not, to provide metamodels for processes. GP is among the most widely used methods for developing emulators [74,75,76]. We use GP to create an emulator for the three-echelon supply chain system in the current study. In fact, the aim is to create a metamodel based on GP and available noisy data.

Consider the following input–output relationship as a single realization of the random process:

$$\eta \left(z\right)={\displaystyle \sum }_{i=1}^h{\beta }_i{f}_i\left(z\right)+\xi \left(z\right)$$

(4)

where the inputs in the training data are denoted by $z={\left[z_1, z_2, \dots , z_d\right]}^T$. The predetermined set of basis functions is presented by $f\left(z\right)=\left[f_1\left(z\right), \dots , f_m\left(z\right)\right]$. Additionally, $\beta ={\left[{\beta }_1, \dots , {\beta }_h\right]}^T$ indicate unknown coefficients of these bases. ξ(x) indicates a zero-mean GP, with the following parametric covariance function:

$$cov\left(\xi \left(z\right), \xi \left(z^{\prime }\right)\right)=c\left(z, z^{\prime }\right)={\sigma }^{2}r\left(z, z^{\prime }\right)$$

(5)

where ${\sigma }^2$ stands for the process variance, and $r(\cdot )$ is the correlation function. The Gaussian correlation function, which is given by the following formula, is the most widely utilized correlation function.

$$r\left(z, z^{\prime }\right)=\exp \{-{\left(z-z^{\prime }\right)}^T\mathsf{\Omega }\left(z-z^{\prime }\right)\}$$

(6)

in which ${\sigma }^2$ and $\omega$ are hyperparameters and to be estimated based on the available data. Additionally, $\mathsf{\Omega }=diag\left(10\omega \right)$ and $\omega ={\left[\omega \left(1\right), \omega \left(2\right), \dots , \omega \left(d \right)\right]}^T,-\infty <\omega \left(i\right)<\infty$ are the scale parameters.

To determine hyperparameters $\beta , \omega ,$ and ${\sigma }^2$, we can apply maximum likelihood estimation (MLE) or cross-validation (CV). Additionally, Bayes’ rule can be applied to find the posterior distributions in the cases where there is prior knowledge about the value of hyperparameters. Herein, we consider a constant process means (i.e., $h_i=1$) and employ MLE to determine hyperparameters [77,78,79].

MLE necessitates the maximization of the multivariate Gaussian likelihood function, which is given by

$$[\widehat{\beta },{\widehat{\sigma }}^2,\widehat{\omega }]=\underset{\beta ,{\sigma }^2,\omega }{\mathrm{argmin}}\left(\frac{n}{2}\log \left({\sigma }^2\right)+\frac{1}{2}\log \left(\left|R\right|\right)+\frac{1}{2{\sigma }^2}{\left(y-1\beta \right)}^T{R}^{-1}\left(y-1\beta \right)\right)$$

(7)

where $\log (.)$ represents the natural logarithm, R indicates the $n\times n$ correlation matrix, and each element of it is given by $r\left(z_i, z_j\right)$ where $i, j=1, \dots , n$. Additionally, 1 represents an $n\times 1$ vector of ones. By putting the partial derivatives with respect to $\beta$ and ${\sigma }^2$ equal to zero, we reach

$$\begin{array}{c}\widehat{\beta }={\left[1^T{R}^{-1}1\right]}^{-1}{1}^T{R}^{-1}y\\ {\widehat{\sigma }}^2=\frac{1}{n}({\left(y-1\widehat{\beta }\right)}^T{R}^{-1}(y-1\widehat{\beta }))\end{array}$$

(8)

Simply replacing these obtained values into Equation (7) and removing the constants results in:

$$\begin{array}{c}L=(n\log ({\widehat{\sigma }}^2)+\log \left(\left|R\right|\right)),\\ \widehat{\omega }=\underset{\omega }{\mathrm{argmin}}(n\log ({\widehat{\sigma }}^2)+\log \left(\left|R\right|\right))=\underset{\omega }{\mathrm{argmin}}\left(L\right)\end{array}$$

(9)

and by numerically minimizing the above equation, one may determine $\widehat{\omega }$. To minimize $L$, several global optimization methodologies have been used [80,81,82]. However, among all of them, gradient-based optimization approaches are most common because of their ease of use and improved computational efficiency [83,84]. To achieve global optimality, the optimization is performed numerous times with different beginning guesses.

After calculating hyperparameters, we will finally be able to obtain the mean and variance of the prediction probability distribution at any $x^{*}$ through the following formula:

$$E\left({\widehat{y}}^{*}\right)=f\left(z^{*}\right)\widehat{\beta }+g^T\left(z^{*}\right)V^{-1}\left(y-F\widehat{\beta }\right),$$

(10)

$$\begin{array}{c}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em} \mathrm{cov}\left({\widehat{y}}^{*}, y^{\prime }\right)=c\left(z^{*}, z^{\prime }\right)-g^T\left(z^{*}\right)V^{-1}g\left(z^{\prime }\right)\\ \hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}+h{\left(z^{*}\right)}^T{\left(F^T{V}^{-1}F\right)}^{-1}h\left(z^{\prime }\right)\\ h\left(z^{*}\right)=\left(f\left(z^{*}\right)-F^T{V}^{-1}g\left(z^{*}\right)\right)\end{array}$$

(11)

In which $y={\left[y\left(z_1\right), \dots , y\left(z_n\right)\right]}^T$ indicates the $n\times 1$ vector of outputs in the training data and $g\left(z^{*}\right)$ is an $n\times 1$ vector with i-th element $c\left(z_i, z^{*}\right)={\widehat{\sigma }}^{2}r\left(z_i, z^{*}\right).$ Additionally, $f\left(z^{*}\right)=\left[f_1\left(z^{*}\right), \dots , f_h\left(z^{*}\right)\right],$ and $V$ is the covariance matrix at which its $\left(i, j\right)$ th element is given by ${\widehat{\sigma }}^{2}r\left(z_i, z_j\right)$. F is the $n\times m$ matrix with $\left(k, l\right) \mathrm{th}$ element $F_{kl}=f_l\left(x_k\right)$ for $k=1, \dots , n$ and $l=1, \dots , m$.

Numerical Results of Emulation and Regression

Herein, we apply the presented GP in order to estimate and interpolate the chaotic fractional three-echelon supply chain system. In fact, we suppose there are only some noisy data due to limitations, thus for management purposes, finding the noiseless states in each time step is essential.

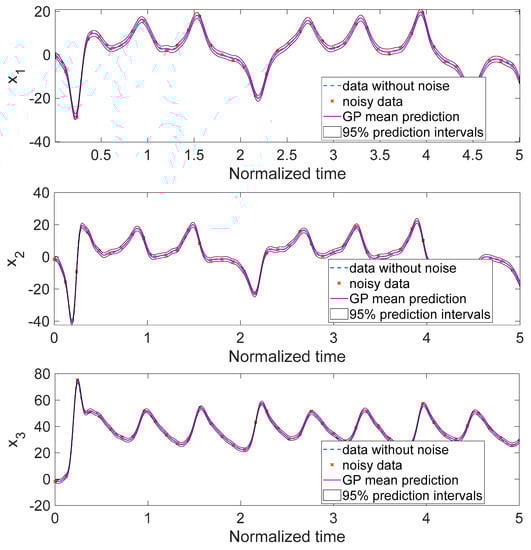

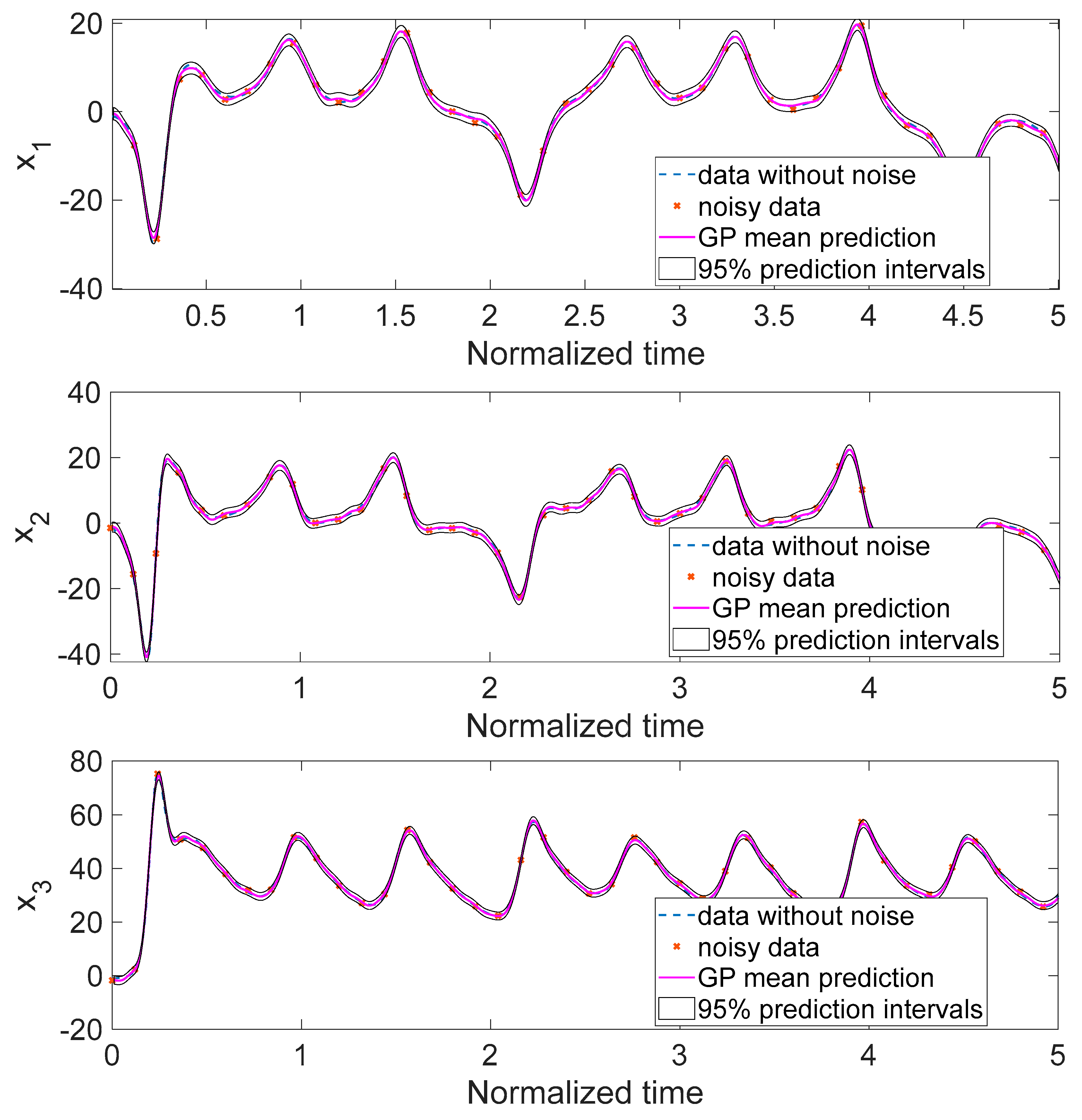

Figure 11 demonstrates the results of the GP. As depicted by this figure, the findings closely match the real value of the fractional-order chaotic system. To summarize, the GP plays two key roles: (1) removing noises that are generated during the process and while data are collected; (2) interpolating data, which provides a noiseless time series of the results based on the noisy available data for all passed time units.

6. Conclusions

In the current research, dynamical behaviors, chaos realization, as well as emulation and regression of a fractional three-echelon supply chain, were studied. At first, through Lyapunov exponent and bifurcation diagrams, the presence of chaos within the system was verified, and was is demonstrated that a slight deferent in some system parameters can considerably change the behavior of the system. Then, a real-time analog circuit was designed, and the chaotic attractors of the system were empirically demonstrated. Lastly, due to the advantages of metamodeling, GP, which is a strong candidate for metamodeling and emulation when data are rare, is employed for regression and interpolation of the three-echelon supply chain system. The results of the GP emulation clearly confirm that, by utilizing GP, we can extract accurate information about unknown points of the system’s time series, which is an important concern in supply chains. Another advantage of GP is the uncertainty bound that it provides (see the prediction interval in Figure 11). GP provides the bound of uncertainty for the points that have been estimated, which can be considered as a level for accuracy for management applications. Consequently, the output of the GP emulator can be used as a reliable source for management and control purposes, which are considered as a direction of future study by the authors.
