Algorithm for the Reconstruction of Mathematical Frame Models of Bacterial Transcription Regulation

Abstract

Transcription regulation plays an important role in bacterial activity. The operon concept coined by François Jacob and Jacques Monod has had a considerable effect on investigations into gene expression regulation, including modeling. However, most such studies have considered the regulation models devised manually for one or several operons. For that reason, the objective of the present study was automated genome model reconstruction for different bacteria. The suggested algorithm accounted for all possible interactions of transcription factors and their binding sites in an operon’s promoter region. Transcription factor enumeration was performed using the deep-first search technique. The obtained models are of interest for those involved in the research of transcription factor regulatory effects on bacterial gene expression in microbiology and biotechnology.

1. Introduction

The mathematical modeling of gene expression regulation (transcription and translation) has been greatly affected by the operon concept coined by François Jacob and Jacques Monod, who considered it to be a technique of organizing the transcribed genes united within one or several promoters (DNA region to launch RNA synthesis) [1]. Mathematical studies from researchers investigating the regulation effect on gene expression started to appear just a few years after the concept had been published [2,3,4].

Most such models describe the behavior of the most well-studied lactose and tryptophan operons of Escherichia coli [5,6]. Currently, models are built using standard differential [7,8,9] and delay differential equations [10,11,12,13], Hill’s equations [12,14], and their generalized version [15,16,17], stochastic equations [18,19], Boolean network models [20], etc. Such models can describe the interaction of a transcription factor (TF) and a promoter of a certain operon [21,22], TF binding/separation rates in relation to a number of them interacting [23], promoter activity [24,25], impact of transcriptional read-through on gene expression [26], etc.

However, most of the mentioned models have been built manually for one or several operons of certain model organisms. In this paper, we suggest an approach to the automated generation of genome-scale mathematical frame models of bacterial transcription regulation. Such models are not without interest, because they enable investigation of TF effects on bacterial gene expression.

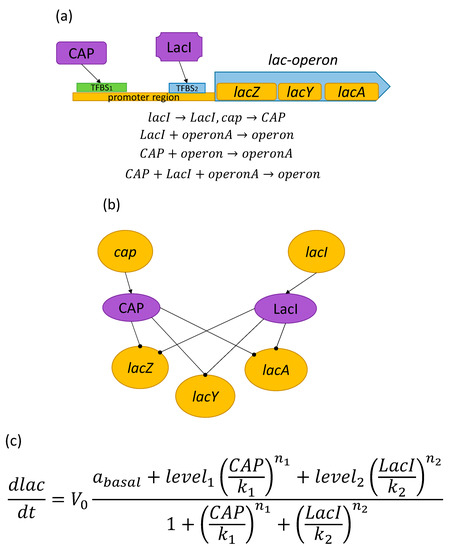

For the sake of demonstration, we applied the suggested approach to the well-known lactose operon and observed how the biological information is converted into mathematical information (Figure 1). The lactose operon has been chosen for being the first discovered and the most-studied of their kind. The figure demonstrates how cistrons (coding proteins of DNA sequences) are transcribed by mRNA followed by proteins (different kinds of lactose).

In our approach, transcription regulation was described by Hill’s generalized functions [27], whereas the general models were represented through standard differential equations. The basis of the model was the transcription regulation network (TRN) of a considered bacterium. The TRN is a combination of all the inter-related elements such as TFs, target genes, and the regulatory interactions between them [28,29]. In their graphical representation, the target genes were nodes and the regulatory interactions were non-weighted edges directed either from a TF to a gene (in case of regulation) or from a gene to a TF (in the case of synthesis). The networks were reconstructed based on available information about the structures of operons and their regulators.

This paper presents an algorithm for the reconstruction of mathematical frame models and its software implementation named Operon_Equation.

2. Materials and Methods

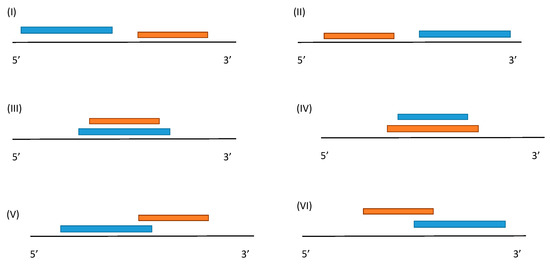

First, we considered a TF-assisted transcription regulation process. In such a case, one TF may correspond to several binding cites in several promoters, or one promoter may have several binding sites (TFBSs), i.e., the synthesis can be regulated by either one or several TFs. Commonly, promoters are relatively short; thus, the binding sites sometimes overlap, and sometimes they do not (Figure 2). In the first case, the TFs, which bind to their sites, will not be able to bind simultaneously, and will have to compete for the site.

For that reason, the modeling should account for all possible regulation scenarios and consider both the number of TFs and whether they bind free or competed binding sites.

Our solution utilized the deep-first search (DFS) [30] technique for the enumeration of TFs and their possible binding combinations. We organized the enumeration in such a way that the subtree can be traversed as far as possible. Figure 3 demonstrates trees for a case of three TFs for a single operon. First, the branch with the first TF is traversed, and then the same procedure is implemented for the second TF (except for the variants that were accounted for in the first branch involving the first TF), and so on. Figure 3a shows the complete tree for the three TFs, whereas in Figure 3b there are not two vertices, because the sites of the second and third TFs overlap. The number of enumeration variations for every operon depends on possible TFBS positions. During enumeration, the TFBS position relative to a transcription start site is neglected; in other words, it is not important from what TF enumeration begins: the results will be the same.

For the mathematical models in question, Hill’s generalized functions were selected [27] because they enable minimization of the description complexity of modeled processes in an absence of detailed knowledge of their development. We used them to describe interactions between TFs, which combinatorially regulate synthesis from operons. This type of function enables us to take parameters into account, such as the effect of a particular TF, a group of TFs, or to consider the activity of a TF, without further complicating the construction of the mathematical formula.

Hill’s generalized functions are a kind of rational non-negative function which can generally be expressed as:

$$h\left(x|x \in X\right)=\frac{{{\displaystyle \sum }}_{\alpha }{\delta }_{\alpha }{{\displaystyle \prod }}_{x\in X_{\alpha }}{\left(x/k_{\alpha }\right)}^{n_{\alpha ,x}}}{1+{{\displaystyle \sum }}_{\alpha }{{\displaystyle \prod }}_{x\in X_{\alpha }}{\left(x/k_{\alpha }\right)}^{n_{\alpha ,x}}},$$

(1)

where $k_{\alpha }$ is an efficiency coefficient that determines the generalized efficiency of the $x\in X_{\alpha }$ factor group on a given process; $n_{\alpha ,x}$ is Hill’s coefficient describing the nonlinearity degree of the effect of $x$ on a process; and ${\delta }_{\alpha }$ is an activity coefficient that determines a type of the effect of $x$ on a process. All the parameters in the equation are non-negative. Parameter $k_{\alpha }$ is dimensional, its dimensionality is consistent with $x$, and parameters $n_{\alpha ,x}$ and ${\delta }_{\alpha }$ are dimensionless values.

In 2.2 of [31], a formal description of the fractional functions of various regulators is presented in more detail, including the TF.

3. Results

3.1. Algorithm Description

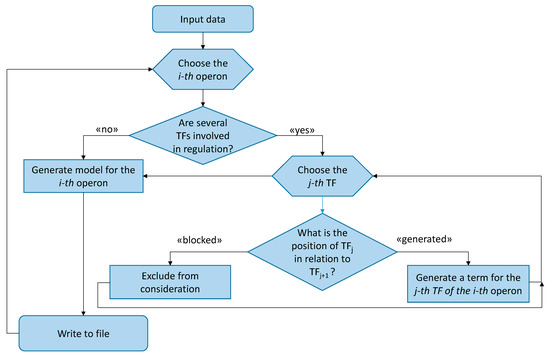

The idea behind the suggested algorithm is to account for all possible TF/binding site interactions in an operon’s promotor region and to automate this procedure for every operon in a genome In general, the algorithm is executed as follows such is presented on the Figure 4:

For the purposes of discussion, the algorithm can be subdivided into the following steps:

• Select an operon;
• Set the $a_{basal}$ and $V_0$ parameters;
• Define the number of TFs. If it is one, generate a model; otherwise continue with step 4;
• At TF ≥ 2, check if the binding sites intercross. If they do, neglect this option; otherwise, a summand is generated;
• Repeat step 4 for every TF defined;
• Generate the general formula;
• Return to step 1.

The number of TFs is directly determined from the transcriptional regulatory network, which is fed into the input in text format. An example of such a file can be seen in Supplementary File S1. Depending on how much of the bacterium in question has been studied, different numbers may be known.

The general formula is generated as follows. First, for each TF, we generate a summand for the numerator and then for the denominator, i.e., we expand the fraction:

$$\mathrm{Total} \mathrm{equation}=V_0\frac{a_{basal}+nu{m}_1\left(T{F}_1\right)+nu{m}_{12}\left(T{F}_1,T{F}_2\right)+\dots }{1+denu{m}_1\left(T{F}_1\right)+denu{m}_{12}\left(T{F}_1,T{F}_2\right)+\dots },$$

(2)

where $nu{m}_1\left(T{F}_1\right)$ and $denu{m}_1\left(T{F}_1\right)$ are summands of the numerator and denominator, respectively. These summands are consistently generated for the $T{F}_1$ during one iteration of the algorithm. On the next iteration, the algorithm generates $nu{m}_{12}\left(T{F}_1,T{F}_2\right)$ then $denu{m}_{12}\left(T{F}_1,T{F}_2\right)$ for interactions $T{F}_1$ and $T{F}_2$, and so on.

3.2. Approbation

To demonstrate how the algorithm is executed, consider the operon of fabA E. coli taken from RegulonDB (https://regulondb.ccg.unam.mx/index.jsp (accessed on 7 October 2022)). The operon’s description is given in

Table 1. Transcription regulation of the fabA E. coli operon from RegulonDB where TFBSs mark the absolute positions of binding sites in a genome.

Operon	TF	Function	TFBS
fabA	FabR	Repressor	1,016,509	1,016,526
fabA	FadR	Activator	1,016,528	1,016,544

. It has two TFs (FabR and FadR) whose sites do not intercross.

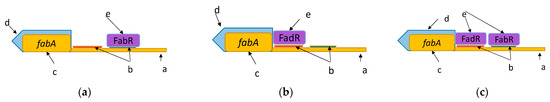

Theoretically, there are three binding options for this operon: FabR binds with a site (Figure 5a); FadR binds with a site (Figure 5b); or they bind simultaneously (Figure 5c).

At the first step, the $a_{basal}$ parameter determining the level of the operon’s constitutive expression is set together with $V_0$, the operon’s initial synthesis rate. Then, the TFBSs are checked for overlapping. In our case, the binding sites did not intercross; thus, we assumed that FabR and FadR could bind simultaneously. Then, we considered the first case (Figure 5a), when just FabR affects the synthesis. In this case, FabR is attributed parameters$leve{l}_1$ and $k_1$; then, the summand is generated first for the numerator:

$$nu{m}_1=leve{l}_1{\left(\frac{Fab{R}_1}{k_1}\right)}^{n_1},$$

(3a)

where $leve{l}_1$ is a parameter to control a transcription activation level via FabR; $k_1$ is the efficiency constant of FabR’s effect on the transcription activation level; and $n_1$ is Hill’s coefficient to characterize the nonlinearity degree of FabR’s effect on the transcription activation level.

Then, for the denominator, the corresponding summand is generated in the following form:

$$denu{m}_1={\left(\frac{Fab{R}_1}{k_1}\right)}^{n_1},$$

(3b)

Thus, the summands (3a) and (3b) as the parts of the Equation (3c) nominator and denominator, respectively, form the result of the first iteration of the algorithm (2), describing the regulation of FabR only.

$$V_0\frac{a_{basal}+leve{l}_1{\left(\frac{Fab{R}_1}{k_1}\right)}^{n_1}}{1+{\left(\frac{Fab{R}_1}{k_1}\right)}^{n_1}},$$

(3c)

Before considering the second case (Figure 5c), when FabR and FadR jointly affect the operon, parameter $w_{12}$, where index 1 describes the effect of FabR, index 2, describing that of FadR, is assigned. The summand is also generated first for the numerator like Equation (4a), then for the denominator like Equation (4b).

$$nu{m}_{12}=leve{l}_{12}·w_{12}{\left(\frac{Fab{R}_1}{k_1}\right)}^{n_{12}}{\left(\frac{Fad{R}_2}{k_2}\right)}^{n_{21}},$$

(4a)

where $leve{l}_{12}$ is the parameter determining the level of joint FabR/FadR effect on the transcription; $k_{1,2}$ are the constants of FabR/FadR effect efficiency in relation to transcription level; $n_{12}, n_{21}$ are Hill’s coefficients characterizing the nonlinearity degree of the FabR/FadR effect; and $w_{12}$ is a parameter responsible for the joint FabR/FadR effect.

$$denu{m}_{12}=w_{12}{\left(\frac{Fab{R}_1}{k_1}\right)}^{n_{12}}{\left(\frac{Fad{R}_2}{k_2}\right)}^{n_{21}},$$

(4b)

As a result, after the second iteration, the following summand is generated:

$$V_0\frac{a_{basal}+leve{l}_1{\left(\frac{Fab{R}_1}{k_1}\right)}^{n_1}+leve{l}_{12}·w_{12}{\left(\frac{Fab{R}_1}{k_1}\right)}^{n_{12}}{\left(\frac{Fad{R}_2}{k_2}\right)}^{n_{21}}}{1+{\left(\frac{Fab{R}_1}{k_1}\right)}^{n_1}+w_{12}{\left(\frac{Fab{R}_1}{k_1}\right)}^{n_{12}}{\left(\frac{Fad{R}_2}{k_2}\right)}^{n_{21}}}$$

(4c)

The summands (4a) and (4b), as the parts of the Equation (4c) nominator and denominator, respectively, describe the co-regulation of the operon of the two TFs: FabR and FadR.

At the following iteration, parameters $leve{l}_2$ and $k_2$ are assigned to FadR (Figure 5b) and the generated summands as (3a–3b). Thus, the general formula of operon fabA is written as:

$$f=V_0·\frac{a_{basal}+leve{l}_1{\left(\frac{Fab{R}_1}{k_1}\right)}^{n_1}+q_{12}{\left(\frac{Fab{R}_1}{k_1}\right)}^{n_{12}}{\left(\frac{Fad{R}_2}{k_2}\right)}^{n_{21}}+leve{l}_2{\left(\frac{Fad{R}_2}{k_2}\right)}^{n_2}}{1+{\left(\frac{Fab{R}_1}{k_1}\right)}^{n_1}+w_{12}{\left(\frac{Fab{R}_1}{k_1}\right)}^{n_{12}}{\left(\frac{Fad{R}_2}{k_2}\right)}^{n_{21}}+{\left(\frac{Fad{R}_2}{k_2}\right)}^{n_2}},$$

(5)

where $q_{12}=leve{l}_{12}·w_{12}$ is used to reduce the formula’s arrangements, and the other parameters remain the same.

Hence, the general formula to describe transcription regulation in operon fabA is expressed as:

$$\frac{dx}{dt}=f,$$

(6)

where $x$ is the mRNA concentration synthesized from operon fabA and $f$ is derived from Equation (5).

In order to demonstrate how the method works, we took the regulatory data of the bacterium Pseudomonas aeruginosa PAO1 (GenBank: AE004091.2) from the Prodoric database (https://www.prodoric.de/ (accessed on 7 October 2022)) [32]. For P. aeruginosa PAO1, information is stored on 45 confirmed TRN (including sigma factor 54), which regulates 220 operons. In total, 220 frame models were generated using our algorithm, which can be viewed in the Supplementary Materials (File S2 and Archive S1).

The considered algorithm was implemented as Operon_equations software written in Java, which is available at github.com/tlakhova/Operon_equations. As input data, these require a table-oriented file. Examples of the input and output files can be seen in the Supplementary Materials (File S1, Archive S2 and Supplementary Note).

We also tested the program with different input data. For this, we used a personal computer with the following characteristics: AMD FX-6330 Six-Core Processor, 16 GB RAM.

We considered how the computation time depends on the number of TFs that can bind to their binding sites in a single operon. We also considered when TFs can overlap and when they cannot. Detailed information is presented in Supplementary Table S1. Therefore, we set the upper limit in the program for the number of TFs per operon to 15.

The software enables one to build the models based on the information about biologically significant bacterial strains obtained from the Kurchatov Genomic Centre of the Institute of Cytology Genetics, Novosibirsk, Russian Federation.

4. Discussion

This paper presents an algorithm for the generation of frame models describing genetic regulation in bacteria. This solution is of high potential in terms of building a mathematical frame model of transcription regulation at genomic scale for different kinds of bacteria, including non-model ones. In the algorithm, one model describes transcription regulation in a single operon, which provides a close view on its behavioral patterns and changes in the metabolic pathways. The obtained model can be specified through the experimental data found in dedicated databases and publications.

Understanding the contribution of the transcription factors in the regulation will open an additional field of research for genetic engineers and biotechnologists when modifying bacterial strains.

5. Patents

The program for automatic reconstruction of mathematical models of microbial gene transcription regulation (MicroTranscriptMod). No 2022660245, 01.06.2022.
