# Nonlinear Large-Scale Perturbations of Steady Thermal Convective Dynamo Regimes in a Plane Layer of Electrically Conducting Fluid Rotating about the Vertical Axis

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Convective Magnetic Dynamo: Equations and Numerical Methods

#### 2.1. Statement of the Problem

#### 2.2. Numerical Techniques

#### 2.3. Symmetries

## 3. Results of Simulation

#### 3.1. Regimes in the Elongated Boxes with the Periodicities 1x2/2x1

- All of them are quasiperiodic hydrodynamic travelling waves.
- The energy ranges and mean (over time) energies coincide.
- The basic frequencies are identical.
- The ranges of the magnetic Reynolds number estimates Rm${}_{1}^{\prime}$ and Rm${}_{3}^{\prime}$ and their mean (over time) values coincide.
- The ranges of the kinetic helicity and its temporal mean values are the same.
- The growth rates of the dominant magnetic modes are also equal.
- The flows have the symmetry $r{\gamma}_{L/2}^{1}$ in the 1x2 cell and $r{\gamma}_{L/2}^{2}$ in the 2x1 cell.

- Independence of ${x}_{2}$ (the energy of the discrepancy averaged over the periodicity cell, equal to the mean energy of the harmonics associated with wave vectors with a non-zero second component, is below 0.25 in the saturated regime for $t>18$; it shows the tendency to increase towards the ends of the intervals of almost regular helicity behaviour).
- ${s}_{2}$ (for $t>18$, the mean energy of the discrepancy $\mathbf{v}\left(\mathbf{x}\right)-{s}_{2}\phantom{\rule{0.166667em}{0ex}}\mathbf{v}\left(\mathbf{x}\right)$ is below 24.0).
- $r{\gamma}_{L/2}^{1}$ (for $t>18$, the mean energy of the discrepancy $\mathbf{v}\left(\mathbf{x}\right)-r{\gamma}_{L/2}^{1}\phantom{\rule{0.166667em}{0ex}}\mathbf{v}\left(\mathbf{x}\right)$ is below 14.4).
- The flow is approximately 1x1-periodic (for $t>18$, the spatially averaged mean energy of the discrepancy, equal to the mean energy of the harmonics associated with wave vectors, whose first component is odd, is below 6.1).

- We have performed a hydrodynamic run (the magnetic field being set to zero at each step) in a 2x1-periodic fluid box for an initial condition that is the 2x1.1 flow at $t=180$ (close to the local minimum of the magnetic energy), where the ${x}_{2}$-dependence is suppressed by setting to zero all harmonics associated with wave vectors, whose second component is non-zero. This run has converged fast (in roughly 15 time units) to the double-replicated R${}_{1}$, the energy of discrepancy decreasing below ${10}^{-18}$.
- The energy of the discrepancies between the 2x1.1 flow at $t=180$ and the flows of the MHD steady states R${}_{1}$, S${}_{7}^{\mathrm{R}1}$ and S${}_{8}^{\mathrm{R}1}$ is 0.2, 0.2 and 16.1, respectively.

#### 3.2. Regimes in the Elongated Cells with the Periodicities 1x3/3x1

#### 3.3. Regimes in the Elongated Cells with the Periodicities 1x4/4x1

#### 3.4. Regimes in the $({\mathit{M}}_{1},{\mathit{M}}_{2})$-Periodicity Cells for ${\mathit{M}}_{i}\ge 2$

#### 3.5. Videos of the Kinetic and Magnetic Energy Evolution

#### 3.6. Analysis of Integral Parameters of the Regimes

## 4. Concluding Remarks

## Supplementary Materials

## Author Contributions

## Funding

## Conflicts of Interest

## References

- Gilbert, W. De Magnete; Gilbert Club Revised English Translation, 1900; Chiswick Press: London, UK, 1600. [Google Scholar]
- Schuster, A. A critical examination of the possible causes of terrestrial magnetism. Proc. Phys. Soc. Lond.
**1911**, 24, 121–137. [Google Scholar] [CrossRef] - Larmor, J. How could a rotating body such as the Sun become a magnet? In A Source Book in Astronomy and Astrophysics; Harvard University Press: Cambridge, MA, USA, 1900–1975; pp. 106–107. [Google Scholar]
- Larmor, J. Possible rotational origin of magnetic fields of Sun and Earth. Electr. Rev.
**1919**, 85, 412. [Google Scholar] - Moffatt, H.K. Magnetic Field Generation in Electrically Conducting Fluids; CUP: Cambridge, UK, 1978. [Google Scholar]
- Moffatt, H.K.; Dormy, E. Self-Exciting Fluid Dynamos; CUP: Cambridge, UK, 2019. [Google Scholar]
- Priest, E.R. Solar Magnetohydrodynamics; D. Reidel: Dordrecht, The Netherlands, 1984. [Google Scholar]
- Mestel, L. Stellar Magnetism; Oxford University Press: Oxford, UK, 2003. [Google Scholar]
- Ruzmaikin, A.A.; Shukurov, A.M.; Sokoloff, D.D. Magnetic Fields of Galaxies; Kluwer: Dordrecht, The Netherlands, 1988. [Google Scholar]
- Soward, A.M.; Jones, C.A.; Hughes, D.W.; Weiss, N.O. (Eds.) Fluid Dynamics and Dynamos in Astrophysics and Geophysics; CRC Press: London, UK, 2005. [Google Scholar]
- Vainshtein, S.I.; Zeldovich, Y.; Ruzmaikin, A.A. The Turbulent Dynamo in Astrophysics; Nauka: Moscow, Russia, 1980. (In Russian) [Google Scholar]
- Jacobs, J.A. Reversals of the Earth’s Magnetic Field, 2nd ed.; CUP: Cambridge, UK, 1994. [Google Scholar]
- Ueda, S. The New View of the Earth: Moving Continents and Moving Oceans; WH Freeman: San Francisco, CA, USA, 1978. [Google Scholar]
- Glatzmaier, G.A.; Roberts, P.H. A three-dimensional convective dynamo solution with rotating and finitely conducting inner core and mantle. Phys. Earth Planet. Inter.
**1995**, 91, 63–75. [Google Scholar] [CrossRef] - Glatzmaier, G.A.; Roberts, P.H. A three-dimensional self-consistent computer simulation of a geomagnetic field reversal. Nature
**1995**, 377, 203–209. [Google Scholar] [CrossRef] - Glatzmaier, G.A.; Roberts, P.H. An anelastic evolutionary geodynamo simulation driven by compositional and thermal convection. Phys. D Nonlinear Phenom.
**1996**, 97, 81–94. [Google Scholar] [CrossRef] - Glatzmaier, G.A.; Roberts, P.H. Rotation and magnetism of Earth’s inner core. Science
**1996**, 274, 1887–1891. [Google Scholar] [CrossRef] - Glatzmaier, G.A.; Roberts, P.H. Simulating the geodynamo. Contemp. Phys.
**1997**, 38, 269–288. [Google Scholar] [CrossRef] - Glatzmaier, G.A.; Coe, R.S.; Hongre, L.; Roberts, P.H. The role of the Earth’s mantle in controlling the frequency of geomagnetic reversals. Nature
**1999**, 401, 885–890. [Google Scholar] [CrossRef] - Roberts, P.H.; Glatzmaier, G.A. The geodynamo, past, present and future. Geophys. Astrophys. Fluid Dyn.
**2001**, 94, 47–84. [Google Scholar] [CrossRef] - Parker, E.N. Hydrodynamic dynamo models. Astrophys. J.
**1955**, 122, 293–314. [Google Scholar] [CrossRef] - Parker, E.N. Cosmical Magnetic Fields: Their Origin and Their Activity; Clarendon Press: Oxford, UK, 1979. [Google Scholar]
- Braginsky, S.I. Self excitation of a magnetic field during the motion of a highly conducting fluid. J. Exper. Theor. Phys.
**1964**, 20, 726–735. [Google Scholar] - Braginsky, S.I. Theory of the hydromagnetic dynamo. J. Exper. Theor. Phys.
**1964**, 47, 2178–2193. [Google Scholar] - Braginsky, S.I. Kinematic models of the Earth’s hydromagnetic dynamo. Geomagn. Aeron.
**1964**, 4, 732–747. [Google Scholar] - Braginsky, S.I. Magnetohydrodynamics of the Earth’s core. Geomagn. Aeron.
**1964**, 4, 898–916. [Google Scholar] - Braginsky, S.I. Nearly axially symmetric model of the hydromagnetic dynamo of the Earth, I. Geomagn. Aeron.
**1975**, 15, 149–156. [Google Scholar] - Braginsky, S.I. Nearly axially symmetric model of the hydromagnetic dynamo of the Earth, II. Geomagn. Aeron.
**1978**, 18, 340–351. [Google Scholar] - Krause, F.; Rädler, K.-H. Mean-Field Magnetohydrodynamics and Dynamo Theory; Academic-Verlag: Berlin, Germany, 1980. [Google Scholar]
- Steenbeck, M.; Krause, F.; Rädler, K.-H. A calculation of the mean electromotive force in an electrically conducting fluid in turbulent motion, under the influence of Coriolis forces. Z. Naturforsch A
**1966**, 21, 369–376. [Google Scholar] [CrossRef] - Rädler, K.-H. Mean-field dynamo theory: Early ideas and today’s problems. In Magnetohydrodynamics. Historical Evolution and Trends; Molokov, S., Moreau, R., Moffatt, K., Eds.; Springer: Dordrecht, The Netherlands, 2007; pp. 55–72. [Google Scholar]
- Dubrulle, B.; Frisch, U. Eddy viscosity of parity-invariant flow. Phys. Rev. A
**1991**, 43, 5355–5364. [Google Scholar] [CrossRef] - Zheligovsky, V.A. On the linear stability of steady space-periodic magnetohydrodynamic systems to large-scale perturbations. Phys. Solid Earth
**2003**, 39, 409–418. [Google Scholar] - Zheligovsky, V.A. Large-scale perturbations of magnetohydrodynamic regimes: Linear and weakly nonlinear stability theory. In Lecture Notes in Physics; Springer: Berlin/Heidelberg, Germany, 2011; Volume 829. [Google Scholar]
- Lanotte, A.; Noullez, A.; Vergassola, M.; Wirth, A. Large-scale dynamo by negative magnetic eddy diffusivities. Geophys. Astrophys. Fluid Dyn.
**1999**, 91, 131–146. [Google Scholar] [CrossRef] - Vishik, M.M. Periodic dynamo. In Mathematical Methods in Seismology and Geodynamics; Keilis-Borok, V.I., Levshin, A.L., Eds.; Nauka: Moscow, Russia, 1986; pp. 186–215. (In Russian) [Google Scholar]
- Vishik, M.M. Periodic dynamo. II. In Numerical Modelling and Analysis of Geophysical Processes; Keilis-Borok, V.I., Levshin, A.L., Eds.; Nauka: Moscow, Russia, 1987; pp. 12–22. [Google Scholar]
- Zheligovsky, V.A.; Podvigina, O.M.; Frisch, U. Dynamo effect in parity-invariant flow with large and moderate separation of scales. Geophys. Astrophys. Fluid Dyn.
**2001**, 95, 227–268. [Google Scholar] [CrossRef] - Gama, S.; Chaves, M. Time evolution of the eddy viscosity in two-dimensional Navier–Stokes flow. Phys. Rev. Lett.
**2000**, 61, 2118–2120. [Google Scholar] - Gama, S.; Vergassola, M.; Frisch, U. Negative eddy viscosity in isotropically forced two-dimensional flow: Linear and nonlinear dynamics. J. Fluid Mech.
**1994**, 260, 95–126. [Google Scholar] [CrossRef] - Wirth, A.; Gama, S.; Frisch, U. Eddy viscosity of three-dimensional flow. J. Fluid Mech.
**1995**, 288, 249–264. [Google Scholar] [CrossRef] - Roberts, G.O. Spatially periodic dynamos. Phil. Trans. Roy. Soc. Lond. A
**1970**, 266, 535–558. [Google Scholar] - Roberts, G.O. Dynamo action of fluid motions with two-dimensional periodicity. Phil. Trans. Roy. Soc. Lond. A
**1972**, 271, 411–454. [Google Scholar] - Chertovskih, R.A.; Zheligovsky, V.A. Linear perturbations of the Bloch type of space-periodic magnetohydrodynamic steady states.
**2022**. manuscript in preparation. [Google Scholar] - Zheligovsky, V.A.; Chertovskih, R.A. On kinematic generation of magnetic modes of the Bloch type. Phys. Solid Earth
**2020**, 56, 104–117. [Google Scholar] [CrossRef] - Meneguzzi, M.; Pouquet, A. Turbulent dynamos driven by convection. J. Fluid Mech.
**1989**, 205, 297–318. [Google Scholar] [CrossRef] - Demircan, A.; Seehafer, N. Dynamo in asymmetric square convection. Geophys. Astrophys. Fluid Dyn.
**2002**, 96, 461–479. [Google Scholar] [CrossRef] - Matthews, P.C. Dynamo action in simple convective flows. Proc. R. Soc. Lond. A
**1999**, 455, 1829–1840. [Google Scholar] [CrossRef] - Chertovskih, R.; Gama, S.M.A.; Podvigina, O.; Zheligovsky, V. Dependence of magnetic field generation by thermal convection on the rotation rate: A case study. Phys. D
**2010**, 239, 1188–1209. [Google Scholar] [CrossRef] - Gertsenshtein, S.Y.; Zheligovsky, V.A.; Podvigina, O.M.; Chertovskih, R.A. On magnetic field generation by three-dimensional convective flows of conducting fluid in a rotating horizontal layer. Dokl. Akad. Nauk.
**2007**, 417, 613–615. [Google Scholar] [CrossRef] - Gertsenshtein, S.Y.; Chertovskikh, R.A. Generation of a magnetic field by convective flows in a rotating horizontal layer. Fluid Dyn.
**2008**, 43, 248–256. [Google Scholar] [CrossRef] - Zheligovsky, V.A. Amplitude equations for weakly nonlinear two-scale perturbations of free hydromagnetic convective regimes in a rotating layer. Geophys. Astrophys. Fluid Dyn.
**2009**, 103, 397–420. [Google Scholar] [CrossRef] - Chertovskih, R.; Zheligovsky, V. Large-scale weakly nonlinear perturbations of convective magnetic dynamos in a rotating layer. Physica D
**2015**, 313, 99–116. [Google Scholar] [CrossRef] - Donzis, D.A.; Gibbon, J.D.; Gupta, A.; Kerr, R.M.; Pandit, R.; Vincenzi, D. Vorticity moments in four numerical simulations of the 3D Navier—Stokes equations. J. Fluid Mech.
**2013**, 732, 316–331. [Google Scholar] [CrossRef] - Podvigina, O.M. Magnetic field generation by convective flows in a plane layer. Eur. Phys. J. B
**2006**, 50, 639–652. [Google Scholar] [CrossRef] - Podvigina, O.M. Magnetic field generation by convective flows in a plane layer: The dependence on the Prandtl number. Geophys. Astrophys. Fluid Dyn.
**2008**, 102, 409–433. [Google Scholar] [CrossRef] - Chertovskih, R.; Rempel, E.L.; Chimanski, E.V. Magnetic field generation by intermittent convection. Phys. Lett. A
**2017**, 381, 3300–3306. [Google Scholar] [CrossRef] - Boyd, J.P. Chebyshev and Fourier Spectral Methods; Dover: Mineola, NY, 2001. [Google Scholar]
- Canuto, C.; Hussaini, M.Y.; Quarteroni, A.; Zang, T.A. Spectral Methods in Fluid Dynamics; Springer: New York, NY, USA, 1988. [Google Scholar]
- Peyret, R. Spectral Methods for Incompressible Viscous Flow; Springer: Berlin/Heidelberg, Germany, 2002. [Google Scholar]
- Cox, S.M.; Matthews, P.C. Exponential time differencing for stiff systems. J. Comput. Phys.
**2002**, 176, 430–455. [Google Scholar] [CrossRef] - Chertovskih, R.; Chimanski, E.V.; Rempel, E.L. Route to hyperchaos in Rayleigh–Bénard convection. Europhysics Lett.
**2015**, 112, 14001. [Google Scholar] [CrossRef] - Hutt, A.; Graben, P. Sequences by metastable attractors: Interweaving dynamical systems and experimental data. Front. Appl. Math. Stat.
**2017**, 3, 11. [Google Scholar] [CrossRef] - Doering, C.R.; Gibbon, J.D. Applied Analysis of the Navier–Stokes Equations; Cambridge University Press: Cambridge, UK, 1995. [Google Scholar]
- Arnold, V.I.; Korkina, E.I. The growth of a magnetic field in a three-dimensional incompressible flow. Vestnik Moscow State Univ. Ser. Math.
**1983**, 3, 43–46. (In Russian) [Google Scholar] - Zheligovsky, V.A. A kinematic magnetic dynamo sustained by a Beltrami flow in a sphere. Geophys. Astrophys. Fluid Dyn.
**1993**, 73, 217–254. [Google Scholar] [CrossRef] - Zheligovsky, V.A.; Galloway, D.J. Dynamo action in Christopherson hexagonal flow. Geophys. Astrophys. Fluid Dyn.
**1998**, 88, 277–293. [Google Scholar] [CrossRef] - Kosobokov, V.G. On a regularity in the sequence of the Earth’s magnetic field reversals. Earth Sci. Sect.
**1996**, 345, 128–132. [Google Scholar] - Rasskazov, A.; Chertovskih, R.; Zheligovsky, V. Magnetic field generation by pointwise zero-helicity three-dimensional steady flow of incompressible electrically conducting fluid. Phys. Rev. E
**2018**, 97, 043201. [Google Scholar] [CrossRef] - Zeldovich, Y.B. The magnetic field in the two-dimensional motion of a conducting turbulent fluid. J. Exper. Theor. Phys.
**1957**, 4, 460–462. [Google Scholar] - Zheligovsky, V. Space analyticity and bounds for derivatives of solutions to the evolutionary equations of diffusive magnetohydrodynamics. Mathematics
**2021**, 9, 1789. [Google Scholar] [CrossRef] - Foias, C.; Guillopé, C.; Temam, R. New a priori estimates for Navier–Stokes equations in dimension 3. Comm. Partial. Diff. Equations
**1981**, 6, 329–359. [Google Scholar] [CrossRef] - Gibbon, J.D. Weak and strong solutions of the 3D Navier–Stokes equations and their relation to a chessboard of convergent inverse length scales. J. Nonlin. Sci.
**2019**, 29, 215–228. [Google Scholar] [CrossRef] - Gibbon, J.D. Regularity and singularity in solutions of the three-dimensional Navier–Stokes equations. Proc. R. Soc. A
**2010**, 466, 2587–2604. [Google Scholar] [CrossRef] - Gibbon, J.D. A hierarchy of length scales for weak solutions of the three-dimensional Navier–Stokes equations. Comm. Math. Sci.
**2011**, 10, 131–136. [Google Scholar] [CrossRef] - Gibbon, J.D. Conditional regularity of solutions of the three-dimensional Navier–Stokes equations and implications for intermittency. J. Math. Phys.
**2012**, 53, 115608. [Google Scholar] [CrossRef]

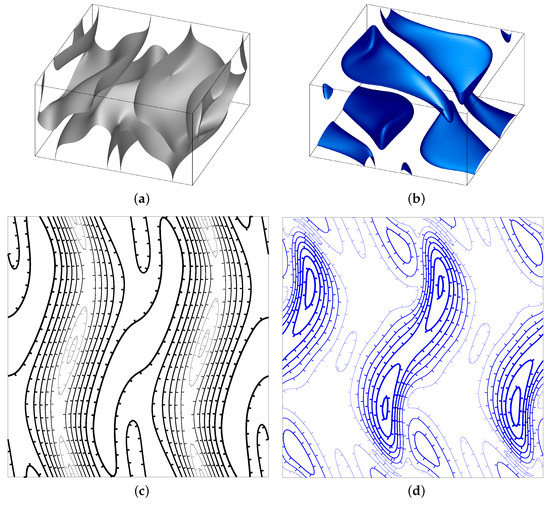

**Figure 1.**Isosurfaces of the kinetic (a) and magnetic (b) energy densities at the levels of 1/2 of the respective maxima of the unperturbed short-scale convective dynamo steady state. One periodicity box is shown. Isolines of the kinetic (c) and magnetic (d) energy densities on the midplane ${x}_{3}=0$, step 1.5 and 0.3, respectively. In (c) and (d), the line width increases with the common along-the-line value of the energy density.

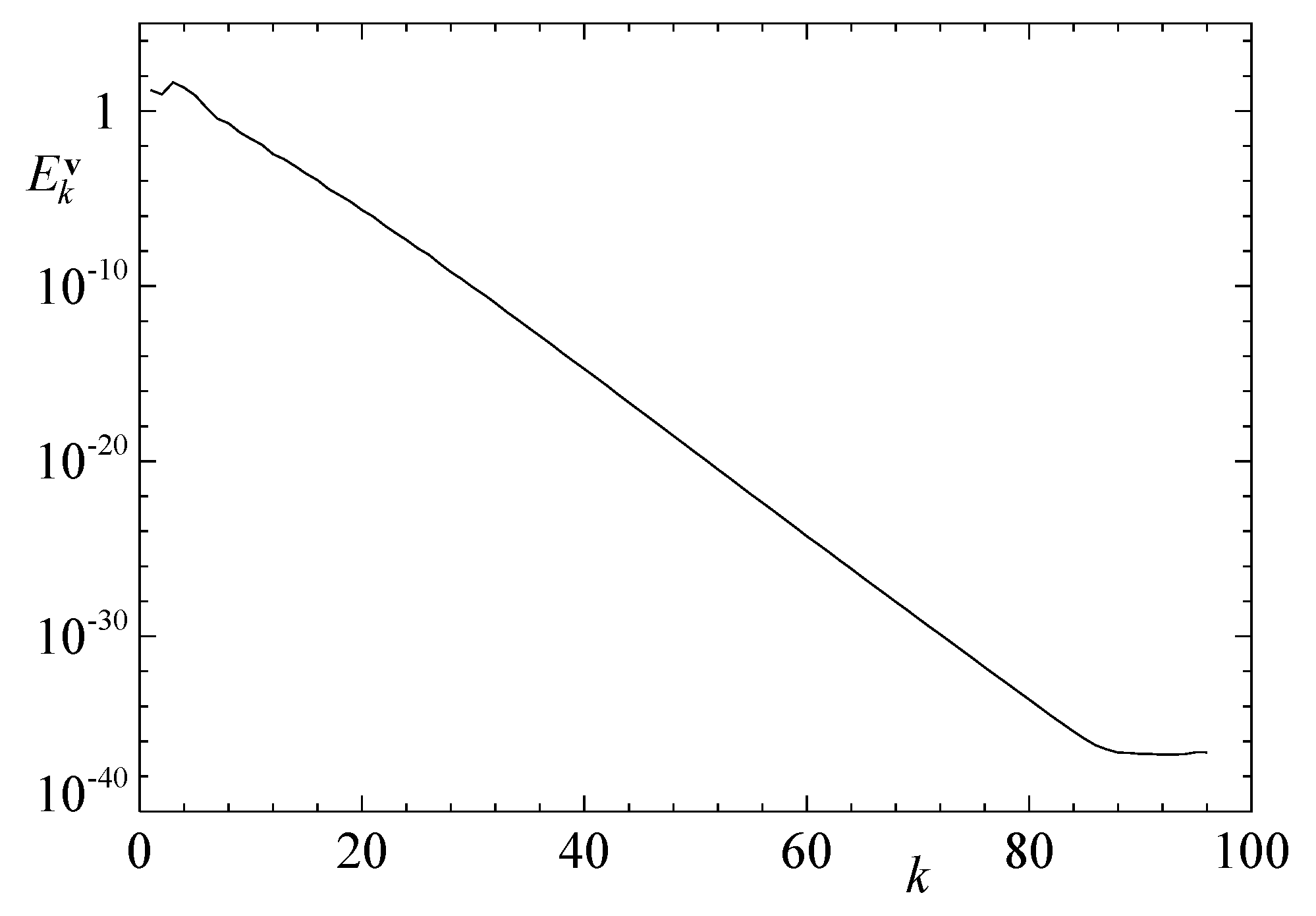

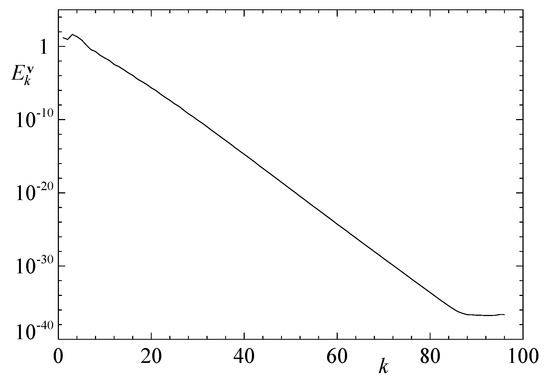

**Figure 2.**Energy spectrum of the flow at $t=220$ in run 2 for ${\mathit{M}}_{1}={\mathit{M}}_{2}=2$; the kinetic energy distribution ${E}_{k}^{\mathbf{v}}$ over shells ${C}_{k}$ is shown for fully populated shells only.

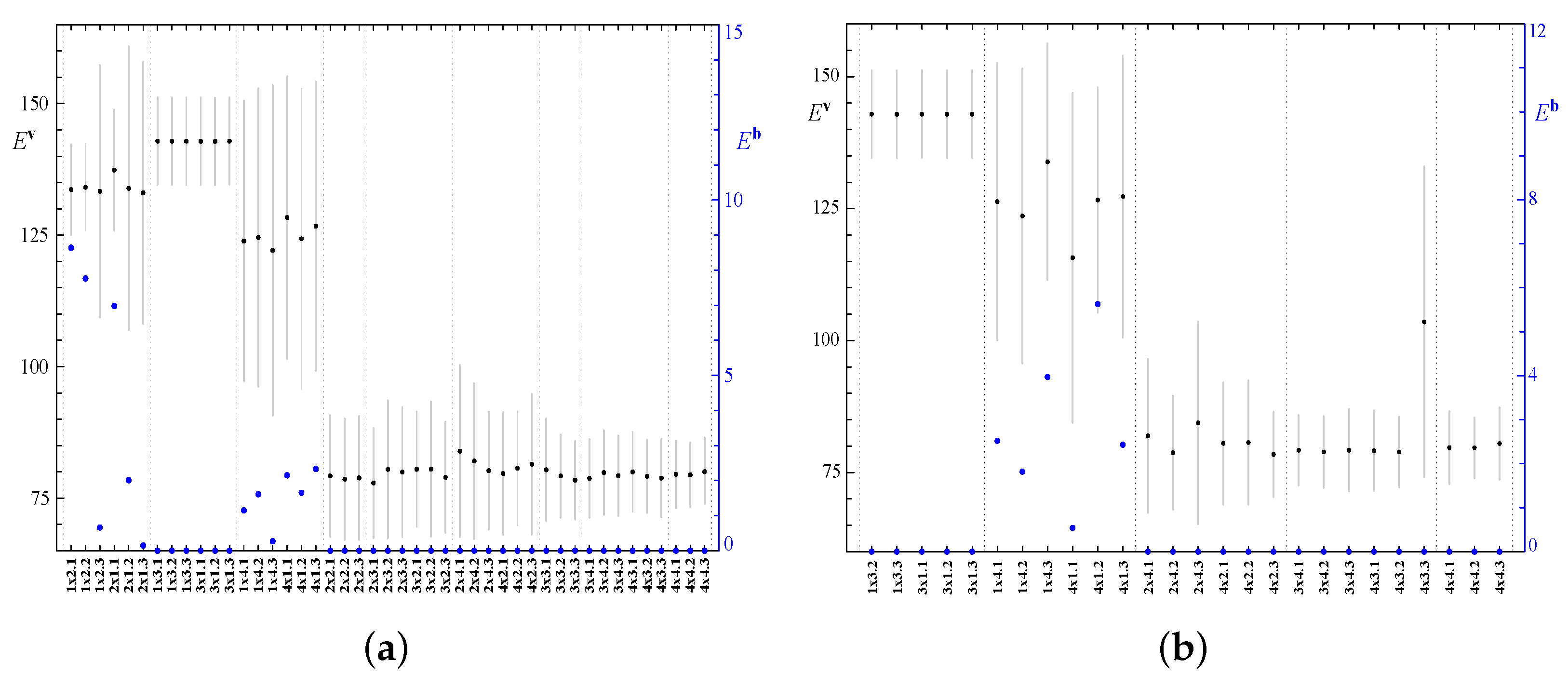

**Figure 3.**Space- and time-averaged kinetic (smaller black dots, left axis) and magnetic (larger blue dots, right axis) energies for the attractors obtained in the runs with the standard ($128{\mathit{M}}_{1}\times 128{\mathit{M}}_{2}\times 97$ harmonics), (a), and alternative ($256\times 256\times 257$ harmonics), (b), resolution. Gray vertical lines: r.m.s. deviations of the space-averaged kinetic energy from their time averages. Thin vertical dotted lines separate the runs into groups of regimes residing in identical periodicity cells.

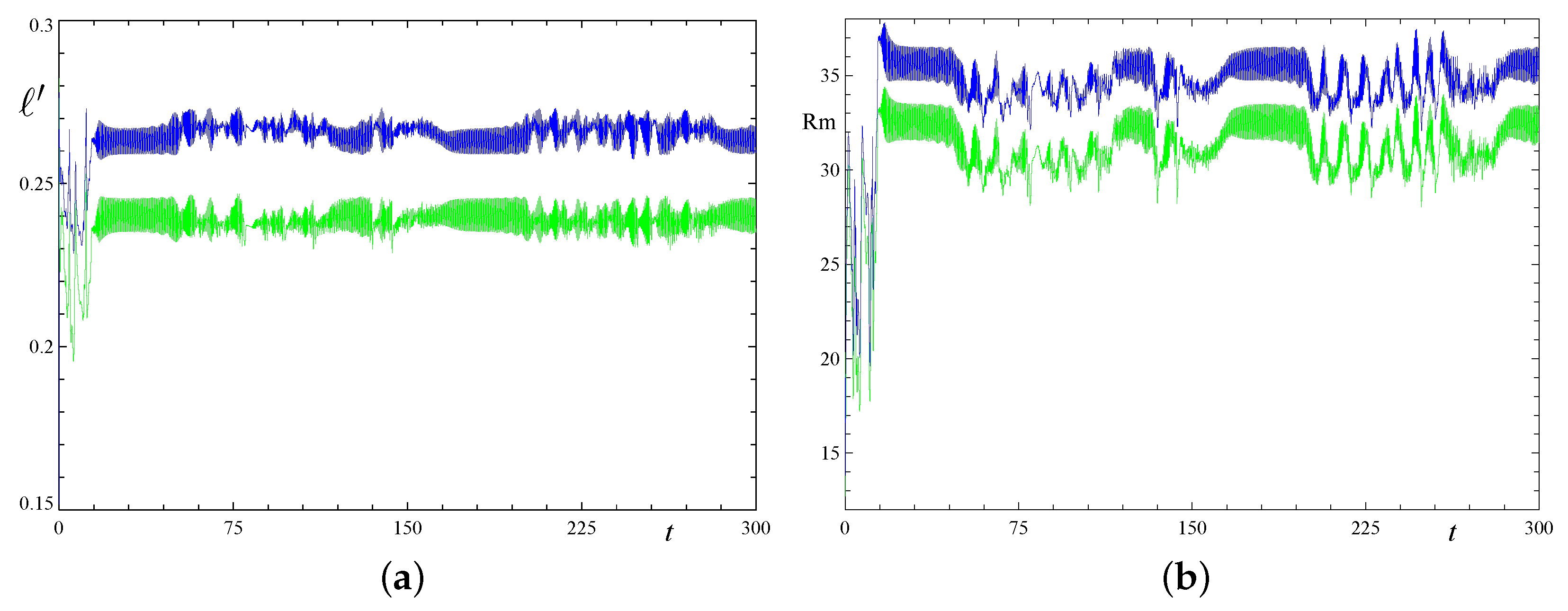

**Figure 4.**Temporal behaviour of the time-dependent estimates of the length scales (7), ${\ell}_{1}^{\prime}$ (green line) and ${\ell}_{3}^{\prime}$ (blue line), (a), and of the magnetic Reynolds number, Rm${}_{1}^{\prime}$ (green line) and Rm${}_{3}^{\prime}$ (blue line), in run 1x2.2 (b).

**Figure 5.**Temporal behaviour of the kinetic (left vertical axis, black line) and magnetic (right vertical axis, blue line) energies in the double-period runs 1x2.1 (a), 1x2.2 (c), 1x2.3 (e), 2x1.1 (g), 2x1.2 (i), and 2x1.3 (k). Evolution of the magnetic energy versus kinetic energy in runs 1x2.1 (b), 1x2.2 (d), 1x2.3 (f), 2x1.1 (h), 2x1.2 (j), and 2x1.3 (l).

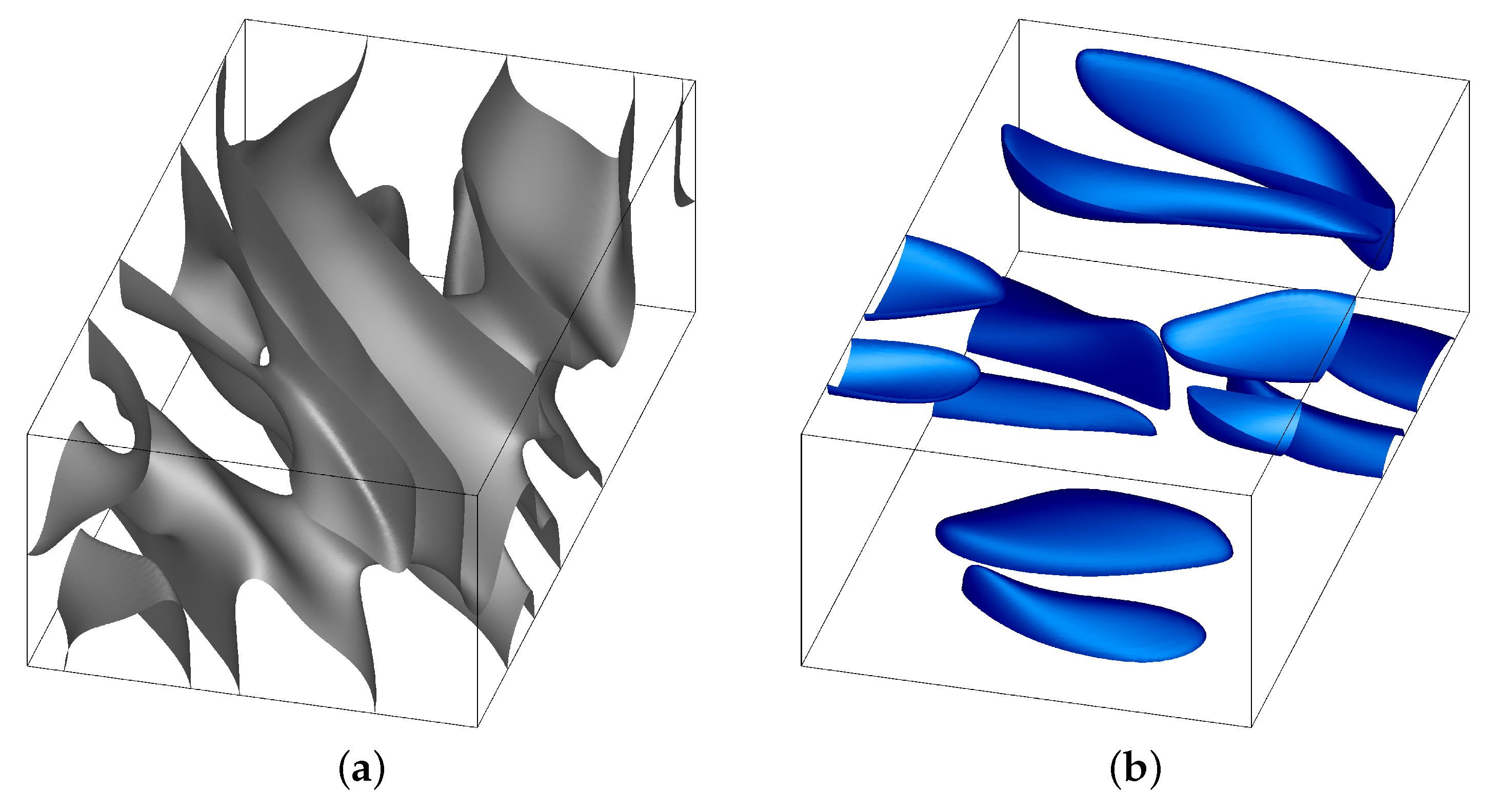

**Figure 6.**Isosurfaces of the kinetic (a) and magnetic (b) energy densities at the level of 1/2 of their respective maxima in run 1x2.3 at time $t=1650.707$. One double-period fluid box is shown.

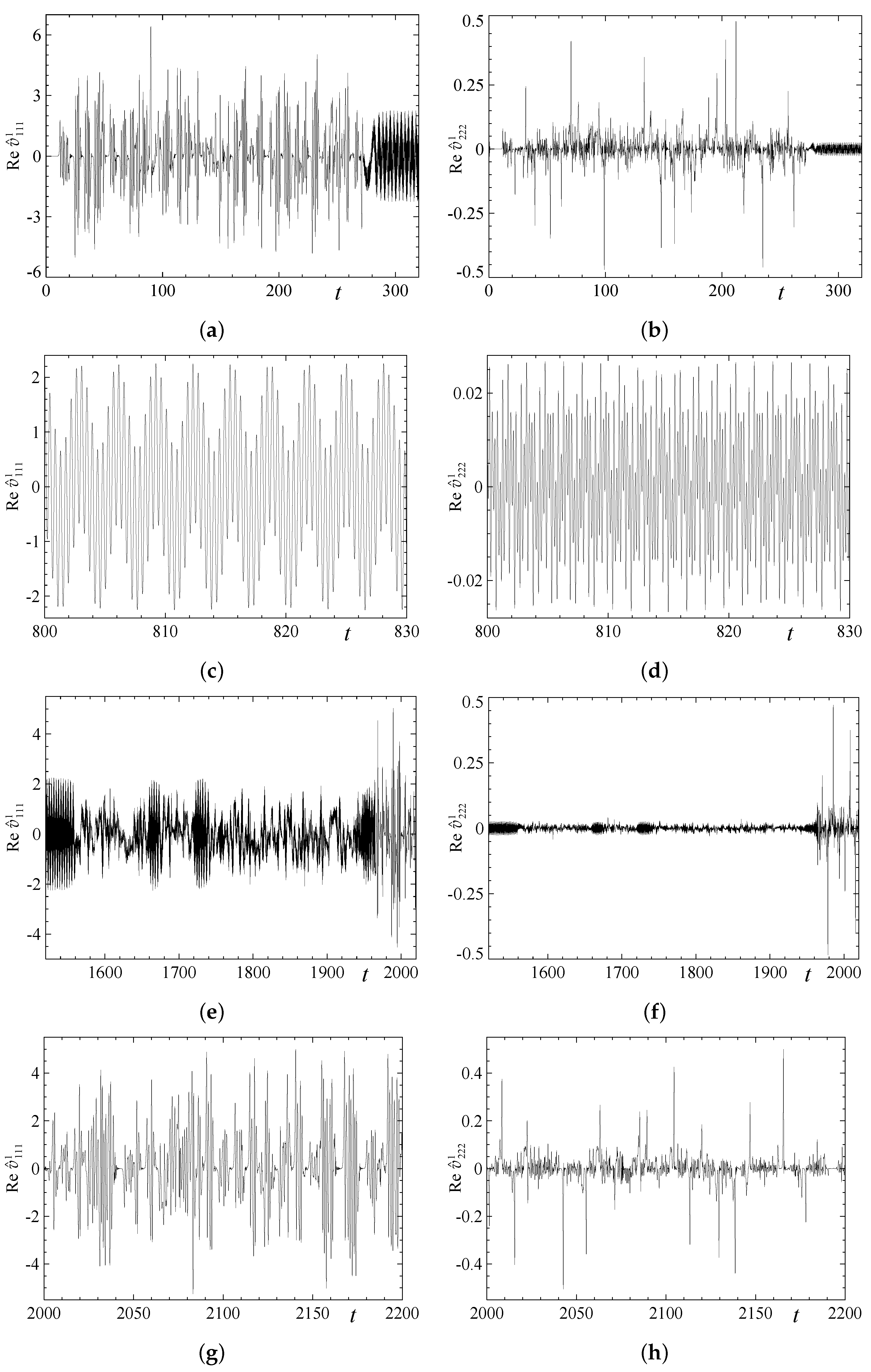

**Figure 7.**Temporal behaviour of the Fourier coefficients Re ${\widehat{v}}_{111}^{1}$ (left column) and Re ${\widehat{v}}_{222}^{1}$ (right column) in run 2x1.2 in four time intervals: $0\le t\le 320$ (phase T of the initial transient processes, chaotic behaviour and approach to the quasiperiodic metastable state), (a), (b); $800\le t\le 830$ (phase G in the vicinity of the quasiperiodic hydrodynamic metastable state), (c), (d); $1520\le t\le 2020$ (departure from phase G, phase S of the saturated chaotic regime and approach to the chaotic phase D), (e), (f); and $2000\le t\le 2200$ (phase D of magnetic field decay), (g), (h).

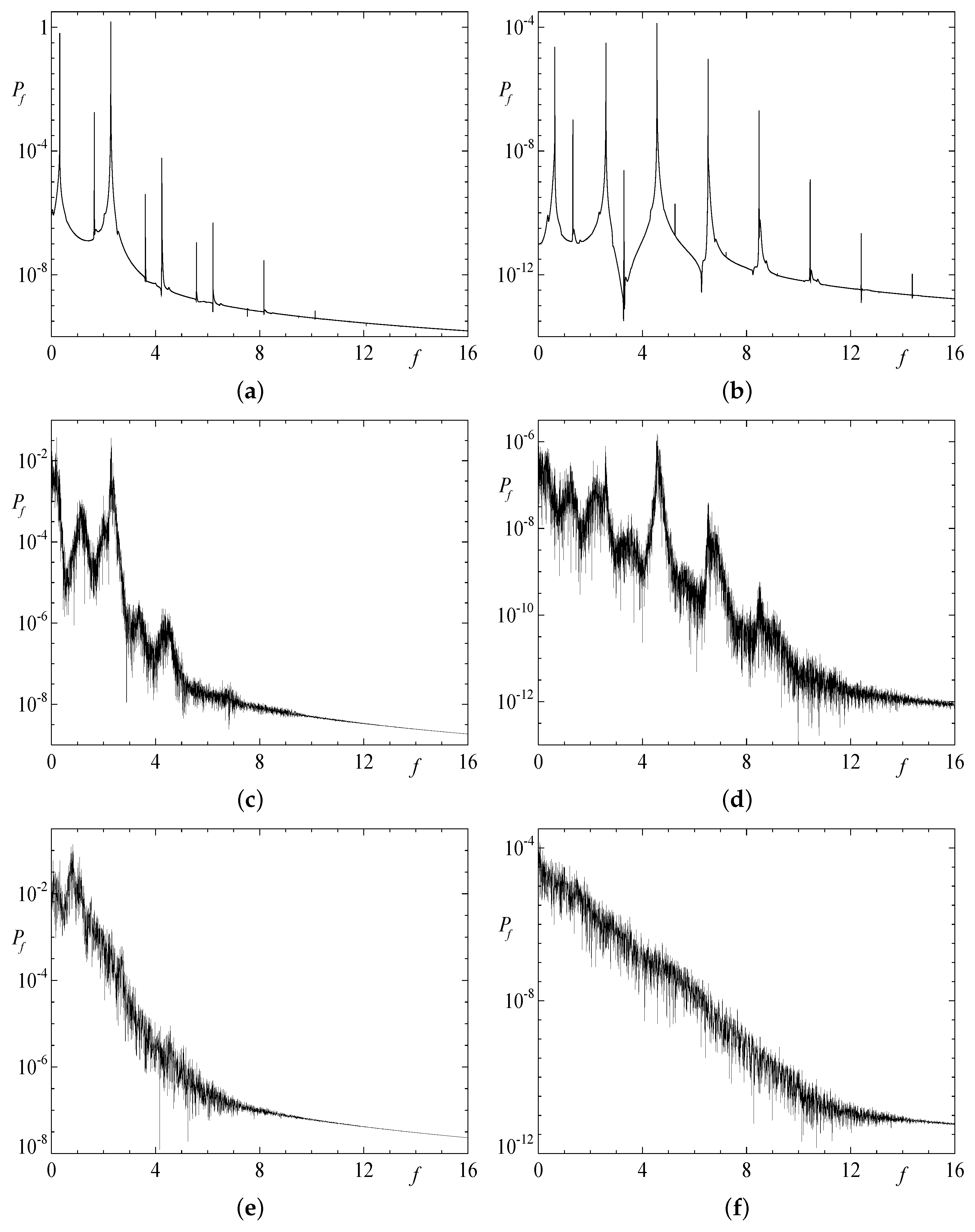

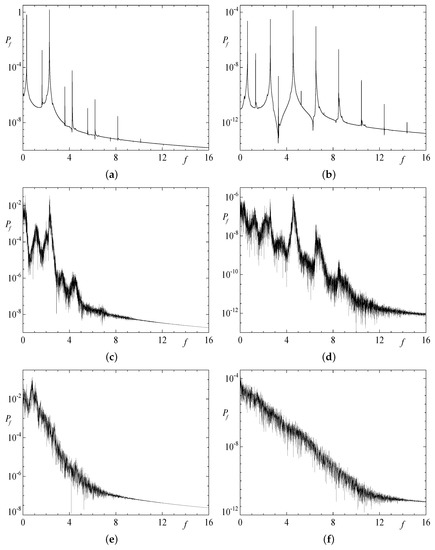

**Figure 8.**Temporal power spectra of the Fourier coefficients Re ${\widehat{v}}_{111}^{1}$ (left column) and Re ${\widehat{v}}_{222}^{1}$ (right column) in run 2x1.2 in the time intervals $285\le t\le 1555$ (phase G), (a), (b); $1580\le t\le 1940$ (phase S), (c), (d); and $2000\le t\le 2200$ (phase D), (e), (f).

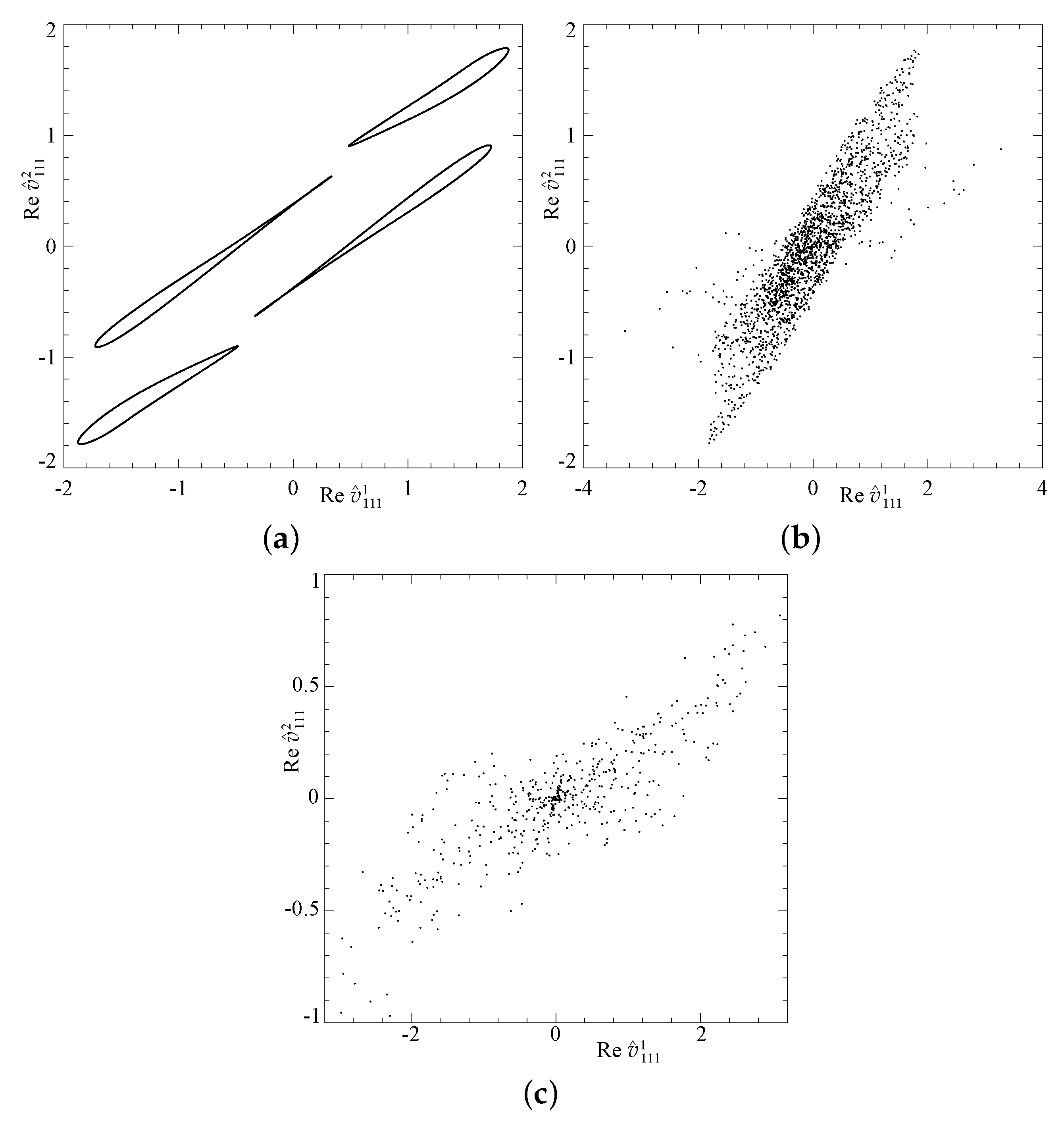

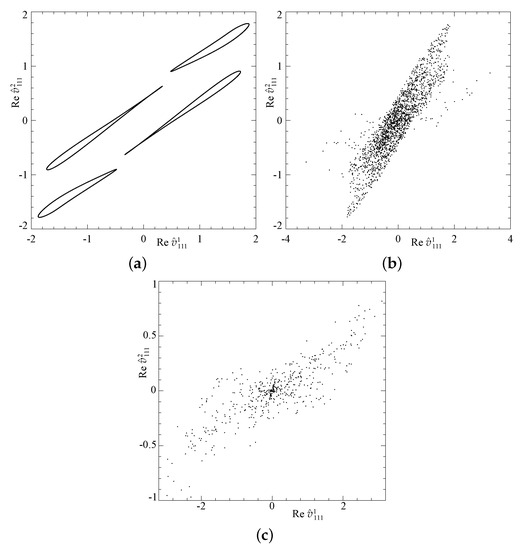

**Figure 9.**Projection of the Poincaré map of the hyperplane Re ${\widehat{v}}_{222}^{3}=0$ on the plane (Re ${\widehat{v}}_{111}^{1}$,Re ${\widehat{v}}_{111}^{2}$) in the time intervals $300\le t\le 1500$ (phase G), (a); $1600\le t\le 2015$ (phase S and its small neighbourhood), (b); and $2000\le t\le 2200$ (phase D), (c), in run 2x1.2.

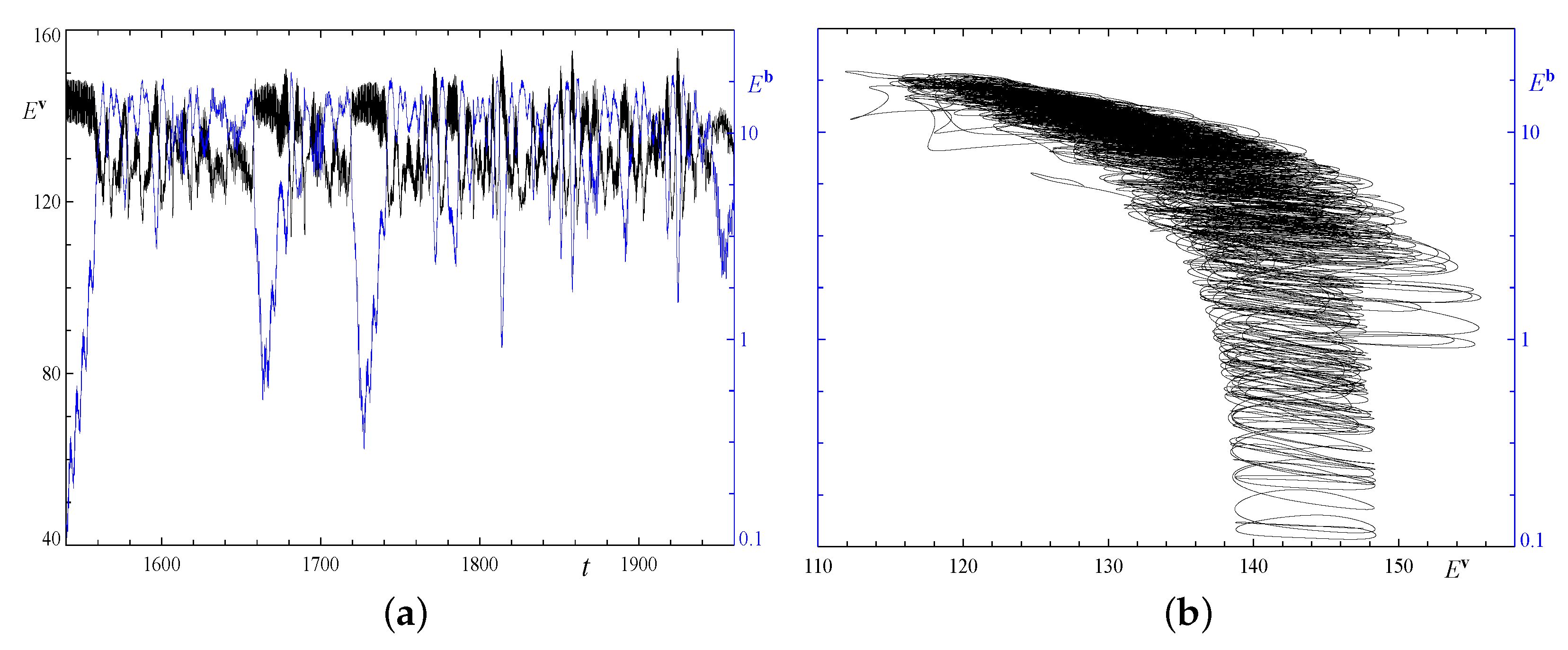

**Figure 10.**Temporal behaviour of the kinetic (left vertical axis, black line) and magnetic (right vertical axis, blue line) energies in the double-period run 2x1.2 for $1540\le t\le 1960$, phase S (a). Evolution of the magnetic energy versus kinetic energy in this run in the same time interval (b).

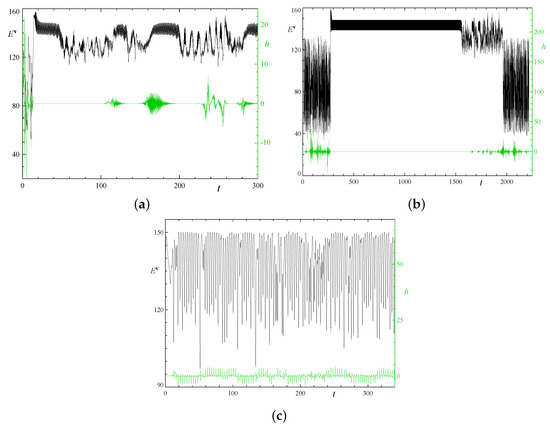

**Figure 11.**Temporal behaviour of the mean kinetic helicity (green line, right vertical axis) together with the kinetic energy (black line, left vertical axis) for reference in runs 1x2.2 (a), 2x1.2 (b) and 2x1.1 (c).

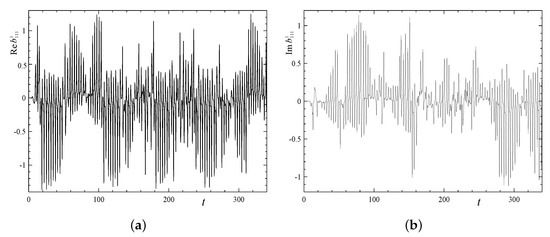

**Figure 12.**Temporal behaviour of the Fourier coefficients Re ${\widehat{b}}_{111}^{1}$ (a) and Im ${\widehat{b}}_{111}^{1}$ (b) in run 2x1.1.

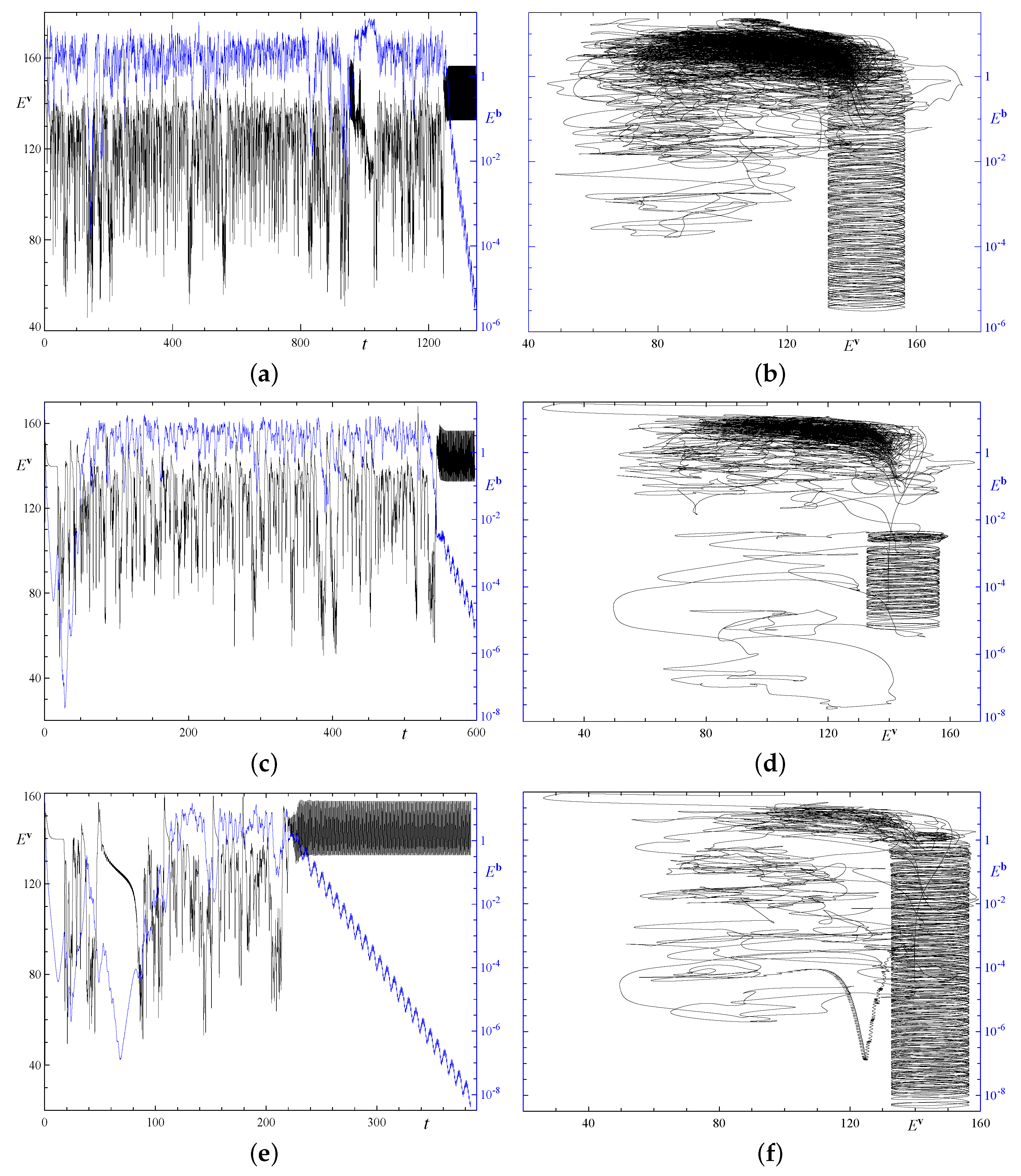

**Figure 13.**Temporal behaviour of the kinetic (left vertical axis, black line) and magnetic (right vertical axis, blue line) energies in triple-period runs (left column), and the projection of the trajectories on the plane of magnetic and kinetic energies (right column). Runs 3x1.1, (a), (b), and 3x1.2, (c), (d), with the standard space resolution ($128\phantom{\rule{-0.166667em}{0ex}}\times 384\phantom{\rule{-0.166667em}{0ex}}\times 97$ harmonics); and run 3x1.2, (e), (f), with the alternative resolution ($256\phantom{\rule{-0.166667em}{0ex}}\times 256\phantom{\rule{-0.166667em}{0ex}}\times 257$ harmonics).

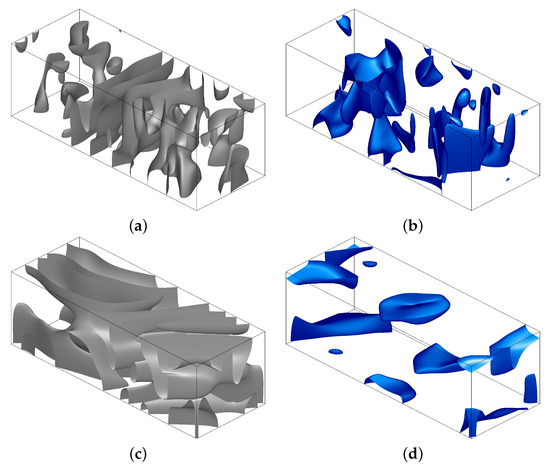

**Figure 14.**Isosurfaces of the kinetic, (a), (c) and magnetic (b), (d) energy densities in run 3x1.2 (the standard resolution) at times $t=380.671$ (a), (b) and $t=566.671$ (c), (d), at the levels of 15% (d), 30% (b) and 50% (a), (c) of the respective maxima of the densities. One triple-period fluid box is shown.

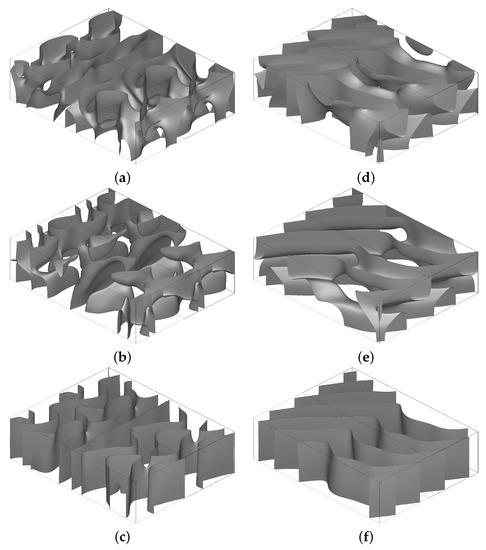

**Figure 15.**Isosurfaces of the flow components: ${v}^{1}=0$ (a), (d); ${v}^{2}=0$ (b), (e); ${v}^{3}=0$ (c), (f) in run 3x1.2 (the standard resolution) at times $t=380.671$ (a)–(c) and $t=566.671$ (d)–(f). Two adjacent triple-period fluid boxes are shown. However, by the boundary conditions (2.1), ${v}^{3}=0$ on the horizontal boundaries, they are not shown as isosurfaces in (c), (f), because that would block the view of the isosurfaces inside the fluid volume.

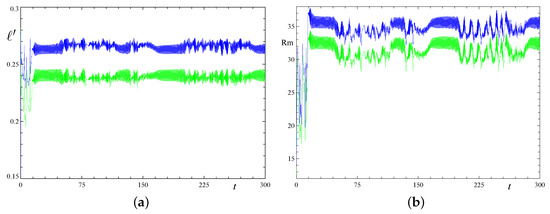

**Figure 16.**Temporal behaviour of the magnetic Reynolds number estimates Rm${}_{1}^{\prime}$ (green line) and Rm${}_{3}^{\prime}$ (blue line), (a), and of the kinetic helicity (green line, right vertical axis) together with the kinetic energy (black line, left vertical axis) for reference, (b), in run 3x1.2.

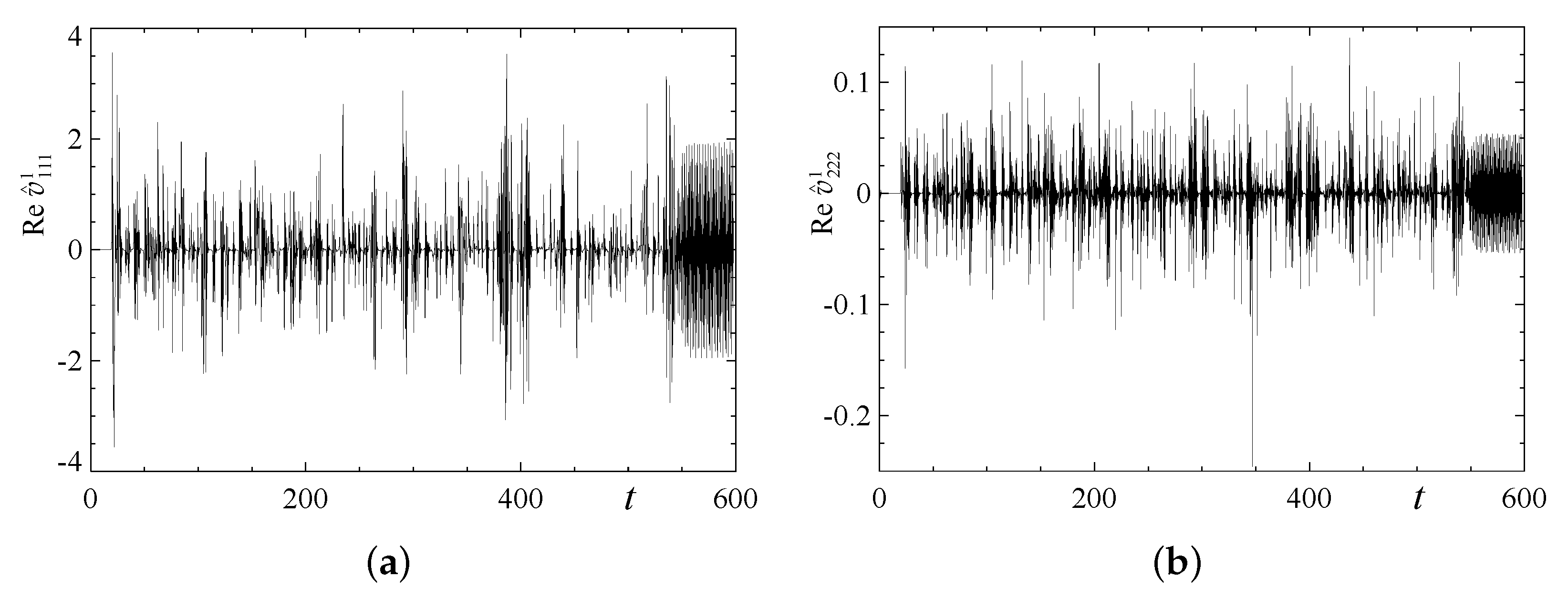

**Figure 17.**Temporal behaviour of the Fourier coefficients Re ${\widehat{v}}_{111}^{1}$ (a) and Re ${\widehat{v}}_{222}^{1}$ (b) for $0\le t\le 600$ in run 3x1.2.

**Figure 18.**Temporal power spectra of the Fourier coefficients Re ${\widehat{v}}_{111}^{1}$ (left column) and Re ${\widehat{v}}_{222}^{1}$ (right column) in the interval $50\le t\le 533$ in run 3x1.2 (a), (b) and in the interval $75\le t\le 975$ in run 1x3.3 (c), (d).

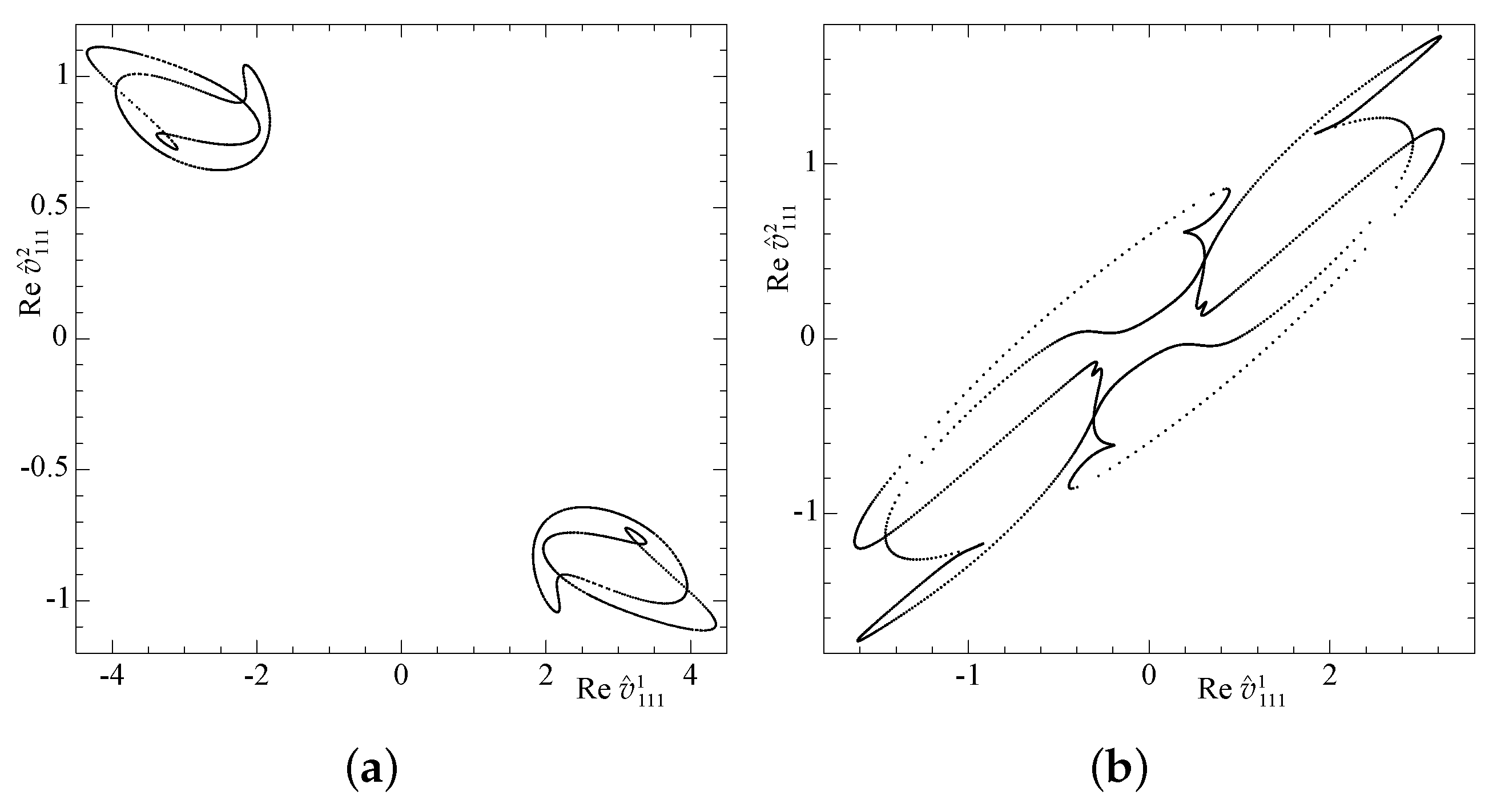

**Figure 19.**Projection of the Poincaré map of the hyperplane Re ${\widehat{v}}_{222}^{3}=0$ on the plane (Re ${\widehat{v}}_{111}^{1}$, Re ${\widehat{v}}_{111}^{2}$) for the amagnetic attractors in runs 1x3.1 (constructed over the time interval $100\le t\le 487$) (a) and 3x1.3 (over $300\le t\le 550$) (b).

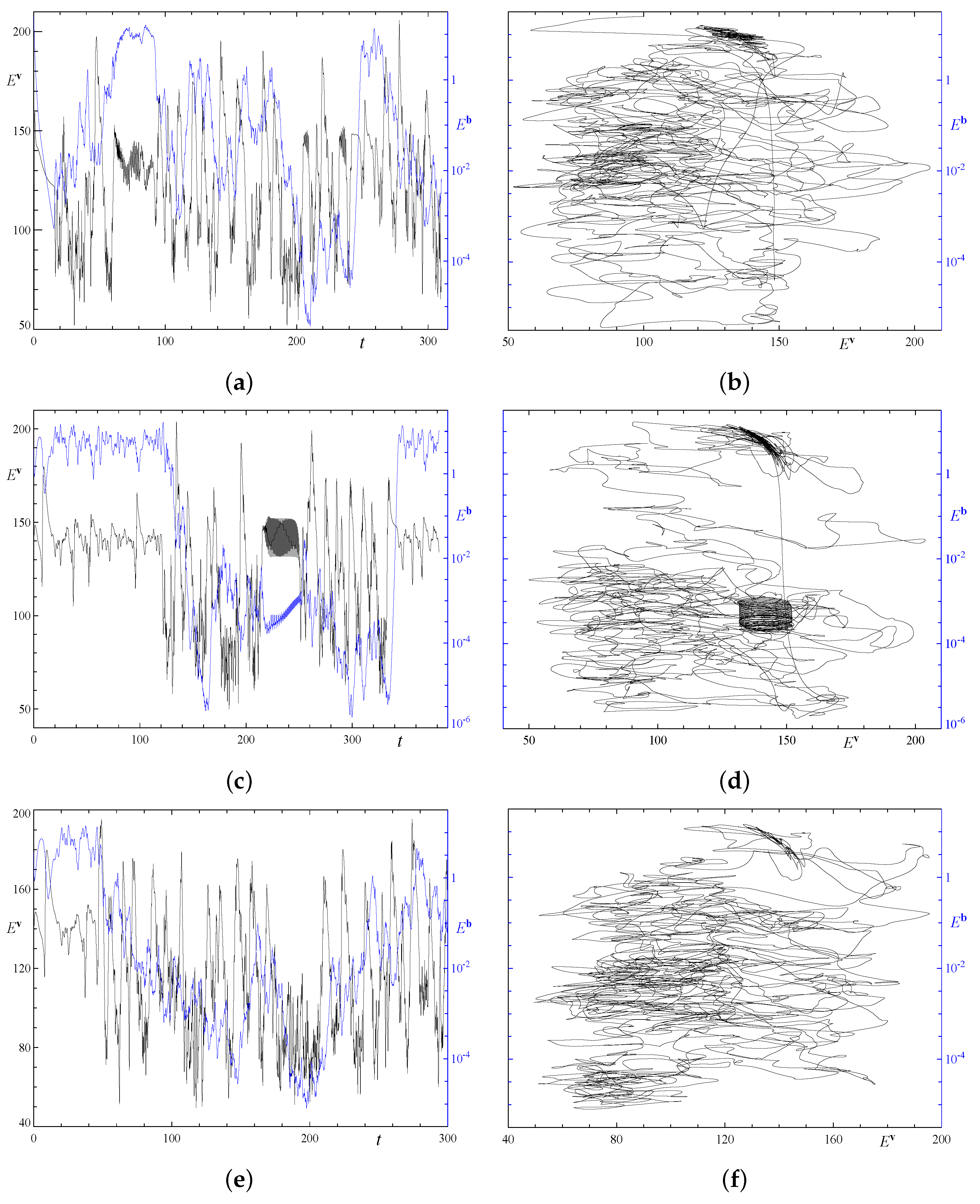

**Figure 20.**Temporal behaviour of the mean kinetic (left vertical axis, black line) and magnetic (right vertical axis, blue line) energies (left column), and projection of the trajectories on the plane of magnetic and kinetic energies (right column) in the quadruple-period runs 4x1.2 for the standard resolution, (a), (b); 4x1.1 for the standard resolution, (c), (d); and 4x1.1 for the alternative resolution (e), (f).

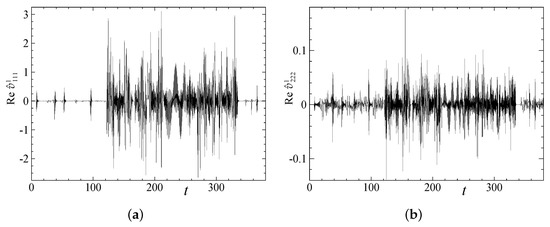

**Figure 21.**Temporal behaviour of the Fourier coefficients Re ${\widehat{v}}_{111}^{1}$ (a) and Re ${\widehat{v}}_{222}^{1}$ (b) in run 4x1.1.

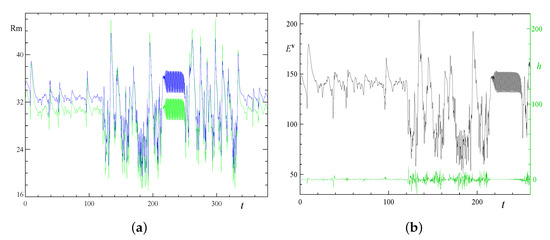

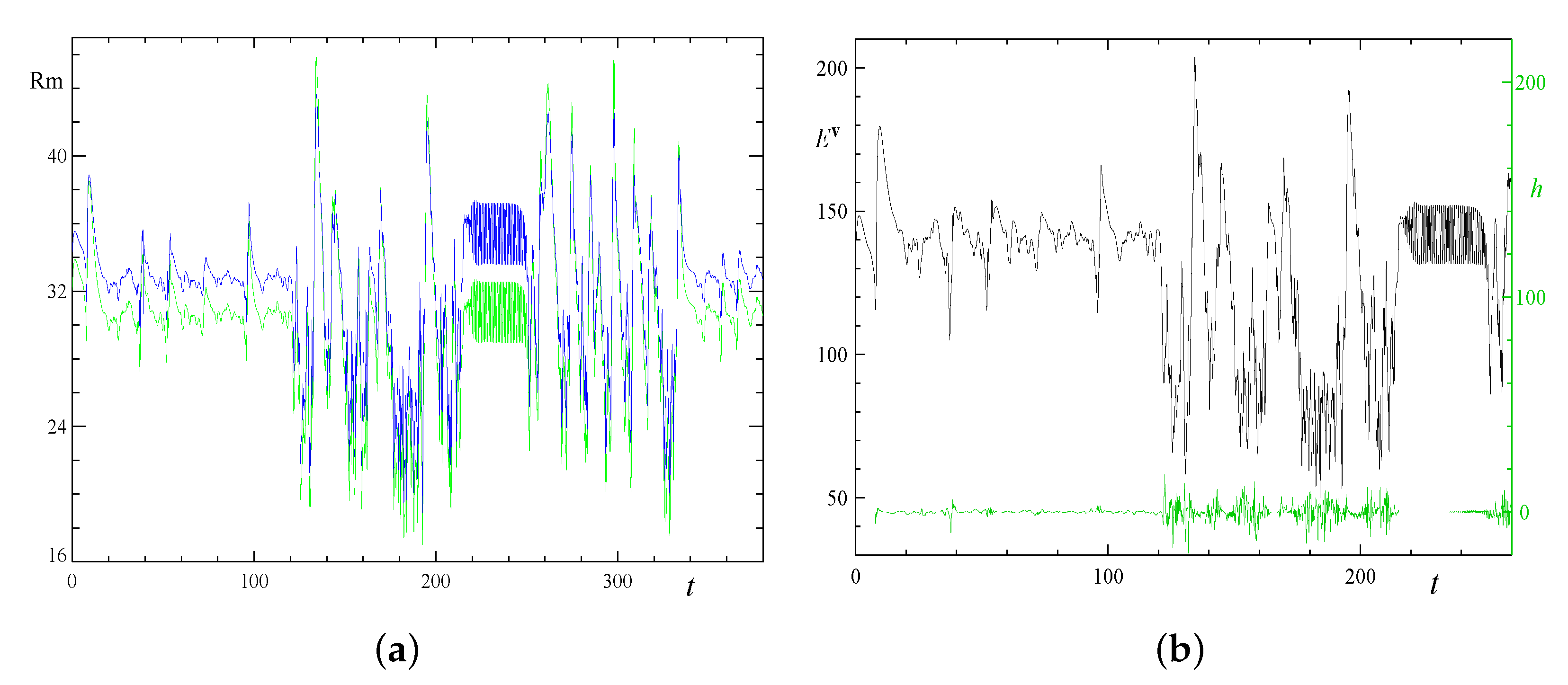

**Figure 22.**Temporal behaviour of the magnetic Reynolds number estimates, Rm${}_{1}^{\prime}$ (green line) and Rm${}_{3}^{\prime}$ (blue line), (a); and of the kinetic helicity (green line, right vertical axis) together with the kinetic energy (black line, left vertical axis) for reference, (b), in run 4x1.1.

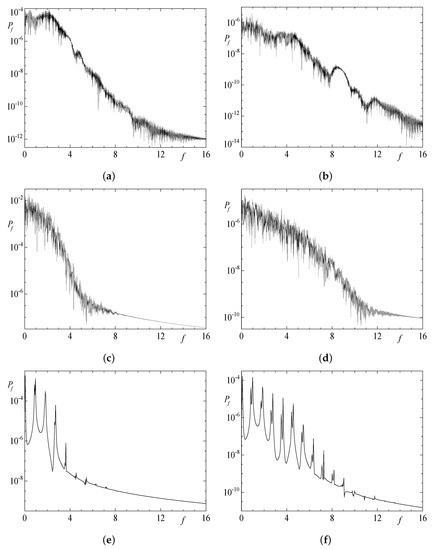

**Figure 23.**Temporal power spectra of the Fourier coefficients Re ${\widehat{v}}_{111}^{1}$ (left column) and Re ${\widehat{v}}_{222}^{1}$ (right column) in the standard-resolution run 4x1.1 in the time intervals $15\le t\le 120$, (a), (b); $132\le t\le 212$, (c), (d); and $223\le t\le 242$, (e), (f).

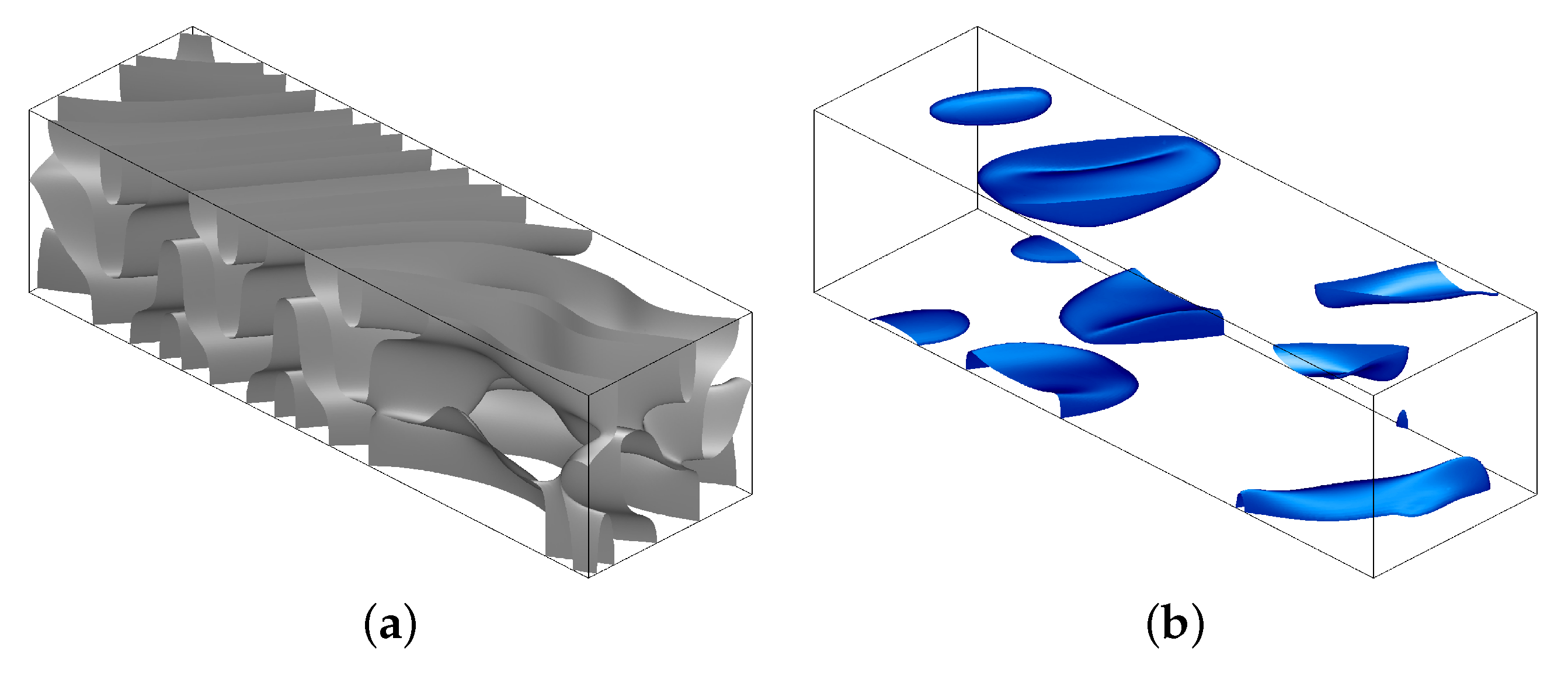

**Figure 24.**Isosurfaces of the kinetic (a) and magnetic (b) energy densities at the levels of 50% and 35% of their respective maxima in run 4x1.1 at time $t=222.626$. One quadruple-period fluid box is shown.

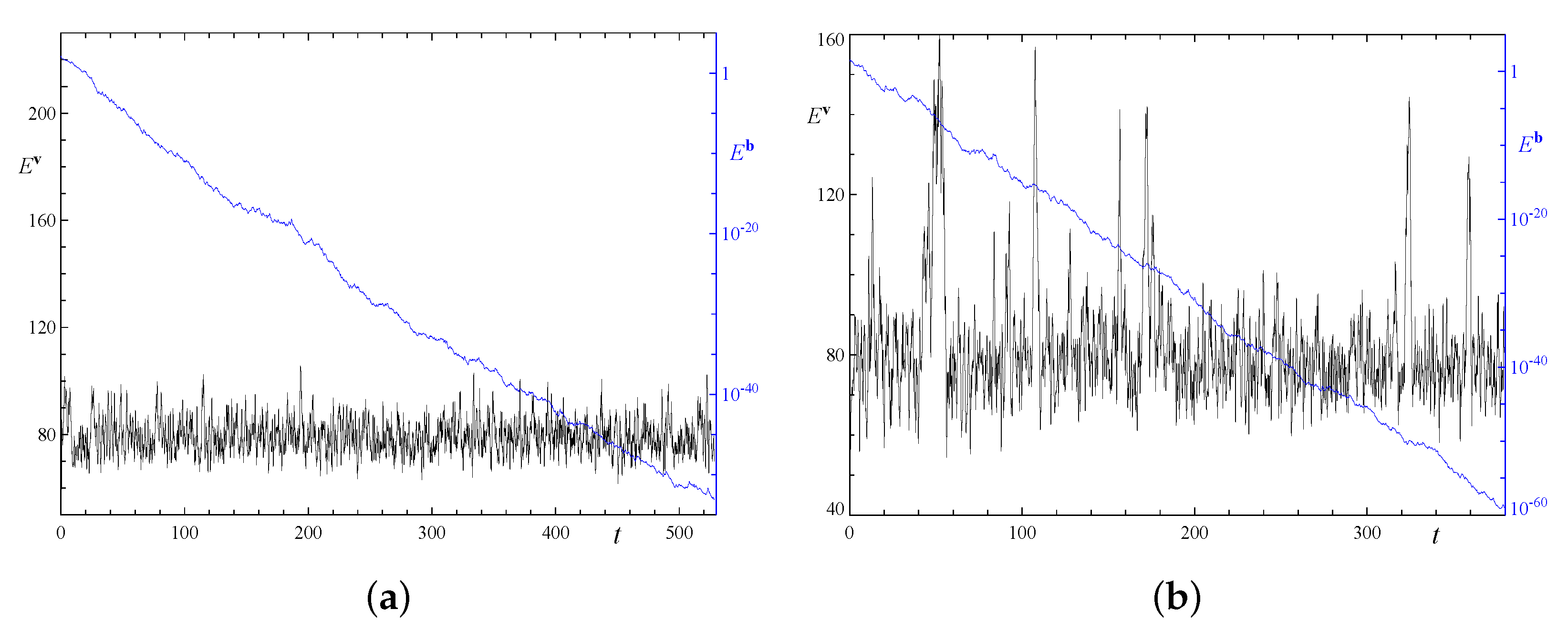

**Figure 25.**Temporal behaviour of the kinetic (left vertical axis, black line) and magnetic (right vertical axis, blue line) energies in the double-period runs 4x4.2 (a) and 2x4.2 (b).

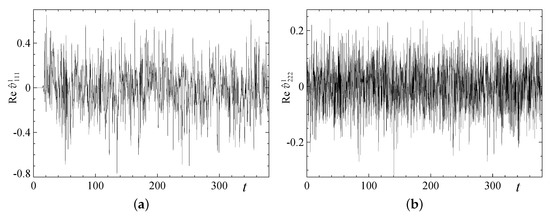

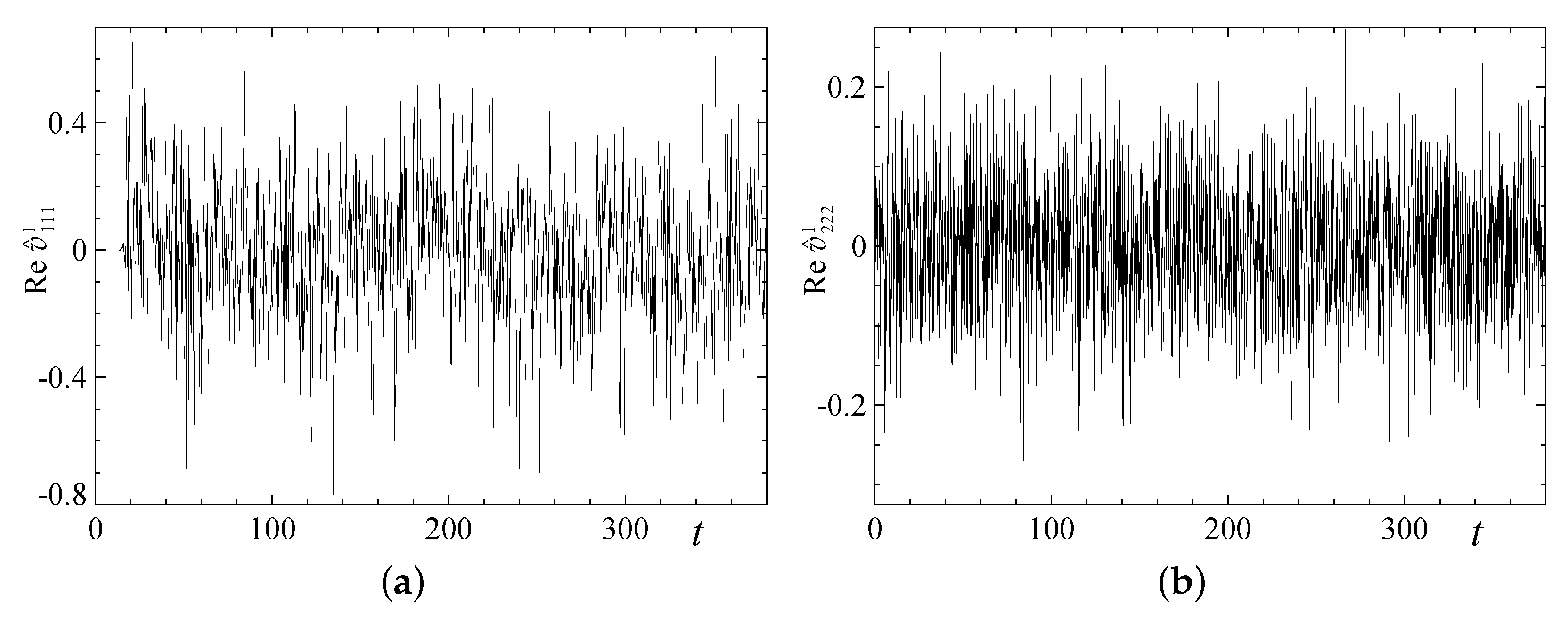

**Figure 26.**Temporal behaviour of the Fourier coefficients Re ${\widehat{v}}_{111}^{1}$ (a) and Re ${\widehat{v}}_{222}^{1}$ (b) in run 2x4.2.

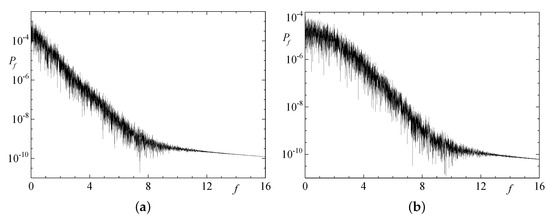

**Figure 27.**Temporal power spectra of the Fourier coefficients Re ${\widehat{v}}_{111}^{1}$ (a) and Re ${\widehat{v}}_{222}^{1}$ (b) in the time interval $40\le t\le 381.21$ in run 2x4.2.

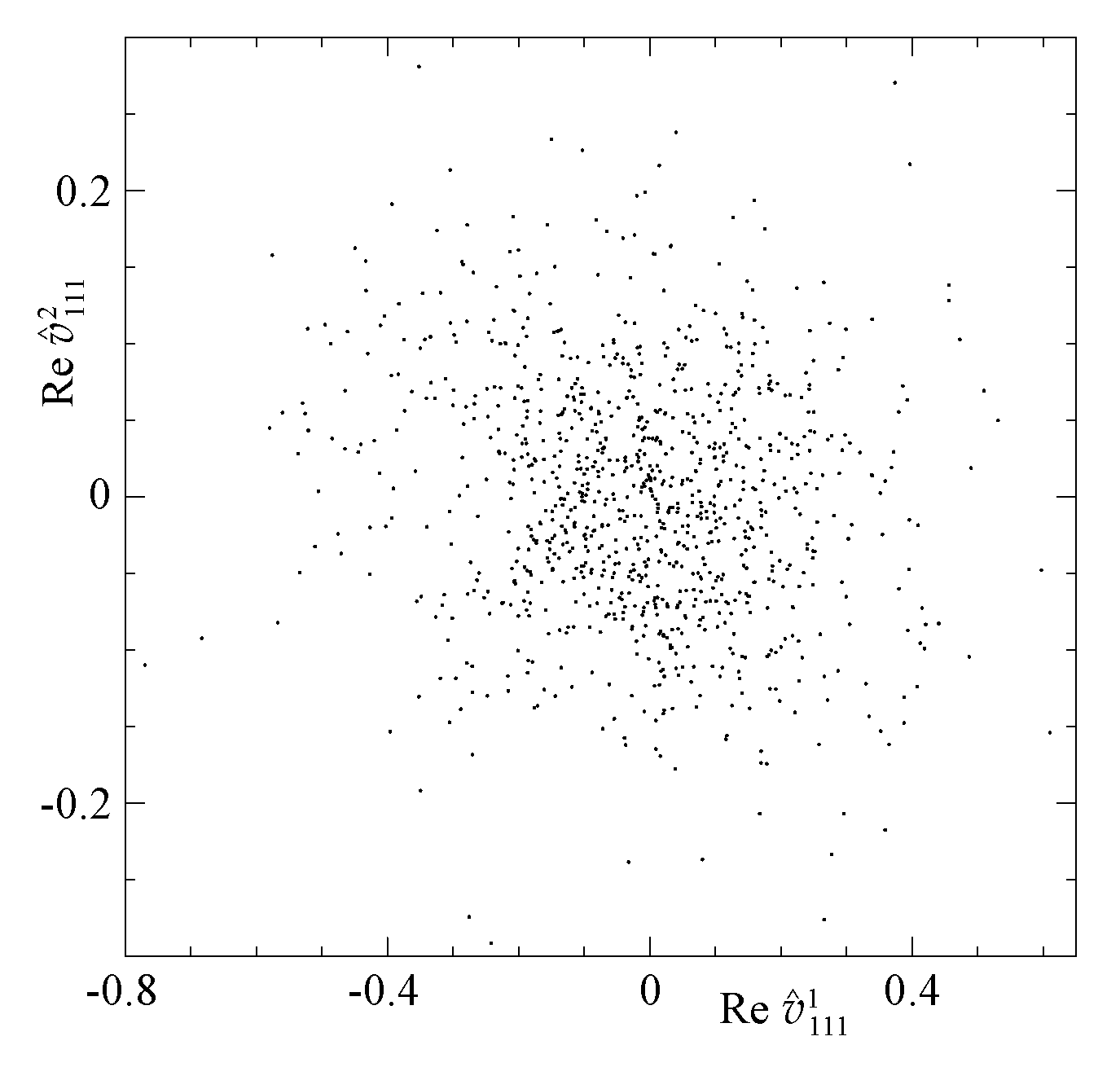

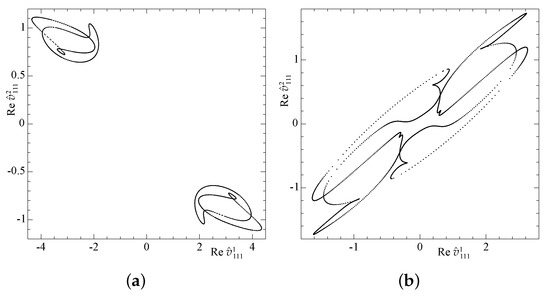

**Figure 28.**Projection of the Poincaré map of the hyperplane Re ${\widehat{v}}_{222}^{3}=0$ on the plane (Re ${\widehat{v}}_{111}^{1}$, Re ${\widehat{v}}_{111}^{2}$) constructed over the time interval $40\le t\le 381.21$ for run 2x4.2.

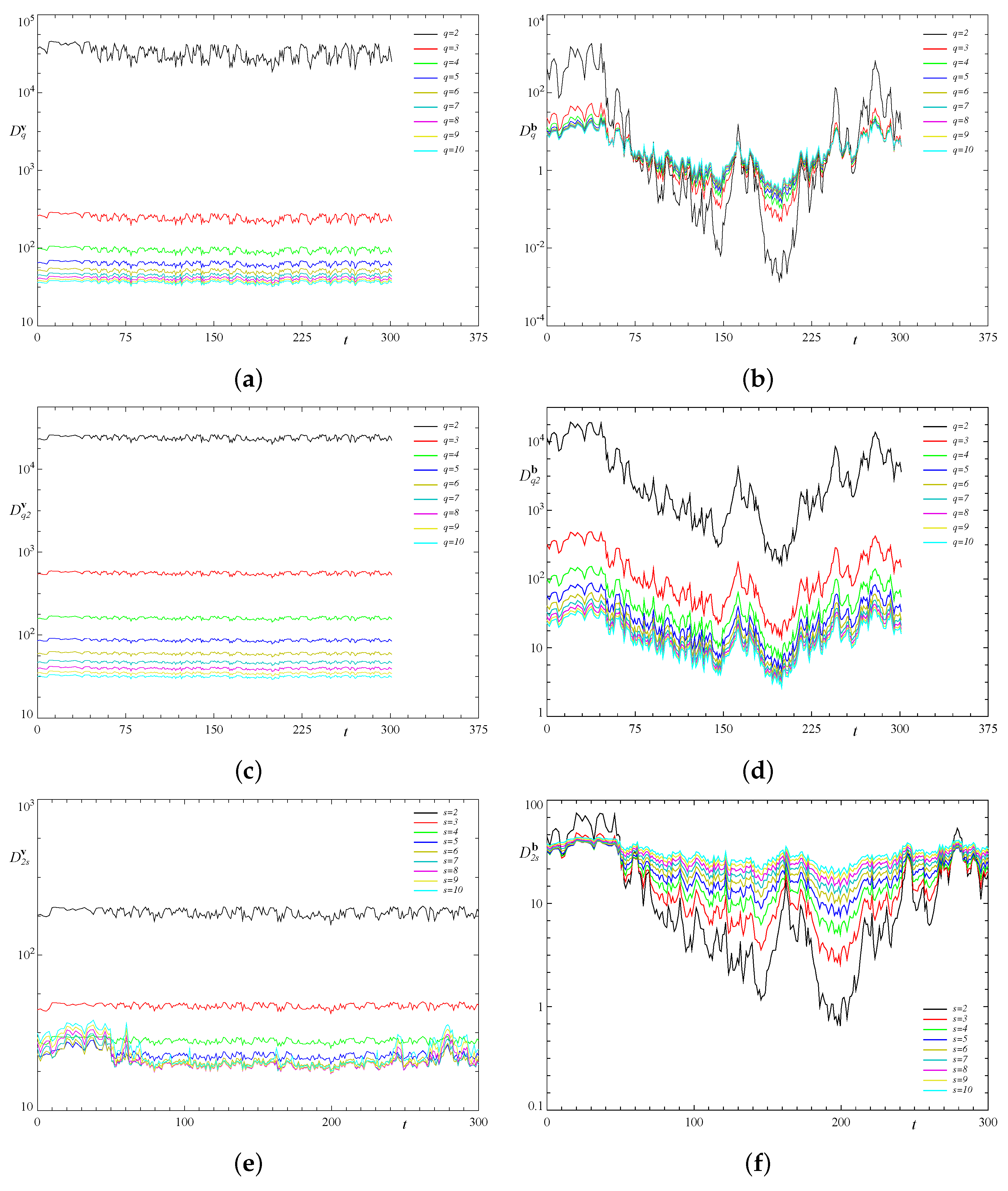

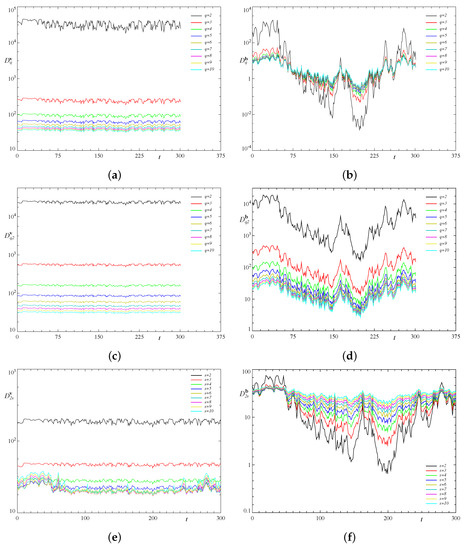

**Figure 29.**Time evolution of the quantities ${D}_{q}^{\mathbf{v}}$ (a), ${D}_{q,s}^{\mathbf{v}}$ (c), (e), ${D}_{q}^{\mathbf{b}}$ (b) and ${D}_{q,s}^{\mathbf{b}}$ (d), (f) for $s=2$ and q varying in the range $2\le q\le 10$ (c), (d), and for $q=2$ and s in the range $1\le s\le 10$ (e), (f) in run 4x1.1.
