Introduction to Light Properties and Basic Principles of Spectroscopy at the High-School Level: A Pilot Study
- To avoid the “black-box” approach to spectrophotometers and similar instruments ;
- To make instruments more accessible for high-school teachers (and less expensive) ;
- To increase the versatility of the spectroscopic instruments ;
- To use a multidisciplinary approach to teach spectroscopy—for instance, by adopting the science, technology, engineering, and mathematics (STEM) approach .
2. Materials and Methods

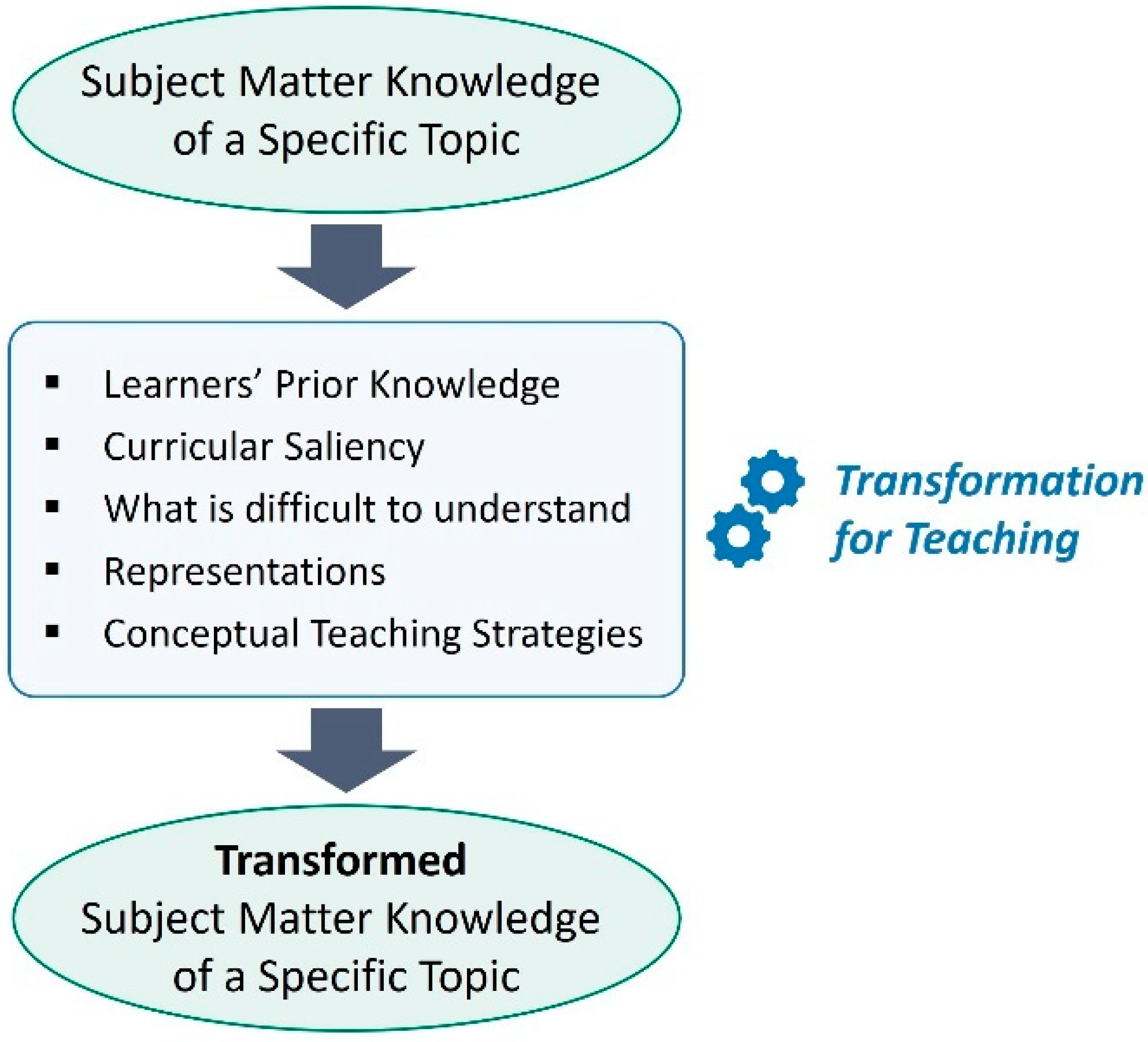

2.1. The Theoretical Framework and the Methodological Approaches

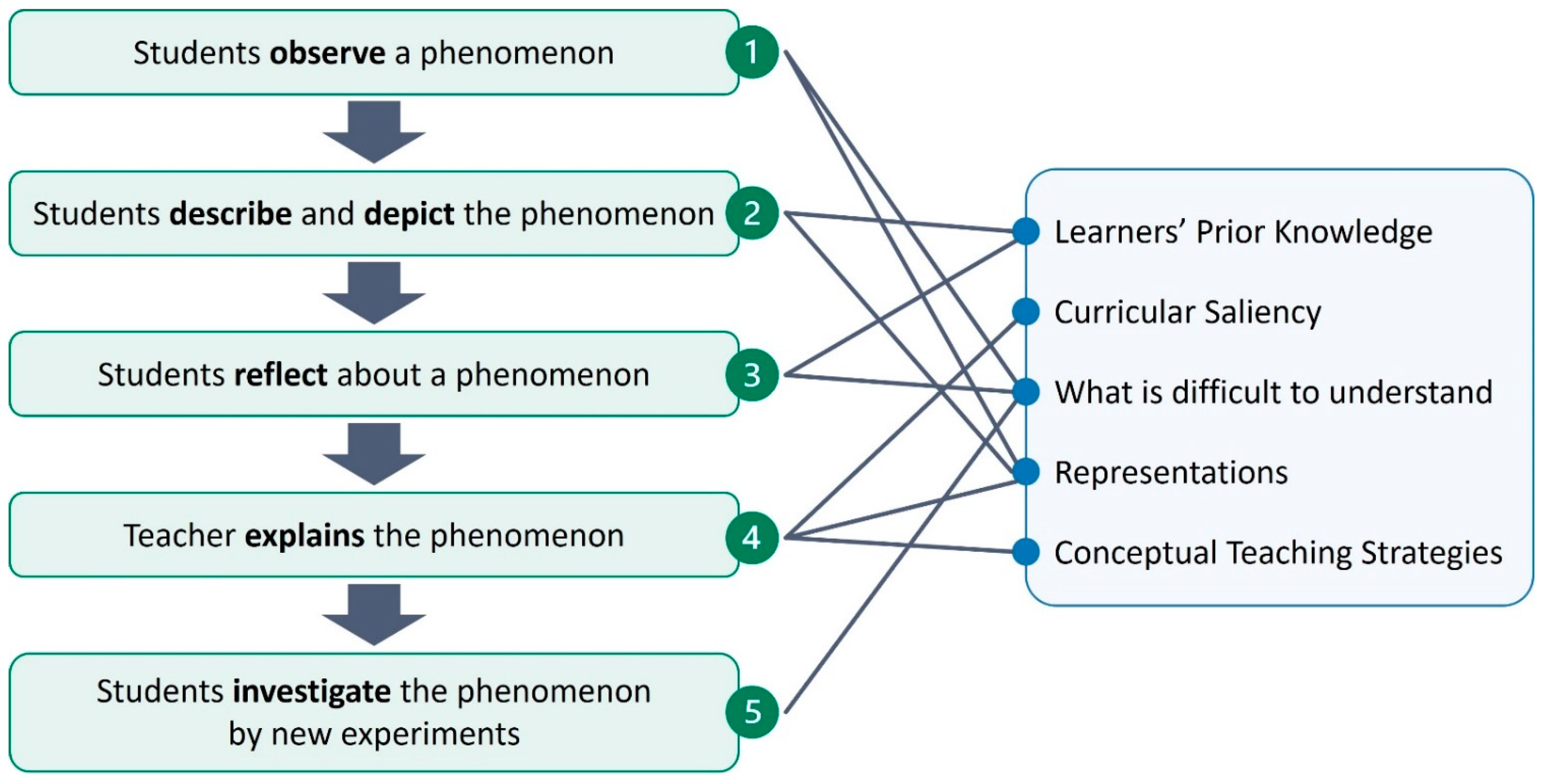

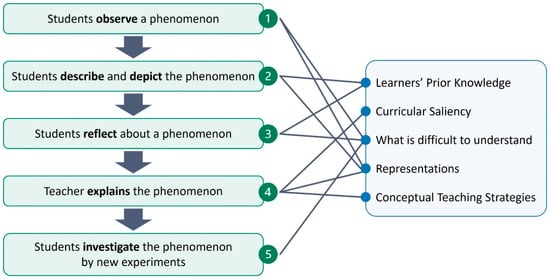

- Observation: A phenomenon is presented by an experiment, and students observe it.
- Description: Students are required to describe and to draw the observed phenomenon by filling in a form (see, for instance, some examples in the Supplementary Materials). This work helps students to recognise the basic features of a phenomenon and promotes careful and critical observation.
- Reflection: During a lesson or an activity, the teacher comments on the students’ answers and the contents of the description forms in a collective discussion with all students. During this step, an inquiry-based learning process starts. For instance, during this step, the teacher can use a digital tool to present the critical issues that emerge in the “Description” forms. A collective discussion usually starts from controversial aspects or different answers given by students to specific questions. According to the constructivist approach, these controversial aspects should induce students to critically re-elaborate their initial ideas, encouraging questioning and modelling of what they saw and understood during the observation step. After this collective reflection, students are required to fill in a “reflection form” (see some examples in the Supplementary Materials). This is an important part to promote students’ self-reflection on phenomena and their explanations of them.
- Explanatory: After a careful analysis of the observation forms and reflection forms filled in by students, and after the collective discussion, the teacher identifies the students’ cognitive obstacles and critical issues related to the specific concepts addressed during the didactic activity. Based on these, the teacher prepares a lesson to clarify the critical points, so as to explain some new key concepts reorganised in a clearer way.
- Exploratory: After the introduction of new concepts in the “explanatory lesson”, the teacher proposes a new inquiry-based activity in the laboratory. The aim of this step is to verify a concept or a theory, or to apply it by designing and carrying out an experiment.
2.2. The Participants
2.4. Assessment and Evaluation

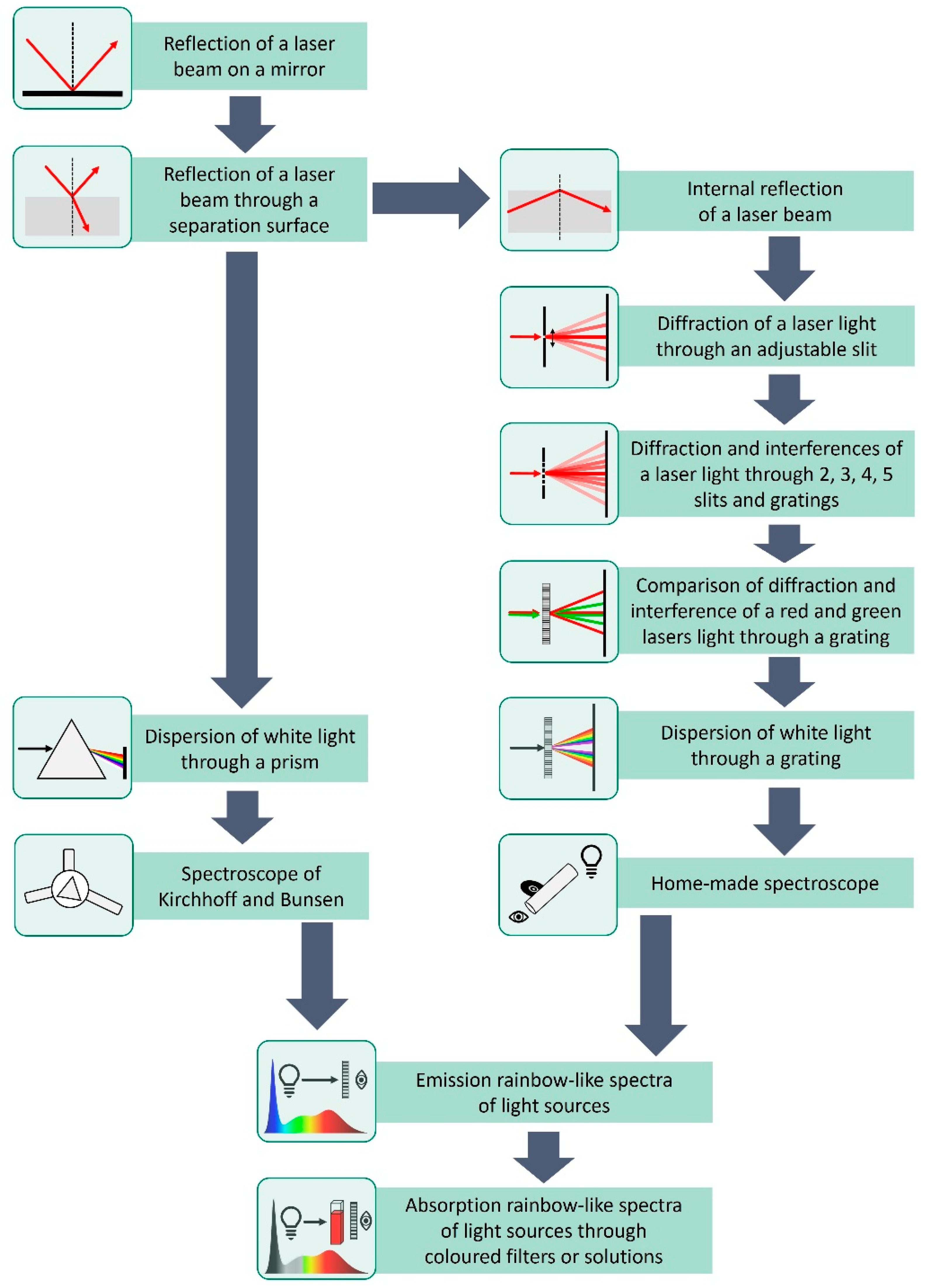

3.1. Light Phenomena
- An adjustable slit can be used to explore two limiting situations: (a) if the slit width is much bigger than the wavelength of the laser (i.e., 2–3 mm), no diffraction is observed; (b) if the slit width is very small and it can be approximated to a point source (i.e., a few microns), no diffraction is observed. All intermediate situations give rise to a diffraction pattern. Indeed, students can observe the appearance of diffraction fringes when the width of the adjustable slit is of the same order of magnitude as the wavelength.
- Diaphragms with a single slit of a known width (commercially available, as reported in Section 2.3) can be used to show how diffraction patterns change by changing the slit width.

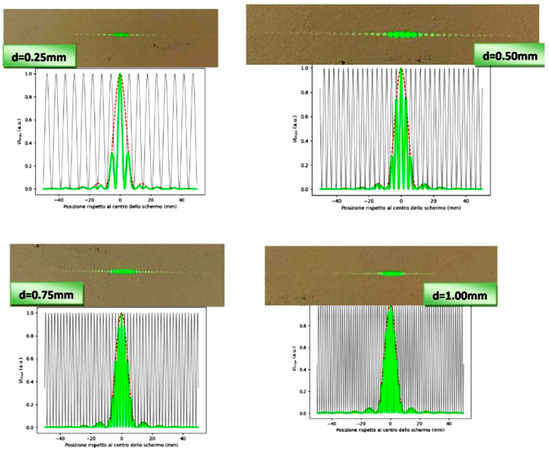

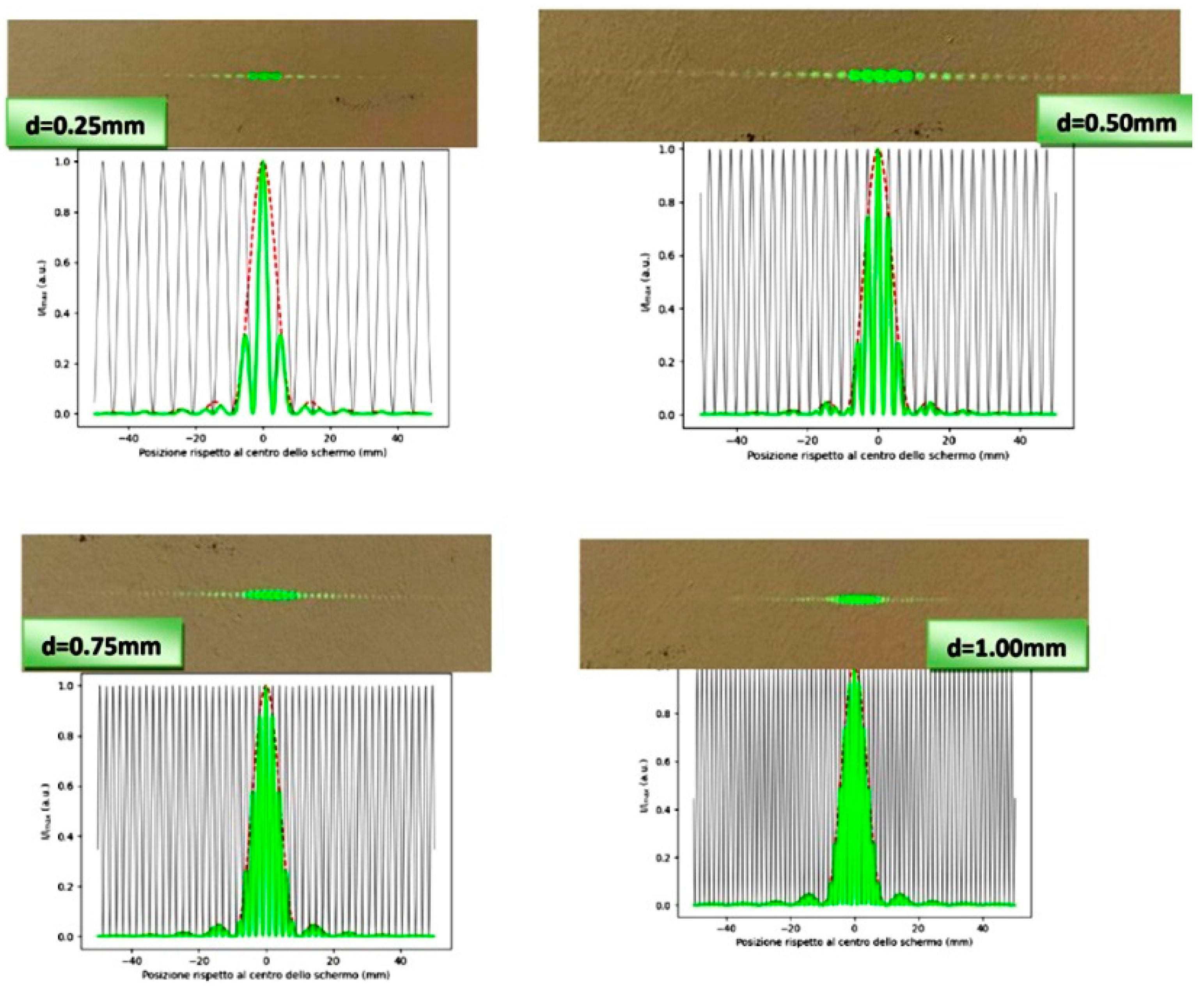

- Diaphragms with double slits with different known distances can be used to show the phenomenon of interference, which causes changes in the diffraction patterns.

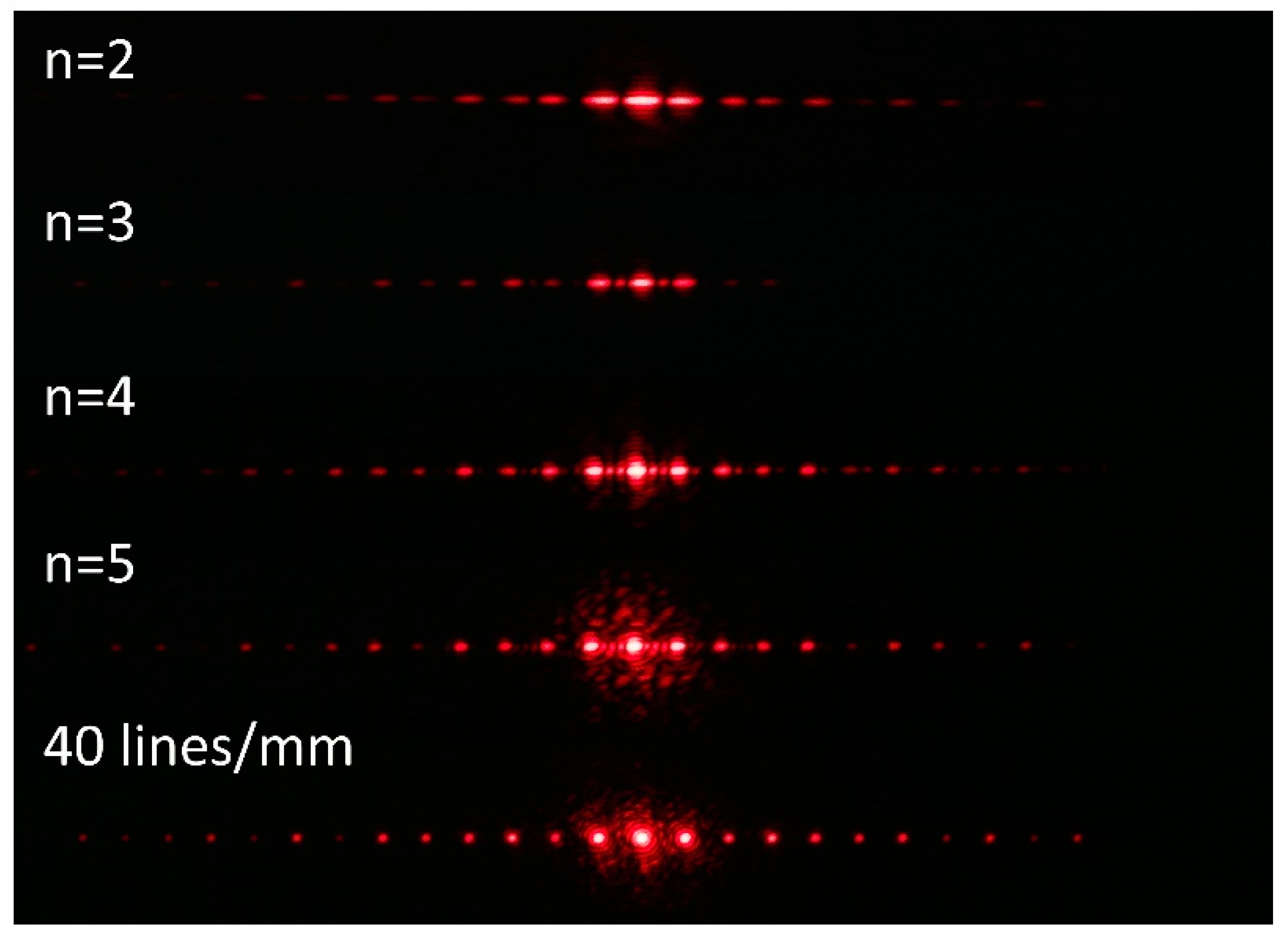

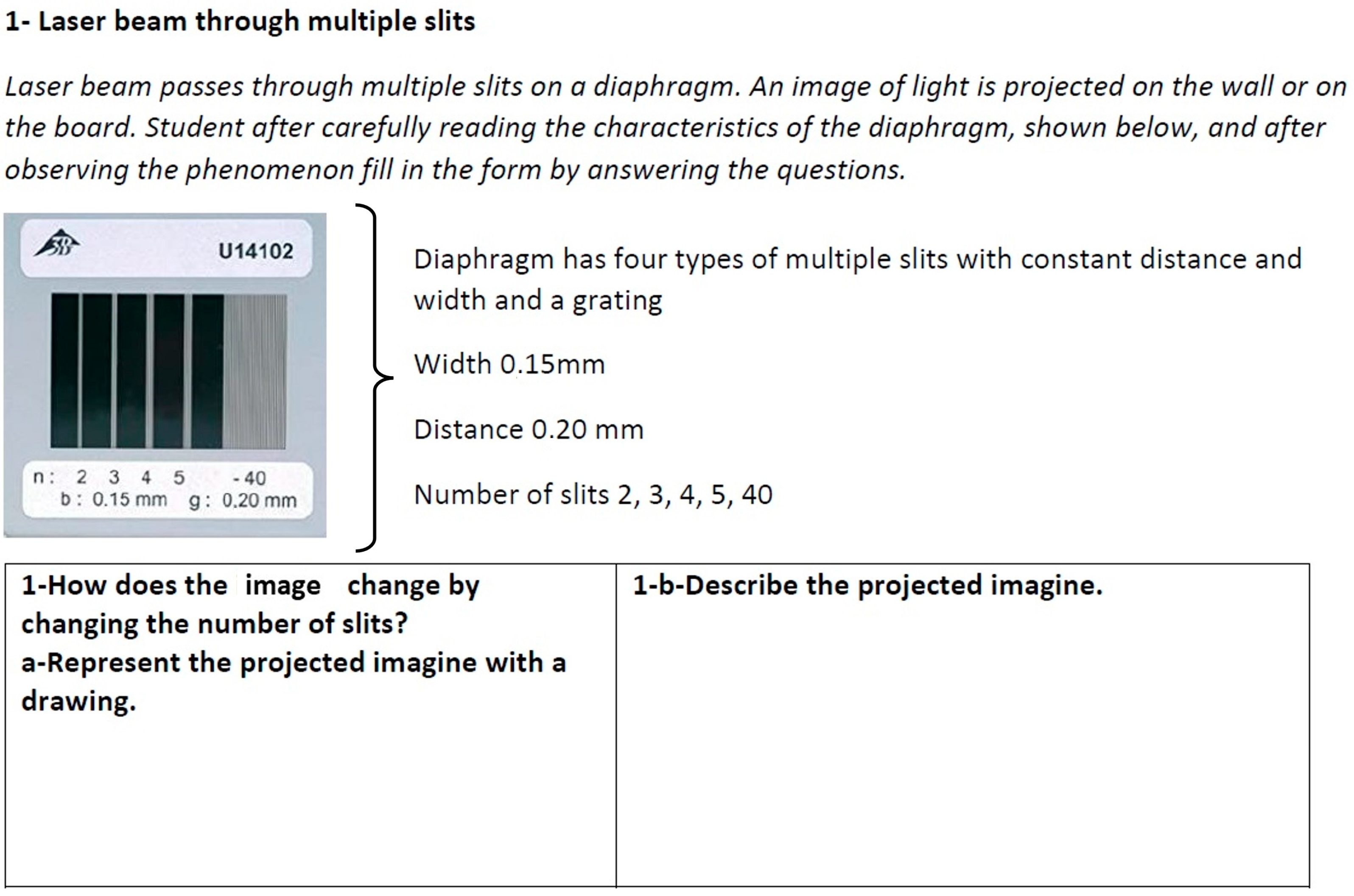

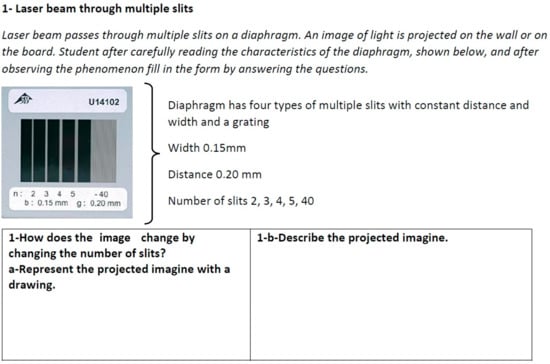

- Several experiments with multiple slits (three, four, and five slits) can be performed to show how the fringes change in their intensity and shape due to the increasing number of slits (see the diffraction patterns in Figure 5).

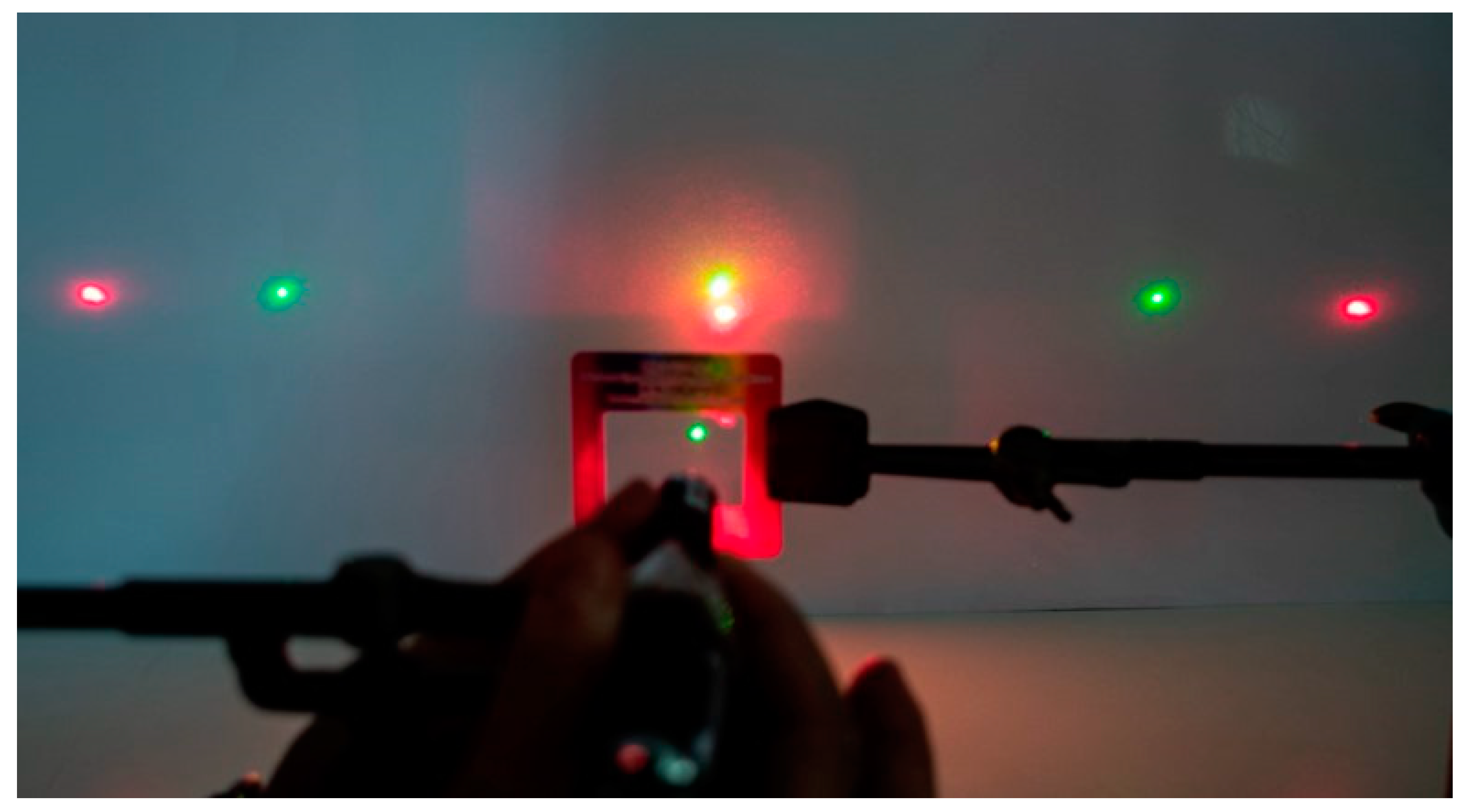

- Different diffraction gratings (i.e., with 40, 80, 100, 500, and 1000 lines/mm) can be used to show the relationship between the number of lines/mm of the diffraction grating and the distance between the maxima of the intensity of the diffraction fringes.
- By using a diffraction grating with 500 or 1000 lines/mm, a similar experiment can be conducted using two lasers, such as red and green laser pointers, projecting the diffraction pattern at the same time. This experiment is very effective in showing the effects of different wavelengths on the diffraction patterns (for instance, see the zero and first orders of diffraction in Figure 6).
3.2. Introduction to the Spectroscope through a STEM Laboratory Approach

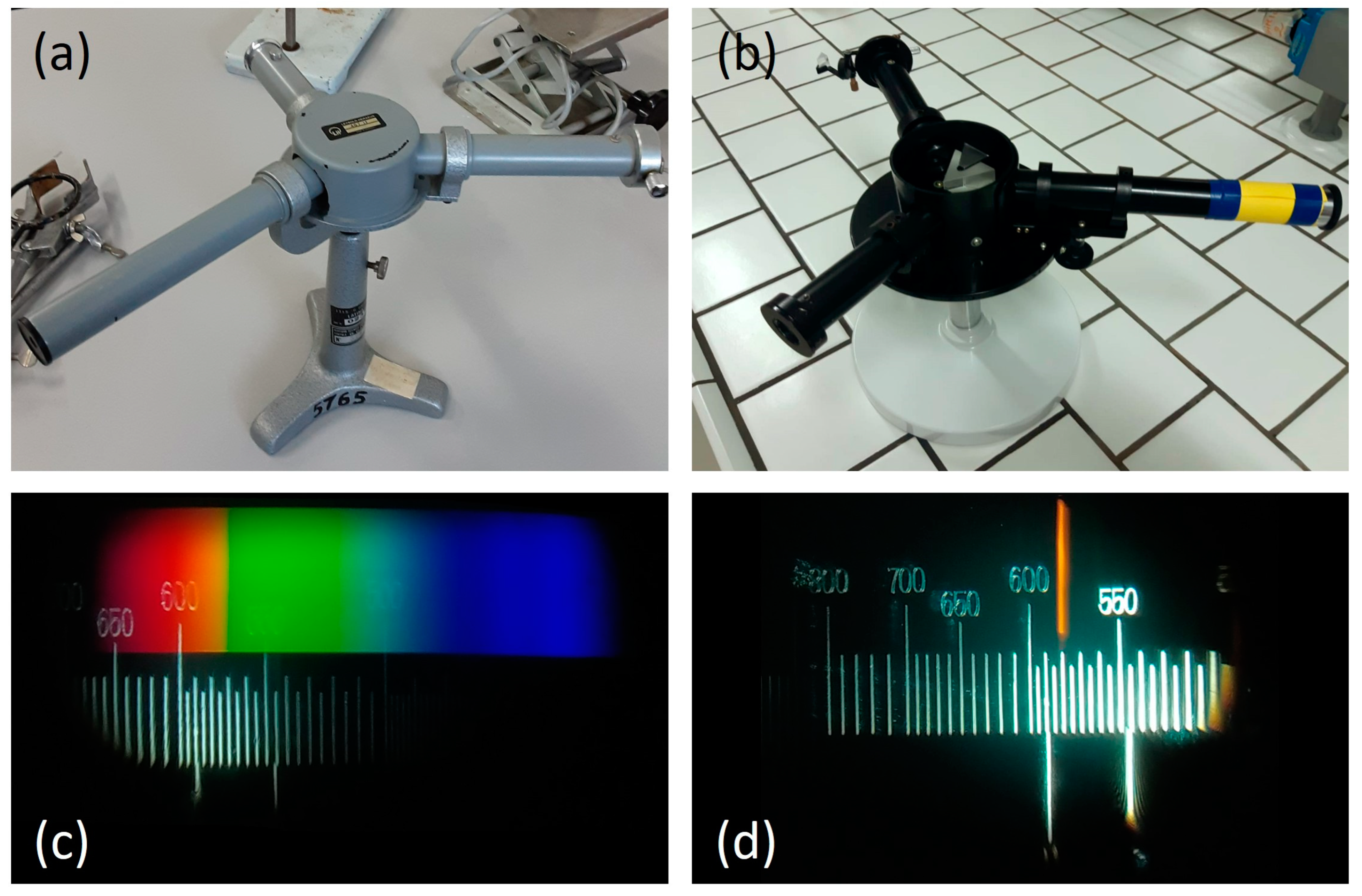

3.3. The Historical Approach to Introduce Spectroscopy
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
- Erhardt, W. Instrumental Analysis in High School Classroom: UV-Vis Spectroscopy. J. Chem. Educ. 2007, 84, 1024–1026. [Google Scholar] [CrossRef]
- Reader, A. Teaching, Learning and the Curriculum in Secondary Schools, 1st ed.; Hutchinson, S., Moon, B., Shelton, A.M., Eds.; Routledge Publisher: New York, NY, USA, 2022. [Google Scholar]
- Czegan, D.A.C.; Hoover, D.K. UV−Visible Spectrometers: Versatile Instruments across the Chemistry Curriculum. J. Chem. Educ. 2012, 89, 304–309. [Google Scholar] [CrossRef]
- Forbes, M.D.E. What We Talk about When We Talk about Light. J. Chem. Educ. 2015, 1, 354–363. [Google Scholar] [CrossRef]
- Bach, T. More Chemistry with Light! More Light in Chemistry. Angew. Chem. Int. Ed. 2015, 54, 11294–11295. [Google Scholar] [CrossRef] [PubMed]
- Kuntzleman, T.S.; Jacobson, E.C. Teaching Beer’s Law and Absorption Spectrophotometry with a Smartphone: A Substantially Simpyfied Protocol. J. Chem. Educ. 2016, 93, 1249–1252. [Google Scholar] [CrossRef]
- Kovarik, M.L.; Clapis, J.R.; Romano-Pringle, K.A. Review of Student-Built Spectroscopy Instrumentation Projects. J. Chem. Educ. 2020, 97, 2185–2195. [Google Scholar] [CrossRef]
- Quagliano, J.M.; Marks, C.A. Demystifying Spectroscopy with Secondary Students: Designing and Using a Custom-Built Spectrometer. J. Chem. Educ. 2013, 90, 1409–1410. [Google Scholar] [CrossRef]
- Taha, S.; Rafat, G.; Aboshosha, F.; Mansour, F.R. A simple home-made spectrophotometer. J. Anal. Chem. 2017, 72, 239–242. [Google Scholar] [CrossRef]
- Bougot-Robin, K.; Paget, J.; Atkins, S.C.; Edel, J.B. Optimization and Design of an Absorbance Spectrometer Controlled Using a Raspberry Pi to Improve Analytical Skills. J. Chem. Educ. 2016, 93, 1232–1240. [Google Scholar] [CrossRef]
- Puspitaningtyas, E.; Nasera Putri, E.F.; Umrotul, U.; Sutopo, S. Analysis of high-school student concept mastery in light wave using structured inquiry learning assisted by a virtual laboratory. Rev. Mex. Fis. E 2021, 18, 10–22. [Google Scholar] [CrossRef]
- Balabanoff, M.E.; Al Fulaiti, H.; Bhusal, S.; Harrold, A.; Moon, A. An exploration of chemistry students conceptions of light and light-matter interactions in the context of photoelectric effect. Int. J. Sci. Educ. 2020, 42, 861–881. [Google Scholar] [CrossRef]
- Balabanoff, M.E.; Kaur, S.; Barbera, J.; Moon, A. A construct modelling approach to characterize chemistry students’ understanding of the nature of light. Int. J. Sci. Educ. 2022, 44, 873–895. [Google Scholar] [CrossRef]
- Cozzi, R.; Protti, P.; Ruaro, T. Tecniche di analisi per Chimica e materiali. In Elementi di Chimica Analitica Strumentale, 3rd ed.; Zanichelli: Bologna, Italy, 2020. [Google Scholar]
- Pena, M.V. Discovering Light. Fun Experiments with Optics; SPIE: Washington, DC, USA, 2021. [Google Scholar]
- Ndihokubwayo, K.; Uwamahoro, J.; Ndayambaje, I.; Ralph, M. Light phenomena conceptual assessment: An inventory tool for teachers. Phys. Educ. 2020, 55, 035009. [Google Scholar] [CrossRef]
- Dangur, V.; Avargil, S.; Peskin, U.; Dori, Y.J. Learning quantum chemistry via a visual-conceptual approach: Students bidirectional textual and visual understanding. Chem. Educ. Res. Pract. 2014, 15, 297. [Google Scholar] [CrossRef]
- Italian Guide of Technical Institutes with Chemical Curriculum (with Teaching and Learning Tasks). Available online: https://archivio.pubblica.istruzione.it/riforma_superiori/nuovesuperiori/doc/ALL_B_C_Tecnici_4_02_10.pdf (accessed on 20 December 2022).
- El Hani, O.; Karrat, A.; Digua, K.; Amine, A. Development of a simplified spectrophotometric method for nitrite determination in water samples. Spectrochim. Acta A Mol. Biomol. Spectrosc. 2022, 267 Pt 2, 120574. [Google Scholar] [CrossRef] [PubMed]
- Domenici, V.; Ancora, D.; Cifelli, M.; Serani, A.; Veracini, C.A.; Zandomeneghi, M. Extraction of Pigment from Near UV-Vis Absorption Spectra of Extra Virgin Olive Oils. J. Agr. Food Chem. 2014, 62, 9317–9325. [Google Scholar] [CrossRef]
- Himaja, D.; Manoj, K.; Manjunath, S.Y.; Sandip, S. Colorimetric Method Development and Validation for Estimation of Lactose in Milk. Int. J. Pharm. Technol. Lett. 2021, 1, 22–26. [Google Scholar]
- Rienth, M.; Romieu, C.; Gregan, R.; Walsh, C.; Torregrosa, L.; Kelly, M.T. Validation and Application of an Improved Method for the Rapid Determination of Proline in Grape Berries. J. Agr. Food Chem. 2014, 62, 3384–3389. [Google Scholar] [CrossRef] [PubMed]
- Reid, N.; Shah, I. The role of laboratory work in university chemistry. Chem. Educ. Res. Pract. 2003, 8, 172–185. [Google Scholar] [CrossRef]
- Seery, M.K. Establishing the Laboratory as the Place to Learn to Do Chemistry. J. Chem. Educ. 2020, 97, 1511–1514. [Google Scholar] [CrossRef]
- Jurinovich, S.; Domenici, V. Digital Tool for the Analysis of UV–Vis Spectra of Olive Oils and Educational Activities with High School and Undergraduate Students. J. Chem. Educ. 2022, 99, 787–798. [Google Scholar] [CrossRef]
- Bauer, S.H. Scientific Literacy vs. black boxes: With reference to the design of student laboratory experiments. J. Chem. Educ. 1990, 67, 692. [Google Scholar] [CrossRef]
- Albert, D.R. Constructing, Troubleshooting, and Using Absorption Colorimeters to Integrate Chemistry and Engineering. J. Chem. Educ. 2020, 97, 1048–1052. [Google Scholar] [CrossRef]
- Johnstone, A.H. You can’t get there from here. J. Chem. Educ. 2010, 87, 22–29. [Google Scholar] [CrossRef]
- Shulman, L.S. Knowledge and teaching: Foundations of the new reform. Harv. Educ. Rev. 1987, 57, 1–22. [Google Scholar] [CrossRef]
- Shulman, L.S. Those who understand: Knowledge growth in teaching. Educ. Res. 1986, 15, 4–14. [Google Scholar] [CrossRef]
- Van Driel, J.H.; Verloop, N.; de Vos, W. Developing science teachers’ pedagogical content knowledge. J. Res. Sci. Teach. 1998, 35, 673–695. [Google Scholar] [CrossRef]
- Park, S.; Jang, J.-Y.; Chen, Y.-C.; Jung, J. Is Pedagogical Content Knowledge (PCK) Necessary for Reformed Science teaching? Evidence from an Empirical Study. J. Res. Sci. Teach. 2011, 41, 245–260. [Google Scholar] [CrossRef]
- Geddis, A. Trasforming subject-matter knowledge: The role of pedagogical content knowledge in learning to reflect on teaching. Int. J. Sci. Educ. 1993, 15, 673–683. [Google Scholar] [CrossRef]
- Geddis, A.; Wood, E. Trasforming subject-matter and managing dilemmas: A case study in teacher education. Teach. Teach. Educ. 1997, 13, 611–626. [Google Scholar] [CrossRef]
- Mavhunga, E.; Rollnick, M. Improving PCK of chemical equilibrium in pre-service teachers. Afr. J. Res. Math. 2013, 17, 113–125. [Google Scholar] [CrossRef]
- Cochran, K.F.; De Ruiter, J.A.; King, R.A. Pedagogical Content Knowing: An Integrative Model for Teacher Preparation. J. Teach. Educ. 1993, 44, 263–272. [Google Scholar] [CrossRef]
- Connor, M.C.; Shultz, G.V. Teaching assistants’ topic-specific pedagogical content knowledge in 1H NMR. Chem. Educ. Res. Pract. 2018, 19, 653–669. [Google Scholar] [CrossRef]
- Bodner, G.M. Constructivism: A theory of knowledge. J. Chem. Educ. 1986, 63, 873–878. [Google Scholar] [CrossRef]
- Wicken, J.S. The value of historical concepts in science education. J. Chem. Educ. 1976, 53, 96–97. [Google Scholar] [CrossRef]
- Technical Institute ‘Galilei-Sani’ in Latina. Available online: https://www.isgalileisani.it/ (accessed on 15 January 2023).
- Technical Institute ‘Cattaneo’ in San Miniato. Available online: https://www.itcattaneo.edu.it/ (accessed on 15 January 2023).
- Dipartimento di Chimica e Chimica Industriale of the University of Pisa. Available online: https://www.dcci.unipi.it/ (accessed on 15 January 2023).
- Reflection. Available online: https://youtu.be/aslgQYSeaJs (accessed on 15 January 2023).
- Refraction. Available online: https://youtu.be/Fa_M13GsTuc (accessed on 17 January 2023).
- Internal Refraction. Available online: https://youtu.be/-tAESYpNTqQ (accessed on 17 January 2023).
- Diffraction and Interference. Available online: https://youtu.be/QbF-wTPTPjc (accessed on 17 January 2023).
- DAD-Spectroscopy. Available online: https://sites.google.com/cattaneodigitale.it/spettroscopia/?pli=1 (accessed on 17 January 2023).
- The Didactic Project with Undergraduate Students about Introduction of Spectroscopy. Available online: https://smslab.dcci.unipi.it/versus-spettroscopi.html (accessed on 17 January 2023).
- Domenici, V. STEAM Project-Based Learning Activities at the Science Museum as an Effective Training for Future Chemistry Teachers. Educ. Sci. 2022, 12, 30. [Google Scholar] [CrossRef]
- Domenici, V. Training of Future Chemistry Teachers by a Historical/STEAM Approach Starting from the Visit to an Historical Science Museum. Substantia 2022, 7, 23–34. [Google Scholar] [CrossRef]
- Truman Schwartz, A. The history of chemistry. Education for revolution. J. Chem. Educ. 1977, 54, 467–468. [Google Scholar] [CrossRef]
- Jaffe, B. Using the history of chemistry in our teaching. J. Chem. Educ. 1955, 32, 183–185. [Google Scholar] [CrossRef]
- Baddeley, A. The Working Memory; Oxford University Press: Oxford, UK, 1986. [Google Scholar]
- Johnstone, A.H. Chemistry Teaching-Science or Alchemy? Brasted lecture. J. Chem. Educ. 1997, 74, 262–268. [Google Scholar] [CrossRef]
- Johnstone, A.H. New Stars for the Teacher to Steer by? J. Chem. Educ. 1984, 61, 847–849. [Google Scholar] [CrossRef]
- Johnstone, A.H. The development of chemistry teaching. A changing response to a changing demand. J. Chem. Educ. 1993, 70, 701–705. [Google Scholar] [CrossRef]
- Domenici, V. Alcune attività didattiche sulle proprietà della luce visibile propedeutiche alla Spettroscopia: L’esperienza di un corso universitario di Chimica Fisica e Laboratorio. In Immagini e Strumenti Digitali nella Didattica delle Scienze; Domenici, V., Giudici, S., Eds.; Pisa University Press: Pisa, Italy, 2023; pp. 147–165. [Google Scholar]
- Open Software (Made by One of Us) for the Simulation of Interference and Diffraction Phenomena. Available online: https://trinket.io/python3/972aa3706d (accessed on 17 January 2023).
- Ausubel, D.P. Some psycological and educational limitations of learning by discovery. Arith. Teach. 1964, 11, 290–302. [Google Scholar]
|Content-Specific Components||Final Considerations and Main Aspects of the Didactic Activity for the Introduction of Spectroscopy at the High-School Level|
|(1) Light is seen as made of straight rays and not of waves; |
(2) The concept of waves is not clear to almost all students;
(3) The origin of colours is unknown, and not all students know that white light contains all colours of the rainbow together.
|Curricular saliency||(1) Reflection, refraction, and diffraction phenomena are relevant in order to understand how light is guided and dispersed inside spectroscopic instruments;|
(2) Emission and absorption are real phenomena behind the absorbance algorithm.
|What is difficult or|
easy to teach
|(1) Equations used to explain optical phenomena, such as interference and diffraction, are too abstract and require mathematical tools that are not accessible to all students;|
(2) The wave nature of light is particularly hard to teach; in fact, learners cannot visualise the wave aspects of light;
(3) Interference and diffraction are combined phenomena that take place at the same time in most of the real cases; the Huygens–Fresnel principle cannot be proposed to high-school students;
(4) The absorbance, which learners usually read on the digital interface of an instrument, is associated with an algorithm of light intensity, which is the real measured quantity.
|Representations||(1) The visual representation of the concepts by approaching them with experiments (macroscopic or phenomenological level) is important for the learners, and it is a more direct and effective teaching approach;|
(2) Real images (i.e., photos and videos) of reflected, refracted, diffracted, emitted, and absorbed light are used instead of plots and graphical representations.
|A visual pathway is an interesting conceptual teaching strategy, and this aspect was optimised and used in the research approach described in this work.|
