Scissors-Type Haptic Device Using Magnetorheological Fluid Containing Iron Nanoparticles

1
Department of Biochemical Engineering, Graduate School of Science and Engineering, Yamagata University, 4-3-16 Jonan, Yonezawa 992-8510, Japan
2
Kurimoto Ltd., 2-8-45 Shibatani, Suminoe, Osaka 559-0021, Japan
3
Faculty of Science and Technology, Oita University, 700 Dannoharu, Oita 870-1192, Japan
*
Author to whom correspondence should be addressed.
Technologies 2019, 7(1), 26; https://doi.org/10.3390/technologies7010026
Received: 18 January 2019 / Revised: 22 February 2019 / Accepted: 24 February 2019 / Published: 27 February 2019
(This article belongs to the Special Issue Smart Systems (SmaSys2018))
  |
PDF [3377 KB, uploaded 27 February 2019]
  |     |

Abstract

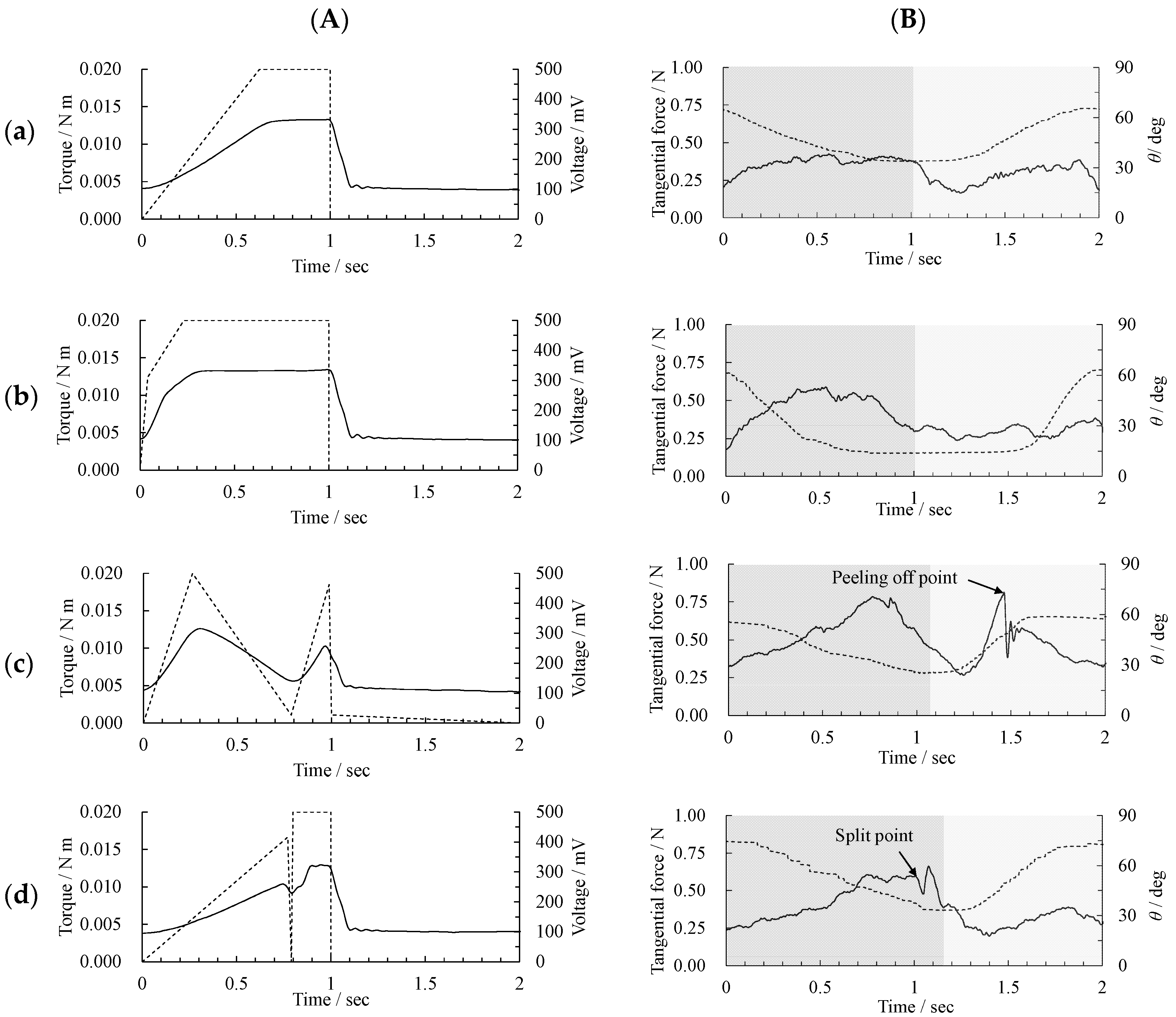

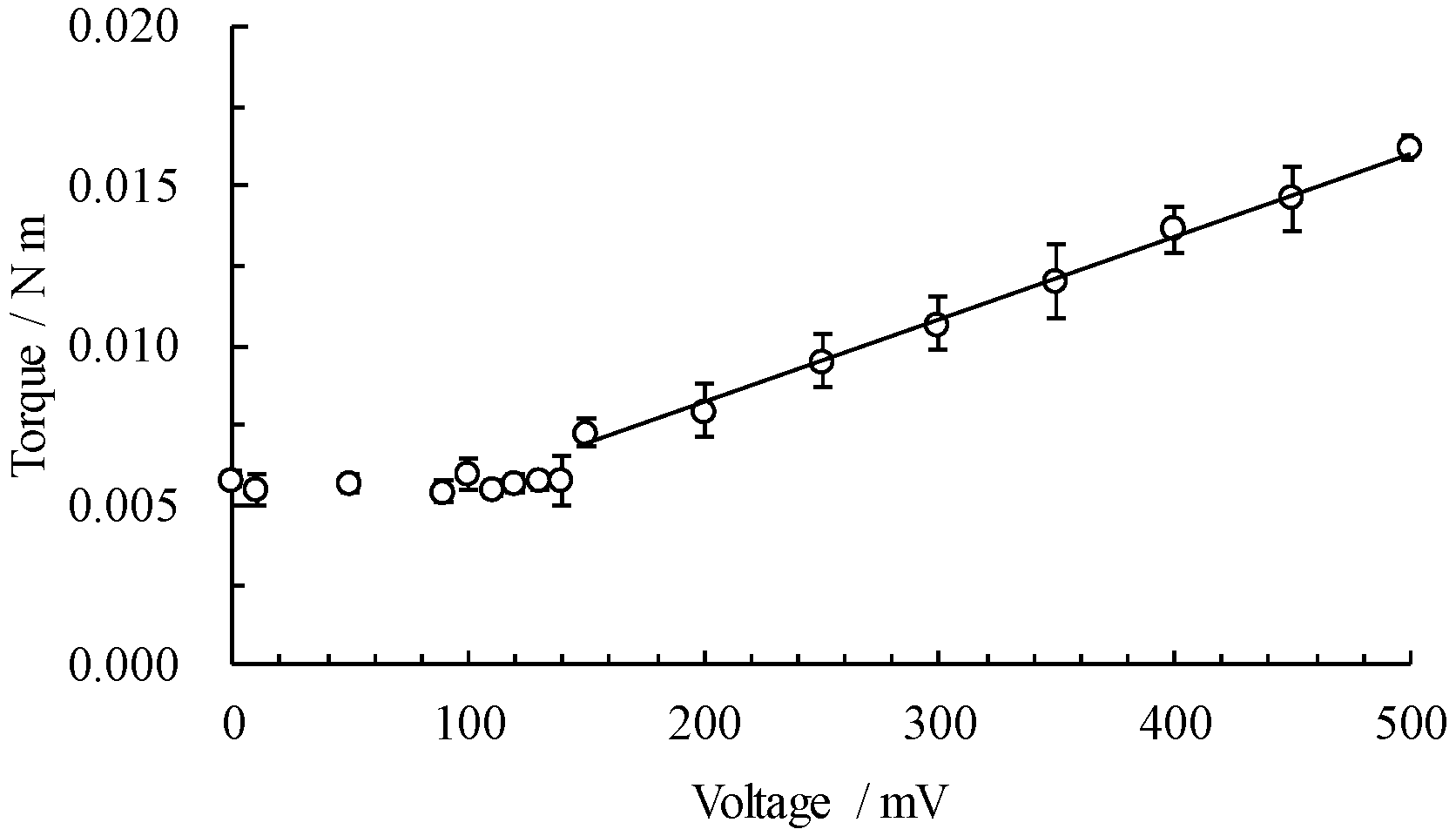

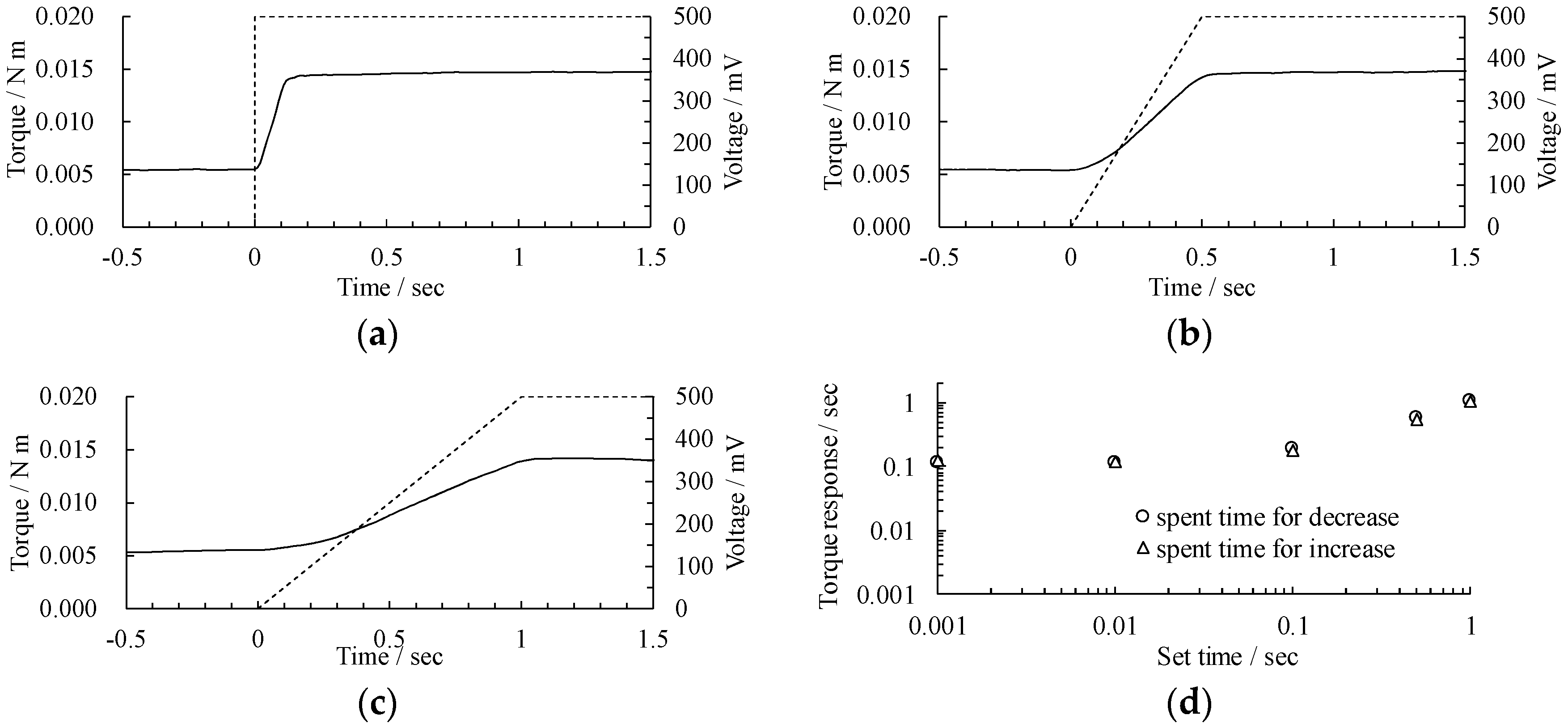

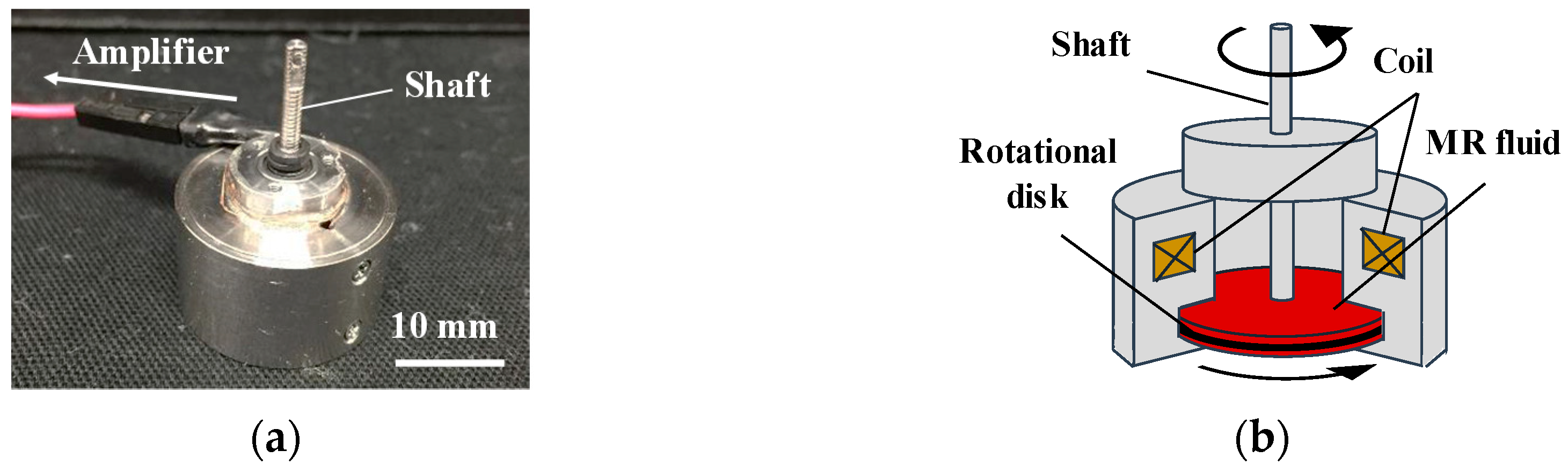

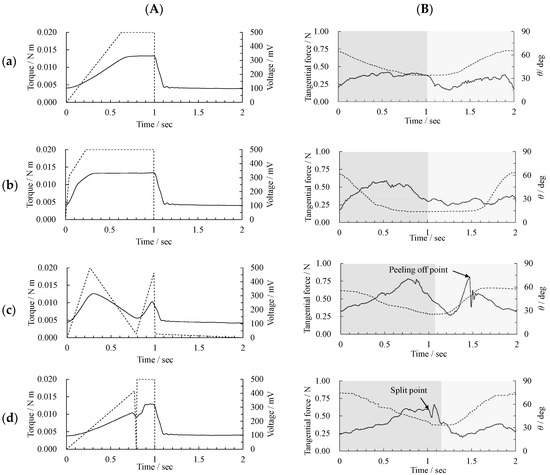

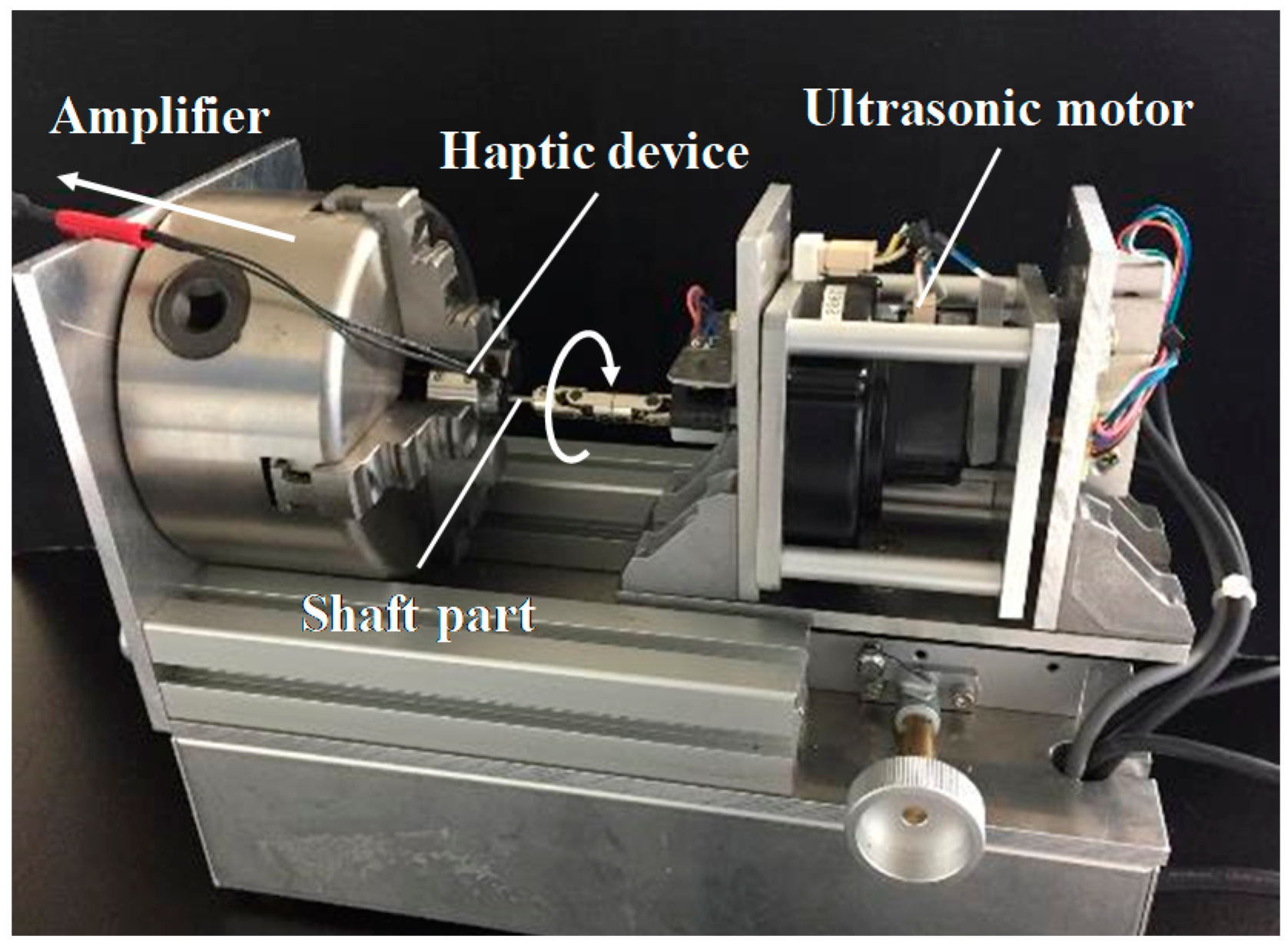

The mechanical ability and usefulness of simulation systems can be improved by combining a tactile display with a remote control or medical simulation systems. In this study, a scissors-type haptic device containing magnetorheological fluid (MR fluid) in its fulcrum is developed. We evaluate the mechanical response to the applied voltage and realize the presence of mechanical stimuli when a subject grasps or cuts the corresponding objects. When the magnetic field around the MR fluid is controlled by an electric voltage of 150–500 mV, the torque linearly increases from 0.007 ± 0.000 to 0.016 ± 0.000 N m. The device can provide tactile stimuli with 0.1 s of resolution. We also determined the voltage profiles based on typical force profiles obtained during grasping/cutting processes and evaluated the torque using a mechanical evaluation system. Features of the force profiles related to the soft and sticky feels were reconstructed well. View Full-Text
Keywords: haptic device; magnetorheological fluid; surgical robots; torque evaluation haptic device; magnetorheological fluid; surgical robots; torque evaluation
