# Comparison of Tethered Post-Capture System Models for Space Debris Removal

^{1}

^{2}

^{*}

## Abstract

**:**

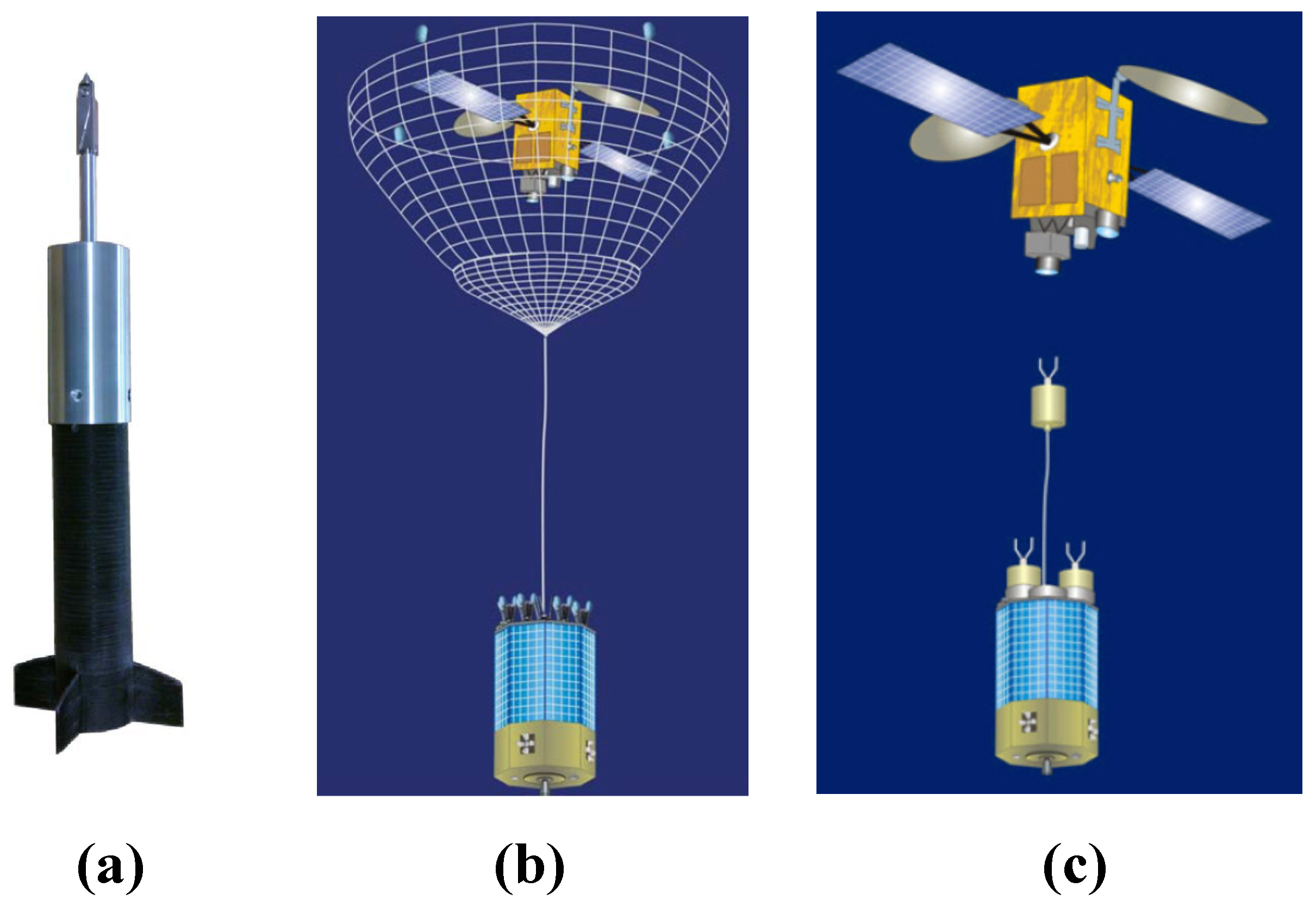

## 1. Introduction

## 2. Dynamic Models of the Tethered System

#### 2.1. Configuration of Tethered System

#### 2.2. Modified Dumbbell Model

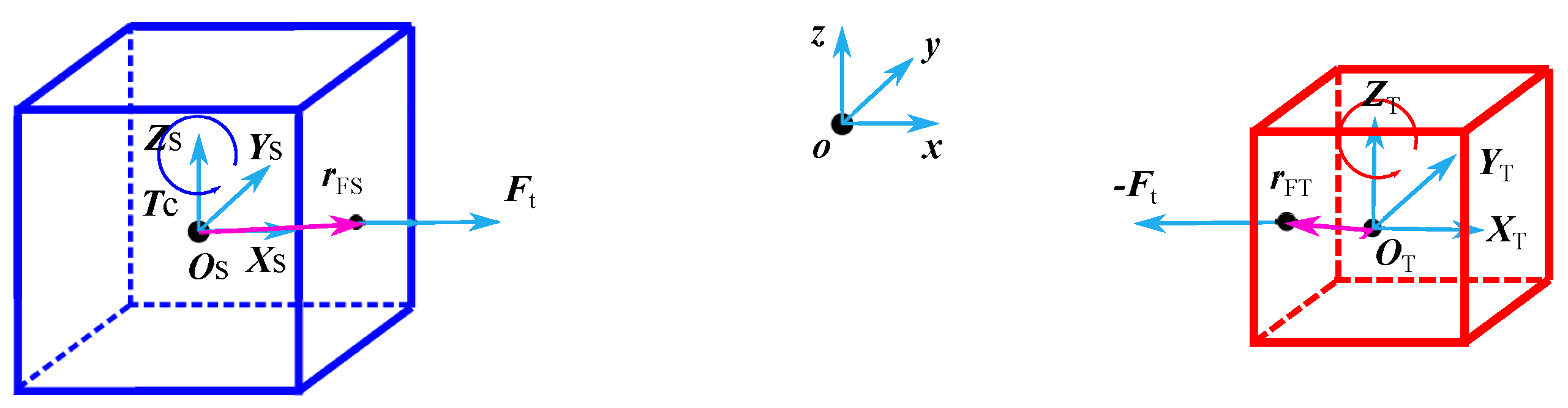

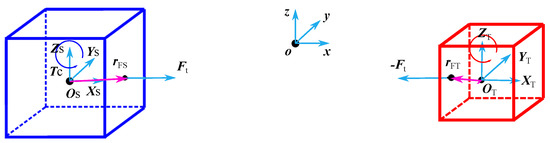

#### 2.2.1. Single Tether Configuration

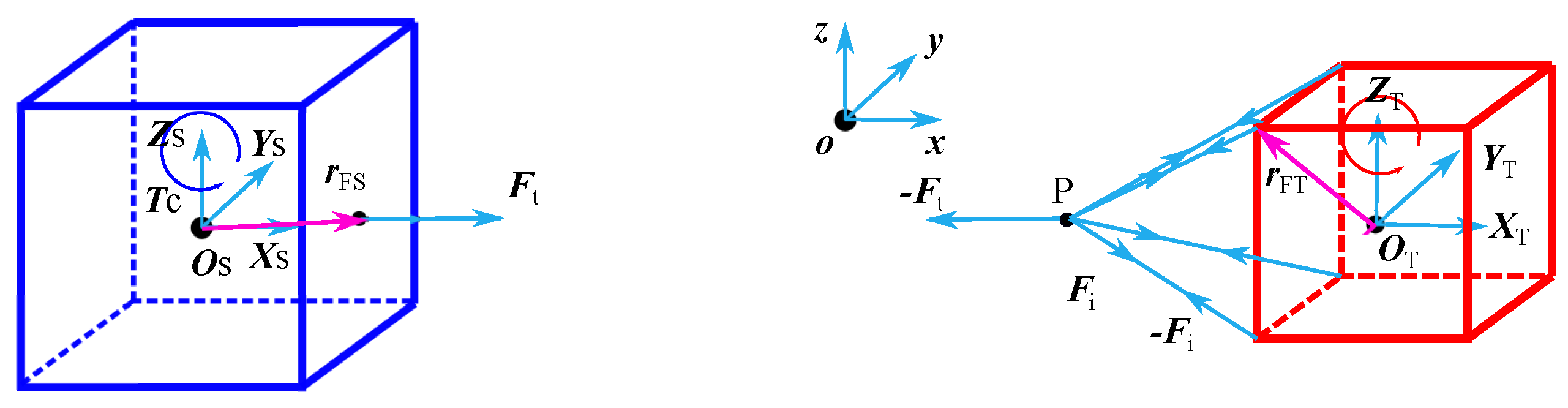

#### 2.2.2. Sub-Tether Configuration

#### 2.3. Lumped-Mass Model

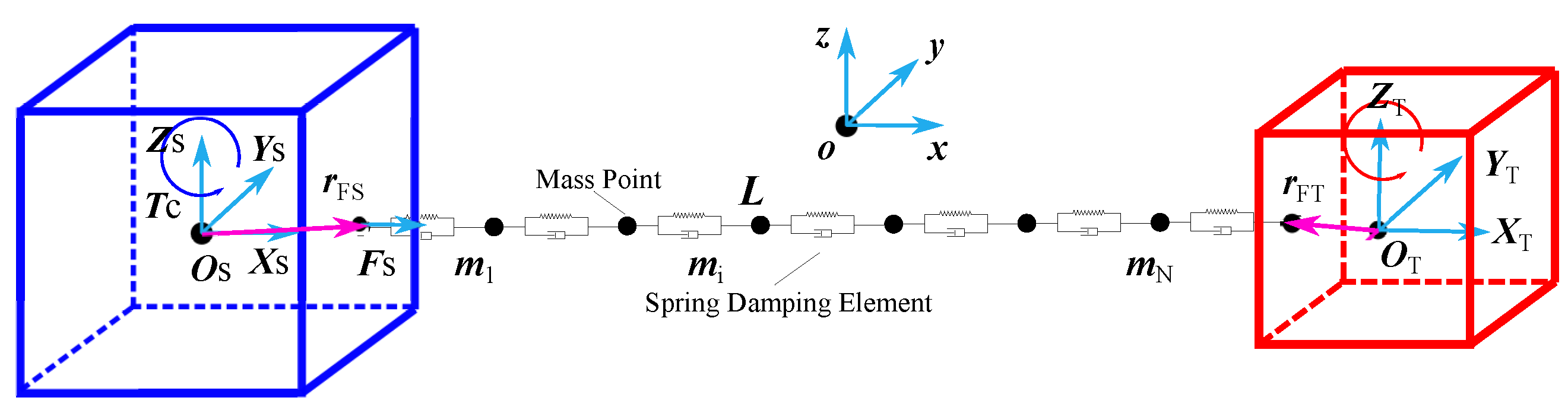

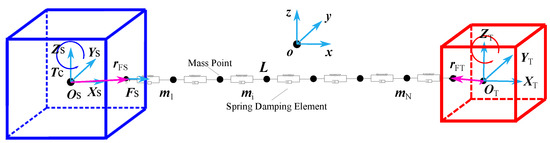

#### 2.3.1. Single Tether Configuration

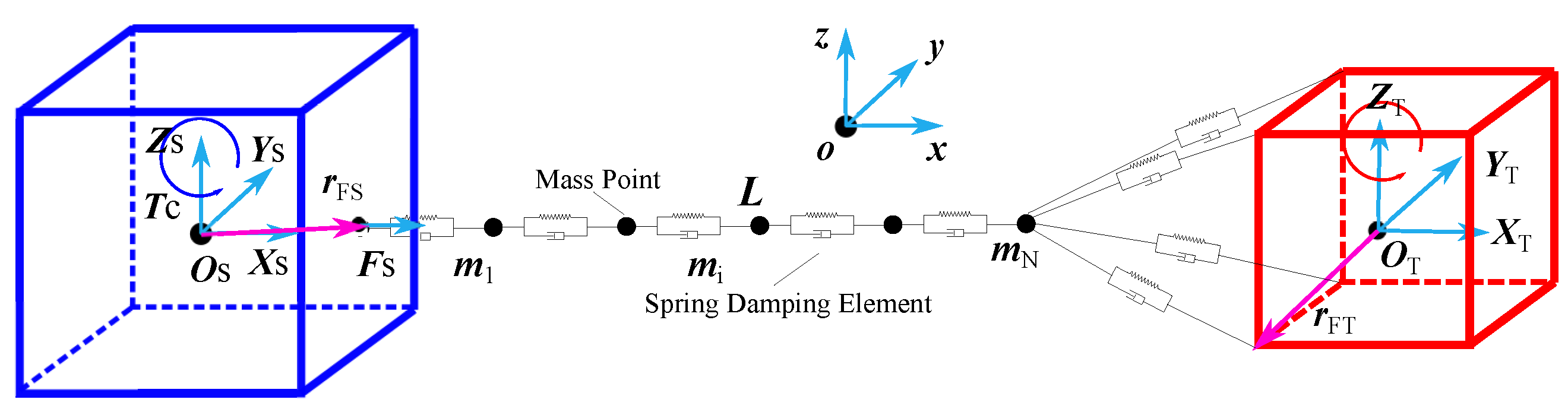

#### 2.3.2. Sub-Tether Configuration

#### 2.4. ANCF Model

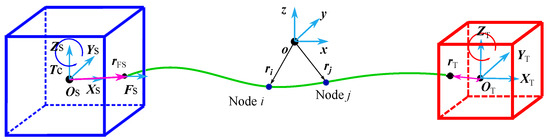

#### 2.4.1. Single Tether Configuration

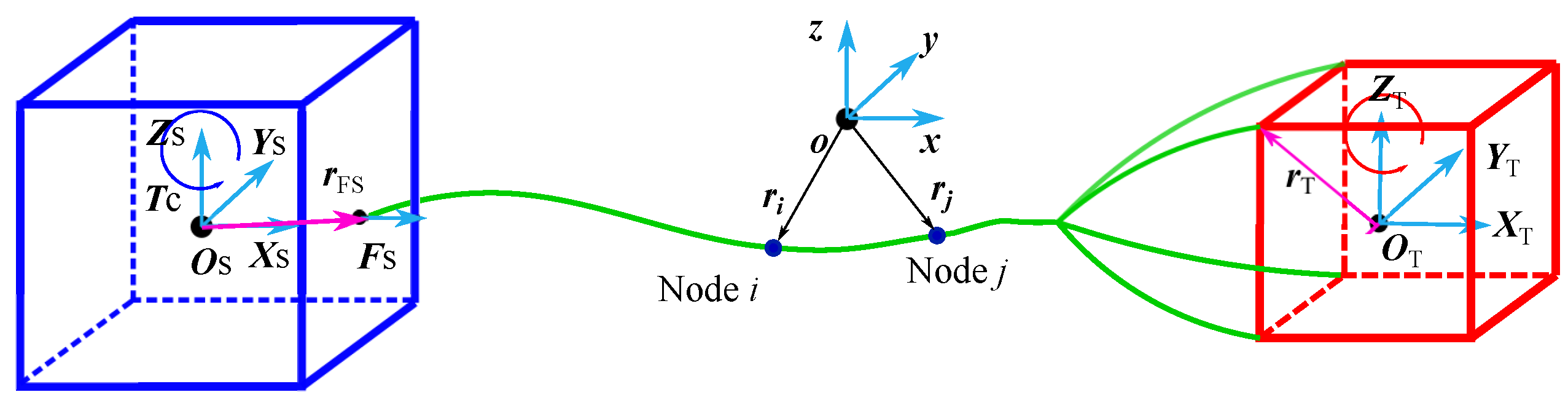

#### 2.4.2. Sub-Tether Configuration

## 3. Modal Analysis of Tethered System

#### 3.1. Analytical Results

#### 3.2. Modified Dumbbell Model

#### 3.3. Lumped-Mass Model

#### 3.4. ANCF Model

## 4. Comparison of Three Models

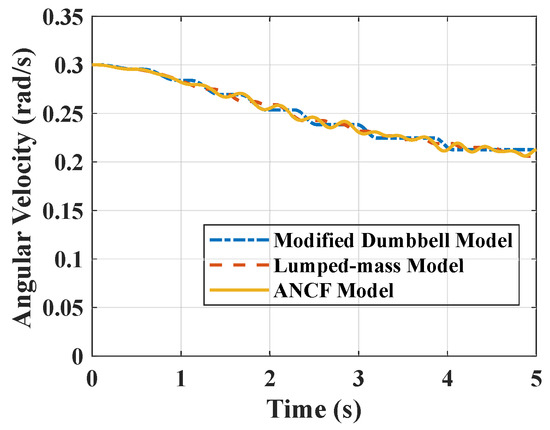

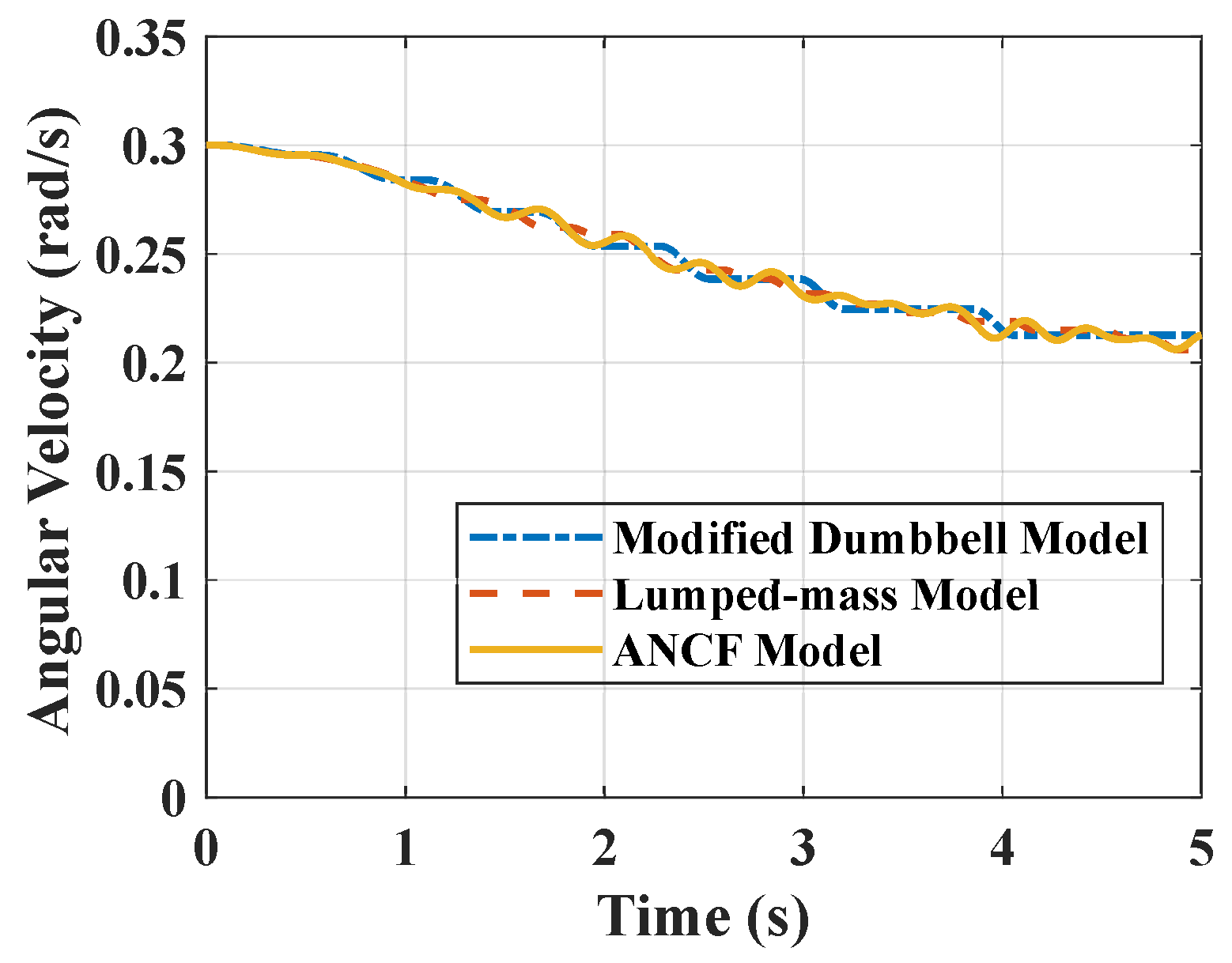

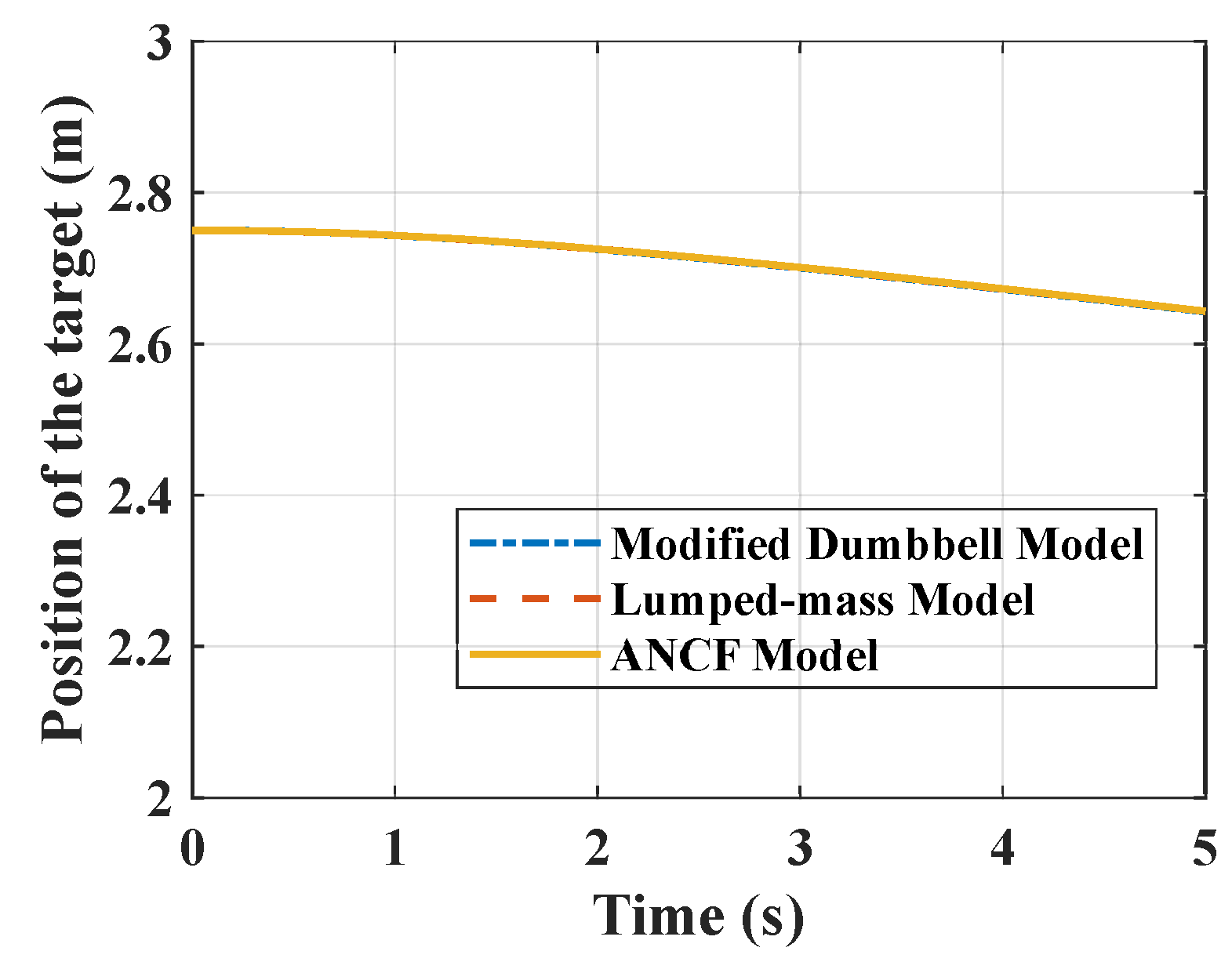

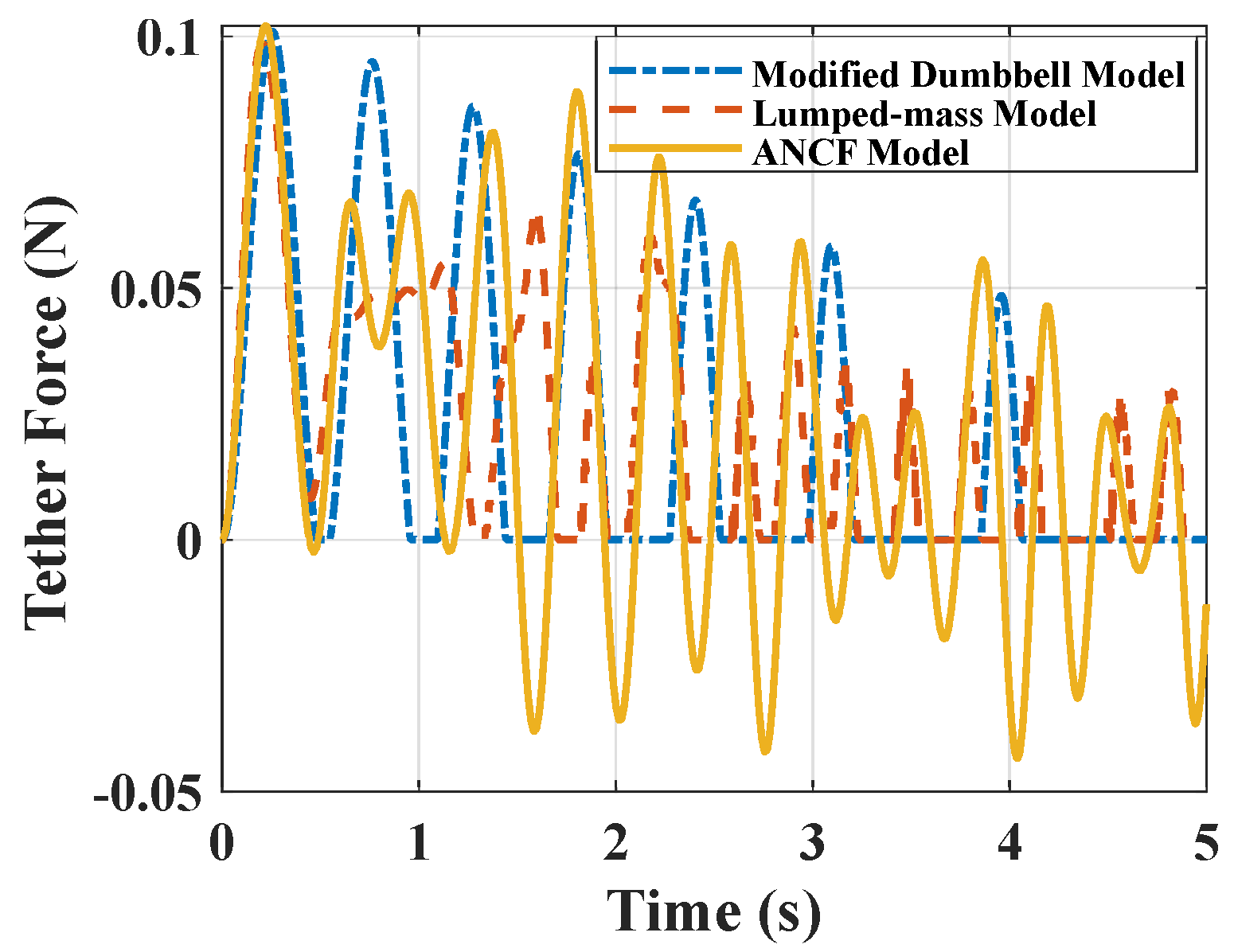

#### 4.1. Single Tether Configuration

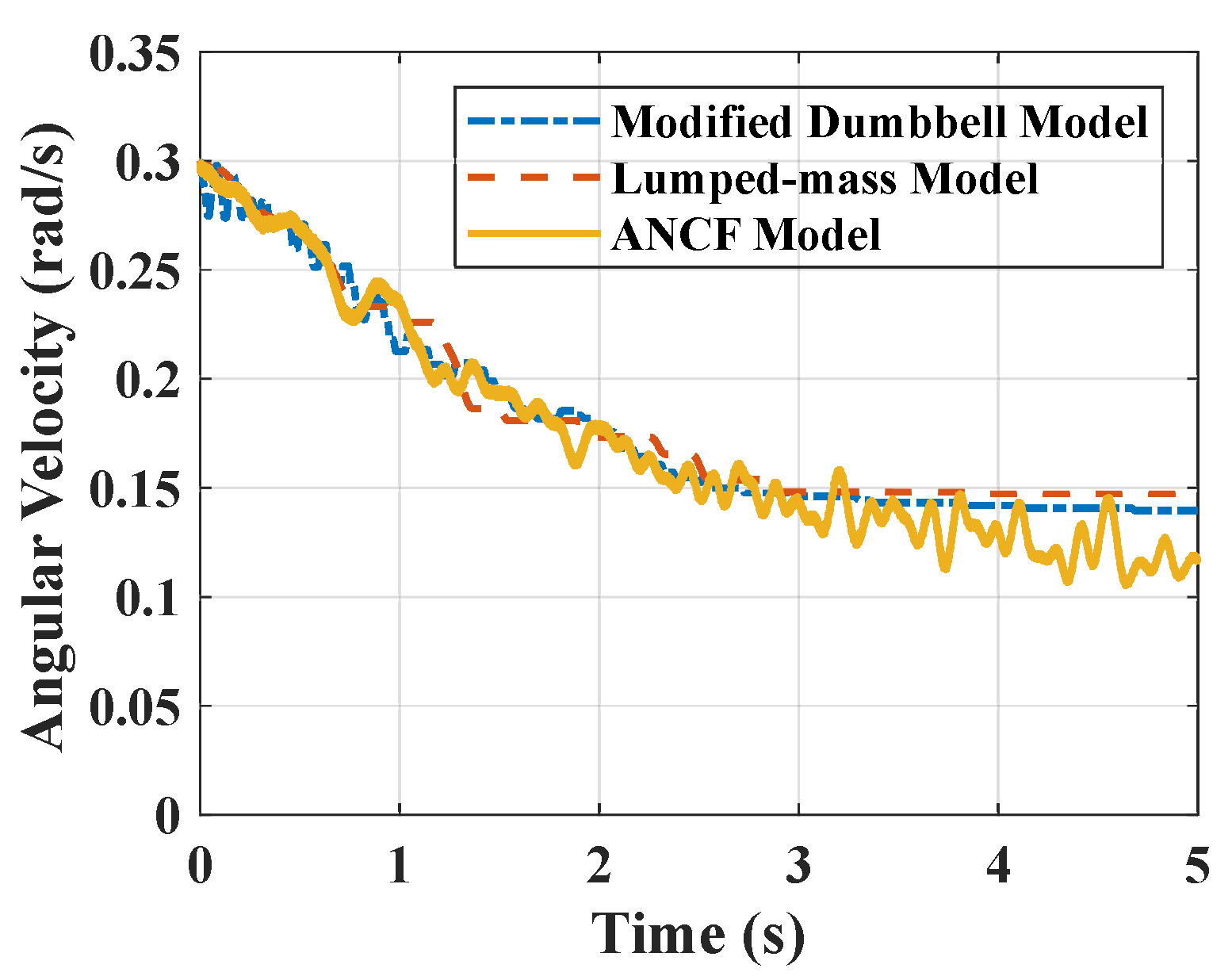

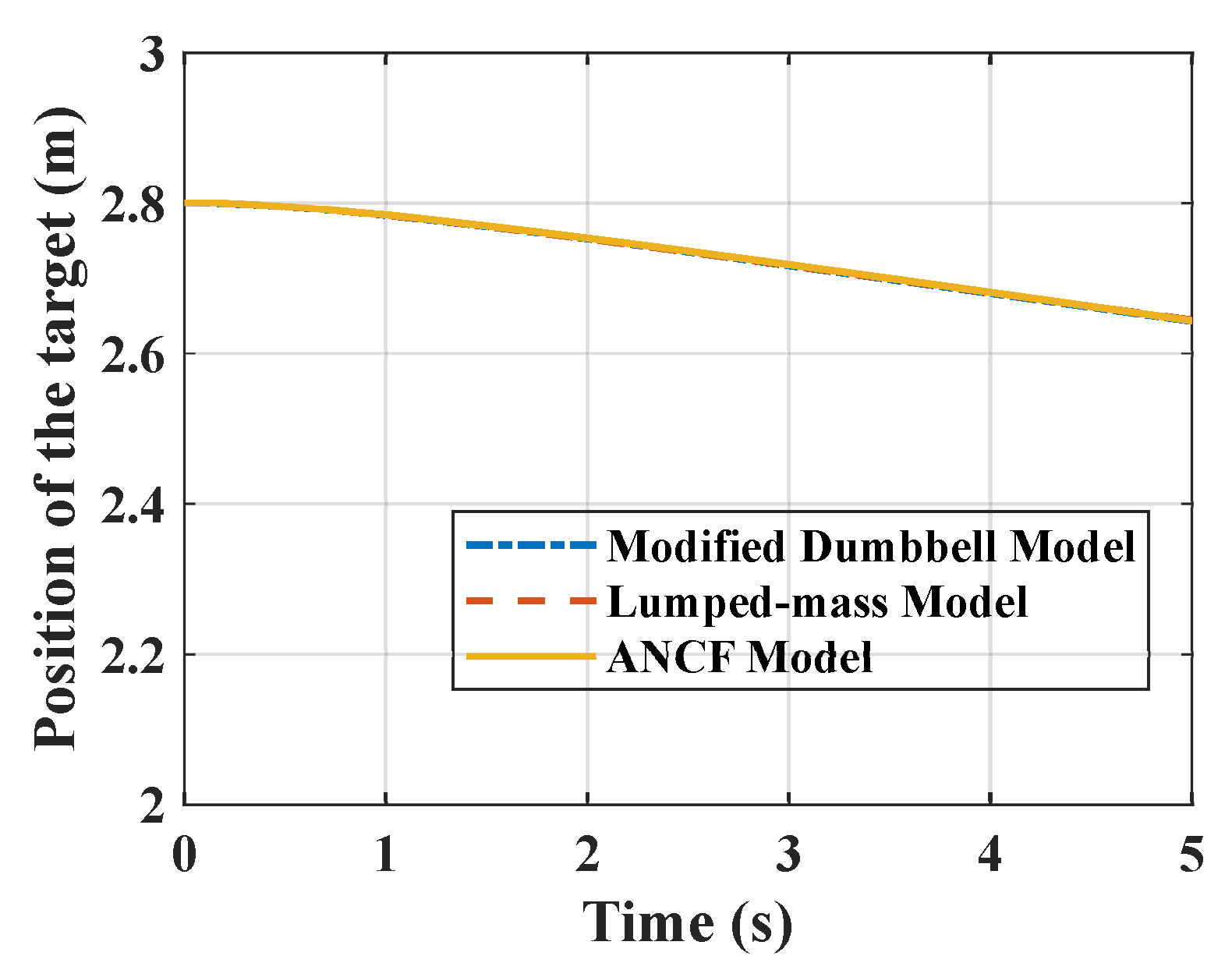

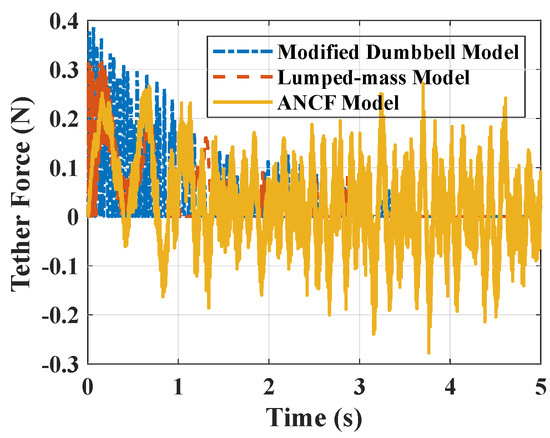

#### 4.2. Sub-Tether Configuration

#### 4.3. Comparison of Natural Frequency

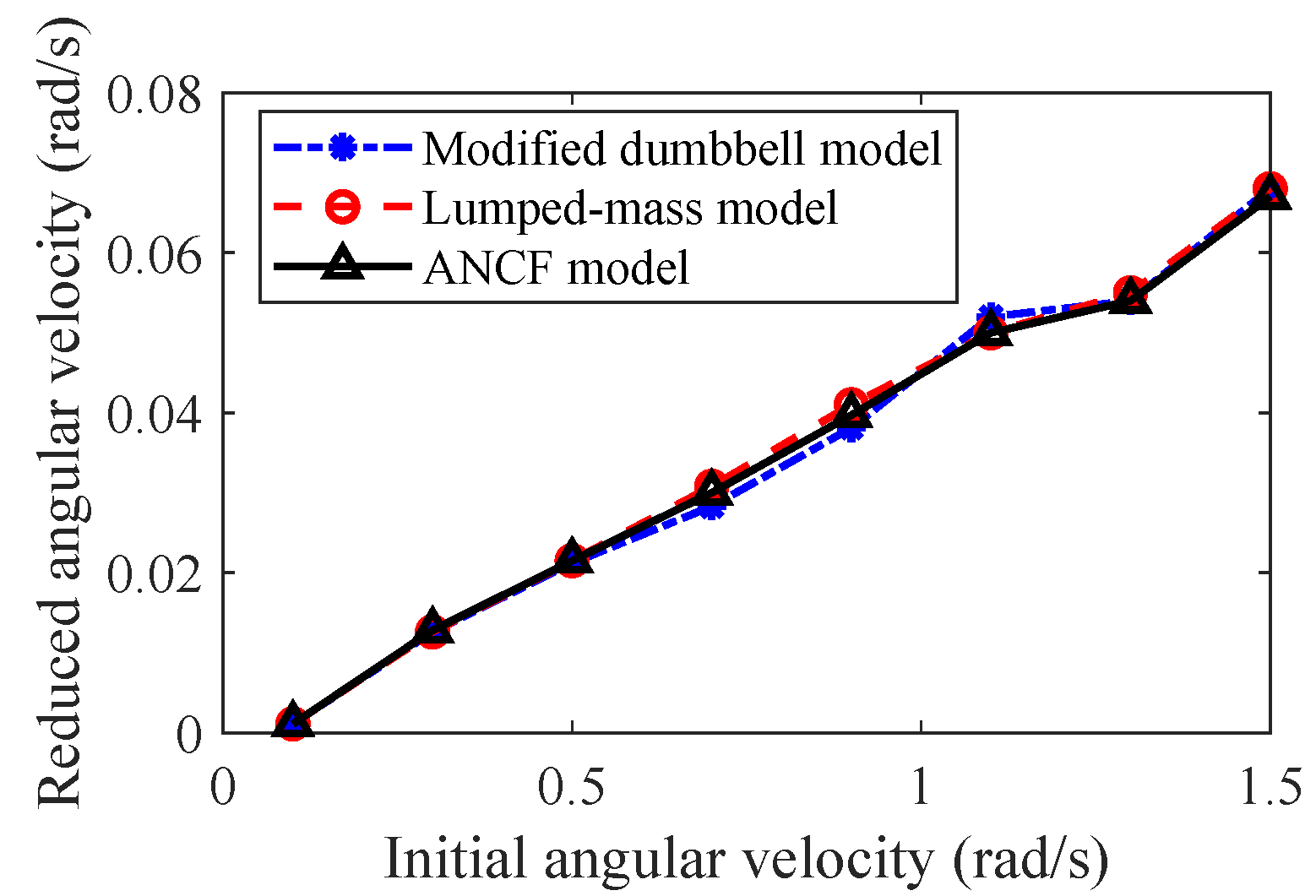

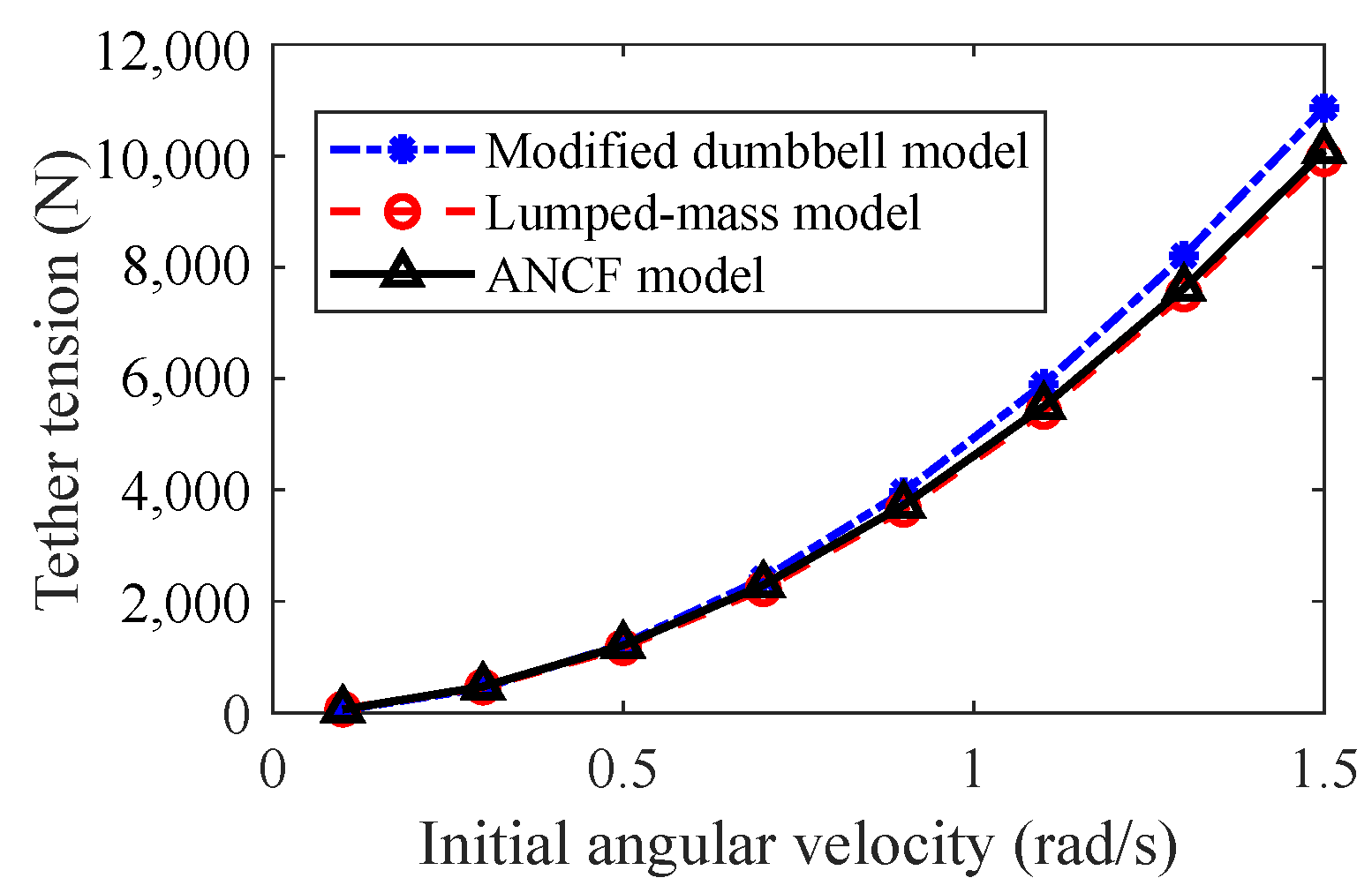

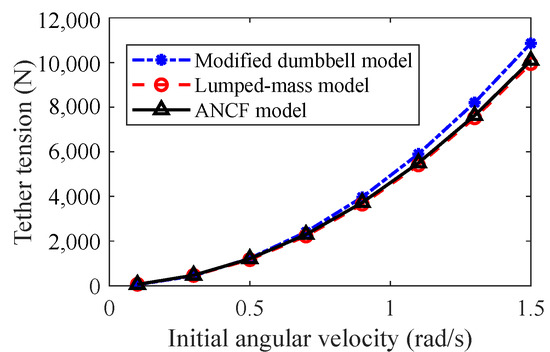

#### 4.4. Influence by Initial Condition

## 5. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Conflicts of Interest

## References

- NASA Orbital Debris Program Office. Orbital Debris Quaterly News; National Aeronautics and Space Administration: Washington, DC, USA, 2021; Volume 25, pp. 1–12. [Google Scholar]
- GlobalNews. Damage on Canadarm. 2021. Available online: https://globalnews.ca/news/7913922/canadarm2-damaged-international-space-station-junk/ (accessed on 7 June 2021).
- Shan, M.; Guo, J.; Gill, E. Review and comparison of active space debris capturing and removal methods. Prog. Aerosp. Sci.
**2016**, 80, 18–32. [Google Scholar] [CrossRef] - Reed, J.; Barraclough, S. Development of harpoon system for capturing space debris. In Proceedings of the 6th European Conference on Space Debris, Darmstadt, Germany, 22–25 April 2013; Volume 723, p. 174. [Google Scholar]
- Bischof, B. ROGER-Robotic geostationary orbit restorer. In Proceedings of the 54th International Astronautical Congress of the International Astronautical Federation, Bremen, Germany, 29 September–3 October 2003. [Google Scholar]
- Tamaki, Y.; Tanaka, H. Penetration Characteristics of Metal Harpoons with Various Tip Shapes for Capturing Space Debris. In Proceedings of the 8th European Conference on Space Debris, Darmstadt, Germany, 20–23 April 2021. [Google Scholar]
- Sizov, D.A.; Aslanov, V.S. Space Debris Removal with Harpoon Assistance: Choice of Parameters and Optimization. J. Guid. Control. Dyn.
**2020**, 44, 767–778. [Google Scholar] [CrossRef] - Cleary, S.; O’Connor, W.J. Control of space debris using an elastic tether and wave-based control. J. Guid. Control. Dyn.
**2016**, 39, 1392–1406. [Google Scholar] [CrossRef] - Shan, M.; Guo, J.; Gill, E. Deployment Dynamics of Tethered-Net for Space Debris Removal. Acta Astronaut.
**2017**, 132, 293–302. [Google Scholar] [CrossRef] - Botta, E.M.; Sharf, I.; Misra, A.K.; Teichmann, M. On the simulation of tether-nets for space debris capture with Vortex Dynamics. Acta Astronaut.
**2016**, 123, 91–102. [Google Scholar] [CrossRef] - Benvenuto, R.; Salvi, S.; Lavagna, M. Dynamics analysis and GNC design of flexible systems for space debris active removal. Acta Astronaut.
**2015**, 110, 247–265. [Google Scholar] [CrossRef] - Golebiowski, W.; Michalczyk, R.; Dyrek, M.; Battista, U.; Wormnes, K. Validated simulator for space debris removal with nets and other flexible tethers applications. Acta Astronaut.
**2016**, 129, 229–240. [Google Scholar] [CrossRef] - Medina, A.; Cercós, L.; Stefanescu, R.M.; Benvenuto, R.; Pesce, V.; Marcon, M.; Lavagna, M.; González, I.; López, N.R.; Wormnes, K. Validation results of satellite mock-up capturing experiment using nets. Acta Astronaut.
**2017**, 134, 314–332. [Google Scholar] [CrossRef] - Shan, M.; Guo, J.; Gill, E.; Golebiowski, W. Validation of Space Net Deployment Modeling Methods Using Parabolic Flight Experiment. J. Guid. Control. Dyn.
**2017**, 40, 3319–3327. [Google Scholar] [CrossRef] - Aglietti, G.; Taylor, B.; Fellowes, S.; Ainley, S.; Tye, D.; Cox, C.; Zarkesh, A.; Mafficini, A.; Vinkoff, N.; Bashford, K.; et al. RemoveDEBRIS: An in-orbit demonstration of technologies for the removal of space debris. Aeronaut. J.
**2020**, 124, 1–23. [Google Scholar] [CrossRef] - Benvenuto, R.; Lavagna, M.; Salvi, S. Multibody dynamics driving GNC and system design in tethered nets for active debris removal. Adv. Space Res.
**2016**, 58, 45–63. [Google Scholar] [CrossRef] - Botta, E.M.; Sharf, I.; Misra, A.K. Contact Dynamics Modeling and Simulation of Tether Nets for Space-Debris Capture. J. Guid. Control. Dyn.
**2016**, 40, 110–123. [Google Scholar] [CrossRef] - Zhang, F.; Huang, P. Releasing dynamics and stability control of maneuverable tethered space net. IEEE/ASME Trans. Mechatronics
**2016**, 22, 983–993. [Google Scholar] [CrossRef] - Zhang, F.; Huang, P.; Meng, Z.; Zhang, Y.; Liu, Z. Dynamics analysis and controller design for maneuverable tethered space net robot. J. Guid. Control. Dyn.
**2017**, 40, 2828–2843. [Google Scholar] [CrossRef] - Huang, P.; Wang, D.; Meng, Z.; Zhang, F.; Guo, J. Adaptive postcapture backstepping control for tumbling tethered space robot–target combination. J. Guid. Control. Dyn.
**2015**, 39, 150–156. [Google Scholar] [CrossRef] - Pang, Z.; Yu, B.; Jin, D. Chaotic motion analysis of a rigid spacecraft dragging a satellite by an elastic tether. Acta Mech.
**2015**, 226, 2761–2771. [Google Scholar] [CrossRef] - Forshaw, J.L.; Aglietti, G.S.; Fellowes, S.; Salmon, T.; Retat, I.; Hall, A.; Chabot, T.; Pisseloup, A.; Tye, D.; Bernal, C.; et al. The active space debris removal mission RemoveDebris. Part 1: From concept to launch. Acta Astronaut.
**2020**, 168, 293–309. [Google Scholar] [CrossRef] [Green Version] - Aglietti, G.S.; Taylor, B.; Fellowes, S.; Salmon, T.; Retat, I.; Hall, A.; Chabot, T.; Pisseloup, A.; Cox, C.; Mafficini, A.; et al. The active space debris removal mission RemoveDebris. Part 2: In orbit operations. Acta Astronaut.
**2020**, 168, 310–322. [Google Scholar] [CrossRef] [Green Version] - O’Connor, M.; Clearly, S.; Hayden, D. Debris de-tumbling and de-orbiting by elastic tether and wave-based control. In Proceedings of the 6th International Conference on Astrodynamics Tools and Techniques (ICATT), Darmstadt, Germany, 14–17 March 2016. [Google Scholar]
- Shan, M.; Shi, L. Post-capture control of a tumbling space debris via tether tension. Acta Astronaut.
**2021**, 180, 317–327. [Google Scholar] [CrossRef] - Stadnyk, K.; Ulrich, S. Validating the Deployment of a Novel Tether Design for Orbital Debris Removal. J. Spacecr. Rocket.
**2020**, 57, 1335–1349. [Google Scholar] [CrossRef] - Hovell, K.; Ulrich, S. Attitude stabilization of an uncooperative spacecraft in an orbital environment using visco-elastic tethers. In Proceedings of the AIAA Guidance, Navigation, and Control Conference, San Diego, CA, USA, 4–8 January 2016; p. 0641. [Google Scholar]
- Hovell, K.; Ulrich, S. Postcapture dynamics and experimental validation of subtethered space debris. J. Guid. Control. Dyn.
**2018**, 41, 519–525. [Google Scholar] [CrossRef] - Misra, A.; Nixon, M.; Modi, V. Nonlinear dynamics of two-body tethered satellite systems: Constant length case. J. Astronaut. Sci.
**2001**, 49, 219–236. [Google Scholar] [CrossRef] - Shabana, A.A. Flexible multibody dynamics: Review of past and recent developments. Multibody Syst. Dyn.
**1997**, 1, 189–222. [Google Scholar] [CrossRef] - Berzeri, M.; Shabana, A. Development of simple models for the elastic forces in the absolute nodal co-ordinate formulation. J. Sound Vib.
**2000**, 235, 539–565. [Google Scholar] [CrossRef]

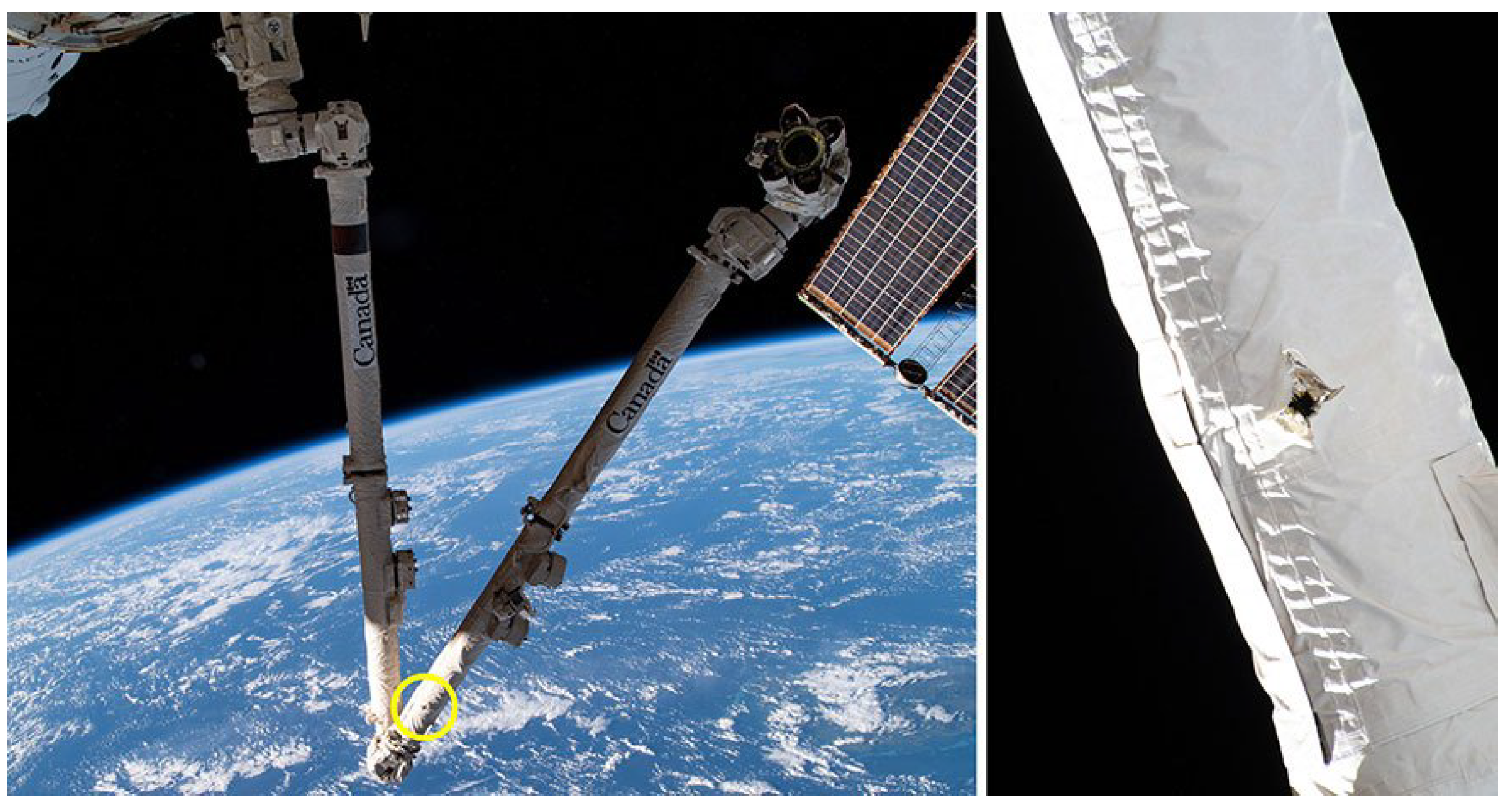

**Figure 1.**Damage on Canadarm2 [2].

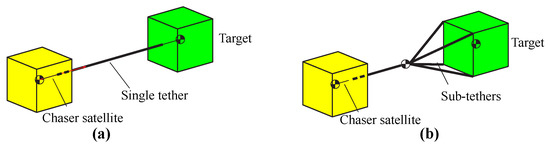

**Figure 3.**Configurations of a tethered system [27].

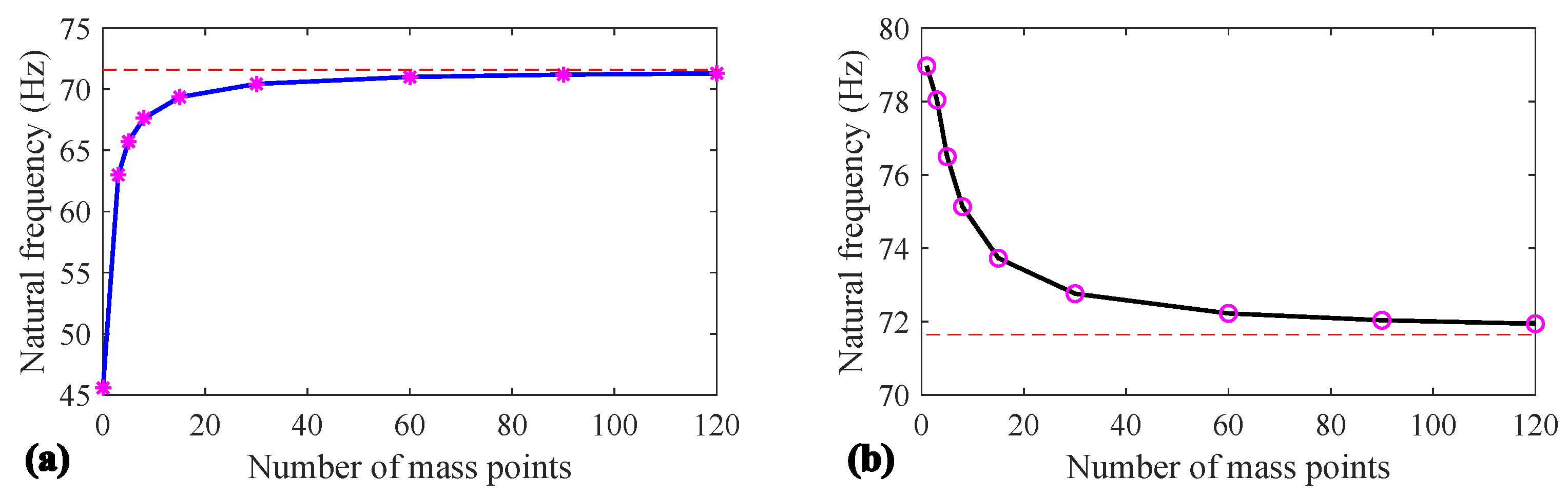

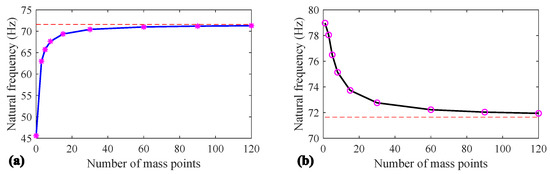

**Figure 16.**Convergence study of the lumped-mass model. (

**a**) Natural frequency convergence of the main tether; (

**b**) natural frequency convergence of the tethered system.

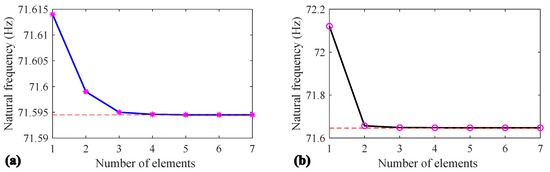

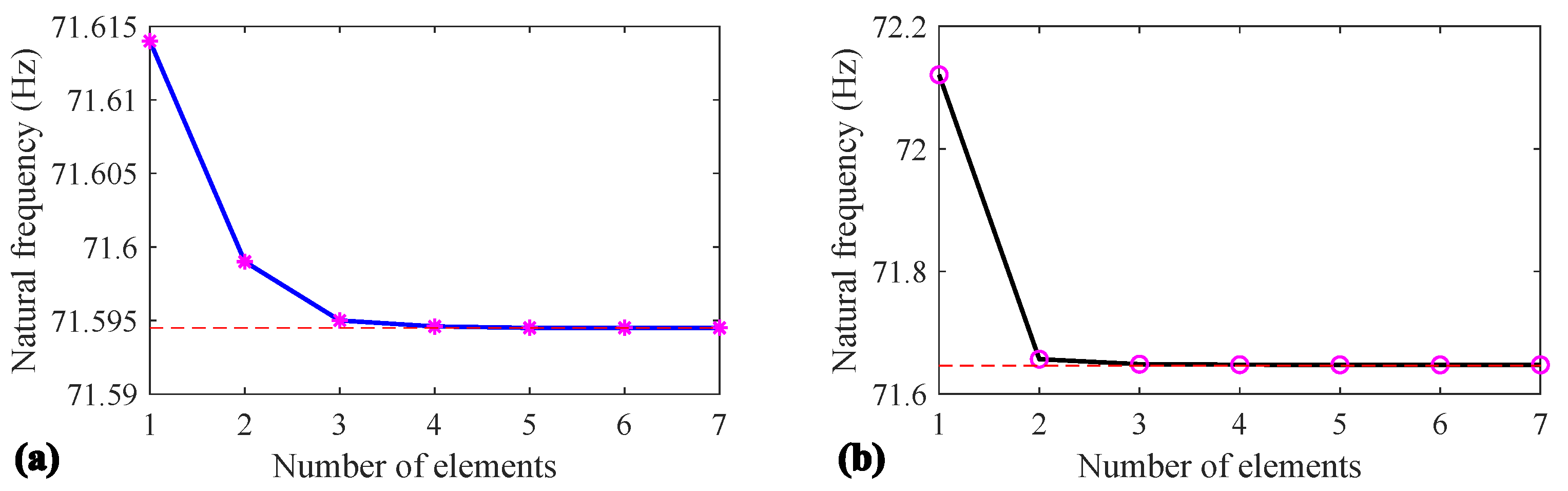

**Figure 17.**Convergence study of the ANCF model. (
