Remote and Feedback Control of the Flap Angle in a Wind Tunnel Test Model by Optical Measurement

Abstract

We have developed a remote and precise feedback control system using optical measurement technology to alter the angle of a flap, which is part of a wind tunnel test model, automatically and to earn the aerodynamic data efficiently. To rectify the wasteful circumstance that Japan Aerospace Exploration Agency (JAXA)’s low-turbulence wind tunnel stops ventilation every time to switch model configurations, we repaired hardware for remote operation and generated software for feedback control. As a result, we have accomplished a system that dramatically advances the efficiency of wind tunnel tests. Moreover, the system was able to consider the deformation of the model through optical measurement; the system controlled flap angles with errors less than the minimum resolution of optical measurement equipment. Consequently, we successfully grasped the nonlinearity of three aerodynamic coefficients $C_L$, $C_D$, and $C_{Mp}$ that was impossible so far.

1. Introduction

Aircraft wings optimized for cruise conditions provide control devices to ensure aerodynamic performance during takeoff and landing [1]. For safe takeoff and landing, it is important to assess the aerodynamic performance accurately for deploying control devices. Computational fluid dynamics (CFD) technology has made tremendous progress [2,3,4]; it has advantages in that not only can it reduce capital investment and maintenance costs, but it also can acquire physical quantity at any position in a computational domain. However, to realize accurate aerodynamic performance prediction for control devices, CFD is not mature yet; we deepen the perception of knowledge through the American Institute of Aeronautics and Astronautics high-lift prediction workshops [5,6,7]. On the other hand, in the wind tunnel test, we can obtain spatial data through particle image velocimetry (PIV) [8] measurements; we can comprehensively gain surface pressure/temperature through the invention and development of Pressure/Temperature Sensitive Paint (PSP/TSP) [9]. In recent years, it has become possible to procure unsteady data, too [10]. Although there are problems such as wall interference of wind tunnels and the Reynolds number effect, we can earn data without any mathematical modeling, so it remains an indispensable means for aerodynamic performance evaluation.

A typical wind tunnel is a system that installs a large actuator outside a measuring chamber and changes the angle of attack of an entire model. Thus, it is necessary to temporarily suspend the ventilation of the wind tunnel to alter only a part of the wind tunnel model like control devices; we adjust the configuration of it by hand. Then, we should recommence ventilation. Because we can ordinarily measure at most five configurations per day, we cannot obtain a sufficient amount of data during a limited test period, which is abundantly unproductive. Research and development have been implemented to extend on dynamic testing capabilities that Germany and the Netherlands have advanced for many years to solve this dilemma [11,12]. Airbus has proposed the motorization of wind tunnel test models that can be remotely controlled [13]. The Boeing company has similarly earned patents on the measurement technology of wind tunnel tests in the US [14]. In this way, wind tunnel tests are becoming more efficient, but no papers discuss the particulars of the data acquired from these systems; the exactitude of the data and the usefulness of the method are unknown.

This study has two purposes: the efficiency of wind tunnel tests and highly accurate configuration settings. We remotely manipulated an actuator to change model configurations sequentially without resting ventilation to enhance the efficiency of wind tunnel tests. Actuators used in wind tunnel models have recently exhibited sophisticated performance [15], so we extended a system in which a small actuator is installed in a simple 3D rectangular wing model with a flap so that we manage the flap angle remotely. However, an error inevitably arises between an input value and an actual rotating angle from play due to the actuators’ characterization. An error also results from the elastic deformation of wind tunnel models. To minimize these errors is crucial to assure the exactitude of wind tunnel test data. Thus, we fulfilled an automated feedback control of the actuator. We prepared three parameters to utilize for our feedback control and inspect the precision of rotating amounts of flap angles for them. The first parameter is the pulse number of the stepping motors in the actuator; the second is the encoder value of the flap hinge line; the third is the 3D surface coordinates of the wind tunnel test model based on optical measurement. This study adopted the 3D surface coordinates using the optical measurement system [16,17] for the first time to consider the elastic deformation of the model, so we focused on validating its efficacy.

This article is structured as follows. In Section 2, we explain the constructed feedback control system. Section 3 outlines the model and pieces of measurement equipment used in the wind tunnel system. In Section 4, we assess the precision accomplished by the feedback control system using optical measurement. Section 5 concludes this article.

2. Feedback Control System Using Optical Measurement Technology

By bringing the actual flap angle closer to the input value as much as possible, we can procure highly accurate aerodynamic data. Thus, this research diverts the optical measurement system that Japan Aerospace Exploration Agency (JAXA) has been studying. Optical measurement is a technique to measure variations in the physical quantity of flow fields and geometrical deformations of wind tunnel test models through optical instruments such as laser and camera. JAXA has been researching the flow field measurement via PIV [18,19] and PSP [17,20] using this system and has recently constructed a hybrid wind tunnel through data assimilation with CFD. We divert a part of the optical measurement system configured to accomplish the purpose of this study and derive actual flap angles from photographed image data of the wind tunnel test model.

Inferring flap angles is based on the principle of triangulation; two cameras measure the 3D coordinates of markers stuck on the model surface. We estimated normal vectors of the coordinate values at each marker position and procured relative flap angles before and after the flap driving. The flow of the derivation is as follows:

• Camera calibration: Calibration is conducted to define parameters related to camera position and attitude. We employed stereo camera calibration, which is one function in MathWorks${}^{\circledR }$, MATLAB’s Computer Vision System Toolbox (“Camera Calibration Toolbox for Matlab” available online at http://www.vision.caltech.edu/bouguetj/calib_doc/ [retrieved 30 March 2018]). Three images can estimate parameters required for MathWorks’ function, but we have been using at least 50 images this time to diminish errors after calibration.

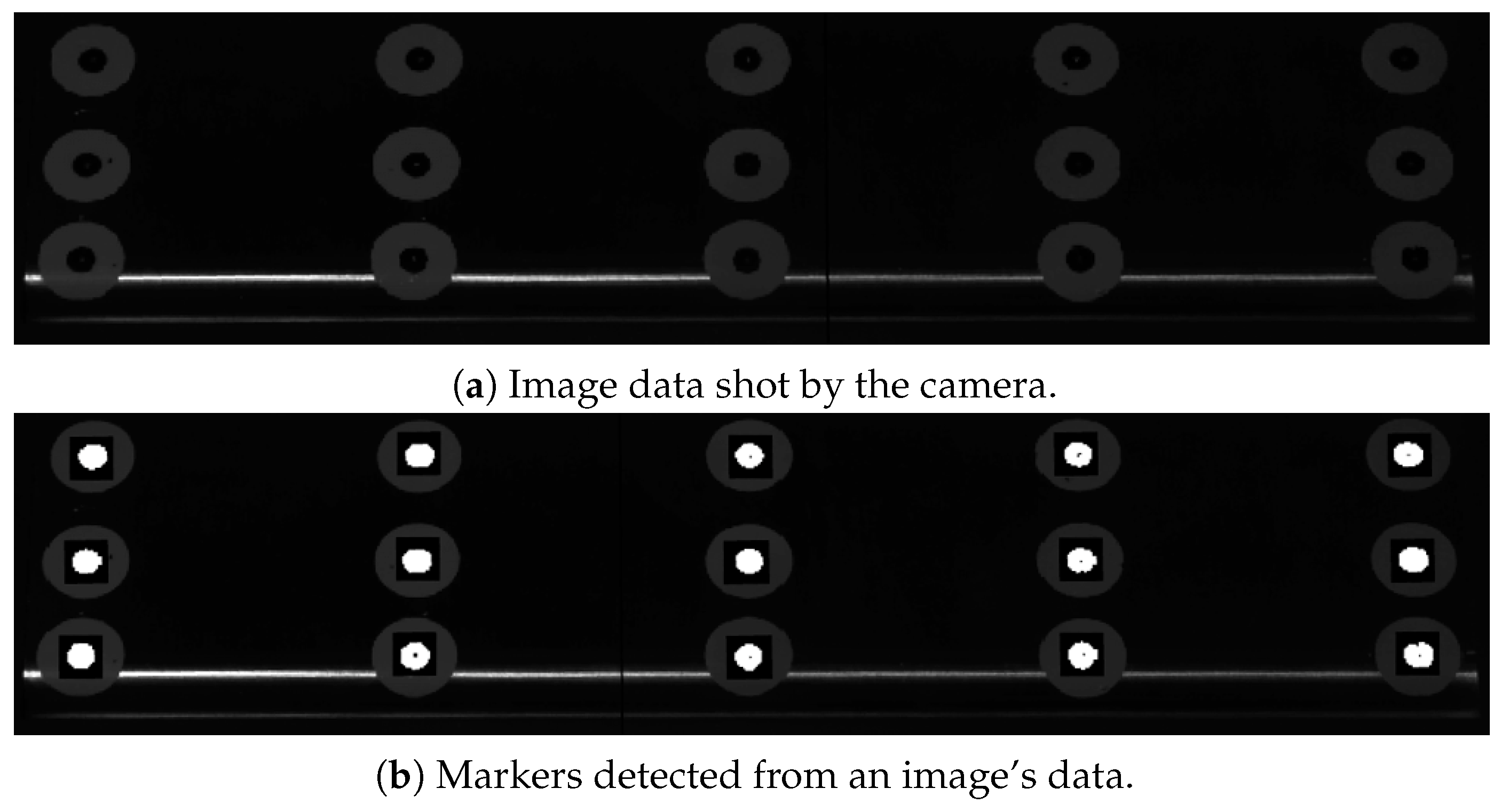

• Marker detection: We affixed 15 circular markers on the flap (three in the chordwise direction times five in the spanwise direction) to gain their coordinates. A photographed image detected a circular shape in the prescribed radius range as a marker; we numbered them and computed their barycentric coordinates. We mutually collated two sets of the barycentric coordinates calculated from the images taken by the two cameras and derived the 3D coordinates of the markers.
• Derivation of the flap angle: The 3D coordinate data set of the detected markers formed planes using adjacent three points; we assessed the normal vectors of those planes. We computed the flap angle with the difference from the reference flap angle of 0 degrees. Note that we decomposed normal vectors in three axial directions; we utilized only two vectors orthogonal to the flap hinge line for measuring the flap angle.

${\theta }_{\mathrm{optical}}$ denotes the feedback value by optical measurement. Further, the system can make feedback controls using the pulse number of stepping motors ${\theta }_{\mathrm{pulse}}$ and the encoder values ${\theta }_{\mathrm{encoder}}$ as parameters.

3. System Configuration

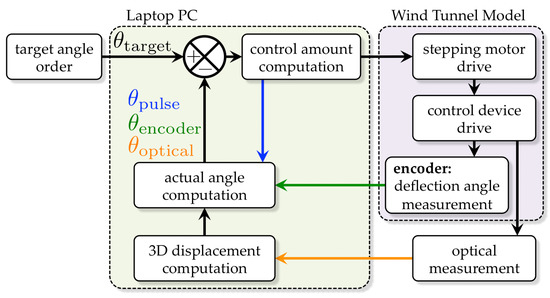

Tests were supposed to run at the JAXA 0.65 m × 0.55 m low-turbulence wind tunnel, which is a closed-circuit type and the wind velocity attains from 5 to 50 m/s. As we show a simple block diagram in Figure 1, the present system was composed of a wind tunnel test model, an optical measurement system, and a laptop that remotely controls the wind tunnel test model. When we input a target angle of the flap ${\theta }_{\mathrm{target}}$, the flap rotates to coincide with it. The system curtailed errors of the flap angles within $5.7\times {10}^{-4}$ degrees in prior trials under no wind condition and was independent of ${\theta }_{\mathrm{target}}$ and amounts of the traverse. We describe the details of the wind tunnel test model, optical measurement equipment, and aerodynamic measurement equipment below.

3.1. Wind Tunnel Test Model

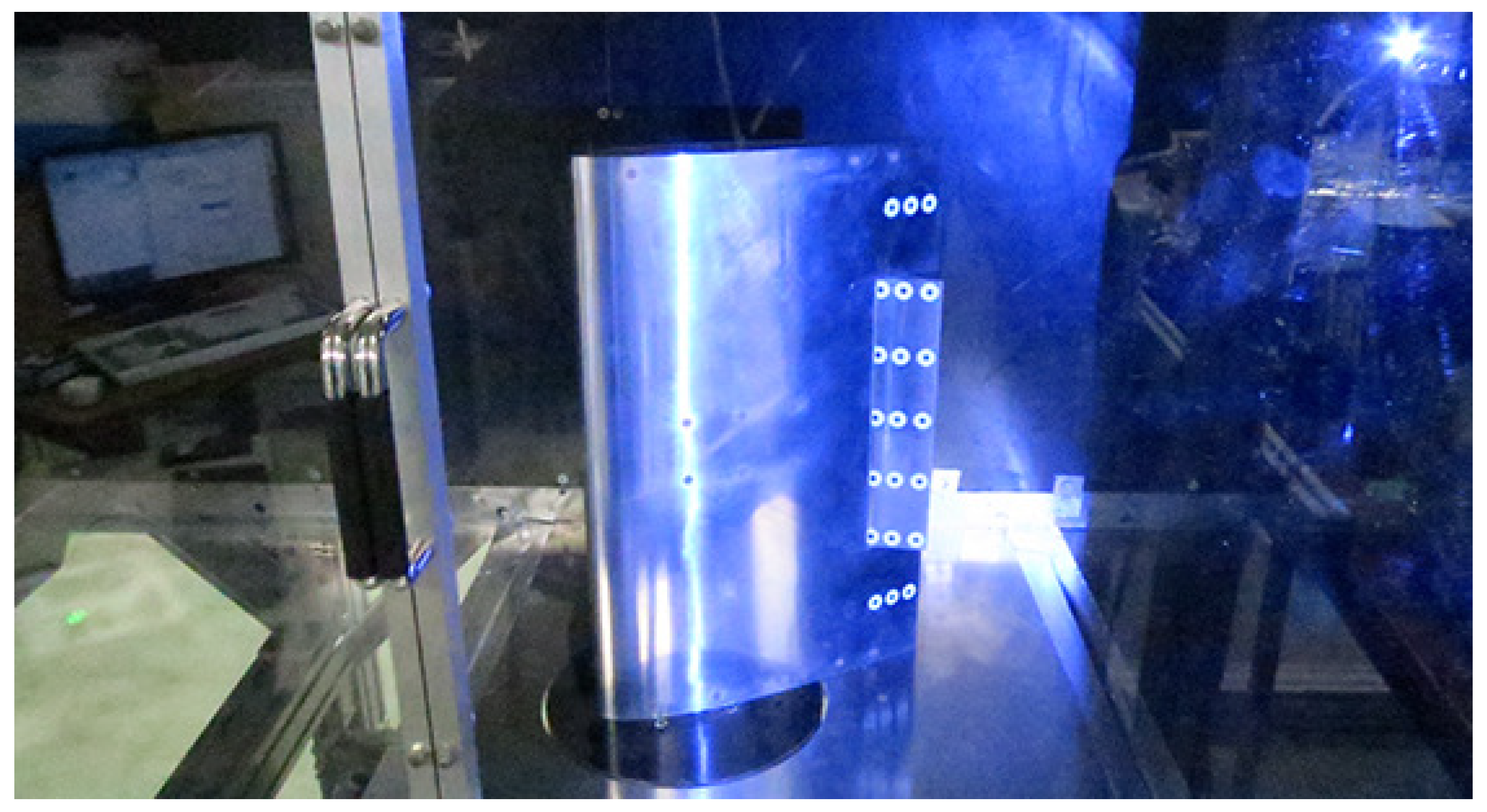

We took a commercialized actuator as small as possible and made the wind tunnel test model with a stepping-motor-driven actuator inside it. Since the wing needed thickness suitable to contain the actuator, we chose the NACA0018 airfoil shape. We can alter either both-end or one-end fixed configuration by attaching/detaching the wing tip parts. We used the model with the both-end supported configuration for fixing horizontally in the wind tunnel to perform control performance tests. By contrast, we utilized the one-end supported configuration perpendicularly to the balance in the wind tunnel to measure three components of the aerodynamic force. We designed the model with the dimensions shown in

Table 1. The dimensions of the wind tunnel test model.

Part	Dimensions (mm)
Main wing chord length	250
Main wing span length (configuration supported on one side)	390
Main wing span length (configuration supported on both sides)	550
Flap chord length	50
Flap span length	200

according to the size of the wind tunnel test section.

Installed instruments had the following requirement; they need to attain a torque that surmounts the aerodynamic force that the flow of the wind tunnel generates. Even in wind tunnel tests with the maximum flow speed of 50 m/s, we need to stipulate the lower limit of the required torque because we should select an actuator capable of generating sufficient torque against the aerodynamic force.

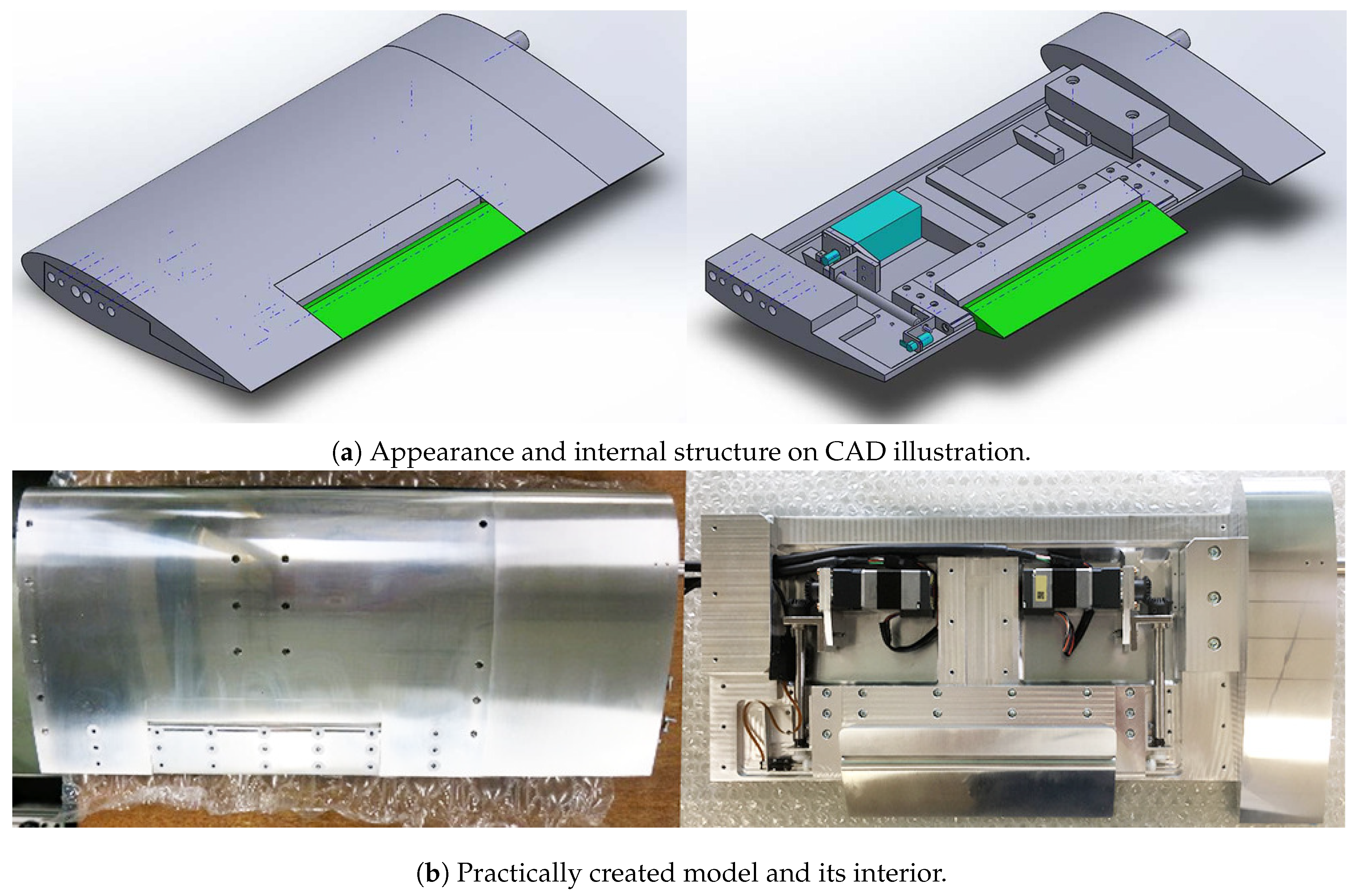

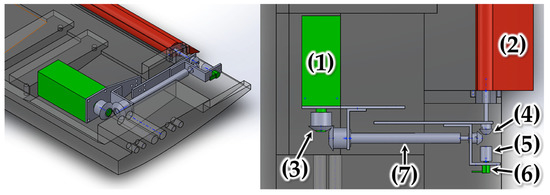

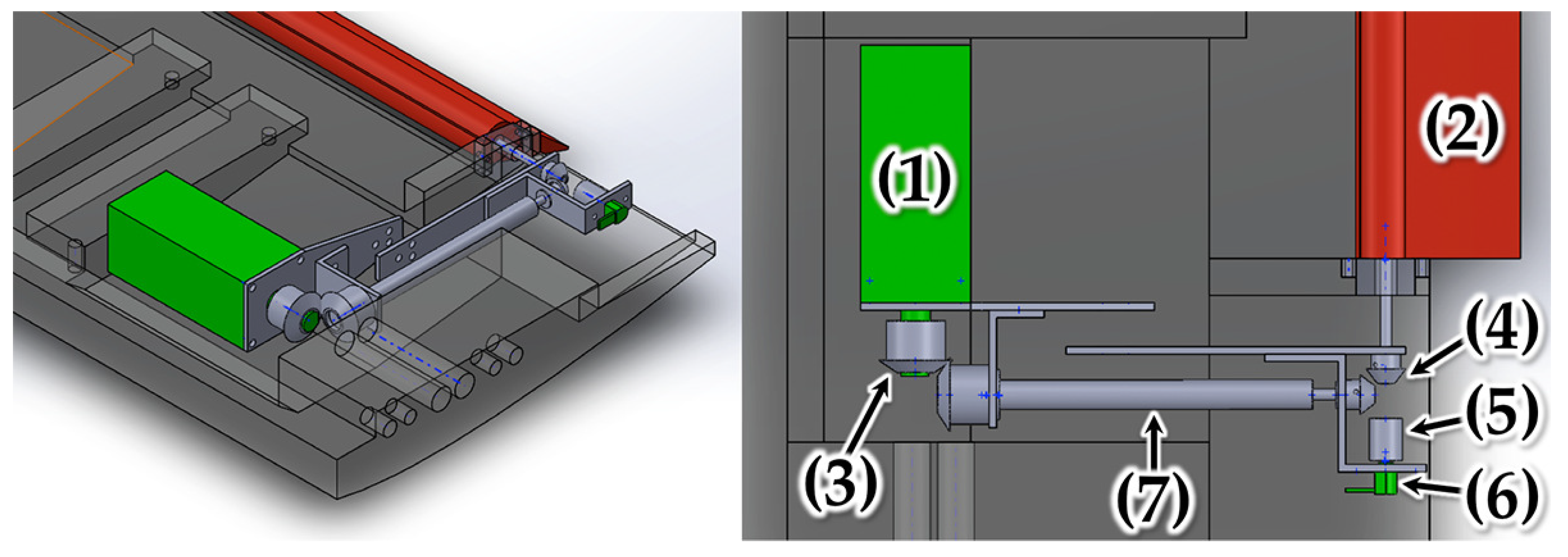

Figure 2 presents the wind tunnel test model drawn by CAD software and created practically. To satisfy all the aboverequirements, we stored the equipment in the thickest location of the wing and transmitted the torque to the hinge line of the flap using bevel gears and a shaft shown in Figure 3. The details of the installed devices are as follows:

• Stepping motor: ARM24SAK made by Oriental Motor Co., Ltd. (Tokyo, Japan). We selected an actuator driven by two stepping motors. This motor works through a pulse input; the resolution is 0.0036 degrees. The rotation speed is 70 rpm. For precise positioning of the flap, the backlash was prevented by rotating the two motors in pairs and rotating in opposite directions for the operating axis each other. The motor adopts harmonic gears; the speed reduction ratio is 100.
• Encoder: MAS-3-4096N1 made by MicroTech Laboratory Inc. (Sagamihara, Kanagawa-prefecture, Japan). To mechanically measure the rotation angle of the operating axis directly, we installed a small encoder whose resolution is the catalog value of 0.088 degrees.

3.2. Instruments for Optical Measurement

• Camera: We used Manta G-1236B made by Ad Science Inc. (Funabashi, Chiba-prefecture, Japan). This gigabit ethernet camera has a SONY IMX304 CMOS progressive sensor; the resolution is 4112 × 3008 dpi.
• Lighting device: A Xenon light source made by Hamamatsu Photonics K. K. (Hamamatsu, Shizuoka-prefecture, Japan). Light sources are necessary for taking images in the wind tunnel. We selected them based on past experimental reports in JAXA.
• Marker: We attached markers for optical measurement to the model surface with dual layers. The first layer uses white seals with a diameter $\varphi$ of 16 mm; the second layer utilizes black transfer markers with $\varphi$ of 8 mm. Although the first layer is not always necessary, we used it to improve the recognition rate. As shown in Figure 4, we can explicitly detect the markers from the model image data.

3.3. Instruments for Aerodynamic Measurement

• Three-component force detector: We adopted LMC-3520A-500N made by NISSYO-ELECTRIC-WORKS CO., LTD. (Tokyo, Japan). A DC amplifier DSA-100B amplifies the voltage output from the detector; the secondary calibrator CAL-100-3B calibrates it. Both pieces of equipment are made by NISSYO-ELECTRIC-WORKS CO., LTD., too.
• Pressure scanner: We utilized an Intelligent Pressure Scanner 9016 made by Pressure Systems, Inc. (Hampton, VA, USA).
• I/O device: We accepted two: NI USB-6501 to input encoder binary data and NI USB-6216BNC to output stepping motor pulse. National Instruments Co. (Austin, TX, USA) manufactures both devices.

4. Performance Test Results for Remote and Feedback Control by Optical Measurement

To assess the performance of the constructed system, we evaluated the tracking performance of the actuator by the difference $\Delta {\theta }_{\mathrm{optical}}$ between input target angles ${\theta }_{\mathrm{target}}$ and accomplished angles ${\theta }_{\mathrm{optical}}$ on the flap:

$$\Delta {\theta }_{\mathrm{optical}}={\theta }_{\mathrm{optical}}-{\theta }_{\mathrm{target}}.$$

(1)

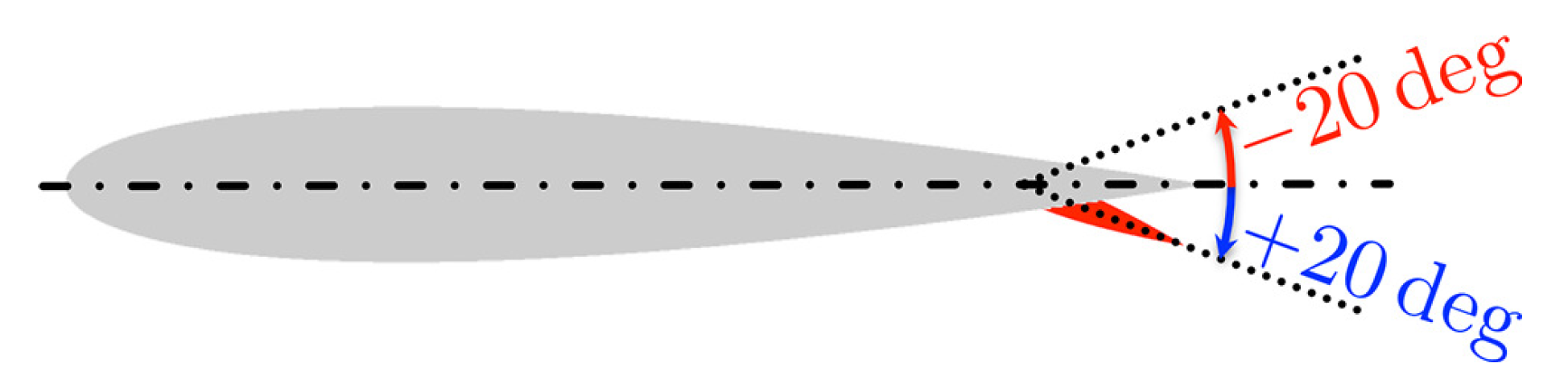

We always fixed the angle of attack of the main wing $\alpha$ at 0 degrees; we rotated the flap angle in the order of 0 →$-20$→ 0 → 20 → 0 degrees. As shown in Figure 5, we defined the plus/minus of the rotation direction.

We set ${\theta }_{\mathrm{target}}$ to be eight angles: $-20$, $-10$, $-5$, $-1$, 1, 5, 10, and 20 degrees to verify whether we control accurately regardless of the value of ${\theta }_{\mathrm{target}}$. We performed under five wind speed conditions: 0, 10, 20, 30, 40, and 50 m/s. We defined the converge judgment of this time as follows:

$$\left\{\begin{array}{cc}\hfill & \left|\Delta {\theta }_{\mathrm{optical}}^{(i+1)}\right|\le \left|\Delta {\theta }_{\mathrm{optical}}^{\left(i\right)}\right|<0.088\mathrm{deg}\hfill \\ \vee \hfill \\ \hfill & \left|\Delta {\theta }_{\mathrm{optical}}^{(i+2)}\right|\ge \left|\Delta {\theta }_{\mathrm{optical}}^{(i+1)}\right|\ge \left|\Delta {\theta }_{\mathrm{optical}}^{\left(i\right)}\right|\hfill \\ \vee \hfill \\ \hfill & \left|\Delta {\theta }_{\mathrm{optical}}^{\left(i\right)}\right|<0.01\mathrm{deg},\hfill \end{array}\right.$$

(2)

where i ($i=$1, 2, 3, ⋯) signifies the iteration number of feedback controls. The second condition is a criterion for determining that the stepping motor is running idle.

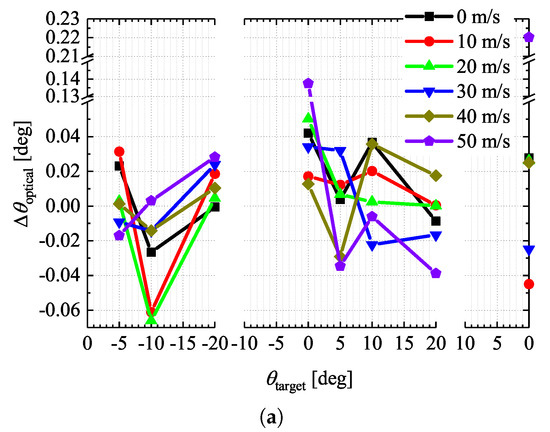

In this case, we placed ${\theta }_{\mathrm{target}}$ in the order of 0 →$-5$→$-10$→$-20$→ 0 → 5 → 10 → 20 → 0 degrees. Figure 6a depicts final errors accomplished by the feedback control by $\Delta {\theta }_{\mathrm{optical}}$ in each flap angle at each flow velocity. Except for a part of the data of 50 m/s (when ${\theta }_{\mathrm{target}}$ is 0 deg), $\Delta {\theta }_{\mathrm{optical}}$ converged to

$$\left|\Delta {\theta }_{\mathrm{optical}}\right|<0.07\mathrm{deg}.$$

(3)

Figure 6a reveals the following two points:

• The result in Figure 6a does not depend on any mechanical characteristics, such as the encoder resolution and the stepping motor’s play. Thus, final errors by $\Delta {\theta }_{\mathrm{optical}}$ are small.
• Several results succeeded in inhibiting $\Delta {\theta }_{\mathrm{optical}}$ in the order of $\mathcal{O}\left({10}^{-3}\right)$. If we arrange the current convergence criterion given by Equation (2) more strictly, final errors by $\Delta {\theta }_{\mathrm{optical}}$ can decline further.

These data do not depend on wind speeds. Even under the 50 m/s condition, the system achieved similar convergence performance except for ${\theta }_{\mathrm{target}}$ of 0 degrees. In the case of 0 degrees, since the aerodynamic forces on the upper and lower surfaces of the flap are respectively small, they mutually cancel each other, and the feedback system cannot apply the torque against the aerodynamic force on the flap. Consequently, to lock the flap in the ${\theta }_{\mathrm{target}}$ of 0 degrees is difficult, which is a drawback of the feedback control by $\Delta {\theta }_{\mathrm{optical}}$.

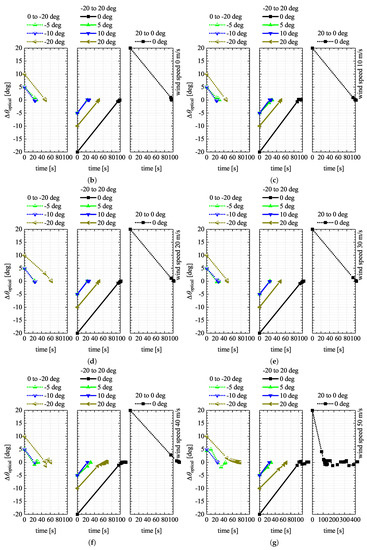

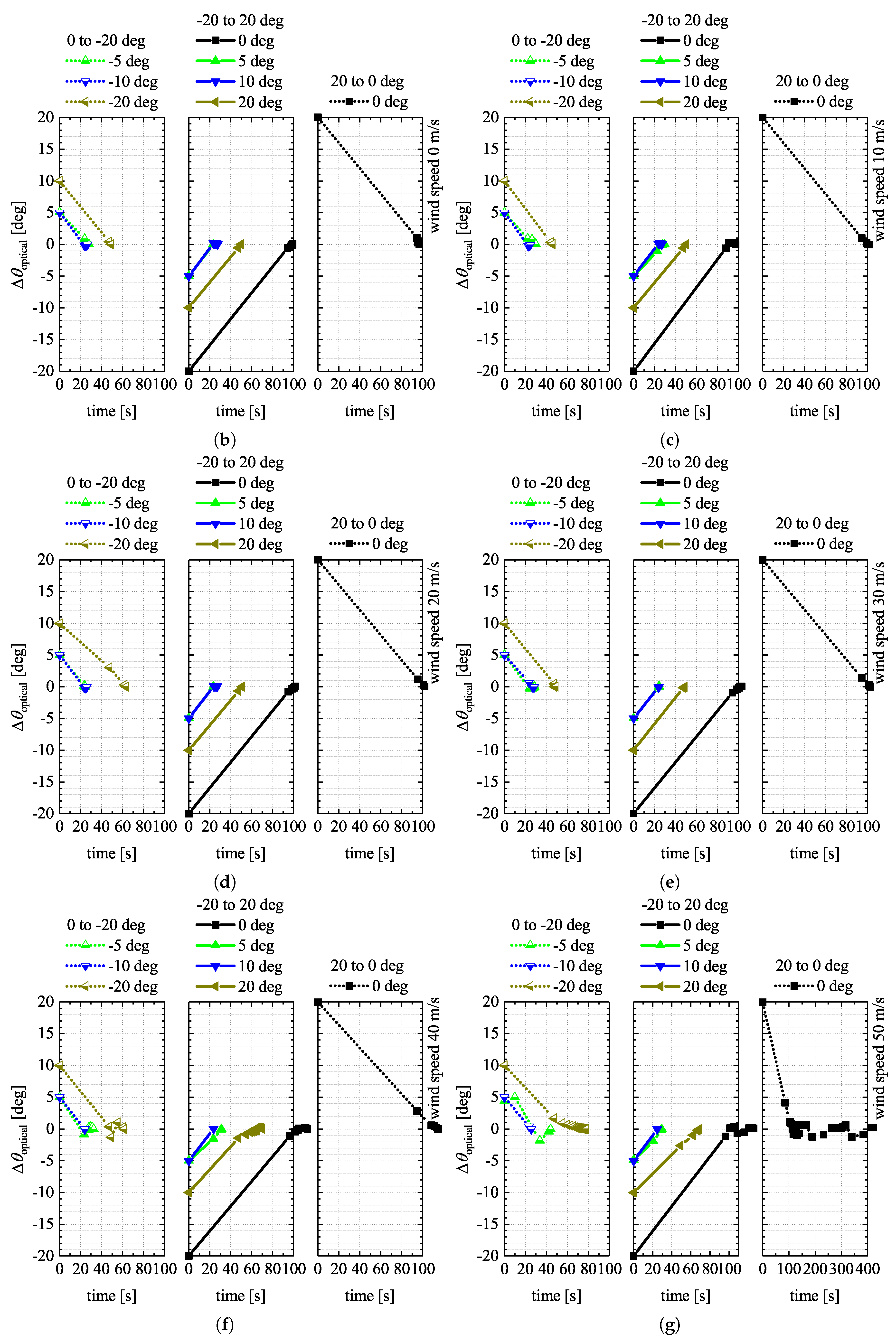

Figure 6b–g shows the convergence histories of $\Delta {\theta }_{\mathrm{optical}}$ for each wind speed. These graphs indicate the following three points:

• The controlled actuator speed is roughly

  $$\frac{\partial \Delta {\theta }_{\mathrm{optical}}}{\partial t}⪆0.2\mathrm{deg}/\mathrm{s}$$

  (4)

  except for 40 and 50 m/s wind velocity. Note that t denotes the time required for control. Thus, a unit time of roughly at least 5.0 s/degrees is requisite for actuator rotations in the feedback control by $\Delta {\theta }_{\mathrm{optical}}$. It takes time to control because we need the time to earn flap angles via optical measurement (obtaining the image with the cameras, detecting the markers, and computing flap angles).
• The feedback control by $\Delta {\theta }_{\mathrm{optical}}$ rigorously measures the minute movement prompted by the system’s play and the deformation of the wind tunnel model, so it takes long to converge using $\Delta {\theta }_{\mathrm{optical}}$; the convergence of $\Delta {\theta }_{\mathrm{optical}}$ becomes more troublesome as the wind speed is boosted. Since we cannot eliminate the mechanical play of the actuator, it is impossible in principle to make $\Delta {\theta }_{\mathrm{optical}}$ zero.
• Due to the above reason, the number of times of control is inevitably necessary for positioning near ${\theta }_{\mathrm{target}}$. Thereupon, regardless of the wind speeds, the recurrence of the control by $\Delta {\theta }_{\mathrm{optical}}$ rises. Moreover, the number of control times around ${\theta }_{\mathrm{target}}$ abruptly grows under conditions at 40 m/s or more flow velocities, but optical measurement technology does not induce this issue. As the wind velocity gains, the aerodynamic force matures stronger; the wind tunnel test model becomes liable to deform.

We needed many numbers of times of control and a control interval of up to $\mathcal{O}\left({10}^3\right)$ s because of the actuator mechanism and deformation of the wind tunnel test model, but we could control the flap even with the upper limit of the wind speed and could procure the flap angle data without any loss.

5. Conclusions

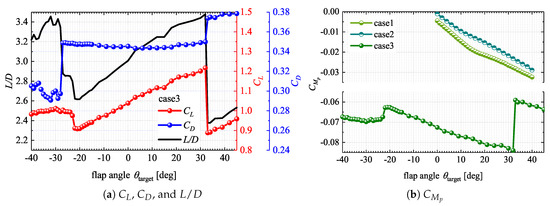

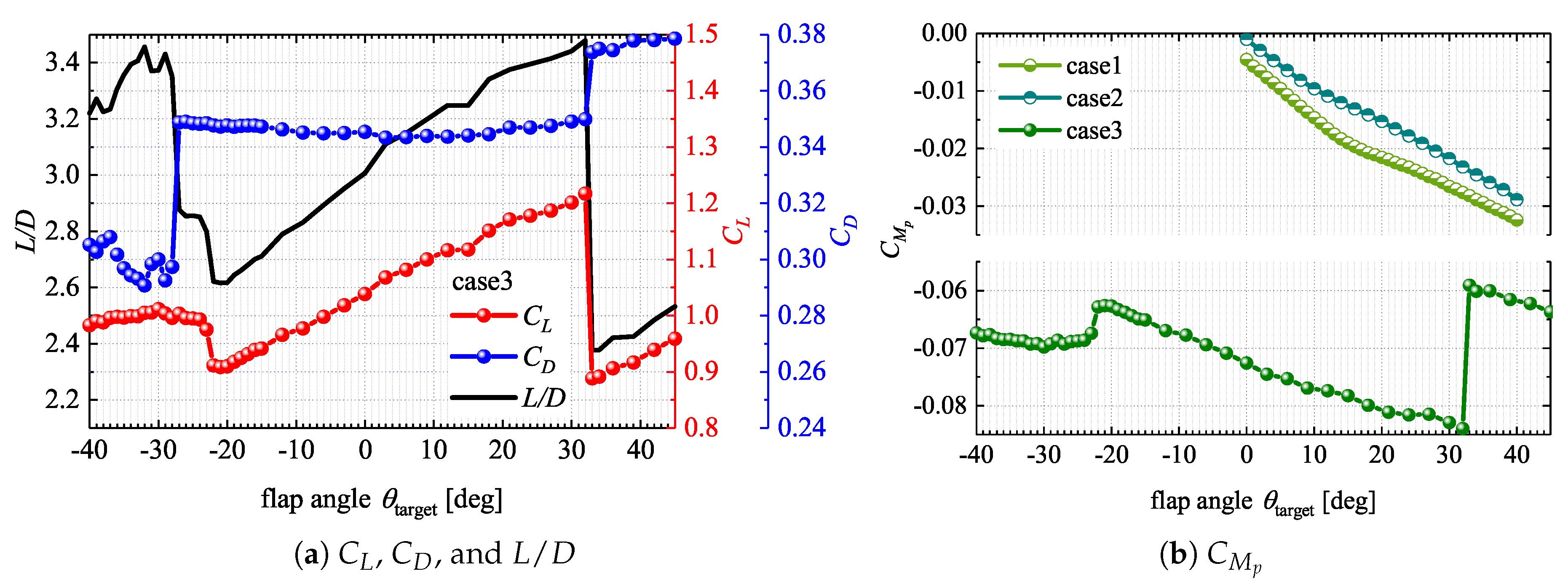

This study has constructed a remote and feedback control system to adjust the configuration of a part of a wind tunnel test model. The purpose was to improve the efficiency of the wind tunnel test by automatically rotating the flap of the wind tunnel test model without pausing the ventilation and to position precisely by diverting optical measurement technology. We were able to experiment faithfully with the intended configurations because optical measurement can feedback for aerodynamic data from both the play of the actuator mechanism and the deformation of the model. Since sequential aerodynamic data could be procured efficiently by trial experiments presented in Appendix A, the system has expanded the possibility of future wind tunnel tests.
