Abstract

Increasing pressures in gas-turbine compressors, particularly in aeroengines where the pressure ratios can be above 50:1, require smaller compressor blades and an increasing focus on blade-clearance control. The blade clearance depends on the radial growth of the compressor discs, which in turn depends on the temperature and stress in the discs. As the flow inside the disc cavities is buoyancy-driven, calculation of the disc temperature is a conjugate problem: the heat transfer from the disc is coupled with the air temperature inside the cavity. The flow inside the cavity is three-dimensional, unsteady and unstable, so computational fluid dynamics is not only expensive and time-consuming, it is also unable to achieve accurate solutions at the high Grashof numbers found in modern compressors. Many designers rely on empirical equations based on inappropriate physical models, and recently the authors have produced a series of papers on physically-based theoretical modelling of buoyancy-induced heat transfer in the rotating cavities found inside compressor rotors. Predictions from these models, all of which are for laminar flow, have been validated using measurements made in open and closed compressor rigs for a range of flow parameters representative of those found inside compressor rotors. (The fact that laminar buoyancy models can be used for large Grashof numbers (up to 10 12 ), where most engineers expect the flow to be turbulent, is attributed to the large Coriolis accelerations in the fluid core and to the fact that there is only a small difference between the rotational speed of the core and that of the discs.) As many as 223 separate tests were analysed in the validation of the models, and good agreement between the predictions and measurements was achieved for most of these cases. This overview paper has collected together the equations from these papers, which should be helpful to designers and research workers. The paper also points out the limitations of the models, all of which are for steady flow, and shows where further experimental evidence is needed.
Keywords: buoyancy-induced flow; rotating cavity; theoretical modelling; compressor rotor buoyancy-induced flow; rotating cavity; theoretical modelling; compressor rotor

1. Introduction

Increasing pressures in gas-turbine compressors, particularly in aeroengines where the pressure ratios can be above 50:1, require smaller compressor blades and an increasing focus on blade-clearance control. To calculate the transient and steady clearances between the blades and casing of a high-pressure compressor in an aeroengine (see Figure 1), it is necessary to calculate the radial growth of the compressor discs. This in turn requires the calculation of the temperatures of the discs, which involves the calculation of the flow and heat transfer inside the cavity between the corotating discs.
The buoyancy-induced flow that occurs inside these cavities is three-dimensional, unsteady and unstable, and the prediction of these flows using computational fluid dynamics (CFD) is very expensive and usually inaccurate, particularly at the high Grashof numbers found in compressors. Many designers rely on empirical equations based on inappropriate physical models, and recently the authors have produced a series of papers on physically-based theoretical modelling of buoyancy-induced heat transfer in the rotating cavities found inside compressor rotors. These papers form the basis for the overview presented below.
A review of research into buoyancy-induced rotating flow in closed and open cavities was given in [1]. However since that review there have been some significant developments in the theoretical modelling of these flows [2,3,4,5,6], and it is the object of this paper to bring all these models together in a form that can be readily used by the designers of aeroengines and industrial compressors.
A background to buoyancy-induced rotating flow is given in Section 2. Section 3 and Section 4 summarise the models and the equations for heat transfer from the shroud and discs. Section 5 combines these equations for the rotating cavity in a compressor with axial throughflow, including the calculation of the temperature rise of the throughflow, and the main conclusions are given in Section 6. The Appendix includes the linear equations for inviscid rotating fluids and the equations for adiabatic flow in a rotating core of inviscid fluid.
The definition of symbols not defined in the text below can be found in the Nomenclature.

2. Buoyancy-Induced Rotating Flow

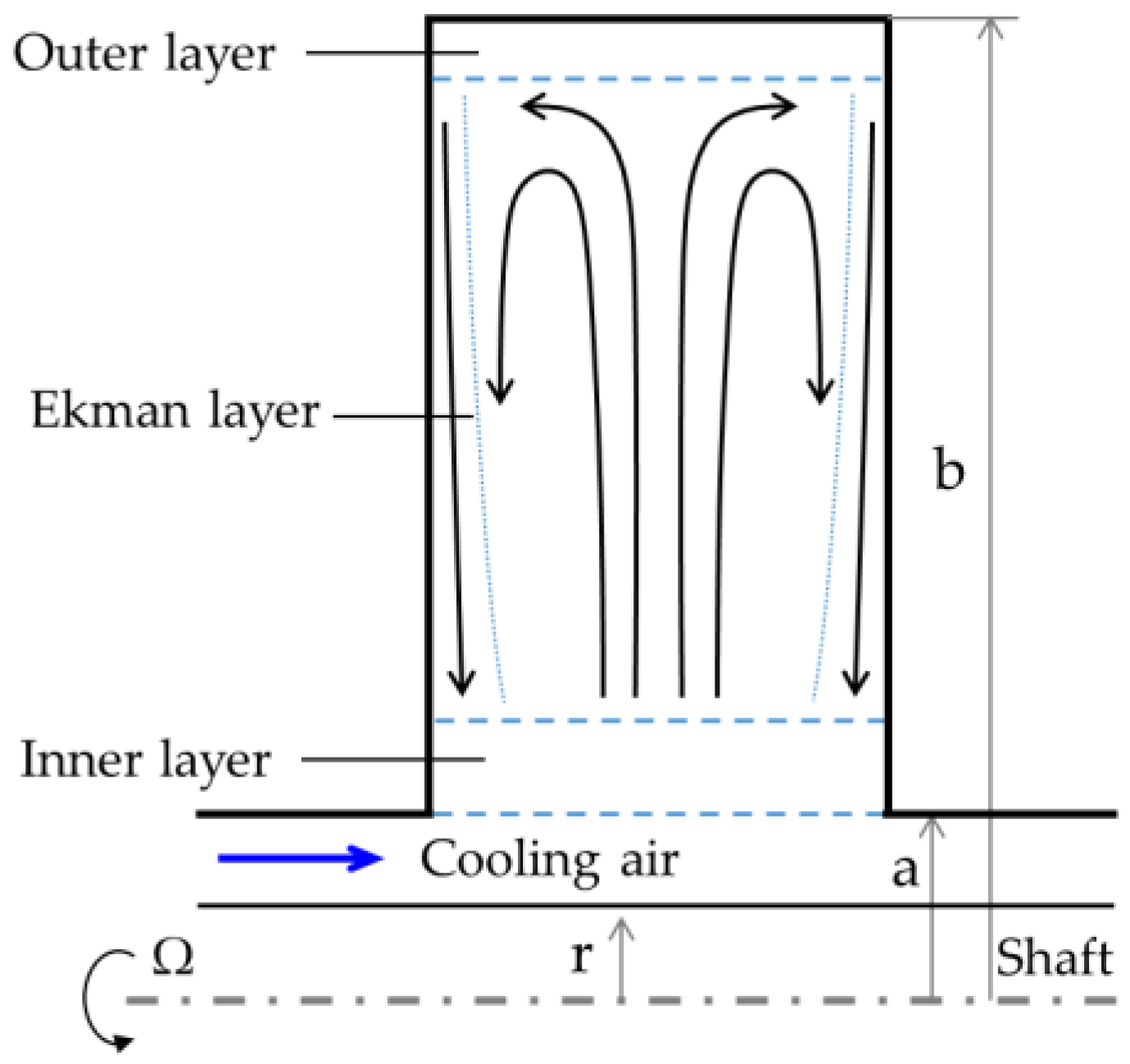

To understand rotating flows, it is necessary to understand some of the effects of the Coriolis forces on these flows. The so-called linear equations (where the linear Coriolis accelerations are much greater than the nonlinear inertial terms) are given in the Appendix.
In the steady-state, the outer shroud is relatively hot compared with the inner one (for closed cavities) or with the axial throughflow (for open cavities). This radial temperature gradient creates buoyancy-induced flow; for a radial flow to occur then either it must be confined to the viscous boundary layers (referred to here as Ekman layers, where the Coriolis forces are produced by shear stresses) or the inviscid flow must be non-axisymmetric (in which regions of cyclonic and anti-cyclonic flow produce circumferential pressure gradients that create the Coriolis forces). An example of these non-axisymmetric flows is shown in Figure 2, first reported by Farthing et al. [7]. These flows are three-dimensional (3D), unsteady and unstable, making them extremely difficult and expensive to compute using computational fluid dynamics (CFD).
Under transient conditions in aeroengines, the throughflow can be hotter than the outer shroud, in which case stratified flow occurs and heat transfer takes place by conduction and radiation. The heat transfer for buoyancy-induced flow is much higher than for stratified flow, and the transition from one state to the other can give rise to flow instabilities.
Coriolis forces tend to attenuate velocity fluctuations, and so it is probable that the critical Rayleigh numbers, Ra, for transition from laminar to turbulent flow will be much higher in a rotating cavity than in a stationary one. In fact, it is shown below that the flow in the Ekman layers could remain laminar even at engine operating conditions, where Ra > 10 12 .
Buoyancy-induced flow in rotating cavities is similar to that in the earth’s atmosphere: both are affected by temperature gradients and by rotation. In both cases, the temperature gradients (radial for cavities where the centripetal acceleration dominates or vertical for the atmosphere where gravity is controlling) can be calculated assuming adiabatic flow. This gives rise to the adiabatic lapse rate in the atmosphere and to a radial temperature gradient in a rotating cavity. It is shown in the Appendix that the radial temperature gradient in the rotating core increases as Ω c , the angular speed of the core, increases. However, as Nu , the Nusselt number for buoyancy-induced rotating flow, increases as Ra (and hence as Ω ) increases, it follows that there must be a critical value of Ra at which Nu is a maximum: below this critical value, Nu increases as Ra increases; above it, Nu decreases as Ra increases. It is shown below that this can and does occur in practice.

3. Heat Transfer from Shrouds

The equations below are based on those derived in [2] for a closed rotating cavity with adiabatic discs. Results from these equations are compared with experimental measurements in Section 3.3.

3.1. Calculation of Nusselt Numbers

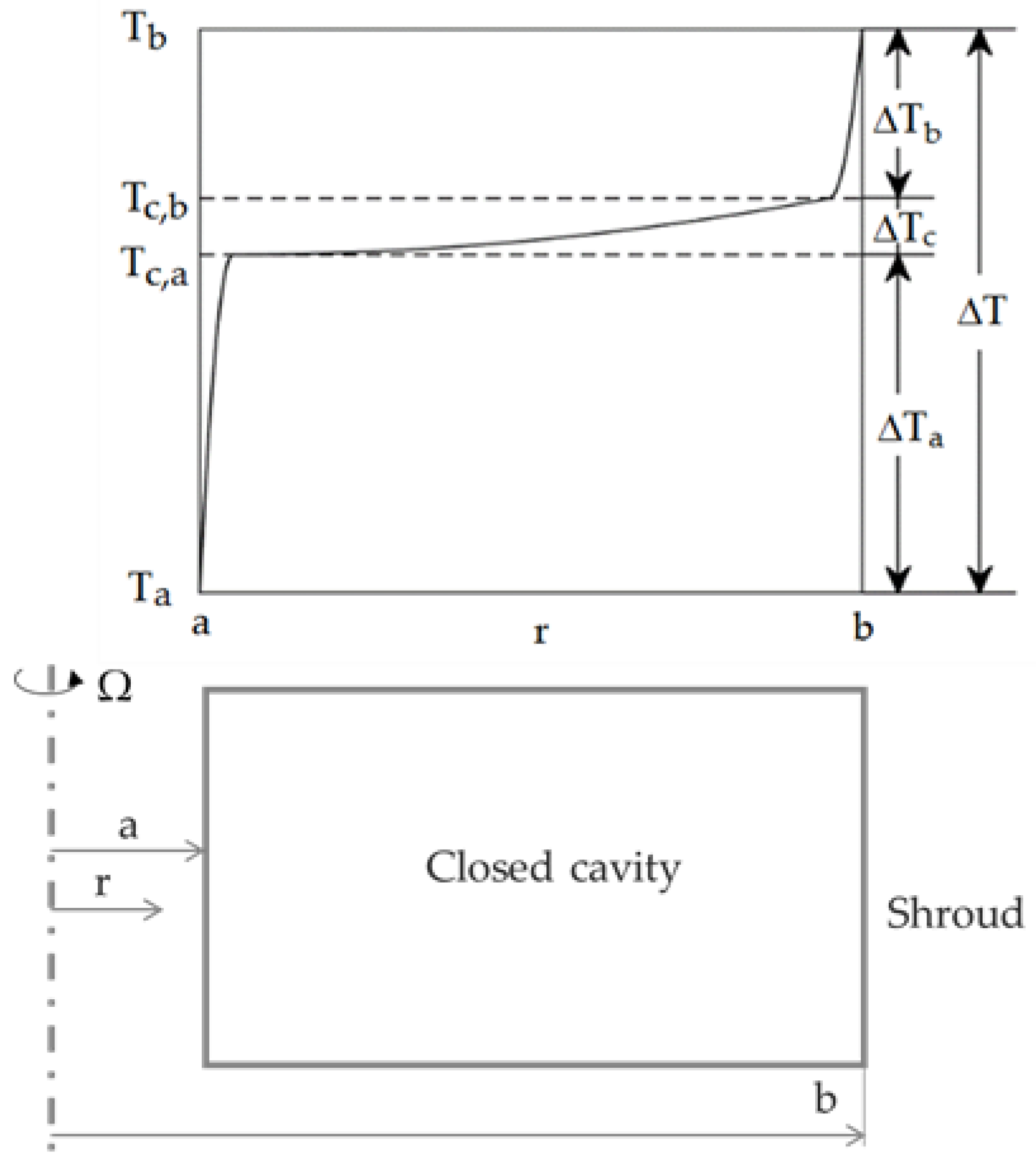

As shown in Figure 3, it is assumed that there are thin boundary layers on the inner and outer cylindrical surfaces at r = a and r = b between which is a core of inviscid fluid rotating at the same angular speed, Ω , as that of the discs. The temperatures of the inner and outer surfaces are T a and T b , where T a < T b , and the corresponding temperatures of the core at the edge of the boundary layers are T c , a and T c , b .
It can be seen from Figure 3 that
Δ T a = T c , a T a
Δ T b = T b T c , b
Δ T c = T c , b T c , a
and
Δ T = T b T a
Assuming that the thickness of the boundary layers on the inner and outer surfaces are negligible compared with the radial height of the cavity, it can be shown from the Appendix that
Δ T c = Ω 2 2 C p ( b 2 a 2 )
In the absence of heat transfer from the discs, the total heat flow rate through the inner surface is assumed to equal that through the outer one, so that the heat rates are related by
Q ˙ = Q ˙ a = Q ˙ b
Hence
q a S a = q b S b
The following definitions are used:
Nu = def Q ˙ Q ˙ c o n d
where Q ˙ c o n d is the heat flow rate due to conduction, which is given by
Q ˙ c o n d = 2 π k s Δ T ln ( b / a )
The Nusselt numbers and Grashof numbers on the inner and outer cylindrical surfaces are defined as
Nu a = def q a L a k Δ T a
Nu b = def q b L b k Δ T b
Gr a = def ρ 2 Ω 2 a L a 3 β Δ T a μ 2
Gr b = def ρ 2 Ω 2 b L b 3 β Δ T b μ 2
where L a and L b are appropriate length scales.
By analogy with free convection from a horizontal plate [8], it is assumed that heat transfer from the rotating cylindrical surfaces is by laminar free convection but with the gravitational acceleration replaced by the centripetal acceleration. The Nusselt numbers are then given by
Nu a = c ( Gr a Pr ) 1 / 4
Nu a = c ( Gr a Pr ) 1 / 4
For a hot horizontal plate with cold air above, or a cold plate with hot air below, the constant c = 0.54. For the rotating cavity, where centripetal acceleration occurs, these cases respectively apply to the outer and inner cylindrical surfaces. For horizontal surfaces, the length scale is taken to be the area/perimeter ratio of the plate; for cylindrical surfaces, this corresponds to L a = L b = s / 2 .
Using the above equations, and noting that Ra = Pr   Gr , it can be shown (see [2]) that
Nu = c ξ Ra 1 / 4   ( 1 χ   Re 2 ) 5 / 4
Nu = c ξ   Ra 1 / 4   ( 1 ψ   Ra ) 5 / 4
where ξ is a geometric parameter given by
ξ = a b ln ( b a ) ( a l a ) 1 4 ( 2 ( 1 + a / b ) ( 1 a / b ) 3 ) 1 4 ( 1 + ( a b ) 1 / 5 ( l b l a ) 1 / 5 ( S a S b ) 4 / 5 ) 5 / 4
and χ and ψ are compressibility parameters given by
χ = def 2 μ 2 ρ 2 C p Δ T ( b 2 a 2 )
ψ = def μ 2 ρ 2 C p Δ T ( b a ) 2 β Δ T   Pr

3.2. Maximum Nusselt Number

It follows from Equation (16) that,
Nu Re 1 / 2 ( 1 χ   Re 2 ) 5 / 4
There will therefore be a maximum value of Nu at a critical value of Re where
Re crit = ( 6 χ ) 1 / 2
or, from Equation (17), at a critical value of Ra where
Ra crit = ( 6 ψ ) 1
It can be seen from Equations (19), (20), (22) and (23) that Re crit and Ra crit increase as ρ increases or as Δ T increases. (The increase in ρ was achieved in the experiments of Bohn et al. [9] by pressurising the cavity. In their experiments, Δ T decreased as Re increased, which would reduce the critical value given by Equation (22)). It should also be noted that, as χ ρ 2 and Re ρ , it follows that Ω crit , the critical value of Ω , is invariant with the density and is therefore unaffected by the pressure in the cavity.

3.3. Comparison with Experimental Measurements

The theoretical model was validated using the experimental measurements of Bohn et al. [9]. The measurements were made in 194 separate experiments, over a wide range of Rayleigh numbers, in three closed cavities, A, B and C, each of which had different geometries. There was good agreement between Equation (17)—using a value of c = 0.32 —and the experimental data obtained from all three cavities. The results shown in Figure 4 were for Cavity A, where a = 125   mm , b = 355   mm and s = 120   mm and the experiments were conducted with an absolute cavity pressure of 4 bar. It should be noted that the shroud temperature decreased as Ra increased, and the empirical correlation of Bohn et al. for cavity A was
Nu A = 0.246   Ra 0.228

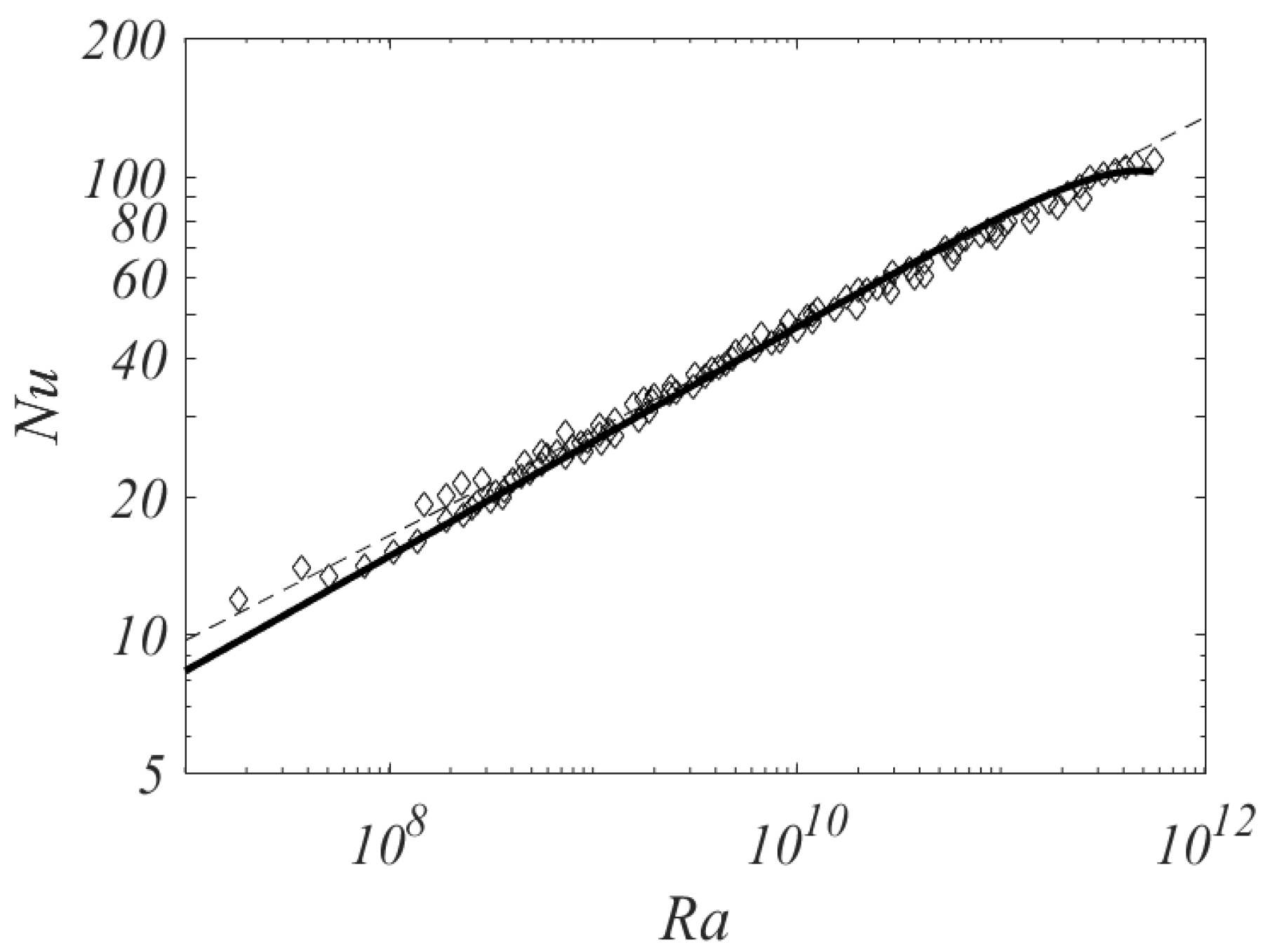

The theoretical curve shows a good fit to the experimental data, particularly at the highest values of Ra where the data points begin to deviate from the empirical correlation: these data points are consistent with, but are not proof of, a maximum value of Nu .
It is significant that a laminar theoretical model fits the experimental data for values of Ra approaching 10 12 , where most engineers would expect the flow to be turbulent. As stated in Section 2, Coriolis forces tend to attenuate the effects of turbulence, and the fact that the fluid in the cavity is expected to rotate close to the angular speed of the shrouds means that any speed difference across the boundary layers would be very small.

4. Heat Transfer from Discs

The equations below are based on those derived in [3] for the discs in an open cavity with an axial throughflow of cooling air. This is a conjugate problem: the heat transfer from the discs and the temperature in the core are coupled. Results from these equations are compared with experimental measurements in Section 4.5.

4.1. Assumptions for Buoyancy Model

The Ekman-layer equations for buoyancy-induced flow were based on those used for isothermal laminar source-sink flow in [10]. As shown in Figure 5, for heated discs and a cold core the flow will be radially inward inside the Ekman layers. In practice, the flow in the core will be 3D and unsteady, with the radial outflow of cold fluid and the inflow of hot fluid facilitated by pairs of cyclonic and anti-cyclonic vortices. The 1D model assumes axisymmetric flow inside the Ekman layers: in effect, this uses the spatial and temporal averages of the velocities and temperature.
In the solutions presented below, although it is assumed that heat is transferred from the Ekman layers to the core, it is also assumed that there is no significant heat transfer between the radial plumes of air and the vortices in the core. Consequently the circumferential-average temperature of the core can be considered to increase adiabatically with radius, as assumed in the Appendix.
It was shown by Owen and Pincombe [11] that the axial throughflow can create a toroidal vortex inside the cavity, with the possibility of vortex breakdown in the swirling axial flow. The strength and size of the toroidal vortex decreases as the Rossby number decreases, and at the small values of Ro found in compressors (where Ro is of the order of 10 1 ) it is probable that the vortex will have decayed to leave a shear layer between the throughflow and the buoyancy-induced flow inside the cavity, shown as the inner layer in Figure 5; the outer layer corresponds to the boundary layer on the shroud. Although heat will be transferred across the inner layer, with a temperature difference proportional to the heat flux, the amount of mass transfer is likely to be very small.

4.2. Modelled Nusselt Numbers

The term modelled Nusselt numbers is used here to refer to the values that are determined using the equations given below, which are based on the Ekman-layer model in [3]. The modelled Nusselt number is defined as
Nu c = def h c r k
where the local heat transfer coefficient h c , is given
h c = def q o T o T c
T o and T c are the temperatures of the disc and core respectively, and q o is the heat flux from the disc surface to the core. It is shown in [3] that the Nusselt number for the discs is given by
Nu c = 1 2 x a 1 / 2 I 1 / 4 Gr c 1 / 4 [ ( θ Co ) ( ρ c ρ c , b ) 2 x 5 ] 1 / 3
The nondimensional temperature θ is defined by
θ = def T o T c T o , b T c , b
It is θ that couples the heat transfer from the disc to the temperature of the core. The Grashof number, Gr c , is defined by
Gr c = def ρ c , b 2 Ω c 2 b 4 μ 2 β ( T o , b T c , b )
The so-called Coriolis parameter, Co , which can be thought of as the ratio of Coriolis forces to buoyancy forces, is defined by
Co = def 2 ( 1 Ω c Ω ) 1 β ( T o , b T c , b )
Co is treated as an empirical parameter, and for the experiments discussed below a value of Co = 0.07 was found to provide the best fit between the predicted and measured temperatures. (In almost all experimental cases analysed in this paper, it was found that N u c 0 as r a , so that Equation (27) implies that θ Co at r = a . From the definition of θ in Equation (28), the choice of Co determines the value of T c , a used in the solution of the equations.)
I , which is an integral that accounts for the momentum exchange between the flow in the core and that in the Ekman layers on the discs, is defined by
I = x a 1 x 11 / 3 [ ( θ Co ) ( ρ c ρ c , b ) 2 ] 1 / 3 d x
T c , b is calculated from Equation (A14) in the Appendix, and it follows from Equation (A15) that
ρ c ρ c , b = [ 1 + γ 1 2 M a c 2 ( x 2 x a 2 ) 1 + γ 1 2 M a c 2 ( 1 x a 2 ) ] 1 / ( γ 1 )
The other symbols are defined in the Nomenclature.

4.3. Modelled Disc Temperatures

In [4], Equation (27) was solved in conjunction with the numerical solution of the general fin equation for the disc, which is given by
d 2 T o d r 2 + ( 1 r 2 t c o s α s i n α + 1 k s d k s d T o d T o d r ) d T o d r 2 h f k s t s i n α ( T o T f ) = 0
(In principle, the 2D version of Laplace’s equation could be used for the conduction calculations, but the 1D fin equation has the advantage of simplicity, and it is much easier to use in conjunction with a Bayesian statistical model [5].) The geometry of the disc, which is shown in Figure 6, is based on the experimental Sussex rig described in [12]. The thermal conductivity, k s , of the titanium disc and the finite-difference equations used for the numerical solution of Equation (33) are given in [4]. The measured temperatures at r = b and r = a (see Figure 6) were used as the boundary conditions.
The coupled Equations (27) and (33) were solved iteratively to calculate the modelled Nusselt numbers and disc temperatures.

4.4. Experimentally Derived Nusselt Numbers and Disc Temperatures

The general fin equation, Equation (33), was solved numerically—in conjunction with the measured disc temperatures, using the Bayesian statistical model described in [5]—to calculate what are referred to here as the experimentally derived Nusselt numbers and disc temperatures. The Nusselt numbers and the 95% confidence interval were determined from the inverse solution of Equation (33) (where the temperature distribution was specified); the disc temperatures were determined from the direct solution (where the Nusselt numbers were specified).
The temperatures of both surfaces of the instrumented disc were measured in the experiments; for the inverse solution of Equation (33), both the two sets of measured temperatures were used to calculate the averaged Nusselt numbers. (Apart from those on the cob surfaces, the differences between the two sets of temperature were smaller than the uncertainty in the measured values.)

4.5. Comparison with Experimental Measurements

Table 1 shows the main parameters and average Nusselt numbers for the 19 test cases of Atkins and Kanjirakkad [12]. For each of the four approximate Rossby numbers, the cases are presented in order of ascending Grashof number. It should be noted that all the cases shown in Table 1 were analysed in [4], but only selected cases are discussed below.

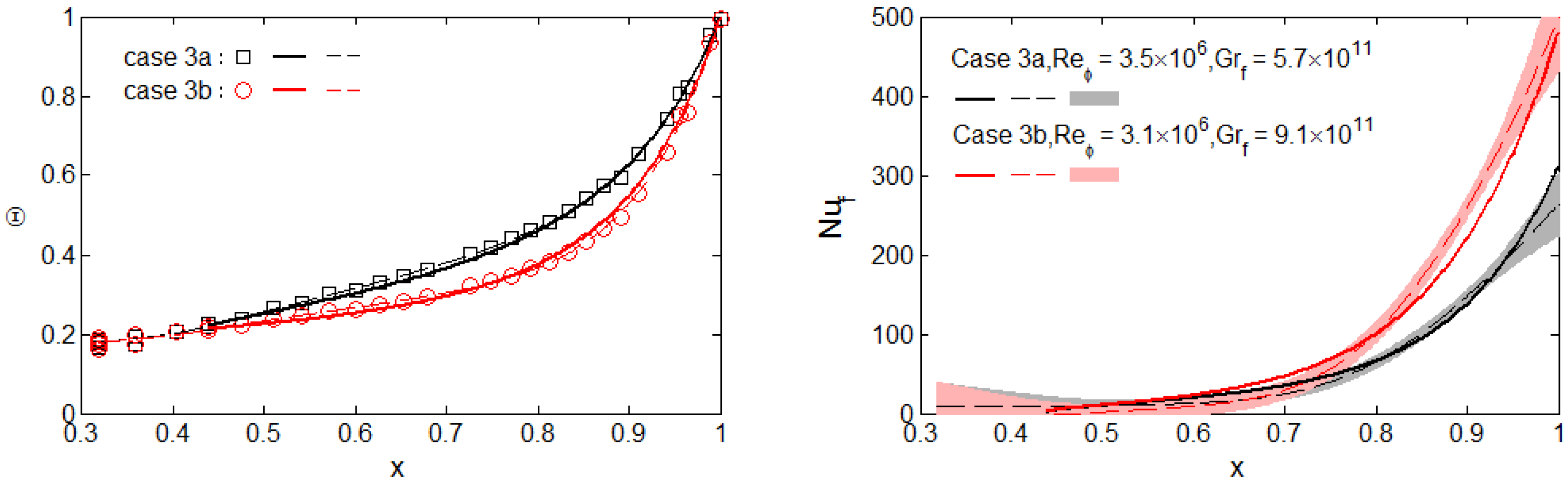

Figure 7 and Figure 8 show the comparison between the experimentally derived and modelled values of Θ and Nu f for two of the 19 cases analysed in [4]. These cases are typical of all the cases for Gr f > 6 × 10 9 , and it is believed that buoyancy-induced flow is unlikely to dominate at lower Grashof numbers. The solid curves in the figures show the theoretical distributions of Θ and Nu f obtained using the buoyancy model in conjunction with the general fin equation between a and b, and the broken curves show the experimentally derived distributions. In general, an overestimate of the Nusselt numbers will result in an underestimate of the temperatures.
In Figure 7, for Ro 0.6 , the Nusselt numbers increase as the Grashof number increases, but they all converge to a low value at the smaller radii. This suggests that, as the disc temperature tends to that in the core, the effects of buoyancy are weak in the inner part of the cavity.
Figure 8, for Ro 0.3 , again shows mainly good agreement between the theoretical and experimental distributions of Θ and Nu f . However, it should be noted that the maximum value of Nu f , exp for Gr f = 3.7 × 10 11 is smaller than that for Gr f = 10 11 . This is an example of the compressibility effect discussed for the shrouds in Section 3: increasing the rotational speed increases the core temperature, which reduces the heat transfer from the disc to the core. As for the shrouds, there will be a maximum disc Nusselt number and a critical rotational speed above which the Nusselt number will decrease as the speed is further increased. The theoretical values of Nu f also show this effect, but it is not as marked as the experimental one.

5. Buoyancy-Induced Heat Transfer inside Compressor Rotors

Heat transfer from the shrouds and discs is discussed in Section 3 and Section 4, and in this section (which is based on [6]) the results are applied to the case of an open rotating cavity with an axial throughflow of cooling air. This includes calculating the temperature rise of the throughflow, which in turn involves estimating the heat transfer from the cob bore to the air.

5.1. Model of Heat Transfer from Shroud to Core

The equations derived in Section 3 are adapted for use here. To compare the theoretical predictions with the experimental measurements, the temperature of the shroud, T s h , was assumed to equal T o , b , the measured disc temperature at r = b , and the air temperature in the core close to the shroud, T c , b , was calculated from Equation (A14) for x = 1 . Consequently
Nu sh = C ( Gr sh Pr ) 0.25
where C is an empirical constant, and the definitions of Nu sh and Gr sh are
Nu sh = def h s h ( s / 2 ) k c , b = q s h ( s / 2 ) k c , b ( T s h T c , b )
and
Gr sh = def ρ c , b 2 Ω c 2 b μ c , b 2 T s h T c , b T c , b   ( s 2 ) 3
The theoretical heat flux from the shroud can then be computed by
q s h = 2 Nu sh k c , b ( T s h T c , b ) / s
and
Q ˙ s h = 2 π b s q s h = 4 π b k c , b Nu sh ( T o , b T c , b )

5.2. Model of Heat Transfer from Cob to Axial Throughflow

The heat transfer from the cob bore to the throughflow is assumed to be by forced convection. In [6], it was assumed for simplicity (and to fit the available data) that
Nu cob = 0.69 Re T 0.37
where
Nu cob = def q c o b l k f ( T c o b T f )
and
Re T = def ρ f U l μ f
The heat flow from the cob to the throughflow can then be calculated from
Q ˙ c o b = 2 π a l q c o b

5.3. Model of Temperature Rise of Axial Throughflow

The heat transferred from the discs and shroud to the core, together with the heat transferred from the cob, all contribute to the temperature rise of the throughflow. Referring to the control volume shown in Figure 9, for disc i, it is assumed that Q ˙ u , i Q ˙ d , i . It is also assumed that, as the rotational speed of the core is very close to that of the discs, the work term is significantly smaller than the heat transfer terms. If m ˙ f is the mass flow rate of the throughflow, then an energy balance for the control volume shows that
Δ T f = 2 Q ˙ u , i + Q ˙ s h , i + Q ˙ c o b , i C p m ˙ f
where Δ T f = T f , i + 1 / 2 T f , i 1 / 2 .

5.4. Comparison between Theoretical and Experimental Values

5.4.1. Disc Nusselt Numbers and Temperatures

The experimentally derived Nusselt numbers were calculated from the temperature measurements using the Bayesian method described in Section 4. The modelled temperatures and Nusselt numbers for the discs were predicted using the buoyancy model in conjunction with the direct solution of the general fin equation. (It should be noted that the Nusselt numbers are the average for the upstream and downstream surfaces of the instrumented disc.) The ranges of the experimental parameters shown in Table 2 were: 4.1 × 10 11 < Gr f < 10 12 ,   0.15 < β Δ T < 0.35 ,   1.6 × 10 6 < Re ϕ < 3.0 × 10 6 ,   1.1 × 10 5 < Re z < 5.1 × 10 5 and 0.1 < Ro < 0.6 . It should be noted that all the cases shown in Table 2 were analysed in [6], but only selected cases are discussed below.
The Coriolis parameter defined by Equation (30) was chosen to minimise the difference between the theoretical and experimental average disc temperatures, Θ a v , t h and Θ a v , e x p respectively, where
Θ a v = 2 x a 1 Θ x d x 1 x a 2
A value of Co = 0.030 provided a good fit with a standard deviation of 0.019, and the individual values of Θ a v , t h and Θ a v , e x p are included in Table 2. (It was shown in [4] that the theoretical Nusselt numbers were relatively insensitive to the value of Co . In that paper, the Rossby numbers tended to be higher and their range ( 0.3 < Ro < 5 ) larger than for the experiments described here, which are more representative of the Rossby numbers found in aeroengine compressors; a value of Co = 0.07 was found to give the best fit to the data. It is possible that Co may increase as Ro increases, but more evidence is required to support that conjecture.)
As in [4], and consistent with the experimental evidence, the modelled Nusselt numbers were assumed to be zero at the inner radius of the disc and, as stated above, a value of Co = 0.030 was used for the Coriolis parameter in all 10 cases. It should be noted that—unlike in [4]—the results shown here include the modelled Nusselt numbers and temperatures for the cob. An over-prediction of Nu f tends to result in an under-prediction of the disc temperature, and vice versa, but in the main there was good agreement between the modelled and experimental results. It should also be noted that the relative speed of the inner shaft (see Table 2) appears to have had no significant effect on the results. (This was also observed in [13] for heat transfer measurements on the shroud in a multi-cavity compressor rig.)

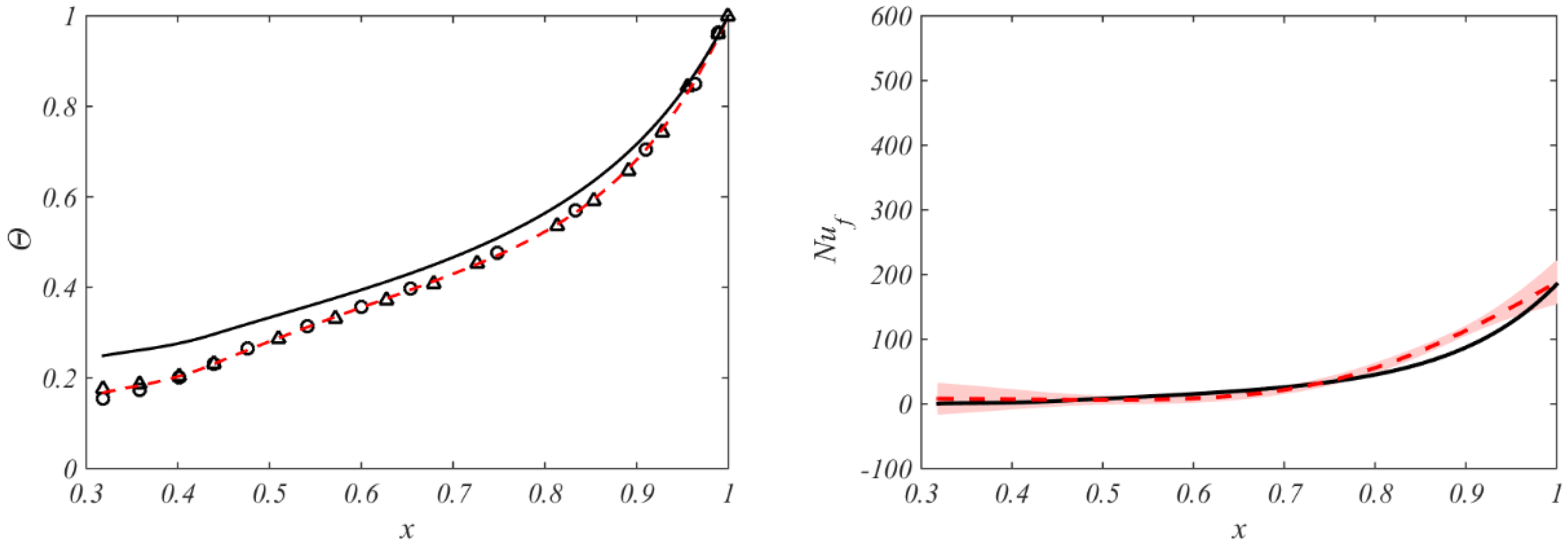

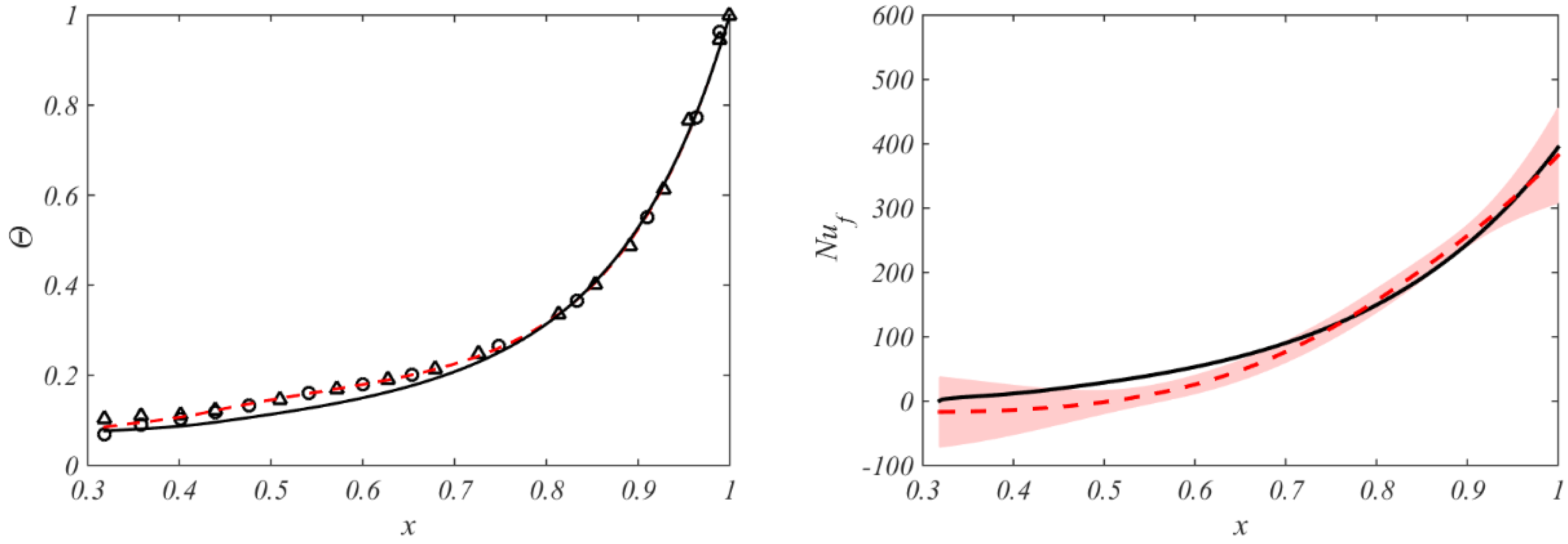

Comparison between Figure 10 and Figure 11 shows the effect of compressibility on the Nusselt numbers. The Grashof number is lower but the maximum value of Nu f is higher in Figure 10 than the corresponding values in Figure 11. The reduction in Nu f despite the increase in Gr f is caused by the fact that Re ϕ in Figure 11 is higher (and therefore the rise in core temperature is also higher) than that in Figure 10. (It should also be noted that the modelled temperatures tended to be less accurate in [6] compared with those in [4]. The reason for this is that a convective boundary condition was used at r = a in [6] whereas the measured temperatures at r = a were used in [4].)

5.4.2. Temperature Rise of Throughflow

The method used to predict Δ T f , the bulk-mean total-temperature rise of the axial throughflow, was described in Section 5.3. For convenience, Equation (43) is repeated below removing the subscript i and adding th to denote the theoretical or modelled value of Δ T f .
Δ T f , t h = 2 Q ˙ u + Q ˙ s h + Q ˙ c o b C p m ˙ f
Knowing the radial distribution of the disc temperatures and the Nusselt numbers, Q ˙ u , the heat transfer from the upstream surface of the disc, can be calculated by integrating the heat flux from r = a to r = b . Knowing the value of T c , b , the modelled core temperature at r = b , Q ˙ s h , the heat transfer from the shroud, can be calculated using Equations (34) to (38). Knowing the value of T o , a , Q ˙ c o b , the heat transfer from the cob, can be calculated using Equations (39) to (42).

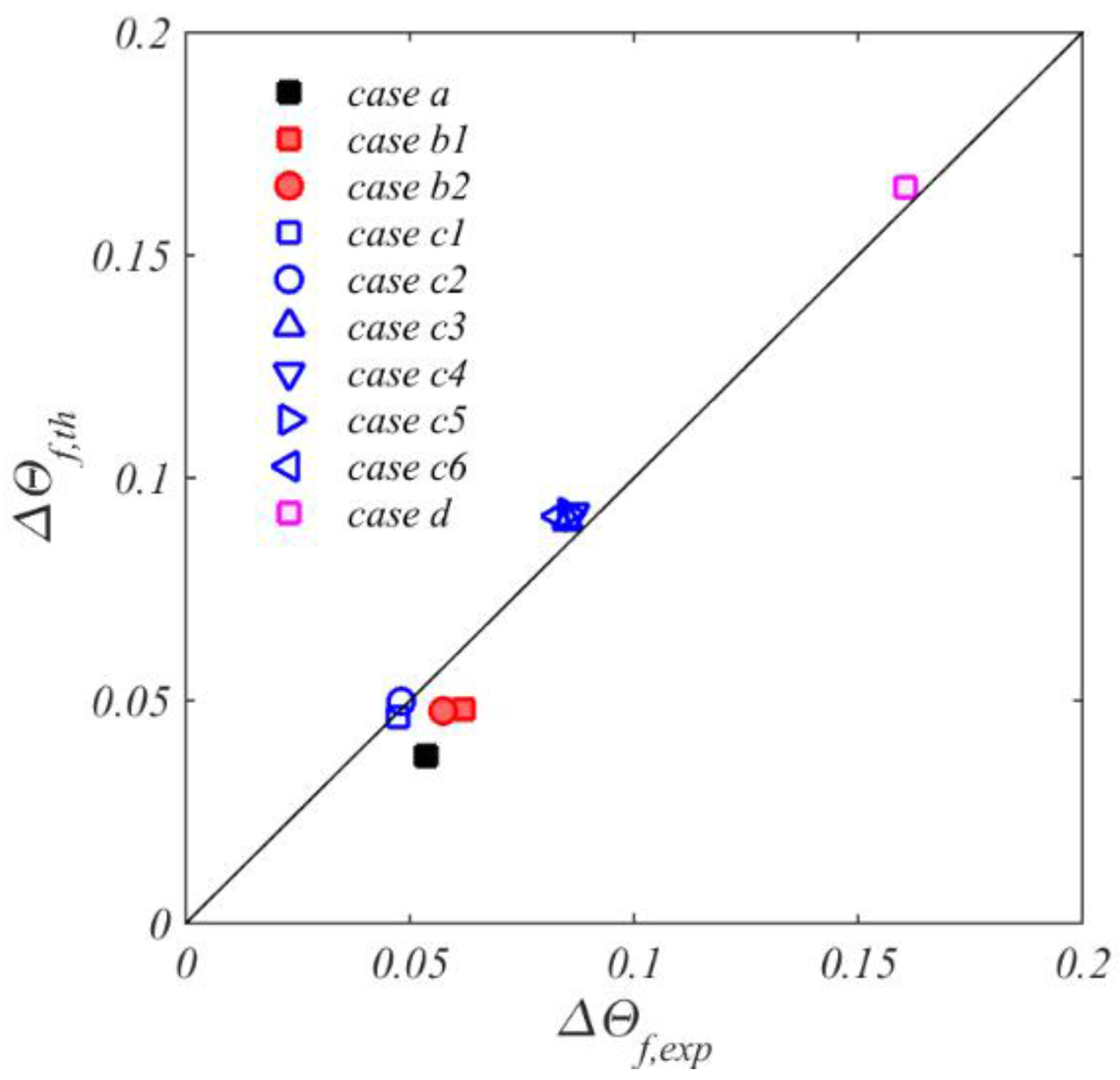

Figure 12 shows the comparison between the modelled and experimental values of Δ Θ f where
Δ Θ f = Δ T f T o , b T f
The modelled values were calculated using a value of C = 0.44 in Equation (34) for the shroud heat transfer. This value, which was chosen to minimise the least-squares error between the modelled and experimental values, is intermediate between 0.54 for laminar free convection from a horizontal plate [8] and 0.32 for the shrouds in closed rotating cavities [2]. (The correlation of Long and Childs [13] produced significant overestimates of the temperature rise.) The predicted relative contributions of heat transfer from the shroud, both disc surfaces and the cob bores to the rise in throughflow temperature were approximately 62%, 37% and 1% respectively for the range of conditions tested.
It is important to emphasise that the empirical correlation for the cob Nusselt number given by Equation (39) may not be valid outside the range of experiments reported in this paper. The values of Nu cob used here were between 42 and 52, and an average value of 48 gave predictions similar to the ones discussed. As the relative effect of the heat transfer from the cob bore has only a very small effect on the temperature rise of the throughflow, and as the results are only weakly affected by the precise value of Nu cob , it is unlikely that other correlations would make a significant difference to the predictions.

6. Conclusions

This overview paper has collected together the equations from five separate papers on theoretical modelling of buoyancy-induced flow and heat transfer inside rotating cavities. Predictions from the models, all of which are for laminar flow, have been compared with measurements made in open and closed compressor rigs for a range of Rossby, Reynolds and Grashof numbers representative of those found inside the compressor rotors of aeroengines. A total of 223 separate tests was analysed in the validation of the models, and good agreement between the predictions and measurements was achieved for most of these cases.
For rotating flows, the gravitational term in the Grashof number is replaced by the local centripetal acceleration in the cavity. It should also be noted that buoyancy-induced flows are strongly conjugate: the buoyancy equations are coupled with the conduction equations for the discs. For the discs, the temperatures were solved using the 1D conduction equation for a circular fin, which proved to be acceptably accurate for the cases studied. In addition, a Bayesian statistical model was used, in conjunction with the fin equation, to compute the Nusselt numbers from experimental temperature measurements. (A 2D or 3D version of Laplace’s equation could be used instead of the fin equation but this would take more time to solve.)
The buoyancy model for the disc is based on laminar Ekman-layer flow, and it includes a Coriolis parameter, Co, which is in effect the ratio of Coriolis to buoyancy forces inside the cavity. For the range of experimental cases analysed, Co was treated as an empirical constant with a value between 0.03 and 0.07. It typically took only seconds for a laptop to solve the coupled buoyancy and conduction equations for each case: by contrast, CFD would take days or even weeks to solve a single case.
The model for the shrouds is based on a standard correlation for laminar free convection from a horizontal plate but with the gravitational acceleration replaced by the centripetal one. This correlation requires an empirical constant, C, the value of which was taken to be between 0.32 and 0.44 (compared with 0.54 for a horizontal plate) for the range of experimental cases analysed.
The inviscid compressible core in the cavity, which rotates at an angular speed close to that of the discs, is assumed to be adiabatic. Consequently the core temperature increases with increasing rotational speed, and this increase attenuates the heat transfer from the discs and shrouds. There are therefore maximum Nusselt numbers for the discs and shrouds: above a critical Grashof number, the Nusselt numbers decrease as the Grashof number increases.
The heat transfer between the bore of the cobs and the axial throughflow in an open cavity was assumed to be by forced convection. An empirical correlation was assumed for the cob Nusselt number, and two empirical constants were chosen to provide the best fit between the measured and predicted disc temperatures. The relative heat flow from the cob to the throughflow was very small (about 1% of the total heat flow), and so the predicted temperature rise of the throughflow was relatively insensitive to the magnitude of the cob Nusselt numbers.
The modelled values of the heat flow from the shroud, discs and cob were used to predict the temperature rise of the throughflow, and good agreement was achieved between the predicted and measured values. The average contributions from the shroud, both disc surfaces and the cob bores to the temperature rise were predicted to be approximately 62%, 37% and 1% respectively for the range of conditions tested.
From experiments at large Rossby numbers and small Grashof numbers, it appeared that buoyancy-induced flow was not the dominant convective mode below Grashof numbers of the order of 10 9 . The fact that laminar buoyancy models can be used for large Grashof numbers (up to 10 12 ), where most engineers would expect the flow to be turbulent, is attributed to the large Coriolis accelerations in the fluid core and to the fact that there is only a small difference between the rotational speed of the core and that of the discs. It should also be noted that the available experimental evidence suggests that neither the rotational speed of the inner shaft nor the relative direction of its rotation had any significant effect on the heat transfer inside the cavity.
Caution should be exercised when applying these models to engine conditions. The values of the empirical constants (particularly C and Co) used here are likely to be dependent on the cavity geometry and on the Rossby number, but more experimental evidence is needed to confirm this. In particular, there is reason to believe that the empirical constants will change as the axial gap between the cobs decreases and the open cavity starts to behave like a closed one, with a corresponding decrease in the Nusselt numbers. Although the results from 223 tests provide strong evidence that laminar flow occurs for Grashof numbers up to 10 12 , there is no evidence to confirm—as the authors believe—that the flow will remain laminar at the larger Grashof numbers found in some aeroengine compressors.
The buoyancy models have so far been validated only for steady-state conditions, and transient comparisons cannot be made until suitable experimental data becomes available. The conditions for transition between buoyancy-induced and stratified flow have yet to be accurately quantified, and last—but by no means least—the effects of different temperatures between the two discs in a cavity have yet to be investigated. The authors are currently building a compressor rig to address many of the above points, and in the coming years more experimental data will become available.
References [14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34,35,36,37,38,39,40,41,42,43,44,45,46,47,48,49,50,51,52,53,54] provide some additional background reading on buoyancy-induced rotating flows.

Acknowledgments

We thank the American Society of Mechanical Engineers (ASME) for permission to use the published figures and tables in this paper.

Conflicts of Interest

The authors declare no conflict of interest.

Nomenclature

a inner radius
a inner radius of outer edge of cob
b outer radius
c empirical constant
C empirical constant
C p specific heat capacity at constant pressure
Co Coriolis parameter (see Equation (30))
d h hydraulic diameter ( = 2 ( a r s ) )
Gr Grashof number for closed cavity ( = ρ 2 Ω 2 ( a + b ) / 2 L 3 μ 2 Δ T ( T a + T b ) / 2 )
Gr a Grashof number of inner surface of closed cavity (see Equation (12))
Gr b Grashof number of outer surface (shroud) of closed cavity (see Equation (13))
Gr c Grashof number in theory (see Equation (29))
Gr f Grashof number in experiment ( = ( 1 a / b ) 3 Re ϕ 2 β ( T o , b T f ) )
Gr sh shroud Grashof number (see Equation (36))
h heat transfer coefficient
h c heat transfer coefficient based on T c (see Equation (26))
h f heat transfer coefficient based on T f   ( = q o / ( T o T f ) )
h s h shroud heat transfer coefficient ( = q s h / ( T s h T c , b ) )
i disc number
I integral (see Equation (31))
k thermal conductivity of air
k s thermal conductivity of disc
l axial length of cob
L characteristic length
L a characteristic length of inner surface of closed cavity
L b characteristic length of outer surface of closed cavity
m ˙ f mass flow rate of axial throughflow (kg/s)
M a c Mach number in core (see Equation (A18))
N d i s c rotational speed of disc
N s h a f t rotational speed of inner shaft
Nu Nusselt number of closed cavity (see Equation (8))
Nu a Nusselt number of inner surface of closed cavity (see Equation (10))
Nu b Nusselt number of outer surface of closed cavity (see Equation (11))
Nu c Nusselt number based on h c (see Equation (25))
Nu cob cob Nusselt number (see Equation (40))
Nu f Nusselt number based on h f ( = h f r / k f )
Nu sh shroud Nusselt number (see Equation (35))
p static pressure
P reduced pressure
Pr Prandtl number
q a heat flux from inner surface of closed cavity to air
q b heat flux from outer surface of closed cavity to air
q c o b   heat flux from cob to air
q o   heat flux from disc to air
q s h heat flux from shroud to air
Q ˙ heat flow rate
Q ˙ a heat flow rate from inner surface of closed cavity to air
Q ˙ b heat flow rate from outer surface of closed cavity to air
Q ˙ c o b heat flow rate from cob to air
Q ˙ c o n d heat flow rate due to conduction
Q ˙ d heat flow rate from downstream disc surface to air
Q ˙ u heat flow rate from upstream disc surface to air
Q ˙ s h heat flow rate from shroud to air
r radius
r s radius of inner shaft
R gas constant
Ra Rayleigh number for close cavity ( = Pr   Gr )
Ra crit critical Ra where Nu reaches maximum
Re crit critical Re where Nu reaches maximum
Re T Reynolds number for cob (see Equation (41))
Re z axial Reynolds number ( = ρ f W d h / μ f )
Re ϕ rotational Reynolds number based on ρ f ( = ρ f Ω b 2 / μ f )
Ro Rossby number ( = W / Ω a )
s axial space between discs in cavity
S area of convection surface
S a area of inner surface of closed cavity
S b area of outer surface of closed cavity
t disc thickness
T static temperature
T c ,   T f , T o , T s h temperature of core, throughflow, disc, shroud
u , v , w circumferential, radial, axial component of velocity in rotating frame
U resultant velocity ( = W 2 + ( Ω a ) 2 )
V speed of sound in core ( = γ R T c , a )
W axial component of velocity of throughflow
x nondimensional radius ( = r / b )
x a radius ratio ( = a / b )
α angle of gradient of disc surface
β volume expansion coefficient ( = 1 / T r e f )
Δ T   temperature difference between outer surface and inner surface of closed cavity
Δ T a   temperature difference between core ( r = a ) and inner surface of closed cavity
Δ T b   temperature difference between core ( r = b ) and outer surface of closed cavity
Δ T c   temperature difference between core ( r = b ) and core ( r = a )
Δ T f temperature rise of axial throughflow
Δ Θ f nondimensional temperature rise of axial throughflow
γ ratio of specific heats
θ nondimensional temperature (see Equation (28))
Θ nondimensional disc temperature ( = ( T o T f ) / ( T o , b T f ) )
μ dynamic viscosity
ξ geometric parameter for close cavity(see Equation (18))
ρ density
ϕ , r , z circumferential, radial, axial coordinates
χ compressibility parameter for close cavity (see Equation (19))
ψ compressibility parameter for close cavity(see Equation (20))
Ω , Ω c angular speed of disc, core
Subscripts
a value at r = a
a v radially-weighted average value
A cavity A from [9]
b value at r = b
c value in core
c o b value on cob
c o n d conduction
c r i t critical
d value on downstream disc surface
e x p Experimentally derived value
f value in axial throughflow
i values for the i th disc in a multi-cavity system
o value on disc surface
r e f reference value
s h value on shroud
t h theoretical or modelled value
u value on upstream disc surface
ϕ , r , z circumferential, radial, axial direction

Appendix

Linear Equations for Inviscid Rotating Fluids

This section is adapted from the version that appears in [1].
The symbols u , v , w denote the radial, tangential and axial components of velocity in a rotating frame of reference, and p denotes the static pressure. The frame rotates at a constant angular speed Ω about the z axis, the flow is steady and the fluid is inviscid; this could apply to the rotating core of fluid outside the Ekman layers on the solid surfaces of a rotating cavity.
For steady (or time-average) flow, the continuity equation can be expressed in cylindrical polar coordinates by
r ( ρ u r ) + ϕ ( ρ v ) + r z ( ρ w ) = 0
If u , v , w Ω r , so that the nonlinear inertial terms are much smaller than the Coriolis terms, it can be shown that the Navier-Stokes equations reduce to
2 ρ Ω ( v + 1 2 Ω r ) = p r
2 ρ Ω u r = p ϕ
p z = 0
The Coriolis accelerations are 2 Ω v and 2 Ω u in the radial and tangential directions respectively, and Equations (A2)–(A4) are referred to as the inviscid linear equations.
Equation (A3) shows that for axisymmetric flow u = 0. (For radial flow to occur in a rotating cavity, either it must be confined to the Ekman layers—where the Coriolis forces are produced by shear stresses—or, as discussed below, the flow must be non-axisymmetric.)
Using Equation (A2)–(A4) in conjunction with Equation (A1) it follows that
z [ ρ Ω ( v + 1 2 Ω r ) ] = 0
z ( ρ Ω u r ) = 0
z ( ρ w ) = 1 2 Ω ρ ϕ
For incompressible flow, these equations reduce to
u z = 0 ,   v z = 0 ,   w z = 0
That is, the velocity is axially-stratified: there is no variation in the axial direction. This is a version of the Taylor-Proudman theorem.
The reduced pressure P is defined as
P = p 1 2 ρ Ω 2 r 2
and, for incompressible flow, Equation (A2) can be expressed as
P r = 2 ρ Ω v
So for a cyclonic vortex, where v > 0 ,   P / r > 0 . As in the earth’s atmosphere, cyclonic circulation is therefore associated with low pressure (which increases with distance from the centre of the vortex); conversely, anti-cyclonic circulation (where v < 0 ) is associated with high pressure.
Pairs of cyclonic and anti-cyclonic vortices in a rotating cavity (as shown in Figure 2) will create alternating regions of low and high pressure. These generate the circumferential pressure gradient which, as shown by Equation (A3), is required to produce a radial flow in the rotating fluid.

Compressible Adiabatic Flow in Rotating Core

This section is based on equations derived in [3]. Note: all pressures, temperatures and densities used below are circumferentially-averaged static values.
Owing to the compressibility of the air in the cavity, the core temperature is assumed to increase adiabatically with radius. (This is analogous to the earth’s atmosphere where, owing to gravitational acceleration, the pressure and temperature decrease with vertical height; the decrease in temperature is referred to as the adiabatic lapse rate. However, owing to the centripetal acceleration in the rotating core, the pressure and temperature increase with radius.)
For a perfect gas
p c ρ c = R T c
and for adiabatic flow
p c ρ c γ = c o n s t a n t
If the angular speed of the inviscid core is Ω c then for radial equilibrium
d p c d r = ρ c Ω c 2 r
It can be shown that
T c T c , a = Ω c 2 b 2 2 C p ( x 2 x a 2 )
where x = r / b , and p c = p c , a ,   ρ c = ρ c , a ,   T c = T c , a at x = x a . Using the conventional notation of compressible flow, it follows that
T c T c , a = 1 + γ 1 2 M a c 2 ( x 2 x a 2 )
p c p c , a = [ 1 + γ 1 2 M a c 2 ( x 2 x a 2 ) ] γ / ( γ 1 )
and
ρ c ρ c , a = [ 1 + γ 1 2 M a c 2 ( x 2 x a 2 ) ] 1 / ( γ 1 )
The Mach number in the core, M a c , is defined as
M a c = def Ω c b V
where the speed of sound, V , is given by
V = γ R T c , a

References

  1. Owen, J.M.; Long, C.A. Review of buoyancy-induced flow in rotating cavities. J. Turbomach. 2015, 137, 111001. [Google Scholar] [CrossRef]
  2. Tang, H.; Owen, J.M. Theoretical model of buoyancy-induced heat transfer in closed compressor rotors. J. Eng. Gas Turbines Power 2018, 140, 032605. [Google Scholar] [CrossRef]
  3. Owen, J.M.; Tang, H. Theoretical model of buoyancy-induced flow in rotating cavities. J. Turbomach. 2015, 137, 111005. [Google Scholar] [CrossRef]
  4. Tang, H.; Owen, J.M. Effect of buoyancy-induced rotating flow on temperature of compressor discs. J. Eng. Gas Turbines Power 2017, 139, 062506. [Google Scholar] [CrossRef]
  5. Tang, H.; Shardlow, T.; Owen, J.M. Use of fin equation to calculate nusselt numbers for rotating discs. J. Turbomach. 2015, 137, 121003. [Google Scholar] [CrossRef]
  6. Tang, H.; Puttock, M.; Owen, J.M. Buoyancy-induced flow and heat transfer in compressor rotors. J. Eng. Gas Turbines Power 2017, in press. [Google Scholar] [CrossRef]
  7. Farthing, P.R.; Long, C.A.; Owen, J.M.; Pincombe, J.R. Rotating cavity with axial throughflow of cooling air: Flow structure. J. Turbomach. 1992, 114, 237–246. [Google Scholar] [CrossRef]
  8. Lloyd, J.R.; Moran, W.R. Natural convection adjacent to horizontal surface of various planforms. J. Heat Transf. 1974, 96, 443–447. [Google Scholar] [CrossRef]
  9. Bohn, D.; Deuker, E.; Emunds, R.; Gorzelitz, V. Experimental and theoretical investigations of heat transfer in closed gas-filled rotating annuli. J. Turbomach. 1995, 117, 175–183. [Google Scholar] [CrossRef]
  10. Owen, J.M.; Pincombe, J.R.; Rogers, R.H. Source–sink flow inside a rotating cylindrical cavity. J. Fluid Mech. 1985, 155, 233–265. [Google Scholar] [CrossRef]
  11. Owen, J.M.; Pincombe, J.R. Vortex breakdown in a rotating cylindrical cavity. J. Fluid Mech. 1979, 90, 109–127. [Google Scholar] [CrossRef]
  12. Atkins, N.R.; Kanjirakkad, V. Flow in a rotating cavity with axial throughflow at engine representative conditions. In Proceedings of the ASME Turbo Expo 2014: Turbine Technical Conference and Exposition, Düsseldorf, Germany, 16–20 June 2014. No. GT2014-27174. [Google Scholar] [CrossRef]
  13. Long, C.A.; Childs, P.R.N. Shroud heat transfer measurements inside a heated multiple rotating cavity with axial throughflow. Int. J. Heat Fluid Flow 2007, 28, 1405–1417. [Google Scholar] [CrossRef]
  14. Atkins, N.R. Investigation of a radial-inflow bleed as a potential for compressor clearance control. In Proceedings of the ASME Turbo Expo 2013: Turbine Technical Conference and Exposition, San Antonio, TX, USA, 3–7 June 2013. No. GT2013-95768, V03AT15A020. [Google Scholar] [CrossRef]
  15. Bohn, D.; Deutsch, G.; Simon, B.; Burkhardt, C. Flow visualisation in a rotating cavity with axial throughflow. In Proceedings of the ASME Turbo Expo 2000: Power for Land, Sea, and Air, Munich, Germany, 8–11 May 2000. GT2000-280. [Google Scholar] [CrossRef]
  16. Bohn, D.; Dibelius, G.H.; Deuker, E.; Emunds, R. Flow pattern and heat transfer in a closed rotating annulus. J. Turbomach. 1994, 116, 542–547. [Google Scholar] [CrossRef]
  17. Bohn, D.; Edmunds, R.; Gorzelitz, V.; Kruger, U. Experimental and theoretical investigations of heat transfer in closed gas-filled rotating annuli II. J. Turbomach. 1996, 118, 11–19. [Google Scholar] [CrossRef]
  18. Bohn, D.; Gier, J. The effect of turbulence on the heat transfer in closed gas-filled rotating annuli. J. Turbomach. 1998, 120, 824–830. [Google Scholar] [CrossRef]
  19. Bohn, D.; Ren, J.; Tuemmers, C. Investigation of the unstable flow structure in a rotating cavity. In Proceedings of the ASME Turbo Expo 2006: Power for Land, Sea, and Air, Barcelona, Spain, 8–11 May 2006. GT2006-90494. [Google Scholar] [CrossRef]
  20. Childs, P.R.N. Rotating Flow; Elsevier: Oxford, UK, 2011; ISBN 978-0-123-82098-3. [Google Scholar]
  21. Dweik, Z.; Briley, R.; Swafford, T.; Hunt, B. Computational study of the heat transfer of the buoyancy-driven rotating cavity with axial throughflow of cooling air. In Proceedings of the ASME Turbo Expo 2009: Power for Land, Sea, and Air, Orlando, FL, USA, 8–12 June 2009. GT2009-59978. [Google Scholar] [CrossRef]
  22. Farthing, P.R.; Long, C.A.; Owen, J.M.; Pincombe, J.R. Rotating cavity with axial throughflow of cooling air: Heat transfer. J. Turbomach. 1992, 114, 229–236. [Google Scholar] [CrossRef]
  23. Gunther, A.; Uffrecht, W.; Odenbach, S. Local measurements of disk heat transfer in heated rotating cavities for several flow regimes. J. Turbomach. 2012, 134, 051016. [Google Scholar] [CrossRef]
  24. Gunther, A.; Uffrecht, W.; Odenbach, S. The effects of rotation and mass flow on local heat transfer in rotating cavities with axial throughflow. In Proceedings of the ASME Turbo Expo 2014: Turbine Technical Conference and Exposition, Düsseldorf, Germany, 16–20 June 2014. GT2014-26228. [Google Scholar] [CrossRef]
  25. He, L. Efficient computational model for nonaxisymmetric flow and heat transfer in rotating cavity. J. Turbomach. 2011, 133, 021018. [Google Scholar] [CrossRef]
  26. Hollands, K.G.T.; Raithby, G.D.; Konicek, L. Correlation Equations for Free Convection Heat Transfer in Horizontal Layers of Air and Water. Int. J. Heat Mass Transf. 1975, 18, 879–884. [Google Scholar] [CrossRef]
  27. Iacovides, H.; Chew, J.W. The computation of convective heat transfer in rotating cavities. Int. J. Heat Fluid Flow 1993, 14, 146–154. [Google Scholar] [CrossRef]
  28. Johnson, B.V.; Lin, J.D.; Daniels, W.A.; Paolillo, R. Flow characteristics and stability analysis of variable-density rotating flows in compressor-disk cavities. J. Eng. Gas Turbines Power 2006, 128, 118–127. [Google Scholar] [CrossRef]
  29. King, M.P. Convective Heat Transfer in a Rotating Annulus. Ph.D. Thesis, University of Bath, Bath, UK, 2003. [Google Scholar]
  30. King, M.P.; Wilson, M. Free convective heat transfer within rotating annuli. In Proceedings of the 12th International Heat Transfer Conference, Grenoble, France, 18–23 August 2002; Volume 2, pp. 465–470. [Google Scholar]
  31. King, M.P.; Wilson, M. Numerical simulations of convective heat transfer in Rayleigh-Benard convection and a rotating annulus. Numer. Heat Transf. Part A 2005, 48, 529–545. [Google Scholar] [CrossRef]
  32. King, M.P.; Wilson, M.; Owen, J.M. Rayleigh-Benard convection in open and closed rotating cavities. J. Eng. Gas Turbines Power 2007, 129, 305–311. [Google Scholar] [CrossRef]
  33. Kumar, V.B.G.; Chew, J.W.; Hills, N.J. Rotating flow and heat transfer in cylindrical cavities with radial inflow. J. Eng. Gas Turbines Power 2013, 135, 032502. [Google Scholar] [CrossRef]
  34. Lewis, T.W. Numerical Simulation of Buoyancy-Induced Flow in a Sealed Rotating Cavity. Ph.D. Thesis, University of Bath, Bath, UK, 1999. [Google Scholar]
  35. Long, C.A. Disk heat transfer in a rotating cavity with an axial throughflow of cooling air. Int. J. Heat Fluid Flow 1994, 15, 307–316. [Google Scholar] [CrossRef]
  36. Long, C.A.; Alexiou, A.; Smout, P.D. Heat Transfer in H.P. Compressor Internal Air Systems: Measurements from the Peripheral Shroud of a Rotating Cavity with Axial Throughflow. In Proceedings of the 2nd International Conference on Heat Transfer, Fluid Mechanics and Thermodynamics (HEFAT 2003), Victoria Falls, Zambia, 23–25 June 2003. Paper No. LC1. [Google Scholar]
  37. Long, C.A.; Miche, N.D.D.; Childs, P.R.N. Flow measurements inside a heated multiple rotating cavity with axial throughflow. Int. J. Heat Fluid Flow 2007, 28, 1391–1404. [Google Scholar] [CrossRef]
  38. Long, C.A.; Morse, A.P.; Tucker, P.G. Measurement and computation of heat transfer in high pressure compressor drum geometries with axial throughflow. J. Turbomach. 1997, 119, 51–60. [Google Scholar] [CrossRef]
  39. Long, C.A.; Tucker, P.G. Numerical computation of laminar flow in a heated rotating cavity with an axial throughflow of air. Int. J. Numer. Methods Heat Fluid Flow 1994, 4, 347–365. [Google Scholar] [CrossRef]
  40. Long, C.A.; Tucker, P.G. Shroud heat transfer measurements from a rotating cavity with an axial throughflow of air. J. Turbomach. 1994, 116, 525–534. [Google Scholar] [CrossRef]
  41. Niemela, J.J.; Skrbek, L.; Sreenivasan, K.R.; Donnelly, R.J. Turbulent Convection at Very High Rayleigh Numbers. Nature 2000, 404, 837–840. [Google Scholar] [CrossRef] [PubMed]
  42. Owen, J.M. Thermodynamic analysis of buoyancy-induced flow in rotating cavities. J. Turbomach. 2010, 132, 031006. [Google Scholar] [CrossRef]
  43. Owen, J.M.; Abrahamsson, H.; Linblad, K. Buoyancy-induced flow in open rotating cavities. J. Eng. Gas Turbines Power 2007, 129, 893–900. [Google Scholar] [CrossRef]
  44. Owen, J.M.; Powell, J. Buoyancy-induced flow in a heated rotating cavity. J. Eng. Gas Turbines Power 2006, 128, 128–134. [Google Scholar] [CrossRef]
  45. Owen, J.M.; Rogers, R.H. Flow and Heat Transfer in Rotating Disc Systems, Volume 2—Rotating Cavities; Research Studies Press: Baldock, UK; John Wiley: New York, NY, USA, 1995; ISBN 086380179X. [Google Scholar]
  46. Pitz, D.B.; Marxen, O.; Chew, J.W. Onset of convection induced by centrifugal buoyancy in a rotating cavity. J. Fluid Mech. 2017, 826, 484–502. [Google Scholar] [CrossRef]
  47. Shevchuk, I.V. Convective Heat and Mass Transfer in Rotating Disc Systems; Springer: Heidelberg, Germany, 2009; ISBN 978-3-642-00717-0. [Google Scholar]
  48. Sun, X.; Kilfoil, A.; Chew, J.W.; Hills, N.J. Numerical simulation of natural convection in stationary and rotating cavities. In Proceedings of the ASME Turbo Expo 2004: Power for Land, Sea, and Air, Vienna, Austria, 14–17 June 2004. GT2004-53528. [Google Scholar] [CrossRef]
  49. Sun, X.; Linblad, K.; Chew, J.W.; Young, C. LES and RANS investigations into buoyancy-affected convection in a rotating cavity with a central axial throughflow. J. Eng. Gas Turbines Power 2007, 129, 318–325. [Google Scholar] [CrossRef]
  50. Tan, Q.; Ren, J.; Jiang, H. Prediction of flow features in rotating cavities with axial throughflow by RANS and LES. In Proceedings of the ASME Turbo Expo 2009: Power for Land, Sea, and Air, Orlando, FL, USA, 8–12 June 2009. GT2009-59428. [Google Scholar] [CrossRef]
  51. Tan, Q.; Ren, J.; Jiang, H. Prediction of 3D unsteady flow and heat transfer in rotating cavity by discontinuous Galerkin method and transition model. In Proceedings of the ASME Turbo Expo 2014: Turbine Technical Conference and Exposition, Düsseldorf, Germany, 16–20 June 2014. GT2014-26584. [Google Scholar] [CrossRef]
  52. Tian, S.; Tao, Z.; Ding, S.; Xu, G. Investigation of flow and heat transfer in a rotating cavity with axial throughflow of cooling air. In Proceedings of the ASME Turbo Expo 2004: Power for Land, Sea, and Air, Vienna, Austria, 14–17 June 2004. GT2004-53525. [Google Scholar] [CrossRef]
  53. Tritton, D.J. Physical Fluid Dynamics; OUP: New York, NY, USA, 1988; ISBN 0-19-854489-8. [Google Scholar]
  54. Tucker, P.G. Temporal behaviour of flow in rotating cavities. Numer. Heat Transf. Part A 2002, 41, 611–627. [Google Scholar] [CrossRef]

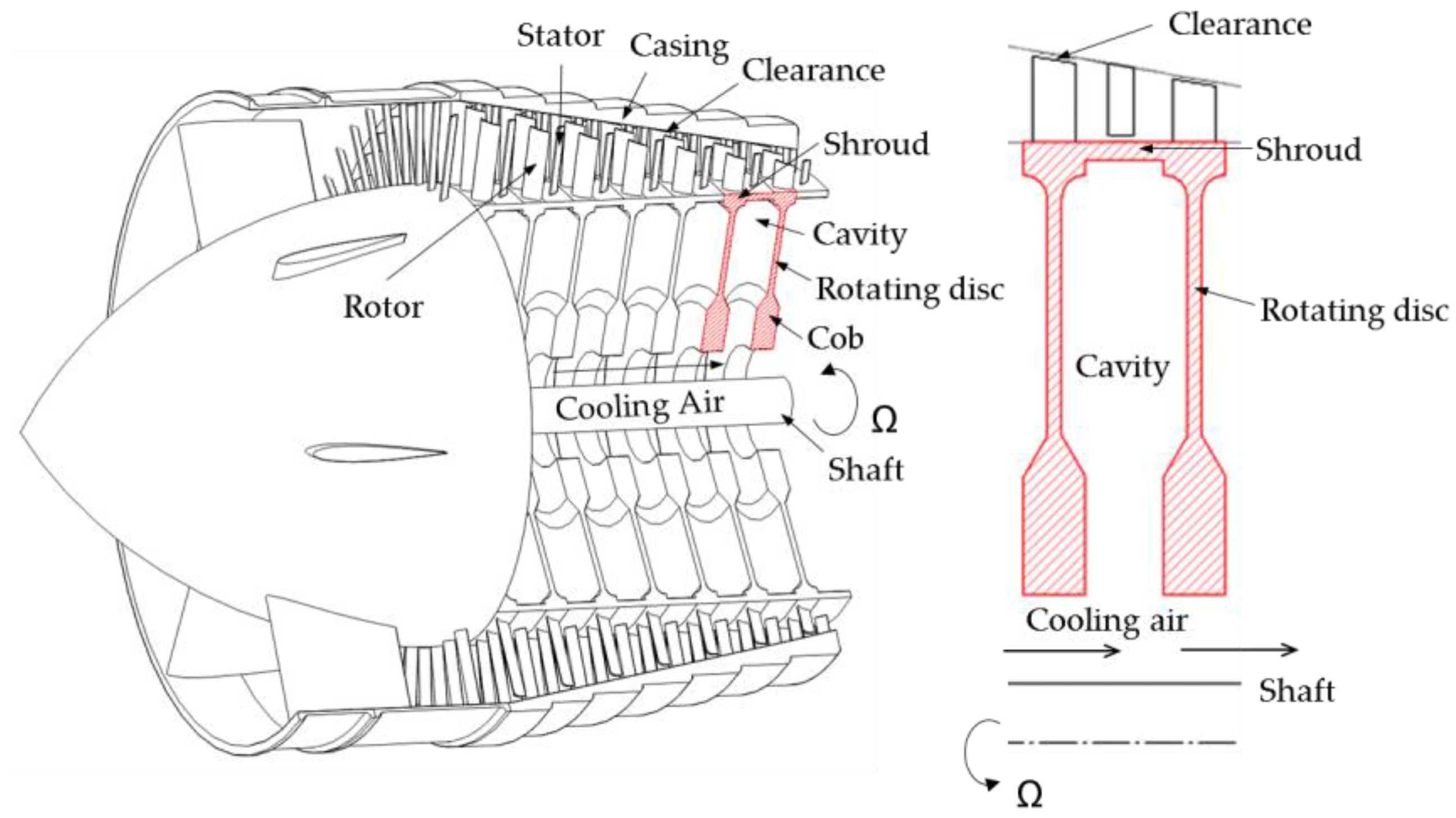

Figure 1. High-pressure aeroengine compressor and schematic diagram of open rotating cavity.
Figure 1. High-pressure aeroengine compressor and schematic diagram of open rotating cavity.
Aerospace 05 00032 g001
Figure 2. Schematic of flow structure in heated rotating cavity with axial throughflow of cooling air [7].
Figure 2. Schematic of flow structure in heated rotating cavity with axial throughflow of cooling air [7].
Aerospace 05 00032 g002
Figure 3. Simplified diagram of temperature distribution inside closed cavity [2].
Figure 3. Simplified diagram of temperature distribution inside closed cavity [2].
Aerospace 05 00032 g003
Figure 4. Variation of Nu with Ra for Cavity A of Bohn et al. [2] (Symbols denote experimental data [9]; solid curve denotes theoretical solutions; broken curve denotes empirical correlations).
Figure 4. Variation of Nu with Ra for Cavity A of Bohn et al. [2] (Symbols denote experimental data [9]; solid curve denotes theoretical solutions; broken curve denotes empirical correlations).
Aerospace 05 00032 g004
Figure 5. Assumed flow structure.
Figure 5. Assumed flow structure.
Aerospace 05 00032 g005

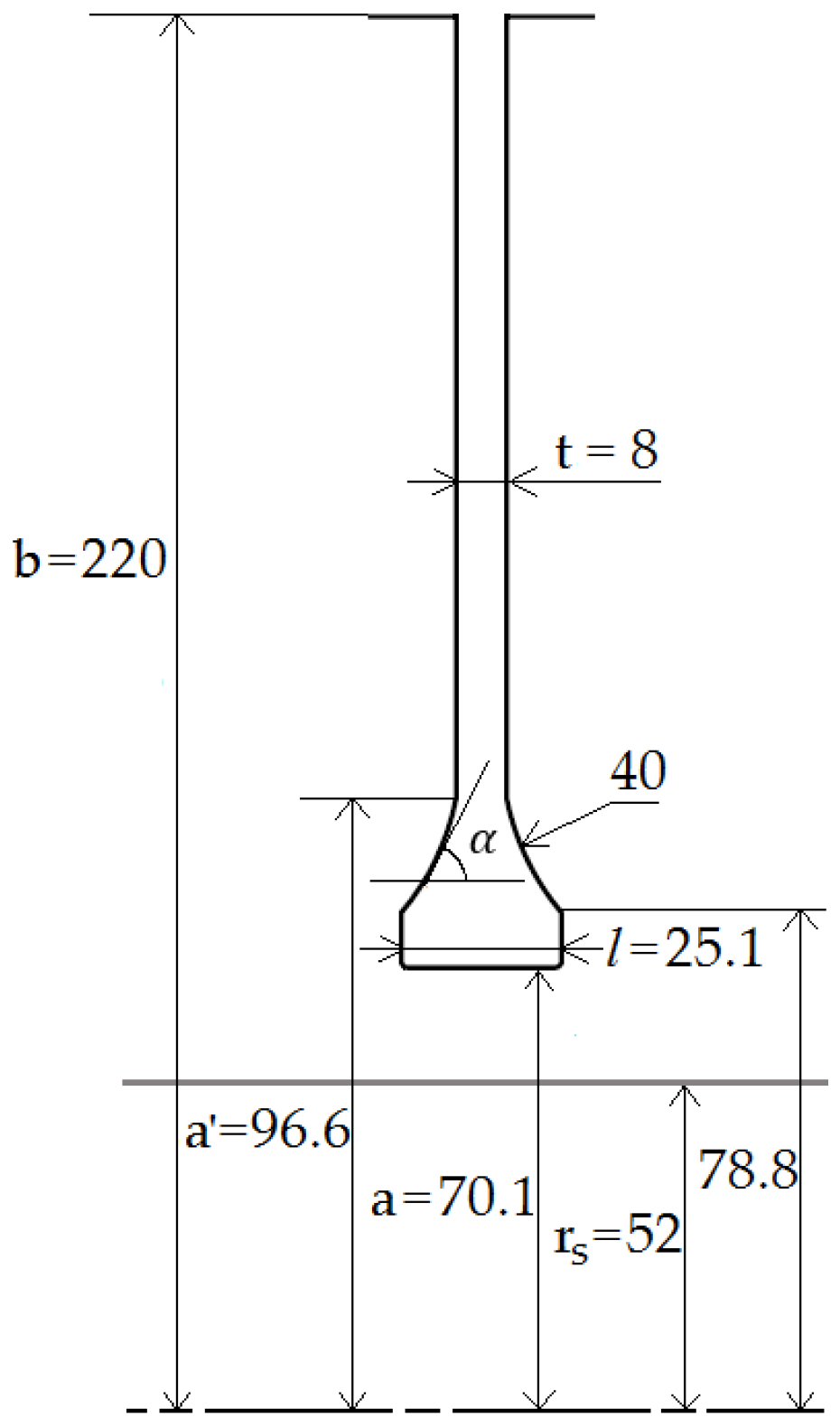

Figure 6. Simplified diagram of instrumented disc of Sussex rig (Dimensions in mm) [4].
Figure 6. Simplified diagram of instrumented disc of Sussex rig (Dimensions in mm) [4].
Aerospace 05 00032 g006
Figure 7. Distributions of temperature and Nusselt numbers for Ro ≈ 0.6. (Symbols denote measured temperatures; broken and solid lines represent experimental and theoretical results respectively; shading shows 95% confidence intervals on experimental Nusselt numbers) [4].
Figure 7. Distributions of temperature and Nusselt numbers for Ro ≈ 0.6. (Symbols denote measured temperatures; broken and solid lines represent experimental and theoretical results respectively; shading shows 95% confidence intervals on experimental Nusselt numbers) [4].
Aerospace 05 00032 g007
Figure 8. Distributions of temperature and Nusselt numbers for Ro ≈ 0.3. (Symbols denote measured temperatures; broken and solid lines represent experimental and theoretical results respectively; shading shows 95% confidence intervals on experimental Nusselt numbers) [4].
Figure 8. Distributions of temperature and Nusselt numbers for Ro ≈ 0.3. (Symbols denote measured temperatures; broken and solid lines represent experimental and theoretical results respectively; shading shows 95% confidence intervals on experimental Nusselt numbers) [4].
Aerospace 05 00032 g008
Figure 9. Control volume for temperature rise of axial throughflow [6].
Figure 9. Control volume for temperature rise of axial throughflow [6].
Aerospace 05 00032 g009
Figure 10. Distributions of nondimensional temperature and Nusselt numbers for Case a ( Ro 0.6 ,   Gr f = 2.5 × 10 11 ,   Re ϕ = 1.6 × 10 6 , Re z = 5.1 × 10 4 ) Solid lines are theoretical curves; broken lines are results from Bayesian model, and shading shows uncertainty in Nu f ; symbols denote temperature [6].
Figure 10. Distributions of nondimensional temperature and Nusselt numbers for Case a ( Ro 0.6 ,   Gr f = 2.5 × 10 11 ,   Re ϕ = 1.6 × 10 6 , Re z = 5.1 × 10 4 ) Solid lines are theoretical curves; broken lines are results from Bayesian model, and shading shows uncertainty in Nu f ; symbols denote temperature [6].
Aerospace 05 00032 g010
Figure 11. Distributions of nondimensional temperature and Nusselt numbers for Case c1 ( Ro 0.2 ,   Gr f = 4.2 × 10 11 ,   Re ϕ = 3.0 × 10 6 ,   Re z = 2.5 × 10 4 ). Solid lines are theoretical curves; broken lines are results from Bayesian model, and shading shows uncertainty in Nu; symbols denote temperature measurements [6].
Figure 11. Distributions of nondimensional temperature and Nusselt numbers for Case c1 ( Ro 0.2 ,   Gr f = 4.2 × 10 11 ,   Re ϕ = 3.0 × 10 6 ,   Re z = 2.5 × 10 4 ). Solid lines are theoretical curves; broken lines are results from Bayesian model, and shading shows uncertainty in Nu; symbols denote temperature measurements [6].
Aerospace 05 00032 g011
Figure 12. Comparison between modelled and experimental nondimensional temperature rise of axial throughflow [6].
Figure 12. Comparison between modelled and experimental nondimensional temperature rise of axial throughflow [6].
Aerospace 05 00032 g012
Table 1. Flow parameters and average Nusselt numbers for experiments of Atkins and Kanjirakkad [4].
Table 1. Flow parameters and average Nusselt numbers for experiments of Atkins and Kanjirakkad [4].
CasesRo ≈ 5Ro ≈ 1Ro ≈ 0.6Ro ≈ 0.3
1a1b1c1d1e1f2a2b2c2d2e2f2g3a3b4a4b4c4d
Ro 4.74.74.94.94.54.50.80.80.90.91.01.01.00.60.60.30.30.30.3
Gr f / 10 11 0.00170.00300.00850.0150.0620.140.0650.100.440.841.72.53.95.79.10.41.03.77.8
Re ϕ / 10 6 0.0780.0770.190.190.460.450.460.451.11.12.12.12.13.53.11.41.43.13.0
β Δ T 0.080.170.050.110.090.240.090.160.110.230.130.190.320.150.320.060.160.120.29
Re z / 10 5 0.190.190.500.501.11.10.190.180.510.501.11.11.11.11.10.200.200.480.48
Nu av , exp 28.730.751.658.292.310947.453.496.712613117023312622545.382.572.1146
Nu av , th 32.537.256.266.510312859.464.710913514917521613321450.583.578.0142
Table 2. Flow parameters and experimental and theoretical average disc temperatures [6].
Table 2. Flow parameters and experimental and theoretical average disc temperatures [6].
Case Ro ≈ 0.6Ro ≈ 0.3Ro ≈ 0.2Ro ≈ 0.1
ab1b2c1c2c3c4c5c6d
Ro0.610.310.310.160.160.180.170.170.170.10
Grf/10112.510104.24.56.87.27.27.84.1
β ( T b T f ) 0.320.350.350.150.160.330.320.320.340.29
Reϕ/1061.63.03.03.03.02.52.72.72.72.1
Rez/1045.15.05.02.52.52.42.42.42.51.1
N s h a f t / N d i s c 1.00.341.00.34−0.341.00.34−0.3400
Θ a v , e x p 0.3470.3490.3300.4990.4940.3570.3770.3850.3680.413
Θ a v , t h 0.3340.3320.3340.5400.5180.3640.3700.3670.3570.427
Back to TopTop
