Sustainability-Driven Design Optimization of Aircraft Parts Using Mathematical Modeling

Abstract

The design of aircraft components is a complex process that must simultaneously account for environmental impact, manufacturability, cost and structural performance to meet modern regulatory requirements and sustainability objectives. When these factors are integrated from the early design stages, the approach transcends traditional eco-design and becomes a genuinely sustainability-oriented design methodology. This study proposes a sustainability-driven design framework for aircraft components and demonstrates its application to a fuselage panel consisting of a curved skin, four frames, seven stringers, and twenty-four clips. The design variables investigated include the material selection, joining methods, and subcomponent thicknesses. The design space is constructed through a combinatorial generation process coupled with compatibility and feasibility constraints. Sustainability criteria are evaluated using a combination of parametric Life Cycle Assessment (LCA) and Life Cycle Costing (LCC) regression models, parametric Finite Element Analysis (FEA), and Random Forest surrogate modeling trained on a stratified set of simulation results. Two methodological pathways are introduced: 1. Cluster-based optimization, involving customized clustering followed by multi-criteria decision-making (MCDM) within each cluster. 2. Global optimization, performed across the full decision matrix using Pareto front analysis and MCDM techniques. A stability analysis of five objective-weighting methods and four normalization techniques is conducted to identify the most robust methodological configuration. The results—based on a full cradle-to-grave assessment that includes the use phase over a 30-year A319 aircraft operational lifetime—show that the thermoplastic CFRP panel joined by welding emerges as the most sustainable design alternative.

1. Introduction

Carbon-fiber-reinforced polymers (CFRPs) are increasingly used in aircraft structures because they offer exceptional strength-to-weight ratios, corrosion resistance, and design flexibility compared with traditional metallic alloys [1]. Their reduced weight directly lowers fuel consumption and CO₂ emissions over an aircraft’s lifetime, making them a key enabler of more sustainable aviation. CFRPs also have superior fatigue and corrosion performance, which extends structural service life and reduces maintenance frequency, material waste, and downtime. Although their end-of-life recyclability remains a challenge, ongoing advances in composite recycling and reuse are improving the sustainability profile of CFRP-intensive aircraft. Overall, the adoption of CFRPs significantly contributes to greener, more energy-efficient airframes while encouraging the development of circular-economy practices in aerospace materials [1].

The integration of sustainability into engineering design has advanced substantially over the past three decades. The origins of Eco-Design can be traced to the broader family of “Design for X” methodologies that emerged in the late twentieth century. In the 1990s, Design for Environment (DfE) was introduced as one of the first systematic approaches to incorporating ecological considerations into product development [2]. Building on these early practices, Eco-Design sought to reduce environmental impacts through product-level improvements but remained primarily focused on ecological aspects. Karlsson and Luttropp [2] explicitly distinguish Eco-Design from sustainable design, emphasizing that sustainability-oriented design must additionally account for economic and social dimensions.

In aerospace, early applications of sustainability-related design methodologies focused primarily on narrow objectives. Kassapoglou [3,4,5] performed cost–performance optimization of fuselage structures using analytical panel models, cost functions, and optimization algorithms to investigate weight–cost trade-offs. Corvino et al. [6] applied genetic algorithms to the multi-objective optimization of stiffened composite panels, addressing both structural weight and life cycle cost. At the aircraft level, Iemma et al. [7] developed the FRIDA toolbox, which integrates aerodynamic, structural, aeroelastic, acoustic, and financial models with Particle Swarm Optimization (PSO) and Non-Dominated Sorting Genetic Algorithm II (NSGA-II). Similarly, Jimenez and Mavris [8] used surrogate modeling and NSGA-II to evaluate 91 candidate technologies for a Boeing 777-200 baseline, examining trade-offs involving fuel burn, NOx emissions, and noise.

While these studies emphasized performance and cost trade-offs, more recent research has integrated Life cycle assessment (LCA) to capture environmental dimensions [9,10]. Atescan-Yuksek et al. [11] compared aluminum and CFRP wing panels, accounting for manufacturing and end-of-life processes, and showed that CFRPs surpass aluminum only after sufficiently long use phases. At the system level, Pollet et al. [12] incorporated a generic LCA module into FAST-OAD, a conceptual aircraft design tool, whereas Parolin et al. [13] developed a streamlined Python-based framework using ReCiPe 2008 and Ecoinvent 3.6 for early-stage design scenario evaluation. Collectively, these contributions span detailed component-level LCAs to simplified methodologies tailored for preliminary design and rapid decision making.

In parallel, Multi-Criteria Decision-Making (MCDM) methods have gained significant traction as complementary tools for balancing diverse sustainability criteria. Emovon and Oghenenyerov [14] reviewed 55 MCDM studies, highlighting the prevalence of hybrid approaches such as Analytic Hierarchy Process-Technique for Order Preference by Similarity to Ideal Solution (AHP-TOPSIS) and VIKOR and noting that cost is often treated as the dominant criterion. Junaid et al. [15] applied AHP-TOPSIS to rank polymers for a UAV inlet duct, while Malefaki et al. [16] evaluated 4487 hat-stiffened panel alternatives across five sustainability pillars using multiple MCDM techniques, validating their findings through correlation and sensitivity analyses. Along similar lines, Anagnostopoulou et al. [17] developed a sustainability assessment framework for fuselage panels that integrates cradle-to-grave LCA, Life cycle costing (LCC), and Finite Element Analysis (FEA) with MCDM tools and a range of objective weighting methods, including Standard Deviation (SD), Coefficient of Variation (COV), Entropy, Criteria Importance Through Intercriteria Correlation (CRITIC), and Method based on the Removal Effects of Criteria (MEREC). Their framework also incorporated ranking-stability analysis, with thermoplastic CFRP consistently emerging as one of the most sustainable configurations. Filippatos et al. [18] further advanced sustainability-driven methodologies for stiffened composite panels. Their framework embedded five sustainability pillars—performance, cost, environmental impact, circularity, and social impact—within the conceptual design phase. It was later extended to compare pristine versus recycled CFRPs and subsequently consolidated into a sustainability index capable of accounting for multiple operational scenarios (e.g., kerosene vs. hydrogen use phases), revealing how material choices interact with different propulsion and mission contexts. At the same time, new computational strategies—particularly machine learning and topology optimization—have been explored to support sustainability-oriented design. Zhang et al. [19] combined neural network surrogate models, NSGA-III, and entropy-TOPSIS to optimize composite panel designs, whereas Kundu and Zhang [20] introduced a multi-material topology optimization framework that integrates performance, cost, and environmental considerations, enabling the substitution of low-stress regions with eco-friendly biomaterials such as bamboo. Beyond component-level analyses, system-wide sustainability perspectives have also evolved. Raihan [21] reviewed policies and technologies for aviation decarbonization, covering sustainable aviation fuels (SAFs), electric and hydrogen propulsion, lightweight composite structures, and modernization of Air Traffic Management (ATM). This broader vision aligns with major European research efforts: following Clean Sky and Clean Sky 2, Horizon Europe now supports large-scale demonstrators—including FASTER-H2, H2ELIOS, and ACAP—focused on hydrogen propulsion, cryogenic storage, and eco-designed fuselage structures, all pointing toward the Paris Agreement’s 2050 net-zero aviation target [22].

Overall, the existing literature demonstrates a clear evolution from early Eco-Design approaches toward fully sustainability-oriented optimization, integrating environmental, economic, and structural considerations. Aircraft subsystems—such as fuselage panels, wings, and pressurized tanks—have frequently served as benchmark cases, enabling the connection of optimization, machine learning, and decision-support tools with emerging climate targets and policy requirements. Despite this progress, most studies remain limited in scope, relying on relatively small design spaces or addressing only isolated aspects of sustainability. Comprehensive frameworks that simultaneously incorporate LCA, LCC, structural performance, and MCDM remain scarce, and the use of regression-based LCA/LCC acceleration combined with machine learning surrogates for structural metrics is still largely unexplored. Addressing these gaps, the present study proposes a fully data-driven sustainability optimization framework and applies it to a large design space of more than 25,000 fuselage panel alternatives.

2. Technological Problem

This study focuses on optimizing the sustainability performance of a fuselage panel by integrating environmental, economic, and structural criteria into the design process. The proposed approach enables sustainability-driven optimization of the panel, using material selection, joining method, and thickness as the main design variables. The objective is to evaluate multiple design configurations and identify those that most effectively meet the sustainability goals. By incorporating all criteria within a unified assessment framework, the study systematically explores the design space, highlights the trade-offs among the different sustainability pillars, and identifies the most balanced and sustainable panel configurations.

Panel Configuration and Design Variables

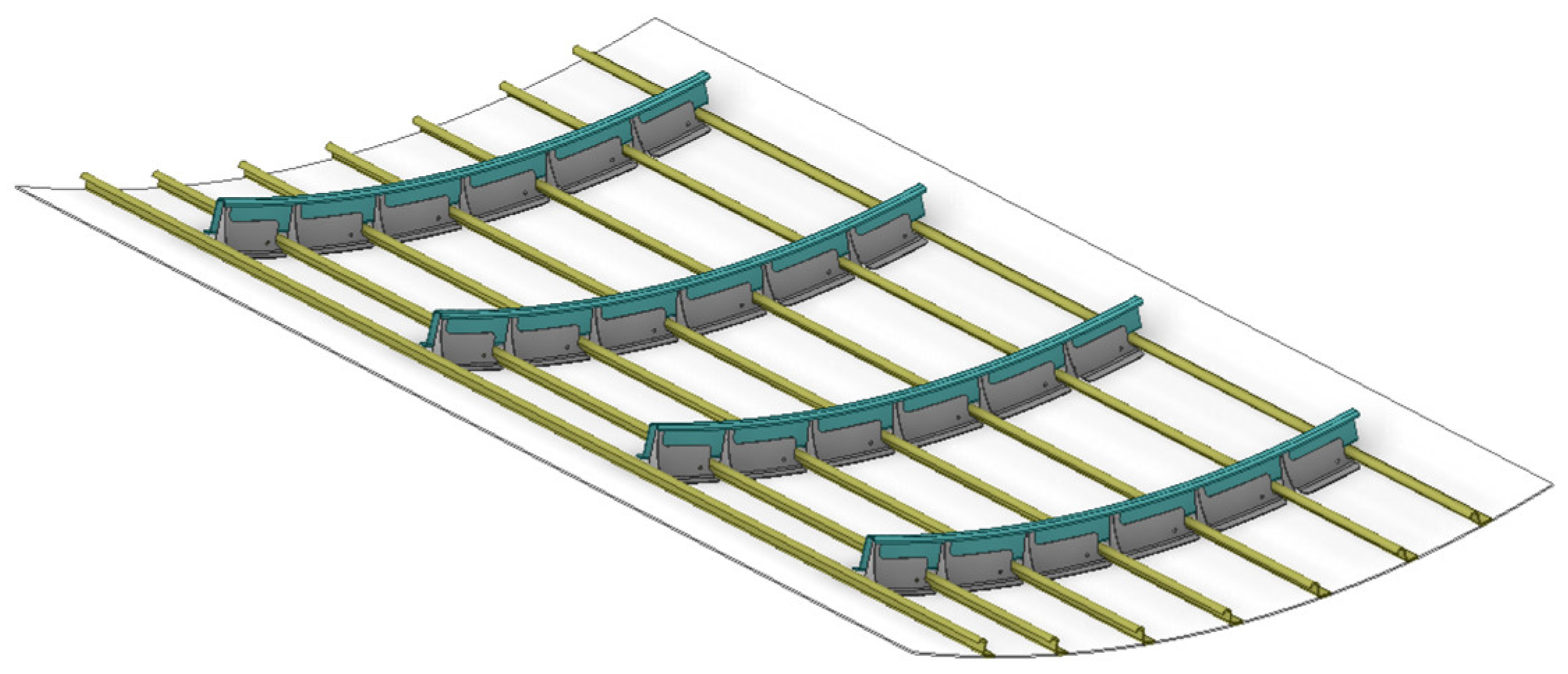

The analyzed fuselage panel corresponds to the configuration defined in [17], where its geometry, subcomponent layout, and material candidates were originally established (Figure 1). In the present work, the same configuration is retained to ensure consistency, while the focus is shifted toward sustainability-oriented optimization. The optimization considers three key design variables: (a) the material assigned to each subcomponent, (b) the joining method between the skin and stiffeners, and (c) the thicknesses of the skin, stiffeners, and frames. The joining method is treated as a discrete design variable affecting environmental and cost performance only, while its potential influence on structural stiffness is not included in the structural analysis. The candidate options associated with each design variable are summarized in

Table 1. Design variables selected for the optimization.

Design Variable	Description	Type	Options
Material	Specifies the material type of each sub-component	Discrete	Al2024, Al7075, TP-CFRP woven fabric, TS-CFRP UD fabric
Joining Method	Defines the connection between skin and stiffeners	Discrete	Bonding, Welding
Thickness	Sets the thickness of skin, stiffeners and frames	Continuous	Skin: 2.0–3.0 mm; Stiffener: 1.5–2.5 mm; Frame: 1.5–2.0 mm

.

3. Optimization Framework

Building on the panel configuration and design variables introduced in Section 2, the proposed methodology establishes a structured framework for sustainability-driven optimization. Environmental, economic, and structural performance metrics are integrated into a consistent multi-criteria assessment process supported by both simulation-based and regression-based analyses. As illustrated in Figure 2, the methodology follows a sequence of interconnected steps that collectively support the sustainability optimization process, including:

• Construction of the decision matrix,
• Multi-criteria evaluation through normalization, weighting, and ranking, and
• The optimization phase, implemented through two complementary paths (Path A and Path B).

To ensure a comprehensive exploration of the design space, two complementary optimization paths are defined. Path A employs customized clustering based on environmental, cost, and structural performance characteristics, followed by Pareto filtering and R-TOPSIS—a robust variant of TOPSIS—to rank the alternatives within each cluster and identify representative top-performing designs. Path B applies Pareto filtering to the complete decision matrix and subsequently performs R-TOPSIS using objective weighting methods (e.g., SD, CRITIC, Entropy, MEREC) to determine the globally top-ranked sustainable alternatives. Together, these two paths capture both localized and global optima, offering deeper insight into the trade-offs among sustainability pillars.

4. Construction of Decision Matrix

The construction of the decision matrix constitutes the first step of the proposed sustainability-driven optimization framework. Each row of the matrix corresponds to a feasible design alternative for the fuselage panel, defined by specific combinations of discrete (material and joining method) and continuous (thickness) design variables. The columns represent the evaluation criteria, encompassing environmental, economic, and structural performance indicators. The numerical values stored in the decision matrix correspond to the calculated sustainability criteria for each design alternative, obtained from parametric LCA and LCC analyses (for environmental and cost criteria) and surrogate-based finite-element predictions (for structural performance). Unlike the previous study, which evaluated only nine predefined panel variants, the present work systematically enumerates the full feasible design space of 25,410 alternatives while accounting for material compatibility and manufacturing constraints. The subsections below describe the design variables, the constraints applied, and the combinatorial procedure used to construct this comprehensive decision matrix.

4.1. Design Space Definition

The design space definition involves the identification of all feasible combinations of discrete and continuous design variables that characterize the fuselage panel configuration under material compatibility and manufacturing constraints. Each design alternative represents a unique combination of material selections, joining method, and component thicknesses, forming the foundation for constructing the decision matrix.

Design variables classification: The design variables $x$ can be partitioned into two categories:

$$x=\left(x_d,x_c\right)$$

(1)

where $x_d$ represents discrete variables and $x_c$ represents continuous variables.

Discrete design variables: The discrete variables encompass material selection and joining method choices:

$$x_d=\left(m_s,m_{st},m_f,m_c,j\right)$$

(2)

where:

$$m_s\in M =\left\{\mathrm{A}\mathrm{l}2024,\mathrm{A}\mathrm{l}7075,\mathrm{T}\mathrm{S},\mathrm{T}\mathrm{P}\right\} (skin material)$$

(3)

$$m_{st}\in M=\{\mathrm{A}\mathrm{l}2024,\mathrm{A}\mathrm{l}7075,\mathrm{T}\mathrm{S},\mathrm{T}\mathrm{P}\}(stiffener material)$$

(4)

$$m_f\in M=\{\mathrm{A}\mathrm{l}2024,\mathrm{A}\mathrm{l}7075,\mathrm{T}\mathrm{S},\mathrm{T}\mathrm{P}\}(frame material)$$

(5)

$$m_c\in M=\{\mathrm{A}\mathrm{l}2024,\mathrm{A}\mathrm{l}7075,\mathrm{T}\mathrm{S},\mathrm{T}\mathrm{P}\}(clip material)$$

(6)

$$j\in \mathfrak{I}=\{\mathrm{W}\mathrm{e}\mathrm{l}\mathrm{d}\mathrm{i}\mathrm{n}\mathrm{g}, \mathrm{B}\mathrm{o}\mathrm{n}\mathrm{d}\mathrm{i}\mathrm{n}\mathrm{g}\}(joining method)$$

(7)

where TS stands for thermoset CFRP and TP stands for thermoplastic CFRP.

Continuous design variables: The continuous variables represent component thicknesses:

$$x_c=\left(t_s,t_{st},t_f\right)$$

(8)

where

$$t_s\in [2.0,3.0] \mathrm{m}\mathrm{m} (skin thickness)$$

(9)

$$t_{st}\in [1.5,2.5] \mathrm{m}\mathrm{m} (stiffener thickness)$$

(10)

$$t_f\in [1.5,2.0] \mathrm{m}\mathrm{m} (frame thickness)$$

(11)

For computational tractability, the continuous variables are discretized with step size $∆t=0.1 \mathrm{m}\mathrm{m}$, resulting in:

$$t_s\in \left\{2.0,2.1,2.2,\dots ,3.0\right\} \mathrm{m}\mathrm{m} \left|T_s\right|=11$$

(12)

$$t_{st}\in \left\{1.5,1.6,1.7,\dots ,2.5\right\} \mathrm{m}\mathrm{m} \left|T_{st}\right|=11$$

(13)

$$t_f\in \left\{1.5,1.6,1.7,1.8,1.9,2.0\right\} \mathrm{m}\mathrm{m} \left|T_f\right|=11$$

(14)

4.2. Constraint Analysis

Constraints on material compatibility and joining methods significantly reduce the design space. These constraints are necessary to ensure manufacturing feasibility and structural integrity.

Material compatibility constraints: Material selection is governed by compatibility rules that prevent infeasible combinations across subcomponents.

• For aluminum configurations, both Al2024 and Al7075 can be freely combined, forming the aluminum configuration space:

  $$S_{Al}=\left\{\left(m_s,m_{st},m_f,m_c\right):m_i\in \left\{\mathrm{A}\mathrm{l}2024,\mathrm{A}\mathrm{l}7075\right\},\forall i\in \left\{s, st, f, c\right\}\right\}$$

  (15)

  $$\left|S_{Al}\right|=2^4=16 \mathrm{v}\mathrm{a}\mathrm{l}\mathrm{i}\mathrm{d} \mathrm{c}\mathrm{o}\mathrm{m}\mathrm{b}\mathrm{i}\mathrm{n}\mathrm{a}\mathrm{t}\mathrm{i}\mathrm{o}\mathrm{n}\mathrm{s}$$

  (16)

  where S represents the set of valid material combinations.
• For composite configurations, homogeneity across all subcomponents is required to ensure manufacturing and thermal compatibility. The corresponding feasible sets are defined as

  $$S_{TS}=\left\{\left(m_s,m_{st},m_f,m_c\right):m_i=\mathrm{TS}, \forall i \in \left\{s, st, f, c\right\}\right\}$$

  (17)

  $$S_{TP}=\left\{\left(m_s,m_{st},m_f,m_c\right):m_i=\mathrm{TP}, \forall i \in \left\{s, st, f, c\right\}\right\}$$

  (18)

  Each composite system permits only one material combination:

  $$\left|S_{TS}\right|=\left|S_{TP}\right|=1$$

  (19)

  The complete set of valid material combinations is:

  $$S_{Al}\cup S_{TS}\cup S_{TP}$$

  (20)

  Since these sets are mutually exclusive, the total cardinality is:

  $$\left|S_{materials}\right|=\left|S_{Al}\right|+\left|S_{TS}\right|+\left|S_{TP}\right|=16+1+1=18$$

  (21)

Joining method constraints: The joining method selection depends on material system compatibility requirements. Aluminum configurations support both welding and bonding methods as described by Equation (22). The thermoset composites are limited to bonding only due to their cross-linked molecular structure as described by Equation (23). Thermoplastic composites support both welding and bonding methods as described by Equation (24).

$${\mathfrak{I}}_{Al}=\left\{\left(\mathrm{M}\mathrm{e}\mathrm{t}\mathrm{a}\mathrm{l} \mathrm{W}\mathrm{e}\mathrm{l}\mathrm{d}\mathrm{i}\mathrm{n}\mathrm{g},\mathrm{B}\mathrm{o}\mathrm{n}\mathrm{d}\mathrm{i}\mathrm{n}\mathrm{g}\right)\right\} \mathrm{w}\mathrm{i}\mathrm{t}\mathrm{h} \left|{\mathfrak{I}}_{Al}\right|=2$$

(22)

$${\mathfrak{I}}_{TS}=\left\{\mathrm{B}\mathrm{o}\mathrm{n}\mathrm{d}\mathrm{i}\mathrm{n}\mathrm{g}\right\} \mathrm{w}\mathrm{i}\mathrm{t}\mathrm{h} \left|{\mathfrak{I}}_{TS}\right|=1$$

(23)

$${\mathfrak{I}}_{TP}=\left\{\left(\mathrm{T}\mathrm{P} \mathrm{W}\mathrm{e}\mathrm{l}\mathrm{d}\mathrm{i}\mathrm{n}\mathrm{g}, \mathrm{B}\mathrm{o}\mathrm{n}\mathrm{d}\mathrm{i}\mathrm{n}\mathrm{g}\right)\right\} \mathrm{w}\mathrm{i}\mathrm{t}\mathrm{h} \left|{\mathfrak{I}}_{TP}\right|=2$$

(24)

The constraint interaction between materials and joining methods can be expressed as:

$$C_{compatibility}=\left\{\left(s,j\right):s \in { S}_{materials},\left.j \in { \mathfrak{I}}_{family\left(s\right)}\right\}\right.$$

(25)

4.3. Combinatorial Analysis

This section presents the systematic enumeration of all feasible design alternatives by combining the discrete and continuous design variables. The number of valid discrete configurations is obtained as the sum of all material-joining combinations corresponding to each material family, while the number of continuous configurations results from the product of the discretized thickness domains. Multiplying these two quantities yields the complete feasible design space cardinality. The detailed expressions and computed values are given in Equations (26)–(29). The outcome of this analysis confirms that, under the defined material compatibility and joining method constraints, the total number of feasible panel configurations equals to 25,410.

$$\left|D_{discrete}\right|=\left|S_{Al}\right|\times \left|{\mathfrak{I}}_{Al}\right|+\left|S_{TS}\right|\times \left|{\mathfrak{I}}_{TS}\right|+\left|S_{TP}\right|\times \left|{\mathfrak{I}}_{TP}\right|$$

(26)

$$\left|D_{discrete}\right|=16\times 2+1\times 1+1\times 2=35$$

(27)

$$\left|D_{continuous}\right|=\left|T_s\right|\times \left|T_{st}\right|\times \left|T_f\right|=11\times 11\times 6=726$$

(28)

$$\left|D_{total}\right|=\left|D_{continuous}\right|\times \left|D_{discrete}\right|=35\times 726=\mathrm{25,410}$$

(29)

where $D$ is the design space.

4.4. Validation

To validate the theoretical calculations, the complete design space was generated and analyzed using a MATLAB-based enumeration procedure. The resulting dataset contains exactly 25,410 design alternatives, fully confirming the theoretical estimates.

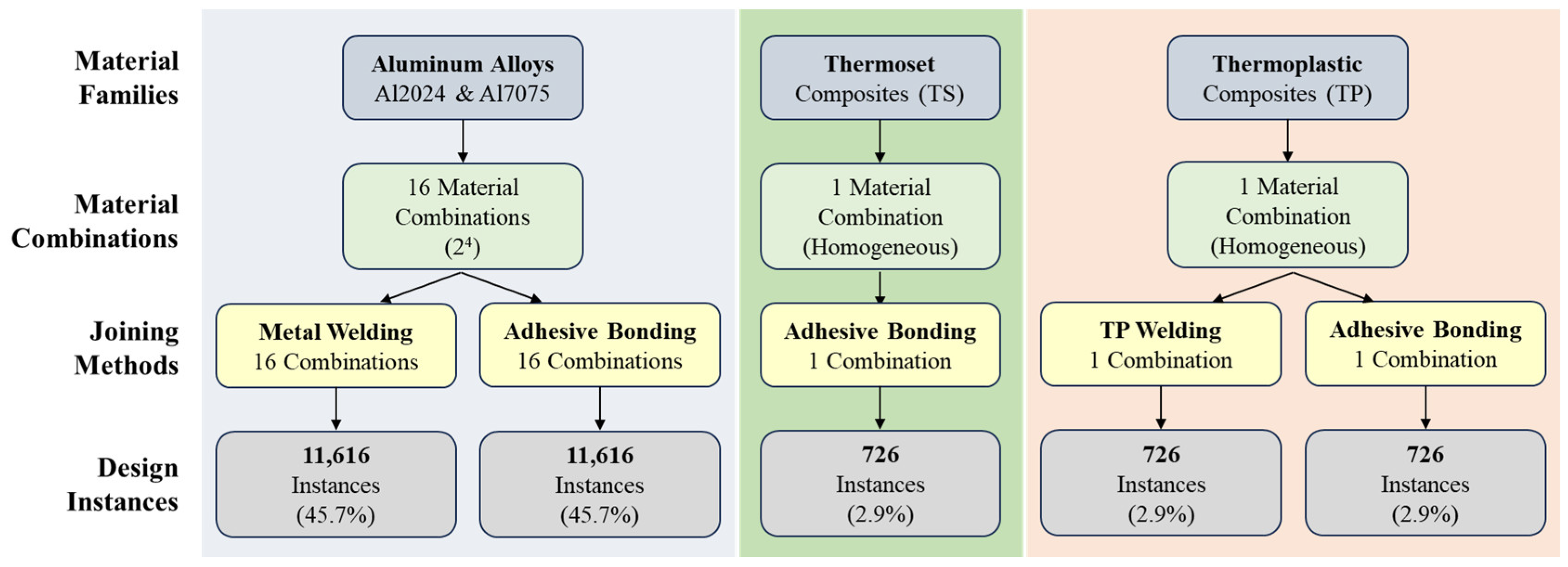

Table 2. Distribution of design alternatives by material family.

Material Family	Discrete Combination	Per Combination Instances	Total Instances
Aluminum (Al2024/Al7075)	32	726	23,232
Thermoset (TS)	1	726	726
Thermoplastic (TP)	2	726	1452
Total	35	726	25,410

lists the distribution of alternatives across the different material families, while

Table 3. Distribution of joining methods by material type.

Material Family	Expected	Actual
Aluminum + Metal Welding	11,616	11,616
Aluminum + Bonding	11,616	11,616
TS + Bonding	726	726
TP + TP Welding	726	726
TP + Bonding	726	726
Total	25,410	25,410

summarizes their distribution with respect to the available joining methods.

4.4.1. Constraint Compliance Verification

Material compatibility verification: The analysis of the dataset confirms perfect compliance with material compatibility constraints:

• Aluminum configurations: All 16 possible Al2024/Al7075 across the four components are present, each appearing in exactly 1452 instances.
• TS configurations: Only the homogeneous combination (TS-TS-TS-TS) appears, with exactly 7126 instances.
• Aluminum configurations: Only the homogeneous combination (TP-TP-TP-TP) appears, with exactly 1452 instances.

Joining method constraint verification: The joining method constraints are perfectly satisfied:

• Aluminum: Both metal welding and bonding are present in equal proportions (11,616 instances each).
• TS: Only bonding is allowed and present (726 instances).
• TP: Both TP welding and bonding are present in equal proportions (726 instances each).

4.4.2. Proof of Completeness

This section gives formal mathematical proof that our enumeration method finds all possible design options without missing any or repeating any.

Proof of exhaustiveness: Let $\mathrm{F}$ be the set of all feasible design alternatives as per the constraints defined in Section 2. We must show that our enumeration method produces precisely $\mathrm{F}$. Taking into account any feasible design alternative $x=\left(x_d,x_c\right)\in \mathrm{F}$, by definition we have that:

• The material combination $x_d^{\left(mat\right)}=(m_s,m_{st},m_f,m_c)$ must be in $S_{materials}$.
• The joining method $j$ must be compatible with the material family $x_d^{\left(mat\right)}$.
• The thickness values $(t_s,t_{st},t_f)$ must lie within the specified bounds and discretization grid.

Our enumeration procedure systematically generates:

• All 18 valid material combinations in $S_{materials}$.
• All compatible joining methods for each material combination.
• All discretized thickness combinations in $T_s\times T_{st}\times T_f$.

Since the procedure considers every possible combination satisfying the constraints, it generates all elements of $F$. Therefore, the enumeration is exhaustive.

Uniqueness proof: We need to prove that our enumeration procedure generates each feasible design alternative exactly once. The enumeration follows a systematic nested loop structure:

for each material combination $(m_s,m_{st},m_f,m_c)\in S_{materials}$ do

  for each compatible joining method $j$ do

   for each $t_s\in T_s$ do

    for each $t_{st}\in T_{st}$ do

     for each $t_f\in T_f$ do

      Generate design alternative $x=(m_s,m_{st},m_f,m_c,j,t_s,t_{st},t_f)$

     end for

    end for

   end for

  end for

end for

Since each design alternative is uniquely identified by its complete tuple of design variable values, and the nested loop structure ensures that each unique tuple is generated exactly once, no duplicates can occur.

4.4.3. Computational Complexity Analysis

Algorithmic complexity: The enumeration algorithm exhibits linear time complexity with respect to the total number of feasible combinations generated. For a design space with the following aspects, the worst-case time complexity is shown in Equation (30).

• $\left|M\right|$ material types per component;
• $C$ components;
• $\left|J_{max} \right|$ maximum joining methods per material family;
• $\left|T_i\right|$ discretization levels for thickness variable $i$.

$$O\left(\prod _{k=1}^C\left|M\right|\times \left|J_{max}\right|\times \prod _{i=1}^3\left|T_i\right|\right)$$

(30)

For our specific problem:

$$O\left({\left|M\right|}^C\times \left|J_{max} \right|\times \left|T_s\right|\times \left|T_{st}\right|\times \left|T_f\right|\right)$$

(31)

4.4.4. Implications for Optimization

The systematic enumeration of the complete feasible design space has significant implications for the subsequent optimization procedure.

Design space coverage: The enumeration ensures:

• Completeness: No feasible design alternative is excluded.
• Uniform sampling: The discretization provides uniform coverage of the continuous variable space.
• Constraint satisfaction: All generated alternatives are guaranteed to satisfy manufacturing and compatibility constraints.

Optimization strategy implications: With 25,410 pre-generated feasible alternatives, the optimization problem transforms from

• Constrained continuous-discrete optimization with expensive constraint evaluation.
• To: Unconstrained discrete selection from a pre-verified design space.

This transformation enables

• Rapid multi-criteria evaluation of all alternatives.
• Guaranteed constraint satisfaction.

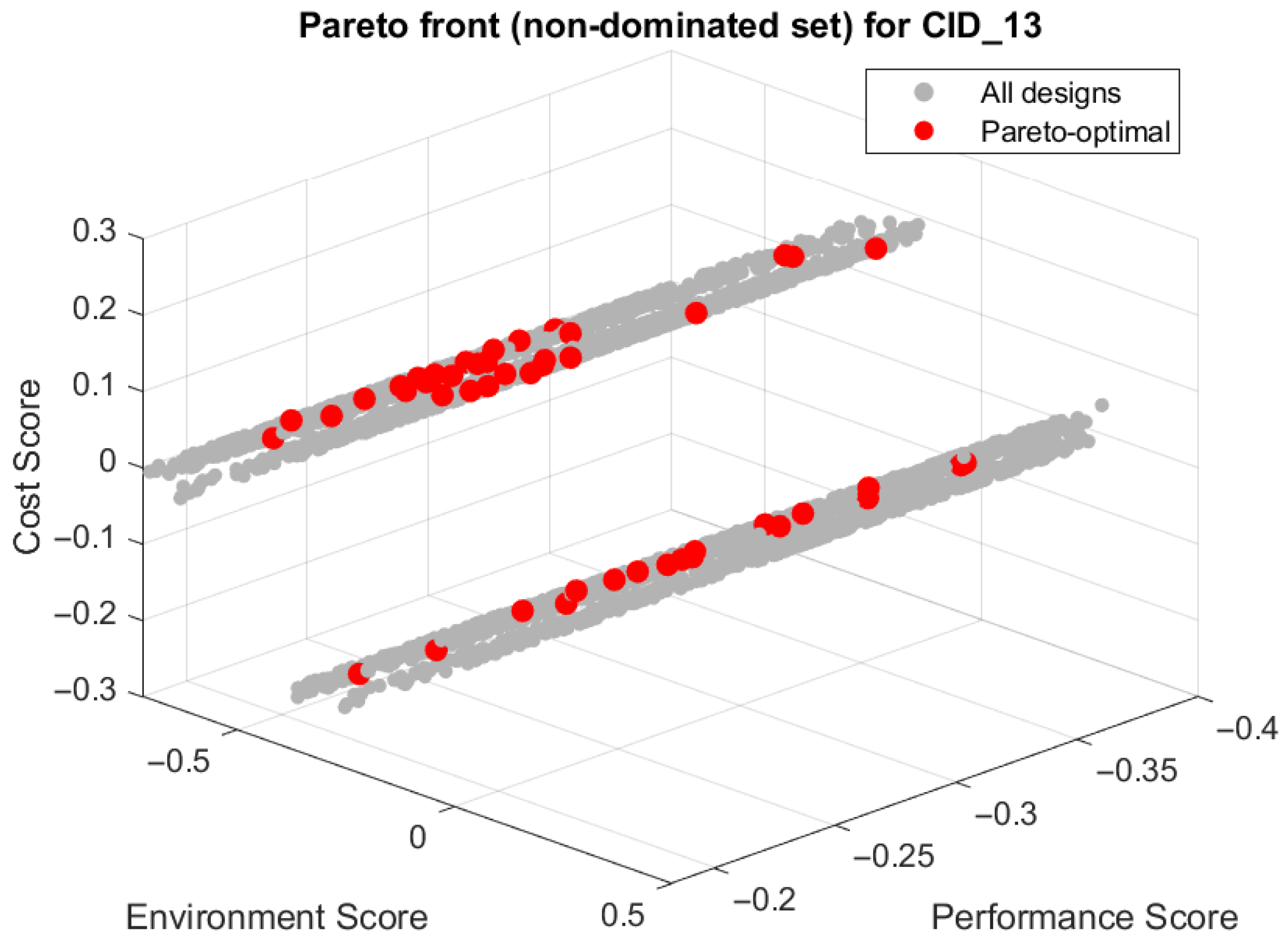

• Comprehensive Pareto frontier generation.

4.5. Sustainability Criteria

The sustainability assessment of the fuselage panel considers nine criteria encompassing all three pillars of sustainability: environmental, economic, and structural performance. These criteria are listed in

Table 4. The sustainability criteria used in the panel optimization, grouped by environmental, cost, and performance categories.

Criteria	Description	Category
C1	Human Health (DALY’s)	Environment
C2	Ecosystems (species. year)	Environment
C3	Resources (USD 2013)	Environment
C4	Global Warming Potential (kg CO2 eq.)	Environment
C5	Material Cost	Cost
C6	Energy Cost	Cost
C7	Use Cost	Cost
C8	EoL Cost	Cost
C9	Specific Stiffness	Performance

. Together, they capture the environmental burden, lifecycle cost, and mechanical efficiency of each design alternative. All criteria are formulated such that lower values indicate better performance, with the exception of the performance indicator (specific stiffness), which is to be maximized. A detailed description of the environmental, cost, and performance criteria, along with the methods used to calculate them, is provided in the following subsections. Across the evaluated design space, the sustainability criteria exhibit substantially different numerical magnitudes and units; representative numerical values illustrating these scale differences, of comparable order of magnitude to those obtained in the present study, are reported in the authors’ previous work [17], motivating the normalization step applied prior to the MCDM analysis.

4.5.1. Environmental Criteria

The environmental criteria were calculated through a parametric LCA conducted in SimaPro software 10.2.0.0 (Ecoinvent 3 library), with panel mass serving as the varying parameter, in accordance with the ISO 14040 [23] and ISO 14044 [24] standards. The inventory data used are identical to those employed in our previous work [17], with the exception of the end-of-life modelling. In this study, the end-of-life stage assumes 100% recycling for aluminum alloy components and 100% landfill for composite components. The analysis follows a cradle-to-grave approach, with the use phase quantified as the amount of kerosene required to transport the panel during the 30-year lifetime of an A319 aircraft [25].

• The following environmental impact criteria were considered:

• Human Health (DALYs—Disability-Adjusted Life Years) (C1).
• Ecosystems (species·year) (C2).
• Resource Scarcity (USD 2013) (C3).
• Global Warming Potential (kg CO₂-eq) (C4).

The environmental indicators were calculated using the ReCiPe 2016 Endpoint (H) V1.08 and IPCC 2021 GWP100 V1.02 methods available in SimaPro.

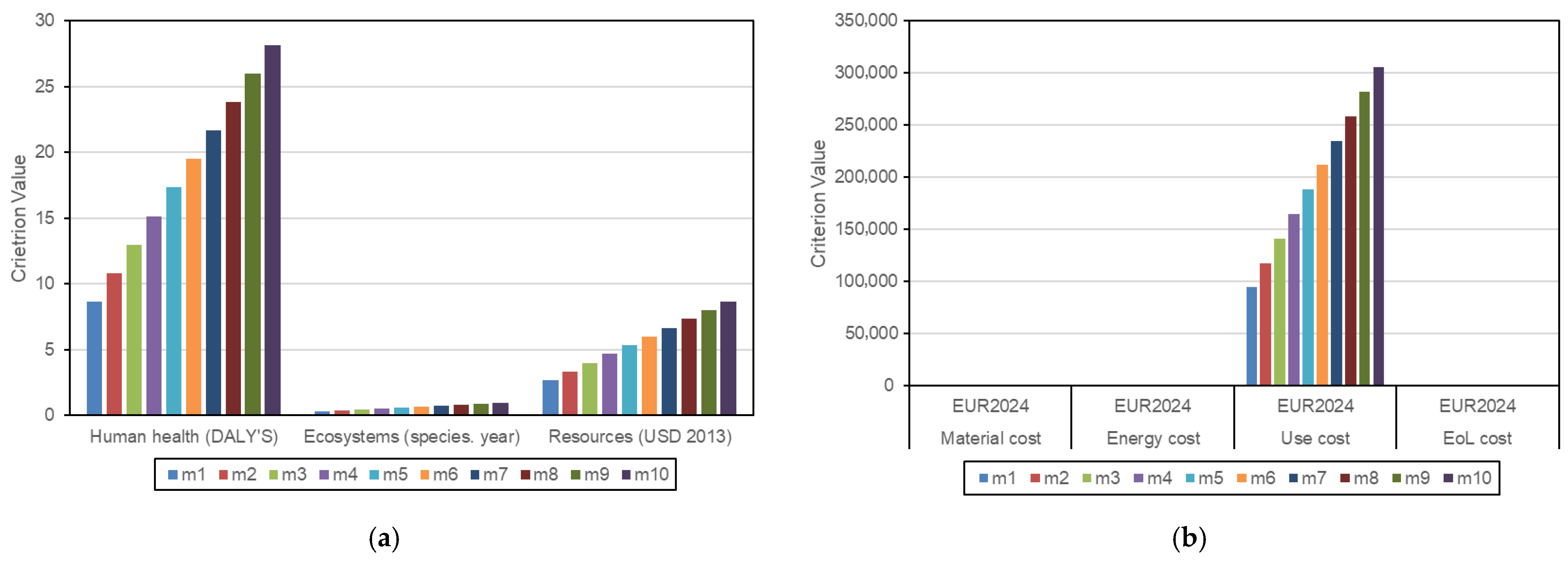

Because it would be computationally inefficient to perform full LCAs for all 25,410 panel configurations, the parametric LCA and LCC analyses revealed a linear relationship between each environmental and cost criterion and the panel mass. In this study, the panel mass is defined as the total mass of the fuselage panel assembly, obtained as the sum of the masses of the skin, stiffeners, frames, and clips for each design alternative. This observed linear relationship enabled the development of regression functions using the total panel mass as the independent variable. Separate regression functions were derived for each material-sub-part combination (16 in total), while the joining method between the stringers and the skin was treated as constant, as its geometric parameters do not vary across configurations. The environmental impact of each complete panel was then obtained by aggregating the contributions of its individual sub-parts.

The linear relationship follows from the way the parametric LCA/LCC models were constructed in SimaPro. All inventory flows (material production, manufacturing energy, end-of-life treatment) were parameterized on a per-kilogram basis and scaled by component mass. The use-phase inventory was likewise defined using fuel consumption per transported mass, resulting in a term proportional to mass. Therefore, for a fixed material system, manufacturing route, transport assumptions, and end-of-life scenario, the calculated impacts and costs scale linearly with mass. This linearity was confirmed by the parametric evaluation at ten discrete mass points and the corresponding indicator-mass plots.

4.5.2. Cost Criteria

For the cost criteria, a parametric LCC analysis was implemented in SimaPro, covering all lifecycle cost categories:

• Material Cost (C5).
• Energy Cost (C6).
• Use Cost (C7).
• End-of-Life (EoL) Cost (C8).

Regression functions were likewise established for these eight criteria, resulting in a total of 128 regression models (8 criteria × 16 material-sub-part combinations). These functions enable the estimation of environmental and economic impacts for every feasible panel configuration within the decision matrix.

4.5.3. Performance Criterion

The structural performance of each fuselage panel configuration was assessed using its axial specific stiffness (stiffness-to-mass ratio), selected as the representative performance criterion (C9). This metric captures the panel’s load-bearing efficiency and its global response under axial compression. To evaluate specific stiffness across the large design space with manageable computational cost, a two-stage methodology was employed. First, a series of parametric finite element (FE) simulations was conducted using Ansys 2025R1 Mechanical. Then, a machine-learning-based surrogate model was developed to approximate the FE responses, enabling rapid prediction of the performance metric for new design configurations.

A parametric FE model of the stiffened fuselage panel was developed in ANSYS Mechanical to simulate its longitudinal compressive response. The panel was modeled using 3D solid elements (8- and 20-noded), with boundary conditions applied to reproduce a uniaxial compressive loading scenario: an axial displacement of −1 mm was applied to one longitudinal edge of the panel, while the opposite edge was fully constrained using a remote displacement condition (Ux = Uy = Uz = Rotx = Roty = Rotz = 0). In principle, each design alternative, defined by a unique combination of materials, joining method, and subcomponent thicknesses, would need to be simulated individually to determine its specific stiffness. However, performing FE analyses for all 25,410 configurations would be computationally infeasible. To address this, a representative subset of 5000 designs was selected from the full design space using a stratified sampling technique implemented in MATLAB R2024a. These 5000 cases were then analyzed parametrically in ANSYS, providing the reference data needed for training the surrogate model.

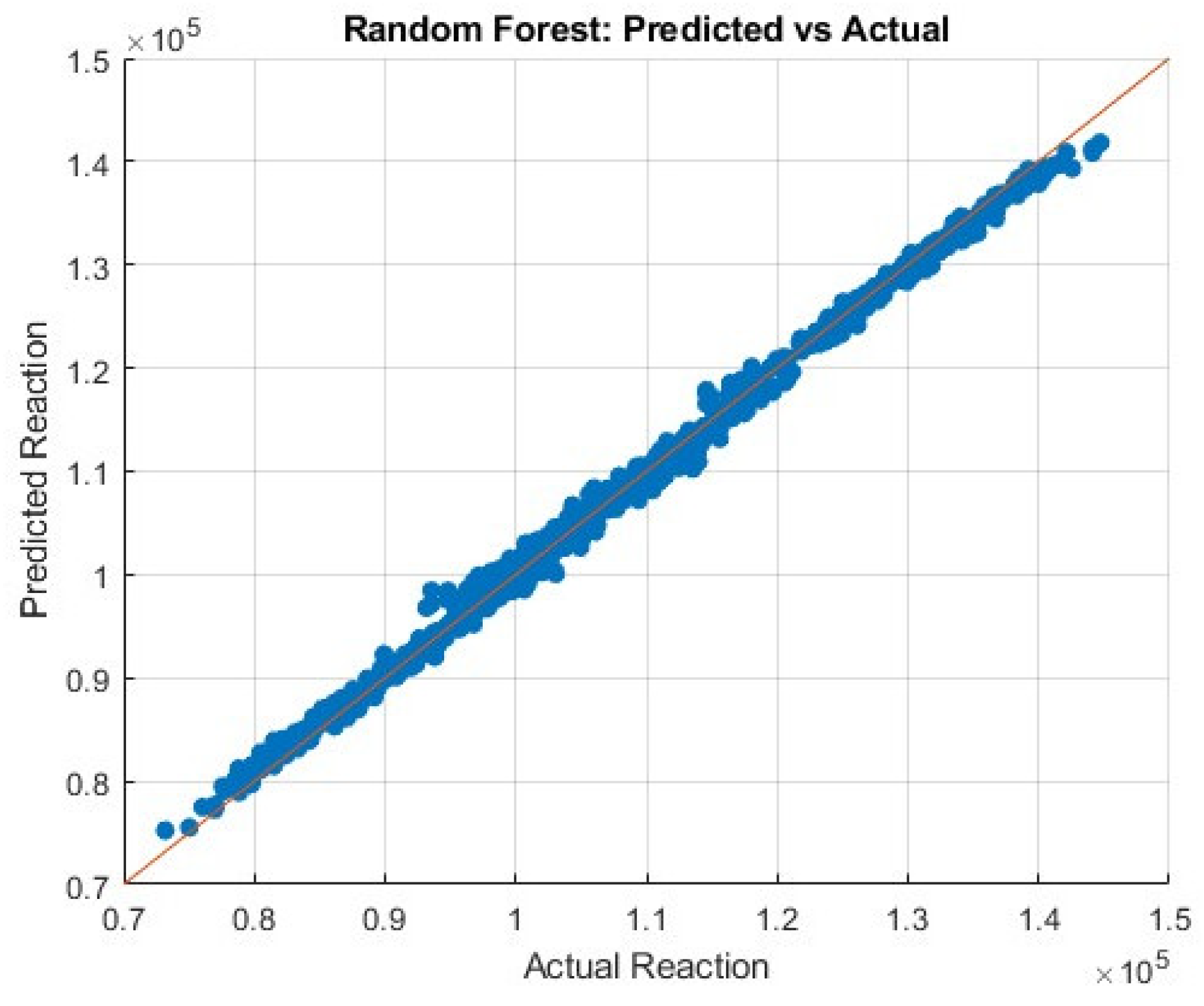

To estimate the axial stiffness of the remaining configurations without performing additional FE analyses, a surrogate modeling approach was employed. A custom Python 3.13.9 script automated the preprocessing, execution, and extraction of simulation results for the 5000 analyzed designs. The surrogate model was constructed using a Random Forest regression algorithm, trained on the dataset generated to capture the nonlinear relationships between the design variables and the resulting stiffness response. The dataset was randomly divided into training (80%) and testing (20%) subsets to enable independent validation of the model. The predictive accuracy and goodness of fit of the surrogate model are presented and discussed in Section 5.

4.6. Normalization Methods

As a preliminary step to the weighting and ranking procedures, normalization was applied to convert all criterion values into dimensionless and comparable forms. Because the nine criteria differ in scale and include both benefit-type and cost-type attributes, an appropriate normalization approach is essential. To address these variations, four normalization methods were evaluated in this study: Vector normalization, Z-score normalization, Min–Max normalization, and Linear normalization, as summarized in

Table 5. The normalization methods and their characteristics. $x_{ij}$ is the value of the decision matrix that belongs to the $ith$ design and to the $jth$ criterion $i\in \left(1,m\right) \mathrm{and} j\in (1,9)$.

Method	Benefit Criteria (Max)	Cost Criteria (Min)	Description
Vector Normalization	$n_{ij}={\displaystyle \frac{x_{ij}}{\sqrt{{\sum }_{i=1}^m{x}_{ij}^2}}}$	$n_{ij}=1-{\displaystyle \frac{x_{ij}}{\sqrt{{\sum }_{i=1}^m{x}_{ij}^2}}}$	Transforms using Euclidean norm, with cost criteria inverted
Linear Scale	$n_{ij}={\displaystyle \frac{x_{ij}}{\underset{i}{\max } x_{ij}}}$	$n_{ij}={\displaystyle \frac{\underset{i}{\min } x_{ij}}{x_{ij}}}$	Scales relative to maximum for benefits and minimum for costs
Z-score	$n_{ij}={\displaystyle \frac{x_{ij}-{\mu }_j}{{\sigma }_j}}$	$n_{ij}=-{\displaystyle \frac{x_{ij}-{\mu }_j}{{\sigma }_j}}$	Standardizes each criterion (column-wise) using the mean (μ) and standard deviation (σ) computed across all design alternatives, converting values to a comparable scale centered at zero.
Min-Max	$n_{ij}={\displaystyle \frac{x_{ij}-\underset{i}{\min } x_{ij}}{\underset{i}{\max } x_{ij}-\underset{i}{\min } x_{ij}}}$	$n_{ij}={\displaystyle \frac{\underset{i}{\max } x_{ij}-x_{ij}}{\underset{i}{\max } x_{ij}-\underset{i}{\min } x_{ij}}}$	Scales to [0, 1] range with appropriate direction

.

4.7. Objective Weighting Methods

To objectively determine the relative importance of the nine criteria, five data-driven weighting techniques were applied: Entropy, CRITIC, MEREC, SD, and COV. Each method captures distinct characteristics of the decision matrix and thereby offers complementary insights into data dispersion and inter-criteria relationships. The mathematical formulations used in this study follow the definitions provided in [17] and are based on the foundational works summarized in

Table 6. The objective weighting methods and their main principles.

Method	Underlying Principle	Key Aspect Captured
Entropy	Measures the degree of disorder or information diversity of each criterion [26,27]	Information content/contrast among alternatives
CRITIC	Considers both the standard deviation of each criterion and its correlation with the others [28]	Conflict and contrast intensity
MEREC	Evaluates the impact of removing each criterion on the overall performance score [29,30]	Marginal contribution of each criterion
SD	Uses the dispersion (standard deviation) of criterion values [26,28,31]	Variability magnitude
COV	Ratio of standard deviation to mean value [26]	Relative variability/coefficient of variation

.

In this study, these methods were further applied to an expanded dataset comprising 25,410 design alternatives, and their performance was assessed through a stability analysis to identify the most balanced and consistent weighting approach. The weighting method demonstrating the highest level of consistency and robustness was subsequently adopted for the final R-TOPSIS evaluation and the clustering-based decision mapping stages.

4.8. Methodology for Stability Analysis of Normalization and Weighting Methods

To evaluate the robustness of normalization and objective weighting methods, a stability analysis was performed to identify which method combinations yield the most consistent weighting outcomes under perturbations of the normalized data.

For each normalization method, the five objective weighting techniques were tested using the complete dataset of 25,410 design alternatives. Perturbations were introduced within the range $\epsilon \in \left[0.01,0.25\right]$ with a step size of 0.01, resulting in 25 distinct perturbation levels. At each perturbation level, 1000 Monte Carlo simulations were conducted, totaling 25,000 experiments to ensure statistical robustness.

For every weighting method $M$ and perturbation level $\epsilon$, a stability score $S^{(M,\epsilon )}$ was calculated as:

$$S^{(M,\epsilon )}={\displaystyle \frac{1}{1+{\mu }_{\delta }}}$$

(32)

where ${\mu }_{\delta }$ denotes the mean relative change in the criterion weights due to the perturbation. The closer $S^{(M,\epsilon )}$ is to 1, the higher the stability of the corresponding weighting method under the given normalization scheme.

Finally, for each normalization method, an overall stability index was obtained by averaging the individual stability scores $S^{(M,\epsilon )}$ across all weighting methods and perturbation levels. This process enabled a systematic comparison of the normalization–weighting combinations based on their sensitivity to input uncertainty.

4.9. Multi-Criteria Decision-Making Process-R-TOPSIS

R-TOPSIS was employed to rank the alternative panel designs according to their overall sustainability performance. This algorithm retains the basic logic of TOPSIS while addressing rank-reversal issues by introducing a domain-based normalization, ensuring that the ideal reference points remain fixed for both benefit- and cost-type criteria.

The algorithm requires:

• A decision matrix $X={\left[x_{ij}\right]}_{m\times n}$;
• A vector of criteria weights $W={\left[w_j\right]}_{1\times n}$, where $w_j>0$ and ${\sum }_{j=1}^n w_j=1$;
• A sub-domain of real numbers $D={\left[d_j\right]}_{2\times n}$, where $d_j\in \mathbb{R}$, where $d_{1j}$ and $d_{2j}$. Note the minimum and maximum feasible values of each criterion, $D_j$.

Step 1: Normalization of decision matrix

$$n_{ij}=\left\{\begin{array}{c}{\displaystyle \frac{x_{ij}}{d_{2j}}}, \mathrm{Max} \mathrm{normalization}\\ n_{ij}={\displaystyle \frac{x_{ij}-d_{1j}}{d_{2j}-d_{1j}}}, \mathrm{Min} \mathrm{normalization} \end{array},\right.i=1,2,\dots ,m;j=1,2,\dots ,n$$

(33)

Step 2: Weighting of normalized matrix

$$y_{ij}=w_j\cdot n_{ij}, \mathrm{for} i=1,2,\dots ,m;j=1,2,\dots ,n$$

(34)

Step 3: Ideal solutions

The positive (PIS) and negative (NIS) ideal solutions are established as:

$$\begin{array}{c}{A}_j^{+}=\left\{\begin{array}{ll}{w}_j& \mathrm{if} j \mathrm{is} \mathrm{a} \mathrm{benefit} \mathrm{criterion} \\ \left({\displaystyle \frac{d_{1j}}{d_{2j}}}\right)w_j& \mathrm{if} j \mathrm{is} \mathrm{a} \cos \mathrm{t} \mathrm{criterion} \end{array}\right.;\hfill \\ A_j^{-}=\left\{\begin{array}{ll}\left({\displaystyle \frac{d_{1j}}{d_{2j}}}\right)w_j& \mathrm{i}\mathrm{f} j \mathrm{i}\mathrm{s} \mathrm{a} \mathrm{b}\mathrm{e}\mathrm{n}\mathrm{e}\mathrm{f}\mathrm{i}\mathrm{t} \mathrm{c}\mathrm{r}\mathrm{i}\mathrm{t}\mathrm{e}\mathrm{r}\mathrm{i}\mathrm{o}\mathrm{n}\\ w_j& \mathrm{i}\mathrm{f} j \mathrm{i}\mathrm{s} \mathrm{a} \mathrm{c}\mathrm{o}\mathrm{s}\mathrm{t} \mathrm{c}\mathrm{r}\mathrm{i}\mathrm{t}\mathrm{e}\mathrm{r}\mathrm{i}\mathrm{o}\mathrm{n}\end{array}\right.\hfill \end{array}$$

(35)

Step 4: Calculation of the distances of each alternative $i$ in relation to the ideal solutions

$$S_i^{+}=\sqrt{\sum _{j=1}^n {\left(A_j^{+}{-y}_{ij}\right)}^2},S_i^{-}=\sqrt{\sum _{j=1}^n {\left(y_{ij}-A_j^{-}\right)}^2}, i=1,2,\dots ,m$$

(36)

Step 5: Closeness coefficient $\left(C_i\right)$ and ranking

$$C_i={\displaystyle \frac{S_i^{-}}{S_i^{+}+S_i^{-}}},i=1,2,\dots ,m$$

(37)

The alternatives are ranked in descending order of $C_i$; higher values indicate superior sustainability performance.

In this study, R-TOPSIS was applied at two distinct stages of the sustainability-driven decision framework:

• Path A—Cluster-based optimization:
  Following customized clustering and Pareto filtering, R-TOPSIS was executed within each cluster to rank the non-dominated designs and identify the top sustainable representatives of each group.
• Path B—Global optimization:
  After the global Pareto filtering, R-TOPSIS was applied to the entire decision matrix to derive a unified ranking of the top-performing designs across all clusters.

4.10. Pareto-Based Optimization

Pareto-based optimization was implemented in MATLAB to identify the subset of non-dominated design alternatives across sustainability objectives. In practice, this is implemented as a Pareto-filtering function applied to the decision matrix, which takes the full set of design alternatives as input and returns the subset of non-dominated solutions (Pareto front). In multi-objective optimization problems, widely used in engineering design and sustainability assessment, an alternative $A_i$ is defined as non-dominated if no other alternative $A_k$ satisfies $f_j(A_k)\le f_j(A_i)$ for all criteria j and $f_j(A_k) < f_j(A_i)$ for at least one j, where $f_j\left(A_i\right)$ denotes the value of the j-th sustainability criterion for alternative $A_i$. The resulting Pareto front represents the set of solutions that achieve an optimal balance among conflicting objectives, capturing the intrinsic trade-offs between sustainability pillars. Within the proposed framework, Pareto filtering serves as an intermediate reduction stage: in Path A, it is applied within each sustainability cluster to retain locally optimal designs, whereas in Path B, it is applied to the complete decision matrix to identify globally optimal configurations.

4.11. Clustering-Based Optimization-Customized Clustering

To support localized sustainability optimization, a customized clustering approach was developed in MATLAB to classify the 25,410 alternative panel designs according to their sustainability characteristics. This step enables the exploration of trade-offs within groups of designs that exhibit similar environmental, cost, and performance behavior, offering a complementary perspective to the global optimization pathway. The analysis was conducted on the normalized decision matrix to ensure comparability across criteria. The nine sustainability criteria were aggregated into three categories—Environmental, Cost, and Performance—by averaging the normalized values within each group. For each design, a composite indicator was then computed for each category and assigned to one of three qualitative levels (Low, Medium, High) using the first (Q₁) and third (Q₃) quartiles as thresholds. Combining the three category-specific levels produced a set of sustainability clusters, each representing a unique Environmental-Cost-Performance configuration (e.g., Low-Medium-High). This clustering framework structures the design space into coherent groups of alternatives exhibiting similar sustainability profiles, thereby forming the basis for the subsequent Pareto filtering and R-TOPSIS ranking performed within each cluster.

5. Results

5.1. Computation of Sustainability Criteria

5.1.1. Design Space

After defining the design space by enumerating all feasible combinations, it was found that approximately 91% of the valid configurations correspond to aluminum panels, while the remaining ones consist of TP and TS panels, as illustrated in Figure 3.

5.1.2. Environmental and Cost Regression Functions

Parametric LCA and LCC analyses were conducted for ten mass values, obtained by multiplying the reference panel mass by incremental factors with a step of 0.25. A linear relationship was observed between the panel mass and all evaluated criteria. Indicatively, Figure 4a presents the results for the skin component made of Al7075, considering the ten mass cases $m_i, i\in (1,10)$ and the three damage categories of the ReCiPe 2016 Endpoint (H) V1.11/World (2010) H/A method, which correspond to the three environmental criteria adopted in this study. The analogous results for the cost criteria, derived using the same parametric approach, are shown in Figure 4b. In both sets of diagrams, a clear linear dependency on mass is observed. For the environmental results, the three criteria differ in units and magnitude ranges, making them not directly comparable. In contrast, the cost results—expressed in common units (EUR2024)—are directly comparable and reveal that the use-phase cost dominates the total life cycle cost, whereas the material, energy, and end-of-life costs contribute only marginally.

A total of 128 regression functions were developed in the form $y=ax+b$, corresponding to the eight sustainability criteria and the sixteen material–sub-part combinations (8 criteria × 16 combinations). These linear models enable the estimation of the environmental and economic impacts for every feasible panel configuration included in the decision matrix.

Let the criterion value be denoted as:

• $C_{k,i,j}$, where $k\in \left(1,8\right)$ refers to the criterion.
• $i\in \left\{\mathrm{skin}, \mathrm{stiffener}, \mathrm{frame}, \mathrm{clip}\right\}$ refers to the panel’s sub-part.
• $j\in \left\{\mathrm{Al}2024, \mathrm{Al}7075, \mathrm{TS}\text{-}\mathrm{CFRP}, \mathrm{TP}\text{-}\mathrm{CFRP}\right\}$ refers to the material used.

Each sub-part term $C_{k,i,j}$ represents the contribution of that component type and includes the total mass of all identical sub-parts within the panel (one skin, four frames, seven stiffeners, and twenty-four clips). The total criterion value for one complete panel design is then obtained as:

$$C_{k,\mathrm{total}}=C_{k,\mathrm{skin}}+C_{k,\mathrm{stiffener}}+C_{k,\mathrm{frame}}+C_{k,\mathrm{clip}}$$

(38)

The coefficients a and b of the linear relationships for each criterion and sub-part are listed in

Table 7. Regression coefficients (a, b) of the criteria (C1–C8) for each panel subcomponent and joining method.

Component/ Material	C1		C2		C3		C4		C5		C6		C7		C8
	a	b	a	b	a	b	a	b	a	b	a	b	a	b	a	b
Clips/Al2024	0.0098	0.0	2 × 10−5	0.0	3527.4	2 × 10−8	3231.1	−1 × 10−8	5.0	0.0	3.70	0.0	4427.9	2 × 10−8	0.89	0
Clips/Al7075	0.0098	−2 × 10−10	2 × 10−5	0.0	3527.3	−3 × 10−4	3527.3	−2 × 10−4	7.0	0.0	3.70	−2 × 10−9	4427.9	6 × 10−5	0.89	−4 × 10−10
Clips/TP CFRP	0.0102	−2 × 10−12	2 × 10−5	0.0	3536.8	−9 × 10−7	3536.8	−8 × 10−7	25.7	0.0	84.59	0.0	4427.9	−1 × 10−6	0.06	0.0
Clips/TS CFRP	0.0102	−1 × 10−12	2 × 10−5	0.0	3536.6	−4 × 10−7	3536.8	−4 × 10−7	67.6	0.0	87.76	0.0	4427.9	−5 × 10−7	0.06	0.0
Frames/Al2024	0.0098	−5 × 10−12	2 × 10−5	0.0	3527.0	−2 × 10−6	3527	−2 × 10−6	5.0	0.0	1.16	0.0	4427.9	−2 × 10−6	0.89	0.0
Frames/Al7075	0.0098	−2 × 10−10	2 × 10−5	2 × 10−12	3527.0	1 × 10−4	3527	−3 × 10−5	7.0	0.0	1.16	1 × 10−8	4427.9	1 × 10−4	0.89	0.0
Frames/TP CFRP	0.0102	−3 × 10−12	2 × 10−5	0.0	3536.8	−1 × 10−6	3536.8	−9 × 10−7	25.7	0.0	84.60	0.0	4427.9	−1 × 10−6	0.06	0.0
Frames/TS CFRP	0.0102	2 × 10−12	2 × 10−5	0.0	3536.6	9 × 10−7	3389.1	8 × 10−7	67.6	0.0	87.76	0.0	4427.9	1 × 10−6	0.06	0.0
Skin/Al2024	0.0098	0.0	2 × 10−5	2 × 10−18	3527.0	0.0	3230.4	−385.45	5.0	0.0	1.14	0.0	4427.9	7 × 10−10	0.89	0.0
Skin/Al7075	0.0098	0.0	2 × 10−5	−9 × 10−12	3527.0	−2 × 10−4	3221.3	−0.0012	7.0	2 × 10−6	1.14	−2 × 10−7	4427.9	−0.0066	0.89	4 × 10−7
Skin/TP CFRP	0.0102	−5 × 10−11	2 × 10−5	0.0	3536.8	2 × 10−5	3389.9	2 × 10−5	25.7	0.0	84.60	4 × 10−12	4427.9	−2 × 10−5	0.06	0.0
Skin/TS CFRP	0.0102	3 × 10−12	2 × 10−5	0.0	3536.6	1 × 10−6	3389.9	9 × 10−7	67.6	2 × 10−12	87.76	0.0	4427.9	1 × 10−6	0.06	0.0
Stringers/Al2024	0.0098	1 × 10−9	2 × 10−5	1 × 10−12	3527.0	2 × 10−4	3222	−2 × 10−5	5.0	2 × 10−6	1.16	0.0	4427.9	−4 × 10−4	0.89	1 × 10−7
Stringers/Al7075	0.0098	1 × 10−11	2 × 10−5	0.0	3527.0	4 × 10−6	3224	4 × 10−6	7.0	0.0	1.16	0.0	4427.9	6 × 10−6	0.89	0.0
Stringers/TP CFRP	0.0102	0.0	2 × 10−5	0.0	3536.8	−4 × 10−11	3389.9	−3 × 10−12	25.7	0.0	84.60	1 × 10−12	4427.9	−4 × 10−11	0.06	0.0
Stringers/TS CFRP	0.0102	−6 × 10−12	2 × 10−5	0.0	3536.6	−2 × 10−6	3389.1	−2 × 10−6	67.6	0.0	87.76	1 × 10−12	4427.9	−3 × 10−6	0.06	0.0
Joining method	C1		C2		C3		C4		C5		C6		C7		C8
	a	b	a	b	a	b	a	b	a	b	a	b	a	b	a	b
Welding	0.0	0.0056	0.0	1.19 × 10−5	0.0	2000	0.0	1830	0.0	393	0.0	0	0.0	2900	0.0	0.0
Bonding	0.0	1.56 × 10−6	0.0	4.49 × 10−9	0.0	0.215	0.0	1.42	0.0	0.0	0.0	0.762	0.0	0.0	0.0	0.0

. All corresponding criteria values were computed in MATLAB using the derived equations, forming a decision matrix of 25,410 design alternatives, which was subsequently exported to Excel.

For all criteria and sub-components, the intercept term b is close to zero, indicating negligible fixed contributions and confirming that the environmental and cost indicators scale proportionally with component mass. This observation is consistent with the parametric LCA/LCC formulation described in Section 4.5.1. Although the linear relationship was verified using a finite set of parametric mass cases, the resulting regression functions directly reflect the mass scaling of the parametric LCA/LCC models and can therefore be applied across the mass range of the predefined panel design space, provided that the same material systems, manufacturing routes, and life-cycle assumptions apply.

Overall, Table 7 consolidates the set of regression functions derived from the parametric LCA and LCC analyses and serves as an intermediate modeling step for populating the decision matrix across the full panel design space. Rather than providing a comparative assessment of materials or sub-components, the table summarizes how the parametric life-cycle models are translated into analytical equations that enable rapid evaluation of environmental and economic criteria for a large number of design alternatives. Differences between materials and sub-components are embedded in the regression coefficients through the underlying life-cycle inventory assumptions, while variations in coefficient magnitude across criteria reflect their different physical units and impact metrics, as summarized in Table 4.

5.1.3. Performance Criterion Results

The structural performance of the panel was evaluated in terms of axial stiffness using the combined finite element and surrogate modeling approach described in Section 4. The Random Forest surrogate model was trained using material selection and sub-component thicknesses as input variables (four candidate materials: Al2024, Al7075, thermoset CFRP, and thermoplastic CFRP), as defined in the previous sections and summarized in Table 1, and predicts the global axial stiffness of the complete panel assembly. This stiffness corresponds to the global response of the panel under the uniaxial compression boundary conditions defined in Section 4. The predictive performance of the surrogate model was quantified by comparing predicted and simulated stiffness values, resulting in a coefficient of determination of R² = 0.9994 and a Mean Absolute Percentage Error (MAPE) of 0.77%. Figure 5 shows the corresponding predicted versus simulated axial stiffness values.

The predicted stiffness values for all 25,410 design alternatives were subsequently combined with the corresponding panel masses to calculate the specific stiffness, which populated the performance criterion (C9) column of the decision matrix employed in the sustainability assessment.

5.2. Stability Analysis of Normalization and Weighting Methods

5.2.1. Effect of Normalization on Stability

The stability results reveal clear differences among the normalization methods. Across all weighting techniques, Z-score and Min–Max normalization exhibit the highest overall robustness against data perturbations (Figure 6). The average stability scores (

Table 8. Overall stability scores for the 4 normalization methods.

Normalization Method	Overall Stability Score
Vector Norm	0.4016
Z-score	0.9844
Min–Max	0.9835
Linear Norm	0.9468

) confirm that Z-score normalization achieved the best performance ($S_{\mathrm{avg}}=0.9844$), closely followed by Min–Max ($S_{\mathrm{avg}}=0.9835$). The Linear Norm method also demonstrated stable and satisfactory behavior ($S_{\mathrm{avg}}=0.9468$), indicating good robustness despite slightly lower values. In contrast, Vector Norm showed a substantially lower stability score ($S_{\mathrm{avg}}=0.4016$). Overall, these results highlight the superior consistency of Z-score and Min–Max normalization, with Linear Norm also performing reliably under data perturbations.

5.2.2. Comparison of Weighting-Method Stability Under the Most Robust Normalization Techniques

To further interpret the results, the behavior of the weighting methods was examined under the three most stable normalization schemes, Z-score, Min–Max, and Linear. As shown in Figure 7, the stability curves under Z-score normalization (Figure 7a) remain nearly flat across all perturbation levels, confirming the high resilience of all weighting methods except Entropy. Under Min–Max normalization (Figure 7b), the MEREC and SD methods demonstrate the most stable responses, while Entropy again shows higher sensitivity to noise. Under Linear normalization, the stability behavior of the weighting methods changes compared to the Z-score and Min–Max cases (Figure 7c). Although the stability scores for all methods except Entropy remain within the relatively high range of 0.9–1.0 up to a perturbation level of approximately 0.20, a gradual decrease is observed as noise increases. Entropy is the only method that falls below this range, showing higher sensitivity to data variation, while MEREC consistently maintains the highest stability across all perturbation levels, confirming its robustness even under increased perturbation.

5.2.3. Comparison of Weighting-Method Behavior Through Weight Dispersion

The dispersion of the computed weights (

Table 9. Criteria weights obtained by different objective weighting methods.

Criterion	CRITIC	SD	COV	Entropy	MEREC
GWP total	0.066464	0.10719	0.098803	0.086956	0.10914
Human health total	0.066703	0.10754	0.10008	0.088725	0.10929
Ecosystems total	0.067156	0.10827	0.10248	0.091588	0.10952
Resources total	0.067259	0.10836	0.10253	0.091743	0.10954
Material cost total	0.17912	0.097262	0.036394	0.016026	0.10429
Energy cost total	0.30103	0.12413	0.040242	0.023689	0.10563
Use cost total	0.06685	0.10794	0.10201	0.090798	0.10946
EoL cost total	0.089395	0.13009	0.16775	0.18718	0.11696
Stiffness	0.096022	0.10922	0.24971	0.3233	0.12617
Max/Min	4.5293	1.3375	6.8613	20.173	1.2097

) further highlights the variability among the five objective weighting methods. The MEREC method exhibited the most balanced distribution of weights (max/min = 1.2097), closely followed by SD (max/min = 1.3375) and CRITIC (max/min = 4.5293). In contrast, the COV method showed a markedly uneven distribution (max/min = 6.8613), while Entropy produced the most polarized set of weights (max/min = 20.17), indicating strong dominance by the performance (specific stiffness) and end-of-life cost criteria. Overall, the results confirm that MEREC, and secondarily SD, ensure the most balanced and stable weighting behavior, whereas Entropy amplifies dis-parities and concentrates importance on a limited number of criteria.

5.3. Optimization Results-Paths A and B

5.3.1. Path A: Cluster-Based Optimization

Within Path A of the analysis framework, the decision matrix was first normalized using the Z-score method, previously identified as the most stable normalization approach. This step was performed prior to clustering to ensure comparability across criteria and to enable a consistent grouping of the design alternatives. Customized clustering was then applied to classify the 25,410 panel configurations according to their sustainability characteristics. Each design was categorized along the three sustainability dimensions—Environmental, Cost, and Performance—each discretized into three qualitative levels (Low, Medium, High). It is important to clarify that the term High refers to a desirable direction: high environmental performance indicates low-impact, high-cost performance reflects low life-cycle cost, and high performance denotes greater specific stiffness.

As shown in

Table 10. Customized sustainability clusters, including environmental-cost-performance characteristics, total designs per cluster, and non-dominated solutions.

Cluster ID	Cluster Characteristics	Designs per Cluster	Non-Dominated Designs per Cluster
0	Low Env, Low Cost, Low Perf	291	12
1	Low Env, Low Cost, Medium Perf	2499	24
2	Low Env, Low Cost, High Perf	1163	12
3	Low Env, Medium Cost, Low Perf	182	8
4	Low Env, Medium Cost, Medium Perf	1355	13
5	Low Env, Medium Cost, High Perf	862	8
9	Medium Env, Low Cost, Low Perf	355	10
10	Medium Env, Low Cost, Medium Perf	1135	14
11	Medium Env, Low Cost, High Perf	430	17
12	Medium Env, Medium Cost, Low Perf	2316	21
13	Medium Env, Medium Cost, Medium Perf	4498	47
14	Medium Env, Medium Cost, High Perf	1355	28
15	Medium Env, High Cost, Low Perf	1007	15
16	Medium Env, High Cost, Medium Perf	1291	11
17	Medium Env, High Cost, High Perf	319	12
20	High Env, Low Cost, High Perf	479	6
21	High Env, Medium Cost, Low Perf	872	11
22	High Env, Medium Cost, Medium Perf	692	15
23	High Env, Medium Cost, High Perf	574	12
24	High Env, High Cost, Low Perf	1329	10
25	High Env, High Cost, Medium Perf	1236	11
26	High Env, High Cost, High Perf	1170	9

, twenty-two of the twenty-seven possible Environmental-Cost-Performance combinations were populated, demonstrating that nearly the entire sustainability design space was covered. Only five combinations remained empty based on the applied quartile-based thresholds. Notably, a High-High-High cluster was also formed, indicating that a subset of configurations achieved simultaneously high environmental, economic, and structural performance.

Pareto filtering was then applied within each populated cluster to retain only the non-dominated alternatives, thereby identifying the most sustainable solutions within each localized sustainability region. This step resulted in a substantial reduction in the initial design set, confirming the filtering efficiency and demonstrating the effectiveness of the proposed framework. The number of total and non-dominated alternatives per cluster is reported in Table 10.

To visualize the outcome of the Pareto filtering, 3D Pareto front plots were generated for each sustainability cluster, illustrating the relationships among the Environmental, Cost, and Performance scores. In these plots, the non-dominated designs are highlighted in red, delineating the frontier of optimal trade-offs within each cluster. Figure 8 presents the results for Cluster 13 (CID_13), corresponding to the Medium Environment-Medium Cost-Medium Performance category. Two distinct regions are visible within the plotted space, indicating that design alternatives classified as medium do not uniformly populate the entire mid-range of sustainability performance. Instead, the distribution reveals sustainability gradients and sub-group behavior within the cluster.

Finally, R-TOPSIS was applied within each cluster to determine the top-ranked sustainable alternative, using equal weighting of the criteria. Equal weighting was selected because, in Path A, the goal is to characterize the design space and identify the most representative solution within each sustainability profile, rather than impose externally defined priorities. This keeps the ranking consistent with the cluster’s inherent sustainability characteristics.

Table 11. Top-ranked alternatives obtained through R-TOPSIS within each sustainability cluster, indicating the corresponding material selections, joining methods, and optimized thickness values for the skin, stiffeners, and frames.

ID	${\mathit{m}}_{\mathit{s}\mathit{k}\mathit{i}\mathit{n}}$	${\mathit{m}}_{\mathit{s}\mathit{t}\mathit{i}\mathit{f}\mathit{f}\mathit{e}\mathit{n}\mathit{e}\mathit{r}}$	${\mathit{m}}_{\mathit{f}\mathit{r}\mathit{a}\mathit{m}\mathit{e}}$	${\mathit{m}}_{\mathit{c}\mathit{l}\mathit{i}\mathit{p}}$	Connection	${\mathit{t}}_{\mathit{s}\mathit{k}\mathit{i}\mathit{n}}\left(\mathbf{m}\mathbf{m}\right)$	${\mathit{t}}_{\mathit{s}\mathit{t}\mathit{i}\mathit{f}\mathit{f}\mathit{e}\mathit{n}\mathit{e}\mathit{r}}\left(\mathbf{m}\mathbf{m}\right)$	${\mathit{t}}_{\mathit{f}\mathit{r}\mathit{a}\mathit{m}\mathit{e}}\left(\mathbf{m}\mathbf{m}\right)$
0	Al7075	Al2024	Al7075	Al7075	Bonding	2.6	2.2	1.8
1	Al2024	Al2024	Al7075	Al2024	Bonding	2.6	2.3	1.9
2	Al2024	Al2024	Al2024	Al7075	Bonding	2.8	1.9	1.5
3	Al7075	Al2024	Al7075	Al7075	Metal Weld.	2.6	2.4	1.8
4	Al2024	Al2024	Al2024	Al2024	Metal Weld.	2.7	2.3	1.8
5	Al2024	Al2024	Al7075	Al2024	Metal Weld.	2.8	2	1.8
9	Al7075	Al2024	Al2024	Al2024	Bonding	2.4	2.4	1.7
10	Al7075	Al7075	Al7075	Al7075	Bonding	2.5	2	1.7
11	Al7075	Al7075	Al7075	Al2024	Bonding	2.5	2.1	1.5
12	Al2024	Al7075	Al2024	Al2024	Bonding	2	2.2	1.8
13	Al2024	Al2024	Al7075	Al2024	Bonding	2.3	1.6	1.5
14	Al2024	Al2024	Al7075	Al7075	Bonding	2.2	2	1.5
15	Al2024	Al2024	Al7075	Al7075	Metal Weld.	2.1	2.1	2
16	Al2024	Al2024	Al2024	Al2024	Metal Weld.	2.2	2.1	1.7
17	Al2024	Al2024	Al2024	Al2024	Metal Weld.	2.3	1.9	1.5
20	TS	TS	TS	TS	Bonding	2.5	1.5	1.7
21	Al2024	Al7075	Al2024	Al7075	Bonding	2	1.5	1.9
22	Al2024	Al2024	Al7075	Al7075	Bonding	2	1.8	1.5
23	TS	TS	TS	TS	Bonding	2	16	1.5
24	Al2024	Al2024	Al7075	Al7075	Metal Weld.	2	1.5	1.6
25	Al2024	Al2024	Al7075	Al7075	Metal Weld.	2	1.7	1.5
26	TP	TP	TP	TP	T, Welding	2.1	1.6	1.5

reports the configuration of the highest-ranked design in each cluster, including the selected material for every subcomponent, the joining method, and the optimized thickness values for the skin, stiffeners, and frames.

The R-TOPSIS ranking results reveal consistent trends in material and manufacturing preferences across sustainability clusters. The frequent appearance of aluminum-based configurations, particularly combinations of Al2024 and Al7075, is attributed primarily to the aluminum dominance of the design space (≈91%) rather than to inherently superior sustainability performance. These metallic designs are mostly located in clusters with balanced or intermediate sustainability levels, reflecting the well-established compromise between specific stiffness and cost within the metallic family. To improve interpretability, two representative clusters are discussed in more detail below to illustrate the underlying trade-offs between mass, cost, and structural performance.

Thermoplastic composite (TP-CFRP) configurations dominate the High Environment-High Cost-High Performance cluster (CID = 26), illustrating their high specific stiffness and reduced mass, which translate into lower use-phase fuel consumption despite higher manufacturing complexity.

At the opposite end of the spectrum, the Low Environment-Low Cost-Low Performance cluster (CID = 0) comprises aluminum panels joined by bonding. These represent the least sustainable alternatives due to increased mass—which elevates use-phase environmental and cost impacts—as well as the additional adhesive mass and material cost associated with bonding. In environmental and economic modeling, welding contributed only through joining energy, whereas bonding introduced adhesive consumption, increasing both weight and material cost.

Regarding joining strategies more broadly, both welding and bonding appear among top-ranked alternatives; however, their influence is restricted to environmental and cost performance, as joining methods were assumed not to affect structural stiffness in the present study. Welding is more prevalent in clusters displaying higher sustainability efficiency, whereas bonding is associated with medium or mixed profiles. Across all clusters, optimized sub-component thicknesses fall within a narrow range (1.5–2.8 mm), indicating a strong convergence towards lightweight yet structurally capable solutions.

Overall, the R-TOPSIS results effectively capture the trade-offs among material families, joining techniques, and geometric parameters, showing how the distribution of feasible solutions in the design space shapes the sustainability profile of top-ranked configurations.

5.3.2. Path B: Global Optimization

Path B applies Pareto filtering to the complete decision matrix, followed by R-TOPSIS ranking of the resulting non-dominated solutions. In this stage, the Linear normalization method was selected, as it demonstrated stability comparable to Z-score and Min–Max, while ensuring consistent scaling for the subsequent objective-weighting procedures. Among the weighting techniques, MEREC was chosen for the R-TOPSIS evaluation because it provided the most balanced weight distribution (lowest Max/Min ratio) and exhibited identical stability trends under all three normalization schemes, as illustrated in Figure 6.

The Pareto filtering step drastically reduced the design space—from 25,410 initial configurations to only 97 non-dominated alternatives (0.38%)—indicating strong trade-offs among environmental, cost, and structural performance criteria. R-TOPSIS was then applied to this reduced set to identify the most broadly sustainable panel designs.

The five highest-ranked configurations, representing the optimal compromise across sustainability pillars, are presented in

Table 12. Top five most sustainable panel configurations from the whole decision matrix using Linear normalization and MEREC weighting, showing materials, joining method, and optimized thicknesses.

Ranking	${\mathit{M}}_{\mathit{s}\mathit{k}\mathit{i}\mathit{n}}$	${\mathit{M}}_{\mathit{s}\mathit{t}\mathit{i}\mathit{f}\mathit{f}\mathit{e}\mathit{n}\mathit{e}\mathit{r}}$	${\mathit{M}}_{\mathit{f}\mathit{r}\mathit{a}\mathit{m}\mathit{e}}$	${\mathit{M}}_{\mathit{c}\mathit{l}\mathit{i}\mathit{p}}$	Connection	${\mathit{t}}_{\mathit{s}\mathit{k}\mathit{i}\mathit{n}}(\mathbf{m}\mathbf{m})$	${\mathit{t}}_{\mathit{s}\mathit{t}\mathit{i}\mathit{f}\mathit{f}\mathit{e}\mathit{n}\mathit{e}\mathit{r}}(\mathbf{m}\mathbf{m})$	${\mathit{t}}_{\mathit{f}\mathit{r}\mathit{a}\mathit{m}\mathit{e}}(\mathbf{m}\mathbf{m})$
1	TP	TP	TP	TP	TP Welding	2	1.5	1.5
2	TP	TP	TP	TP	TP Welding	2	1.5	1.7
3	TP	TP	TP	TP	TP Welding	2	1.6	1.5
4	TP	TP	TP	TP	TP Welding	2.1	1.5	1.5
5	TP	TP	TP	TP	TP Welding	2.1	1.6	1.5

, along with their associated material selections, joining method, and optimized thickness distributions.

The five most sustainable panel configurations identified by R-TOPSIS are presented in Table 12. All top-ranked designs consist of TP CFRPs joined via TP welding, with only small variations in the subcomponent thicknesses. This outcome is consistent with expectations, as TP CFRPs exhibit the lowest density among the candidate materials—a decisive advantage when the use phase is included in the assessment. Because aircraft fuel consumption is directly proportional to structural mass, lightweight materials provide clear environmental and cost benefits throughout the operational lifetime.

It is also important to note that the best designs have thickness values close to the lower bounds of the examined range, rather than strictly the smallest possible ones. This shows that, although both the environmental and cost criteria, as well as specific stiffness, depend on mass, the thicknesses of several sub-components affect stiffness differently, resulting in a more complex combined influence. As a result, the top-ranked designs represent a balance between weight reduction and structural stiffness, rather than simply minimizing thickness.

Finally, the frequent selection of welding over bonding aligns with the regression-based trends reported in Section 5.1.2 (Table 7), where welded joints consistently demonstrated lower environmental and cost impacts.

6. Conclusions

This study addressed the challenge of integrating environmental, economic, and structural performance criteria into the sustainability-oriented optimization of an aircraft fuselage panel. A large design space of 25,410 feasible configurations was constructed by combining materials, joining methods, and thickness parameters, and evaluated using parametric LCA, Life Cycle Costing (LCC), and FEA. The proposed workflow established a unified computational framework that links high-fidelity simulations, data-driven modeling, and multi-criteria decision-making to identify the most sustainable design alternatives.

The system boundaries—defined as cradle-to-grave and including the use phase—played a pivotal role in shaping the outcomes. Since fuel consumption during aircraft operation is directly proportional to component mass, the inclusion of the use phase amplified the sustainability benefit of lightweight materials across environmental, economic, and performance criteria. As a result, the findings are highly dependent on the scope and assumptions of the study; altering the system boundaries or weighting the use-phase differently could shift the relative ranking of the optimal solutions.

Equally crucial is the definition of the design space. Material compatibility constraints, joining method feasibility, and allowable thickness ranges directly influence the credibility and relevance of the optimization results. Robust definition of these limits is essential to ensure that the resulting solutions remain realistic, manufacturable, and meaningful from an industrial perspective.

From a computational perspective, significant efficiency was achieved through the integration of surrogate modeling. A Python-automated workflow enabled the simulation of 5000 representative designs, while a Random Forest surrogate model predicted the stiffness of the remaining configurations with very high accuracy (R² ≈ 0.999). This approach reduced simulation cost dramatically without compromising precision, demonstrating scalability for even larger structural design problems.

The multi-criteria assessment revealed sensitivity to normalization and weighting strategies. Z-score, Min–Max, and Linear normalization exhibited similarly high stability. Among weighting methods, MEREC displayed consistent performance across all normalization schemes and produced the most balanced weight distribution—suitable for holistic sustainability evaluation. More dispersed weighting schemes may be preferable when prioritizing a particular dimension of sustainability.

The two optimization paths developed in this work serve complementary decision-making roles. Path A, incorporating Z-score normalization, customized clustering, intra-cluster Pareto filtering, and R-TOPSIS with equal weights, provided a detailed mapping of the sustainability landscape. It revealed 22 active clusters, spanning from High-High-High to Low-Low-Low, thus capturing the full spectrum of trade-offs between environmental, economic, and structural performance. Path B, based on global Pareto filtering followed by R-TOPSIS using Linear normalization with MEREC weighting, performed a global optimization of the full design matrix. The Pareto stage reduced the design space from 25,410 alternatives to 97 non-dominated configurations (0.38%), from which the five most sustainable solutions were identified—all thermoplastic composite panels with TP welding—confirming the dominant role of mass minimization when use-phase impacts are included.

In summary, the proposed framework successfully integrates environmental, economic, and structural objectives into a coherent and scalable sustainability-driven design methodology. The complementary outputs of Path A and Path B provide both localized cluster-level insights and global optimization capability, enabling decision-makers to explore trade-offs, quantify benefits, and select the most sustainable fuselage panel configurations with confidence.
