Article

New Insights into Evolution of Plant Heat Shock Factors (Hsfs) and Expression Analysis of Tea Genes in Response to Abiotic Stresses

by
Ping Xu
1,
Qinwei Guo
2,
Xin Pang
3,
Peng Zhang
4,
Dejuan Kong
4 and
Jia Liu
4,*
1
Department of Tea Science, Zhejiang University, Hangzhou 310058, China
2
Quzhou Academy of Agricultural Sciences, Quzhou 324000, Zhejiang, China
3
Suzhou Polytechnic Institute of Agriculture, Suzhou 215008, China
4
Wulanchabu Academy of Agricultural and Husbandry Sciences, Wulanchabu 012000, Inner Mongolia, China
*
Author to whom correspondence should be addressed.
Plants 2020, 9(3), 311; https://doi.org/10.3390/plants9030311
Submission received: 3 February 2020 / Revised: 18 February 2020 / Accepted: 26 February 2020 / Published: 2 March 2020
(This article belongs to the Special Issue Plant Molecular Phylogenetics and Evolutionary Genomics)
Browse Figures
Versions Notes

Abstract

:
Heat shock transcription factor (Hsf) is one of key regulators in plant abotic stress response. Although the Hsf gene family has been identified from several plant species, original and evolution relationship have been fragmented. In addition, tea, an important crop, genome sequences have been completed and function of the Hsf family genes in response to abiotic stresses was not illuminated. In this study, a total of 4208 Hsf proteins were identified within 163 plant species from green algae (Gonium pectorale) to angiosperm (monocots and dicots), which were distributed unevenly into each of plant species tested. The result indicated that Hsf originated during the early evolutionary history of chlorophytae algae and genome-wide genetic varies had occurred during the course of evolution in plant species. Phylogenetic classification of Hsf genes from the representative nine plant species into ten subfamilies, each of which contained members from different plant species, imply that gene duplication had occurred during the course of evolution. In addition, based on RNA-seq data, the member of the Hsfs showed different expression levels in the different organs and at the different developmental stages in tea. Expression patterns also showed clear differences among Camellia species, indicating that regulation of Hsf genes expression varied between organs in a species-specific manner. Furthermore, expression of most Hsfs in response to drought, cold and salt stresses, imply a possible positive regulatory role under abiotic stresses. Expression profiles of nineteen Hsf genes in response to heat stress were also analyzed by quantitative real-time RT-PCR. Several stress-responsive Hsf genes were highly regulated by heat stress treatment. In conclusion, these results lay a solid foundation for us to elucidate the evolutionary origin of plant Hsfs and Hsf functions in tea response to abiotic stresses in the future.

1. Introduction

In plant species, adverse environmental conditions affected seriously plant growth and development and agricultural production, such as heat, drought and cold. Among them, heat stress causes multifaceted alterations in plant germination, growth, development, physiological processes, reproduction and yield [1,2]. In plant growth, high temperature usually causes loss of cell water content, reduction in net assimilation rate (NAR) and ultimately the growth is reduced [3,4,5]. Under high temperature stress condition, plant morphological symptoms could occur, including leaf scorch, senescence and abscission, growth inhibition of shoot and root, fruit discoloration and damage [3]. However, over the long course of evolution, plants have developed numerous sophisticated mechanisms to resist this abiotic factor [6]. In recent decades, researchers reported that a lot of transcription factors in plants are participated in a mass of protective mechanisms and play a vital role in increasing the stress tolerance of crop plants [7,8,9,10,11,12]. Among them, heat shock transcription factors (Hsfs) are considered to be important regulators in the plant sensing and signaling of high temperature stress [12]. Furthermore, the studies have also shown that Hsfs are involved in plant growth and development, as well as in responses to other abiotic stresses such as cold, salt and drought [11,12,13,14,15,16].
In recent years, comprehensive identification of Hsf transcription factors from different plant species has been completed. For example, in tomato, HsfA1a plays an important role in response to high temperature [17]. Tomato HsfA2 contributes to fruit set under heat stress (HS) condition [18]. Furthermore, these two Hsfs can synergistically activate target genes by forming superactivator heterodimers [19]. In Arabidopsis, the expression level of HsfA9 was increased during embryogenesis and seed maturation [14], and HsfA5 can inhibit HsfA4 activity [12]. HsfA2 can not only increase the tolerance to heat stress and salt/osmotic stress [20], but also alleviate oxidative stress caused by heat stress [21] and the tolerance to anoxia [22]. In addition, HsfB1 and HsfB2b act as repressors for the expression of heat-inducible Hsfs but positively regulate the acquired thermotolerance [23]. In rice (Oryza sativa), HsfA4a is related to cadmium tolerance [16]; and HaHSFA9 contributes to embryogenesis in sunflowers [24].
Currently, despite significant variability in size and sequence of Hsfs, their structures and functions are high conserved in different plant species [25,26]. For the structure in plant Hsfs, the DNA-binding domain (DBD) and three helical bundles (α1, α2 and α3) in the N-terminus play a vital role in the positioning and recognition of heat shock elements (HSEs) [27,28,29]. The oligomerization domain (OD region), which is composed of a heptad pattern of hydrophobic amino acid residues, is connected to the conserved DBD by a flexible linker [12,30,31,32]. In addition, the nuclear localization signal (NLS), a leucine-rich nuclear export signal (NES) and a repressor domain (RD) exist in some Hsfs [12,33,34,35]. Among them, the NLS and NES were essential for nuclear import and nuclear export, respectively [12,33,34,35]. These results show the diversification of composition and function of Hsfs. However, the evolutionary relationship of Hsfs remains to be elucidated.
In the recent year, the researcher had identified Hsf gene family in different plant species, such as Arabidopsis, rice, wheat and Chinese cabbage [8,12,36,37]. However, the Hsf gene family in tea (Camellia sinensis L.) and their phylogenetic relationships in plant species have not been widely examined. Recently, the availability of whole genome sequencing provided an opportunity for identifying members of plant gene family [38,39,40,41]. Tea is the world’s oldest and most important caffeine-containing beverage with immense economic, medicinal and cultural importance. Recently, the genome of the tea (Camellia sinensis L.) has been fully sequenced [42], which provides an opportunity to further analyze the tea Hsf gene family. Therefore, in this study, we identified the comprehensive Hsf gene family members in tea and other plant species genome, inferred their evolutionary origin and explored their expression patterns in response to drought, cold and salt stresses based on RNA-seq data. Furthermore, we also performed expression patterns of Hsfs under heat stress using qRT-PCR technology, which has become the most reliable method of choice for gene expression analysis. The results will reveal the evolutionary relationship of Hsf gene family in plant species and lay a foundation for illuminating function of Hsf gene family members in tea.

2. Materials and Methods

2.1. Genome-Wide Identification of Plant Genes Encoding Hsf Proteins

Firstly, the Pfam database (http://pfam.sanger.ac.uk/) was used to locate the HSF_DNA-bind (PF00447) domains in Hsf proteins from a variety of organisms. The ClustalX 2.0 software (http://www.clustal.org/) was used to align key domain amino acid sequences, which were then used to generate the hidden Markov model (HMM) profiles for HMM searches with E-value cut-off of 1.0 against annotated protein databases from tea (http://tpia.teaplant.org/). Secondly, Hsfs in tea were identified using putative Hsfs from Arabidopsis as a query to BLAST against tea genome database. Thirdly, the HSF_DNA-bind domain in the Hsf members detected by the above two mehods (HMM or BLAST searches) was further confirmed by searching the Pfam database with E-value = 0.01 as the cut-off level. Finally, the conserved HSF_DNA-bind domain was detected using the SMART database (http://smart.embl-heidelberg.de/) with default parameters. These proteins confirmed by domain searches were regarded as putative HSF_DNA-bind domain-containing proteins; otherwise, these proteins were excluded. In addition, Hsfs from other 163 plant species were obtained transcript factor databases (http://planttfdb.cbi.pku.edu.cn/index.php), include chlorophytae (15), charophyta (1), Marchantiophyta (1), bryophyte (2), lycopodiophyta (1), coniferophyta (5), basal magnoliophyta (1), monocots (37) and eudicots (100) (Table S1).

2.2. Alignment and Phylogenetic Analysis

Full-length amino acid sequences of Hsf proteins from tea and other plant species were aligned using the ClustalX 2.0 software (http://www.clustal.org/) and manually edited in BioEdit. Phylogenetic tree of the Hsf gene family was constructed using three methods (Neighbor joining-NJ, maximum likelihood-ML and Bayesian). For NJ analysis, the MEGA (version 7.0) software was used with the pairwise deletion option and Poisson correction model [43]. A bootstrap test (1000 replicates) was used to evaluate the reliability of internal branches. For ML analysis, we used the software PhyML (version 3.0) with the Whelan and Goldman amino acid substitution model, g-distribution and 100 nonparametric bootstrap replicates [44]. For Bayesian analysis, the MrBayes (version 3.2.1) software was employed to construct MrBayes trees with the fixed Whelan and Goldman model, four Markov chains and an average SD of 0.01 [45]. Additionally, for ML and Bayesian analysis, model selection was performed using the ProtTest (version 2.4) software [46].

2.3. RNA-Seq Data Analysis

Expression profiles of Hsf gene family members in the 16 tea plant cultivars were identified using RNA-seq data (http://tpia.teaplant.org/), including C. assamica cv. Yunkan 10 (CSA), C. taliensis (CTA), C. tachangensis (DC), C. kwangsiensis (GX), C. crassicolumna (HZ), C. jingyunshanica (JY), C. atrothea (LH), C. sinensis cv. Longjing 43 (LJ), C. makuanica (MG), C. leptophylla (MOY), C. ptilophylla (MY), C. pubescens (RC), C. tetracocca (SQ), C. gymnogyna (TF), C. angustifolia (XAY) and C. parvisepala (XE). Additionally, the public transcriptome data of apical bud, flower, fruit, young leaf, mature leaf, old leaf, root and stem have been previously generated (http://tpia.teaplant.org/). For abiotic stresses (cold, drought, MeJA, salt), expression values were measured in reads per kilobase of exon model per million mapped reads (RPKM). Then, the RPKM values were log2-transformed and the heat map was generated using MeV software (http://mev.tm4.org/).

2.4. Plant Materials and Treatments

Tea was used for all experiments in this study. The tea seedlings were planted in greenhouse and were grown under natural light and temperature conditions. The 2-year-old seedlings were used for all treatments. For the heat treatment, seedlings were subjected to 38°C conditions. Samples for RNA extractions were collected in 0, 6, 12 and 24 h time intervals. Three biological duplications were performed.

2.5. Expression Analysis of Tea Hsfs Using qRT-PCRs

Total RNA was extracted using QIAGEN RNeasy Mini Kit. The first-strand cDNA was synthesized using Invitrogen kit. The qRT-PCRs were carried out in 20 μL of reaction mixtures. Each reaction was composed of 2 μL cDNA, 10 μL of SYBR Green qPCR Master Mix, 0.5 μM each of primers and 7μL ddH2O. These reactions were carried out using Applied Biosystems. PCR reaction conditions is as follows: 94°C for 2 min, followed by 35 cycles at 94°C for 10 s, 59°C for 10 s and 72°C for 25 s. The tea CsPTB was used as the internal control [47]. Three technology duplications for each sample were used in this experiment, and the relative expression levels were calculated using the 2−ΔΔCT method [48]. All gene-specific primers used for qRT-PCR analyses were designed by Applied Biosystems Primer Express® software. In addition, the standard curve method was used to calculate amplification efficiency (E) of each primer and correlation coefficient (R2) for all the samples tested. The equation (1 + E = 10slope) was used to calculate the data. All the primer sequences, E and R2 are listed in Table S2.

3. Result

3.1. The Tea and Other Plant Genomes Encode Different Numbers of the Hsf Family Members

To identify the tea Hsf gene family members in a genome-wide level, two methods (HMM and BLAST searches) were carried out against the whole tea genome sequences (http://tpia.teaplant.org/). The result showed that the tea genome encodes 24 HSF_DNA-bind domain-containing proteins. The details of these proteins are presented in Table 1, including locus names, genome positions, coding sequences length, amino acid sequences length, molecular weight and isoelectric point. In addition to the tea Hsf family, Hsf members from other plant genomes also identified genome-widely. The results show that the tea and other 163 plant genomes encode different numbers of the Hsf family members. A total of 4208 proteins, each containing a HSF_DNA-bind domain, in the genomes of 166 plants were identified, which were distributed unevenly into each of plant species tested. The lowest number is 1 in most of chlorophytaes green algae, and the highest number of 108 in Camelina sativa. All these results indicated that genome-wide variations of Hsfs had occurred during the course of evolution in plant species.
Comparative genomic and phylogenetic analyses of Hsfs were performed in the genomes of 9 representative plant species that cover a broad diversity of plants (Figure 1). Among these lineages of plants, Hsfs are present widely in algae, bryophyta, pteridophyta, gymnosperm and angiosperms. In green algae (Gonium pectorale) that have been sequenced, the result indicates that it constitute a plant-specific gene family that originated during the early evolutionary history of chlorophytae algae. However, the copy number of Hsf genes varies considerably among plants, ranging from one in the green algae Gonium pectorale to 25 in rice (monocot) and 21 in Arabidopsis (eudicot). Therefore, rapid expansion had occurred during the course of evolution in plant species.

3.2. Phylogenetic Classification of Hsf Genes into Ten Subfamilies

To explore the evolutionary origin of plant Hsf gene family members, phylogenetic tree with an alignment of the Hsfs from representative species were conducted using NJ, ML and Bayesian methods. Among them, ML and Bayesian analyses showed that proteins from different species cluster together in clades with high support values (not shown), with support from NJ analysis for most results. According to the results from phylogenetic, the plant Hsf genes can be divided into nine subfamilies, designated as Class Ia, Class Ib, Class Ic, Class IIa, Class IIb, Class IIc, Class IId, Class IIe, Class IIf and Class IIg (Figure 2). Among these subfamilies, Class Ia and Class IIa each contain members from the green algae to higher plants. On the other hand, Class IIb and Class IIg lack members from charophyte algae, Bryophyta and Pteridophyta. The five subfamilies, Class Ib, Class Ic, Class IIc, Class IId and Class IIf, contained members from angiosperms. In addition, Class IIe was dicot-specific group that was composed of members from Arabidopsis thaliana and Camellia sinensis.

3.3. Multiple Gene Duplication Events of Plant Hsfs

To understand the evolutionary relationships of the Hsf gene family, we further analyzed the phylogeny of these Hsfs in different plant species (Figure 2). The result showed that two members (Kf1002600030 and Kf1003110120) from Class Ia and Class IIa family, respectively, were two sister groups. The chlorophytae algae, Gonium pectorale, as an outgroup separate from sister groups. Therefore, it is most likely that Class Ia and Class IIa were derived from gene duplication before the divergence of extant chlorophytae algaes but after the separation of chlorophytae algae from other land plants.
Additionally, in the Class Ia subfamily, two clades with nine Hsfs (MA8812600g0010, MA8892661g0010, MA11527g0010, MA13910g0010, MA113508g0010, MA9434330g0010 and MA10100585g0010, MA5374g0010 and MA110587g0010) were gymnosperm-specific, suggesting that at least two duplication events have occurred during the course of evolution in gymnosperm. For Class Ib and Class Ic, they are from dicots and monocots. The result showed that two duplicated events had occurred in angiosperms. For Class II family, at two duplicated events had occurred in seed plants, which formed two different subfamilies (Class IIb and Class IIf) (Figure 2). Subsequently, at least one duplicated event occurred in each of these two subfamilies and formed Class IIc and Class IIg subfamilies. In addition, we also found that lineage-specific duplication in angiosperms (Class IId) and dicots (Class IIe). Together, members of Hsfs gene family in plant species experienced multiple gene duplication events during the course of evolution.
Additionally, the difference in abundance of these Hsf members was observed among these ten classes. Class Ia is the largest one with 29 Hsfs, including 4 from eudicots (Arabidopsis thaliana and Camellia sinensis) and 6 from monocots (Oryza sativa and Ananas comosus). Class IIa was the second largest group. It was composed of 28 Hsfs including 7 from eudicots (Arabidopsis thaliana and Camellia sinensis) and 11 from monocots (Oryza sativa and Ananas comosus). In contrast, Class Ib, Ic, IIb, IIc, IId, IIe, IIf and IIg were only constituted of 9, 12, 10, 16, 5, 5, 5 and 9 genes, respectively, which was significantly less than Class Ia and IIa (Figure 2). The result showed that expansion event of plant Hsf gene family had occurred unequally in a class-dependent manner during evolution.

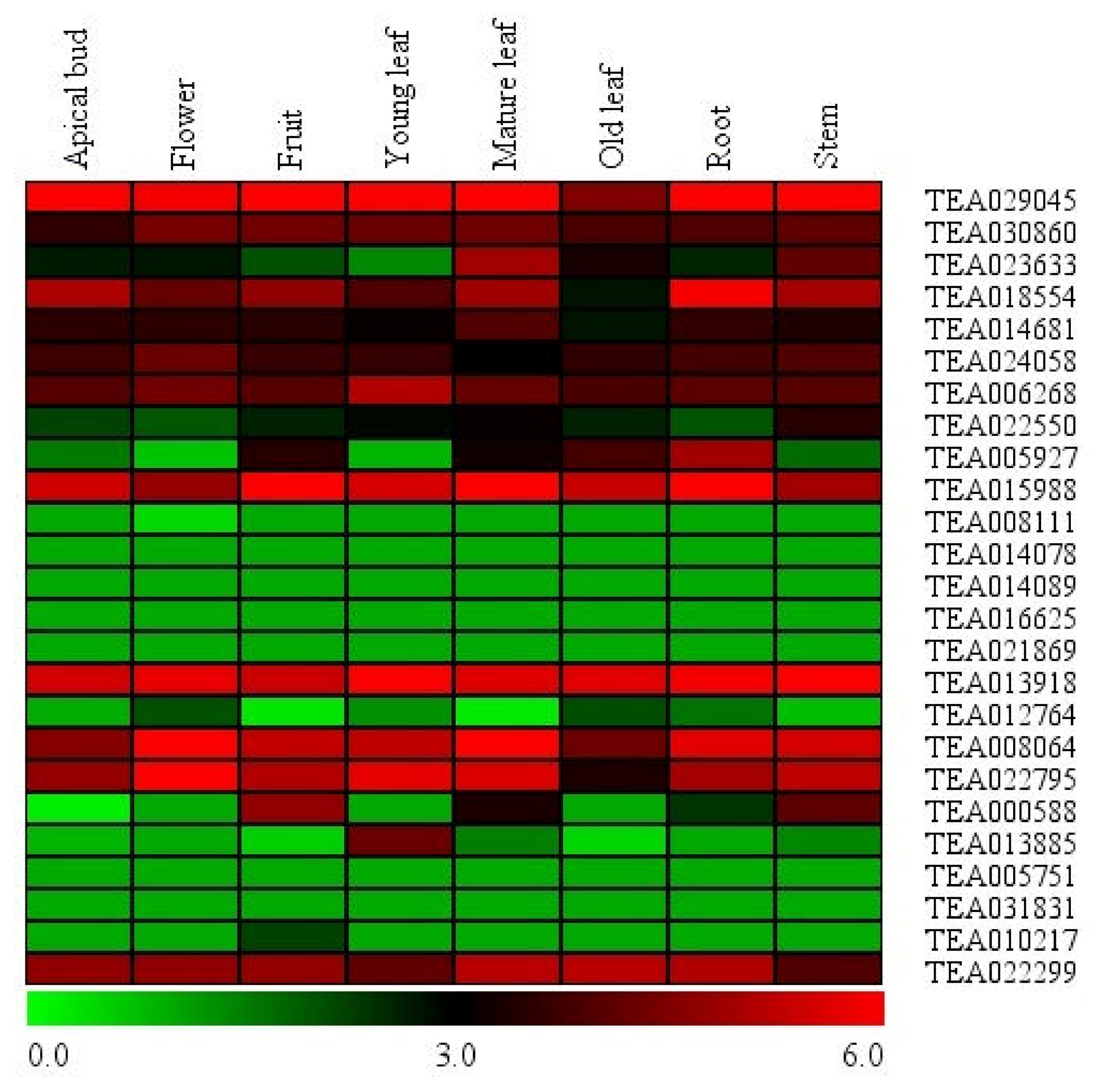

3.4. Expression Analysis of Tea Hsf Transcription Factors in Global Transcriptome

To explore expression patterns of the Hsf genes in the tea tissues, a global transcription profile of the Hsf gene family members in eight organs were performed based on RNA-seq data. As illustrated in Figure 3, relative high expression levels of at least 11 Hsf gene family members were observed and the mean of the log-signal values of each gene is within the range of 3 to 6. On the contrary, nine genes show relatively low expression levels with the mean of the log-signal values of each gene ranging from zero to 1. Expression of the remaining five Hsfs showed tissue-specific. For example, expression of the TEA030860 and TEA022550 were in flower, mature leaf, old leaf and stem, TEA005927 in fruit, mature leaf, old leaf and root, TEA000588 in fruit, mature leaf and root, TEA013885 only in young leaf. These results indicated that at least half of Hsf genes were involved in plant growth and development.

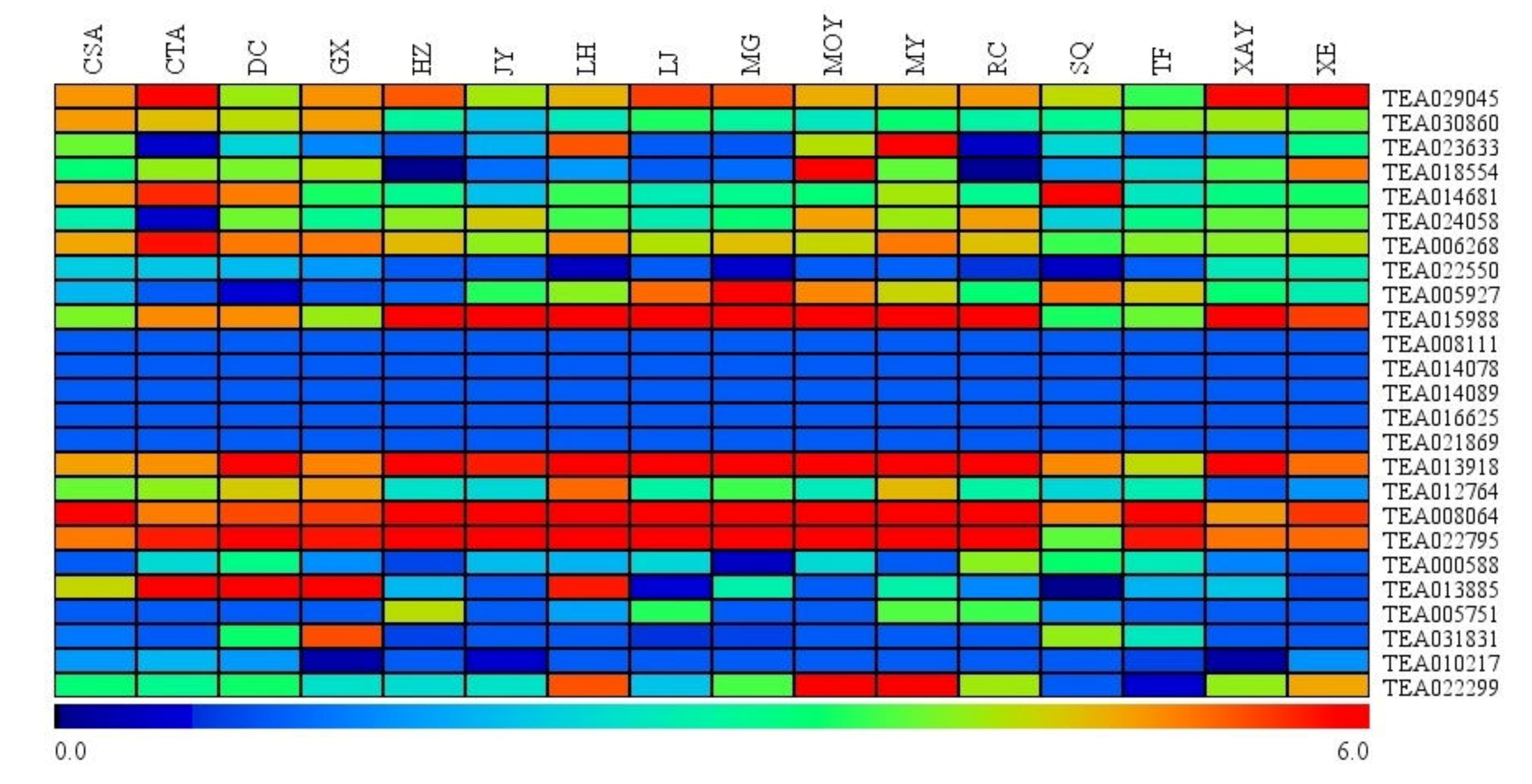

3.5. Expression of Hsfs among Leaves of Closely Representative Camellia Species

To further elucidate whether inter-specific expression variation of Hsf transcription factors were occurred in Camellia, a total of 16 closely representative Camellia species (C. assamica cv. Yunkan 10 (CSA), C. taliensis (CTA), C. tachangensis (DC), C. kwangsiensis (GX), C. crassicolumna (HZ), C. jingyunshanica (JY), C. atrothea (LH), C. sinensis cv. Longjing 43 (LJ), C. makuanica (MG), C. leptophylla (MOY), C. ptilophylla (MY), C. pubescens (RC), C. tetracocca (SQ), C. gymnogyna (TF), C. angustifolia (XAY), C. parvisepala (XE)) were selected for analyses. As illustrated in Figure 4, relatively high expression levels were observed in eight Hsf genes in all the samples tested, including TEA029045, TEA030860, TEA014681, TEA006268, TEA015988, TEA013918, TEA008064 and TEA022795, whereas six Hsfs (TEA008111, TEA014078, TEA014089, TEA016625, TEA021869 and TEA010217) showed low expression levels. Expression levels of the remaining 11 Hsfs vary significantly among leaves of 16 closely representative Camellia species. The result suggested that almost a half of Hsfs could have functional variations in different Camellia species.

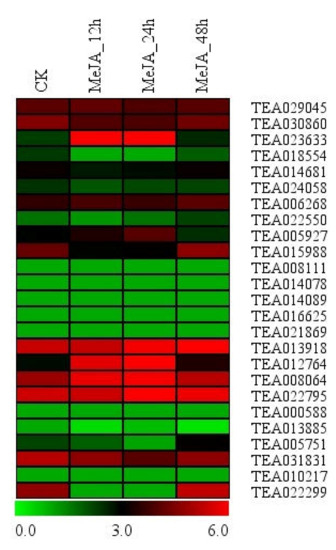

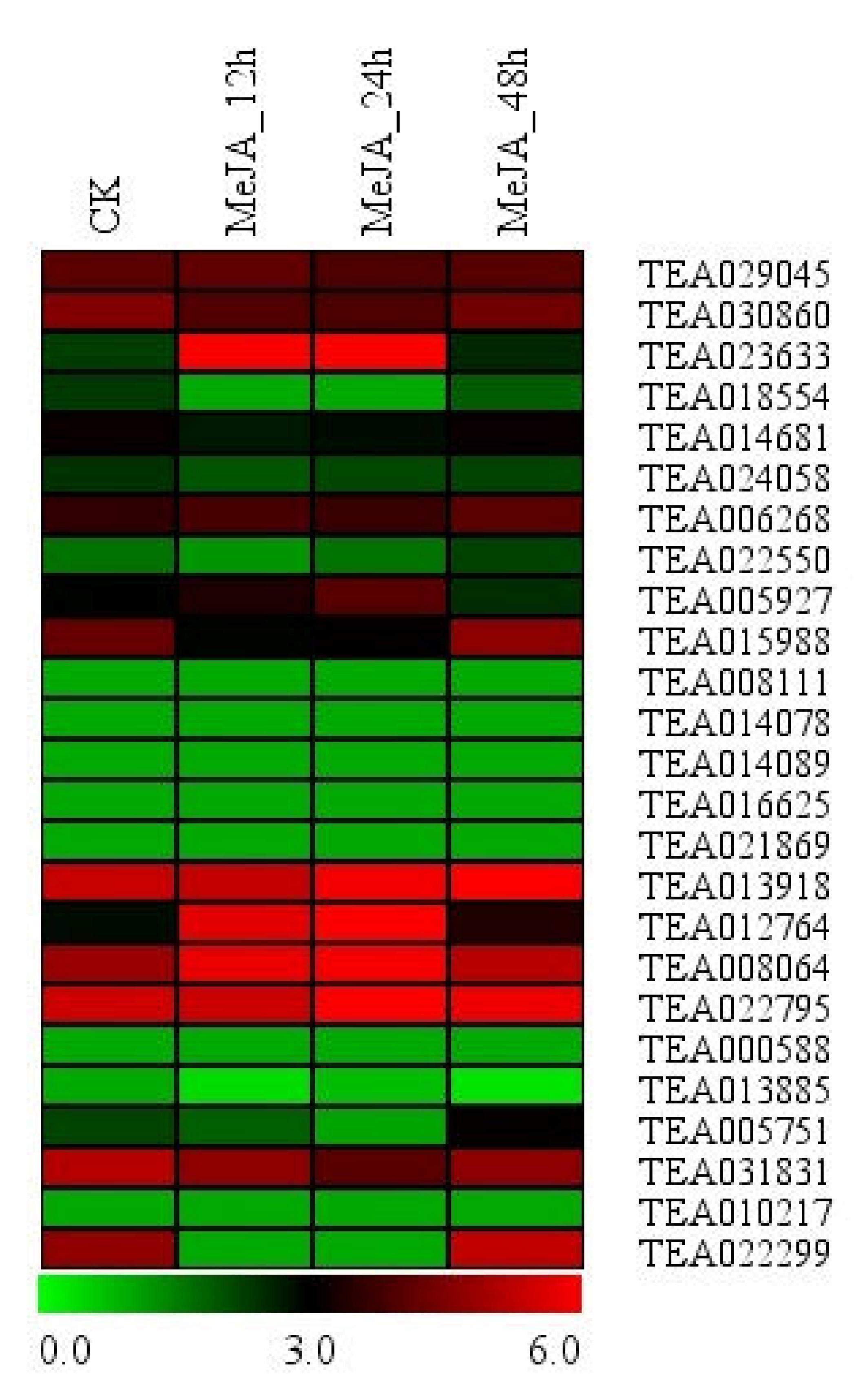

3.6. Expression of Hsfs in Response to Hormone Treatment

Previous researches had shown that phytohormones, including auxins, cytokinins (CKs), gibberellins (GAs), salicylic acid (SA), jasmonic acid (JA), ethylene (ET), abscisic acid (ABA) and brassinosteroids (BRs), play key roles in regulating plant physiology growth, development, adaptation to environmental stimuli and intricate signaling networks involved in responses to diverse stresses [49,50,51,52,53,54,55,56]. In the current study, we investigated the expression patterns of HSF transcription factors in response to MeJA treatment. As illustrated in Figure 5, we found that expression of nineteen Hsfs was not induced by exogenous MeJA treatment. Among them, nine Hsfs showed low expression levels, while expression levels of eight were high. The remaining six genes were induced significantly by MeJA treatment. For these three Hsfs (TEA023633, TEA055927 and TEA012764), their expression levels were enhanced at MeJA_12h and MeJA_24h and decreased at MeJA_48h; while the TEA022299 and TEA015988 were the opposite. Expression levels of the TEA005751was increased at MeJA_48h.

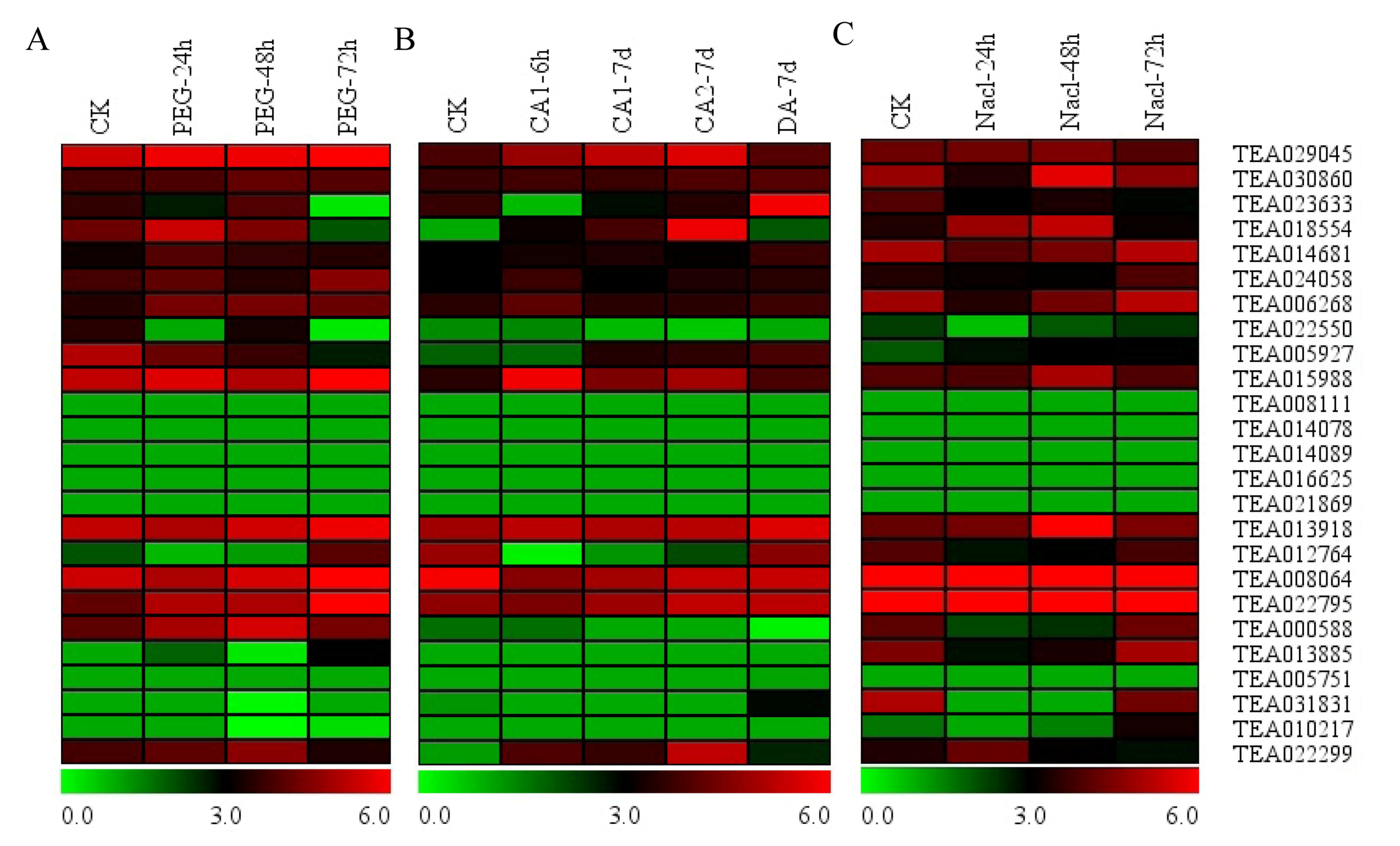

3.7. Expression of Hsfs in Response to PEG, Cold and Nacl Treatments

Abiotic stresses (drought, cold and salt) affected the plant growth and development and were the major factor limiting crop production [57,58,59,60,61,62,63,64]. As a kind of important transcription factor, plant Hsf proteins can regulate the expression of heat shock proteins and many other stress-related genes. The result was shown in Figure 6. To illustrate the roles of Hsf gene family members in abiotic stresses, the RNA-seq data of tea under three treatments (PEG, cold and NaCl) have been selected (Figure 6). Interestingly, similar expression patterns of most of the Hsf genes were observed in tea, whereas although some differences in expression patterns can be carefully shown. Expression levels of four Hsfs (TEA023633, TEA018554, TEA005927 and TEA02299) were increased at PEG_24h and PEG_48h and decreased at PEG_72h, while the two Hsfs (TEA012764 and TEA013855) were the opposite. Expression levels of the Hsf (TEA022550) was enhanced at PEG_48h and decreased at PEG_24h and PEG_72h (Figure 6A).
To discover the Hsf genes response to cold stress in tea, differentially expressed genes were detected using RNA-seq data. Among these Hsfs, only six genes were induced by cold treatment (Figure 6B). Expression levels of two Hsfs (TEA018554 and TEA02299) were increased at CA1-6h, CA1-7d and CA2-7d and decreased at DA-7d, while the Hsf (TEA012764) were the opposite. The expression levels of two Hsfs (TEA023633 and TEA005927) increased gradually during the cold treatment. The HSF (TEA031831) was only induced at DA-7d.
For salt stress treatment, we found that more Hsfs were induced based on RNA-seq data (Figure 6C). The expression levels of three Hsfs (TEA012764, TEA013855 and TEA000588) decreased at Nacl_24h and Nacl_48h and increased at Nacl_72h, while the four Hsfs (TEA018554, TEA015998, TEA013918 and TEA022299) show opposite tendency. Expression levels of two Hsfs (TEA006268 and TEA005927) were increased, while the Hsf (TEA023633) was decreased gradually. In addition, two Hsfs (TEA024058 and TEA010217) were only induced at Nacl_72h. These results indicate that plant Hsf gene family members play potential roles in response to multiple stresses, including drought, cold and salt.

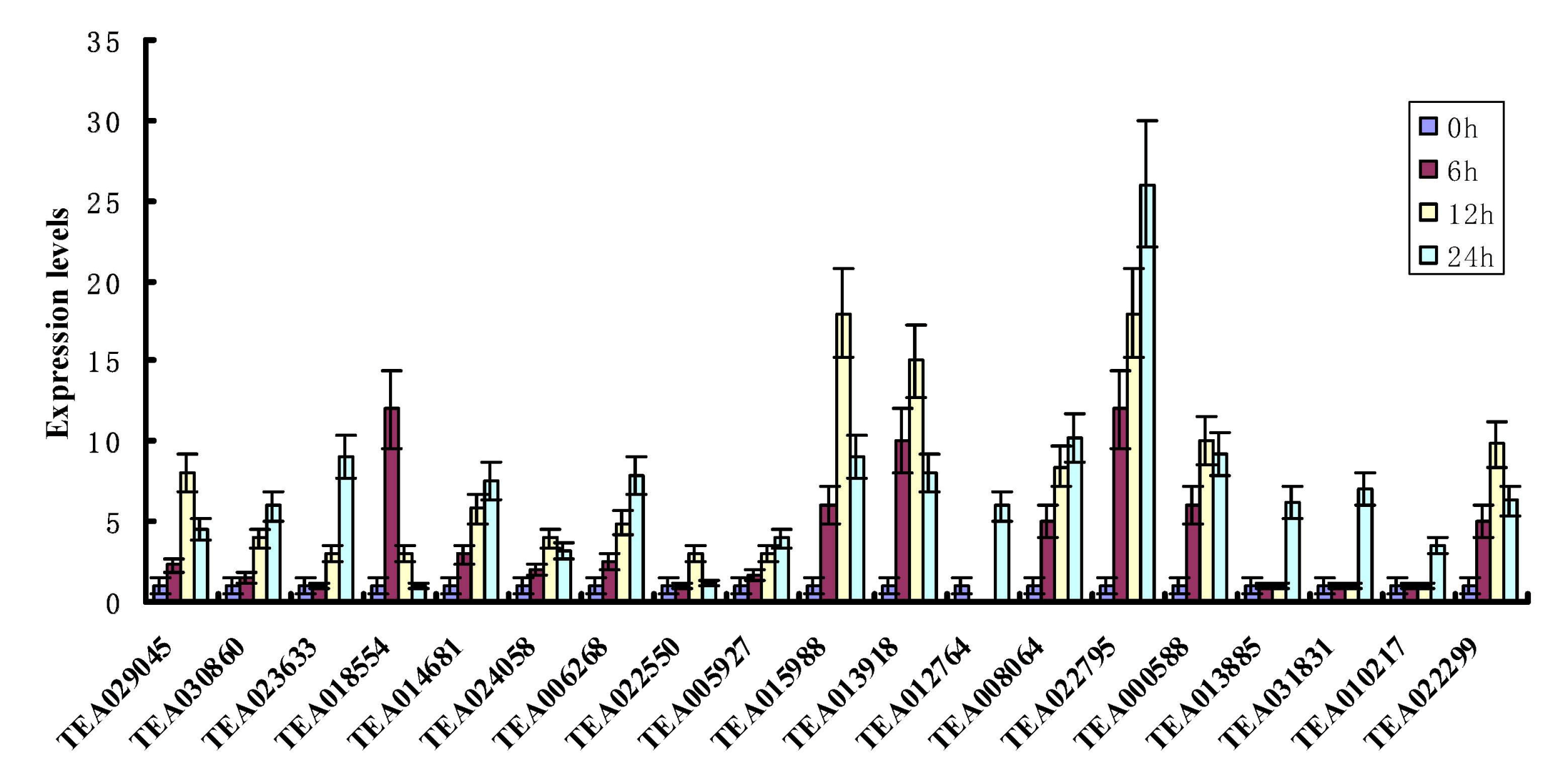

3.8. qRT-PCR Analyses of Tea Hsf Genes under Heat Stress Condition

The plant growth and development were seriously also affected by high temperature [65,66,67,68,69,70,71,72]. In our study, nineteen of Hsf gene family members, which were expressed in different tea tissues, were selected to further confirm their expression patterns in heat stress response. The qRT-PCR was performed using tea plants exposed to high temperature (38°C) for 0, 6, 12 and 24 h. To make the data more accurate, the specificity of the primers was detected. The result showed single products of expected length using melting curve analysis method (Table S2). Moreover, in the absence of template amplification, we did not observe non-specific amplicons and no primer dimers. In addition, qRT-PCR analysis further showed that amplification efficiency (E) of the nineteen Hsf genes ranged from 0.94 for TEA018554 to 1.03 for TEA012764, correlation coefficients (R2) ranged from 0.9968 for TEA023633 to 0.9999 for TEA029045 and the melting temperature (Tm) ranged from 82.54 °C for TEA014681 to 86.95 °C for TEA000588 (Table S2). Therefore, these pairs of primers are suitable for detecting Hsf expression levels at high temperatures. In this study, we found that these Hsf genes expressed diversely under heat stress (Figure 7). The expression of 7 Hsfs reached its peak at 12h after heat stress, including TEA029045, TEA024058, TEA022550, TEA015988, TEA013918, TEA000588 and TEA022299; Eight genes (TEA030860, TEA023633, TEA014681, 006268, TEA005927, TEA008064, TEA022795 and TEA022795) at 24h after heat stress and only one Hsf (TEA018554) at 6h after heat stress. The remaining three Hsfs (TEA013885, TEA031831 and TEA010217) were not induced at 6 h and 12 h after heat stress treatment, but its expression level was significantly increased at 24 h.

4. Discussion

Plant Hsfs play key roles in the developmental regulation and in response to abiotic stresses. Although plant genomes encode multiple members, the evolutionary origin and phylogenetic relationship of Hsfs are not yet fully explored. In the current study, a comprehensive phylogenetic analysis of the Hsf gene family from algae, Bryophyta, Pteridophyta, gymnosperm and angiosperms was performed using bioinformatics method. All the genes were clustered into ten groups (Class Ia to Ic, Class IIa to IIg). Although evolution and phylogenetic relationship of Hsfs in different plant species have been reported, none of these studies addressed the possible original and the early evolution of plant Hsfs. Based on the gene number variation and phylogenetic relationship analyses of Hsf family members among different plant species, we concluded that the origin of plant Hsfs occurred in chlorophytae and a first gene duplication event occurred in the common ancestor of Charophyceae. The result indicated that this duplication event may occur in a terrestrial environment. First, one of the Hsfs from chlorophytae algae gradually evolved into the two members. Subsequently, these two members evolved into multiple members, further forming multiple subfamiles through gene expansion or genome duplication event. Moreover, we also found that these multiple gene subfamilies may occur in the ancestor of the embryophytes (Figure 2).
To understand gene expression variation of Hsf genes in tea intra/inter-species, a total of sixteen accessions were selected for analyses. In our study, expression patterns of Hsfs showed clear differences among Camellia species, indicating that regulation of Hsf gene expression varied between organs in a species-specific manner. Moreover, Figure 3 also showed that, among 21 Hsfs, eight Hsfs (TEA029045, TEA030860, TEA014681, TEA006268, TEA015988, TEA013918, TEA008064 and TEA022795) have relatively high expression levels in the sixteen cultivars. Thus, we inferred that these eight Hsfs, notably for TEA008064 and TEA022795, whose RPKM value > 200 in ‘JY’, are likely participated in special physiological or biochemical pathways [23,73,74]. Additionally, the researcher also reported that, under normal/non-stress conditions, HsfA2 with high transcript levels could activate expression of heat shock protein promoter-driven reporter genes [37]. Therefore, these two Hsfs also possibly play the indispensable roles in all the species tested since they show high expression levels (Figure 3).
Tissue/organ-specific expression analysis can provide vital clues about the function differentiation of the genes in different tissue/organs [75,76,77,78,79,80]. In this study, to explore expression levels of Hsf family members in different tea tissues and organs, expression pattern of tea Hsfs was carried out using the previous RNA-seq data published, which was downloaded from the tea genome database (http://tpia.teaplant.org/). The result revealed that most of tea Hsf gene family members were expressed in all tissues and organs tested. Moreover, expression of some tea Hsf gene family members showed the highest level in roots and the lowest level in buds (Figure 3). All these results suggested that the Hsfs involved widely in the growth and development of tea plants.
In the recent years, the biological functions of some Hsfs in plant response to multiple stresses have also been identified. For example, in tomato, HSFA1a, together with HSFA2 and HSFB1, regulated different aspects in the HS response and recovery. Therefore, it was considered as a master regulator for acquired thermotolerance. [18]. However, in Arabidopsis, none of the four HSFA1 proteins were found to play an important role as a master regulator [12]. In addition, for HSFA2 and HSFA3 in Arabidopsis, the research reported that these two Hsfs not only played a role in the response to heat stress, but also were involved in drought stress signaling and other stress responses [15,20]. Additionally, the qRT-PCR technology has become the most reliable method of choice for gene expression analysis in term of multiple distinct characteristics, such as a large dynamic range, high sensitivity and sequence specificity [81]. In the current study, the RNA-seq and qRT-PCR were used to investigate the expression patterns of Hsfs in abiotic stresses. The result showed that nine Hsfs (TEA029045, TEA030860, TEA014681, TEA024058, TEA006268, TEA015988, TEA013918, TEA008064 and TEA022795) enhances their expression levels under these three stress conditions including drought, cold and salt stresses (Figure 6), implying a possible positive regulatory role under abiotic stresses. Four Hsfs showed similar expression patterns under drought, cold and salt stress conditions, indicating conserved roles in response to these abiotic stresses; while seven Hsfs showed different expression patterns among these stresses, suggesting that function of tea Hsf genes were stress-specific.
Under HS conditions, plants not only accumulate different metabolites (such as antioxidants, osmoprotectants, etc.), but also activate different metabolic pathways and physiological and biochemical processes. These modifications by gene expression changes could lead to the development of heat tolerance to adaptation [82,83]. Notably, at extreme HS, due to denaturation or aggregation of the kinds of proteins, programmed cell death (PCD), which leads to the leaf shedding, or even death of the entire plant, may occur within hours or even minutes in plant species [3,14]. Therefore, in this article, we focus on, under the condition of extreme high temperature, gene expression changes of Hsfs in a short time (24h). As illustrated in Figure 7, the expression levels of the Hsf gene family members were much higher under heat treatment than under normal condition. Among them, expression level of the tea Hsf-TEA006268 was up-regulated significantly by HS, which agrees with that observed in Arabidopsis [84]. The result may explain the gradual upregulation of TEA006268 expression with prolonged HS. In addition, previous researchers reported that over-expression of HsfA6 transcription factor, which has highest expression level in all the tested Hsfs during HS, can enhance thermotolerance in wheat [37,84]. For these Hsfs from tea, we found that expression level of TEA022795 was significantly higher than that of the control and showed the largest increment among the Hsf genes tested. Therefore, we deduce that the TEA022795 gene may have a similar role in regulating the heat resistance of tea as the HsfA6 transcription factor.

5. Conclusions

In this study, comprehensive Hsf family members were identified in tea and other different plant species and their phylogenetic relationship from representative plant species was further investigated using bioinformatic methods. We concluded that the origin of plant Hsfs occurred in chlorophytae and a first gene duplication event occurred in the common ancestor of Charophyceae. In addition, the expression profiles of Hsfs suggested that majority Hsfs were involved in development of underground parts and regulation of reproductive growth in tea. Furthermore, significant divergence of expression levels of Hsf genes was observed under different abiotic stress conditions. These identification and function analysis will serve a better understanding of molecular basis for tea genetic improvement and evolution relationship in plant species.

Supplementary Materials

The following are available online at https://www.mdpi.com/2223-7747/9/3/311/s1. Table S1: Amino acid sequences of Hsf proteins in all the genomes tested. Table S2: Primers used to detect the expression of tea Hsf genes in this study.

Author Contributions

P.X. and J.L. conceived and designed the research. P.X., Q.G. and X.P. performed the experiments. P.X., P.Z. and D.K. analyzed the data and wrote the paper. P.X. and J.L. revised the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported by the National Natural Science Foundation of China (31960601) and Natural Science Foundation of Inner Mongolia Autonomous Region of China (2017MS0374).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Wahid, A.; Gelani, S.; Ashraf, M.; Foolad, M. Heat tolerance in plants: An overview. Environ. Exp. Bot. 2007, 61, 199–223. [Google Scholar] [CrossRef]
  2. Allakhverdiev, S.I.; Kreslavski, V.D.; Klimov, V.V.; Los, D.A.; Carpentier, R.; Mohanty, P. Heat stress: An overview of molecular responses in photosynthesis. Photosynth. Res. 2008, 98, 541–550. [Google Scholar] [CrossRef] [PubMed]
  3. Rodríguez, M.; Canales, E.; Borrás-Hidalgo, O. Molecular aspects of abiotic stress in plants. Biotechnol. Appl. 2005, 22, 1–10. [Google Scholar]
  4. Ashraf, M.; Hafeez, M. Thermotolerance of pearl millet and maize at early growth stages: Growth and nutrient relations. Biol. Plant 2004, 48, 81–86. [Google Scholar] [CrossRef]
  5. Srivastava, S.; Pathak, A.D.; Gupta, P.S.; Shrivastava, A.K.; Srivastava, A.K. Hydrogen peroxide-scavenging enzymes impart tolerance to high temperature induced oxidative stress in sugarcane. J. Environ. Biol. 2012, 33, 657–661. [Google Scholar]
  6. Boyer, J.S. Plant productivity and environment. Science 1982, 218, 443–448. [Google Scholar] [CrossRef]
  7. Century, K.; Reuber, T.L.; Ratcliffe, O.J. Regulating the regulators: The future prospects for transcription-factor-based agricultural biotechnology products. Plant Physiol. 2008, 147, 20–29. [Google Scholar] [CrossRef] [Green Version]
  8. Chauhan, H.; Khurana, N.; Agarwal, P.; Khurana, P. Heat shock factors in rice (Oryza sativa L.): Genome-wide expression analysis during reproductive development and abiotic stress. Mol. Genet. Genom. 2011, 286, 171–187. [Google Scholar] [CrossRef]
  9. Chung, E.; Kim, K.M.; Lee, J.H. Genome-wide analysis and molecular characterization of heat shock transcription factor family in Glycine max. J. Genet. Genom. 2013, 40, 127–135. [Google Scholar] [CrossRef]
  10. Jin, G.H.; Gho, H.J.; Jung, K.H. A systematic view of rice heat shock transcription factor family using phylogenomic analysis. J. Plant Physiol. 2013, 170, 321–329. [Google Scholar] [CrossRef]
  11. Von Koskull-Döring, P.; Scharf, K.-D.; Nover, L. The diversity of plant heat stress transcription factors. Trends Plant Sci. 2007, 12, 452–457. [Google Scholar] [CrossRef] [PubMed]
  12. Scharf, K.-D.; Berberich, T.; Ebersberger, I.; Nover, L. The plant heat stress transcription factor (Hsf) family: Structure, function and evolution. Biochim. Biophys. Acta 2012, 1819, 104–119. [Google Scholar] [CrossRef] [PubMed]
  13. Kotak, S.; Larkindale, J.; Lee, U.; von Koskull-Döring, P.; Vierling, E.; Scharf, K.-D. Complexity of the heat stress response in plants. Curr. Opin. Plant Biol. 2007, 10, 310–316. [Google Scholar] [CrossRef] [PubMed]
  14. Kotak, S.; Vierling, E.; Bäumlein, H.; von Koskull-Döring, P. A novel transcriptional cascade regulating expression of heat stress proteins during seed development of Arabidopsis. Plant Cell 2007, 19, 182–195. [Google Scholar] [CrossRef] [Green Version]
  15. Nishizawa, A.; Yabuta, Y.; Yoshida, E.; Maruta, T.; Yoshimura, K.; Shigeoka, S. Arabidopsis heat shock transcription factor A2 as a key regulator in response to several types of environmental stress. Plant J. 2006, 48, 535–547. [Google Scholar] [CrossRef]
  16. Shim, D.; Hwang, J.-U.; Lee, J.; Lee, S.; Choi, Y.; An, G.; Martinoia, E.; Lee, Y. Orthologs of the class A4 heat shock transcription factor HsfA4a confer cadmium tolerance in wheat and rice. Plant Cell 2009, 21, 4031–4043. [Google Scholar] [CrossRef] [Green Version]
  17. Mishra, S.K.; Tripp, J.; Winkelhaus, S.; Tschiersch, B.; Theres, K.; Nover, L.; Schar, K.D. In the complex family of heat stress transcription factors, HsfA1 has a unique role as master regulator of thermotolerance in tomato. Genes Dev. 2002, 16, 1555–1567. [Google Scholar] [CrossRef] [Green Version]
  18. Giorno, F.; Wolters-Arts, M.; Grillo, S.; Scharf, K.D.; Vriezen, W.H.; Mariani, C. Developmental and heat stress-regulated expression of HsfA2 and small heat shock proteins in tomato anthers. J. Exp. Bot. 2010, 61, 453–462. [Google Scholar] [CrossRef] [Green Version]
  19. Chan-Schaminet, K.Y.; Baniwal, S.K.; Bublak, D.; Nover, L.; Scharf, K.D. Specific interaction between tomato HsfA1 and HsfA2 creates hetero-oligomeric superactivator complexes for synergistic activation of heat stress gene expression. J. Biol. Chem. 2009, 284, 20848–20857. [Google Scholar] [CrossRef] [Green Version]
  20. Ogawa, D.; Yamaguchi, K.; Nishiuchi, T. High-level overexpression of the Arabidopsis HsfA2 gene confers not only increased themotolerance but also salt/osmotic stress tolerance and enhanced callus growth. J. Exp. Bot. 2007, 58, 3373–3383. [Google Scholar] [CrossRef] [Green Version]
  21. Zhang, L.; Li, Y.; Xing, D.; Gao, C. Characterization of mitochondrial dynami cs and subcellul ar localization of ROS reveal that HsfA2 alleviates oxidative damage caused by heat stress in Arabidopsis. J. Exp. Bot. 2009, 60, 2073–2091. [Google Scholar] [CrossRef] [Green Version]
  22. Banti, V.; Mafessoni, F.; Loreti, E.; Alpi, A.; Perata, P. The heat-inducible transcription factor HsfA2 enhances anoxia tolerance in Arabidopsis. Plant Physiol. 2010, 152, 1471–1483. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Ikeda, M.; Mitsuda, N.; Ohme-Takagi, M. Arabidopsis HsfB1 and HsfB2b act as repressors for the expression of heat-inducible Hsfs but positively regulate the acquired thermotolerance. Plant Physiol. 2011, 157, 1243–1254. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Almoguera, C.; Rojas, A.; Diaz-Martin, J.; Prieto-Dapena, P.; Carranco, R.; Jordano, J. A seed-specific heat-shock transcription factor involved in developmental regulation during embryogenesis in sunflower. J. Biol. Chem. 2002, 277, 43866–43872. [Google Scholar] [CrossRef] [Green Version]
  25. Lin, Y.X.; Jiang, H.Y.; Chu, Z.X.; Tang, X.L.; Zhu, S.W.; Cheng, B.J. Genome-wide identification; classification and analysis of heat shock transcription factor family in maize. BMC Genom. 2011, 12, 76. [Google Scholar] [CrossRef] [Green Version]
  26. Baniwal, S.K.; Bharti, K.; Chan, K.Y.; Fauth, M.; Ganguli, A.; Kotak, S.; Mishra, S.K.; Nover, L.; Port, M.; Scharf, K.D.; et al. Heat stress response in plants: A complex game with chaperones and more than twenty heat stress transcription factors. J. Biosci. 2004, 29, 471–487. [Google Scholar] [CrossRef]
  27. Harrison, C.J.; Bohm, A.A.; Nelson, H.C. Crystal structure of the DNA binding domain of the heat shock transcription factor. Science 1994, 263, 224–227. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  28. Vuister, G.W.; Kim, S.J.; Wu, C.; Bax, A. NMR evidence for similaritie s between the DNA-bindi ng regions of Drosophila melanogaster heat shock factor and the helix- turn- helix and HNF-3/forkhead families of transc ription factors. Biochemistry 1994, 33, 10–16. [Google Scholar] [CrossRef] [PubMed]
  29. Schultheiss, J.; Kunert, O.; Gase, U.; Scharf, K.D.; Nover, L.; Rüterjans, H. Solution structur e of the DNA-binding domain of the tomato heat-stress transcription factor HSF24. Eur. J. Biochem. 1996, 236, 911–921. [Google Scholar] [CrossRef]
  30. Peteranderl, R.; Rabenstein, M.; Shin, Y.K.; Liu, C.W.; Wemmer, D.E.; King, D.S.; Nelson, H.C. Biochemical and biophysical characterization of the trimerization domain from the heat shock transcription factor. Biochemistry 1999, 38, 3559–3569. [Google Scholar] [CrossRef]
  31. Nover, L.; Bharti, K.; Döring, P.; Mishra, S.K.; Ganguli, A.; Scharf, K.D. Arabidopsis and the heat stress transcription factor world: How many heat stress transcription factors do we need? Cell Stress Chaperones 2001, 6, 177–189. [Google Scholar] [CrossRef]
  32. Nover, L.; Scharf, K.D.; Gagliardi, D.; Vergne, P.; Czarnecka-Verner, E.; Gurley, W.B. The Hsf world: Classification and properties of plant heat stress transcription factors. Cell Stress Chaperones 1996, 1, 215–223. [Google Scholar] [CrossRef]
  33. Lyck, R.; Harmening, U.; Höhfeld, I.; Treuter, E.; Scharf, K.D.; Nover, L. Intracellular distribution and identification of the nuclear localization signals of two plant heat-stress transcription factors. Planta 1997, 202, 117–125. [Google Scholar] [PubMed]
  34. Heerklotz, D.; Döring, P.; Bonzelius, F.; Winkelhaus, S.; Nover, L. The balance of nuclear import and export determines the intracellular distribution and function of tomato heat stress transcription factor HsfA2. Mol. Cell Biol. 2001, 21, 1759–1768. [Google Scholar] [CrossRef] [Green Version]
  35. Kotak, S.; Port, M.; Ganguli, A.; Bicker, F.; von Koskull-Döring, P. Characterization of C-terminal domains of Arabidopsis heat stress transcription factors (Hsfs) and identification of a new signature combination of plant class A Hsfs with AHA and NES motifs essential for activator function and intracellular localization. Plant J. 2004, 39, 98–112. [Google Scholar] [CrossRef]
  36. Song, X.; Liu, G.; Duan, W.; Liu, T.; Huang, Z.; Ren, J.; Li, Y.; Hou, X.L. Genome-wide identification, classification and expression analysis of the heat shock transcription factor family in Chinese cabbage. Mol. Genet. Genom. 2014, 289, 541–551. [Google Scholar] [CrossRef]
  37. Xue, G.P.; Sadat, S.; Drenth, J.; McIntyre, C.L. The heat shock factor family from Triticum aestivum in response to heat and other major abiotic stresses and their role in regulation of heat shock protein genes. J. Exp. Bot. 2014, 65, 539–557. [Google Scholar] [CrossRef] [Green Version]
  38. Lu, T.; Zhang, G.; Sun, L.; Wang, J.; Hao, F. Genome-wide identification of CBL family and expression analysis of CBLs in response to potassium deficiency in cotton. Peer J. 2017, 5, e3653. [Google Scholar] [CrossRef] [Green Version]
  39. Chen, M.Y.; Li, K.; Li, H.P.; Song, C.P.; Miao, Y.C. The Glutathione peroxidase gene family in Gossypium hirsutum: Genome-wide identification classification gene expression and functional analysis. Sci. Rep. 2017, 7, 44743. [Google Scholar]
  40. Sun, Q.; Wang, G.H.; Zhang, X.; Zhang, X.R.; Qiao, P.; Long, L.; Yuan, Y.L.; Cai, Y.F. Genome-wide identification of the TIFY gene family in three cultivated Gossypium species and the expression of JAZ genes. Sci. Rep. 2017, 7, 42418. [Google Scholar] [CrossRef]
  41. Guo, Y.W.; Guo, H.L.; Li, X.; Huang, L.L.; Zhang, B.N.; Pang, X.B.; Liu, B.Y.; Ma, L.Q.; Wang, H. Two type III polyketide synthases from Polygonum cuspidatum: Gene structure evolutionary route and metabolites. Plant Biotech. Rep. 2013, 7, 371–381. [Google Scholar] [CrossRef]
  42. Wei, C.; Yang, H.; Wang, S.; Zhao, J.; Liu, C.; Gao, L.; Xia, E.; Lu, Y.; Tai, Y.; She, G.; et al. Draft genome sequence of Camellia sinensis var. sinensis provides insights into the evolution of the tea genome and tea quality. Proc. Natl. Acad. Sci. USA 2018, 115, E4151–E4158. [Google Scholar] [PubMed] [Green Version]
  43. Kumar, S.; Stecher, G.; Tamura, K. MEGA7: Molecular evolutionary genetics analysis version 7.0 for bigger datasets. Mol. Biol. Evol. 2016, 33, 1870–1874. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Guindon, S.; Gascuel, O. A simple, fast, and accurate algorithm to estimate large phylogenies by maximum likelihood. Syst. Biol. 2003, 52, 696–704. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. Ronquist, F.; Huelsenbeck, J.P. MrBayes 3: Bayesian phylogenetic inference under mixed models. Bioinformatics 2003, 19, 1572–1574. [Google Scholar] [CrossRef] [Green Version]
  46. Abascal, F.; Zardoya, R.; Posada, D. ProtTest: Selection of best-fit models of protein evolution. Bioinformatics 2005, 21, 2104–2105. [Google Scholar] [CrossRef] [Green Version]
  47. Wang, L.; Cao, H.; Qian, W.; Yao, L.; Hao, X.; Li, N.; Yang, Y.; Wang, X. Identification of a novel bZIP transcription factor in Camellia sinensis as a negative regulator of freezing tolerance in transgenic Arabidopsis. Ann. Bot. 2017, 119, 1195–1209. [Google Scholar] [CrossRef] [Green Version]
  48. Livak, K.J.; Schmittgen, T.D. Analysis of relative gene expression data using real-time quantitative PCR and the 2−ΔΔCT method. Methods 2001, 25, 402–408. [Google Scholar] [CrossRef]
  49. Li, K.; Yang, F.B.; Miao, Y.C.; Song, C.P. Abscisic acid signaling is involved in regulating the mitogen-activated protein kinase cascade module AIK1-MKK5-MPK6. BMC Plant Biol. 2017, 12, 5. [Google Scholar] [CrossRef]
  50. Zhang, G.; Lu, T.; Miao, W.; Sun, L.; Tian, M.; Wang, J.; Hao, F. Genome-wide identification of ABA receptor PYL family and expression analysis of PYLs in response to ABA and osmotic stress in Gossypium. Peer J. 2017, 5, e4126. [Google Scholar] [CrossRef] [Green Version]
  51. Liu, L.Y.; Li, N.; Yao, C.P.; Meng, S.S.; Song, C.P. Functional analysis of the ABA-responsive protein family in ABA and stress signal transduction in Arabidopsis. Chin. Sci. Bull. 2013, 58, 3721–3730. [Google Scholar] [CrossRef] [Green Version]
  52. Hao, F.; Zhao, S.; Dong, H.; Zhang, H.; Sun, L.; Miao, C. Nia1 and Nia2 are involved in exogenous salicylic acid-induced nitric oxide generation and stomatal closure in Arabidopsis. J. Integr. Plant Biol. 2010, 52, 298–307. [Google Scholar] [CrossRef] [PubMed]
  53. Song, Y.; Xiang, F.; Zhang, G.; Miao, Y.; Miao, C.; Song, C.P. Abscisic acid as an internal integrator of multiple physiological processes modulates leaf senescence onset in Arabidopsis thaliana. Front. Plant Sci. 2016, 7, 181. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  54. Zhao, X.; Li, Y.Y.; Xiao, H.L.; Xu, C.S.; Zhang, X. Nitric oxide blocks blue light-induced K(+) influx by elevating the cytosolic Ca2+ concentration in Vicia faba L. Guard Cells. J. Integr. Plant Biol. 2013, 55, 527–536. [Google Scholar] [CrossRef] [PubMed]
  55. Wang, K.; He, J.N.; Zhao, Y.; Wu, T.; Zhou, X.; Ding, Y.; Kong, L.; Wang, X.; Wang, Y.; Li, J.; et al. EAR1 negatively regulates ABA signaling by enhancing 2C protein phosphatase activity. Plant Cell 2018, 30, 815–834. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  56. Li, W.; de Ollas, C.; Dodd, I.C. Long-distance ABA transport can mediate distal tissue responses by affecting local ABA concentrations. J. Integr. Plant Biol. 2018, 60, 16–33. [Google Scholar] [CrossRef] [Green Version]
  57. Xu, L.H.; Wang, W.Y.; Guo, J.J.; Qin, J.; Shi, D.Q.; Li, Y.L.; Xu, J. Zinc improves salt tolerance by increasing reactive oxygen species scavenging and reducing Na+ accumulation in wheat seedlings. Biol. Plant. 2014, 58, 751–757. [Google Scholar] [CrossRef]
  58. Gao, W.; Xu, F.C.; Guo, D.D.; Zhao, J.R.; Liu, J.; Guo, Y.W.; Singh, P.K.; Ma, X.N.; Long, L.; Botella, J.R.; et al. Calcium-dependent protein kinases in cotton: Insights into early plant responses to salt stress. BMC Plant Biol. 2018, 18, 15. [Google Scholar] [CrossRef] [Green Version]
  59. Li, W.; Zhao, F.; Fang, W.; Xie, D.; Hou, J.; Yang, X.; Zhao, Y.; Tang, Z.; Nie, L.; Lv, S. Identification of early salt stress responsive proteins in seedling roots of upland cotton (Gossypium hirsutum L) employing iTRAQ-based proteomic technique. Front. Plant Sci. 2015, 6, 732. [Google Scholar] [CrossRef] [Green Version]
  60. Zhao, X.; Wang, Y.J.; Wang, Y.L.; Wang, X.L.; Zhang, X. Extracellular Ca2+ alleviates NaCl-induced stomatal opening through a pathway involving H2O2-blocked Na+ influx in Vicia guard cells. J. Plant Physiol. 2011, 168, 903–910. [Google Scholar] [CrossRef]
  61. Ma, L.; Zhang, H.; Sun, L.; Jiao, Y.; Zhang, G.; Miao, C.; Hao, F. NADPH oxidase AtrbohD and AtrbohF function in ROS-dependent regulation of Na+/K+ homeostasis in Arabidopsis under salt stress. J. Exp. Bot. 2012, 63, 305–317. [Google Scholar] [CrossRef]
  62. Xu, F.C.; Liu, H.L.; Xu, Y.Y.; Zhao, J.R.; Guo, Y.W.; Long, L.; Gao, W.; Song, C.P. Heterogeneous expression of the cotton R2R3-MYB transcription factor GbMYB60 increases salt sensitivity in transgenic Arabidopsis. Plant Cell Tiss. Organ Cul. 2018, 133, 15–25. [Google Scholar] [CrossRef]
  63. Lv, S.; Yu, D.; Sun, Q.; Jiang, J. Activation of gibberellin 20-oxidase 2 undermines auxin-dependent root and root hair growth in NaCl-stressed Arabidopsis seedlings. Plant Growth Regul. 2018, 84, 225–236. [Google Scholar] [CrossRef]
  64. Zhang, J.; Wang, F.; Zhang, C.; Zhang, J.; Chen, Y.; Liu, G.; Zhao, Y.; Hao, F. A novel VIGS method by agroinoculation of cotton seeds and application for elucidating functions of GhBI-1 in salt-stress response. Plant. Cell Rep. 2018, 37, 1091–1100. [Google Scholar] [CrossRef] [PubMed]
  65. Qi, J.; Song, C.P.; Wang, B.; Zhou, J.; Kangasjärvi, J.; Zhu, J.K.; Gong, Z. Reactive oxygen species signaling and stomatal movement in plant responses to drought stress and pathogen attack. J. Integr. Plant Biol. 2018, 60, 805–826. [Google Scholar] [CrossRef] [Green Version]
  66. Zhao, Q.; Chen, W.; Bian, J.; Xie, H.; Li, Y.; Xu, C.; Ma, J.; Guo, S.; Chen, J.; Cai, X.; et al. Proteomics and phosphoproteomics of heat stress-responsive mechanisms in spinach. Front. Plant Sci. 2018, 9, 800. [Google Scholar] [CrossRef]
  67. Li, L.; Hou, M.; Cao, L.; Shen, Z.G.; Hu, Z.B. Glutathione S-transferases modulate Cu tolerance in Oryza sativa. Environ. Exp. Bot. 2018, 155, 313–320. [Google Scholar] [CrossRef]
  68. Pang, Y.Q.; Li, J.T.; Qi, B.S.; Tian, M.; Sun, L.R.; Wang, X.C.; Hao, F.S. Aquaporin AtTIP5;1 as an essential target of gibberellins promotes hypocotyl cell elongation in Arabidopsis thaliana under excess boron stress. Func. Plant Biol. 2017, 45, 305–314. [Google Scholar] [CrossRef]
  69. Sun, L.; Ma, L.; He, S.; Hao, F. AtrbohD functions downstream of ROP2 and positively regulates waterlogging response in Arabidopsis. Plant Signal. Behav. 2018, 13, 1–5. [Google Scholar] [CrossRef] [Green Version]
  70. Wang, T.P.; Liu, H.; Hua, H.J.; Wang, L.; Song, C.P. A vacuole localized beta-glucosidase contributes to drought tolerance in Arabidopsis. Chin. Sci. Bull. 2011, 56, 3538–3546. [Google Scholar] [CrossRef] [Green Version]
  71. Lü, D.; Wang, W.; Miao, C. ATHK1 acts downstream of hydrogen peroxide to mediate ABA signaling through regulation of calcium channel activity in Arabidopsis guard cells. Chin. Sci. Bull. 2013, 58, 336–343. [Google Scholar] [CrossRef] [Green Version]
  72. Ma, X.N.; Zhang, X.R.; Yang, L.; Tang, M.M.; Wang, K.; Wang, L.; Bai, L.; Song, C.P. Hydrogen peroxide plays an important role in PERK4-mediated abscisic acid-regulated root growth in Arabidopsis. Func. Plant Biol. 2018, 46, 165–174. [Google Scholar] [CrossRef]
  73. Pick, T.; Jaskiewicz, M.; Peterhänsel, C.; Conrath, U. Heat shock factor HsfB1 primes gene transcription and systemic acquired resistance in Arabidopsis. Plant Physiol. 2012, 159, 52–55. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  74. Zhang, Y.Z.; Cheng, Y.W.; Ya, H.Y.; Gao, K.; Han, J.M. Identification and analysis of the heat shock transcriptor PsHsfB1 in tree peony. Appl. Mech. Mater. 2014, 675–677, 1133–1136. [Google Scholar] [CrossRef]
  75. Liang, J.Y.; Xia, J.Y.; Liu, L.L.; Wan, S.Q. Global patterns of the responses of leaf-level photosynthesis and respiration in terrestrial plants to experimental warming. J. Plant Ecol. 2013, 6, 437–447. [Google Scholar] [CrossRef] [Green Version]
  76. Zhao, X.; Wang, Y.L.; Qiao, X.R.; Wang, J.; Wang, L.D.; Xu, C.S.; Zhang, X. Phototropins function in high-intensity blue light-induced hypocotyl phototropism in Arabidopsis by altering cytosolic calcium. Plant Physiol. 2013, 162, 1539–1551. [Google Scholar] [CrossRef] [Green Version]
  77. Han, Y.J.; Wang, X.H.; Chen, W.C.; Dong, M.F.; Yuan, W.J.; Liu, X.; Shang, F.D. Differential expression of carotenoid-related genes determines diversified carotenoid coloration in flower petal of Osmanthus fragrans. Tree Genet. Genomes 2014, 10, 329–338. [Google Scholar] [CrossRef]
  78. Han, Y.; Wu, M.; Cao, L.; Yuan, W.; Dong, M.; Wang, X.; Chen, W.; Shang, F. Characterization of OfWRKY3 a transcription factor that positively regulates the carotenoid cleavage dioxygenase gene OfCCD4 in Osmanthus fragrans. Plant Mol. Biol. 2016, 91, 485–496. [Google Scholar] [CrossRef]
  79. Guo, S.; Dai, S.; Singh, P.K.; Wang, H.; Wang, Y.; Tan, J.L.H.; Wee, W.; Ito, T. A membrane-bound NAC-like transcription factor OsNTL5 represses the flowering in Oryza sativa. Front. Plant Sci. 2018, 9, 555. [Google Scholar] [CrossRef] [Green Version]
  80. Shang, B.S.; Zang, Y.H.; Zhao, X.; Zhu, J.D.; Fan, C.; Guo, X.N.; Zhang, X. Functional characterization of GhPHOT2 in chloroplast avoidance of Gossypium hirsutum. Plant Physiol. Biochem. 2019, 135, 51–60. [Google Scholar] [CrossRef]
  81. Wan, H.J.; Yuan, W.; Ruan, M.Y.; Ye, Q.J.; Wang, R.Q.; Li, Z.M.; Zhou, G.; Yao, Z.; Zhao, J.; Liu, S.; et al. Identification of reference genes for reverse transcription quantitative real-time PCR normalization in pepper (Capsicum annuum L.). Biochem. Biophys. Res. Commun. 2011, 416, 24–30. [Google Scholar] [CrossRef]
  82. Moreno, A.A.; Orellana, A. The physiological role of the unfolded protein response in plants. Biol. Res. 2011, 44, 75–80. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  83. Hasanuzzaman, M.; Hossain, M.A.; Fujita, M. Physiological and biochemical mechanisms of nitric oxide induced abiotic stress tolerance in plants. Am. J. Plant Physiol. 2010, 5, 295–324. [Google Scholar]
  84. Xue, G.P.; Drenth, J.; Lynne, M.I.C. TaHsfA6f is a transcriptional activator that regulates a suite of heat stress protection genes in wheat (Triticum aestivum L.) including previously unknown Hsf targets. J. Exp. Bot. 2015, 66, 1025–1039. [Google Scholar] [CrossRef] [PubMed] [Green Version]
Plants 09 00311 g001 550

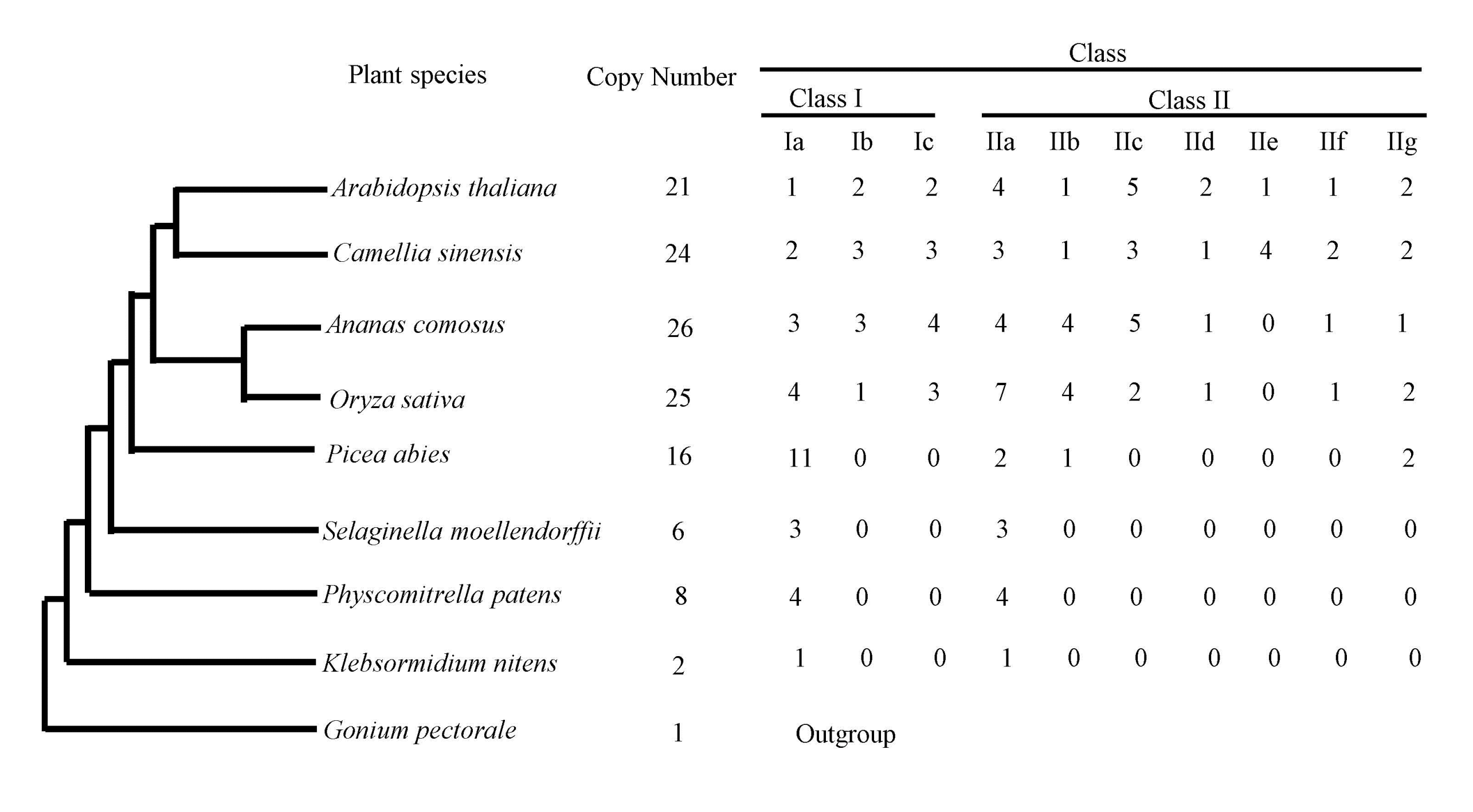

Figure 1. Summary of the heat shock transcription factor (Hsf) gene superfamily among 9 species.
Figure 1. Summary of the heat shock transcription factor (Hsf) gene superfamily among 9 species.
Plants 09 00311 g001
Plants 09 00311 g002 550

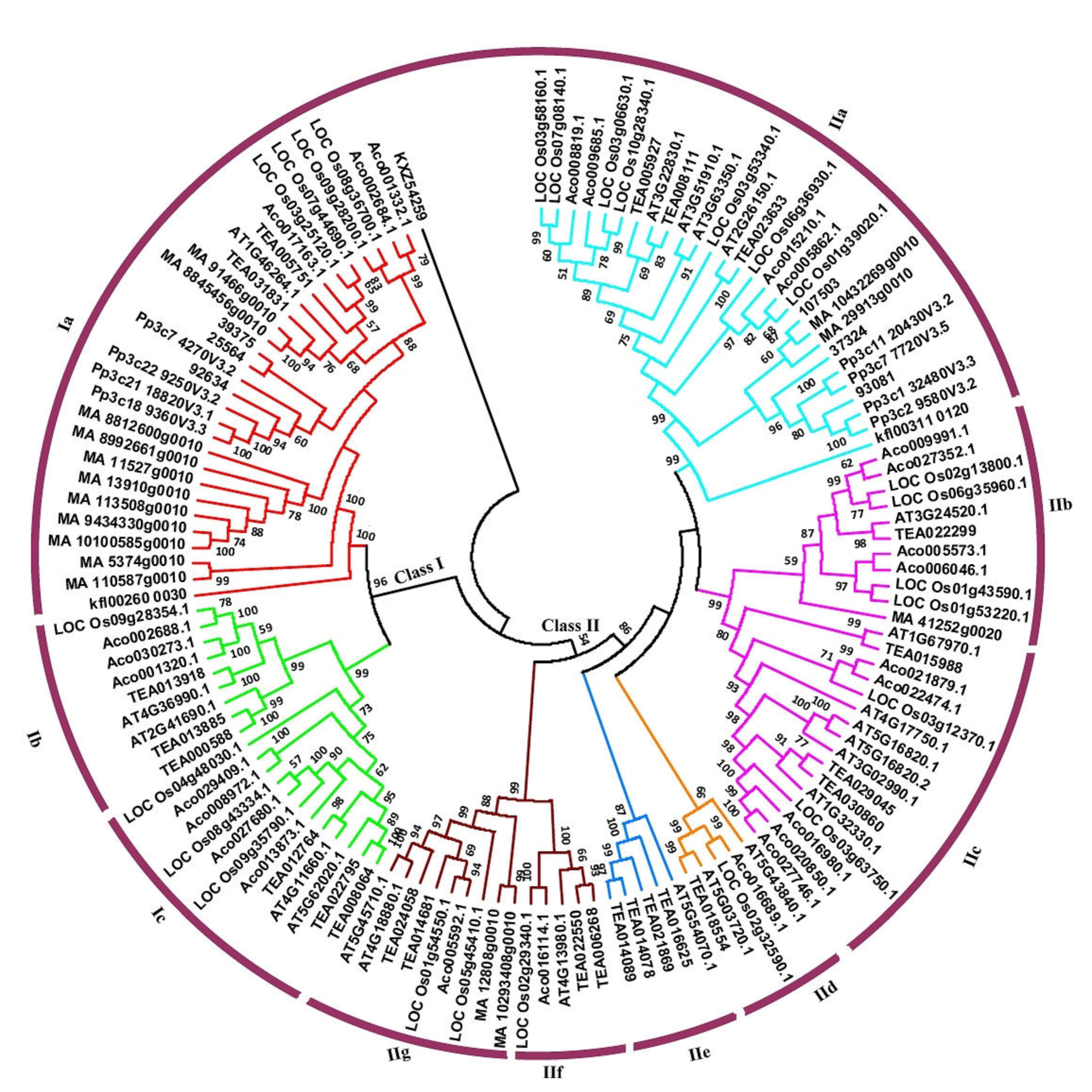

Figure 2. Phylogenetic tree of Hsf in plant species. Phylogenetic tree of Hsf proteins in tea plant and other plant species were generated by MEGA 7 using neighbor-joining. TEA: Camellia sinensis, At: Arabidopsis thaliana, Loc_Os: Oryza sativa, MA: Picea abies, Pp: Physcomitrella patens, Kf: Klebsormidium flaccidum, KXZ: Gonium pectoral and Aco: Ananas comosus. The protein ID of all species is listed in Table S1.
Figure 2. Phylogenetic tree of Hsf in plant species. Phylogenetic tree of Hsf proteins in tea plant and other plant species were generated by MEGA 7 using neighbor-joining. TEA: Camellia sinensis, At: Arabidopsis thaliana, Loc_Os: Oryza sativa, MA: Picea abies, Pp: Physcomitrella patens, Kf: Klebsormidium flaccidum, KXZ: Gonium pectoral and Aco: Ananas comosus. The protein ID of all species is listed in Table S1.
Plants 09 00311 g002
Plants 09 00311 g003 550
Figure 3. Expression patterns of Hsf genes in different tissues of tea plant. The heatmap was generated by MeV software (TIGR, Rockville, MD, USA) using the Hsf genes’ expression data, and normalized log2 transformed values were used with hierarchical clustering. The red and green colors indicate higher or lower transcript abundances than those of the relevant control, respectively.
Figure 3. Expression patterns of Hsf genes in different tissues of tea plant. The heatmap was generated by MeV software (TIGR, Rockville, MD, USA) using the Hsf genes’ expression data, and normalized log2 transformed values were used with hierarchical clustering. The red and green colors indicate higher or lower transcript abundances than those of the relevant control, respectively.
Plants 09 00311 g003
Plants 09 00311 g004 550
Figure 4. Expression patterns of Hsf genes in different Camellia species. The heatmap was generated by MeV software (TIGR, Rockville, MD, USA) using the Hsf genes’ expression data, and normalized log2 transformed values were used with hierarchical clustering. The red and green colors indicate higher or lower transcript abundances than those of the relevant control, respectively.
Figure 4. Expression patterns of Hsf genes in different Camellia species. The heatmap was generated by MeV software (TIGR, Rockville, MD, USA) using the Hsf genes’ expression data, and normalized log2 transformed values were used with hierarchical clustering. The red and green colors indicate higher or lower transcript abundances than those of the relevant control, respectively.
Plants 09 00311 g004
Plants 09 00311 g005 550
Figure 5. Expression patterns of Hsf genes in response to MeJA treatment. The heatmap was generated by MeV software (TIGR, Rockville, MD, USA) using the Hsf genes’ expression data, and normalized log2 transformed values were used with hierarchical clustering. The red and green colors indicate higher or lower transcript abundances than those of the relevant control, respectively.
Figure 5. Expression patterns of Hsf genes in response to MeJA treatment. The heatmap was generated by MeV software (TIGR, Rockville, MD, USA) using the Hsf genes’ expression data, and normalized log2 transformed values were used with hierarchical clustering. The red and green colors indicate higher or lower transcript abundances than those of the relevant control, respectively.
Plants 09 00311 g005
Plants 09 00311 g006 550
Figure 6. Expression patterns of Hsf genes in response to PEG (A), cold (B) and Nacl (C) treatments. The heatmap was generated by MeV software (TIGR, Rockville, MD, USA) using the Hsf genes’ expression data, and normalized log2 transformed values were used with hierarchical clustering. The red and green colors indicate higher or lower transcript abundances than those of the relevant control, respectively.
Figure 6. Expression patterns of Hsf genes in response to PEG (A), cold (B) and Nacl (C) treatments. The heatmap was generated by MeV software (TIGR, Rockville, MD, USA) using the Hsf genes’ expression data, and normalized log2 transformed values were used with hierarchical clustering. The red and green colors indicate higher or lower transcript abundances than those of the relevant control, respectively.
Plants 09 00311 g006
Plants 09 00311 g007 550
Figure 7. Relative expressions of tea Hsf genes under heat treatment condition. Analyses were carried out by qRT-PCR under heat stress treatment. qRT-PCR data were normalized using tea CsPTB [44] gene and shown relative to 0 h. X-axes showed tea Hsf genes and y-axes are scales of relative expression level (error bars indicate SD).
Figure 7. Relative expressions of tea Hsf genes under heat treatment condition. Analyses were carried out by qRT-PCR under heat stress treatment. qRT-PCR data were normalized using tea CsPTB [44] gene and shown relative to 0 h. X-axes showed tea Hsf genes and y-axes are scales of relative expression level (error bars indicate SD).
Plants 09 00311 g007
Table
Table 1. Key features of heat transcription factors (HSFs) in Camellia sinensis.
Table 1. Key features of heat transcription factors (HSFs) in Camellia sinensis.
Gene NameLocusScaffoldORF Length a (bp)Deduced Polypeptide
Length b (aa)Mol wt c (kDa)pId
CsHSF01TEA000588Scaffold4738:242479-24543272324027.835.59
CsHSF02TEA005751Scaffold3668:1248898-125180684928232.806.42
CsHSF03TEA005927Scaffold372:5052384-5054777105935240.555.37
CsHSF04TEA006268Scaffold1096:351535-356817144047953.665.76
CsHSF05TEA008064Scaffold385:66932-6903290029934.026.27
CsHSF06TEA008111Scaffold736:2759744-2761297102334038.815.07
CsHSF07TEA010217Scaffold4444:1140231-114697951917219.4410.01
CsHSF08TEA012764Scaffold474:257888-26030794531435.085.37
CsHSF09TEA013885Scaffold598:1002357-100455972324027.876.67
CsHSF10TEA013918Scaffold598:1726479-1739146156952257.835.16
CsHSF11TEA014078Scaffold2655:1213850-121631799633137.205.14
CsHSF12TEA014089Scaffold2655:1252903-1263984140146651.344.49
CsHSF13TEA014681Scaffold2339:167132-178145199866574.985.91
CsHSF14TEA015988Scaffold2960:495401-502597116738844.264.72
CsHSF15TEA016625Scaffold2245:1443845-1445616111637141.434.71
CsHSF16TEA018554Scaffold367:1317907-1320377172257363.815.02
CsHSF17TEA021869Scaffold151:757381-759282126642147.115.16
CsHSF18TEA022299Scaffold881:562868-56424496632136.255.35
CsHSF19TEA022550Scaffold502:2406177-240989068420723.565.68
CsHSF20TEA022795Scaffold3997:691331-693719110436740.705.35
CsHSF21TEA023633Scaffold1243:1037225-1040235120340045.394.85
CsHSF22TEA024058Scaffold1471:1329221-1337467147048955.565.00
CsHSF23TEA029045Scaffold1047:271898-276789158750856.465.13
CsHSF24TEA030860Scaffold2384:70221-80010154251356.784.78
CsHSF25TEA031831Scaffold2436:227948-22942090630133.386.49
a Length of open reading frame b Length (no. of amino acid) of the deduced polypeptide c Molecular weight of the deduced polypeptide in Dalton d Isoelectric point of the deduced polypeptide.

Share and Cite

MDPI and ACS Style

Xu, P.; Guo, Q.; Pang, X.; Zhang, P.; Kong, D.; Liu, J. New Insights into Evolution of Plant Heat Shock Factors (Hsfs) and Expression Analysis of Tea Genes in Response to Abiotic Stresses. Plants 2020, 9, 311. https://doi.org/10.3390/plants9030311

AMA Style

Xu P, Guo Q, Pang X, Zhang P, Kong D, Liu J. New Insights into Evolution of Plant Heat Shock Factors (Hsfs) and Expression Analysis of Tea Genes in Response to Abiotic Stresses. Plants. 2020; 9(3):311. https://doi.org/10.3390/plants9030311

Chicago/Turabian Style

Xu, Ping, Qinwei Guo, Xin Pang, Peng Zhang, Dejuan Kong, and Jia Liu. 2020. "New Insights into Evolution of Plant Heat Shock Factors (Hsfs) and Expression Analysis of Tea Genes in Response to Abiotic Stresses" Plants 9, no. 3: 311. https://doi.org/10.3390/plants9030311

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
