The Complete Chloroplast Genome of the Vulnerable Oreocharis esquirolii (Gesneriaceae): Structural Features, Comparative and Phylogenetic Analysis

by
Li Gu
1,2,3,
Ting Su
1,2,3,
Ming-Tai An
4 and
Guo-Xiong Hu
1,2,*
1
College of Life Sciences, Guizhou University, Guiyang 550025, China
2
The Key Laboratory of Plant Resources Conservation and Germplasm Innovation in Mountainous Region Ministry of Education, Guizhou University, Guiyang 550025, China
3
Institute of Agro-Bioengineering, Guizhou University, Guiyang 550025, China
4
College of Forestry, Guizhou University, Guiyang 550025, China
*
Author to whom correspondence should be addressed.
Plants 2020, 9(12), 1692; https://doi.org/10.3390/plants9121692
Submission received: 21 October 2020 / Revised: 18 November 2020 / Accepted: 28 November 2020 / Published: 2 December 2020
Browse Figures
Versions Notes

Abstract

:
Oreocharis esquirolii, a member of Gesneriaceae, is known as Thamnocharis esquirolii, which has been regarded a synonym of the former. The species is endemic to Guizhou, southwestern China, and is evaluated as vulnerable (VU) under the International Union for Conservation of Nature (IUCN) criteria. Until now, the sequence and genome information of O. esquirolii remains unknown. In this study, we assembled and characterized the complete chloroplast (cp) genome of O. esquirolii using Illumina sequencing data for the first time. The total length of the cp genome was 154,069 bp with a typical quadripartite structure consisting of a pair of inverted repeats (IRs) of 25,392 bp separated by a large single copy region (LSC) of 85,156 bp and a small single copy region (SSC) of18,129 bp. The genome comprised 114 unique genes with 80 protein-coding genes, 30 tRNA genes, and four rRNA genes. Thirty-one repeat sequences and 74 simple sequence repeats (SSRs) were identified. Genome alignment across five plastid genomes of Gesneriaceae indicated a high sequence similarity. Four highly variable sites (rps16-trnQ, trnS-trnG, ndhF-rpl32, and ycf 1) were identified. Phylogenetic analysis indicated that O. esquirolii grouped together with O. mileensis, supporting resurrection of the name Oreocharis esquirolii from Thamnocharis esquirolii. The complete cp genome sequence will contribute to further studies in molecular identification, genetic diversity, and phylogeny.

1. Introduction

Traditionally, Oreocharis Benth. was a genus of the Gesneriaceae including 27 species [1,2]. Phylogenetic researches showed that Oreocharis was not monophyletic and up to 10 other genera were transferred to the genus [3,4,5]. Recently, an increasing number of new species of Oreocharis have been discovered and now approximately 135 species are recorded within this genus [6,7]. Oreocharis is mainly distributed in the tropical and subtropical areas in the south and southwest of China with a few extending to neighboring countries, such as Vietnam, Thailand, and Japan [3,8,9,10,11].
Oreocharis esquirolii H. Lév. was first established by Augustin Abel Hector Léveillé in 1911 based on a collection (Esquirol 628) from Guizhou, southwestern China [12]. Based on the character of actinomorphic corolla, Wang [13] transferred this species to his newly established genus, namely Thamnocharis esquirolii (H. Lév.) W. T. Wang. However, molecular phylogenetic results showed that Thamnocharis was embedded into Oreocharis [3,4], and Möller et al. [4] resurrected Oreocharis esquirolii with regarding Thamnocharis as a synonym of Oreocharis.
Oreocharis esquirolii is endemic to Zhenfeng and Xingren County, Guizhou, southwestern China with a narrow distribution [2]. The species grows in thicket or hilly forest at an altitude of about 1500–1600 m. Due to excessive deforestation, serious vegetation damage and habitat degradation or loss, the population of the species decreased significantly with a risk of extinction. Based on restriction in habitat coupled with other threats, O. esquirolii was evaluated as vulnerable (VU) in IUCN’s Red List of Threatened Species (http://www.iucnredlist.org/) and was listed as a national grade-I protected plant by China’s government in 1999.
In plants, chloroplast (cp) genome is highly conserved in gene order, gene content, and genome organization [14,15] with a typical quadripartite structure consisting of a large single copy region (LSC), a small single-copy region (SSC), and a pair of inverted repeats (IRs) [16,17]. In most angiosperm chloroplasts, the cp genome ranges from 72 kb to 217 kb [18]. Chloroplast genome usually codes for 110–130 genes, including about 80 protein-coding genes, four rRNA genes, and about 30 tRNA genes [19]. The highly conserved structure of cp genome makes it often used to infer evolutionary relationships of higher taxa [20]. Currently, cp genome has also been demonstrated to be effective to solve species-level phylogenetic relationships in some taxa [21,22,23]. Comparative analysis of cp genome can provide valuable information for understanding structural and organizational changes of plant cp genome, and effectively help to reveal processes of plant molecular evolution and diversification [16,24,25]. Although cp genomes of some taxa of Gesneriaceae have been reported [26,27,28,29], the cp genome of O. esquirolii is not included. In this study, we sequenced the cp genome of O. esquirolii for the first time, aiming to present the genomic features of O. esquirolii and compare its structure and gene organization within Gesneriaceae. In addition, based on available cp genomes in GenBank, we inferred its phylogenetic position in Gesneriaceae.

2. Results and Discussion

2.1. Gene Content and Structure of Chloroplast Genome of Oreocharis esquirolii

Generally, the angiosperm cp genome is considered to be conserved [30]. In this study, we sequenced the cp genome of Oreocharis esquirolii and compared its features with other species from Gesneriaceae. The cp genome features of O. esquirolii were similar to other reported species in the Gesneriaceae concerning gene content, order, and orientation [28,31]. The whole cp genome of O. esquirolii was found to be 154,069 bp in length with a typical quadripartite structure, comprising a pair of inverted repeats (IRa and IRb) of 25,392 bp separated by a LSC region of 85,156 bp and a SSC region of 18,129 bp (Figure 1). Additionally, comparisons of length and GC content with the other 16 species from Gesneriaceae showed that their lengths ranged from 152,373 bp (Primulina eburnea) to 154,069 bp (O. esquirolii) and the GC content from 37.40% (O. mileensis) to 37.59% (Primulina huaijiensis) (Table S1). Notably, O. esquirolii, has the longest overall length (154,069 bp) but the shortest IR regions (25,392 bp), which may be related to the contraction of the IR regions.
Gene annotation revealed that the cp genome of O. esquirolii contained 114 unique genes, including a set of 80 protein-coding genes, 30 tRNA genes, and four rRNA genes. Amongst them, 19 genes were duplicated in the IR regions, comprising eight protein-coding genes (ndhB, ycf1, ycf2, ycf15, rpl2, rps7, rpl23, and rps12), four rRNA genes (rrn4.5, rrn23, rrn5, and rrn16), and seven tRNA genes (trnA-UGC, trnI-CAU, trnI-GAU, trnL-CAA, trnN-GUU, trnV-GAC, and trnR-ACG) (Table 1). Fourteen intron-containing genes were detected, including nine protein-coding genes (atpF, ndhA, ndhB, rpl2, rpl16, rps16, clpP, rpoC1, and ycf3) and five tRNA genes (trnA-UGC, trnI-GAU, trnK-UUU, trnL-UAA, and trnV-UAC). Of the 14 genes, two (clpP and ycf3) harbored two introns and the other 12 contained only one intron with the trnK-UUU including the largest intron (2,497 bp) and the trnL-UAA having the smallest intron (476 bp) (Table 2). Content (%) of the four bases was T (31.67%) > A (30.83%) > C (19.04%) > G (18.45%). Similarly to previous reports [26,30], the GC content in the IR regions of O. esquirolii (43.21%) was higher than that in the LSC (35.43%) and SSC (31.16%) (Table 3), which could be attributed to the presence of the eight rRNA sequences in IR regions [32].

2.2. Codon Usage Bias Analysis

Codon usage refers to an organism’s use of similar codons when encoding amino acids. Non-random use of synonymous codons is widespread both within and between organisms [33]. Many studies have shown that there are species-specific patterns of codon usage due to various factors such as codon hydrophilicity, gene length, expression levels, and protein secondary structure base composition [34,35]. The frequency of codons in the cp genome of Oreocharis esquirolii was calculated based on protein-coding genes. In total, all genes were encoded by 26,550 codons, of which AUU (Ile) was the most frequent (1111 codons) and UGC (Cys) was the least frequent (90 codons). Among the amino acids encoded by these codons, Leucine (2,784 codons, 10.49%), with the highest coding rate, was the most frequent. However, Cysteine (309 codons, 1.16%) was found less due to their high sensitivity to changes in physiological and environmental conditions [36] (Table S2). If the relative value of synonymous codon usage (RSCU) is greater than one, the codon usage is highly preferred, indicating that the codon is used more often than expected but not preferred if the value is equal to one and less preferred with values of less than one [36,37]. Codon usage analysis showed that codon usage was biased towards T and A at the third codon position in the cp genome of O. esquirolii. Furthermore, 30 highly preferred codons were detected in the O. esquirolii with an RSCU value greater than 1.0. Of the 30 codons, except for UUG ending with G, all codons terminated with A or T, and no C was found in the third position (Figure 2, Table S2).

2.3. SSRs Analysis

Simple sequence repeats (SSRs) are tandemly repeats of DNA sequences, comprising one to six (mono-, di-, tri-, tetra-, penta-, and hexa-) repeat nucleotide units. Being highly reliable, reproducible, and highly polymorphic, SSRs have been widely applied in molecular identification, genetic diversity, and population genetic studies [22,38,39,40]. In this study, SSRs of both Oreocharis esquirolii and O. mileensis were analyzed. A total of 74 SSRs were found in O. esquirolii, of which 54 were in the LSC regions, 12 in the IR and eight in the SSC regions. Comparatively, in the congeneric O. mileensis, 76 SSRs were detected with 55, 12, and nine SSRs distributed in the LSC, IR, and SSC regions, respectively (Figure 3). Besides, 27 SSRs were discovered in the coding sequences (CDS), 38 in the intergenic spacers (IGS), and nine in the intron regions of the O. esquirolii cp genome, whereas the values in the O. mileensis were 29 in CDS, 38 in IGS and nine in intron regions (Table S3). In terms of repeat unit, total five types of repeats (mono-, di-, tri-, tetra-, and penta-) were detected in O. esquirolii and O. mileensis cp genomes. Dinucleotide repeats were the most frequent, accounting for 55.41% (41) and 53.95% (41), respectively, followed by mononucleotide with 32.43% (24) and 31.98% (24), tetranucleotide with 10.81% (8) and 10.53% (8), and the least frequent trinucleotide with 1.35% (1) and 1.32% (1). It is worth noting that the pentanucleotide repeats (2, 2.63%) were only detected in O. mileensis, (Figure 3A,B, Table S3). Among the identified repeat units, dinucleotide repeat unit (AG/CT and AT/TA) was the most abundant. This finding supports the view that cp SSRs are generally composed of short polyadenine (polyA) or polythymine (polyT) repeats and rarely contain tandem guanine (G) or cytosine (C) repeats [40,41]. In addition, rarity or absence of pentanucleotide and hexanucleotide repeats in these two species demonstrated again that the two types of repeat unit are rather rare among cp SSRs [26,40].

2.4. Analysis of Repeat Sequences

Thirty-one repeat sequences were identified in both cp genomes of Oreocharis mileensis and O. esquirolii. In O. esquirolii, 13 (41.94%) forward repeats, 17 (54.84%) palindromic repeats, and one (3.23%) reverse repeats were identified. Similarly, in O. mileensis, palindromic repeats (19, 61.29%) are the most frequent, followed by forward repeats (12, 38.71%). However, none reverse repeats were identified in O. mileensis (Figure 4C, Table S4). Additionally, in the cp genome of O. esquirolii, the repeat sequence length ranged from 30 bp to 56 bp, while in O. mileensis, the length varied from 30 bp to 137 bp. Further analysis of the percentage of repeats in LSC, SSC and IR regions of O. esquirolii, and O. mileensis revealed that the LSC contained the largest number of repeats, accounting for 58.06%, and 61.29%, respectively, followed by the IR region with 35.48% and 35.48%, and the SSC region with 6.46% and 3.23% (Figure 4A,B).

2.5. Comparisons of Chloroplast Genome among Oreocharis esquirolii and Closely Related Species

Expansion and contraction of the IR region, contributing to variation of cp genome size, plays a crucial role in the evolution of plants [42,43]. Junctions between single copy regions and IR regions among closely related species of Lysionotus pauciflorus, Petrocodon jingxiensis, Primulina huaijiensis, Oreocharis esquirolii, and O. mileensis were compared in this study. These genomes showed a bit variances at the junctions, but the general gene structures, contents, and orientations were the same. The LSC/IRb junction had expanded to rps19 gene in four species (Lysionotus pauciflorus, 35 bp, Oreocharis mileensis, 31 bp, Petrocodon jingxiensis, 32 bp, and Primulina huaijiensis, 25 bp). However, in O. esquirolii, the rps19 gene did not span the LSC/IRb junction (44 bp away from the junction), suggesting that the IR regions of O. esquirolii underwent significant contraction compared with the other four species. This phenomenon was also observed in Streptocarpus [31]. A pseudogenized ycf1 occurred at the IRb/SSC junctions in all species as a result of the extension of SSC/IRa junction into the ycf1 gene, with variable extensions of the gene into the SSC region observed in the five species. In contrast, ycf1 was mainly located in the SSC region ranging from 4752 bp to 4266 bp. An overlap of Ψycf1 and ndhF genes was observed in all five species: Lysionotus pauciflorus (137 bp), O. mileensis (42 bp), Primulina huaijiensis (88 bp), O. esquirolii (109 bp), and Petrocodon jingxiensis (109 bp) (Figure 5).
Mauve was used to check for possible rearrangements within the cp genomes of five species (Lysionotus pauciflorus, Orecharis esquirolii, O. mileensis, Petrocodon jingxiensis, and Primulina huaijiensis). The results indicated that the organization of the five Gesneriaceae cp genome was highly conserved, without translocations or inversions detected (Figure 6).
A sliding window analysis was used to estimate the level of variation across regions in the five Gesneriaceae cp genomes. The nucleotide diversity (Pi) values ranged from 0.00000 to 0.09606, with a mean of 0.01381. All highly divergent sequences were restricted to the single copy (SC) regions, with the highest peak occurring in the SSC region. Four hyper-variable regions were identified with nucleotide diversity values higher than 0.05, of which three were intergenic spacers (rps16-trnQ, trnS-trnG, and ndhF-rpl32), and the remaining one was ycf1 gene (Figure 7). Generally, the intergenic regions exhibit higher nucleotide diversity than the coding regions. As expected, of the four hypervariable regions detected in five Gesneriaceae cp genomes, three were in intergenic regions, while only one in genic region. Similar result was also found in recent cp genome analysis [31,43]. Although not commonly used because of large number of primer pairs needed to sequence the entire region, as a hypervariable gene detected here, ycf1 could be regarded as a potential marker in phylogenetic analysis of Gesneriaceae, and it have been demonstrated to be effective in Orchidaceae and Lamiaceae [44,45].
The pairwise cp genomic alignment between O. esquirolii and its closely related species was analyzed using mVISTA with the annotation of O. mileensis as a reference. Results showed that IR regions were found to be more conserved than the single copy regions, so were genic regions, coding regions, and exons compared with intergenic regions, non-coding and introns. Highly divergent regions among the five species of cp genomes were mainly located in the intergenic spacers, such as trnH-GUG-psbA, rps16-trnQ-UUG, atpH-atpI, trnL-UAG-ccsA, and ycf4-cemA, and few (rpl16 and ycf1) were distributed in protein-coding regions (Figure 8). These regions can provide phylogenetic information as well as serve as unique barcodes for DNA.

2.6. Phylogenetic Position of Oreocharis esquirolii

Based on whole cp genome sequences of 26 taxa within Lamiales, the phylogenetic relationship of Gesneriaceae was inferred using Bayesian inference (BI) and maximum likelihood (ML) analyses. As topology of BI and ML trees were identical, the two trees were combined with addition of bootstrap values of ML and posterior probabilities values of BI. Phylogenetic results showed Gesneriaceae was monophyletic, and O. esquirolii grouped with O. mileensis (Figure 9). As bearing actinomorphic corolla, Wang [13] transferred O. esquirolii to Thamnocharis esquirolii. Together with other genera such as Bournea, Tengia, and Conandron, Thamnocharis was classed into tribe Ramondieae that is sometimes considered to be primitive in Gesneriaceae [2]. However, phylogenetic analysis showed that actinomorphic genera are scattered over clades with zygomorphic corolla, and hypothesized that flora actinomorphy has evolved in a convergent manner [13]. In addition, phylogenetic studies also indicated that Oreocharis is non-monophyletic with several genera including Thamnocharis embedded [3,4,46], and finally, Möller et al. [4] regarded Thamnocharis esquirolii as a synonym of Oreocharis esquirolii. Although the sampling is very limited in our analysis, the sister relationship between Oreocharis esquirolii and O. mileensis support resurrection of the name Oreocharis esquirolii from Thamnocharis esquirolii.

3. Materials and Methods

3.1. Plant Material, DNA Extraction, Sequencing, and Assembly

Young leaves of Oreocharis esquirolii were collected from Longtoudashan Natural Reverse, Zhenfeng, Guizhou, Southwestern China, and were put into silica gel to preserve. Total genomic DNA was extracted from about 100 mg of dried leaf material according to a modified CTAB method [47]. DNA integrity was assessed by electrophoresis on a 1% agarose gel and its concentration and yield was determined and calculated with Qubit. The DNA sample meeting the requirements of sequencing was sent to the BGI-Wuhan and Illumina HiSeq 2500 platform was used for sequencing. After filtering the low-quality data and adaptors, clean data were obtained. Then, GetOrganelle [48], a fast toolkit for accurate de novo assembly of organelle genomes which was jointly completed by SPAdes [49], Bowtie2 [50], and BLAST+ [51], was used to assemble the cp genome of O. esquirolii with O. mileenis (MK342624) [28] as a reference. Assembly graph was visualized using Bandage v.8.0 [52] and then a whole circular cp genome was generated.

3.2. Genome Annotation and Sequence Submission

The cp genome was annotated using program PGA [53] with Oreocharis mileensis [28] as a reference, then coupled with manual adjustment using Geneious v.10.1.3 [54]. MEGA 6.06 [55] was used to analyze AT and GC contents. Finally, the circular genome map was generated with OGDRAW v.1.2 [56] and submitted to NCBI GenBank under Accession Number MT612436.

3.3. Codon Usage, Repetitive Sequence, and SSR Analysis

The codon usage frequency was calculated based on protein-coding genes using CodonW 1.4.2. [57]. REPuter [58] was used to identify repeat sequences, including direct (forward), inverted (palindromic), complement, and reverse repeats. The repeat sizes were limited to a minimum of 30 bp and a maximum of 300, with sequence identities greater than 90% (Hamming distance of 3). MISA [59], an SSR motif scanning tool written in Perl, was adopted to detect SSRs. The minimum thresholds were set to 10 repeat units for mononucleotide SSRs, four repeat units for dinucleotide and trinucleotide SSRs, and three repeat units for tetranucleotide, pentanucleotide, and hexanucleotide SSRs [60].

3.4. Genome Comparison

Based on previous phylogenetic results together with the current reported data, five Gesneriaceae cp genomes (Lysionotus pauciflorus, Petrocodon jingxiensis, Primulina huaijiensis, Oreocharis mileensis, and O. esquirolii) were selected for comparative analysis. To explore the expansion and contraction of IR regions of Oreocharis esquirolii, comparison of boundaries between IRs and single copy regions was performed in Geneious v.10.1.3 [54]. The mVISTA [61] was used to assess the similarity among the five cp genomes, and the default parameters were utilized to align the cp genomes in Shuffle-LAGAN mode. Chloroplast genome sequence alignment was carried out with the Mauve program [62] to check the gene order and sequence variations. Sliding window analysis of nucleotide variability in the cp genome was conducted using DnaSP [63]. The step size was set to 200 bp, with a 600 bp window length.

3.5. Phylogenetic Analyses

To explore the phylogenetic position of Oreocharis esquirolii among the limited number of species available across Gesneriaceae, complete cp genomes of 26 species within Lamiales were selected to conduct analyses, using Ipomoea purpurea and Capsicum pubescens from Solanales as outgroups [64,65] (Table S5). Multiple sequence alignment of cp genome sequences were performed using MAFFT [66], and poorly aligned positions and regions with a too-high divergence were excluded from the alignment using Gblocks v0.91 [67]. Bayesian inference (BI) and Maximum likelihood (ML) methods were adopted for phylogenetic analyses. ML analysis was performed using RAxML–HPC2 on XSEDE v.8.2.12 as implemented on the CIPRES Science Gateway (http://www.phylo.org/) [68] under the GTRGAMMA model. Bootstrap iteration (–#|–N) was set to 1000, and other parameters followed default settings. BI analysis was performed in MrBayes v3.2.6 [69] as implemented in PhyloSuite [70] with the ModelFinder [71] used to select the best model. Under the Akaike information criterion (AIC), the GTR+F+I+G4 model was selected for the data matrix. The Markov Chain Monte Carlo (MCMC) algorithm was calculated for 2,000,000 generations with two parallel searches using four chains, each starting with a random tree. The convergence was reached with the average standard deviation of split frequencies (ASDFs) following 0.01. Trees were sampled at every 1000 generations with the first 25% discarded as burn-in, and the remaining trees were used to construct majority-rule consensus trees.

4. Conclusions

Oreocharis esquirolii, also known as Thamnocharis esquirolii, is categorized under IUCN criteria as vulnerable. We assembled and characterized the complete cp genome of O. esquirolii for the first time. The cp genome features of O. esquirolii were similar to other reported species of Gesneriaceae concerning gene content, order, and orientation. SSRs analysis supports the view that cp SSRs are generally composed of short polyA or polyT, and pentanucleotide and hexanucleotide repeats are rather rare. Comparative analyses revealed that no arrangements occurred in Gesneriaceae, intergenic regions were more variable than coding regions, and some hypervariable regions such as rps16-trnQ, trnS-trnG, ndhF-rpl32 and ycf1 may be applied to address phylogenetic issues of Gesneriaceae. Phylogenetic analysis supported synonymizing Thamnocharis esquirolii as Oreocharis esquirolii. The complete cp genome sequence will contribute to further studies in molecular identification, genetic diversity, and phylogeny.

Supplementary Materials

The following are available online at https://www.mdpi.com/2223-7747/9/12/1692/s1, Table S1: Comparison of the features of Oreocharis esquirolii with other Gesneriaceae chloroplast genomes. Table S2: Comparative analysis of chloroplast codon usage bias of Oreocharis esquirolii. Table S3: Distribution of simple sequence repeats (SSRs) loci in the chloroplast genome Oreocharis esquirolii and O. mileensis. Table S4: List of repeated sequences and their locations in chloroplast genome of Oreocharis esquirolii and O. mileensis. Table S5: Taxa used in phylogenetic analysis in this study.

Author Contributions

Conceptualization and supervision were done by G.-X.H.; Investigation, G.-X.H., M.-T.A., L.G., and T.S.; Data curation was done by L.G. and T.S.; formal analysis was performed by L.G. and T.S.; Writing—original draft, L.G.; revision and manuscript editing was done by G.-X.H.; resources and funding acquisition was provided by G.-X.H. and M.-T.A. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China (31600164), the Natural Science Foundation of Guizhou Province ([2016]1049), and the Construction Program of Biology First-Class Discipline in Guizhou (GNYL [2017] 009).

Acknowledgments

We thank Jia-Xin Yang for the help with data analysis. We also thank anonymous reviewers for helpful comments and precious remarks to improve the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Bentham, G. Gesneriaceae. In Genera Plantarum; Bentham, G., Hooker, J.D., Eds.; Lovell Reeve & Co.: London, UK, 1876; pp. 990–1025. [Google Scholar]
  2. Wang, W.T.; Pan, K.Y.; Li, Z.Y.; Weitzman, A.L.; Skog, L.E. Gesneriaceae. In Flora of China; Wu, C.Y., Raven, P.H., Hong, D.Y., Eds.; Science Press: Beijing, China; Missouri Botanical Garden Press: St. Louis, MO, USA, 1998; Volume 18, pp. 244–401. [Google Scholar]
  3. Wang, Y.Z.; Liang, R.H.; Wang, B.H.; Li, J.M.; Qiu, Z.J.; Li, Z.Y.; Weber, A. Origin and phylogenetic relationships of the Old World Gesneriaceae with actinomorphic flowers inferred from ITS and trnL-trnF sequences. Taxon 2010, 59, 1044–1052. [Google Scholar] [CrossRef]
  4. Möller, M.; Middleton, D.; Nishii, K.; Wei, Y.G.; Sontag, S.; Weber, A. A new delineation for Oreocharis incorporating an additional ten genera of Chinese Gesneriaceae. Phytotaxa 2011, 23, 1–36. [Google Scholar] [CrossRef]
  5. Möller, M.; Forrest, A.; Wei, Y.G.; Weber, A. A molecular phylogenetic assessment of the advanced Asiatic and Malesian didymocarpoid Gesneriaceae with focus on non-monophyletic and monotypic genera. Plant Syst. Evol. 2011, 292, 223–248. [Google Scholar] [CrossRef]
  6. Möller, M. Species discovery in time: An example from Gesneriaceae in China. Guihaia 2019, 26, 1–16. [Google Scholar] [CrossRef]
  7. Wen, F.; Li, S.; Xin, Z.B.; Fu, L.F.; Hong, X.; Cai, L.; Qin, J.Q.; Pan, B.; Pan, F.G.; Wei, Y.G. The updated plant list of Gesneriaceae in China under the new Chinese naming rules. Guihaia 2019, 26, 37–63. [Google Scholar] [CrossRef]
  8. Middleton, D.J.; Möller, M. Tribounia, a new genus of Gesneriaceae from Thailand. Taxon 2012, 61, 1286–1295. [Google Scholar] [CrossRef]
  9. Do, T.V.; Wei, Y.G.; Wen, F. Oreocharis caobangensis (Gesneriaceae), a new species from Cao Bang Province, northern Vietnam. Phytotaxa 2017, 302, 65–70. [Google Scholar] [CrossRef]
  10. Chen, W.H.; Middleton, D.J.; Nguyen, H.Q.; Nguyen, H.T.; Averyanov, L.V.; Chen, R.Z.; Nguyen, K.S.; Möller, M.; Shui, Y.M. Two new species of Oreocharis (Gesneriaceae) from Northwest Vietnam. Gard. Bull. 2017, 69, 295–305. [Google Scholar] [CrossRef]
  11. Chen, W.H.; Nguyen, Q.H.; Chen, R.Z.; Nguyen, T.H.; Nguyen, S.K.; Nguyen, V.T.; Möller, M.; Middleton, D.J.; Shui, Y.M. Two new species of Oreocharis (Gesneriaceae) from Fan Si Pan, the highest mountain in Vietnam. Phytokeys 2018, 94, 95–106. [Google Scholar] [CrossRef] [Green Version]
  12. Léveillé, H. Decades plantarum novarum. LIV–LVII. Repert. Spec. Nov. Regni Veg. 1911, 9, 321–330. [Google Scholar]
  13. Wang, W.T. Genus novum primitivum Gesneriacearum e Sina. Acta Phytotax. Sin. 1981, 19, 485–489. [Google Scholar]
  14. Chumley, T.W.; Palmer, J.D.; Mower, J.P.; Fourcade, H.M.; Calie, P.J.; Boore, J.L.; Jansen, R.K. The complete chloroplast genome sequence of Pelargonium × hortorum: Organization and evolution of the largest and most highly rearranged chloroplast genome of land plants. Mol. Biol. Evol. 2006, 23, 2175–2190. [Google Scholar] [CrossRef] [PubMed]
  15. Wicke, S.; Schneeweiss, G.M.; dePamphilis, C.W.; Mueller, K.F.; Quandt, D. The evolution of the plastid chromosome in land plants: Gene content, gene order, gene function. Plant Mol. Biol. 2011, 76, 273–297. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Wang, M.; Cui, L.; Feng, K.; Deng, P.; Du, X.; Wan, F.; Song, W.; Nie, X. Comparative analysis of Asteraceae chloroplast genomes: Structural organization, RNA editing and evolution. Plant Mol. Biol. Rep. 2015, 33, 1526–1538. [Google Scholar] [CrossRef]
  17. Palmer, J.D. Plastid chromosomes: Structure and evolution. In The Molecular Biology of Plastids; Bogorad, L., Vasil, I.K., Eds.; Academic Press: Cambridge, MA, USA, 1991; pp. 5–53. [Google Scholar] [CrossRef]
  18. Chen, Q.; Wu, X.; Zhang, D. Phylogenetic analysis of Fritillaria cirrhosa D. Don and its closely related species based on complete chloroplast genomes. PeerJ 2019, 7, e7480. [Google Scholar] [CrossRef] [Green Version]
  19. Wyman, S.K.; Jansen, R.K.; Boore, J.L. Automatic annotation of organellar genomes with DOGMA. Bioinformatics 2004, 20, 3252–3255. [Google Scholar] [CrossRef] [Green Version]
  20. Givnish, T.J.; Zuluaga, A.; Spalink, D.; Soto Gomez, M.; Lam, V.K.Y.; Saarela, J.M.; Sass, C.; Iles, W.J.D.; de Sousa, D.J.L.; Leebens-Mack, J.; et al. Monocot plastid phylogenomics, timeline, net rates of species diversification, the power of multi-gene analyses, and a functional model for the origin of monocots. Am. J. Bot. 2018, 11, 1888–1910. [Google Scholar] [CrossRef]
  21. He, Y.; Xiao, H.; Deng, C.; Xiong, L.; Yang, J.; Peng, C. The complete chloroplast genome sequences of the medicinal plant Pogostemon cablin. Int. J. Mol. Sci. 2016, 17, 820. [Google Scholar] [CrossRef] [Green Version]
  22. Li, Y.; Zhang, Z.; Yang, J.; Lv, G. Complete chloroplast genome of seven Fritillaria species, variable DNA markers identification and phylogenetic relationships within the genus. PLoS ONE 2018, 13, e0194613. [Google Scholar] [CrossRef] [Green Version]
  23. Zong, D.; Zhou, A.; Zhang, Y.; Zou, X.; Li, D.; Duan, A.; He, C. Characterization of the complete chloroplast genomes of five Populus species from the western Sichuan plateau, southwest China: Comparative and phylogenetic analyses. PeerJ 2019, 7, e6386. [Google Scholar] [CrossRef] [Green Version]
  24. Rivas, D.L.; Lozano, J.; Ortiz, J.J.; Angel, R. Comparative analysis of chloroplast genomes: Functional annotation, genome-based phylogeny, and deduced evolutionary patterns. Genome Res. 2002, 12, 567–583. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Liu, Y.; Huo, N.X.; Dong, L.L.; Wang, Y.; Zhang, S.X.; Young, H.A.; Feng, X.X.; Gu, Y.Q. Complete chloroplast genome sequences of Mongolia medicine Artemisia frigida and phylogenetic relationships with other plants. PLoS ONE 2013, 8, e57533. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Ivanova, Z.; Sablok, G.; Daskalova, E.; Zahmanova, G.; Apostolova, E.; Yahubyan, G.; Baev, V. Chloroplast genome analysis of resurrection tertiary relict Haberlea rhodopensis highlights genes important for desiccation stress response. Front. Plant Sci. 2017, 8, 204. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  27. Hou, N.; Wang, G.; Li, C.R.; Luo, Y. Characterization of the complete chloroplast genomes of three Chirita species (C. brachytricha, C. eburnea & C. liboensis) endemic to China. Conserv. Genet. Resour. 2018, 10, 597–600. [Google Scholar] [CrossRef]
  28. Meng, J.; Zhang, L.; He, J. Complete plastid genome of the endangered species Paraisometrum mileense (Gesneriaceae) endemic to China. Mitochondrial DNA B Resour. 2019, 4, 3585–3586. [Google Scholar] [CrossRef] [Green Version]
  29. Xin, Z.B.; Fu, L.F.; Fu, Z.X.; Li, S.; Wei, Y.G.; Wen, F. Complete chloroplast genome sequence of Petrocodon jingxiensis (Gesneriaceae). Mitochondrial DNA B Resour. 2019, 4, 2771–2772. [Google Scholar] [CrossRef] [Green Version]
  30. Kyalo, C.M.; Gichira, A.W.; Li, Z.Z.; Saina, J.K.; Malombe, I.; Hu, G.W.; Wang, Q.F. Characterization and comparative analysis of the complete chloroplast genome of the critically endangered species Streptocarpus teitensis (Gesneriaceae). Biomed. Res. Int. 2018, 2018, 1507847. [Google Scholar] [CrossRef] [Green Version]
  31. Kyalo, C.M.; Li, Z.Z.; Mkala, E.M.; Malombe, I.; Hu, G.W.; Wang, Q.F. The first glimpse of Streptocarpus ionanthus (Gesneriaceae) phylogenomics: Analysis of five subspecies’ chloroplast genomes. Plants 2020, 9, 456. [Google Scholar] [CrossRef] [Green Version]
  32. Qian, J.; Song, J.; Gao, H.; Zhu, Y.; Xu, J.; Pang, X.; Yao, H.; Sun, C.; Li, X.E.; Li, C.; et al. The complete chloroplast genome sequence of the medicinal plant Salvia miltiorrhiza. PLoS ONE 2013, 8, e57607. [Google Scholar] [CrossRef]
  33. Liu, Q.; Dou, S.; Ji, Z.; Xue, Q. Synonymous codon usage and gene function are strongly related in Oryza sativa. Biosystems 2005, 80, 123–131. [Google Scholar] [CrossRef]
  34. Srivastava, D.; Shanker, A. Identification of Simple Sequence Repeats in chloroplast genomes of Magnoliids through bioinformatics approach. Interdiscip. Sci. 2015, 8, 327–336. [Google Scholar] [CrossRef] [PubMed]
  35. Li, Y.; Kuang, X.J.; Zhu, X.X.; Zhu, Y.J.; Sun, C. Codon usage bias of Catharanthus roseus. Zhongguo Zhong Yao Za Zhi China J. Chin. Mater. Med. 2016, 41, 4165–4168. [Google Scholar] [CrossRef]
  36. Marino, S.M.; Gladyshev, V.N. Analysis and functional prediction of reactive Cysteine residues. J. Biol. Chem. 2012, 287, 4419–4425. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  37. Sharp, P.M.; Li, W.H. The codon Adaptation Index-a measure of directional synonymous codon usage bias, and its potential applications. Nucleic Acids Res. Suppl. 1987, 15, 1281–1295. [Google Scholar] [CrossRef] [Green Version]
  38. Raza, A.; Mehmood, S.S.; Ashraf, F.; Khan, R.S.A. Genetic diversity analysis of Brassica species using PCR-based SSR markers. Gesunde Pflanz. 2018, 71, 1–7. [Google Scholar] [CrossRef]
  39. Torokeldiev, N.; Ziehe, M.; Gailing, O.; Finkeldey, R. Genetic diversity and structure of natural Juglans regia L. populations in the southern Kyrgyz Republic revealed by nuclear SSR and EST–SSR markers. Tree Genet. Genomes 2019, 15, 5. [Google Scholar] [CrossRef]
  40. Kuang, D.Y.; Wu, H.; Wang, Y.L.; Gao, L.M.; Zhang, S.Z.; Lu, L. Complete chloroplast genome sequence of Magnolia kwangsiensis (Magnoliaceae): Implication for DNA barcoding and population genetics. Genome 2011, 54, 663–673. [Google Scholar] [CrossRef] [Green Version]
  41. Du, Y.P.; Bi, Y.; Yang, F.P.; Zhang, M.F.; Chen, X.Q.; Xue, J.; Zhang, X.H. Complete chloroplast genome sequences of Lilium: Insights into evolutionary dynamics and phylogenetic analyses. Sci. Rep. 2017, 7, 5751. [Google Scholar] [CrossRef] [Green Version]
  42. He, L.; Qian, J.; Li, X.; Sun, Z.; Xu, X.; Chen, S. Complete chloroplast genome of medicinal plant Lonicera japonica: Genome rearrangement, intron gain and loss, and implications for phylogenetic studies. Molecules 2017, 22, 249. [Google Scholar] [CrossRef]
  43. Zhao, F.; Drew, B.T.; Chen, Y.P.; Hu, G.X.; Li, B.; Xiang, C.L. The chloroplast genome of Salvia: Genomic characterization and phylogenetic analysis. Int. J. Plant Sci. 2020, 181, 812–830. [Google Scholar] [CrossRef]
  44. Neubig, K.M.; Whitten, W.M.; Carlsward, B.S.; Blanco, M.A.; Endara, L.; Williams, N.H.; Moore, M. Phylogenetic utility of ycf1 in orchids: Aplastid gene more variable than matK. Plant Syst. Evol. 2009, 277, 75–84. [Google Scholar] [CrossRef] [Green Version]
  45. Drew, B.T.; Sytsma, K.J. Testing the monophyly and placement of Lepechinia in the tribe Mentheae (Lamiaceae). Syst. Bot. 2011, 36, 1038–1049. [Google Scholar] [CrossRef]
  46. Möller, M.; Pfosser, M.; Jang, C.G.; Mayer, V.; Clark, A.; Hollingsworth, M.L.; Barfuss, M.H.J.; Wang, Y.Z.; Kiehn, M.; Weber, A. A preliminary phylogeny of the ‘didymocarpoid Gesneriaceae’ based on three molecular data sets: Incongruence with available tribal classifications. Am. J. Bot. 2009, 96, 989–1010. [Google Scholar] [CrossRef] [PubMed]
  47. Doyle, J.; Doyle, J. A rapid DNA isolation procedure from small quantities of fresh leaf tissues. Phytochemistry 1987, 19, 11–15. [Google Scholar]
  48. Jin, J.J.; Yu, W.B.; Yang, J.B.; Song, Y.; dePamphilis, C.W.; Yi, T.S.; Li, D.Z. GetOrganelle: A fast and versatile toolkit for accurate de novo assembly of organelle genomes. Genome Biol. 2020, 21, 241. [Google Scholar] [CrossRef] [PubMed]
  49. Bankevich, A.; Nurk, S.; Antipov, D.; Gurevich, A.A.; Dvorkin, M.; Kulikov, A.S.; Lesin, V.M.; Nikolenko, S.I.; Son, P.; Prjibelski, A.D.; et al. SPAdes: A new genome assembly algorithm and its applications to single-cell sequencing. J. Comput. Biol. 2012, 19, 455–477. [Google Scholar] [CrossRef] [Green Version]
  50. Langmead, B.; Salzberg, S.L. Fast gapped-read alignment with Bowtie 2. Nat. Methods 2012, 9, 357–359. [Google Scholar] [CrossRef] [Green Version]
  51. Camacho, C.; Coulouris, G.; Avagyan, V.; Ma, N.; Papadopoulos, J.; Bealer, K.; Madden, T.L. BLAST+: Architecture and applications. BMC Bioinform. 2009, 10, 421. [Google Scholar] [CrossRef] [Green Version]
  52. Wick, R.R.; Schultz, M.B.; Zobel, J.; Holt, K.E. Bandage: Interactive visualization of de novo genome assemblies. Bioinformatics 2015, 31, 3350–3352. [Google Scholar] [CrossRef] [Green Version]
  53. Qu, X.J.; Moore, M.J.; Li, D.Z.; Yi, T.S. PGA: A software package for rapid, accurate, and flexible batch annotation of plastomes. Plant Methods 2019, 15, 50. [Google Scholar] [CrossRef] [Green Version]
  54. Kearse, M.; Moir, R.; Wilson, A.; Stones-Havas, S.; Cheung, M.; Sturrock, S.; Buxton, S.; Cooper, A.; Markowitz, S.; Duran, C.; et al. Geneious Basic: An integrated and extendable desktop software platform for the organization and analysis of sequence data. Bioinformatics 2012, 28, 1647–1649. [Google Scholar] [CrossRef] [PubMed]
  55. Tamura, K.; Stecher, G.; Peterson, D.; Filipski, A.; Kumar, S. MEGA6: Molecular evolutionary genetics analysis version 6.0. Mol. Biol. Evol. 2013, 30, 2725–2729. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  56. Lohse, M.; Drechsel, O.; Kahlau, S.; Bock, R. OrganellarGenomeDRAW-a suite of tools for generating physical maps of plastid and mitochondrial genomes and visualizing expression data sets. Nucleic Acids Res. Suppl. 2013, 41, W575–W581. [Google Scholar] [CrossRef] [PubMed]
  57. Hélène, C.; Frédérique, L.; Michel, C.; Alain, H. Codon usage and gene function are related in sequences of Arabidopsis thaliana. Gene 1998, 209, GC1–GC38. [Google Scholar] [CrossRef]
  58. Kurtz, S.; Choudhuri, J.V.; Ohlebusch, E.; Schleiermacher, C.; Stoye, J.; Giegerich, R. REPuter: The manifold applications of repeat analysis on a genomic scale. Nucleic Acids Res. Suppl. 2001, 29, 4633–4642. [Google Scholar] [CrossRef] [Green Version]
  59. Thiel, T.; Michalek, W.; Varshney, R.K.; Graner, A. Exploiting EST databases for the development and characterization of gene-derived SSR-markers in barley (Hordeum vulgare L.). Theor. Appl. Genet. 2003, 106, 411–422. [Google Scholar] [CrossRef] [PubMed]
  60. Munyao, J.N.; Dong, X.; Yang, J.X.; Mbandi, E.M.; Wanga, V.O.; Oulo, M.A.; Saina, J.K.; Musili, R.M.; Hu, G.W. Complete chloroplast genomes of Chlorophytum comosum and Chlorophytum gallabatense: Genome structures, comparative and phylogenetic analysis. Plants 2020, 9, 296. [Google Scholar] [CrossRef] [Green Version]
  61. Mayor, C.; Brudno, M.; Schwartz, J.R.; Poliakov, A.; Rubin, E.M.; Frazer, K.A.; Pachter, L.S.; Dubchak, I. VISTA: Visualizing global DNA sequence alignments of arbitrary length. Bioinformatics 2000, 16, 1046–1047. [Google Scholar] [CrossRef] [Green Version]
  62. Kurtz, S.; Phillippy, A.; Delcher, A.L.; Smoot, M.; Shumway, M.; Antonescu, C.; Salzberg, S.L. Versatile and open software for comparing large genomes. Genome Biol. 2004, 5, R12. [Google Scholar] [CrossRef] [Green Version]
  63. Rozas, J.; Albert, F.M.; Juan, C.S.; Sara, G.R.; Pablo, L.; Sebastian, E.R.O.; Alejandro, S.G. DnaSP 6: DNA sequence polymorphism analysis of large data sets. Mol. Biol. Evol. 2017, 34, 3299–3302. [Google Scholar] [CrossRef]
  64. Liu, B.; Tan, Y.H.; Liu, S.; Olmstead, R.G.; Min, D.Z.; Chen, Z.D.; Joshee, N.; Vaidya, B.N.; Chung, R.C.K.; Li, B. Phylogenetic relationships of Cyrtandromoea and Wightia revisited: A new tribe in Phrymaceae and a new family in Lamiales. J. Syst. Evol. 2020, 1, 1–17. [Google Scholar] [CrossRef]
  65. Li, H.T.; Yi, T.S.; Gao, L.M.; Ma, P.F.; Zhang, T.; Yang, J.B.; Gitzendanner, M.A.; Fritsch, P.W.; Cai, J.; Luo, Y.; et al. Origin of angiosperms and the puzzle of the Jurassic gap. Nat. Plants 2019, 5, 461–470. [Google Scholar] [CrossRef] [PubMed]
  66. Katoh, K.; Standley, D.M. MAFFT multiple sequence alignment software version 7: Improvements in performance and usability. Mol. Biol. Evol. 2013, 30, 772–780. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  67. Talavera, G.; Castresana, J. Improvement of phylogenies after removing divergent and ambiguously aligned blocks from protein sequence alignments. Syst. Biol. 2007, 56, 564–577. [Google Scholar] [CrossRef] [Green Version]
  68. Miller, M.A.; Pfeiffer, W.T.; Schwartz, T. Creating the CIPRES Science Gateway for inference of large phylogenetic trees. In Proceedings of the SC10 Workshop on Gateway Computing Environments (GCE10), New Orleans, LA, USA, 14 November 2010. [Google Scholar] [CrossRef] [Green Version]
  69. Ronquist, F.; Teslenko, M.; van der Mark, P.; Ayres, D.L.; Darling, A.; Höhna, S.; Laget, B.; Liu, L.; Suchard, M.A.; Huelsenbeck, J.P. MrBayes 3.2: Efficient Bayesian phylogenetic inference and model choice across a large model space. Syst. Biol. 2012, 61, 539–542. [Google Scholar] [CrossRef] [Green Version]
  70. Zhang, D.; Gao, F.L.; Jakovlić, I.; Zou, H.; Zhang, J.; Li, W.X.; Wang, G.T. PhyloSuite: An integrated and scalable desktop platform for streamlined molecular sequence data management and evolutionary phylogenetics studies. Mol. Ecol. Resour. 2020, 20, 348–355. [Google Scholar] [CrossRef]
  71. Kalyaanamoorthy, S.; Minh, B.Q.; Wong, T.; Haeseler, A.; Jermiin, L.S. ModelFinder: Fast model selection for accurate phylogenetic estimates. Nat. Methods 2017, 14, 587–589. [Google Scholar] [CrossRef] [Green Version]
Plants 09 01692 g001 550

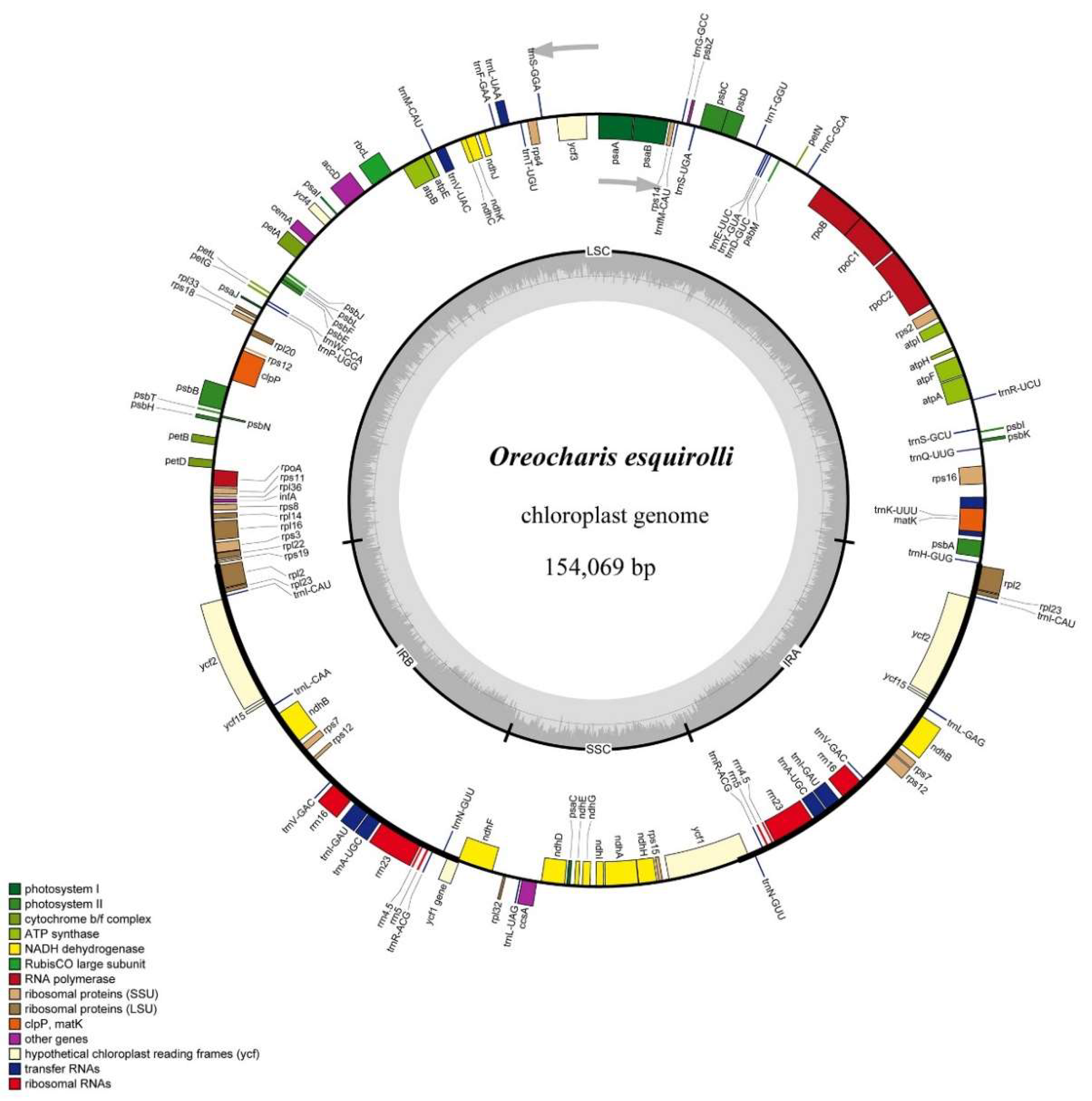

Figure 1. Gene map of chloroplast genome of Oreocharis esquirolii. Genes outside the circle are transcribed in counterclockwise direction and those inside in clockwise direction. LSC indicates large single copy; SSC small single copy, and IR inverted repeat.
Figure 1. Gene map of chloroplast genome of Oreocharis esquirolii. Genes outside the circle are transcribed in counterclockwise direction and those inside in clockwise direction. LSC indicates large single copy; SSC small single copy, and IR inverted repeat.
Plants 09 01692 g001
Plants 09 01692 g002 550

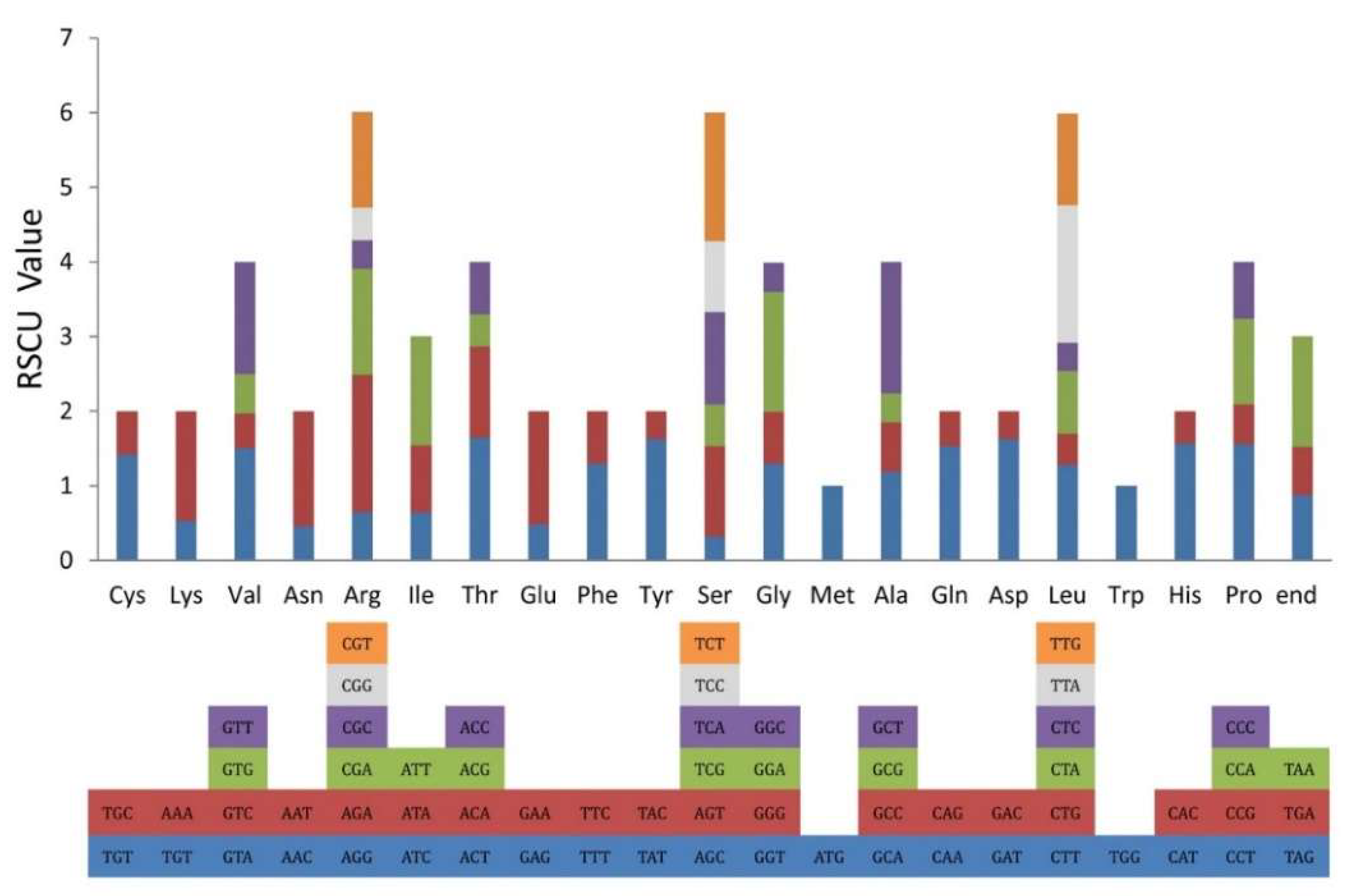

Figure 2. Amino acid frequencies and RSCU value of the protein-coding sequences of Oreocharis esquirolii.
Figure 2. Amino acid frequencies and RSCU value of the protein-coding sequences of Oreocharis esquirolii.
Plants 09 01692 g002
Plants 09 01692 g003 550

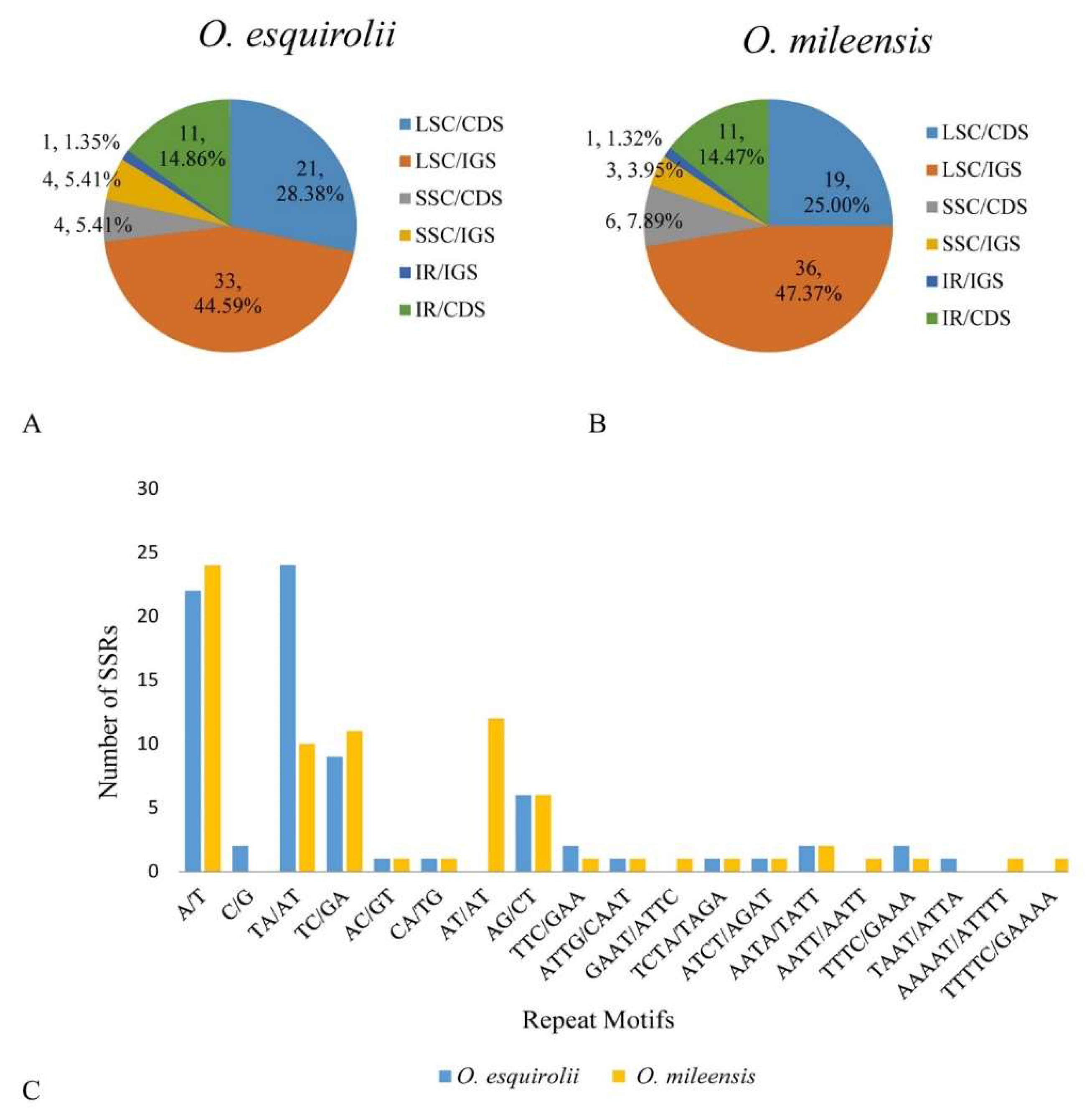

Figure 3. Simple Sequence Repeats (SSRs) in cp genomes of Oreocharis esquirolii and O. mileensis. (A,B) Frequencies of identified SSRs in LSC, IR, and SSC regions; (C) Numbers of SSRs.
Figure 3. Simple Sequence Repeats (SSRs) in cp genomes of Oreocharis esquirolii and O. mileensis. (A,B) Frequencies of identified SSRs in LSC, IR, and SSC regions; (C) Numbers of SSRs.
Plants 09 01692 g003
Plants 09 01692 g004 550

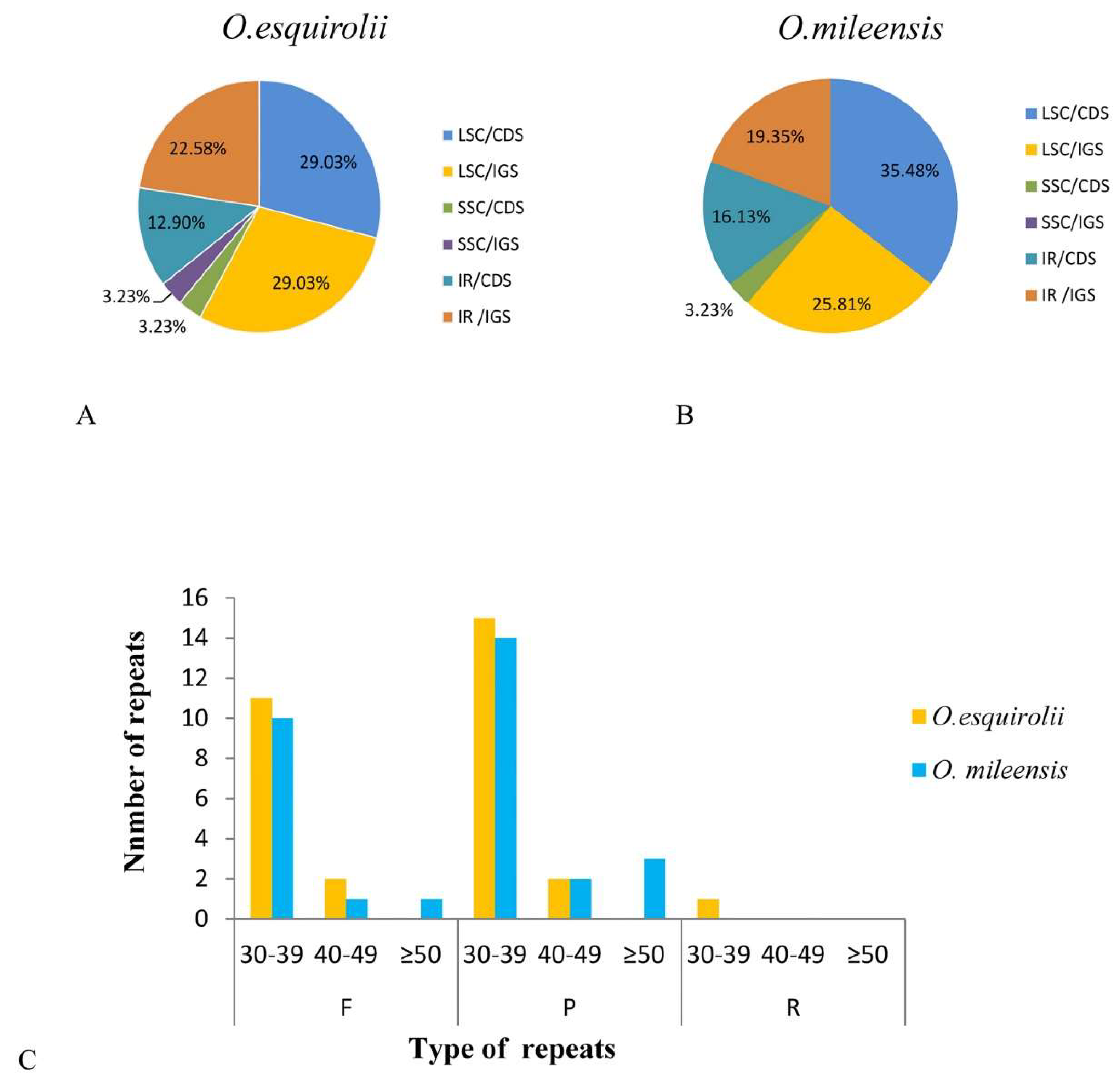

Figure 4. Repeat sequences in the chloroplast genome of Oreocharis esquirolii and O. mileensis. (A,B) Percentages of repeats in LSC, IR, and SSC regions; (C) Numbers of repeat types detected (F: forward, P: palindrome, R: reverse).
Figure 4. Repeat sequences in the chloroplast genome of Oreocharis esquirolii and O. mileensis. (A,B) Percentages of repeats in LSC, IR, and SSC regions; (C) Numbers of repeat types detected (F: forward, P: palindrome, R: reverse).
Plants 09 01692 g004
Plants 09 01692 g005 550
Figure 5. Comparisons of LSC, SSC, and IR border regions among five chloroplast genomes of Gesneriaceae.
Figure 5. Comparisons of LSC, SSC, and IR border regions among five chloroplast genomes of Gesneriaceae.
Plants 09 01692 g005
Plants 09 01692 g006 550
Figure 6. Mauve multiple alignment of five chloroplast genomes of Gesneriaceae, with Oreocharis esquirolii as the reference.
Figure 6. Mauve multiple alignment of five chloroplast genomes of Gesneriaceae, with Oreocharis esquirolii as the reference.
Plants 09 01692 g006
Plants 09 01692 g007 550

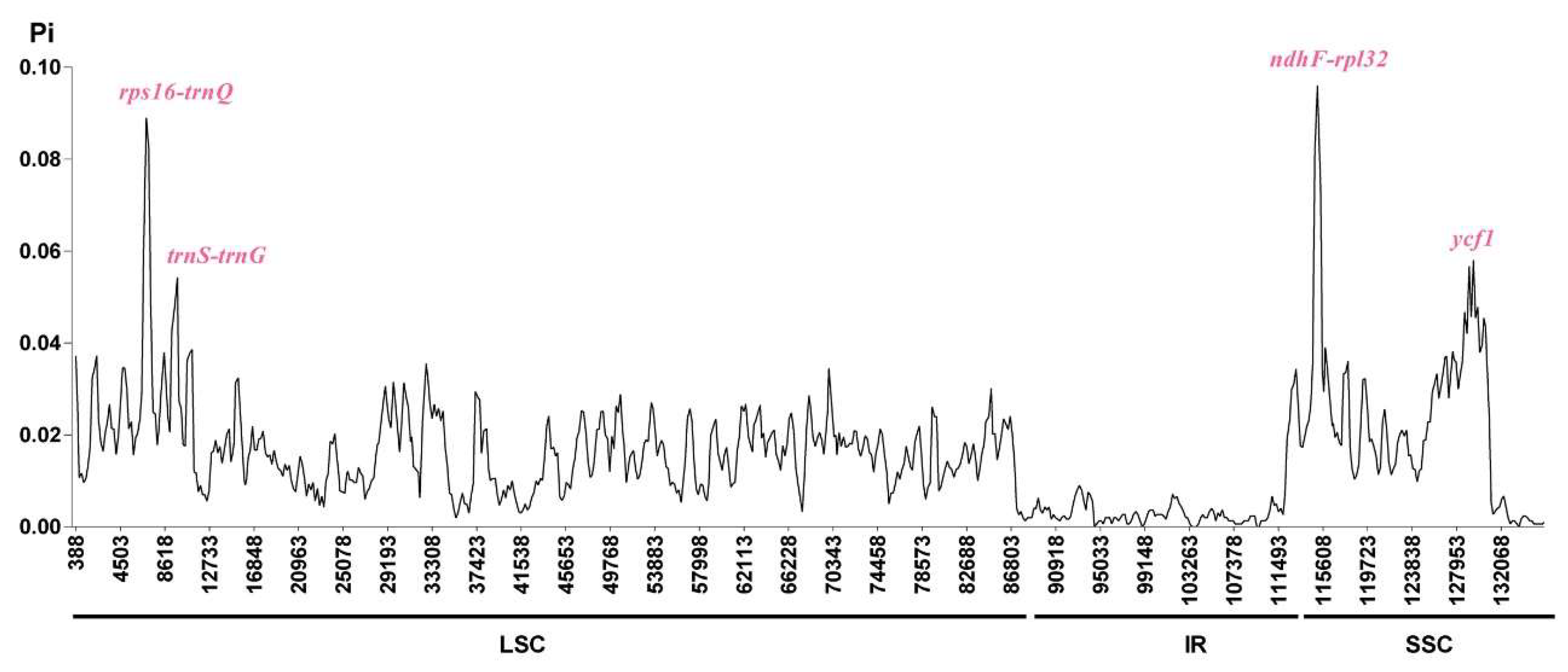

Figure 7. Nucleotide diversity (Pi) in the complete chloroplast genomes of five species of Gesneriaceae. Sliding window analysis with a window length of 600 bp and a step size of 200 bp.
Figure 7. Nucleotide diversity (Pi) in the complete chloroplast genomes of five species of Gesneriaceae. Sliding window analysis with a window length of 600 bp and a step size of 200 bp.
Plants 09 01692 g007
Plants 09 01692 g008 550

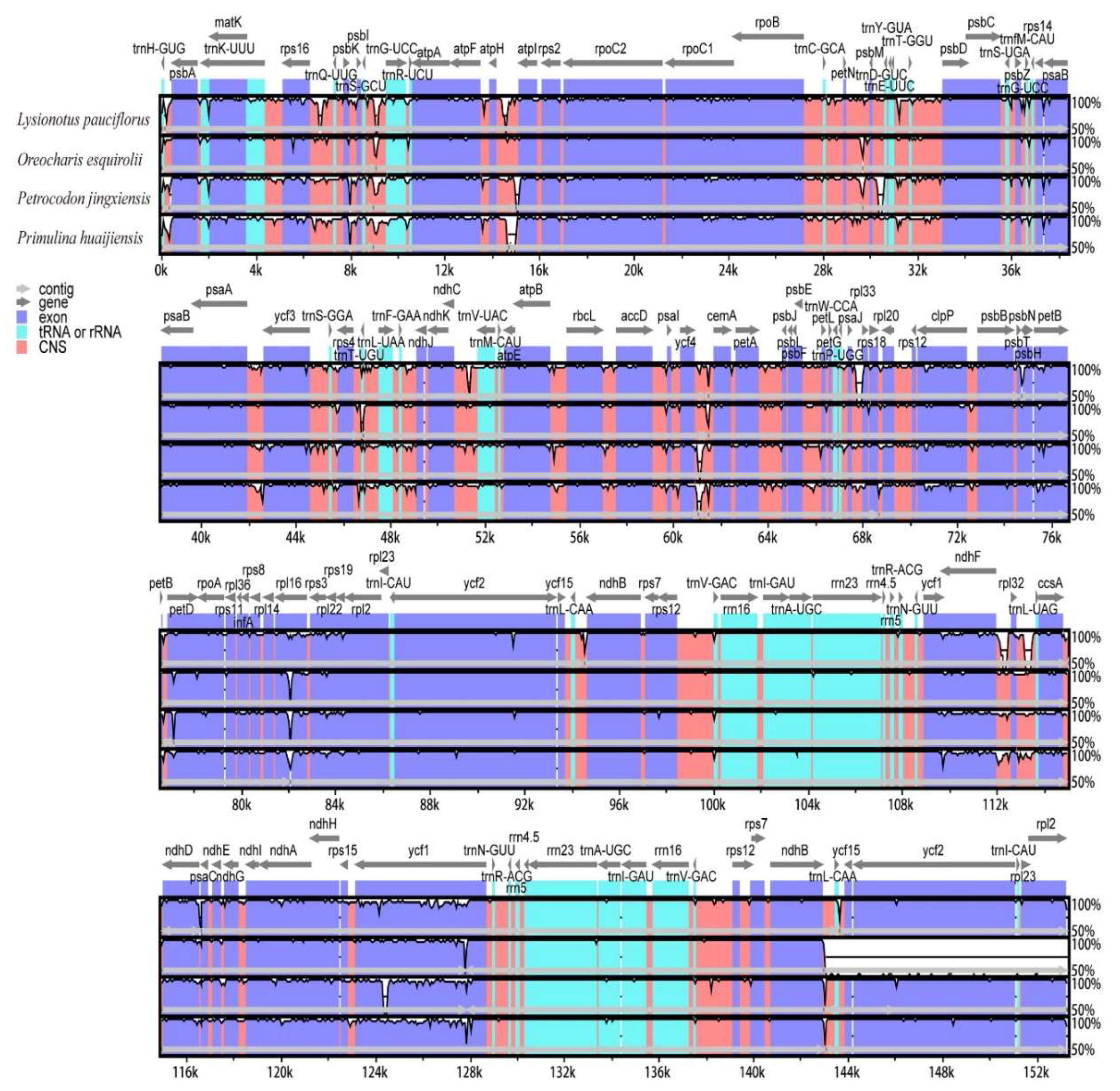

Figure 8. Visualization of genome alignment of five chloroplast genomes of Gesneriaceae using Oreocharis mileensis as reference.
Figure 8. Visualization of genome alignment of five chloroplast genomes of Gesneriaceae using Oreocharis mileensis as reference.
Plants 09 01692 g008
Plants 09 01692 g009 550

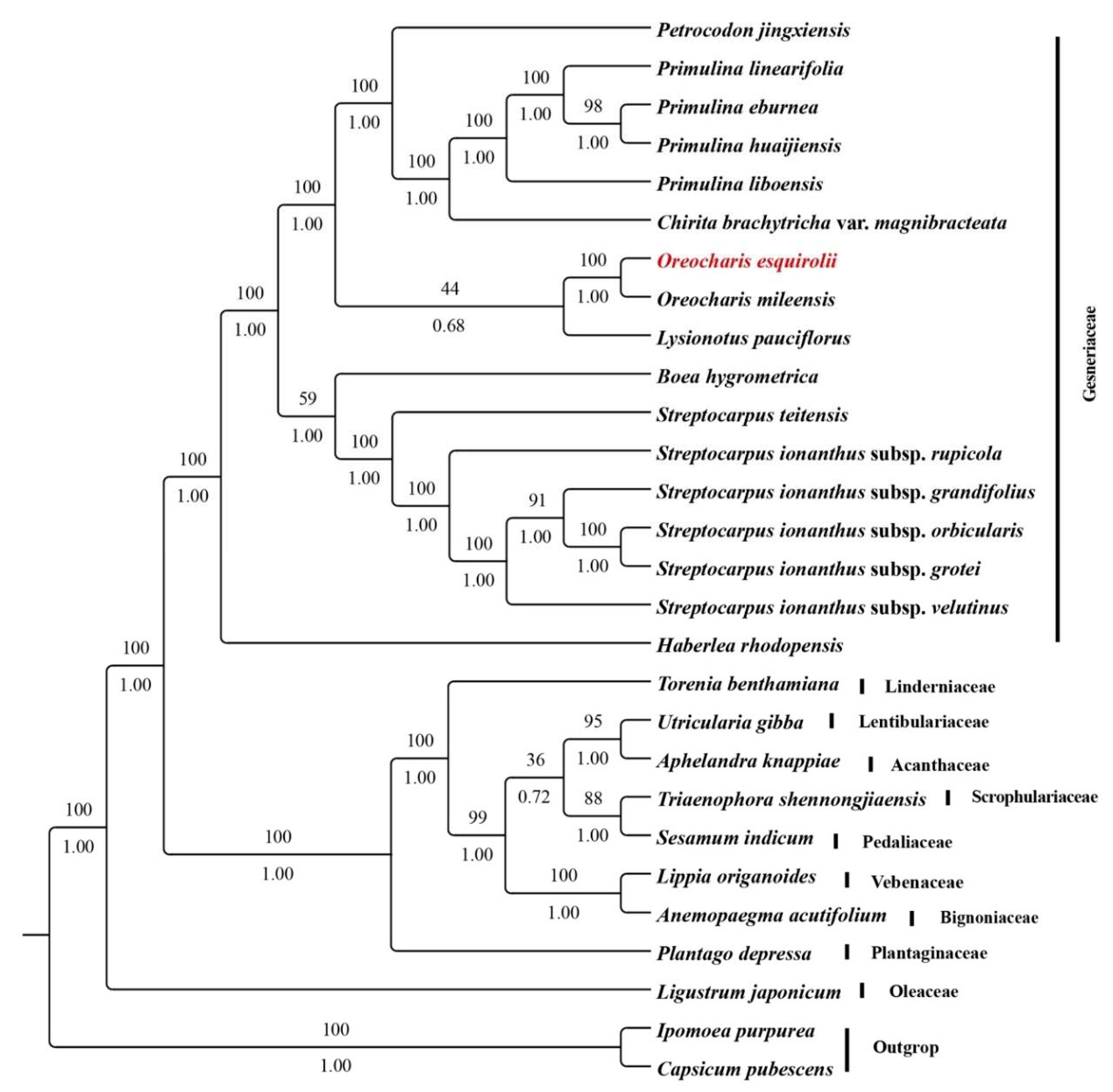

Figure 9. Phylogenetic relationships of 28 species based on complete chloroplast genome sequence. ML bootstrap values are given above branches and posterior probabilities are indicated below.
Figure 9. Phylogenetic relationships of 28 species based on complete chloroplast genome sequence. ML bootstrap values are given above branches and posterior probabilities are indicated below.
Plants 09 01692 g009
Table
Table 1. Genes present in chloroplast genome of Oreocharis esquirolii.
Table 1. Genes present in chloroplast genome of Oreocharis esquirolii.
CategoryGene GroupGene Names
PhotosynthesisSubunits of ATP synthaseatpA, atpB, atpE, atpF *, atpI, atpH
Subunits of NADH dehydrogenasendhA *, ndhB * (×2), ndhC, ndhD, ndhE, ndhF, ndhG, ndhH, ndhI, ndhJ, ndhK,
Subunits of cytochromepetA, petB, petD, petG, petL, petN
Subunits of photosystem IpsaA, psaB, psaC, psaJ, psaI
Subunits of photosystem IIpsbA, psbB, psbC, psbD, psbE, psbH, psbK, psbN, psbJ, psbF, psbL, psbI, psbM, psbT, psbZ
Subunit of rubiscorbcL
Other genesSubunit of Acetyl-CoA-carboxylaseaccD
c-type cytochrome synthesis geneccsA
Envelop membrane proteincemA
ProteaseclpP **
Translational initiationinfA
MaturasematK
Self-replicationLarge subunit of ribosomerpl2 * (×2), rpl14, rpl16 *, rpl20, rpl22, rpl23 (×2), rpl32, rpl33, rpl36
DNA dependent RNA polymeraserpoA, rpoC2, rpoB, rpoC1
Small subunit of ribosomerps12 ** (×2), rps2, rps3, rps4, rps7 (×2), rps8, rps11, rps14, rps15, rps16 *, rps18, rps19
rRNA Genesrrn4.5 (×2), rrn5 (×2), rrn16 (×2), rrn23 (×2)
tRNA GenestrnK-UUU *, trnI-GAU * (×2), trnA-UGC * (×2), trnV-UAC *, trnL-UAA *, trnS-UGA, trnS-GCU, trnS-GGA, trnY-GUA, trnL-CAA (×2), trnL-UAG, trnL-GAG, trnM-CAU, trnR-ACG (×2), trnP-UGG, trnW-CCA, trnD-GUC, trnH-GUG, trnF-GAA, trnT-UGU, trnE-UUC, trnN-GUU (×2), trnV-GAC (×2), trnT-GGU, trnQ-UUG, trnR-UCU, trnG-GCC, trnC-GCA, trnI-CAU (×2), trnfM-CAU
Unknown functionConserved open reading framesycf1 (×2, ψ), ycf2 (×2), ycf3 **, ycf4, ycf15 (×2)
(×2) gene in two copies, * gene which contains one intron, ** gene which contains two introns, ψ one of two duplicated genes is a pseudogene.
Table
Table 2. Length of exons and introns within intron-containing genes in the chloroplast genome of Oreocharis esquirolii.
Table 2. Length of exons and introns within intron-containing genes in the chloroplast genome of Oreocharis esquirolii.
GeneRegionExon1 (bp)Intron1 (bp)Exon2 (bp)Intron2 (bp)Exon3 (bp)
atpFLSC144707411
ndhASSC5521062540
ndhBIR777679756
rpl2IR390673435
rpl16LSC9824399
rps16LSC42921210
clpPLSC69814291644228
rpoC1LSC4538121611
trnA-UGCIR3880735
trnI-GAUIR3794135
trnK-UUULSC37249736
trnL-UAALSC3747648
trnV-UACLSC3858635
ycf3LSC126692228714153
Table
Table 3. AT and GC content in different regions in the chloroplast genome of Oreocharis esquirolii.
Table 3. AT and GC content in different regions in the chloroplast genome of Oreocharis esquirolii.
RegionLength (bp)A (%)T (%)G (%)C (%)GC (%)
LSC85,15631.5433.0317.3018.1335.43
SSC18,12934.3434.5015.0016.1631.16
IRA25,39228.3828.4122.4220.7943.21
IRB25,39228.3828.4122.4220.7943.21
CDS79,65030.7031.5920.1017.6137.71
Total genome154,06930.8331.6718.4519.0437.49
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Gu, L.; Su, T.; An, M.-T.; Hu, G.-X. The Complete Chloroplast Genome of the Vulnerable Oreocharis esquirolii (Gesneriaceae): Structural Features, Comparative and Phylogenetic Analysis. Plants 2020, 9, 1692. https://doi.org/10.3390/plants9121692

AMA Style

Gu L, Su T, An M-T, Hu G-X. The Complete Chloroplast Genome of the Vulnerable Oreocharis esquirolii (Gesneriaceae): Structural Features, Comparative and Phylogenetic Analysis. Plants. 2020; 9(12):1692. https://doi.org/10.3390/plants9121692

Chicago/Turabian Style

Gu, Li, Ting Su, Ming-Tai An, and Guo-Xiong Hu. 2020. "The Complete Chloroplast Genome of the Vulnerable Oreocharis esquirolii (Gesneriaceae): Structural Features, Comparative and Phylogenetic Analysis" Plants 9, no. 12: 1692. https://doi.org/10.3390/plants9121692

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
