Inhibition of Key Citrus Postharvest Fungal Strains by Plant Extracts In Vitro and In Vivo: A Review

Abstract

Citrus fruits are subjected to a diversity of postharvest diseases caused by various pathogens during picking, packing, storage and transportation. Green and blue molds, caused by Penicillium digitatum and Penicillium italicum, respectively, are two major postharvest citrus diseases and cause significant economic losses during the commercialization phase. Currently, the control of postharvest citrus diseases relies mainly on the use of synthetic fungicides, which usually result in the resistance against fungal attack, environment pollution and health hazards. In recent years, much attention has been given to the preservation of citrus by naturally isolated edible plant extracts, medicinal plant extracts, Citrus extracts and volatiles, et al. Scientists worldwide devote their time and energy to discover the high effect, low toxicity, safety and inexpensive plant-derived fungicides. The current review will highlight plant-derived fungicides and chemical constituents that aim to inhibit P. digitatum and P. italicum in vitro and in vivo. Coatings enriched with plant extracts could be good alternative methods for Citrus fruits preservation. Problems and prospects of the research and development of plant-derived natural fungicides will also be discussed in this article.

1. Introduction

Citrus (Family Rutaceae, Aurantioideae Citrus) is considered to be a major fruit crop internationally, with mandarin, orange, pomelo and lemon as prominent varieties. Citrus is being cultivated in all parts of the world, but it has a long history spanning 4000 years in the Chinese agriculture system. In China, Guangxi, Jiangxi, Guangdong and Hunan provinces are the major areas of Citrus cultivation. Cultivation and selection over the millennia have gradually formed plenty of local varieties including Gannan navel orange, Guangdong sugar orange, Nanfeng tangerine, Wenzhou tangerine and many more. Citrus is prone to mechanical damage during picking, packaging, storage, transportation and shelf life. Following skin damage, Citrus is vulnerable to a variety of pathogenic fungi. Over 20 different kinds of diseases in Citrus during postharvest period have been reported thus far. Among them green and blue molds caused by P. digitatum and P. italicum respectively, are the worst that easily deteriorate fruits by rotting. The fruit rot rate remains around 10–30% in general, but in severe conditions it increases up to 50% and causes huge economic losses, especially in developing countries [1]. Currently the Citrus postharvest diseases are mainly controlled by chemical fungicides such as imazalil, benzimidazole, thiabendazole, prochloraz and pyrimethanil. Many other control methods involving biological and physical treatments are supplemented by using various natural fungicides. Longer and continuous use of chemical fungicides are likely to make the pathogens resistant and pollute the environment. The fungicides that remain on the surface of the Citrus peel have also been reported to harm human health. As such, the development of high-efficiency, low-toxic, safe and inexpensive natural plant-derived Citrus preservatives are considered of supreme interest.

Rich Chinese flora is reported to possess good antifungal properties and has been widely used in food preservation for centuries [2,3,4]. Huge scientific studies regarding the application of plant extracts in food preservation have reported the potential antifungal agents from this enriched flora [5]. The major sources of Citrus antiseptic preservatives have been isolated from members of majority of the plant genus including Mentha, Origanum, Thymus, Artemisia, Heracleum, Foeniculum, Ligusticum, Murraya, Phellodendron, Cinnamomum, Eucalyptus, Amomum, Curcuma, Lippia, Solanum, et al. Various advanced techniques have been employed to isolate such antifungal agents, including column chromatography, liquid chromatography, mass spectrometry high performance liquid chromatography (HPLC-MS), gas chromatography-mass spectrometry (GC-MS), and nuclear magnetic resonance spectroscopy (¹H-NMR, ¹³C-NMR). The studies involving such advanced techniques showed the presence of coumarins, flavonoids, phenolic acids, triterpenoids and natural antibiotics [6,7,8]. The recent trend of studies has been to isolate and screen the active ingredients in the plant extracts. At the same time, the antifungal activity, its mechanism, antifungal properties and structure-activity relationship of active ingredients have not been involved in recent studies. However, it provides a great number of preliminary foundations for the future studies on plant-derived Citrus postharvest preservatives. Initially, a sequential screening of postharvest antiseptic preservatives for plant sources was done to isolate hundreds of plant extracts which were found to be effective against P. digitatum and P. italicum. The current manuscript focused on two major pathogenic fungal strains viz. P. digitatum and P. italicum, and their inhibition by plant extracts during the past 30 years, application in Citrus preservation and antisepsis (

Table 1. Inhibitory activity of plant extracts on P. digitatum and P. italicum.

Plants	Genus	Pathogens	Antifungal Constituents	References
R. officinalis L. (rosemary)	Rosmarinus	P. digitatum	essential oils, methanol extract	[9,14]
Solanum nigrum	Solanum	P. digitatum	aqueous extracts	[10,15]
Ficus hirta Vahl’s	Ficus	P. italicum	pinocembrin-7-O-β-D-glucoside	[11]
Ramulus cinnamomi	Cinnamomum	P. digitatum and P. italicum	cinnamaldehyde and cinnamic acid	[12]
C. zeylanicum	Cinnamomum	P. digitatum	volatile oil, eugenol, cinnamaldehyde	[16]
Allium sativum (garlic)	Allium	P. digitatum and P. italicum	aqueous and 20% ethanolic extracts, allicin	[17]
Sanguisorba minor	Sanguisorba	P. digitatum and P. italicum	derivatives of caffeic acid, apigenin, quercetin, kaempferol	[18,19,20]
Plantago lanceolata	Plantago	P. digitatum and P. italicum	caffeic acid derivatives and flavonoids, (iso)verbascoside	[18]
Glycine max (soybean)	Glycine	P. digitatum and P. glabrum	β-conglycinin and glycinin	[21,22]
A. vera	Aloe	P. digitatum	aloe saponins and anthraquinones	[23,24]
A. ferox	Aloe	P. digitatum and P. italicum	aloin	[25]
A. mitriformis	Aloe	P. digitatum and P. italicum	aloin	[25]
A. saponaria	Aloe	P. digitatum and P. italicum	aloin	[25]
C. sinensis	Camellia	P. digitatum and P. italicum	tea saponins	[26]
Laurus nobilis (laurel)	Laurus	P. digitatum	volatile oil, contains 1.8-cineole, linalool, terpineol acetate, methyl eugenol, linalyl acetate, eugenol, sabinene, β-pinene, α-terpineol.	[27,28]
Cuminum cyminum	Cuminum	P. digitatum	volatile oil, cuminaldehyde	[14,16]
Coriandrum sativum	Coriandrum	P. digitatum	volatile oil	[14]
Thymbra spicata L.	Thymbra	P. digitatum	volatile oil	[14]
Anethum graveolens (dill)	Anethum	P. digitatum	volatile oil, carvone	[14,16]
Syzygium aromaticum	Syzygium	P. digitatum	volatile oil, eugenol	[16]
Cymbopogon citratus	Cymbopogon	P. digitatum	volatile oil, citral, myrcene	[16]
Pelargonium graveolens	Pelargonium	P. digitatum	volatile oil, citronellol, citronellol formate, gerinol	[16]
M. piperita (peppermint)	Mentha	P. digitatum	volatile oil, menthol, menthone	[16,29]
M. spicata (spearmint)	Mentha	P. digitatum	volatile oil, carvone	[16,30]
M. arvensis (wild mint)	Mentha	P. italicum	volatile oil	[31]
Ocimum canum	Ocimum	P. italicum	volatile oil	[31]
Zingiber officinale	Zingiber	P. italicum	volatile oil	[31]
Foeniculum vulgare	Foeniculum	P. digitatum	volatile oil	[28]
Artemisia annua	Artemisia	P. digitatum	volatile oil	[28]
Lavandula stoechas	Lavandula	P. digitatum	volatile oil	[28]
Melaleuca alternifolia	Melaleuca	P. digitatum and P. italicum	essential oil	[32]
Eugenia caryophyllata	Eugenia	P. digitatum	essential oil, eugenol and β-caryophyllene	[33]
T. vulgaris (thyme)	Thymus	P. digitatum	essential oil, thymol, carvacrol, p-cymene and δ-terpinene	[33,34]
T. capitatus L.	Thymus	P. digitatum and P. italicum	volatile oil, carvacrol	[35]
T. leptobotrys	Thymus	G. citri-aurantii and of P. digitatum and P. italicum	volatile oil, petroleum ether, chloroform, ethyl acetate extracts, thymol and carvacrol	[19,20,36,37]
T. satureioides subsp. pseudomastichina	Thymus	G. citri-aurantii and of P. digitatum and P. italicum	borneol and thymol	[37]
T. broussonnetii subsp. hannonis	Thymus	G. citri-aurantii and of P. digitatum and P. italicum	camphor and α-terpineol	[37]
T. riatarum	Thymus	G. citri-aurantii and of P. digitatum and P. italicum	carvacrol, γ-terpinene and p-cymene	[37]
O. syriacum	Origanum	P. digitatum	volatile oil	[28]
O. vulgare	Origanum	P. digitatum	essential oil, thymol and carvacrol	[34]
O. majorana	Origanum	P. digitatum	essential oil, thymol and carvacrol	[34]
O. dictamus	Origanum	P. digitatum	essential oil, thymol and carvacrol	[34]
Arenaria rubra	Arenaria	P. italicum	aqueous extract	[19,20]
Anvillea radiata	Anvillea	P. italicum	petroleum ether, chloroform, ethyl acetate extracts	[19,20,36]
Asteriscus graveolens	Asteriscus	P. italicum	petroleum ether, chloroform, ethyl acetate extracts	[19,20,36]
Bubonium odorum	Bubonium	P. italicum	petroleum ether, chloroform, ethyl acetate extracts	[19,20,36]
Cistus villosus	Cistus	P. digitatum and P. italicum	aqueous extract	[19,20]
Halimium umbellatum	Halimium	P. italicum	methanol extract	[19,20,36]
Hammada scoparia	Hammada	P. italicum	chloroform extract	[19,20,36]
Ighermia pinifolia	Ighermia	P. italicum	petroleum ether extract	[19,20,36]
Inula viscosa	Inula	P. italicum	petroleum ether, chloroform, ethyl acetate extracts	[19,20,36]
Rubus ulmifolius	Rubus	P. italicum	aqueous extract	[19,20]
Peganum harmala	Peganum	P. digitatum and P. italicum	aqueous extract	[19,20]
Eucalyptus globulus	Eucalyptus	P. digitatum and P. italicum	aqueous extract	[19,20]
Ceratonia siliqua	Ceratonia	P. digitatum	aqueous extract	[19,20]
Yucca filifera Chaub	Yucca	P. italicum	ethanolic and hexanic extracts	[38]
Chenopodium murale	Chenopodium	P. digitatum	aqueous extract	[15,39]
Crepis aspera	Crepis	P. digitatum	aqueous extract	[15,39]
Ranunculus asiaticus	Ranunculus	P. digitatum	aqueous extract	[15,39]
Sisymbrium irio	Sisymbrium	P. digitatum	aqueous extract	[15]
Chuquiraga atacamensis	Chuquiraga	P. digitatum	aqueous extracts, total phenolics	[40]
Parastrephia phyliciformis	Parastrephia	P. digitatum	aqueous extracts, total phenolics	[40]
Parastrephia lepidophylla	Parastrephia	P. digitatum	aqueous extracts, total phenolics	[40]
Angelicae biseratae	Angelicae	P. digitatum and P. italicum	Coumarins, isobergapten, pimpinellin, sphondin, isopimpinellin	[41]
Helichrysum aureonitens	Helichrysum	P. digitatum and P. italicum	galangin	[42]
L. graveolens	Lippia	P. digitatum	ethanolic and hexanic extracts	[38]
L. javanica	Lippia	P. digitatum and P. italicum	verbascoside	[43,44]
L. rehmannii	Lippia	P. digitatum	verbascoside	[43]
L. scaberrima	Lippia	P. digitatum	volatile oil, (d)-cinene, R-(-)-carvone and 1,8-cineole	[30]
Astilbe myriantha Diels	Astilbe	P. digitatum	triterpenoid, 3β, 6β, 24-trihydroxyurs-12-en-27-oic acid	[45]
Breonadia salicina	Breonadia	P. digitatum	triterpenoid, ursolic acid	[46]
Lantana camara	Lantana	P. italicum	verbascoside	[44]
Punica granatum	Punica	P. italicum and P. digitatum	ethanol, methanol and water extracts	[47,48]
Withania somnifera	Withania	P. digitatum	caffeic acid, salicylic acid, 3, 4-dihydroxybenzoic acid	[49,50]
Acacia seyal	Acacia	P. digitatum	methanol extracts, gallic acid	[49,50]

). The manuscript further aims to provide a theoretical basis for the research on the preservative agents for Citrus postharvest.

2. Studies Regarding the Inhibitory Activity of Plant Extracts on P. digitatum and P. italicum

2.1. Medicinal Plant Extracts

Different medicinal plants have been reported to possess unique uses in the prevention and treatment of diseases in China. Over 5000 different medicinal plants have been reported in Chinese medical system, which mostly bear strong antifungal properties. Herbs and edible plants have a long history of being used as Citrus preservatives due to their low toxicity, safety and easy acceptance by consumers. In recent years, many scholars have selected a large number of extracts from herbal medicines that inhibit the activity of P. digitatum and P. italicum. The effect of rosemary (Rosmarinus officinalis L.) extracts on the growth of the green mold of Citrus was studied by Hendel et al. [9], and in vitro antifungal assays showed a clear inhibitory effect of the rosemary essential oils and methanol extract on the growth of P. digitatum. An aqueous crude extract prepared from lyophilized leaves of Solanum nigrum showed an inhibitory effect on P. digitatum [10] with a remarkable inhibition zone. Solanum nigrum extracts showed an important preventive antifungal effect where 100% of inhibition was observed at 7 days of storage. Previously our lab studied the antifungal effect of ethanolic extracts of Ficus hirta Vahl's fruits on P. italicum [11], and antifungal assays revealed the presence of a major flavonoid pinocembrin-7-O-β-D-glucoside as a strong antifungal agent. In another study which uses ethyl acetate extracts of Ramulus cinnamomi plant showed resistance against several Citrus pathogens and good antifungal properties for P. digitatum and P. italicum [12].

The antifungal activity of medicinal plant extracts is affected by many factors such as origin, season of harvest, processing method and extraction conditions, etc. In order to make extracts that exert optimal antifungal activity, some studies reported the effects of variable extraction conditions on the antifungal activity of plant extracts, and optimized the extraction procedures of some plants with antifungal effects. Our lab [13] has performed certain experiments to optimize the extraction conditions of antifungal extracts from F. hirta fruit. The results of this study indicated that the optimal extraction parameters for maximum antifungal activity were: 90% (v/v) ethanol concentration, 65 min extraction time, 31 mL/g solvent to solid ratio at 51 °C. The experimental diameters of inhibition zone (DIZs) values against P. italicum and P. digitatum were 57.17 ± 0.75 and 39.33 ± 0.82 mm, respectively, which were very close to the values of 57.26 and 39.29 mm predicted by the standard model.

2.2. Edible Plants Extracts

Many of the edible plants also have good antifungal effects and can potentially inhibit the growth of postharvest pathogenic fungi in Citrus fruits. The extracts of edible plants contain some edible flavorings. Aqueous and 20% ethanolic extracts of garlic (Family Amaryllidaceae) plant showed a significant inhibition of P. digitatum and P. italicum [17]. The inhibitory effect of 9 edible wild herbs were studied on common mold of fruits and vegetables, and we found that both Sanguisorba minor and Plantago lanceolata could significantly inhibit the germination of P. digitatum and P. italicum spores and the extension of germ tubes [18]. This occurrence is possibly related to the presence of caffeic acid derivatives and flavonoids in extracts. Studies have shown that extracts of soybean flour possess strong antifungal effects [21], and further studies confirmed the various components of soybean protein such as β-conglycinin and glycinin [22]. The results showed that the soy protein fractions contain β-conglycinin significantly inhibited in vitro growth of P. digitatum at a wide concentration range (50-3,000 mg/L), and complete inhibition of spore germination at 2,000 mg/L was stated. The soy protein fraction containing β-conglycinin totally inhibited the development of green mold in fruits at 250 mg/L for 7 days after inoculation with the fungal pathogen.

Aloe vera (Family Liliaceae) is rich in polysaccharides, proteins, vitamins, active enzymes, lignin, anthraquinones and many other compounds. The anthraquinones are a characteristic component of aloe plant. Moreover, aloe extracts have a wide range of activities to inhibit microbial growth, while aloe saponins and anthraquinones were found as the active ingredients. The extracts were prepared from the aloe gel [23,24], which significantly inhibited the mycelial growth and spore germination of P. italicum. The antifungal activity of 8 different aloe species were also examined [25], out of them A. ferox, A. mitriformis and A. saponaria showed the highest inhibitory effects on P. digitatum and P. italicum, primarily due to the presence of a major component aloin in aloe gel.

Tea saponins are natural non-ionic surfactants isolated from Camellia sinensis and are widely used in foods, medicines, pesticides and its emulsifiers. Tea saponins can potentially improve the antifungal activity of Citrus chemical fungicides and biocontrol bacteria as well as affecting Citrus preservation. A strain of Bacillus amyloliquefaciens isolated and identified as HF-01 was found antagonistic to P. italicum from the epidermis of seedless granulated oranges [67]. in vitro experiments shown that the inhibitory rate of the antagonistic bacteria against the P. digitatum and P. italicum were above 96%, the use of HF-01 antagonistic bacteria alone has a certain antiseptic and fresh-keeping effect on the seedless sugar orange, but there is a significant difference compared with the chemical fungicide imazalil. At the same time, 50 μg/mL of tea saponins can significantly improve the fresh-keeping effect of HF-01 antagonistic bacteria (stronger than the activity of the two agents alone), which is not significantly different from chemical fungicides, and has no effect on fruit quality. This indicated that tea saponin and HF-01 have synergistic effects on antagonistic antifungal action. In addition, it was also found that tea saponins have a synergistic effect with other chemical fungicides such as imazalil and prochloraz [26].

2.3. Citrus Extracts

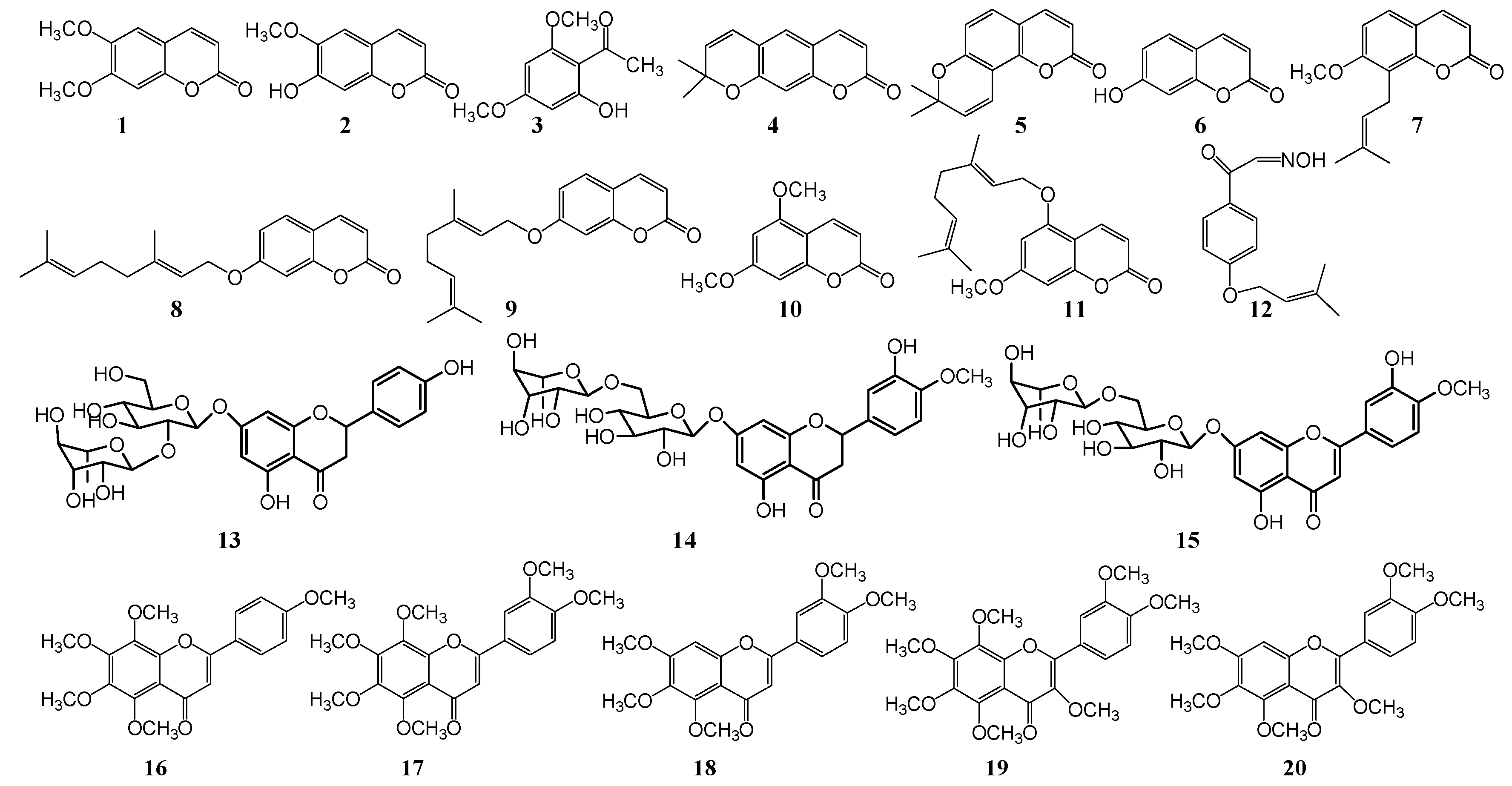

Citrus itself contains many antifungal substances (Figure 1,

Table 2. Inhibitory activity of Citrus extracts on P. digitatum and P. italicum.

Citrus Plants	Other name	Pathogens	Antifungal Constituents	References
C. aurantium	sour orange	P. citrophthora, P. italicum and Geotrichum	essential oils, polymethoxyflavones, tangeritin, nobiletin, sinensetin, heptamethoxyflavone and quercetogetin	[51,52]
C. paradisi L.	grapefruit	P. digitatum and P. italicum	coumarins including Scoparone, seselin, umbelliferone, osthol, auraptene 7-geranoxycoumarin; essential oils, limonene, α-pinene, sabinene, myrcene, α-terpineol, linalool, citral, nootkatone	[53,54,55,56,57,58]
C. japonica	kumquat	P. digitatum	scoparone and scopoletin	[59]
C. sinensis	sweet orange	P. citrophthora, P. italicum and Geotrichum	scoparone and scopoletin, volatile oil, limonene, α-pinene, sabinene, myrcene, α-terpineol, linalool, citral; polymethoxyflavones	[52,58,60,61]
C. limon	lemon	P. citrophthora, P. digitatum and P. italicum	waxy components, hexane extract, scoparone, xanthoxylin and xanthyletin; limettin, isopimpinellin, 5-geranoxy-7-methoxycoumarin and Scoparone; volatile oil, citral	[61,62,63,64,65,66]
C. reticulata	mandarin	P. digitatum	waxy components, hexane extract, tangeritin, nobiletin	[61]
C. clementina	clementine	P. citrophthora, P. italicum and Geotrichum	volatile oil, nobiletin, and sinensetin, heptamethoxyflavone, limonene, α-pinene, sabinene, myrcene, α-terpineol, linalool	[52,58]

). The presence of essential oils extracted from Citrus peel, leaves and flowers by water distillation has strong antifungal effects on both the fungal strains P. digitatum and P. italicum [51]. Further studies have shown that the Citrus peel contains a large number of flavonoids, coumarins and volatile oils, which have the activity to resist the postharvest pathogenic fungi of Citrus fruits. Citrus peel itself also has a certain ability to resist pathogenic fungi, mainly through endogenous and induced (phytoalexins) antimicrobial substances. Citrus coumarins are a class of phytoalexins that inhibit the growth of postharvest pathogenic fungi. Phytoalexins refer to the kind of a substance that inhibits the growth of pathogenic fungi when the pathogenic fungi has invaded the fruits. It means this is the substance that is related to plant resistance to disease. After the Citrus fruit is treated by physical (exposure to γ-ray, ultraviolet, heat treatment, skin damage etc.) or chemical (pathogenic fungi, fungicides, etc.) agents, the skin of the Citrus fruit can induce some plant antitoxin (mainly coumarins). These phytoalexins are low or absent in normal Citrus. When Citrus is treated by physical or chemical agents, these phytoalexins can be produced or their presence was significantly increased. These phytoalexins significantly inhibit the growth of pathogenic microorganisms.

Scoparone (1) is the most intensively studied induced plant phytoalexin to date. While it is present in smaller quantities in normal conditions, following exposure to inoculation of pathogens, heat treatment, ultraviolet and γ-rays irradiation etc., its contents significantly increase. The degree of increase is closely related to the conditions of treatment (temperature, energy and time of irradiation), the variety of Citrus and the degree of maturity. In general, the content of lemon, kumquat and ponkan is higher, and the content of immature fruit is lower than ripe fruits [68,69,70,71]. Scoparone (1) was first isolated from the grapefruit [53] peel by γ-rays treated. This compound was subsequently isolated from the rind and bark [72,73,74] of other Citrus inoculated with Phytophthora citrophthora. Its inhibitory activity against P. digitatum and P. italicum was studied with EC50 of 64 μg/mL and 60 μg/mL respectively. Scoparone (1) and scopoletin (2) were also isolated from the peels of kumquat and C. sinensis [59,60], and their content was significantly increased by short-wave ultraviolet irradiation C (UV-C). The peak was reached after 4-10 days of irradiation, and then decreased rapidly, which showed that irradiation can improve the storage stability of kumquat and C. sinensis.

In addition to scoparone (1), some other antifungal components of coumarin were isolated and identified from Citrus. Two phytoalexins—xanthoxylin (3) and xanthyletin (4) were isolated from the lemon bark [62] and roots [63] inoculated with P. citrophthora. 60 μg/mL of xanthyletin (4) can completely inhibit the growth of P. citrophthora in Citrus. Meanwhile some phenolic components (3,4-dimethoxybenzaldehyde) with xanthyletin (4) can synergistically improve its antifungal activity. Seselin (5) was isolated from the Citrus roots [54,75] inoculated with P. citrophthora, which is a pyranocoumarin phytoalexin. However, this compound was not detected in other parts, indicating that seselin (5) mainly exists in the roots of Citrus trees. Several endogenous coumarins, umbelliferone (6), osthol (7), auraptene (8) and 7-geranoxycoumarin (9), were isolated from the peel of grapefruit [55,56,57], and result showed they have antifungal effects. Angioni et al. [57] further studied the synthetic method of 7-geranoxycoumarin (9), and obtained 7-geranoxycoumarin (9) through the synthesis of geranyl bromide and umbelliferone (6). The inhibitory activities of umbelliferone (6) and 7-geranoxycoumarin (9) against P. digitatum and P. italicum were compared. The EC50 values were 95 μg/mL and 110 μg/mL, 57 μg/mL and 43 μg/mL, indicating that the structure of umbelliferone (6) can be modified to improve the antifungal activity. Ben-Yehoshua et al. [64,65,66] also found that green-skinned lemons have lower decay rate than yellow-skinned lemons, and their antifungal active substances were studied. One induced and four endogenous antifungal substances in lemon peels were identified by TCL-bioautography, GC-MS and NMR. There are citral, scoparone (1), limettin (10), 5-geranoxy-7-methoxycoumarin (11) and isopimpinellin (32). The EC50 of citral, limettin (10) and 5-geranoxy-7-methoxycoumarin (11) inhibiting the elongation of P. digitatum sprouts was 170-242 μg/mL, 860-886 μg/mL and 1578 μg/mL, respectively. The content of limettin (10), which is the active ingredient of green-skinned lemons, is higher than that of yellow-skinned lemons. Therefore, the green-skinned lemon is more resistant to storage. Dubery et al. [76] identified a new inducible antifungal substance, 4-(3-methyl-2-butenoxy) isonitrosoacetophenone (12), from γ-ray treated Citrus sinensis and lemon peel.

In addition to coumarin, there are some flavonoids in Citrus peels. In particular, polymethoxy- flavones are also resistant to the attack of P. digitatum and P. italicum. The waxy components of various Citrus peel and hexane extract [61] have resistance effects on a variety of fungi and bacteria, and the MIC concentration of P. digitatum is inhibited below 1000 μg/mL. And separating and identifying three activities ingredient: tangeritin (16), nobiletin (17) and scoparone (1). Further studies [77,78] have shown that naringin (13) and hesperidin (14) of dihydrogen flavonoids, diosmin (15) of flavonoids, tangeritin (16), sinensetin (18), heptamethoxyflavone (19) and nobiletin (17) of polymethyl-flavonoids are closely related to the susceptibility of Citrus to P. digitatum. The high content of flavonoids in Citrus peels is resistant to the infection of Penicillium spp. Ultraviolet radiation (UV) not only affects the content of coumarin in Citrus peel, but also affects the flavonoids. Arcas et al. [79] studied the effect of ultraviolet radiation (UV) on the content of flavonoids in Citrus aurantium and the activity of P. digitatum. After five days of inoculation with P. digitatum, the orange was irradiated by ultraviolet irradiation, and the content of naringin (13) in the peel decreased, while the content of tangeritin (16) increased. The inhibitory activity of tangeritin (16) is stronger than that of naringin (13), which showed that ultraviolet irradiation treatment of C. aurantium can improve its antifungal activity.

2.4. Volatile Oil

Volatile oil, also known as essential oil, is a volatile oily liquid widely found in plants. It is widely found in Labiatae, Umbelliferae, Lauraceae, Myrtaceae, Rutaceae and Asteraceae families. The peels of the Citrus fruit also contain a large amount of volatile oil components.

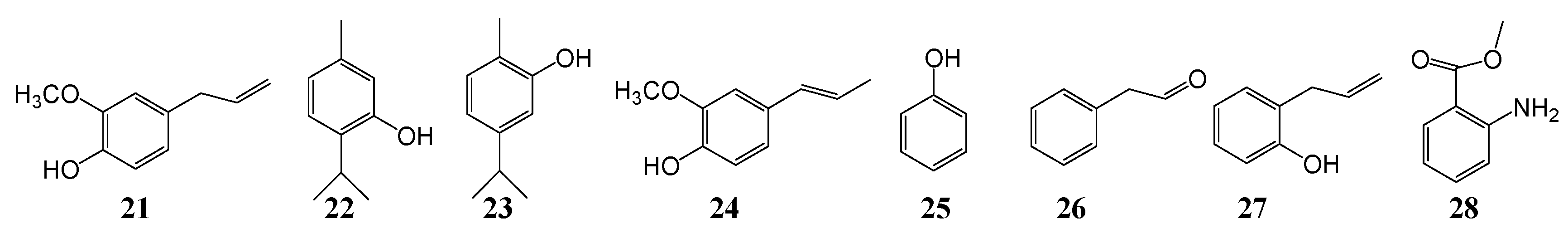

In addition to flavonoids and coumarins mentioned above, Citrus peels also contain volatile oils (Figure 1). The results indicated that Citrus essential oils had a good effect on inhibiting the pathogenic fungi of Citrus postharvest diseases, which may be related to its natural resistance to pathogens during fruit growth and evolution. The main components of Citrus essential oils, including limonene (content over 50% [80]), myrcene, citral, α-pinene, β-pinene, α-terpineol, β-linalool, β-phellandrene and β-ocimene were analyzed by GC-MS. The α-terpineol, β-linalool inhibit the growth of P. digitatum and P. italicum. However, limonene, myrcene, α-pinene and β-pinene stimulate their growth [58], which may be one of the reasons why damaged Citrus are vulnerable to pathogenic fungus. C. aurantium and C. sinensis volatile oil [52] can inhibit the growth of Penicillium spp., isolated and identified several polymethoxyflavones: tangeritin (16), nobiletin (17), and sinensetin (18), heptamethoxyflavone (19) and quercetogetin (20), Citrus polymethoxyflavones can resist a variety of Citrus postharvest pathogens (including P. citrophthora, P. italicum and Geotrichum). Caccioni et al. [81] studied the relationship between the volatile oil components of various Citrus peels and the inhibition of the activity of P. digitatum and P. italicum. The antifungal activity of the volatile oils of citrange, lemon, grapefruit and tangerine was strong, while the activity of the volatile oil of sweet orange and sour orange was slightly weak. It was found that the antifungal activity of volatile oil from Citrus peel was related to the content of sesquiterpenes and total monoterpenes (except limonene). Sweet orange, sour orange and grapefruit contain more than 90% limonene, and the content of limonene in citrange, lemon and tangerine is about 70%.

In addition to volatile oils of Citrus plants, the volatile oils of other plants (Labiatae, Asteraceae and Lauraceae) are also effective at inhibiting Citrus postharvest pathogens fungi (Figure 2). The most active ones are volatile oils such as laurel, clove, oregano, cinnamon and mint. CO₂ supercritical fluid extraction of laurel oil [27] has a good inhibitory effect on postharvest pathogenic fungi, and good results at a concentration of 200 μg/mL. The chemical components of laurel oil were analyzed by GC-MS, and mainly contains 1.8-cineole, linalool, terpineol acetate, methyl eugenol, linalyl acetate, eugenol (21), sabinene, β-pinene and α-terpineol. Yigit et al. [14] studied the inhibitory effect of volatile oils from five plant spices on P. digitatum and the preservation effect of Citrus. Cumin volatile oil can completely inhibit the growth of mycelium and spore germination. Coriander, rosemary, wild thyme and dill volatile oils also have a certain antifungal effect (mycelial growth inhibition rate is 70–80%). During in vivo experiments, 900 ppm thyme essential oil was found to have a 50% inhibition rate, and other volatile oils had no effect. The results showed that the extracts of essential oil had some differences in fungus inhibition in vitro and in vivo. Hall et al. [16] studied the inhibitory activity of several essential oils on P. digitatum in vitro. Results indicated that all essential oils (cinnamon leaf, lemongrass, spearmint, clove leaf and cumin) inhibited the growth (colony and diameter) of both pathogens over untreated PDA plates, but the inhibition was the strongest by clove and cinnamon leaves oil. Tripathi et al. [31] screened the antifungal activity of twenty plants’ volatile oils against P. italicum. At the concentration of 500 μg/mL, thirteen plants showed the activity of completely inhibition of mycelium growth. Among them, the IC50 of Ocimum canum, wild mint and ginger are 100, 500 and 200 μg/mL, respectively. This is far less than the positive control fungicide benzimidazole (3000 μg/mL). The MIC and MFC concentrations of the peppermint volatile oil [29] against P. digitatum were 2.25 mg/mL and 4.5 mg/mL, respectively. Soylu et al. [28] studied the inhibitory effect of volatile oil of five Turkish plants (oregano, fennel, artemisia, laurel and lavender) on P. digitatum. Oregano and fennel are most active, the concentrations required to completely inhibit mycelial growth and germ tube elongation was 64 μg/mL and 352 μg/mL, respectively. The other three volatile oils at a concentration 352 μg/mL partially inhibited the elongation of the tube of P. digitatum. Zhang et al. [32] when testing for antimicrobial activities of Melaleuca alternifolia essential oils showed that mycelial growth and conidial germination were clearly affected by these oils treatments, indicating that these concentrations affected various stages of the development of P. digitatum and P. italicum.

Thymol (22) and carvacrol (23) are the two most common volatile components in the Labiatae members (Figure 2). They have good inhibition of plant pathogens activity. These components are mainly distributed in plants such as oregano, thyme, mint and Elsholtzia. Yahyazadeh et al. [33] studied the inhibitory effect of volatile oils of four plants (clove, thyme, fennel and sage) on P. digitatum. It showed that 600 ppm of clove and thyme volatile oils can completely inhibit the growth of P. digitatum. Analysis of their components by using GC-MS indicates that the main components of clove oil are eugenol (21) and β-caryophyllene. The main ingredients of thyme oil are thymol (22), p-cymene and δ-terpinene. Daferera et al. [34] studied the effects of volatile oils from seven Greek aromatic plants on the inhibition of P. digitatum, and analyzed the chemical constituents by GC-MC. Four members of the Labiatae including Origanum vulgare, Origanum majorana, Origanum dictamus and Thymus vulgaris could completely inhibit the growth of mycelia, spores germinate, and/or form in the concentration range of 250-400 μg/mL. GC-MS analysis of its components found that it mainly contains p-cymene, thymol (22) and carvacrol (23). The IC50 of thymol and carvacrol that inhibiting the growth of P. italicum were 47 μg/mL and 79 μg/mL, respectively, and the MIC (minimum inhibitory concentrations) were 160 μg/mL and 200 μg/mL, respectively. The result showed that their antifungal activity has a synergistic effect. Alfonso et al. [82] also studied the inhibition activity of thymol (22) and carvacrol (23) on P. digitatum and P. italicum by in vitro and in vivo experiments of lemon. The results showed that they significantly inhibited the growth of fungi at a concentration of 250 μg/mL, reduced the rate of decay, exhalation strength, ethylene release and total acid loss of lemon. Scora et al. [83] screened the effects of more than 200 kinds of monoterpenoids and sesquiterpenoids on the inhibition of three Citrus postharvest molds. Some phenolic compounds such as eugenol (21), thymol (22), carvacrol (23), isoeugenol (24), phenol (25), phenylacetaldehyde (26), 2-allylphenol (27) and methyl anthranilate (28) were found to have strong inhibitory effects. The volatile oil of Thymus capitatus L. [35] can inhibit the growth of P. digitatum and P. italicum at a concentration of 250 μl/mL. GC-MS analysis mainly contained 81-83% of carvacrol (23).

2.5. Other Plant Extracts

Some studies have also been conducted by scholars in screening other plant extracts that inhibit P. digitatum and P. italicum. Boubaker et al. [19,20] observed the activity of 71 kinds of Moroccan plant aqueous extracts inhibiting the P. digitatum and P. italicum, and found that most plants had a certain inhibitory effect, among which 15 plants had an inhibition rate of mycelium growth above 75% under experimental conditions. They were: Arenaria rubra, Anvillea radiata, Asteriscus graveolens, Bubonium odorum, Cistus villosus, Halimium umbellatum, Hammada scoparia, Ighermia pinifolia, Inula viscosa, Rubus ulmifolius, Thymus leptobotrys, Peganum harmala, Eucalyptus globulus, Sanguisorba minor and Ceratonia siliqua. At the same time, 10 mg/mL of A. graveolens, B. odorum and H. umbellatum extracts completely inhibited spore germination, and 1.2 mg/mL of T. leptobotrys volatile oil extract completely inhibited the growth of hyphae. They continued to study the antifungal activity of different solvent extracts from eight of the more active plants and found that A. radiata, A. graveolens, B. odorum, I. viscosa and T. leptobotrys were more active in petroleum ether, chloroform and ethyl acetate extracts. They also found that in the methanol extract of H. umbellatum, the petroleum ether extract of I. pinifolia and the chloroform extract of H. scoparia are highly active. Also, the polarities of the antifungal active substances of different plants are different [36]. Mexican desert plant extracts [38] also inhibit the action of postharvest fungi in fruits. The ethanol extracts of Lippia graveolens and Yucca filifera Chaub in 1000 μl/L had more than 90% inhibition effect on spore germination of P. digitatum, and the growth inhibition rate of mycelium was about 80%. Seven Jordanian plants [84,85] extracts also inhibit the action of P. digitatum and P. italicum. These were Fenugreek seeds, garlic, cinnamon, Peganum harmala, Inula viscosa and Solanum nigrum. Among them, garlic, cinnamon and Solanum nigrum methanolic extracts were the most active. Their IC50 is 3.75–18, 5.0–23 and 8.75–24.75 μg respectively. Qasem et al. [15,39] studied the inhibitory effects of some common weed aqueous extracts on three fungi. It was found that six plant extracts including Crepis aspera, Viscum cruciatum, Chenopodium murale, Sisymbrium irio, Solanum nigrum and Ranunculus asiaticus have a good inhibitory effect on P. digitatum in Citrus. Among them, the R. asiaticus can completely inhibit the growth of P. digitatum which has been cultured for up to 16 days. H. Boubaker et al. [37] studied the aerial parts of four Thymus species in Morocco and found that the main constituents of the extracts of these four plants were carvacrol (76.94%) for Thymus leptobotrys, borneol (27.71%) and thymol (18.47%) for Thymus satureioides subsp. pseudomastichina, camphor (46.17%) and α-terpineol (7.69%) for Thymus broussonnetii subsp. hannonis and carvacrol (32.24%), γ-terpinene (19.60%) and p-cymene (13.52%) for Thymus riatarum. The results indicated that T. leptobotrys essential oil displayed the highest bioactivity, completely inhibiting the spore germination of G. citri-aurantii at 250 μL/L and of P. digitatum and P. italicum at 500 μL/L. T. riatarum essential oil was able to completely inhibit the spore germination of G. citri-qurantii (2000 μL/L) and both Penicillium species used as target organisms (1000 μL/L). Sayago et al. [40] studied the inhibitory effect of 9 Argentine plant aqueous extracts on two common Citrus pathogenic fungi. Three plant extracts of Chuquiraga atacamensis, Parastrephia phyliciformis and Parastrephia lepidophylla have inhibitory effect on P. digitatum. The activity is related to the total phenolic content, of which P. lepidophylla is the most active, and its MIC and MFC are 400 mg/L and 600 mg/L, respectively. P. lepidophylla extract with a total polyphenol content of 600 mg/L and a mixture of fruit wax can reduce the rate of decay in the storage of lemons that have been damaged and inoculated with P. digitatum.

2.6. Targeted Isolation and Identification of Antifungal Active Ingredients

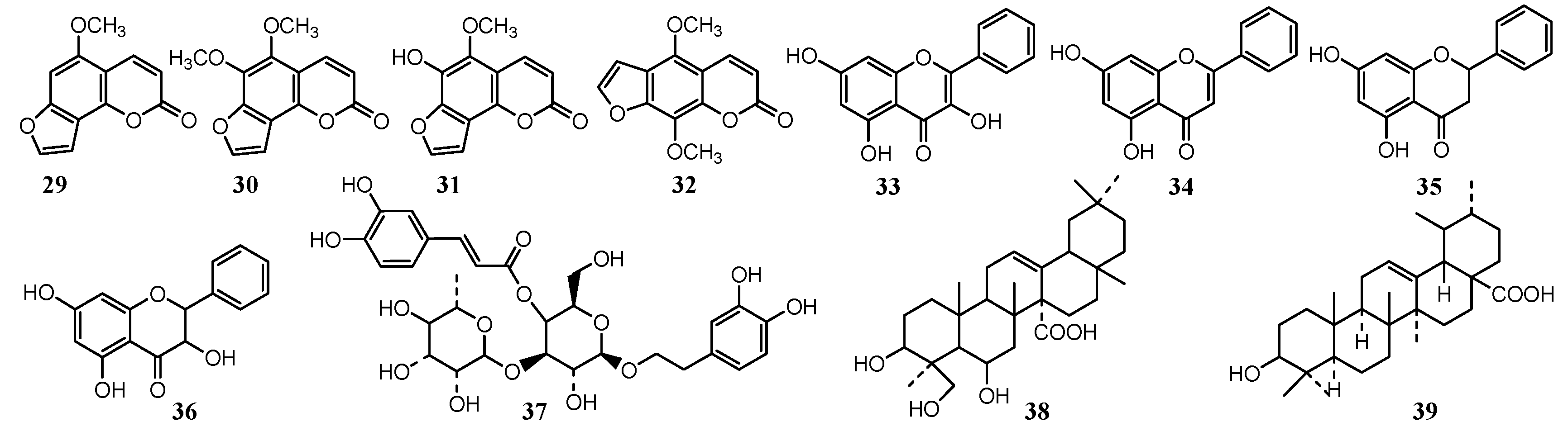

The antifungal effect of plant extracts is mainly due to the action of some components or the synergy of several components. It is important to determine the structure of the antifungal components in the plant extracts, while the structure-activity relationship (SAR) and quality control standards of extracts can be further studied. Some scholars have used column chromatography, HPLC-MS and GC-MS to identify active ingredients (Figure 3) in plant extracts with antifungal activity. Li et al. [41] isolated and identified the antifungal active constituents against Citrus pathogenic fungi from Radix Angelicae biseratae, and identified four coumarin components from the active fraction by GC-MS, namely isobergapten (29) and pimpinellin (30), sphondin (31) and isopimpinellin (32), which are the main antifungal active constituents.

Propolis extract has good antifungal, antiviral, antioxidation, scavenging free radical and anti-tumor activities. Propolis [86] ethyl acetate and ethanol extract can inhibit the spore germination of P. digitatum and P. italicum, and the mycelium is deformed to inhibit its growth, while the activity is related to the total flavonoid content. Propolis ethanol extract was extracted with systemic solvent, and the antifungal activity showed that ethyl acetate was the most active part. Four flavonoids [87], galangin (33), chrysin (34), pinocembrine (35) and pinobanksin (36), were identified by TCL- bio-autography, column chromatography separation and HPLC-MS technology. The galangin (33) was also identified from the Helichrysum aureonitens acetone extract [42] by antifungal activity tracking separation. P. digitatum and P. italicum were most sensitive to the 0.01 mg/mL concentration of galangin (33), and the inhibition rate is about 30%. Emmanuel et al. [43] studied the activity of two species of Lippia, Lippia javanica and Lippia rehmannii, suppressing a Guazatine-resistant strain of P. digitatum. The plant extract of 0.6 mg/mL could inhibit the growth of mycelium, and verbascoside (37) was identified as the main active ingredient.

Gao Kun et al. [45] studied the antifungal active ingredients of Astilbe myriantha Diels, and finally isolated and identified an active triterpenoid: 3β, 6β, 24-trihydroxyurs-12-en-27-oic acid (38), whose IC50 was 13.9 mg/L. Breonadia salicina acetone extract [46] has an inhibitory effect on variety of Penicillium, and the MIC concentration of inhibiting P. digitatum is 0.16 mg/mL, from which a major active triterpenoid composition i.e., ursolic acid (39) was isolated and identified.

3. Study on the Application of Plant Extracts to Citrus Preservation

The effective plant extracts by screening for antifungal activity can be further studied for their application in Citrus preservation. Plant extracts can be directly dipped, fumigated, or compounded with other coating materials to improve antifungal and preserved ability. The citral applied as a fumigant was used to study the postharvest diseases of Citrus caused by P. digitatum, P. italicum and G. citri-aurantii. The results [88] showed that fumigation of punctured oranges with citral delayed spoilage by sour rot at room temperature by 7–10 days and at 5 °C, by 13–30 days. Meanwhile volatile citral delayed the development of blue mould in abraded, but not punctured, oranges stored at 5 °C. The preserved effect of direct immersion fruit of clove ethanol extract with a good antifungal activity on "Newhall" navel orange was studied previously in our lab [89]. The immersion of fruit of 100 mg/mL clove ethanol extract for 3 min can significantly reduce the rot rate and weight loss of "Newhall", and the rate of decay was only 5.9% after 100 days of storage. However, the decay rate of the control group was 10%. This means that the deal delayed the decrease of TSS, TA and VC content in the pulp, and increased the activity of SOD, POD and chitinase (CHI) during the storage period. Oyourou et al. [44] studied the preserved effect of leaf extracts from two plants (Lantana camara and Lippia javanica) rich in verbascoside on “valencia” Citrus. In the trial, Citrus inoculated with P. italicum handling with extract containing 1 g/L or 2 g/L. The decay rate of Citrus was less than 20% while the control Citrus decay rate was 100%. Verbascoside was isolated from L. camara and L. javanica methanol extracts by column chromatography and high speed countercurrent chromatography (HSCCC). in vitro experiments [30] showed that 500 μl/L of Lippia scaberrima and Mentha spicata volatile oil, R-(-)-carvone and 1,8-cineole could inhibit P. digitatum and the inhibition rate of P. digitatum is over 50%. When the concentration reached 3000 μl/L, the inhibition rate was 100%. However, (d)-limonene inhibits P. digitatum by only 50%. The combination of L. scaberrima volatile oil and Brazilian tropical palm coating can significantly reduce the rot rate of “Tomango” Citrus inoculated with P. italicum, and it was not significantly different from chemical fungicides.

Pomegranate peel is the dry peel of pomegranate, which accounts for about 30% of the total weight of pomegranate. It has abroad-spectrum antifungal effect and has obvious inhibitory effects on most Gram-negative bacteria, Gram-positive bacteria, fungi and molds. The fungistatic test in vitro showed that the inhibitory effect of ethanol, methanol and water extracts of pomegranate peel [47] on P. digitatum (isolated from grapefruit, lemon and C. sinensis) was not significantly different from that of the control with chemical fungicide (imazalil). Further study was conducted on the preservation effect of ethanol extracts of pomegranate peel (0.1, 0.5 and 1.0 g/L) on “Eureka” lemon. The ethanol extracts showed excellent preservation effects by being soaked to the fruit for 3 minutes. The study by Maria G. et al. [48] has also shown that in vitro trials revealed the pomegranate peel extract possess a strong fungicidal activity which against germination of conidia of Botrytis cinerea, P. italicum, P. digitatum and P. expansum. Almost complete inhibition of all fungal spore germination was achieved after 20h of incubation with pomegranate peel extract. At concentrations of 1.2 and 12 g/L complete inhibition of infection was achieved in the majority of host pathogen combinations. Mekbib et al. [49] studied the preservation effect of two Ethiopian plants (Withania somnifera and Acacia seyal) methanol extract on “Valencia” Citrus. They can completely prevent the decay of the damaged fruit and reduce the decay rate of the fruit inoculated P. digitatum, which is not significantly different from the chemical fungicide thiabendazole.

There are diverse application models of plant extracts used in Citrus fruits preservation. Other than for direct immersion of the fruits, it can also be compatible with some Citrus preservative coating materials or fruit wax to form a composite coating preservative to improve its preservation ability [90]. Chitosan, or chitin, is the product of N-deacetylation chitin. Chitosan is easily dissolved in a weak acid solvent, and the dissolved chitosan solution contains an amino group (NH²⁺), which can inhibit fungi by binding negative electrons. A large number of experimental studies have confirmed that chitosan has a good inhibitory effect on Citrus postharvest pathogenic fungi [91]. It is a commonly used Citrus postharvest coating material, and it is often compounded with other plant antifungal extracts to improve the preservation performance. The experimental results of our research group [92] showed that the coating significantly reduced the decay rate and weight loss of the navel lorange fruits, delayed the decrease of the content of total soluble solids (TSS), titratable acidity (TA) and vitamin C (Vc), and effectively inhibited the content of MDA. Furthermore, the coatings maintaining enhanced the activity of SOD, CAT, POD and PPO delay the senescence of fruits, and improve the disease resistance of navel orange fruits. Meanwhile, compared with chitosan coating, cinnamaldehyde-chitosani coating could significantly reduce the decay rate and had no adverse effects on fruit quality.

Combined, about 3% of bergamot oil (mainly containing limonene and β-linalool) with chitosan to form composite coating films showed an inhibitory effect on P. digitatum. The antifungal effect is better than chitosan alone, and the efficacy corresponds to the content of bergamot oil, where the composite coating effect of 3% bergamot oil has the best result [93]. Inoculation with P. digitatum Citrus was treated with two Ethiopian plant extracts (A. seyal and W. somnifera) [50]. It can reduce the disease incidence of green mold by 50%, which can also maintain the quality of fruit with the use of fruit wax and reduce weight loss rate. The chemical composition was analyzed by HPLC, and the result found that A. seyal mainly contains gallic acid (60.3 mg/mL), while W. somnifera contains caffeic acid (8.7 mg /mL), salicylic acid (6.3 mg/mL) and 3, 4-dihydroxybenzoic acid (3.8 mg/mL), indicating that phenolic acids may have antiseptic and preservation properties for Citrus. Recent studies by Zambrano-Zaragoza et al. [94] have shown that a variety of nano-composites can be more effective in fungistatic and preservation of coatings, among which Silver nano-particles (AgNPs) with Fantasia japonica leaf extract effectively against E. coli, S. aureus and P. italicum. This can be used in Citrus fruit preservation, because AgNPs caused cell deformation, cytoplasmic leakage and cell death of P. italicum.

4. Existing Problems and Future Development Trends

In summary, over the years, many scholars have carried out a large number of experimental explorations on the research of Citrus plant-derived fungicides and the development of application dosage forms of Citrus botanical fungicides. However, the authors consider that some current problems and future development trends in this field are mainly reflected in the following aspects:

(1) The main pathogen inhibiting activity of Citrus were screened out in vitro. The screening of Citrus botanical fungicides was based on in vitro. The effects of the fungicides on mycelial growth, spore germination and germ tube elongation of various pathogenic fungi were observed, but the defensive mechanism was not studied in-depth. In addition, the research on Citrus preservation is still smaller and only remains at the small-scale experimental stage in the laboratory, and the commercial application of experimental research is even more rare. Plooy et al. [30] studied the effect of coating with various volatile oils (L. scaberrima, Mentha spicata volatile oils, limonene and R-(-) carvone) on the quality of "Tomango" Citrus. The amount of Citrus used reached 2.4 tons in the experiment, reaching the commercial application scale.

(2) If the effect is not good, it should be combined with other preservatives or food additives to improve the preservative effect. Compared with chemical fungicides, the antimicrobial and antiseptic effects of plant extracts are still very poor. It is difficult to achieve the ideal preservation effect by using a single plant-derived antiseptic. Several kinds of preservatives with different properties can be used together to improve the antimicrobial effect. For instance, the combination of plant extract tea saponins and prochloraz (chemical fungicide) can improve the activity and reduce the use of prochloraz. Also, the combination of plant volatile oils and other coating materials (fruit wax, volatile oil of Orbignya martiana and chitosan) can also improve the antimicrobial effect. Therefore, it is necessary to strengthen the research on compatibility optimization of plant extracts preservatives and other preservative materials.

(3) The antimicrobial and antiseptic effects of Citrus plant extracts are closely related to the contents of their active substances. The extraction conditions (extraction solvent, temperature, time and frequency, etc.) are the main factors affecting the contents of the active substances in the plant extracts. In order to make the plant extracts play the best antimicrobial effects for preservation, the optimal extraction process should be further studied by response surface analyses that would illustrate the potential extraction conditions of these plant extracts.

(4) In addition, most of the plant-derived Citrus preservatives are plant crude extracts, and the separation and identification of active ingredients is not deep enough. It is difficult to determine the structure of active ingredients, which greatly restricts the research of plant-derived preservatives. Furthermore, the origin, harvesting season, processing methods of plants will affect the content of effective components. Also, the quality of the preservation effect of plant crude extracts is difficult to control. Extraction, isolation, identification of botanical active ingredients form the necessary basis of research and development of botanical Citrus preservatives. On the basis of discovering and determining the structure of active compounds, further and systematic studies on structure-activity relationship, pilot optimization, biomimetic synthesis and quality control can be carried out step by step.

Therefore, in order to develop plant-derived Citrus preservatives, it is necessary to further isolate and identify the effective components of plant extracts and study the antifungal mechanisms. Coatings enriched with plant extracts might be good alternative methods for Citrus fruits preservation.
