Article

1H NMR Approach for Evaluating the Effects of a Natural Detergent on Olive Trees Infected by Xylella fastidiosa subsp. pauca

by
Miriana Carla Fazzi
,
Chiara Roberta Girelli
* and
Francesco Paolo Fanizzi
Department of Biological and Environmental Sciences and Technology, University of Salento, 73100 Lecce, Italy
*
Author to whom correspondence should be addressed.
Plants 2026, 15(7), 1109; https://doi.org/10.3390/plants15071109
Submission received: 25 February 2026 / Revised: 23 March 2026 / Accepted: 29 March 2026 / Published: 3 April 2026
(This article belongs to the Section Plant Protection and Biotic Interactions)
Browse Figures
Versions Notes

Abstract

X. fastidiosa subsp. pauca (Xfp) is the etiological agent of “Olive Quick Decline Syndrome” (OQDS). Cellina di Nardò (Olea europaea L., Oleaceae), one of the major Salento cultivars, is highly susceptible to Xfp, usually showing acute symptoms after infection. NuovOlivo® a plant-derived formulation made with vegetal oils and water infusion from multi botanical species has been reported as effective against OQDS in plants affected by Xfp. A non-targeted 1H NMR (Nuclear Magnetic Resonance) fingerprinting approach, with unsupervised and supervised analysis, was applied to observe the possible changes in the metabolic profile in leaf samples of cultivars Cellina di Nardò naturally affected by Xfp treated with NuovOlivo® compared to untreated plants. The major differences were observed for the content of quinic acid, malate, mannitol, glucose, oleuropein, and aldehyde derivatives in treated compared to untreated samples. The resulting data indicated a season-dependent plant response to both disease and treatment. Moreover, the overall differences observed between the two investigated years, suggest a general decrease in the differences for the discriminating metabolites over time. The protocol NuovOlivo® was demonstrated to promote changes in the metabolic profile of olive leaves, suggesting a possible role of this treatment, integrated with good agricultural practices, against Xfp and OQDS.

1. Introduction

In 2013, Xylella fastidiosa, classified as subspecies pauca (Xfp), a xylem-limited Gram-negative Gammaproteobacterium, appeared in olive (Olea europaea L., Oleaceae) tree orchards of Salento (South of Apulia, Italy), causing a serious agricultural and heritage loss, strongly affecting the local farmers economically [1,2,3].
X. fastidiosa subsp. pauca is the etiological agent of “rapid olive decline complex” (“complesso del disseccamento rapido dell’olivo”, Co.Di.R.O.) previously known as “Olive Quick Decline Syndrome” (OQDS) [4]. The olive tree disease symptoms include yellow and brown lesions on leaf tips and margins, extensive twig dieback, and consequent tree mortality [5]. The plants affected by Xfp are characterized by a reduced olive production and lower fruit quality because of xylem blocking and decreased water and nutrient flux, often resulting in further death of the plants [6,7,8].
The major Salento cultivars that are particularly sensible to Xfp, usually showing acute symptoms after infection, are Ogliarola Salentina and Cellina di Nardò [9]. These cultivars are also well-known as basic constituents of the local PDO (Protected Designation of Origin) Extra Virgin Olive Oil (EVOO) “Terra d’Otranto” and for both their economical and landscape relevance, representing part of the Salento history [6].
The occlusion of xylematic vessels due to Xfp biofilm inside the infected plants is considered the basic cause of the disease symptoms. According to specific indications for a quarantine pathogen infection, the eradication of both infected and possibly infected plants, aimed at bacteria elimination, represented the only stated procedure for disease treatment [3,10].
Presently, control strategies include the application of integrated and preventive approaches, such as the use of varieties that are tolerant or resistant to the Xfp, and targeted agronomic practices [11]. Specific anatomic features of different cultivars have been related to the observed tolerance to infection [12]. For example, Cellina di Nardò is characterized by larger and less numerous xylematic vessels than Leccino, resulting in a higher vulnerability to the disease [13]. Moreover, both Ogliarola Salentina and Cellina di Nardò exhibited a reduced concentration of phenolic compound (such as hydroxytyrosol derivatives), which can play a role in the defence response against Xfp, when compared to Leccino [14].
Thus, after the Co.Di.R.O. outbreak in Salento, specific investigations into the resistance and resilience of other local (Salento and Apulia) cultivars were promoted, with the aim of their potential use in new groves to counteract the disease [15]. Consequently, in 2017, after several studies conducted on the total infected area of Salento, the cultivars Leccino and FS-17 (Favolosa®, a selection of seedlings of the Frantoio cultivar) were defined as “resistant” and were indicated for possible new cultivations [16]. Among the suggested reasons for the exhibited resistance to Xfp, the activation of various metabolic responses in infected plants have been extensively investigated. For example, in the olive cultivar Leccino, lignin accumulation in the xylem tissue appeared to be relevant for pathogen tolerance [17], while the cultivar FS-17 presents a genotype with more resistance traits [18,19]. Furthermore, recent declarations from specific regional administrative offices [20] stated that, besides Leccino and FS-17, Lecciana and Leccio del Corno can also be considered as less sensible to Xfp than susceptible or highly susceptible cultivars. Therefore, to date, only four cultivars (Leccino, FS-17, Lecciana, and Leccio del Corno) are specifically indicated for new cultivations in the infected areas.
In recent years, besides research aimed at finding Xfp-tolerant/resistant cultivars, some chemical treatments have also been investigated and found possibly useful in terms of pathogen control in autochthonous susceptible varieties, including Ogliarola Salentina and Cellina di Nardò [3,10]. In recent years, several studies have also focused on the investigation of possible treatments against Xfp. Recently, Del Grosso et al. performed a high-performance in vitro investigation of the antimicrobial activity of various compounds used against Xfp and also found some interesting results regarding a specific citric acid Zn and Cu micronutrient formulation (Dentamet®) [21]. In another recent study, the antimicrobial and bactericidal activities of some commercial fertilizers, which contain metal ions such as copper and/or zinc, complexed with phosphites and bioavailable silicon, was demonstrated in vitro [22]. Furthermore, it has been demonstrated that phenolic compounds, alone or in combination with treatments, could inhibit the increase in different bacterial species [23,24]. In particular, phenolic compounds in olive leaf extracts, such as oleuropein, have been described as particularly potent and promising natural agents against Xfp infection [11,25]. These results also suggest that specific treatments, together with agronomic and phytosanitary control measures, can be applied to contrast the pathogen, significantly reducing the severity of the disease and improving yield in a sustainable way [22].
NuovOlivo® a plant-derived formulation made with plant oils and water infusion from multi botanical species has also been reported as effective against OQDS in plants affected by Xfp [6,26,27]. The activity of this latter commercially available preparation is likely to be related to its diverse phytochemical components, including primary and secondary plant metabolites and phytohormones [6]. Both Dentamet® and NuovOlivo® have been recently listed by Portaccio et al. in a summary of research examining the efficacy of different treatments against Xfp utilizing organic compounds, synthetic molecules, and salt or metal-based formulations [11]. Extensive research, including metabolomics studies, reported the effects of Dentamet® treatments when used in the field for OQDS control in plants affected by Xfp [3,10,11,21,22,28,29,30].
In the present work we investigated metabolic alterations in olive trees, induced using the NuovOlivo® product in one of the most representative and highly susceptible varieties to Xfp in the Salento area, with the aim of obtaining useful indication of the treatment’s potential [9,29,30,31,32]. A non-targeted 1H NMR (Nuclear Magnetic Resonance) fingerprinting approach, with unsupervised and supervised analysis, was applied to observe the possible changes in metabolic profile in leaf samples of the Cellina di Nardò cultivar naturally affected by Xfp treated with NuovOlivo® compared to untreated plants.

2. Results

2.1. Unsupervised PCA and Supervised Pairwise OPLS-DA Introductory Analyses: Total Dataset

With the purpose of detecting a possible natural grouping of the total dataset of leaf sample extracts, an unsupervised PCA analysis was applied to the 1H-NMR spectra-derived data. In the resulting PCA model (R2X(cum) = 0.809, Q2(cum) = 0.628), the total variance of 80.9% was explained through five components describing the samples’ distribution in the model space (t[1], t[2], t[3], t[4], and t[5], accounting for 32%, 22.1%, 12.5%, 7.37%, and 6.89% of the total variance, respectively). The t[1] and t[2] PCA score plots are reported in Figure 1a. The exploratory unsupervised analysis of the total dataset shows a partial differentiation according to the considered year along t[1], more marked for the samples occurring at the negative compared to the positive t[2] values. On the other hand, the discrimination along the t[2] component appears clearly related to the sampling season (October vs. July for the positive and negative t[2] values respectively). The identified bucket-related signals, representative of specific metabolites, accountable for the position of the samples in the PCA score plot, are reported in the loading plot of Figure 1b. In particular, different levels of glucose (3.18 ppm, 4.58 ppm, and 5.18 ppm), quinic acid (2.06 ppm), mannitol (3.66 ppm, 3.78 ppm, 3.86 ppm, and 3.9 ppm), as well as oleuropein and its aldehyde derivatives (7.54ppm, 5.9 ppm), are responsible for the differentiation preliminarily observed through the PCA analysis. The unsupervised analysis also suggests the need for further specific investigation focused on the differences between treated and untreated samples due to their year and season dependence.
For this reason, a supervised OPLS-DA analysis was performed to discriminate the treated and untreated samples within the entire dataset (July 2023, October 2023, July 2024, and October 2024 samplings). The score plot of the resulting model (Figure 2a), shows a reasonable separation of the treated samples compared to untreated samples across all years and both samplings’ seasons, along the predictive component with almost acceptable model parameters (R2X(cum) = 0.494; R2Y(cum) = 0.619; Q2(cum)= 0.487). By examining the corresponding S-line plot (Figure 2b), the discriminating metabolites responsible for differentiations were identified. Specifically, this model shows that all treated samples (coming from all samplings for both years) are characterized by high relative content of mannitol. On the contrary, the untreated samples (coming from all samplings across both years) have a higher relative content of oleuropein and aldehyde derivatives and malate. Moreover, interestingly, a clear further intra-class differentiation, essentially related to the sampling year, could be observed along the first orthogonal component specifically for the untreated samples.

2.2. Supervised Pairwise OPLS-DA Analysis: Treated 2023 vs. Untreated 2023 and Treated 2024 vs. Untreated 2024

Subsequently, we further investigated the differences between the treated and untreated leaf samples specifically for each of the two different years.
The supervised OPLS-DA analysis relating to leaf samples coming from the two samplings of 2023 (July 2023 and October 2023) (Figure 3a) shows a good separation of treated compared to untreated samples along the predictive component with almost satisfactory model parameters (R2X(cum) = 0.695; R2Y(cum) = 0.75; Q2 = 0.597). The corresponding S-line plot (Figure 3b) indicates that the treated samples are characterized by high relative content of mannitol, glucose, and quinic acid, while the untreated samples show a higher relative content of oleuropein and aldehyde derivatives and malate. Moreover, it is possible to observe a clear intra-class separation according to the seasonality of the two samplings, with negative values (July 2023) and positive values (October 2023) along the first orthogonal component.
Also, the subsequent supervised OPLS-DA analysis relating to the 2024 leaf samples (July 2024 and October 2024) (Figure 4a) displays a good separation of treated and untreated samples along the predictive component with satisfactory model parameters (R2X(cum) = 0.614; R2Y(cum) = 0.82; Q2 = 0.561). The corresponding S-line plot (Figure 4b) showed a higher relative content of mannitol in treated samples, while the untreated samples are characterized by a higher relative content of organic acids (malate). Furthermore, a good intra-class separation was also observed for the 2024 samples according to the sampling seasonality with negative (July 2024) and positive values (October 2024) along the first orthogonal component. Moreover, specifically for this year, the observed seasonal intra-class separation appeared clearly more marked for treated compared to untreated samples.

2.3. Unsupervised PCA and Supervised Pairwise OPLS-DA Analyses: Comparisons of Treated vs. Untreated in Single Sampling

The differences between the treated and untreated leaf samples were further investigated at the single sampling level (July and October) for each of the studied years (2023–2024). The first sampling covered by this work was carried out in July 2023, followed by the subsequent sampling in October. An unsupervised PCA analysis performed on the NMR data obtained for each of the samples sets (July and October 2023) allowed for the exploration of their distribution related to the greater or lesser similarity of their metabolic profiles and highlighted the possible presence of clusters. The model in Figure 5a shows a clear natural separation along the second principal component t[2] (y-axis) between the treated and untreated July 2023 leaf samples. The further unsupervised model (Figure 5b), obtained for the October 2023 leaf samples, confirmed the separation between treated and untreated trees also for these samples, as already observed for the previous July sampling. In this case (October 2023 samples), differentiation was evident along both the first t[1] and the second t[2] principal components. Therefore, in both cases (July and October 2023), the PCA showed a natural separation between samples of leaf extracts from olive trees treated and untreated with the product.

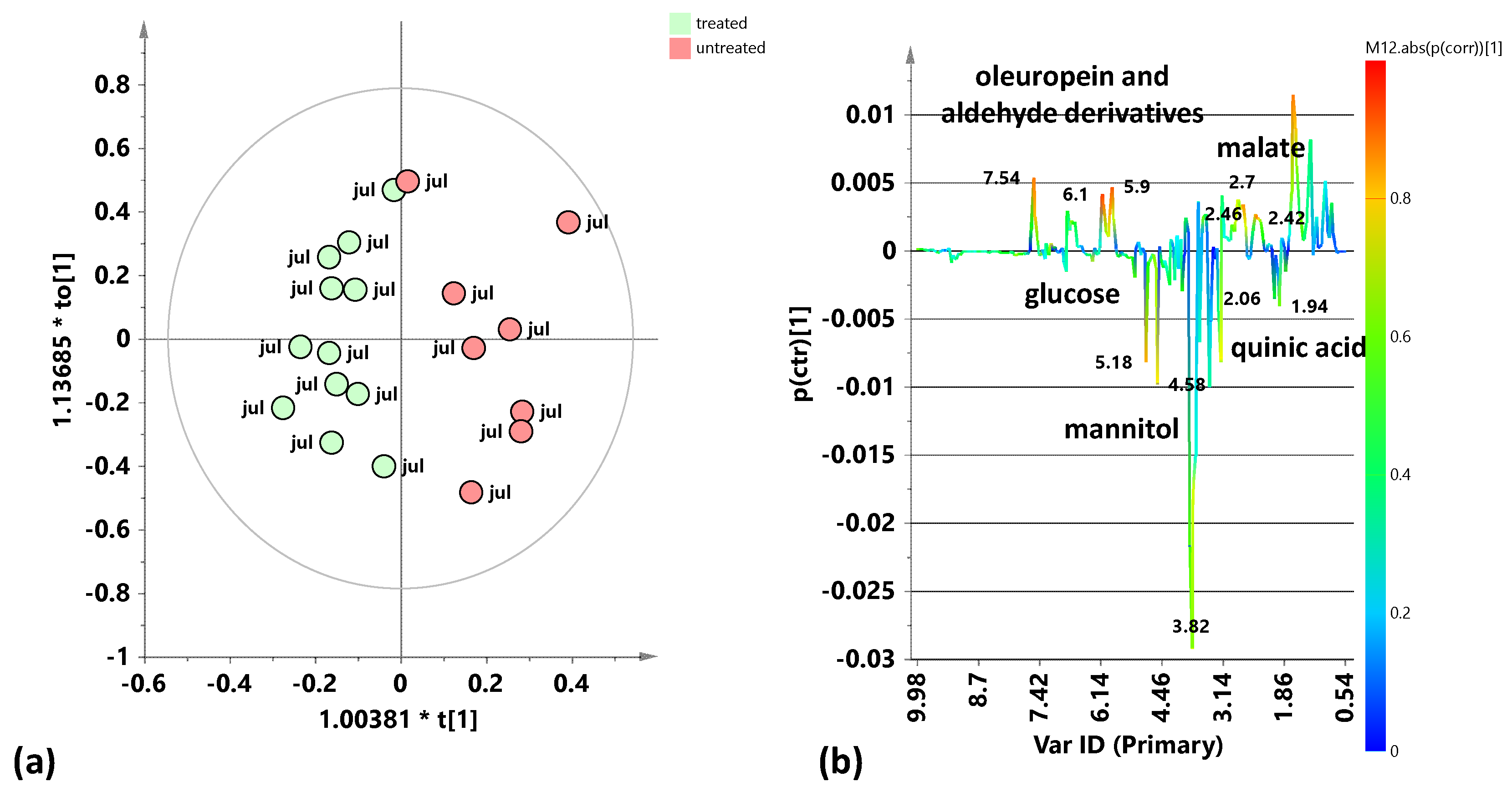

To further investigate the specific differences between each group in relation to treatment, the supervised OPLS-DA analysis was then performed for both the July and October 2023 leaf samples, also taking into account the class membership (treated/untreated) of the samples into their respective models. The supervised OPLS-DA model for the July 2023 leaf samples (Figure 6a) shows, more clearly than the unsupervised analysis (PCA), a good separation along the predictive component ([t1]) between the samples from treated and untreated trees. The model parameters, obtained using the predictive and two orthogonal components (1 + 2), are characterized by satisfactory descriptive and positive, although low, predictive indicators: R2X(cum) = 0.723; R2Y(cum) = 0.797; and Q2 (cum) = 0.385. The molecular components responsible for class separation have been indicated in the S-line plot for the model in Figure 6b. Leaf samples from treated trees are characterized by a higher relative content of glucose (3.18, 4.58, and 5.18 ppm) and mannitol (3.82 ppm), compared to samples from untreated trees. However, the latter are characterized by a higher relative content of polyphenols, particularly oleuropein and its aldehyde derivatives (1.66, 5.9, 6.1, and 7.54 ppm). Furthermore, in the group of samples from treated plants, the presence of quinic acid (2.06 ppm)—a lignin precursor already indicated as a disease marker for olive trees infected by X. fastidiosa subsp. pauca [9]—was observed.

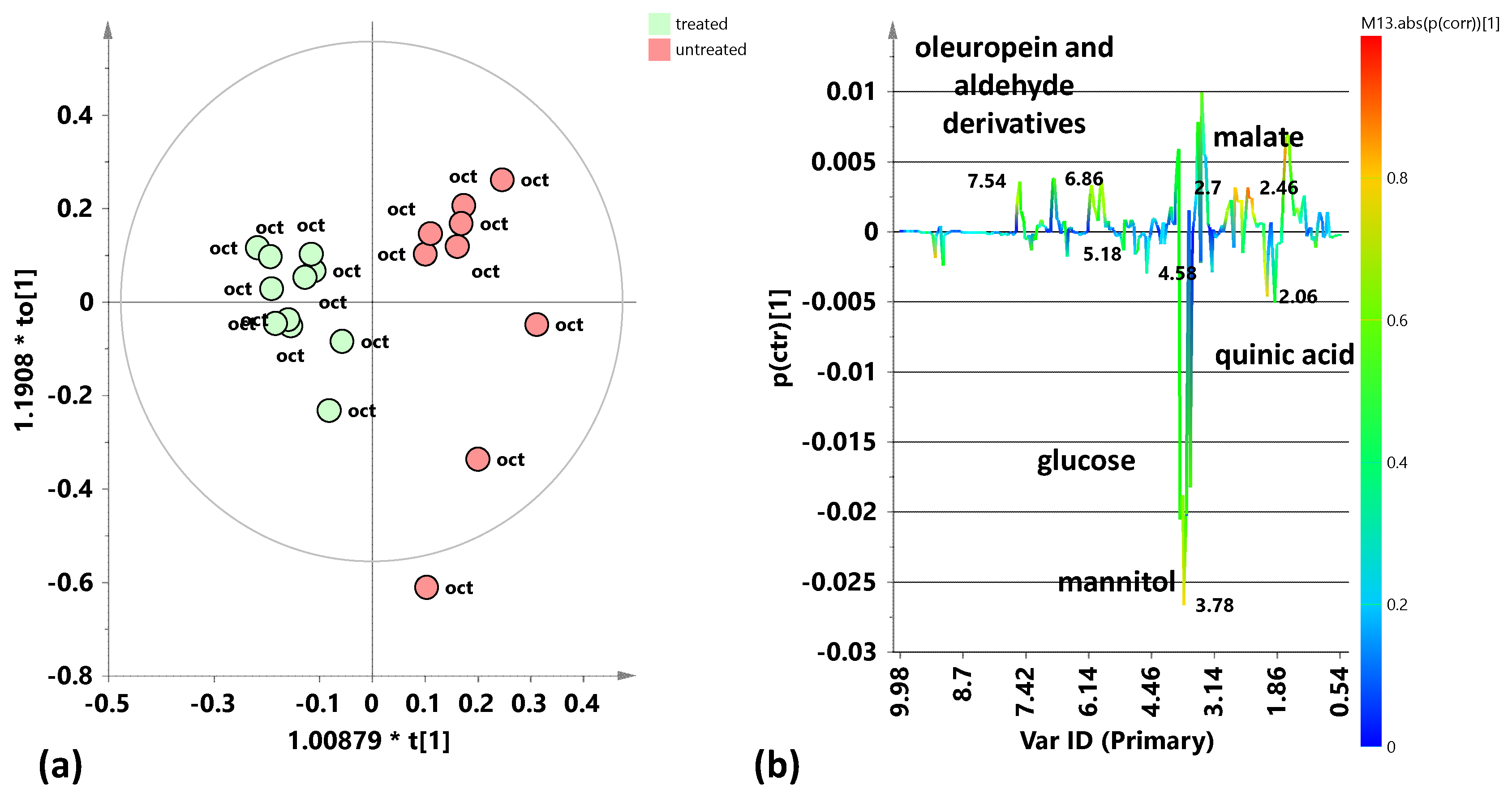

A supervised OPLS-DA model was also built for the October 2023 samples (Figure 7a). In this case too, good separation was observed along the predictive component between the two classes of samples related to treatment application or lack thereof. The model parameters, obtained using the predictive and two orthogonal (1 + 2) components, are satisfactory: R2X(cum) = 0.643; R2Y(cum) = 0.887; and Q2 (cum) = 0.691. The molecular components responsible for class separation result from the S-line plot of the model in Figure 7b. The leaf samples from the treated trees are characterized by a higher relative content of mannitol (3.78, 3.66 ppm) compared to the samples from the untreated trees. The latter, instead, are characterized by a higher relative content of polyphenols, particularly oleuropein, its aldehyde derivatives (7.54, 6.82, 5.86, 1.7 ppm), and malate (2.46 ppm). Additionally, in this case, a higher presence of quinic acid (2.06 ppm) was observed in the treated olive trees compared to the untreated ones. Therefore, the trend of metabolic profiles for the October 2023 samples generally shows almost the same differences between treated and untreated leaf samples previously observed for the July 2023 samples. Furthermore, a slightly higher intra-class variability (detectable along the first orthogonal component in the OPLS-DA scores plot) was observed, in particular, in the treated tree samples from the 2023 summer sampling (July) compared to the autumn one (October).

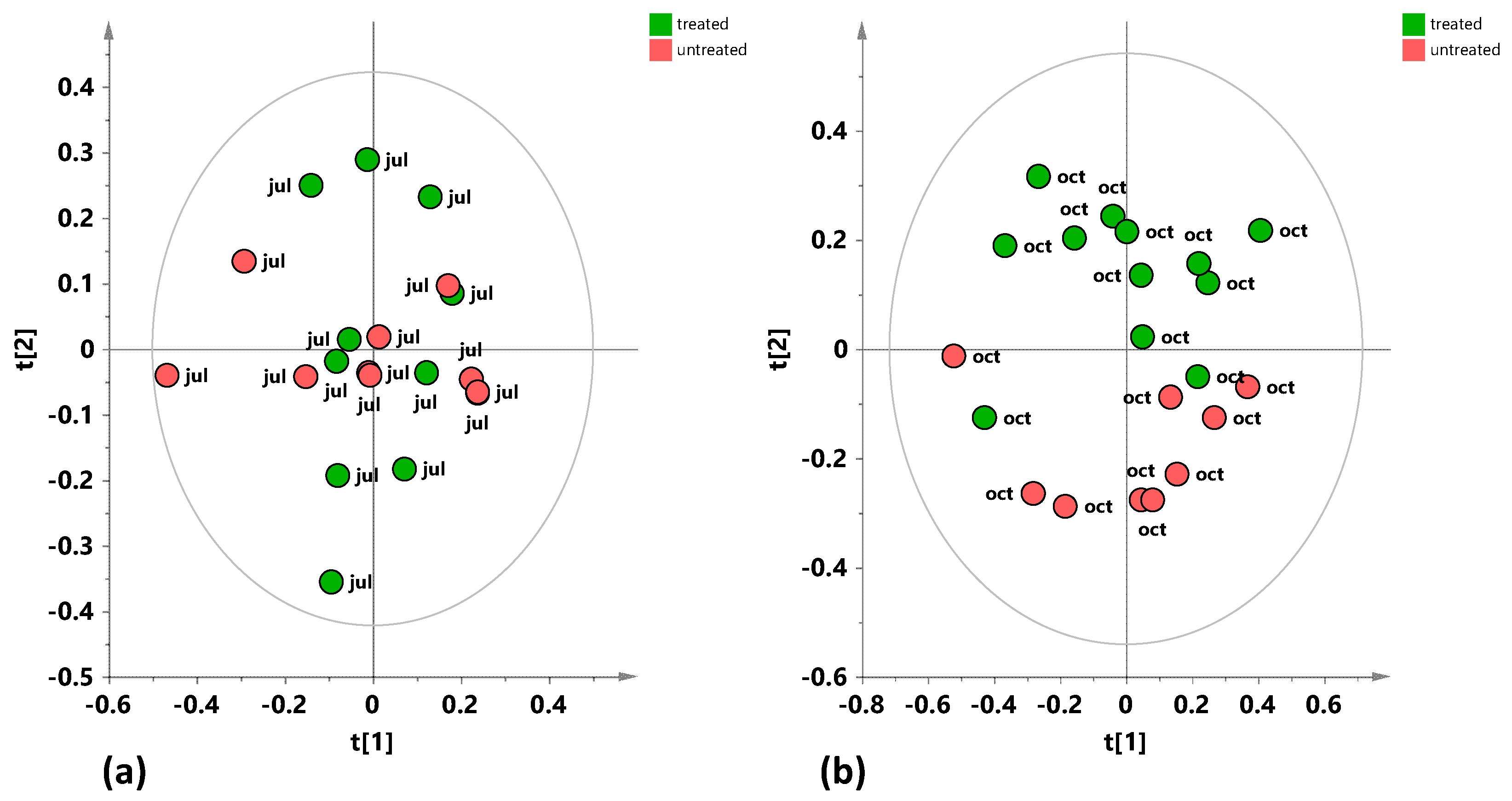

The same analyses were then performed for the 2024 samples, both for the July and October samplings. The models for the unsupervised PCA analyses (Figure 8a, b) display a better separation between treated and untreated tree samples for the October (Figure 8b) samples compared to the July samples (Figure 8a), in particular along the second principal component, t[2].

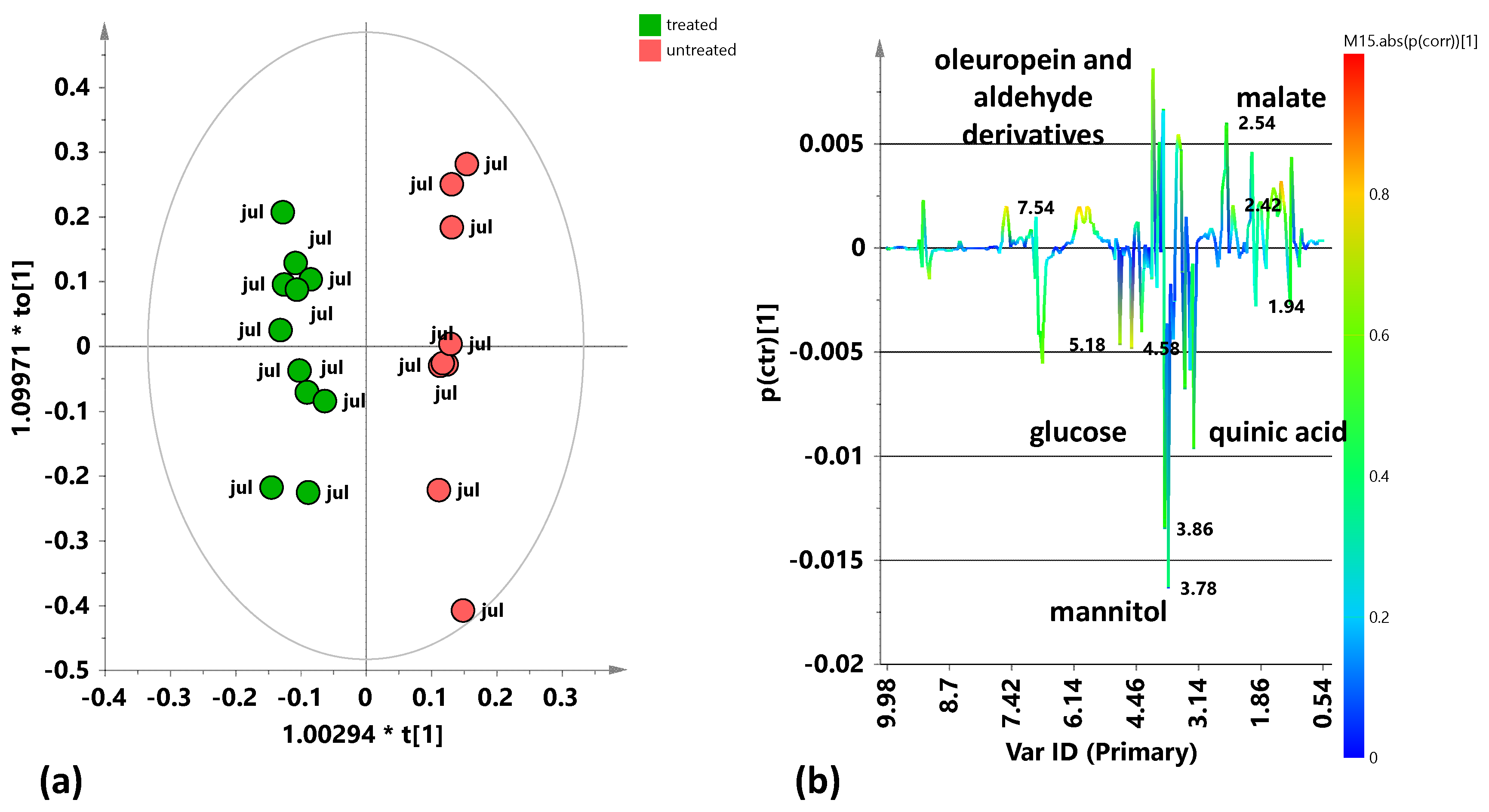

Nevertheless, the supervised OPLS-DA model for the July 2024 leaf extract samples (Figure 9a) indicate a good separation along the first component (predictive component [t1]) between the treated and untreated trees. The model parameters, obtained using the predictive and two orthogonal components (1 + 2), are quite satisfactory: R2X(cum) = 0.503; R2Y(cum) = 0.973; and Q2 (cum) = 0.911. The molecular components responsible for the class separation could be identified according to the S-line plot of the model (Figure 9b). The leaf samples from the treated trees are characterized by a higher relative content of α/β glucose (3.22, 3.46, 4.58 and 5.18 ppm) and mannitol (3.78, 3.82 ppm) compared to the untreated ones. On the contrary, the untreated leaf samples show higher relative content of polyphenols, particularly oleuropein and its aldehyde derivatives (6.02, 7.5, 9.22 ppm), as already observed in the July 2023 sampling.
According to the clear separation already observed in the PCA score plot (Figure 8b), the supervised OPLS-DA model for leaf samples of October 2024 (Figure 10a) shows a good differentiation along the predictive component between the treated and untreated trees. The model parameters, obtained using the predictive component and two orthogonal (1 + 2) components, resulted satisfactory also in this case: R2X(cum) = 0.701; R2Y(cum) = 0.904; and Q2 (cum) = 0.735. The metabolites responsible for class discrimination, indicated in the corresponding S-line plot (Figure 10b), increased organic acid malate and glucose for the untreated samples, while treated samples showed a higher relative content of mannitol. Similar differences were already noted in the supervised OPLS-DA analysis of the entire 2024 dataset, comparing treated and untreated samples of both treatments (July and October 2024) (Figure 4a, b).

2.4. Comparisons of Treated vs. Untreated: General Results

In all the pairwise comparisons between treated and untreated leaf samples, a generally good separation along the predictive component could be observed for all the investigated combinations, as proved by the resulting positive predictive (Q2) parameters values of the models (Figure 11). This value exceeds the significance value of 0.5 in most cases, ranging from a minimum of 0.385 to a maximum of 0.911 obtained for the selective treated vs. untreated comparisons of July 2023 and July 2024, respectively.

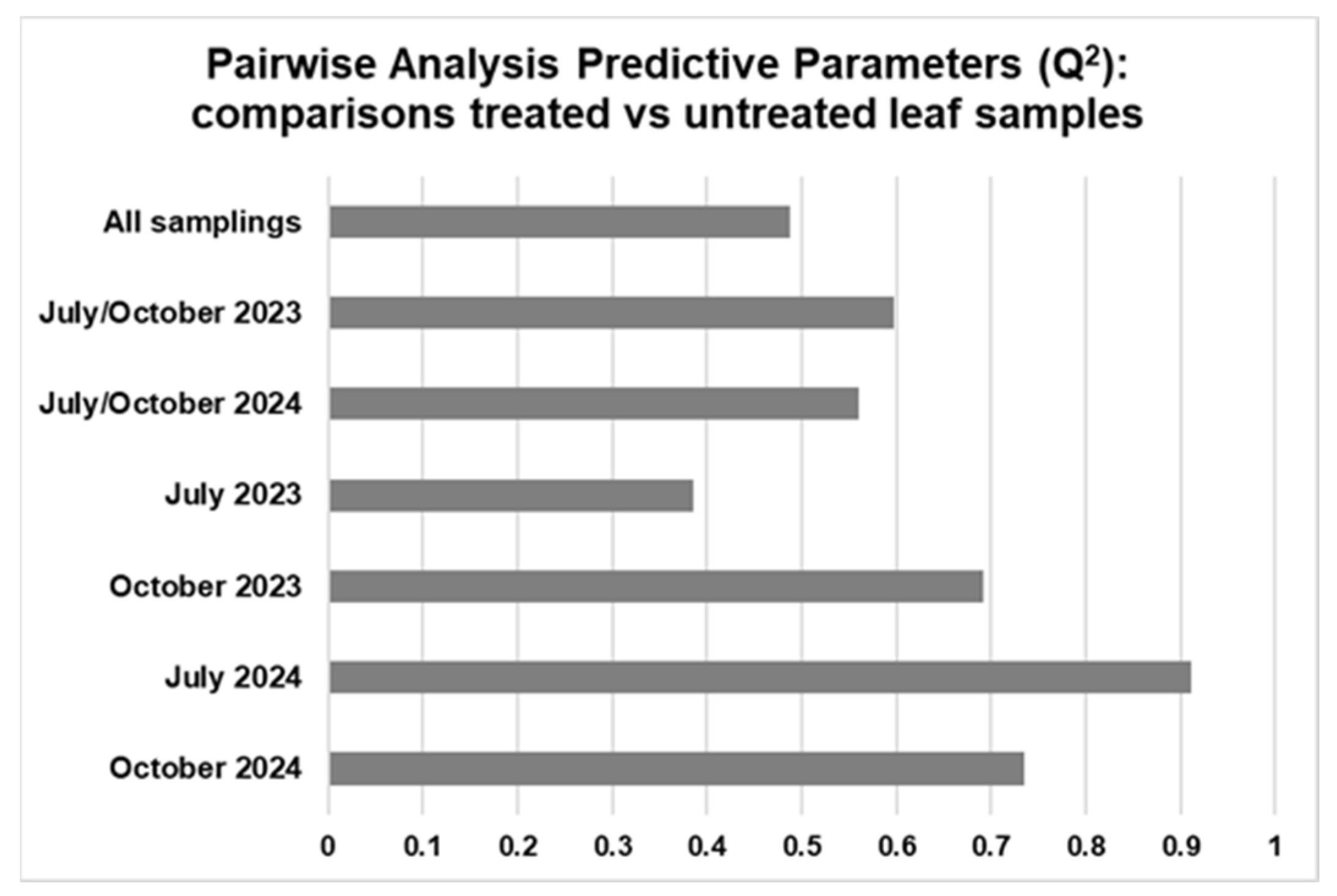

On the other hand, the Q2 results in the treated vs. untreated comparisons across the cumulatively considered samplings are quite similar between different years and when focusing on the complete dataset. Thus, to further finally assess the differences between the treated and untreated samples, the relative content of the discriminating metabolites was examined for each of the single samplings and, cumulatively, for each of the two investigated years, as well as for the entire dataset.

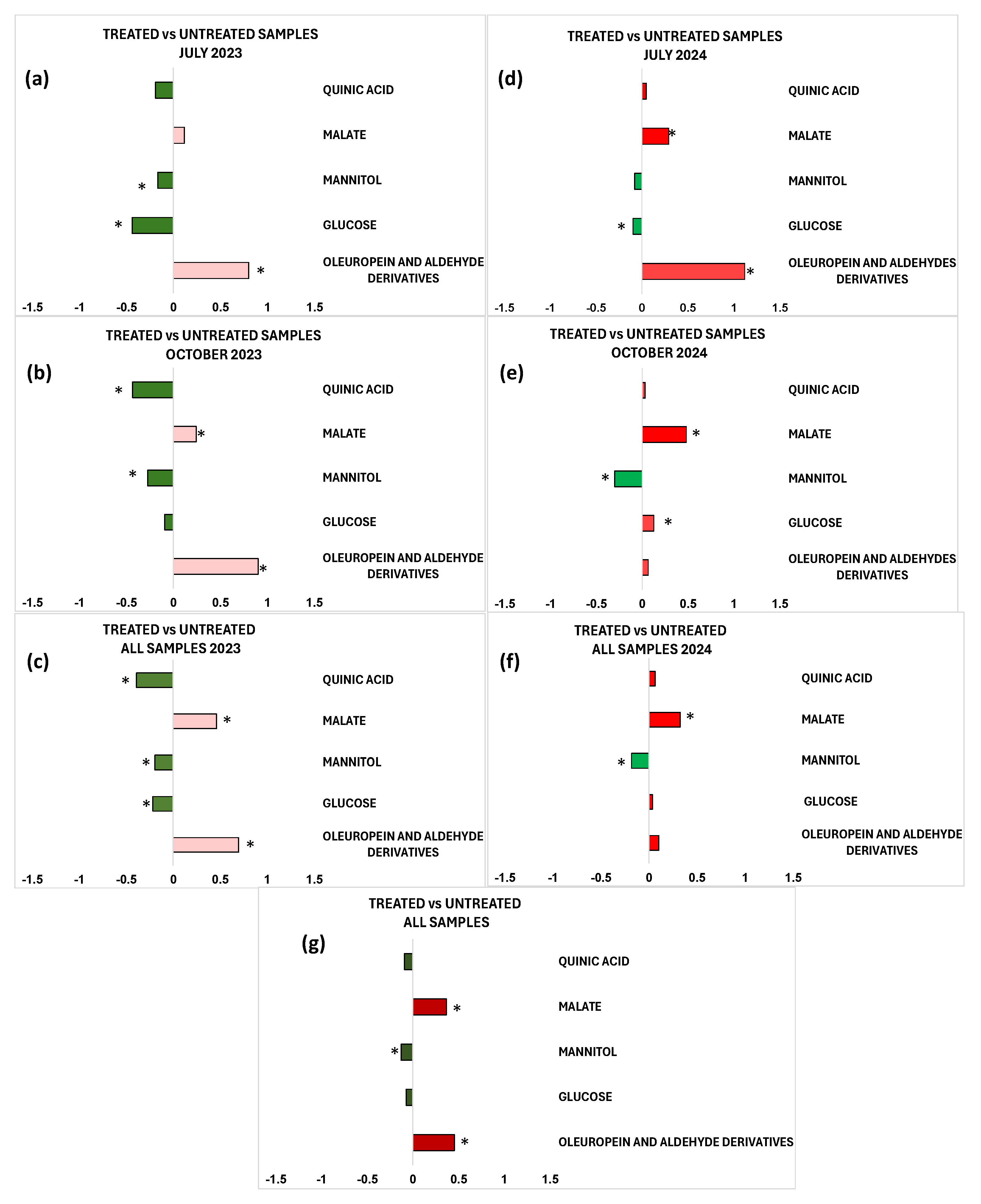

The identified discriminant metabolites of treated and untreated leaf samples were considered, and the fold change ratios (FC), calculated from the bucket integrals related to specific NMR signals, in the pairwise OPLS-DA models (Figure 2, Figure 3, Figure 4, Figure 6, Figure 7, Figure 9 and Figure 10). Statistically significant (p value < 0.05) differences between discriminating metabolites were obtained and considered for each pairwise comparison. Significant discriminating metabolites (|p(corr)| ≥ 0.5 and VIP ≥ 1 in at least one sampling) were chosen for the calculation of FC ratios and comparisons.
In particular, the important NMR signals for quinic acid, malate, mannitol, α/β glucose, oleuropein, and aldehyde derivatives were considered in the graphic summary of the quantitative differences in discriminating metabolites of leaf extracts between treated vs. untreated sample comparisons (Figure 12).
The treated samples of the July 2023 sampling are characterized by high relative concentrations of mannitol and glucose compared to the untreated samples, which show a higher content of oleuropein and aldehyde derivatives.
In the October 2023 sampling, the presence of high relative concentrations of quinic acid and mannitol can be observed for treated samples, while the untreated samples show a higher content of malate, as well as oleuropein and aldehyde derivatives.
Regarding the two 2024 samplings, the results are quite in line with those observed for the 2023 samplings. Indeed, in the July 2024 sampling, the treated samples show a higher content of glucose compared to the untreated samples, which are characterized by increased malate, as well as oleuropein and aldehyde derivatives.

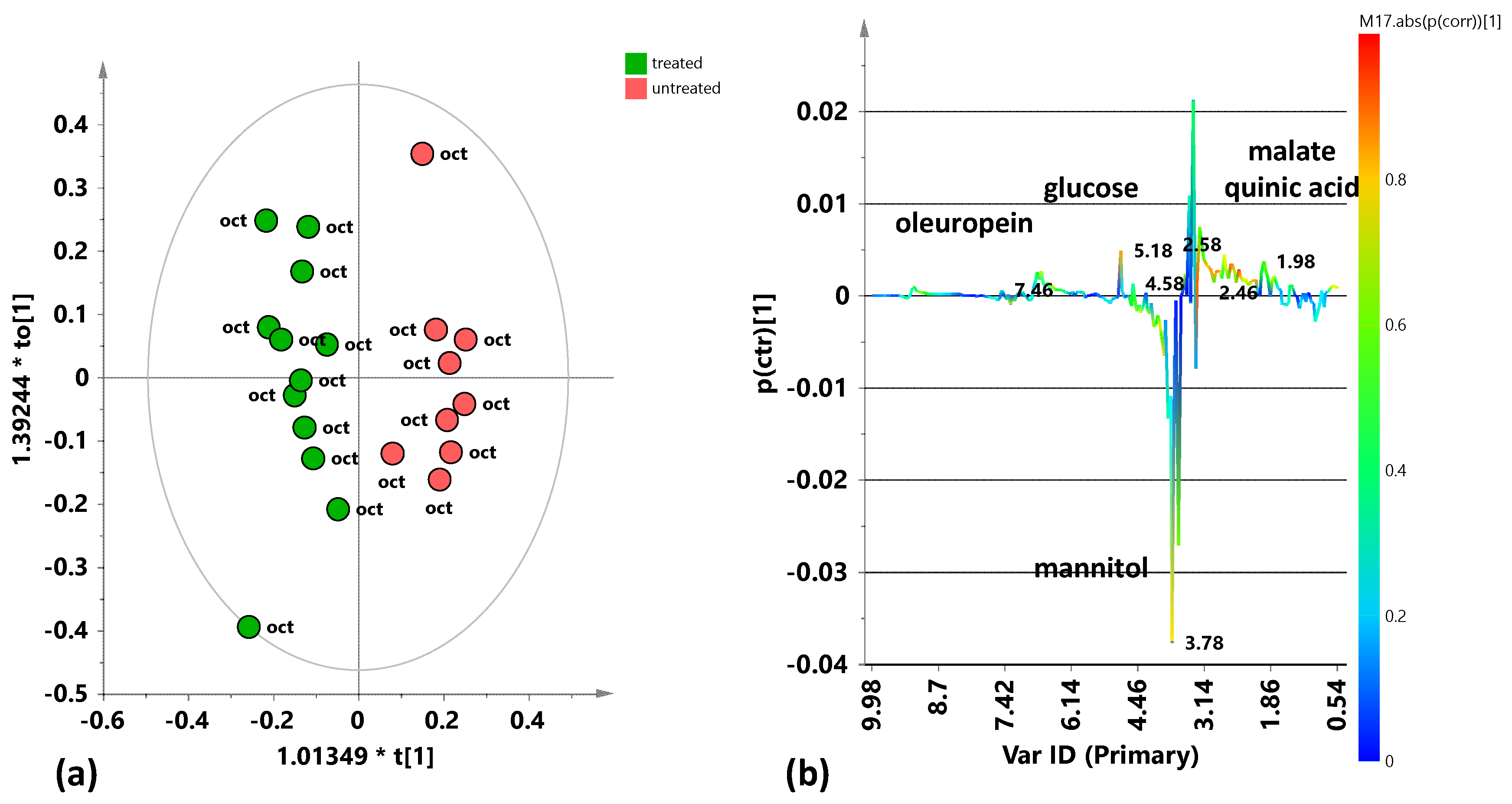

In the October 2024 sampling, the treated samples showed a higher content of mannitol, whereas glucose and malate achieved higher content in untreated samples. Both cumulative yearly and complete dataset comparisons account for the treated vs. untreated fold changes observed in the single samplings.

3. Discussion

Among the commercially available chemical treatments suggested for a possible use against OQDS in plants affected by Xfp are Dentamet® and NuovOlivo® [27]. It has been reported that six spray treatments a year with Dentamet® (a biocomplex of zinc, copper, and citric acid) decreased serious symptoms related to OQDS and Xfp in infected olive trees [10].
On the other hand, according to published results, NuovOlivo®, a natural detergent based on vegetable oils and an aqueous infusion of various plants, combined with sodium hydroxide, calcium, and sulphur, could also represent a possible protocol to counteract the symptoms caused by Xfp infection. Various preliminary studies demonstrated that infection indices decreased significantly in NuovOlivo®-treated plants compared to the controls [6,11,26].
In this work, the effects of NuovOlivo®, tested on olive trees naturally affected by Olive Quick Decline Syndrome associated with Xfp, were studied through 1H-based metabolomics. The study was conducted on seven olive trees naturally infected by Xfp and exhibiting OQDS symptoms, located in Montesano Salentino (Lecce province, Salento peninsula, South of Apulia, Italy), treated with the product, as described in the work of Bruno et al. [26], in comparison with the untreated trees. The experiments were conducted to verify, by 1H NMR based metabolomics of leaf extracts of the variety Cellina di Nardò, possible metabolic alterations induced by the NuovOlivo® treatment compared to untreated plants. The samplings were carried out in July 2023, and then in October 2023, July 2024, and October 2024.
The study of the variations in the plant’s metabolic profile related to the treatment clearly indicated the need for a careful analysis according to the specific sampling period. Indeed, preliminary unsupervised and supervised analyses of both the complete dataset and the two separate datasets regarding two different years of treated and untreated leaf samples also showed a clear relevance of seasonality for sample group clustering. In particular, the exploratory PCA analysis, conducted on the total samples (Figure 1), highlighted a clear clustering of the July 2024 samples, thus indicating differing variability between July and October samples across the two considered years. In particular, the July 2024 samples are characterized by a higher sugar content, such as mannitol and glucose. Therefore, specific supervised OPLS-DA analyses were performed to discriminate between treated and untreated samples for each of the samplings (July 2023, October 2023, July 2024, October 2024). These single sampling results were then compared to the cumulative (both yearly and complete dataset) findings. Key outcomes could be found in the S-line plots for the treated vs. untreated OPLS-DA models (Figure 2, Figure 3, Figure 4, Figure 6, Figure 7, Figure 9 and Figure 10), compared all together in Figure S3, as well as in the summary of the fold changes for the discriminating metabolites obtained considering the single and cumulative sampling (Figure 12). Moreover, the differences in leaf extracts from treated and untreated samples clearly related to specific pool of endogenous metabolites, as observed for other olive tree xylematic extracts [9,33,34].
The results of the used untargeted 1H NMR fingerprinting metabolomics approach with unsupervised and supervised MVA techniques demonstrated that major differences were generally observed for the content of quinic acid, malate, mannitol, glucose, oleuropein, and aldehyde derivatives in treated compared to untreated samples. In particular, a relatively higher content of quinic acid was found in the treated compared to untreated samples essentially due to the significant 2023 October sampling contribution.
On the other hand, a constant mostly significant lower presence of malate and higher of mannitol was found in treated compared to untreated samples for all the sampling and performed comparisons. A relatively higher content of glucose (α and β) was also detected for treated vs. untreated samples in the general dataset comparison as a result of the mostly significant consistent (2023 and July 2024) and adverse (October 2024) sampling contributions.
A significant lower level of oleuropein and aldehyde derivatives was observed in the treated compared to untreated samples comparison of the complete dataset. In this case, specific contributions to the fold changes were consistent in both years but much higher and more significant for the 2023 compared to the 2024 sampling. The decreasing trend (2023 vs. 2024) of higher levels for quinic acid, a precursor of lignin, already reported as a disease biomarker for the olive trees infected by Xfp [14], in treated leaf samples, suggests a possible specific impact of the treatment with NuovOlivo®, in accordance with other works on the effect of other biocomplex treatments [3,9,30]. The increased production of quinic acid in infected plants could be linked to its involvement in the plant’s secondary metabolism, as this molecule is known to be the precursor of lignin and phenolic and aromatic compounds, indicators of stress or infection in olive trees [17].
On the other hand, as described in other studies, the constantly higher content of the mannitol, observed in treated leaf samples, indicates a protection against stress and an improvement in physiological performance and photosynthetic capacity of olive trees [3,29,30,35]. Moreover, the variation in malate concentrations, with lower levels in treated vs. untreated samples, could suggest increased consumption of this metabolite to support normal citric acid cycle functions and could also be related to the increased plant’s response to stress conditions [9]. As already reported, together with increased mannitol, the elevated glucose’s levels observed in treated compared to untreated samples could indicate a seasonality-linked cascade of defence responses against disease, aimed at increasing carbon uptake [3,9,30,36]. Increased sugar content in treated trees could be further associated with both their osmoprotective function and their biochemical signalling of photosynthetic reactivation.
Finally, the untreated leaf samples extracts are characterized by higher content of oleuropein and aldehyde derivatives, especially observed for the first year of sampling (2023). Polyphenols, such as oleuropein and derivatives, constitute the most abundant and defensive compounds that help olive plants counteract various stresses [35]. The higher relative polyphenol content in untreated trees could suggest a possible natural resilience activated by the plants. Indeed, it is well known that polyphenols are antioxidant and protective compounds, a possible indicator of the activation of a natural physiological compensatory metabolism also in the absence of biostimulant treatment. Interestingly, induced polyphenol production has been clearly demonstrated by 1H-NMR monitoring of leaves extracts from Xfp-infected olive trees in a specific endo-therapy treatment follow-up [30]. Nevertheless, in the medium to long term, treated plants generally show lower levels of oleuropein and its derivatives compared to untreated plants [9,29]. This occurs besides the increase due to the possible treatment-induced short-term polyphenol production, which parallels the natural plant response to the disease [30]. In accordance with the present study, a relatively higher content of phenolic compounds and aldehydic forms of oleuropein and ligstroside was observed in untreated infected trees of Ogliarola Salentina and Cellina di Nardò when compared to leaf samples treated with Dentamet® [9]. These results were confirmed by subsequent research in which the Dentamet®-treated samples of Ogliarola Salentina showed a higher level of mannitol, while untreated samples showed higher relative content of tyrosol/hydroxytyrosol and aldehydic forms of oleuropein [29]. As known, the production of phenolic compounds by plants is a defensive strategy against various pathogens [23], and it has been demonstrated by numerous studies that these molecules can inhibit the growth of various bacterial species [24,37], including Xfp in grapevines and almond [38]. In addition, the antibacterial properties of olive leaf extracts with important oleuropein content were examined, observing a significant inhibition of Xfp growth [25]. Thus, oleuropein could be considered a powerful natural agent against Xfp [11]. On the other hand, as reported by Ugolini et al. in a recent study, the content of oleuropein and other phenolic compounds is influenced by seasonality, cultivars, years, etc. [39]. Indeed, according to the results reported here, the metabolic plant response to both disease and possible control treatments appears also influenced by seasonality and in the case of Xfp olive infection, it undoubtedly requires further specific investigations. In the present study, the general examination of the S-line plots reported in Figure 2, Figure 3, Figure 4, Figure 6, Figure 7, Figure 9 and Figure 10 and fold changes summary (Figure 12) clearly suggest that, for both the investigated years: (i) the differences (treated vs. untreated) observed for the July samples appear generally more marked with respect to October; and (ii) the differences observed in the yearly cumulative comparisons appear essentially controlled by those of the October with respect to July sampling. This evidence indicated a season-dependent plant response to both disease and treatment.
The observed variations (e.g., the glucose/mannitol ratio in October 2024) between the 2023 and 2024 harvest year could be explained as metabolic evidence of the plant’s dynamic adaptation/response to both disease and treatment over the considered timespan. The results showed significant differences in the metabolic profiles of leaf extracts from the treated plants compared to the untreated ones, exhibiting season and year dependence. Moreover, the overall differences observed between the two investigated years, as well as the comparison of the cumulative 2023 and 2024 results, suggest a general decrease in the differences for the discriminating metabolites over the time. This could be in accord with a smoothing across the two investigated years, of the differences between treatment induced and natural plant response to the disease, in line with the recently observed resilience phenomena in Xfp olive orchards in Salento [40].

4. Materials and Methods

4.1. Leaf Samples: Origin and Collection

In this research, the NuovOlivo® product was tested on olive (Olea europaea L., Oleaceae) trees naturally infected by OQDS associated with Xfp. NuovOlivo® (Ministero dello Sviluppo Economico, patent n 102017000109094, Italy [41]) is a plant-derived formulation, known as natural detergent made with plant oils and water infusion from multi botanical species, plus sodium and calcium hydroxide, in addition to sulphur. NuovOlivo® includes Thymus vulgaris L., Petroselinum crispum (Mill.) Fuss, Crataegus monogyna Jacq., Foeniculum vulgare Mill., Rosmarinus officinalis L., Salvia officinalis L., Origanum vulgare L., Matricaria chamomilla L., Malva sylvestris L., Opuntia ficus-indica (L.) Mill., Ruscus aculeatus L., Salix babylonica L., Urtica dioica L., Capsicum annuum L., Piper, and other Mediterranean plants [26]. The preparation of NuovOlivo® involves treating various plant tissues at 50 °C to balance the preservation of heat-labile compounds with the enhanced solubility of bioactive components such as anthocyanins and flavonoids [26,41].
The study was conducted on seven olive trees naturally infected by Xfp, located in Montesano Salentino (Lecce province, Salento peninsula, South of Apulia, Italy). The geographical coordinates of the field are 39°59′24.3″ N 18°18′06.3″ E. The NuovOlivo® treatment was conducted on the plants (70–75 year-old) of the cultivar Cellina di Nardò, as described in the work of Bruno et al. [26].
The protocol with NuovOlivo® also includes good agricultural practices. The plants are sprayed with 10 L of water containing 2% NuovOlivo® and 1% sodium bicarbonate as an activator added to the solution before application. This protocol has been shown to stimulate the growth of new vegetation and promote the production of flowers, fruits, and oil, possibly helping in preserving the Xfp susceptible cultivars that form part of the Apulian olive biodiversity [6].
The experiments were conducted to investigate possible metabolic alterations induced using the NuovOlivo® product on leaf extracts samples of the Cellina di Nardò cultivar obtained from plants affected by Xfp, treated and untreated with the product. A total of four consecutive olive leaf samplings, on both treated and untreated (control) trees, were performed. The first olive leaf sampling on plants under treatment with the product, as well as on untreated trees, was carried out in July 2023. Subsequent collections occurred in October 2023, July 2024, and October 2024. For each of the seven olive trees, four treated and three untreated, one mix of leaves (ca 20 mature green leaves/mix) was collected in the four subsequent sampling periods. The collected mix of leaves was carried to the laboratory in a chilled box and kept at −20 °C until extraction for metabolomic analysis. Representative figure of sampling field showing the seven investigated trees (four treated and three untreated) is given in Supplementary Materials (Figures S1 and S2).

4.2. Chemicals and Reagents

All chemical reagents for the analysis were of analytical grade. Deuterium oxide (99.9 atom %D) containing 0.05% wt 3-(trimethylsilyl) propionic-2,2,3,3 d4 acid sodium salt (TSP) and potassium phosphate monobasic was purchased from Armar Chemicals (Döttingen, Switzerland). Methanol-d4 (99.9 atom %D), potassium phosphate monobasic were purchased from CARLO ERBA Reagents (Milano, Italy).

4.3. Preparation of Leaf Extract Samples for 1H NMR Analysis

The samples for 1H-NMR were prepared according to the experimental procedure reported in the literature [42]. Three technical replicates were obtained from each of the collected leaf pools for a total of 84 samples (3 technical replicates for each of the 7 studied trees from 4 subsequent sampling periods). The olive leaf samples (each one containing 20 leaves) were plunged into liquid N2 and ground in a stainless-steel blender until a fine powder was obtained. Subsequently, the leaf powder was put into a plastic tube and lyophilized for 48 h. For each sample, the lyophilized plant material (100 mg) was added 0.75 mL of CD3OD and 0.75 mL of KH2PO4 buffer in D2O (pH 6) containing 0.05% w/v TSP-d4 in a 2 mL Eppendorf tube. The content of the Eppendorf tubes was mixed for 1 min using a vortex and then sonicated at room temperature for 10 min. The resulting solutions were centrifuged at 17,000 g for 20 min; then, a 5 mm NMR tube was filled with 600 µL of the supernatant [3].

4.4. Acquisition and Processing of 1H NMR Spectra of Leaf Extracts

All spectra of leaf extracts were acquired at constant temperature (300 K) on a Bruker Avance III 600 MHz Ascend NMR spectrometer (Bruker Italia, Milan, Italy) with a TCI cryoprobe (inverse Triple Resonance Cryoprobe Prodigy), operating at a 600.13 MHz frequency, with a z-axis gradient coil and automatic tuning-matching (ATM). Water signal suppression (Bruker pulseprogram zgcppr) was used for the acquisition of the 1H NMR spectrum for each sample, with a spectral window of 20.0276 ppm (12,019.230 Hz), 64 scans, and a 90° pulse of 10.24 µs. The standard and Free Induction Decay (FID) processing was performed using TopSpin 3.6.1 (Bruker, Biospin, Italy) after every acquisition with 0.3 Hz line broadening (LB). Therefore, the phase and baseline correction were executed.
The metabolites were identified and assigned through a comparison with the data from the literature [3,9,30]. Chemical characterization of the xylematic extracts (Table S1) revealed a profile consistent with the previously described composition of olive leaves [9,33,34], confirming that no residual metabolites from the plants used in the formulation remained on the treated leaves.
After data processing, 1H-NMR spectra were segmented in rectangular buckets (0.04 ppm width) and integrated using the Bruker Amix 3.9.14 (Analysis of Mixture, Bruker BioSpin GmbH, Rheinstetten, Germany) software. Specifically, each NMR spectrum was segmented into regions or histograms with a fixed base width of 0.04 ppm, known as “normal rectangular bucketing”. The residual non-deuterated water (5–4.65 ppm) and methanol (3.33–3.25 ppm) spectral regions were excluded from the buckets. The reduced spectra and the remaining buckets in the range of 10.00–0.50 ppm were then normalized to total intensity and mean-centred to reduce the variability and noise in the data. The Pareto scaling method was further applied [43]. Therefore, the resulting data table was used in the multivariate data analysis (MVA).

4.5. Statistical Analysis Applied to Acquired Data

After the acquisition and processing of the 1H NMR spectra of the leaf extracts, the multivariate statistical analysis (MVA) was performed using the Simca-P, version 14 (Sartorius Stedim Biotech, Umeå, Sweden), software.
Unsupervised (Principal Component Analysis, PCA) and supervised (Orthogonal Partial Least Square Discriminant Analysis, OPLS-DA) methods were applied to explore the intrinsic data variation. PCA constitutes the first chemometric step in data analysis aimed at extrapolating the maximum possible information and providing a general description of the natural sample distribution [44,45].
Subsequently, supervised analysis (OPLS-DA) was used to maximize the separation between the classes of samples. OPLS-DA is a powerful method for the interpretation and classification of sample dataset, also providing information on the variables (NMR data) responsible for the classes’ separation [46,47,48]. The models were validated through the internal cross-validation default method (7-fold) and permutation test. The R2 and Q2 parameters described the quality of the models. The R2 is a cross-validation parameter and indicates the goodness of fit. The Q2 indicates the portion of data variance predictable by the model [48,49,50].
The tools available on the SIMCA-P software (loading scatter plot and S-line plot) were used to identify the metabolites responsible for the class sample discrimination. The loading scatter plot and S-line plot, applied to PCA and OPLS-DA models, respectively, were coloured according to the absolute value of the correlation, p(corr). The colour bar of the plot describes the correlation of the segregated metabolites between groups [49,51,52].
The log2–FC ratio of the normalized median intensity of corresponding selected bucket-reduced unbiased NMR signals was calculated to gain the relative quantification of discriminating metabolites [3,52]. Moreover, only metabolites with a VIP (variable importance in projection), estimated from all extracted components, and a correlation coefficient, p(corr), respectively, with absolute values higher than 1.0 and 0.5 were considered as possible significant discriminants and considered for the relative quantification [53].

5. Conclusions

In this study, we characterize, for the first time by 1H NMR-based metabolomics, the potential effects on the metabolic profiles of Xfp naturally infected Cellina di Nardò olive trees in Salento (Italy), treated with the natural plant-derived formulation, NuovOlivo®. The results showed significant differences in the metabolic profiles of leaf extracts from treated plants compared to the untreated ones, exhibiting season and year dependence. The observed differences could be related to specific plant metabolic responses, involving key metabolites associated with the activation of infection resistance mechanisms. The reported general decrease in the differences for the discriminating metabolites between the two investigated years suggest a smoothing over the time between treatment induced and natural plant response to the disease, consistently to the recently reported Xfp olive orchard resilience phenomena. These results support previous studies showing improved vegetative growth and a reduction in symptoms in NuovOlivo®-treated Xfp infected olive trees compared to the untreated controls. Indeed, the protocol NuovOlivo® could trigger a specific metabolic reprogramming in infected olive trees, providing novel insights into the management of Xfp and OQDS and suggesting a possible role of this treatment, integrated with good agricultural practices, in olive grove recovery.
The observed differences could be related to specific plant metabolic responses involving the activation of infection resistance mechanisms.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/plants15071109/s1, Figure S1: Visual records of olive trees during the 2023 seasonal samplings (July and October).; Figure S2: Visual records of olive trees during the 2024 seasonal samplings (July and October). Figure S3: Overview of the whole S-line plots for the treated vs. untreated OPLS-DA models (Figure 2, Figure 3, Figure 4, Figure 6, Figure 7, Figure 9 and Figure 10). Table S1. 1H-NMR assignments of main olive leaf metabolites. Detected metabolites are in bold.

Author Contributions

Conceptualization, F.P.F.; methodology, F.P.F.; validation, C.R.G.; formal analysis, M.C.F. and C.R.G.; investigation, M.C.F. and C.R.G.; resources, F.P.F.; data curation, M.C.F. and C.R.G.; writing—original draft preparation, M.C.F.; writing—review and editing, M.C.F., C.R.G., and F.P.F.; visualization, M.C.F. and C.R.G.; supervision, F.P.F. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data are contained within the article and in the Supplementary Materials. Further inquiries can be directed to the corresponding author.

Acknowledgments

The authors thank, for partial support, the Project ‘DIACOX’ funded by the Italian Ministry of Agriculture, Food Sovereignty, and Forests (DM 664531—28 December 2022).

Conflicts of Interest

The authors declare no conflicts of interest.

Abbreviations

The following abbreviations are used in this manuscript:
Co.Di.R.OComplesso del Disseccamento Rapido dell’Olivo
NMRNuclear Magnetic Resonance
MVAmultivariate statistical analysis
OPLS-DAOrthogonal Partial Least Square Discriminant Analysis
OQDSOlive Quick Decline Syndrome
PCAPrincipal Component Analysis
XfpXylella fastidiosa subsp. pauca

References

  1. Ipsen, C. Xylella fastidiosa and the Olive Oil Crisis in Puglia. Gastronomica 2020, 20, 55–66. [Google Scholar] [CrossRef]
  2. Scortichini, M.; Manetti, G.; Brunetti, A.; Lumia, V.; Sciarroni, L.; Pilotti, M. Xylella fastidiosa subsp. pauca, Neofusicoccum spp. and the Decline of Olive Trees in Salento (Apulia, Italy): Comparison of Symptoms, Possible Interactions, Certainties and Doubts. Plants 2023, 12, 3593. [Google Scholar] [CrossRef]
  3. Hussain, M.; Girelli, C.R.; Verweire, D.; Oehl, M.C.; Avendaño, M.S.; Scortichini, M.; Fanizzi, F.P. 1H-NMR Metabolomics Study after Foliar and Endo-Therapy Treatments of Xylella fastidiosa subsp. pauca Infected Olive Trees: Medium Time Monitoring of Field Experiments. Plants 2023, 12, 1946. [Google Scholar] [CrossRef]
  4. Martelli, G.P.; Boscia, D.; Porcelli, F.; Saponari, M. The Olive Quick Decline Syndrome in South-East Italy: A Threatening Phytosanitary Emergency. Eur. J. Plant Pathol. 2016, 144, 235–243. [Google Scholar] [CrossRef]
  5. Giampetruzzi, A.; Saponari, M.; Almeida, R.P.P.; Essakhi, S.; Boscia, D.; Loconsole, G.; Saldarelli, P. Complete Genome Sequence of the Olive-Infecting Strain Xylella fastidiosa subsp. pauca De Donno. Genome Announc. 2017, 5, e00569-17. [Google Scholar] [CrossRef] [PubMed]
  6. Bruno, G.L. Coexistence between Xylella fastidiosa subsp. pauca and Susceptible Olive Plants in the Salento Peninsula (Southern Italy). Agronomy 2024, 14, 2119. [Google Scholar] [CrossRef]
  7. Saponari, M.; Boscia, D.; Altamura, G.; Loconsole, G.; Zicca, S.; D’Attoma, G.; Morelli, M.; Palmisano, F.; Saponari, A.; Tavano, D.; et al. Isolation and Pathogenicity of Xylella fastidiosa Associated to the Olive Quick Decline Syndrome in Southern Italy. Sci. Rep. 2017, 7, 17723. [Google Scholar] [CrossRef]
  8. Purcell, A. Paradigms: Examples from the Bacterium Xylella fastidiosa. Annu. Rev. Phytopathol. 2013, 51, 339–356. [Google Scholar] [CrossRef]
  9. Girelli, C.R.; Angilè, F.; Del Coco, L.; Migoni, D.; Zampella, L.; Marcelletti, S.; Cristella, N.; Marangi, P.; Scortichini, M.; Fanizzi, F.P. 1H-NMR Metabolite Fingerprinting Analysis Reveals a Disease Biomarker and a Field Treatment Response in Xylella fastidiosa subsp. Pauca-Infected Olive Trees. Plants 2019, 8, 115. [Google Scholar] [CrossRef] [PubMed]
  10. Scortichini, M.; Chen, J.; De Caroli, M.; Dalessandro, G.; Pucci, N.; Modesti, V.; L’aurora, A.; Petriccione, M.; Zampella, L.; Mastrobuoni, F.; et al. A Zinc, Copper and Citric Acid Biocomplex Shows Promise for Control of Xylella fastidiosa subsp. pauca in Olive Trees in Apulia Region (Southern Italy). Phytopathol. Mediterr. 2018, 57, 48–72. [Google Scholar] [CrossRef]
  11. Portaccio, L.; Vergine, M.; Bene, A.; De Pascali, M.; Sabella, E.; De Bellis, L.; Luvisi, A. Chemical Treatments Tested Against Xylella fastidiosa: Strategies, Successes and Limitations. Pathogens 2025, 14, 840. [Google Scholar] [CrossRef] [PubMed]
  12. De Benedictis, M.; De Caroli, M.; Baccelli, I.; Marchi, G.; Bleve, G.; Gallo, A.; Ranaldi, F.; Falco, V.; Pasquali, V.; Piro, G.; et al. Vessel Occlusion in Three Cultivars of Olea europaea Naturally Exposed to Xylella fastidiosa in Open Field. J. Phytopathol. 2017, 165, 589–594. [Google Scholar] [CrossRef]
  13. Petit, G.; Bleve, G.; Gallo, A.; Mita, G.; Montanaro, G.; Nuzzo, V.; Zambonini, D.; Pitacco, A. Susceptibility to Xylella fastidiosa and Functional Xylem Anatomy in Olea europaea: Revisiting a Tale of Plant–Pathogen Interaction. AoB Plants 2021, 13, plab027. [Google Scholar] [CrossRef]
  14. Luvisi, A.; Aprile, A.; Sabella, E.; Vergine, M.; NicolÌ, F.; Nutricati, E.; Miceli, A.; Negro, C.; De Bellis, L. Xylella fastidiosa subsp. pauca (CoDiRO Strain) Infection in Four Olive (Olea europaea L.) Cultivars: Profile of Phenolic Compounds in Leaves and Progression of Leaf Scorch Symptoms. Phytopathol. Mediterr. 2017, 56, 259–273. [Google Scholar]
  15. Scortichini, M. The Epidemiology and Control of “Olive Quick Decline Syndrome” in Salento (Apulia, Italy). Agronomy 2022, 12, 2475. [Google Scholar] [CrossRef]
  16. Boscia, D.; Altamura, G.; Ciniero, A.; Di Carolo, M.; Dongiovanni, C.; Fumarola, G.; Giampetruzzi, A.; Greco, P.; La Notte, P.; Loconsole, G.; et al. Resistenza a Xylella fastidiosa in Diverse Cultivar Di Olivo. L’Informatore Agrar. 2017, 11, 59–63. [Google Scholar] [CrossRef]
  17. Sabella, E.; Luvisi, A.; Aprile, A.; Negro, C.; Vergine, M.; Nicolì, F.; Miceli, A.; De Bellis, L. Xylella fastidiosa Induces Differential Expression of Lignification Related-Genes and Lignin Accumulation in Tolerant Olive Trees cv. Leccino. J. Plant Physiol. 2018, 220, 60–68. [Google Scholar] [CrossRef]
  18. Sion, S.; Taranto, F.; Montemurro, C.; Mangini, G.; Camposeo, S.; Falco, V.; Gallo, A.; Mita, G.; Saddoud Debbabi, O.; Ben Amar, F.; et al. Genetic Characterization of Apulian Olive Germplasm as Potential Source in New Breeding Programs. Plants 2019, 8, 268. [Google Scholar] [CrossRef]
  19. Cascone, P.; Quarto, R.; Iodice, L.; Cencetti, G.; Formisano, G.; Spiezia, G.; Giorgini, M.; Michelozzi, M.; Guerrieri, E. Behavioural Response of the Main Vector of Xylella fastidiosa towards Olive VOCs. Entomol. Gen. 2022, 42, 35–44. [Google Scholar] [CrossRef]
  20. Bollettino Ufficiale della Regione Puglia (BURP). Available online: https://burp.regione.puglia.it/bollettini (accessed on 19 March 2026).
  21. Del Grosso, C.; Grandi, L.; Lombardi, T.; D’Attoma, G.; Schmitt, N.; De Michele, V.R.; Saponari, M. In Vitro High-Throughput Screening of the Antimicrobial Activity of Different Compounds against Xylella fastidiosa subsp. Pauca. Chem. Biol. Technol. Agric. 2025, 12, 15. [Google Scholar] [CrossRef]
  22. Del Grosso, C.; Saponari, M.; Saldarelli, P.; Palmieri, D.; Altamura, G.; Abou Kubaa, R.; De Curtis, F.; Lima, G. Use of Commercial Fertilizers in an IPDM Protocol to Mitigate Olive Quick Decline Syndrome Caused by Xylella fastidiosa subsp. Pauca in Southern Italy. Plant Dis. 2025, 109, 1657–1667. [Google Scholar] [CrossRef]
  23. Boudet, A.-M. Evolution and Current Status of Research in Phenolic Compounds. Phytochemistry 2007, 68, 2722–2735. [Google Scholar] [CrossRef]
  24. Obied, H.K.; Allen, M.S.; Bedgood, D.R.; Prenzler, P.D.; Robards, K.; Stockmann, R. Bioactivity and Analysis of Biophenols Recovered from Olive Mill Waste. J. Agric. Food Chem. 2005, 53, 823–837. [Google Scholar] [CrossRef]
  25. Vizzarri, V.; Ienco, A.; Benincasa, C.; Perri, E.; Pucci, N.; Cesari, E.; Novellis, C.; Rizzo, P.; Pellegrino, M.; Zaffina, F.; et al. Phenolic Extract from Olive Leaves as a Promising Endotherapeutic Treatment against Xylella fastidiosa in Naturally Infected Olea europaea (var. Europaea) Trees. Biology 2023, 12, 1141. [Google Scholar] [CrossRef]
  26. Bruno, G.L.; Cariddi, C.; Botrugno, L. Exploring a Sustainable Solution to Control Xylella fastidiosa subsp. pauca on Olive in the Salento Peninsula, Southern Italy. Crop Prot. 2021, 139, 105288. [Google Scholar] [CrossRef]
  27. Catalano, A.; Ceramella, J.; Iacopetta, D.; Mariconda, A.; Scali, E.; Bonomo, M.G.; Saturnino, C.; Longo, P.; Aquaro, S.; Sinicropi, M.S. Thidiazuron: New Trends and Future Perspectives to Fight Xylella fastidiosa in Olive Trees. Antibiotics 2022, 11, 947. [Google Scholar] [CrossRef] [PubMed]
  28. Girelli, C.R.; Del Coco, L.; Scortichini, M.; Petriccione, M.; Zampella, L.; Mastrobuoni, F.; Cesari, G.; Bertaccini, A.; D’Amico, G.; Contaldo, N.; et al. Xylella fastidiosa and Olive Quick Decline Syndrome (CoDiRO) in Salento (Southern Italy): A Chemometric 1H NMR-Based Preliminary Study on Ogliarola Salentina and Cellina Di Nardò Cultivars. Chem. Biol. Technol. Agric. 2017, 4, 25. [Google Scholar] [CrossRef]
  29. Girelli, C.R.; Del Coco, L.; Angilè, F.; Scortichini, M.; Fanizzi, F.P. Olive Cultivars Susceptible or Tolerant to Xylella fastidiosa subsp. pauca Exhibit Mid-Term Different Metabolomes upon Natural Infection or a Curative Treatment. Plants 2021, 10, 772. [Google Scholar] [CrossRef] [PubMed]
  30. Girelli, C.R.; Hussain, M.; Verweire, D.; Oehl, M.C.; Massana-Codina, J.; Avendaño, M.S.; Migoni, D.; Scortichini, M.; Fanizzi, F.P. Agro-Active Endo-Therapy Treated Xylella fastidiosa subsp. pauca-Infected Olive Trees Assessed by the First 1H-NMR-Based Metabolomic Study. Sci. Rep. 2022, 12, 5973. [Google Scholar] [CrossRef]
  31. Jlilat, A.; Ragone, R.; Gualano, S.; Santoro, F.; Gallo, V.; Varvaro, L.; Mastrorilli, P.; Saponari, M.; Nigro, F.; D’Onghia, A.M. A Non-Targeted Metabolomics Study on Xylella fastidiosa Infected Olive Plants Grown Under Controlled Conditions. Sci. Rep. 2021, 11, 1070. [Google Scholar] [CrossRef]
  32. Scortichini, M.; Loreti, S.; Pucci, N.; Scala, V.; Tatulli, G.; Verweire, D.; Oehl, M.; Widmer, U.; Codina, J.M.; Hertl, P.; et al. Progress towards Sustainable Control of Xylella fastidiosa subsp. pauca in Olive Groves of Salento (Apulia, Italy). Pathogens 2021, 10, 668. [Google Scholar] [CrossRef]
  33. Tatini, D.; Bisozzi, F.; Costantini, S.; Fattori, G.; Boldrini, A.; Baglioni, M.; Bonechi, C.; Donati, A.; Tozzi, C.; Riccaboni, A.; et al. Geographical Origin Authentication of Leaves and Drupes from Olea europaea via 1H NMR and Excitation–Emission Fluorescence Spectroscopy: A Data Fusion Approach. Molecules 2025, 30, 3208. [Google Scholar] [CrossRef]
  34. Guinda, Á.; Castellano, J.M.; Santos-Lozano, J.M.; Delgado-Hervás, T.; Gutiérrez-Adánez, P.; Rada, M. Determination of Major Bioactive Compounds from Olive Leaf. LWT - Food Sci. Technol. 2015, 64, 431–438. [Google Scholar] [CrossRef]
  35. Tekaya, M.; Dabbaghi, O.; Guesmi, A.; Attia, F.; Chehab, H.; Khezami, L.; Algathami, F.K.; Ben Hamadi, N.; Hammami, M.; Prinsen, E.; et al. Arbuscular Mycorrhizas Modulate Carbohydrate, Phenolic Compounds and Hormonal Metabolism to Enhance Water Deficit Tolerance of Olive Trees (Olea europaea). Agric. Water Manag. 2022, 274, 107947. [Google Scholar] [CrossRef]
  36. Sardans, J.; Gargallo-Garriga, A.; Pérez-Trujillo, M.; Parella, T.J.; Seco, R.; Filella, I.; Peñuelas, J. Metabolic Responses of Quercus ilex Seedlings to Wounding Analysed with Nuclear Magnetic Resonance Profiling. Plant Biol. 2014, 16, 395–403. [Google Scholar] [CrossRef]
  37. Tafesh, A.; Najami, N.; Jadoun, J.; Halahlih, F.; Riepl, H.; Azaizeh, H. Synergistic Antibacterial Effects of Polyphenolic Compounds from Olive Mill Wastewater. Evid. Based Complement. Alternat. Med. 2011, 2011, 431021. [Google Scholar] [CrossRef]
  38. Maddox, C.E.; Laur, L.M.; Tian, L. Antibacterial Activity of Phenolic Compounds Against the Phytopathogen Xylella fastidiosa. Curr. Microbiol. 2010, 60, 53–58. [Google Scholar] [CrossRef] [PubMed]
  39. Ugolini, T.; Cecchi, L.; Sani, G.; Digiglio, I.; Adinolfi, B.; Ciaccheri, L.; Zanoni, B.; Melani, F.; Mulinacci, N. Seasonal and Cultivar-Dependent Phenolic Dynamics in Tuscan Olive Leaves: A Two-Year Study by HPLC-DAD-MS for Food By-Product Valorization. Separations 2025, 12, 192. [Google Scholar] [CrossRef]
  40. Scortichini, M.; Ragno, D. Survey on Resilient Olive Groves Previously Severely Damaged by Xylella fastidiosa subsp. pauca in Salento (Apulia, Italy). Agronomy 2024, 14, 2003. [Google Scholar] [CrossRef]
  41. PATENT IT201700109094 Sapone Naturale All’olio Di Oliva Ed Erbe Ad Uso Fitologico. Available online: https://it.espacenet.com/publicationDetails/biblio?FT=D&date=20190328&DB=&locale=it_IT&CC=IT&NR=201700109094A1&KC=A1&ND=5 (accessed on 28 March 2026).
  42. Kim, H.K.; Choi, Y.H.; Verpoorte, R. NMR-Based Metabolomic Analysis of Plants. Nat. Protoc. 2010, 5, 536–549. [Google Scholar] [CrossRef]
  43. Van Den Berg, R.A.; Hoefsloot, H.C.; Westerhuis, J.A.; Smilde, A.K.; Van Der Werf, M.J. Centering, Scaling, and Transformations: Improving the Biological Information Content of Metabolomics Data. BMC Genom. 2006, 7, 142. [Google Scholar] [CrossRef] [PubMed]
  44. Jackson, J.E. A User’s Guide to Principal Components; Wiley Series in Probability and Mathematical Statistics; Applied Probability and Statistics; Wiley: New York, NY, USA, 1991. [Google Scholar]
  45. Kettaneh, N.; Berglund, A.; Wold, S. PCA and PLS with Very Large Data Sets. Comput. Stat. Data Anal. 2005, 48, 69–85. [Google Scholar] [CrossRef]
  46. Eriksson, L.; Rosén, J.; Johansson, E.; Trygg, J. Orthogonal PLS (OPLS) Modeling for Improved Analysis and Interpretation in Drug Design. Mol. Inform. 2012, 31, 414–419. [Google Scholar] [CrossRef]
  47. Wold, S.; Eriksson, L.; Trygg, J.; Kettaneh, N. The PLS Method—Partial Least Squares Projections to Latent Structures—And Its Applications in Industrial RDP (Research, Development, and Production). In COMPSTAT 2004, Proceedings of the Computational Statistics, 16th Symposium of IASC, Prague, Czech Republic, 23–27 August 2004; Springer: Berlin/Heidelberg, Germany, 2004. [Google Scholar]
  48. Trygg, J.; Wold, S. Orthogonal Projections to Latent Structures (O-PLS). J. Chemom. 2002, 16, 119–128. [Google Scholar] [CrossRef]
  49. Eriksson, L.; Byrne, T.; Johansson, E.; Trygg, J.; Vikström, C. Multi- and Megavariate Data Analysis Basic Principles and Applications; Umetrics Academy: Vasterbottens Lan, Sweden, 2013; Volume 1. [Google Scholar]
  50. Wheelock, Å.M.; Wheelock, C.E. Trials and Tribulations of ‘omics Data Analysis: Assessing Quality of SIMCA-Based Multivariate Models Using Examples from Pulmonary Medicine. Mol. Biosyst. 2013, 9, 2589. [Google Scholar] [CrossRef] [PubMed]
  51. Del Coco, L.; Girelli, C.R.; Gambacorta, L.; Solfrizzo, M.; Fanizzi, F.P. 1H NMR Spectroscopy Primitivo Red Wine Screening After Grape Pomace Repassage for Possible Toxin Contamination Removal. Foods 2025, 14, 734. [Google Scholar] [CrossRef]
  52. Fazzi, M.C.; Girelli, C.R.; Migoni, D.; Fracasso, B.; Cesari, G.; Fanizzi, F.P. 1H-NMR-Based Metabolomic Profiles of Zucchini (Cucurbita pepo L.) Grown with Different Agricultural Practices for Sustainable Crop Production. Foods 2025, 14, 919. [Google Scholar] [CrossRef] [PubMed]
  53. Cocchi, M.; Biancolillo, A.; Marini, F. Chemometric Methods for Classification and Feature Selection. In Comprehensive Analytical Chemistry; Elsevier: Amsterdam, The Netherlands, 2018; Volume 82, pp. 265–299. [Google Scholar]
Plants 15 01109 g001

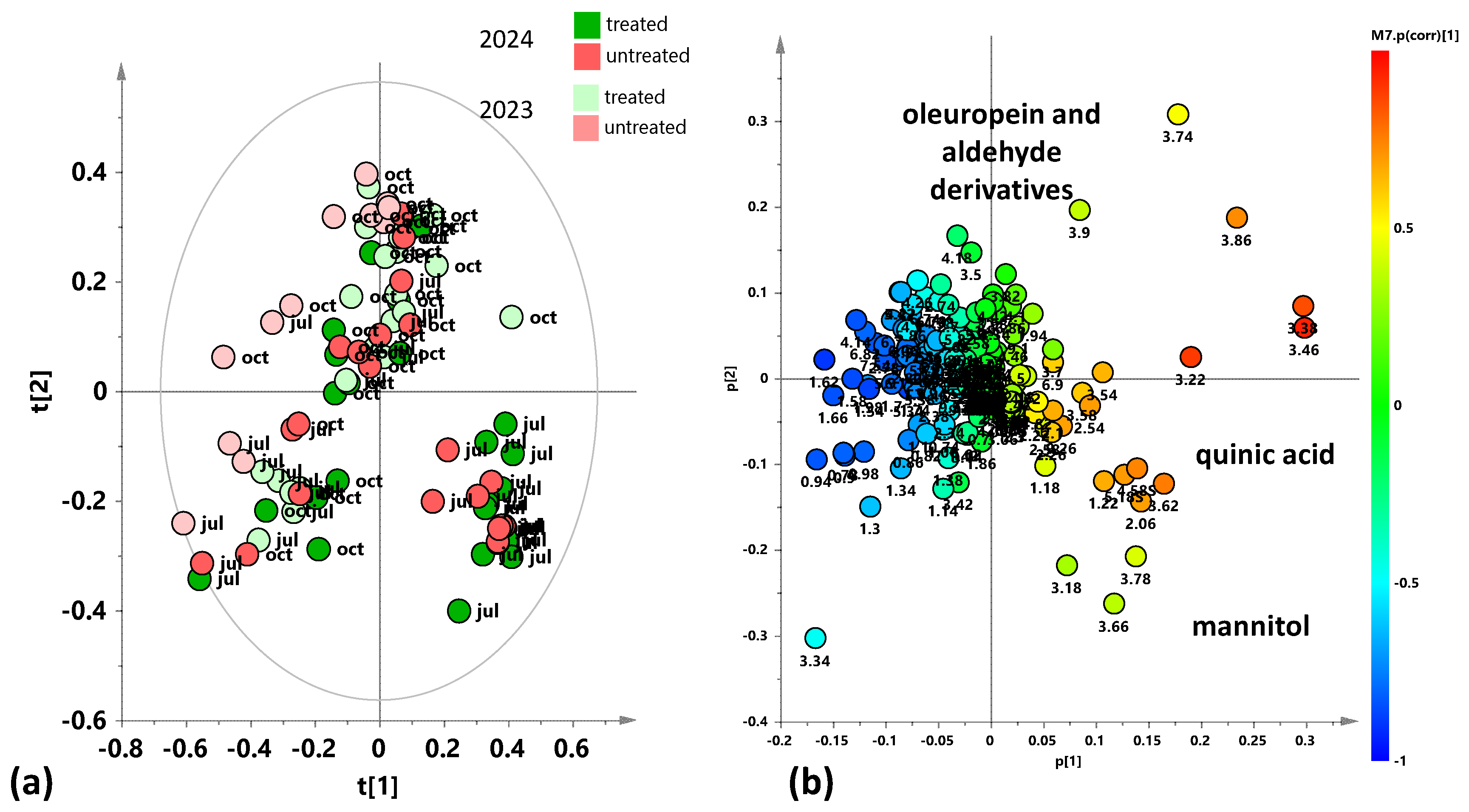

Figure 1. (a) PCA t[1]/t[2] score plot for the whole dataset of leaf samples (five components give R2X (cum) = 0.809, Q2(cum) = 0.628). (b) Loading scatter plot for the PCA model (a) coloured according to the correlation scaled coefficient (p(corr) ≥ |0.5|). The colour bar associated with the plot indicates the correlation of the segregated metabolites between groups.
Figure 1. (a) PCA t[1]/t[2] score plot for the whole dataset of leaf samples (five components give R2X (cum) = 0.809, Q2(cum) = 0.628). (b) Loading scatter plot for the PCA model (a) coloured according to the correlation scaled coefficient (p(corr) ≥ |0.5|). The colour bar associated with the plot indicates the correlation of the segregated metabolites between groups.
Plants 15 01109 g001
Plants 15 01109 g002

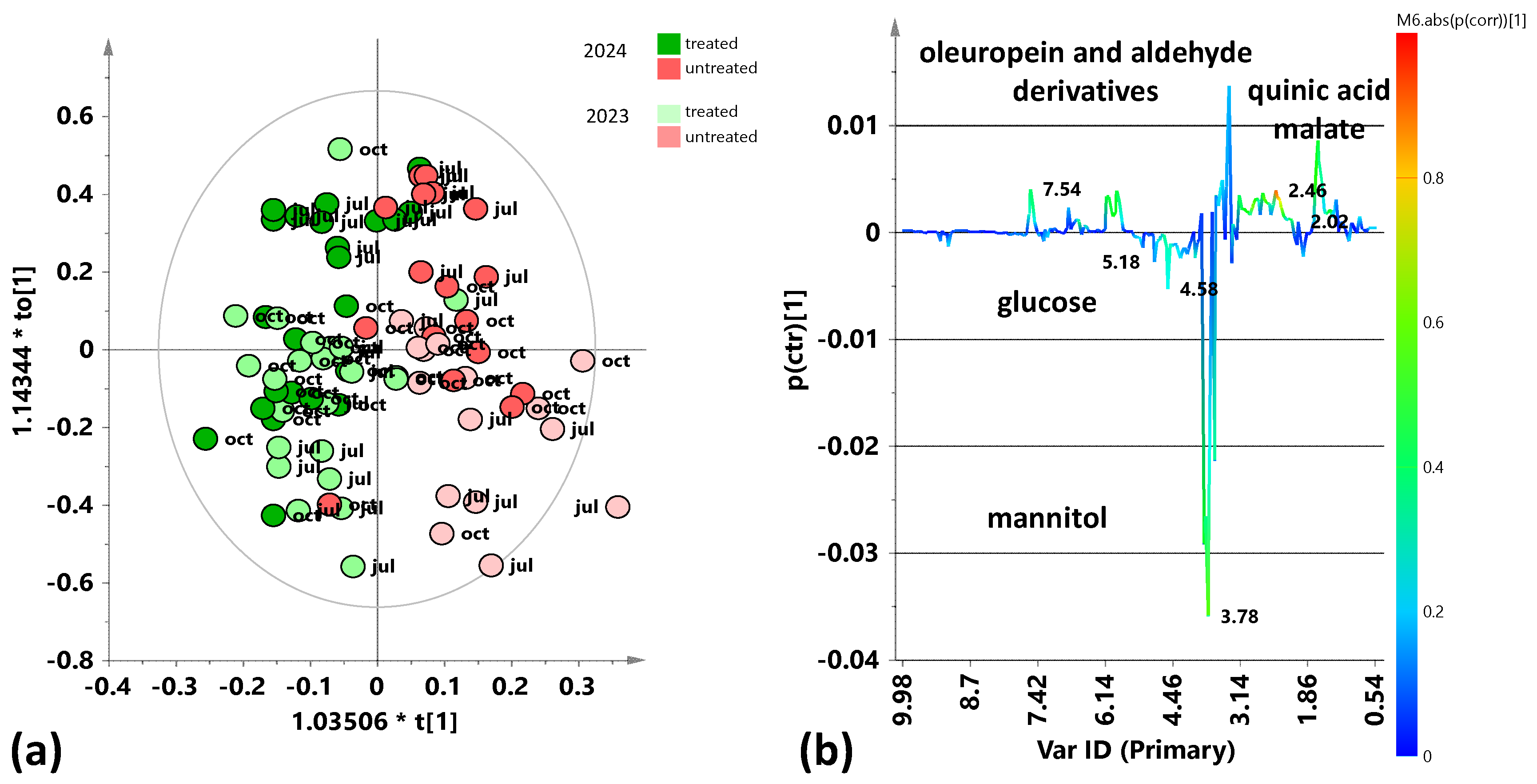

Figure 2. Pairwise OPLS-DA analysis comparisons between the treated and untreated leaf samples coming from all samplings (July 2023, October 2023, July 2024, and October 2024). (a) OPLS-DA score plot 1 + 2 + 0 components; R2X(cum) = 0.494; R2Y(cum) = 0.619; Q2 = 0.487. (b) S-line for the model coloured according to the correlation scaled coefficient (p(corr) ≥ |0.5|). The colour bar associated with the plot indicates the correlation of the segregated metabolites between groups.
Figure 2. Pairwise OPLS-DA analysis comparisons between the treated and untreated leaf samples coming from all samplings (July 2023, October 2023, July 2024, and October 2024). (a) OPLS-DA score plot 1 + 2 + 0 components; R2X(cum) = 0.494; R2Y(cum) = 0.619; Q2 = 0.487. (b) S-line for the model coloured according to the correlation scaled coefficient (p(corr) ≥ |0.5|). The colour bar associated with the plot indicates the correlation of the segregated metabolites between groups.
Plants 15 01109 g002
Plants 15 01109 g003

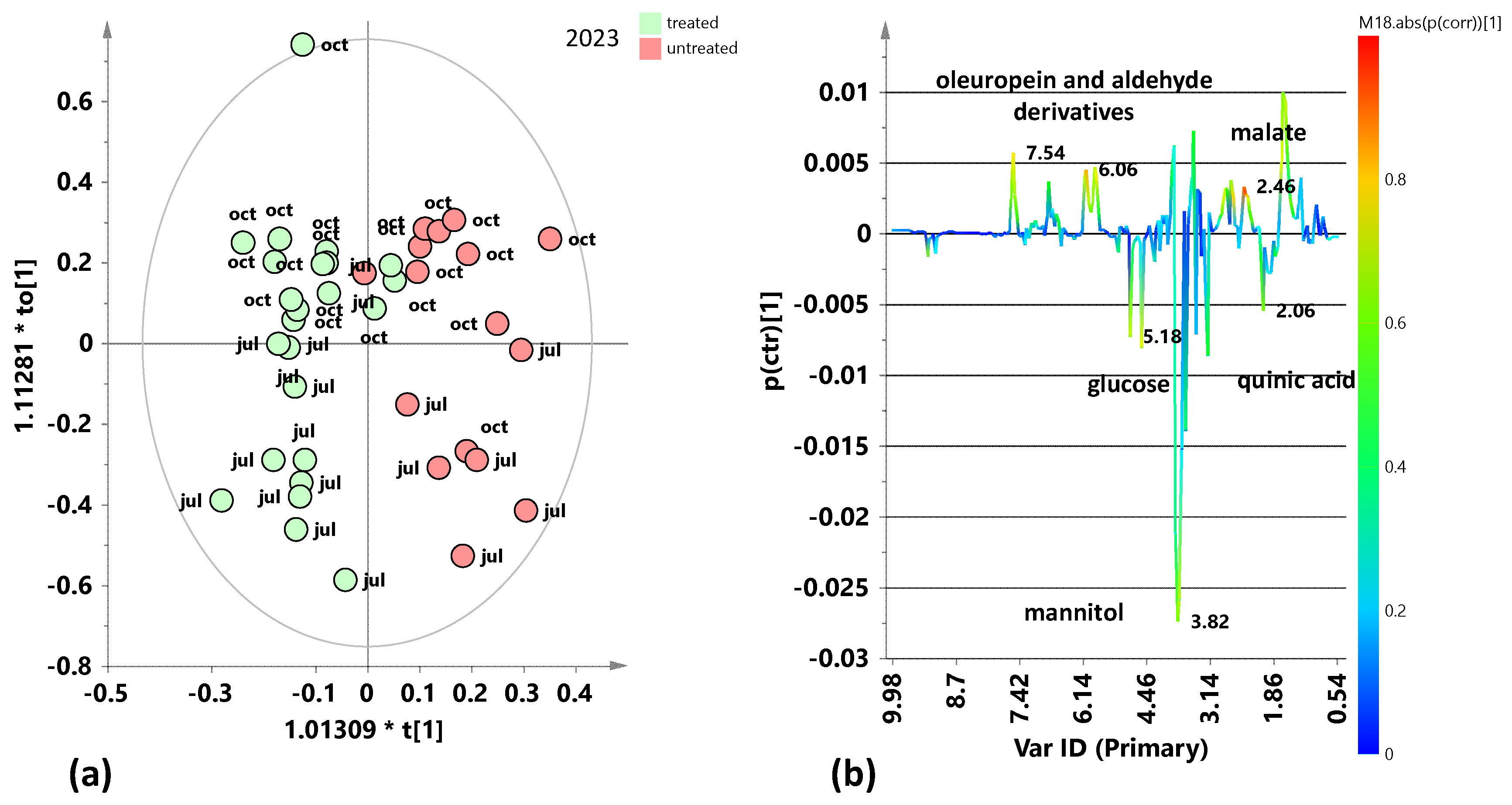

Figure 3. Pairwise OPLS-DA analysis comparisons between the treated and untreated leaf samples coming from the two samplings from 2023 (July 2023 and October 2023). (a) OPLS-DA score plot 1 + 2 + 0 components; R2X(cum) = 0.695; R2Y(cum) = 0.75; Q2 = 0.597. (b) S-line for the model coloured according to the correlation scaled coefficient (p(corr) ≥ |0.5|). The colour bar associated with the plot indicates the correlation of the segregated metabolites between groups.
Figure 3. Pairwise OPLS-DA analysis comparisons between the treated and untreated leaf samples coming from the two samplings from 2023 (July 2023 and October 2023). (a) OPLS-DA score plot 1 + 2 + 0 components; R2X(cum) = 0.695; R2Y(cum) = 0.75; Q2 = 0.597. (b) S-line for the model coloured according to the correlation scaled coefficient (p(corr) ≥ |0.5|). The colour bar associated with the plot indicates the correlation of the segregated metabolites between groups.
Plants 15 01109 g003
Plants 15 01109 g004

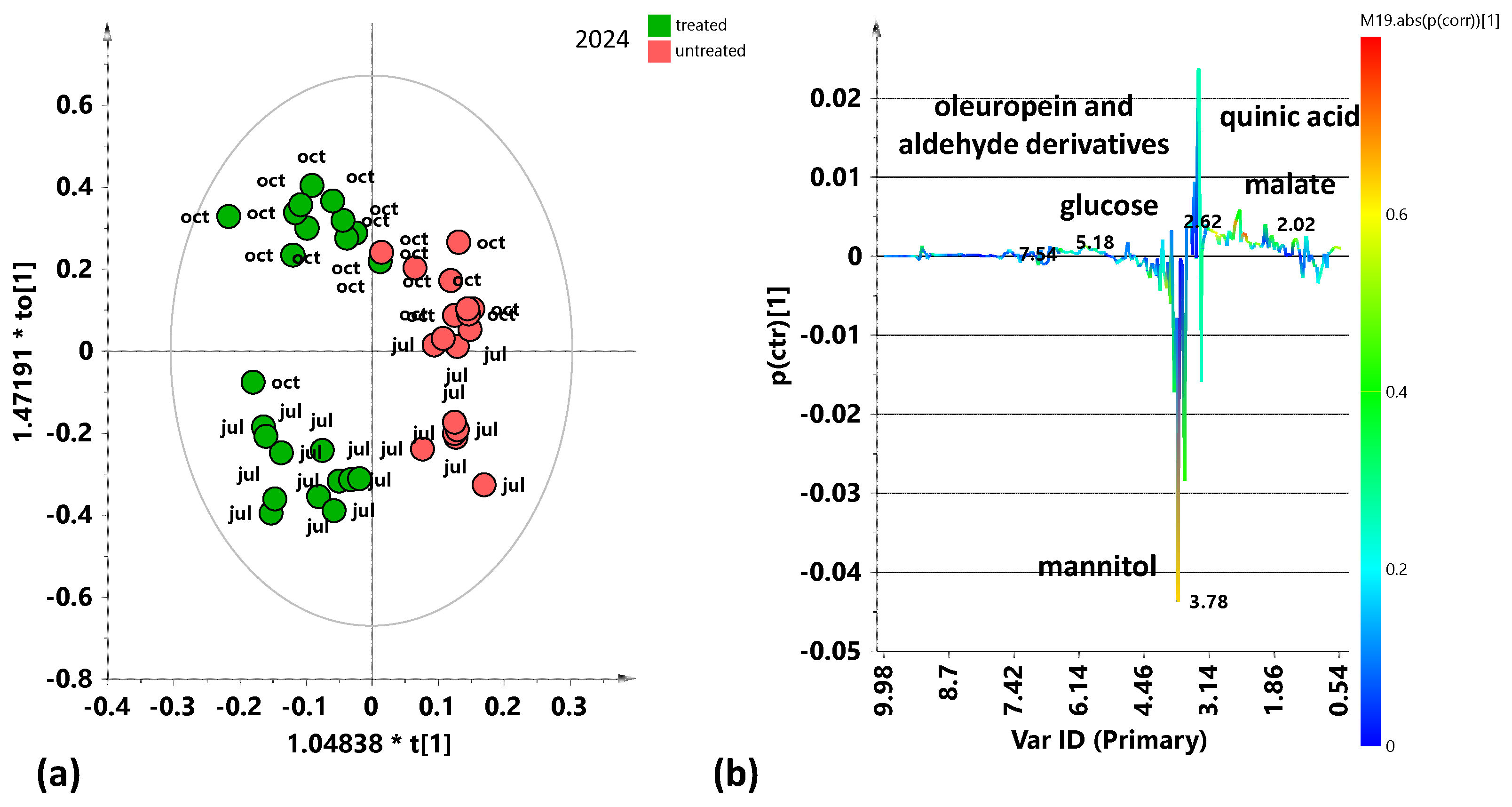

Figure 4. Pairwise OPLS-DA analysis comparisons between the treated and untreated leaf samples coming from the two samplings from 2024 (July 2024 and October 2024). (a) OPLS-DA score plot 1 + 2 + 0 components; R2X(cum) = 0.614; R2Y(cum) = 0.82; Q2 = 0.561. (b) S-line for the model coloured according to the correlation scaled coefficient (p(corr) ≥ |0.5|). The colour bar associated with the plot indicates the correlation of the segregated metabolites between groups.
Figure 4. Pairwise OPLS-DA analysis comparisons between the treated and untreated leaf samples coming from the two samplings from 2024 (July 2024 and October 2024). (a) OPLS-DA score plot 1 + 2 + 0 components; R2X(cum) = 0.614; R2Y(cum) = 0.82; Q2 = 0.561. (b) S-line for the model coloured according to the correlation scaled coefficient (p(corr) ≥ |0.5|). The colour bar associated with the plot indicates the correlation of the segregated metabolites between groups.
Plants 15 01109 g004
Plants 15 01109 g005

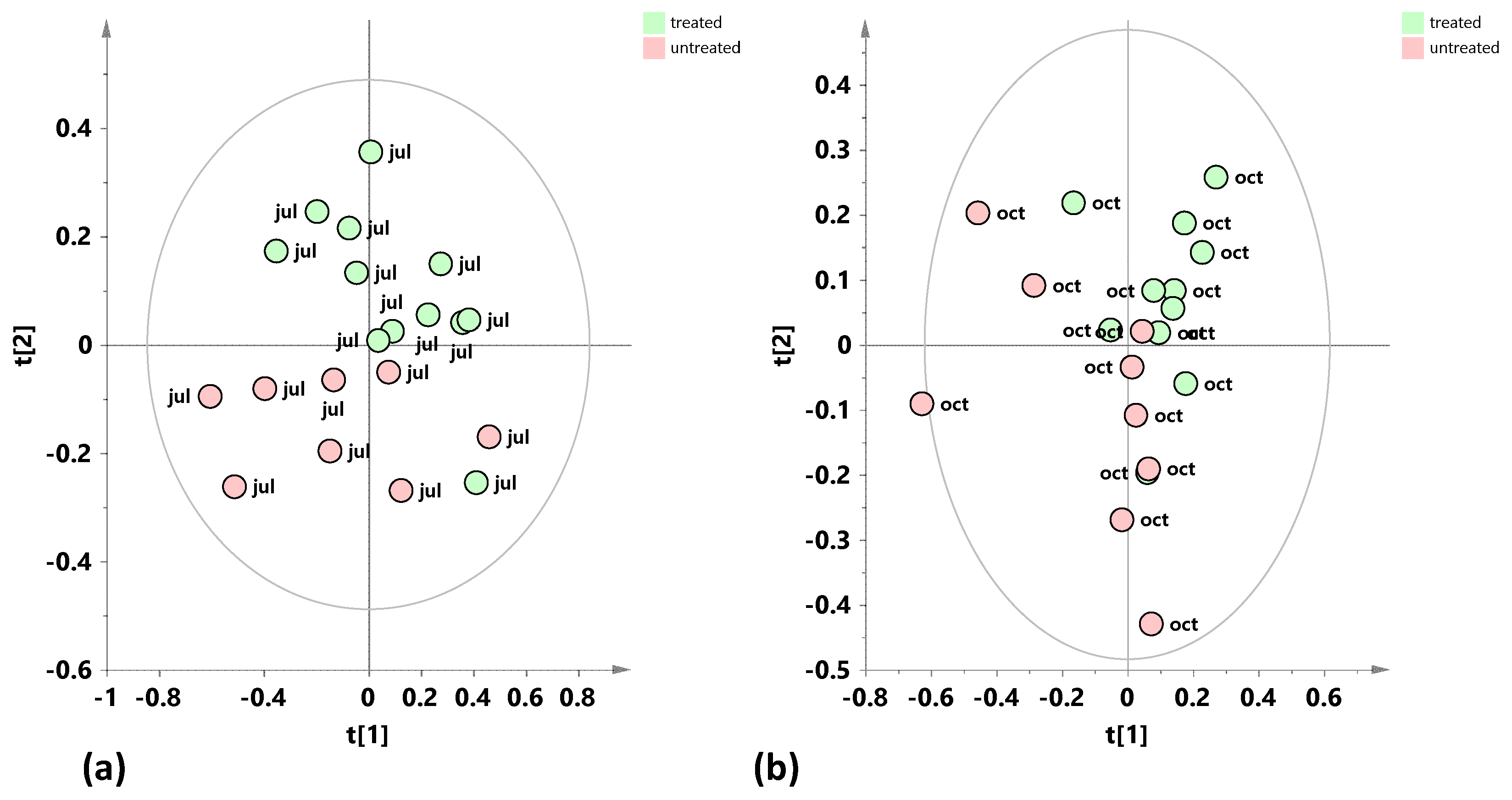

Figure 5. (a) PCA t[1]/t[2] score plot for the dataset of leaf samples relating to sampling of July 2023 (five components give R2X (cum) = 0.909, Q2 (cum) = 0.749). (b) PCA t[1]/t[2] score plot for the dataset of leaf samples relating to the sampling of October 2023 (five components give R2X (cum) = 0.872, Q2 (cum) = 0.578).
Figure 5. (a) PCA t[1]/t[2] score plot for the dataset of leaf samples relating to sampling of July 2023 (five components give R2X (cum) = 0.909, Q2 (cum) = 0.749). (b) PCA t[1]/t[2] score plot for the dataset of leaf samples relating to the sampling of October 2023 (five components give R2X (cum) = 0.872, Q2 (cum) = 0.578).
Plants 15 01109 g005
Plants 15 01109 g006
Figure 6. Pairwise OPLS-DA analysis comparisons between the treated and untreated leaf samples coming from the sampling of July 2023. (a) OPLS-DA score plot 1 + 2 + 0 components; R2X(cum) = 0.723; R2Y(cum) = 0.797; Q2 (cum) = 0.385. (b) S-line for the model coloured according to the correlation scaled coefficient (p(corr) ≥ |0.5|). The colour bar associated with the plot indicates the correlation of the segregated metabolites between groups.
Figure 6. Pairwise OPLS-DA analysis comparisons between the treated and untreated leaf samples coming from the sampling of July 2023. (a) OPLS-DA score plot 1 + 2 + 0 components; R2X(cum) = 0.723; R2Y(cum) = 0.797; Q2 (cum) = 0.385. (b) S-line for the model coloured according to the correlation scaled coefficient (p(corr) ≥ |0.5|). The colour bar associated with the plot indicates the correlation of the segregated metabolites between groups.
Plants 15 01109 g006
Plants 15 01109 g007
Figure 7. Pairwise OPLS-DA analysis comparisons between the treated and untreated leaf samples coming from the sampling of October 2023. (a) OPLS-DA score plot 1 + 2 + 0 components; R2X(cum) = 0.643; R2Y(cum) = 0.887; Q2(cum) = 0.691. (b) S-line for the model coloured according to the correlation scaled coefficient (p(corr) ≥ |0.5|). The colour bar associated with the plot indicates the correlation of the segregated metabolites between groups.
Figure 7. Pairwise OPLS-DA analysis comparisons between the treated and untreated leaf samples coming from the sampling of October 2023. (a) OPLS-DA score plot 1 + 2 + 0 components; R2X(cum) = 0.643; R2Y(cum) = 0.887; Q2(cum) = 0.691. (b) S-line for the model coloured according to the correlation scaled coefficient (p(corr) ≥ |0.5|). The colour bar associated with the plot indicates the correlation of the segregated metabolites between groups.
Plants 15 01109 g007
Plants 15 01109 g008
Figure 8. (a) PCA t[1]/t[2] score plot for the dataset of leaf samples relating to the sampling of July 2024 (five components give R2X (cum) = 0.832, Q2 (cum) = 0.492). (b) PCA t[1]/t[2] score plot for the dataset of leaf samples relating to the sampling of October 2024 (five components give R2X (cum) = 0.893, Q2 (cum) = 0.654).
Figure 8. (a) PCA t[1]/t[2] score plot for the dataset of leaf samples relating to the sampling of July 2024 (five components give R2X (cum) = 0.832, Q2 (cum) = 0.492). (b) PCA t[1]/t[2] score plot for the dataset of leaf samples relating to the sampling of October 2024 (five components give R2X (cum) = 0.893, Q2 (cum) = 0.654).
Plants 15 01109 g008
Plants 15 01109 g009
Figure 9. Pairwise OPLS-DA analysis comparisons between treated and untreated leaf samples coming from the sampling of July 2024. (a) OPLS-DA score plot 1 + 2 + 0 components; R2X(cum) = 0.503; R2Y(cum) = 0.973; Q2 (cum) = 0.911. (b) S-line for the model coloured according to the correlation scaled coefficient (p(corr) ≥ |0.5|). The colour bar associated with the plot indicates the correlation of the segregated metabolites between groups.
Figure 9. Pairwise OPLS-DA analysis comparisons between treated and untreated leaf samples coming from the sampling of July 2024. (a) OPLS-DA score plot 1 + 2 + 0 components; R2X(cum) = 0.503; R2Y(cum) = 0.973; Q2 (cum) = 0.911. (b) S-line for the model coloured according to the correlation scaled coefficient (p(corr) ≥ |0.5|). The colour bar associated with the plot indicates the correlation of the segregated metabolites between groups.
Plants 15 01109 g009
Plants 15 01109 g010
Figure 10. Pairwise OPLS-DA analysis comparisons between the treated and untreated leaf samples coming from the sampling of October 2024. (a) OPLS-DA score plot 1 + 2 + 0 components; R2X(cum) = 0.701; R2Y(cum) = 0.904; Q2 (cum) = 0.735. (b) S-line for the model coloured according to the correlation scaled coefficient (p(corr) ≥ |0.5|). The colour bar associated with the plot indicates the correlation of the segregated metabolites between groups.
Figure 10. Pairwise OPLS-DA analysis comparisons between the treated and untreated leaf samples coming from the sampling of October 2024. (a) OPLS-DA score plot 1 + 2 + 0 components; R2X(cum) = 0.701; R2Y(cum) = 0.904; Q2 (cum) = 0.735. (b) S-line for the model coloured according to the correlation scaled coefficient (p(corr) ≥ |0.5|). The colour bar associated with the plot indicates the correlation of the segregated metabolites between groups.
Plants 15 01109 g010
Plants 15 01109 g011
Figure 11. Bar graph of Q2 statistical parameter values of the OPLS-DA models for the comparison of treated vs. untreated leaf samples. Q2 is a predictive parameter of goodness t used to assess the robustness of the pairwise OPLS-DA analysis models. One predictive and two orthogonal components were considered for each model.
Figure 11. Bar graph of Q2 statistical parameter values of the OPLS-DA models for the comparison of treated vs. untreated leaf samples. Q2 is a predictive parameter of goodness t used to assess the robustness of the pairwise OPLS-DA analysis models. One predictive and two orthogonal components were considered for each model.
Plants 15 01109 g011
Plants 15 01109 g012
Figure 12. Graphic summary of the quantitative differences in discriminating metabolites for the comparison of treated vs. untreated extract samples in single sampling. (a) Treated vs. untreated leaf samples coming from the sampling of July 2023. (b) Treated vs. untreated leaf samples coming from the sampling of October 2023. (c) Treated vs. untreated for the whole dataset of leaf samples from 2023. (d) Treated vs. untreated leaf samples coming from the sampling of July 2024. (e) Treated vs. untreated leaf samples coming from the sampling of October 2024. (f) Treated vs. untreated for the whole dataset of leaf samples from 2024. (g) Treated vs. untreated for the whole dataset of leaf samples. Strong discriminating metabolites (|p(corr)| ≥ 0.5 and VIP ≥ 1 for at least one sampling) were chosen for fold change ratios comparisons. The x-axis reports log2 (fold change) values. The asterisk (*) indicates statistical significance at p < 0.05 of metabolites.
Figure 12. Graphic summary of the quantitative differences in discriminating metabolites for the comparison of treated vs. untreated extract samples in single sampling. (a) Treated vs. untreated leaf samples coming from the sampling of July 2023. (b) Treated vs. untreated leaf samples coming from the sampling of October 2023. (c) Treated vs. untreated for the whole dataset of leaf samples from 2023. (d) Treated vs. untreated leaf samples coming from the sampling of July 2024. (e) Treated vs. untreated leaf samples coming from the sampling of October 2024. (f) Treated vs. untreated for the whole dataset of leaf samples from 2024. (g) Treated vs. untreated for the whole dataset of leaf samples. Strong discriminating metabolites (|p(corr)| ≥ 0.5 and VIP ≥ 1 for at least one sampling) were chosen for fold change ratios comparisons. The x-axis reports log2 (fold change) values. The asterisk (*) indicates statistical significance at p < 0.05 of metabolites.
Plants 15 01109 g012
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Fazzi, M.C.; Girelli, C.R.; Fanizzi, F.P. 1H NMR Approach for Evaluating the Effects of a Natural Detergent on Olive Trees Infected by Xylella fastidiosa subsp. pauca. Plants 2026, 15, 1109. https://doi.org/10.3390/plants15071109

AMA Style

Fazzi MC, Girelli CR, Fanizzi FP. 1H NMR Approach for Evaluating the Effects of a Natural Detergent on Olive Trees Infected by Xylella fastidiosa subsp. pauca. Plants. 2026; 15(7):1109. https://doi.org/10.3390/plants15071109

Chicago/Turabian Style

Fazzi, Miriana Carla, Chiara Roberta Girelli, and Francesco Paolo Fanizzi. 2026. "1H NMR Approach for Evaluating the Effects of a Natural Detergent on Olive Trees Infected by Xylella fastidiosa subsp. pauca" Plants 15, no. 7: 1109. https://doi.org/10.3390/plants15071109

APA Style

Fazzi, M. C., Girelli, C. R., & Fanizzi, F. P. (2026). 1H NMR Approach for Evaluating the Effects of a Natural Detergent on Olive Trees Infected by Xylella fastidiosa subsp. pauca. Plants, 15(7), 1109. https://doi.org/10.3390/plants15071109

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
