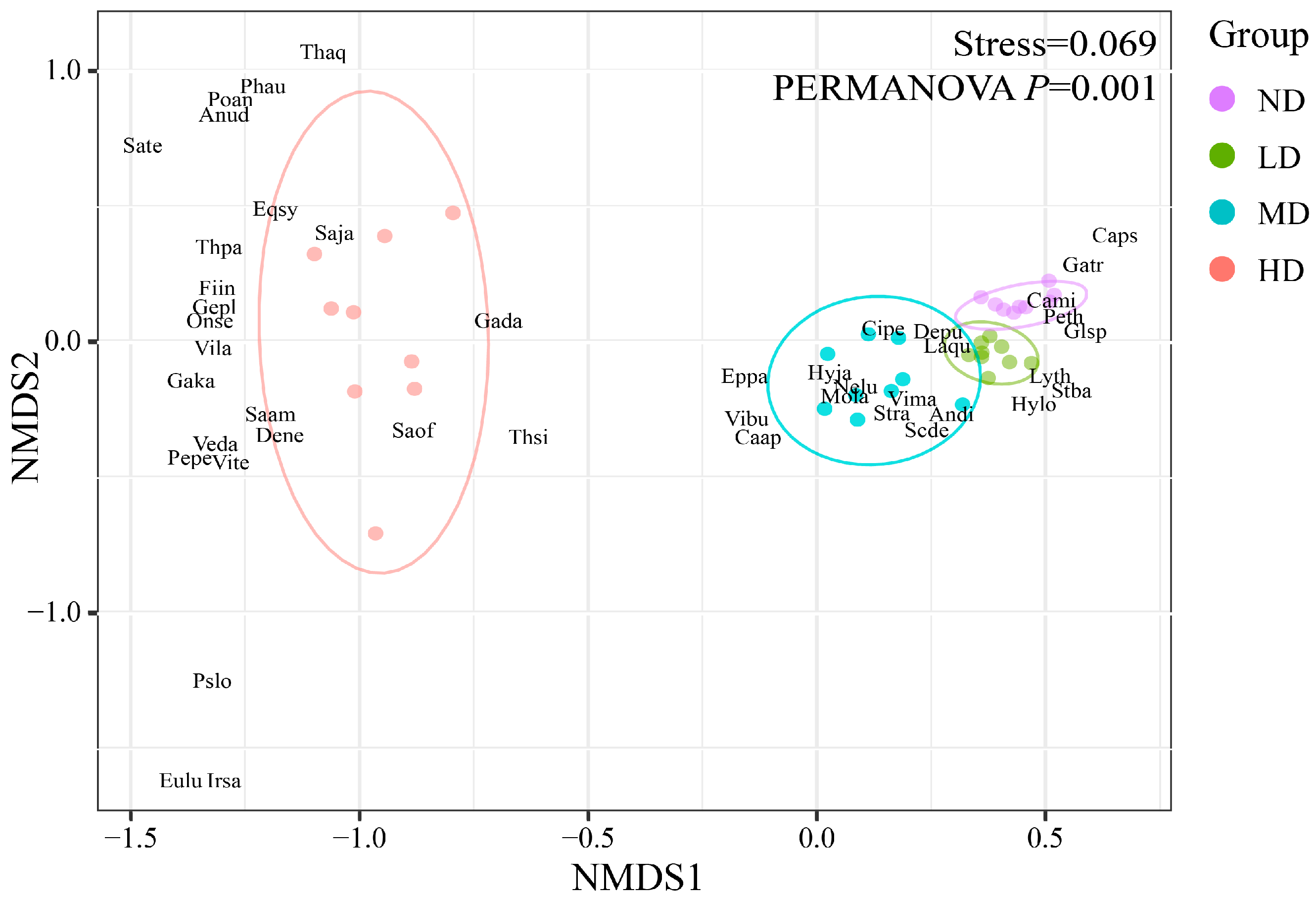

Figure 1.
Non-metric multidimensional scaling (NMDS) of
D. purpurea communities along the degradation gradient in Sanjiang Plain wetlands. ND, non-degraded; LD, slightly degraded; MD, moderately degraded; HD, heavily degraded. Species abbreviations consist of the first two letters of the genus and species names, as detailed in
Table 1.
Figure 1.
Non-metric multidimensional scaling (NMDS) of
D. purpurea communities along the degradation gradient in Sanjiang Plain wetlands. ND, non-degraded; LD, slightly degraded; MD, moderately degraded; HD, heavily degraded. Species abbreviations consist of the first two letters of the genus and species names, as detailed in
Table 1.

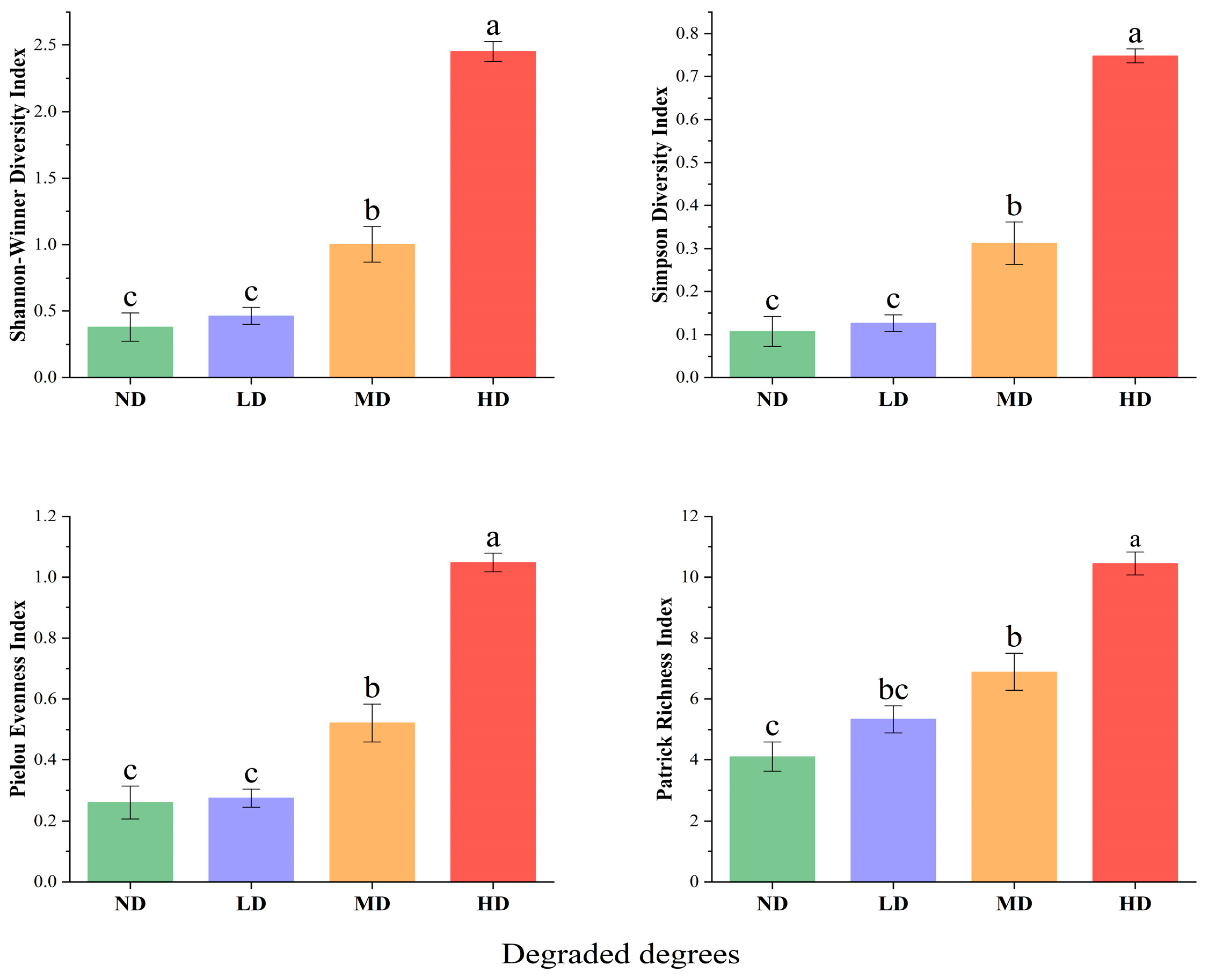

Figure 2.
Variation in plant community diversity along degradation gradients. ND, non-degraded; LD, slightly degraded; MD, moderately degraded; HD, heavily degraded. Data are presented as mean ± standard error (SE). Different letters indicate significant differences between treatments (p < 0.05).
Figure 2.
Variation in plant community diversity along degradation gradients. ND, non-degraded; LD, slightly degraded; MD, moderately degraded; HD, heavily degraded. Data are presented as mean ± standard error (SE). Different letters indicate significant differences between treatments (p < 0.05).

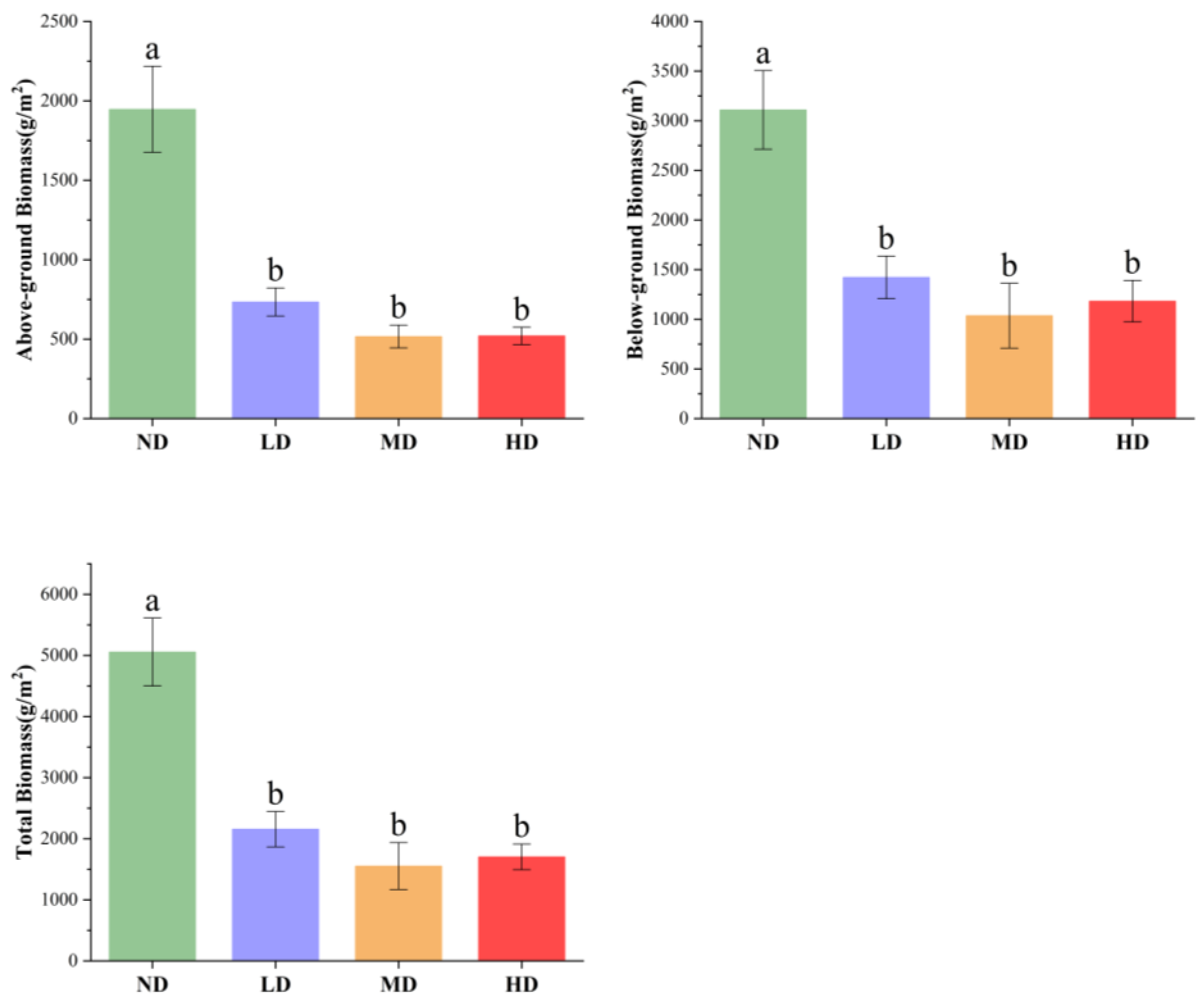

Figure 3.
Aboveground biomass (AGB), belowground biomass (BGB), and total biomass (TB, dry weight) of wetland plant communities under different degradation stages. ND, non-degraded; LD, slightly degraded; MD, moderately degraded; HD, heavily degraded. Data are presented as mean ± standard error (SE). Different letters indicate significant differences between treatments (p < 0.05).
Figure 3.
Aboveground biomass (AGB), belowground biomass (BGB), and total biomass (TB, dry weight) of wetland plant communities under different degradation stages. ND, non-degraded; LD, slightly degraded; MD, moderately degraded; HD, heavily degraded. Data are presented as mean ± standard error (SE). Different letters indicate significant differences between treatments (p < 0.05).

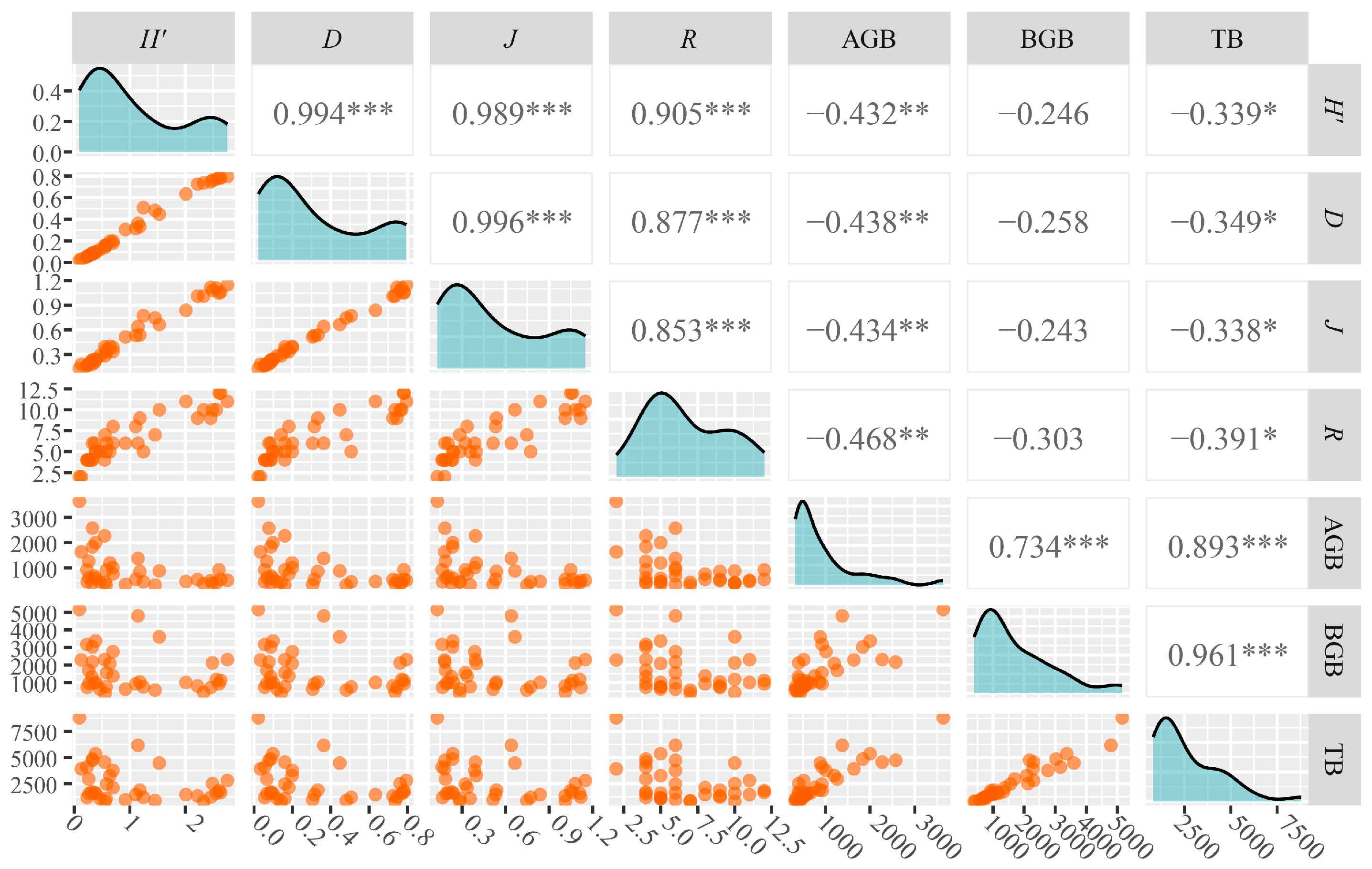

Figure 4.
Pearson correlation between biomass and diversity indices of plant communities. Diagonal: density plots showing the distribution of individual variables; lower triangle: scatter plots for row–column variable pairs, illustrating relationships between variables; upper triangle: Pearson correlation coefficients with significance levels (* p < 0.05; ** p < 0.01; *** p < 0.001). H′, Shannon–Wiener diversity index; D, Simpson’s dominance index; J, Pielou’s evenness index; R, Patrick’s richness index; AGB, aboveground biomass; BGB, belowground biomass; TB, total biomass.
Figure 4.
Pearson correlation between biomass and diversity indices of plant communities. Diagonal: density plots showing the distribution of individual variables; lower triangle: scatter plots for row–column variable pairs, illustrating relationships between variables; upper triangle: Pearson correlation coefficients with significance levels (* p < 0.05; ** p < 0.01; *** p < 0.001). H′, Shannon–Wiener diversity index; D, Simpson’s dominance index; J, Pielou’s evenness index; R, Patrick’s richness index; AGB, aboveground biomass; BGB, belowground biomass; TB, total biomass.

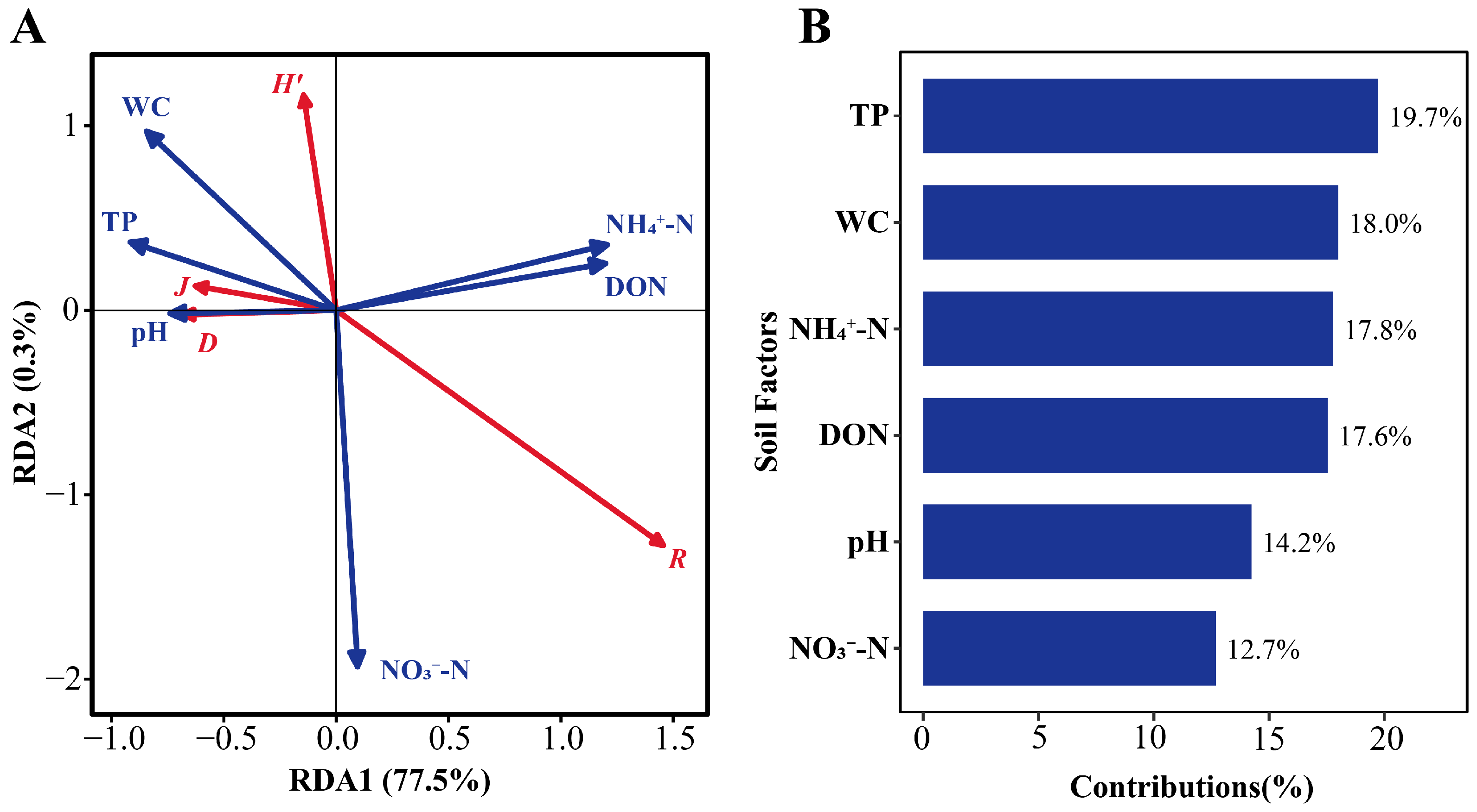

Figure 5.
(A) Redundancy analysis (RDA) ordination of relationships between plant diversity and soil environmental factors; (B) contribution values of soil environmental factors to changes in plant diversity. H′, Shannon–Wiener index; D, Simpson index; J, Pielou index; R, Patrick index; TP, total phosphorus; NH4+-N, ammonium nitrogen; DON, dissolved organic nitrogen; WC, soil water content; pH, soil pH; NO3−-N, nitrate nitrogen.
Figure 5.
(A) Redundancy analysis (RDA) ordination of relationships between plant diversity and soil environmental factors; (B) contribution values of soil environmental factors to changes in plant diversity. H′, Shannon–Wiener index; D, Simpson index; J, Pielou index; R, Patrick index; TP, total phosphorus; NH4+-N, ammonium nitrogen; DON, dissolved organic nitrogen; WC, soil water content; pH, soil pH; NO3−-N, nitrate nitrogen.

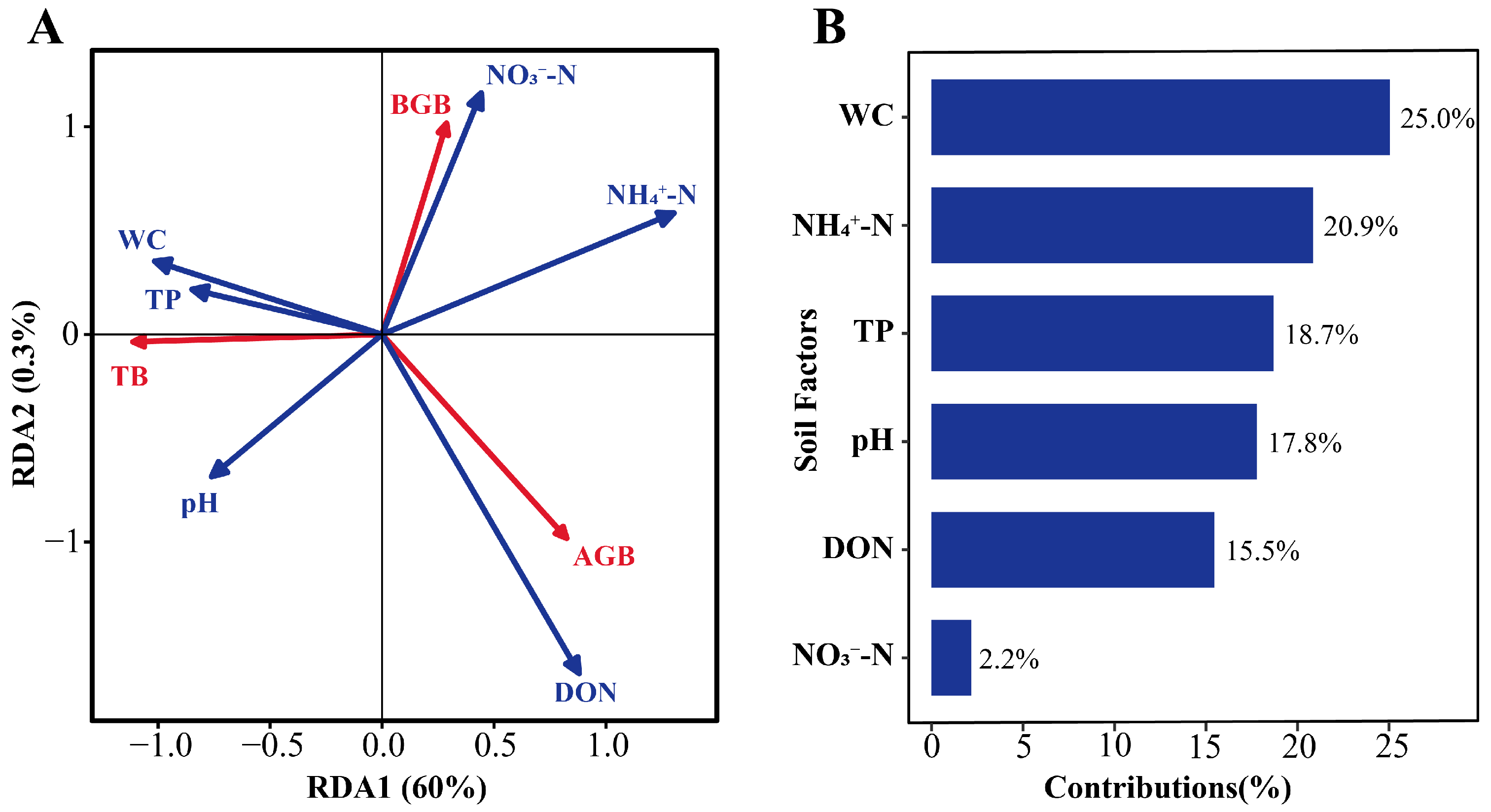

Figure 6.
(A) Redundancy analysis (RDA) ordination of relationships between plant community biomass and soil environmental factors; (B) contribution values of soil environmental factors to changes in plant biomass. AGB, aboveground biomass; BGB, belowground biomass; TB, total biomass; WC, soil water content; NH4+-N, ammonia nitrogen; TP, total phosphorus; pH, soil pH; DON, dissolved organic nitrogen; NO3−-N, nitrate nitrogen.
Figure 6.
(A) Redundancy analysis (RDA) ordination of relationships between plant community biomass and soil environmental factors; (B) contribution values of soil environmental factors to changes in plant biomass. AGB, aboveground biomass; BGB, belowground biomass; TB, total biomass; WC, soil water content; NH4+-N, ammonia nitrogen; TP, total phosphorus; pH, soil pH; DON, dissolved organic nitrogen; NO3−-N, nitrate nitrogen.

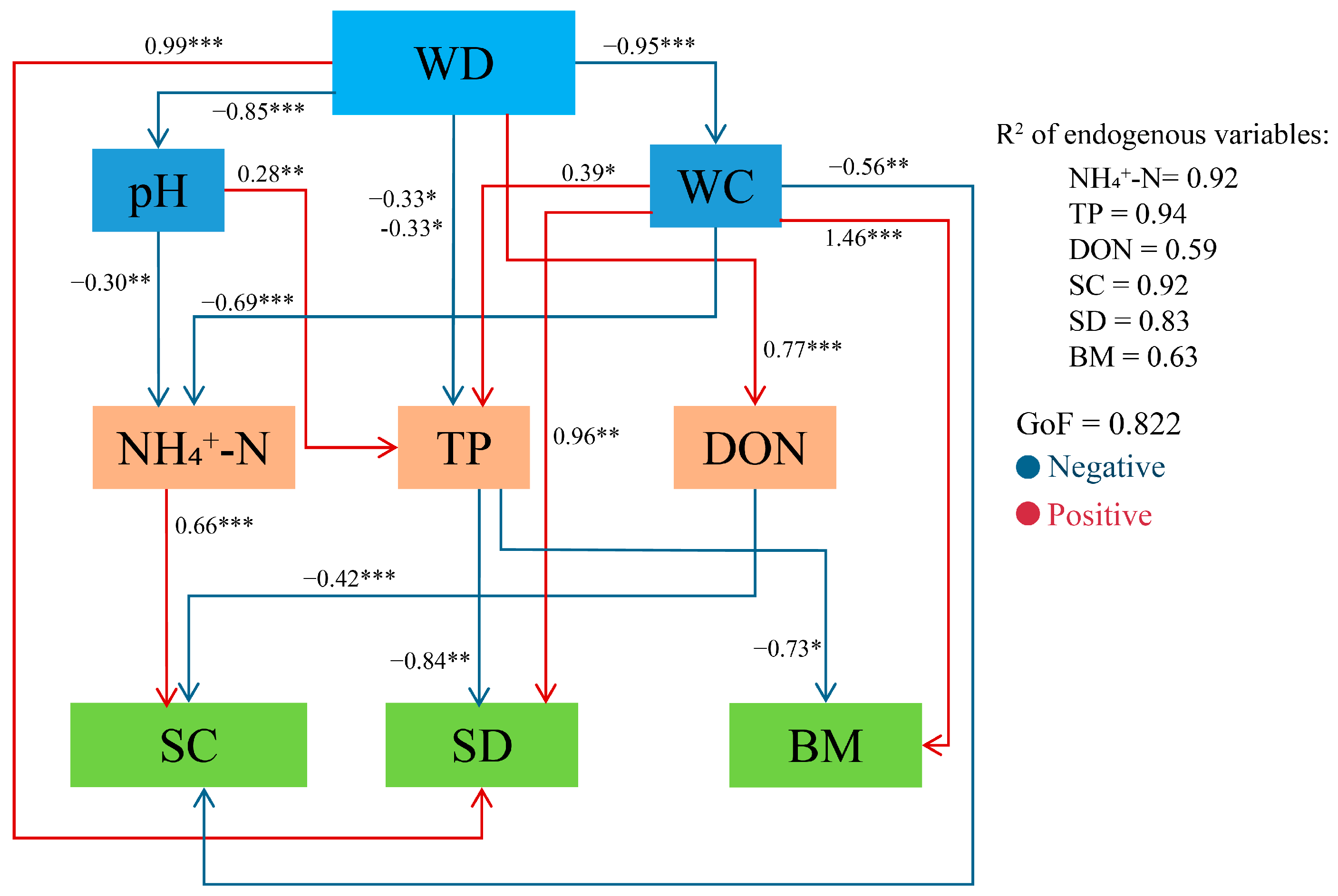

Figure 7.
A structural equation model illustrating the effects of environmental factors on plant species diversity and biomass. Solid lines indicate significant paths, while dashed lines indicate non-significant paths. Blue and red lines represent negative and positive effects, respectively. The numbers on the arrows show standardized path coefficients. GOF, goodness-of-fit of the model. WD, wetland degradation; pH, soil pH; WC, soil water content; NH4+-N, ammonia nitrogen content; TP, total phosphorus content; DON, dissolved organic nitrogen content; SC, species composition; SD, diversity; BM, biomass. * p < 0.05; ** p < 0.01; *** p < 0.001.
Figure 7.
A structural equation model illustrating the effects of environmental factors on plant species diversity and biomass. Solid lines indicate significant paths, while dashed lines indicate non-significant paths. Blue and red lines represent negative and positive effects, respectively. The numbers on the arrows show standardized path coefficients. GOF, goodness-of-fit of the model. WD, wetland degradation; pH, soil pH; WC, soil water content; NH4+-N, ammonia nitrogen content; TP, total phosphorus content; DON, dissolved organic nitrogen content; SC, species composition; SD, diversity; BM, biomass. * p < 0.05; ** p < 0.01; *** p < 0.001.

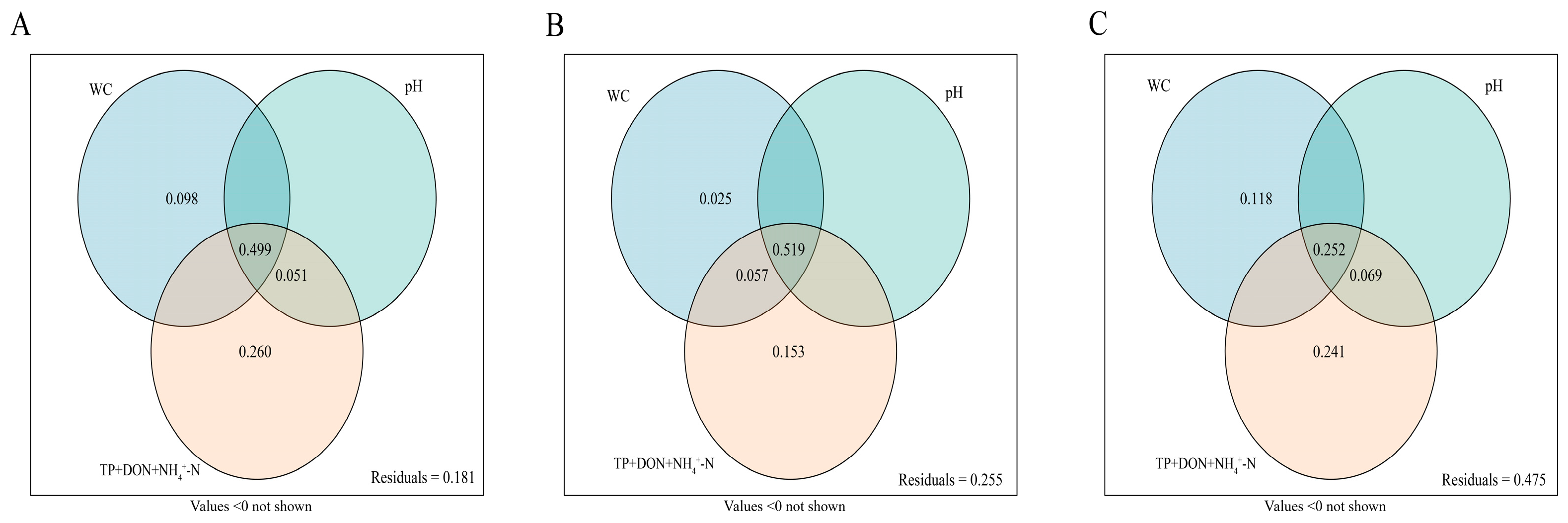

Figure 8.
The results of variation partitioning analyses illustrating the relative contribution of WC; pH and TP + DON + NH4+-N in (A) Species Composition, (B) Species Diversity and (C) Biomass. In each panel, the non-overlapping areas of the circles denote the pure effects of each variable (WC, pH, and TP + DON + NH4+-N, respectively), while the overlapping areas represent the joint effects of multiple variables. “Residuals” refers to the proportion of variation in the corresponding ecological index (Species Composition, Species Diversity, or Biomass) that cannot be explained by these three groups of variables. Key finding: species composition is dominated by the joint effect of WC, pH and nutrients (49.9%), species diversity is primarily driven by the joint effect of WC, pH, and nutrients (51.9%), and biomass relies on both the independent effect of nutrients (24.1%) and the joint effect of WC, pH and nutrients (25.2%).Abbreviations: WC, Water Content; TP, Total Phosphorus; DON, Dissolved Organic Nitrogen; NH4+-N, Ammonium Nitrogen.
Figure 8.
The results of variation partitioning analyses illustrating the relative contribution of WC; pH and TP + DON + NH4+-N in (A) Species Composition, (B) Species Diversity and (C) Biomass. In each panel, the non-overlapping areas of the circles denote the pure effects of each variable (WC, pH, and TP + DON + NH4+-N, respectively), while the overlapping areas represent the joint effects of multiple variables. “Residuals” refers to the proportion of variation in the corresponding ecological index (Species Composition, Species Diversity, or Biomass) that cannot be explained by these three groups of variables. Key finding: species composition is dominated by the joint effect of WC, pH and nutrients (49.9%), species diversity is primarily driven by the joint effect of WC, pH, and nutrients (51.9%), and biomass relies on both the independent effect of nutrients (24.1%) and the joint effect of WC, pH and nutrients (25.2%).Abbreviations: WC, Water Content; TP, Total Phosphorus; DON, Dissolved Organic Nitrogen; NH4+-N, Ammonium Nitrogen.
![Plants 15 00918 g008 Plants 15 00918 g008]()

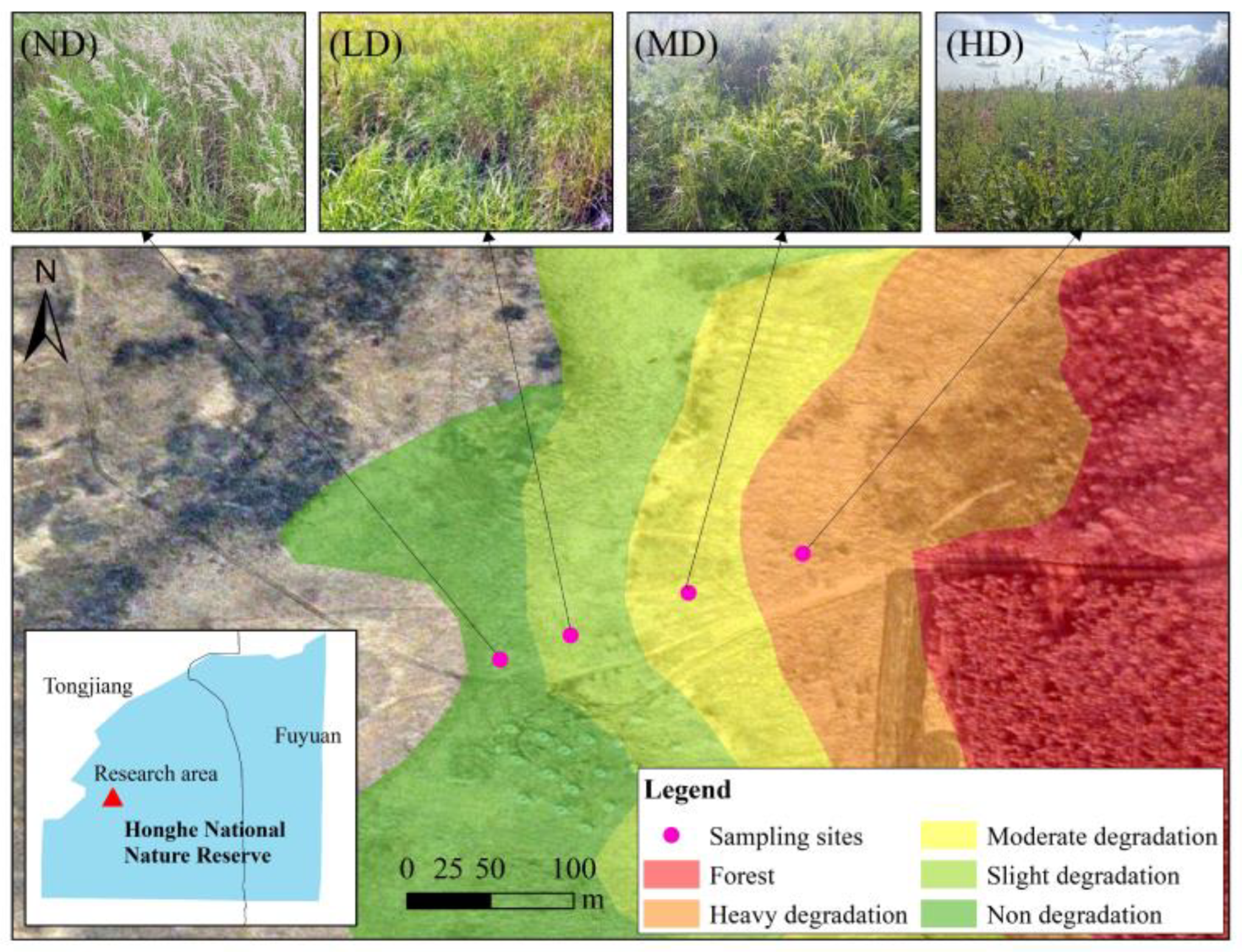

Figure 9.
Location of study area and distribution of sampling sites. ND, non-degraded; LD, slightly degraded; MD, moderately degraded; HD, heavily degraded.
Figure 9.
Location of study area and distribution of sampling sites. ND, non-degraded; LD, slightly degraded; MD, moderately degraded; HD, heavily degraded.
Table 1.
Dominant plant importance values (IVs) and indicator species in D. purpurea communities of the Sanjiang Plain wetlands along a degradation gradient.
Table 1.
Dominant plant importance values (IVs) and indicator species in D. purpurea communities of the Sanjiang Plain wetlands along a degradation gradient.
| Species | Abbrev. | ND | LD | MD | HD |
|---|
| Deyeuxia purpurea | Depu | 660.46 | 551.62 | 453.41 | 182.88 |
| Viola mandshurica | Vima | — | — | 3.78 (0.39 NS) | — |
| Galium dahuricum var. lasiocarpum | Gada | — | — | 70.95 | 97.65 |
| Anemone dichotoma | Andi | — | 113.50 | 102.07 | 11.23 |
| Lathyrus quinquenervius | Laqu | 15.83 | 10.67 | 20.90 | 2.47 |
| Veratrum dahuricum | Veda | — | — | — | 27.58 (0.60 **) |
| Sanguisorba officinalis | Saof | — | — | 4.10 | 9.26 (0.32 NS) |
| Hypericum japonicum | Hyja | — | — | 2.71 (0.29 NS) | — |
| Stellaria radians | Stra | — | — | 42.63 (0.78 ***) | — |
| Anemone udensis | Anud | — | — | — | 2.55 (0.29 NS) |
| Galium kamtschaticum | Gaka | — | — | — | 16.96 (0.66 ***) |
| Sanguisorba tenuifolia var. alba | Sate | — | — | — | 4.26 (0.29 NS) |
| Vicia bungei | Vibu | — | 8.93 | — | 6.25 |
| Deyeuxia neglecta | Dene | — | 5.28 | — | 62.94 (0.73 ***) |
| Persicaria thunbergii | Peth | 21.09 | 19.20 | — | — |
| Poa annua | Poan | — | — | — | 33.76 (0.42 NS) |
| Euphorbia lucorum | Eulu | — | — | — | 1.63 (0.29 NS) |
| Equisetum sylvaticum | Eqsy | — | — | — | 4.91 (0.41 NS) |
| Carex miyabei var. maopengensis | Cami | 65.02 (0.66 ***) | 29.60 | 14.57 | — |
| Stachys baicalensis | Stba | — | 3.64 (0.29 NS) | — | — |
| Geranium platyanthum | Gepl | — | — | — | 67.98 (0.93 ***) |
| Thelypteris palustris | Thpa | — | — | — | 59.39 (0.87 ***) |
| Epilobium palustre | Eppa | — | 3.59 | 1.78 | 2.45 |
| Iris sanguinea | Irsa | — | — | — | 2.84 (0.29 NS) |
| Carex pseudo-conica | Caps | 19.72 (0.59 **) | — | — | — |
| Carex appendiculata | Caap | 48.73 | 53.66 | 94.99 | 78.40 |
| Cirsium pendulum | Cipe | — | — | 7.73 (0.29 NS) | — |
| Glyceria spiculosa | Glsp | 52.79 | 56.59 | — | — |
| Onoclea sensibilis var. interrupta | Onse | — | — | — | 110.56 (0.88 ***) |
| Lysimachia thyrsiflora | Lyth | — | 23.39 (0.76 ***) | — | — |
| Viola lactiflora | Vila | — | — | — | 4.70 (0.42 NS) |
| Persicaria perfoliata | Pepe | — | — | — | 4.09 (0.29 NS) |
| Thalictrum simplex | Thsi | — | — | 20.96 | 20.36 |
| Scutellaria dependens | Scde | — | — | 3.70 (0.29 NS) | — |
| Galium trifidum | Gatr | 14.52 (0.60 ***) | 3.54 | — | — |
| Vicia tenuifolia | Vite | — | — | — | 1.44 (0.29 NS) |
| Filipendula × intermedia | Fiin | — | — | — | 41.12 (0.73 **) |
| Thalictrum aquilegiifolium | Thaq | — | — | — | 2.11 (0.29 NS) |
| Phragmites australis | Phau | — | — | — | 13.58 (0.40 NS) |
| Saussurea amara | Saam | — | — | — | 4.47 (0.41 NS) |
| Moehringia lateriflora | Mola | — | 11.69 | 16.21 | 5.79 |
| Pseudolysimachion longifolium | Pslo | — | — | — | 4.68 (0.39 NS) |
| Hypericum longistylum | Hylo | 1.83 | 5.10 | 4.63 | — |
| Saussurea japonica | Saja | — | — | 2.51 | 9.70 (0.35 NS) |
| Nelumbo lutea | Nelu | — | — | 32.39 (0.67 **) | 2.01 |
Table 2.
Similarity analysis of degraded wetland plant communities.
Table 2.
Similarity analysis of degraded wetland plant communities.
| Degradation Stage | ND | LD | MD | HD |
|---|
| ND | — | — | — | — |
| LD | 66.67% | — | — | — |
| MD | 35.71% | 47.06% | — | — |
| HD | 14.63% | 34.04% | 43.14% | — |
Table 3.
Soil physical and chemical properties in D. purpurea wetlands at different degradation stages.
Table 3.
Soil physical and chemical properties in D. purpurea wetlands at different degradation stages.
| Factor | ND | LD | MD | HD |
|---|
| pH | 4.76 ± 0.06 a | 4.47 ± 0.03 b | 4.44 ± 0.02 b | 4.18 ± 0.00 c |
| AP (mg·kg−1) | 59.76 ± 2.33 a | 49.82 ± 1.35 b | 41.71 ± 1.16 c | 54.17 ± 1.17 b |
| TP (g·kg−1) | 18.36 ± 0.12 a | 15.22 ± 0.14 b | 13.85 ± 0.23 c | 10.38 ± 0.22 d |
| TK (g·kg−1) | 20.12 ± 0.18 d | 23.07 ± 0.45 b | 26.82 ± 0.15 a | 21.71 ± 0.10 c |
| AK (mg·kg−1) | 216.81 ± 2.23 a | 90.09 ± 0.81 d | 104.38 ± 1.90 c | 152.52 ± 0.88 b |
| DOC (mg·kg−1) | 1240.25 ± 112.95 a | 1297.57 ± 155.43 a | 1440.30 ± 60.06 a | 1417.02 ± 41.58 a |
| DON (mg·kg−1) | 23.13 ± 1.23 c | 22.84 ± 0.75 c | 28.22 ± 0.74 b | 32.83 ± 0.60 a |
| NO3−-N (mg·kg−1) | 1.01 ± 0.03 a | 1.27 ± 0.08 a | 1.16 ± 0.65 a | 1.09 ± 0.04 a |
| NH4+-N (mg·kg−1) | 7.16 ± 0.09 d | 19.88 ± 0.13 b | 19.05 ± 0.19 c | 29.88 ± 0.33 a |
| WC (%) | 118.54 ± 0.06 a | 74.57 ± 0.05 b | 55.69 ± 0.04 c | 37.65 ± 0.03 d |
Table 4.
Mantel test for correlations between plant community diversity and environmental factors.
Table 4.
Mantel test for correlations between plant community diversity and environmental factors.
| Factor | R2 | FDR-Adjusted p |
|---|
| pH | 0.4796 | 0.0012 ** |
| WC | 0.5961 | 0.0012 ** |
| TP | 0.6831 | 0.0012 ** |
| DON | 0.6062 | 0.0012 ** |
| NH4+-N | 0.6154 | 0.0012 ** |
| NO3−-N | 0.0055 | 0.677 |
Table 5.
Mantel test for correlations between plant community biomass and environmental factors.
Table 5.
Mantel test for correlations between plant community biomass and environmental factors.
| Factor | R2 | FDR-Adjusted p |
|---|
| pH | 0.3312 | 0.003 ** |
| WC | 0.5291 | 0.002 ** |
| TP | 0.3939 | 0.002 ** |
| NH4+-N | 0.4389 | 0.002 ** |
| DON | 0.1680 | 0.012 * |
| NO3−-N | 0.0216 | 0.426 |
Table 6.
Basic information of sampling sites.
Table 6.
Basic information of sampling sites.
| Degradation Stage | D. purpurea Coverage | Basic Information |
|---|
| Non-degradation (ND) | >90% | Seasonal waterlogging occurs, with almost no dry patches |
| Slight degradation (LD) | 60–80% | Seasonal waterlogging occurs, with a small number of scattered dry patches |
| Moderate degradation (MD) | 30–50% | The duration and extent of waterlogging decrease, while the area of dry patches increases |
| Heavy degradation (HD) | 10–20% | Almost no waterlogging, with extensive and continuous dry patches |
