Article

Characterization of a New Powdery Mildew Resistance Gene on Chromosome 1R from Hexaploid Triticale Transferred to Wheat

by
Yujie Luo
1,†,
Chengzhi Jiang
1,†,
Li Li
1,
Tingting Jiang
1,
Jessy Yee Ting Tan
1,
Aly Boro
1,
Ennian Yang
2,
Guangrong Li
1,* and
Zujun Yang
1,*
1
School of Life Science and Technology, University of Electronic Science and Technology of China, Chengdu 610054, China
2
Crop Research Institute, Sichuan Academy of Agricultural Sciences, Chengdu 610066, China
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Plants 2026, 15(3), 410; https://doi.org/10.3390/plants15030410
Submission received: 25 October 2025 / Revised: 24 January 2026 / Accepted: 26 January 2026 / Published: 29 January 2026
(This article belongs to the Special Issue Wheat Breeding for Disease Resistance)
Browse Figures
Versions Notes

Abstract

Powdery mildew, caused by Blumeria graminis f. sp. tritici, is a highly destructive disease affecting wheat in most growing regions worldwide. The most effective strategy for combating this disease is through the exploitation of novel and durable resistance genes derived from the relatives of wheat. Rye (Secale cereale L.) has been extensively hybridized with both tetraploid and hexaploid wheats and represents a valuable genetic resource for enhancing resistance and tolerance to both biotic and abiotic stresses. In this study, two novel 1R (1D) substitution lines, R156 and R189, derived from hexaploid triticale lines Yukuri and T4915, respectively, were comprehensively characterized using non-denaturing fluorescence in situ hybridization (ND-FISH) and immunofluorescence. To physically map the 1R-derived powdery mildew resistance gene from Yukuri, 3485 M1-M3 plants from the cross between R156 and susceptible wheat cultivar MY11 were studied by ND-FISH using multiple probes. A cytological bin map for Yukuri chromosome 1R was constructed using 105 molecular markers. Resistance evaluation combined with molecular mapping revealed that the novel resistance locus resides in bin 1RS-4, corresponding to the 58.60–109.28 Mb genome region of Lo7 rye chromosome 1R. Thus, these newly developed wheat–rye 1R translocation and deletion lines are expected to serve as valuable genetic resources for breeding powdery mildew resistant wheat cultivars.

1. Introduction

Common wheat (Triticum aestivum L.) is a staple cereal cultivated worldwide, constituting a primary nutritional source for over one-third of the global population [1,2]. Powdery mildew, caused by the biotrophic fungal pathogen Blumeria graminis f. sp. tritici (Bgt), is a major wheat disease prevalent across most production regions [3,4]. Breeding resistant cultivars is widely considered the most cost-effective and environmentally sustainable strategy for disease control. To date, 71 powdery mildew resistance genes (Pm) have been formally cataloged, several of which have been deployed in wheat breeding programs [5]. Substantial research has underscored the value of wheat relatives as reservoirs of Bgt resistance, exemplified by genes such as Pm21 and Pm67 from Dasypyrum villosum [6,7] and Pm13 and Pm66 from Ae. longissima [8,9]. These findings highlight the significant contribution of wheat relatives as valuable sources of Pm resistance genes for wheat breeding programs aimed at producing commercially successful cultivars.
Rye (Secale cereale L., 2n = 2x = 14, RR) has been widely utilized as a significant germplasm resource for improving disease resistance, environmental adaptability, and yield in wheat improvement programs [10,11]. The introduction of diversified rye genes into wheat can increase genetic variation and result in novel germplasm with significant breeding potential. Hexaploid triticale (×Triticosecale Wittmack, 2n = 6x = 42, AABBRR), synthesized artificially by hybridizing tetraploid wheat with rye, serves as a bridge species that enables, by subsequent hybridizations with wheat, the efficient development of wheat–rye substitution or addition lines. For instance, Yan et al. [12] developed a novel wheat–rye 2R (2D) substitution line, YT9, by crossing the hexaploid triticale line 09R1-16 with the wheat breeding line PB9, which conferred a high level of resistance to powdery mildew. Moreover, the 6RL chromosome arm from triticale line 09R2-121 was shown to confer powdery mildew resistance [13], and the 4RL chromosome arm derived from triticale cultivar Soreneo also contributes resistance to this disease [14]. However, some rye-derived resistance genes have been overcome by the emergence of virulent mutant pathogens, leading to a severe reduction in wheat production in certain regions [15].
Rye chromosome 1R has been extensively and successfully utilized in wheat resistance breeding. The 1RS segment derived from Petkus rye confers resistance to several major wheat diseases, including leaf rust (Lr26), stripe rust (Yr9), stem rust (Sr31), and powdery mildew (Pm8), and has been widely used around the world in commercial agriculture [16]. Subsequently, a novel translocation, 1RS.1AL, identified in Amigo wheat, was found to carry the stem rust resistance gene, Sr1RSAmigo, and the powdery mildew resistance gene, Pm17, which is allelic to Pm8 [17]. In addition, recent efforts have focused on transferring new resistance factors from diverse 1R sources. For example, Li et al. [18] developed three 1RS.1BL translocation lines through crosses between wheat cultivar Mianyang11 and Aigan rye, all of which exhibited high resistance to stripe rust. Similarly, nine novel T1RS.1AL translocation lines derived from wheat Chuannong25 (CN25) and Chinese native rye cv. Qinling showed strong resistance to both stripe rust and powdery mildew [19]. However, the evolving virulence of wheat pathogens has led to the loss of effectiveness of some of these resistance genes, presenting ongoing challenges to wheat breeding. To address the crisis of rapidly diminishing stocks of effective disease resistance, it is essential to continue to identify and introduce new resistance sources from diverse rye genotypes into elite wheat germplasm and transfer that resistance to wheat chromosomes.
Fluorescence in situ hybridization (FISH) with synthetic oligonucleotide probes offers advantages over traditional FISH, including higher throughput and greater probe stability. In the present study, we employed ND-FISH to characterize two wheat–rye derivative lines, A156 and A189, which derived from the hexaploid triticale lines Yukuri and T4915, respectively. Both lines demonstrated high resistance to powdery mildew under natural field conditions. The objectives of this study were to (1) characterize the chromosome compositions of A156 and A189 using ND-FISH and Immuno-FISH, (2) investigate comparative sequence variations of the resistance loci among different rye 1R chromosomes, and (3) evaluate the resistance to powdery mildew and physically map the resistance gene(s) in lines derived from A156. This work aims to provide novel and potentially valuable germplasm resources for breeding disease-resistant wheat varieties and insights into the location and structure of the Pm resistance genes therein.

2. Results

2.1. Chromosomal Composition of Lines A156 and A189

Sequential ND-FISH with probes Oligo-k288, Oligo-ku, Oligo-pSc119.2, Oligo-pTa535 and Oligo-pSc200 was utilized to characterize the chromosome constitutions of A156 and A189 (Figure 1a–f). Rye genome-specific probe Oligo-ku showed that A156 carried 4 rye chromosomes, wheat AABB genome-specific probe Oligo-k288 hybridized to 28 chromosomes, while the remaining 10 chromosomes were of the D-genome. Sequential ND-FISH with probes Oligo-pSc119.2, Oligo-pTa535 and Oligo-pSc200 confirmed that A156 had 38 wheat chromosomes and chromosomes 1D and 4D were substituted by the rye chromosomes 1R and 4R. Moreover, two pairs of reciprocal Robertsonian translocation chromosomes 4AS·4BL and 4BS·4AL were identified in A156 (Figure 1a–c). In addition, A189 carried 43 chromosomes, of which 3 hybridized with probes Oligo-ku and Oligo-pSc200. ND-FISH using probes Oligo-pTa535 and Oligo-pSc119.2 showed that A189 had two 1R chromosomes and one 4R chromosome (Figure 1d–f). Based on the comprehensive cytogenetic analyses, A156 was characterized as a wheat–rye double disomic substitution 1R (1D) + 4R (4D) line, and A189 was characterized as a 1R (1D) substitution and 4R monosomic addition line.

2.2. Immuno-FISH Analysis of Two 1R (1D) Substitution Lines

To separate and transfer the different 1R chromosomes from A156 and A189, we crossed both lines A156 and A189 with wheat cultivar MY11. A total of 876 F2 plants were screened by ND-FISH using probes Oligo-pSc119.2, Oligo-pTa535 and Oligo-pSc200. Twenty-one and twenty-six 1R (1D) substitution lines were developed from A156 and A189, respectively (Figure S1). Subsequently, we selected two stable 1R substitution lines R156 (from A156) and R189 (from A189) for immunofluorescence.
Immuno-FISH analysis of anti-CENH3 showed that all wheat chromosomes and rye 1R chromosomes had the CENH3 signals in the centromeric regions, indicating that the 1R chromosomes may have accumulated enough content of the CENH3 protein in the centromeric regions during mitosis for reliable chromosome transmission (Figure S2). Anti-phosphorylation AG3875 and AG3665 signals were also deposited in the centromeric positions of all wheat and rye 1R chromosomes at the metaphase of mitosis but were absent at the mitotic interphase (Figure S3). Moreover, immuno-FISH analysis of anti-methylation ab8580 and ND-FISH revealed that the methylation sites were unevenly distributed across all chromosomes in two 1R (1D) substitution lines. The methylation levels across the three subgenomes of wheat were similar. Meanwhile, the introduction of different 1R chromosomes had a relatively minor effect on wheat methylation accumulation. Notably, two 1R chromosomes in one metaphase exhibited different methylation patterns; for instance, the short arm of one 1R displayed a distinctly strong methylation signal, suggesting potential differences in the expression levels between the two 1R chromosomes (Figure 2a–f). This differential methylation was also observed in the 1RS.1BL translocation line (Figure S4).

2.3. Alignment of Yr9/Pm8 Gene-Specific Primer (GSP) Sequences

The cloned Pm8 and Yr9 genes, located on chromosome 1RS, corresponded to the SECCE1Rv1G0001880.1 and SECCE1Rv1G0003760.1 sequences of the Lo7 genome, respectively. The amplification products of Yr9 gene-specific primers (GSPs) showed that 1R from Yukuri, T4915 and other five rye accessions may contain Yr9 or its allele (Figure S5). Then we cloned the GSP-derived PCR products of the seven rye lines which contained a large part of CC domain sequences of the Yr9 gene. Six sequences were 842 bp in length, while WN_CC-Yr9 was only 833 bp (Figure 3a). Protein primary sequence alignment showed that only 23 (8.2%) amino acid sites had changes compared with CC-Yr9, of which 15 sites showed 87.5% homology. Four sequences (Yukuri_CC-Yr9, T4915_CC-Yr9, CS-1R_CC-Yr9 and 06-2-23_CC-Yr9) contained the same primary protein sequence; however, all sequences contained 1-3 SNPs at different sites. Subsequently, we cloned the PCR-derived products using the Pm8 GSP sequences for four 1R chromosomes, all of which contained the small part of LRR domain sequences of the Pm8 gene. The four sequences were all 585 bp in length and exhibited a 3 bp deletion compared with the GSP sequence of LRR-Pm8 (Figure 3b). Protein primary sequence alignment showed that 28 (13.6%) amino acid sites had changes. Notably, Yukuri_LRR-Pm8 and T4915_LRR-Pm8 were pseudogenes due to the in-frame stop codon that occurred at the LRR25 domains. This finding indicates that the functional Pm8 gene is absent or non-functional in these lines, suggesting that the observed powdery mildew resistance is conferred by a different, novel locus. The results indicate that the two 1R chromosomes in Yukuri and T4915 which contained a novel stripe rust and powdery mildew resistance locus were different from other 1R chromosomes based on their nucleotide sequences.

2.4. Chromosome Variations in M1 Population of a 1R (1D) Substitution Line from Yukuri

To generate structural variants of the 1RYukuri chromosome, line R156 was crossed with the common wheat cultivar MY11. The resulting F1 seeds were subjected to γ-irradiation at a dose of 200 Gy (1.00 Gy/min). A total of 173 M0 grains were germinated and produced selfed progenies. Karyotype analysis was then performed on 1823 M1 plants using oligonucleotide probes Oligo-ku, Oligo-k288, Oligo-pSc119.2, Oligo-pTa535 and Oligo-pSc200. Chromosomal variations were detected in 303 plants (18.6%), among which 51 distinct types of aberrations involving the 1R chromosome were identified (Figure S6). The 51 aberrations were categorized into whole-arm translocation lines (five plants), small-segment translocation lines (21 plants), large-segment translocation lines (18 plants) and deletion lines (seven plants). The identified 1R deletion and translocation lines were subsequently backcrossed to MY11 to facilitate the selection of homozygous progenies for physical mapping.

2.5. Identification of Wheat–Rye 1R Deletion and Translocation Lines

A total of 786 F2 progenies derived from those 1R aberrations were characterized by ND-FISH with multiple probes. Six plants were characterized to have a single aberration type involving the 1R chromosome. Among them, three were translocations, and three were deletions. The three translocations all involved large fragments of the rye chromosome (3DS-1RS.1RL, 7BS-1RS.1RL and 6DS-1RS.1RL). As shown in Figure 4a,b, line X814 had 42 chromosomes, including 40 wheat chromosomes and 2 1R translocations. Sequential ND-FISH with probes Oligo-ku + Oligo-k288 and Oligo-pSc119.2 + Oligo-pTa535 indicated that the wheat segment of this new translocation originated from chromosome 3D. This translocation chromosome in X814 is thus named 3DS-1RS.1RL. Similarly, line X330 contained a single 1R translocation, named 7BS-1RS.1RL (Figure 4c,d). In addition, a smaller-segment translocation between the D-genome and chromosome 1R was detected in line X617 using probes Oligo-ku + Oligo-k288 and Oligo-pSc119.2 + Oligo-pTa535. These probes displayed strong green signals at the terminal regions, indicating that a segment of 6DS had fused with the terminus of chromosome 1R, resulting in the translocated chromosome designated as 6DS-1RS.1RL (Figure 4e,f). Regarding deletions, line X383 carried a single 1Rdel−1 chromosome. Sequential ND-FISH with probes Oligo-pSc119.2 + Oligo-pTa535 + Oligo-pSc200 on the same metaphase cell revealed that the breakpoint lay between the strong signals of Oligo-pSc119.2 and Oligo-pSc200 (Figure 4g,h). Similarly, two other distinct 1R deletions (1Rdel−2 and 1Rdel−3) are presented in Figure 4i–l. Following self-pollination, these 1R structural variants were stably transmitted to subsequent generations, enabling their use for the precise mapping of agronomically important genes.

2.6. Construction of a Physical Map of 1R Chromosomes

A total of 71 IT (intron-targeting) primers and 92 SSR primers were used to screen 1R-specific PCR markers, and 105 (42 IT primers and 63 SSR primers) of them amplified bands from Yukuri, compared with wheat cultivar MY11. Since the background wheat cultivar used to develop Yukuri was unavailable, we deduced that these non-MY11 bands were specific to the 1R chromosome from Yukuri (a) because all primer sequences corresponded to the 1R chromosome of the Secale_Lo7 reference genome sequence and (b) due to the linkage of the presence or absence of a PCR-derived amplification with the cytological presence or absence of a 1R chromosome, respectively, in the individual seedlings under study. A total of 45 and 60 markers were distributed on chromosome arms 1RS and 1RL, respectively. All the primer sequences were used for the BLAST searching of the Secale_Lo7 reference genome sequences by B2DSC web sites to construct a physical map of the 1R chromosome. Meanwhile, the 1R chromosome from Yukuri exhibited highly polymorphic amplifications compared with other rye accessions (Figure S7), indicating that substantial sequence divergences have accumulated among the rye 1R chromosomes. Notably, three 1R-derived lines from F2 progenies had lost the signals for probe Oligo-pSc200; however, 1R-specific markers failed to detect the breakpoints in these lines. We then developed five 1R-specific primers by screening single-copy sequences from 1R, which revealed extensive polymorphisms in the terminal regions of 1RS (Figure S8).
Subsequently, all the 1R-specific markers were used to determine the breakpoints of the twelve homozygous 1R translocation and deletion lines. Among them, five aberration lines (X814, X330, X617, X383 and X503) included six different 1RS chromosomal bins. The remaining one deletion line X342 dissected 1RL into two bins. The representative markers for different breakpoint types are shown in Figure 5. Thus, we constructed the physical map of the 1R chromosome from Yukuri (Figure 6), and the 108 markers could be anchored into eight physical regions. We assigned 15, 3, 3, 5, 4, 19, 44, and 15 markers to the chromosomal bins of 1RS-6, 1RS-5, 1RS-4, 1RS-3, 1RS-2, 1RS-1, 1RL-1, and 1RL-2, respectively. The constructed 1R physical map was further used to locate the powdery mildew resistance locus to a specific chromosomal region.

2.7. Responses of A156 and Derived Lines to Powdery Mildew

In order to evaluate the contribution of the two 1R (1D) substitution lines R156 and R189 to powdery mildew resistance, we phenotyped the lines carrying 1R chromosomes as well as their parental lines under exposure to Blumeria graminis f. sp. tritici isolates at both seedling and adult plant stages. As shown in Figure S9, A156 and A189 were highly resistant to powdery mildew (IT = 0) at both seedling and adult stages, while MY11 was highly susceptible (IT = 4). Among their progenies, plants carrying the 1R chromosomes were highly resistant to powdery mildew (IT = 0), whereas plants without the 1R chromosomes were susceptible to powdery mildew (IT = 3). The results indicate that two 1R chromosomes from A156 and A189 contribute to the enhanced all-stage resistance (ASR) to powdery mildew.
We subsequently evaluated the adult stage reactions of the six 1R aberration lines. Four lines (X330, X617, X503 and X383) were all powdery mildew susceptible, and two lines (X814 and X342) containing bin 1RS-4 were all powdery mildew resistant like the parental line (Table S1). Thus, we further allocated the powdery mildew resistant locus to bin 1RS-4, which corresponded to 58.60–109.28 Mb in the reference Secale_Lo7 genome sequence of 1R (Figure 7). According to the gene annotation, a total of 410 genes (SECCE1Rv1G0009900.1-SECCE1Rv1G0013990.1) have been identified in this region. Among them, five genes were annotated as LRR disease resistance protein or receptor-like kinase protein. RNA-seq data revealed that three of these genes were expressed in Yukuri following powdery mildew infection (Table S2).

3. Discussion

As a crucial gene pool for wheat genetic improvement, rye possesses numerous disease resistance genes that can be effectively integrated into wheat breeding programs to enhance cultivar productivity [20]. Hexaploid triticale is produced by hybridizing tetraploid wheat with diploid rye, followed by chromosome doubling in the F1 generation. This variety exhibits traits that are intermediate between wheat and rye and retains rye’s advantageous characteristics, such as cold tolerance, drought resistance, and pest and disease resistance [21,22]. In this study, using hexaploid triticale lines Yukuri and T4915, we developed two wheat–rye derivative lines, A156 and A189, which exhibited different powdery mildew resistance patterns. Subsequently, we selected two new wheat–rye 1R (1D) substitution lines by ND-FISH with multiple Oligo probes. This study highlights a novel powdery mildew resistance locus in Yukuri-derived 1R (1D) substitution line R156 and reports the development of small wheat-1R translocation lines with improved resistance, which represent potentially valuable resources for wheat disease resistance breeding.
Fluorescence in situ hybridization (FISH) and genomic in situ hybridization (GISH) are convenient and efficient techniques for chromosome identification in bread wheat and related species, facilitating the detection of the transfer of chromosome segments carrying elite genes from rye into wheat [23]. Using GISH with rye total genomic DNA as a probe, Li et al. [2] identified six 6R translocation and deletion lines and mapped the stripe (yellow) rust resistance gene Yr83 to the distal bin of FL 0.73–1.00 on chromosome 6RL. Subsequently, a series of structural variants of 2R chromosomes were characterized by GISH, and a growth-stage-dependent powdery mildew resistance gene, PmYT9, was fine-mapped to a 14.55 Mb interval on 2RL [12]. The advent of non-denaturing FISH (ND-FISH) combined with synthetic oligonucleotide (Oligo) probes has revolutionized high-throughput detection of alien chromatin in wheat [24]. For instance, Fu et al. [25] developed probe Oligo-1162 based on SLAF-seq data of cultivated rye cv. Kustro, which produced specific signals along the entire length of rye chromosomes in octoploid triticale. In addition, a new set of Oligo probes was developed to establish a high-resolution karyotype of rye chromosomes in triticale Yukuri [26]. In the present study, we characterized two wheat–rye 1R (1D) substitution lines derived from Yukuri and T4915 using Oligo probes Oligo-ku, Oligo-pSc119.2, and Oligo-pSc200. Oligo-pSc200 produced strong hybridization signals in the terminal regions of the long and short arms, enabling rapid and precise identification of 1R segments in subsequent irradiated generations. Moreover, multiple Oligo probes successfully distinguished the 1R chromosomes from different accessions (Figure S10). Collectively, our results demonstrate that ND-FISH is highly effective for characterizing rye chromosomes based on polymorphic hybridization patterns and can be used to accurately identify introgressed rye segments in a wheat background.
Chromosome 1R has historically played an important role in wheat breeding programs. Owing to its high recombination rate, numerous valuable 1R translocation lines have been generated and deployed in resistance breeding. In the last century, the 1RS arms from Petkus rye and Insave rye were introduced into wheat via T1RS·1BL and T1RS·1AL translocations, respectively, incorporating resistance genes such as Yr9, Sr31, Lr26, Pm8, and Pm17 into wheat, and eventually released as cultivars [16]. In recent years, several new rye 1R sources have been transferred into the wheat genome. However, polymorphisms of infection reactions to pathogens remain the primary trait used to distinguish 1R lines of different origins. Further cytological and molecular characterization of these 1R chromosomes is essential to understanding the genetic differentiation and diversity among various rye sources. Annamaria et al. [27] evaluated six SSR and STS markers across 20 rye cultivars of diverse origins and identified three polymorphic markers in Kisvárdai Alacsony, Kriszta, and Porto. Wang et al. [26] used SDS-PAGE to analyze seed storage proteins in different wheat–rye 1R materials, and the unique glutenin subunit profile of triticale cultivar Yukuri suggested a distinctly different rye origin compared with other reported triticale varieties. Moreover, it is difficult to distinguish different 1R chromosomes by traditional cytological methods because of the limitation of high-precision probes. For example, Yang et al. [28] assessed genetic diversity among 153 wheat lines from CIMMYT and Chinese core germplasm using ND-FISH with probes Oligo-pSc119.2-1, Oligo-pTa535-1, and Oligo-(GAA)7. Fourteen 1RS·1BL translocation lines showed identical ND-FISH patterns. In our study, we contrasted the hybridization patterns of different 1R chromosomes by using multiple Oligo probes and characterized the polymorphisms by intron-targeting (IT) markers. Meanwhile, the immunostaining for the metaphase cells of wheat–rye derivatives R156 and R189 exhibited differential methylation patterns (Figure 2), indicating the genetic distinctness of the two novel 1R (1D) substitution lines developed in our study.
Wang et al. [29] analyzed Yr9 allelic sequences across 32 representative 1RS·1BL translocation lines and identified nine SNPs in the CC domain that resulted in four amino acid changes; however, these alterations did not compromise the disease resistance function. In our study, we cloned seven CC-Yr9 allelic sequences from different 1R chromosomes. Four of them contained identical amino acid changes to those mentioned above (98.6% sequence identity), while the sequence from the 1Ra chromosome was identical to that of CC-Yr9 (Figure 3). In contrast, 22W_CC-Yr9 (from Currency triticale) and WN_CC-Yr9 (from Weining rye) showed 11 and 15 amino acid changes compared with CC-Yr9, corresponding to sequence identities of 96.1% and 93.6%, respectively, indicating considerable divergence in these two 1R chromosomes. These findings suggest that multiple Yr9 resistance alleles may exist in rye 1R chromosomes, and whether the observed amino acid variations affect gene function requires further investigation. Notably, LRR-Pm8 allelic sequences share only 85.7% amino acid sequence identity. Moreover, Yukuri_LRR-Pm8 and T4915_LRR-Pm8 were identified as pseudogenes due to the presence of in-frame stop codons within the LRR25 domains. These observations imply that different resistance genes have likely undergone independent evolutionary paths under varying environmental pressures and domestication histories. Meanwhile, although Pm8 has lost its resistance to prevalent Bgt pathotypes, the rapid evolution of rye 1R chromosomes continues to drive contemporary breeders to utilize rye germplasm resources in response to fast-evolving powdery mildew pathogens.
Powdery mildew is a devastating disease that severely compromises yield and quality of wheat worldwide. To date, 10 Pm genes have been reported on homoeologous group 1 chromosomes from diversified wheat genotypes, including Pm3, Pm8, Pm10, Pm17, Pm24, Pm25, Pm28, Pm32, Pm39 and Pm67 [30]. Among these, Pm3, Pm10, Pm24, Pm25, Pm28 and Pm39 were derived from common wheat [31,32,33,34]; Pm67 from D. villosum [7]; Pm32 from Ae. speltoides [35]; and Pm8 and Pm17, which were proven to be homoeologous genes of Pm3, were derived from rye. However, Pm8 and Pm17 have lost their effectiveness against Bgt isolates currently common in many wheat production regions [36,37]. Recently, a new powdery mildew resistance gene, PmSESY, derived from the rare rye wild species S. sylvestre, was mapped to the 1.88 cM genetic interval at the end of the 1RL chromosome [38]. Ren et al. developed five stripe rust- and powdery mildew resistant 1BL.1RS translocations from Chinese rye “Baili”, which also showed significantly better yield traits in the field [39]. In our study, we also located the powdery mildew resistance gene on 1RS, while wheat with chromosome arm 1RL was susceptible to powdery mildew. Moreover, we selected six 1R deletion and translocation lines from M1-M3 generations and mapped the powdery mildew resistance gene in bin 1RS-4, covering the corresponding region of 58.60–109.28 Mb in the reference Secale_Lo7 genome sequence, in which only five disease resistance-related genes were predicted (Table 1). Notably, the mapped resistance locus in bin 1RS-4 is distinct from the genomic position of the canonical Pm8 gene on 1RS. While we successfully mapped the novel powdery mildew resistance locus to the 1RS-4 bin (corresponding to a ~50.68 Mb interval in the Secale_Lo7 reference), further fine-mapping is also required to narrow this interval to a candidate gene. This will involve developing a larger population from the available 1R translocation/deletion lines, screening with high-density markers, and ultimately identifying the target gene through functional validation. This novel germplasm will accelerate the cloning of candidate Pm genes for potential utilization in wheat resistance breeding programs.

4. Materials and Methods

4.1. Plant Materials

Wheat–rye double disomic substitution 1R (1D) + 4R (4D) line A156 and 1R (1D) substitution and 4R monosomic addition line A189 were developed by crossing hexaploid triticale lines Yukuri and T4915, respectively, with common wheat cultivar MY11, followed by successive backcrosses and selfing with selection by ND-FISH for the desired substitutions/additions. Yukuri was sourced from Seed Distributors, NSW, Australia [40]. The wheat cv. Mianyang 11 (MY11), Weining rye (WN; diploid rye), Jingzhouheimai (JH; diploid rye), Imperial rye (diploid rye), triticale lines 06-2-63 (hexaploid triticale), Currency (22W; hexaploid triticale), T701 (hexaploid triticale), Turum wheat-Secale africanum amphiploid YF (ABRa), the Imperial rye 1R addition line (CS-1R) and 1RS.1BL translocation lines were maintained at the Center for Informational Biology, School of Life Science and Technology, University of Electronic Science and Technology of China. Line A156 and line A189 were used as the female parent in crosses with wheat cultivars MY11, and two 1R (1D) substitution lines were developed from the F2 generation. To induce structural variants for fine mapping, seeds of the derived stable 1R(1D) substitution lines (R156 from A156 and R189 from A189) were irradiated by 60Co-γ rays at the Biotechnology and Nuclear Technology Research Institute, Sichuan Academy of Agricultural Sciences, China. The resulting M0 plants were crossed with MY11, and their progenies (M1-M3) were screened for 1R aberrations.

4.2. ND-FISH and Oligo-FISH Painting

The root-tip metaphase chromosomes of all germinated seeds were prepared according to the procedure described by Han et al. [41]. Synthetic oligonucleotides Oligo-pSc119.2, Oligo-pTa535, Oligo-ku, Oligo-K288, Oligo-pSc200, Oligo-V03-701, Oligo-StC12, Oligo-6E571 and Oligo-PtA1-360 were used for ND-FISH analysis [42,43,44], and their sequences are shown in Table S2. All oligonucleotide probes were either 5′end-labeled with 6-carboxyfluorescein (6-FAM) for green or 6-carboxytetramethylrhodamine (Tamra) for red signals. The pictures of FISH results under an Olympus BX-53 microscope (Olympus Corporation, Tokyo, Japan) were taken by a DP-70 CCD camera.

4.3. Chromosomal Immunolocalization

Rabbit polyclonal antibody anti-CENH3 was purified by affinity chromatography [45] and was produced by GL Biochem Ltd. (Shanghai, China). In addition, anti-phosphorylation AG3875 (mouse monoclonal antibody) and AG3665 (rabbit polyclonal antibody) from Beyotime Biotechnology, Shanghai, China, and anti-methylation ab8580 (rabbit polyclonal antibody) from Abcam, Waltham, MA, USA, were used to detect anti-CENH3 hybridization sites. Immunolocalization on mitotic metaphase chromosomes was performed as described previously [46]. The locations of anti-CENH3 hybridizations on chromosomes utilized CENH3 (1:300)/phosphorylation (1:500)/methylation (1:500) and goat anti-rabbit Texas green (1:1000)/goat anti-mouse Texas red (1:1000) (Sigma-Aldrich, St. Louis, MO, USA). The images were collected with the BX53 Motorized System Microscope (Olympus) and processed using Adobe Photoshop CS 4.0 (Adobe).

4.4. Molecular Marker Analysis

DNA of all materials used in this study was extracted from young leaves using the SDS protocol [47]. CINAU markers of linkage group 1 based on intron length polymorphisms were obtained from Zhang et al. [48]. SSR markers were obtained from Li et al. [49] The details concerning each of the markers are listed in Table S3. Physical locations of specific-1R markers were obtained using the database of the Lo7 genome on the website of the Triticeae Multi-omics Center (http://202.194.139.32/, accessed on 1 May 2018). The PCR amplification program involved 4 min at 94 °C, 35 cycles of 45 s at 94 °C, 45 s at 58 °C, 1 min at 72 °C and a final extension at 72 °C for 10 min. PCR amplification products were analyzed by 1% agarose gel electrophoresis and 8% PAGE gel electrophoresis, as described by Hu et al. [50] and Yu et al. [51], respectively. Information on the LRR resistance-like genes and receptor-like kinase genes was obtained from Steuernagel et al. [52] and Yin et al. [53].

4.5. Powdery Mildew Infection Scoring

The reactions of parent wheat MY11, line A156, line A189, two wheat–rye 1R (1D) substitution lines and their derived progenies to powdery mildew were assessed at adult-plant stages during the 2024–2025 season in a greenhouse. The inoculation was carried out using a mixture of locally prevalent Blumeria graminis f. sp. tritici (Bgt) isolates collected from infected wheat leaves of susceptible commercial varieties in Sichuan Province, China. These isolates were maintained and increased on susceptible wheat seedlings (cv. MY11) in an isolated greenhouse. The inoculation was carried out at the four-leaf stage in a greenhouse at 23 °C, and the response was recorded at 20 days post-inoculation. Infection types were scored according to the system described by Bariana and McIntosh [54].

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/plants15030410/s1, Figure S1: ND-FISH of mitotic metaphase of 1R (1D) substitution lines derived from Yukuri (a,b) and T4915 (c,d) by probes Oligo-k288 + Oligo-ku (a,c) and Oligo-pTa535 + Oligo-pSc119.2 (b,d). Scale bars, 10 μm. Figure S2: The anti-CENH3 location and ND-FISH of mitotic metaphase of 1R (1D) substitution lines derived from Yukuri (a,b) and T4915 (c,d). Immunostaining with anti-CENH3 (a,c) and sequential ND-FISH by Oligo-pSc119.2 + Oligo-pTa535 (b,d). Scale bars, 10 μm. Figure S3: The anti-phosphorylation AG3875 (a,d) and AG3665 (b,c) location and sequential ND-FISH by Oligo-pSc119.2 + Oligo-pTa535 (c,f) in 1R (1D) substitution lines derived from Yukuri (a–c) and T4915 (d–f). Scale bars, 10 μm. Figure S4: The anti-methylation location and ND-FISH of mitotic metaphase of the 1RS.1BL translocation line. Figure S5: PCR amplification patterns of Yr9 GSP markers. 1, MY11; 2, Yukuri; 3, T4915; 4, 22W; 5, CS-1R; 6, JH; 7, 06-2-23; 8, ABRa; 9, WN. Figure S6: Rye 1R chromosome variations from the M1 progenies of R156 × MY11. The probes were Oligo-ku + Oligo-k288 (left) and Oligo-pTa535 + Oligo-pSc119.2 + Oligo-pSc200 (right). Figure S7: The comparative PCR amplification results for (1) MY11, (2) T4915, (3) Yukuri, (4) A189, (5) A156, (6) R189, (7) R156, (8) 22W, (9) CS-1R, (10) JH, (11) 06-2-23, (12) ABRa and (13) WN. The red and green arrows indicate the specific amplifications in Yukuri-1R and other 1R chromosomes. The primers were (a) CINAU882, (b) CINAU898, (c) SSR 1-082, and (d) SSR 1-124. Figure S8: (a–f) FISH of wheat–rye 1R derived lines X834 (a,b), X680 (c,d) and X861 (e–f). The probes were Oligo-k288 + Oligo-ku (a,c,e) and Oligo-pTa535 + Oligo-pSc119.2 +Oligo-pSc200 (b,d,f). The arrows indicate the 1R chromosomes. Bars, 10 μm. (g) PCR amplification patterns of 1R-specifc markers. 1, MY11; 2, Yukuri; 3, A156; 4, X834; 5, X680; 6, X861. The primers are Lo7_1R-1, Lo7_1R-2, Lo7_1R-3, Lo7_1R-4 and Lo7_1R-5 from top to bottom. Figure S9: Powdery mildew responses of A156, A189, wheat cultivar MY11 and their progenies at (a) seedling stages and (b) adult plant stage. 1, MY11; 2, A156; 3, R156; 4, individuals without 1RYukuri; 5, A189; 6, R189; 7, individuals without 1RT4915. Figure S10: The ND-FISH results of 1RS.1BL translocation and rye 1R chromosomes from different accessions. The probes are listed on the right, and the ND-FISH fluorescent banding pattern map is shown below. Table S1: Responses of tested materials to powdery mildew at the adult stage. Table S2: The sequences of Oligo probes for 1R chromosome identification by ND-FISH. Table S3: The 1R-specific markers information used in our study.

Author Contributions

Y.L. and C.J. performed the experiments and wrote the draft of the manuscript; Y.L., L.L., T.J., J.Y.T.T. and A.B. performed the experiments; E.Y. and G.L. edited the manuscript; Z.Y. revised the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This study was supported by Open Fund of State Key Laboratory of Wheat Improvement (WKIF202508) from Shandong Agricultural University, China, and the International Cooperation Program (2022YFH0012) of the Science and Technology Department of Sichuan Province, China.

Data Availability Statement

The datasets used and/or analyzed during the current study are available from the corresponding author upon reasonable request.

Conflicts of Interest

The authors declare no conflicts of interest. We declare that we hold the complete copyright of this manuscript and have obtained the necessary authorization to make this declaration. This article has not been published in any other publication, and it will not be submitted to any other journal for review simultaneously. All authors have contributed to, read, and approved this submitted manuscript in its current form.

References

  1. Zhang, P.; McIntosh, R.A.; Hoxha, S.; Dong, C.M. Wheat stripe rust resistance genes Yr5 and Yr7 are allelic. Theor. Appl. Genet. 2009, 120, 25–29. [Google Scholar] [CrossRef]
  2. Li, J.B.; Dundas, I.; Dong, C.M.; Li, G.R.; Trethowan, R.; Yang, Z.J.; Hoxha, S.; Zhang, P. Identification and characterization of a new stripe rust resistance gene Yr83 on rye chromosome 6R in wheat. Theor. Appl. Genet. 2020, 133, 1095–1107. [Google Scholar] [CrossRef]
  3. Shewry, P.R.; Hey, S.J. The contribution of wheat to human diet and health. Food Energy Secur. 2015, 4, 78–202. [Google Scholar] [CrossRef]
  4. Singh, R.P.; Singh, P.K.; Rutkoski, J.; Hodson, D.P.; He, X.Y.; Jorgensen, L.N.; Hovmoller, M.S.; Huerta-Espino, J. Disease impact on wheat yield potential and prospects of genetic control. Annu. Rev. Phytopathol. 2016, 54, 303–322. [Google Scholar] [CrossRef] [PubMed]
  5. Zhang, J.; Yang, H.; Han, G.; Xu, H.; Liu, R.; Yu, N.; Han, R.; Li, Y.; Li, J.; Dai, Y.; et al. Fine mapping of Pm71, a novel powdery mildew resistance gene from emmer wheat. Crop J. 2025, 13, 62–68. [Google Scholar] [CrossRef]
  6. Xing, L.P.; Hu, P.; Liu, J.Q.; Witek, K.; Zhou, S.; Xu, J.F.; Zhou, W.H.; Gao, L.; Huang, Z.P.; Zhang, R.Q.; et al. Pm21 from Haynaldia villosa encodes a CC-NBS-LRR protein conferring powdery mildew resistance in wheat. Mol. Plant 2018, 11, 874–878. [Google Scholar] [CrossRef]
  7. Zhang, R.Q.; Xiong, C.X.; Mu, H.Q.; Yao, R.N.; Meng, X.R.; Kong, L.N.; Xing, L.P.; Wu, J.Z.; Feng, Y.G.; Cao, A.Z. Pm67, a new powdery mildew resistance gene transferred from Dasypyrum villosum chromosome 1V to common wheat (Triticum aestivum L.). Crop J. 2020, 9, 882–888. [Google Scholar] [CrossRef]
  8. Li, H.H.; Men, W.Q.; Ma, C.; Liu, Q.W.; Dong, Z.J.; Tian, X.B.; Wang, C.L.; Liu, C.; Gill, H.S.; Ma, P.T.; et al. Wheat powdery mildew resistance gene Pm13 encodes a mixed lineage kinase domain-like protein. Nat. Commun. 2024, 15, 2449. [Google Scholar] [CrossRef]
  9. Li, H.H.; Dong, Z.J.; Ma, C.; Xia, Q.; Tian, X.B.; Sehgal, S.; Koo, D.H.; Friebe, B.; Ma, P.T.; Liu, W.X. A spontaneous wheat-Aegilops longissima translocation carrying Pm66 confers resistance to powdery mildew. Theor. Appl. Genet. 2020, 133, 1149–1159. [Google Scholar] [CrossRef] [PubMed]
  10. Brzozowski, L.J.; Szuleta, E.; Phillips, T.D.; Van Sanford, D.A.; Clark, A.J. Breeding cereal rye (Secale cereale) for quality traits. Crop Sci. 2023, 63, 1964–1987. [Google Scholar] [CrossRef]
  11. Li, G.W.; Wang, L.J.; Yang, J.P.; He, H.; Jin, H.B.; Li, X.M.; Ren, T.H.; Ren, Z.L.; Li, F.; Han, X.; et al. A high-quality genome assembly highlights rye genomic characteristics and agronomically important genes. Nat. Genet. 2021, 53, 574–584. [Google Scholar] [CrossRef]
  12. Yan, H.; Han, G.; Gu, T.; Shi, Z.; Cao, L.; Wang, J.; Liu, H.; Wang, C.; Zhuo, S.; Li, L.; et al. Cytogenetic characterization of a novel wheat-rye 2R (2D) substitution line YT9 conferring powdery mildew resistance from the three-leaf stage and physical mapping of PmYT9. Theor. Appl. Genet. 2025, 138, 167. [Google Scholar] [CrossRef]
  13. Han, G.; Wang, J.; Yan, H.; Cao, L.; Liu, S.; Li, X.; Zhou, Y.; Liu, W.; Gu, T.; Shi, Z.; et al. Development and molecular cytogenetic identification of a new wheat–rye 6RL ditelosomic addition and 1R (1B) substitution line with powdery mildew resistance. J. Integr. Agric. 2025, 24, 72–84. [Google Scholar] [CrossRef]
  14. Ma, P.T.; Han, G.H.; Zheng, Q.; Liu, S.Y.; Han, F.P.; Wang, J.; Luo, Q.L.; An, D.G. Development of novel wheat–rye chromosome 4R translocations and assignment of their powdery mildew resistance. Plant Dis. 2020, 104, 260–268. [Google Scholar] [CrossRef]
  15. Han, G.; Yan, H.; Wang, J.; Cao, L.; Liu, S.; Li, X.; Zhou, Y.; Fan, J.; Li, L.; An, D. Molecular cytogenetic identification of a new wheat-rye 6R addition line and physical localization of its powdery mildew resistance gene. Front. Plant Sci. 2022, 13, 889494. [Google Scholar] [CrossRef]
  16. Mago, R.; Zhang, P.; Vautrin, S.; Šimková, H.; Bansal, U.; Luo, M.C.; Rouse, M.; Karaoglu, H.; Periyannan, S.; Kolmer, J.; et al. The wheat Sr50 gene reveals rich diversity at a cereal disease resistance locus. Nat. Plants 2015, 1, 15186. [Google Scholar] [CrossRef]
  17. Hsam, S.L.K.; Zeller, F.J. Evidence of allelism between genes Pm8 and Pm17 and chromosomal location of powdery mildew and leaf rust resistance genes in the common wheat cultivar ‘Amigo’. Plant Breed. 1997, 116, 119–122. [Google Scholar] [CrossRef]
  18. Li, Z.; Ren, Z.L.; Tan, F.Q.; Tang, Z.X.; Fu, S.L.; Yan, B.J.; Ren, T.H. Molecular cytogenetic characterization of new wheat-rye 1R(1B) substitution and translocation lines from a Chinese Secale cereal L. Aigan with resistance to stripe rust. PLoS ONE 2016, 11, e0163642. [Google Scholar] [CrossRef]
  19. Li, Z.; Sun, Z.X.; Zhao, L.Q.; Yan, T.; Ren, Z.L.; Ren, T.H. Molecular cytogenetic characterization of novel wheat-rye T1RS.1AL translocation lines with resistance to powdery mildew and stripe rust derived from the Chinese rye landrace Qinling. Phytopathology 2024, 114, 1884–1892. [Google Scholar] [CrossRef] [PubMed]
  20. Kaur, N.; Nayakoti, S.; Brock, N.; Halford, N.G. Uncovering plant epigenetics: New insights into cytosine methylation in rye genomes. J. Exp. Bot. 2023, 74, 3395–3398. [Google Scholar] [CrossRef] [PubMed]
  21. Blum, A. The abiotic stress response and adaptation of triticale–A review. Cereal Res. Commun. 2014, 42, 359–375. [Google Scholar] [CrossRef]
  22. Spetsov, P.; Daskalova, N. Resistance to pathogens in wheat–rye and triticale genetic stocks. J. Plant Pathol. 2022, 104, 99–114. [Google Scholar] [CrossRef]
  23. Jiang, J.M. Fluorescence in situ hybridization in plants: Recent developments and future applications. Chromosome Res. 2019, 27, 153–165. [Google Scholar] [CrossRef] [PubMed]
  24. Cuadrado, A.; Golczyk, H.; Jouve, N. A novel, simple and rapid nondenaturing FISH (ND-FISH) technique for the detection of plant telomeres. Potential used and possible target structures detected. Chromosome Res. 2009, 17, 755–762. [Google Scholar] [CrossRef]
  25. Fu, S.L.; Chen, L.; Wang, Y.Y.; Li, M.; Yang, Z.J.; Qiu, L.; Yan, B.J.; Ren, Z.L.; Tang, Z.X. Oligonucleotide probes for ND-FISH analysis to identify rye and wheat chromosomes. Sci. Rep. 2015, 5, 10552. [Google Scholar] [CrossRef] [PubMed]
  26. Wang, T.T.; Li, G.R.; Jiang, C.Z.; Zhou, Y.W.; Yang, E.N.; Li, J.B.; Zhang, P.; Dundas, I.; Yang, Z.J. Development of a set of wheat-rye derivative lines from hexaploid triticale with complex chromosomal rearrangements to improve disease resistance, agronomic and quality traits of wheat. Plants 2023, 12, 3885. [Google Scholar] [CrossRef] [PubMed]
  27. Schneider, A.; Molnar-Lang, M. Polymorphism analysis using 1RS-specific molecular markers in rye cultivars (Secale cereale L.) of various origin. Cereal Res. Commun. 2008, 36, 11–19. [Google Scholar] [CrossRef]
  28. Yang, M.Y.; Yang, Z.J.; Yang, W.Y.; Yang, E.N. Genetic diversity assessment of the international maize and wheat improvement center and Chinese wheat core germplasms by non-denaturing fluorescence in situ hybridization. Plants 2022, 11, 1403. [Google Scholar] [CrossRef]
  29. Wang, C.H.; Chang, Y.N.; Wang, M.; Wang, J.; Liu, C.; Fan, C.L.; Yi, C.Y.; Zhou, C.; Yuan, J.; Yang, W.Y.; et al. The Yr9 gene encoding a CC-NBS-LRR protein in the 1RS-1BL translocation confers wheat stripe rust resistance. Sci. China Life Sci. 2024, 68, 2804–2806. [Google Scholar] [CrossRef]
  30. Wang, B.; Meng, T.; Xiao, B.; Yu, T.Y.; Yue, T.Y.; Jin, Y.L.; Ma, P.T. Fighting wheat powdery mildew: From genes to fields. Theor. Appl. Genet. 2023, 136, 196. [Google Scholar] [CrossRef]
  31. Lu, P.; Guo, L.; Wang, Z.Z.; Li, B.B.; Li, J.; Li, Y.H.; Qiu, D.; Shi, W.Q.; Yang, L.J.; Wang, N.; et al. A rare gain of function mutation in a wheat tandem kinase confers resistance to powdery mildew. Nat. Commun. 2020, 11, 680. [Google Scholar] [CrossRef]
  32. Peusha, H.; Enno, T.; Priilinn, O. Chromosomal location of powdery mildew resistance genes and cytogenetic analysis of meiosis in common wheat cultivar Meri. Hereditas 2000, 132, 29–34. [Google Scholar] [CrossRef]
  33. Shi, A.N.; Leath, S.; Murphy, J.P. A major gene for powdery mildew resistance transferred to common wheat from wild einkorn wheat. Phytopathology 1998, 88, 144–147. [Google Scholar] [CrossRef]
  34. Tosa, Y.; Tsujimoto, H.; Ogura, H. A gene involved in the resistance of wheat to wheatgrass powdery mildew fungus. Genome 1987, 29, 850–852. [Google Scholar] [CrossRef]
  35. Hsam, S.L.K.; Lapochkina, I.F.; Zeller, F.J. Chromosomal location of genes for resistance to powdery mildew in common wheat (Triticum aestivum L. em Thell.). 8. Gene Pm32 in a wheat-Aegilops speltoides translocation line. Euphytica 2003, 133, 367–370. [Google Scholar] [CrossRef]
  36. Ren, S.X.; McIntosh, R.A.; Lu, Z.J. Genetic suppression of the cereal rye-derived gene Pm8 in wheat. Euphytica 1997, 93, 353–360. [Google Scholar] [CrossRef]
  37. Kunz, L.; Sotiropoulos, A.G.; Graf, J.; Razavi, M.; Keller, B.; Müller, M.C. The broad use of the Pm8 resistance gene in wheat resulted in hypermutation of the AvrPm8 gene in the powdery mildew pathogen. BMC Biol. 2023, 21, 29. [Google Scholar] [CrossRef] [PubMed]
  38. He, H.G.; Du, H.N.; Liu, R.K.; Liu, T.L.; Yang, L.J.; Gong, S.J.; Tang, Z.X.; Du, H.M.; Liu, C.; Han, R.; et al. Characterization of a new gene for resistance to wheat powdery mildew on chromosome 1RL of wild rye Secale sylvestre. Theor. Appl. Genet. 2021, 134, 887–896. [Google Scholar] [CrossRef]
  39. Ren, T.H.; Ren, Z.L.; Yang, M.Y.; Yan, B.J.; Tan, F.Q.; Fu, S.L.; Tang, Z.X.; Li, Z. Novel source of 1RS from Baili rye conferred high resistance to diseases and enhanced yield traits to common wheat. Mol. Breed. 2018, 38, 101. [Google Scholar] [CrossRef]
  40. Dennett, A.L.; Wilkes, M.A.; Trethowan, R.M. Characteristics of modern triticale quality: The relationship between carbohydrate properties, α-Amylase activity, and falling number. Cereal Chem. 2013, 90, 594–600. [Google Scholar] [CrossRef]
  41. Han, F.P.; Lamb, J.C.; Birchler, J.A. High frequency of centromere inactivation resulting in stable dicentric chromosomes of maize. Proc. Natl. Acad. Sci. USA 2006, 103, 3238–3243. [Google Scholar] [CrossRef]
  42. Tang, Z.X.; Yang, Z.J.; Fu, S.L. Oligonucleotides replacing the roles of repetitive sequences pAs1, pSc119.2, pTa-535, pTa71, CCS1, and pAWRC.1 for FISH analysis. J. Appl. Genet. 2014, 55, 313–318. [Google Scholar] [CrossRef]
  43. Xiao, Z.Q.; Tang, S.Y.; Qiu, L.; Tang, Z.X.; Fu, S.L. Oligonucleotides and ND-FISH displaying different arrangements of tandem repeats and identification of Dasypyrum villosum chromosomes in wheat backgrounds. Molecules 2017, 22, 973. [Google Scholar] [CrossRef]
  44. Wang, H.J.; Yu, Z.H.; Li, G.R.; Yang, Z.J. Diversified chromosome rearrangements detected in a wheat-Dasypyrum breviaristatum substitution line induced by gamma-ray irradiation. Plants 2019, 8, 175. [Google Scholar] [CrossRef] [PubMed]
  45. Yuan, J.; Guo, X.; Hu, J.; Han, F.P. Characterization of two CENH3 genes and their roles in wheat evolution. New Phytol. 2014, 206, 839–851. [Google Scholar] [CrossRef] [PubMed]
  46. Han, F.P.; Gao, Z.; Birchler, J.A. Reactivation of an inactive centromere reveals epigenetic and structural components for centromere specification in maize. Plant Cell 2009, 21, 1929–1939. [Google Scholar] [CrossRef]
  47. Yang, Z.J.; Li, G.R.; Chang, Z.J.; Zhou, J.P.; Ren, Z.L. Characterization of a partial amphiploid between Triticum aestivum cv. Chinese Spring and Thinopyrum intermedium ssp. trichophorum. Euphytica 2006, 149, 11–17. [Google Scholar] [CrossRef]
  48. Zhang, X.D.; Wei, X.; Xiao, J. Whole genome development of intron targeting (IT) markers specific for Dasypyrum villosum chromosomes based on next-generation sequencing technology. Mol. Breed. 2017, 37, 115. [Google Scholar] [CrossRef]
  49. Li, J.J.; Zhou, R.R.; Endo, T.R.; Stein, N. High-throughput development of SSR marker candidates and their chromosomal assignment in rye (Secale cereale L.). Plant Breed. 2018, 137, 561–572. [Google Scholar] [CrossRef]
  50. Hu, L.J.; Li, G.R.; Zeng, Z.X.; Chang, Z.J.; Liu, C.; Yang, Z.J. Molecular characterization of a wheat-Thinopyrum ponticum partial amphiploid and its derived substitution line for resistance to stripe rust. J. Appl. Genet. 2011, 52, 279–285. [Google Scholar] [CrossRef] [PubMed]
  51. Yu, Z.; Wang, H.; Xu, Y.; Li, Y.; Lang, T.; Yang, Z.; Li, G. Characterization of chromosomal rearrangement in new wheat-Thinopyrum intermedium addition lines carrying Thinopyrum-specific grain hardness genes. Agronomy 2019, 9, 18. [Google Scholar] [CrossRef]
  52. Steuernagel, B.; Jupe, F.; Witek, K.; Jones, J.D.G.; Wulff, B.B.H. NLR-parser: Rapid annotation of plant NLR complements. Bioinformatics 2015, 31, 166–1667. [Google Scholar] [CrossRef] [PubMed]
  53. Yin, Z.Y.; Liu, J.D.; Dou, D.L. RLKdb: A comprehensively curated database of plant receptor-like kinase families. Mol. Plant 2024, 17, 513–515. [Google Scholar] [CrossRef] [PubMed]
  54. Bariana, H.S.; McIntosh, R.A. Cytogenetic studies in wheat. XV. Location of rust resistance genes in VPM1 and their genetic linkage with other disease resistance genes in chromosome 2A. Genome 1993, 36, 476–482. [Google Scholar] [CrossRef] [PubMed]
Plants 15 00410 g001
Figure 1. Karyotyping of mitotic metaphases of A156 (a–c) and A189 (d–f) by sequential ND-FISH. Sequential ND-FISH by probes (a,d) Oligo-k288 (red) + Oligo-ku (green), (b,e) Oligo-pTa535 (red) + Oligo-pSc119.2 (green), and (c,f) Oligo-pSc200 (red), respectively. Rye chromosomes are indicated by yellow arrows. Scale bars, 10 μm.
Figure 1. Karyotyping of mitotic metaphases of A156 (a–c) and A189 (d–f) by sequential ND-FISH. Sequential ND-FISH by probes (a,d) Oligo-k288 (red) + Oligo-ku (green), (b,e) Oligo-pTa535 (red) + Oligo-pSc119.2 (green), and (c,f) Oligo-pSc200 (red), respectively. Rye chromosomes are indicated by yellow arrows. Scale bars, 10 μm.
Plants 15 00410 g001
Plants 15 00410 g002
Figure 2. The anti-methylation location and ND-FISH of mitotic metaphase of 1R (1D) substitution lines R156 (a–c) and R189 (d–f). Immunostaining with anti-methylation ab 8580 (green) (a,d) and sequential ND-FISH by Oligo-pSc119.2 (green) + Oligo-pTa535 (red) + Oligo-pSc200 (red) (b,e). (c,f) The cut and pasted chromosomes of anti-methylation signals. Scale bars, 10 μm.
Figure 2. The anti-methylation location and ND-FISH of mitotic metaphase of 1R (1D) substitution lines R156 (a–c) and R189 (d–f). Immunostaining with anti-methylation ab 8580 (green) (a,d) and sequential ND-FISH by Oligo-pSc119.2 (green) + Oligo-pTa535 (red) + Oligo-pSc200 (red) (b,e). (c,f) The cut and pasted chromosomes of anti-methylation signals. Scale bars, 10 μm.
Plants 15 00410 g002
Plants 15 00410 g003

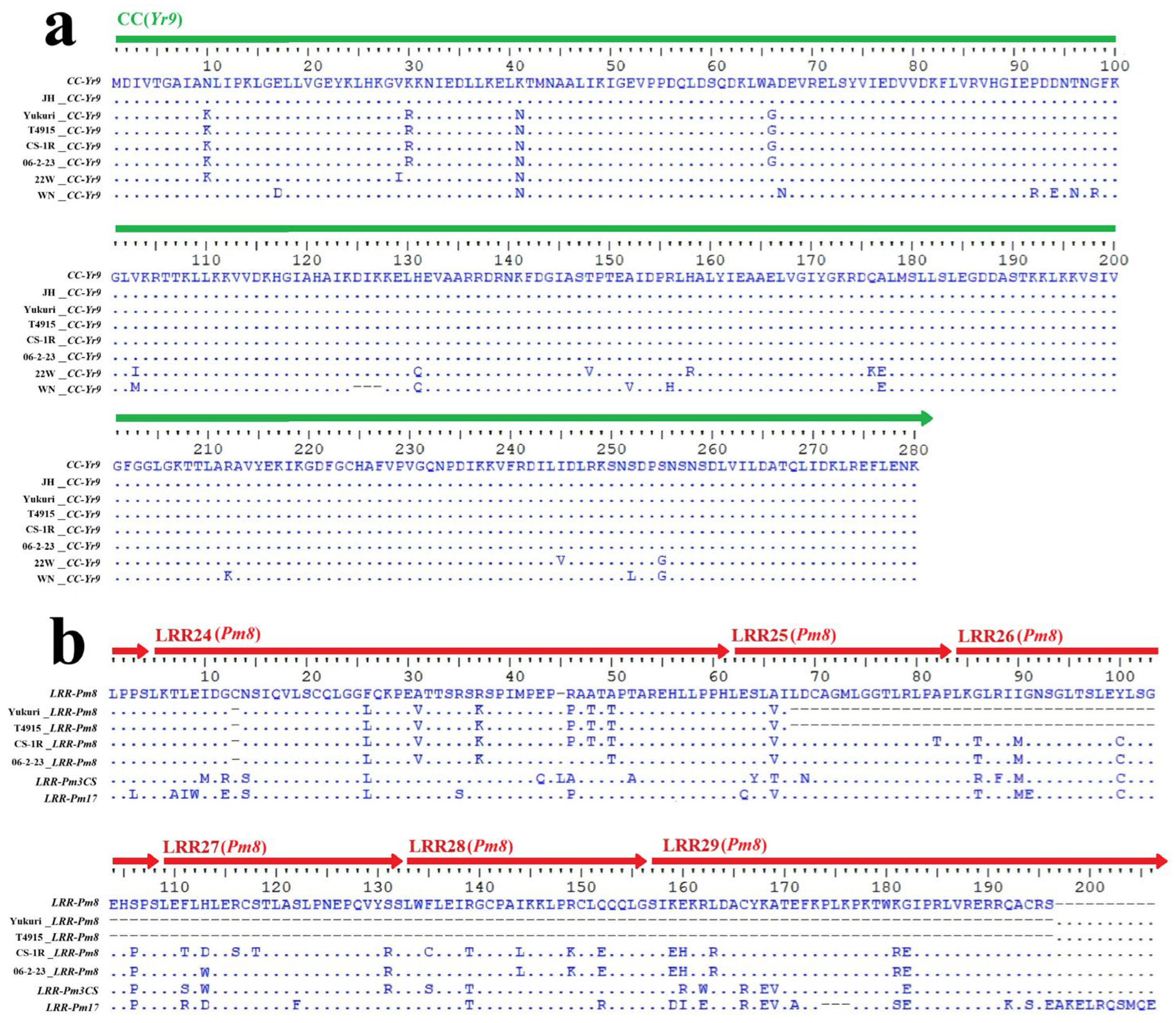

Figure 3. Alignment of GSP sequences of Yr9 and Pm8 in the representing 1R chromosomes. (a) The sequences from top to bottom are CC-Yr9, JH_CC-Yr9, Yukuri_CC-Yr9, T4915_CC-Yr9, CS-1R_CC-Yr9, 06-2-23_CC-Yr9, 22W_CC-Yr9 and WN_CC-Yr9, which are originated from 1R of Lo7, JH rye, Yukuri, T4915, Imperial rye, 06-2-23, Currency and Weining rye, respectively. (b) The sequences from top to bottom are LRR-Pm8, Yukuri_LRR-Pm8, T4915_LRR-Pm8, CS-1R_LRR-Pm8 and 06-2-23_LRR-Pm8, which are originated from 1R of Lo7, Yukuri, T4915, Imperial rye and 06-2-23, respectively. The sequences LRR_Pm3CS from CS and LRR_Pm17 from Insave rye were used as controls. The CC and LRR domains are indicated by green and red bars above, respectively.
Figure 3. Alignment of GSP sequences of Yr9 and Pm8 in the representing 1R chromosomes. (a) The sequences from top to bottom are CC-Yr9, JH_CC-Yr9, Yukuri_CC-Yr9, T4915_CC-Yr9, CS-1R_CC-Yr9, 06-2-23_CC-Yr9, 22W_CC-Yr9 and WN_CC-Yr9, which are originated from 1R of Lo7, JH rye, Yukuri, T4915, Imperial rye, 06-2-23, Currency and Weining rye, respectively. (b) The sequences from top to bottom are LRR-Pm8, Yukuri_LRR-Pm8, T4915_LRR-Pm8, CS-1R_LRR-Pm8 and 06-2-23_LRR-Pm8, which are originated from 1R of Lo7, Yukuri, T4915, Imperial rye and 06-2-23, respectively. The sequences LRR_Pm3CS from CS and LRR_Pm17 from Insave rye were used as controls. The CC and LRR domains are indicated by green and red bars above, respectively.
Plants 15 00410 g003
Plants 15 00410 g004
Figure 4. FISH of wheat–rye 1R aberration lines X814 (3DS-1RS.1RL) (a,b), X330 (7BS-1RS.1RL) (c,d), X617 (6DS-1RS.1RL) (e,f), X383 (1Rdel-1) (g,h), X503 (1Rdel-2) (i,j) and X342 (1Rdel-3) (k,l) from F2 progenies. The probes were Oligo-k288 (red)+ Oligo-ku (green) (a,c,e,g,i,k) and Oligo-pTa535 (red) + Oligo-pSc119.2 (green) +Oligo-pSc200 (red) (b,d,f,h,j,l). The arrows indicate the translocation or deletion chromosomes. Bars, 10 μm.
Figure 4. FISH of wheat–rye 1R aberration lines X814 (3DS-1RS.1RL) (a,b), X330 (7BS-1RS.1RL) (c,d), X617 (6DS-1RS.1RL) (e,f), X383 (1Rdel-1) (g,h), X503 (1Rdel-2) (i,j) and X342 (1Rdel-3) (k,l) from F2 progenies. The probes were Oligo-k288 (red)+ Oligo-ku (green) (a,c,e,g,i,k) and Oligo-pTa535 (red) + Oligo-pSc119.2 (green) +Oligo-pSc200 (red) (b,d,f,h,j,l). The arrows indicate the translocation or deletion chromosomes. Bars, 10 μm.
Plants 15 00410 g004
Plants 15 00410 g005
Figure 5. PCR amplification results of representative 1R-specific markers in the six translocation and deletion lines. 1, MY11; 2, Yukuri; 3, T4915; 4, A156; 5, A189; 6, R156; 7, R189 8, X814; 9, X330; 10, X617; 11, X383; 12, X503; 13, X342. Arrows point to chromosome 1R-specific bands.
Figure 5. PCR amplification results of representative 1R-specific markers in the six translocation and deletion lines. 1, MY11; 2, Yukuri; 3, T4915; 4, A156; 5, A189; 6, R156; 7, R189 8, X814; 9, X330; 10, X617; 11, X383; 12, X503; 13, X342. Arrows point to chromosome 1R-specific bands.
Plants 15 00410 g005
Plants 15 00410 g006

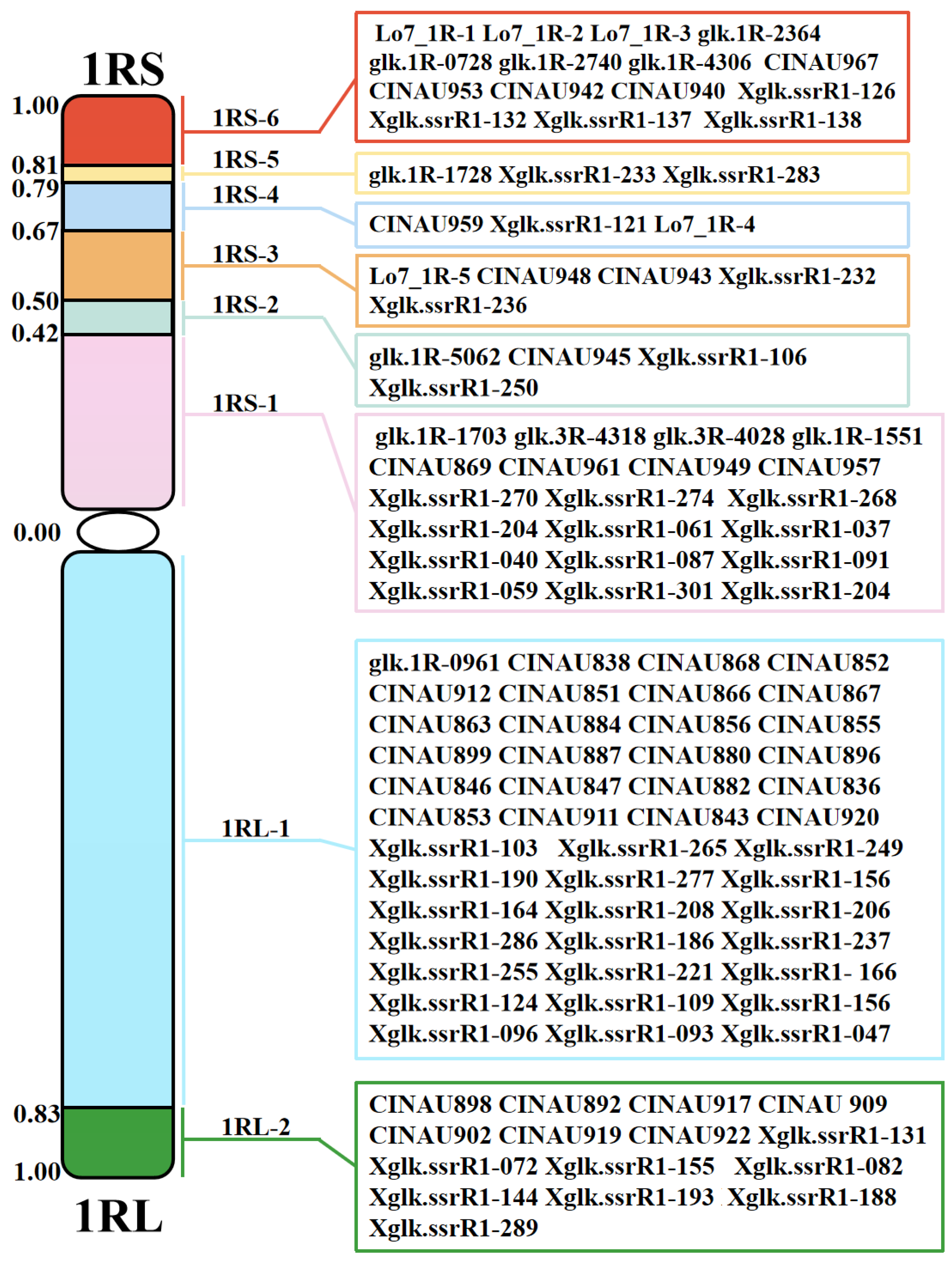

Figure 6. A cytological bin map of 1R chromosome showing 8 bins by the genotyping of 6 rearrangement lines using 108 1R diagnostic markers. The 6 bins of the 1R short arm were designated as 1RS-1 to 1RS-6, and the 2 bins of the 1R long arm were designated as 1RL-1 to 1RL-2. IT and SSR markers were assigned to different chromosomal bins.
Figure 6. A cytological bin map of 1R chromosome showing 8 bins by the genotyping of 6 rearrangement lines using 108 1R diagnostic markers. The 6 bins of the 1R short arm were designated as 1RS-1 to 1RS-6, and the 2 bins of the 1R long arm were designated as 1RL-1 to 1RL-2. IT and SSR markers were assigned to different chromosomal bins.
Plants 15 00410 g006
Plants 15 00410 g007

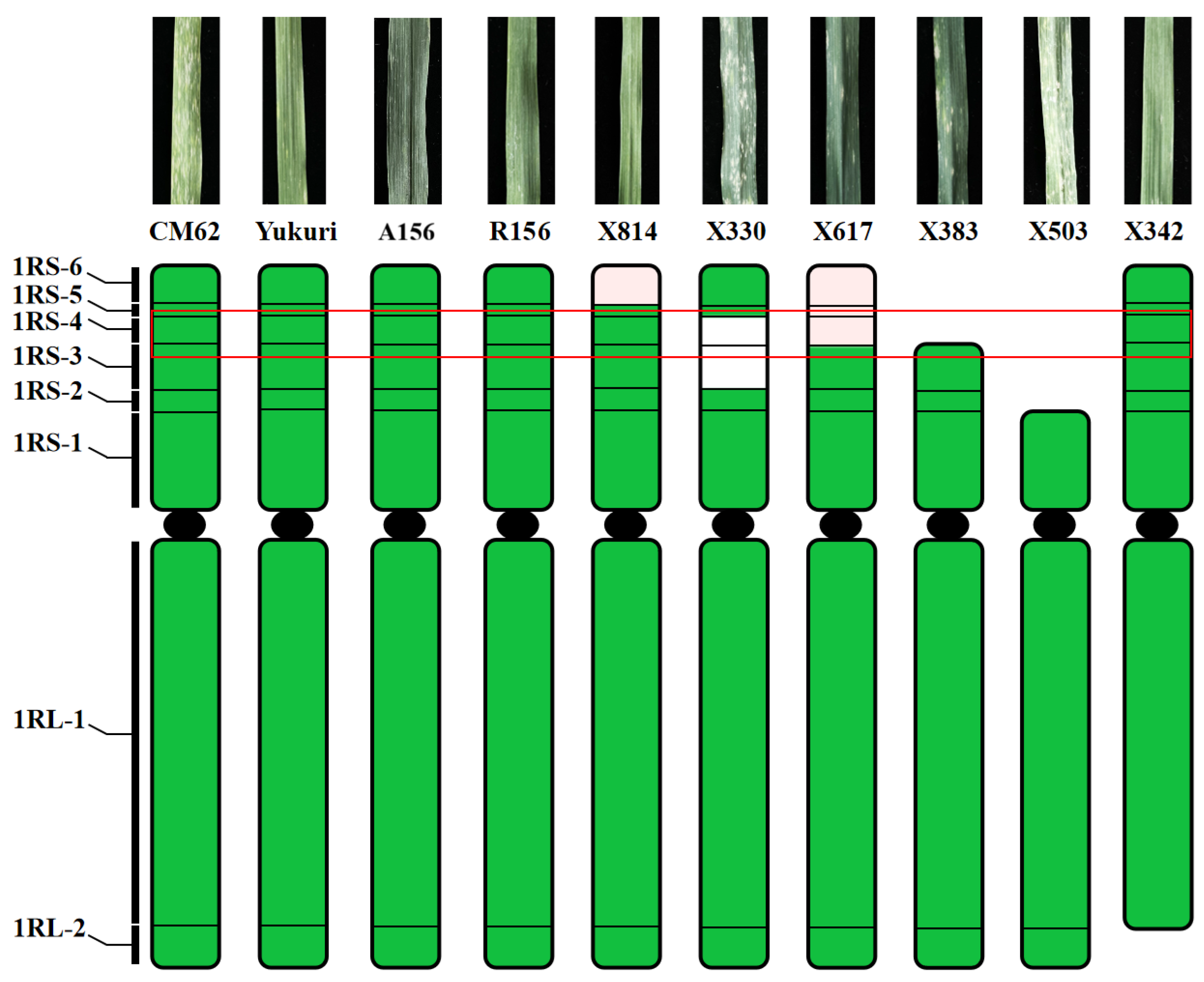

Figure 7. Physical mapping of the powdery mildew resistance gene using six 1R aberration lines. Green color indicates chromosome segments of 1R, and pink represents wheat chromosome fragments. The red box indicates the physical region of the Pm locus.
Figure 7. Physical mapping of the powdery mildew resistance gene using six 1R aberration lines. Green color indicates chromosome segments of 1R, and pink represents wheat chromosome fragments. The red box indicates the physical region of the Pm locus.
Plants 15 00410 g007
Table 1. Information on LRR resistance-like genes and receptor-like kinase genes.
Table 1. Information on LRR resistance-like genes and receptor-like kinase genes.
Gene IDChromosomeStart PositionFunctional AnnotationExpression After Infection
SECCE1Rv1G0013180.11R101168790LRR disease resistance proteinYes
SECCE1Rv1G0013280.11R101711741LRR disease resistance proteinNo
SECCE1Rv1G0013650.11R107294565LRR disease resistance proteinYes
SECCERv1G0013500.11R106151068receptor-like kinaseYes
SECCERv1G0010840.11R66320586receptor-like kinaseNo
