Morphology of Chinese Chive and Onion (Allium; Amaryllidaceae) Crop Wild Relatives: Taxonomical Relations and Implications

Abstract

The genus Allium L. includes economically significant crops such as Chinese chives (Allium tuberosum Rottler ex Spreng.) and onions (Allium cepa L.), and is utilized in diverse agricultural applications, with numerous cultivars developed to date. However, these cultivars are facing a reduction in genetic diversity, raising concerns regarding their long-term sustainability. Crop wild relatives (CWRs), which possess a wide range of genetic traits, have recently gained attention as important genetic resources and priorities for conservation. In this study, the taxonomy of Allium species distributed in Korea is assessed using morphological characteristics. Two types of morphological analyses were conducted: macro-morphological traits were examined using stereomicroscopy and multi-spectral image analyses, while micro-morphological traits were analyzed using scanning electron microscopy. We detected significant interspecific and intraspecific variation in macro-morphological traits. Among the micro-morphological features, the seed outline on the x-axis and structural patterns of the testa and periclinal walls were identified as reliable diagnostic characters for subgenus classification. Moreover, micro-morphological evidence contributed to inferences about evolutionary trends within the genus Allium. Based on phylogenetic relationships between wild and cultivated taxa, we propose an updated framework for the CWR inventory of Allium.

1. Introduction

The genus Allium L.(Amaryllidaceae) includes over 1000 species worldwide, making it one of the largest genera within monocotyledons [1]. Historically, members of this genus, such as onion (A. cepa L.), scallion (A. fistulosum L.), and garlic (A. sativum L.) have been widely cultivated and utilized as food crops [2]. Extensive breeding efforts have led to the development of numerous cultivars. Furthermore, the taxonomic and morphological characteristics of Allium species have been the subject of considerable research. Traditionally, Allium was classified within the family Liliaceae; however, based on molecular phylogenetic evidence, the APG (Angiosperm Phylogeny Group) system has reclassified Allium and related genera under the family Amaryllidaceae [3,4].

Approximately 21 Allium species have been reported on the Korean Peninsula [5]. Among these, A. longistylum Baker is listed as Least Concern, while A. dumebuchum H.J.Choi and A. microdictyon Prokh. are categorized as Near Threatened in the Korean Red List [6]. These taxa and other wild relatives of cultivated crops (crop wild relatives; CWRs) are experiencing population declines due to habitat loss driven by agricultural expansion and hybridization with domesticated varieties [7]. To ensure the conservation of these vulnerable taxa and their associated genetic resources, detailed morphological and phylogenetic studies are essential.

Crop wild relatives (CWRs), the wild plants and close relatives of cultivated crops, are a rich source of readily accessible genetic material for crop improvement and are considered invaluable for modern plant breeding [8,9]. All domesticated crops used by humans today have originated from CWRs. For instance, Oryza barthii A.chev. is the wild ancestor of rice [10] and Solanum pennellii Correll is a recognized origin of tomato [11]. Although original wild ancestors may have become extinct or undergone significant genomic changes due to polyploidization or other evolutionary processes, closely related CWRs continue to provide essential genetic resources [12]. Climate change and the resulting threat to global food security have led to increased research interest in CWRs [13,14]. In Europe, international initiatives, such as the CROPTRUST, are actively focused on collection, inventory development, and conservation.

The morphological classification of the genus Allium has been conducted using a wide range of plant materials. Jang et al. [15] suggested that, based on floral morphological characteristics, ovary shape, perianth shape, and the inner tepal apex are useful at the subgenus level from a phylogenetic perspective. However, they also noted that quantitative traits such as tepal size exhibit intraspecific variation, making it difficult to identify Allium species solely on that basis. Other studies have examined the pollen of Allium, confirming that pollen longitude axis, sulcus length, and exine ornamentation are informative characters at the subgenus level or section level [16,17]. Furthermore, even in the bulb tunic has been studied for its anatomical characteristics, and it has been proposed that the shape and type of subepidermal cells, the number, distribution, type, and size of crystals, the tracheid type, and the presence of bulbils can serve as diagnostic traits for distinguishing subgenus and section level [18].

Seeds of Allium exhibit substantial morphological similarity, rendering species-level identification challenging [19]. As a result, the taxonomic boundaries within the genus are continuously revised. Recent research has improved our understanding of Allium taxonomy in Korea. For example, based on macro-morphological traits, Choi and Oh [20] recognized A. sacculiferum Maxim. and A. thunbergii G.Don. as distinct species; however, they also reported considerable intraspecific morphological variation. Shukherdorj et al. [21] interpreted this variation as a result of polyploidy within A. thunbergii, leading to the taxonomic merging of A. sacculiferum into A. thunbergii. Similarly, A. ulleungense H.J.Choi & N.Friesen, previously considered a regional variant of A. microdictyon or conspecific with A. ochotense, was reclassified as a Korean endemic species based on molecular phylogenetic analyses using ITS and chloroplast DNA sequences [22]. A. dumebuchum, historically treated as A. senescens L. in Korea, was also recently recognized as a distinct species through combined cpDNA and morphological analyses [23].

In traditional morphological studies, traits such as color and shape are determined based on the subjective judgment of the researcher. Recently, there is a trend toward the use of quantitative indicators (e.g., parameters expressed in numbers or coordinates according to wavelength and image analysis techniques). Such quantitative traits have been applied in paleontology, oceanography, and other fields [24,25]. In plant morphology, recent systematic classification studies have used leaf traits [26,27] and the shapes of other organs, such as flowers and seeds [28,29]. However, studies using seeds of the genus Allium are lacking.

Micro-morphological seed traits are important for species classification. In particular, the micromorphology of seeds is not highly sensitive to environmental variables, and many studies have confirmed its usefulness above a certain rank. In the genus Allium, the shapes of the protrusion and scutellum indicate the evolutionary development stage [30], and the taxonomic value of the shape and curvature of the scutellum has been established [1]. However, research has focused largely on the outer layer of the seed coat, and overall analyses of the seed coat on the seed cross-section are still insufficient, despite potential implications for classifying taxa [31,32,33]. The genus Allium comprises approximately 15 subgenera and 80 sections worldwide [1]. In this study, we established a classification based on morphological characteristics using seeds from 11 taxa and 3 cultivated varieties of Allium distributed in Korea, which belong to 4 subgenera and 5 sections. We confirmed the species relationships using the external shape and micro-morphology and determined the taxonomic value of these characteristics. In addition, we inferred the evolutionary trends of each character based on integrative analyses with existing molecular phylogenetic data. Finally, we propose a list of existing inventories of taxa as CWR. The terminology used in this study corresponds with Murley [34] and Harris & Harris [35].

2. Results

2.1. External Morphology

In total, 30 morphological characters were evaluated (Appendix A). In each character, evaluated with other taxon, some of taxon differed significantly (Figure 1). In particular, A. anisopodium Ledeb., A. microdictyon, and A. ulleungense differed from other taxa in the most traits. In the case of cultivated varieties, Greenbelt and Chungrim-bucu shared common characters with A. longistylum and A. thunbergii and showed substantial divergence in characters from the CWR, A. tuberosum Rottler ex Spreng. Dume-buchu also shared common characters with A. thunbergii and A. dumebuchum.

2.1.1. Interspecific Variation

There were significant differences in many traits within groups of A. anisopodium; accordingly, we performed additional comparisons between A. longistylum and A. anisopodium populations (

Table 1. t-test after F-test result of traits among groups in two species of Allium, A. longistylum and A. anisopodium. H is seed height, Beta is Beta shape, Rad Avg is Phi Rad Statistic Average, Comp Eclipse is ellipse compactness. ** p < 0.01, * p < 0.05, - p > 0.05.

	H	Beta		Rec	Skew		Kurt		Rad Avg	Point Ness	Comp Eclipse
		a	b		x	y	x	y
A. longistylum 1–2	-	-	-	-	-	-	-	-	-	-	-
A. longistylum 2–3	-	-	-	-	-	-	-	-	-	-	-
A. longistylum 1–3	-	-	-	-	-	-	-	-	-	-	-
A. anisopodium 1–2	-	-	**	-	-	-	*	*	-	-	**

). In particular, we analyzed the average differences in trait values between three groups of A. longistylum and two groups of A. anisopodium collected from populations in different regions. Differences between groups were observed in most of the 30 variables. The average values for Height, Beta shape a and b, Rectangularity, Skew x and y, Kurt x and y, Phi Rad Statistic Average, Pointness, Ellipse and Circle Compactness, and Moment y Ratio were similar across groups.

2.1.2. Seed Outline Analysis

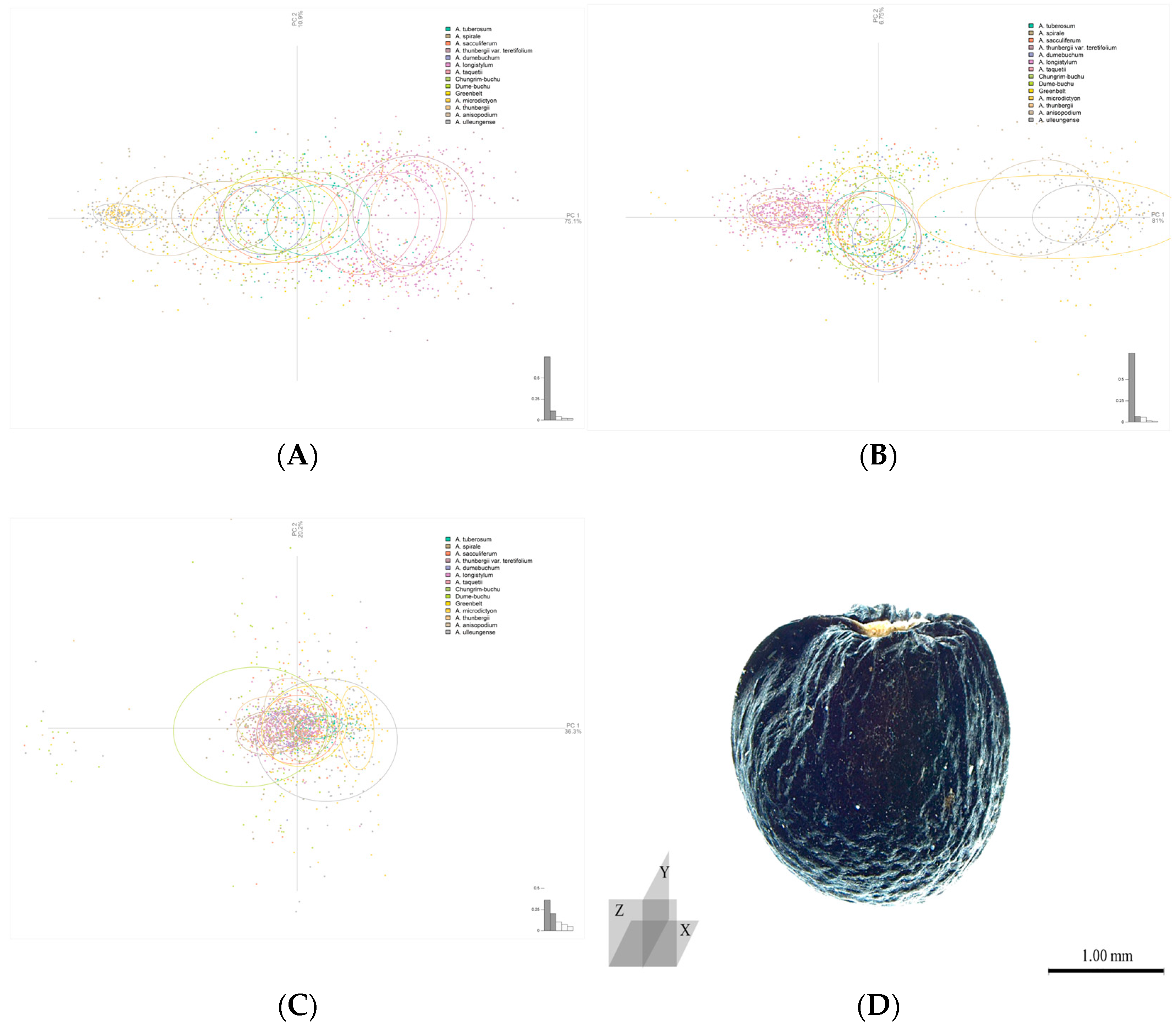

A principal component analysis (PCA) using the coordinate values of all outlines confirmed the accuracy of taxon classification on the x- and y-axes, excluding the z-axis (Figure 2,

Table 2. Result of analysis of variance (ANOVA) test about seed each axis outlines. *** p < 0.001.

x-axis	df	Wilks	Approx. F	Num Df	Den Df	Pr (>F)
taxa	13	0.058755	24.862	221	17505	<2.2 × 10−16 ***
Residuals	1699
y-axis
taxa	13	0.071127	32.882	156	14811	<2.2 × 10−16 ***
Residuals	1675
z-axis
taxa	13	0.25803	4.7473	507	20763	<2.2 × 10−16 ***
Residuals	1715

). On the x- and y-axes, A. anisopodium, A. microdictyon, and A. ulleungense were clustered, and A. thunbergii, A. thunbergii var. teretifolium, and A. longistylum had similar outlines. Furthermore, the outline of A. microdictyon on the y-axis had greater variation than those of other taxa. Along the z-axis, all taxa formed a single group without any special distinction. The PCA confirmed that the three cultivars had very similar outlines to those of the CWRs A. tuberosum and A. dumebuchum.

2.2. Micromorphological Analysis

In analyses of the micro-morphology of Allium seeds, the surface of the periclinal wall was classified as granulate in all taxa, except A. microdictyon and A. ulleungense (Figure 3). Although there were significant differences between some species in the size of granulate, the range was large, even within individuals (

Table 3. Comparison of granulate lengths among taxa. Lengths were calculated from SEM images. The same lowercase letters indicate a significance length difference.

Taxa	Length	Taxon	Length
A. tuberosum	ce 1.01 ± 0.25	A. thunbergii	e 1.08 ± 0.22
A. spirale	bc 0.95 ± 0.18	A. thunbergii var. teretifolium	f 1.31 ± 0.34
A. sacculiferum	a 0.79 ± 0.18	A. anisopodium	a 0.71 ± 0.17
A. taquetii	bc 0.95 ± 0.20	A. ulleungense	Absent
A. dumebuchum	a 0.72 ± 0.15	A. microdictyon	Absent
A. longistylum 1	a 0.76 ± 0.21	Chungrim-buchu	ce 1.04 ± 0.27
A. longistylum 2	b 0.91 ± 0.20	Dume-buchu	bc 0.95 ± 0.23
A. longistylum 3	bc 0.93 ± 0.22	Greenbelt	g 1.44 ± 0.34

). The granulates on the periclinal wall were density distributed, such that the base was not visible, with fusion to nearby granulates in some cases.

Two types of anticlinal wall shapes were observed (Figure 4): (I) irregularly curved (A. tuberosum and A. sacculiferum) and (II) straight. In addition, the thickness of the anticlinal walls and type of connections between cells differed among taxa and could be divided into three types: (i) thick anticlinal walls but cells connected in a linear form (A. microdictyon and A. ulleungense), (ii) cells connected through pilates of anticlinal walls (A. dumebuchum and Dume-buchu), and (iii) thin anticlinal walls and cells connected in a linear form. To confirm the types of anticlinal walls in each taxon, the parts where individual cells were connected and where the anticlinal walls between cells had separated due to partial destruction were observed (Figure 5). In taxa with curved anticlinal walls, the overall form of the seed coat cells was elliptical with a long equatorial axis. When cell boundaries were parallel to the major axis, they were straight, with curves forming only at the ends. By contrast, in taxa with straight boundaries, the shape was nearly hexagonal.

Scanning electron microscopy of cross-section of seeds in the genus Allium showed that the exotesta had a structurally complex shape and was composed of a relatively hard tissue in all taxa (Figure 6). Apart from for the exotesta, the cell boundaries consisted of a simple membrane. Owing to changes during preprocessing, only the simple structure was confirmed. The outer layer of the outer seed coat was composed of a single layer of cells and had a hard structure; as this structure was maintained during preprocessing, it could be compared among taxa. The outer layer was thicker in A. microdictyon, A. ulleungense, A. dumebuchum, and Dume-buchu than in other taxa.

2.3. Phylogenetic Analysis

2.3.1. Phylogenetic Analysis of the Outline

Each taxon was classified based on the outline shape on the x-, y-, and z-axes of Allium seeds (Figure 7). Along the x-axis, samples were divided into three groups, Group A consisting of subg. Rhizirideum, Group B divided into subg. Anguinum, and Group C divided into subg. Cepa & Butomissa. The subgenera were clearly distinguished based on the x-axis. For the y-axis, the classification results were less clear than those for the x-axis; Subg. Cepa could be largely divided into two groups. For the z-axis, all taxa showed similar morphological characteristics and were divided into three groups, without any distinction between subgenera.

2.3.2. Phylogenetic Analysis

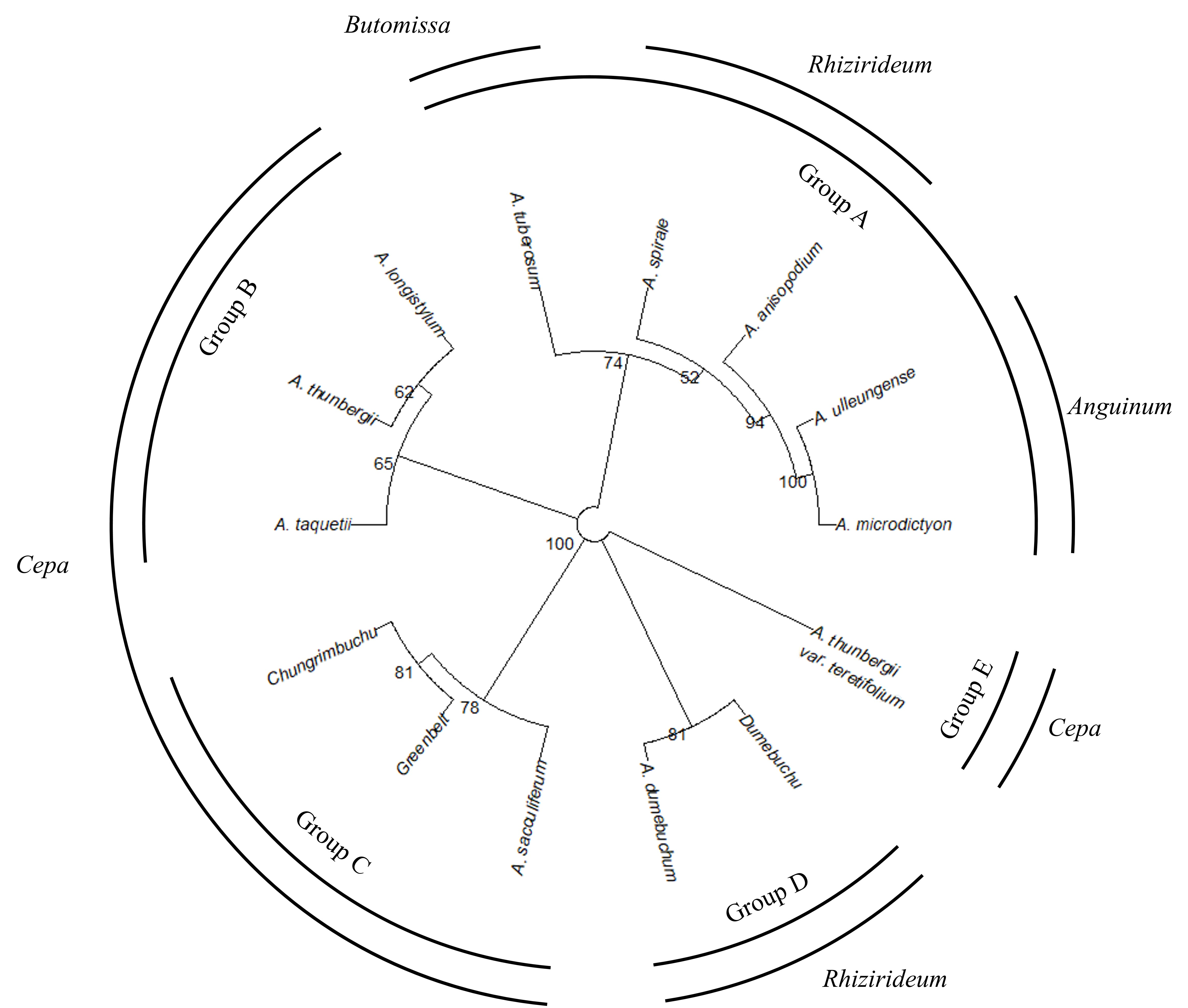

A comprehensive phylogenetic analysis was performed based on all studied characters (Figure 8). Taxa were divided into five groups. Subgenera Anguinum, Rhizirideum, and Butomissa formed one group (Group A in Figure 8). Subgenus Cepa was divided into three groups (Groups B, C, and E). A. thunbergii var. teretifolium formed an independent group. Additionally, A. dumebuchum formed an independent group, distinct from other taxa in subg. Rhizirideum. The cultivar Dumebuchu formed a group with A. dumebuchum, its CWR, while Greenbelt and Chungrim-buchu formed a group with A. sacculiferum.

3. Discussion

Analyses of the external, internal, and micromorphological characteristics of seeds revealed that the seed outline is a useful characteristic for identification at the subgenus level. However, other external morphological characteristics showed differences between populations within the same taxonomic group. Characteristics such as width and length show variation depending on genetic characteristics, even within very small populations [36]. Although these genetic characteristics provide a basis for distinguishing taxa [37], the traits are also determined by the environmental characteristics of the native region [38]. Accordingly, studies of the external morphological characteristics of seeds should consider environmental variables, and inter-intra population analyses are needed to understand trait variation and infer relationships.

Seed coat color and external morphology are often similar in different taxa, limiting their use for accurate classification. To ensure objectivity, color is measured using wavelengths [39,40], and outlines are quantitatively assessed using Fourier transform methods. Allium seeds are commonly (almost) black, with an oval-flattened/angular shape [41]. Our quantitative trait analyses indicated that the seed color is moderate olive green–grayish brown, and the seed outline is elliptical–spherical based on the z-axis. There were no significant differences in seed color between taxa; however, RGB values were correlated. There were no significant differences among populations within taxa; however, there was considerable variation within populations (Appendix A). Recent studies have utilized color changes during seed harvesting and storage as indicators of seed viability [42]. Given that seed color varies with viability, comprehensive RGB analyses, rather than individual color channels, are required for Allium species. Such analyses are expected to reveal significant interspecific differences in RGB values.

In the seed outline analysis, the x-axis was useful for classification. Fourier transform is mainly applied to leaves [26,43] and has rarely been applied to seeds. Nevertheless, our findings indicate that the Allium seed outline may be effective for species identification using machine learning techniques. Various machine learning techniques have been used for species classification, including studies based on outlines [44] or comprehensive traits, including outlines, through multispectral imaging [45]. These methods are expected to improve the accuracy of species classification and may be applicable to similar traits within the genus Allium.

Micromorphological traits of seeds have been used in phylogenetic analyses [30]. The results of this study indicate that the presence or absence of granules on the periclinal wall and shape of the anticlinal wall are useful for species classification at the subgenus level. These findings support the classification results based on various types of traits in previous studies of the genus Allium. However, the cross-section of the testa of Allium seeds has not been studied. In this study, the exotesta was thick in Anguinum and Rhizirideum and was thin in Cepa and Butomissa (Figure 6), indicating its value for morphological classification at the subgenus level. Previous studies have reported that the tegmen collapses or fuses with the endotesta during seed development [46]. In this study, the distinction between the tegmen and testa was not observed, and the tegmen and endotesta may be fused based on the discovery of the tegmen layer in the testa. The exotesta, evaluated through SEM, was a relatively rigid cellular structure, indicating that it acts as a physical barrier. According to Corner’s [47] classification, which is based on such physical features, these taxa have exotestal seeds.

Protrusions are hypothesized to arise from the easy separation of attached parts in relation to physical force. Protrusions are distributed on the surface of the stamen where pollen develops in many taxa with wind pollination, requires dispersion by small force [48]. Accordingly, granulates may be a strategy for seed dispersion; however, in the genus Mentzelia of Loasaceae, there is evidence that they function in securing moisture for germination rather than in seed dispersion [49]. In the genus Allium, including Allium cepa, it is important to store sufficient moisture on the seed surface [50]. In summary, granulates in Allium seeds may be an evolutionary strategy to retain moisture for seed germination and expand the surface area, rather than a strategy for seed dispersion. The moisture absorption rate for seed germination in A. koreanum H.J.Choi & B.U.Oh (Subg. Cepa) exceeds 100% in less than 24 h [51]. A. fistulosum L. (Subg. Cepa) has a moisture content of over 80% after 5 h at 40 °C [52]. Some taxa in the genus Allium exhibit physiological or morphological dormancy [53]; after breaking dormancy, the taxa with protrusions have a high germination rate of over 95%, whereas A. microdictyon, in which protrusions were not confirmed, the germination rate is 17.9% (significantly lower than in other taxa) [54].

The results of this study, based on analyses of morphological characters, support the Allium classification in previous studies. The subgenus Anguinum, which includes A. microdictyon and A. ulleungense, was clearly distinct from other taxa, consistent with the molecular phylogenetic trees reported by Li et al. [55] and Choi et al. [56] indicating that this subgenus branched earlier than other subgenera. Choi et al. [56] analyzed morphological characters of flowers and leaves, demonstrating that a major splitting event occurred between subg. Anguinum and other subgenera. The absence of protrusions in the periclinal walls of A. microdictyon and A. ulleungense, despite their presence in more basal subgenera, indicates that these traits may have evolved after the divergence of Anguinum. The genera Anguinum, Butomissa, and Rhizirideum (including A. anisopodium) share substantial similarity in morphological characteristics and formed a group in the molecular phylogenetic tree; these findings indicate that the morphological characteristics can sufficiently explain the genetic relationships between taxa.

These analyses revealed that A. anisopodium in subg. Rhizirideum is closely related to A. dumebuchum in the same subgenus. Based on these micro-characteristics, the evolution of the seed coat can be described as follows (Figure 9).

(A)

The protrusions on the seed coat basilar wall degenerated during the separation of the species from Anguinum and other subgenera.

(B)

After the divergence of subg. Butomissa, the borders of the seed coat cells developed irregular shapes, and the thickness of the exotesta decreased.

(C)

In subg. Rhizirideum, granulates formed between the intercellular anticlinal walls.

(D)

In subg. Cepa, the thickness of the exotesta was reduced.

This study did not include all taxa in the genus Allium. Accordingly, the proposed evolutionary processes should be evaluated through morphological studies of additional taxa and a comprehensive phylogenetic analysis based on genetic traits.

In the phylogenetic tree presented in this study, Rhizirideum and Cepa formed two groups. The subg. Rhizirideum was divided into sect. Tenuissima and sect. Rhizirideum. Subgenus Cepa includes many taxa within Allium and contains several sections in the lower ranks. The section included in this study were sect. sacculiferum; however, there were no significant taxonomic differences in the phylogenetic analysis, suggesting that the seed traits are useful for classification at the subgenus level.

Greenbelt and Cheongrim-buchu are commercially available cultivars, sold as Chinese chives in the market. The CWRs of Chinese chives are A. tuberosum (primary) and A. ramosum L., A. scabriscapum Boiss. & Kotschy (secondary) [57,58]. According to the results of this study, although the both cultivars are derived from A. tuberosum, their morphological characteristics are similar to those of A. sacculiferum and A. thumbergii var. teretifolium in the same subgenus (Figure 8). It is possible that the morphological characteristics of A. sacculiferum or A. thumbergii var. teretifolium were acquired from A. tuberosum or from A. sacculiferum during breeding. For example, crop breeding has been conducted based on the results of Chuda & Adamus [59] which showed that A. fistulosum is resistant to biotic stress. Dume-buchu, developed from A. dumebuchum, had very similar micro-characteristics to those of A. dumebuchum in this study. However, observed differences in external characteristics may be due to selection or breeding with other wild species or cultivars.

4. Materials and Methods

4.1. Samples

Wild seed samples of Allium were obtained from the seed bank of the Baekdudaegan National Arboretum (BDNA) (

Table 4. List of seed samples and vouchers. For this study, over 100 seeds were used from each voucher.

Species	Bank No.	Date	Region
Allium anisopodium Ledeb.	2021-006804	14 November 2021	Okdo-myeon, Gunsan-si, Jeollabuk-do, Korea Republic
A. dumebuchum H.J.Choi	2021-006822	2021	Subi-myeon, Yeongyang-gun, Gyeongsangbuk-do, Korea Republic
A. longistylum Baker	2021-006773	3 November 2021	Galmal-eup, Cheolwon-gun, Gangwon-do, Korea Republic
	2021-006832	25 October 2021	Dongsong-eup, Cheolwon-gun, Gangwon-do, Korea Republic
	2021-006833	25 October 2021	Gunnam-myeon, Yeoncheon-gun, Gyeonggi-do, Korea Republic
A. microdictyon Prokh.	2021-006513	2021	Punggi-eup, Yeongju-si, Gyeongsangbuk-do, Korea Republic
A. sacculiferum Maxim.	2019-008952	9 October 2019	Gogae-myeon, Geochang-gun, Gyeongsangnam-do, Korea Republic
A. spirale Willd.	2021-006539	2 November 2021	Gangmun-dong, Gangneung-si, Gangwon-do, Korea Republic
A. taquetii H.Lév. & Vaniot	2021-006802	31 October 2021	Saekdal-dong, Seogyipo-si, Jeju-do, Korea Republic
A. thunbergii G.Don	2020-040355	14 October 2020	Ganseong-eup, Gosung-gun, Gangwon-do, Korea Republic
A. thunbergii var. teretifolium H.J.Choi & B.U.Oh	2018-012360	22 October 2018	Macheon-myeon, Hamyang-gun, Gyeongsangnam-do, Korea Republic
A. tuberosum Rottler ex Spreng.	2021-006775	1 October 2021	Shindong-eup, Jeongseon-gun, Gangwon-do, Korea Republic
A. ulleungense H.J.Choi & N.Friesen	2021-005218	22 June 2021	Ulleung-eup, Ulleung-gun, Gyeongsangbuk-do, Korea Republic

). The seeds stored in the seed bank were collected directly from the wild and identified through purification and quality control; the collection number, collection date, collector, inspection date, and storage date after moisture measurement were recorded. Seeds of commercially available cultivars were purchased from seed sellers registered in Korea.

4.2. Analysis of External Morphological Characteristics

To measure the external morphological characteristics of Allium seeds, spectral images were obtained using a spectral image analyzer (VideometerLab 4, Videometer, Herlev, Denmark). After images were obtained using 19 wavelengths, the seeds and other parts were separated, and an nCDA (normalized Canonical Discriminant Analysis) file was created through an automatic statistical analysis using the wavelength information. After segmentation according to the level of nCDA activity, seeds were extracted and aligned using the corresponding segmentation. Each image was further analyzed to obtain basic seed information, such as length, width, and area, and additional information, such as beta shape a. For color, the Lab values calculated through image analysis were converted to sRGB through the H₆₅ standard basic conversion process according to the standard of IEC 61966-2-1:1999 [60] and then compared with the RHS chart. The height of the seeds was measured using Vernier calipers (Traceable^®, Webster, TX, USA).

Outline Analysis

To analyze the outline, images of the Allium seeds were obtained along the x-axis, y-axis, and z-axis using a stereo microscope (DVM6, Leica, Wetzlar, Germany). All Allium seeds were photographed using the z-stack function in the stereomicroscope shooting program Las X (Leica, Wetzlar, Germany) with all sides in focus. The images were converted to black and white through binarization according to the image color using the Python-based Colaboratory (Google Inc., USA, https://colab.research.google.com) program, and the outline was extracted through a contour analysis. The extracted outline was approximated and expressed as more than 200 points, and the coordinate values of the points on the image were extracted. The outline coordinate values are expressed in the form of x-, y-axis based on the pixel values on the image, and the coordinate values were separated into a separate file for each object and then used for analysis after error verification using the Momocs package version 1.4.1 in R [61]. The verified coordinate values were analyzed using PCA after Fourier transformation using the transform function in the Momocs package. eFourier is a simple transform that uses the difference between the x-axis and y-axis [62]. rFourier uses the radius of the sample and the cosine and sine functions, while tFourier uses the tangent function [63]. sFourier uses the values for 64 radii from the center of gravity [64].

4.3. Micromorphological Analysis

To confirm the micromorphological characteristics of the seeds, a scanning electron microscope (SEM) preprocessing process was used. Preprocessing involved fixing the seeds in a formalin acid alcohol solution (FAA) for at least 24 h, followed by incubation in 100% ethanol through an ethanol series and then drying the seeds using a CPD (Critical Point Dryer; Samdri-PVT-3D, Tousimis, Rockville, MD, USA). The dried seeds were placed on aluminum stubs with carbon tape attached and then coated with Au at 3 mA for 300 s using an ion coater (SPT-20, COXEM, Daejeon, Republic of Korea). Images were obtained using SEM (CX-200, COXEM, Daejeon, Republic of Korea) at an acceleration voltage of 15 kV and focal length of 10 ± 5 mm.

The microscopic characteristics of the seeds evaluated in the study included the shape of the periclinal and anticlinal walls composing the seed coat and the presence or absence of protrusions. In addition, images were taken at high magnification to measure the size of the protrusions. Based on images of various parts of a single sample, the size was calculated using image accumulation. Images of the boundaries and groups of cells composing the seed coats were obtained to confirm the shapes of the periclinal and anticlinal walls. The shapes of the boundaries of each cell in each image were classified according to the criteria of Hickey & King [65].

4.4. Analysis of Phylogenetic Relationships

Phylogenetic analyses of cultivars and wild taxa were performed based on two datasets: (a) outlines and (b) external and micromorphological trait data. The initial analysis based on using outlines was conducted to verify the utility of quantitative variables for taxon discrimination.

In the analysis of taxa using outlines alone, the optimal Fourier transform values for each axis of the seeds were used. The optimal Fourier values were determined according to the degree of explanation and discrimination ability of each variable using each PCA value, and the transformed Fourier values were used for phylogenetic analysis. The outlines of all seeds for each group of each taxon were extracted using the MSHAPE function of the Momocs package, and a comprehensive phylogenetic analysis was performed using the average values.

For phylogenetic analyses, both quantitative and qualitative variables were transformed. Quantitative variables, were normalized to address variation in the weights of each variable, while qualitative variables, were factorized for common traits. The transformed variables were subjected to FAMD (Factor Analysis Mixed Data) using the FAMD function of the FactoMineR package version 2.11 [66] and factoextra package version 1.0.7.

In the phylogenetic analysis using the outline and the comprehensive analysis using all variables, distances were calculated for each variable. In particular, Gower distances were calculated using the Cluster package in the R program, and other distances, such as Manhattan distances, were calculated using the stats and ade4 packages version 1.7-23 [67]. Phylogenies were inferred using fastME, NJ, and BNJ distance algorithms of the ape package version 5.8-1 [68], UNJ of phangorn version 2.12.1 [69], and hclust of stats. Bootstrap values were calculated using the boot.phylo function of the ape package. The likelihood value for the phylogenetic tree based on each calculated distance matrix was determined using the motmot package version 2.1.3 [70], and the phylogenetic tree with the optimal value was selected as the final phylogenetic tree.

5. Conclusions

CWR studies focused on cultivars and wild taxa distributed in Korea are lacking. The Allium taxa in this study have not been reported in CROPTRUST or the USDA. Therefore, we suggest the inclusion A. saccuiferum and A. thumbergii var. teretifolium within subg. Cepa in both Korean and international CWR inventories, as supported by our observation that these taxa are phylogenetically very closely related to A. tuberosum, categorized as a primary CWR, and share numerous morphological characteristics.

Allium species, including cultivated varieties, show high morphological similarity. We identified quantitative morphological parameters, particularly the shape outline along the x-axis and micromorphological traits, able to effectively distinguish taxa at the subgenus level. Moreover, wild taxa harboring valuable genetic resources and cultivated varieties exhibited highly similar morphological features. Although there is strong potential for developing new cultivars through the utilization of novel genetic traits from wild relatives, these findings also highlight the challenge of morphological differentiation between cultivated and wild taxa, posing a potential threat to the conservation of wild taxa. We emphasize the importance of ongoing taxonomic and phylogenetic analyses to update and refine the classification within CWR inventories. We expect our findings to contribute to the improved conservation and utilization of CWRs.
