Article

Genetic Mapping of a QTL Controlling Fruit Size in Melon (Cucumis melo L.)

by
Fazle Amin
1,2,
Nasar Ali Khan
1,2,
Sikandar Amanullah
3,
Shusen Liu
4,
Zhao Liu
4,
Zhengfeng Song
4,
Shi Liu
1,2,
Xuezheng Wang
1,2,
Xufeng Fang
1,* and
Feishi Luan
2,*
1
Key Laboratory of Biology and Genetic Improvement of Horticulture Crops (Northeast Region), Ministry of Agriculture and Rural Affairs, College of Horticulture and Landscape Architecture, Northeast Agricultural University, Harbin 150030, China
2
College of Horticulture and Landscape Architecture, Northeast Agricultural University, Harbin 150030, China
3
Department of Horticultural Science, North Carolina State University, Mountain Horticultural Crops Research and Extension Center, 455 Research Drive, Mills River, NC 28759, USA
4
Watermelon and Melon Breeding Engineering Technology Research Center of Shandong Province Co., Ltd., Weifang 261000, China
*
Authors to whom correspondence should be addressed.
Plants 2025, 14(15), 2254; https://doi.org/10.3390/plants14152254
Submission received: 29 May 2025 / Revised: 21 July 2025 / Accepted: 21 July 2025 / Published: 22 July 2025
(This article belongs to the Special Issue Functional Genomics of Cucurbit Species)
Browse Figures
Versions Notes

Abstract

Fruit size is an important agronomic trait affecting the yield and commercial value of melon and a key trait selected for during domestication. In this study, two respective melon accessions (large-fruited M202008 and small-fruited M202009) were crossed, and developed biparental mapping populations of the F2 generation (160 and 382 plants) were checked across two subsequent experimental years (2023 and 2024). The phenotypic characterization and genetic inheritance analysis showed that melon fruit size is modulated by quantitative genetics. Bulked segregant sequencing analysis (BSA-seq) identified a stable and effective quantitative trait locus (QTL, named Cmfs) controlling fruit size, localized to a 3.75 Mb region on chromosome 9. To better delineate the main-effect Cmfs locus, co-dominant polymorphic molecular markers were developed in this genetic interval, and genotyping was performed within the F2 mapping populations grown across two years. QTL analysis of the phenotypic and genotypic datasets delimited the major-effect Cmfs locus interval for fruit length [2023: logarithm of odds (LOD) value = 6.16, 16.20% phenotypic variation explained (PVE); 2024: LOD = 5.44, 6.35% PVE] and fruit diameter (2023: LOD value = 5.48, 14.59% PVE; 2024: LOD = 6.22, 7.22% PVE) to 1.88 and 2.20 Mb intervals, respectively. The annotation analysis across the melon genome and comparison of resequencing data from the two parental lines led to the preliminary identification of MELO3C021600.1 (annotated as cytochrome P450 724B1) as a candidate gene related to melon fruit size. These results provide a better understanding for further fine mapping and functional gene analysis related to melon fruit size.

1. Introduction

Melon (Cucumis melo L., 2n = 24), an economically important member of the Cucurbitaceae family, is grown worldwide in tropical to temperate zones [1]. The genus originated in Africa, and its center of diversity ranges from Turkey to Japan [2]. China is the leading melon-producing country, followed by India, Turkey, Kazakhstan, and Brazil [3]. The commercial value of melon crops depends strongly on the fruit quality; alongside the shape, texture, and color, the fruit size crucially influences the crop’s utility and yield and consumer preferences. Thus, it is a focal trait in melon breeding [4].
Melons range in size from very small (<100 g) to small (100–400 g), medium (400 g−1 kg), large (1–5 kg), and gigantic (4–10 kg). Their shapes range from round to slightly flat, obovoid, ellipsoid, long, and extremely long [5]. It has been known that fruit size is genetically programmed during early floral meristem development. Perin et al. [6] identified a total of 19 fruit morphology-related and 15 ovary-size-related QTLs in two melon populations. The co-segregation patterns of these loci suggested early developmental control of fruit shape [7]. It was stated that the fruit size regulation involves complex interactions among cellular processes including cell cycle dynamics, cell wall metabolism, and plant hormone signaling [8]. To date, more than 200 QTLs related to melon fruit development have been reported [9]. Among these, 78 consensus QTLs and the QTL intervals were found to contain large numbers of homologous genes regulating fruit size [5]. Most of them, including fsqs12.1 [6], mfl12.1/mfs12.1 [10], fdqs12.1/fsqs12.2 [9], and FSQM12 [11], are located on chromosome 12. CmOFP13 (OVATE-domain family protein), located on chromosome 8, is the only gene regulating melon fruit size that has been cloned [12].
Fruit-size-related QTLs in other Cucurbitaceae crops have been cloned successfully. Dou et al. [13] conducted fine mapping of the watermelon fruit-size-related locus ClFSI3.3 and suggested that ClSUN25-26-27a was the key candidate gene. CsSUN, the homologous gene in cucumber, induces fruit elongation by promoting longitudinal and inhibiting transverse cell division [14]. CsTRM5 also regulates cucumber fruit length by interfering with the cell division direction and cell expansion [15]. CsCRC, CsAPR1, CsFUL1, CsSF1, and CsSF2 are other key genes regulating cucumber length; CsCRC and CsAPR1 positively regulate cell enlargement [16], CsFUL1 influences the auxin content [17], and CsSF1 and CsSF2 regulate cytokinin signaling and gibberellin synthesis to reduce the number of fruit cells and the formation of small cucumbers [18]. In addition, cytochrome P450s are one of the largest enzymatic protein families found in many plants. They are involved in the growth and development of organs and have been found to play key roles in the regulation of watermelon, tomato, and sweet cherry fruit size [19,20,21]. They regulate auxin biosynthesis [22], are involved in gibberellin metabolic pathways [23], and participate in the regulation of brassinosteroid biosynthesis [24]. Brassinosteroids also play critical roles in various plant growth processes, including the regulation of cell proliferation and elongation [25].
QTL mapping is a key molecular technique in breeding and genetics studies that helps in evaluating the regulatory basis of crop-specific traits. The construction of genetic linkage maps is a critical prerequisite for the identification of stable QTL regions. The basic genetic maps were first developed in the 1980s and 1990s, and they usually included a minimum of 10–100 markers, e.g., SSR, AFLP, and RAPD [26,27]. However, conventional markers provided required extensive labor, provided limited genomic coverage, and restricted resolution. Later, the release of the melon genome in 2012 [28] laid the foundation for high-resolution genetic mapping of the species. During the last decade, the advanced multi-omics approaches that utilize next-generation sequencing technologies for whole genome sequencing have become more appealing to researchers, which has enabled them to produce ultra-high-density genetic maps of melon using single-nucleotide polymorphism (SNP) markers and more accurate genotyping [29].
High-density genetic mapping at resolutions of up to hundreds of kilobases [30,31] has been performed for many Cucurbitaceae family members, e.g., cucumber [32], squash [33], bitter gourd [34,35], watermelon [36], and melon [29,37,38]. In this study, an F2 melon population was obtained by crossing the different accessions of small-fruited (M202008) and large-fruited melons (M202009). A major stable QTL was identified on chromosome 9 based on BSA-seq and genetic linkage analysis of fruit length and diameter in combination with genotypic data from a 2-year period. Our comparison of the resequencing results from the two parental lines led us to hypothesize that MELO3C021600.1 (annotated as cytochrome P450 724B1) is a candidate gene governing melon fruit size. Our study aims to provide useful germplasm resources for the fruit size breeding of melon and to lay the molecular genetic foundation for the study of fruit size in other cucurbit crops.

2. Results

2.1. Phenotypic Variations in Length and Diameter of Melon Fruits

The melons produced by the M202009 line were significantly smaller than those produced by the M202008 line (Figure 1). However, the melons of the M202008 line had a mean diameter of 9.80 ± 0.30 cm and length of 9.30 ± 0.60 cm, whereas M202009 melons had a mean diameter of 6.10 ± 0.70 cm and a length of 6.40 ± 0.50 cm. The F1 fruits had a mean diameter of 8.10 ± 0.30 cm and a length of 8.10 ± 0.70 cm. For the F2 mapping population planted in the experimental year of 2023, fruit diameters ranged from 4.80 to 11.00 cm (mean, 8.40 ± 1.15 cm) and lengths ranged from 4.50 to 12.50 cm (mean, 8.25 ± 1.51 cm; Table 1, Figure 2). The diameters and lengths of melons from the extended F2 population planted in the experimental year of 2024 ranged from 4.60 to 9.60 cm (mean, 7.60 ± 0.95 cm) and from 4.50 to 12.40 cm (mean, 7.57 ± 1.17 cm), respectively (Table 1, Figure 2). Thus, the fruit diameter and length distributions were consistent with the characteristics of quantitative traits. Interestingly, these traits were positively correlated in F2 mapping populations grown during 2023 (r = 0.76) and 2024 (r = 0.70), respectively (Figure 2).

2.2. BSA-Seq and Genetic Mapping of Cmfs

In total, 71,309,728 bp (94.32%) and 78,885,130 bp (96.48%) were obtained for two parental lines (M202008 and M202009), with quality check scores (Q30 values) of 89.31% and 97.38%, respectively. A total of 3,248,677 SNPs were detected after screening the quality and genotype discrepancies between the parental and bulk samples. According to the delta (∆) SNP index and Euclidean distance (ED) values, the main-effect locus regulating melon fruit size (Cmfs) was determined to be located within the 3,270,000–7,020,000 bp interval on chromosome 9, spanning about 3.75 Mb (Figure 3).
Based on the BSA-seq results, a total of 10 polymorphic InDel markers were developed in the target region. The marker genotyping within 2023-F2 plants enabled the refinement of the main interval governing the fruit diameter and length to a 1883.93 kb long region between two flanking markers (Chr9_4100141 and Chr9_5984071) (Figure 4A), exhibiting LOD values for the fruit length and diameter of 6.16 and 5.48, with 16.20% and 14.59% of the phenotypic variability, respectively (Table 2). The additional marker genotyping within the 2024-F2 population indicated that the targeted region for fruit length and diameter was positioned between adjacent markers (Chr9_4100141 and Chr9_6296006) (Figure 4A), exhibiting LOD values for the fruit length and diameter of 5.44 and 6.22, with 6.35% and 7.22% phenotypic variability, respectively (Table 2). The candidate InDel marker (Chr9_5648318) showed the highest LOD value, relative to those with the genotype of the M202008 parent line, and in individuals from the mapping populations of the two experimental years (2023 and 2024).
Further, the genetic effect plot of candidate InDel markers determined the significant and positive correlation between phenotypes and genotypes (AA, M202008 genotype; AB, heterozygous genotype; BB, M202009 genotype). The genotype of the M202009 parent line had shorter fruits (7.20 ± 0.26 vs. 8.80 ± 0.13 cm and 7.20 ± 0.15 vs. 8.0 ± 0.19 cm) and smaller diameters (7.50 ± 0.15 vs. 8.70 ± 0.23 cm and 7.20 ± 0.12 vs. 7.90 ± 0.10 cm).

2.3. Candidate Genes Predicted to Be Related to the Cmfs Locus

Based on the annotation analysis of the melon reference genome (DHL92, v4.0), a total of 205 genes were predicted in the mapping region (Table S1). The following gene sequence variations between the parental lines in the coding region of MELO3C021600.1 were identified: non-synonymous SNP4,267,567(C to T), SNP4,267,818 (C to T), SNP4,267,862 (A to C), SNP4,268,573 (A to G), SNP4,268,604 (T to A), SNP4,269,150 (G to A), and SNP4,270,637 (A to G). These variations led to the change of arginine with histidine, aspartic acid with asparagine, phenylalanine with leucine, tyrosine with histidine, leucine with *, and alanine with valine and tyrosine. Additionally, a 3 bp (TGT) insertion was detected at position 4,268,557–4,268,558, leading to a mutation in the MELO3C021600.1 gene (Table S2). The promoter region of the candidate MELO3C021600.1 gene was found to contain seven SNPs that differed between parental lines (from the start codon ATG, T→C at 210 and 1027 bp, G→C at 1163 bp, C/T →T at 1211 bp, A/C→A, and G→A at 1742 and 1840 bp; see Table S3). In addition, a 23 bp deletion in the promoter region of MELO3C021600.1, potentially affecting its regulatory function, was observed in the M202008 parent line.

3. Discussion

Fruit size is a crucial characteristic of melon cultivars. It serves as a key indicator of both fruit quality and yield, and it represents an adaptive feature that has evolved over time in horticultural plants, which are becoming increasingly important for human life. To date, various genes and QTLs have been reported to contribute to fruit enlargement in different horticultural plants during domestication and improvement [39]. This trait has been examined in various cucurbits, including melon [10,40,41], watermelon [19], cucumber [42,43], and tomato [44,45]. However, fruit size is known as a complex polygenic trait, exhibiting clusters of QTLs and genes distributed across the melon genome; however, the underlying molecular mechanisms are not fully understood.
The availability of the melon draft genome has accelerated the genetic mapping studies using segregated biparental populations and led to the identification of numerous QTLs related to fruit size, shape, and weight [46,47,48]. In the present study, two melon lines with small and large fruits were crossed, and the fruit size phenotyping of the F2 mapping population showed a normal distribution and quantitative genetics of inherited traits. The BSA-seq analysis of two extreme bulks revealed that a candidate genetic interval of this QTL position was 3.75 Mb long (Figure 3). The genotyping of developed InDel markers was used for genetic mapping, and the analysis narrowed down the candidate region of Cmfs to between adjacent markers (Chr9_4100141 and Chr9_5984071) on chromosome 9 (Figure 4). Multiple breeding and genetic studies have shown that melon fruit size is regulated by a main-effect region on chromosome 9, and the QTLs detected in this study correspond to those previously identified to be related to fruit size and shape. In previous studies involving the crossing of distinct parental lines, Amanullah et al. [49] identified fruit width QTLs (FW9.1 and FW9.2) and a fruit weight QTL (FWT9.1) on chromosome 9. QTLs related to fruit size traits have also been detected in the same region by crossing the Piel de Sapo and PI 161375 lines [10,50]. Similarly, the crossing of a small-fruited wild tomato species with a large-fruited tomato line led to the identification of QTLs on chromosome 9 related to fruit length and width [51]. In this study, the analysis of QTLs in plants grown in two consecutive years led to the identification of a stable genomic region containing Cmfs. Among the genes in the mapping region, MELO3C021600.1 was the predicted candidate, with mutations in the coding sequence and promoter regions.
In the previous studies, the candidate MELO3C021600.1 gene, a member of the 724B1 family (CYP724B1) that encodes cytochrome P450, has been predicted to be responsible for the regulation of fruit size [2,20,21,52,53]. Cytochrome P450s form the major enzyme protein family found in many plants; they play vital roles in various metabolic pathways by triggering primary and secondary metabolites that promote plant growth, development, and defense [52,54]. The CYP724B1 subfamily of genes belongs to a cluster in the CYP85 group that is related to brassinosteroid metabolism [55,56]. Cytochrome P450 (CYP724B1) shows homology to enzymes involved in brassinosteroid biosynthesis [57]. In rice and tomato, CYP724B catalyzes C-22 hydroxylation during this process [58,59]. Brassinosteroids are essential plant hormones involved in numerous plant growth and development processes, primarily cell division and expansion, seed germination, the enhancement of shoot branching, stress tolerance, and resistance to various pathogens [60,61]. Cytochrome P40 genes have been determined to be involved in controlling the growth and development of Arabidopsis thaliana organs [62,63,64]; the genetic regulation for the development of organ size in tomato [20], wheat [65] and soybean [66]; and the regulation of fruit size in watermelon [19], pear [67], and sweet cherry [21]. These associated genes affect mesocarp cell expansion and proliferation during fruit growth and development, and their silencing results in reduced fruit size [19,21].
Based on the results of this study, including the identification of seven non-synonymous mutations (nsSNPs) in the coding region of MELO3C021600.1, a 3 bp (TGT) insertion in the M202009 parent line (Table S2), and a 23 bp insertion in the promoter region of the M202009 parent line (Table S3), we hypothesize that MELO3C021600.1 is a candidate gene for regulating the Cmfs locus. However, although the QTLs for fruit length and fruit width detected in this study both showed significant effects (Table 2), the proportion of phenotypic variation explained indicates that other gene loci may also have an impact on the variation in fruit size. This suggests that the fruit size of melon is regulated by multiple genes, such as fsqs12.1 located on chromosome 12 [6] and CmOFP13 on chromosome 8 [12]. Future exploration of the relationships between these loci will help to further understand the genetic decoding of melon fruit size. Moreover, fine genetic mapping and gene functional validation and expression analyses are required to verify the role of the gene prediction made in this study. The present study findings provide a genetic basis for advanced marker-assisted breeding and map-based cloning aimed at the enhancement of melon fruit size traits.

4. Materials and Methods

4.1. Melon Lines and Development of Mapping Population

In the first experimental year of 2022, two different melon lines M202008 (large-fruited line, P1) and M202009 (small-fruited line, P2) were chosen as experimental materials based on different fruit sizes. These parental lines were grown and crossed to produce their F1 generation and mapping population of the biparental F2 generation. In the next year (2023), the parental lines (10 plants with 3 replications), the F1 generation (10 plants with 3 replications), and the F2 generation (160 plants) were grown to examine the genetic inheritance of the fruit size trait and identify the candidate regulatory genomic region through whole-genome BSA-seq and QTL analysis. Then, in the next year (2024), the plants of the same parental lines (10 plants with 3 replications), the F1 generation, and an expanded F2 mapping population (382 plants) were grown and used to narrow down the identified genomic region of the candidate fruit-size-related genetic locus (Cmfs), and the underlying candidate genes were predicted.
All the field experiments were conducted at the Xiangyang Agricultural and Experimental Farm of Northeast Agricultural University, Harbin, China. To grow better fruit crops, a 12 h day length and a 25 °C average temperature in the spring of 2023 and 2024 were used. The flowers were pollinated at the anthesis stage, and mature fruits were collected at the full maturity stage by observing changes in external skin color and the development of an abscission layer at 35 days after pollination (DAP). The freshly harvested fruits were cut into longitudinal sections, photos were taken, and phenotypes were characterized. Fruit length (FL) and diameter (FD) were measured in centimeters (cm) using an electronic vernier caliper [49] with a precision of 0.01 mm. The replicated data of three freshly harvested fruits from each plant was recorded, and averaged values were characterized.

4.2. DNA Isolation and BSA-Seq Analysis

Young leaves were collected from each melon plant and quickly frozen at −80 °C. Total genomic DNA was extracted using a modified cetyltrimethylammonium bromide (CTAB) protocol [68]. The isolated DNA was quantified with a spectrophotometer (840-317400, Thermo, Waltham, MA, USA) and samples with an A260/280 ratio between 1.8 and 2.0 were considered acceptable for experiments. The quantified DNA samples were checked using 1% agarose gel and stored at −20 °C. Twenty bulk DNA samples each from small- and large-fruited plants were selected from the primary F2 mapping population grown in 2023 and subjected to whole-genome BSA-seq. Whole-genome resequencing of the two parental lines and two gene pools was performed at 30× coverage using Illumina Novaseq 6000 at Lianchuan Biotechnology Company, Hangzhou, China. Then, high-quality reads were filtered against the latest melon reference genome (http://www.cucurbitgenomics.org/organism/18, accessed on 1 December 2023) using the Burrows–Wheeler Aligner (BWA, v0.7.17) software [69], and SNP variants were called with samtools and bcftools [70]. The ΔSNP index was computed based on the Euclidean distance (ED) algorithm to detect the main chromosomal region associated with the melon fruit length and diameter, as described in previous genetic studies [71,72].

4.3. Genetic Marker Development and Primary Mapping

To confirm the BSA-seq-based identification of candidate regions (Cmfs), insertion/deletion (InDel) markers with base number differences ≥ 5 were designed in the primary mapped region using the filtered whole-genome sequenced reads from the two parental lines. The primers with the best properties of product length and size were exported from Primer Premier software (version 5.0). The markers were labeled with the chromosome name and physical sequence position (Table S4) and oligo-synthesized.
An optimized polymerase chain reaction (PCR) for the markers was performed using a thermal cycler (model 2720; Applied Biosystems Inc., Hercules, CA, USA). The oligo-synthesized primers were checked with the three testing genotypes of P1, P2, and F1, respectively. After the initial screening, primers showing co-dominant polymorphism (with a 58% success rate) were selected for genotyping within the F2 mapping population. The polymorphic InDel markers were used for genotyping with the primary F2 mapping population of 2023, and the main-effect locus (Cmfs) was mapped. QTL analysis was performed to obtain a stable genomic region containing the locus across the F2 mapping populations of both experimental years of 2023 and 2024. The PCR products of the markers were subjected to 8% denaturing polyacrylamide gel electrophoresis with silver staining.
For the genetic mapping and QTL analysis, the respective genotypic and phenotypic coded data were grouped and anchored across chromosome 9. JoinMap (version 4.0; https://www.kyazma.nl/index.php/JoinMap, accessed on 26 December 2023) software was used to determine the genetic positions (centimorgans, cM) of the genotypic InDel markers. QTL analysis was performed using R/qtl software (version 1.5) [73], logarithm of odds (LOD) values were obtained, and phenotypic contribution rates were calculated using the LOD threshold value of >3.0. The phenotypic and genotypic data correlated with the corresponding markers to the highest LOD value were analyzed for the QTL interval.

4.4. Candidate Gene Prediction

The candidate genes in the mapped region were predicted, and the functional annotations of identified genes were checked using the online database for the reference melon genome (DHL92, http://www.cucurbitgenomics.org/, accessed on 5 March 2024). SNP mutations in the predicted genes were examined by pairwise comparison with the coding and promoter regions of the parental lines using Integrative Genomics Viewer (IGV, version 2.1.2) software (http://software.broadinstitute.org/software/igv/, accessed on 9 March 2024), and gene sequence analysis was performed using DNAMAN (version 10.0; Lynnon Biosoft, San Ramon, CA, USA).

4.5. Statistical Analysis

The recorded replicated data were computed in Microsoft® Excel (version 2010) and significant differences were identified using analysis of variance and R/qtl (version 1.5; https://rqtl.org/index.html, accessed on 3 April 2024). GraphPad Prism (version 8.0; GraphPad Inc., San Diego, CA, USA) was used to analyze the frequency distributions, kurtosis, skewness, and correlations in the fruit length and diameter of the biparental mapping population of the F2 generation.

5. Conclusions

Herein, our whole-genome BSA-seq-based analysis revealed a major-effect locus (Cmfs) controlling the fruit size of melons. QTL mapping using InDel markers revealed a stable genetic region on chromosome 9, and gene annotation analysis predicted MELO3C021600.1 as a candidate gene for controlling the Cmfs locus. Our obtained results revealed a reliable genetic locus and putative gene; however, further research is required for functional validation through gene expression analyses. The findings of the present study illustrated a genetic basis for advanced marker-assisted breeding and map-based cloning aimed at the development of improved melon cultivars with proper fruit size traits.

Supplementary Materials

The following supporting information can be downloaded at https://www.mdpi.com/article/10.3390/plants14152254/s1. Table S1: Information on the candidate genes identified in the mapping region; Table S2: Mutations in the coding sequence region of MELO3C021600.1; Table S3: Sequence variation in the promoter region of MELO3C021600.1; Table S4: Information on the InDel markers used for genetic mapping.

Author Contributions

Conceptualization, X.F.; formal analysis, F.A.; investigation, F.A.; methodology, X.F.; project administration, X.F.; resources, S.L. (Shi Liu), X.W., Z.S., Z.L. and S.L. (Shusen Liu); supervision, F.L.; validation, N.A.K. and S.A.; visualization, S.L. (Shi Liu), X.W., Z.S., Z.L. and S.L. (Shusen Liu); writing—original draft, F.A.; writing—review and editing, X.F. All authors have read and agreed to the published version of the manuscript.

Funding

This study was funded by the Agricultural Seed Improvement Project for Key Research and Development Plan of Shandong Province (grant number: 2023LZGCQY010), the Program for Young Talents of Basic Research in Universities of Heilongjiang Province (grant number: YQJH2024012), the Talent Introduction Project of Northeast Agricultural University (grant number: 24YJQA02), and the China Agriculture Research System of MOF and MARA (grant number: CARS-25).

Data Availability Statement

The data presented in this study are available upon request from the corresponding author.

Acknowledgments

We appreciate all the people who have collaborated on this project.

Conflicts of Interest

Authors Shusen Liu, Zhao Liu, Zhengfeng Song were employed by the company Watermelon and Melon Breeding Engineering Technology Research Center of Shandong Province Co., Ltd. The remaining authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

References

  1. Fernández-Trujillo, J.P.; Picó, B.; Garcia-Mas, J.; Álvarez, J.M.; Monforte, A.J. Breeding for fruit quality in melon. In Breeding for Fruit Quality; John Wiley & Sons, Inc.: Hoboken, NJ, USA, 2011; pp. 261–278. [Google Scholar]
  2. Liu, S.; Gao, P.; Zhu, Q.; Zhu, Z.; Liu, H.; Wang, X.; Weng, Y.; Gao, M.; Luan, F. Resequencing of 297 melon accessions reveals the genomic history of improvement and loci related to fruit traits in melon. Plant Biotechnol. J. 2020, 18, 2545–2558. [Google Scholar] [CrossRef] [PubMed]
  3. FAOSTAT. Statistics Division of Food and Agriculture Organization of the United Nations, Rome, Italy. 2023. Available online: http://faostat.fao.org/ (accessed on 18 February 2025).
  4. Xu, S.; Shen, J.; Wei, Y.; Li, Y.; He, Y.; Hu, H.; Feng, X. Automatic plant phenotyping analysis of Melon (Cucumis melo L.) germplasm resources using deep learning methods and computer vision. Plant Methods 2024, 20, 166. [Google Scholar] [CrossRef] [PubMed]
  5. Pan, Y.; Wang, Y.; McGregor, C.; Liu, S.; Luan, F.; Gao, M.; Weng, Y. Genetic architecture of fruit size and shape variation in cucurbits: A comparative perspective. Theor. Appl. Genet. 2020, 133, 1–21. [Google Scholar] [CrossRef] [PubMed]
  6. Périn, C.; Hagen, S.; De Conto, V.; Katzir, N.; Danin-Poleg, Y.; Portnoy, V.; Baudracco-Arnas, S.; Chadoeuf, J.; Dogimont, C.; Pitrat, M. A reference map of Cucumis melo based on two recombinant inbred line populations. Theor. Appl. Genet. 2002, 104, 1017–1034. [Google Scholar] [CrossRef]
  7. Périn, C.; Hagen, L.S.; Giovinazzo, N.; Besombes, D.; Dogimont, C.; Pitrat, M. Genetic control of fruit shape acts prior to anthesis in melon (Cucumis melo L.). Mol. Genet. Genom. 2002, 266, 933–941. [Google Scholar] [CrossRef]
  8. Saladié, M.; Matas, A.J.; Isaacson, T.; Jenks, M.A.; Goodwin, S.M.; Niklas, K.J.; Xiaolin, R.; Labavitch, J.M.; Shackel, K.A.; Fernie, A.R.; et al. A reevaluation of the key factors that influence tomato fruit softening and integrity. Plant Physiol. 2007, 144, 1012–1028. [Google Scholar] [CrossRef]
  9. Díaz, A.; Zarouri, B.; Fergany, M.; Eduardo, I.; Alvarez, J.M.; Picó, B.; Monforte, A.J. Mapping and introgression of QTL involved in fruit shape transgressive segregation into ‘piel de sapo’ melon (Cucumis melo L.). PLoS ONE 2014, 9, e104188. [Google Scholar] [CrossRef]
  10. Eduardo, I.; Arús, P.; Monforte, A.J.; Obando, J.; Fernández-Trujillo, J.P.; Martínez, J.A.; Alarcón, A.L.; Alvarez, J.M.; Knaap, E.v.d. Estimating the genetic architecture of fruit quality traits in melon using a genomic library of near isogenic lines. JASHS 2007, 132, 80–89. [Google Scholar] [CrossRef]
  11. Gur, A.; Tzuri, G.; Meir, A.; Sa’ar, U.; Portnoy, V.; Katzir, N.; Schaffer, A.A.; Li, L.; Burger, J.; Tadmor, Y. Genome-wide linkage-disequilibrium mapping to the candidate gene level in melon (Cucumis melo). Sci. Rep. 2017, 7, 9770. [Google Scholar] [CrossRef]
  12. Ma, J.; Li, C.; Zong, M.; Qiu, Y.; Liu, Y.; Huang, Y.; Xie, Y.; Zhang, H.; Wang, J. CmFSI8/CmOFP13 encoding an OVATE family protein controls fruit shape in melon. J. Exp. Bot. 2022, 73, 1370–1384. [Google Scholar] [CrossRef]
  13. Dou, J.; Zhao, S.; Lu, X.; He, N.; Zhang, L.; Ali, A.; Kuang, H.; Liu, W. Genetic mapping reveals a candidate gene (ClFS1) for fruit shape in watermelon (Citrullus lanatus L.). Theor. Appl. Genet. 2018, 131, 947–958. [Google Scholar] [CrossRef]
  14. Pan, Y.; Liang, X.; Gao, M.; Liu, H.; Meng, H.; Weng, Y.; Cheng, Z. Round fruit shape in WI7239 cucumber is controlled by two interacting quantitative trait loci with one putatively encoding a tomato SUN homolog. Theor. Appl. Genet. 2017, 130, 573–586. [Google Scholar] [CrossRef] [PubMed]
  15. Wu, S.; Zhang, B.; Keyhaninejad, N.; Rodríguez, G.R.; Kim, H.J.; Chakrabarti, M.; Illa-Berenguer, E.; Taitano, N.K.; Gonzalo, M.J.; Díaz, A.; et al. A common genetic mechanism underlies morphological diversity in fruits and other plant organs. Nat. Commun. 2018, 9, 4734. [Google Scholar] [CrossRef] [PubMed]
  16. Che, G.; Pan, Y.; Liu, X.; Li, M.; Zhao, J.; Yan, S.; He, Y.; Wang, Z.; Cheng, Z.; Song, W.; et al. Natural variation in CRABS CLAW contributes to fruit length divergence in cucumber. Plant Cell 2022, 35, 738–755. [Google Scholar] [CrossRef] [PubMed]
  17. Zhao, J.; Jiang, L.; Che, G.; Pan, Y.; Li, Y.; Hou, Y.; Zhao, W.; Zhong, Y.; Ding, L.; Yan, S.; et al. A Functional Allele of CsFUL1 Regulates Fruit Length through Repressing CsSUP and Inhibiting Auxin Transport in Cucumber. Plant Cell 2019, 31, 1289–1307. [Google Scholar] [CrossRef]
  18. Wang, L.; Cao, C.; Zheng, S.; Zhang, H.; Liu, P.; Ge, Q.; Li, J.; Ren, Z. Transcriptomic analysis of short-fruit 1 (sf1) reveals new insights into the variation of fruit-related traits in Cucumis sativus. Sci. Rep. 2017, 7, 2950. [Google Scholar] [CrossRef]
  19. Li, N.; Kong, S.; Zhou, D.; Li, N.; Shang, J.; Wang, J.; Ma, S. Mapping and validation of a new quantitative trait locus (QTL) for fruit size in watermelon (Citrullus lanatus). Sci. Hortic. 2023, 318, 112054. [Google Scholar] [CrossRef]
  20. Chakrabarti, M.; Zhang, N.; Sauvage, C.; Muños, S.; Blanca, J.; Cañizares, J.; Diez, M.J.; Schneider, R.; Mazourek, M.; McClead, J. A cytochrome P450 regulates a domestication trait in cultivated tomato. Proc. Natl. Acad. Sci. USA 2013, 110, 17125–17130. [Google Scholar] [CrossRef]
  21. Qi, X.L.; Liu, C.L.; Song, L.L.; Li, Y.H.; Li, M. PaCYP78A9, a cytochrome P450, regulates fruit size in sweet cherry (Prunus avium L.). Front. Plant Sci. 2017, 8, 2076. [Google Scholar] [CrossRef]
  22. Vadassery, J.; Ritter, C.; Venus, Y.; Camehl, I.; Varma, A.; Shahollari, B.; Novák, O.; Strnad, M.; Ludwig-Müller, J.; Oelmüller, R. The role of auxins and cytokinins in the mutualistic interaction between Arabidopsis and Piriformospora indica. Mol. Plant Microbe. Interact. 2008, 21, 1371–1383. [Google Scholar] [CrossRef]
  23. Helliwell, C.A.; Chandler, P.M.; Poole, A.; Dennis, E.S.; Peacock, W.J. The CYP88A cytochrome P450, ent-kaurenoic acid oxidase, catalyzes three steps of the gibberellin biosynthesis pathway. Proc. Natl. Acad. Sci. USA 2001, 98, 2065–2070. [Google Scholar] [CrossRef] [PubMed]
  24. Thornton, L.E.; Rupasinghe, S.G.; Peng, H.; Schuler, M.A.; Neff, M.M. Arabidopsis CYP72C1 is an atypical cytochrome P450 that inactivates brassinosteroids. Plant Mol. Biol. 2010, 74, 167–181. [Google Scholar] [CrossRef] [PubMed]
  25. Fridman, Y.; Savaldi-Goldstein, S. Brassinosteroids in growth control: How, when and where. Plant Sci. 2013, 209, 24–31. [Google Scholar] [CrossRef] [PubMed]
  26. Cuevas, H.E.; Staub, J.E.; Simon, P.W.; Zalapa, J.E.; McCreight, J.D. Mapping of genetic loci that regulate quantity of beta-carotene in fruit of US Western Shipping melon (Cucumis melo L.). Theor. Appl. Genet. 2008, 117, 1345–1359. [Google Scholar] [CrossRef]
  27. Fernandez-Silva, I.; Eduardo, I.; Blanca, J.; Esteras, C.; Picó, B.; Nuez, F.; Arús, P.; Garcia-Mas, J.; Monforte, A.J. Bin mapping of genomic and EST-derived SSRs in melon (Cucumis melo L.). Theor. Appl. Genet. 2008, 118, 139–150. [Google Scholar] [CrossRef]
  28. Garcia-Mas, J.; Benjak, A.; Sanseverino, W.; Bourgeois, M.; Mir, G.; González, V.M.; Hénaff, E.; Câmara, F.; Cozzuto, L.; Lowy, E.; et al. The genome of melon (Cucumis melo L.). Proc. Natl. Acad. Sci. USA 2012, 109, 11872–11877. [Google Scholar] [CrossRef]
  29. Galpaz, N.; Gonda, I.; Shem Tov, D.; Barad, O.; Tzuri, G.; Lev, S.; Fei, Z.; Xu, Y.; Mao, L.; Jiao, C.; et al. Deciphering genetic factors that determine melon fruit-quality traits using RNA-Seq-based high-resolution QTL and eQTL mapping. Plant J. 2018, 94, 169–191. [Google Scholar] [CrossRef]
  30. Agarwal, G.; Clevenger, J.; Pandey, M.K.; Wang, H.; Shasidhar, Y.; Chu, Y.; Fountain, J.C.; Choudhary, D.; Culbreath, A.K.; Liu, X.; et al. High-density genetic map using whole-genome resequencing for fine mapping and candidate gene discovery for disease resistance in peanut. Plant Biotechnol. J. 2018, 16, 1954–1967. [Google Scholar] [CrossRef]
  31. Li, D.; Huang, Z.; Song, S.; Xin, Y.; Mao, D.; Lv, Q.; Zhou, M.; Tian, D.; Tang, M.; Wu, Q.; et al. Integrated analysis of phenome, genome, and transcriptome of hybrid rice uncovered multiple heterosis-related loci for yield increase. Proc. Natl. Acad. Sci. USA 2016, 113, E6026–E6035. [Google Scholar] [CrossRef]
  32. Zhou, Q.; Miao, H.; Li, S.; Zhang, S.; Wang, Y.; Weng, Y.; Zhang, Z.; Huang, S.; Gu, X. A sequencing-based linkage map of cucumber. Mol. Plant 2015, 8, 961–963. [Google Scholar] [CrossRef]
  33. Wang, Y.; Wang, C.; Han, H.; Luo, Y.; Wang, Z.; Yan, C.; Xu, W.; Qu, S. Construction of a High-Density Genetic Map and Analysis of Seed-Related Traits Using Specific Length Amplified Fragment Sequencing for Cucurbita maxima. Front. Plant Sci. 2020, 10, 1782. [Google Scholar] [CrossRef]
  34. Cui, J.; Luo, S.; Niu, Y.; Huang, R.; Wen, Q.; Su, J.; Miao, N.; He, W.; Dong, Z.; Cheng, J.; et al. A RAD-Based Genetic Map for Anchoring Scaffold Sequences and Identifying QTLs in Bitter Gourd (Momordica charantia). Front. Plant Sci. 2018, 9, 477. [Google Scholar] [CrossRef]
  35. Gangadhara Rao, P.; Behera, T.K.; Gaikwad, A.B.; Munshi, A.D.; Jat, G.S.; Boopalakrishnan, G. Mapping and QTL analysis of gynoecy and earliness in bitter gourd (Momordica charantia L.) using genotyping-by-sequencing (GBS) technology. Front. Plant Sci. 2018, 9, 1555. [Google Scholar] [CrossRef] [PubMed]
  36. Li, B.; Lu, X.; Dou, J.; Aslam, A.; Gao, L.; Zhao, S.; He, N.; Liu, W. Construction of A High-Density Genetic Map and Mapping of Fruit Traits in Watermelon (Citrullus lanatus L.) Based on Whole-Genome Resequencing. IJMS 2018, 19, 3268. [Google Scholar] [CrossRef] [PubMed]
  37. Hu, Z.; Deng, G.; Mou, H.; Xu, Y.; Chen, L.; Yang, J.; Zhang, M. A re-sequencing-based ultra-dense genetic map reveals a gummy stem blight resistance-associated gene in Cucumis melo. DNA Res. 2018, 25, 1–10. [Google Scholar] [CrossRef]
  38. Oren, E.; Tzuri, G.; Dafna, A.; Meir, A.; Kumar, R.; Katzir, N.; Elkind, Y.; Freilich, S.; Schaffer, A.A.; Tadmor, Y.; et al. High-density NGS-based map construction and genetic dissection of fruit shape and rind netting in Cucumis melo. Theor. Appl. Genet. 2020, 133, 1927–1945. [Google Scholar] [CrossRef]
  39. Zhao, X.; Muhammad, N.; Zhao, Z.; Yin, K.; Liu, Z.; Wang, L.; Luo, Z.; Wang, L.; Liu, M. Molecular regulation of fruit size in horticultural plants: A review. Sci. Hortic. 2021, 288, 110353. [Google Scholar] [CrossRef]
  40. Paris, M.K.; Zalapa, J.E.; McCreight, J.D.; Staub, J.E. Genetic dissection of fruit quality components in melon (Cucumis melo L.) using a RIL population derived from exotic × elite US Western Shipping germplasm. Mol. Breed. 2008, 22, 405–419. [Google Scholar] [CrossRef]
  41. Lian, Q.; Fu, Q.; Xu, Y.; Hu, Z.; Zheng, J.; Zhang, A.; He, Y.; Wang, C.; Xu, C.; Chen, B.; et al. QTLs and candidate genes analyses for fruit size under domestication and differentiation in melon (Cucumis melo L.) based on high resolution maps. BMC Plant Biol. 2021, 21, 126. [Google Scholar] [CrossRef]
  42. Xing, Y.; Cao, Y.; Ma, Y.; Wang, F.; Xin, S.; Zhu, W. QTL mapping and transcriptomic analysis of fruit length in cucumber. Front. Plant Sci. 2023, 14, 1208675. [Google Scholar] [CrossRef]
  43. Weng, Y.; Colle, M.; Wang, Y.; Yang, L.; Rubinstein, M.; Sherman, A.; Ophir, R.; Grumet, R. QTL mapping in multiple populations and development stages reveals dynamic quantitative trait loci for fruit size in cucumbers of different market classes. Theor. Appl. Genet. 2015, 128, 1747–1763. [Google Scholar] [CrossRef]
  44. Frary, A.; Nesbitt, T.C.; Frary, A.; Grandillo, S.; Knaap, E.v.d.; Cong, B.; Liu, J.; Meller, J.; Elber, R.; Alpert, K.B.; et al. A Quantitative trait locus key to the evolution of tomato fruit size. Science 2000, 289, 85–88. [Google Scholar] [CrossRef]
  45. Adhikari, P.; McNellie, J.; Panthee, D.R. Detection of quantitative trait loci (QTL) associated with the fruit morphology of tomato. Genes 2020, 11, 1117. [Google Scholar] [CrossRef]
  46. Perpiñá, G.; Esteras, C.; Gibon, Y.; Monforte, A.J.; Picó, B. A new genomic library of melon introgression lines in a cantaloupe genetic background for dissecting desirable agronomical traits. Plant Biol. 2016, 16, 154. [Google Scholar] [CrossRef]
  47. Díaz, A.; Martín-Hernández, A.M.; Dolcet-Sanjuan, R.; Garcés-Claver, A.; Álvarez, J.M.; Garcia-Mas, J.; Picó, B.; Monforte, A.J. Quantitative trait loci analysis of melon (Cucumis melo L.) domestication-related traits. Theor. Appl. Genet. 2017, 130, 1837–1856. [Google Scholar] [CrossRef] [PubMed]
  48. Pereira, L.; Ruggieri, V.; Pérez, S.; Alexiou, K.G.; Fernández, M.; Jahrmann, T.; Pujol, M.; Garcia-Mas, J. QTL mapping of melon fruit quality traits using a high-density GBS-based genetic map. BMC Plant Biol. 2018, 18, 324. [Google Scholar] [CrossRef] [PubMed]
  49. Amanullah, S.; Liu, S.; Gao, P.; Zhu, Z.; Zhu, Q.; Fan, C.; Luan, F. QTL mapping for melon (Cucumis melo L.) fruit traits by assembling and utilization of novel SNPs based CAPS markers. Sci. Hortic. 2018, 236, 18–29. [Google Scholar] [CrossRef]
  50. Monforte, A.J.; Oliver, M.; Gonzalo, M.J.; Alvarez, J.M.; Dolcet-Sanjuan, R.; Arús, P. Identification of quantitative trait loci involved in fruit quality traits in melon (Cucumis melo L.). Theor. Appl. Genet. 2004, 108, 750–758. [Google Scholar] [CrossRef] [PubMed]
  51. Lippman, Z.; Tanksley, S.D. Dissecting the genetic pathway to extreme fruit size in tomato using a cross between the small-fruited wild species Lycopersicon pimpinellifolium and L. esculentum var. Giant Heirloom. Genetics 2001, 158, 413–422. [Google Scholar] [CrossRef]
  52. Jun, X.; Wang, X.-Y.; Guo, W.-Z. The cytochrome P450 superfamily: Key players in plant development and defense. J. Integr. Agric. 2015, 14, 1673–1686. [Google Scholar] [CrossRef]
  53. van der Knaap, E.; Chakrabarti, M.; Chu, Y.H.; Clevenger, J.P.; Illa-Berenguer, E.; Huang, Z.; Keyhaninejad, N.; Mu, Q.; Sun, L.; Wang, Y. What lies beyond the eye: The molecular mechanisms regulating tomato fruit weight and shape. Front. Plant Sci. 2014, 5, 227. [Google Scholar] [CrossRef]
  54. Li, D.; Wang, Y.; Han, K. Recent density functional theory model calculations of drug metabolism by cytochrome P450. Coord. Chem. Rev. 2012, 256, 1137–1150. [Google Scholar] [CrossRef]
  55. Nelson, D.R.; Schuler, M.A.; Paquette, S.M.; Werck-Reichhart, D.; Bak, S. Comparative genomics of rice and Arabidopsis. Analysis of 727 cytochrome P450 genes and pseudogenes from a monocot and a dicot. J. Plant Physiol. 2004, 135, 756–772. [Google Scholar] [CrossRef] [PubMed]
  56. Mizutani, M.; Ohta, D. Diversification of P450 genes during land plant evolution. Annu. Rev. Plant Biol. 2010, 61, 291–315. [Google Scholar] [CrossRef] [PubMed]
  57. Tanabe, S.; Ashikari, M.; Fujioka, S.; Takatsuto, S.; Yoshida, S.; Yano, M.; Yoshimura, A.; Kitano, H.; Matsuoka, M.; Fujisawa, Y.; et al. A novel cytochrome P450 is implicated in brassinosteroid biosynthesis via the characterization of a rice dwarf mutant, dwarf11, with reduced seed length. Plant Cell 2005, 17, 776–790. [Google Scholar] [CrossRef] [PubMed]
  58. Ohnishi, T.; Watanabe, B.; Sakata, K.; Mizutani, M. CYP724B2 and CYP90B3 function in the early C-22 hydroxylation steps of brassinosteroid biosynthetic pathway in tomato. Biosci. Biotechnol. Biochem. 2006, 70, 2071–2080. [Google Scholar] [CrossRef]
  59. Sakamoto, T.; Morinaka, Y.; Ohnishi, T.; Sunohara, H.; Fujioka, S.; Ueguchi-Tanaka, M.; Mizutani, M.; Sakata, K.; Takatsuto, S.; Yoshida, S.; et al. Erect leaves caused by brassinosteroid deficiency increase biomass production and grain yield in rice. Nat. Biotechnol. 2006, 24, 105–109. [Google Scholar] [CrossRef]
  60. Divi, U.K.; Krishna, P. Brassinosteroid: A biotechnological target for enhancing crop yield and stress tolerance. New Biotechnol. 2009, 26, 131–136. [Google Scholar] [CrossRef]
  61. Yang, C.J.; Zhang, C.; Lu, Y.N.; Jin, J.Q.; Wang, X.L. The mechanisms of brassinosteroids’ action: From signal transduction to plant development. Mol. Plant 2011, 4, 588–600. [Google Scholar] [CrossRef]
  62. Adamski, N.M.; Anastasiou, E.; Eriksson, S.; O’Neill, C.M.; Lenhard, M. Local maternal control of seed size by KLUH CYP78A5 dependent growth signaling. Proc. Natl. Acad. Sci. USA 2009, 106, 20115–20120. [Google Scholar] [CrossRef]
  63. Bak, S.; Beisson, F.; Bishop, G.J.; Hamberger, B.R.; Höfer, R.; Paquette, S.M.; Werck-Reichhart, D. Cytochromes P450. In The Arabidopsis Book; CRC Press: Boca Raton, FL, USA, 2011; p. e0144. [Google Scholar] [CrossRef]
  64. Sotelo-Silveira, M.; Cucinotta, M.; Chauvin, A.-L.; Chávez Montes, R.A.; Colombo, L.; Marsch-Martínez, N.; de Folter, S. Cytochrome P450 CYP78A9 Is Involved in Arabidopsis Reproductive Development. Plant Physiol. 2013, 162, 779–799. [Google Scholar] [CrossRef]
  65. Ma, M.; Wang, Q.; Li, Z.; Cheng, H.; Li, Z.; Liu, X.; Song, W.; Appels, R.; Zhao, H. Expression of Ta78A3, a gene encoding cytochrome P450 CYP78A3 protein in wheat (Triticum aestivum L.), affects seed size. Plant J. 2015, 83, 312–325. [Google Scholar] [CrossRef]
  66. Duan, Z.; Zhang, M.; Zhang, Z.; Liang, S.; Fan, L.; Yang, X.; Yuan, Y.; Pan, Y.; Zhou, G.; Liu, S.; et al. Natural allelic variation of controlling seed size and quality in soybean. Plant Biotechnol. J. 2022, 20, 1807–1818. [Google Scholar] [CrossRef]
  67. Wang, G.; Gao, X.; Wang, X.; Liu, P.; Guan, S.L.; Qi, K.; Zhang, S.; Gu, C. Transcriptome analysis reveals gene associated with fruit size during fruit development in pear. Sci. Hortic. 2022, 305, 111367. [Google Scholar] [CrossRef]
  68. Allen, G.C.; Flores-Vergara, M.; Krasynanski, S.; Kumar, S.; Thompson, W. A modified protocol for rapid DNA isolation from plant tissues using cetyltrimethylammonium bromide. Nat. Protoc. 2006, 1, 2320–2325. [Google Scholar] [CrossRef] [PubMed]
  69. Li, H.; Durbin, R. Fast and accurate short read alignment with Burrows–Wheeler transform. Bioinformatics 2009, 25, 1754–1760. [Google Scholar] [CrossRef] [PubMed]
  70. Li, H.; Handsaker, B.; Wysoker, A.; Fennell, T.; Ruan, J.; Homer, N.; Marth, G.; Abecasis, G.; Durbin, R.; Subgroup, G.P.D.P. The sequence alignment/map format and SAMtools. Bioinformatics 2009, 25, 2078–2079. [Google Scholar] [CrossRef]
  71. Li, B.; Zhao, Y.; Zhu, Q.; Zhang, Z.; Fan, C.; Amanullah, S.; Gao, P.; Luan, F. Mapping of powdery mildew resistance genes in melon (Cucumis melo L.) by bulked segregant analysis. Sci. Hortic. 2017, 220, 160–167. [Google Scholar] [CrossRef]
  72. Zhang, T.; Liu, J.; Amanullah, S.; Ding, Z.; Cui, H.; Luan, F.; Gao, P. Fine mapping of Cla015407 controlling plant height in watermelon. JASHS 2021, 146, 196–205. [Google Scholar] [CrossRef]
  73. Broman, K.W.; Wu, H.; Sen, Ś.; Churchill, G.A. R/qtl: QTL mapping in experimental crosses. Bioinformatics 2003, 19, 889–890. [Google Scholar] [CrossRef]
Plants 14 02254 g001

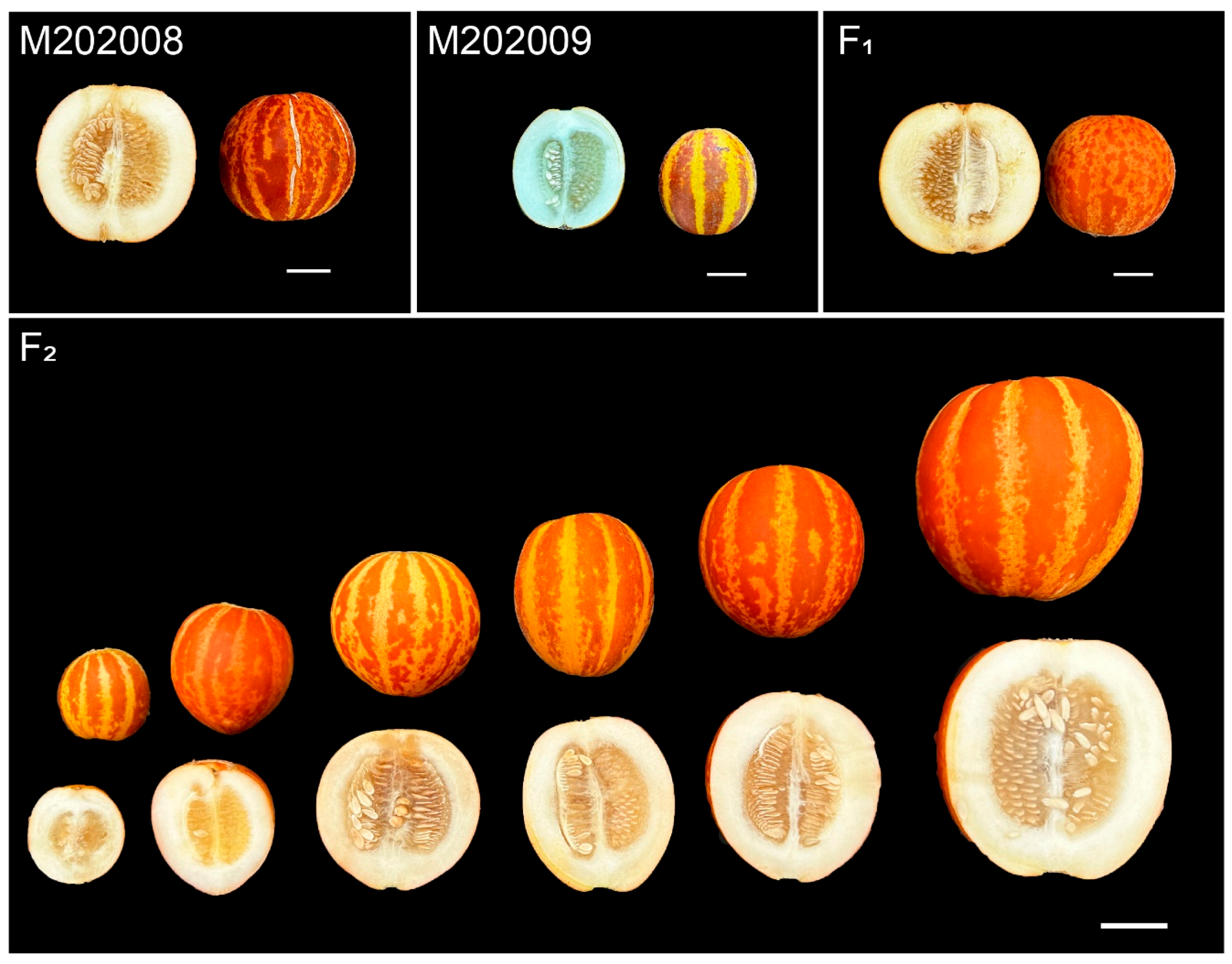

Figure 1. Melon fruit sizes in two distinct parent lines (M202008 and M202009); F1 and biparental F2 generation. Bar = 3 cm.
Figure 1. Melon fruit sizes in two distinct parent lines (M202008 and M202009); F1 and biparental F2 generation. Bar = 3 cm.
Plants 14 02254 g001
Plants 14 02254 g002

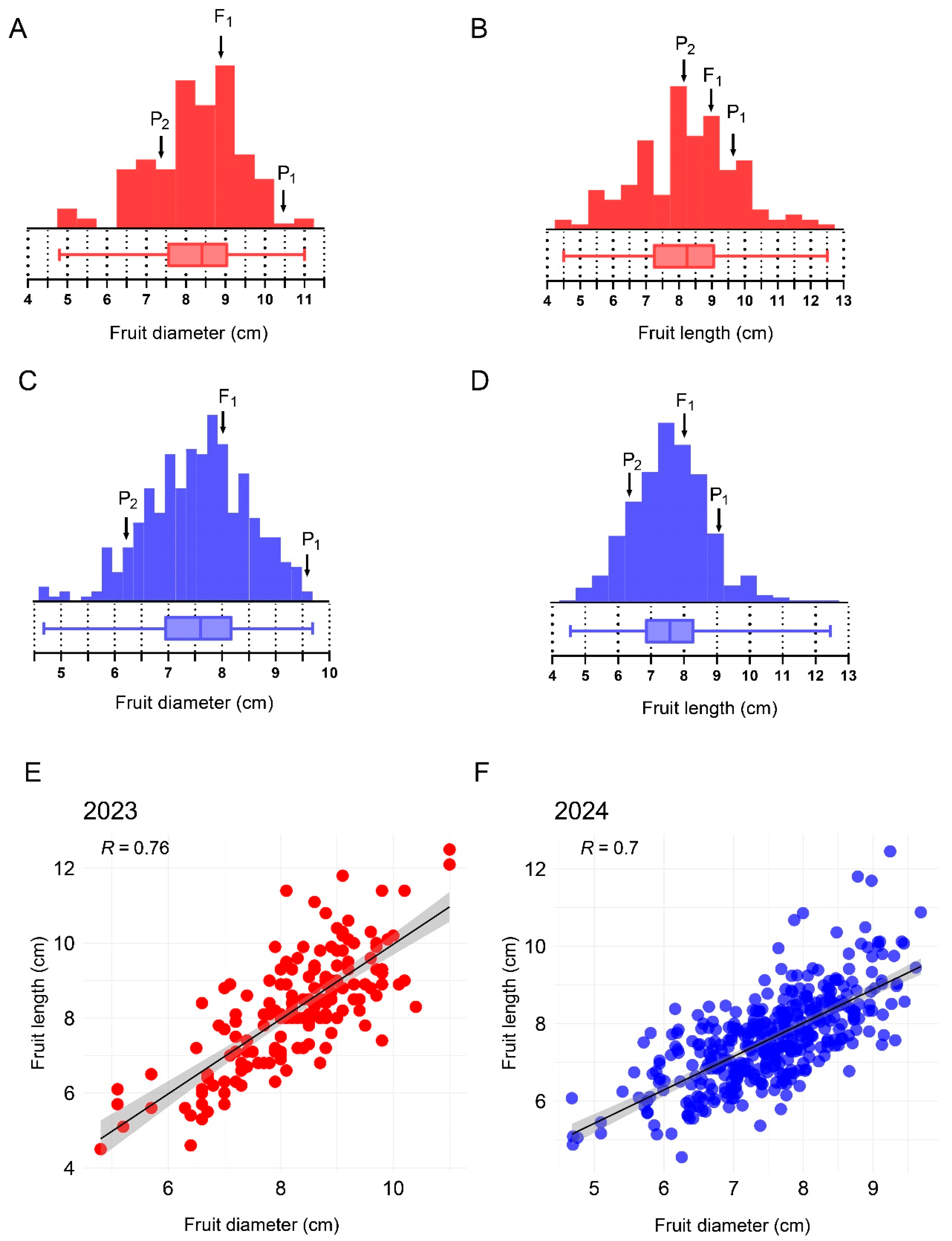

Figure 2. Frequency distributions and correlation analysis of fruit-size-linked traits. (A) Frequency distribution for fruit diameter recorded in the F2 population grown during 2023. (B) Frequency distribution for fruit length recorded in the F population grown during 2023. (C) Frequency distribution for fruit diameter recorded in the F population grown during 2024. (D) Frequency distribution for fruit length recorded in the F2 population grown during 2024. (E) Correlation between the fruit length and diameter recorded in the F2 population during 2023. (F) Correlation between the fruit length and diameter recorded in the F2 population during 2024.
Figure 2. Frequency distributions and correlation analysis of fruit-size-linked traits. (A) Frequency distribution for fruit diameter recorded in the F2 population grown during 2023. (B) Frequency distribution for fruit length recorded in the F population grown during 2023. (C) Frequency distribution for fruit diameter recorded in the F population grown during 2024. (D) Frequency distribution for fruit length recorded in the F2 population grown during 2024. (E) Correlation between the fruit length and diameter recorded in the F2 population during 2023. (F) Correlation between the fruit length and diameter recorded in the F2 population during 2024.
Plants 14 02254 g002
Plants 14 02254 g003

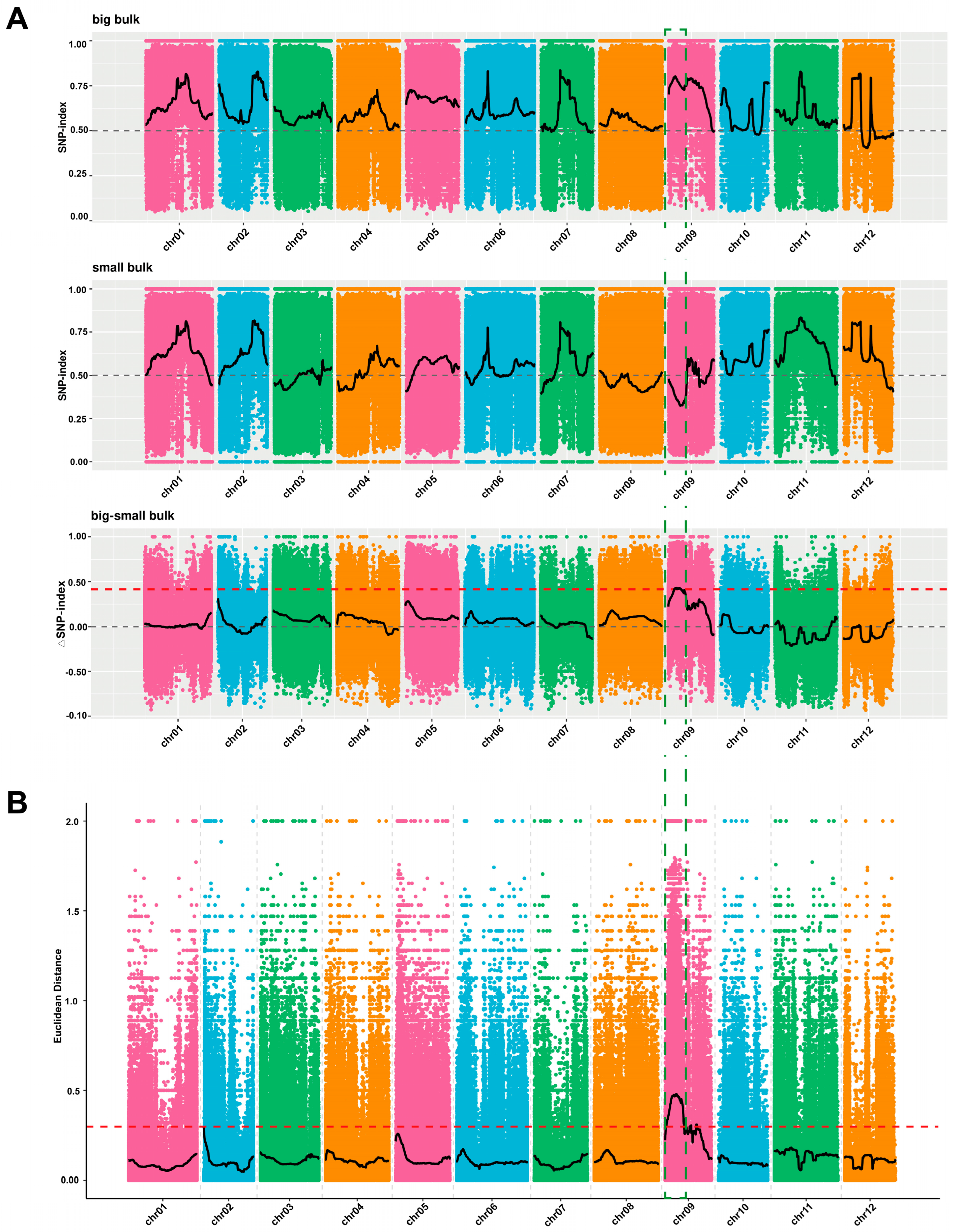

Figure 3. The main-effect genetic regions carrying the melon fruit size signal on chromosome 9, based on two BSA-seq algorithms. (A) ∆SNP index for three bulk samples (large, small, and large–small). (B) Euclidean distance (ED) values for large–small bulk samples, respectively.
Figure 3. The main-effect genetic regions carrying the melon fruit size signal on chromosome 9, based on two BSA-seq algorithms. (A) ∆SNP index for three bulk samples (large, small, and large–small). (B) Euclidean distance (ED) values for large–small bulk samples, respectively.
Plants 14 02254 g003
Plants 14 02254 g004

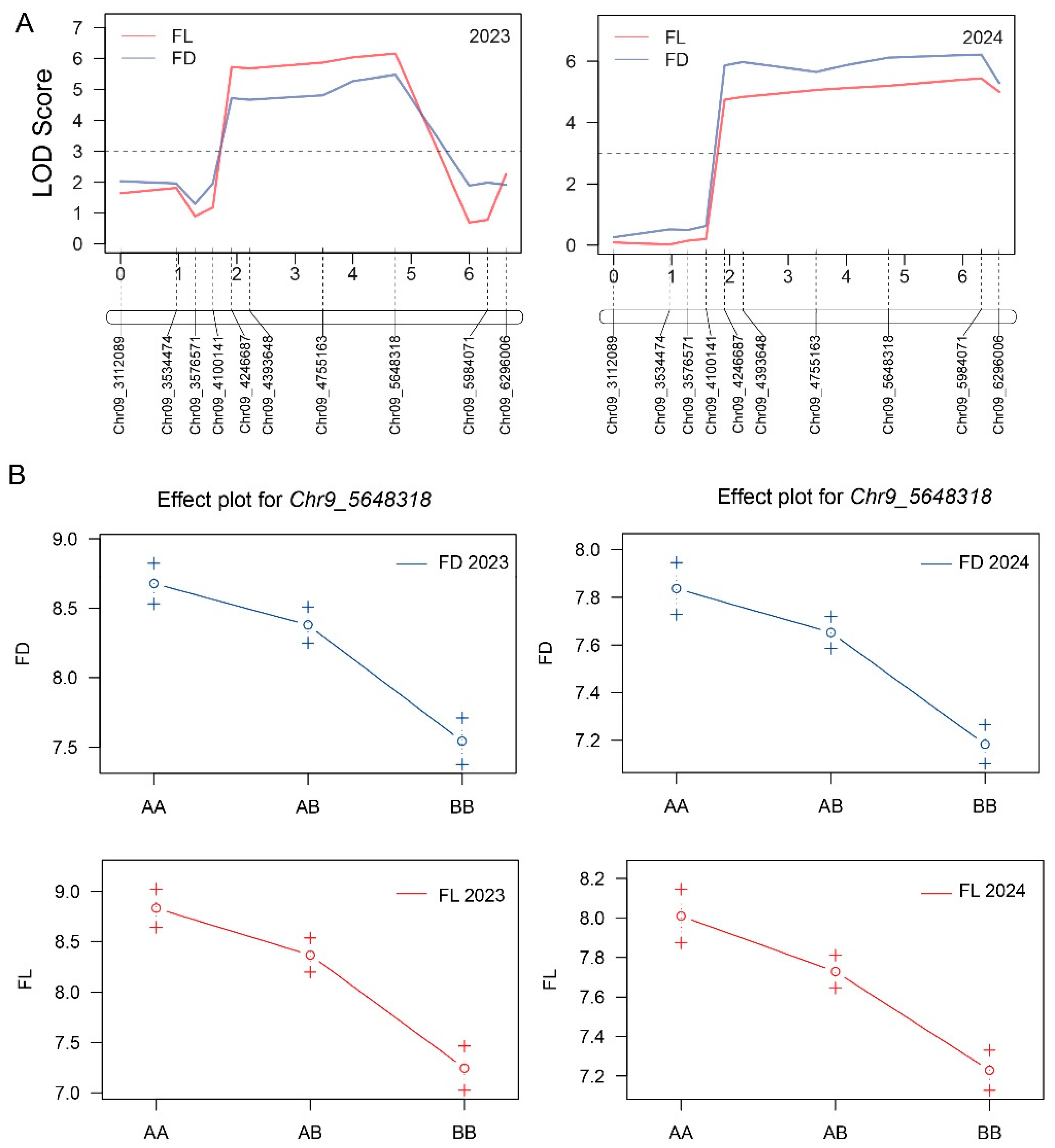

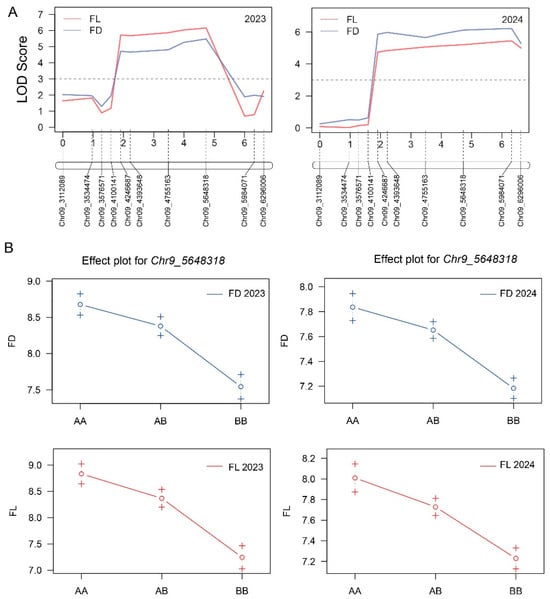

Figure 4. Genetic mapping of melon fruit length and diameter. (A) Primary mapping intervals for the F2 mapping populations of 2023 and 2024. (B) Correlations between phenotypes and genotypes, based on the candidate InDel marker (Chr9_5648318). AA, M202008 genotype; AB, heterozygous genotype; BB, M202009 genotype.
Figure 4. Genetic mapping of melon fruit length and diameter. (A) Primary mapping intervals for the F2 mapping populations of 2023 and 2024. (B) Correlations between phenotypes and genotypes, based on the candidate InDel marker (Chr9_5648318). AA, M202008 genotype; AB, heterozygous genotype; BB, M202009 genotype.
Plants 14 02254 g004
Table 1. Genetic segregation of the F2 mapping populations derived from the crossing of two different melon accessions (M202008 and M202009), respectively.
Table 1. Genetic segregation of the F2 mapping populations derived from the crossing of two different melon accessions (M202008 and M202009), respectively.
YearTraitMeanSDRangeKurtosisSkewness
2023Fruit diameter (FD, cm)8.401.154.80–11.000.39−0.50
Fruit length (FL, cm)8.251.514.50–12.500.080.04
2024Fruit diameter (FD, cm)7.600.954.60–9.60−0.04−0.29
Fruit length (FL, cm)7.571.174.50–12.401.060.48
Table 2. Summary of interval mapping for F2 mapping populations derived from two different melon accessions (M202008 and M202009). Chr, chromosome; LOD, logarithm of odds; PVE, phenotypic variation explained; FD, fruit diameter; FL, fruit length.
Table 2. Summary of interval mapping for F2 mapping populations derived from two different melon accessions (M202008 and M202009). Chr, chromosome; LOD, logarithm of odds; PVE, phenotypic variation explained; FD, fruit diameter; FL, fruit length.
YearTraitChrLeft MarkerRight MarkerPVE (%)LOD Value
2023Fruit diameter (FD)9Chr9_4100141Chr9_598407114.595.48
Fruit length (FL)9Chr9_4100141Chr9_598407116.206.16
2024Fruit diameter (FD)9Chr9_4100141Chr9_62960067.226.22
Fruit length (FL)9Chr9_4100141Chr9_62960066.355.44
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Amin, F.; Khan, N.A.; Amanullah, S.; Liu, S.; Liu, Z.; Song, Z.; Liu, S.; Wang, X.; Fang, X.; Luan, F. Genetic Mapping of a QTL Controlling Fruit Size in Melon (Cucumis melo L.). Plants 2025, 14, 2254. https://doi.org/10.3390/plants14152254

AMA Style

Amin F, Khan NA, Amanullah S, Liu S, Liu Z, Song Z, Liu S, Wang X, Fang X, Luan F. Genetic Mapping of a QTL Controlling Fruit Size in Melon (Cucumis melo L.). Plants. 2025; 14(15):2254. https://doi.org/10.3390/plants14152254

Chicago/Turabian Style

Amin, Fazle, Nasar Ali Khan, Sikandar Amanullah, Shusen Liu, Zhao Liu, Zhengfeng Song, Shi Liu, Xuezheng Wang, Xufeng Fang, and Feishi Luan. 2025. "Genetic Mapping of a QTL Controlling Fruit Size in Melon (Cucumis melo L.)" Plants 14, no. 15: 2254. https://doi.org/10.3390/plants14152254

APA Style

Amin, F., Khan, N. A., Amanullah, S., Liu, S., Liu, Z., Song, Z., Liu, S., Wang, X., Fang, X., & Luan, F. (2025). Genetic Mapping of a QTL Controlling Fruit Size in Melon (Cucumis melo L.). Plants, 14(15), 2254. https://doi.org/10.3390/plants14152254

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
