MaMYBR30, a Novel 1R-MYB, Plays Important Roles in Plant Development and Abiotic Stress Resistance

by
Li Liu
1,2,*,
Shan Li
1,
Fengjuan Tang
1,
Peijun Li
1,
Jiaxin Liu
1,
Rumeng Fu
1,
Longyan Zheng
1,
Jie Zhang
1 and
Nan Chao
1,2,*
1
Jiangsu Key Laboratory of Sericultural Biology and Biotechnology, School of Biotechnology, Jiangsu University of Science and Technology, Zhenjiang 212100, China
2
Key Laboratory of Silkworm and Mulberry Genetic Improvement, Ministry of Agriculture and Rural Affairs, Sericultural Research Institute, Chinese Academy of Agricultural Sciences, Zhenjiang 212100, China
*
Authors to whom correspondence should be addressed.
Plants 2024, 13(13), 1794; https://doi.org/10.3390/plants13131794
Submission received: 28 May 2024 / Revised: 25 June 2024 / Accepted: 27 June 2024 / Published: 28 June 2024
(This article belongs to the Special Issue Tolerance Response Mechanisms to Abiotic Stress in Woody Crops)
Browse Figures
Versions Notes

Abstract

:
The V-myb myeloblastosis viral oncogene homolog (MYB) family participate in various bioprocesses including development and abiotic stress responses. In the present study, we first report a 1R SHAQKYF-class MYB, MaMYBR30, in mulberry. Subcellular localization and sequence analysis indicated MaMYBR30 is located in the nucleus and belongs to a CCA-like subgroup with a conserved SHAQKYF motif. Expression profile analysis showed that MaMYBR30 is expressed in leaves and can be induced by drought and salt stress. The down-regulation of MaMYBR30 using virus-induced gene silence (VIGS) in mulberry and the overexpression of MaMYBR30 in Arabidopsis were induced to explore the function of MaMYBR30. The functional characterization of MaMYBR30 in vivo indicated that MaMYBR30 can positively regulate the resistance of mulberry to drought while negatively regulating the resistance of mulberry to salt stress. In addition, MaMYBR30 also affects flower development and reproductive growth, especially after exposure to salt stress. Weighted gene co-expression network analysis (WGCNA) primarily revealed the possible genes and signal pathways that are regulated by MaMYBR30. Our results also imply that complex molecular mechanisms mediated by MaMYBR30, including crosstalk of ion toxicity, phytohormone signal transduction, flowering development, and epigenetic modification, need to be further explored in the future.

1. Introduction

The V-myb myeloblastosis viral oncogene homolog (MYB) family is one of the largest families of transcriptional regulators in plants and has been widely characterized [1]. The important roles of MYBs in plant development, abiotic and biotic stress resistance, and secondary metabolism have been characterized in diverse plants [1,2,3]. MYB proteins contain a highly conserved DNA-binding domain in the N-terminus with different numbers of repeats that contain regularly spaced tryptophan residues (WX18–19WX18–19W) [1,4]. The MYBs identified in plants are divided into four clades based on the number of conserved DNA-binding repeats: 1R (R1/2, R3-MYB), 2R (R2R3-MYB), 3R (R1R2R3-MYB), and 4R -MYB [2,5]. The 3R-MYBs and 4R-MYBs are relatively rare, and most MYBs identified and functionally characterized are R2R3-MYBs and partial 1R-MYBs [2,5].
The 1R-MYBs (R3-MYB), also called MYB-related genes, comprise another diverse group of MYB transcription factors [1,6]. These MYBs contain only a single- or partial-repeat MYB DNA-binding domain and can be further divided into five distinct subgroups depending on their conserved motifs [7]. The TRF-like and TBP-like subgroup MYBs always contain three conserved Trp (W) residues in the MYB domain. In CCA1-like/R-R and I-box-like subgroups, the third W residue is often substituted by Ala (A) or Tyr (Y), respectively [7]. In most members of the CPC-like subgroup, the first W residue is substituted with Phe (F). MYBs in the CCA1-like/R-R subgroup have highly conserved consensus sequences of SHAQK(+Y/F)F in their MYB domains and are also called SHAQKYF-class MYBs [7]. In rice, SHALLOT-LIKE1 (SLL1) encodes a SHAQKYF-class MYB family transcription factor belonging to the KANADI family and regulates leaf abaxial cell development to shape the leaf and control rice leaf rolling [8]. SHAQKYF-class MYBs can also act as transcription repressors that regulate leaf wax biosynthesis via transcriptional suppression on DEWAX in Arabidopsis [9]. Some 1R-MYBs in maize have also shown possible roles in responses to drought stress and pathogen infection [7]. CCA1-like/R-R genes (ZmMYBR19, ZmMYBR28, ZmMYBR49, and ZmMYBR56), TRF-like genes (ZmMYBR41), and TBP-like genes (ZmMYBR07, ZmMYBR26, ZmMYBR31, ZmMYBR45, ZmMYBR47, and ZmMYBR55) have shown enhanced transcription levels under drought stress [7]. In general, 1R-MYBs also play important roles in diverse bioprocesses, and more studies are needed to reveal their function in plants.
Mulberry (Morus alba L.) is a traditional economic tree in China and shows potential value in ecological improvement, especially in drought- or salt-affected areas [10,11,12,13,14]. Here, we first report MaMYBR30, a 1R-SHAQKYF-class MYB, that greatly affects the resistance of mulberry to drought and high salt stress. Our previous study identified the MYB gene family in Morus and provided primary functional annotation of most MYBs [15]. Based on this study, we further screened MYBs involved in the drought stress response in M. alba, and MaMYBR30 was identified based on weighted gene co-expression network analysis (WGCNA). Further functional characterization of MaMYBR30 in vivo indicated that MaMYBR30 can regulate the resistance of mulberry to drought and salt stress and can also affect the reproductive process.

2. Results

2.1. Comparative RNA-Seq Analysis Indicates That MaMYBR30 Is Involved in Drought Stress Responses

The comparative transcriptome analysis of mulberry cultivars (Zhongshen 1 and Wubu) with different levels of drought tolerance identified drought-related differentially expressed genes (DEGs). The difference in drought tolerance between Zhongshen 1 and Wubu was revealed in our previous study, and the expression matrix is shown in Table S1 [16]. The DEGs contained 44 MYBs annotated as abiotic stress-related MYBs in our previous study in mulberry (Figure S1 and Table S2) [15]. Furthermore, using WGCNA, drought-related DEGs were clustered into 23 co-expression modules. Among them, the MEgreen module showed a significant positive relationship with species and a negative relationship with water content and treatment (Figure 1A). Therefore, we identified this module as a cultivar-specific positive drought-response module. Venn analysis of DEGs in the MEgreen module and MYBs in Morus revealed only one MYB-related gene, MaMYBR30, indicating its possible roles in the response to drought stress and the difference in drought tolerance between Zhonsghen1 and Wubu (Figure 1B).

2.2. Mulberry MaMYBR30 Belongs to SHAQKY-Class MYBs and Is Involved in Drought and Salt Stress Responses

MaMYBR30 was cloned from the M. alba variety Fengchi. Sequence alignment and phylogenetic analysis showed that MaMYBR30 was a SHAQKY-class MYB belonging to the CCA1-like subgroup. The substitution of the third W by A in the MYB domain is marked, and a conserved SHAQKY motif is also indicated (Figure 1F). Phylogenetic analysis using 1R-MaMYB from mulberry and 1R-AtMYB from Arabidopsis showed that MaMYBR30 clustered with CCA1-like subgroup AtMYBs (Figure 1C and Figure S2). Expression profile analysis showed that MaMYBR30 was expressed in leaves with significantly increased expression levels under drought or high salt stress (Figure 1D,E). In addition, subcellular localization analysis was performed and showed that the YFP signals of MYBR30-YFP merged with the nucleus marker signal (Figure 2). This result indicates the nucleus localization of MYBR30, which corresponds with its role as a transcription factor.

2.3. MaMYBR30 Down-Regulation Decreases Drought Stress Resistance in Mulberry

qRT-PCR was performed to test the degree of down-regulation after VIGS (Figure 3A). On day 5 after exposure to drought stress, mulberry seedlings showing the down-regulation of MaMYBR30 had wilted and coiled leaves, while the controls remained normal. On day 7, seedlings with MaMYBR30 down-regulation were almost dead, while the controls showed only slight wilting (Figure 3B). Mulberry with MaMYBR30 down-regulation showed significantly higher MDA content and similar SOD activity compared with the controls (Figure 3C,D).

2.4. MaMYBR30 Down-Regulation Increases Salt Stress Resistance in Mulberry

qRT-PCR was performed to test the degree of down-regulation after VIGS (Figure 4A). Mulberry seedlings with MaMYBR30 down-regulation and controls were exposed to high salt stress. On day 10, the leaves of the controls gradually withered and coiled (Figure 4A,B). This phenome was further aggravated over the following two days and resulted in plant death. In contrast, the leaves of mulberry seedlings with MaMYBR30 down-regulation became slightly wilted and turned dark green (Figure 4B); they showed significantly lower MDA content and SOD activity compared with the controls (Figure 4C,D). MaMYBR30 down-regulation likely increased resistance to high salt stress in mulberry, which is quite different from its role in response to drought stress.

2.5. MaMYBR30 Overexpression in Arabidopsis Indicates Its Contrasting Roles in Regulating Drought and Salt Stress Resistance

qRT-PCR was performed to test and validate the overexpression level of transgenic Arabidopsis plants (Figure 5A). MaMYBR30-overexpressing Arabidopsis maintained similar growth to that of the wild type (Figure S3A). Two kinds of planting strategies were adopted to observe the plant phenomics under drought stresses: both wild-type and over-expressing lines were planted by one pot with one plant (one line in one pot); four wild types or four plants from different overexpressing lines were planted by one with four plants (four lines in one pot). When exposed to drought stress, MaMYBR30-overexpressing Arabidopsis showed enhanced drought stress tolerance and remained alive after 11 days of drought stress, while the wild type showed significant growth inhibition (one line in one pot) (Figure 5B). Four lines planted in one pot group showed more obvious differences. Four MaMYBR30-overexpressing lines remained alive, while the wild type almost died after exposure to 8 days of drought stress (Figure 5E). Both the MDA content and SOD activity in MaMYBR30-overexpressing Arabidopsis were lower than in the wild type after 8 days of drought stress treatment (Figure 5C,D).
Visible growth differences were observed between the wild-type and transgenic plants when supplied with 150–300 mM NaCl instead of water (Figure 6B and Figure S3C). The growth of MaMYBR30-overexpressing Arabidopsis (Figure 6A) was severely inhibited, with abnormal flowering and reproductive processes, under salt stress (150 mM NaCl; Figure 6B). In contrast, the wild type showed relatively normal flowering and reproductive growth. After recovery with water supply, the wild type almost recovered normal reproductive growth with normal pod and seed filling, while MaMYBR30-overexpressing Arabidopsis had stunted pods and few seeds with delays in seed ripening (Figure 6E and Figure S3D). MaMYBR30 overexpression resulted in sensitivity to salt stress and the abnormal development of the reproductive process. The MDA content in MYBR30-overexpressing Arabidopsis plants was lower than that of the wild type, and the SOD activity was higher than that of the wild type (Figure 6C,D). This implies that the salinity sensitivity of MaMYBR30-overexpressing plants may be due to the priming effects of a high salt concentration, such as anion toxicity, instead of the indirect damage caused by osmotic stress.

2.6. Co-Expression Analysis Shows the Pathways Regulated by MYBR30

The change in MaMYBR30 expression level combined with co-expression analysis indicates the possible pathways mediated by MaMYBR30. Mulberry plants with different MaMYBR30 expression levels were obtained using VIGS treatments. Four groups of mulberry plants with different MaMYBR30 expression levels were collected: the high-expression group (HEP), medium-expression group 1 (MEP1), medium-expression group 2 (MEP2), and low-expression group (LEP) (Figure S4). Correlation analysis of all samples based on RNA-seq data showed that the different groups were well distinguished, and the samples in the same group showed high correlation (Figure 7A). DEGs in different comparative groups were identified, and the number of DEGs in HEP vs. LEP and HEP vs. MEP1/MEP2 was higher than in other comparative groups, indicating that the difference in MYBR30 expression levels dominantly affects the DEG numbers (Figure 7B). WGCNA using all DEGs and the expression level of MYBR30 as an associated trait showed that eight modules were clustered. Among these modules, MEturquoise showed a significant positive correlation (r = 0.92, p = 2 × E−5) with MYBR30 and MEred (r = −0.85, p = 3 × E−4) and MEyellow (r = −0.87, p = 3 × E−4) showed a significant negative correlation with MYBR30 (Figure 7C). GO and KEGG enrichment analysis using genes in MEturquoise or MEred and MEyellow, respectively, was performed. Genes in MEturquoise were enriched in bioprocesses involved in response to water deprivation and oxidation stress, indicating their roles in the response to drought stress (Figure 7D). Genes in MEred and MEyellow were involved in lignin biosynthesis, cell wall pectin biosynthesis, gibberellin response, and the calcium signal (Figure 7D). The calcium signal pathway plays an important role in mediating the signaling of various ionic stressors, and plants use calcium to resolve salt stress [17,18]. These differences show the possible different roles that MYBR30 plays in response to drought or salt stress. In addition, both positive and negative related modules showed gene enrichment in bioprocesses, including flower, seed development, and epigenetic modification involved in flowering or vernalization. The MAPK signal pathway, which is responsible for osmotic stress signaling and initializing cellular processes, such as proliferation, differentiation, and development, was also enriched. Genes annotated as negative regulators of the MAPK cascade were also positively related to MYBR30. The MAPK signal pathway and epigenetic modification of flowering-related genes regulated by MYBR30 may be mechanisms for the abnormal development of MYBR30-overexpressing Arabidopsis after exposure to salt stress.
In addition, the top 300 MYBR30-related genes were selected from networks, and the genes involved in the calcium signal, stress responsiveness, flower development, and epigenetic modification were identified (Figure 7E and Figure S5; Table 1). For example, M.alba_G0001459 is a mulberry homolog gene of AtCDPK2 (CALCIUM-DEPENDENT PROTEIN KINASE 2). CDPK2 is known to play an important role in the calcium signal pathway, and its mutant in Arabidopsis has increased sensitivity to ABA and salt. M.alba_G0004262, which is a mulberry homolog gene of ATX1, is known for its activation of histone H3K4Me3 and Flowering Locus C (FLC). These star genes showed close co-expression with MYBR30, and further study should be carried out to reveal the mechanism of signal pathways mediated by MYBR30 in response to salt or drought stress.

3. Discussion

Drought and salt stresses are always discussed together because drought and salt have overlapping signals and complex secondary effects, including oxidative stress, damage to cellular components, and metabolic dysfunction. However, it is also necessary to distinguish the primary stress signals from secondary signals caused by too little water or too much salt [19]. The primary signal caused by drought is hyperosmotic stress, while salt stress has both osmotic and ion-toxicity effects on cells. MYBs as positive regulators for plants in response to drought or salt stress have been reported in many plants. In soybean (Glycine max L.), GmMYB84 overexpression enhanced drought resistance with higher antioxidant enzyme activity [peroxidase (POD), catalase (CAT), and superoxide dismutase (SOD)] and reduced malondialdehyde (MDA) content [20]. TaMYB30-B, a wheat R2R3-MYB gene, has been reported to improve drought stress tolerance in transgenic Arabidopsis [21]. In apple, MdMYB46 enhances salt and osmotic stress tolerance by activating secondary cell wall biosynthesis pathways and stress-responsive signals [22]. In addition, MYB transcription factors always show similar effects on plant tolerance to drought and salt stress. TaMYB33 overexpression increases both salt and drought tolerance in Arabidopsis [23]. A similar function in enhancing tolerance to drought and salt stress has also been characterized for grape VhMYB2, rice OsMYB6 and OsMYB48-1, and wheat TaODORANT1 [24,25,26,27]. In addition to these R2R3 MYB genes, the overexpression of OsMYB3R-2, an R1R2R3 MYB gene, increases tolerance to drought and salt stress in transgenic Arabidopsis [28]. In contrast, some MYBs, such as buckwheat FtMYB22, negatively regulate salt and drought stress through the ABA-dependent pathway [29]. Mulberry is considered as an economic tree with economic value, and some mulberry cultivars are promising pioneer trees for use on marginal land and in drought areas [30]. Zhongshen1 and Wubu are two mulberry varieties with quite different drought tolerance [11,16]. Under drought stress, Zhongshen1 showed decreased productivity and increased proline, abscisic acid, ROS content, and activity of antioxidant enzymes, while Wubu sustained comparable productivity and photosynthesis [16]. In this study, we first characterized MaMYBR30, a SHAQKY-class MYB (1R-MYB) in mulberry, and revealed its roles in regulating plant tolerance to drought and salt stress. MaMYBR30 showed quite different expression levels in Zhongshen 1 and Wubu under drought stress. Both the VIGS down-regulation of MaMYBR30 in mulberry and the overexpression of MaMYBR30 in transgenic Arabidopsis showed that MYBR30 positively regulated drought stress tolerance while negatively regulating resistance to salt stress and affecting plant growth and flowering. Given the overlapping and unique effects of drought and salt stress on cells, it is likely that MaMYBR30 plays quite different roles in regulating the signal pathway and genes involved in osmotic stress and ion toxicity. MaMYBR30 overexpression in Arabidopsis resulted in more sensitivity to primary effects caused by salt stress. Co-expression analysis showed that calcium binding-related genes, including CDPK2, clustered in significantly negatively related modules (MEyellow or Mered), indicating that MaMYBR30 overexpression inhibited the calcium signal pathway, which is important for alleviating ion toxicity. In turn, MaMYBR30 showed positive co-expression with genes involved in response to water deprivation and oxidative stress, which helps to enhance drought stress tolerance.
Previous studies on MYBs mainly focus on R2R3-MYB, and studies on 1R-MYB are relatively insufficient. Reported 1R-MYBs mainly function as regulators involved in secondary metabolism, morphogenesis, and development [1,6]. In this study, we also found that MaMYBR30 affects flower development and the transition of vegetable growth to reproductive growth, especially after exposure to salt stress. MaMYBR30 is co-expressed with many genes involved in vernalization, flowering, and shoot system development. In addition, MaMYBR30 also participates in regulating genes such as ATX1, ATX7, ASHH2, and SDG31, which are involved in epigenetic modification, including that of H3K4Me3, H3K27Me3, and H3K9Me3 (Table 1). These epigenetic modifications are involved in activating genes involved in flower development, such as FLC. The effects on flower development appear to become severe when exposed to salt stress instead of drought stress and result in abnormal flower and seed development. Therefore, these results imply that complex molecular mechanisms mediated by MaMYBR30, including crosstalk of ion toxicity, phytohormone signal transduction, flowering development, and epigenetic modification, need to be further explored in the future.

4. Materials and Methods

4.1. Plant Materials

The materials used in this study were obtained from the National Germplasm Resource Nursery of the Institute of Sericulture, Chinese Academy of Agricultural Sciences in Zhenjiang (north latitude 32°11′, east 119°27′), Jiangsu Province, China. Drought treatments of mulberry drought-sensitive cultivar Zhongshen 1 and drought-tolerant cultivar Wubu and their sample collection used for RNA sequencing (RNA-seq) to screen genes involved in drought stress response were reported in a previous study [16]. Leaves, buds, stems, and roots of one-year-old the M. alba variety Fengchi were collected for molecular cloning and tissue expression profile analysis. Drought, water-logging, low-temperature (4 °C), and high-temperature (40 °C) treatments were performed as previously reported and the leaves were collected for expression level measurement [31,32]. High-salt treatment was performed using different concentrations (100~300 mM) of NaCl irrigation until the observation of wilted, dark leaves and yellowing margins. Mulberry leaves were collected to determine MYBR30 expression level changes in response to diverse stressors. M. alba var. Fengchi seedlings at the four-euphylla stage were used for virus-induced gene silencing (VIGS), as we reported in previous studies [33]. VIGS-treated seedlings with different MaMYBR30 expression levels were collected for RNA-seq to identify co-expressed genes. Mulberry VIGS-treated seedlings showing the significant down-regulation of MaMYBR30 compared with the controls were further treated under drought or salt stresses. M. alba var. Fengchi seedlings were transplanted into pots after gemination in moist dishes and were grown in a growth chamber at 22 °C with a 16/8 day/night cycle and 40–60% humidity. Arabidopsis thaliana (Ler) was used for transgenic experiments to obtain MYBR30-overexpressing Arabidopsis lines. Samples were immediately frozen in liquid nitrogen after collection and stored at −80 °C until use. Two or three biological replications were performed for each experiment.

4.2. RNA-Seq and Comparative RNA-Seq Analysis

The trimmed and filtered reads were aligned to the M. alba genome released by Jiao et al. (2020) using bowtie2 (version-2.3.2) [34]. Samtools was used to operate the bam files. StringTie v2.15 was used to calculate the expression matrix with the genome annotation file (.gff3) [35]. Tbtools 2.089 was used to obtain the differential expression genes [36]. Weighted correlation network analysis (WGCNA) was performed to screen the co-expressed DEGs [37]. For the RNA-seq dataset of drought-treated Zhongshen1 and Wubu, WGCNA was performed using water content and cultivars as associated traits. For the RNA-seq dataset of differentially expressed MaMYBR30, the expression level of MaMYBR30 was used as the associated trait. R version 4.1.2 was used for R-package based analyses. Cytoscape 3.7.2 was used to visualize the co-expression network.

4.3. Cloning and Expression Profile Analysis of MaMYBR30 in Mulberry

Isolation of total RNA and cDNA synthesis were performed according to our previous reports. Primers used for cloning MaMYBR30 were designed according to the sequence from M. alba with geneID M.alba_G0013567 (Table S2). The expression level of MaMYBR30 in various organs and under various stresses were investigated by qRT-PCR (quantitative real-time PCR) using the ABI StepOnePlus™ Real-Time PCR System (Thermo Fisher Scientific, Foster, CA, USA). Then, 2× ChamQ™ SYBR® qPCR Master Mix (Vazyme, Nanjing, China) with 50 × ROX Reference Dye 1 was used to prepare the reaction mix. The program used for the qRT-PCR was the two-step cycling protocol (95 °C for 2 min followed by 40 cycles of 95 °C for 10 s and 60 °C for 30 s) with Actin as the reference gene. Graphpad Prism8.0 was used to visualize the qRT-PCR results and ANOVA; p < 0.05 was marked as significant. Three biological replications or three technical replications were performed.

4.4. Alignment and Phylogenetic Analysis of MaMYBR30

Alignment of MaMYBR30 with other 1R-MYBs from Arabidopsis thaliana (KANADI-class AtMYBs and SHAQKYF-class MYBs) was performed using DNAman 8.0 (Lynnon BioSoft, San Ramon, CA, USA) with default parameters. The MYB DNA-binding motif and SHAQKYF motif were scanned and marked. In addition, both 1R-MYBs from mulberry [15] and Arabidopsis thaliana [7] were collected and aligned to construct a maximum-likelihood phylogenetic tree using Mega X with the JTT substitution model, the G+I rates among sites model, and 1000 bootstrap replicates [38,39].

4.5. Subcellular Location of MaMYBR30

The method used for the subcellular localization of MaMYBR30 was according to our previous study [40]. The confirmed recombinant plasmids constructed using Nimble cloning [41] were transferred into Agrobacterium tumefaciens strain GV3101, which was then transferred into tobacco leaves via Agrobacterium-mediated transient transformation together with recombinant plasmid pBin-Sv40-NLS-mCherry as the nuclear localization marker [42]. YFP and mCherry fluorescence signals in leaves were observed with a Leica TCS SP8 confocal microscope (Leica Microsystems, Wetzlar, Germany).

4.6. VIGS Treatment of Mulberry

We generated mulberry trees with different degrees of down-regulated expression levels of MaMYBR30 using virus-induced gene silencing (VIGS) [13]. Nimble cloning was used to construct the recombinant plasmids used for VIGS [41]. VIGS in mulberry was performed according to our previous studies [13,32,33]. Pressure injection was adopted to infect the mulberry leaves, and empty vectors pTRV2 and pTRV1 were used as negative controls. The expression level of MaMYBR30 was detected using qRT-PCR, 15 days after injection. The knock-down efficiency of MaMYBR30 was calculated by comparing the expression level of MaMYBR30 in VIGS-treated plants with the controls.

4.7. Overexpression of MaMYBR30 in Arabidopsis

Recombinant plasmids pCambia1304-35S::MaMYB30 were constructed using Nimble cloning and confirmed by sequencing. The recombinant plasmids were then transformed into Agrobacterium tumefaciens strain GV3101, as described above. The floral dip method was adopted to obtain the transgenic Arabidopsis seeds, and further, positive seedlings were screened using Hygromycin B (20 mg/L). Genomic DNA was extracted as a template and PCR was performed to further determine the fusion of MaMYBR30 into the Arabidopsis genome. About nine individual transgenic lines were generated, and four lines were selected for further analysis. The T3 progenies of selected transgenic lines were germinated on agar plates containing half of Murashige and Skoog medium (1/2MS), and the transgenic seedlings were further confirmed by qRT-PCR to detect the overexpression of MaMYBR30 in Arabidopsis compared to the WT (Ler). These MaMYBR30-overexpression transgenic Arabidopsis plants were used for observation and drought and salt treatments.

4.8. Drought and Salt Stress Treatment and Physiology Indicator Determination

Mulberry plants with validated down-regulated MaMYBR30 by VIGS and progenies of selected transgenic Arabidopsis lines were exposed to drought or salt stresses. Plants exposed to drought stress were placed in one pot, and the tests were carried out by stopping irrigation, and the controls were irrigated with water normally. Plants exposed to high salt stresses were treated every day with 100, 150, 200, and 300 mM NaCl instead of water. Both treatments were kept for eight days, and then, the plants were recovered by water irrigation. MDA contents and SOD activity in leaves were determined using the samples collected on the eighth day, as we described in a previous study [43]. Briefly, the MDA content was determined as described by Sairam and Srivastava (2001) [44]. SOD activity was determined using a SOD measurement kit (Suzhou Keming Technology, Suzhou, China) according to the manufacturer. Graphpad Prism8.0 was used to perform ANOVA and visualize the results. p < 0.05 was considered significant. All above measurements were carried out with three biological replications. Three newly grown leaves of two independent VIGS-treated mulberry plants were used as biological replicates.

5. Conclusions

In conclusion, we report a 1R SHAQKYF-class MYB, MaMYBR30, and its function in mulberry. MaMYBR30 is localized in the nucleus and belongs to the CCA-like subgroup with a conserved SHAQKYF motif. The functional characterization of MaMYBR30 in vivo indicated that MaMYBR30 can positively regulate the resistance of mulberry to drought while negatively regulating the resistance of mulberry to salt stress. In addition, MaMYBR30 also affects flower development and reproductive growth, especially after exposure to salt stress. Complex molecular mechanisms mediated by MaMYBR30 need to be further explored in the future.

Supplementary Materials

The following supporting information can be downloaded at https://www.mdpi.com/article/10.3390/plants13131794/s1: Table S1: Expression matrix of RNA-seq dataset involved in drought stress responsiveness; Table S2: Primers used in this study; Table S3: DEGs caused by change in MaMYBR30 expression level; Figure S1: Venn diagram of drought-induced DEGs and abiotic stress-related MYBs; Figure S2: Phylogenetic analysis of 1R-MYB from Morus alba and Arabidopsis thaliana; Figure S3: Growth condition of transgenic and wild-type Arabidopsis; A. Growth condition of transgenic and wild-type Arabidopsis with normal water supply; B. qRT-PCR detection of MaMYBR30 expression levels in transgenic Arabidopsis lines; C. Growth condition of transgenic and wild-type Arabidopsis under salt stress by irrigation with 100 mM, 200 Mm, and 300 mM NaCl instead of water; D. Reproductive growth of transgenic and wild-type Arabidopsis after exposure to salt stress and recovery with water supply. CK: wild type (Ler); MYBR30#1, 2, 3: MaMYBR30-overexpressing lines. Figure S4: qRT-PCR detection of MaMYBR30 expression levels of different sample groups; Figure S5: GO enrichment analysis of top 300 MYBR30-related genes.

Author Contributions

L.L. and N.C. guided the work and provided advice; S.L., F.T., P.L. and J.L. performed the experiments; L.Z., R.F. and J.Z. helped to prepare plant materials. N.C. and L.L. analyzed the data, organized the figures, and wrote the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This work was jointly supported by the National Natural Science Foundation of China (32201526), the Crop Germplasm Resources Protection Project of the Ministry of Agriculture and Rural Affairs of the People’s Republic of China (19221879), the National Infrastructure for Crop Germplasm Resources (NCGRC-2022-041), and the China Agriculture Research System of MOF and MARA (CARS-18).

Data Availability Statement

The original contributions presented in the study are included in the article/Supplementary Materials, further inquiries can be directed to the corresponding author.

Conflicts of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as potential conflicts of interest.

References

  1. Dubos, C.; Stracke, R.; Grotewold, E.; Weisshaar, B.; Martin, C.; Lepiniec, L. MYB transcription factors in Arabidopsis. Trends Plant Sci. 2010, 15, 573–581. [Google Scholar] [CrossRef]
  2. Jiang, C.K.; Rao, G.Y. Insights into the Diversification and Evolution of R2R3-MYB Transcription Factors in Plants. Plant Physiol. 2020, 183, 637–655. [Google Scholar] [CrossRef]
  3. Liu, J.; Osbourn, A.; Ma, P. MYB Transcription Factors as Regulators of Phenylpropanoid Metabolism in Plants. Mol. Plant 2015, 8, 689–708. [Google Scholar] [CrossRef]
  4. Wang, B.; Luo, Q.; Li, Y.; Yin, L.; Zhou, N.; Li, X.; Gan, J.; Dong, A. Structural insights into target DNA recognition by R2R3-MYB transcription factors. Nucleic Acids Res. 2020, 48, 460–471. [Google Scholar] [CrossRef]
  5. Du, H.; Liang, Z.; Zhao, S.; Nan, M.G.; Tran, L.S.P.; Lu, K.; Huang, Y.B.; Li, J.N. The Evolutionary History of R2R3-MYB Proteins Across 50 Eukaryotes: New Insights into Subfamily Classification and Expansion. Sci. Rep. 2015, 5, 11037. [Google Scholar] [CrossRef]
  6. Ma, D.; Constabel, C.P. MYB Repressors as Regulators of Phenylpropanoid Metabolism in Plants. Trends Plant Sci. 2019, 24, 275–289. [Google Scholar] [CrossRef]
  7. Du, H.; Wang, Y.B.; Xie, Y.; Liang, Z.; Jiang, S.J.; Zhang, S.S.; Huang, Y.B.; Tang, Y.X. Genome-wide identification and evolutionary and expression analyses of MYB-related genes in land plants. DNA Res. 2013, 20, 437–448. [Google Scholar] [CrossRef] [PubMed]
  8. Zhang, G.H.; Xu, Q.; Zhu, X.D.; Qian, Q.; Xue, H.W. SHALLOT-LIKE1 is a KANADI transcription factor that modulates rice leaf rolling by regulating leaf abaxial cell development. Plant Cell 2009, 21, 719–735. [Google Scholar] [CrossRef]
  9. Liu, Q.; Huang, H.; Chen, Y.; Yue, Z.; Wang, Z.; Qu, T.; Xu, D.; Lü, S.; Hu, H. Two Arabidopsis MYB-SHAQKYF transcription repressors regulate leaf wax biosynthesis via transcriptional suppression on DEWAX. New Phytol. 2022, 236, 2115–2130. [Google Scholar] [CrossRef]
  10. Jain, M.; Bansal, J.; Rajkumar, M.S.; Sharma, N.; Khurana, J.P.; Khurana, P. Draft genome sequence of Indian mulberry (Morus indica) provides a resource for functional and translational genomics. Genomics 2022, 114, 110346. [Google Scholar] [CrossRef]
  11. Cao, X.; Shen, Q.; Ma, S.; Liu, L.; Cheng, J. Physiological and PIP Transcriptional Responses to Progressive Soil Water Deficit in Three Mulberry Cultivars. Front. Plant Sci. 2020, 11, 1310. [Google Scholar] [CrossRef] [PubMed]
  12. Liu, L.; Cao, X.; Zhai, Z.; Ma, S.; Tian, Y.; Cheng, J. Direct evidence of drought stress memory in mulberry from a physiological perspective: Antioxidative, osmotic and phytohormonal regulations. Plant Physiol. Biochem. 2022, 186, 76–87. [Google Scholar] [CrossRef] [PubMed]
  13. Li, R.; Liu, L.; Dominic, K.; Wang, T.; Fan, T.; Hu, F.; Wang, Y.; Zhang, L.; Li, L.; Zhao, W. Mulberry (Morus alba) MmSK gene enhances tolerance to drought stress in transgenic mulberry. Plant Physiol. Biochem. 2018, 132, 603–611. [Google Scholar] [CrossRef] [PubMed]
  14. Zhang, H.; Li, X.; Zhang, S.; Yin, Z.; Zhu, W.; Li, J.; Meng, L.; Zhong, H.; Xu, N.; Wu, Y.; et al. Rootstock Alleviates Salt Stress in Grafted Mulberry Seedlings: Physiological and PSII Function Responses. Front. Plant Sci. 2018, 9, 1806. [Google Scholar] [CrossRef]
  15. Liu, L.; Chao, N.; Yidilisi, K.; Kang, X.; Cao, X. Comprehensive analysis of the MYB transcription factor gene family in Morus alba. BMC Plant Biol. 2022, 22, 281. [Google Scholar] [CrossRef] [PubMed]
  16. Zhai, Z.; Fang, Y.; Cheng, J.; Tian, Y.; Liu, L.; Cao, X. Intrinsic morphology and spatial distribution of non-structural carbohydrates contribute to drought resistance of two mulberry cultivars. Plant Biol. 2023, 25, 771–784. [Google Scholar] [CrossRef]
  17. Manishankar, P.; Wang, N.; Koster, P.; Alatar, A.A.; Kudla, J. Calcium Signaling during Salt Stress and in the Regulation of Ion Homeostasis. J. Exp. Bot. 2018, 69, 4215–4226. [Google Scholar] [CrossRef]
  18. Bressan, R.A.; Hasegawa, P.M.; Pardo, J.M. Plants use calcium to resolve salt stress. Trends Plant Sci. 1998, 3, 411–412. [Google Scholar] [CrossRef]
  19. Zhu, J.K. Abiotic Stress Signaling and Responses in Plants. Cell 2016, 167, 313–324. [Google Scholar] [CrossRef]
  20. Wang, N.; Zhang, W.; Qin, M.; Li, S.; Qiao, M.; Liu, Z.; Xiang, F. Drought Tolerance Conferred in Soybean (Glycine max. L.) by GmMYB84, a Novel R2R3-MYB Transcription Factor. Plant Cell Physiol. 2017, 58, 1764–1776. [Google Scholar] [CrossRef]
  21. Zhang, L.; Zhao, G.; Xia, C.; Jia, J.; Liu, X.; Kong, X. A wheat R2R3-MYB gene, TaMYB30-B, improves drought stress tolerance in transgenic Arabidopsis. J. Exp. Bot. 2012, 63, 5873–5885. [Google Scholar] [CrossRef]
  22. Chen, K.; Song, M.; Guo, Y.; Liu, L.; Xue, H.; Dai, H.; Zhang, Z. MdMYB46 could enhance salt and osmotic stress tolerance in apple by directly activating stress-responsive signals. Plant Biotechnol. J. 2019, 17, 2341–2355. [Google Scholar] [CrossRef] [PubMed]
  23. Qin, Y.; Wang, M.; Tian, Y.; He, W.; Han, L.; Xia, G. Over-expression of TaMYB33 encoding a novel wheat MYB transcription factor increases salt and drought tolerance in Arabidopsis. Mol. Biol. Rep. 2012, 39, 7183–7192. [Google Scholar] [CrossRef] [PubMed]
  24. Xiong, H.; Li, J.; Liu, P.; Duan, J.; Zhao, Y.; Guo, X.; Li, Y.; Zhang, H.; Ali, J.; Li, Z. Overexpression of OsMYB48-1, a novel MYB-related transcription factor, enhances drought and salinity tolerance in rice. PLoS ONE 2014, 9, e92913. [Google Scholar] [CrossRef]
  25. Wei, Q.; Luo, Q.; Wang, R.; Zhang, F.; He, Y.; Zhang, Y.; Qiu, D.; Li, K.; Chang, J.; Yang, G.; et al. A Wheat R2R3-type MYB Transcription Factor TaODORANT1 Positively Regulates Drought and Salt Stress Responses in Transgenic Tobacco Plants. Front. Plant Sci. 2017, 8, 1374. [Google Scholar] [CrossRef] [PubMed]
  26. Tang, Y.; Bao, X.; Zhi, Y.; Wu, Q.; Guo, Y.; Yin, X.; Zeng, L.; Li, J.; Zhang, J.; He, W.; et al. Overexpression of a MYB Family Gene, OsMYB6, Increases Drought and Salinity Stress Tolerance in Transgenic Rice. Front. Plant Sci. 2019, 10, 168. [Google Scholar] [CrossRef] [PubMed]
  27. Ren, C.; Li, Z.; Song, P.; Wang, Y.; Liu, W.; Zhang, L.; Li, X.; Li, W.; Han, D. Overexpression of a Grape MYB Transcription Factor Gene VhMYB2 Increases Salinity and Drought Tolerance in Arabidopsis thaliana. Int. J. Mol. Sci. 2023, 24, 10743. [Google Scholar] [CrossRef] [PubMed]
  28. Dai, X.; Xu, Y.; Ma, Q.; Xu, W.; Wang, T.; Xue, Y.; Chong, K. Overexpression of an R1R2R3 MYB gene, OsMYB3R-2, increases tolerance to freezing, drought, and salt stress in transgenic Arabidopsis. Plant Physiol. 2007, 143, 1739–1751. [Google Scholar] [CrossRef] [PubMed]
  29. Zhao, H.; Yao, P.; Zhao, J.; Wu, H.; Wang, S.; Chen, Y.; Hu, M.; Wang, T.; Li, C.; Wu, Q. A Novel R2R3-MYB Transcription Factor FtMYB22 Negatively Regulates Salt and Drought Stress through ABA-Dependent Pathway. Int. J. Mol. Sci. 2022, 23, 14549. [Google Scholar] [CrossRef]
  30. Vijayan, K.; Srivastava, P.P.; Raghunath, M.K.; Saratchandra, B. Enhancement of stress tolerance in mulberry. Sci. Hortic. 2011, 129, 511–519. [Google Scholar] [CrossRef]
  31. Chao, N.; Huang, S.; Kang, X.; Yidilisi, K.; Dai, M.; Liu, L. Systematic functional characterization of cinnamyl alcohol dehydrogenase family members revealed their functional divergence in lignin biosynthesis and stress responses in mulberry. Plant Physiol. Biochem. 2022, 186, 145–156. [Google Scholar] [CrossRef] [PubMed]
  32. Kang, X.; Huang, S.; Feng, Y.; Fu, R.; Tang, F.; Zheng, L.; Li, P.; Chao, N.; Liu, L. SWEET transporters and their potential roles in response to abiotic and biotic stresses in mulberry. Beverage Plant Res. 2023, 3, 1–13. [Google Scholar] [CrossRef]
  33. Chao, N.; Wang, R.F.; Hou, C.; Yu, T.; Miao, K.; Cao, F.Y.; Fang, R.J.; Liu, L. Functional characterization of two chalcone isomerase (CHI) revealing their responsibility for anthocyanins accumulation in mulberry. Plant Physiol. Biochem. 2021, 161, 65–73. [Google Scholar] [CrossRef] [PubMed]
  34. Langdon, B.W. Performance of genetic programming optimised Bowtie2 on genome comparison and analytic testing (GCAT) benchmarks. BioData Min. 2015, 8, 1. [Google Scholar] [CrossRef] [PubMed]
  35. Pertea, M.; Pertea, G.M.; Antonescu, C.M.; Chang, T.C.; Mendell, J.T.; Salzberg, S.L. StringTie enables improved reconstruction of a transcriptome from RNA-seq reads. Nat. Biotechnol. 2015, 33, 290–295. [Google Scholar] [CrossRef] [PubMed]
  36. Anders, S.; Huber, W. Differential expression analysis for sequence count data. Nat. Preced. 2010, 5, 1. [Google Scholar]
  37. Langfelder, P.; Horvath, S. WGCNA: An R package for weighted correlation network analysis. BMC Bioinform. 2008, 9, 559. [Google Scholar] [CrossRef] [PubMed]
  38. Tamura, K.; Peterson, D.; Peterson, N.; Stecher, G.; Nei, M.; Kumar, S. MEGA5: Molecular evolutionary genetics analysis using maximum likelihood, evolutionary distance, and maximum parsimony methods. Mol. Biol. Evol. 2011, 28, 2731–2739. [Google Scholar] [CrossRef] [PubMed]
  39. Kumar, S.; Stecher, G.; Tamura, K. MEGA7: Molecular Evolutionary Genetics Analysis Version 7.0 for Bigger Datasets. Mol. Biol. Evol. 2016, 33, 1870. [Google Scholar] [CrossRef]
  40. Dai, M.; Kang, X.; Wang, Y.; Huang, S.; Guo, Y.; Wang, R.; Chao, N.; Liu, L. Functional Characterization of Flavanone 3-Hydroxylase (F3H) and Its Role in Anthocyanin and Flavonoid Biosynthesis in Mulberry. Molecules 2022, 27, 3341. [Google Scholar] [CrossRef]
  41. Yan, P.; Zeng, Y.; Shen, W.; Tuo, D.; Li, X.; Zhou, P. Nimble Cloning: A Simple, Versatile, and Efficient System for Standardized Molecular Cloning. Front. Bioeng. Biotechnol. 2019, 7, 460. [Google Scholar] [CrossRef]
  42. Morita, S.; Yamashita, Y.; Fujiki, M.; Todaka, R.; Nishikawa, Y.; Hosoki, A.; Yabe, C.; Nakamura, J.i.; Kawamura, K.; Suwastika, I.N.; et al. Expression of a rice glutaredoxin in aleurone layers of developing and mature seeds: Subcellular localization and possible functions in antioxidant defense. Planta 2015, 242, 1195–1206. [Google Scholar] [CrossRef]
  43. Huang, S.; Kang, X.; Yu, T.; Yidilisi, K.; Zhang, L.; Cao, X.; Chao, N.; Liu, L. Comparative RNA-Seq Analysis Reveals the Organ-Specific Transcriptomic Response to Zinc Stress in Mulberry. Forests 2023, 14, 842. [Google Scholar] [CrossRef]
  44. Arora, A.; Sairam, R.; Srivastava, G. Oxidative stress and antioxidative system in plants. Curr. Sci. 2002, 82, 1227–1238. [Google Scholar]
Plants 13 01794 g001

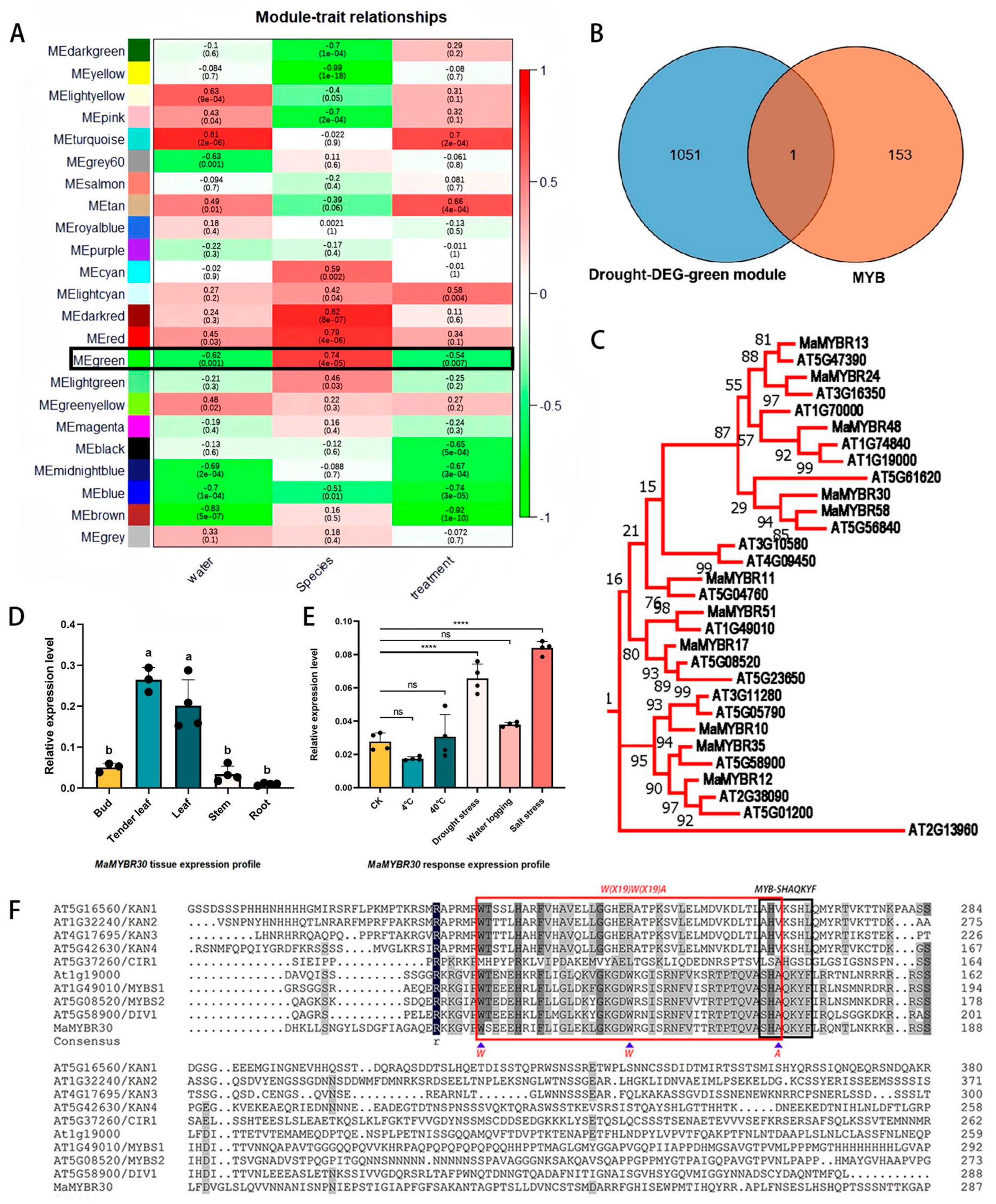

Figure 1. CCA1-like clade MaMYBR30 is involved in drought and salt stress responses. (A). WGCNA indicates the modules’ and the traits’ relationships; species indicate Zhongshen 1 and Wubu varieties and treatment indicates the drought treatments. (B). Venn diagram of DEGs in MEgreen module and the MYBs in mulberry. (C). Phylogenetic analysis of MaMYBR30 and CCA1-like MYB from Arabidopsis thaliana. (D). Expression profile of MaMYBR30 in different organs in mulberry. (E). Expression levels of MaMYBR30 in response to different stresses. (F). Alignment of MaMYBR30 and 1-R MYB from Arabidopsis thaliana. Data are presented as means ± SD of at least three biological replicates. The significance was marked using **** (p < 0.0001) or indicated by different letters.
Figure 1. CCA1-like clade MaMYBR30 is involved in drought and salt stress responses. (A). WGCNA indicates the modules’ and the traits’ relationships; species indicate Zhongshen 1 and Wubu varieties and treatment indicates the drought treatments. (B). Venn diagram of DEGs in MEgreen module and the MYBs in mulberry. (C). Phylogenetic analysis of MaMYBR30 and CCA1-like MYB from Arabidopsis thaliana. (D). Expression profile of MaMYBR30 in different organs in mulberry. (E). Expression levels of MaMYBR30 in response to different stresses. (F). Alignment of MaMYBR30 and 1-R MYB from Arabidopsis thaliana. Data are presented as means ± SD of at least three biological replicates. The significance was marked using **** (p < 0.0001) or indicated by different letters.
Plants 13 01794 g001
Plants 13 01794 g002
Figure 2. Subcellular localization of MYBR30. The nucleus location marker SV40-mCherry signals merged with MaMYBR30-YFP signals.
Figure 2. Subcellular localization of MYBR30. The nucleus location marker SV40-mCherry signals merged with MaMYBR30-YFP signals.
Plants 13 01794 g002
Plants 13 01794 g003

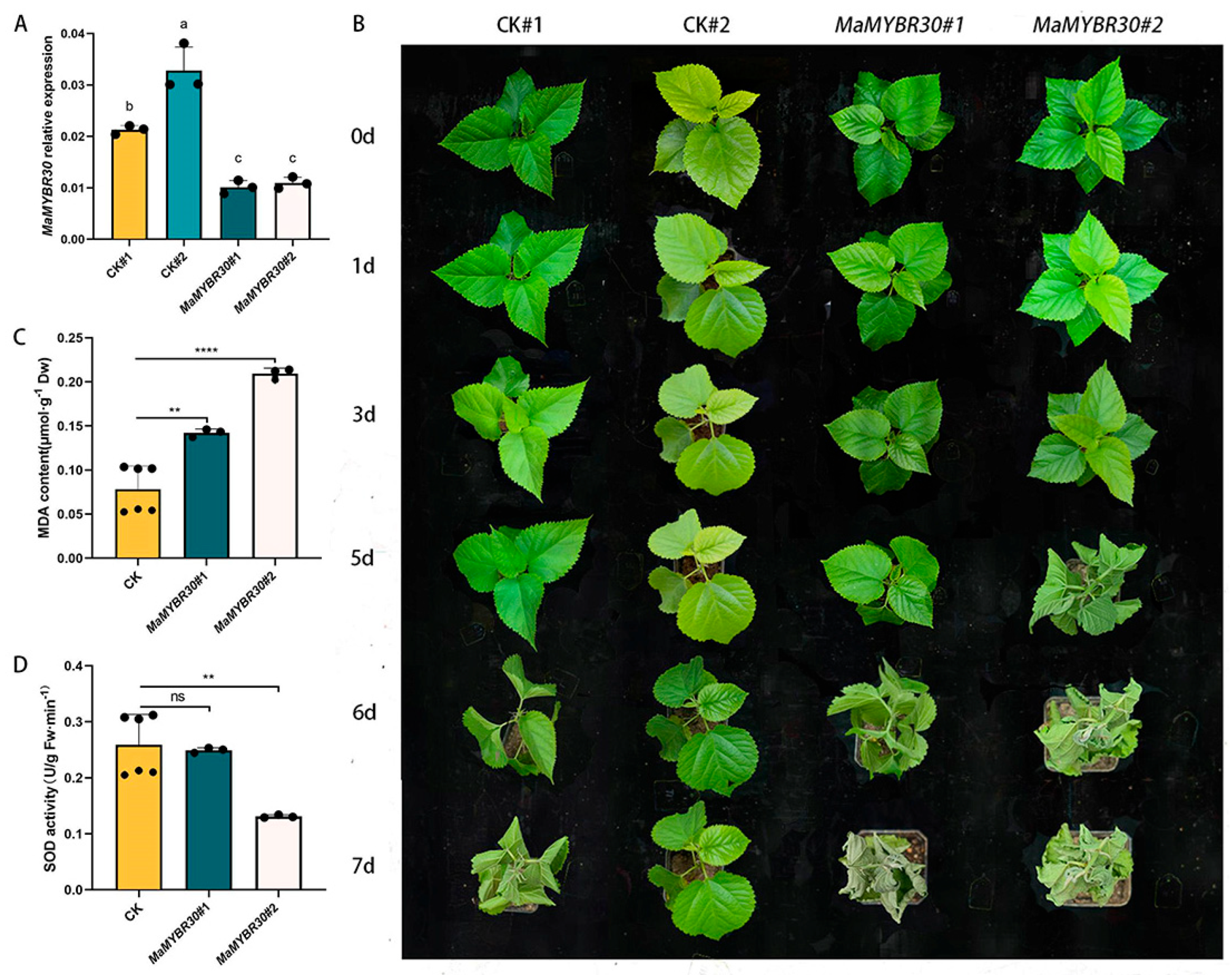

Figure 3. Down-regulation of MaMYBR30 by VIGS decreases drought tolerance in mulberry. (A). qRT-PCR detection of MaMYBR30 expression levels in VIGS-treated mulberry plants. (B). Growth conditions of VIGS-treated mulberry and controls under drought stress; plants were observed and recorded until the seventh day after exposure to drought stress. (C). MDA contents in VIGS-treated mulberry and controls after exposure to drought stress. (D). SOD activities in VIGS-treated mulberry and controls after exposure to drought stress. MDA and SOD were determined in leaves on the seventh day of stress treatment. CK: mulberry plants treated with empty vectors were used as controls; CK#1 and 2 indicated two independent CKs as biological replicates. MaMYBR30 #1 and 2: independent mulberry plants with the down-regulation of MaMYBR30 by VIGS treatment. Data are presented as means ± SD of three biological replicates. The significance was marked using ** (0.001 < p < 0.01), and **** (p < 0.0001) or indicated by different letters.
Figure 3. Down-regulation of MaMYBR30 by VIGS decreases drought tolerance in mulberry. (A). qRT-PCR detection of MaMYBR30 expression levels in VIGS-treated mulberry plants. (B). Growth conditions of VIGS-treated mulberry and controls under drought stress; plants were observed and recorded until the seventh day after exposure to drought stress. (C). MDA contents in VIGS-treated mulberry and controls after exposure to drought stress. (D). SOD activities in VIGS-treated mulberry and controls after exposure to drought stress. MDA and SOD were determined in leaves on the seventh day of stress treatment. CK: mulberry plants treated with empty vectors were used as controls; CK#1 and 2 indicated two independent CKs as biological replicates. MaMYBR30 #1 and 2: independent mulberry plants with the down-regulation of MaMYBR30 by VIGS treatment. Data are presented as means ± SD of three biological replicates. The significance was marked using ** (0.001 < p < 0.01), and **** (p < 0.0001) or indicated by different letters.
Plants 13 01794 g003
Plants 13 01794 g004

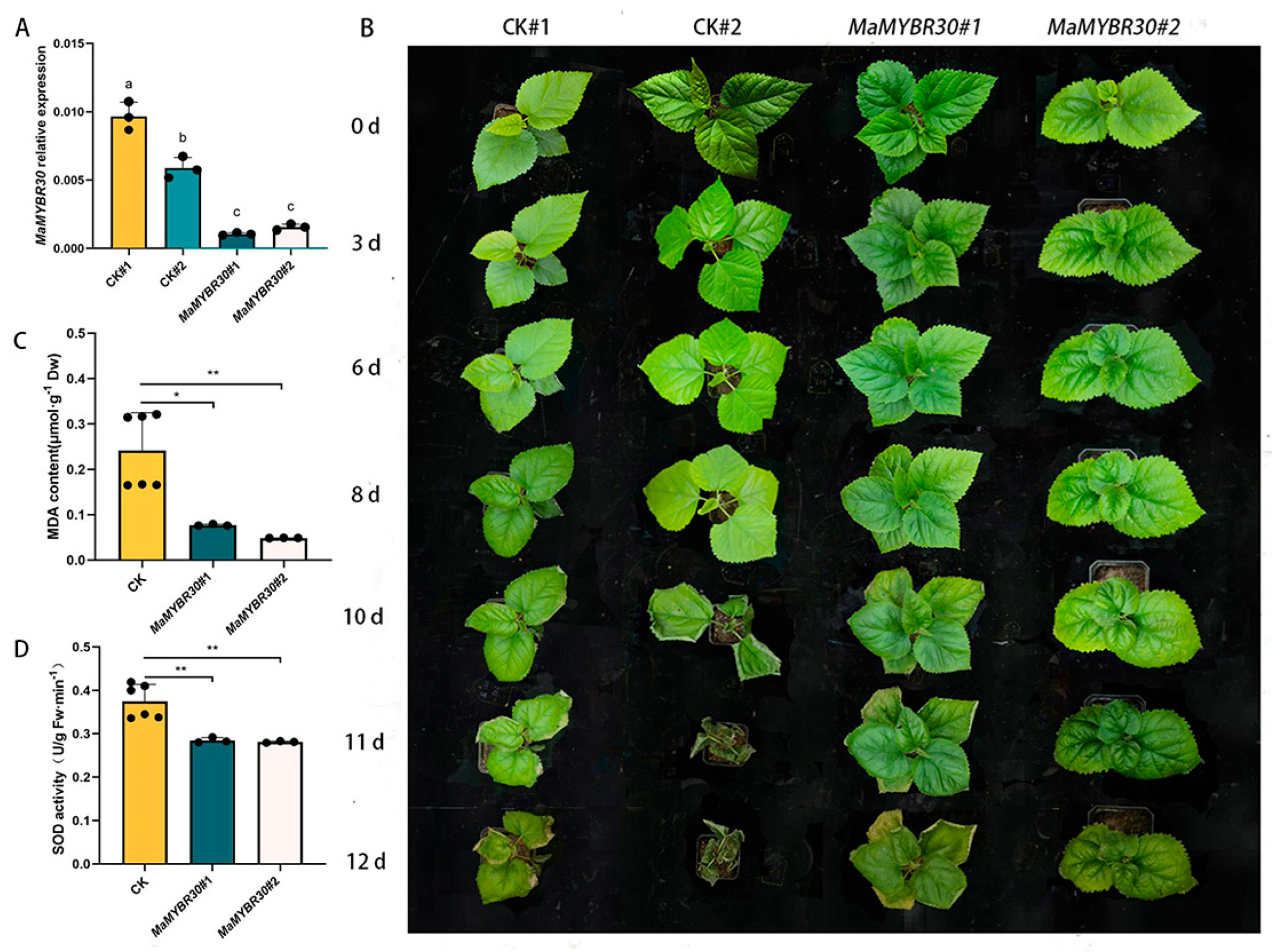

Figure 4. MaMYBR30 down-regulation by VIGS decreases tolerance to high salt stress. (A). qRT−PCR detection of MaMYBR30 expression levels in VIGS-treated mulberry plants. (B). Growth conditions of VIGS−treated mulberry and controls under high salt stress; plants were observed and recorded until the twelfth day after exposure to drought stress. (C). MDA content in VIGS-treated mulberry and controls after exposure to high salt stress. (D). SOD activity in VIGS−treated mulberry and controls after exposure to high salt stress. MDA and SOD were determined in leaves on the twelfth day of stress treatment. CK: mulberry plants treated with empty vectors were used as controls; CK#1 and 2 indicated two independent CKs as biological replicates. MaMYBR30 #1 and 2: independent mulberry plants with the down-regulation of MaMYBR30 by VIGS treatment. Data are presented as means ± SD of three biological replicates. Significant differences are marked using * (0.01 < p < 0.05), and ** (0.001 < p < 0.01) or indicated by different letters.
Figure 4. MaMYBR30 down-regulation by VIGS decreases tolerance to high salt stress. (A). qRT−PCR detection of MaMYBR30 expression levels in VIGS-treated mulberry plants. (B). Growth conditions of VIGS−treated mulberry and controls under high salt stress; plants were observed and recorded until the twelfth day after exposure to drought stress. (C). MDA content in VIGS-treated mulberry and controls after exposure to high salt stress. (D). SOD activity in VIGS−treated mulberry and controls after exposure to high salt stress. MDA and SOD were determined in leaves on the twelfth day of stress treatment. CK: mulberry plants treated with empty vectors were used as controls; CK#1 and 2 indicated two independent CKs as biological replicates. MaMYBR30 #1 and 2: independent mulberry plants with the down-regulation of MaMYBR30 by VIGS treatment. Data are presented as means ± SD of three biological replicates. Significant differences are marked using * (0.01 < p < 0.05), and ** (0.001 < p < 0.01) or indicated by different letters.
Plants 13 01794 g004
Plants 13 01794 g005

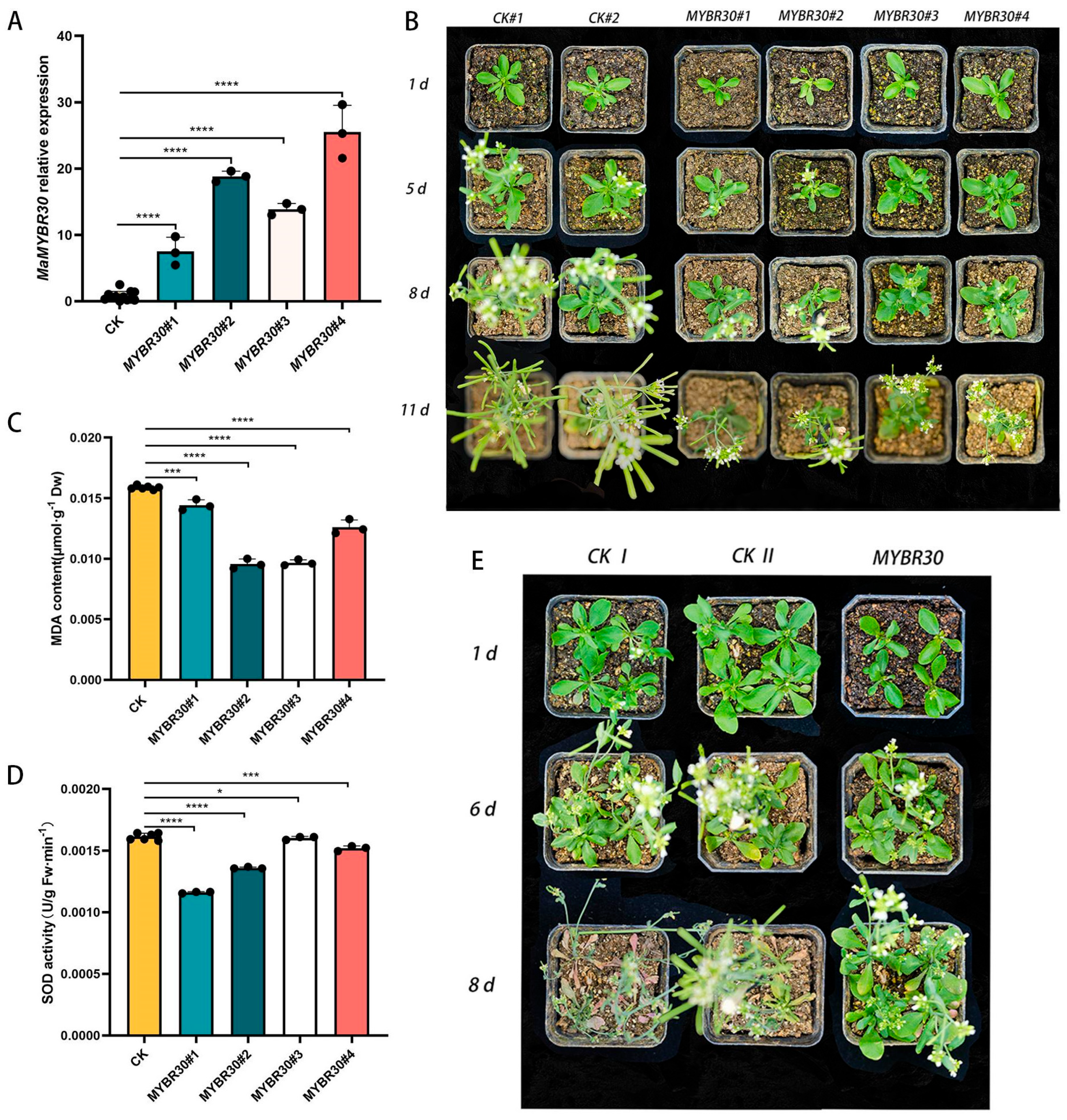

Figure 5. MaMYBR30-overexpressing Arabidopsis enhanced plant drought tolerance. (A). qRT−PCR detection of MaMYBR30 expression levels in transgenic Arabidopsis lines. (B). Growth conditions of transgenic Arabidopsis (one line in one pot) and wild types under drought stress for indicated period; (C). MDA contents in transgenic Arabidopsis and wild types after exposure to drought stress. (D). SOD activities in transgenic Arabidopsis and wild types after exposure to drought stress. (E). Growth conditions of transgenic Arabidopsis (four lines in one pot) and wild types under drought stress. Wild types were used as the CK group. MDA and SOD were determined in leaves on the eighth day of stress treatment. Data are presented as means ± SD of three biological replicates. The significance was marked using * (0.01 < p < 0.05), *** (0.0001 < p < 0.001), and **** (p < 0.0001).
Figure 5. MaMYBR30-overexpressing Arabidopsis enhanced plant drought tolerance. (A). qRT−PCR detection of MaMYBR30 expression levels in transgenic Arabidopsis lines. (B). Growth conditions of transgenic Arabidopsis (one line in one pot) and wild types under drought stress for indicated period; (C). MDA contents in transgenic Arabidopsis and wild types after exposure to drought stress. (D). SOD activities in transgenic Arabidopsis and wild types after exposure to drought stress. (E). Growth conditions of transgenic Arabidopsis (four lines in one pot) and wild types under drought stress. Wild types were used as the CK group. MDA and SOD were determined in leaves on the eighth day of stress treatment. Data are presented as means ± SD of three biological replicates. The significance was marked using * (0.01 < p < 0.05), *** (0.0001 < p < 0.001), and **** (p < 0.0001).
Plants 13 01794 g005
Plants 13 01794 g006

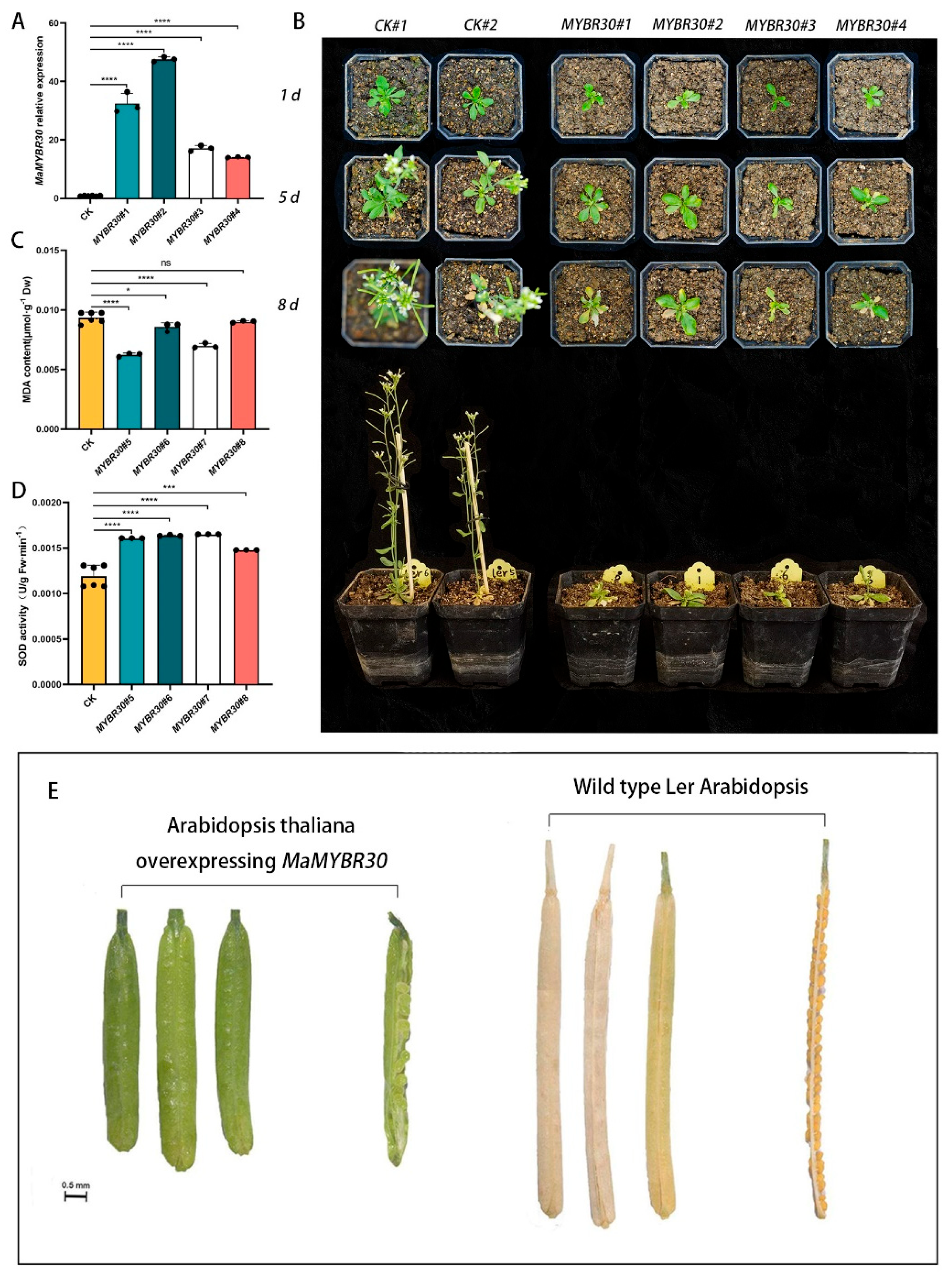

Figure 6. MaMYBR30-overexpressing Arabidopsis decreased plant salt tolerance. (A). qRT-PCR detection of MaMYBR30 expression levels in transgenic and wild-type (CK) Arabidopsis lines. (B). Growth conditions of transgenic Arabidopsis (one line in one pot) and wild types under high salt stress for indicated periods. (C). MDA contents in transgenic Arabidopsis and wild types after exposure to high salt stress. (D). SOD activities in transgenic Arabidopsis and wild types after exposure to high salt stress. (E). Pods and seeds of transgenic Arabidopsis and wild types after recovery. The plants were irrigated with 150 mM NaCl instead of water. MDA and SOD were determined in leaves on the eighth day of stress treatment. Data are presented as means ± SD of three biological replicates. The significance was marked using * (0.01 < p < 0.05), *** (0.0001 < p < 0.001), and **** (p < 0.0001) or indicated by different letters.
Figure 6. MaMYBR30-overexpressing Arabidopsis decreased plant salt tolerance. (A). qRT-PCR detection of MaMYBR30 expression levels in transgenic and wild-type (CK) Arabidopsis lines. (B). Growth conditions of transgenic Arabidopsis (one line in one pot) and wild types under high salt stress for indicated periods. (C). MDA contents in transgenic Arabidopsis and wild types after exposure to high salt stress. (D). SOD activities in transgenic Arabidopsis and wild types after exposure to high salt stress. (E). Pods and seeds of transgenic Arabidopsis and wild types after recovery. The plants were irrigated with 150 mM NaCl instead of water. MDA and SOD were determined in leaves on the eighth day of stress treatment. Data are presented as means ± SD of three biological replicates. The significance was marked using * (0.01 < p < 0.05), *** (0.0001 < p < 0.001), and **** (p < 0.0001) or indicated by different letters.
Plants 13 01794 g006
Plants 13 01794 g007

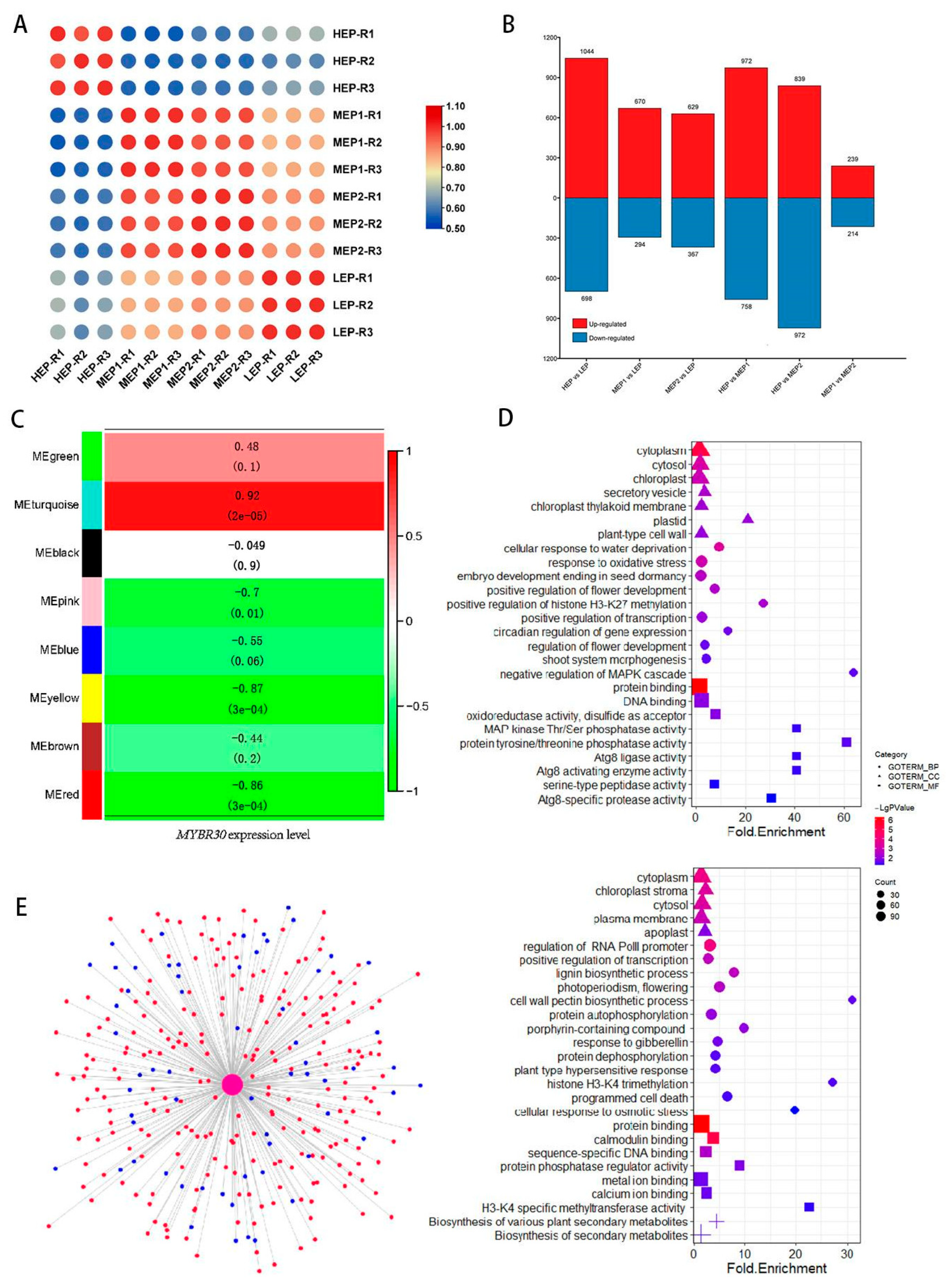

Figure 7. Comparative transcriptome analysis of mulberry plants with different MaMYBR30 expression levels. (A). Correlation of RNA-seq data from mulberry plants with different MaMYBR30 expression levels. HEP: high expression level of MYBR30; MEP: medium expression level of MYBR30; LEP: low expression level of MYBR30; (B). Number of up-regulated and down-regulated genes in different comparative groups. (C). Correlation of modules and traits. (D). GO and KEGG enrichment of DEGs in the MEturquoise module (up) and DEGs in MEred and MEyellow modules (bottom). “+” indicated KEGG pathways. (E). Co-expression network of MaMYBR30 and top 300 related DEGs. The red circles indicate DEGs in the MEturquoise module, and the blue circles indicate DEGs in the MEred and MEyellow modules.
Figure 7. Comparative transcriptome analysis of mulberry plants with different MaMYBR30 expression levels. (A). Correlation of RNA-seq data from mulberry plants with different MaMYBR30 expression levels. HEP: high expression level of MYBR30; MEP: medium expression level of MYBR30; LEP: low expression level of MYBR30; (B). Number of up-regulated and down-regulated genes in different comparative groups. (C). Correlation of modules and traits. (D). GO and KEGG enrichment of DEGs in the MEturquoise module (up) and DEGs in MEred and MEyellow modules (bottom). “+” indicated KEGG pathways. (E). Co-expression network of MaMYBR30 and top 300 related DEGs. The red circles indicate DEGs in the MEturquoise module, and the blue circles indicate DEGs in the MEred and MEyellow modules.
Plants 13 01794 g007
Table 1. Annotation of DEGs from co-expression network of MaMYBR30.
Table 1. Annotation of DEGs from co-expression network of MaMYBR30.
Morus Gene IDHomolog in ArabidopsisSymbolBioprocessModules
M.alba_G0001459AT1G35670ATCDPK2calmodulin bindingyellow
M.alba_G0004615AT4G35580NTL9calmodulin bindingred
M.alba_G0010384AT2G19130AT2G19130calmodulin bindingred
M.alba_G0000522AT5G48670AGL80seed developmentred
M.alba_G0005385AT1G13290DOT5leaf developmentred
M.alba_G0003162AT5G06720ATPA2flower development,
oxidative stress		yellow
M.alba_G0008384AT3G04380SDG31H3K9Me3yellow
M.alba_G0001138AT1G77300ASHH2H3K36Me, flowerturquoise
M.alba_G0004262AT2G31650ATX1H3K4Me3, flowerturquoise
M.alba_G0004291AT5G42400ATXR7H3K4Me3, flowerturquoise
M.alba_G0001922AT3G23230AtERF98tolerance to saltturquoise
M.alba_G0002850AT1G14350AtMYB124leaf developmentturquoise
M.alba_G0009116AT3G24440VIL1flower developmentturquoise
M.alba_G0002773AT3G06110ATMKP2MAPK cascadeturquoise
M.alba_G0002771AT4G29810ATMKK2MAPK cascadeturquoise
M.alba_G0007116AT3G18040MPK9MAPK cascadeturquoise
M.alba_G0005503AT5G55390EDM2regulation of flower developmentturquoise
M.alba_G0004249AT4G24240ATWRKY7calmodulin bindingturquoise
M.alba_G0006983AT3G02570MEE31ABA-activated signaling pathwayturquoise
M.alba_G0001350AT2G41070ATBZIP12ABA-activated signaling pathwayturquoise
M.alba_G0000876AT1G07570APK1response to oxidative stressturquoise
M.alba_G0002641AT1G66730AtLIG6response to oxidative stressturquoise
M.alba_G0000024AT1G516804CL.1lignin biosynthesisturquoise
M.alba_G0004912AT1G09340CRBresponse to water deprivationturquoise
M.alba_G0002629AT4G02380AtLEA5response to water deprivationturquoise
M.alba_G0002247AT1G78380ATGSTU19response to water deprivationturquoise
M.alba_G0001324AT3G06190ATBPM2response to water deprivationturquoise
M.alba_G0001327AT3G03740ATBPM4response to water deprivationturquoise
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Liu, L.; Li, S.; Tang, F.; Li, P.; Liu, J.; Fu, R.; Zheng, L.; Zhang, J.; Chao, N. MaMYBR30, a Novel 1R-MYB, Plays Important Roles in Plant Development and Abiotic Stress Resistance. Plants 2024, 13, 1794. https://doi.org/10.3390/plants13131794

AMA Style

Liu L, Li S, Tang F, Li P, Liu J, Fu R, Zheng L, Zhang J, Chao N. MaMYBR30, a Novel 1R-MYB, Plays Important Roles in Plant Development and Abiotic Stress Resistance. Plants. 2024; 13(13):1794. https://doi.org/10.3390/plants13131794

Chicago/Turabian Style

Liu, Li, Shan Li, Fengjuan Tang, Peijun Li, Jiaxin Liu, Rumeng Fu, Longyan Zheng, Jie Zhang, and Nan Chao. 2024. "MaMYBR30, a Novel 1R-MYB, Plays Important Roles in Plant Development and Abiotic Stress Resistance" Plants 13, no. 13: 1794. https://doi.org/10.3390/plants13131794

APA Style

Liu, L., Li, S., Tang, F., Li, P., Liu, J., Fu, R., Zheng, L., Zhang, J., & Chao, N. (2024). MaMYBR30, a Novel 1R-MYB, Plays Important Roles in Plant Development and Abiotic Stress Resistance. Plants, 13(13), 1794. https://doi.org/10.3390/plants13131794

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
