Article

Methyl-Sensitive Amplification Polymorphism (MSAP) Analysis Provides Insights into the DNA Methylation Changes Underlying Adaptation to Low Temperature of Brassica rapa L.

by
Lijun Liu
1,
Wanpeng Wang
2,
Xiaoming Lu
1,
Tianyu Zhang
1,
Junyan Wu
1,*,
Yan Fang
1,
Li Ma
1,
Yuanyuan Pu
1,
Gang Yang
1,
Wangtian Wang
1 and
Wancang Sun
1,*
1
State Key Laboratory of Aridland Crop Science, College of Agronomy, Gansu Agricultural University, Lanzhou 730070, China
2
Zhangye Academy of Agricultural Sciences, Zhangye 734000, China
*
Authors to whom correspondence should be addressed.
Plants 2024, 13(13), 1748; https://doi.org/10.3390/plants13131748
Submission received: 30 April 2024 / Revised: 6 June 2024 / Accepted: 21 June 2024 / Published: 24 June 2024
(This article belongs to the Special Issue Abiotic Stress Responses in Plants)
Browse Figures
Versions Notes

Abstract

:
Background: DNA methylation can change rapidly to regulate the expression of stress-responsive genes. Previous studies have shown that there are significant differences in the cold resistance of winter rapeseed (Brassica rapa L.) after being domesticated in different selection environments; however, little is known about the epigenetic regulatory mechanisms of its cold resistance formation. Methods: Four winter rapeseed materials (‘CT-2360’, ‘MXW-1’, ‘2018-FJT’, and ‘DT-7’) domesticated in different environments were selected to analyze the DNA methylation level and pattern changes under low temperature using methylation-sensitive amplified polymorphism technology with 60 primer pairs. Results: A total of 18 pairs of primers with good polymorphism were screened, and 1426 clear bands were amplified, with 594 methylation sites, accounting for 41.65% of the total amplified bands. The total methylation ratios of the four materials were reduced after low-temperature treatment, in which the DNA methylation level of ‘CT-2360’ was higher than that of the other three materials; the analysis of methylation patterns revealed that the degree of demethylation was higher than that of methylation in ‘MXW-1’, ‘2018-FJT’, and ‘DT-7’, which were 22.99%, 19.77%, and 24.35%, respectively, and that the methylation events in ‘CT-2360’ were predominantly dominant at 22.95%. Fifty-three polymorphic methylated DNA fragments were randomly selected and further analyzed, and twenty-nine of the cloned fragments were homologous to genes with known functions. The candidate genes VQ22 and LOC103871127 verified the existence of different expressive patterns before and after low-temperature treatment. Conclusions: Our work implies the critical role of DNA methylation in the formation of cold resistance in winter rapeseed. These results provide a comprehensive insight into the adaptation epigenetic regulatory mechanism of Brassica rapa L. to low temperature, and the identified differentially methylated genes can also be used as important genetic resources for the multilateral breeding of winter-resistant varieties.

1. Introduction

The production of rapeseed in recent years has been grim as the fifth major crop after rice, wheat, maize, and soybean. Rapeseed is also the most important oil crop; thus, the cultivation of rapeseed has significant economic value for the oil crop industry in China. The climate in the northern region of China is harsh and cold and the growing conditions are poor; therefore, traditional spring rapeseed varieties do not adapt well to the harsh natural conditions. However, winter rapeseed is a good winter/spring cover crop and the only over-wintering oilseed crop in the northern region; its planting can not only alleviate the shortage of usable oil but also reduce the wind erosion of the soil and improve the ecological environment [1]. Winter rapeseed is sown in autumn and returns to green in the following spring, with an overwintering period of up to half a year. The primary challenge for winter rapeseed production is to improve cold resistance to ensure successfully overwintering, so resolving the cold resistance mechanism of winter rapeseed is an important scientific issue [2]. Previous studies have reported that winter rapeseed can overwinter in the north area of 35° N due to the effect of alternating dry and cold environments on improving the cold tolerance of varieties and the formation of a wide range of adaptations [3,4,5]. Current research on the cold resistance mechanism of winter rapeseed has been insufficient to resolve the adaptive mechanism to different breeding environments; therefore, analyzing the formation mechanism of cold resistance in a strong cold-resistant variety is of great meaning for the genetic improvement of winter rapeseed.
As sessile organisms, plants have evolved a series of complex strategies (e.g., transcriptional modulation, epigenetic regulation, and physiological and metabolic rearrangements) to regulate growth and development in response to the environment to improve survivability, and thus to adapt to different growth environments during long-term adaptive processes. During the adaptation of maize from tropical to temperate climate regions, the products associated with multiple metabolic pathways changed significantly due to environmental selection [6]. Soybean is a temperate crop that has a natural variation at the J locus that can improve its adaptation to the tropics [7]. Previous studies have revealed that DNA methylation, as an adaptive mechanism, changes rapidly in specific or global regions to regulate the expression of stress genes when plants are subjected to stressful environmental stimuli and are involved in a variety of biological processes, such as plant growth and development, stress response (including cold, heat, drought, salt, etc.) and genomic evolution, which is often used to instruct long-term bioprocesses (e.g., the evolution of genomes) and short-term procedures (e.g., responding to external pressures) [8,9,10]. DNA methylation provides a novel origin of variation, and its potential to increase stress adaptability brings new research orientations for breeders in enhancing the resistance of crops by serving as a relatively stable, heritable, and trans-generational epigenetic marker [8]. Reversible dynamic changes in DNA methylation and demethylation regulate gene expression, enabling plants to evolve favorable phenotypes. Natural selection acts on these epigenetic variations to dynamically regulate epigenetic alleles for the formation of adaptations that promote plant evolution [11,12]. Temperature-related epitope alleles exhibit species-specific methylation patterns during the adaptation of heteropolyploid orchids [13]. Such differential methylation patterns can also occur in different ecotypes of the same species with phenotypic differences due to environmental changes. For example, tropical and temperate sacred lotus ecotypes (Nelumbo nucifera) are adapted to low and high latitudes, respectively, and exhibit distinct methylome patterns [14]. Thus, epimutation is an important evolutionary force in plants, and mutant phenotypes obtained through methylation changes can respond rapidly to natural selection. In addition, methylated DNA regions have high mutation rates and may be the first step toward a more stable sequence mutation [15]. In conclusion, environmental stressors cause specific adaptations and evolutionary traits by influencing methylation levels and patterns. More in-depth studies on the functions and mechanisms of DNA methylation in a wider variety of species will help us gain a more comprehensive understanding of the regulatory mechanisms of DNA methylation in plant adaptation. In recent years, significant progress has been made in understanding the regulatory mechanisms of DNA methylation involved in the stress acclimation of Arabidopsis thaliana [16], Rice [17], Gossypium hirsutum [18], and Brassica napus L. [19], but the mechanism of DNA methylation in the stress adaption of Brassica rapa L. remains unclear.
With the advancement of DNA methylation research and the development of detection technologies, many techniques have been used to detect changes in DNA methylation, including methylated DNA immunoprecipitation (MeDIP), methyl-CpG binding domain-based capture (MBDCap) [20], methylation-sensitive amplified polymorphism (MSAP) [21,22], and whole-genome bisulfite sequencing (WGBS) [23]. Depending on sequencing resolution and cost, affinity enrichment-based methods (MEDIP and MBDCap) are suitable for rapid, large-scale, and low-resolution studies, restriction endonuclease-based methods (MSAP) for site-specific/targeting studies, and bisulfite transformation-based methods (WGBS) for high-resolution studies [9].
Our previous research showed that winter rapeseed Longyou-7 could improve cold resistance after domestication in different cultivation regions with widely varying temperatures, and the physiological/biochemical characteristics and the overall methylation levels of DNA (HPLC analysis) of the different materials changed significantly after treatment with the DNA methylation inhibitor 5-azaC under low temperature [5]. In the present study, four materials, including ‘CT-2360’ (Cao Tan, Dingxi), ‘MXW-1’ (Shangchuan, Lanzhou), ‘2018-FJT’ (Fanjiatun, Jilin), and ‘DT-7’ (Datong, Shanxi), which were domesticated in different environments with different cold resistance, were used to analyze the changes in DNA methylation levels and patterns at 4 °C using MSAP technology with 60 primer pairs. The polymorphic primers were screened, and the differentially methylated DNA bands were recovered and cloned and their sequences were compared. Then, the differentially methylated genes were selected for real-time fluorescence quantitative polymerase chain reaction (PCR) analysis to provide a theoretical basis for further analyzing the DNA methylation regulatory mechanism of the formation of cold resistance in winter rapeseed Longyou-7. This approach will provide important candidate genes for the creation of cold-resistant winter rapeseed germplasms.

2. Results

2.1. Pre-Amplification Reactions and Screening of Polymorphic Primers

The EcoRI/HpaII (E+H) and EcoRI/MspI (E+M) double-digested products were connected to specific adapters, and the ligation products were used as templates for the PCR reaction using the pre-amplification primers E-pre and HM-pre (Supplementary Table S1). The PCR products were detected via gel electrophoresis, and the diffuse distribution of the bands indicated successful digestion and ligation (Figure S1). Then, the 60 primer pairs were used for selective amplification in the MSAP experiment. All bands obtained following polyacrylamide gel electrophoresis were counted, and 18 pairs of polymorphic primers were screened according to the number of amplified bands, the clarity of the bands, and high polymorphism (Supplementary Table S2).

2.2. Effect of Low Temperature on DNA Methylation Levels in Winter Rapeseed

The bands obtained following polyacrylamide gel electrophoresis were classified into type I, type II, and type III, in which band type I indicated that both E+H and E+M had bands, suggesting that the ‘CG’ site was not methylated; band type II: E+H with band and E+M without band indicates hemi-methylation of the ‘CG’ site; and band type III: E+H with no band and E+M with a band, i.e., the ‘CG’ site was holomethylated (Figure 1). A total of 1426 clear 100–250 bp bands were amplified in ‘CT-2360’, ‘MXW-1’, ‘2018-FJT’, and ‘DT-7’ at low temperature, of which 243 hemi-methylated sites accounted for 17.04% of the total amplified bands, 351 holomethylated sites accounted for 24.61% of the total amplified bands, and 594 methylated sites accounted for 41.65% of the total amplified bands (Table 1). The number of hemi-methylated sites of ‘CT-2360’, ‘MXW-1’, ‘2018-FJT’, and ‘DT-7’ at room temperature was 37, 28, 35, and 35, accounting for 20.56%, 15.22%, 19.13%, and 18.82% of all sites, respectively; the number of holo-methylated sites was 51, 48, 42, and 39, accounting for 28.33%, 26.09%, 22.95%, and 20.97% of all sites, respectively. The number of semi-methylated sites of ‘CT-2360’, ‘MXW-1’, ‘2018-FJT’, and ‘DT-7’ was 33, 29, 20, and 26 after 24 h of low temperature at 4 °C, which represented 19.88%, 15.51%, 11.98%, and 15.03% of all sites, respectively; and the number of holo-methylated sites was 47, 41, 46, and 37, which occupied the total amplified bands of 28.31%, 21.93%, 27.54%, and 21.39%, respectively.
There were 35, 23, 41, and 27 hemi-methylated sites after 2 d of recovery at 24 °C in ‘CT-2360’, ‘MXW-1’, ‘2018-FJT’, and ‘DT-7’, comprising 20.59%, 13.07%, 22.28%, and 15.17% of all sites, respectively, and 48, 39, 47, and 59 holo-methylated sites, making up 28.24%, 22.16%, 25.54%, and 33.15% of the total number of amplified bands, respectively. In summary, the hemi-methylation ratios were always less than the holo-methylation ratios at room temperature and low temperature in the four winter rapeseed materials selected from the different environments, and from the results of the holo-methylation ratios and total methylation ratios, the methylation level of ‘CT-2360’ was the highest, and the total methylation ratios of ‘MXW-1’, ‘2018-FJT’, and ‘DT-7’ decreased under low-temperature stress, suggesting that significant demethylation occurred. Nevertheless, the total methylation ratios of ‘2018-FJT’ and ‘DT-7’ increased significantly after 2 d of recovery at 24 °C.

2.3. Effect of Low Temperature on DNA Methylation Patterns in Winter Rapeseed

Changes in the DNA methylation patterns of winter rapeseed selected from four different environments after low-temperature stress at 4 °C were classified into four categories (Figure 2). Category A was a monomorphic band, with no change in methylation at the same band before and after low-temperature treatment. This methylation pattern accounted for the highest percentage, and ‘CT-2360’ had the largest proportion at 62.30% in the four materials. In contrast, categories B, C, and D were polymorphic bands. Bands of category B represented the degree of DNA methylation that decreased after low temperature, i.e., demethylation occurred, with ‘MXW-1’, ‘2018-FJT’, and ‘DT-7’ more demethylated by 22.99%, 19.77%, and 24.35%, respectively, and ‘CT-2360’ being the least demethylated at 14.75%. Category C indicated the methylation/hypermethylation pattern under low temperature, with ‘CT-2360’ showing the highest degree of methylation at 22.95%. In addition, the bands in category D were indistinguishable from methylation or demethylation and accounted for a smaller percentage of the bands (Table 2). These results indicate that the overall trend of DNA methylation in ‘MXW-1’, ‘2018-FJT’, and ‘DT-7’ was demethylation during low-temperature stress, while ‘CT-2360’ was mainly methylated.

2.4. Effect of Room Temperature Recovery (RG2d) on DNA Methylation Patterns in Winter Rapeseed

Changes in the DNA methylation patterns of the four materials selected from different environments after RG2d are shown in Table 3. Consistent with the results at 4 °C, the highest proportion of unmethylated patterns of the four materials was in type A but accounted for less than the pattern under low temperature. The degree of demethylation (type B) in ‘MXW-1’, ‘2018-FJT’, and ‘DT-7’ was higher at 19.02%, 22.1%, and 21.72%, respectively, and demethylation of ‘CT-2360’ was the lowest at 13.55%. The methylation pattern (type C) of the four materials was higher after RG2d than those in the low-temperature treatment, with ‘CT-2360’ having the largest proportion (36.13%), and ‘MXW-1’, ‘2018-FJT’, and ‘DT-7’ having methylation patterns of 22.7%, 26.16%, and 27.78%, respectively.

2.5. Sequence Analysis of Differentially Methylated DNA Fragments

A group of 64 polymorphic DNA methylation bands screened from the MSAP experiment with 18 primer pairs were cloned, purified, and sequenced. The BLAST X analysis in the NCBI database revealed that 53 sequences were successfully matched, and the average size of the cloned bands was 112 bp, ranging from 53 to 214 bp (Table 4). Of these, 29 fragments had high homology to genes with known functions, including anti-freeze proteins, such as endo-1,3-beta-glucosidase, VQ motif-containing protein 22 (VQ22), cysteine-rich receptor-like protein kinase 10 (CRK10), protein phosphatase 2C (PP2C), auxin-induced protein 15A (AUX15A, LOC103834602), and glycine-rich RNA-binding proteins 5 (GR-RBP5, LOC103860185) that improve stress tolerance. In addition, one fragment was homologous to endonuclease 8 which is necessary for cellulose formation in the cell wall and glucosyltransferases that are involved in the accumulation of anthocyanin, respectively. Meanwhile, some fragments were involved in the synthesis of secondary metabolites, including the E3 ubiquitin-protein ligase ATL6-like, terpenoid synthase 17, and the cytoplasmic male sterility-associated cytochrome oxidase subunit I (coxI-2) gene. In contrast, 14 sequences were highly homologous to uncharacterized proteins. Moreover, no genetic information was obtained from the other 10 cloned fragments, but chromosomal information as well as chloroplast and mitochondrial gene sequences were included, suggesting that (de)methylation events also occur in the genome. These results demonstrate that genes regulated by cold-induced (de)methylation may be involved in a variety of cellular functions.

2.6. Cloning and Expression Profiling of the Polymorphic Fragments

To verify the pattern of the methylation changes under low temperature, VQ22 and LOC103871127 were selected to clone and measure the expression levels in the four materials via qPCR at 25 °C and 4 °C. As shown in Figure 3, the expression levels of VQ22 conserved and specific sequences in ‘MXW-1’, ‘2018-FJT’, and ‘DT-7’ were higher than that in ‘CT-2360’ under low temperature. In the conserved region, the relative expression of VQ22 was upregulated in ‘CT-2360’ and ‘MXW-1’ and downregulated in ‘2018-FJT’ and ‘DT-7’, with the highest expression in ‘2018-FJT’ and the lowest expression in ‘CT-2360’. In the specific region, VQ22 was upregulated in the strongly cold-resistant materials ‘MXW-1’ and ‘2018-FJT’ but downregulated in ‘CT-2360’ and ‘DT-7’. As shown in Figure 4, the expression level of LOC103871127 showed the same trend in conserved and specific sequences. It was upregulated in the strongly cold-resistant material ‘2018-FJT’, and downregulated in ‘DT-7’, whereas its expression was essentially unchanged in ‘CT-2360’ and ‘MXW-1’. In some cases, the expression levels of these two genes were consistent with changes in methylation status detected using MSAP. For instance, the expression of VQ22 was downregulated in the less cold-resistant material ‘CT-2360’ due to a methylation event, whereas VQ22 and the uncharacterized gene LOC103871127 underwent demethylation in the strongly cold-resistant material ‘2018-FJT’ resulting in upregulated expression. These results show that the expression of these two selected genes changed significantly under low temperature, suggesting that VQ22 and LOC103871127 may play important roles in the adaptation of winter rapeseed to low temperature.

3. Discussion

It is well known that environmental stress is a major factor affecting the yield of field crops. Plants have evolved a series of strategies for responding to the ambient environment, including transcriptional modulation [24,25], metabolic rearrangements [25,26,27], and epigenetic regulation [28,29,30]. As one of the earliest discovered and most studied regulatory mechanisms in epigenetics, DNA methylation/demethylation is involved in a variety of biological processes, such as plant growth and development [31], stress response [9,32,33], and genome evolution [10,34], and can be used as a plant adaptive mechanism [35]. Winter rapeseed, as the only overwintering cruciferous oilseed crop in the Northwest of China, must tolerate a severe growing environment with extremely low temperatures [36,37]; thus, it is of great significance to study the cold resistance of winter rapeseed. Previous studies have investigated morphological structures, physiological and biochemical characteristics [38], and molecular mechanisms using transcriptome [2,39], proteome [40,41], and small RNA sequencing [42] of cold stress on Brassica rapa L.; however, few studies focus on its intricate adaptive mechanism. It has been shown that winter rapeseed can be domesticated in different cultivation regions with large temperature differences to improve its cold tolerance [3,4,5], and the physiological/biochemical characteristics and overall DNA methylation levels of the different materials change significantly after treatment with the DNA methylation inhibitor 5-azaC under low-temperature conditions [5], but little is known about the epigenetic regulation of its adaptive mechanism to different breeding environments. Several techniques have been used to detect changes in DNA methylation; MSAP is a reliable and cost-effective technique for site-specific/targeting studies [9]. Therefore, in the present study, using the MSAP technique, we found a pronounced difference in the DNA methylation levels and patterns of the four materials that differed in cold resistance after domestication. In addition, 64 polymorphic fragments were screened and further cloned, purified, and sequenced. Of these, 29 fragments were involved in biological processes, such as the abiotic stress response and the synthesis of secondary metabolites. Furthermore, mRNA expression of the differentially methylated genes VQ22 and LOC103871127 was tested via qPCR analysis. This study provides an in-depth understanding of the effect of DNA methylation on the regulatory mechanisms of winter rapeseed adaptation and provides crucial genetic resources for the multilateral breeding of winter-resistant varieties.
In general, DNA cytosine methylation is an important epigenetic modification that affects gene expression during various adaptive processes and has been analyzed in a variety of plants using the MSAP technique. For example, the DNA methylation level is significantly higher during rice anthesis in a susceptible rice group, and significantly lower in a tolerant rice group under high-temperature conditions [43]. In Lolium perenne [44], the total methylation level decreases after exposure to drought. Strong cold-resistant varieties of Brassica napus L. are predominantly demethylated under low temperature conditions; however, weaker cold-resistant materials are predominantly methylated [45]. It is generally believed that plants coordinate the expression of stress-responsive genes through the reversible reactions of DNA methylation and demethylation. Cold stress in Zea mays L. leads to changes in the extent and pattern of DNA methylation, with demethylation predominating [46]. In Chorispora bungeana, alterations in DNA methylation levels and patterns have also been observed across periods of chilling and freezing [47]. Additionally, MSAP analyses of Vicia villos growing in high-altitude (Xingyi) and low-altitude (Dafang) regions of Guizhou revealed that the total methylation and hemi-methylation rates of V. villos from the low-altitude region were lower than those from the high-altitude Xingyi region, suggesting that DNA undergoes a higher degree of demethylation in the V. villos inhabiting the lower altitude region [48], which agrees with the results of the present experiments. In this study, the DNA methylation levels of ‘CT-2360’, ‘MXW-1’, ‘2018-FJT’, and ‘DT-7’ decreased after 24 h of low-temperature treatment, resulting in a demethylation event (Figure 1, Table 1). The hemi-methylation and holomethylation rates of ‘2018-FJT’ and ‘DT-7’ selected from the Fanjiatun, Jilin and Datong, and Shanxi regions, which are at low altitude, were significantly lower than those of ‘CT-2360’ from the high-altitude region. The DNA methylation level of ‘CT-2360’ decreased by 1.43% after low-temperature stress compared with that at room temperature, whereas the DNA methylation levels of the strongly cold-resistant materials ‘MXW-1’, ‘2018-FJT’, and ‘DT-7’ decreased by 9.37%, 6.08%, and 8.45%, respectively, compared with those at room temperature. The decrease in the DNA methylation level at low temperature was greater in the strongly cold-resistant materials than in the less cold-resistant material. Meanwhile, DNA methylation/hypermethylation and DNA demethylation patterns coexisted in the four winter rapeseed materials (Figure 2, Table 2), in which ‘MXW-1’, ‘2018-FJT’, and ‘DT-7’ were more demethylated under low-temperature conditions, and ‘CT-2360’ was methylated/hypermethylated to a higher extent. These results indicate that DNA methylation and demethylation events both occurred at 4 °C (low temperature) in the four domesticated materials, consistent with the findings by Liu et al. [49] in Brassica rapa in that cold acclimation induces both the up- and downregulation of methylation. Furthermore, the DNA methylation levels of all four materials increased after recovery of growth at room temperature (Table 1 and Table 3). Thus, we speculate that DNA methylation plays an important role in the low-temperature adaptation of Brassica rapa L.
It is well established that DNA methylation is associated with the silencing of genes, while demethylation turns on gene expression [50,51]. Zhu et al. [52] investigated anthocyanin enrichment in peaches during low-temperature storage and found that the higher transcript levels of anthocyanin synthase-related genes were associated with reduced methylation levels in their promoter regions. The promoter of the ACS1 and ETR1 genes in Arabidopsis hyperhydricity involved in the ethylene pathway displays CHH demethylation patterns, which consequently causes the upregulation of these two genes and increases ethylene enrichment [53]. In the current study, random sequencing of the cold-induced polymorphic DNA methylation bands revealed that some of these genes were highly homologous with the anti-freeze proteins endo-1,3-beta-glucosidase, VQ motif-containing protein 22 (VQ22), cysteine-rich receptor-like protein kinase 10 (CRK10), protein phosphatase 2C (PP2C), auxin-induced protein 15A (AUX15A), and glycine-rich RNA-binding protein 5 (GR-RBP5), of which the difference was most pronounced for VQ22 (Table 4). Among these annotated genes, CRK10 belongs to the RD subclass of Ser/Thr kinases, which participates in the control of stress responses and development [54]. PP2C and AUX15A are involved in the ABA signaling pathway [55], and GR-RBPs are vital post-transcriptional RNA metabolism regulator factors in crops during abiotic environmental stresses [56]. VQ22 is widely observed in living organisms, plays an important role in plant growth, development, and stress tolerance, and is induced by cold [57,58,59]. The qPCR analysis results showed that in the less cold-resistant material ‘CT-2360’, the expression of VQ22 was downregulated due to a methylation event, whereas demethylation of VQ22 occurred in the strongly cold-resistant material ‘2018-FJT’, resulting in upregulated expression (Figure 3). In addition to the annotated genes, a number of uncharacterized proteins also altered the methylation status, of which LOC103871127 was demethylated in the strongly cold-resistant material ‘2018-FJT’, resulting in upregulated expression (Figure 4). However, the effect of these genes on the cold tolerance of winter rapeseed is unknown. Further investigation of DNA methylation involved in the expression of these genes under low-temperature stress will be interesting in the future.

4. Materials and Methods

4.1. Plant Materials and Cold Treatment

Of the four materials selected for this experiment, ‘MXW-1’, ‘2018-FJT’, and ‘DT-7’ were strongly cold-resistant materials, and ‘CT-2360’ was a weakly cold-resistant material. Among them, ‘MXW-1’ (original designation of Longyou-7) was selected in Shangchuan, Lanzhou, with ‘CT-2360’ as the parent, as it can overwinter safely in Raohe (Heilongjiang), Gongzhuling (Jilin), and Altay (Xinjiang). ‘DT-7’ and ‘2018-FJT’ were new lines obtained from ‘MXW-1’ after 4 years of selection in Datong (Shanxi) and Fanjiatun (Gongzhuling, Jilin) (Table 5) [5]. Seedlings grown to the five-leaf stage were treated in a low-temperature chamber (16 h light and 8 h dark) at 4 °C for 24 h followed by 24 °C recovery growth for 2 d (RG2d). Each treatment contained three biological replicates. The harvested leaves were immersed immediately in liquid nitrogen and stored at −80 °C for further DNA and RNA extraction.

4.2. DNA Extraction, RNA Extraction, and cDNA Synthesis

Genomic DNA was extracted using the CTAB method [60] and purified with chloroform-isoamyl alcohol. Then, the quality and concentration of the DNA were determined with an ultra-micro nucleic acid/protein analyzer (No. DS-11+; DeNovix, Wilmington, DE, USA). Total RNA extraction and reverse transcription were performed according to the instructions with the plant RNA extraction (No. DP452; Tiangen, Beijing, China) and reverse transcription kits (No. RR036A; TaKaRa, Dalian, China).

4.3. MSAP Analysis

Sixty primer pairs were selected for the MSAP experiment to analyze the levels and patterns of genomic DNA methylation in the four materials domesticated from different environments at 4 °C for 24 h with recovery at 24 °C for 2 d. The adapters, pre-amplified primers, and selected primers used in the experiment were obtained from previous studies [4,61] (Supplementary Table S1). The three endonucleases used in the experiment, such as EcoRI, HpaII, and MspI, were purchased from NEB (R3101V, R0170V, and R0106VR); EcoRI/HpaII and EcoRI/MspI were used for double enzyme cleavage. Based on the results, the experimental conditions were continuously optimized to select the appropriate digestion time and pre-amplification dilution; the different bands were counted, methylation levels were calculated, and the methylation patterns were analyzed.

4.4. Different Bands Were Recovered and Cloned and the Sequences Were Compared

According to the method of Du et al. [62], the polymorphic target bands on the polyacrylamide gel were recovered, and the recovered supernatant (1 µL) was used as the template for amplification with selected amplification primers. The PCR products were detected via 1% agarose gel electrophoresis. A single target product of the same size was recovered according to the instruction manual with the agarose gel DNA recovery kit (No. AG21005; Accurate Biotech, Changsha, Hunan). The product was ligated with the pMDTM19-T vector (No. D102A; TaKaRa, Dalian, China) and transformed into Transl-T1 competent cells, and appropriate positive colonies were selected for sequencing. The sequencing results were searched for homologous and sequence comparisons using the BLAST tool on the NCBI website (http://www.ncbi.nlm.nih.gov/ (accessed on 29 November 2020)).

4.5. qPCR Analysis of the Differentially Methylated Genes

After cloning the CDS sequence of VQ22 and LOC103871127, DNAMAN software was used for the multiple alignment of VQ22 and LOC103871127 among the four materials. Then, the primers were designed for qPCR analysis according to the conserved and specific regions (Supplementary Table S3). qPCR amplification was performed on a QuantStudio 5 real-time PCR system (ABI, Foster City, CA, USA) with SYBR Green I (Takara, RR820A) to verify the MSAP results. The relative expression levels of the genes to the reference gene β-actin were determined using the 2−ΔΔCt method [63]. Three independent technical replicates and three biological replicates were performed for each gene in a single sample, and the mean and standard error were calculated.

5. Conclusions

This study provides a preliminary understanding of the differences in methylation levels and patterns in four winter rapeseed varieties selected from different environments under low-temperature treatment. The main results highlight that the variation in DNA methylation level and pattern may play an important role in the adaptation of winter rapeseed to low temperatures. Moreover, several differentially methylated genes, such as VQ22 and LOC103871127, have been suggested to regulate low-temperature tolerance via DNA cytosine methylation in different ways. We believe that DNA methylation/demethylation is an essential epigenetic mechanism for the adaption of Brassica rapa L. to different breeding environments with fluctuating temperatures. The identified candidate genes are valuable genetic resources for in-depth research on the epigenetic regulatory mechanisms of winter rapeseed adaptation. We hope that our research will open a new direction to accelerate the genetic improvement of super-cold-resistant winter rapeseed varieties.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/plants13131748/s1. Figure S1: Electrophoretic diagram of pre-amplified products; Table S1: Sequence of adapters and primers used in MSAP technology; Table S2: Selected polymorphic primers; Table S3: Primer sequence.

Author Contributions

Conceptualization, L.L. and W.S.; methodology, W.W. (Wanpeng Wang), X.L. and T.Z.; data curation, L.M., Y.P., G.Y., Y.F. and W.W. (Wangtian Wang); resources, W.S.; writing—original draft preparation, L.L.; writing—review and editing, L.L.; funding acquisition, L.L., J.W., Y.P. and W.S. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the China Agricultural University Corresponding Support Research Joint Fund, grant number GSAU-DKZY-2024-003, the National Natural Science Foundation of China, grant number 31960435, the China Agriculture Research System of MOF and MARA, grant number CARS-12-09, Gansu Province Modern Cold and Arid Agriculture Science and Technology Support, grant number KJZC-2023-12, and the Science and Technology Program of Gansu Province, grant number 21JR7RA825.

Data Availability Statement

The data presented in this study are available in the article and Supplementary Materials.

Acknowledgments

We extend our appreciation to the anonymous reviewers for their valuable suggestions to help improve this article.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Wang, X.; Sun, W.; Li, X.; Wu, J.; Liu, H.; Zeng, C.; Pu, Y.; Zhang, P.; Zhang, J. Wind erosion-resistance of fields planted with winter rapeseed in the wind erosion region of Northern China. Acta Ecol. Sin. 2009, 29, 6572–6577. [Google Scholar]
  2. Liu, L.; Pu, Y.; Niu, Z.; Wu, J.; Fang, Y.; Xu, J.; Xu, F.; Yue, J.; Ma, L.; Li, X.; et al. Transcriptomic insights into root development and overwintering transcriptional memory of Brassica rapa L. grown in the field. Front. Plant Sci. 2022, 13, 900708. [Google Scholar] [CrossRef] [PubMed]
  3. Sun, W.; Wu, J.; Fang, Y.; Liu, Z.; Zeng, X.; Li, X.; Shi, P.; He, L.; Zhao, C. Breeding of an elite cold-tolerance Brassica rapa cultivar Longyou No. 9. J. Gansu Agric. Univ. 2013, 6, 52–58. [Google Scholar]
  4. Hou, X. The Effect of Hardiness and DNA Methylation of Environmental Selection for Winter Rapeseed (Brassica rapa L.). Ph.D. Thesis, Gansu Agricultural University, Lanzhou, China, 2016. [Google Scholar]
  5. Wang, W.; Ma, L.; Sun, B.; Guo, X.; Wang, S.; Niu, Z.; Qi, W.; Pu, Y.; Lu, X.; Hu, F.; et al. Physiological mechanism of DNA demethylation in improving the cold resistance of Brassica rapa L. Agric. Res. Arid. Areas 2021, 39, 29–39. [Google Scholar]
  6. Huang, C.; Sun, H.; Xu, D.; Chen, Q.; Liang, Y.; Wang, X.; Xu, G.; Tian, J.; Wang, C.; Li, D.; et al. ZmCCT9 enhances maize adaptation to higher latitudes. Proc. Natl. Acad. Sci. USA 2018, 115, E334–E341. [Google Scholar] [CrossRef] [PubMed]
  7. Lu, S.; Zhao, X.; Hu, Y.; Liu, S.; Nan, H.; Li, X.; Fang, C.; Cao, D.; Shi, X.; Kong, L.; et al. Natural variation at the soybean J locus improves adaptation to the tropics and enhances yield. Nat. Genet. 2017, 49, 773–779. [Google Scholar] [CrossRef]
  8. Tirnaz, S.; Batley, J. DNA methylation: Toward crop disease resistance improvement. Trends Plant Sci. 2019, 24, 1137–1150. [Google Scholar] [CrossRef]
  9. Sun, M.; Yang, Z.; Liu, L.; Duan, L. DNA methylation in plant responses and adaption to abiotic stresses. Int. J. Mol. Sci. 2022, 23, 6910. [Google Scholar] [CrossRef]
  10. Lucibelli, F.; Valoroso, M.C.; Aceto, S. Plant DNA methylation: An epigenetic mark in development, environmental interactions, and evolution. Int. J. Mol. Sci. 2022, 23, 8299. [Google Scholar] [CrossRef]
  11. Turner, B.M. Epigenetic responses to environmental change and their evolutionary implications. Phil. Trans. R. Soc. B 2009, 364, 3403–3418. [Google Scholar] [CrossRef]
  12. Richards, E.J. Inherited epigenetic variation—Revisiting soft inheritance. Nat. Rev. Genet. 2006, 7, 395–401. [Google Scholar] [CrossRef] [PubMed]
  13. Paun, O.; Bateman, R.M.; Fay, M.F.; Hedrén, M.; Civeyrel, L.; Chase, M.W. Stable epigenetic effects impact adaptation in allopolyploid orchids (Dactylorhiza: Orchidaceae). Mol. Biol. Evol. 2010, 27, 2465–2473. [Google Scholar] [CrossRef] [PubMed]
  14. Li, H.; Yang, X.; Wang, Q.; Chen, J.; Shi, T. Distinct methylome patterns contribute to ecotypic differentiation in the growth of the storage organ of a flowering plant (sacred lotus). Mol. Ecol. 2021, 30, 2831–2845. [Google Scholar] [CrossRef] [PubMed]
  15. Cronk, Q.C.B. Plant evolution and development in a post-genomic context. Nat. Rev. Genet. 2001, 2, 607–619. [Google Scholar] [CrossRef] [PubMed]
  16. Boyko, A.; Blevins, T.; Yao, Y.; Golubov, A.; Bilichak, A.; Ilnytskyy, Y.; Hollander, J.; Meins, F.; Kovalchuk, I. Transgenerational adaptation of Arabidopsis to stress requires DNA methylation and the function of dicer-like proteins. PLoS ONE 2010, 5, e9514. [Google Scholar] [CrossRef]
  17. Kou, S.; Gu, Q.; Duan, L.; Liu, G.; Yuan, P.; Li, H.; Wu, Z.; Liu, W.; Huang, P.; Liu, L. Genome-wide bisulphite sequencing uncovered the contribution of DNA methylation to rice short-term drought memory formation. J. Plant Growth Regul. 2022, 41, 2903–2917. [Google Scholar] [CrossRef]
  18. He, S.; Zhang, Y.; Wang, J.; Wang, Y.; Ji, F.; Sun, L.; Zhang, G.; Hao, F. H3K4me2, H4K5ac and DNA methylation function in short- and long-term heat stress responses through affecting the expression of the stress-related genes in G. hirsutum. Environ. Exp. Bot. 2022, 194, 104699. [Google Scholar] [CrossRef]
  19. Ziegler, D.J.; Khan, D.; Pulgar-Vidal, N.; Parkin, I.A.P.; Robinson, S.J.; Belmonte, M.F. Genomic asymmetry of the Brassica napus seed: Epigenetic contributions of DNA methylation and small RNAs to subgenome bias. Plant J. 2023, 115, 690–708. [Google Scholar] [CrossRef] [PubMed]
  20. Hsu, H.K.; Weng, Y.I.; Hsu, P.Y.; Huang, T.H.; Huang, Y.W. Detection of DNA methylation by MeDIP and MBDCap assays: An overview of techniques. Methods Mol. Biol. 2014, 1105, 61–70. [Google Scholar]
  21. Yaish, M.W.; Peng, M.; Rothstein, S.J. Global DNA methylation analysis using methyl-sensitive amplification polymorphism (MSAP). Methods Mol. Biol. 2014, 1062, 285–298. [Google Scholar]
  22. González-Benito, M.E.; Ibáñez, M.Á.; Pirredda, M.; Mira, S.; Martín, C. Application of the MSAP technique to evaluate epigenetic changes in plant conservation. Int. J. Mol. Sci. 2020, 21, 7459. [Google Scholar] [CrossRef] [PubMed]
  23. Gouil, Q.; Keniry, A. Latest techniques to study DNA methylation. Essays Biochem. 2019, 63, 639–648. [Google Scholar] [PubMed]
  24. Mazzucotelli, E.; Mastrangelo, A.M.; Crosatti, C.; Guerra, D.; Stanca, A.M.; Cattivelli, L. Abiotic stress response in plants: When post-transcriptional and post-translational regulations control transcription. Plant Sci. 2008, 174, 420–431. [Google Scholar] [CrossRef]
  25. Jan, R.; Asaf, S.; Numan, M.; Lubna; Kim, K.M. Plant secondary metabolite biosynthesis and transcriptional regulation in response to biotic and abiotic stress conditions. Agronomy 2021, 11, 968. [Google Scholar]
  26. Fortes, A.M.; Agudelo-Romero, P.; Pimentel, D.; Alkan, N. Transcriptional modulation of polyamine metabolism in fruit species under abiotic and biotic stress. Front. Plant Sci. 2019, 10, 816. [Google Scholar] [CrossRef]
  27. Sun, Y.; Fernie, A.R. Plant secondary metabolism in a fluctuating world: Climate change perspectives. Trends Plant Sci. 2023, 29, 560–571. [Google Scholar] [CrossRef]
  28. Chang, Y.; Zhu, C.; Jiang, J.; Zhang, H.; Zhu, J.; Duan, C. Epigenetic regulation in plant abiotic stress responses. J. Integr. Plant Biol. 2020, 62, 563–580. [Google Scholar] [CrossRef]
  29. Chung, S.; Kwon, C.; Lee, J.H. Epigenetic control of abiotic stress signaling in plants. Genes Genom. 2022, 44, 267–278. [Google Scholar] [CrossRef] [PubMed]
  30. Oberkofler, V.; Pratx, L.; Bäurle, I. Epigenetic regulation of abiotic stress memory: Maintaining the good things while they last. Curr. Opin. Plant Biol. 2021, 61, 102007. [Google Scholar] [CrossRef]
  31. Kumar, S.; Mohapatra, T. Dynamics of DNA methylation and its functions in plant growth and development. Front. Plant Sci. 2021, 12, 596236. [Google Scholar] [CrossRef]
  32. Liu, J.; He, Z. Small DNA methylation, Big player in plant abiotic stress responses and memory. Front. Plant Sci. 2020, 11, 595603. [Google Scholar] [CrossRef] [PubMed]
  33. Liu, Y.; Wang, J.; Liu, B.; Xu, Z. Dynamic regulation of DNA methylation and histone modifications in response to abiotic stresses in plants. J. Integr. Plant Biol. 2022, 64, 2252–2274. [Google Scholar] [CrossRef] [PubMed]
  34. Wambui Mbichi, R.; Wang, Q.; Wan, T. RNA directed DNA methylation and seed plant genome evolution. Plant Cell Rep. 2020, 39, 983–996. [Google Scholar] [CrossRef] [PubMed]
  35. Sammarco, I.; Münzbergová, Z.; Latzel, V. DNA methylation can mediate local adaptation and response to climate change in the clonal plant Fragaria vesca: Evidence from a european-scale reciprocal transplant experiment. Front. Plant Sci. 2022, 13, 827166. [Google Scholar] [CrossRef] [PubMed]
  36. Sun, W.; Ma, W.; Lei, J.; Liu, Q.; Yang, R.; Wu, J.; Wang, X.; Ye, J.; Zeng, J.; Zhang, Y.; et al. Study on adaptation and introduction possibility of winter rapeseed to dry and cold areas in Northwest China. Sci. Agric. Sin. 2007, 40, 2716–2726. [Google Scholar]
  37. Sun, W.; Wu, J.; Fang, Y.; Liu, Q.; Yang, R.; Ma, W.; Li, X.; Zhang, J.; Zhang, P.; Cao, J.; et al. Growth and development characteristics of winter rapeseed northern-extended from the cold and arid regions in China. Acta Agron. Sin. 2010, 36, 2124–2134. [Google Scholar] [CrossRef]
  38. Yang, N.; Sun, W.; Liu, Z.; Shi, P.; Fang, Y.; Wu, J.; Zeng, X.; Kong, D.; Lu, M.; Wang, Y. Morphological characters and physiological mechanisms of cold resistance of winter rapeseed in northern China. Sci. Agric. Sin. 2014, 47, 452–461. [Google Scholar]
  39. Ma, L.; Coulter, J.A.; Liu, L.; Zhao, Y.; Chang, Y.; Pu, Y.; Zeng, X.; Xu, Y.; Wu, J.; Fang, Y.; et al. Transcriptome analysis reveals key cold-stress-responsive genes in winter rapeseed (Brassica rapa L.). Int. J. Mol. Sci. 2019, 20, 1071. [Google Scholar] [CrossRef] [PubMed]
  40. Zeng, X.; Xu, Y.; Jiang, J.; Zhang, F.; Ma, L.; Wu, D.; Wang, Y.; Sun, W. iTRAQ-based comparative proteomic analysis of the roots of two winter turnip rapes (Brassica rapa L.) with different freezing-tolerance. Int. J. Mol. Sci. 2018, 19, 4077. [Google Scholar] [CrossRef]
  41. Niu, Z.; Liu, L.; Pu, Y.; Ma, L.; Wu, J.; Hu, F.; Fang, Y.; Li, X.; Sun, W.; Wang, W.; et al. iTRAQ-based quantitative proteome analysis insights into cold stress of winter rapeseed (Brassica rapa L.) grown in the field. Sci. Rep. 2021, 11, 23434. [Google Scholar] [CrossRef]
  42. Zeng, X.; Xu, Y.; Jiang, J.; Zhang, F.; Ma, L.; Wu, D.; Wang, Y.; Sun, W. Identification of cold stress responsive microRNAs in two winter turnip rape (Brassica rapa L.) by high throughput sequencing. BMC Plant Biol. 2018, 18, 52. [Google Scholar] [CrossRef] [PubMed]
  43. Li, B.; Cai, H.; Liu, K.; An, B.; Wang, R.; Yang, F.; Zeng, C.; Jiao, C.; Xu, Y. DNA methylation alterations and their association with high temperature tolerance in rice anthesis. J. Plant Growth Regul. 2023, 42, 780–794. [Google Scholar] [CrossRef]
  44. Tang, X.; Tao, X.; Wang, Y.; Ma, D.; Li, D.; Yang, H.; Ma, X. Analysis of DNA methylation of perennial ryegrass under drought using the methylation-sensitive amplification polymorphism (MSAP) technique. Mol. Genet. Genom. 2014, 289, 1075–1084. [Google Scholar] [CrossRef] [PubMed]
  45. Bai, J.; Sun, W.; Liu, L.; Wu, J.; Ma, L.; He, H.; Chang, Y.; Pu, Y.; Mi, W.; Fang, Y.; et al. Difference of DNA methylation in winter rapeseed (Brassica napus L.) with temperature sensitivity and prediction of At4g02000-like protein. Chin. J. Oil Crop Sci. 2019, 41, 349–359. [Google Scholar]
  46. Shan, X.; Wang, X.; Yang, G.; Wu, Y.; Su, S.; Li, S.; Liu, H.; Yuan, Y. Analysis of the DNA methylation of maize (Zea mays L.) in response to cold stress based on methylation-sensitive amplified polymorphisms. J. Plant Biol. 2013, 56, 32–38. [Google Scholar] [CrossRef]
  47. Song, Y.; Liu, L.; Feng, Y.; Wei, Y.; Yue, X.; He, W.; Zhang, H.; An, L. Chilling- and freezing-induced alterations in cytosine methylation and its association with the cold tolerance of an alpine subnival plant, Chorispora bungeana. PLoS ONE 2015, 10, e0135485. [Google Scholar] [CrossRef] [PubMed]
  48. Wang, Z.; Shu, J.; Wang, X.; Shang, Y. DNA methylation polymorphism analysis of Vicia villosa at different elevations in Guizhou province. Guizhou Agric. Sci. 2020, 48, 8–12. [Google Scholar]
  49. Liu, T.; Li, Y.; Duan, W.; Huang, F.; Hou, X. Cold acclimation alters DNA methylation patterns and confers tolerance to heat and increases growth rate in Brassica rapa. J. Exp. Bot. 2017, 68, 1213–1224. [Google Scholar] [CrossRef]
  50. Ichino, L.; Boone, B.A.; Strauskulage, L.; Harris, C.J.; Kaur, G.; Gladstone, M.A.; Tan, M.; Feng, S.; Jami-Alahmadi, Y.; Duttke, S.H.; et al. MBD5 and MBD6 couple DNA methylation to gene silencing through the J-domain protein SILENZIO. Science 2021, 372, 1434–1439. [Google Scholar] [CrossRef]
  51. Xu, Q.; Wu, L.; Luo, Z.; Zhang, M.; Lai, J.; Li, L.; Springer, N.M.; Li, Q. DNA demethylation affects imprinted gene expression in maize endosperm. Genome Biol. 2022, 23, 77. [Google Scholar] [CrossRef]
  52. Zhu, Y.; Zhang, B.; Allan, A.C.; Wang, K.; Zhao, Y.; Wang, K.; Chen, K.; Xu, C. DNA demethylation is involved in the regulation of temperature-dependent anthocyanin accumulation in peach. Plant J. 2020, 102, 965–976. [Google Scholar] [CrossRef] [PubMed]
  53. Gao, H.; Xia, X.; An, L. Critical roles of the activation of ethylene pathway genes mediated by DNA demethylation in Arabidopsis hyperhydricity. Plant Genome 2022, 15, e20202. [Google Scholar] [CrossRef] [PubMed]
  54. Vaattovaara, A.; Brandt, B.; Rajaraman, S.; Safronov, O.; Veidenberg, A.; Luklová, M.; Kangasjärvi, J.; Löytynoja, A.; Hothorn, M.; Salojärvi, J.; et al. Mechanistic insights into the evolution of DUF26-containing proteins in land plants. Commun. Biol. 2019, 2, 56. [Google Scholar] [CrossRef]
  55. Li, Q.; Wang, J.; Yin, Z.; Pan, Y.; Mao, W.; Peng, L.; Guo, X.; Li, B.; Leng, P. SlPP2C2 interacts with FZY/SAUR and regulates tomato development via signaling crosstalk of ABA and auxin. Plant J. 2024. [Google Scholar] [CrossRef]
  56. Cheng, K.; Zhang, C.; Lu, Y.; Li, J.; Tang, H.; Ma, L.; Zhu, H. The glycine-rich RNA-binding protein is a vital post-transcriptional regulator in crops. Plants 2023, 12, 3504. [Google Scholar] [CrossRef]
  57. Yuan, G.; Qian, Y.; Ren, Y.; Guan, Y.; Wu, X.; Ge, C.; Ding, H. The role of plant-specific VQ motif-containing proteins: An ever-thickening plot. Plant Physiol. Biochem. 2021, 159, 12–16. [Google Scholar] [CrossRef] [PubMed]
  58. Ding, H.; Yuan, G.; Mo, S.; Qian, Y.; Wu, Y.; Chen, Q.; Xu, X.; Wu, X.; Ge, C. Genome-wide analysis of the plant-specific VQ motif-containing proteins in tomato (Solanum lycopersicum) and characterization of SlVQ6 in thermotolerance. Plant Physiol. Biochem. 2019, 143, 29–39. [Google Scholar] [CrossRef]
  59. Zhou, Y.; Yang, Y.; Zhou, X.; Chi, Y.; Fan, B.; Chen, Z. Structural and functional characterization of the VQ protein family and VQ protein variants from soybean. Sci. Rep. 2016, 6, 34663. [Google Scholar] [CrossRef]
  60. Doyle, J.J.; Doyle, J.L. A rapid DNA isolation procedure for small quantities of fresh leaf tissue. Phytochem. Bull. 1987, 19, 11–15. [Google Scholar]
  61. Fang, T. Study on the Difference of Drought Resistance and DNA Methylation of Resynthesized Brassica napus and Its Diploid Parent. Ph.D. Thesis, Yangzhou University, Yangzhou, China, 2016. [Google Scholar]
  62. Du, Y.; Wang, Z. Methylation-sensitive amplified polymorphism analysis of DNA methylation in Arabidopsis under mannitol treatment. Chin. Bull. Bot. 2011, 46, 285–292. [Google Scholar]
  63. Arocho, A.; Chen, B.; Ladanyi, M.; Pan, Q. Validation of the 2−ΔΔCt calculation as an alternate method of data analysis for quantitative PCR of BCR-ABL P210 transcripts. Diagn. Mol. Pathol. 2006, 15, 56–61. [Google Scholar] [CrossRef] [PubMed]
Plants 13 01748 g001

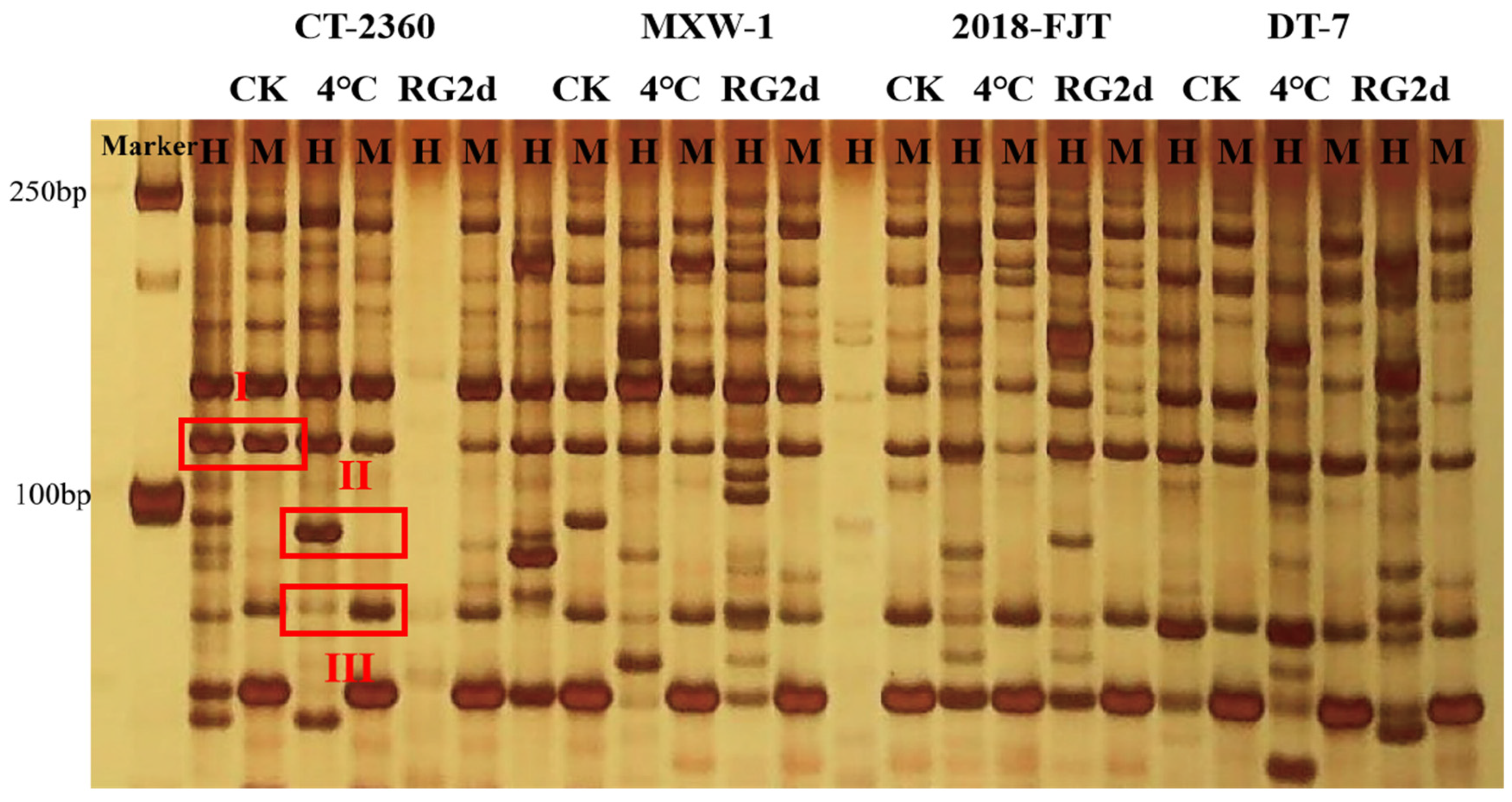

Figure 1. MSAP electrophoresis map of winter rapeseed under low temperature.
Figure 1. MSAP electrophoresis map of winter rapeseed under low temperature.
Plants 13 01748 g001
Plants 13 01748 g002

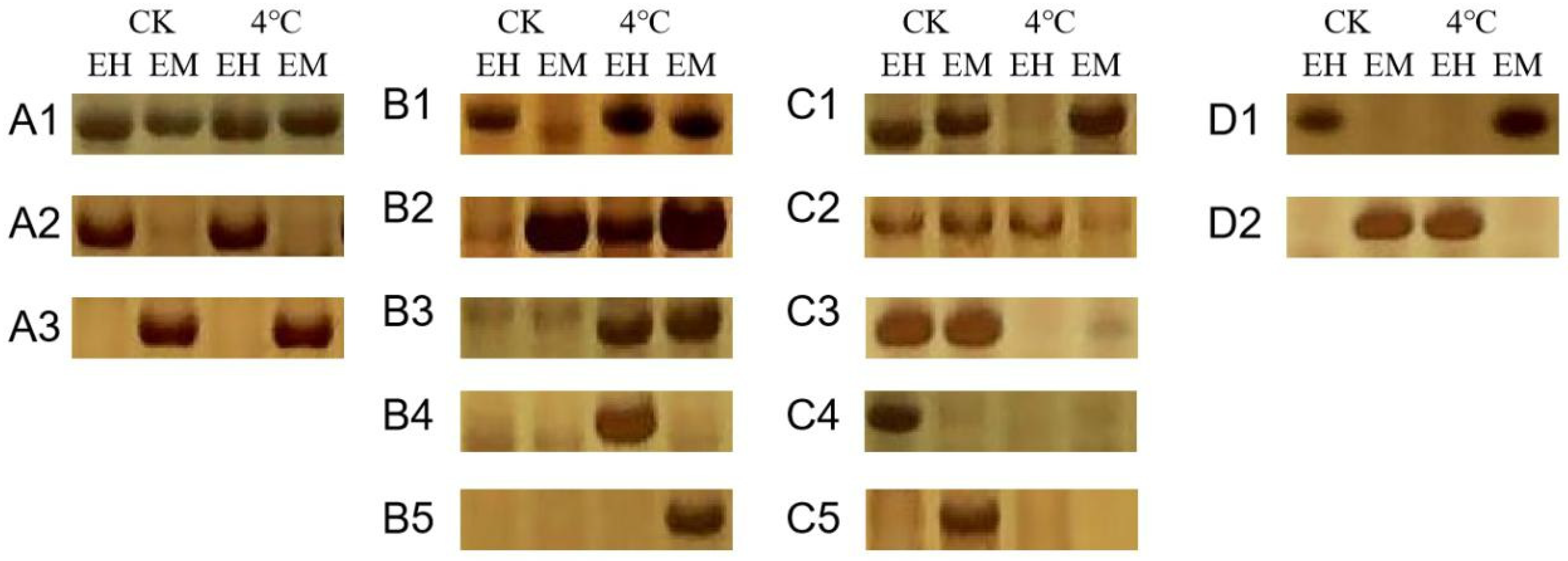

Figure 2. DNA methylation pattern of Brassica rapa L. EH: EcoRI/HpaII double digestion; EM: EcoRI/MspI double digestion.
Figure 2. DNA methylation pattern of Brassica rapa L. EH: EcoRI/HpaII double digestion; EM: EcoRI/MspI double digestion.
Plants 13 01748 g002
Plants 13 01748 g003

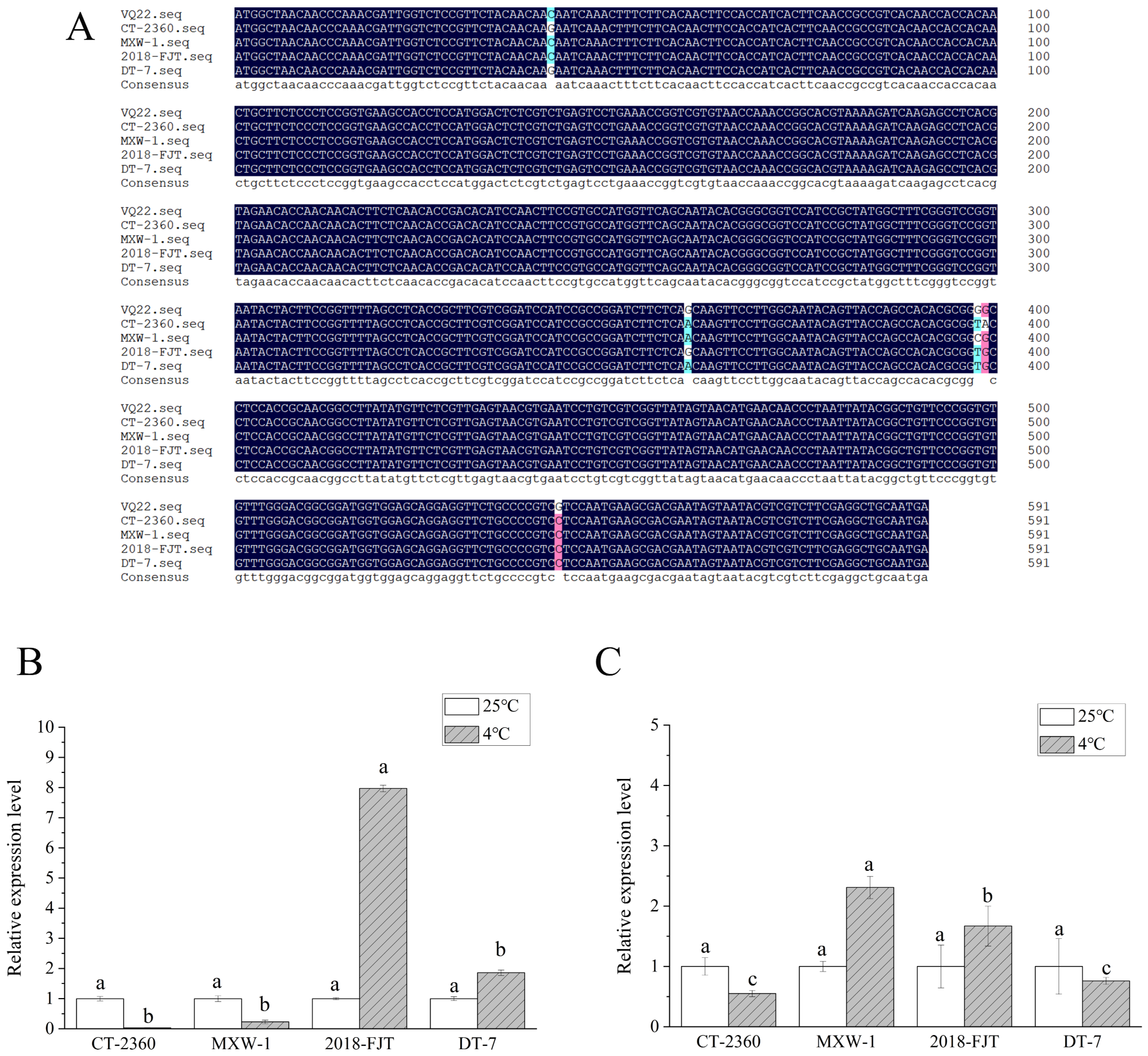

Figure 3. Multiple alignment and relative expression level of VQ22 in the four winter rapeseed materials: (A) multiple alignment of VQ22 sequence in the four materials; (B) relative expression level of the VQ22 conservative sequence under low temperature conditions; (C), relative expression level of the VQ22-specific sequence under low temperature conditions. Different letters indicate significant difference at p < 0.05 level among the different materials.
Figure 3. Multiple alignment and relative expression level of VQ22 in the four winter rapeseed materials: (A) multiple alignment of VQ22 sequence in the four materials; (B) relative expression level of the VQ22 conservative sequence under low temperature conditions; (C), relative expression level of the VQ22-specific sequence under low temperature conditions. Different letters indicate significant difference at p < 0.05 level among the different materials.
Plants 13 01748 g003
Plants 13 01748 g004

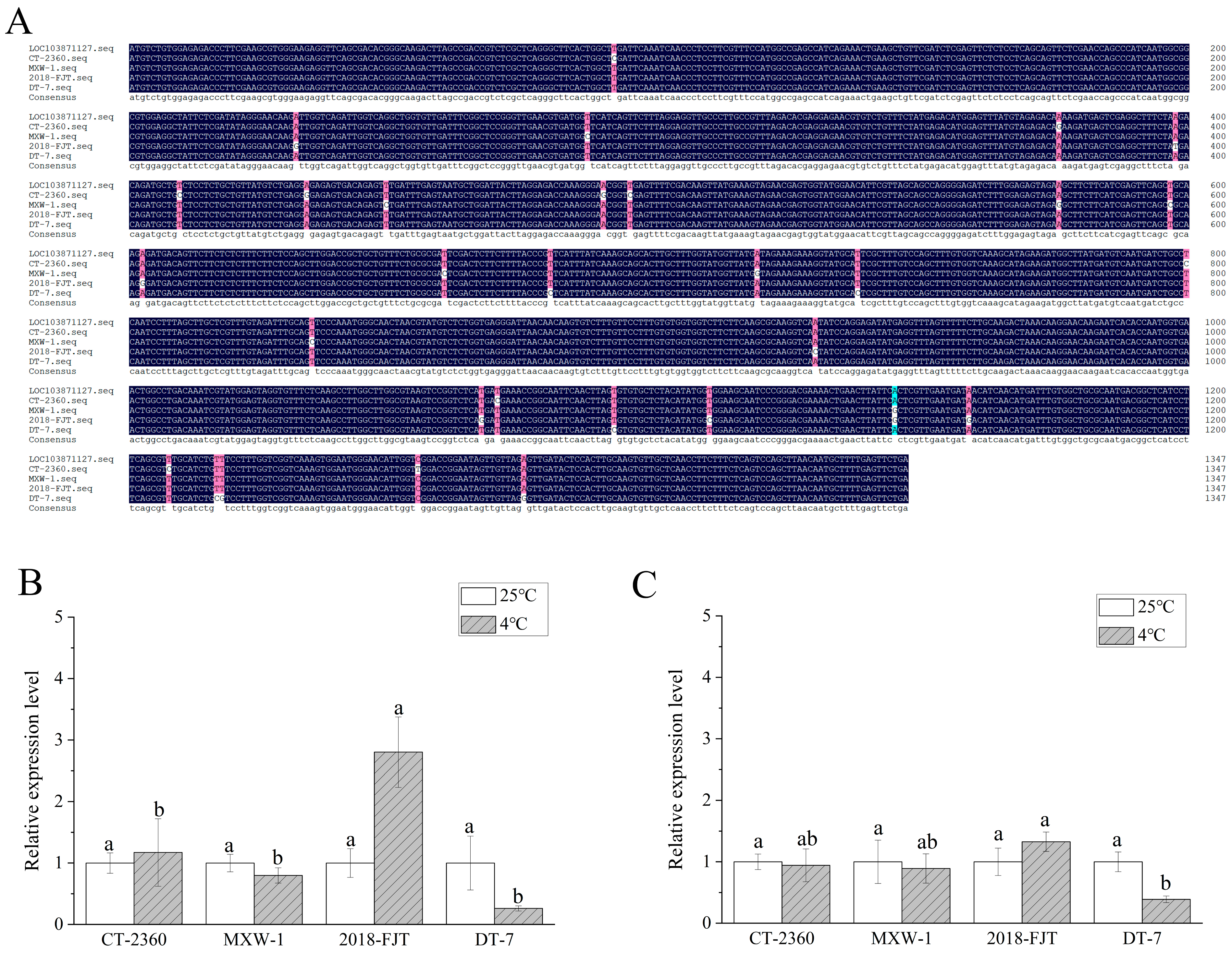

Figure 4. Multiple alignment and relative expression level of LOC103871127 in the four winter rapeseed materials: (A) multiple alignment of the LOC103871127 sequence in the four materials; (B) relative expression level of the LOC103871127 conservative sequence under low temperature; (C) relative expression level of the LOC103871127-specific sequence under low temperature. Different letters indicate significant difference at the p < 0.05 level among the different materials.
Figure 4. Multiple alignment and relative expression level of LOC103871127 in the four winter rapeseed materials: (A) multiple alignment of the LOC103871127 sequence in the four materials; (B) relative expression level of the LOC103871127 conservative sequence under low temperature; (C) relative expression level of the LOC103871127-specific sequence under low temperature. Different letters indicate significant difference at the p < 0.05 level among the different materials.
Plants 13 01748 g004
Table 1. Changes in DNA methylation level in Brassica rapa L. subjected to the low temperature (4 °C for 24 h) and 24 °C recovery growth for 2 d (RG2d). Band type I: unmethylated; Band type II: semi-methylation; Band type III: hypermethylation; total number of bands = Band type I + Band type II + Band type III; total number of methylated bands = Band type II + Band type III; semi-methylation ratio = Band type II/total number of bands; holomethylation ratio = Band type III/total number of bands; total methylation ratio = total number of methylated bands/total number of bands.
Table 1. Changes in DNA methylation level in Brassica rapa L. subjected to the low temperature (4 °C for 24 h) and 24 °C recovery growth for 2 d (RG2d). Band type I: unmethylated; Band type II: semi-methylation; Band type III: hypermethylation; total number of bands = Band type I + Band type II + Band type III; total number of methylated bands = Band type II + Band type III; semi-methylation ratio = Band type II/total number of bands; holomethylation ratio = Band type III/total number of bands; total methylation ratio = total number of methylated bands/total number of bands.
MaterialsTreatmentBand Type I:
The Number of Unmethylated Bands		Band Type II:
The Number of Semi-Methylated Bands		Band Type III:
The Number of Total Methylated Bands		Total Number
of Bands		Total Number of Methylated BandsSemi-
Methylation Ratio (%)		Holo-methylation
Ratio (%)		Total Methylation Ratio (%)
CT-2360CK9237511808820.5628.3348.89
4 °C8633471668019.8828.3148.19
RG2d8735481708320.59 28.24 48.82
MXW-1CK10828481847615.2226.0941.30
4 °C11729411877015.5121.9337.43
RG2d11423391766213.07 22.16 35.23
2018-FJTCK10635421837719.1322.9542.08
4 °C10120461676611.9827.5439.52
RG2d9641471848822.28 25.54 47.83
DT-7CK11235391867418.8220.9739.78
4 °C11026371736315.0321.3936.42
RG2d9227591788615.17 33.15 48.31
Total 12213695442134913
Table 2. Effects of low temperature on the DNA methylation pattern in Brassica rapa L. The different types are shown in Figure 2. EH and EM represent the results of EcoRI/HpaII and EcoRI/MspI double digestion, respectively. The presence (1)/absence (0) were determined based on the polyacrylamide gel electropherograms of 18 polymorphic primer pairs during control (CK) and 4 °C treatments. The number of points and proportion represent the number of four different band types (A, B, C, and D) and their respective percentages to the total types. The pattern indicates changes in DNA methylation.
Table 2. Effects of low temperature on the DNA methylation pattern in Brassica rapa L. The different types are shown in Figure 2. EH and EM represent the results of EcoRI/HpaII and EcoRI/MspI double digestion, respectively. The presence (1)/absence (0) were determined based on the polyacrylamide gel electropherograms of 18 polymorphic primer pairs during control (CK) and 4 °C treatments. The number of points and proportion represent the number of four different band types (A, B, C, and D) and their respective percentages to the total types. The pattern indicates changes in DNA methylation.
TypeCK4 °CCT-2360MXW-12018-FJTDT-7Pattern
Number of Points and ProportionNumber of Points and ProportionNumber of Points and ProportionNumber of Points and Proportion
A (%)EHEMEHEM114 (62.30%)104 (55.62%)110 (62.15%)113 (58.55%)no change
A1111171646756
A2101019161425
A3010124242932
B (%) 27 (14.75%)43 (22.99%)35 (19.77%)47 (24.35%)demethylation
B110117624
B201117141016
B30001311613
B4001068148
B500114436
C (%) 42 (22.95%)34 (18.18%)27 (15.26%)33 (17.10%)methylation/
hypermethylation
C1100014759
C201009359
C3110171165
C411105453
C511007967
D (%) 0 (0)6 (3.21%)5 (2.82%)0 (0)other
D110010240
D201100410
Total 183187177193
Table 3. Effects of room temperature recovery on the DNA methylation pattern in Brassica rapa L. The different types are shown in Figure 2. EH and EM represent the results of EcoRI/HpaII and EcoRI/MspI double digestion, respectively. The presence (1)/absence (0) were determined based on the polyacrylamide gel electropherograms of 18 polymorphic primer pairs during control (CK) and 24 °C recovery growth for 2 d (RG2d). The number of points and proportion represent the number of four different band types (A, B, C, and D) and their respective percentages to the total types. Pattern indicates changes in DNA methylation.
Table 3. Effects of room temperature recovery on the DNA methylation pattern in Brassica rapa L. The different types are shown in Figure 2. EH and EM represent the results of EcoRI/HpaII and EcoRI/MspI double digestion, respectively. The presence (1)/absence (0) were determined based on the polyacrylamide gel electropherograms of 18 polymorphic primer pairs during control (CK) and 24 °C recovery growth for 2 d (RG2d). The number of points and proportion represent the number of four different band types (A, B, C, and D) and their respective percentages to the total types. Pattern indicates changes in DNA methylation.
TypeCKRG2dCT-2360MXW-12018-FJTDT-7Pattern
Number of Points and ProportionNumber of Points and ProportionNumber of Points and ProportionNumber of Points and Proportion
A (%)EHEMEHEM77 (49.68%)88 (53.99%)86 (50%)97 (48.99%)no change
A1111141524947
A2101013151526
A3010123212224
B (%) 21 (13.55%)31 (19.02%)38 (22.1%)43 (21.72%)demethylation
B110118726
B2011135109
B300015599
B400103111011
B500112378
C (%) 56 (36.13%)37 (22.7%)45 (26.16%)55 (27.78%)methylation/
hypermethylation
C11000159710
C2010010111313
C311011981213
C4111064911
C511006548
D (%) 1 (0.64%)7 (4.29%)3 (1.74%)3 (1.51%)other
D110010323
D201101410
Total 155163172198
Table 4. Blast results of the differentially methylated DNA fragments in Brassica rapa L. Methylation occurs if the bands appear only in CK rather than the 4 °C treatment. However, demethylation takes place when the opposite is true. The homologs of Brassica napus and Brassica rapa genes are presented for the annotation of methylated fragments.
Table 4. Blast results of the differentially methylated DNA fragments in Brassica rapa L. Methylation occurs if the bands appear only in CK rather than the 4 °C treatment. However, demethylation takes place when the opposite is true. The homologs of Brassica napus and Brassica rapa genes are presented for the annotation of methylated fragments.
FragmentMethylation PatternLength
(bp)		Gene DescriptionE-ValueIdentities %Accession
M-01Demethylation167Brassica napus protein KTI12 homolog (LOC106369112), transcript variant X2, mRNA2.00 × 10−4691.1XM_013809215.2
M-02Demethylation143Brassica napus NADH dehydrogenase [ubiquinone] 1 alpha subcomplex subunit 13-B (LOC106365400), mRNA1.00 × 10−53100XM_013804832.2
M-03Demethylation75Brassica rapa probable receptor-like protein kinase At5g39020 (LOC103874456), mRNA3.00 × 10−16100XM_009152882.3
M-04Methylation128Brassica rapa VQ motif-containing protein 22 (LOC103834848), mRNA5.00 × 10−4298.08XM_009110941.3
M-05Demethylation142Brassica napus cysteine-rich receptor-like protein kinase 10 (LOC106398281), mRNA3.00 × 10−4997.5XM_013838867.2
M-06Methylation93Brassica rapa cysteine-rich receptor-like protein kinase 10 (LOC103834757), transcript variant X4, mRNA9.00 × 10−28100XM_033286881.1
M-07Demethylation170Brassica napus glucan endo-1,3-beta-glucosidase (LOC106445206), mRNA2.00 × 10−6699.31XM_013886724.2
M-08Methylation88Brassica rapa glucan endo-1,3-beta-glucosidase (LOC103832330), transcript variant X2, mRNA5.00 × 10−2096.88XM_009108313.3
M-09Methylation67Brassica rapa glucan endo-1,3-beta-glucosidase 11 (LOC103835240), mRNA1.00 × 10−895.35XM_009111375.3
M-10Demethylation129Brassica rapa putative glutamine amidotransferase GAT1_2.1 (LOC103850104), mRNA9.00 × 10−1598.08XM_009126815.3
M-11Methylation133Brassica rapa endoglucanase 8 (LOC103831605), mRNA2.00 × 10−25100XM_009107492.3
M-12Methylation81Brassica rapa O-glucosyltransferase rumi homolog (LOC103843476), mRNA4.00 × 10−15100XM_009120210.3
M-13Methylation98Brassica rapa auxin-induced protein 15A (LOC103834602), mRNA3.00 × 10−2798.65XM_009110705.3
M-14Demethylation105Brassica rapa transcription initiation factor IIB (LOC103863051), transcript variant X3, mRNA3.00 × 10−2895.35XM_009140791.3
M-15Demethylation178Brassica rapa terpenoid synthase 17 (LOC103859580), mRNA4.00 × 10−5994.81XM_009137140.2
M-16Methylation71Brassica rapa S-locus-specific glycoprotein S13 (LOC103831122), mRNA8.00 × 10−1297.83XM_009106973.3
M-17Methylation64Brassica rapa monothiol glutaredoxin-S1 (LOC103844538), mRNA5.00 × 10−8100XM_033282469.1
M-18Demethylation58Brassica rapa purple acid phosphatase 5 (LOC103837841), transcript variant X2, mRNA5.00 × 10−797.3XM_009114221.3
M-19Demethylation124Brassica rapa iron-sulfur assembly protein IscA-like 1, mitochondrial (LOC117127666), mRNA2.00 × 10−4199XM_033278271.1
M-20Demethylation124Brassica napus homeobox-leucine zipper protein HDG2-like (LOC106398145), mRNA2.00 × 10−4199XM_013838740.1
M-21Methylation109Brassica rapa elongation factor G-2, mitochondrial (LOC103866857), mRNA5.00 × 10−3197.62XM_009144847.3
M-22Methylation97Brassica rapa probable protein phosphatase 2C 30 (LOC103865774), mRNA3.00 × 10−28100XM_009143626.2
M-23Methylation184Brassica rapa probable clathrin assembly protein At4g32285 (LOC103851149), mRNA2.00 × 10−77100XM_009127985.3
M-24Demethylation74Brassica rapa E3 ubiquitin-protein ligase ATL6-like (LOC103859080), mRNA1.00 × 10−5100XM_009136564.3
M-25Demethylation75Brassica rapa testis-expressed protein 2 (LOC103831800), mRNA1.00 × 10−597.14XM_009107719.3
M-26Methylation89Brassica rapa glycine-rich RNA-binding protein 5, mitochondrial-like (LOC103860185), mRNA3.00 × 10−2298.46XM_033288947.1
M-27Methylation113Brassica napus polyribonucleotide nucleotidyltransferase 2, mitochondrial-like (LOC106416529), transcript variant X3, mRNA3.00 × 10−1498.04XM_013857446.2
M-28Demethylation91Brassica napus protein DETOXIFICATION 37 (LOC106419146), transcript variant X2, mRNA1.00 × 10−2596.15XM_013859997.2
M-29Demethylation93Cardamine resedifolia voucher CresL-Sta1-1 haplotype 1 Ascorbate peroxidase 1 (APX1) gene, partial cds4.00 × 10−1195.92KJ428054.1
M-30Demethylation75Brassica rapa subsp. pekinensis cultivar Inbred line Chiifu “clone KBrB045B23, complete sequence”3.00 × 10−1696.49AC189360.2
M-31Demethylation164Brassica juncea isolate 94 mitochondrion, complete genome1.00 × 10−4892.86MG872828.1
M-32Demethylation164Brassica juncea cytoplasmic male sterility-associated cytochrome oxidase subunit I (coxI-2) gene, complete cds; mitochondrial gene for mitochondrial product7.00 × 10−5294.29AY300015.1
M-33Methylation75Pseudomonas fluorescens strain NCTC10038 genome assembly, chromosome: 11.00 × 10−1496.3LS483372.1
M-34Methylation179Brassica oleracea HDEM genome, scaffold: C43.00 × 10−6596.77LR031873.1
M-35Methylation102Tetracme recurvata isolate C236 18S ribosomal RNA gene, internal transcribed spacer 1, 5.8S ribosomal RNA gene, internal transcribed spacer 2, and 26S ribosomal RNA gene, complete sequence6.00 × 10−3097.56MT819350.1
M-36Methylation214Brassica juncea chromosome og1-b mitochondrion, complete sequence2.00 × 10−92100MT675106.1
M-37Demethylation104Uncultured bacterium clone Otu03067 16S ribosomal RNA gene, partial sequence2.00 × 10−2997.53KX997786.1
M-38Methylation155Yosemitea repanda chloroplast, complete genome6.00 × 10−47100MK637830.1
M-39Methylation128Lepidium apetalum chloroplast, complete genome4.00 × 10−18100MT880914.1
M-40Methylation81Brassica rapa uncharacterized LOC103836772, transcript variant X2, mRNA1.00 × 10−693.18XM_033280897.1
M-41Demethylation154Brassica rapa uncharacterized LOC103871127, mRNA1.00 × 10−9100XM_009149356.3
M-42Demethylation89Brassica rapa uncharacterized LOC103874467, mRNA5 × 10−2096.88XM_009152895.3
M-43Demethylation109Brassica rapa uncharacterized LOC103833097, transcript variant X4, misc_RNA7.00 × 10−3598.86XR_626125.2
M-44Methylation68Brassica rapa uncharacterized LOC117128160, ncRNA0.002100XR_004451357.1
M-45Demethylation97Brassica rapa uncharacterized LOC117134590, ncRNA3.00 × 10−18100XR_004458779.1
M-46Demethylation92Brassica rapa uncharacterized LOC117127533, mRNA4.00 × 10−26100XM_033278112.1
M-47Demethylation87Brassica rapa uncharacterized LOC103874342, transcript variant X2, mRNA8.00 × 10−2395.89XM_033292971.1
M-48Methylation75Brassica rapa uncharacterized LOC103846332, mRNA1.00 × 10−2697.37XM_009123242.3
M-49Demethylation53Brassica napus uncharacterized LOC106386228, mRNA0.001100XM_013826104.2
M-50Methylation108Brassica napus uncharacterized LOC106378351, mRNA5.00 × 10−3198.77XM_013818495.1
M-51Methylation87Brassica napus uncharacterized LOC106388033, transcript variant X2, ncRNA2.00 × 10−1492.06XR_001277777.2
M-52Methylation188Brassica napus uncharacterized LOC106451272, mRNA1.00 × 10−7998.3XM_013893176.2
M-53Demethylation121Brassica napus uncharacterized mitochondrial protein LOC111207234, mRNA1.00 × 10−13100XM_022705092.1
Table 5. Geographic and climatic factors, cold resistance indicators, and agronomic traits of the four tested materials. Root collar diameter, overwintering rate, LT50, and cold resistance ranking are cold resistance indicators, and plant height, branch height, siliques per plant, seeds per silique, thousand-seed weight, and seed yield per plant are key agronomic traits.
Table 5. Geographic and climatic factors, cold resistance indicators, and agronomic traits of the four tested materials. Root collar diameter, overwintering rate, LT50, and cold resistance ranking are cold resistance indicators, and plant height, branch height, siliques per plant, seeds per silique, thousand-seed weight, and seed yield per plant are key agronomic traits.
MaterialsPlace of Origin and Environmental ConditionsRoot Collar Diameter (cm)Over-
Wintering Rate (%)		LT50
(°C)		Cold Resistance RankingPlant Height (cm)Branch Height (cm)Siliques per PlantSeeds per SiliqueThousand-Seed Weight (g)Seed Yield per Plant (g)
CT-2360Caotan, Zhangxian County, Gansu Province; Latitude: 34°38′ N; longitude: 104°28′ E; above sea level: 2360~2460 m; mean annual temperature: 4.3 °C; lowest annual temperature: −8.8 °C.1.189.0−11.324112.011.2145.021.53.111.0
MXW-1
(Longyou-7)		Shangchuan, Lanzhou City, Gansu Province; latitude: 36°03′; longitude: 103°40′; above sea level: 2150 m; mean annual temperature: 6.5 °C; lowest annual temperature: −14.6 °C.1.090.0−15.043102.08.2150.022.03.112.0
DT-7Datong City, Shanxi Province; Latitude: 40°04′; longitude: 113°08′; above sea level: 1000 m; mean annual temperature: 6.4 °C; lowest annual temperature: −29.2 °C.1.094.0−15.98292.08.0157.022.03.212.5
2018-FJTFanjiatun, Gongzhuling City, Jilin Province; Latitude: 43°43′; longitude: 124°50′; above sea level: 223 m; mean annual temperature: 5.9 °C; lowest annual temperature: −30 °C.1.195.0−16.04190.06.1167.023.03.313.2
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Liu, L.; Wang, W.; Lu, X.; Zhang, T.; Wu, J.; Fang, Y.; Ma, L.; Pu, Y.; Yang, G.; Wang, W.; et al. Methyl-Sensitive Amplification Polymorphism (MSAP) Analysis Provides Insights into the DNA Methylation Changes Underlying Adaptation to Low Temperature of Brassica rapa L. Plants 2024, 13, 1748. https://doi.org/10.3390/plants13131748

AMA Style

Liu L, Wang W, Lu X, Zhang T, Wu J, Fang Y, Ma L, Pu Y, Yang G, Wang W, et al. Methyl-Sensitive Amplification Polymorphism (MSAP) Analysis Provides Insights into the DNA Methylation Changes Underlying Adaptation to Low Temperature of Brassica rapa L. Plants. 2024; 13(13):1748. https://doi.org/10.3390/plants13131748

Chicago/Turabian Style

Liu, Lijun, Wanpeng Wang, Xiaoming Lu, Tianyu Zhang, Junyan Wu, Yan Fang, Li Ma, Yuanyuan Pu, Gang Yang, Wangtian Wang, and et al. 2024. "Methyl-Sensitive Amplification Polymorphism (MSAP) Analysis Provides Insights into the DNA Methylation Changes Underlying Adaptation to Low Temperature of Brassica rapa L." Plants 13, no. 13: 1748. https://doi.org/10.3390/plants13131748

APA Style

Liu, L., Wang, W., Lu, X., Zhang, T., Wu, J., Fang, Y., Ma, L., Pu, Y., Yang, G., Wang, W., & Sun, W. (2024). Methyl-Sensitive Amplification Polymorphism (MSAP) Analysis Provides Insights into the DNA Methylation Changes Underlying Adaptation to Low Temperature of Brassica rapa L. Plants, 13(13), 1748. https://doi.org/10.3390/plants13131748

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
