Article

The Chlorophyll Fluorescence Parameter Fv/Fm Correlates with Loss of Grain Yield after Severe Drought in Three Wheat Genotypes Grown at Two CO2 Concentrations

1
Department of Plant and Environmental Sciences, Crop Sciences, University of Copenhagen, Højbakkegaard Allé 13, DK-2630 Taastrup, Denmark
2
Sino-Danish Center for Education and Research, 380 Huaibeizhuang, Beijing 101400, China
3
CSIRO Agriculture and Food, P.O. Box 1700, Canberra, ACT 2601, Australia
4
Chinese Academy of Sciences, Northeast Institute of Geography and Agroecology, Changchun 130012, China
*
Authors to whom correspondence should be addressed.
Plants 2023, 12(3), 436; https://doi.org/10.3390/plants12030436
Submission received: 15 December 2022 / Revised: 31 December 2022 / Accepted: 13 January 2023 / Published: 18 January 2023
(This article belongs to the Special Issue Responses of Wheat to Abiotic Stress)

Abstract

:
Three genotypes of wheat grown at two CO2 concentrations were used in a drought experiment, where water was withheld from the pots at anthesis until stomatal conductance (gs) dropped below 10% of the control and photosynthesis (A) approached zero. The genotypes had different leaf area (Gladius < LM19 < LM62) and while photosynthesis and shoot growth were boosted by elevated CO2, the water use and drying rate were more determined by canopy size than by stomatal density and conductance. The genotypes responded differently regarding number of fertile tillers, seeds per spike and 1000 kernel weight and, surprisingly, the largest genotype (LM62) with high water use showed the lowest relative decrease in grain yield. The maximum photochemical efficiency of photosystem II (Fv/Fm) was only affected on the last day of the drought when the stomata were almost closed although some variation in A was still seen between the genotypes. A close correlation was found between Fv/Fm and % loss of grain yield. It indicates that the precise final physiological stress level measured by Fv/Fm at anthesis/early kernel filling could effectively predict percentage final yield loss, and LM62 was slightly less stressed than the other genotypes, due to only a small discrepancy in finalising the drying period. Therefore, Fv/Fm can be used as a proxy for estimating the yield performance of wheat after severe drought at anthesis.

1. Introduction

Wheat is, after maise, the second most produced cereal globally, it takes up the most significant proportion of cultivation area (14%), and it is a primary contributor of calories and protein globally [1]. To feed a growing global population, it is projected that demand for wheat will increase by approximately 50% by 2050 [2]. Meanwhile, anthropogenic activity is driving climate change due to primarily emissions of greenhouse gases [3]. Consequently, more frequent and more severe drought episodes are expected [4].
Wheat is best adapted to temperate climate regions, with optimal growth at around 18 °C day/13 °C night temperature [5] and where rainfall is non-limiting for growth, flowering and kernel filling [6,7]. It is well known that drought stress, particularly at anthesis, will reduce yield, partly due to shortening the life cycle of the crop and the availability of photosynthates for grain filling [8,9]. Earlier studies have demonstrated that the effect of high temperature on the maximum quantum efficiency of photosystem II Fv/Fm in different wheat genotypes correlates with higher stomatal conductance (gs), causing increasing levels of transpiration (E) on leaf level [10]. Drought does not affect the reaction centre of photosystem II (PSII) until the stress becomes severe because of several protective mechanisms. When the light harvest exceeds the energy demand in the chloroplast, the excess light is dissipated as heat through non-photochemical quenching (NPQ). If the CO2 supply becomes limiting due to decreasing stomatal conductance, photorespiration acts as an alternative electron sink for the light reaction [11].The latter protects PSII from damage during drought, and therefore, Fv/Fm is not a good indicator for detecting plant drought response at mild soil water deficit, but with increasing water deficit the response of Fv/Fm will become evident [12,13,14].
Genetic variability may determine photosynthetic performance between different wheat genotypes. At growth stages around anthesis and through grain filling, the sustenance of photosynthesis correlates well with final grain yield. This means that yield optimisation is related to the ability of wheat plants to sustain green foliage around and after anthesis [15,16]. Such a link becomes more critical when plants suffer from abiotic stress, such as drought and combined drought and heat stress at the post-anthesis stage [17,18,19].
CO2 levels may very well be at 600 ppm by the end of the current century, and the worst case scenario projects a level of 1100 ppm [4]. We have chosen 800 ppm as an intermediate CO2 scenario. Elevated CO2 (eCO2) may have positive effects on yield in both well-watered and water-limited conditions compared to current ambient CO2 levels (aCO2). The increased yield potential in well-watered conditions is a consequence of an increase in the photosynthetic rate, which is in an almost linear manner to increasing CO2 concentration from 0 ppm to 600 ppm [20]. The increase in CO2 levels depresses photorespiration as high atmospheric CO2 concentration counteracts the disproportionate solubilization of CO2 to O2 in water as well as the relative preference for O2 at the RuBisCO catalytic site [21]. Due to these changes in carbon assimilation, increasing levels of CO2 (to 550–900 ppm) are predicted to increase yields by 20–30% [22], and can potentially ameliorate the impacts of drought stress on wheat crops [23,24]. The amelioration of drought by eCO2 is attributed mainly to a decrease in gs as intercellular CO2 (Ci) concentration increases [22]. It is shown that leaf stomatal density has been adapted to varying CO2 levels over geological time. Due to this effect, leaves would have increased stomatal density leading to higher potential gs during periods with low atmospheric CO2 levels. Meanwhile, periods with elevated atmospheric CO2 levels would favour the adaptation of leaves with lower stomatal density and lower maximum gs [25]. Lower stomatal density is not mainly related to net photosynthesis, therefore, crop yield. Instead, it is associated well with whole-season water use efficiency (WUE) and can be a beneficial trait under water-limited conditions [26].
To ensure high and stable wheat yields in the changing climate, there is a need to understand the responses in physiological traits such as stomatal conductance and photosynthesis under drought conditions. In this study, the physiological responses of three different genotypes of wheat plants grown under drought were examined in a CO2-enriched environment by photosynthesis, Fv/Fm and leaf pigment measurements. The data collected here were combined with yield data to analyse the relationship behind the stress-resilient morphological/physiological traits and yield. It was hypothesised that: (1) According to the heat screening experiment, LM62, which sustains higher Fv/Fm compared to LM19 under heat stress, would achieve higher Fv/Fm because of a higher photosynthetic rate. As a higher photosynthetic rate allows for sustained high stomatal conductance, and due to the probability that LM62 may sustain higher gs, we hypothesise that because LM62 will transpire more, LM62 pots will dry out faster. (2) eCO2 could mitigate the impact of drought stress on plant–water relations, leaf gas exchanges and grain yield.

2. Results

2.1. Leaf Water Potential

Midday leaf water potential (Ψleaf) was severely affected by drought compared to control. There was a significant interaction between genotype and watering treatment (p < 0.001) (Table 1A, Figure 1). Gladius had the least negative Ψleaf compared to LM19 and LM62 under drought and eCO2, while LM19 had slightly less negative Ψleaf than LM62 under both control and drought conditions. The Ψleaf of Gladius was slightly less negative in eCO2 compared to aCO2 when exposed to progressive soil drying, but not for LM19 and LM62 (Figure 1).

2.2. Stomatal Density

Stomatal density did not differ significantly between either treatment or CO2 concentration, though there was a significant effect of genotype (p < 0.001, Table 1B). Gladius and LM62 had a significantly higher stomatal density than LM19, while there was no significant difference between Gladius and LM 62 (Figure 2).

2.3. A, gs, Ci, E and Fq’/Fm

Net photosynthetic rate, A, increased significantly in control conditions as a response to eCO2 (p < 0.001, Table 1A). Compared to plants grown under aCO2, plants grown under eCO2 possessed 32%, 26% and 28% greater A (p < 0.05) for Gladius, LM19 and LM62, respectively. There was no significant effect of the genotype on A under control conditions (Figure 3A,B).
There was a significant effect of the genotype on the gas exchange rates under drought (p < 0.001). LM62 had a higher A compared to Gladius and LM19 under drought (the A of LM62 was 84% lower at aCO2 and 78% lower at eCO2 in drought compared to control, while A was 93–99% lower in drought at both aCO2 and eCO2 for Gladius and LM19) (Figure 3A,B). A did not differ significantly between aCO2 and eCO2 in drought conditions.
Stomatal conductance, gs, was significantly lower (ca. 30%) at eCO2 compared to aCO2 in all genotypes under well-watered conditions (p < 0.001) (Table 1A, Figure 3C,D). This caused E to decrease to the same degree in eCO2 compared to aCO2 conditions (Figure 3C,D). Ci was significantly higher at eCO2 compared to aCO2, even with the lower gs (data not shown). When comparing gs and E in drought, there was a significant difference between genotypes (p < 0.01). LM62 had a gs of 32 mmol m−2 s−1, which was approximately 60% higher compared to Gladius (not significant) and 75% higher than LM19 (significant), which affected E with the same pattern as for gs (Figure 3E,F).
Fq’/Fm’ did not differ significantly between either genotypes or CO2 conditions for well-watered plants (Figure 3G,H). However, in drought, the genotype had a significant effect on Fq’/Fm’ (p < 0.001) with significant interaction between the genotype and CO2 conditions (p < 0.001) (Table 1A). In drought, Fq’/Fm’ was significantly (50%) higher in LM62 compared to Gladius and LM19, with no effect of CO2 concentration.

2.4. Fv/Fm

Fv/Fm was not significantly affected by CO2 but was significantly affected by genotypes (p < 0.05) and treatment (p < 0.001) as well as their interactions (p < 0.001) (Table 1A). Under aCO2, drought caused a decrease of 9%, 14% and 3% in Fv/Fm for Gladius, LM19 and LM62, respectively, compared to control. The reduction was significant for LM19 and Gladius (p < 0.05). Under eCO2, the decrease in Fv/Fm by drought was 4%, 8% and 2% and only significant for LM19 (p < 0.05, Table 1A, Figure 4).

2.5. Pigments

The chlorophyll content (index) differed between genotypes (p < 0.01) and treatments (p < 0.001). Furthermore, there were significant interactions between the genotype, CO2 and treatment (p < 0.05, Table 1B). The chlorophyll content was significantly lower in Gladius and LM19 in drought conditions compared to the control (p < 0.05). The response was more significant in Gladius than in LM19. The chlorophyll content did not decrease in LM62 in drought compared to control conditions (Figure 5A,B). For Gladius and LM19 across all treatments, the chlorophyll content was slightly higher under eCO2 compared to aCO2 though not significant. In comparison, the chlorophyll content of LM62 was higher in aCO2 compared to eCO2 (though not significant).
The flavonol content (index) differed significantly between genotypes (p < 0.001). There was an interactive effect between the genotype and treatment on flavonol content (p < 0.05) (Table 1B). Under control conditions, the flavonol content was significantly higher (p < 0.05) in LM62 compared to Gladius and LM19 (not significantly in eCO2). Gladius and LM19 accumulated significantly more flavonols in response to drought compared to the control, which was not the case in LM62 (Figure 5C,D).
The anthocyanin content (index) differed significantly between control and drought (p < 0.001), and there was a significant interaction between CO2 and treatment (p < 0.001) (Table 1B). Anthocyanin levels were significantly higher in drought compared to control in Gladius and LM19 (p < 0.05). Meanwhile, the anthocyanin content of LM62 did not change significantly as a response to drought. In control conditions, the anthocyanin levels were significantly higher across all genotypes in eCO2 compared to aCO2, and for LM19 the difference was significant (p < 0.05) (Figure 5E,F).

2.6. Plant Size, Leaf Area and Water Use at Stress

Total dry weight (DW) and leaf area (LA) were significantly different between genotypes (Gladius < LM19 < LM62) (p < 0.001 and p < 0.05, respectively). Dry weight differed significantly between treatments and CO2 conditions (drought < control, aCO2 < eCO2) (p < 0.05), while LA was only affected significantly by treatment and not CO2 (p < 0.001). Water use (WU) and water use per leaf area (WU/LA) were similarly significantly different between genotypes (p < 0.001). While WU increased with increasing leaf area (Gladius < LM19 < LM62), WU/LA would decrease with increasing leaf area (LM62 < LM19 < Gladius), and LM62 had half of the WU/LA of Gladius (Table 2)), and eCO2 had a small but not significant interaction with the genotype on WU/LA, as WU/LA was lower in eCO2 compared to aCO2, which was most significant in Gladius and least significant in LM62 (p < 0.1) (Table 1B).

2.7. Yields

Grain yields were significantly different between genotypes (p < 0.001) and increased in accordance with the lateness of flowering, following the same trend as shoot dry matter (SDM) (Table 1C). There was no significant effect of eCO2 on yield. Meanwhile, in LM19 yield was significantly higher (20%) at eCO2 compared to aCO2 (Table 3). Drought affected grain yield significantly (Table 1C), causing a 70–90% (p < 0.001) decline in yields, which was in part due to a decrease in the number of spikes (SN) per plant. The number of spikes differed significantly between genotypes, and LM62 had significantly higher SN than Gladius and LM19. Drought significantly reduced SN by 43–70% (p < 0.001). The yield reduction caused by drought was also due to a reduction in grain number per spike (GNPS), primarily in LM62, i.e., a reduction of 60% at aCO2 and 90% at eCO2 compared to the control (p < 0.01). In Gladius and LM19, GNPS was also significantly reduced by drought, though not for LM19 at eCO2. Thousand kernel weight (TKW) was not significantly different between genotypes (p < 0.1), but there was a significant interaction between genotype and treatment (p < 0.05) (Table 1C). Drought caused TKW to decrease by approximately 50% in LM19 compared to control, whereas the decrease was approximately 30% for Gladius and 15% for LM62 with no significant effect of CO2. The number of spikes per tiller (Spikes/Tillers) was significantly affected by drought (p < 0.001) and genotype (p < 0.05), and there was a significant interaction between genotype and treatments (p < 0.001). Generally, the number of Spikes/Tillers was higher in control conditions and decreased less by drought in Gladius than in LM19 and LM62. The ratio was slightly higher in plants grown under eCO2 compared to under aCO2, but the interaction effect between treatment and CO2 was not significant (p < 0.1) (Table 1, Table 3).

3. Discussion

Gladius is known as a drought- and heat-tolerant genotype well suited to a Mediterranean climate [27], primarily attributed to its small canopy compared to northern varieties such as LM19 and LM62, which are bred for temperate climate regions with higher rainfall [28]. LM19 and LM62 are two Swedish varieties with contrasting fluorescence (Fv/Fm) responses to heat, with LM62 having higher Fv/Fm after heat stress than LM19 (unpublished data). It was hypothesised that the differences between LM19 and LM62 would be related to the efficiency of leaf cooling by water loss through transpiration, where LM19 transpired less water than LM62. Based on this assumption, we also hypothesised that LM19 would be more suited to dry conditions than LM62 due to its more restricted water use. Furthermore, it was hypothesised that eCO2 would increase growth and yield in control conditions due to stimulated photosynthetic rates but also in drought conditions due to a lower stomatal conductance and transpiration rate, which would ameliorate the effect of drought. Gladius had the longest drying period among the three genotypes before reaching the end of the drought treatment (Supplementary Figure S2) due to its smaller leaf area. Rewatering of the drought-treated pots was performed after 7 (LM62), 8 (LM19) and 11 days (Gladius) of withholding irrigation. All genotypes reached a similar mid-day leaf water potential at the end of drought stress apart from Gladius in eCO2 conditions (Figure 1), which somewhat confirms the first hypothesis, but not entirely when studying the morphological versus the physiological characteristics of each genotype (Table 2), as well as the effect drought had on yields (Table 3).
Staying green is a vital trait for enduring drought, and a greenness index at both anthesis and especially in the senescence period was used to evaluate the drought tolerance of wheat plants from anthesis and forward [18]. From visual assessment, LM62 maintained a green canopy in drought-stressed plants one month after rewatering, compared to Gladius and LM19, which had reached maturity (Supplementary Figure S4). This was accompanied by higher values of A, gs, E, Fq’/Fm’, Fv/Fm and chlorophyll content in drought-stressed LM62 compared to LM19 and Gladius under both aCO2 and eCO2. Meanwhile, the duration of the period of drying before reaching a gs < 10% of control was primarily attributed to the canopy size, where the smaller leaf area of Gladius extended the drying period compared to LM19 and LM62 (Table 1B), which rejects Hypothesis 1, that any physiological difference attributed to variation in genotype apart from leaf area would make LM19 more drought tolerant than LM62 even though SD was significantly lower in LM19 (Figure 2).
Other studies have tried relating the greenness index or “stay-green” trait to several QTL regions associated with a diverse group of wheat progeny [19]. While some evidence pointed to QTLs that were related to root angle, the primary trait associated with the stay-green trait and yield sustenance was co-located with the Rht-dwarfing genes even though they sought to control for this trait [19], supporting the results reported here, that the one genotype with a dwarf phenotype (Gladius) sustained the longest drying period. At the same time, the results supported the notion that staying green correlates well with minimising yield loss. Here, we define the ability to stay green as a consequence of sustaining green foliage one month after stress (Supplementary Figure S4).
A doubling of CO2 concentrations from 400 ppm to 800 ppm had a significant effect on gs as it decreased by approximately 30% (Figure 3C,D), which has been shown in previous studies (e.g., [29]), and not far from a consensus determined through a meta-analysis approach [22]. However, while the decrease in gs caused E to decrease correspondingly, it had a limited effect on the speed of soil drying, where only LM62 had lower water consumption in eCO2 compared to aCO2 in control conditions (Table 2). One explanation may be that the canopy size (LA and DW in Table 2) increased in eCO2 for all genotypes, which increased WU. Nonetheless, the water use per leaf area (WU/LA) still decreased in eCO2 compared to aCO2, coinciding with the response of gs and E (Table 2). This, to some extent, confirms Hypothesis 2, that eCO2 ameliorates drought effects. Still, as plants grow bigger in eCO2, probably in part because our plants suffered no restrictions in nutrient availability, the effect was relatively small in terms of drought amelioration.
Under control conditions, the absolute WU primarily increased with increasing LA. In this experiment, the leaf area decreased in the order LM62 > LM19 > Gladius. Plants with a higher leaf area obtained a larger canopy volume (Supplementary Figure S3). The microclimate within a canopy differs from the surroundings, where less turbulent air flow creates a higher air humidity [30]. The higher air humidity contributes to decreased VPD within the canopy, which limits transpiration and water use [31]. Therefore, the WU/LA increased as the leaf area decreased (Table 2) in the order Gladius > LM19 > LM62, which could explain why a larger canopy would transpire less on a leaf area level. However, because Gladius had the smallest leaf area, it still had the lowest WU of the three genotypes.
Stomatal density (SD) did differ between genotypes, with LM19 having lower SD than Gladius and LM62 (Figure 2), but this did not alter the gs under control conditions (Figure 3). As a consequence, the difference in SD did not result in any significant effect on WU in accordance with other studies [26,32]. Nevertheless, on a broader scale, SD differences have been subject to evolutionary pressure by CO2 concentrations and water availability [25,33]. Moreover, point mutations that restricted SD in barley (Hordeum vulgare) had significant positive effects on water use and harvest yield under drying conditions [34]. This suggests that evolutionary pressure has affected SD on larger timescales and that SD can affect transpiration. Still, our results do not indicate that this was the case in our setup.
Fv/Fm is generally unaffected by drought until the final stages of the stress when loss of turgor approaches [12]. In winter wheat, it has been shown to occur only when the leaf relative water content (RWC) drops below ca 70% [14], and even then, the decrease in Fv/Fm is limited. In this experiment, Fv/Fm was maintained at the control level until A decreased below five µmol m−2 s−1 (Figure 3A) and Fq’/Fm’ below 0.11 (Figure 3D) on the last day of the stress. Then Fv/Fm decreased significantly and only in plants where A was < 2 µmol m−2 s−1 and Fq’/Fm’ < 0.07 (cf. Figure 3A,B,G,H and Figure 4) and when the leaf water potential dropped below −2.5 MPa (Figure 1). The difference in Fv/Fm between genotypes was caused by the different degrees of stress on the last day of drought treatment. In the control plants, Fv/Fm was independent of both A and Fq’/Fm’ but decreased along with the decrease in the two parameters on the last day of stress (Supplementary Figure S5). Even though the drought stress ended when all treatments reached gs < 10% of the control, LM62 still maintained a higher A compared to the control than the other genotypes did. In LM62, Fv/Fm was still on the level of the control at the end of the drought treatment.
The primary determinant of the grain yield in the control plants was the length of the growth period, most notably the timing of flowering, which differed between the genotypes (Supplementary Figure S1). The primary determinant is the shoot dry matter, which in this experiment was related to both the number of spikes and the ratio of spikes/tillers (Table 3). A CIMMYT study based on their elite cultivars found that the primary yield determinant was SDM and the height of plants [35], which coincides with the results in the present study. As expected, early flowering (Supplementary Figure S1) and small canopy (Table 2, Supplementary Figures S3 and S4) were the primary traits of Gladius in avoiding drought stress, as it took a longer time for A to approach zero compared to LM19 (3 days faster) and LM62 (4 days faster than Gladius). This result is in agreement with the results reported in a similar setup comparing Gladius to the high-yielding British elite cultivar Paragon [28]. In that study, the seed set was 30% of the control in Paragon compared to 70% in Gladius in the drought treatment, and the reduction in yield was 15% in Gladius and 20% in Paragon in drought compared to the control. This would confirm a general trend that drought-tolerant plants produce fewer spikes, but a higher percentage of spikes survive under drought stress, and they show a lower abortion/infertility of spikelets relative to control. A consequence of severe drought is that fewer photosynthates are provided to each spike, resulting in a lower TKW [29]. A lower number of tillers would produce a higher overall TKW when plants are subjected to drought as the sink is smaller. This is confirmed by the HI, which increases as the canopy becomes smaller and produces fewer tillers. We found that a lower number of tillers is an advantage under drought conditions as more spikes produce a successful yield, and fewer seeds is an advantage as the TKW increases, which tends to generate a higher overall yield [29]. Moreover, the yield reduction caused by drought was smaller in Gladius compared to LM19, while the grain yield of LM62 was the least affected by drought.
It was not the scope of this experiment to test the effect of the exact timing of drought stress but from Supplementary Figure S3 it is clear that while all the genotypes maintained green foliage at the end of the drought, one month after drought treatment, Gladius and LM19 were unable to support the growth of newly developed tillers while LM62 sustained such capacity. Also, based on the yield data (Table 3) and Supplementary Figure S4, an increase in yield under eCO2, especially for LM62, was partly due to generally more biomass produced and partly due to more green area one month after stress.
At first glance, our results showed differences in drought tolerance between the genotypes. The drought duration needed to reach gs < 10% of the control differed between the genotypes because of their different leaf areas. This overruled any effect of differences in stomatal density and conductance. Even though gs approached zero, it created a slightly different drought severity in the three genotypes, and with those low values, A was strongly gs dependent. This severe drought caused a wide range of 67–90% loss in grain yield.
Since Fv/Fm is a poor parameter to detect early stages of drought (Supplementary Figure S5) [12], it has mainly been used to detect the effects of heat stress in wheat [10,36]. In tomatoes, it has been shown that screening for heat tolerance by Fv/Fm in young, vegetative plants in climate chambers can be extrapolated to the field [37]. In the present experiment, the per cent loss of grain yield followed the same pattern as Fv/Fm after drought in the order LM62 < Gladius < LM19 with a clear correlation (r2 = 0.91) between the parameters at both CO2 concentrations (Figure 6). Such a correlation between Fv/Fm and the loss of grain yield has consequences for how the difference of drought tolerance between the genotypes can be interpreted. When the drought stress was severe enough, and A gradually approached zero, Fv/Fm decreased. The close correlation between the loss of grain yield and Fv/Fm indicates that the genotypes had reached different levels of final stress before being rewatered. In this experiment, this difference in stress level rather than intrinsic differences between the genotypes caused the final loss of grain yield.
Only little emphasis has been given to the extrapolation of knowledge gained in greenhouse conditions to field conditions. Poorter et al. (2016) [38] found that indoor experiments are primarily source-limited due to lower DLI during growth, corresponding well to our experiment (DLI ~12 mol m−2 d−1) (Supplementary Figure S1) while in field conditions growth is primarily linked to source limitation as temperatures are on average lower. The implication is that the relative growth rate is higher in greenhouse conditions, while the final biomass is higher in the field on an area basis due to a more extended growth period. Next, plant densities are much lower in pot experiments, and wind conditions are significantly different compared to growing in the field. Lower canopy densities within greenhouse settings limit the amount of competition between individuals; consequently, tiller numbers increase. Less wind leads to greater variability in light and humidity gradients between inside and outside the canopy. Given field conditions, flowering time and canopy height may still be essential variables if they contribute to biomass accumulation over the growth period until anthesis [35]. Meanwhile, since high tillering largely determined spike number and, thereby, yield on a per-plant basis, one could expect the relative difference between the three genotypes to be smaller in field conditions. While one could assume that SD could contribute to yield determination in the field, some evidence suggests that it is not the case for wheat [39], where the latter is in accordance with our findings. In this experiment, the response mechanisms of three genotypes to drought were investigated. The conclusion was that the loss of grain yield after severe drought correlated more to the final stress level (gs < 10% of control, photosynthesis approaching zero and decreasing Fv/Fm) when the plants were rewatered than to the genotype. Under milder drought stress, it will not be possible to use Fv/Fm to determine the precise stress level. However, the results still put a question mark on whether it is at all possible to phenotype genetic differences in drought tolerance in pot experiments when the precise drought stress level has such a profound effect on the results.

4. Conclusions

Our results suggest that the primary factor determining the time it takes from the onset of drying until gs < 10% of the control is the canopy size of each genotype rather than stomatal density or transpiration per leaf area. Meanwhile, we found that the canopy size affected plant transpiration, as a bigger canopy generally transpired more water but also possibly alleviated the effect of higher transpiration due to a higher relative humidity within the canopy. eCO2 ameliorated the impact of drought in terms of leaf level E and, to some extent, yield as well. Still, since eCO2 increased leaf area due to a higher A, the positive effect was relatively small, even when drought stress was less significant. To our knowledge, it is the first time a close correlation between Fv/Fm and the loss of grain yield after severe drought has been shown. The results indicate that the final stress level was more important for the relative loss of grain yield than the genotype.

5. Materials and Methods

5.1. Plant Material

Three genotypes of spring wheat (Tritium aestivum L.) with an expected contrasting tolerance to heat and drought were used. The Australian genotype ‘Gladius’ is characterised by a small leaf area and early flowering, making it relatively resilient to dry conditions [27]. Two breeding lines from Lantmannen Seed (Svaloev, Sweden) were selected from a heat resilience screening (unpublished data) using the fluorescence parameter Fv/Fm as described by Sharma et al. (2012). Based on the analysis, a heat-resilient (LM62) and a heat-sensitive (LM19) genotype were chosen. Apart from traits related to Fv/Fm at high temperatures, flowering time would also differ between the genotypes. The genotypes had different developmental rates. Gladius flowered early and produced small plants. LM19 would flower at an intermediate time between Gladius and LM62, while LM62 would flower late and produce the biggest plants (Supplementary Figures S1 and S3). Eight seeds were sown on 29 February 2020, in 4 L pots containing 1600 +/− 10 g nutrient-enriched peat substrate of uniform moisture (Krukvaextjord med lera och kisel, SW Horto AB, Hammenhoeg, Sweden). The pots were placed in two neighbouring greenhouse compartments under ambient (400 ppm) and elevated (800 ppm) CO2 concentrations, respectively. Two weeks after seeding each pot, each was thinned into two plants. One was marked for non-destructive physiological measurements and final harvest for grain yield, and the other for destructive analysis during the treatment period. When the plants were not exposed to the drought stress treatments, they were irrigated daily according to demand with a full nutrient solution of electric conductivity (EC) 2.0. mS cm−1 and pH 6.0 administrated as ebb-flow watering via the central watering/nutrient computer of the greenhouse (AMI Completa, Senmatic A/S, Soendersoe, Denmark).

5.2. Growth Conditions and Treatments

The experiment contained a control group that was watered sufficiently throughout the growth period and a treatment group subjected to progressive soil drying at anthesis. The control growth conditions were 22.0 ± 0.7 °C/17.0 ± 0.4 °C day/night temperature (DT/NT) and 70% relative humidity (RH) in two compartments with ambient (aCO2, 400 ppm) and elevated (eCO2, 800 ppm) CO2 concentration, respectively. The growth conditions are shown for DT/NT, RH, air vapour pressure deficit (VPD), CO2 concentration and daily light integral (DLI) for the whole growth period (Supplementary Figure S1). The air temperature was controlled by the greenhouse water-to-air heating system, insulation/shade screens and vents and active cooling by air-to-air conditioning when needed.
Since the three genotypes had different developmental rates, each genotype was subjected to the drought treatment when it reached anthesis (growth stage of 50–60 on the BBCH scale [40,41]). The drought treatment was initiated by withholding irrigation from the pot until the mean stomatal conductance was <10% of the control and the mean net CO2 assimilation rate approached zero. Following the drought treatment period, drought stressed plants were returned to a regular irrigation schedule until maturity.
Before the onset of the experiment, four pots were watered to full pot water-holding capacity, and the mean weight of these pots was used as the pot weight at 100% water-holding capacity. Ninety per cent of the weight at water-holding capacity was used as the watering target for the control pots. Change in water content for the drought-treated plants was calculated as the fraction of transpirable soil water according to [42] with the equation:
FTSW = ( WT n WT f ) TTSW
where FTSW is the fraction of transpirable soil water, WTn is the current pot weight, WTf is the final pot weight where net photosynthesis reached 0, and TTSW is the total transpirable soil water in the pot.

5.3. Leaf Water Potential

Midday leaf water potential (Ψleaf) was measured on the last day of the stress by a Scholander-type pressure chamber (Soil Moisture Equipment Corp., Santa Barbara, CA, USA). If the pressure within the pressure bomb reached 3 MPa, pressurisation was stopped, as air would begin to leak from the rubber gasket.

5.4. Leaf Gas Exchange and Chlorophyll Fluorescence

At the end of the treatment, leaf gas exchange parameters, including net assimilation rate (A), stomatal conductance (gs), transpiration rate (E) and operating efficiency of PSII (Fq’/Fm’), were measured on flag leaves of plants from each treatment (n = 4) with a GFS-3000 infrared gas analyser (IRGA) fitted with leaf chamber 3010-GWK1 and the 10% blue/90% red LED array/PAM-Fluorometer 3056-FL (Walz, Effeltrich, Germany). The measurements were performed at a PPFD of 1500 µmol m−2 s−1, 25 °C cuvette temperature, 400 ppm CO2 concentration for aCO2 and 800 ppm for eCO2. Cuvette absolute humidity was kept at 20,000 ppm creating a leaf-to-air vapour pressure deficit (VPD) in the range of 0.8–1.2 Pa kPa−1.

5.5. Stomatal Imprints

At the end of the treatment period, stomatal imprints were taken from four plant replicates at both the adaxial (n = 4) and abaxial side (n = 4) of the flag leaf at growth stage BBCH = 70–75. The imprints were collected by application of a silicon impression material (Elite HD+, Zhermack, Badia Polesine, Italy) and subsequently transferred to microscopy slides with transparent nail polish, according to (Smith et al., 1989). From each imprint, three images (technical replicates) were taken with a Leica DM 750 stereomicroscope with the digital Leica Application Suite (Leica Microsystems, Wetzlar, Germany) at different parts of the imprint. Stomata numbers were counted using AI software based on Convolutional Neural Network (CNN) called RootPainter [43]. The software allows interactive training via a user-friendly interface that has been validated against numerous plant datasets such as root images [44], root nodule and biopore images [43]. We split the original imprints into four tiles with a target width of 900 pixels for a rapid training process. We trained a model for two hours on a Google Colab notebook-based GPU (https://colab.research.google.com/drive/104narYAvTBt-X4QEDrBSOZm_DRaAKHtA (accessed on 4 January 2021)), using a corrective annotation strategy, in which the user delineated false positives and negatives in real-time training. The model was used for segmenting stomata on the original imprints. The region properties were extracted as CSV files, from which size calibration and the number of stomata per image were obtained (see pictures pre- and post-annotation in Supplementary Figure S6).

5.6. Modulated Chlorophyll Fluorescence

The maximum quantum efficiency of PSII (Fv/Fm) was measured with a PAM-2500 (Walz, Effeltrich, Germany) after 30 min of dark adaptation with dark clips [12]. All measurements were performed between 11:00 and 15:00 on the final day of treatment and conducted on flag leaves of the main tiller (n = 8).

5.7. Non-Destructive Pigment Measurements

The chlorophyll index, and the index of photoprotective anthocyanins and flavonols, were measured with a Dualex Scientific+ (Force-A, Orsay, France) (n = 8).

5.8. Harvest and Yields

At the end of the stress period, four replicates from control conditions and four replicates (two replicates for Gladius at drought and eCO2) from the drought treatment were harvested to calculate the means of leaf area (LA) and plant total dry weight (DW). Meanwhile, the weight of all pots was measured every day between 14:00 and 16:00. The mean daily plant water use (WU) of the well-watered pots was calculated between consecutive days over the treatment period. It was calculated as the difference between the pot weight after watering and the pot weight the day after. When all plant material reached maturity, the whole plants were harvested. The number of tillers and spikes was counted, and spikes were threshed in a Staatmeister (Kurt Pelz, Bad Godesberg, Germany), grain numbers were counted in a Contador seed counter (Pfeuffer, Kitzingen, Germany) and weighed on a PB3002-s/FACT scale (Mettler Toledo, Greifensee, Switzerland).

5.9. Statistics

The open source program R, version 1.0.153 [45] was used for statistics, and all data were analysed by ANOVA. First, ANOVA was applied to estimate differences between genotypes, water treatments and CO2 conditions, and interaction effects. Statistical analysis was performed on linear models with no contributing random effects, and the assumptions behind the model outputs were accounted for through visual confirmation of accordance with a normal distribution and non-disruptive unequal standard deviation between groups. ANOVA was used to estimate the relation between treatment and genotype to physiology and yield traits, and the Tukey’s honest significance test accounted for variation between multiple groups. Estimates and significance between treatments and genotypes were made with the packages multcomp [46] and various R-packages from the tidyverse-collection [47].

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/plants12030436/s1, Figure S1: Climate conditions within the greenhouse compartments (cells) during the growth period. The figures depict the greenhouse cells’ day-time (black lines) and night-time (light grey lines) values. Figure (A) shows the temperature in °C, (B) shows the relative humidity in percent, (C) shows the vapour pressure deficit (VPD) in kPa and (D) shows the CO2 concentration in ppm. Figure (E) shows the daily light integral in mol m−2 d−1 where solid lines depict the conditions in the greenhouse cell at 400 ppm CO2, while dotted lines depict the conditions in the greenhouse cell at 800 ppm CO2. All data is from the growth period (20 March–11 May 2020). The timing of treatment of either genotype is defined as boxes named either Gladius (vertical dots in dotted lines), LM19 (vertical straight lines), or LM62 (dots in vertical lines shown as small lines). The data are mean values ± SD, n = every 3 min between 06 and 22 for daytime and between 22 and 06 for night-time. Figure S2: Fraction of transpirable water content (FTSW) left in the pot calculated according to Equation (1) for the three genotypes; Gladius (A), LM19 (B) and LM62 (C) throughout the drying cycle (n = 4–7). Figure S3: The state of the control and drought treatment groups of each genotype after stress. The upper row shows the control group, while the lower row shows the drought-treated plants. Each row is divided into each genotype, from left to right: Gladius, LM19 and LM62. In addition, each genotype is divided into aCO2 (left )and eCO2 (right). Figure S4: The state of the control and drought treatment groups of each genotype one month after the last day of stress for LM62. The upper row shows the control group, while the lower row shows the drought-treated plants. Each row is divided into each genotype, from left to right: Gladius, LM19 and LM62. Each genotype is divided into aCO2 (left) and eCO2 (right). Figure S5: The relation between (A) Fv/Fm and net photosynthetic rate (A), and (B) Fv/Fm and Fq’/Fm’ in control and drought-treated plants. White symbols depict control conditions, while black symbols depict drought conditions. Circles are from aCO2, while triangles are from eCO2 conditions. The lines represent the linear regression for the control and drought treatments. Values are mean ± SE (n = 4 for A and Fq’/Fm’, and n = 8–16 for Fv/Fm). Figure S6: Pictures taken with a Leica DM 750 stereomicroscope of Gladius (A), LM19 (B), and LM62 (C). Pictures on the top rows are original images, and the corresponding images below are shown with segmented stomates (in red) using the trained model. Each column shows a different replicate chosen randomly, with emphasis on different quality and contrast.

Author Contributions

Conceptualization, S.G.S., E.R., F.L. and X.L.; methodology, S.G.S., E.R., F.L., X.L. and E.H.; software, S.G.S., E.R. and E.H.; validation, formal analysis, S.G.S., E.R. and F.L.; writing—original draft preparation, S.G.S.; writing—review and editing, E.R., F.L., E.H. and X.L.; supervision, E.R. and F.L.; project administration, F.L.; funding acquisition, F.L. All authors have read and agreed to the published version of the manuscript.

Funding

The authors were provided funds by the Sino-Danish Center for Education and Research (SDC): 1166491001, to conduct this research.

Data Availability Statement

For data inquiry, contact Fulai Liu or Eva Rosenqvist.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

References

  1. OECD-FAO Agricultural Outlook 2020–2029; OECD-FAO Agricultural Outlook; OECD: Paris, France, 2020; ISBN 9789264317673.
  2. Alexandratos, N.; Bruinsma, J. World Agriculture Towards 2030/2050 The 2012 Revision PROOF COPY. ESA Work. Pap. 2012, 12, 146. [Google Scholar]
  3. Myhre, G.; Shindell, D.; Bréon, F.-M.; Collins, W.; Fuglestvedt, J.; Huang, J.; Koch, D.; Lamarque, J.-F.; Lee, D.; Mendoza, B.; et al. Anthropogenic and Natural Radiative Forcing. In Climate Change 2013: The Physical Science Basis. Contribution of Working Group I to the Fifth Assessment Report of the Intergovernmental Panel on Climate Change; Cambridge University Press: Cambridge, UK, 2013; Volume 6. [Google Scholar]
  4. Masson-Delmotte, V.; Zhai, P.; Pirani, A.; Connors, S.L.; Péan, C.; Berger, S.; Caud, N.; Chen, Y.; Goldfarb, L.; Gomis, M.I.; et al. Climate Change 2021: The Physical Science Basis. Contribution of Working Group I to the Sixth Assessment Report of the Intergovernmental Panel on Climate Change; Intergovernmental Panel on Climate Change (IPPC): Geneva, Switzerland, 2021. [Google Scholar]
  5. Wardlaw, I.F.; Blumenthal, C.; Larroque, O.; Wrigley, C.W. Contrasting Effects of Chronic Heat Stress and Heat Shock on Kernel Weight and Flour Quality in Wheat. Funct. Plant Biol. 2002, 29, 25–34. [Google Scholar] [CrossRef] [PubMed]
  6. Richards, R.A.; Rebetzke, G.J.; Watt, M.; Condon, A.G.; Spielmeyer, W.; Dolferus, R. Breeding for Improved Water Productivity in Temperate Cereals: Phenotyping, Quantitative Trait Loci, Markers and the Selection Environment. Funct. Plant Biol. 2010, 37, 85–97. [Google Scholar] [CrossRef]
  7. Yu, Q.; Li, L.; Luo, Q.; Eamus, D.; Xu, S.; Chen, C.; Wang, E.; Liu, J.; Nielsen, D.C. Year Patterns of Climate Impact on Wheat Yields. Int. J. Climatol. 2014, 34, 518–528. [Google Scholar] [CrossRef]
  8. Pheloung, P.; Siddique, K. Contribution of Stem Dry Matter to Grain Yield in Wheat Cultivars. Funct. Plant Biol. 1991, 18, 53. [Google Scholar] [CrossRef]
  9. Nicolas, M.E.; Gleadow, R.M.; Dalling, M.J. Effect of Post-Anthesis Drought on Cell Division and Starch Accumulation in Developing Wheat Grains. Ann. Bot. 1985, 55, 433–444. [Google Scholar] [CrossRef]
  10. Sharma, D.K.; Andersen, S.B.; Ottosen, C.-O.; Rosenqvist, E. Wheat Cultivars Selected for High Fv/Fm under Heat Stress Maintain High Photosynthesis, Total Chlorophyll, Stomatal Conductance, Transpiration and Dry Matter. Physiol. Plant 2015, 153, 284–298. [Google Scholar] [CrossRef]
  11. Wilhelm, C.; Selmar, D. Energy Dissipation Is an Essential Mechanism to Sustain the Viability of Plants: The Physiological Limits of Improved Photosynthesis. J. Plant Physiol. 2011, 168, 79–87. [Google Scholar] [CrossRef]
  12. Baker, N.R.; Rosenqvist, E. Applications of Chlorophyll Fluorescence Can Improve Crop Production Strategies: An Examination of Future Possibilities. J. Exp. Bot. 2004, 55, 1607–1621. [Google Scholar] [CrossRef] [Green Version]
  13. Lu, C.; Zhang, J. Effects of Water Stress on Photosystem II Photochemistry and Its Thermostability in Wheat Plants. J. Exp. Bot. 1999, 50, 1199–1206. [Google Scholar] [CrossRef]
  14. Živčák, M.; Brestič, M.; Olšovská, K.; Slámka, P. Performance Index as a Sensitive Indicator of Water Stress in Triticum aestivum L. Plant Soil Environ. 2008, 54, 133–139. [Google Scholar] [CrossRef]
  15. Driever, S.M.; Lawson, T.; Andralojc, P.J.; Raines, C.A.; Parry, M.A.J. Natural Variation in Photosynthetic Capacity, Growth, and Yield in 64 Field-Grown Wheat Genotypes. J. Exp. Bot. 2014, 65, 4959–4973. [Google Scholar] [CrossRef] [Green Version]
  16. Carmo-Silva, E.; Andralojc, P.J.; Scales, J.C.; Driever, S.M.; Mead, A.; Lawson, T.; Raines, C.A.; Parry, M.A.J. Phenotyping of Field-Grown Wheat in the UK Highlights Contribution of Light Response of Photosynthesis and Flag Leaf Longevity to Grain Yield. J. Exp. Bot. 2017, 68, 3473–3486. [Google Scholar] [CrossRef]
  17. Lopez, M.S.; Reynolds, M.P. Stay-Green in Spring Wheat Can Be Determined by Spectral Reflectance Measurements (Normalized Difference Vegetation Index) Independently from Phenology. J. Exp. Bot. 2012, 63, 3789–3798. [Google Scholar] [CrossRef] [Green Version]
  18. Christopher, J.T.; Christopher, M.J.; Borrell, A.K.; Fletcher, S.; Chenu, K. Stay-Green Traits to Improve Wheat Adaptation in Well-Watered and Water-Limited Environments. J. Exp. Bot. 2016, 67, 5159–5172. [Google Scholar] [CrossRef] [Green Version]
  19. Christopher, M.; Chenu, K.; Jennings, R.; Fletcher, S.; Butler, D.; Borrell, A.; Christopher, J. QTL for Stay-Green Traits in Wheat in Well-Watered and Water-Limited Environments. Field Crops Res. 2018, 217, 32–44. [Google Scholar] [CrossRef]
  20. Farquhar, G.D.; von Caemmerer, S.; Berry, J.A. A Biochemical Model of Photosynthetic CO2 Assimilation in Leaves of C3 Species. Planta 1980, 149, 78–90. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  21. Hikosaka, K.; Ishikawa, K.; Borjigidai, A.; Muller, O.; Onoda, Y. Temperature Acclimation of Photosynthesis: Mechanisms Involved in the Changes in Temperature Dependence of Photosynthetic Rate. J. Exp. Bot. 2006, 57, 291–302. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Wang, L.; Feng, Z.; Schjoerring, J.K. Effects of Elevated Atmospheric CO2 on Physiology and Yield of Wheat (Triticum aestivum L.): A Meta-Analytic Test of Current Hypotheses. Agric. Ecosyst. Environ. 2013, 178, 57–63. [Google Scholar] [CrossRef]
  23. Kimball, B.A.; Pinter, P.J.J.; Garcia, R.L.; LaMorte, R.L.; Wall, G.W.; Hunsaker, D.J.; Wechsung, G.; Wechsung, F.; Kartschall, T. Productivity and Water Use of Wheat under Free-Air CO2 Enrichment. Glob. Chang. Biol. 1995, 1, 429–442. [Google Scholar] [CrossRef]
  24. Asseng, S.; Ewert, F.; Rosenzweig, C.; Jones, J.W.; Hatfield, J.L.; Ruane, A.C.; Boote, K.J.; Thorburn, P.J.; Rötter, R.P.; Cammarano, D.; et al. Uncertainty in Simulating Wheat Yields under Climate Change. Nat. Clim. Chang. 2013, 3, 627–632. [Google Scholar] [CrossRef]
  25. Franks, P.J.; Beerling, D.J. Maximum Leaf Conductance Driven by CO2 Effects on Stomatal Size and Density over Geologic Time. Proc. Natl. Acad. Sci. USA 2009, 106, 10343–10347. [Google Scholar] [CrossRef] [Green Version]
  26. Liao, J.X.; Chang, J.; Wang, G.X. Stomatal Density and Gas Exchange in Six Wheat Cultivars. Cereal Res. Commun. 2005, 33, 719–726. [Google Scholar] [CrossRef]
  27. Fleury, D.; Jefferies, S.; Kuchel, H.; Langridge, P. Genetic and Genomic Tools to Improve Drought Tolerance in Wheat. J. Exp. Bot. 2010, 61, 3211–3222. [Google Scholar] [CrossRef] [Green Version]
  28. Faralli, M.; Williams, K.S.; Han, J.; Corke, F.M.K.; Doonan, J.H.; Kettlewell, P.S. Water-Saving Traits Can Protect Wheat Grain Number Under Progressive Soil Drying at the Meiotic Stage: A Phenotyping Approach. J. Plant Growth Regul. 2019, 38, 1562–1573. [Google Scholar] [CrossRef]
  29. Li, X.; Kristiansen, K.; Rosenqvist, E.; Liu, F. Elevated CO2 Modulates the Effects of Drought and Heat Stress on Plant Water Relations and Grain Yield in Wheat. J. Agron. Crop Sci. 2019, 205, 362–371. [Google Scholar] [CrossRef]
  30. Oke, T.R. Boundary Layer Climates, 2nd ed.; Methuen Co.: London, UK, 1987; p. 464. [Google Scholar]
  31. Kobata, T.; Palta, J.A.; Turner, N.C. Rate of Development of Postanthesis Water Deficits and Grain Filling of Spring Wheat. Crop Sci. 1992, 32, 1238–1242. [Google Scholar] [CrossRef]
  32. Dunn, J.; Hunt, L.; Afsharinafar, M.; Al Meselmani, M.; Mitchell, A.; Howells, R.; Wallington, E.; Fleming, A.J.; Gray, J.E. Reduced Stomatal Density in Bread Wheat Leads to Increased Water-Use Efficiency. J. Exp. Bot. 2019, 70, 4737–4747. [Google Scholar] [CrossRef] [Green Version]
  33. Franks, P.J.; Drake, P.L.; Beerling, D.J. Plasticity in Maximum Stomatal Conductance Constrained by Negative Correlation between Stomatal Size and Density: An Analysis Using Eucalyptus Globulus. Plant Cell Environ. 2009, 32, 1737–1748. [Google Scholar] [CrossRef]
  34. Hughes, J.; Hepworth, C.; Dutton, C.; Dunn, J.A.; Hunt, L.; Stephens, J.; Waugh, R.; Cameron, D.D.; Gray, J.E. Reducing Stomatal Density in Barley Improves Drought Tolerance without Impacting on Yield. Plant Physiol. 2017, 174, 776–787. [Google Scholar] [CrossRef] [Green Version]
  35. Aisawi, K.A.B.; Reynolds, M.P.; Singh, R.P.; Foulkes, M.J. The Physiological Basis of the Genetic Progress in Yield Potential of CIMMYT Spring Wheat Cultivars from 1966 to 2009. Crop Sci. 2015, 55, 1749–1764. [Google Scholar] [CrossRef]
  36. Sharma, D.K.; Andersen, S.B.; Ottosen, C.O.; Rosenqvist, E. Phenotyping of Wheat Cultivars for Heat Tolerance Using Chlorophyll a Fluorescence. Funct. Plant Biol. 2012, 39, 936–947. [Google Scholar] [CrossRef] [PubMed]
  37. Poudyal, D.; Rosenqvist, E.; Ottosen, C.O. Phenotyping from Lab to Field -Tomato Lines Screened for Heat Stress Using Fv/Fm Maintain High Fruit Yield during Thermal Stress in the Field. Funct. Plant Biol. 2019, 46, 44–55. [Google Scholar] [CrossRef]
  38. Poorter, H.; Fiorani, F.; Pieruschka, R.; Wojciechowski, T.; van der Putten, W.H.; Kleyer, M.; Schurr, U.; Postma, J. Pampered inside, Pestered Outside? Differences and Similarities between Plants Growing in Controlled Conditions and in the Field. New Phytol. 2016, 212, 838–855. [Google Scholar] [CrossRef] [PubMed]
  39. Shahinnia, F.; Le Roy, J.; Laborde, B.; Sznajder, B.; Kalambettu, P.; Mahjourimajd, S.; Tilbrook, J.; Fleury, D. Genetic Association of Stomatal Traits and Yield in Wheat Grown in Low Rainfall Environments. BMC Plant Biol. 2016, 16, 150. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  40. Lancashire, P.D.; Bleiholder, H.; Van Den Boom, T.; Langelüdekke, P.; Stauss, R.; Weber, E.; Witzenberger, A. A Uniform Decimal Code for Growth Stages of Crops and Weeds. Ann. Appl. Biol. 1991, 119, 561–601. [Google Scholar] [CrossRef]
  41. Zadoks, J.C.; Chang, T.T.; Konzak, C.F. A Decimal Code for the Growth Stages of Cereals. Weed Res. 1974, 14, 415–421. [Google Scholar] [CrossRef]
  42. Jones, H.G. Monitoring Plant and Soil Water Status: Established and Novel Methods Revisited and Their Relevance to Studies of Drought Tolerance. J. Exp. Bot. 2006, 58, 119–130. [Google Scholar] [CrossRef] [Green Version]
  43. Smith, A.G.; Han, E.; Petersen, J.; Olsen, N.A.F.; Giese, C.; Athmann, M.; Dresbøll, D.B.; Thorup-Kristensen, K. RootPainter: Deep Learning Segmentation of Biological Images with Corrective Annotation. New Phytol. 2022, 236, 774–791. [Google Scholar] [CrossRef]
  44. Han, E.; Smith, A.G.; Kemper, R.; White, R.; Kirkegaard, J.A.; Thorup-Kristensen, K.; Athmann, M. Digging Roots Is Easier with AI. J. Exp. Bot. 2021, 72, 4680–4690. [Google Scholar] [CrossRef]
  45. R Core Team. R: A Language and Environment for Statistical Computing; R Foundation for Statistical Computing: Vienna, Austria, 2017. [Google Scholar]
  46. Bretz, F.; Hothorn, T.; Westfall, P. Multiple Comparisons Using R; Chapman and Hall/CRC: New York, NY, USA, 2011; ISBN 9781420010909. [Google Scholar]
  47. Wickham, H. The Split-Apply-Combine Strategy for Data Analysis. J. Stat. Softw. 2011, 40, 29. [Google Scholar] [CrossRef]

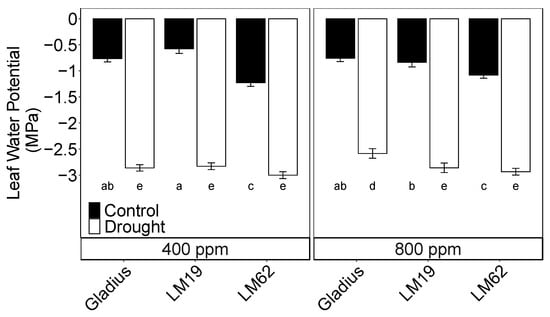

Figure 1. Midday leaf water potential of three spring wheat genotypes (Gladius, LM19 and LM62) under well-watered conditions (Control, black bars) or affected by drought (Drought, white bars) at aCO2 (400 ppm) and eCO2 (800 ppm). The measurements were conducted on a flag leaf around anthesis (BBCH = 65). Values are mean ± standard error of the mean (SE) (n = 4). Values that share a letter are not significantly different according to Tukey’s honestly significant test (p < 0.05).

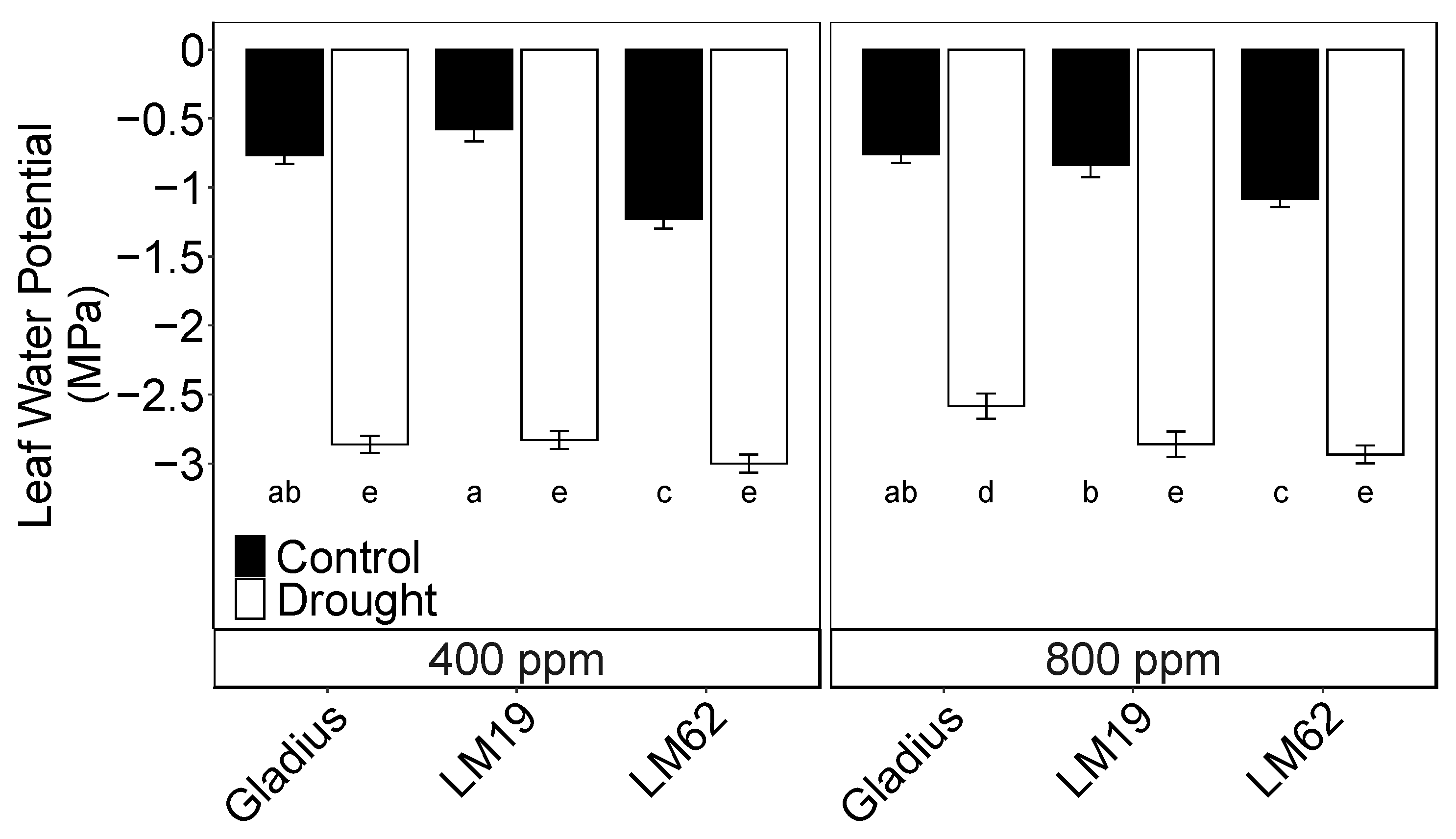

Figure 1. Midday leaf water potential of three spring wheat genotypes (Gladius, LM19 and LM62) under well-watered conditions (Control, black bars) or affected by drought (Drought, white bars) at aCO2 (400 ppm) and eCO2 (800 ppm). The measurements were conducted on a flag leaf around anthesis (BBCH = 65). Values are mean ± standard error of the mean (SE) (n = 4). Values that share a letter are not significantly different according to Tukey’s honestly significant test (p < 0.05).
Plants 12 00436 g001

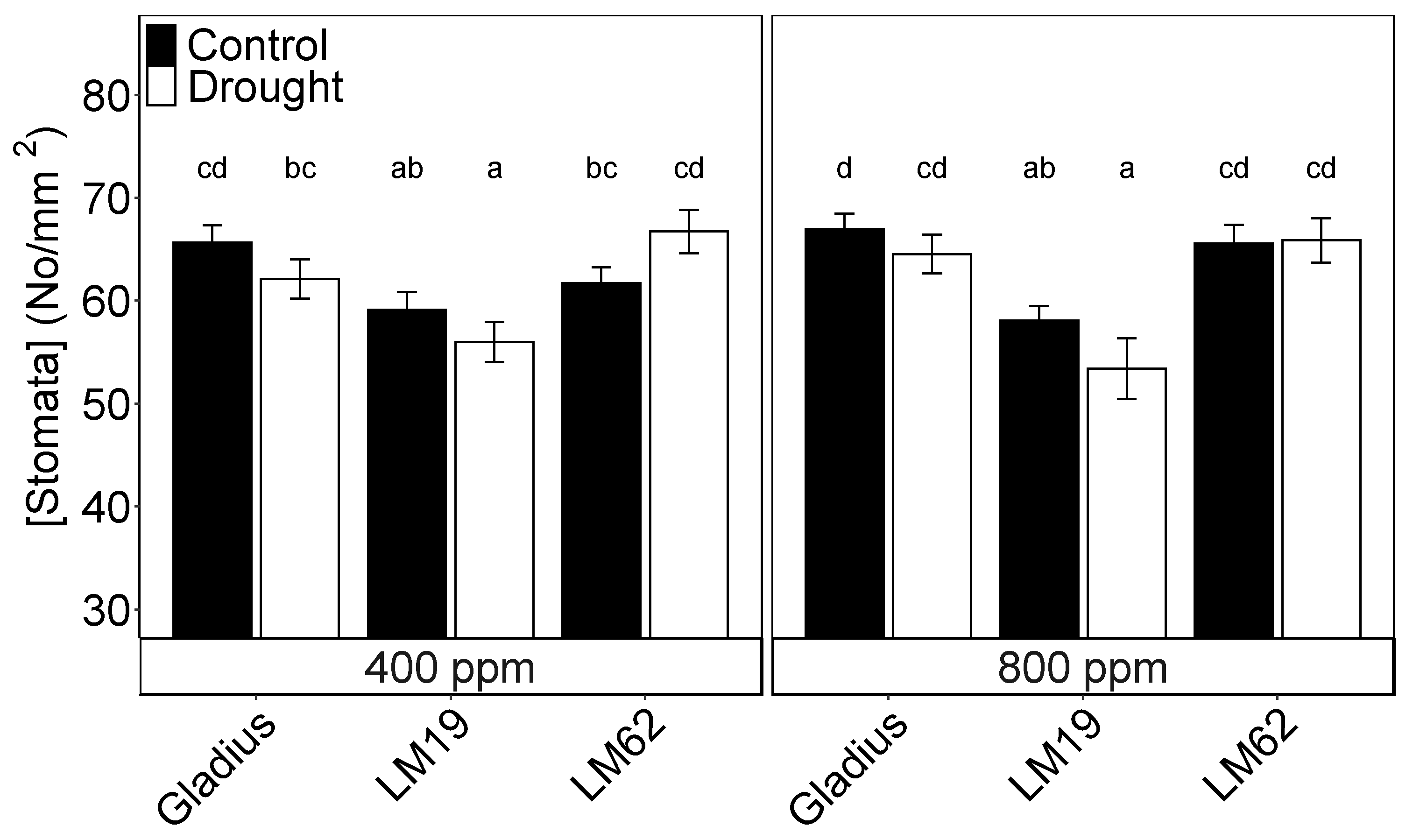

Figure 2. Stomata density for the three genotypes (Gladius, LM19 and LM62) under well-watered conditions (Control, black bars) or affected by drought (Drought, white bars) at aCO2 (400 ppm) and eCO2 (800 ppm), as a combination of adaxial and abaxial stomatal pore density. Measurements are taken at the end of the drying treatment on flag leaves. Values are mean ± standard error of the mean (SE) (n = 4). Values that share a letter are not significantly different according to Tukey’s honestly significant test. Small letters indicate a significant difference between a combination of watering, CO2, and genotype (p < 0.05).
Figure 2. Stomata density for the three genotypes (Gladius, LM19 and LM62) under well-watered conditions (Control, black bars) or affected by drought (Drought, white bars) at aCO2 (400 ppm) and eCO2 (800 ppm), as a combination of adaxial and abaxial stomatal pore density. Measurements are taken at the end of the drying treatment on flag leaves. Values are mean ± standard error of the mean (SE) (n = 4). Values that share a letter are not significantly different according to Tukey’s honestly significant test. Small letters indicate a significant difference between a combination of watering, CO2, and genotype (p < 0.05).
Plants 12 00436 g002

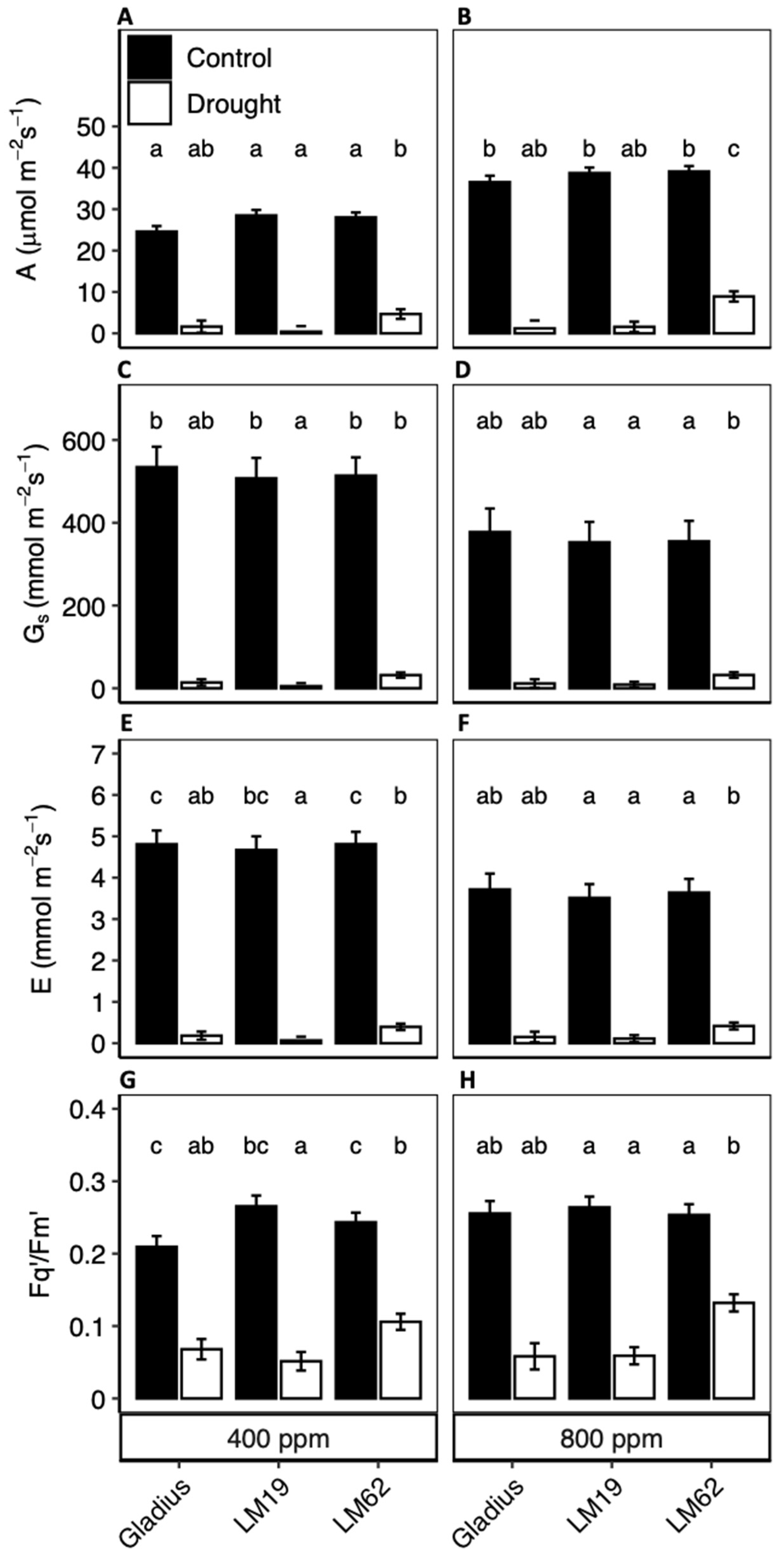

Figure 3. (A,B): Net photosynthetic assimilation (A), (B,D): Stomatal conductance (gs), (E,F): Leaf transpiration rate (E) and (G,H): quantum yield of PSII (Fq’/Fm’) of three spring wheat genotypes (Gladius, LM19 and LM62) under well-watered conditions (Control, black bars) or affected by drought (Drought, white bars) at aCO2 (400 ppm: (A,C,E,G)) and eCO2 (800 ppm: (B,D,F,H)). The measurements were done at a PPFD of 1500 µmol m−2 s−1 at the end of the treatment period. Values are mean ± SE (n = 4). Values that share a letter are not significantly different according to Tukey’s honestly significant test (p < 0.05).
Figure 3. (A,B): Net photosynthetic assimilation (A), (B,D): Stomatal conductance (gs), (E,F): Leaf transpiration rate (E) and (G,H): quantum yield of PSII (Fq’/Fm’) of three spring wheat genotypes (Gladius, LM19 and LM62) under well-watered conditions (Control, black bars) or affected by drought (Drought, white bars) at aCO2 (400 ppm: (A,C,E,G)) and eCO2 (800 ppm: (B,D,F,H)). The measurements were done at a PPFD of 1500 µmol m−2 s−1 at the end of the treatment period. Values are mean ± SE (n = 4). Values that share a letter are not significantly different according to Tukey’s honestly significant test (p < 0.05).
Plants 12 00436 g003

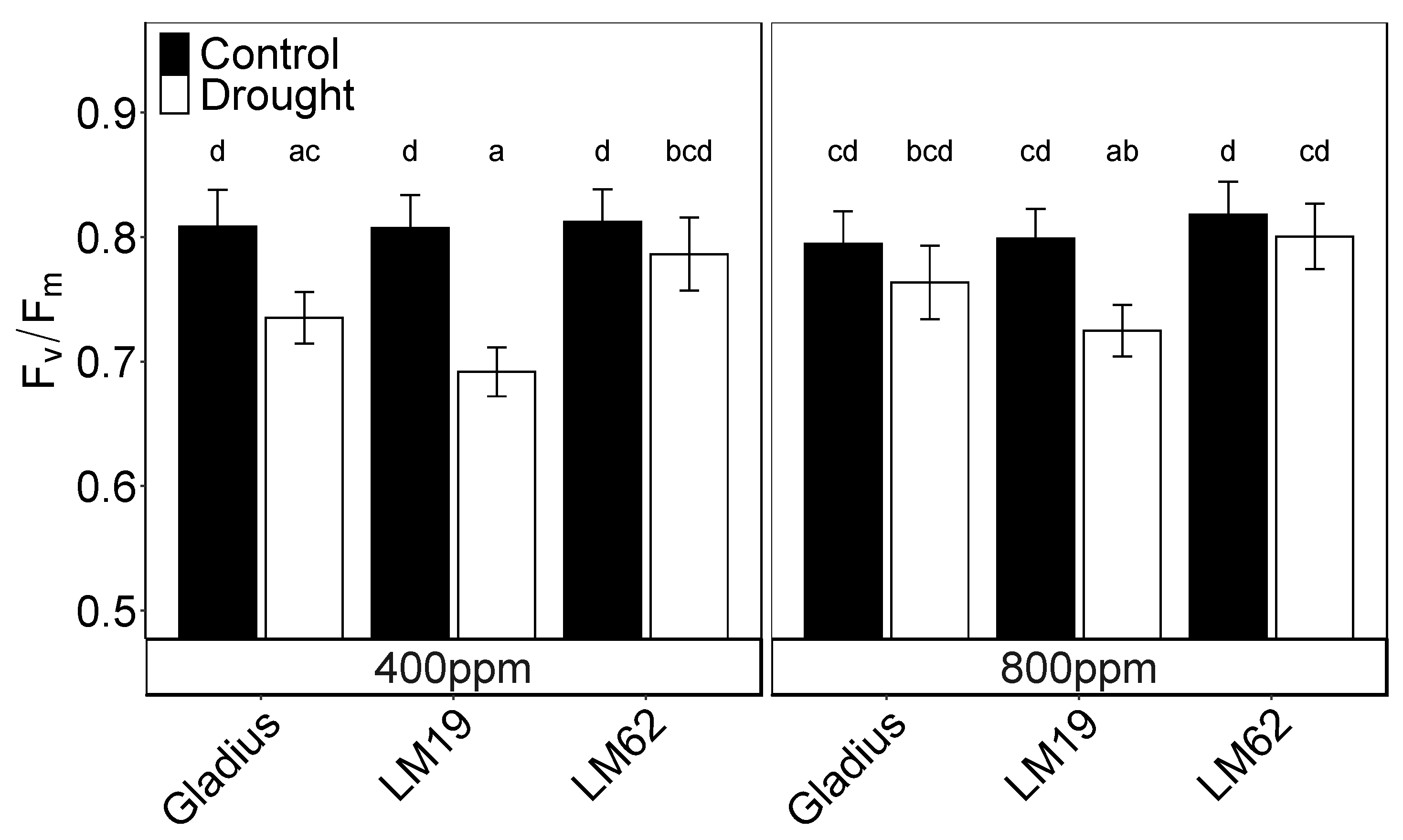

Figure 4. Maximum quantum efficiency of photosystem II (Fv/Fm) of the flag leaf of three spring wheat genotypes (Gladius, LM19 and LM62) under well-watered conditions (Control, black bars) or affected by drought (Drought, white bars) at aCO2 (400 ppm) and eCO2 (800 ppm). The measurements were conducted with a PAM-2500 on each genotype at the end of the treatment period. Values are mean ± SE (n = 8–16). Values that share a letter are not significantly different according to Tukey’s honestly significant test (p < 0.05).
Figure 4. Maximum quantum efficiency of photosystem II (Fv/Fm) of the flag leaf of three spring wheat genotypes (Gladius, LM19 and LM62) under well-watered conditions (Control, black bars) or affected by drought (Drought, white bars) at aCO2 (400 ppm) and eCO2 (800 ppm). The measurements were conducted with a PAM-2500 on each genotype at the end of the treatment period. Values are mean ± SE (n = 8–16). Values that share a letter are not significantly different according to Tukey’s honestly significant test (p < 0.05).
Plants 12 00436 g004

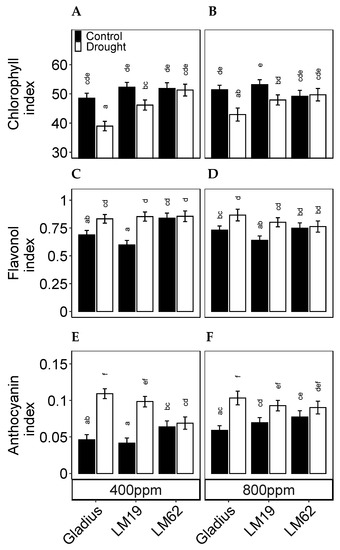

Figure 5. Pigment contents measured as Dualex indices. (A,B): chlorophyll, (C,D): flavonol and (E,F): anthocyanin index of flag leaf of three spring wheat genotypes (Gladius, LM19 and LM62) under well-watered conditions (Control) or affected by drought (Drought), at aCO2 (400 ppm: (A,C,E)) or eCO2 (800 ppm: (B,D,F)). Values represent mean ± SE (n = 8–16). Values that share a letter are not significantly different according to Tukey’s honestly significant test (p < 0.05).
Figure 5. Pigment contents measured as Dualex indices. (A,B): chlorophyll, (C,D): flavonol and (E,F): anthocyanin index of flag leaf of three spring wheat genotypes (Gladius, LM19 and LM62) under well-watered conditions (Control) or affected by drought (Drought), at aCO2 (400 ppm: (A,C,E)) or eCO2 (800 ppm: (B,D,F)). Values represent mean ± SE (n = 8–16). Values that share a letter are not significantly different according to Tukey’s honestly significant test (p < 0.05).
Plants 12 00436 g005

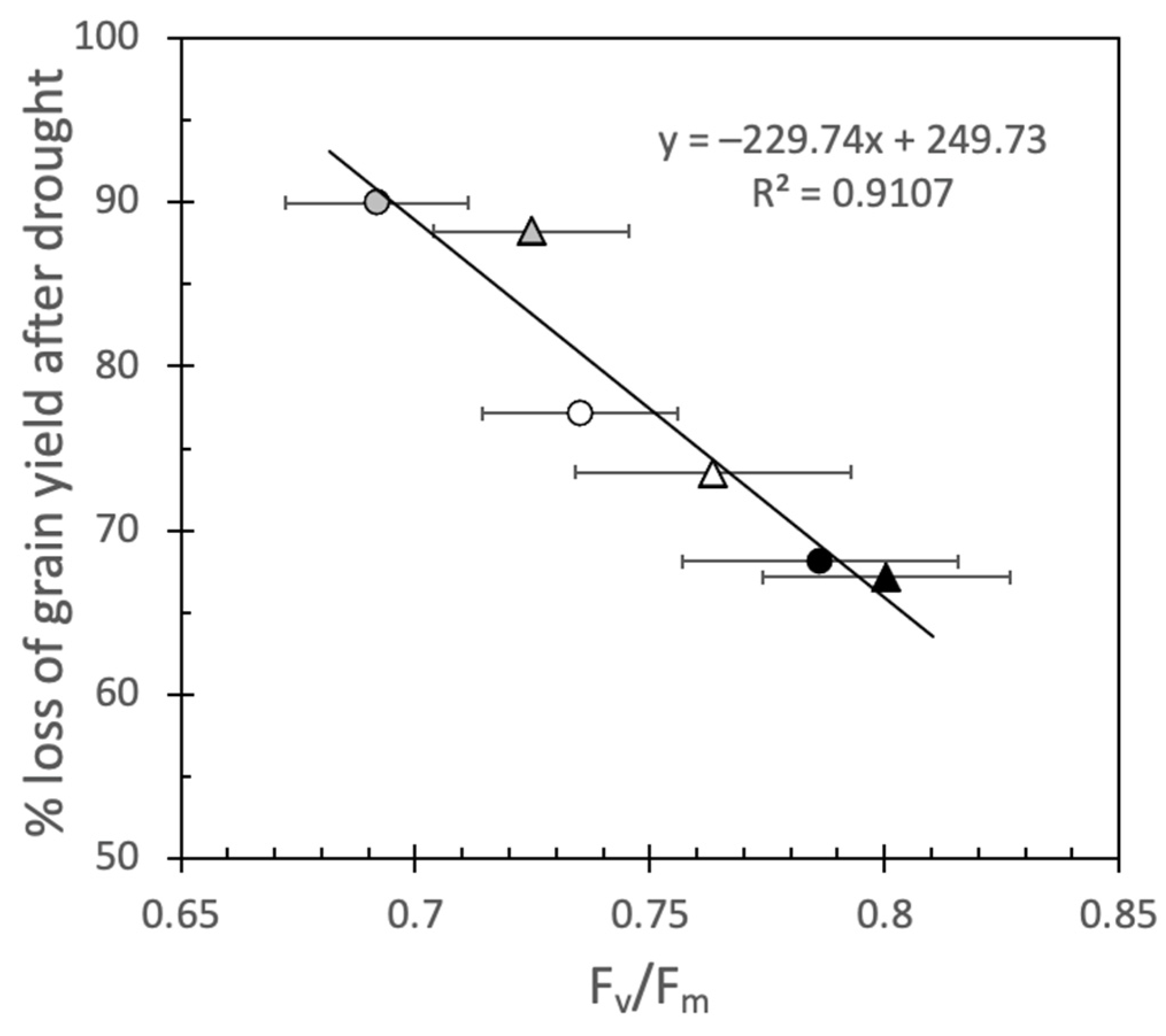

Figure 6. The relationship between loss of grain yield after severe drought and Fv/Fm measured at the end of the stress period. Circles represent plants grown in aCO2, while triangles represent plants grown in eCO2. Open symbols represent Gladius, black represent LM62 and grey represent LM19. Values are mean ± SE (n = 8–16 for Fv/Fm and % loss of grain yield calculated on mean values in Table 2).
