Native Rhizobia Improve Plant Growth, Fix N2, and Reduce Greenhouse Emissions of Sunnhemp More than Commercial Rhizobia Inoculants in Florida Citrus Orchards

by
Antonio Castellano-Hinojosa
*,
Christoph Mora
and
Sarah L. Strauss
Southwest Florida Research and Education Center, Department of Soil, Water, and Ecosystem Sciences, Institute of Food and Agricultural Sciences, University of Florida, 2685 State Rd. 29N, Immokalee, FL 34142, USA
*
Author to whom correspondence should be addressed.
Plants 2022, 11(22), 3011; https://doi.org/10.3390/plants11223011
Submission received: 11 October 2022 / Revised: 4 November 2022 / Accepted: 5 November 2022 / Published: 8 November 2022
(This article belongs to the Section Plant Protection and Biotic Interactions)
Browse Figures
Versions Notes

Abstract

:
Sunnhemp (Crotalaria juncea L.) is an important legume cover crop used in tree cropping systems, where there is increased interest by growers to identify rhizobia to maximize soil nitrogen (N) inputs. We aimed to isolate and identify native rhizobia and compare their capabilities with non-native rhizobia from commercial inoculants to fix atmospheric dinitrogen (N2), produce and reduce nitrous oxide (N2O), and improve plant growth. Phylogenetic analyses of sequences of the 16S rRNA and recA, atpD, and glnII genes showed native rhizobial strains belonged to Rhizobium tropici and the non-native strain to Bradyrhizobium japonicum. Plant nodulation tests, sequencing of nodC and nifH genes, and the acetylene-dependent ethylene production assay confirmed the capacity of all strains to nodulate sunnhemp and fix N2. Inoculation with native rhizobial strains resulted in significant increases in root and shoot weight and total C and N contents in the shoots, and showed greater N2-fixation rates and lower emissions of N2O compared to the non-native rhizobium. Our results suggest that native rhizobia improve plant growth, fix N2, and reduce greenhouse emissions of sunnhemp more than commercial rhizobia inoculants in Florida citrus orchards.

1. Introduction

Cover cropping is a common agricultural practice and there is extensive research documenting its benefits in improving soil nutrient cycling, pest management, and agriculture production, and reducing soil erosion and weed pressure [1,2,3]. In annual crops, cover crops (CCs) are grown primarily between periods of regular crop production [2]; however, in fruit tree crops, CCs are grown in the inter-row middles [4,5].
In both annual and tree cropping systems, legumes are often part of CC mixtures. Legumes are a large group of angiosperms that comprise more than 20,000 species and 750 genera, are found on all continents, and can grow in diverse edaphic and climatic conditions [6]. One of the key reasons legumes are used in CC mixtures is to increase the soil nitrogen (N) pool through their ability to establish symbiotic associations with diazotrophic bacteria, commonly known as rhizobia. These bacteria induce the formation of root nodules where atmospheric dinitrogen (N2)-fixation takes place, conferring upon legumes an important ecological advantage [6]. Rhizobia are phylogenetically diverse both in core and symbiotic gene sequences and new species are described every year [6,7]. In addition to rhizobia, other endophytic bacteria are also often found in legume nodules, and recent studies have shown their possible essential role in plant growth [8,9].
The specificity, infectivity, and effectiveness of rhizobia in the symbiotic relationship with a legume are due to the expression of different molecules by the bacterium, the host plant, or both [6]. Whereas some legumes can be nodulated by several rhizobial species such as Phaseolus or Macroptilium, others such as Cicer spp. or Trifolium spp. are restrictive hosts for nodulation [6]. In addition, rhizobial strains can have a narrow or a broad host range and their ability to nodulate multiple legume species depends on the presence of different nodulation genes in their genome and the legume promiscuity [6]. The nodulation genes (nod) are involved in the synthesis of Nod factors that are plant flavonoid receptors [6,10]. Within nod genes, the nodC is commonly used to analyze the host range of rhizobia and the promiscuity degree of the hosts [6,11,12].
In addition to the agronomic interest in identifying effective N2-fixing rhizobia, extensive research has been conducted on the ability of these microorganisms to produce and reduce nitrous oxide (N2O), an ozone-depleting substance and important greenhouse gas [13]. Previous studies have shown that many legume-nodulating rhizobacteria do not perform complete denitrification [14], the process by which nitrate (NO3−) is sequentially reduced to N2O and finally N2 under oxygen-limiting conditions [15]. Inoculating crop legumes with rhizobia not only capable of fixing N2 but also of reducing N2O emissions is therefore of great environmental and agronomic interest in order to increase the sustainability of agriculture [14,16].
In both annual and tree cropping systems, growers often inoculate seeds of legume CCs with commercial rhizobia to ensure successful nodulation, and therefore effective N2-fixation. These products are often presented as a sustainable and cost-effective technology to maximize N inputs from legumes [17], and previous studies have shown that inoculation with rhizobia can improve legume growth and productivity [18,19]. However, inoculation with commercial inoculants does not always give positive yield results when the inoculated non-native rhizobia are not adapted to the environmental conditions and/or soil characteristics of the region [20,21]. In other cases, the inoculants do not contain rhizobia capable of effectively nodulating the legume of interest and/or they are less effective in nodulating or fixing N2 than native rhizobia [21]. Native rhizobia have been shown to better nodulate legume plants compared to commercial inoculants [22], and there has been extensive research on the isolation and characterization of native rhizobia as an alternative to use of commercial rhizobia inoculants [23,24].
Crotalaria is a genus of tropical legumes that comprises more than 550 species [25]. Sunnhemp (Crotalaria juncea L.) has been grown as a green manure crop for centuries in tropical and subtropical regions worldwide. Recent studies have shown that sunnhemp can be an effective CC in subtropical fruit tree crops such as citrus in Florida, where it can be planted year-round in the inter-row middles [26]. While C. juncea can establish symbiotic associations with rhizobia belonging to the genera Bradyrhizobium [27,28] and Methylobacterium [29] in West Africa, less is known about the rhizobial species nodulating sunnhemp in other regions. Field observations by growers in Florida citrus orchards have shown contrasting results in the effectiveness of commercial inoculants to nodulate sunnhemp. Therefore, the objectives of this study were to: (i) isolate and identify the native rhizobia strains nodulating sunnhemp from soils of two different commercial citrus orchards in Florida and isolate and identify rhizobia from a commonly-used inoculant, (ii) evaluate the ability and effectiveness of native vs. non-native rhizobial strains to fix N2 and produce and reduce N2O, and (iii) determine the effect of inoculating sunnhemp plants with native vs. non-native rhizobial strains on root and plant growth, N2 fixation rates, and N2O and N2 emissions from nodules under greenhouse conditions.

2. Results

2.1. REP-PCR, 16S rRNA, recA, glnII, and atpD Phylogenetic Analyses

A total of 47 CFUs were isolated from root nodules of sunnhemp plants. Out of the 47 bacterial strains, 13, 19, and 15 were isolated from plants inoculated with soil from citrus orchard A (COA), citrus orchard B (COB), and the commercial rhizobial inoculant (MI), respectively. After REP-PCR fingerprinting, the 47 isolates were represented by 26 different profiles at 80% similarity (Table 1). The nearly complete sequence of the 16S rRNA gene from a representative strain of each REP group showed that they were members of the genera Bacillus (12 strains), Rhizobium (4 strains), Burkholderia (3 strains), Paenibacillus (3 strains), Herbaspirillum (2 strains), Paenarthrobacter (1 strain), and Bradyrhizobium (1 strain) (Table 1). Further characterization of strains associated with non-rhizobia genera was not pursued in this study. Phylogenetic analyses of Rhizobium and Bradyrhizobium strains were conducted separately to better account for species differences among the members of each genus.
The phylogenetic tree inferred from the 16S rRNA gene sequences revealed that the strains COA3, COA6, COB5, and COB6 showed identity values higher than 99.0% with R. tropici CIAT 899T, R. freirei PRF 81T, and R. hainanense CCBAU 57015T (Supplementary Figure S2; Supplementary Table S2). Strain MI13 had 99.85% and 99.93% identity with B. japonicum USDA6T and B. liaoningense LMG18230T, respectively (Supplementary Figure S3; Supplementary Table S2). Due to difficulties in assigning species to the genera Rhizobium and Bradyrhizobium with only sequences of the 16S rRNA gene, the recA, atpD, and glnII housekeeping genes were also sequenced. A concatenated phylogenetic tree based on the obtained recA, atpD, and glnII sequences revealed that strains COA6, COB5, and COB6 grouped with R. tropici CIAT 899T with identity values higher than 99.6% (Figure 1; Supplementary Table S2). Strain COA3 also clustered with R. tropici CIAT 899T but with identity values lower than 96.7% (Figure 1; Supplementary Table S2). A concatenated phylogenetic tree based on only the recA and glnII sequences showed that strain MI13 was closely related to B. japonicum USDA6T with 99.5% identity (Figure 2; Supplementary Table S2).

2.2. nodC and nifH Phylogenetic Analyses

A phylogenetic tree showing the relationship between the nodC genes from COA3, COA6, COB5, and COB6 strains and other rhizobial species revealed that all four strains belonged to symbiovar tropici of the genus Rhizobium with identities higher than 99% (Figure 3; Supplementary Table S2). Strain MI13 formed a cluster with B. yuanmingense CCBAU10071T based on the sequences of the nodC gene with 99.9% identity (Figure 4; Supplementary Table S2). This cluster is phylogenetically divergent to that formed by the Bradyrhizobium symbiovars defined to date (Figure 4).
The phylogenetic trees inferred from sequences of the nifH gene revealed that strains COA3, COA6, COB5, and COB6 grouped with R. tropici CIAT 899T, R. multihospitium CCBAU 83401T, and R. lusitanum P1-7T with identity values higher than 99% (Supplementary Figure S4; Supplementary Table S2), and that the strain MI13 clustered with B. daqingense CCBAU 15774T, B. huanghuaihainense CCABU 23303T, B. ottawaense OO99T, B. liaoningense LMG 18230T, and B. japonicum USDA6T with identity values of 99.9% (Supplementary Figure S5; Supplementary Table S2).

2.3. N2-Fixation Rates and Nitrous Oxide and Dinitrogen Emissions from Free-Living Cells and Nodules

Nodules from the trapping experiment showed differences in N2-fixation rates and N2O emissions between plants inoculated with soils from COA, COB, and the MI. N2-fixation rates were significantly greater from plants inoculated with COA and COB compared to the MI (Supplementary Table S3). Significantly greater N2O emissions were detected from nodules of plants inoculated with the MI compared to COA and COB (Supplementary Table S3) but no significant differences in N2 emissions were detected between treatments (Supplementary Table S3A).
In free-living cells, strains COA3 and COA6 showed significantly greater N2-fixation rates compared to strains COB5, COB6, and MI13 (Table 2A). All strains were able to grow under denitrification conditions with NO3− as the sole N source, and production of N2O and N2 evidenced their ability to metabolize NO3− (Table 2A). Strain MI13 showed significantly greater N2O production rates compared to strains COA3, COA6, COB5, and COB6 (Table 2A). No significant differences in N2 production rates were detected between strains (Table 2A).
Nodules from roots of sunnhemp plants inoculated with strains COA3 and COA6 showed significantly greater N2-fixation rates compared to the rest of the strains (Table 2B). Nodules from plants inoculated with MI13 were the highest N2O producers compared to those of COA3, COA6, COB5, and COB6, whereas no significant differences in N2 emissions were detected between strains (Table 2B).

2.4. Plant Nodulation and Inoculation Assays

Strains COA3, COA6, COB5, COB6, and MI13 produced effective symbiosis with sunnhemp plants and REP-PCR confirmed the presence of the inoculated bacteria in the root nodules of the corresponding inoculated plants. The results of plant inoculation assays showed that all strains except for MI13 significantly promoted the growth of sunnhemp with respect to the uninoculated control plants (Table 3). Inoculation of sunnhemp with strains COA3 and COA6 produced significant increases in the number of nodules, root and shoot dry weight, and total N and C concentrations compared to strains COB5, COB6, and MI13 (Table 3). The inoculation of sunnhemp with COB5 and COB6 strains significantly improved the root and shoot dry weight and the concentration of total N and C in the shoots with respect to strain MI13 (Table 3).

3. Discussion

The low soil nutrient availability of many tree crops has renewed interest in the use of CCs in row middles as an alternative to conventional management (e.g., spontaneously growing weeds or no vegetation) to improve soil C and N cycling for these agroecosystems [5,30]. Sunnhemp is an important CC in subtropical fruit tree crops such as Florida citrus due to its ability to grow year-round, but no studies have examined the diversity of rhizobia nodulating this plant in these agroecosystems. Our study showed that native Florida rhizobia are better at nodulation, N2 fixation, reducing N2O emissions, and increasing plant growth compared to non-native rhizobia from a commonly-used commercial inoculant. Although all isolated native rhizobia were grouped with the same Rhizobium species, we showed they had different abilities to nodulate, fix N2, and produce and reduce N2O, suggesting that these traits were strain-specific. To our knowledge, this is the first report on strains of Rhizobium tropici nodulating C. juncea, thus increasing our understanding of the diversity of rhizobia nodulating Crotalaria in Florida soils. The benefits of native over non-native rhizobia were not only found under laboratory conditions but also under symbiotic conditions when plants were inoculated with the strains using sterile and non-sterile substrates, thus confirming the potential of native rhizobial strains to be used for future microbial-based inoculants.
Florida soils have an extremely sandy texture (>90% sand) and very low content of C and N, which can cause severe ecological conditions for living organisms [31]. REP fingerprinting, a powerful tool to cluster rhizobia at the subspecies and strain level [32], was used to group the isolates from root nodules. Only 5 of the 47 isolates were identified as rhizobia. The rest of non-rhizobial isolates were bacterial endophytes which are often present in root nodules of leguminous plants and may have key roles in the promotion of legume growth [9]. Interestingly, based on the 16S rRNA gene sequences, all native rhizobia (four strains) belonged to Rhizobium, whereas the non-native rhizobium isolated from the microbial inoculant was identified as a member of Bradyrhizobium. Due to highly conserved 16S rRNA gene sequences in rhizobia, the phylogenetic analysis of recA, atpD, and glnII housekeeping genes have been used to elucidate the taxonomic affiliations of Rhizobium and Bradyrhizobium species. While the four native rhizobia grouped with R. tropici CIAT 899T, the non-native strain was closely related to B. japonicum USDA6T.
All rhizobial isolates produced effective symbiosis with sunnhemp plants. Previous studies have shown that C. juncea establishes symbiotic associations with rhizobia belonging to Bradyrhizobium [27,28] and Methylobacterium [29] genera in West Africa. Strains of Rhizobium sp. have been previously isolated from root nodules of Crotalaria species but were unable to nodulate this plant [33]. To our knowledge, this is the first report on strains of R. tropici nodulating C. juncea, and the sequencing of the nodC gene revealed that all native rhizobial strains belonged to symbiovar tropici of the genus Rhizobium. The symbiovar tropici is composed of strains of R. tropici, R. leucaenae, R. lusitanum, and R. freirei, and has been found in America, Africa, and Asia [34,35]. R. tropici has a broad host range and can nodulate several legumes including P. vulgaris, Leucaena leucocephala, and Macroptilium atropurpureum due to the existence of different nod genes in its genome [6]. In the tropics, inoculants containing R. tropici are efficient for beans due to its high tolerance to stressful conditions and genetic stability [36,37]. Of note, the concatenated recA, atpD, and glnII gene phylogenies showed that strain COA3 had similarity values lower than 97% with R. tropici CIAT 899T and could represent new lineages within the genus Rhizobium. However, this should be further studied by conducting a polyphasic taxonomic analysis.
Previous studies have shown that Crotalaria sp. can be nodulated by different species of Bradyrhizobium including B. japonicum [28,33,38,39]. The phylogenetic analysis of the symbiotic nodC gene of the non-native strain MI13 revealed that it clustered outside of known symbiovars of the genus Bradyrhizobium and was closely related with B. yuanmingense. Strains of B. yuanmingense can nodulate the wild legume Lespedeza and form ineffective symbiotic associations with Medicago sativa and Melilotus albus [40].
Although both native and non-native rhizobia strains isolated in this study possessed nifH genes and therefore the potential to fix atmospheric N2, native rhizobia showed significantly greater N2-fixation rates than the non-native rhizobium both in free-living cells and symbiotic conditions. Although commercial rhizobial inoculants typically contain strains with excellent performance, the degree to which non-native rhizobial strains adapt to local environmental and soil conditions and competition with native rhizobia can directly affect their nodulation and N2-fixation effectiveness [21]. Strains of R. tropici and B. japonicum are known to possess nifH genes and the ability to fix N2 [34,41]. Among native rhizobia, those isolated from citrus orchard A had significantly greater N2-fixation rates compared to the ones from citrus orchard B. Although these two citrus orchards share similar environmental conditions, soils were slightly more fertile in citrus orchard A compared to orchard B (Supplementary Table S1) which may have influenced diversification between rhizobial strains in these Florida soils. Influences of soil environmental conditions on rhizobial diversity and N2-fixing capabilities have been previously reported for other rhizobia species [42,43,44].
Knowledge of the diversity and capabilities of plant-growth promotion of native bacterial populations is crucial to identify specific microbial strains that can be used to achieve higher yields under specific environmental conditions [45]. Previous studies have shown that native rhizobial populations may enhance plant-microbe interactions due to their better adaption to natural conditions [46]. Our results agree with this rationale by showing that the sunnhemp plants inoculated individually with native rhizobial strains had a significant increase in root and shoot dry weight and a concomitant enhancement of total C and N content compared to the non-native MI13 strain. Field inoculation studies are recommended to fully elucidate the potential of the isolates in this study to serve as candidates for future rhizobial inoculants.
We also found that native rhizobia emitted less N2O in free-living cells and symbiotic conditions compared to the non-native rhizobium strain. Denitrification can cause loss of N in soil and it is not a desirable characteristic of inoculant bacteria. It is known that not all rhizobial strains can grow under denitrification conditions [14,47,48,49]. However, all rhizobial strains isolated in this study were able to grow under these conditions and to produce N2O and N2 in free-living cells and symbiotic conditions. Although amplification of denitrification genes was not pursued in this study, previous studies have shown that both strains of R. tropici and B. japonicum possess genes involved in production (e.g., nirK and nirS) and reduction (nosZ) of N2O [41,48]. Because rhizobial species often lack the N2O reductase [14,50,51], there is increased interest in identifying rhizobia capable of emitting N2 as a final product. Considering the increased use of legume cover crops in tree crops, the legume–rhizobium symbiosis could play an important role in reducing N2O emissions, thus contributing to the alleviation of global warming [16]. Calculations of the N2O/N2 ratio showed values close to 1 for the native rhizobia strains both in free-living cells and under symbiotic conditions whereas those for the non-native rhizobium were in the range 2.5–3. Thus, these results suggest the native rhizobial strains isolated in this study represent excellent candidates that would increase soil N without contributing to production of N2O in citrus agroecosystems.

4. Conclusions

To date, most growers are aware of the ecological advantage of legume CCs to fix atmospheric N2, which is particularly important for high N-demanding crops in soils with low nutrient availability such as citrus in Florida. However, the specificity of the symbiosis between rhizobia and legume is often not known for specific legume species of interest. We determined the phylogeny of native rhizobial strains nodulating C. juncea in citrus orchards in Florida, a commonly used CC species in subtropical tree crops. Using the combined analyses of 16S rRNA, recA, atpD, glnII, nifH, and nodC gene sequences, we showed that native rhizobial strains were closely related to R. tropici, with one of them representing a potential novel lineage. Native rhizobial strains caused significant increases in root and shoot weight, total C and N contents, and showed greater N2-fixation rates and lower emissions of N2O both in free-living and symbiotic conditions compared to the non-native rhizobium from a commercial inoculant. The native rhizobial strains isolated in this study could constitute the basis for development of microbial-based inoculants to improve the growth of sunnhemp.

5. Materials and Methods

5.1. Sample Collection and Rhizobia Trapping Experiment

Bulk soil samples (0–15 cm) were collected from twenty-four random locations within the row middles of two commercial citrus orchards (denoted as A and B) without previous history of CCs in South Florida (USA) (Supplementary Figure S1). Location of the sampling sites and the main physicochemical properties of the soils are presented in Supplementary Table S1. At the time of sampling, row middle soils were naturally covered by diverse weed species such as guinea grass (Megathyrsus maximus), goosegrass (Eleusine indica), Spanish needles (Bidens sp.), globe sedge (Cyperus globulosus), Panicum sp., and Lepidium virginicum. For all citrus orchard soils collected, plant residues were removed, and soil samples were pooled together (about 1 kg of soil was collected in total for each location), kept on ice, and brought to the laboratory. A commercial inoculant (Guard-N, Verdesian, Cary, NC, USA) containing B. japonicum, Bradyrhizobium sp., R. leguminorsarum sv. viceae, and R. leguminosarum sv. phaseoli, which is commonly used by growers planting legume CCs in fruit tree orchards in Florida, was used in this study. Treatments were named COA (soil from citrus orchard A), COB (soil from citrus orchard B), and MI (commercial rhizobial inoculant).
Sunnhemp seeds (C. juncea L.) were surface sterilized with 99.9% ethanol for 1 min, followed by thorough washing in sterile distilled water. The seeds were then placed in Petri dishes containing 1% water agar and allowed to germinate at 28 °C in the dark for 2 days. Seedlings (3 per pot) were planted in 2 kg pots (12.5 cm diameter × 30 cm height) containing sterile vermiculite and independently inoculated with 1 mL of soil solutions (COA or COB), prepared by homogenization of 1 g of soil in 9 mL of sterile saline solution (0.9% NaCl). The MI was applied following the manufacturer’s instructions. Uninoculated plants were used as a negative control. Six replicate pots per treatment were assayed. The pots were placed in a growth chamber under controlled conditions (28/22 °C day/night; 16/8 h light/dark cycle), and the plants were fertilized every 5 days with a sterile N-free nutrient solution [52]. Plants were harvested at 10% flowering, about 8 weeks after sowing, and nodules were collected for isolation of their interior microbiota and to study their capacity to fix N2 and produce N2O and N2.

5.2. Isolation of Bacteria from Nodules and Culture Conditions

Nodules (30 per treatment) were surface sterilized with 99.9% ethanol for 1 min, followed by 3 min in 3% sodium hypochlorite, washed 5 times with sterile deionized water, and then crushed in a drop of sterile water with a sterile glass rod. The resulting suspension was streaked onto Petri dishes containing solid yeast extract mannitol (YEM) medium [53] and incubated at 28 °C for 14 days. To ensure complete external disinfection, some of the disinfected nodules were incubated in the same medium, and no growth was found. After incubation, all colony-forming units (CFUs) were observed on an inverted microscope to select rhizobial strains and representative colonies of the morphologies of potential non-rhizobial strains.

5.3. DNA Isolation and Quantification

Bacterial genomic DNA was obtained after growth of the cells in liquid YEM medium as described by Mellal et al. [54]. The supernatant containing the DNA was recovered and kept at −20 °C until use. DNA concentration was measured using the Qubit® dsDNA HS assay kit (Thermo Fisher Scientific, Waltham, MA, USA).

5.4. REP-PCR Fingerprinting

Repetitive extragenic palindromic polymerase chain reactions (REP-PCR) were performed as described previously [55]. A database was created with the REP-PCR patterns of all isolates, and a distance matrix was constructed using Jaccard’s similarity coefficient. Then, a dendrogram was built using the unweighted pair group with arithmetic mean (UPGMA) using the Quantity One analysis software (Bio Rad, Hercules, Clearwater, FL, USA).

5.5. PCR Amplifications

The fD1 and rD1 universal primers were used to amplify the 16S rRNA gene [56]. The primer pairs glnII 12F and glnII 689R, atpD 255F and atpD 782R, and recA 41F and recA 640R were used for amplification of the glnII, atpD, and recA housekeeping genes, respectively [57]. The combination of housekeeping genes recA + glnII + atpD and recA + glnII were selected for assessing the evolutionary genetics of the Rhizobium and Bradyhizobium species because they are known to give the best relative performance [58,59]. Moreover, the housekeeping genes chosen have available sequences in Genebank for the type strains of all the described species of Rhizobium and Bradyrhizobium. Amplification of the symbiotic nodC gene was done using primers nodCF and nodCI [11], whereas the nifH gene involved in N2-fixation was amplified using the primers nifHF and nifHR [49]. The QIAquick PCR Purification Kit was used to purify the PCR products (Qiagen, Redwood City, CA, USA). The products were analyzed with a 3130 × l automatic sequencer at the sequencing facilities of MCLAB (Molecular Cloning Laboratories, San Francisco, CA, USA). Sequences were compared with those from GenBank using the BLASTN tool and the EzBioCloud database and aligned using the Clustal W program [60]. Phylogenetic trees were built using the maximum likelihood (ML) [61] analysis, and distances were calculated according to Kimura’s two-parameter model [62]. MEGA 7.0 was used for the phylogenetic analyses [63]. Accession numbers of the 16S rRNA, recA, atpD, glnII, nodC, and nifH sequences of the strains used in this study are shown in the phylogenetic trees.

5.6. Plant Nodulation Tests

To confirm the nodulation capacity of the isolates, infectivity tests were conducted. Seeds of C. juncea species were surface sterilized as described above. Seedlings (3 per pot) were planted in 2 kg pots (12.5 cm diameter × 30 cm height) containing sterile vermiculite as substrate and independently inoculated at sowing with 1 mL of a bacterial strain (~108 cells mL−1). Six replicate pots per strain were assayed. Uninoculated plants (six replicates) were used as a negative control. The plants were irrigated with a sterile N-free nutrient solution [52] every 5 days, grown in a growth chamber under controlled conditions (28/22 °C day/night; 16/8 h light/dark cycle), and harvested at 10% flowering. Nodules were collected and their interior microbiota isolated as described above. REP-PCR was performed to confirm the presence of the inoculated bacteria in the nodules by comparing their REP-PCR pattern with that of the strains used for inoculating the plants using the Quantity One analysis software (Bio Rad, Hercules, Clearwater, FL, USA).

5.7. Acetylene Reduction Activity (ARA)

The nitrogenase activity of the isolates and nodules (approximately 20 nodules) was assessed by the ARA assay as previously described [64]. Briefly, cells were inoculated in liquid YEM medium without yeast extract and incubated at 28 °C for 10 days in 100 mL glass jars closed with serum rubber caps to allow injection and withdrawal of gas samples. Then, 10% of the internal atmosphere of each jar was removed and replaced with the same volume of acetylene. N2-fixation activity of nodules was assayed as described above by placing approximately 20 nodules in 12 mL glass vials. Gas samples (5 mL) were taken every 12 h for 10 days and analyzed for ethylene production using a gas chromatograph (Model GC 8A, Shimadzu Japan) equipped with a flame ionization detector and HayeSep N column (80–100 mesh). The acetylene reduction rate from free-living cells and nodules was calculated by measuring the increase of ethylene (C2H4) production inside the vial’s headspace determined in the lineal range [64].

5.8. N2O and N2 Emissions

The ability of the isolates and nodules to produce and reduce N2O was assayed as described by Castellano-Hinojosa et al. [65]. Cells were inoculated in liquid YEM medium supplemented with 10 mM NO3− and incubated at 28 °C for 3 days in 100 mL glass jars closed with serum rubber caps to allow injection and withdrawal of gas samples and evacuated with pure argon to ensure N2-free conditions [14]. Samples were prepared in duplicate. Then, 10% of the internal atmosphere of half of the jars was removed and substituted with acetylene. Gas samples (5 mL) were taken every 12 h and analyzed using a SRI 8610C greenhouse gas chromatograph (SRI Instruments, Las Vegas, NV, USA) equipped with two 1.8 m HayeSep D columns in vent valve configuration and an electron-capture detector to analyze N2O concentrations. Calculation of the difference in N2O production in the presence and absence of acetylene was used to estimate N2 production. N2O and N2 emissions from nodules were assayed as described above by placing 20 nodules in 12 mL glass vials. After incubation for 2 and 4 h at 28 °C, gas samples (1 mL) were extracted from the tubes for N2O analysis as described above.

5.9. Plant Inoculation Assays

Soil samples (0–15 cm) were taken from 24 random locations within the row middles of a citrus orchard at the University of Florida Southwest Florida Research and Education Center (Immokalee, FL, USA). The soil had a sandy texture and the following characteristics: pH (in water) 7.1, 93.8% sand, 5.0% silt, 1.2% clay, 1.2% organic matter, 3.4 mg kg−1 ammonium (NH4+), 5.4 mg kg−1 NO3−. Plant residues were removed, and soil samples were pooled together. The soil was used to fill 2 kg pots (12.5 cm diameter × 30 cm height), which were placed in a greenhouse under controlled conditions and watered daily for 5 min using a drip irrigation system (2 L/hour). Seeds of C. juncea species (3 per pot) were planted, and the plants were grown for 8 weeks until about 10% flowering. Five bacterial strains were selected for plant inoculation assays based on their ability to nodulate sunnhemp plants. Seedlings were independently inoculated at sowing with 1 mL of the corresponding bacterial strains (~108 cells mL−1). Six replicate pots per strain were assayed. Uninoculated plants were used as a control. Shoot and root dry weight were determined on samples that had been dried at 60 °C for 48 h and total carbon (C) and total nitrogen (N) in the shoots were determined using a Leco TruSpec CN Elemental Analyser (Saint Joseph, MI, USA). The nodules on the roots were picked and counted. A subsample of the nodules was used for N2-fixation, N2O, and N2 analyses as described above.

5.10. Statistical Analysis

Data analysis was performed using the R software version 4.1.2 (http://www.rproject.org/ (accessed on 10 October 2021)). Normality and homoscedasticity assumptions were tested by using Shapiro–Wilk and Bartlett’s tests, respectively. Significant differences among treatments were assessed with one-way analysis of variance (ANOVA) and Tukey’s HSD post hoc tests.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/plants11223011/s1, Table S1. Soil physicochemical properties of the studied sites. Table S2. Identification of strains from nodules of sunnhemp (Crotalaria juncea L.). Closest relative type strains of the genera Rhizobium and Bradyrhizobium on the basis of different targeted genes. Identity values are shown in brackets. Table S3. N2-fixation, nitrous oxide (N2O), and dinitrogen (N2) rates of rhizobial strains from nodules of sunnhemp (Crotalaria juncea L.) inoculated with soil from commercial orchards A and B (COA and COB, respectively) and the microbial inoculant (MI). Values represent the mean ± standard error. For each gas analysis, numbers in a column followed by the same letter are not significantly different according to one-way ANOVA test (Tukey’s HSD, p < 0.05). Figure S1. Map showing the location of the sampling sites within Citrus orchard A and Citrus orchard B. Figure S2. ML phylogenetic tree based on partial 16S rRNA sequences of strains from nodules of sunnhemp (Crotalaria juncea L.) and phylogenetically related species within the genus Rhizobium. The analysis was based on 1420 nucleotides. Isolates are denoted in bold. Bootstrap values are indicated as percentages derived from 1000 replications. Values lower than 70 are not shown. Bar, 1 nucleotides substitution per 100 nucleotides. The tree is rooted with Bradyrhizobium diazoefficiens USDA10T. Figure S3. ML phylogenetic tree based on partial 16S rRNA sequences of strains from nodules of sunnhemp (Crotalaria juncea L.) and phylogenetically related species within the genus Bradyrhizobium. The analysis was based on 1415 nucleotides. Isolates are denoted in bold. Bootstrap values are indicated as percentages derived from 1000 replications. Values lower than 70 are not shown. Bar, 1 nucleotides substitution per 100 nucleotides. The tree is rooted with Bosea thiooxidans DSM 9653T. Figure S4. ML phylogenetic tree based on nifH sequences of strains from nodules of strains from nodules of sunnhemp (Crotalaria juncea L.) and phylogenetically related species within the genus Rhizobium. The analysis was based on 340 nucleotides. Isolates are denoted in bold. Bootstrap values are indicated as percentages derived from 1000 replications. Values lower than 70 are not shown. Bar, 2 nucleotide substitution per 100 nucleotides. Figure S5. ML phylogenetic tree based on nifH sequences of strains from nodules of strains from nodules of sunnhemp (Crotalaria juncea L.) and phylogenetically related species within the genus Bradyhizobium. The analysis was based on 420 nucleotides. Isolates are denoted in bold. Bootstrap values are indicated as percentages derived from 1000 replications. Values lower than 70 are not shown. Bar, 2 nucleotide substitution per 100 nucleotides.

Author Contributions

Conceptualization, A.C.-H. and S.L.S.; Methodology, A.C.-H. and S.L.S.; Investigation, A.C.-H., C.M. and S.L.S.; Data curation, A.C.-H. and C.M.; Writing—Original Draft Preparation, A.C.-H.; Writing—Review & Editing, A.C.-H., C.M. and S.L.S.; Funding Acquisition, S.L.S. All authors have read and agreed to the published version of the manuscript.

Funding

This study was supported with funds from the Citrus Research and Development Foundation grant 18-059C and the USDA National Institute of Food and Agriculture Hatch project 7000945.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Acknowledgments

We would like to express our thanks to R. Berner, D. Saintilma, B. Monus, and E.K. Dawson for assistance with greenhouse experiments.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Tonitto, C.M.; David, M.B.; Drinkwater, L.E. Replacing bare fallows with cover crops in fertilizer-intensive cropping systems: A meta-analysis of crop yield and N dynamics. Agric. Ecosyst. Environ. 2006, 112, 58–72. [Google Scholar] [CrossRef]
  2. Blanco-Canqui, H.; Shaver, T.M.; Lindquist, J.L.; Shapiro, C.A.; Elmore, R.W.; Francis, C.A.; Hergert, G.W. Cover Crops and ecosystem services: Insights from studies in temperate soils. Agron. J. 2015, 107, 2449–2474. [Google Scholar] [CrossRef] [Green Version]
  3. Kaye, J.P.; Quemada, M. Using cover crops to mitigate and adapt to climate change. A review. Agron. Sustain Dev. 2017, 37, 1–17. [Google Scholar] [CrossRef] [Green Version]
  4. Morugán-Coronado, A.; Linares, C.; Gómez-López, M.D.; Faz, Á.; Zornoza, R. The impact of intercropping, tillage and fertilizer type on soil and crop yield in fruit orchards under Mediterranean conditions: A meta-analysis of field studies. Agric. Syst. 2020, 178, 102736. [Google Scholar] [CrossRef]
  5. Castellano-Hinojosa, A.; Strauss, S.L. Impact of cover crops on the soil microbiome of tree crops. Microorganisms 2020, 8, 328. [Google Scholar] [CrossRef] [Green Version]
  6. Peix, A.; Ramírez-Bahena, M.H.; Velázquez, E.; Bedmar, E.J. Bacterial associations with legumes bacterial associations with legumes. Crit. Rev. Plant Sci. 2015, 34, 17–42. [Google Scholar] [CrossRef]
  7. Andrews, M.; Andrews, M.E. Specificity in legume-rhizobia symbioses. Int. J. Mol. Sci. 2017, 18, 705. [Google Scholar] [CrossRef] [Green Version]
  8. Liu, H.; Carvalhais, L.C.; Crawford, M.; Singh, E.; Dennis, P.G.; Pieterse, C.M.J.; Schenk, P.M. Inner plant values: Diversity, colonization and benefits from endophytic bacteria. Front. Microbiol. 2017, 8, 2552. [Google Scholar] [CrossRef]
  9. Ríos-Ruiz, W.F.; Valdez-Nuñez, R.A.; Bedmar, E.J.; Castellano-Hinojosa, A. Utilization of endophytic bacteria isolated from legume root nodules for plant growth promotion. In Field Crops: Sustainable Management by PGPR. Sustainable Development and Biodiversity; Maheshwari, D., Dheeman, S., Eds.; Springer: Cham, Switzerland, 2019; pp. 145–176. [Google Scholar]
  10. Oldroyd, G.E.D. Speak, friend, and enter: Signalling systems that promote beneficial symbiotic associations in plants. Nat. Rev. Microbiol. 2013, 11, 252–263. [Google Scholar] [CrossRef]
  11. Laguerre, G.; Nour, S.M.; Macheret, V.; Sanjuan, J.; Drouin, P.; Amarger, N. Classification of rhizobia based on nodC and nifH gene analysis reveals a close phylogenetic relationship among Phaseolus vulgaris symbionts. Microbiology 2001, 147, 981–993. [Google Scholar] [CrossRef]
  12. Rivas, R.; Laranjo, M.; Mateos, P.F.; Oliveira, S.; Martínez-Molina, E.; Velázquez, E. Strains of Mesorhizobium amorphae and Mesorhizobium tianshanense, carrying symbiotic genes of common chickpea endosymbiotic species, constitute a novel biovar (ciceri) capable of nodulating Cicer arietinum. Lett. Appl. Microbiol. 2007, 44, 412–418. [Google Scholar] [CrossRef] [PubMed]
  13. Tian, H.; Xu, R.; Canadell, J.G.; Thompson, R.L.; Winiwarter, W.; Suntharalingam, P.; Davidson, E.A.; Ciais, P.; Jackson, R.B.; Janssens-Maenhout, G.; et al. A comprehensive quantification of global nitrous oxide sources and sinks. Nature 2020, 586, 248–256. [Google Scholar] [CrossRef]
  14. Obando, M.; Correa-Galeote, D.; Castellano-Hinojosa, A.; Gualpa, J.; Hidalgo, A.; Alché, J.D.; Bedmar, E.; Cassán, F. Analysis of the denitrification pathway and greenhouse gases emissions in Bradyrhizobium sp. strains used as biofertilizers in South America. J. Appl. Microbiol. 2019, 127, 739–749. [Google Scholar] [CrossRef] [PubMed]
  15. Bueno, E.; Mesa, S.; Bedmar, E.J.; Richardson, D.J.; Delgado, M.J. bacterial adaptation of respiration from oxic to microoxic and anoxic conditions: Redox control. Antioxid. Redox Signal 2012, 16, 819–852. [Google Scholar] [CrossRef] [Green Version]
  16. Woliy, K.; Degefu, T.; Frostegård, Å. Host range and symbiotic effectiveness of N2O reducing Bradyrhizobium strains. Front. Microbiol. 2019, 10, 2746. [Google Scholar] [CrossRef] [PubMed]
  17. Kebede, E. Competency of rhizobial inoculation in sustainable agricultural production and biocontrol of plant diseases. Front. Sustain. Food Syst. 2021, 5, 298. [Google Scholar] [CrossRef]
  18. Takács, T.; Cseresnyés, I.; Kovács, R.; Parádi, I.; Kelemen, B.; Szili-Kovács, T.; Füzy, A. Symbiotic effectivity of dual and tripartite associations on soybean (Glycine max L. Merr.) cultivars inoculated with Bradyrhizobium japonicum and AM fungi. Front. Plant Sci. 2018, 871, 1631. [Google Scholar] [CrossRef]
  19. Aserse, A.A.; Markos, D.; Getachew, G.; Yli-Halla, M.; Lindström, K. Rhizobial inoculation improves drought tolerance, biomass and grain yields of common bean (Phaseolus vulgaris L.) and soybean (Glycine max L.) at Halaba and Boricha in Southern Ethiopia. Arch. Agron. Soil Sci. 2019, 6, 488–501. [Google Scholar] [CrossRef]
  20. Meghvansi, M.K.; Prasad, K.; Mahna, S.K. Symbiotic potential, competitiveness and compatibility of indigenous Bradyrhizobium japonicum isolates to three soybean genotypes of two distinct agro-climatic regions of Rajasthan, India. Saudi J. Biol. Sci. 2010, 17, 303–310. [Google Scholar] [CrossRef] [Green Version]
  21. Mendoza-Suárez, M.; Andersen, S.U.; Poole, P.S.; Sánchez-Cañizares, C. Competition, nodule occupancy, and persistence of inoculant strains: Key factors in the Rhizobium-legume symbioses. Front. Plant Sci. 2021, 12, 1684. [Google Scholar] [CrossRef]
  22. Mathu, S.; Herrmann, L.; Pypers, P.; Matiru, V.; Mwirichia, R.; Lesueur, D. Potential of indigenous bradyrhizobia versus commercial inoculants to improve cowpea (Vigna unguiculata L. walp.) and green gram (Vigna radiata L. wilczek.) yields in Kenya. Soil Sci. Plant Nutr. 2012, 58, 750–763. [Google Scholar] [CrossRef]
  23. Koskey, G.; Mburu, S.W.; Njeru, E.M.; Kimiti, J.M.; Ombori, O.; Maingi, J.M. Potential of native rhizobia in enhancing nitrogen fixation and yields of climbing beans (Phaseolus vulgaris L.) in contrasting environments of eastern Kenya. Front. Plant Sci. 2017, 8, 443. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Simbine, M.G.; Mohammed, M.; Jaiswal, S.K.; Dakora, F.D. Functional and genetic diversity of native rhizobial isolates nodulating cowpea (Vigna unguiculata L. Walp.) in Mozambican soils. Sci. Rep. 2021, 11, 12747. [Google Scholar] [CrossRef] [PubMed]
  25. Polhill, R.M. Crotalaria in Africa and Madagascar; Balkema, A.A., Ed.; CRC Press: Rotterdam, The Netherlands, 1992. [Google Scholar]
  26. Castellano-Hinojosa, A.; Martens-Habbena, W.; Smyth, A.R.; Kadyampakeni, D.M.; Strauss, S.L. Short-term effects of cover crops on soil properties and the abundance of N-cycling genes in citrus agroecosystems. Appl. Soil Ecol. 2022, 172, 104341. [Google Scholar] [CrossRef]
  27. Doignon-Bourcier, F.; Willems, A.; Coopman, R.; Laguerre, G.; Gillis, M.; De Lajudie, P. Genotypic characterization of Bradyrhizobium strains nodulating small Senegalese legumes by 16S-23S rRNA intergenic gene spacers and amplified fragment length polymorphism fingerprint analyses. Appl. Environ. Microbiol. 2000, 66, 3987–3997. [Google Scholar] [CrossRef] [Green Version]
  28. Aserse, A.A.; Räsänen, L.A.; Aseffa, F.; Hailemariam, A.; Lindström, K. Phylogenetically diverse groups of Bradyrhizobium isolated from nodules of Crotalaria spp., Indigofera spp., Erythrina brucei and Glycine max growing in Ethiopia. Mol. Phylogenet. Evol. 2012, 65, 595–609. [Google Scholar] [CrossRef]
  29. Sy, A.; Giraud, E.; Samba, R.; de Lajudie, P.; Gillis, M.; Breyfus, B. Nodulation of certain legumes of the genus Crotalaria by the new species Methylobacterium. Can. J. Microbiol. 2001, 47, 503–508. [Google Scholar] [CrossRef] [Green Version]
  30. Vicente-Vicente, J.L.; García-Ruiz, R.; Francaviglia, R.; Aguilera, E.; Smith, P. Soil carbon sequestration rates under Mediterranean woody crops using recommended management practices: A meta-analysis. Agric. Ecosyst. Environ. 2016, 235, 204–214. [Google Scholar] [CrossRef] [Green Version]
  31. Frąc, M.; Lipiec, J.; Usowicz, B.; Oszust, K.; Brzezińska, M. Structural and functional microbial diversity of sandy soil under cropland and grassland. Peer J. 2020, 8, e9501. [Google Scholar] [CrossRef]
  32. Schneider, M.; De Bruijn, F.J. Rep-PCR mediated genomic fingerprinting of rhizobia and computer-assisted phylogenetic pattern analysis. World J. Microbiol. Biotechnol. 1996, 12, 163–174. [Google Scholar] [CrossRef]
  33. Liu, X.Y.; Wang, E.T.; Li, Y.; Chen, W.X. Diverse bacteria isolated from root nodules of Trifolium, Crotalaria and Mimosa grown in the subtropical regions of China. Arch. Microbiol. 2007, 188, 1–14. [Google Scholar] [CrossRef] [PubMed]
  34. Ormeño-Orrillo, E.; Menna, P.; Almeida, L.G.P.; Ollero, F.J.; Nicolás, M.F.; Pains Rodrigues, E.; Shigueyoshi Nakatani, A.; Silva Batista, J.S.; Oliveira Chueire, L.M.; Souza, R.C.; et al. Genomic basis of broad host range and environmental adaptability of Rhizobium tropici CIAT 899 and Rhizobium sp. PRF 81 which are used in inoculants for common bean (Phaseolus vulgaris L.). BMC Genom. 2012, 13, 735. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Ribeiro, R.A.; Roge, M.A.; López-López, A.; Ormeño-Orrillo, E.; Barcellos, F.G.; Martínez, J.; Thompson, F.L.; Martínez-Romero, E.; Hungria, M. Reclassification of Rhizobium tropici type A strains as Rhizobium leucaenae sp. nov. Int. J. Syst. Evol. Microbiol. 2012, 62, 1179–1184. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Hungria, M.; Andrade, D.D.S.; Chueire, L.M.D.O.; Probanza, A.; Guttierrez-Mañero, F.J.; Megías, M. Isolation and characterization of new efficient and competitive bean (Phaseolus vulgaris L.) rhizobia from Brazil. Soil Biol. Biochem. 2000, 32, 1515–1528. [Google Scholar] [CrossRef]
  37. Hungria, M.; Campo, R.J.; Mendes, I.C. Benefits of inoculation of the common bean (Phaseolus vulgaris) crop with efficient and competitive Rhizobium tropici strains. Biol. Fertil. Soils 2003, 39, 88–93. [Google Scholar] [CrossRef]
  38. Samba, R.T.; de Lajudiel, P.; Gillis, M.; Neyra, M.; Barreto, M.M.P.; Dreyfus, B. Diversity of rhizobia nodulating Crotalaria spp. from Senegal. Symbiosis 1999, 27, 259–268. [Google Scholar]
  39. Jaiswal, S.K.; Dakora, F.D. Widespread distribution of highly adapted Bradyrhizobium species nodulating diverse legumes in Africa. Front. Microbiol. 2019, 10, 310. [Google Scholar] [CrossRef] [Green Version]
  40. Yao, Z.Y.; Kan, F.L.; Wang, E.T.; Wei, G.H.; Chen, W.X. Characterization of rhizobia that nodulate legume species of the genus Lespedeza and description of Bradyrhizobium yuanmingense sp. nov. Int. J. Syst. Evol. Microbiol. 2002, 52, 2219–2230. [Google Scholar]
  41. Kaneko, T.; Maita, H.; Hirakawa, H.; Uchiike, N.; Minamisawa, K.; Watanabe, A.; Sato, S. Complete genome sequence of the soybean symbiont Bradyrhizobium japonicum strain USDA6T. Genes 2011, 2, 763. [Google Scholar] [CrossRef]
  42. Palmer, K.M.; Young, J.P.W. Higher diversity of Rhizobium leguminosarum biovar viciae populations in arable soils than in grass soils. Appl. Environ. Microbiol. 2000, 66, 2445–2450. [Google Scholar] [CrossRef] [Green Version]
  43. Stȩpkowski, T.; Hughes, C.E.; Law, I.J.; Markiewicz, Ł.; Gurda, D.; Chlebicka, A.; Moulin, L. Diversification of lupine Bradyrhizobium strains: Evidence from nodulation gene trees. Appl. Environ. Microbiol. 2007, 73, 3254–3264. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Wielbo, J.; Podleśna, A.; Kidaj, D.; Podleśny, J.; Skorupska, A. The diversity of pea microsymbionts in various types of soils and their effects on plant host productivity. Microbes Environ. 2015, 30, 254–261. [Google Scholar] [CrossRef] [PubMed]
  45. Fischer, S.E.; Fischer, S.I.; Magris, S.; Mori, G.B. Isolation and characterization of bacteria from the rhizosphere of wheat. World J. Microbiol. Biotechnol. 2007, 23, 895–903. [Google Scholar] [CrossRef]
  46. Verma, J.P.; Yadav, J.; Tiwari, K.N.; Kumar, A. Effect of indigenous Mesorhizobium spp. and plant growth promoting rhizobacteria on yields and nutrients uptake of chickpea (Cicer arietinum L.) under sustainable agriculture. Ecol. Eng. 2013, 51, 282–286. [Google Scholar] [CrossRef]
  47. Monza, J.; Irisarri, P.; Díaz, P.; Delgado, M.J.; Mesa, S.; Bedmar, E.J. Denitrification ability of rhizobial strains isolated from Lotus sp. Antonie Van Leeuwenhoek 2006, 89, 479–484. [Google Scholar] [CrossRef]
  48. Zhong, Z.; Lemke, R.L.; Nelson, L.M. Nitrous oxide emissions associated with nitrogen fixation by grain legumes. Soil Biol. Biochem. 2009, 41, 2283–2291. [Google Scholar] [CrossRef]
  49. Rösch, C.; Mergel, A.; Bothe, H. Biodiversity of denitrifying and dinitrogen-fixing bacteria in an acid forest soil. Appl. Environ. Microbiol. 2002, 68, 3818–3829. [Google Scholar] [CrossRef] [Green Version]
  50. Hallin, S.; Philippot, L.; Löffler, F.E.; Sanford, R.A.; Jones, C.M. Genomics and ecology of novel N2O-reducing microorganisms. Trends Microbiol. 2018, 26, 43–55. [Google Scholar] [CrossRef]
  51. Sameshima-Saito, R.; Chiba, K.; Minamisawa, K. Correlation of denitrifying capability with the existence of nap, nir, nor and nos genes in diverse strains of soybean bradyrhizobia. Microbes Environ. 2006, 21, 174–184. [Google Scholar] [CrossRef] [Green Version]
  52. Rigaud, J.R.; Puppo, A. Indole 3 acetic acid catabolism by soybean bacteroids. J. Gen. Microbiol. 1975, 88, 223–228. [Google Scholar] [CrossRef] [Green Version]
  53. Vincent, J.M. A Manual for the Practical Study of Root Nodule Bacteria; Blackwell Scientific Publications: Oxford, UK, 1970. [Google Scholar]
  54. Mellal, H.; Yacine, B.; Boukaous, L.; Khouni, S.; Benguedouar, A.; Castellano-Hinojosa, A.; Bedmar, E.J. Phylogenetic diversity of Bradyrhizobium strains isolated from root nodules of Lupinus angustifolius grown wild in the North East of Algeria. Syst. Appl. Microbiol. 2019, 42, 397–402. [Google Scholar] [CrossRef] [PubMed]
  55. De Bruijn, F.J. Use of repetitive (repetitive extragenic palindromic and enterobacterial repetitive intergeneric consensus) sequences and the polymerase chain reaction to fingerprint the genomes of Rhizobium meliloti isolates and other soil bacteria. Appl. Environ. Microbiol. 1992, 58, 2180–2187. [Google Scholar] [CrossRef] [PubMed]
  56. Weisburg, W.G.; Barns, S.M.; Pelletier, D.A.; Lane, D.J. 16S ribosomal DNA amplification for phylogenetic study. J. Bacteriol. 1991, 173, 697–703. [Google Scholar] [CrossRef] [Green Version]
  57. Vinuesa, P.; Silva, C.; Werner, D.; Martínez-Romero, E. Population genetics and phylogenetic inference in bacterial molecular systematics: The roles of migration and recombination in Bradyrhizobium species cohesion and delineation. Mol. Phylogenet. Evol. 2005, 34, 29–54. [Google Scholar] [CrossRef] [PubMed]
  58. Vinuesa, P.; Rojas-Jiménez, K.; Contreras-Moreira, B.; Mahna, S.; Prasad, B.N.; Moe, H.; Selvaraju, S.B.; Thierfelder, H.; Werner, D. Multilocus sequence analysis for assessment of the biogeography and evolutionary genetics of four Bradyrhizobium species that nodulate soybeans on the Asiatic continent. Appl. Environ. Microbiol. 2008, 74, 6987–6996. [Google Scholar] [CrossRef] [Green Version]
  59. Tong, W.; Li, X.; Huo, Y.; Zhang, L.; Cao, Y.; Wang, E.; Chen, W.; Tao, S.; Wei, G. Genomic insight into the taxonomy of Rhizobium genospecies that nodulate Phaseolus vulgaris. Syst. Appl. Microbiol. 2018, 41, 300–310. [Google Scholar] [CrossRef]
  60. Thompson, J.D.; Gibson, T.J.; Plewniak, F.; Jeanmougin, F.; Higgins, D.G. The CLUSTAL_X windows interface: Flexible strategies for multiple sequence alignment aided by quality analysis tools. Nucleic Acids Res. 1997, 25, 4876–4882. [Google Scholar] [CrossRef] [Green Version]
  61. Rogers, J.S.; Swofford, D.L. Fast method for approximating maximum likelihoods of phylogenetic trees from nucleotide sequences. Syst. Biol. 1998, 47, 77–89. [Google Scholar] [CrossRef] [Green Version]
  62. Kimura, M. A simple method for estimating evolutionary rates of base substitutions through comparative studies of nucleotide sequences. J. Mol. Evol. 1980, 16, 111–120. [Google Scholar] [CrossRef]
  63. Kumar, S.; Stecher, G.; Tamura, K. MEGA7: Molecular Evolutionary Genetics Analysis Version 7.0 for Bigger Datasets. Mol. Biol. Evol. 2016, 33, 1870–1874. [Google Scholar] [CrossRef] [Green Version]
  64. Castellano-Hinojosa, A.; Correa-Galeote, D.; Palau, J.; Bedmar, E.J. Isolation of N2-fixing rhizobacteria from Lolium perenne and evaluating their plant growth promoting traits. J. Basic Microbiol. 2016, 56, 85–91. [Google Scholar] [CrossRef] [PubMed]
  65. Castellano-Hinojosa, A.; González-López, J.; Bedmar, E.J. Distinct effect of nitrogen fertilisation and soil depth on nitrous oxide emissions and nitrifiers and denitrifiers abundance. Biol. Fertil. Soils 2018, 54, 829–840. [Google Scholar] [CrossRef]
Plants 11 03011 g001 550

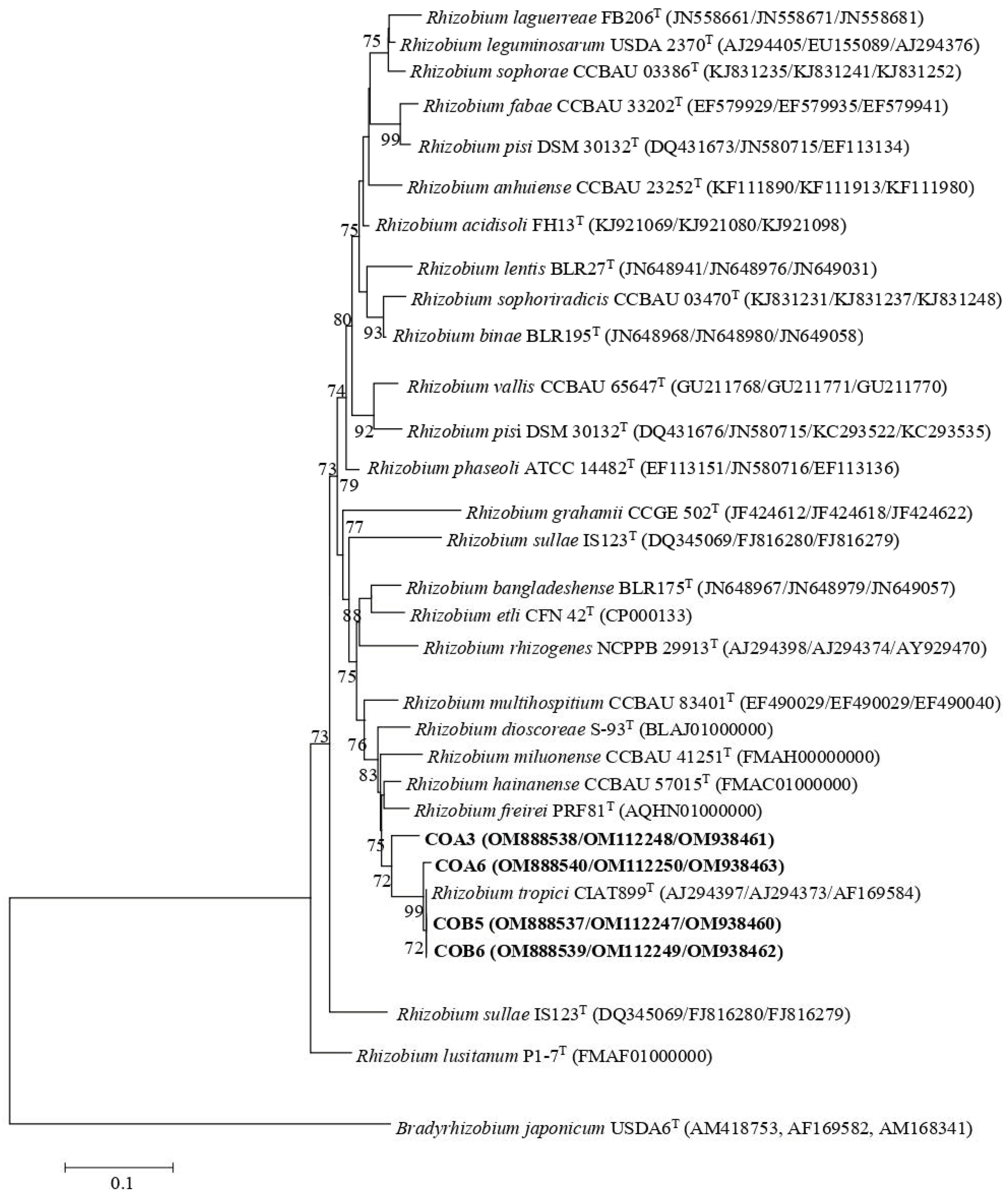

Figure 1. ML phylogenetic tree based on concatenated partial recA + atpD + glnII sequences of strains from nodules of sunnhemp (Crotalaria juncea L.) and phylogenetically related species within the genus Rhizobium. The analysis was based on 1150 nucleotides. Isolates are denoted in bold. Bootstrap values are indicated as percentages derived from 1000 replications. Values lower than 70 are not shown. Bar, 1 nucleotides substitution per 100 nucleotides. The tree is rooted with Bradyrhizobium japonicum USDA6T.
Figure 1. ML phylogenetic tree based on concatenated partial recA + atpD + glnII sequences of strains from nodules of sunnhemp (Crotalaria juncea L.) and phylogenetically related species within the genus Rhizobium. The analysis was based on 1150 nucleotides. Isolates are denoted in bold. Bootstrap values are indicated as percentages derived from 1000 replications. Values lower than 70 are not shown. Bar, 1 nucleotides substitution per 100 nucleotides. The tree is rooted with Bradyrhizobium japonicum USDA6T.
Plants 11 03011 g001
Plants 11 03011 g002 550

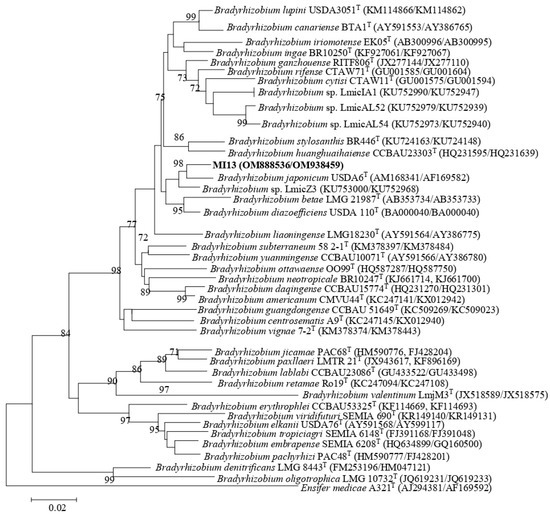

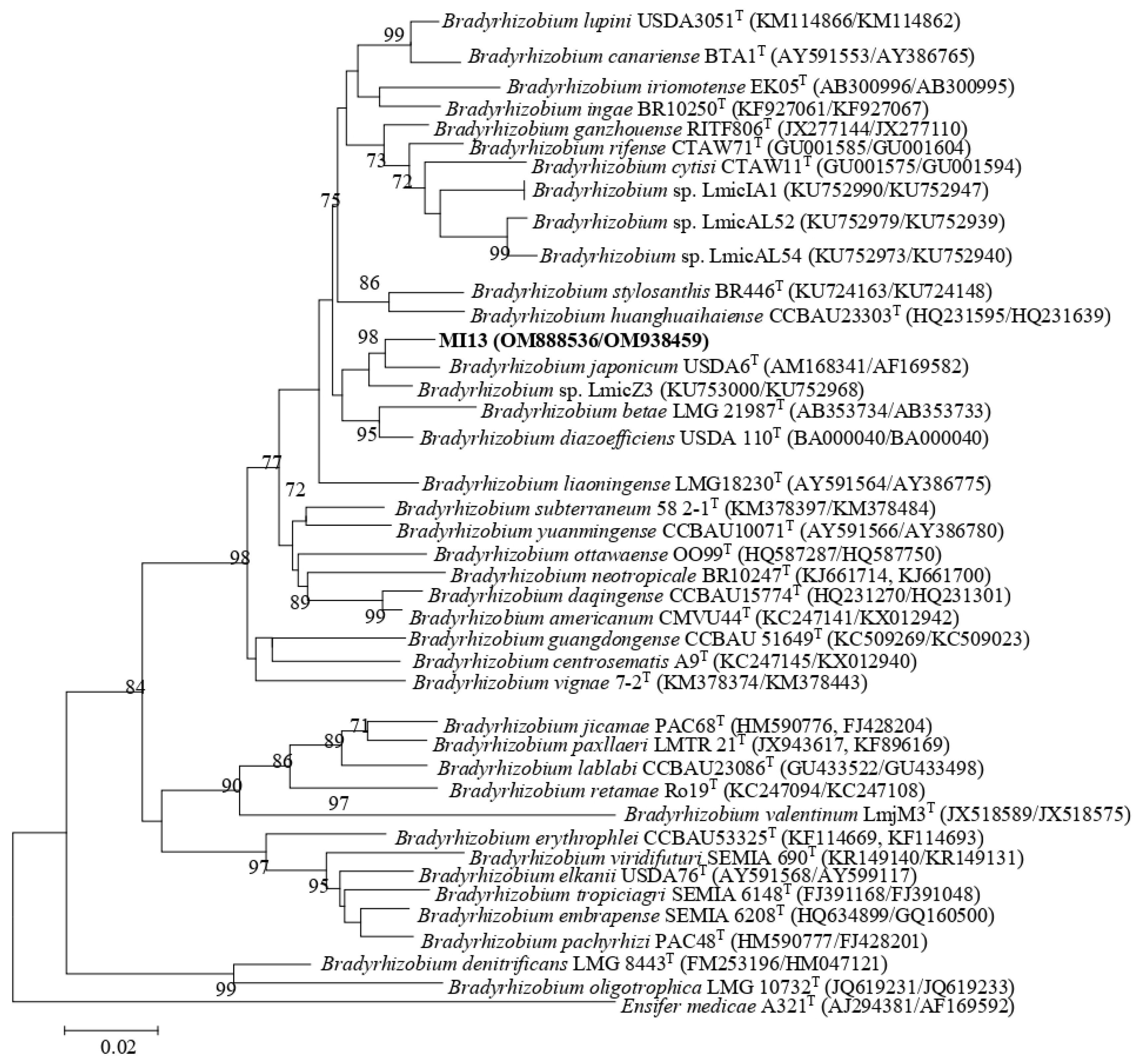

Figure 2. ML phylogenetic tree based on concatenated partial recA + glnII sequences of strains from nodules of sunnhemp (Crotalaria juncea L.) and phylogenetically related species within the genus Bradyrhizobium. The analysis was based on 870 nucleotides. Isolates are denoted in bold. Bootstrap values are indicated as percentages derived from 1000 replications. Values lower than 70 are not shown. Bar, 2 nucleotides substitution per 100 nucleotides. The tree is rooted with Ensifer medicae A321T.
Figure 2. ML phylogenetic tree based on concatenated partial recA + glnII sequences of strains from nodules of sunnhemp (Crotalaria juncea L.) and phylogenetically related species within the genus Bradyrhizobium. The analysis was based on 870 nucleotides. Isolates are denoted in bold. Bootstrap values are indicated as percentages derived from 1000 replications. Values lower than 70 are not shown. Bar, 2 nucleotides substitution per 100 nucleotides. The tree is rooted with Ensifer medicae A321T.
Plants 11 03011 g002
Plants 11 03011 g003 550

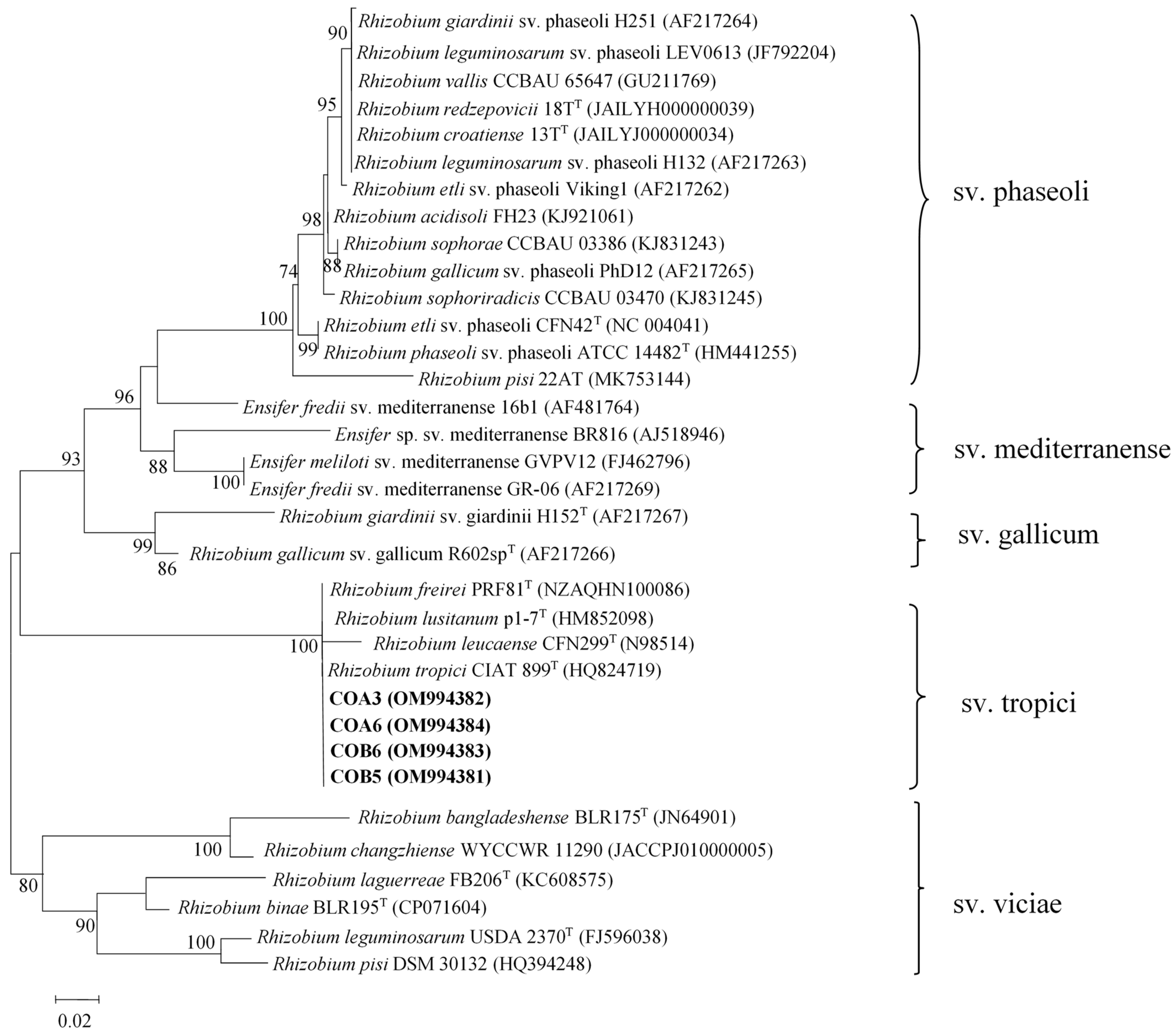

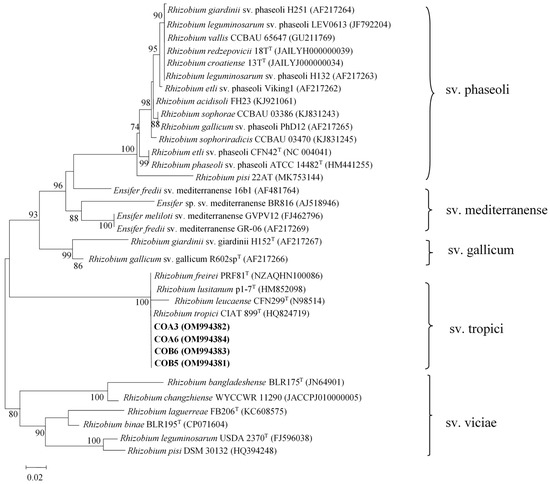

Figure 3. ML phylogenetic tree based on nodC sequences of strains from nodules of sunnhemp (Crotalaria juncea L.) and phylogenetically related species within the genus Rhizobium. Rhizobium symbiovars are also shown. The analysis was based on 580 nucleotides. Isolates are denoted in bold. Bootstrap values are indicated as percentages derived from 1000 replications. Values lower than 70 are not shown. Bar, 2 nucleotide substitution per 100 nucleotides.
Figure 3. ML phylogenetic tree based on nodC sequences of strains from nodules of sunnhemp (Crotalaria juncea L.) and phylogenetically related species within the genus Rhizobium. Rhizobium symbiovars are also shown. The analysis was based on 580 nucleotides. Isolates are denoted in bold. Bootstrap values are indicated as percentages derived from 1000 replications. Values lower than 70 are not shown. Bar, 2 nucleotide substitution per 100 nucleotides.
Plants 11 03011 g003
Plants 11 03011 g004 550

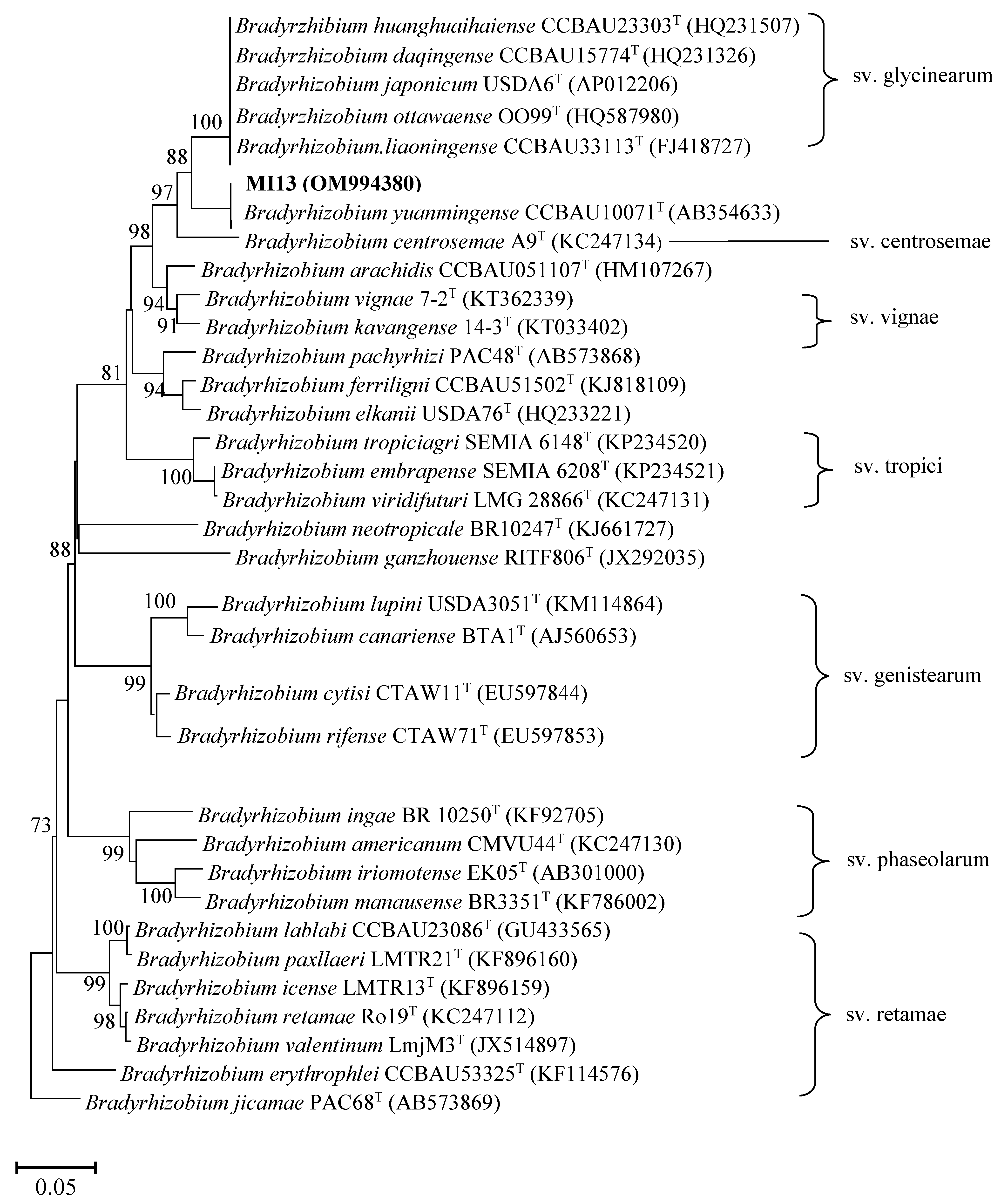

Figure 4. ML phylogenetic tree based on nodC sequences of strains from nodules of sunnhemp (Crotalaria juncea L.) and phylogenetically related species within the genus Bradyhizobium. Bradyhizobium symbiovars are also shown. The analysis was based on 580 nucleotides. Isolates are denoted in bold. Bootstrap values are indicated as percentages derived from 1000 replications. Values lower than 70 are not shown. Bar, 5 nucleotide substitution per 100 nucleotides.
Figure 4. ML phylogenetic tree based on nodC sequences of strains from nodules of sunnhemp (Crotalaria juncea L.) and phylogenetically related species within the genus Bradyhizobium. Bradyhizobium symbiovars are also shown. The analysis was based on 580 nucleotides. Isolates are denoted in bold. Bootstrap values are indicated as percentages derived from 1000 replications. Values lower than 70 are not shown. Bar, 5 nucleotide substitution per 100 nucleotides.
Plants 11 03011 g004
Table
Table 1. Identification of rhizobial strains isolated from sunnhemp (Crotalaria juncea L.) based on the amplification of the 16S rRNA gene. Treatments were named: COA (soil from citrus orchard A), COB (soil from citrus orchard B), and MI (commercial rhizobial inoculant). * Strains in bold were chosen for subsequent phylogenetic, in vitro, and in planta analyses.
Table 1. Identification of rhizobial strains isolated from sunnhemp (Crotalaria juncea L.) based on the amplification of the 16S rRNA gene. Treatments were named: COA (soil from citrus orchard A), COB (soil from citrus orchard B), and MI (commercial rhizobial inoculant). * Strains in bold were chosen for subsequent phylogenetic, in vitro, and in planta analyses.
Strain *REP-PCR PatternClosest Relative Species According to 16S rRNA Gene Sequence% Similarity (According to EzTaxon-e)
COA1, COA21Bacillus paranthracis99.95
COA32Rhizobium sp./R. tropici99.87
COA43Bacillus paramycoides100
COA54Herbaspirillum seropedicae99.85
COA65Rhizobium sp./R. tropici99.78
CO7, COA86Bacillus cereus100
COA9, COA10, COA117Bacillus nitratoreducens99.84
COA128Bacillus sp.99.10
COA139Paenibacillus polymyxa99.58
COB110Burkholderia cepacia99.90
COB2, COB711Burkholderia territori99.85
COB3, COB912Bacillus megaterium100
COB4, COB1013Herbaspirillum robiniae99.90
COB514Rhizobium sp./R. tropici99.85
COB615Rhizobium sp./R. tropici99.82
COB8, COB1116Paenarthrobacter nicotinovorans99.84
COB12, COB1317Bacillus sp.100
COB14, COB15, COB1718Bacillus aryabhattai99.95
COB16, COB18, COB1919Paenibacillus polymyxa99.85
MI1, MI3, MI420Bacillus sp.99.85
MI2, MI521Paenibacillus sp.99.70
MI6, MI10, MI1522Burkholderia cepacia99.84
MI7, MI8, MI1323Bacillus sp.99.90
MI9, MI1224Bacillus sp.100
MI11, MI1425Bacillus aryabhattai100
MI1326Bradyrhizobium sp.99.90
Table
Table 2. N2-fixation, nitrous oxide (N2O), and dinitrogen (N2) rates of rhizobial strains in free-living cells (A) and nodules (B) of sunnhemp (Crotalaria juncea L.) inoculated with the studied rhizobial strains. Values represent the mean ± standard error. For each analysis, numbers in a column followed by the same letter are not significantly different according to one-way ANOVA test (Tukey’s HSD, p < 0.05).
Table 2. N2-fixation, nitrous oxide (N2O), and dinitrogen (N2) rates of rhizobial strains in free-living cells (A) and nodules (B) of sunnhemp (Crotalaria juncea L.) inoculated with the studied rhizobial strains. Values represent the mean ± standard error. For each analysis, numbers in a column followed by the same letter are not significantly different according to one-way ANOVA test (Tukey’s HSD, p < 0.05).
A.
Free-Living Cells
Rhizobacterial StrainN2-Fixation (nmol C2H4 h−1 mL−1)N2O Production (nmol N2O h−1 mL−1)N2 Production (nmol N2O h−1 mL−1)
COA318.9 ± 2.4 a23.9 ± 4.2 b18.9 ± 1.0 a
COA616.9 ± 2.2 a25.9 ± 3.7 b18.1 ± 1.2 a
COB510.9 ± 1.0 b27.9 ± 3.1 b17.9 ± 1.1 a
COB610.5 ± 1.2 b24.9 ± 3.3 b17.7 ± 1.2 a
MI1311.9 ± 3.8 b45.9 ± 3.2 a16.9 ± 1.2 a
B.
Nodules
Rhizobacterial Strain/TreatmentN2-Fixation (nmol l−1 C2H4 h−1 g Nodule Dry Weight−1)N2O Production (nmol l−1 N2O h−1 g Nodule Dry Weight−1)N2 Production (nmol l−1 N2O h−1 g Nodule Dry Weight−1)
COA3152.7 ± 11.8 a12.7 ± 5.6 b10.9 ± 0.8 a
COA6162.7 ± 17.6 a11.8 ± 6.7 b9.8 ± 0.6 a
COB5111.7 ± 14.7 b12.7 ± 7.8 b10.8 ± 0.9 a
COB6120.7 ± 12.9 b15.8 ± 6.9 b12.9 ± 0.6 a
MI1385.7 ± 10.8 c41.7 ± 11.5 a15.1 ± 0.4 a
Table
Table 3. Number of nodules, root dry weight, shoot dry weight, total C, and total N (%) of sunnhemp (Crotalaria juncea L.) inoculated with different rhizobial strains. Uninoculated plants were used as a control. Numbers in a column followed by the same letter are not significantly different according to one-way ANOVA test (Tukey’s HSD, p < 0.05).
Table 3. Number of nodules, root dry weight, shoot dry weight, total C, and total N (%) of sunnhemp (Crotalaria juncea L.) inoculated with different rhizobial strains. Uninoculated plants were used as a control. Numbers in a column followed by the same letter are not significantly different according to one-way ANOVA test (Tukey’s HSD, p < 0.05).
Rhizobacterial StrainNumber of Nodules per PlantRoot Dry Weight (g)Shoot dry Weight (g)Total N (mg/g)Total C (mg/g)
COA365 ± 10 a45.8 ± 5.4 a19.2 ± 1.4 a43.6 ± 1.2 a399.1 ± 3.2 a
COA669 ± 12 a42.8 ± 4.6 a18.2 ± 1.3 a45.1 ± 1.9 a398.1 ± 2.9 a
COB542 ± 11 b28.8 ± 7.1 b14.8 ± 1.1 b36.2 ± 0.6 b390.6 ± 1.6 b
COB644 ± 10 b34.7 ± 4.5 b15.5 ± 1.3 b34.6 ± 1.1 b391.5 ± 1.1 b
MI1348 ± 12 b25.3 ± 3.5 c12.3 ± 1.0 c29.1 ± 0.6 c384.6 ± 1.6 c
Negative control-20.8 ± 2.1 c11.6 ± 1.0 c20.6 ± 0.5 d360.6 ± 1.5 d
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Castellano-Hinojosa, A.; Mora, C.; Strauss, S.L. Native Rhizobia Improve Plant Growth, Fix N2, and Reduce Greenhouse Emissions of Sunnhemp More than Commercial Rhizobia Inoculants in Florida Citrus Orchards. Plants 2022, 11, 3011. https://doi.org/10.3390/plants11223011

AMA Style

Castellano-Hinojosa A, Mora C, Strauss SL. Native Rhizobia Improve Plant Growth, Fix N2, and Reduce Greenhouse Emissions of Sunnhemp More than Commercial Rhizobia Inoculants in Florida Citrus Orchards. Plants. 2022; 11(22):3011. https://doi.org/10.3390/plants11223011

Chicago/Turabian Style

Castellano-Hinojosa, Antonio, Christoph Mora, and Sarah L. Strauss. 2022. "Native Rhizobia Improve Plant Growth, Fix N2, and Reduce Greenhouse Emissions of Sunnhemp More than Commercial Rhizobia Inoculants in Florida Citrus Orchards" Plants 11, no. 22: 3011. https://doi.org/10.3390/plants11223011

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
