Article

Genome-Wide Identification of R2R3-MYB Transcription Factor and Expression Analysis under Abiotic Stress in Rice

by
Lihua Kang
1,
Yangyang Teng
1,
Qiwen Cen
1,
Yunxia Fang
1,
Quanxiang Tian
1,
Xiaoqin Zhang
1,
Hua Wang
2,
Xian Zhang
1,* and
Dawei Xue
1,*
1
College of Life and Environmental Sciences, Hangzhou Normal University, Hangzhou 311121, China
2
State Key Laboratory for Managing Biotic and Chemical Threats to the Quality and Safety of Agro-Products, Institute of Virology and Biotechnology, Zhejiang Academy of Agricultural Sciences, Hangzhou 310021, China
*
Authors to whom correspondence should be addressed.
Plants 2022, 11(15), 1928; https://doi.org/10.3390/plants11151928
Submission received: 29 June 2022 / Revised: 22 July 2022 / Accepted: 23 July 2022 / Published: 25 July 2022
(This article belongs to the Special Issue Transcriptome Analysis and Gene Regulation in Plant Growth Development)
Browse Figures
Versions Notes

Abstract

:
The myeloblastosis (MYB) family comprises a large group of transcription factors (TFs) that has a variety of functions. Among them, the R2R3-MYB type of proteins are the largest group in plants, which are involved in controlling various biological processes such as plant growth and development, physiological metabolism, defense, and responses to abiotic and biotic stresses. In this study, bioinformatics was adopted to conduct genome-wide identification of the R2R3-MYB TFs in rice. We identified 190 MYB TFs (99 R2R3-MYBs), which are unevenly distributed on the 12 chromosomes of rice. Based on the phylogenetic clustering and protein sequence characteristics, OsMYBs were classified into five subgroups, and 59.6% of the Os2R_MYB genes contained two introns. Analysis of cis-acting elements in the 2000 bp upstream region of Os2R_MYB genes showed that all Os2R_MYB genes contained plant hormones-related or stress-responsive elements since 91.9%, 79.8%, 79.8%, and 58.6% of Os2R_MYB genes contain ABRE, TGACG, CGTCA, and MBS motifs, respectively. Protein–protein network analysis showed that the Os2R_MYBs were involved in metabolic process, biosynthetic process, and tissue development. In addition, some genes showed a tissue-specific or developmental-stage-specific expression pattern. Moreover, the transcription levels of 20 Os2R_MYB genes under polyethylene glycol (PEG) and cadmium chloride (CdCl2) stress inducers were dissected by qRT-PCR. The results indicated genes with an altered expression upon PEG or CdCl2 stress induction. These results potentially supply a basis for further research on the role that Os2R_MYB genes play in plant development and stress responses.

1. Introduction

MYB transcription factor families are abundant in plants, accounting for about 9% of total transcription factors in Arabidopsis thaliana [1]. Proteins differ on the number of basic MYB domain repeats, conferring the DNA-binding capacity. A MYB DNA-binding domain is about 52 amino acid residues (R) long. Approximately 18–19 amino acid residues regularly repeat in the tryptophan residue, forming a helix-turn-helix (HTH) fold [2,3]. On the basis of the number of adjacent repeats, MYB can be classified into four categories: R1/R2, R3-MYB (1R-MYB), R2R3-MYB (2R-MYB), R1R2R3-MYB (3R-MYB), and 4R-MYB, which contain one, two, three, and four MYB repeats, respectively. In plants, most MYB transcription factors belong to the R2R3 type [4,5].
MYB proteins function in a variety of biological processes, including plant developmental regulation, plant hormone responses, cell differentiation, and adaption to biotic and abiotic stresses. The MYB gene regulating anthocyanin biosynthesis was firstly identified in Zea mays (C1) [6]. Since then, numerous MYB genes have been isolated and identified in plants. For example, expression of the snapdragon (Antirrhinum majus) R2R3-MYB proteins AmMYB308/330 downregulated the expression level of the genes related to lignin synthesis in tobacco, resulting in lignin reduction [7]. Co-expression of soybean GmIFS1 (encoding isoflavone synthase 1) and Arabidopsis AtMYB12 in tobacco can effectively promote isoflavone synthesis [8]. In strawberry, the natural variation of MYB10 caused the change in color of skin and flesh [9]. The R2R3-MYB TF MYB6 regulates different branches of the phenylpropanoid biosynthesis pathway and promotes anthocyanin biosynthesis in Populus tomentosa [10]. Some MYB TFs have also been comprehensively studied in abiotic stress. Transgenic Arabidopsis plants over-expressing the OsMYB3R-2 showed enhanced resistance to drought, salt, and cold stress [11]. Similarly, enhanced cold-stress tolerance was observed in tobacco overexpressing the PbrMYB5 [12], and transgenic Arabidopsis plants overexpressing the MYB4 exhibited higher cadmium (Cd) tolerance [13]. The R2R3-MYB TFs in rice exerted an important effect in plant development and abiotic stress response. In development, some MYB TFs have been reported to affect male fertility [14,15], hull and grain development [16], and flower and spikelet development [17] of rice. In addition, it also showed a significant effect on salt [18], drought [19], and cold [20] resistance and heavy metal [21] tolerance in rice. Studies have shown that MYB-binding region enrichment was related to drought induction, suggesting its regulatory role in rice drought response [22].
Rice (Oryza sativa L.), as the most important food crop in China, provides the staple food for about 50% of the world’s population. It ranks first in China’s food production chain, but the yield is easily affected by the availability of water, temperature, diseases, and pests during its development. With the development of modern production, soil cadmium pollution is emerging as a more serious problem. Since rice contains transporters uptaking cadmium, a serious threat has been raised up to food safety and human health [23]. However, the studies about the MYB transcription factor involved in heavy metal stress are rarely reported. Therefore, it is very important to study the mechanism underlying the stress responses of rice varieties. In this study, the polyethylene glycol 6000 (PEG) and cadmium chloride (CdCl2) treatments were applied to simulate drought and heavy metal stress for exploring its related response pathways. The availability of rice genome sequencing has facilitated widespread biological research [24,25]. In this study, all rice MYB proteins in the genome database were identified using bioinformatics methods, including chromosome localization, phylogenetic analysis, gene structure analysis, and promoter cis-element analysis of Os2R_MYBs. In addition, based on genetic relevance, predicted gene expression levels, and physicochemical properties of proteins, twenty 2R- (R2R3-) OsMYB genes were selected, and their expression was analyzed after PEG and CdCl2 treatments on Nipponbare. Quantitative real-time (qRT)-PCR was used to determine gene transcription levels and the expression pattern in response to abiotic stress. This study can be regarded as a basis for functional research on the MYB TF family in rice, which will be beneficial to improving the quality and yield of rice and breeding new varieties.

2. Results

2.1. Genome-Wide Identification and Chromosomal Locations of OsMYBs

In this study, 190 OsMYB genes were identified by genome-wide analysis and classified into four subfamilies according to the number of MYB DNA-binding domains: 1R-MYB (R1/R2, R3-MYB), 2R-MYB (R2R3-MYB), 3R-MYB (R1R2R3-MYB), and 4R-MYB. We found that R2R3-MYB genes accounts for 52.1% of the total MYB genes in rice. Studies have revealed that most of the MYB TFs involved in resistance to adversity are the R2R3-MYB type [26]. Based on the number of adjacent repeats, they were named as Os1R_MYB1~Os1R_MYB87, Os2R_MYB1~Os2R_MYB99, Os3R_MYB1~Os3R_MYB3, and Os4R_MYB1. The results of chromosome visualization (Figure 1) showed that 190 OsMYB genes are located on 12 chromosomes. There were more OsMYB genes on chromosomes 1, 2, and 6 (35, 23, and 22, respectively) and fewer OsMYB genes on chromosomes 9, 10, and 11 (9, 7, and 5, respectively). There were 20 Os2R_MYB genes accounting for 20.2% of the total 2R-MYB-type genes located on chromosome 1. In addition, there were 10 repeat gene pairs. We also analyzed the physicochemical properties of the family member 2R-MYB proteins. The results (Table S1) show that the GRAVY of 99 proteins was negative, and average instability index was 57.15, indicating that Os2R_MYB proteins were almost all unstable hydrophilic proteins (GRAVY < 0, instability index > 40).

2.2. Phylogenetic Analysis of OsMYBs

In plants, the R2R3-MYB type of proteins play an important role in the developmental stages and under the stress responses. Therefore, phylogenetic trees of MYB proteins in Oryza sativa L. and Arabidopsis thaliana were constructed (Figure 2) to further study the evolutionary relationships between 2R-MYB proteins. Multiple sequence alignment of rice 2R-MYB proteins (Supplementary Figure S1) showed the “-W-(X18/X19)-W-(X18/X19)-W-…-W/F/I/L-W(X18/X19)-W-” structure, thus forming the helix-turn-helix (HTH) fold. Based on the type of conserved MYB domain, the Os2R-MYB proteins were classified into five subgroups (Figure 2). This conserved tryptophan (W), regularly repeated, is essential for maintaining the hydrophobic function of proteins. The first W of the R3 is usually replaced by aromatic or hydrophobic amino acids, such as leucine (L), isoleucine (I), or phenylalanine (F) [2,3,27]. In the Os2R_MYB protein of Group_2B, the first W of the R3 domain was replaced by F. In Group_2C, all of the first W of the R3 domain were replaced by F except for Os2R_MYB95/68/67/17, while most of the W were replaced by F in Group_2D, Group_2E, and Group_2F. In a few cases, the W was replaced by I or L. Interestingly, the R2 and R3 had swapped places in Group_2A.

2.3. Structure of Os2R_MYBs Genes

Exon and intron distribution profiles of Os2R_MYBs were analyzed by GSDS V2.0 to align corresponding genomic sequences (Figure 3), and the number of introns was statistically analyzed (Figure 4). The result showed that most Os2R_MYB genes contained two introns (59, 59.6%). Os2R_MYB66 contained six introns, and Os2R_MYB95 contained seven introns, while ten genes were intronless (Table S2).

2.4. Analysis of Promoter Cis-Elements

To further understand the regulatory mechanism of the Os2R_MYB genes in plant growth, development, and stress response, the 2000 bp regions upstream of 99 Os2R_MYBs were analyzed. 10 hormone and 12 stress-response cis-elements (Figure 5 and Figure 6) were detected in the promoter region of the Os2R_MYBs. Ten hormone-responsive cis-elements included the TCA-Element/SARE (salicylic acid response), the ABRE (abscisic acid response), the TATC-box/P-box/gare-motif (gibberellin response), the TGACG-motif/CGTCA-motif (MeJA response), and the TGA-element/AuxRR-core (auxin response). Twelve stress-related elements included the GT1-motif/G-box/MRE/Sp1/ACE/3-AF1 binding site/AAAC-motif (light), the MBS (drought), the LTR (low temperature), TC-rich repeats (defense and stress response), and the WUN-motif (wound). A total of 91 Os2R_MYB genes had the ABRE motif, indicating the potential responses to ABA. The TGACG or the CGTCA motifs were detected in 79 Os2R_MYB genes, indicating that they were sensitive to methyl jasmonic acid. Fifty-eight Os2R_MYB genes had the MBS motif, indicating that they were involved in the drought-stress response of plants (Table 1).

2.5. The Relative Expression Level of Os2R_MYBs in Various Tissues and Growth Stages

To explore the function of Os2R_MYBs, we dissected the expression levels of Os2R_MYB genes in various tissues and growth stages (Figure 7). Based on the expression analysis, these genes were classified into eight groups (G1-G8) according to cluster analysis results. Group G1 contained 7 Os2R_MYB genes, all highly expressed in roots, implying that these genes might be involved in root development. Most genes in G2 and G3 groups were highly expressed in all tissues, indicating their universal roles. Seven Os2R_MYB genes in the G4 group were all lowly expressed in the endosperm, implying that these genes may not be involved in endosperm development. The highly expressed MYB genes were mainly located in leaf sheath, root, and stem but showed low expression in other tissues or organs in G6. The expression level of G8 genes was lower in all tissues.

2.6. Protein–Protein Interaction Network Analysis

Various proteins interact with each other to form a protein interaction network, which helps to regulate the biological signal transmission and related gene expression. In order to further study the function of R2R3_MYB proteins in rice, we analyzed the protein-protein interaction network of 99 Os2R_MYBs (Figure 8 and Table S3). Protein–protein interaction network protein annotations and functional annotations are shown in Tables S4 and S5. The result showed that OsJ_07944, HOS66, Os2R_MYB57, OS01T0517900-00, and OS02T0710900-01 played pivotal roles in this network and were involved in metabolic process, biosynthetic process, and tissue development in plant. There was a putative interaction between Os2R_MYB57 and Os2R_MYB1/6/29/46/51/87/97, BIP1, and OS02T0710900-01, in which BIP1 was involved in rice endosperm regulation, suggesting that Os2R_MYB57 may have a similar function [28]. The OsJ07944 (OS02T0682500-01), a putative anthocyanin biosynthetic gene regulator PAC1, interacted with Os2R_MYB11/19/24/29/47/48/51/71/77/92/98/89.

2.7. Gene Expression Levels of Os2R_MYBs under Abiotic Stresses

We selected 20 Os2R_MYB genes and analyzed their expression levels under either PEG or CdCl2 treatments by qRT-PCR (Figure 9 and Figure S2). The results indicated that most of the 20 Os2R_MYB genes exhibited altered expression upon PEG or CdCl2 stress induction. Five Os2R_MYB genes were upregulated during PEG treatment. The expression levels of Os2R_MYB36, Os2R_MYB1, Os2R_MYB18, Os2R_MYB81, and Os2R_MYB98 were significantly upregulated. The gene expression levels of twelve Os2R_MYBs, namely Os2R_MYB3, Os2R_MYB7, Os2R_MYB15, Os2R_MYB16, Os2R_MYB21, Os2R_MYB23, Os2R_MYB56, Os2R_MYB76, Os2R_MYB89, Os2R_MYB93, Os2R_MYB2, and Os2R_MYB99, were significantly downregulated. Under CdCl2 stress treatment, the expression level of Os2R_MYB36 was significantly upregulated. Os2R_MYB3, Os2R_MYB7, Os2R_MYB15, Os2R_MYB23, Os2R_MYB47, Os2R_MYB76, Os2R_MYB89, and Os2R_MYB93 genes were significantly downregulated. However, the expression level of Os2R_MYB2, Os2R_MYB90, and Os2R_MYB99 genes had no obvious alteration. In general, the twelve genes’ (Os2R_MYB3/7/15/16/21/23/47/51/56/76/89/93) expression levels were downregulated, only one gene (Os2R_MYB36) was upregulated, and four genes (Os2R_MYB1/18/81/98) had absolutely opposite expression patterns under drought and cadmium stresses. The statistical results are shown in Table S6. Among these genes, Os2R_MYB1 is involved in phosphorus starvation signaling and gibberellin as a regulatory factor [29]. Os2R_MYB90 regulates phosphorus accumulation and phosphorus-responsive transporters in rice, and overexpression of Os2R_MYB90 enhances plant growth and root system architecture [30]. The Os2R_MYB36-overexpressing plants were more sensitive to abscisic acid and more tolerant to cold, dehydration, and salt stresses than control plants [31]. These results showed that the selected Os2R_MYB genes were responsive to abiotic stress, suggesting a potential role involved in the stress regulation.

3. Discussion

MYB TF family is one of the most abundant families in plants, with complex and diverse functions. This study identified 190 MYB family members in the rice genome unevenly distributed on all 12 chromosomes (Figure 1), of which 99 were R2R3-MYB (52.1%). R2R3-MYB group is one of the largest group of proteins in plants. They all contain two R structures at the N-terminal but are variable at the C-terminal containing transcriptional activation or inhibition domains, and conserved threonine and serine residues served as post-translational modification sites [5,32]. R2R3-MYB TFs are extensively involved in hormone response, cell differentiation, secondary metabolism, abiotic stress, resistance to disease, and insect infestation [33,34,35,36,37]. For example, overexpression of SG3, an R2R3-MYB protein-encoding gene, can promote rice grain elongation [38]. The R2R3-MYB transcription factor MYB106 in Arabidopsis thaliana is a negative regulator of plant flowering. In the mutant without MYB106, plants show early flowering in long-day growth condition [39]. Overexpression of GmMYB81 endows plants with tolerance to salt and drought stress [36]. The “-W-(X18/X19)-W-(X18/X19)-W-…W/F/I/L-W(X18/X19)-W-” structure in the N-terminal of MYB domain is the key sequence of its complex functions. We aligned the sequences of the 2R-MYB protein of rice (Figure S1), and the results showed that almost all 99 2R-MYB proteins contained the structure. The first W of the R3 domain was usually replaced by aromatic or hydrophobic amino acids such as leucine (L), isoleucine (I), or phenylalanine (F), which together form a hydrophobic core [2,27], conferring their complex functions. Interestingly, the R2 and R3 had swapped places in Os2R_MYB2/56/57. We constructed phylogenetic trees of MYB proteins in Oryza sativa L. and Arabidopsis thaliana (Figure 2) and classified them into five subgroups based on the key sequence features. Most plant proteins are hydrophilic, and thus, some protein partners or signal peptides are needed to participate the transportation and localization of proteins through lipid bilayer. For example, in soybean, previous studies have shown that thylakoid transport peptides affect the expression and localization of NdhB subunits [40]. Analysis of the physicochemical properties of Os2R_MYB protein (Table S1) showed that most types of 2R-MYB proteins were hydrophilic, and a similar functional mechanism might exist, requiring further study.
Gene structure is important to the study of gene evolution. To better comprehend the evolutionary relationship of the Os2R_MYB genes, their exon and intron distribution profiles were analyzed and counted (Figure 3 and Figure 4). The result showed that most Os2R_MYB genes were evolutionarily conserved and contained two introns (59, 59.6%). Os2R_MYB66 contained six introns, and Os2R_MYB95 contained seven introns, while ten genes were intronless (Table S2).
In this study, we used the predicted gene expression data to dissect the expression patterns of Os2R_MYB genes in various tissues and growth stages (Figure 7), and combined with the 2R-MYB protein phylogenetic tree cluster analysis in rice and Arabidopsis (Figure 2), the functions of some Os2R_MYB genes could be predicted. At2R_MYB52 (At3g27810) and At2R_MYB105 (At5g40350) are both induced by jasmonate and have an important effect in stamen development [41]. At2R_MYB112 (At5g56110) is clustered with Os2R_MYB44 (Os04g0470600), Os2R_MYB44 is a key regulator of tapetal development and pollen wall formation, and At2R_MYB112 is also involved in the regulation of pollen wall formation [42,43]. These results suggested the reliability of our phylogenetic tree clustering. In addition, At2R_MYB33 (At2g32460) and Os2R_MYB58 (Os05g0490600) are clustered, and At2R_MYB33 may mediate gibberellin signaling in flowering responses, conferring their functions in root tip and subsequent stem tissue during germination [44]. Os2R_MYB66 was highly expressed in roots, stems, and inflorescences, suggesting that Os2R_MYB66 might have similar functions to At2R_MYB33.
Protein–protein network analysis shows that the Os2R_MYB protein families play a significant role in biological signal transmission and gene expression regulation of the life process (Figure 8). The mechanism of action of miRNA is directly related to protein, and miRNA plays its biological function mainly by participating in the regulation of downstream gene translation process. Abnormal protein expression is closely related to the development and stress resistance of plants. Further study of the miRNA interaction network will help provide a basis for future functional analysis. For example, previous studies have clarified the functions of TaTALEs in development and stress response through miRNA interaction network analysis [45,46]. We further explored Os2R_MYB genes in the abiotic stress response and found that Os2R_MYB36 gene expression levels were significantly higher, while Os2R_MYB3/7/15/16/21/23/47/51/56/76/89/93 gene expression levels were significantly lower (Figure 9, Figure S2 and Table S6) under the stress of drought and cadmium. These results exhibited that these genes were involved in regulating rice anti-stress response. Except for Os2R_MYB89, ABRE elements were existent in the promoter regions of these genes (Figure 5 and Figure 6), suggesting that these genes may be involved in the response to drought and heavy metal stress via ABA signaling pathway. The promoter regions of Os2R_MYB18/81/98/23 all contain TC-rich repeats, indicating that these genes are involved in plant defense response and environmental stress. In plants, the salicylic acid (SA) is closely related to the formation of plasmodesmata, promoting bud germination [47,48]. The promoter region of Os2R_MYB15/32/88 contained SARE, indicating that these genes may be involved in the regulation of SA, which is involved in plant growth and development.

4. Materials and Methods

4.1. Identification of MYB Family Members in Rice and Their Chromosomal Locations

The DNA and amino acid sequences of MYB TF of rice were downloaded from the MSU database (http://rice.uga.edu/index.shtml) (accessed on 11 November 2021) [49] based on the pfam family number (PF00249), generating a list of 427 DNA and protein sequences. Redundant sequences were deleted through the CD-Hit website (http://weizhong-lab.ucsd.edu/cdhit-web-server/cgi-bin/index.cgi?cmd=cd-hit) (accessed on 11 November 2021) [50], and 239 non-redundant protein sequences were retained. Then, the non-redundant protein sequences were entered in the Pfam website (http://pfam.xfam.org/search#tabview=tab1) (accessed on 11 November 2021) for domain confirmation. The non-typical MYB domains and short sequences were removed manually, delivering a list of 190 MYB proteins that were identified and renamed finally using the TBtools. The distribution of the MYB gene on the 12 chromosomes of rice was visualized by TBtools based on chromosome location information. The MYB protein list derived from the MSU database was loaded into ExPASy (https://web.expasy.org/protparam/?tdsourcetag=s_pcqq_aiomsg) (accessed on 11 November 2021) [51] to obtain the respective physicochemical properties, including molecular weight (MV), numbers of amino acids (N), isoelectric point (pI), grand average of hydropathicity (GRAVY), and instability index.

4.2. Classification and Phylogenetic Analysis of MYB Family Members

The Arabidopsis MYB transcription factors were downloaded from TAIR (https://www.arabidopsis.org/tools/index.jsp) (accessed on 11 August 2021). Clustal Omega [52] was used to align the MYB proteins derived from Arabidopsis and rice. The MYB protein family phylogenetic tree was constructed by the neighbor-joining method of Mega-X [53] with a bootstrap value set to 1000. Subsequently, the generated dendrogram was polished by the Evolview (https://evolgenius.info//evolview-v2/) (accessed on 13 July 2022).

4.3. Structural Analysis of Os2R_MYB Genes

To identify the introns and exons of the rice 2R-MYB gene sequences, the GSDS platform (http://gsds.gao-lab.org/) (accessed on 13 August 2021) [54] was used and were further visualized with TBtools.

4.4. Analysis of Stress-Related Cis-Elements in Os2R_MYB Promoter Regions

The 2000 bp DNA sequences upstream of the 2R-MYB TF corresponding to their promoters were extracted from the RAP-DB database (https://rapdb.dna.affrc.go.jp/tools/dump) (accessed on 18 November 2021) [49,55]. Stress response cis-elements in promoter sequences were analyzed using the PlantCARE database (http://bioinformatics.psb.ugent.be/webtools/plantcare/html/) (accessed on 18 November 2021) [56].

4.5. Analysis of the Relative Expression Level of Os2R_MYBs in Different Tissues and Growth Stages

The expression data of the rice 2R-MYB genes from various tissues and growth stages were downloaded from RiceXPro (https://ricexpro.dna.affrc.go.jp/GGEP/index.php) (accessed on 25 November 2021). A total of 10 samples were collected, including leaf blades, leaf sheaths, roots, stems, inflorescence, anthers, pistils, ovaries, embryos, and endosperm. The profiles of Os2R_MYB genes were plotted by TBtools and normalized by lgN, and the expression levels were presented with different colors.

4.6. Abiotic Stress Treatment of Rice

Nipponbare cultivar was used as the experimental material. Rice seeds were disinfected with 2.5% NaClO and washed with sterile water. After three days on a wet filter paper at 37 °C, the rooted seeds were transferred to hydroponic boxes. At the two-leaf stage, the seedlings were treated either with 20% 6000 PEG or 50 μmol/L CdCl2 for 24 h to simulate the growth of rice seedlings under environmental stress such as drought and cadmium. Rice leaves after stress treatments were collected and stored at −80 °C for RNA extraction.

4.7. Protein–Protein Interaction Network Analysis

The 2R-MYB-type protein list derived from the MSU database was loaded into STRING online website (https://string-db.org/cgi/input?sessionId=byDrTWHDQ5tp&input_page_active_form=multiple_identifiers) (accessed on 15 July 2022) to predict putative interacting proteins [57]. The protein–protein interaction network was generated and decorated by Cytoscape software.

4.8. Analysis of Os2R_MYBs Gene Expression in Rice under Abiotic Stress

Based on the observed variation in gene expression, 20 MYB genes were selected to detect the changes in transcription levels under the selected stress inducers by qRT-PCR. The primers were designed by Beacon Designer 7.9, and the sequence information of all primers is shown in Table S7. Total RNA from rice leaves was extracted by Easy Plant RNA Extraction Kit, and the first-strand cDNA was synthesized using FastKing RT Kit. Then, cDNA samples were diluted to 200 ng/μL to serve as templates for qRT-PCR. The reaction was carried out using UltraSYBR Green Master Mixture in a Bio-Rad CFX system. Reaction conditions: 4 min at 95 °C, followed by 39 cycles of 15 s at 95 °C, 15 s at 58 °C, and 25 s at 72 °C. The cultivar Nipponbare was used as the control, while the rice Actin1 and GAPDH were used as reference genes. The relative expression levels of each gene were calculated by the 2−ΔΔCt method. All reactions were set up in triplicates. Standard deviation (SD) was evaluated from three replicates.

5. Conclusions

A total of 190 MYB proteins were identified from rice genome data, including 99 2R-MYB-type proteins. The genes encoding these proteins were unevenly distributed across 12 chromosomes of rice. There were 10 duplicate gene pairs. Os2R_MYB protein was classified into five subgroups according to its sequence characteristics, and the sequence characteristics of these proteins were further verified by multiple sequence alignment. We also dissected the structure of the genes encoding these proteins, and the result showed that most Os2R_MYB genes contained two introns (59, 59.6%). Moreover, their cis-elements in the upstream 2000 bp promoter region were analyzed, suggesting their involvement in rice hormone response or abiotic stress response. The Os2R_MYB proteins may participate in biological signal transmission and gene expression regulation by protein–protein interaction network analysis. Subsequent studies can further clarify the function of the Os2R_MYB protein by studying a specific Os2R_MYB protein–protein interaction proteins and co-expression genes. The differential expression of 20 Os2R_MYB genes under 6000PEG and CdCl2 treatments showed that some Os2R_MYB genes responded to PEG and/or CdCl2 stresses. This study can serve as a basis for the identification and functional study of the MYB TF family members of rice and help to illustrate the molecular mechanism of rice response to abiotic stress, which is expected to breed new rice varieties with strong resistance to abiotic stress.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/plants11151928/s1, Figure S1: Multiple sequence alignments of Os2R_MYB proteins; Figure S2: Relative gene expression of 20 Os2R_MYBs under PEG and CdCl2 stress treatments; Table S1: Physicochemical Properties of the 2R-MYB Type Proteins; Table S2: Statistical Analysis of the Intron Numbers of 99 Os2R_MYB Genes; Table S3: R2R3_MYB proteins interaction network construct; Table S4: R2R3_MYB proteins interaction network protein annotations; Table S5: R2R3_MYB proteins interaction network functional annotations; Table S6: Statistical Analysis of Os2R_MYB Genes Expression Level under the PEG and CdCl2 Stresses; Table S7: Quantitative RT-PCR Primers.

Author Contributions

Conceptualization, D.X. and X.Z. (Xian Zhang); methodology, L.K., Y.T., Q.C. and X.Z. (Xiaoqin Zhang); software, L.K., Q.T. and Y.F.; validation, H.W., Y.F. and X.Z. (Xiaoqin Zhang); formal analysis, L.K., Y.T. and Q.C.; resources, D.X., H.W. and X.Z. (Xian Zhang); data curation, Y.F., H.W. and D.X.; writing—original draft preparation, L.K., Y.T. and X.Z. (Xian Zhang); writing—review and editing, D.X. and X.Z. (Xian Zhang). All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Zhejiang Provincial Natural Science Foundation of China (LY20C140003; LY19C130001; LY21C130007;), and Hainan Yazhou Bay Seed Laboratory (B21HJ0220).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Riechmann, J.L.; Heard, J.; Martin, G.; Reuber, L.; Jiang, C.; Keddie, J.; Adam, L.; Pineda, O.; Ratcliffe, O.J.; Samaha, R.R.; et al. Arabidopsis transcription factors: Genome-wide comparative analysis among eukaryotes. Science 2000, 290, 2105–2110. [Google Scholar] [CrossRef] [PubMed]
  2. Kanei-Ishii, C.; Sarai, A.; Sawazaki, T.; Nakagoshi, H.; He, D.N.; Ogata, K.; Nishimura, Y.; Ishii, S. The tryptophan cluster: A hypothetical structure of the DNA-binding domain of the myb protooncogene product. J. Biol. Chem. 1990, 265, 19990–19995. [Google Scholar] [CrossRef]
  3. Jia, L.; Clegg, M.T.; Jiang, T. Evolutionary dynamics of the DNA-binding domains in putative R2R3-MYB genes identified from rice subspecies indica and japonica genomes. Plant Physiol. 2004, 134, 575–585. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Dubos, C.; Stracke, R.; Grotewold, E.; Weisshaar, B.; Martin, C.; Lepiniec, L. MYB transcription factors in Arabidopsis. Trends Plant Sci. 2010, 15, 573–581. [Google Scholar] [CrossRef]
  5. Martin, C.; Paz-Ares, J. MYB transcription factors in plants. Trends Genet. 1997, 13, 67–73. [Google Scholar] [CrossRef]
  6. Paz-Ares, J.; Ghosal, D.; Wienand, U.; Peterson, P.A.; Saedler, H. The regulatory c1 locus of Zea mays encodes a protein with homology to myb proto-oncogene products and with structural similarities to transcriptional activators. EMBO J. 1987, 6, 3553–3558. [Google Scholar] [CrossRef]
  7. Tamagnone, L.; Merida, A.; Parr, A.; Mackay, S.; Culianez-Macia, F.A.; Roberts, K.; Martin, C. The AmMYB308 and AmMYB330 transcription factors from antirrhinum regulate phenylpropanoid and lignin biosynthesis in transgenic tobacco. Plant Cell 1998, 10, 135–154. [Google Scholar] [CrossRef] [Green Version]
  8. Pandey, A.; Misra, P.; Khan, M.P.; Swarnkar, G.; Tewari, M.C.; Bhambhani, S.; Trivedi, R.; Chattopadhyay, N.; Trivedi, P.K. Co-expression of Arabidopsis transcription factor, AtMYB12, and soybean isoflavone synthase, GmIFS1, genes in tobacco leads to enhanced biosynthesis of isoflavones and flavonols resulting in osteoprotective activity. Plant Biotechnol. J. 2014, 12, 69–80. [Google Scholar] [CrossRef]
  9. Castillejo, C.; Waurich, V.; Wagner, H.; Ramos, R.; Oiza, N.; Muñoz, P.; Triviño, J.C.; Caruana, J.; Liu, Z.; Cobo, N.; et al. Allelic Variation of MYB10 Is the Major Force Controlling Natural Variation in Skin and Flesh Color in Strawberry (Fragaria spp.) Fruit. Plant Cell 2020, 32, 3723–3749. [Google Scholar] [CrossRef]
  10. Wang, L.; Lu, W.; Ran, L.; Dou, L.; Yao, S.; Hu, J.; Fan, D.; Li, C.; Luo, K. R2R3-MYB transcription factor MYB6 promotes anthocyanin and proanthocyanidin biosynthesis but inhibits secondary cell wall formation in Populus tomentosa. Plant J. 2019, 99, 733–751. [Google Scholar] [CrossRef]
  11. Dai, X.; Xu, Y.; Ma, Q.; Xu, W.; Wang, T.; Xue, Y.; Chong, K. Overexpression of an R1R2R3 MYB gene, OsMYB3R-2, increases tolerance to freezing, drought, and salt stress in transgenic Arabidopsis. Plant Physiol. 2007, 143, 1739–1751. [Google Scholar] [CrossRef] [Green Version]
  12. Xing, C.; Liu, Y.; Zhao, L.; Zhang, S.; Huang, X. A novel MYB transcription factor regulates ascorbic acid synthesis and affects cold tolerance. Plant Cell Environ. 2019, 42, 832–845. [Google Scholar] [CrossRef]
  13. Agarwal, P.; Mitra, M.; Banerjee, S.; Roy, S. MYB4 transcription factor, a member of R2R3-subfamily of MYB domain protein, regulates cadmium tolerance via enhanced protection against oxidative damage and increases expression of PCS1 and MT1C in Arabidopsis. Plant Sci. 2020, 297, 110501. [Google Scholar] [CrossRef]
  14. Xiang, X.J.; Sun, L.P.; Yu, P.; Yang, Z.F.; Zhang, P.P.; Zhang, Y.X.; Wu, W.X.; Chen, D.B.; Zhan, X.D.; Khan, R.M.; et al. The MYB transcription factor Baymax1 plays a critical role in rice male fertility. Theor. Appl. Genet. 2021, 134, 453–471. [Google Scholar] [CrossRef]
  15. Wang, D.; Li, J.; Sun, L.; Hu, Y.; Yu, J.; Wang, C.; Zhang, F.; Hou, H.; Liang, W.; Zhang, D. Two rice MYB transcription factors maintain male fertility in response to photoperiod by modulating sugar partitioning. New Phytol. 2021, 231, 1612–1629. [Google Scholar] [CrossRef]
  16. Ren, D.; Cui, Y.; Hu, H.; Xu, Q.; Rao, Y.; Yu, X.; Zhang, Y.; Wang, Y.; Peng, Y.; Zeng, D.; et al. AH2 encodes a MYB domain protein that determines hull fate and affects grain yield and quality in rice. Plant J. 2019, 100, 813–824. [Google Scholar] [CrossRef]
  17. Li, Y.F.; Zeng, X.Q.; Li, Y.; Wang, L.; Zhuang, H.; Wang, Y.; Tang, J.; Wang, H.L.; Xiong, M.; Yang, F.Y.; et al. MULTI-FLORET SPIKELET 2, a MYB Transcription Factor, Determines Spikelet Meristem Fate and Floral Organ Identity in Rice. Plant Physiol. 2020, 184, 988–1003. [Google Scholar] [CrossRef]
  18. Zhu, N.; Cheng, S.; Liu, X.; Du, H.; Dai, M.; Zhou, D.X.; Yang, W.; Zhao, Y. The R2R3-type MYB gene OsMYB91 has a function in coordinating plant growth and salt stress tolerance in rice. Plant Sci. 2015, 236, 146–156. [Google Scholar] [CrossRef]
  19. Yin, X.; Cui, Y.; Wang, M.; Xia, X. Overexpression of a novel MYB-related transcription factor, OsMYBR1, confers improved drought tolerance and decreased ABA sensitivity in rice. Biochem. Biophys. Res. Commun. 2017, 490, 1355–1361. [Google Scholar] [CrossRef]
  20. Su, C.F.; Wang, Y.C.; Hsieh, T.H.; Lu, C.A.; Tseng, T.H.; Yu, S.M. A novel MYBS3-dependent pathway confers cold tolerance in rice. Plant Physiol. 2010, 153, 145–158. [Google Scholar] [CrossRef] [Green Version]
  21. Adil, M.F.; Sehar, S.; Chen, S.; Lwalaba, J.L.W.; Jilani, G.; Chen, Z.H.; Shamsi, I.H. Stress signaling convergence and nutrient crosstalk determine zinc-mediated amelioration against cadmium toxicity in rice. Ecotoxicol. Environ. Saf. 2021, 230, 113128. [Google Scholar] [CrossRef]
  22. Smita, S.; Katiyar, A.; Chinnusamy, V.; Pandey, D.M.; Bansal, K.C. Transcriptional Regulatory Network Analysis of MYB Transcription Factor Family Genes in Rice. Front. Plant Sci. 2015, 6, 1157. [Google Scholar] [CrossRef] [Green Version]
  23. Chaney, R.L.; Reeves, P.G.; Ryan, J.A.; Simmons, R.W.; Welch, R.M.; Angle, J.S. An improved understanding of soil Cd risk to humans and low cost methods to phytoextract Cd from contaminated soils to prevent soil Cd risks. BioMetals 2004, 17, 549–553. [Google Scholar] [CrossRef]
  24. Feng, Q.; Zhang, Y.; Hao, P.; Wang, S.; Fu, G.; Huang, Y.; Li, Y.; Zhu, J.; Liu, Y.; Hu, X.; et al. Sequence and analysis of rice chromosome 4. Nature 2002, 420, 316–320. [Google Scholar] [CrossRef]
  25. Yu, J.; Hu, S.; Wang, J.; Wong, G.K.; Li, S.; Liu, B.; Deng, Y.; Dai, L.; Zhou, Y.; Zhang, X.; et al. A draft sequence of the rice genome (Oryza sativa L. ssp. indica). Science 2002, 296, 79–92. [Google Scholar] [CrossRef]
  26. Katiyar, A.; Smita, S.; Lenka, S.K.; Rajwanshi, R.; Chinnusamy, V.; Bansal, K.C. Genome-wide classification and expression analysis of MYB transcription factor families in rice and Arabidopsis. BMC Genom. 2012, 13, 544. [Google Scholar] [CrossRef] [Green Version]
  27. Ogata, K.; Kanei-Ishii, C.; Sasaki, M.; Hatanaka, H.; Nagadoi, A.; Enari, M.; Nakamura, H.; Nishimura, Y.; Ishii, S.; Sarai, A. The cavity in the hydrophobic core of Myb DNA-binding domain is reserved for DNA recognition and trans-activation. Nat. Struct. Biol. 1996, 3, 178–187. [Google Scholar] [CrossRef]
  28. Wakasa, Y.; Yasuda, H.; Oono, Y.; Kawakatsu, T.; Hirose, S.; Takahashi, H.; Hayashi, S.; Yang, L.; Takaiwa, F. Expression of ER quality control-related genes in response to changes in BiP1 levels in developing rice endosperm. Plant J. 2011, 65, 675–689. [Google Scholar] [CrossRef]
  29. Gu, M.; Zhang, J.; Li, H.; Meng, D.; Li, R.; Dai, X.; Wang, S.; Liu, W.; Qu, H.; Xu, G. Maintenance of phosphate homeostasis and root development are coordinately regulated by MYB1, an R2R3-type MYB transcription factor in rice. J. Exp. Bot. 2017, 68, 3603–3615. [Google Scholar] [CrossRef] [Green Version]
  30. Yang, W.T.; Baek, D.; Yun, D.J.; Hwang, W.H.; Park, D.S.; Nam, M.H.; Chung, E.S.; Chung, Y.S.; Yi, Y.B.; Kim, D.H. Overexpression of OsMYB4P, an R2R3-type MYB transcriptional activator, increases phosphate acquisition in rice. Plant Physiol. Biochem. 2014, 80, 259–267. [Google Scholar] [CrossRef]
  31. Yang, A.; Dai, X.; Zhang, W.H. A R2R3-type MYB gene, OsMYB2, is involved in salt, cold, and dehydration tolerance in rice. J. Exp. Bot. 2012, 63, 2541–2556. [Google Scholar] [CrossRef] [PubMed]
  32. Feller, A.; Machemer, K.; Braun, E.L.; Grotewold, E. Evolutionary and comparative analysis of MYB and bHLH plant transcription factors. Plant J. 2011, 66, 94–116. [Google Scholar] [CrossRef] [PubMed]
  33. Wang, S.; Li, E.; Porth, I.; Chen, J.G.; Mansfield, S.D.; Douglas, C.J. Regulation of secondary cell wall biosynthesis by poplar R2R3 MYB transcription factor PtrMYB152 in Arabidopsis. Sci. Rep. 2014, 4, 5054. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Yang, B.; Song, Z.; Li, C.; Jiang, J.; Zhou, Y.; Wang, R.; Wang, Q.; Ni, C.; Liang, Q.; Chen, H.; et al. RSM1, an Arabidopsis MYB protein, interacts with HY5/HYH to modulate seed germination and seedling development in response to abscisic acid and salinity. PLoS Genet. 2018, 14, e1007839. [Google Scholar] [CrossRef]
  35. Ma, D.; Reichelt, M.; Yoshida, K.; Gershenzon, J.; Constabel, C.P. Two R2R3-MYB proteins are broad repressors of flavonoid and phenylpropanoid metabolism in poplar. Plant J. 2018, 96, 949–965. [Google Scholar] [CrossRef] [Green Version]
  36. Bian, S.; Jin, D.; Sun, G.; Shan, B.; Zhou, H.; Wang, J.; Zhai, L.; Li, X. Characterization of the soybean R2R3-MYB transcription factor GmMYB81 and its functional roles under abiotic stresses. Gene 2020, 753, 144803. [Google Scholar] [CrossRef]
  37. Li, T.; Zhang, X.-Y.; Huang, Y.; Xu, Z.-S.; Wang, F.; Xiong, A.-S. An R2R3-MYB transcription factor, SlMYB28, involved in the regulation of TYLCV infection in tomato. Sci. Hortic. 2018, 237, 192–200. [Google Scholar] [CrossRef]
  38. Li, Q.; Lu, L.; Liu, H.; Bai, X.; Zhou, X.; Wu, B.; Yuan, M.; Yang, L.; Xing, Y. A minor QTL, SG3, encoding an R2R3-MYB protein, negatively controls grain length in rice. Theor. Appl. Genet. 2020, 133, 2387–2399. [Google Scholar] [CrossRef]
  39. Hong, L.; Niu, F.; Lin, Y.; Wang, S.; Chen, L.; Jiang, L. MYB106 is a negative regulator and a substrate for CRL3(BPM) E3 ligase in regulating flowering time in Arabidopsis thaliana. J. Integr. Plant Biol. 2021, 63, 1104–1119. [Google Scholar] [CrossRef]
  40. Fu, S.; Yun, T.; Ma, D.; Zheng, B.; Jiang, D.; He, Y. Thylakoid Transit Peptide Is Related to the Expression and Localization of NdhB Subunits in Soybean. Phyton Int. J. Exp. Bot. 2021, 90, 99–110. [Google Scholar] [CrossRef]
  41. Mandaokar, A.; Thines, B.; Shin, B.; Lange, B.M.; Choi, G.; Koo, Y.J.; Yoo, Y.J.; Choi, Y.D.; Choi, G.; Browse, J. Transcriptional regulators of stamen development in Arabidopsis identified by transcriptional profiling. Plant J. 2006, 46, 984–1008. [Google Scholar] [CrossRef]
  42. Lu, J.Y.; Xiong, S.X.; Yin, W.; Teng, X.D.; Lou, Y.; Zhu, J.; Zhang, C.; Gu, J.N.; Wilson, Z.A.; Yang, Z.N. MS1, a direct target of MS188, regulates the expression of key sporophytic pollen coat protein genes in Arabidopsis. J. Exp. Bot. 2020, 71, 4877–4889. [Google Scholar] [CrossRef]
  43. Han, Y.; Zhou, S.D.; Fan, J.J.; Zhou, L.; Shi, Q.S.; Zhang, Y.F.; Liu, X.L.; Chen, X.; Zhu, J.; Yang, Z.N. OsMS188 Is a Key Regulator of Tapetum Development and Sporopollenin Synthesis in Rice. Rice 2021, 14, 4. [Google Scholar] [CrossRef]
  44. Gocal, G.F.; Sheldon, C.C.; Gubler, F.; Moritz, T.; Bagnall, D.J.; MacMillan, C.P.; Li, S.F.; Parish, R.W.; Dennis, E.S.; Weigel, D.; et al. GAMYB-like genes, flowering, and gibberellin signaling in Arabidopsis. Plant Physiol. 2001, 127, 1682–1693. [Google Scholar] [CrossRef]
  45. Shumayla; Mendu, V.; Singh, K.; Upadhyay, S.K. Insight into the Roles of Proline-Rich Extensin-like Receptor Protein Kinases of Bread Wheat (Triticum aestivum L.). Life 2022, 12, 941. [Google Scholar] [CrossRef]
  46. Rathour, M.; Shumayla; Alok, A.; Upadhyay, S.K. Investigation of Roles of TaTALE Genes during Development and Stress Response in Bread Wheat. Plants 2022, 11, 587. [Google Scholar] [CrossRef]
  47. Huang, D.; Sun, Y.; Ma, Z.; Ke, M.; Cui, Y.; Chen, Z.; Chen, C.; Ji, C.; Tran, T.M.; Yang, L. Salicylic acid-mediated plasmodesmal closure via Remorin-dependent lipid organization. Proc. Natl. Acad. Sci. USA 2019, 116, 21274–21284. [Google Scholar] [CrossRef] [Green Version]
  48. Yang, Y.; Xie, X.; Tao, S.; Zhou, K.; Yu, Y.; Lu, Z.; Jiang, D.; Zheng, B.; He, Y. Plasmodesmata play a critical role in promoting the germination of floral buds in Ilex verticillata. Plant Growth Regul. 2020, 91, 349–357. [Google Scholar] [CrossRef]
  49. Kawahara, Y.; de la Bastide, M.; Hamilton, J.P.; Kanamori, H.; McCombie, W.R.; Ouyang, S.; Schwartz, D.C.; Tanaka, T.; Wu, J.; Zhou, S.; et al. Improvement of the Oryza sativa Nipponbare reference genome using next generation sequence and optical map data. Rice 2013, 6, 4. [Google Scholar] [CrossRef] [Green Version]
  50. Huang, Y.; Niu, B.; Gao, Y.; Fu, L.; Li, W. CD-HIT Suite: A web server for clustering and comparing biological sequences. Bioinformatics 2010, 26, 680–682. [Google Scholar] [CrossRef]
  51. Wilkins, M.R.; Gasteiger, E.; Bairoch, A.; Sanchez, J.C.; Williams, K.L.; Appel, R.D.; Hochstrasser, D.F. Protein identification and analysis tools in the ExPASy server. Methods Mol. Biol. 1999, 112, 531–552. [Google Scholar] [CrossRef]
  52. Sievers, F.; Higgins, D.G. Clustal omega. Curr. Protoc. Bioinform. 2014, 48, 3.13.11–3.13.16. [Google Scholar] [CrossRef]
  53. Kumar, S.; Stecher, G.; Tamura, K. MEGA7: Molecular Evolutionary Genetics Analysis Version 7.0 for Bigger Datasets. Mol. Biol. Evol. 2016, 33, 1870–1874. [Google Scholar] [CrossRef] [Green Version]
  54. Hu, B.; Jin, J.; Guo, A.Y.; Zhang, H.; Luo, J.; Gao, G. GSDS 2.0: An upgraded gene feature visualization server. Bioinformatics 2015, 31, 1296–1297. [Google Scholar] [CrossRef] [Green Version]
  55. Sakai, H.; Lee, S.S.; Tanaka, T.; Numa, H.; Kim, J.; Kawahara, Y.; Wakimoto, H.; Yang, C.C.; Iwamoto, M.; Abe, T.; et al. Rice Annotation Project Database (RAP-DB): An integrative and interactive database for rice genomics. Plant Cell Physiol. 2013, 54, e6. [Google Scholar] [CrossRef]
  56. Lescot, M.; Déhais, P.; Thijs, G.; Marchal, K.; Moreau, Y.; Van de Peer, Y.; Rouzé, P.; Rombauts, S. PlantCARE, a database of plant cis-acting regulatory elements and a portal to tools for in silico analysis of promoter sequences. Nucleic Acids Res. 2002, 30, 325–327. [Google Scholar] [CrossRef]
  57. Szklarczyk, D.; Gable, A.L.; Lyon, D.; Junge, A.; Wyder, S.; Huerta-Cepas, J.; Simonovic, M.; Doncheva, N.T.; Morris, J.H.; Bork, P.; et al. STRING v11: Protein-protein association networks with increased coverage, supporting functional discovery in genome-wide experimental datasets. Nucleic Acids Res. 2019, 47, D607–D613. [Google Scholar] [CrossRef] [Green Version]
Plants 11 01928 g001 550

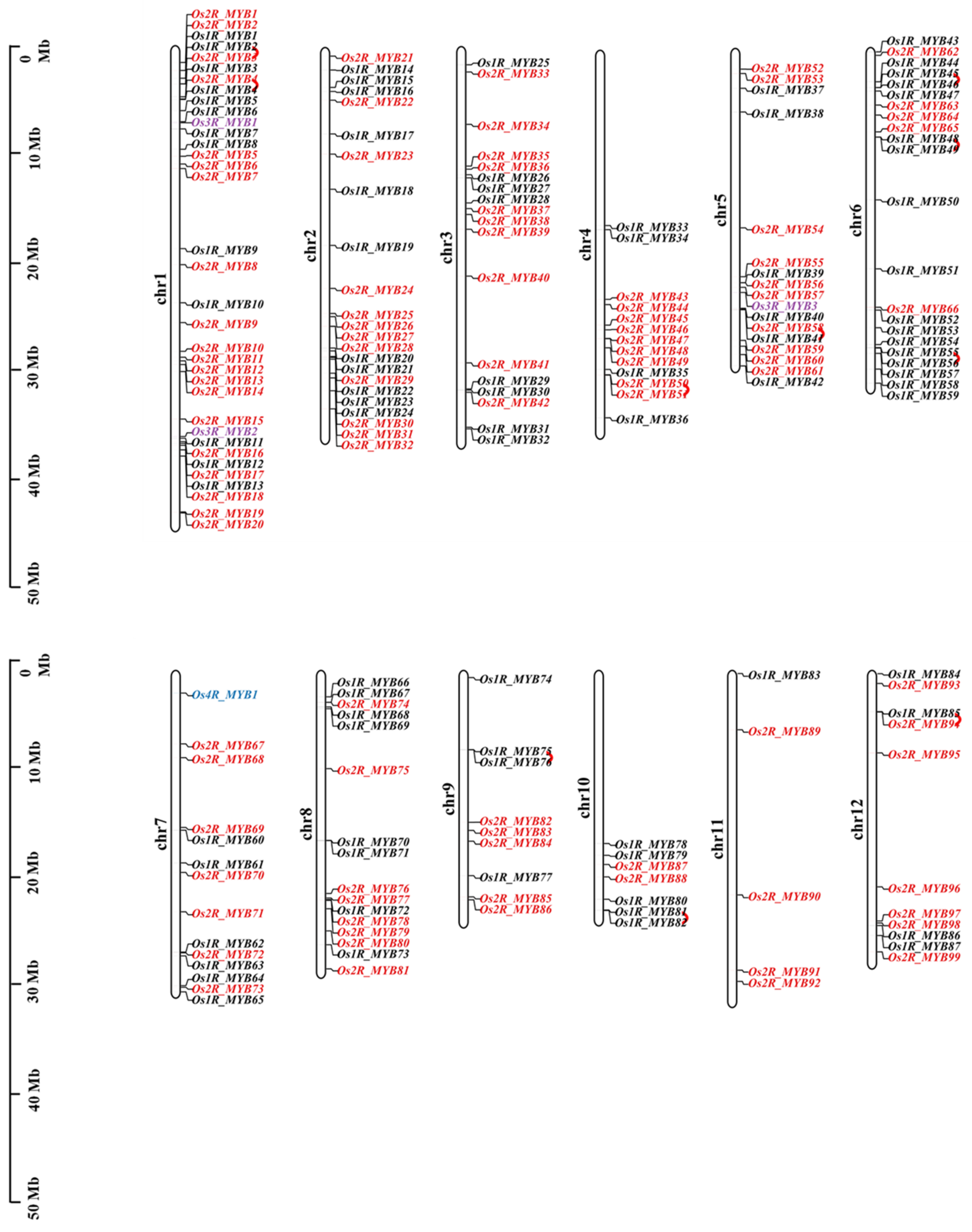

Figure 1. Distribution of OsMYBs on rice chromosomes. The rod represents the 12 chromosomes of rice, and the scale on the left indicates its length. Different colors represent the different MYB type: 1R_MYB (Black); 2R_MYB (Red); 3R_MYB (purple); 4R_MYB (blue). The repeat gene pairs were linked using red curves.
Figure 1. Distribution of OsMYBs on rice chromosomes. The rod represents the 12 chromosomes of rice, and the scale on the left indicates its length. Different colors represent the different MYB type: 1R_MYB (Black); 2R_MYB (Red); 3R_MYB (purple); 4R_MYB (blue). The repeat gene pairs were linked using red curves.
Plants 11 01928 g001
Plants 11 01928 g002 550
Figure 2. Phylogenetic relationship of Oryza sativa L. and Arabidopsis MYB proteins. The phylogenetic tree of MYB proteins was constructed by the neighbor-joining method of Mega-X with a bootstrap value set to 1000. It was classified into five groups (Group_A/B/C/D/E) according to the sequence characteristic of proteins. The asterisk indicates a protein origin from rice, and the crimson asterisk represents R2R3_MYB proteins.
Figure 2. Phylogenetic relationship of Oryza sativa L. and Arabidopsis MYB proteins. The phylogenetic tree of MYB proteins was constructed by the neighbor-joining method of Mega-X with a bootstrap value set to 1000. It was classified into five groups (Group_A/B/C/D/E) according to the sequence characteristic of proteins. The asterisk indicates a protein origin from rice, and the crimson asterisk represents R2R3_MYB proteins.
Plants 11 01928 g002
Plants 11 01928 g003 550

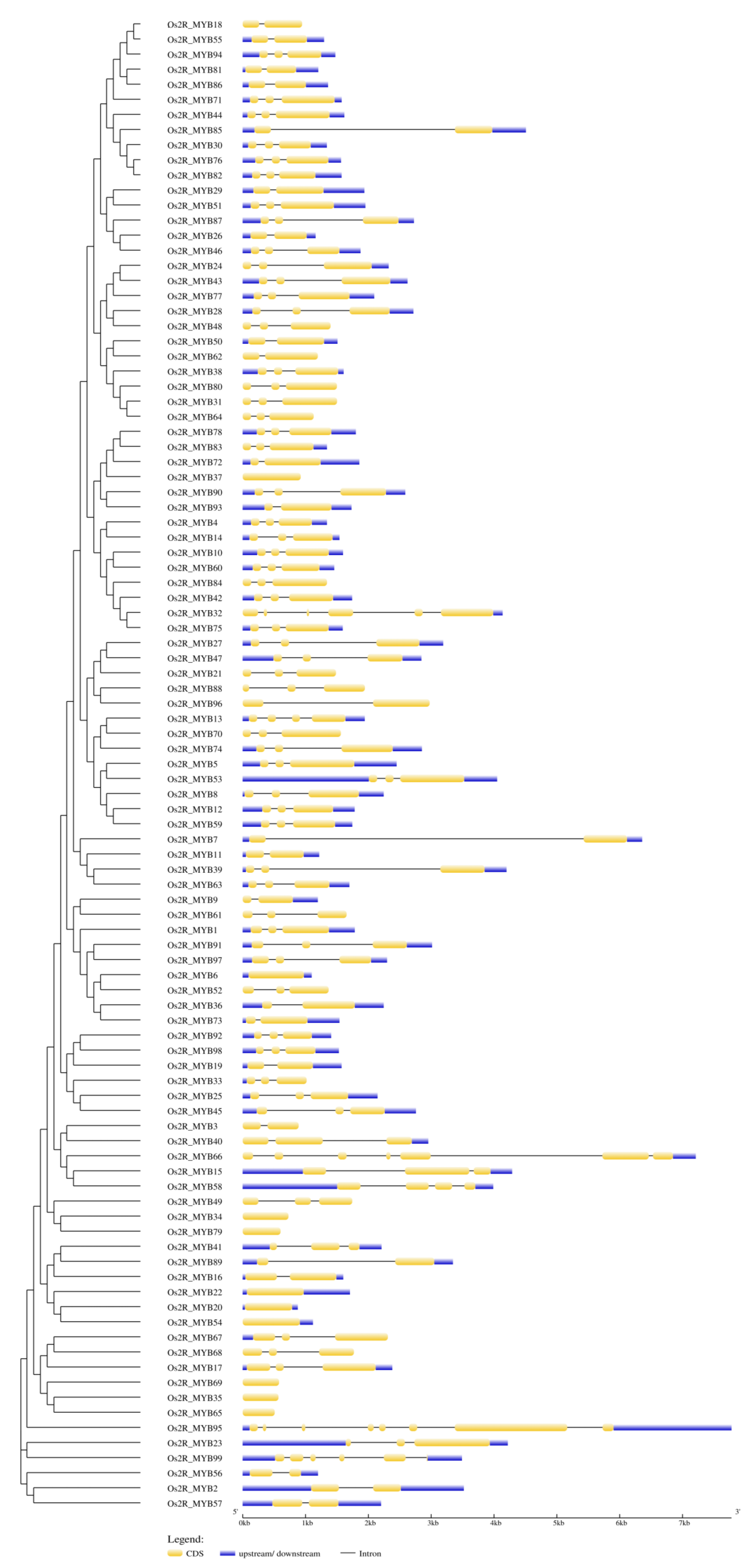

Figure 3. Phylogenetic tree and intron/exon structure of Os2R_MYB genes. The blue boxes represent the 5′ or 3′ untranslated regions (UTR), the yellow boxes represent the coding sequences (CDS), and the black lines represent the intron regions.
Figure 3. Phylogenetic tree and intron/exon structure of Os2R_MYB genes. The blue boxes represent the 5′ or 3′ untranslated regions (UTR), the yellow boxes represent the coding sequences (CDS), and the black lines represent the intron regions.
Plants 11 01928 g003
Plants 11 01928 g004 550

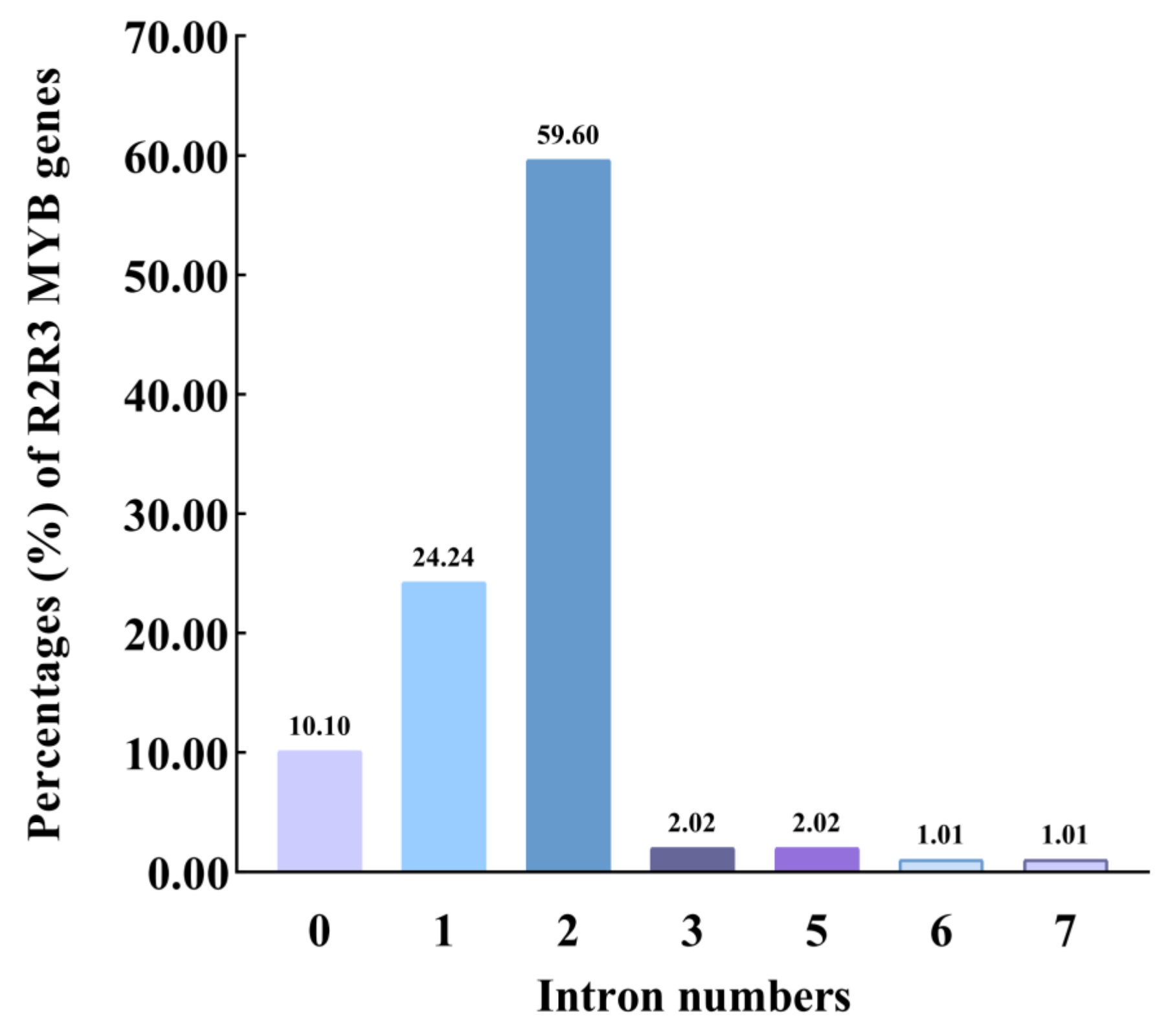

Figure 4. Statistical analysis of the intron numbers of 99 Os2R_MYB genes. The bar chart shows the proportion of Os2R_MYB genes with different intron numbers in the 99 Os2R_MYB genes.
Figure 4. Statistical analysis of the intron numbers of 99 Os2R_MYB genes. The bar chart shows the proportion of Os2R_MYB genes with different intron numbers in the 99 Os2R_MYB genes.
Plants 11 01928 g004
Plants 11 01928 g005 550
Figure 5. Distribution of cis-elements in promoter sequences of 99 Os2R_MYB genes. TCA-element/SARE, cis-acting element involved in salicylic acid responsiveness; MBS, MYB binding site involved in drought-inducibility; GT1-motif/Sp1/3-AF1/AAAC, light-responsive element; LTR, cis-acting element involved in low-temperature responsiveness; ABRE, cis-acting element involved in the abscisic acid responsiveness; P-box/GARE, gibberellin-responsive element; TGACG/CGTCA motifs, involved in the MeJA responsiveness; TC-rich repeats, cis-acting element involved in defense and stress responsiveness; MRE, MYB binding site involved in light responsiveness; TATC-box/C-box, cis-acting element involved in gibberellin responsiveness; TGA-element, auxin-responsive element; G-box/ACE, cis-acting element involved in light responsiveness; AuxRR-core, involved in auxin responsiveness; WUN-motif, wound-responsive element.
Figure 5. Distribution of cis-elements in promoter sequences of 99 Os2R_MYB genes. TCA-element/SARE, cis-acting element involved in salicylic acid responsiveness; MBS, MYB binding site involved in drought-inducibility; GT1-motif/Sp1/3-AF1/AAAC, light-responsive element; LTR, cis-acting element involved in low-temperature responsiveness; ABRE, cis-acting element involved in the abscisic acid responsiveness; P-box/GARE, gibberellin-responsive element; TGACG/CGTCA motifs, involved in the MeJA responsiveness; TC-rich repeats, cis-acting element involved in defense and stress responsiveness; MRE, MYB binding site involved in light responsiveness; TATC-box/C-box, cis-acting element involved in gibberellin responsiveness; TGA-element, auxin-responsive element; G-box/ACE, cis-acting element involved in light responsiveness; AuxRR-core, involved in auxin responsiveness; WUN-motif, wound-responsive element.
Plants 11 01928 g005
Plants 11 01928 g006 550
Figure 6. Statistical analysis of the cis-elements in 2000 bp regions upstream of Os2R_MYB genes. The bar chart shows the number of Os2R_MYB genes with various cis-acting elements in 99 Os2R_MYB genes. The light blue and purple bars represent stressed-related and phytohormone-related cis-acting elements, respectively.
Figure 6. Statistical analysis of the cis-elements in 2000 bp regions upstream of Os2R_MYB genes. The bar chart shows the number of Os2R_MYB genes with various cis-acting elements in 99 Os2R_MYB genes. The light blue and purple bars represent stressed-related and phytohormone-related cis-acting elements, respectively.
Plants 11 01928 g006
Plants 11 01928 g007 550

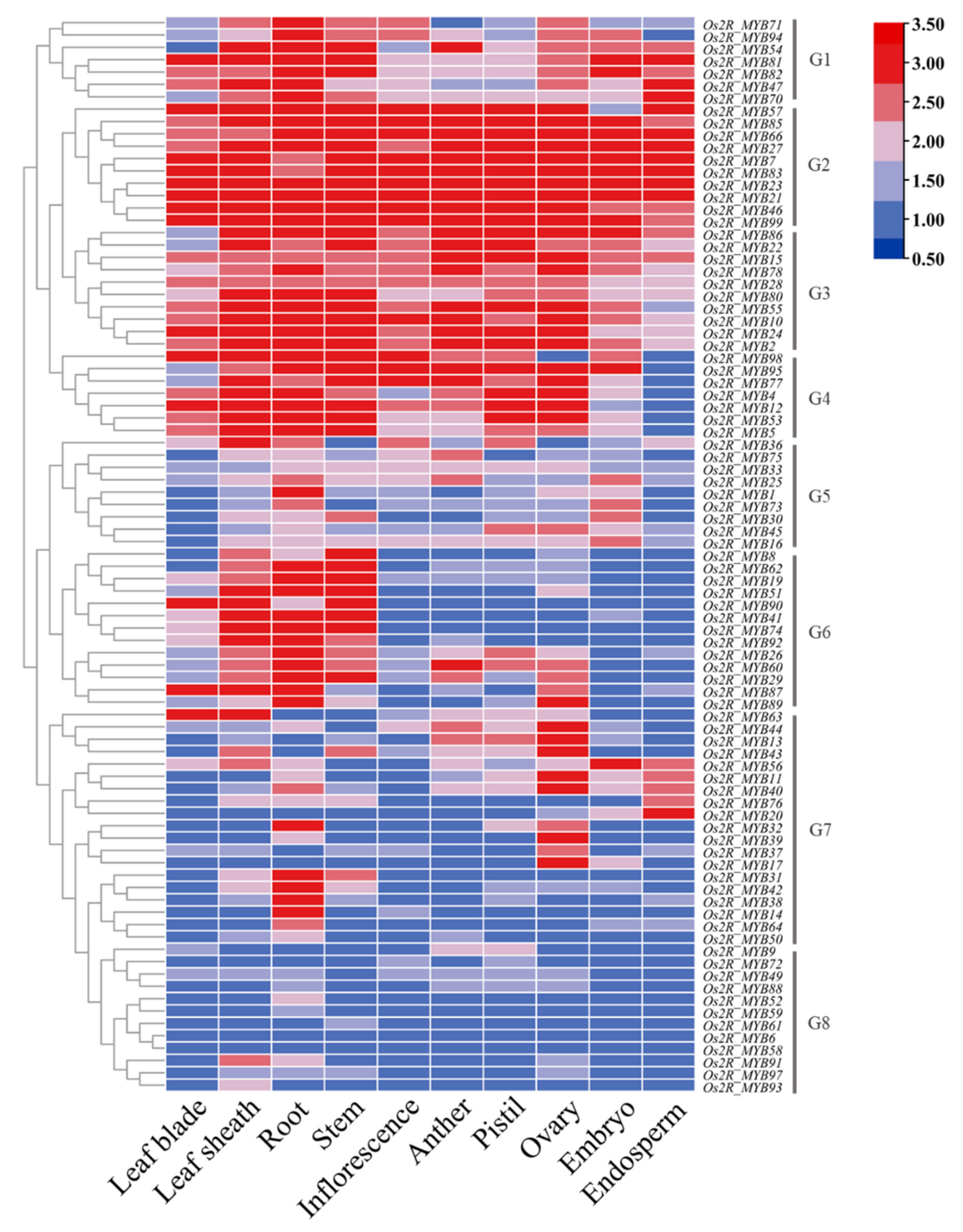

Figure 7. The relative expression level of Os2R_MYB genes in various tissues and growth stages. Lower expression is represented with dark blue; higher expression is represented with red. Leaf-blade, vegetative leaf-blade; Leaf-sheath, vegetative leaf-sheath; Root, vegetative root; Stem, reproductive stem; Inflorescence, 0.6–1 mm; Anther, 0.7–1 mm; Pistil, 5–10 cm; Ovary, 3 DAF; Embryo, 10 DAF; Endosperm, 42 DAF.
Figure 7. The relative expression level of Os2R_MYB genes in various tissues and growth stages. Lower expression is represented with dark blue; higher expression is represented with red. Leaf-blade, vegetative leaf-blade; Leaf-sheath, vegetative leaf-sheath; Root, vegetative root; Stem, reproductive stem; Inflorescence, 0.6–1 mm; Anther, 0.7–1 mm; Pistil, 5–10 cm; Ovary, 3 DAF; Embryo, 10 DAF; Endosperm, 42 DAF.
Plants 11 01928 g007
Plants 11 01928 g008 550
Figure 8. Interaction analysis of R2R3_MYB proteins using the STRING servers in rice. The nodes represent different proteins, and the edges represent the interaction between proteins. Proteins are arranged according to the degree (degree = 1–18) algorithm in Cytoscape. The value of degree corresponds to the color shade and size of nodes.
Figure 8. Interaction analysis of R2R3_MYB proteins using the STRING servers in rice. The nodes represent different proteins, and the edges represent the interaction between proteins. Proteins are arranged according to the degree (degree = 1–18) algorithm in Cytoscape. The value of degree corresponds to the color shade and size of nodes.
Plants 11 01928 g008
Plants 11 01928 g009 550
Figure 9. Relative gene expression of 20 Os2R_MYBs under PEG and CdCl2 stress treatments. (A–D) represent different expression patterns under PEG and CdCl2 stress treatment. Nipponbare cultivar was used as the control; OsActin1 was used as a reference gene. The relative expression levels of each gene were calculated by the 2−ΔΔCt method. All reactions were set up in triplicate. Bars represent the standard deviation (SD) of the three replicates. A significant difference is indicated by an asterisk according to t-test (* p < 0.05, ** p < 0.01, and *** p < 0.001).
Figure 9. Relative gene expression of 20 Os2R_MYBs under PEG and CdCl2 stress treatments. (A–D) represent different expression patterns under PEG and CdCl2 stress treatment. Nipponbare cultivar was used as the control; OsActin1 was used as a reference gene. The relative expression levels of each gene were calculated by the 2−ΔΔCt method. All reactions were set up in triplicate. Bars represent the standard deviation (SD) of the three replicates. A significant difference is indicated by an asterisk according to t-test (* p < 0.05, ** p < 0.01, and *** p < 0.001).
Plants 11 01928 g009
Table
Table 1. Statistical analysis of the cis-elements in 2000 bp regions upstream of Os2R_MYB genes.
Table 1. Statistical analysis of the cis-elements in 2000 bp regions upstream of Os2R_MYB genes.
TypeCis-ElementsGene NumbersPercentages
Stress-relatedC-box11.0%
ACE1313.1%
3-AF1 binding site66.1%
AAAC-motif11.0%
Sp14343.4%
MRE2424.2%
GT1-motif5959.6%
G-box9090.9%
WUN-motif66.1%
LTR4444.4%
MBS5858.6%
TC-rich repeats3333.3%
Phytohormone-relatedSARE33.0%
TCA-element4444.4%
TATC-box1616.2%
P-box2323.2%
GARE-motif2020.2%
ABRE9191.9%
AuxRR-core1818.2%
TGA-element3434.3%
TGACG-motif7979.8%
CGTCA-motif7979.8%
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Kang, L.; Teng, Y.; Cen, Q.; Fang, Y.; Tian, Q.; Zhang, X.; Wang, H.; Zhang, X.; Xue, D. Genome-Wide Identification of R2R3-MYB Transcription Factor and Expression Analysis under Abiotic Stress in Rice. Plants 2022, 11, 1928. https://doi.org/10.3390/plants11151928

AMA Style

Kang L, Teng Y, Cen Q, Fang Y, Tian Q, Zhang X, Wang H, Zhang X, Xue D. Genome-Wide Identification of R2R3-MYB Transcription Factor and Expression Analysis under Abiotic Stress in Rice. Plants. 2022; 11(15):1928. https://doi.org/10.3390/plants11151928

Chicago/Turabian Style

Kang, Lihua, Yangyang Teng, Qiwen Cen, Yunxia Fang, Quanxiang Tian, Xiaoqin Zhang, Hua Wang, Xian Zhang, and Dawei Xue. 2022. "Genome-Wide Identification of R2R3-MYB Transcription Factor and Expression Analysis under Abiotic Stress in Rice" Plants 11, no. 15: 1928. https://doi.org/10.3390/plants11151928

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
