The Tip of the Iceberg: Cryopreservation Needs for Meeting the Challenge of Exceptional Plant Conservation

by
Valerie C. Pence
1,2,* and
Emily Beckman Bruns
3
1
Center for Conservation and Research of Endangered Wildlife (CREW), Cincinnati Zoo & Botanical Garden, 3400 Vine St., Cincinnati, OH 45220, USA
2
Department of Biological Sciences, University of Cincinnati, Cincinnati, OH 45221, USA
3
The Morton Arboretum, 4100 Illinois Route 53, Lisle, IL 60532, USA
*
Author to whom correspondence should be addressed.
Plants 2022, 11(12), 1528; https://doi.org/10.3390/plants11121528
Submission received: 24 April 2022 / Revised: 13 May 2022 / Accepted: 16 May 2022 / Published: 7 June 2022
(This article belongs to the Special Issue Plant Cryobiotechnology: Progress and Prospects)
Browse Figures
Review Reports Versions Notes

Abstract

:
Cryopreservation is increasingly important as a conservation tool, particularly for threatened exceptional species. The goal of this study was to investigate the current knowledge of plant cryopreservation through a search of the literature in Web of Science and align that with the 775 species currently identified on the Working List of Exceptional Plants. While there is a good foundation in plant cryopreservation research, particularly with economically important species, there are significant gaps in research on families that contain the largest numbers of currently known exceptional species, including the Dipterocarpaceae, Rhizophoraceae, and Pittosporaceae. Even families well represented in both in the literature and on the List of Exceptional Plants had much less overlap at the level of genus. Tropical trees, a significant portion of exceptional species, were not as well represented in the literature as herbaceous species. Over 70% of all articles dealt with in vitro cryopreservation, with much less emphasis on other methods (seed, embryo, dormant bud, and pollen) that will be more cost-effective for species where they can be applied. While the research on plant cryopreservation to date provides a strong foundation and is being utilized effectively for conserving the diversity of a number of economically important species, this study revealed significant gaps that can help prioritize future research to more effectively conserve the diversity of threatened exceptional species.

1. Introduction

The need for cryopreservation as a conservation tool is increasing. Ex situ conservation has become an important tool for providing a back-up to the world’s plant biodiversity resources, and a network of seed banks of major crop species, including rice, wheat, corn, beans, etc., circles the globe [1,2,3]. For those crop species that either do not produce seed or are propagated clonally, a supplemental network has developed of field genebanks and more recently of cryopreserved collections, as with Musa (ITC, Belgium), Solanum (CIP, Peru), clonally propagated fruit trees, nuts (NLGRP, USA), among others [4,5,6,7].
More recently large initiatives for seed banking wild species have developed, including the Millennium Seed Bank (RBG Kew, U.K.), the Germplasm Bank of Wild Species (Kunming Institute of Botany, China), and the Australian Seed Bank Partnership (13 organizations in Australia), as well as at least 350 others in botanic gardens worldwide [8]. Such initiatives will play a critical role in meeting the ex situ conservation target of the Global Strategy for Plant Conservation of 75% of threatened species in ex situ collections [9]. However, conventional seed banks will not be able to meet this goal alone. Species with desiccation sensitive (recalcitrant) seeds, for example, cannot undergo the drying required for seed banking, and a recent study indicated that such species are projected to make up more than a quarter of threatened species [10]. These and other species, such as those without adequate seeds for banking or seeds that are short-lived in storage, pose challenges to conventional seed banking and are known as exceptional species [11].
As with clonally propagated crop species, cryopreservation is being explored for its use in maintaining threatened exceptional species in ex situ collections [12,13]. However, unlike crop species, where a protocol developed for a particular crop is adapted to many accessions, the numbers and diversity of wild threatened species will require much more research into adapting cryopreservation protocols to species with a wide variety of growth habits and adaptations. There have been several programs that have focused on wild species cryopreservation (e.g., Kings Park and Botanic Gardens/Australian PlantBank (Australia), the Cincinnati Zoo & Botanical Garden’s CREW CryoBioBank (US), etc.), but much more capacity is needed. There are predicted to be more than 24,000 exceptional species worldwide [14,15]. With the estimation that 40% of plant species are threatened [16], the number of exceptional species that could benefit from cryopreservation efforts is projected to be more than 10,000. However, a recent analysis indicated that cryopreservation is underutilized as a tool for conserving exceptional plants [17], with only 1% of identified exceptional species reported as being held in cryo-collections. There is, thus, a critical need for efforts to increase its use.
As a first step in understanding these needs more specifically, an analysis of the current literature available on the cryopreservation of exceptional plants was made. Although the identity of all the species projected to be exceptional is not known, this analysis used a recently published Global Working List of Exceptional Plants, consisting of 775 identified exceptional species [17] as a starting point. That list categorizes exceptional species by the reason for their exceptionality, known as a species’ exceptionality factor, or EF, which can help identify the conservation approaches that will be the most efficient and capture the most genetic diversity for that species (Figure 1). Most of these approaches will need some form of cryopreservation, and this study worked to align the needs of exceptional plants with the current literature on cryopreservation to identify strengths and gaps in knowledge and to help set priorities for future areas of research.

2. Results

A total of 1,798 articles were identified from Web of Science that involved some aspect of seed-bearing plant seed or tissue cryopreservation representing 128 families and 490 genera. These were compared with the 111 families and 366 genera on the Working List of Exceptional Plants (hereafter referred to as “exceptional families” and “exceptional genera” for convenience, although not all species in these families or genera are necessarily exceptional). There were 74 families in common between the two datasets, with 37 families on the List of Exceptional Plants not represented in the literature. The four families with the most cryopreservation articles were Rosaceae, Orchidaceae, Solanaceae, and Poaceae, while the four exceptional families with the most identified species were Dipterocarpaceae, Arecaceae, Rutaceae, and Campanulaceae (Table 1).
When the 25 families with the most cryopreservation articles were compared with the 25 exceptional families with the most species, there were 13 families in common among the top 25 and four in common among the top 10: Orchidaceae, Arecaceae, Rutaceae, and Fabaceae. Three of the top 25 exceptional families were not represented in the literature at all: Dipterocarpaceae, Rhizophoraceae, and Pittosporaceae, while there were two exceptional families that had more than 100 articles each: Orchidaceae and Poaceae.
When genera were similarly examined, there were 92 genera in common between the two datasets and 274 genera on the List of Exceptional Plants not represented in the literature search. The top three genera with the most cryopreservation articles were Solanum, Malus, and Citrus, while the top three exceptional genera were Shorea, Cyanea, and Quercus (Table 2). Only three genera were in common among the top 25 genera from the literature and the top 23 exceptional genera: Citrus, Coffea, and Quercus. Citrus had the third highest number of articles of any genus, 62, while Coffea and Quercus had 28 and 23, respectively. There were 11 exceptional genera in the top 23 with no representation in the cryopreservation literature, including the two with the most identified exceptional species, Shorea and Cyanea.
When the four families in common in the top 10 of both groups were examined at the level of genus, exceptional genera that were also found in the cryopreservation literature ranged from 17% of exceptional Rutaceae genera to 52% of exceptional Orchidaceae genera (Table 3). The one genus in common in the Rutaceae was Citrus. The five Fabaceae genera in common were Astragalus, Crotalaria, Inga, Vicia, and Vigna. Of these five, only Inga was found to have a high percentage of tree species, as determined by GlobalTreeSearch (Table 4). The other four are known to be primarily herbaceous, although also containing some shrubs. In contrast, of the remaining 19 exceptional Fabaceae genera, 15 had more than 50% of their species classified as trees, with many being tropical genera. The two remaining genera with no trees, Kanaloa and Strongylodon, include shrubs or woody vines.
When the 775 species on the current List of Exceptional Plants were cross-referenced with the literature search, there were 18 of the 775 species with five or more articles in the literature search, with Carica papaya and Cocos nucifera having more than 20 articles each (Table 5). Most of these species are well-known as food crops or of other economic importance and 11 of the 18 had more than 20 other exceptional species identified in the same family. In the cases of Carica papaya (Caricaceae), Persea americana (Lauraceae), Mangifera indica (Anacardiaceae), and Diospyros kaaki (Ebenaceae), half or more of the articles in the family were of that one species.
There were 19 exceptional families for which no articles were found in the literature search, representing 152 species, or 20% of the List of Exceptional Plants (Table 6). When these were examined for the reason for their exceptionality (their exceptionality factor or EF; [11]), the highest proportion of these were EF2 (desiccation sensitive/recalcitrant) (70%), followed by EF3 (freeze-sensitive/short-lived) (26%). Dipterocarpaceae was the family with the most exceptional species (59) with no literature in the Web of Science search, and 55 or 93% of these were classified as EF2. To examine the lack of literature more fully, a separate search for “Dipterocarpaceae and cryopreservation” was made using Google Scholar and reviewing the first four pages of results. This produced nine results (Table 7), including references to conference and workshop proceedings, a poster presentation, institutional reports, and two articles in journals not included in Web of Science, dealing with a total of 15 dipterocarp species [20,21,22,23,24,25,26,27,28]. In contrast, a similar search of Google Scholar for “Rhizophoraceae and cryopreservation,” the family with the next highest number of exceptional species and no Web of Science literature, produced no references relevant to cryopreservation. Searching for “Pittosporaceae and cryopreservation” yielded one article on the cryopreservation of seeds of multiple species that were not identified in the title or abstract, and thus had been excluded from the Web of Science search, but which included information on freezing seeds of one Pittosporaceae species [29].
When the Web of Science articles on plant cryopreservation were categorized with regard to the type of tissue used in the study, over 80% of the articles involved in vitro tissues (Figure 2). There were 351 genera represented in literature on the cryopreservation of in vitro tissues, 131 for seeds, 87 for embryos, 51 for pollen, and 19 for dormant bud studies. When the top 10 genera were listed by the type of tissue cryopreserved, many genera were represented by research in the top ten of more than one type of tissue (Table 8).
This literature search also captured cryopreservation articles on non-seed plants, algae, and fungi, many of which will also require cryopreservation for long-term, effective cryopreservation. The largest number of articles dealt with algae cryopreservation (27), followed by fungi (22), pteridophytes (15), and bryophytes (13) (Figure 3). These included eight genera of bryophytes representing seven families and nine genera of pteridophytes representing seven families (Table 9).

3. Discussion

Cryopreservation will be an essential tool for the ex situ conservation of tissues from exceptional plants [30]. This study aligned almost 1800 articles dealing with plant cryopreservation downloaded from Web of Science with the List of Exceptional Plants (775 species) [17] to investigate areas where cryopreservation research has been concentrated and to identify gaps where work on exceptional plants should be prioritized. The Working List of Exceptional Plants resulted from an evaluation of exceptional status of over 23,000 species and is available online (https://cincinnatizoo.org/global-list-of-threatened-exceptional-plants/, accessed 31 May 2022). The Web of Science download was based on searches using keywords relevant to plant cryopreservation that yielded focused results that could be refined in a semi-automated way. While the Web of Science coverage of the literature is extensive, it does not include some sources, such as lower impact journals and gray literature, as demonstrated by the search of Google Scholar for the Dipterocarpaceae. However, a similar search for two other exceptional families with no Web of Science literature yielded information on only one species, suggesting that the Web of Science was providing a reasonable overview of the current state of plant cryopreservation. Web of Science also provided full title and abstract text for download that could be adapted to a partially automated methodology. The iterative search methodology used in this study to avoid non-target genera could also miss target genera listed only in the abstract if a different target genus was listed in the title, although from our manual reviews this appeared to be uncommon.
The resulting information was examined primarily at the family and genus level. The literature search revealed that the coverage of plant cryopreservation studies has been fairly broad, covering 490 genera in 128 families. Not surprisingly, much of it has been focused on families that are of economic importance, particularly those of major food, timber, and horticultural crops, such as Poaceae (e.g., Oryza, Saccharum), Solanaceae (e.g., Solanum), Rutaceae (e.g., Citrus), Rosaceae (e.g., Malus, Pyrus, Prunus, Rubus, Fragaria), and others. In comparing this search with the List of Exceptional Plants there were 74 families in common, or 67% of the exceptional families. The Orchidaceae and the Poaceae, both in the top 25 families with exceptional species, had over 100 articles each, likely reflecting the commercial importance of these two families, and providing a good basis for work with additional taxa in these groups [31,32]. However, comparing the two lists at the level of genus revealed only 92 genera in common, representing only 25% of the currently known exceptional genera. This difference in emphasis between research as reflected in the literature and exceptional plant taxa was further seen in the low proportion of genera in common within the four families that were in the top 10 of both lists, ranging from 17% in the Rutaceae (representing the single genus Citrus) to 52% (representing 10 common genera) in the Orchidaceae, a large family that has had particular attention both commercially and for conservation [33,34,35]. Cryopreservation research has been focused largely on species of economic importance and there is a need to widen the scope of investigation to wild exceptional species, particularly threatened taxa. As a number of these are confamilial with crop species, there is a foundation of work for this effort.
Many of the exceptional genera not represented in the literature are woody species, particularly tropical woody taxa. The three families in the top 25 exceptional families that were not found in the cryopreservation literature search—Dipterocarpaceae, Rhizophoraceae, and Pittosporaceae—are all families of tropical woody species with significant ecological, medicinal, and/or economic importance [36,37,38]. Within the Fabaceae, a family that was in the top 10 of both lists, four of the 5 genera in common are primarily herbaceous species with the majority of the exceptional Fabaceae being tropical woody species. Predictive models have indicated that a high proportion of exceptional species will be woody species from the tropics [14,39] and many of these are already represented on the List of Exceptional Plants. With the level of threat to species in the tropics increasing [40,41,42], tropical trees should be prioritized for cryopreservation research.
Several types of cryopreservation research will be needed for conserving exceptional plants, depending on the type of tissue available, and these will include cryopreserving whole seeds, isolated zygotic embryos, dormant buds, or in vitro tissues (shoot tips or somatic embryos), as well as pollen. This study indicated that, by far, the largest emphasis in the cryopreservation literature has been on cryopreserving in vitro tissues, with 73% of all the plant cryopreservation articles focused on this approach. This largely reflects organized programs of in vitro tissue cryopreservation for banking commercially important genera and the research that has formed the basis for these efforts. Of the 10 genera with the most articles on in vitro cryopreservation, at least six are being systematically cryobanked using in vitro tissues (Solanum, Malus, Allium, Vitis, Musa, Prunus) [5,6,7,43,44,45]. This is largely to maintain valuable clonal lines, since many species in these genera would not be classified as exceptional (i.e., their seeds can be maintained in conventional seed banks). Cryopreservation of in vitro tissues is the most labor and resource intensive of all the approaches for plant cryopreservation, as it requires both in vitro methods for generating shoot tips or somatic embryos for cryopreservation, as well as for growing the tissues after cryostorage and recovering plants. However, work with these crop species has demonstrated the feasibility of banking in vitro tissues on a larger scale, and this work can inform efforts to conserve threatened exceptional species.
However, if other, less labor and resource intensive methods for cryopreserving are workable for an exceptional species, they should be prioritized. A large number of exceptional species are predicted to be short-lived seeds, i.e., seeds that are somewhat desiccation tolerant but short-lived at conventional seed banking temperatures [15]. In many cases, simply substituting cryopreservation for conventional temperatures of seed bank freezers (−20 °C) can extend longevity significantly [46] and would be the most efficient method of long-term conservation for these species. However, seed cryopreservation was the focus of only 11% of the articles in this study. Given that short-lived seed species will likely number in the thousands [15], this method should receive more attention.
Two other cryopreservation methods that are also generally more cost-effective than cryopreserving in vitro tissues are freezing isolated embryos and dormant buds. Neither of these methods requires generating an in vitro culture line before cryopreservation, although in vitro or other methods are needed for recovery after cryo. Embryo cryopreservation has been demonstrated for a number of short-lived and recalcitrant species, particularly those with larger seeds, such as Quercus robur and Juglans nigra [47,48]. Dormant bud freezing has been successful for several cold-hardy woody species and has been adopted as a method for long-term banking for collections, including those of Malus, Morus, and Ulmus [49,50,51,52]. Despite their potential, only 9% and 2% of the cryopreservation literature dealt with embryo or dormant bud cryopreservation, respectively. These methods might be particularly adaptable for recalcitrant species, which currently comprise 50% of the List of Exceptional Plants [17] and should be the focus of increased research.
Pollen cryopreservation can be a valuable supplemental method for conserving plant genetic diversity, allowing crosses across geographic and temporal distances that can help maintain and support the health of threatened populations. The methods are similar to seed banking, requiring some drying before freezing and have been shown to be workable for many species [53]. Despite its relative simplicity compared with other cryopreservation methods, pollen cryopreservation was the subject of only 4% of the literature in our search.
While our study focused on seed plants, a number of articles were captured dealing with non-seed plants and fungi, although a targeted search for these groups might reveal more. Cryopreservation of spores of pteridophytes has been successful with a number of species [54,55,56], and it is likely that many fern species will require cryopreservation for spore conservation [57]. Gametophytes of both bryophytes and pteridophytes have also been successfully cryopreserved [56,58,59], providing another tool that could be useful for rare species producing few spores, and both methods should be more widely applied for the conservation of rare ferns and bryophytes.
The goal of securing 75% of the world’s threatened species in ex situ conservation, set by the Global Strategy for Plant Conservation [9], will not be achieved without workable and cost-effective methods of cryopreservation of seeds and tissues of a wide variety of species from diverse habitats. While our analysis of the plant cryopreservation literature at the level of genus could not be aligned directly with threat status, other studies have shown that more than a quarter of identified exceptional species are known to be threatened, and these will be numbered in the thousands [10,17]. To meet this challenge, the question will be, can cryobanking of wild threatened species be scaled up in a way that mirrors the major seed banking efforts?
The current cryopreservation literature provides a foundation for approaching this goal, and there are several large-scale cryo-banking efforts of clonally propagated crops and high value varieties of fruit and nut trees that can provide models for banking exceptional species on a larger scale [6,44,60]. However, there will be some differences in utilizing cryopreservation more broadly for conservation compared with banking varieties of crop species. Although genotypic variation within species has been encountered in both domestic and wild species [61,62], developing methods for a diverse range of wild taxa with very different adaptations will be even more challenging. Building on and diversifying the plant cryopreservation literature is needed to provide new knowledge and insights to advance the science and technologies needed for conservation. This literature search has highlighted exceptional genera and families not represented in past research that should be prioritized for cryopreservation work moving forward. As cryopreservation research is expanded to a wider range of species, it should be possible to analyze the methods and results for patterns that can be used to predict and streamline protocols for new species. Widening the scope of species studied to develop this “comparative cryobiotechnology” will be necessary to develop the much needed, large-scale programs to meet the challenges of conserving exceptional plants.

4. Materials and Methods

Using Biosis Previews of Web of Science (Clarivate Analytics) accessed through the University of Cincinnati Libraries, a search was made on 11 March 2022 for “cryopreservation + plant”, which yielded 2424 results. On March 15, a search was made for “cryopreservation + seed”, which yielded 1277 results. On April 3, a search for “liquid nitrogen + plant” was also attempted (5417 results) but most of these results did not deal with plant cryopreservation, so this search was not included in the study. Results from the “cryopreservation + plant” and “cryopreservation + seed” searches were downloaded from the Web of Science as Excel files.
All Excel files were imported into R for analysis [63] and duplicate articles were removed using the Web of Science unique ID; this resulted in 3015 articles for analysis. Next, the World Flora Online (WFO) Taxonomic Backbone [19] was used to create a list of all unique genera and a list of all unique families. Using the rebus R package [64], a search for each genus and each family in the WFO lists was made in both the title and abstract of all downloaded Web of Science articles. A few genera were excluded from the word search because they only matched instances of the words that did not refer to the genus; these included “Aa”, “Cotyledon”, “Cuba”, “India”, “Ion”, and “Medium.” Because some articles use only a species’ common name, a list of frequently-used common names—mostly economically-important species—and their corresponding scientific names was manually constructed.
All genus and family names were searched for iteratively in the title and abstract to avoid selecting non-target names (e.g., genera/families mentioned in the title/abstract but that were not the subject of the research) as much as possible. Each iteration included one pass of the articles while searching for genus names and one pass while searching for family names, with articles being removed from the next iteration as soon as a name(s) was matched. The iterations went as follows: (1) search the title for WFO genus/family names, (2) search the title for common names using our manually-compiled list, (3) search the abstract for WFO genus/family names, (4) search the abstract for common names. Searching iteratively often avoided non-target genera being found, but it also sometimes resulted in target genera being missed. For example, if an article’s title listed one genus and the abstract listed additional target genera, only the genus in the title would be recorded in our analysis. Of the 3015 articles searched, 735 had no genus match and 2758 had no family match. For articles with a genus/genera found and no family, the genus/genera were used to determine the family/families. This resulted in 710 articles with no family identified. Finally, genus and family names were manually spot-checked and edited for accuracy.
To further confirm that the articles dealt with cryopreservation of plants, article titles and abstracts were also searched for lists of manually-curated keywords. Keywords included both ‘positive’ words that signaled the article was likely of interest (e.g., cryopreserve, cryogenic, liquid nitrogen) and ‘negative’ keywords that indicated the article probably wasn’t of interest either because it was not focused on plants or was a review rather than original findings (e.g., mammal, sperm, review). ‘Non-seed’ keywords were also searched for, to identify if the article was likely related to non-seed plants (e.g., algae, moss, fern). Articles that had negative keywords were removed from the analysis, except those with the word “human”, which were manually reviewed to determine if they were of interest or not; articles without positive keywords were spot-checked to look for additional keywords that could be included; articles with non-seed keywords were manually reviewed to check this categorization. Additional articles falling into each category were also manually identified during this process. Finally, keywords indicating the type of cryopreservation reported in the article (e.g., dormant bud, in vitro, zygotic embryo) were searched in the title and abstract and, based on these keywords, each article was categorized as Dormant Bud, Embryo, In Vitro, Pollen, and/or Seed.

Author Contributions

Conceptualization, V.C.P.; methodology, E.B.B.; writing—original draft preparation, V.C.P. and E.B.B.; writing—review and editing, V.C.P. and E.B.B.; funding acquisition, V.C.P. All authors have read and agreed to the published version of the manuscript.

Funding

This research and the APC were funded by the Institute of Museum and Library Services grant number MG-30-17-0055-17.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Restrictions apply to the availability of these data. Data was obtained from Web of Science and are available from the authors with the permission of Web of Science. Supporting data and scripts used for analysis are publicly available at https://github.com/esbeckman/WoS_wordsearch_cryopres.

Acknowledgments

The authors thank Maribeth Stafford for artwork used in Figure 1.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Walters, C.; Wheeler, L.M.; Grotenhuis, J.M. Longevity of seeds stored in a genebank: Species characteristics. Seed Sci. Res. 2005, 15, 1–20. [Google Scholar] [CrossRef]
  2. Asdal, Å.; Guarino, L. The Svalbard Global Seed Vault: 10 Years—1 million samples. Biopreserv. Biobank. 2018, 16, 391–392. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Hay, F.R.; Whitehouse, K.J.; Ellis, R.H.; Sackville Hamilton, N.R.; Lusty, C.; Ndjiondjop, M.N.; Tia, D.; Wenzl, P.; Santos, L.G.; Yazbek, M.; et al. CGIAR genebank viability data reveal inconsistencies in seed collection management. Glob. Food Sec. 2021, 30, 100557. [Google Scholar] [CrossRef]
  4. Gonzalez Benito, M.E.; Clavero-Ramirez, I.; López-Aranda, J.M. Review. The use of cryopreservation for germplasm conservation of vegetatively propagated crops. Span. J. Agric. Res. 2014, 2, 341. [Google Scholar] [CrossRef] [Green Version]
  5. Vollmer, R.; Villagaray, R.; Egúsquiza, V.; Espirilla, J.; García, M.; Torres, A.; Rojas, E.; Panta, A.; Barkley, N.A.; Ellis, D. The potato cryobank at the international potato center (CIP): A model for long term conservation of clonal plant genetic resources collections of the future. Cryo Letters 2016, 37, 318–329. [Google Scholar] [PubMed]
  6. Jenderek, M.M.; Reed, B.M. Cryopreserved storage of clonal germplasm in the USDA National Plant Germplasm System. In Vitro Cell. Dev. Biol.—Plant 2017, 53, 299–308. [Google Scholar] [CrossRef]
  7. Van den houwe, I.; Chase, R.; Sardos, J.; Ruas, M.; Kempenaers, E.; Guignon, V.; Massart, S.; Carpentier, S.; Panis, B.; Rouard, M.; et al. Safeguarding and using global banana diversity: A holistic approach. CABI Agric. Biosci. 2020, 1, 15. [Google Scholar] [CrossRef]
  8. O’Donnell, K.; Sharrock, S. The contribution of botanic gardens to ex situ conservation through seed banking. Plant Divers. 2017, 39, 373–378. [Google Scholar] [CrossRef]
  9. BGCI. Global Strategy for Plant Conservation: 2011–2020; Botanic Gardens Conservation International: Richmond, UK, 2012. [Google Scholar]
  10. Wyse, S.V.; Dickie, J.B.; Willis, K.J. Seed banking not an option for many threatened plants. Nat. Plants 2018, 4, 848–850. [Google Scholar] [CrossRef]
  11. Pence, V.C.; Meyer, A.; Linsky, J.; Gratzfeld, J.; Pritchard, H.W.; Westwood, M.; Bruns, E.B. Defining exceptional species—A conceptual framework to expand and advance ex situ conservation of plant diversity beyond conventional seed banking. Biol. Conserv. 2022, 266, 109440. [Google Scholar] [CrossRef]
  12. Funnekotter, B.; Mancera, R.L.; Bunn, E. Advances in understanding the fundamental aspects required for successful cryopreservation of Australian flora. In Vitro Cell. Dev. Biol. Plant 2017, 53, 289–298. [Google Scholar] [CrossRef]
  13. Pence, V.C. Tissue cryopreservation for plant conservation: Potential and challenges. Int. J. Plant Sci. 2014, 175, 40–45. [Google Scholar] [CrossRef]
  14. Wyse, S.V.; Dickie, J.B. Predicting the global incidence of seed desiccation sensitivity. J. Ecol. 2017, 105, 1082–1093. [Google Scholar] [CrossRef] [Green Version]
  15. Colville, L.; Pritchard, H.W. Seed life span and food security. New Phytol. 2019, 224, 557–562. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Antonelli, A.; Fry, C.; Smith, R.; Simmonds, M.S.J.; Kersey, P.J.; Pritchard, H.W.; Abbo, M.S.; Acedo, C.; Adams, J.; Ainsworth, A.M.; et al. State of the World’s Plants and Fungi 2020; Royal Botanic Gardens, Kew: Richmond, UK, 2020. [Google Scholar] [CrossRef]
  17. Pence, V.C.; Beckman, E.; Meyer, A.; Pritchard, H.W.; Westwood, M.; Linsky, J.; Gratzfeld, J.; Helm-Wallace, S.; Liu, U.; Rivers, M.; et al. Gap analysis of exceptional species—Using a global list of exceptional plants to expand strategic ex situ conservation action beyond conventional seed banking. Biol. Cons. 2022, 266, 109439. [Google Scholar] [CrossRef]
  18. BGCI. GlobalTreeSearch; Botanic Gardens Conservation International: Richmond, UK, 2022; Available online: https://tools.bgci.org/global_tree_search.php (accessed on 10 April 2022).
  19. WFO. World Flora Online. Version 2021.01. Available online: http://www.worldfloraonline.org (accessed on 18 March 2022).
  20. Zeng, L.; Gu, Y.K.; Zheng, X.L. Effect of cryopreservation on structure, physiology and biochemical characteristics of Dipterocarpus turbinatus seeds. J. Trop. Subtrop. Bot. 2018, 26, 249–254. (In Chinese) [Google Scholar]
  21. Zaimah, N.A.N.; Salmi, N.N.; Asmah, H.N.; Noraliza, A.; Rashidah, M.N. Effects of PVS2 exposure on viability of apical meristems of Vatica bella, an endemic species of peninsular Malaysia. Int. J. Agric. For. Plant. 2021, 12, 56–60. [Google Scholar]
  22. Marzalina, M.; Krishnapillay, B.; Nashatul Zaimah, N.A. In vitro conservation of tropical rain forest germplasm via cryopreservation. In Proceedings of the Conference on Forestry and Forest Products Research 1997: Proceedings of the Fourth Conference, Kuala Lumpur, Malaysia, 2–4 October 1997; Forest Research Institute Malaysia: Kuala Lumpur, Malaysia, 1997; pp. 182–187. [Google Scholar]
  23. Marzalina, M.; Nashatul Zaimah, N.A. Cryopreservation of shoot tips of vatica bella by vitrification. In Proceedings of the Seventh Round-Table Conference on Dipterocarps, Kuala Lumpur, Malaysia, 7–10 October 2002; pp. 24–30. Available online: http://agris.upm.edu.my:8080/dspace/handle/0/19505 (accessed on 31 May 2022).
  24. Marzalina, M.; Nashatul, Z.N.A. Cryopreservation of some Malaysian tropical urban forestry species. In Cryopreservation of Tropical Plant Germplasm: Current Research Progress and Application, Proceedings of the An International Workshop, Tsukuba, Japan, 20 October 1998; Engelmann, F., Takagi, H., Eds.; International Plant Genetic Resources Institute (IPGRI): Rome, Italy, 2000; pp. 465–467. [Google Scholar]
  25. Chai, Y.; Marzalina, M.; Krishnapillay, B. Effect of sucrose as a cryoprotective agent in the cryopreservation of some Dipterocarp species. Proceedings of VI National Symposium, Kuala Lumpur, Malaysia, 17–20 December 1994. [Google Scholar]
  26. Krishnapillay, D.B.; Marzalina, M.; Pukittayacamee, P.; Kijkar, S. Cryopreservation of Dipterocarpus alatus and Dipteracarpus intricatus for long-term storage. In Proceedings of the 23rd International Seed Testing Association Congress (ISTA), Buenos Aires, Argentina, 27 October–11 November 1992. Symposium Abstract No. 54: 77. [Google Scholar]
  27. Marzalina, M.; Nashatul, Z.N.A.; Jayanthi, N. Ex Situ Conservation Efforts for Neobalanocarpus Heimii in Malaysia; Forest Research Institute Malaysia: Kuala Lumpur, Malaysia, 2001; Available online: https://www.fao.org/3/ac648e/ac648e0c.htm (accessed on 7 April 2022).
  28. Normah, M.N.; Marzalina, M. Achievements and prospects of in vitro conservation for tree germplasm. In In Vitro Conservation of Plant Genetic Resources; Normah, M.N., Narimah, M.K., Clyde, M.M., Eds.; Plant Biotechnology Laboratory, Universiti Kebangsaan: Kuala Lumpur, Malaysia, 1996; pp. 253–261. [Google Scholar]
  29. Touchell, D.H.; Dixon, K.W. Cryopreservation of seed of Western Australian native species. Biodivers. Conserv. 1993, 2, 594–602. [Google Scholar] [CrossRef]
  30. Pence, V.C.; Ballesteros, D.; Walters, C.; Reed, B.M.; Philpott, M.; Dixon, K.W.; Pritchard, H.W.; Culley, T.M.; Vanhove, A.-C. Cryobiotechnologies: Tools for expanding long-term ex situ conservation to all plant species. Biol. Conserv. 2020, 250, 108736. [Google Scholar] [CrossRef]
  31. Popova, E.; Kim, H.H.; Saxena, P.K.; Engelmann, F.; Pritchard, H.W. Frozen beauty: The cryobiotechnology of orchid diversity. Biotechnol. Adv. 2016, 34, 380–403. [Google Scholar] [CrossRef]
  32. Volk, G.M.; Jenderek, M.M.; Staats, E.; Shephard, A.; Bonnart, R.; Ledo, A.; Ayala-Silva, T. Challenges in the development of a widely applicable method for sugarcane (Saccharum spp.) shoot tip cryopreservation. Acta Hortic. 2019, 1234, 335–342. [Google Scholar] [CrossRef] [Green Version]
  33. Seaton, P.T.; Hu, H.; Perner, H.; Pritchard, H.W. Ex situ conservation of orchids in a warming world. Bot. Rev. 2010, 76, 193–202. [Google Scholar] [CrossRef]
  34. Seaton, P.; Kendon, J.P.; Pritchard, H.W.; Puspitaningtyas, D.M.; Marks, T.M. Orchid conservation: The next ten years. Lankesteriana 2013, 13, 93–101. [Google Scholar] [CrossRef] [Green Version]
  35. Merritt, D.J.; Hay, F.R.; Swarts, N.D.; Sommerville, K.D.; Dixon, K.W. Ex situ conservation and cryopreservation of orchid germplasm. Int. J. Plant Sci. 2014, 175, 46–58. [Google Scholar] [CrossRef]
  36. Kettle, C.J.; Maycock, C.R.; Burslem, D.F.R.P. New directions in dipterocarp biology and conservation: A synthesis. Biotropica 2012, 44, 658–660. [Google Scholar] [CrossRef]
  37. Arunprasath, A.; Gomathinayagam, M. Ecological importance of Rhizophoraceae—A true mangrove family. Int. Lett. Nat. Sci. 2015, 43, 6–9. [Google Scholar] [CrossRef] [Green Version]
  38. Madikizela, B.; McGaw, L.J. Pittosporum viridiflorum Sims (Pittosporaceae): A review on a useful medicinal plant native to South Africa and tropical Africa. J. Ethnopharm. 2017, 205, 217–230. [Google Scholar] [CrossRef] [Green Version]
  39. Tweddle, J.C.; Dickie, J.B.; Baskin, C.C.; Baskin, J.M. Ecological aspects of seed desiccation sensitivity. J. Ecol. 2003, 91, 294–304. [Google Scholar] [CrossRef]
  40. BGCI. State of the World’s Trees; BGCI: Richmond, UK, 2021; Available online: https://www.bgci.org/wp/wp-content/uploads/2021/08/FINAL-GTAReportMedRes-1.pdf (accessed on 7 April 2022).
  41. FAO. The State of the World’s Forests 2020—Executive Summary; Food and Agricultural Organization of the United Nations: Rome, Italy, 2020; Available online: https://www.fao.org/3/ca8985en/CA8985EN.pdf (accessed on 7 April 2022).
  42. Giam, X. Global biodiversity loss from tropical deforestation. Proc. Natl. Acad. Sci. USA 2017, 114, 5775–5777. [Google Scholar] [CrossRef] [Green Version]
  43. Volk, G.M.; Richards, C.M.; Forsline, P.L. A comprehensive approach toward conserving Malus germplasm. Acta Hortic. 2010, 859, 177–182. [Google Scholar] [CrossRef]
  44. Kim, H.H.; Popova, E.; Shin, D.J.; Yi, J.Y.; Kim, C.H.; Lee, J.S.; Yoon, M.K.; Engelmann, F. Cryobanking of Korean Allium germplasm collections: Results from a 10 year experience. Cryo Letters 2012, 33, 45–57. [Google Scholar] [PubMed]
  45. Sparks, H. Vines to be Frozen to Protect France’s Most Valuable Wine Source. New York Post, 19 October 2021. Available online: https://nypost.com/2021/10/19/vines-to-be-frozen-to-protect-frances-valuable-wine-source/ (accessed on 7 April 2022).
  46. Walters, C.; Wheeler, L.; Stanwood, P.C. Longevity of cryogenically stored seeds. Cryobiology 2004, 48, 229–244. [Google Scholar] [CrossRef] [PubMed]
  47. Chmielarz, P.; Michalak, M.; Pałucka, M.; Wasileńczyk, U. Successful cryopreservation of Quercus robur plumules. Plant Cell. Rep. 2011, 30, 1405–1414. [Google Scholar] [CrossRef] [PubMed]
  48. Ballesteros, D.; Pence, V.C. Survival and growth of embryo axes of temperate trees after two decades of cryo-storage. Cryobiology 2019, 88, 110–113. [Google Scholar] [CrossRef]
  49. Forsline, P.L.; Towill, L.E.; Waddell, J.W.; Stuchnoff, C.; Lamboy, W.F.; McFerson, J.R. Recovery and longevity of cryopreserved dormant apple buds. J. Am. Soc. Hortic. Sci. 1998, 123, 365–370. [Google Scholar] [CrossRef]
  50. Harvengt, L.; Meier-Dinkel, A.; Dumas, E.; Collin, E. Establishment of a cryopreserved gene bank of European elms. Can. J. For. Res. 2004, 34, 43–55. [Google Scholar] [CrossRef]
  51. Atmakuri, A.R.; Chaudhury, R.; Malik, S.K.; Kumar, S.; Ramachandran, R.; Quadri, S.M.H. Mulberry biodiversity conservation through cryopreservation. In Vitro Cell. Dev. Biol. Plant 2009, 45, 639–649. [Google Scholar] [CrossRef]
  52. Höfer, M. Cryopreservation of winter-dormant apple buds: Establishment of a duplicate collection of Malus germplasm. Plant Cell Tissue Organ. Cult. 2015, 121, 647–656. [Google Scholar] [CrossRef]
  53. Dinato, N.B.; Santos, I.R.I.; Vigna, B.B.Z.; de Paula, A.F.; Favero, A.P. Perspective pollen cryopreservation for plant breeding and genetic resources conservation. Cryo Letters 2020, 41, 115–127. [Google Scholar]
  54. Ballesteros, D.; Estrelles, E.; Walters, C.; Ibars, A.M. Effect of storage temperature on green spore longevity for the ferns Equisetum ramosissimum and Osmunda regalis. Cryo Letters 2011, 32, 89–98. [Google Scholar]
  55. Li, Y.; Shi, L. Effect of maturity level and desiccation process on liquid nitrogen storage of green spores of Osmunda japonica. Plant Cell Tissue Organ Cult. 2015, 120, 531–538. [Google Scholar] [CrossRef]
  56. Ballesteros, D.; Pence, V.C. Fern conservation: Spore, gametophyte, and sporophyte ex situ storage. In Current Advances in Fern Research; Fernandez, H., Ed.; Springer International Publishing AG: New York, NY, USA, 2018; pp. 227–249. [Google Scholar]
  57. Ballesteros, D.; Estrelles, E.; Walters, C.; Ibars, A.M. Effects of temperature and desiccation on ex situ conservation of nongreen fern spores. Am. J. Bot. 2012, 99, 721–729. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  58. Rowntree, J.K.; Ramsay, M.M. How bryophytes came out of the cold: Successful cryopreservation of threatened species. Biodivers. Conserv. 2009, 18, 1413–1420. [Google Scholar] [CrossRef]
  59. Wu, S.-P.; Qin, Z.-Z.; Xiao, T.-Z.; Li, Q.-P.; Lu, B.-B.; Jiang, L.-J.; Wang, J.; Zhu, R.L. Cryopreservation of gemmae of Marchantia polymorpha L. (Marchantiophyta, Marchantiaceae) without prior pretreatment. Cryo Letters 2015, 36, 91–96. [Google Scholar] [PubMed]
  60. Reed, B.M.; Denoma, J.; Luo, J.I.E.; Chang, Y.; Towill, L. Cryopreservation and long-term storage of pear germplasm. In Vitro Cell. Dev. Biol. Plant 1998, 34, 256–260. [Google Scholar] [CrossRef]
  61. Reed, B.M.; Wada, S.; DeNoma, J.; Niedz, R.P. Improving in vitro mineral nutrition for diverse pear germplasm. Vitro Cell. Dev. Biol. Plant 2013, 49, 343–355. [Google Scholar] [CrossRef]
  62. Philpott, M.; Pence, V. Differential Survival of Genotypes following Cryopreservation in the Endangered Hawaiian Plant Melicope mucronulata; Cryo 2020; Society for Cryobiology: Virtual, 2020. [Google Scholar]
  63. R Core Team. R: A Language and Environment for Statistical Computing; R Foundation for Statistical Computing: Vienna, Austria, 2020; Available online: https://www.R-project.org/ (accessed on 11 March 2021).
  64. Cotton, R. Rebus: Build Regular Expressions in a Human Readable Way: R Package Version 0.1-3. Available online: https://CRAN.R-project.org/package=rebus (accessed on 11 March 2021).
Plants 11 01528 g001 550

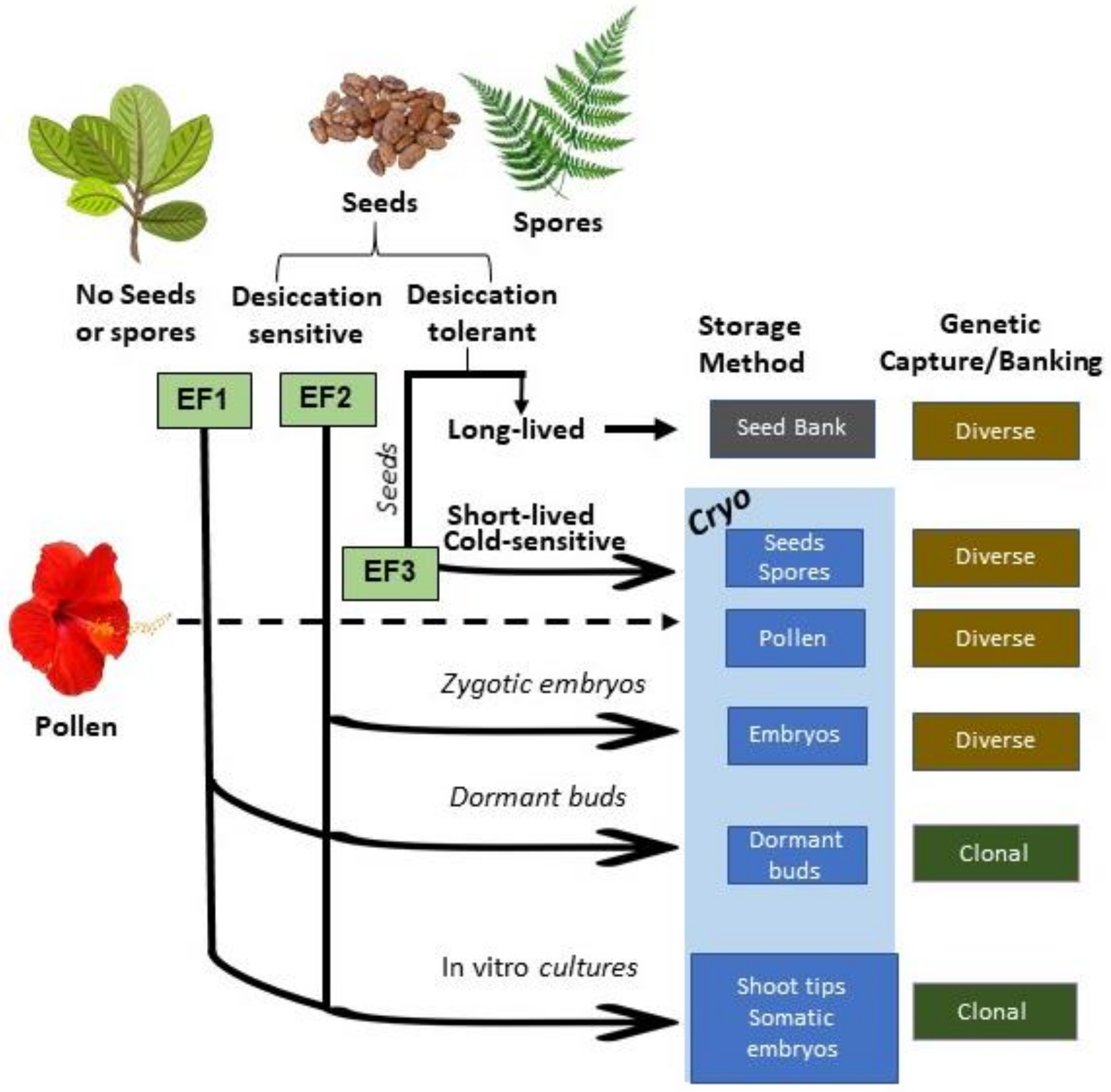

Figure 1. The role of cryopreservation in conserving plant seeds and tissues ex situ and relationship to exceptionality factor (EF) and genetic capture. EF1 = seeds unavailable; EF2 = seeds desiccation sensitive; EF3 = seeds short-lived.
Figure 1. The role of cryopreservation in conserving plant seeds and tissues ex situ and relationship to exceptionality factor (EF) and genetic capture. EF1 = seeds unavailable; EF2 = seeds desiccation sensitive; EF3 = seeds short-lived.
Plants 11 01528 g001
Plants 11 01528 g002 550

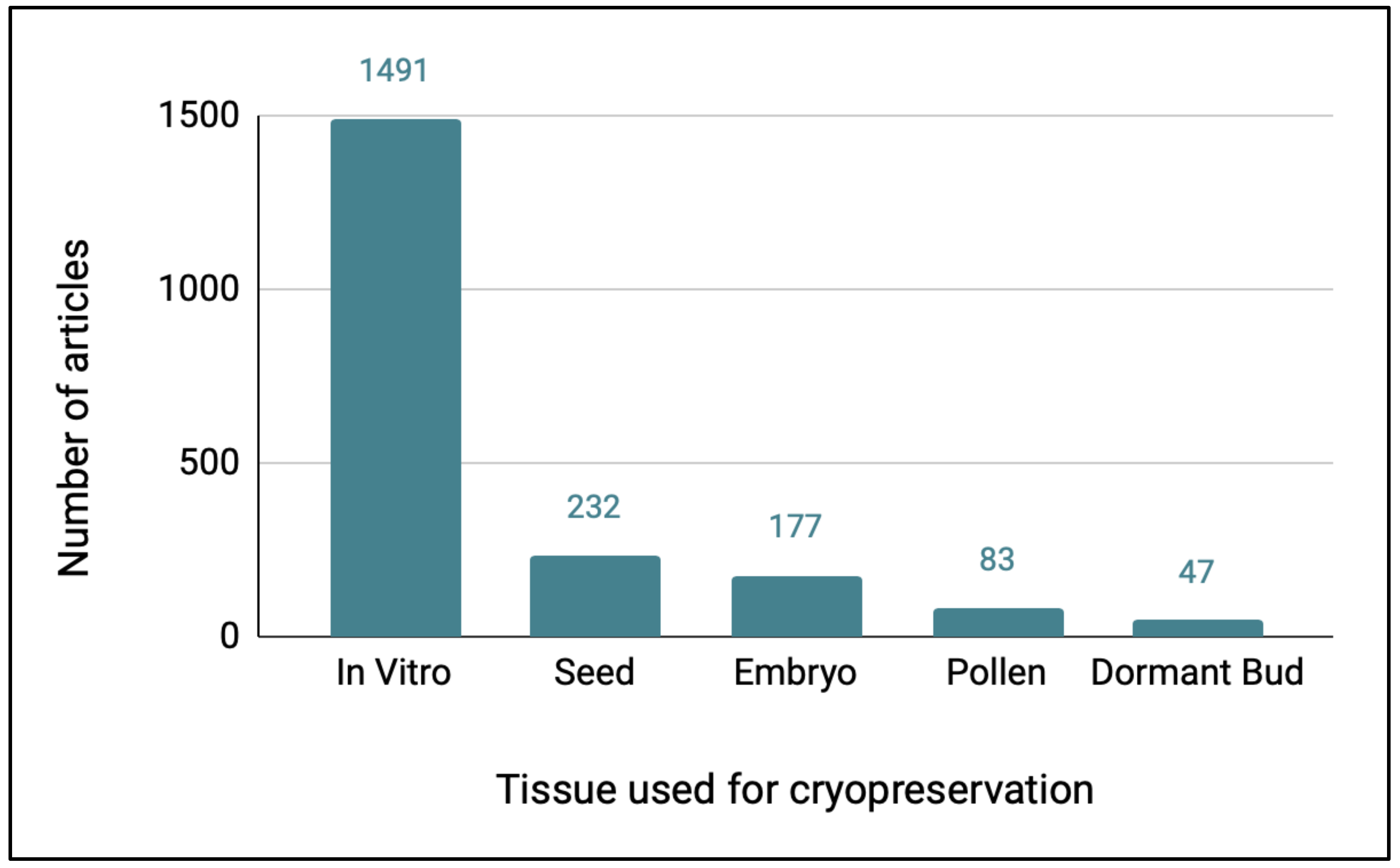

Figure 2. Number of Web of Science articles identified in each of the five categories of plant cryopreservation research, separated by the type of tissue used in the study.
Figure 2. Number of Web of Science articles identified in each of the five categories of plant cryopreservation research, separated by the type of tissue used in the study.
Plants 11 01528 g002
Plants 11 01528 g003 550

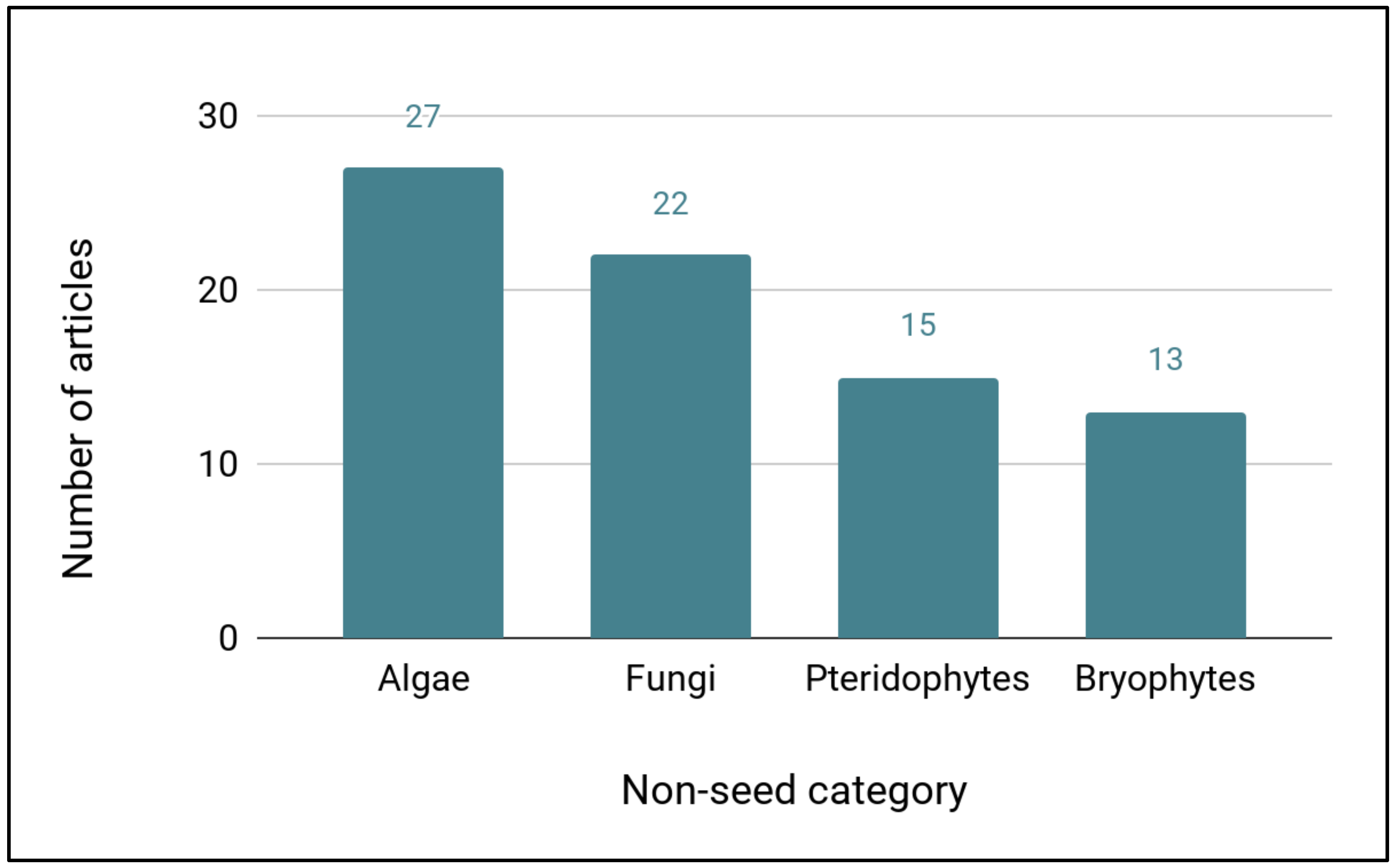

Figure 3. Number of Web of Science articles identified for each category of non-seed plants, algae, and fungi.
Figure 3. Number of Web of Science articles identified for each category of non-seed plants, algae, and fungi.
Plants 11 01528 g003
Table
Table 1. The top 25 families with the most Web of Science articles identified, compared with the 25 families on the Working List of Exceptional Plants with the largest number of species currently known to be exceptional.
Table 1. The top 25 families with the most Web of Science articles identified, compared with the 25 families on the Working List of Exceptional Plants with the largest number of species currently known to be exceptional.
Literature SearchExceptional Plant List
FamilyNo. of ArticlesFamilyNo. of SpeciesNo. of Articles
Rosaceae183Dipterocarpaceae590
Orchidaceae *134Arecaceae *3771
Solanaceae106Rutaceae *3569
Poaceae105Campanulaceae341
Pinaceae80Fabaceae *3266
Asteraceae74Rubiaceae3235
Arecaceae *71Orchidaceae *26134
Rutaceae *69Meliaceae2530
Amaryllidaceae67Fagaceae2437
Fabaceae *66Lauraceae249
Brassicaceae49Sapindaceae2321
Lamiaceae45Asteraceae2274
Vitaceae40Primulaceae208
Fagaceae37Amaryllidaceae1867
Rubiaceae35Moraceae1820
Musaceae33Myrtaceae1818
Euphorbiaceae30Rhizophoraceae150
Meliaceae30Apocynaceae1424
Bromeliaceae29Malvaceae1229
Malvaceae29Sapotaceae122
Dioscoreaceae27Poaceae11105
Salicaceae25Anacardiaceae1014
Apocynaceae24Araucariaceae106
Betulaceae22Gesneriaceae103
Sapindaceae21Pittosporaceae100
Shaded families are those in common in the top 25 of each list, while starred (*) families are those in common in the top 10 of each list.
Table
Table 2. The top 25 genera with the most Web of Science articles identified, compared with the 23 genera with six or more species listed in the current Working List of Exceptional Plants.
Table 2. The top 25 genera with the most Web of Science articles identified, compared with the 23 genera with six or more species listed in the current Working List of Exceptional Plants.
Literature SearchExceptional Plant List
GenusNo. of ArticlesGenusNo. of SpeciesNo. of Articles
Solanum80Shorea260
Malus73Cyanea200
Citrus *62Quercus1723
Allium49Artocarpus157
Prunus46Melicope150
Dendrobium42Coprosma120
Vitis40Lysimachia120
Picea35Dipterocarpus110
Pinus35Citrus *1062
Musa32Cyrtandra100
Coffea28Pittosporum100
Dioscorea27Araucaria95
Arabidopsis26Hopea90
Oryza26Inga91
Chrysanthemum25Syzygium95
Pyrus25Clermontia80
Phoenix24Aesculus75
Fragaria23Garcinia78
Quercus23Bruguiera60
Rubus22Coffea628
Mentha21Diospyros69
Saccharum20Rhizophora60
Hypericum17Trichilia611
Lilium17
Populus17
There are eight genera with five species on the exceptional plant list, therefore these are not shown in the table. Shaded genera are those in common between the two lists, while starred (*) genera are those in common in the top 10 of each list.
Table
Table 3. Genera in common between the Exceptional Plant List and the Web of Science literature search, for the three families in both the top 10 families on the Exceptional Plant List and the top 10 families with the most articles from the literature search.
Table 3. Genera in common between the Exceptional Plant List and the Web of Science literature search, for the three families in both the top 10 families on the Exceptional Plant List and the top 10 families with the most articles from the literature search.
FamilyExceptional Species GeneraLiterature Search GeneraNo. in CommonPercent Exceptional Species Genera in Literature
Arecaceae2314730%
Fabaceae2436521%
Orchidaceae19441052%
Rutaceae65117%
Table
Table 4. Genera of Fabaceae with exceptional species evaluated for the percent of species of trees within each genus, as determined from GlobalTreeSearch [18].
Table 4. Genera of Fabaceae with exceptional species evaluated for the percent of species of trees within each genus, as determined from GlobalTreeSearch [18].
Fabaceae with Exceptional spp.GlobalTreeSearch Number of spp. (Trees)WFO Synonym spp.WFO Accepted spp.WFO Unchecked spp.WFO Doubtful spp.Approximate
Percent Trees a
Andira2931401NA71%
Astragalus023083108146230%
Castanospermum121NANA100%
Cojoba1420152NA82%
Copaifera3438454169%
Cordyla5551NA83%
Crotalaria659671616241%
Cynometra10872884NA117%
Detarium343NA1100%
Dipteryx1116122NA79%
Erythrina107152132161072%
Inga266504279281387%
Kanaloa0NA1NANA0%
Marmaroxylon09NANANA* See footnote
Pentaclethra3731NA75%
Prioria11NA14NANA79%
Saraca1023111NA83%
Senna1103628220NA36%
Sesbania13576311NA18%
Sophora291216316NA37%
Strongylodon012163NA0%
Swartzia1857919914NA87%
Vicia04042488620%
Vigna020210415NA0%
Zygia5538664NA79%
* See data for Zygia, which is sometimes considered a synonym of Marmaroxylon. a Not exact species match; calculated using number of WFO Accepted and Unchecked spp. Green = genera in common between Web of Science search and exceptional list. Purple = approximate percent of trees >50%. WFO = World Flora Online [19].
Table
Table 5. Exceptional species listed in the current Working List of Exceptional Plants, which were found in five or more articles in the Web of Science literature search.
Table 5. Exceptional species listed in the current Working List of Exceptional Plants, which were found in five or more articles in the Web of Science literature search.
Exceptional SpeciesNo. of ArticlesFamilyNo. of Identified
Exceptional Species in Family		No. of Total Articles in FamilyPercent of Total Articles on One Species
Carica papaya20Caricaceae120100%
Cocos nucifera21Arecaceae377130%
Coffea arabica17Rubiaceae323549%
Citrus sinensis14Rutaceae356920%
Elaeis guineensis12Arecaceae377117%
Mangifera indica11Anacardiaceae101479%
Theobroma cacao11Malvaceae122938%
Trichilia dregeana10Meliaceae253033%
Artocarpus heterophyllus9Moraceae182045%
Castanea sativa8Fagaceae243722%
Quercus robur8Fagaceae243722%
Diospyros kaki7Ebenaceae6978%
Persea americana7Lauraceae24978%
Citrus limon6Rutaceae35699%
Ekebergia capensis6Meliaceae253020%
Hevea brasiliensis6Euphorbiaceae23020%
Passiflora edulis5Passifloraceae11436%
Wasabia japonica5Brassicaceae24910%
Table
Table 6. Families with two or more species listed in the current Working List of Exceptional Plants, but with no articles identified in the Web of Science literature search.
Table 6. Families with two or more species listed in the current Working List of Exceptional Plants, but with no articles identified in the Web of Science literature search.
FamilyNumber of Exceptional Species
TotalEF1EF2EF3EF4
Dipterocarpaceae5905540
Rhizophoraceae1501500
Pittosporaceae1010100
Myristicaceae90720
Podocarpaceae70520
Santalaceae71150
Nymphaeaceae60411
Cyperaceae50051
Nyctaginaceae50410
Urticaceae50051
Cymodoceaceae40400
Lecythidaceae40400
Dilleniaceae30003
Scrophulariaceae30030
Calophyllaceae20200
Chrysobalanaceae20200
Elaeocarpaceae21100
Hydrangeaceae20020
Zosteraceae20200
TOTAL1523106406
PERCENT 2%70%26%4%
Exceptionality factors (EFs) of the species within each family are also provided. EF1 = few or no seeds; EF2 = desiccation sensitive seeds; EF3 = short-lived seeds; EF4 = seeds deeply dormant [11]. Shaded cells indicate non-zero values.
Table
Table 7. Articles found with Google Scholar for “Dipterocarpaceae and Cryopreservation”.
Table 7. Articles found with Google Scholar for “Dipterocarpaceae and Cryopreservation”.
Type of PublicationReference
Journal articles: Journal of Tropical and Subtropical Botany [Chinese]; International Journal of Agriculture for Plantations[20,21]
Conference proceedings[22,23]
Workshop proceedings[24]
Symposium proceedings[25]
Poster presentation cited in a report[26]
Institutional reports[27,28]
Dipterocarpaceae was the family with the most exceptional species that had no cryopreservation articles found with the Web of Science search.
Table
Table 8. Top 25 genera with the most Web of Science articles in each of the five categories of plant cryopreservation research.
Table 8. Top 25 genera with the most Web of Science articles in each of the five categories of plant cryopreservation research.
In VitroEmbryoSeedPollenDormant Bud
GenusNo. of ArticlesGenusNo. of ArticlesGenusNo. of ArticlesGenusNo. of ArticlesGenusNo. of Articles
Solanum70Coffea13Citrus *11Paeonia7Malus19
Malus60Citrus *11Cocos9Solanum6Morus3
Allium42Prunus *8Trichilia8Allium4Prunus *3
Citrus *39Passiflora6Coffea7Brassica3Ribes3
Dendrobium39Pinus5Quercus6Citrus *3Diospyros2
Vitis37Salix5Camellia5Dendrobium3Populus2
Picea28Allium4Livistona5Rosa3Pyrus2
Pinus28Camellia4Acer4Camellia2Salix2
Musa27Malus4Castanea4Carya2Actinidia1
Prunus *27Musa4Elaeis4Elaeis2Citrus *1
Dioscorea25Picea4Ilex4Lilium2Eucalyptus1
Arabidopsis24Populus4Musa4Olea2Fraxinus1
Oryza24Pyrus4Picea4Phoenix2Juglans1
Chrysanthemum22 Prunus *4Prunus *2Petunia1
Fragaria20 Amaryllis3Ricinus2Phoenix1
Phoenix19 Jatropha3 Quercus1
Saccharum19 Zea3 Rosa1
Mentha18 Ulmus1
Rubus18 Vaccinium1
Hypericum17
Shading indicates genera that are only in the top 25 within one category, while starred (*) genera are those in common in the top 25 across all five categories.
Table
Table 9. Genera and families of bryophytes and pteridophytes captured in this literature search, representing cryopreservation work on these taxa.
Table 9. Genera and families of bryophytes and pteridophytes captured in this literature search, representing cryopreservation work on these taxa.
BryophytesPteridophytes
FamilyGenusFamilyGenus
MarchantiaceaeMarchantiaOsmundaceaeOsmunda
DitrichaceaeDitrichumPteridaceaeCeratopteris
FunariaceaePhyscomitrellaAspleniaceaeAsplenium
BryaceaeBryumPolypodiaceaePleopeltis
PilotrichaceaeCyclodictyonCyatheaceaeCyathea
SplachnaceaeSplachnumSalviniaceaeAzolla
PolytrichaceaePogonatumEquisetaceaeEquisetum
PolytrichaceaePolytrichumCyatheaceaeAlsophila
AspleniaceaeNeottopteris
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Pence, V.C.; Bruns, E.B. The Tip of the Iceberg: Cryopreservation Needs for Meeting the Challenge of Exceptional Plant Conservation. Plants 2022, 11, 1528. https://doi.org/10.3390/plants11121528

AMA Style

Pence VC, Bruns EB. The Tip of the Iceberg: Cryopreservation Needs for Meeting the Challenge of Exceptional Plant Conservation. Plants. 2022; 11(12):1528. https://doi.org/10.3390/plants11121528

Chicago/Turabian Style

Pence, Valerie C., and Emily Beckman Bruns. 2022. "The Tip of the Iceberg: Cryopreservation Needs for Meeting the Challenge of Exceptional Plant Conservation" Plants 11, no. 12: 1528. https://doi.org/10.3390/plants11121528

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
