Article

Transcriptome Analysis of Arabidopsis thaliana Plants Treated with a New Compound Natolen128, Enhancing Salt Stress Tolerance

by
Kaori Sako
1,2,*,
Chien Van Ha
2,
Akihiro Matsui
2,
Maho Tanaka
2,
Ayato Sato
3 and
Motoaki Seki
2,4,5,*
1
Department of Advanced Bioscience, Faculty of Agriculture, Kindai University, Nara 631-8505, Japan
2
Plant Genomic Network Research Team, RIKEN Center for Sustainable Resource Science (CSRS), Yokohama 230-0045, Japan
3
Institute of Transformative Bio-Molecules (ITbM), Nagoya University, Nagoya 464-8601, Japan
4
Kihara Institute for Biological Research, Yokohama City University, Yokohama 244-0813, Japan
5
Plant Epigenome Regulation Laboratory, RIKEN Cluster for Pioneering Research, Wako, Saitama 351-0198, Japan
*
Authors to whom correspondence should be addressed.
Plants 2021, 10(5), 978; https://doi.org/10.3390/plants10050978
Submission received: 27 April 2021 / Revised: 9 May 2021 / Accepted: 11 May 2021 / Published: 14 May 2021
(This article belongs to the Special Issue Plant Physiological, Biochemical, and Molecular Responses to Abiotic Stresses)
Browse Figures
Versions Notes

Abstract

:
Salinity stress is a major threat to agriculture and global food security. Chemical priming is a promising approach to improving salinity stress tolerance in plants. To identify small molecules with the capacity to enhance salinity stress tolerance in plants, chemical screening was performed using Arabidopsis thaliana. We screened 6400 compounds from the Nagoya University Institute of Transformative Bio-Molecule (ITbM) chemical library and identified one compound, Natolen128, that enhanced salinity-stress tolerance. Furthermore, we isolated a negative compound of Natolen128, namely Necolen124, that did not enhance salinity stress tolerance, though it has a similar chemical structure to Natolen128. We conducted a transcriptomic analysis of Natolen128 and Necolen124 to investigate how Natolen128 enhances high-salinity stress tolerance. Our data indicated that the expression levels of 330 genes were upregulated by Natolen128 treatment compared with that of Necolen124. Treatment with Natolen128 increased expression of hypoxia-responsive genes including ethylene biosynthetic enzymes and PHYTOGLOBIN, which modulate accumulation of nitric oxide (NO) level. NO was slightly increased in plants treated with Natolen128. These results suggest that Natolen128 may regulate NO accumulation and thus, improve salinity stress tolerance in A. thaliana.

1. Introduction

More than 25% of irrigated land is affected by soil salinization worldwide [1]. High salinity stress is one of the major limiting factors of crop productivity and growth. Salt stress causes osmotic stress, ionic stress and oxidative stress [2,3]. A high concentration of salt makes plants harder to absorb water and nutrients and an ion imbalance prevents plant growth by altering metabolic processes and reducing photosynthesis [2]. Under salinity-stress conditions, reactive oxygen and nitrogen species (ROS and RNS, respectively) are also produced in plant cells. Low levels of ROS and RNS work as messengers of signal transduction [4]. For example, nitric oxide (NO) belonging to the RNS family modulates S-nitrosylation and regulates abiotic stress responses. A recent report showed that NO regulates the activity of Protein arginine methyltransferases 5 (PRMT5), which catalyzes the symmetric demethylation of protein arginine residues under salinity stress, by S-nitrosylation, resulting in the proper stress response [5]. However, excessive ROS and RNS accumulation can lead to cellular oxidative damage [6]. Thus, plants are equipped with mechanisms to control the amount of ROS and RNS such as enzymatic and non-enzymatic antioxidant defense systems. Enzymatic antioxidants include Superoxide dismutase, Catalase, Ascorbate peroxidase and glutathione peroxidase [7]. Non-enzymatic antioxidants such as anthocyanin and ascorbate have antioxidant activity [8].
As the world’s population is estimated to reach 9.7 billion by 2050 [9], technological development to improve crop salinity-stress tolerance is crucial for sustainable food production. Latest research suggests that chemical priming may improve abiotic stress tolerance in crops [10]. Chemical priming is an approach in which plants are treated with natural or synthetic compounds prior to stress exposure. Treated plants exhibit greater stress tolerance compared with non-treated plants, namely primed state. This method has the advantage that chemical priming agents often improve abiotic stress tolerance in non-specific plant species, so it may be applied to various plant species. Previously, we isolated a novel chemical agent enhancing high-salinity stress tolerance in Arabidopsis and rice from the RIKEN chemical library [11]. This study indicated that chemical libraries might include valuable compounds to improve abiotic stress tolerance in various agricultural crops. We therefore screened compounds enhancing high-salinity stress tolerance using the Institute of Transformative Bio-Molecule (ITbM) chemical library. We found that NaCl tolerance enhancer128 (Natolen128) improved salinity stress tolerance in Arabidopsis thaliana at a low concentration. We conducted a transcriptome analysis to clarify the mechanism enhancing high-salinity stress tolerance. The transcriptomic analysis revealed that the expression levels of abiotic stress responsive genes, including ethylene biosynthetic genes (such as AtACS9) and hypoxia-responsive genes (such as AtPGB1), were upregulated by Natolen128.

2. Results

2.1. Natolen128 Was Identified as a New Compound Enhancing Salt Stress Tolerance in A. thaliana

To identify compounds that enhance salt-stress tolerance in plants, we screened 6400 compounds from the ITbM library. Arabidopsis wild-type Col-0 plants grown in liquid culture medium for 4 days were treated with each library compound for 24 h, then subsequently treated with 100 mM NaCl. We investigated the survival rates for 4 days and identified four compounds that showed higher survival rates under high salt-stress conditions. Among them, we focused on N-[3-(2-oxo-1-pyrrolidinyl)phenyl]-spiro[bicyclo[3.2.1]octane-8,2′-[1,3]dithiolane]-3-carboxamide (Natolen128) (Figure 1a), because it showed the strongest increase in tolerance to salinity stress. To investigate the function of Natolen128, we next screened negative compounds of Natolen128 that had similar chemical structures but did not enhance salt stress tolerance. We evaluated five candidate compounds and isolated N-[4-(1,1-dioxido-2-isothiazolidinyl)phenyl]-spiro[bicyclo[3.2.1]octane-8,2′-[1,3]dithiolane]-3-carboxamide as a negative compound of Natolen128 (Necolen124) (Figure 1b). To confirm the salinity-stress tolerance increase from Natolen128, wild-type plants grown in liquid culture medium for 4 days were treated with 2 µM Natolen128, Necolen124 or DMSO for 24 h, with or without subsequent treatment with 100 mM NaCl for 4 days. The plants treated with Natolen128 showed an increased survival rate under salinity-stress conditions compared with DMSO-treated and Necolen124-treated plants (Figure 1c,d).

2.2. Comparative Transcriptomic Analysis of Natolen128 Treatments under High-Salinity Stress Conditions

To elucidate the molecular mechanism of high salt-stress tolerance mediated by Natolen128, we conducted global gene expression analysis with a microarray. Four-day-old plants treated with 2 µM Natolen128 or Necolen124 for 24 h, with or without a subsequent treatment with 100 mM NaCl for 2 h, were examined. We identified 330 genes whose expression was increased by 24 h Natolen128 treatment compared with Necolen124 (Table S1) and 232 genes whose expression was decreased by 24 h Natolen128 treatment compared with Necolen124 (Table S2). Additionally, 169 genes were more highly expressed in Natolen128-treated plants than in Necolen124-treated plants under high-salinity stress conditions (Table S3), whereas 163 genes showed lower expression in Natolen128-treated plants under salinity stress conditions than in Necolen124-treated plants (Table S4). Venn diagrams prepared based on the microarray data indicated that 124 overlapping genes exhibited higher expression and 67 overlapping genes exhibited lower expression in Natolen128-treated plants than in Necolen124-treated plants under control and high-salinity stress conditions (Figure 2, Table S5).

2.3. Natolen128 Induces the Expression of a Phytoglobin and Ethylene Biosynthetic Genes under High-Salinity Stress Conditions

We focused on the 124 genes upregulated by Natolen128 both before and after high-salinity stress conditions. To unravel the function of Natolen128, GO analysis of these 124 genes was performed. GO analysis indicated that 29 genes were categorized as stress response-related (Table 1). We focused particularly on Hemoglobin/Phytoglobin 1 (AtPGB1) and ACC OXIDASE 1 (AtACO1), because these genes have been reported to respond to salinity stress [12,13,14]. AtPGB1 is a non-symbiotic class I hemoglobin that modulates the NO concentration [15]. AtACO1 is an ethylene biosynthetic enzyme catalyzing the conversion of 1-aminocyclopropane-1-carboxylic acid (ACC) to ethylene. A qRT-PCR assay was performed to validate the expression of these candidate genes. AtPGB1 expression was upregulated in Natolen128-treated plants compared with DMSO- and Necolen124-treated plants under control conditions. Further, the expression of AtPGB1 was significantly increased by Natolen128 treatment under high-salinity conditions (Figure 3a). AtACO1 expression was slightly increased compared with DMSO-treated plants under control conditions (Figure 3b). Furthermore, Natolen128 treatment induced the expression of an ethylene receptor (AtETR2) and an ethylene response transcription factor (AtHRE2) (Table 1). Therefore, we investigated the expression of 1-AMINOCYCLOPROPANE-1-CARBOXYLATE SYNTHASE 9 (AtACS9), which encodes an ethylene biosynthetic enzyme, and found it was upregulated by Natolen128 treatment under control conditions (Figure 3c), suggesting that ethylene biosynthesis was activated by Natolen128 treatment. Ethylene and AtPGB1 has been reported to regulate the intracellular NO content [16]. Thus, we observed the NO content in roots using a NO probe, DAF-FM DA. A slight NO signal was detected in roots treated with Natolen128 for 6 h, but there was no signal in DMSO-treated roots (Figure 3d,e). These results implied that Natolen128 might induce NO production and gene expression of AtPGB1 and ethylene biosynthetic enzymes, leading to the high-salinity stress tolerance phenotype.

3. Discussion

In this study, we identified a compound, Natolen128, that enhances salinity stress tolerance in Arabidopsis thaliana by screening the ITbM chemical library. Additionally, Necolen124 was isolated as a negative compound of Natolen128 that has a similar structure but does not enhance salinity stress tolerance. Transcriptome analysis showed that Natolen128 increased the expression of AtPGB1 and ethylene biosynthetic enzyme genes. Moreover, the NO content was slightly increased by Natolen128.
The plant hormone ethylene plays an important role in abiotic stress responses, and the application of exogenous ethylene and ACC improves salt tolerance in Arabidopsis [17,18], showing that ethylene contributes to salt stress tolerance in plants. Ethylene biosynthesis is characterized by two steps; first, the substrate S-adenosyl-l-methionine is converted to ACC by ACS [19,20]. The Arabidopsis genome contains eight functional ACS genes (ACS2, ACS4–9 and ACS11) and each of these genes contributes to ethylene production [21]. In the second step, ACC is converted to ethylene by ACO [22,23]. ACS and ACO mainly regulate the ethylene biosynthesis pathway. The expression levels of AtACO1 and AtACS9 were increased by Natolen128 treatment under control conditions. These results suggest that Natolen128 activates ethylene biosynthesis. Ethylene signaling has been shown to modulate salinity stress responses via maintaining Na+/K+ and ROS homeostasis and regulating microtubule reassembly [24,25]. Thus, ethylene produced by Natolen128 treatment might induce primed state and rapidly activate the stress response under salinity stress condition leading to enhance tolerance.
In addition, ethylene is produced under early hypoxia stress and enhances acclimation to hypoxia [26]. Previous reports showed that ethylene induces AtPGB1 expression during hypoxia and AtPGB1 participates in the low-oxygen stress response by detoxifying NO [16,27]. We showed that AtPGB1 was highly expressed in plants treated with Natolen128 under salinity stress. Interestingly, in addition to AtPGB1, Natolen128 induced many hypoxia-responsive genes, such as HYPOXIA RESPONSIVE ERF2 (AtHRE2), LOB domain-containing protein41 (AtLBD41), PYRUVATE DECARBOXYLASE 1 (AtPDC1), HYPOXIA RESPONSE ATTENUATOR1 (AtHRA1) and the cysteine oxidases AtPCO1 and AtPCO2 [28]. These results imply that Natolen128 treatment may induce a low O2-like condition in plants. The emission of NO is increased in plants under low O2 conditions [29]. Thus, we investigated NO levels in roots treated with Natolen128 and we detected slightly increased NO levels in roots treated with Natolen128. NO plays an essential role in plant abiotic stress responses. Treatment with sodium nitroprusside (SNP), a donor for NO, enhanced salinity stress tolerance [30] and we confirmed that SNP enhanced salinity stress tolerance in our growth conditions (Figure S1). Thus, we assume that Natolen128 activates NO production under control conditions and this NO works as a signaling molecule inducing acclimation to salinity stress in plants. In addition, NO induced by Natolen128 treatment presumably induces hypoxia responsive genes. However, an excess amount of NO is harmful to cells [31]. We observed that the expression of AtPGB1 was increased by Natolen128 treatment under high-salinity conditions, suggesting that AtPGB1 may remove excess NO in Natolen128-treated plants under salinity stress conditions. Our findings suggest that Natolen128 regulates intracellular NO homeostasis, resulting in enhanced salt stress tolerance in Arabidopsis thaliana.

4. Materials and Methods

4.1. Plant Materials and Growth Conditions

A. thaliana (ecotype Columbia-0) seeds were sterilized and sown in half-strength Murashige and Skoog (MS) liquid medium supplemented with 1% sucrose and 0.1% agar. The plants were grown under previously described conditions [32]. Four-day-old plants were treated with compounds for 24 h, with or without subsequent treatment with 100 mM NaCl (WAKO, Japan). The NaCl solution was added into the medium containing both the compounds and plants. The survival rate of 20 plants was calculated 4 days after the NaCl treatment. The experiment was conducted using three biological replicates.

4.2. Chemical Library Screening

A chemical library (10 mM of each compound in dimethylsulfoxide (DMSO)) was obtained from the ITbM library. We sowed 5–6 Col-0 seeds in each well containing 250 µL of half-strength MS liquid medium in a 96-well plate and the seeds were grown for 4 days. Subsequently, 1 µM chemical (final concentration) was added to each well and incubated for 24 h, and the plants were then treated with 100 mM NaCl. Survival rates were checked 4 days after the NaCl treatment.

4.3. RNA Extraction

Total RNA was extracted from 5-day-old A. thaliana seedlings treated with 2 µM Natolen128 for 24 h, with or without subsequent treatment with 100 mM NaCl for 2 h. DMSO and Necolen124 were used as negative controls. For qRT-PCR, total RNA was extracted from 5–10 plants using the Plant RNA reagent (Thermo Fisher Scientific, Waltham, MA, USA) as previously described [33]. For microarray analysis, total RNA was extracted from 20 plants with an RNeasy Plant Mini Kit (Qiagen, Hilden, Germany) according to the manufacturer’s instructions. The quality of the extracted total RNA was evaluated using a Bioanalyzer system (Agilent, Santa Clara, CA, USA). The experiment was performed using three biological replicates.

4.4. Microarray Analysis

A microarray analysis was completed as previously described [11]. The microarray data were deposited in the GEO database (GEO ID: GSE173340). Each treatment was analyzed using three biological replicates, and 10 plants were sampled for each treatment and/or repeat. Genes with an expression log2 ratio ≥ 1 [t-test analysis, Benjamini–Hochberg correction (FDR) < 0.05] were identified as upregulated genes. Gene Ontology (GO) assignments for Arabidopsis genes were obtained from TAIR (www.arabidopsis.org, last accessed on 12 May 2021).

4.5. Quantitative Real-Time PCR Analysis

First-strand cDNA synthesis was performed with a PrimeScript™ RT reagent Kit (Takara, Kusatsu Japan) for quantitative real-time polymerase chain reaction (qRT-PCR) analysis. The qRT-PCR was conducted as previously described [11] and 18S rRNA was used as a reference gene. The experiment was conducted using three biological replicates and 10 plants were sampled for each treatment and/or repeat. The qRT-PCR primer sequences were as follows: AtPGB1, 5′-AACACTTTGAGGTGGCCAAG-3′ and 5′-TGATCATAAGCCTGACCCCAAG-3′; AtACS9, 5′-AAATGGAGAACGGGAGCAGA-3′ and 5′-AAGAGGGTTAGACGGGTTGG-3′; AtACO1, 5′-GATCAAAGAGAGAGAGATGGAGA-3′ and 5′-TGAAATGTTTGGGATCTGACAGAT-3′; At18S rRNA, 5′-CGGCTACCACATCCAAGGAA-3′ and 5′-GCTGGAATTACCGCGGCT-3′.

4.6. NO Detection

Intracellular NO levels were visualized using DAF-FM DA (diaminofluorescein-FM diacetate, Goryo Chemical) as previously described [16]. Seedlings treated with 2 µM Natolen128 or DMSO for 6 h were incubated in the dark for 15 min under gentle agitation in 10 mM Tris-HCl buffer (pH 7.4) containing 10 μM DAF-FM DA and subsequently washed twice for 5 min with 10 mM Tris-HCl buffer (pH 7.4). Fluorescence was visualized using an Olympus BX51 fluorescence microscope. Fluorescence intensity in root tips was determined by ImageJ software (https://imagej.nih.gov/ij/index.html, last accessed on 12 May 2021).

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/plants10050978/s1, Figure S1: SNP enhances high-salinity stress tolerance in Arabidopsis thaliana, Table S1: List of the genes that were up-regulated by Natolen128 compared with Necolen124 treatment under control condition, Table S2: List of the genes that were down-regulated by Natolen128 compared with Necolen124 treatment under control condition, Table S3: List of the genes that were up-regulated by Natolen128 compared with Necolen124 treatment under salt stress, Table S4: List of the genes that were down-regulated by Natolen128 compared with Necolen124 treatment under salt stress, Table S5: List of overlapping genes that were up-regulated by Natolen128 compared with Necolen124 treatment both under control and salinity stress condition.

Author Contributions

Conceptualization, K.S. and M.S.; validation, K.S.; formal analysis, A.M. and A.S.; investigation, K.S., C.V.H. and M.T.; resources, A.S.; data curation, A.M.; writing—original draft preparation, K.S. and M.S.; project administration, M.S.; funding acquisition, K.S. and M.S. All authors have read and agreed to the published version of the manuscript.

Funding

This work was financially supported by grants from RIKEN, the Japan Science and Technology Agency, the Core Research for Evolutional Science and Technology project (Grant Number JPMJCR13B4 to M.S.) and the Japan Society for the Promotion of Science (KAKENHI Grant Numbers JP18K14441 to K.S.).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available in the article and in the Supplementary Materials.

Conflicts of Interest

The authors declare that they have no conflicts of interest with the contents of this article.

References

  1. Shahid, S.A.; Zaman, M.; Heng, L. Soil Salinity: Historical Perspectives and a World Overview of the Problem. In Guideline for Salinity Assessment, Mitigation and Adaptation Using Nuclear and Related Techniques; Zaman, M., Shahid, S.A., Heng, L., Eds.; Springer International Publishing: Cham, Switzerland, 2018; pp. 43–53. ISBN 978-3-319-96190-3. [Google Scholar]
  2. Munns, R.; Tester, M. Mechanisms of Salinity Tolerance. Annu. Rev. Plant Biol. 2008, 59, 651–681. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Van Zelm, E.; Zhang, Y.; Testerink, C. Salt Tolerance Mechanisms of Plants. Annu. Rev. Plant Biol. 2020, 71, 403–433. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Fancy, N.N.; Bahlmann, A.; Loake, G.J. Nitric Oxide Function in Plant Abiotic Stress. Plant Cell Environ. 2017, 40, 462–472. [Google Scholar] [CrossRef] [PubMed]
  5. Hu, J.; Yang, H.; Mu, J.; Lu, T.; Peng, J.; Deng, X.; Kong, Z.; Bao, S.; Cao, X.; Zuo, J. Nitric Oxide Regulates Protein Methylation during Stress Responses in Plants. Mol. Cell 2017, 67, 702–710.e4. [Google Scholar] [CrossRef]
  6. Grant, J.J.; Loake, G.J. Role of Reactive Oxygen Intermediates and Cognate Redox Signaling in Disease Resistance. Plant Physiol. 2000, 124, 21–30. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  7. Huang, H.; Ullah, F.; Zhou, D.-X.; Yi, M.; Zhao, Y. Mechanisms of ROS Regulation of Plant Development and Stress Responses. Front. Plant Sci. 2019, 10, 800. [Google Scholar] [CrossRef]
  8. Decros, G.; Baldet, P.; Beauvoit, B.; Stevens, R.; Flandin, A.; Colombié, S.; Gibon, Y.; Pétriacq, P. Get the Balance Right: ROS Homeostasis and Redox Signalling in Fruit. Front. Plant Sci. 2019, 10, 1091. [Google Scholar] [CrossRef]
  9. United Nations Department of Economic and Social Affairs Population Division. Available online: http://www.unpopulation.org (last accessed on 12 May 2021).
  10. Sako, K.; Nguyen, H.M.; Seki, M. Advances in Chemical Priming to Enhance Abiotic Stress Tolerance in Plants. Plant Cell Physiol. 2021, 61, 1995–2003. [Google Scholar] [CrossRef]
  11. Sako, K.; Futamura, Y.; Shimizu, T.; Matsui, A.; Hirano, H.; Kondoh, Y.; Muroi, M.; Aono, H.; Tanaka, M.; Honda, K.; et al. Inhibition of Mitochondrial Complex I by the Novel Compound FSL0260 Enhances High Salinity-Stress Tolerance in Arabidopsis thaliana. Sci. Rep. 2020, 10, 8691. [Google Scholar] [CrossRef]
  12. Bai, X.; Long, J.; He, X.; Yan, J.; Chen, X.; Tan, Y.; Li, K.; Chen, L.; Xu, H. Overexpression of Spinach Non-Symbiotic Hemoglobin in Arabidopsis Resulted in Decreased NO Content and Lowered Nitrate and Other Abiotic Stresses Tolerance. Sci. Rep. 2016, 6, 26400. [Google Scholar] [CrossRef] [Green Version]
  13. Zhao, L.; Gu, R.; Gao, P.; Wang, G. A Nonsymbiotic Hemoglobin Gene from Maize, ZmHb, Is Involved in Response to Submergence, High-Salt and Osmotic Stresses. Plant Cell Tiss. Organ Cult. 2008, 95, 227–237. [Google Scholar] [CrossRef]
  14. Datta, R.; Kumar, D.; Sultana, A.; Hazra, S.; Bhattacharyya, D.; Chattopadhyay, S. Glutathione Regulates 1-Aminocyclopropane-1-Carboxylate Synthase Transcription via WRKY33 and 1-Aminocyclopropane-1-Carboxylate Oxidase by Modulating Messenger RNA Stability to Induce Ethylene Synthesis during Stress. Plant Physiol. 2015, 169, 2963–2981. [Google Scholar] [PubMed]
  15. Tiso, M.; Tejero, J.; Kenney, C.; Frizzell, S.; Gladwin, M.T. Nitrite Reductase Activity of Nonsymbiotic Hemoglobins from Arabidopsis thaliana. Biochemistry 2012, 51, 5285–5292. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Hartman, S.; Liu, Z.; van Veen, H.; Vicente, J.; Reinen, E.; Martopawiro, S.; Zhang, H.; van Dongen, N.; Bosman, F.; Bassel, G.W.; et al. Ethylene-Mediated Nitric Oxide Depletion Pre-Adapts Plants to Hypoxia Stress. Nat. Commun. 2019, 10, 4020. [Google Scholar] [CrossRef] [Green Version]
  17. Cao, W.-H.; Liu, J.; He, X.-J.; Mu, R.-L.; Zhou, H.-L.; Chen, S.-Y.; Zhang, J.-S. Modulation of Ethylene Responses Affects Plant Salt-Stress Responses. Plant Physiol. 2007, 143, 707–719. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  18. Peng, J.; Li, Z.; Wen, X.; Li, W.; Shi, H.; Yang, L.; Zhu, H.; Guo, H. Salt-Induced Stabilization of EIN3/EIL1 Confers Salinity Tolerance by Deterring ROS Accumulation in Arabidopsis. PLoS Genet. 2014, 10, e1004664. [Google Scholar] [CrossRef] [Green Version]
  19. Adams, D.O.; Yang, S.F. Ethylene Biosynthesis: Identification of 1-Aminocyclopropane-1-Carboxylic Acid as an Intermediate in the Conversion of Methionine to Ethylene. Proc. Natl. Acad. Sci. USA 1979, 76, 170–174. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  20. Boller, T.; Herner, R.C.; Kende, H. Assay for and Enzymatic Formation of an Ethylene Precursor, 1-Aminocyclopropane-1-Carboxylic Acid. Planta 1979, 145, 293–303. [Google Scholar] [CrossRef]
  21. Tsuchisaka, A.; Yu, G.; Jin, H.; Alonso, J.M.; Ecker, J.R.; Zhang, X.; Gao, S.; Theologis, A. A Combinatorial Interplay Among the 1-Aminocyclopropane-1-Carboxylate Isoforms Regulates Ethylene Biosynthesis in Arabidopsis thaliana. Genetics 2009, 183, 979–1003. [Google Scholar] [CrossRef] [Green Version]
  22. Hamilton, A.J.; Bouzayen, M.; Grierson, D. Identification of a Tomato Gene for the Ethylene-Forming Enzyme by Expression in Yeast. Proc. Natl. Acad. Sci. USA 1991, 88, 7434–7437. [Google Scholar] [CrossRef] [Green Version]
  23. Ververidis, P.; John, P. Complete Recovery in Vitro of Ethylene-Forming Enzyme Activity. Phytochemistry 1991, 30, 725–727. [Google Scholar] [CrossRef]
  24. Riyazuddin, R.; Verma, R.; Singh, K.; Nisha, N.; Keisham, M.; Bhati, K.K.; Kim, S.T.; Gupta, R. Ethylene: A Master Regulator of Salinity Stress Tolerance in Plants. Biomolecules 2020, 10, 959. [Google Scholar] [CrossRef]
  25. Dou, L.; He, K.; Higaki, T.; Wang, X.; Mao, T. Ethylene Signaling Modulates Cortical Microtubule Reassembly in Response to Salt Stress. Plant Physiol. 2018, 176, 2071–2081. [Google Scholar] [CrossRef]
  26. Pucciariello, C.; Perata, P. The Oxidative Paradox in Low Oxygen Stress in Plants. Antioxidants 2021, 10, 332. [Google Scholar] [CrossRef] [PubMed]
  27. Hunt, P.W.; Klok, E.J.; Trevaskis, B.; Watts, R.A.; Ellis, M.H.; Peacock, W.J.; Dennis, E.S. Increased Level of Hemoglobin 1 Enhances Survival of Hypoxic Stress and Promotes Early Growth in Arabidopsis thaliana. Proc. Natl. Acad. Sci. USA 2002, 99, 17197–17202. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  28. Lee, T.A.; Bailey-Serres, J. Integrative Analysis from the Epigenome to Translatome Uncovers Patterns of Dominant Nuclear Regulation during Transient Stress. Plant Cell 2019, 31, 2573–2595. [Google Scholar] [CrossRef] [Green Version]
  29. Hebelstrup, K.H.; van Zanten, M.; Mandon, J.; Voesenek, L.A.C.J.; Harren, F.J.M.; Cristescu, S.M.; Møller, I.M.; Mur, L.A.J. Haemoglobin Modulates NO Emission and Hyponasty under Hypoxia-Related Stress in Arabidopsis thaliana. J. Exp. Bot. 2012, 63, 5581–5591. [Google Scholar] [CrossRef] [PubMed]
  30. Uchida, A.; Jagendorf, A.T.; Hibino, T.; Takabe, T.; Takabe, T. Effects of Hydrogen Peroxide and Nitric Oxide on Both Salt and Heat Stress Tolerance in Rice. Plant Sci. 2002, 163, 515–523. [Google Scholar] [CrossRef]
  31. Paul, S.; Roychoudhury, A. Regulation of Physiological Aspects in Plants by Hydrogen Sulfide and Nitric Oxide under Challenging Environment. Physiol. Plant. 2020, 168, 374–393. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  32. Sako, K.; Kim, J.-M.; Matsui, A.; Nakamura, K.; Tanaka, M.; Kobayashi, M.; Saito, K.; Nishino, N.; Kusano, M.; Taji, T.; et al. Ky-2, a Histone Deacetylase Inhibitor, Enhances High-Salinity Stress Tolerance in Arabidopsis thaliana. Plant Cell Physiol. 2016, 57, 776–783. [Google Scholar] [CrossRef] [Green Version]
  33. Nguyen, A.H.; Matsui, A.; Tanaka, M.; Mizunashi, K.; Nakaminami, K.; Hayashi, M.; Iida, K.; Toyoda, T.; Nguyen, D.V.; Seki, M. Loss of Arabidopsis 5′–3′ Exoribonuclease AtXRN4 Function Enhances Heat Stress Tolerance of Plants Subjected to Severe Heat Stress. Plant Cell Physiol. 2015, 56, 1762–1772. [Google Scholar] [CrossRef] [PubMed] [Green Version]
Plants 10 00978 g001 550

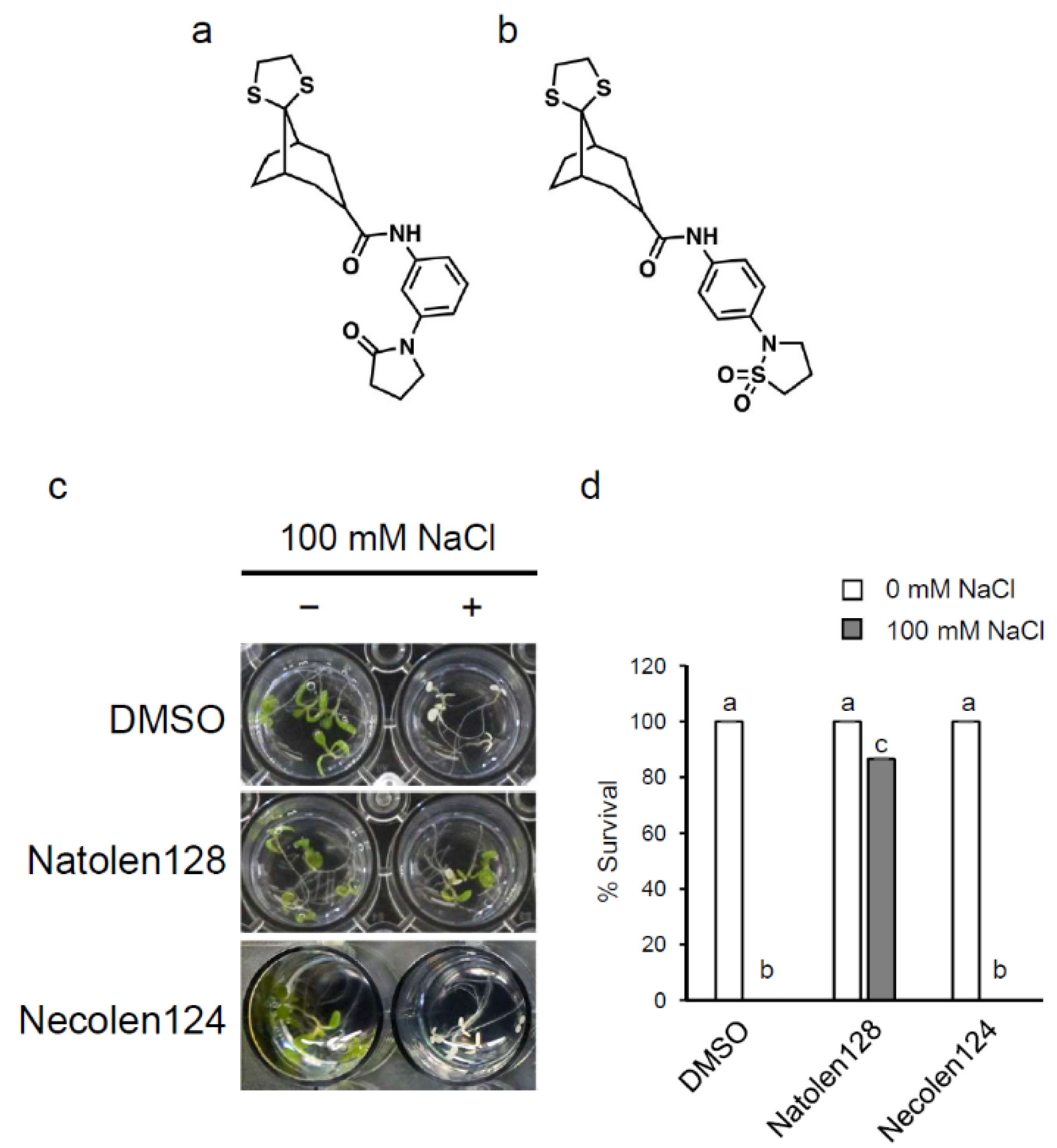

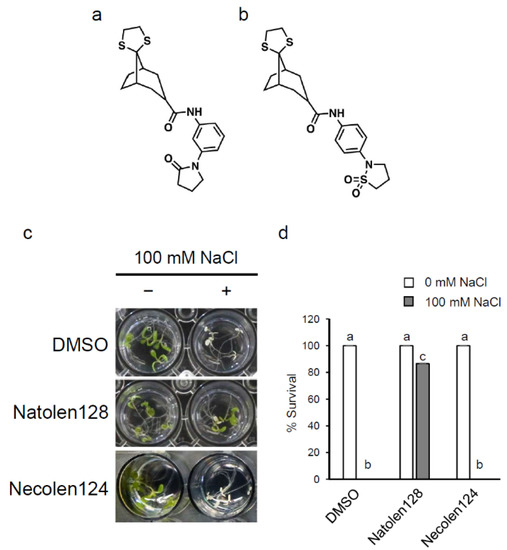

Figure 1. Natolen128 enhances high-salinity stress tolerance in Arabidopsis thaliana. (a) Structure of Natolen128. (b) Structure of Necolen124. (c) Morphology of seedlings treated with 2 µM Natolen128, with or without subsequent treatment of 100 mM NaCl for 4 days. Necolen124 and DMSO were used as negative controls. The inside diameter of each well is 15.4 mm. (d) Survival rate under high-salinity conditions in the presence or absence of 2 µM Natolen128. The survival rate of 15 plants was calculated 4 days after NaCl treatment. These experiments were conducted using three biological replicates. Error bars represent the mean ± standard error (SE). Statistical significance was determined by ANOVA, followed by post-hoc Tukey’s tests. Means that differed significantly (p < 0.05) are indicated by different letters.
Figure 1. Natolen128 enhances high-salinity stress tolerance in Arabidopsis thaliana. (a) Structure of Natolen128. (b) Structure of Necolen124. (c) Morphology of seedlings treated with 2 µM Natolen128, with or without subsequent treatment of 100 mM NaCl for 4 days. Necolen124 and DMSO were used as negative controls. The inside diameter of each well is 15.4 mm. (d) Survival rate under high-salinity conditions in the presence or absence of 2 µM Natolen128. The survival rate of 15 plants was calculated 4 days after NaCl treatment. These experiments were conducted using three biological replicates. Error bars represent the mean ± standard error (SE). Statistical significance was determined by ANOVA, followed by post-hoc Tukey’s tests. Means that differed significantly (p < 0.05) are indicated by different letters.
Plants 10 00978 g001
Plants 10 00978 g002 550

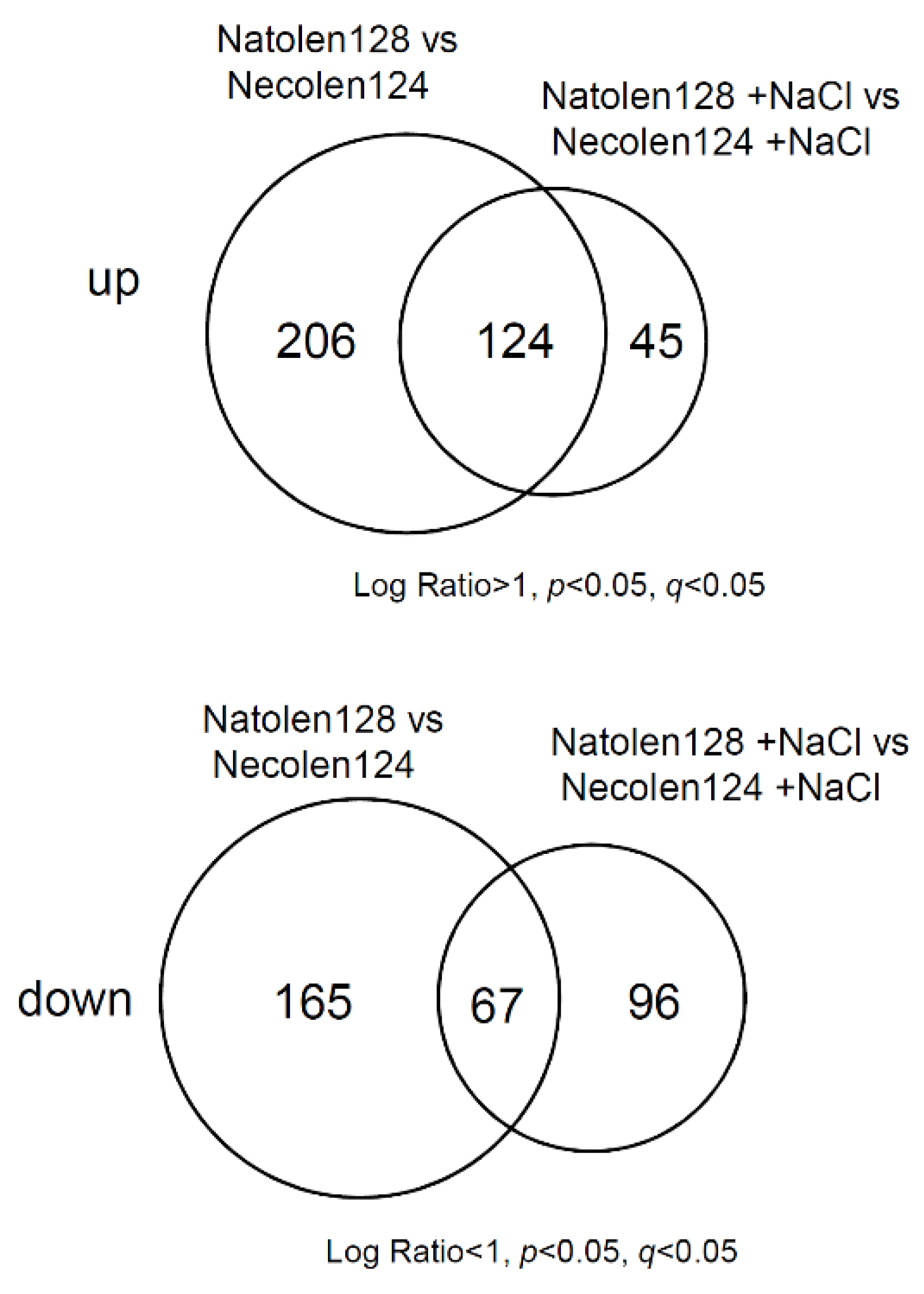

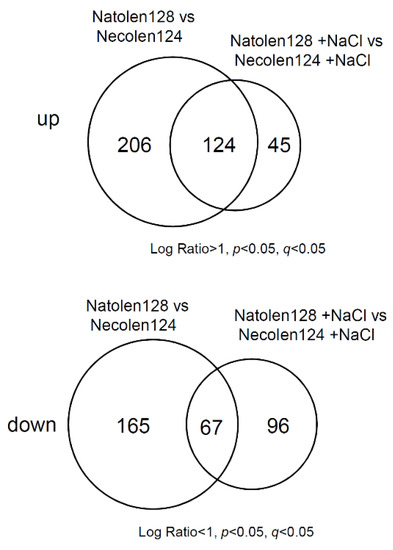

Figure 2. Gene expression profiles under Natolen128 and salinity stress treatments. The Venn diagrams show genes exhibiting up- and down-regulated expression in response to Natolen128 and Necolen124 treatments under control and high-salinity stress conditions. Each treatment was performed using 20 plants, with three biological replicates.
Figure 2. Gene expression profiles under Natolen128 and salinity stress treatments. The Venn diagrams show genes exhibiting up- and down-regulated expression in response to Natolen128 and Necolen124 treatments under control and high-salinity stress conditions. Each treatment was performed using 20 plants, with three biological replicates.
Plants 10 00978 g002
Plants 10 00978 g003 550

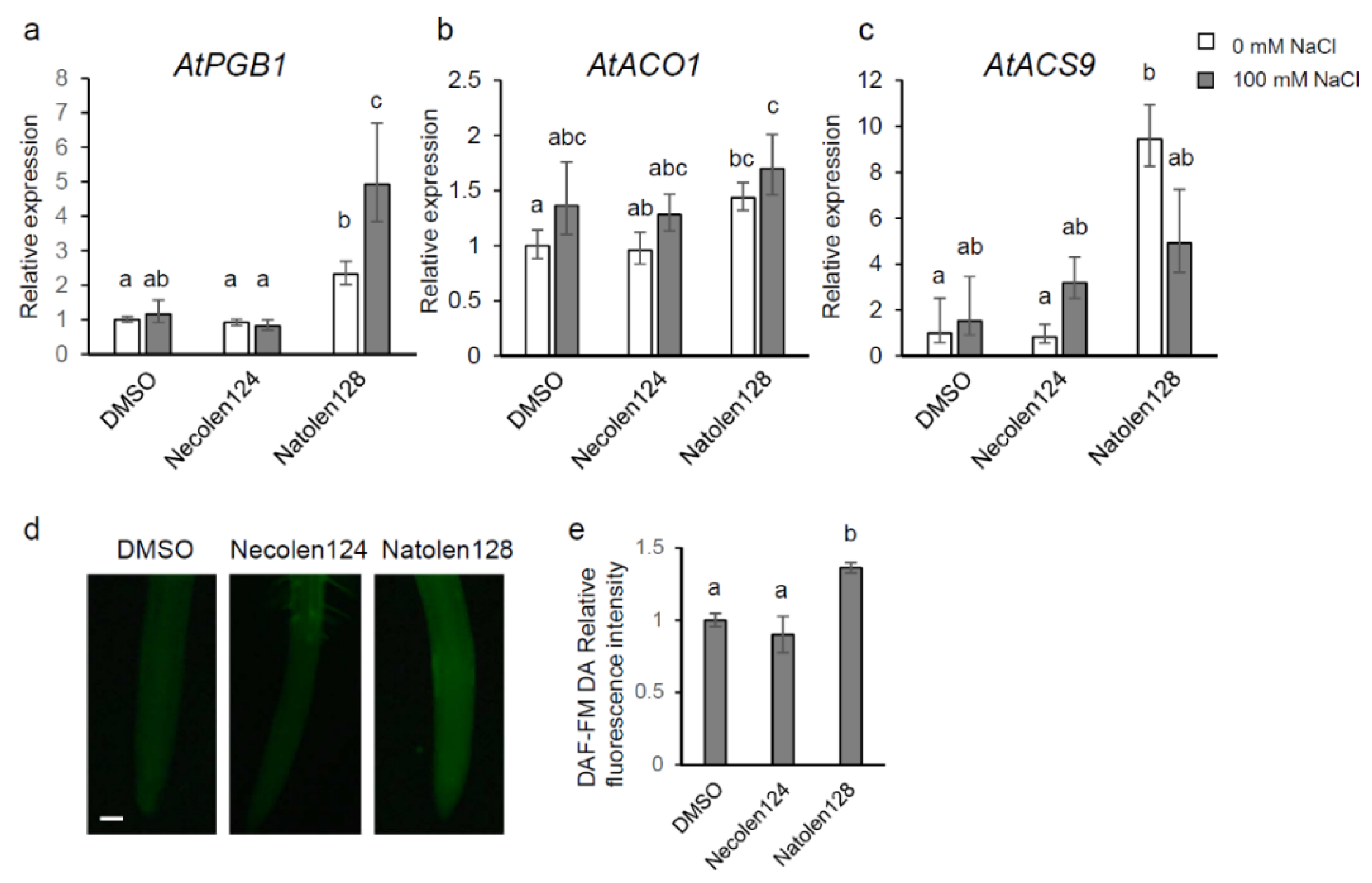

Figure 3. Hypoxia-responsive gene expression and NO changes due to Natolen128 treatment. (a–c) Relative expression levels of the AtPGB1 (a), AtACO1 (b) and AtACS9 (c) genes during salinity-stress treatment for 0 and 2 h with or without 2 µM Natolen128 or 2 µM Necolen124. The expression level in plants treated with DMSO was set as 1. 18S rRNA was used as an internal standard. Error bars represent the mean ± SE (n = 3). Statistical significance was determined by ANOVA, followed by post-hoc Tukey’s tests. Means that differed significantly (p < 0.05) are indicated by different letters. (d) NO detected with DAF-FM DA in Arabidopsis roots treated with 2 µM Natolen128 or Necolen124 for 6 h. Plants treated with DMSO for 6 h were used as negative controls. Scale bar = 50 µm. (e) Relative fluorescence intensity of DAF-FM DA in roots treated with 2 µM Natolen128 or 2 µM Necolen124. The fluorescence intensity in plants treated with DMSO was set as 1. Statistical significance was determined by ANOVA, followed by post-hoc Tukey’s tests. Means that differed significantly (p < 0.05) are indicated by different letters.
Figure 3. Hypoxia-responsive gene expression and NO changes due to Natolen128 treatment. (a–c) Relative expression levels of the AtPGB1 (a), AtACO1 (b) and AtACS9 (c) genes during salinity-stress treatment for 0 and 2 h with or without 2 µM Natolen128 or 2 µM Necolen124. The expression level in plants treated with DMSO was set as 1. 18S rRNA was used as an internal standard. Error bars represent the mean ± SE (n = 3). Statistical significance was determined by ANOVA, followed by post-hoc Tukey’s tests. Means that differed significantly (p < 0.05) are indicated by different letters. (d) NO detected with DAF-FM DA in Arabidopsis roots treated with 2 µM Natolen128 or Necolen124 for 6 h. Plants treated with DMSO for 6 h were used as negative controls. Scale bar = 50 µm. (e) Relative fluorescence intensity of DAF-FM DA in roots treated with 2 µM Natolen128 or 2 µM Necolen124. The fluorescence intensity in plants treated with DMSO was set as 1. Statistical significance was determined by ANOVA, followed by post-hoc Tukey’s tests. Means that differed significantly (p < 0.05) are indicated by different letters.
Plants 10 00978 g003
Table
Table 1. List of Natolen128-upregulated genes classified as stress responsive (1).
Table 1. List of Natolen128-upregulated genes classified as stress responsive (1).
Gene NameAGI CodeNatolen128/Necolen124 under Control ConditionNatolen128 under Salt-stress/Necolen124 under Salt-Stress
Ratio (2)p-ValueFDRRatio (3)p-ValueFDR
Germin-like Protein 7 (GLP7)AT1G104601.7530.0010.0051.2080.0040.029
HEAVY METAL ASSOCIATED PROTEIN 4 (HMP04)AT1G229901.3820.0000.0041.5720.0040.030
LOW PHOSPHATE ROOT1 (LPR1)AT1G230101.5110.0000.0041.2230.0010.020
ACYL-ACYL CARRIER PROTEIN 6 (AAD6)AT1G438002.0450.0000.0023.6730.0000.016
Cytochrome P450 superfamily proteinAT1G665401.0720.0010.0061.2320.0020.023
Hemoglobin/phytoglobin1 (PGB1)AT2G160602.4150.0000.0032.3040.0010.020
ACC oxidase 1 (ACO1)AT2G195901.6460.0050.0121.4690.0000.010
DROUGHT TOLERANCE REPRESSOR (DOR)AT2G314701.2380.0030.0101.2050.0010.019
Peroxidase superfamily proteinAT2G353801.2040.0050.0131.0490.0010.021
Peroxidase superfamily proteinAT2G383901.8280.0000.0031.3180.0000.011
Hypoxia Responsive ERF2 (HRE2)AT2G475202.5780.0000.0041.4570.0060.034
LOB domain-containing protein 41 (LBD41)AT3G025503.5240.0000.0054.4510.0000.010
GAST1 protein homolog 5 (GASA5)AT3G028851.6230.0090.0162.2750.0000.009
Haloacid dehalogenase-like hydrolase (HAD) superfamily proteinAT3G195951.6220.0020.0081.4600.0010.021
Ethylene receptor 2 (ETR2)AT3G231501.4190.0000.0051.0150.0040.030
HYPOXIA RESPONSE UNKNOWN PROTEIN 6 (HUP6)AT3G272201.9260.0010.0073.0140.0000.017
Sucrose synthase 4 (SUS4)AT3G431901.6240.0130.0201.8880.0130.045
FATTY ACID REDUCTASE 4 (FAR4)AT3G445401.8120.0010.0061.0620.0030.027
METHYL ESTERASE 10 (MES10)AT3G504401.7590.0000.0031.0820.0030.027
EARLY LIGHT-INDUCIBLE PROTEIN 2 (ELIP2)AT4G146901.0360.0000.0051.1500.0000.009
Unknown proteinAT4G176701.6130.0000.0051.4630.0010.021
ABC1-LIKE KINASE 1 (ABC1K1)AT4G313901.7670.0010.0061.1860.0000.011
GLUTATHIONE PEROXIDASE 7 (GPX7)AT4G318701.9210.0010.0061.8830.0020.022
Hemoglobin/Phytoglobin 3 (PGB3)AT4G326901.1520.0000.0031.1220.0010.019
Pyruvate decarboxylase 1 (PDC1)AT4G330702.3240.0000.0041.9440.0110.043
WOUND-INDUCED POLYPEPTIDE 5 (WIP5)AT4G335603.1590.0020.0095.1240.0000.011
Plant cysteine oxidase 1 (PCO1)AT5G151202.6550.0010.0063.6140.0000.009
Plant cysteine oxidase 2 (PCO2)AT5G398903.2450.0000.0044.7330.0000.014
DEFECTIVE IN INDUCED RESISTANCE 1 (DIR1)AT5G484851.1050.0060.0141.0490.0000.009
(1) The genes were selected from 124 overlapping genes using two conditions: (a) log2 ratio (plants treated with Natolen128 for 24 h/plants treated with Necolen124 for 24 h) ≥ 1, FDR < 0.05, t-test < 0.05; (b) log2 ratio (plants treated with Natolen128 for 24 h followed by 2 h NaCl treatment/plants treated with Necolen124 for 24 h followed by 2 h NaCl treatment) ≥ 1, FDR < 0.05, t-test < 0.05. (2) The values represent the log2 ratio (plants treated with Natolen128 for 24 h/plants treated with Necolen124 for 24 h). (3) The values represent the log2 ratio (plants treated with Natolen128 for 24 h followed by 2 h NaCl treatment/plants treated with Necolen124 for 24 h followed by 2 h NaCl treatment).
