Communication

Metabolic Analysis of Root, Stem, and Leaf of Scutellaria baicalensis Plantlets Treated with Different LED Lights

1
Department of Crop Science, Chungnam National University, 99 Daehak-Ro, Yuseong-gu, Daejeon 34134, Korea
2
National Institute of Agricultural Sciences, Rural Development Administration, Wanju-gun, Jeonbuk 55365, Korea
3
Department of Agricultural Machinery Engineering, Graduate School, Chungnam National University, 99 Daehak-Ro, Yuseong-gu, Daejeon 34134, Korea
4
Department of Smart Agriculture Systems, Chungnam National University, 99 Daehak-Ro, Yuseong-gu, Daejeon 34134, Korea
5
Division of Life Sciences, College of Life Sciences and Bioengineering, Incheon National University, Yeonsugu, Incheon 22012, Korea
*
Authors to whom correspondence should be addressed.
Hyeon Ji Yeo and Chang Ha Park contributed equally to this work.
Plants 2021, 10(5), 940; https://doi.org/10.3390/plants10050940
Submission received: 6 April 2021 / Revised: 30 April 2021 / Accepted: 4 May 2021 / Published: 8 May 2021
(This article belongs to the Special Issue The Effects of LED Light Spectra and Intensities on Plant Growth)

Abstract

:
Light emitting diodes (LEDs) have recently been considered an efficient artificial light source in plant factories for enhancing plant growth and nutritional quality. Accordingly, this study aimed to review blue, red, and white LED light sources for efficiency and length of the growing period to produce seedlings of Scutellaria baicalensis with high nutritional value. The roots, stems, and leaves of S. baicalensis seedlings were grown under different LED lights and harvested after two and four weeks, and analyzed using high-performance liquid chromatography and gas chromatography time-of-flight mass spectrometry to identify and quantify primary and secondary metabolites. Roots, particularly in the seedlings treated with white LEDs were determined to contain the greatest concentrations of the representative compounds present in S. baicalensis: baicalin, baicalein, and wogonin, which show highly strong biological properties compared to the other plant organs. A total of 50 metabolites (amino acids, sugars, sugar alcohols, organic acids, phenolic acids, and amines) were detected in the roots, stems, and leaves of S. baicalensis seedlings, and the concentrations of primary and secondary metabolites were generally decreased with the increasing duration of LED illumination. Therefore, this study suggests that white LED light and a 2-week growing period are the most efficient conditions for the production of baicalin, baicalein, and wogonin.

1. Introduction

Scutellaria baicalensis Georgi, known as Huang Qin in Chinese medicine, has been used as a conventional herbal remedy in East Asia and is formally listed in the Chinese Pharmacopeia [1]. According to previous research, the root extract of S. baicalensis causes apoptosis of hepatocellular, prostatic, pancreatic, urothelial carcinoma, and breast cells, and suppresses the growth of cancer cells in vitro, and it is often used in conjunction with other medicinal plants [2].
Flavonoids are found in vegetables, seeds, nuts, flowers and stems, wine, tea [3], honey, and propolis [4], and the roots of S. baicalensis contain flavonoids such as baicalin, baicalein, wogonoside, and wogonin [5]. Baicalin is biosynthesized using several enzymes, including phenylalanine ammonia-lyase (PAL), cinnamate 4-hydroxylase (C4H), 4-coumarate: CoA ligase (4CL), chalcone synthase (CHS), and chalcone isomerase (CHI). It is catalyzed to baicalein through β-glucuronidase (GUS) or vice versa with UDPglucuronate: baicalein 7-O-glucuronosyltransferase (UBGAT) [6]. Similarly, baicalein has in vitro antioxidative, anti-inflammatory, lipoxygenase inhibitory, antiviral, and anti-allergic activities [7]. Wogonin, one of the main chemical components of S. baicalensis, is a flavanone derivative containing the nucleus of a phenylbenzopyrone [8] that suppresses tumor growth and angiogenesis in vitro [9].
Artificial light has been known to improve plant development, growth, and phytochemical production; in plant factories that require strong light to grow vegetables, light-emitting diodes (LEDs) are a promising source due to their durability, cool temperature, long life, diverse wavelengths, and small diode size [10]. According to previous studies, LEDs have positive effects on the accumulation of various secondary metabolites, such as glucosinolate, phenylpropanoid, and carotenoid, in Brassica juncea sprouts, wheat sprouts, and the callus of Scutellaria baicalensis [11,12,13].
However, there are no studies on the effects of LED lights and their duration on metabolites in S. baicalensis sprouts. Therefore, this study aimed to investigate the effects of different LED light sources (white, blue, and red) and their duration on metabolic changes in S. baicalensis sprouts and to optimize the most efficient qualities for the production of flavones (baicalin, baicalein, and wogonin).

2. Results

2.1. HPLC Analysis of Baicalin, Baicalein, and Wogonin in Root, Stem, and Leaf of S. baicalensis Treated with Different LED Light Sources

The three LED lights (red, blue, and white) and their treatment duration caused variations in flavones (baicalin, baicalein, and wogonin) in the roots, leaves, and stems of S. baicalensis. Baicalin and baicalein were detected in all plant parts, whereas wogonin was only found in the roots (Figure 1). Roots showed the greatest concentrations of the flavones compared with leaves and stems, and the most abundant was baicalin, followed by baicalein and wogonin. After two weeks under white LED light treatment the roots of S. baicalensis seedlings produced the highest levels of baicalin (100.42 ± 0.32 mg/g dry weight (dw)) and wogonin (4.51 ± 0.09 mg/g dw); whereas levels of these compounds decreased in the roots under all three LED colors after four weeks. Similarly, roots under white and blue LED lights, contained slightly higher levels of baicalein than those under red LED light. In stems, baicalin began accumulating after four weeks regardless of light color and those treated with red LED light contained the greatest amounts of baicalin (0.17 ± 0.05 mg/g dw). In contrast, baicalein concentrations showed a slightly increasing accumulation pattern under red LED illumination, whereas stems treated with white and blue LED light revealed decreasing levels with increasing duration. Baicalin and baicalein were also present in leaves, and those treated with red LED light showed increasing patterns of baicalin and baicalein accumulation with increasing illumination duration.

2.2. Metabolite-Specific Profiling of Root, Stem, and Leaf of S. baicalensis Treated with Different LED Light Sources

GC-TOFMS was used to detect 50 metabolites (amino acids, sugars, sugar alcohols, organic acids, phenolic acids, and amines) in the roots, stems, and leaves of S. baicalensis seedlings treated with different LED light sources (red, blue, and white). In leaves and stems treated with blue LED light, a greater number of metabolites were detected than in those treated with red and white LED light. The majority of the amino acids, organic acids, and TCA cycle intermediates showed decreasing patterns in leaves and stems treated with increasing durations of LED light regardless of the source. In contrast, the levels of most sugars and sugar alcohols had slightly increasing patterns in both plant parts. Similarly, roots of seedlings treated with blue or red LED lights contained greater concentrations of metabolites and displayed decreasing patterns of most amino acids, organic acids, and TCA cycle intermediates over time regardless of the light source. White LED light induced slightly increasing levels of sugars and sugar alcohols in the roots, whereas blue and red LED lights revealed decreasing accumulations of these metabolites. Additionally, roots under white LED light for two weeks contained lower levels of sugars and sugar alcohols than those under blue and red LED lights. Partial least-squares discriminant analysis (PLS-DA) was performed with the data derived from GC-TOFMS and HPLC to investigate the metabolic changes in the roots, stems, and leaves of S. baicalensis seedlings under various LED light treatments and their durations (Figure 2). The PLS-DA results showed a separation between the leaf group at 2 weeks from that at 4 weeks. This separation was attributable to changes in amino acids, organic acids, sugars, and sugar alcohols as related previously.
To measure the relationship between different metabolites quantified in the roots, stems, and leaves of S. baicalensis seedlings treated with different LED lights, an HCA was performed using Pearson’s correlation results (Figure 3). Compounds involved in nitrogen metabolism into amino acids (glutamine, glutamic acid, aspartic acid, and asparagine) and other nitrogen-containing compounds, were positively correlated, and these amino acids and their derivatives were also positively correlated in the roots, stems, and leaves of S. baicalensis seedlings treated with different LED lights. Phenylalanine and tryptophan, arising from the shikimate biosynthesis pathway, had a positive relationship with shikimate. The carbohydrates sucrose, galactose, mannose, and raffinose also returned positive correlations. Phenylalanine is a precursor of phenolic acid and flavonoid biosynthesis, and it showed a negative correlation with most phenolic acids and flavonoids. Similarly, most carbohydrates, which act as energy sources, were negatively correlated with most phenolics detected.

3. Discussion

In this study, the roots of S. baicalensis seedlings treated with white LED light contained the highest levels of baicalin, baicalein, and wogonin and lower levels of most sugars than the other plant parts, suggesting the need for energy to enhance the biosynthesis of phenolic compounds, including the three described here. These results agree with previous studies showing that sugar concentrations for anthocyanin accumulation were lower in purple kohlrabi than in green kohlrabi [14] and that a fungal elicitor allowed for the more rapid depletion of sugar pools to promote alkaloid biosynthesis in cell cultures of Papaver somniferum [15].
Numerous previous studies have reported that LED illumination can enhance secondary metabolite production in vegetables and medicinal plants. White LED illumination has been shown to increase the accumulation of phenolics in Agastache rugosa seedlings [16], carotenoids in Fagopyrum tataricum sprouts [17], and glucosinolates in Brassica juncea sprouts [11], compared with other colored LED lights, consistent with the findings of this study. Blue LED light has been reported to increase accumulations of phenolics in Brassica napus [18] and Glycine max sprouts [19], and red LED light has been shown to enhance both phenolic compounds in the leaves of Myrtus communis in vitro [20] and carotenoid production in the outer peel layer of citrus fruit [21].
The metabolic networks of glutamine, glutamate, aspartate, and asparagine are involved in various nitrogen-related processes, including nitrogen assimilation by plants, metabolism into amino acids and other nitrogen-containing compounds, transport between source and sink, stress-associated metabolism, and carbon-nitrogen partitioning. Glutamine is derived from ammonium assimilation and can be converted into glutamic acid with α-ketoglutarate, a TCA cycle intermediate. This glutamic acid is further metabolized into aspartic acid, which is converted to asparagine. The first three compounds can be used for the synthesis of proteinogenic and non-proteinogenic amino acids, amides, and other nitrogenous compounds. Asparagine is a prominent nitrogen transport agent as well as a proteinogenic amino acid [22,23,24].
In this study, glutamate, glutamine, asparagine, and aspartate showed decreasing concentration levels in the roots, leaves, and stems of S. baicalensis seedlings treated with different LED lights, with a related reduction of their derivatives. This result was supported by the positive correlations between these four compounds and their derivatives. Furthermore, since shikimate and phenylalanine, which are derived from the shikimate pathway, were negatively correlated with most phenolic compounds, the biosynthesis of these compounds, including phenolic acids and flavones must have been assisted by intermediates or precursors. These findings corroborate a previous study reporting that the internal pool of phenylalanine was lower in purple kohlrabi, which contained a high amount of phenolic compounds, reflecting a precursor supply to produce phenolic acids and anthocyanins [14].
Artificial LED source is important to regulate the lighting systems in a plant factory to produce high-quality plant materials. Therefore, this study suggests that S. baicalensis seedlings, containing a high number of health-beneficial compounds, can be produced under LED lights in limited space since S. baicalensis was generally cultivated in the field and indicates that the optimal light was white LED for flavone accumulation in S. baicalensis seedlings.

4. Materials and Methods

4.1. Preparation of Plant Materials

S. baicalensis seeds were purchased from Aram Seed Co. (Seoul, Korea). Seeds for germination were soaked overnight in water. To produce seedlings, 50 seeds were placed in each pot (diameter: 12 cm, height: 11 cm) containing vermiculite and grown in a growth chamber equipped with fluorescent light with a flux rate of 35 µmol·m−2·s−1 at 25 °C. After 2 weeks, the seedlings in six pots were moved to a room in a growth chamber equipped with each blue, white, and red LED light with a flux rate of 90 µmol·m−2·s−1 at 25 °C with an 8 h dark/16 h light cycle. The leaves, stems, and roots from seedlings were harvested with liquid nitrogen and then freeze-dried for further metabolite analysis after two and four weeks of LED light treatment. The LED light sources, and their specific information are described in Appendix A Table A1 and a previous study [18]. Seedlings from three pots were used as independent replicates for each LED light for each duration.

4.2. High-Performance Liquid Chromatography (HPLC) Analysis for Flavones

We detected three flavones (baicalin, baicalein, and wogonin) using a slightly modified method of Park et al., [25]. The freeze-dried samples were ground into a powder using a grinder (Wonder blender WB-1, SANPLATEC CORP, Osaka, Japan). The S. baicalensis root, stem, and leaf powders (0.1 g each) from seedlings treated with various LED lights were extracted with 2 mL of 80% (v/v) aqueous MeOH and vortexed for 30 s. Following sonication for 1 h, the samples were centrifuged at 10,000× g at 4 °C for 20 min, and the crude extracts were syringe-filtered to a vial for analysis. The HPLC system and analysis conditions were the same as those used in the method reported by Park et al. [25] (Table A2). The three different flavones were identified by retention time and spike tests, and the equation of calibration curves for each flavone was obtained to quantify the compounds in the roots, stems, and leaves of S. baicalensis seedlings treated with the different LED lights.

4.3. Gas Chromatography Time-of-Flight Mass Spectrometry (GC-TOFMS) Analysis

Hydrophilic metabolites were detected using the method reported by Park et al. [26]. The root, stem, and leaf powders (0.1 g each) of S. baicalensis seedlings treated with different LED lights were extracted with 2 mL of 80% (v/v) aqueous MeOH and vortexed for 30 s. After sonication for 1 h, each sample was centrifuged at 10,000× g at 4 °C for 20 min, and then the crude extracts were syringe-filtered into a vial for analysis. The system and analysis conditions were reported by Park et al., 2021. Retention time comparison and spike test were conducted to identify the three different flavones, and the equation of calibration curves for each flavone was obtained to quantify the compounds in the roots, stems, and leaves of the S. baicalensis seedlings. The tissue powders (0.01 g each) were placed in a 2 mL tube along with 1 mL of a water/chloroform/methanol mixture (1:1:2.5 v/v/v) and 60 μL of ribitol (0.2 g/L; Sigma, St. Louis, MO, USA) as an internal standard. The extracts were mixed at 1200× g using a thermomixer, followed by centrifugation at 10,000× g for 5 min. The polar phase (0.8 mL) was transferred to a fresh tube containing water for chromatography (0.4 mL) and evaporated for 3 h. The dried residues were derived by adding 0.08 mL of methoxyamine hydrochloride/pyridine (20 g/L), followed by shaking at 37 °C for 2 h. After the addition of 0.08 mL of N-methyl-N-(trimethylsilyl)trifluoroacetamide, each tube was heated at 37 °C for 30 min. The final extract was placed in a vial for GC analysis. The analysis system, condition, and program of GC-TOFMS were used to identify and quantify metabolites in the roots, stems, and leaves of S. baicalensis seedlings treated with different LED lights according to the previous studies [26,27].

4.4. Statistical Analysis

SPSS (version 24.0;(IBM, Chicago, IL, USA)) was used to perform a t-test and MetaboAnalyst 5.0 (http://www.metaboanalyst.ca/, accessed on 5 March 2021) was used for principal component analysis (PCA) and hierarchical cluster analysis (HCA) using Pearson correlations for the metabolites detected in roots, stems, and leaves of S. baicalensis seedlings treated with different LED lights. The resolution of the resulting figures was improved using Adobe Illustrator.

5. Conclusions

Considering flavone content, white LED light for 2 weeks was the most efficient for the production of the three different flavones in the roots, stems, and leaves of S. baicalensis seedlings. Based on the results from the current and previous studies, it appears that the effect of different LED lights on the accumulation of secondary metabolites may depend on plant species, and this study reports that white LED lights are the most optimal for flavone accumulation in S. baicalensis seedlings.

Author Contributions

S.-U.P. and J.-K.K. conceived and designed the experiments. H.-J.Y., C.-H.P., S.-Y.P. and S.-O.C. performed the experiments and analyzed the data. H.-J.Y. and C.-H.P. wrote, reviewed, and edited the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by Incheon National University Research Concentration Professors Grant in 2021.

Conflicts of Interest

The authors declare no conflict of interest.

Appendix A

Table A1. Plant growth method using LED lights.
Table A1. Plant growth method using LED lights.
LED Plant Growth Chamber
ProductMulti-Room Chamber HB-302S-4 (Hanbaek Scientific Co.,)
Picture, which is taken from a previous study [10] Plants 10 00940 i001
Dimension of each room (L × W × H)136 cm × 78 cm × 168 cm
LED lights The white (450–660 nm), blue (450 nm), or red (660 nm) LED lights (PGL-PFL series) were manufactured from PARUS LED Co., Cheonan, Korea
Table A2. HPLC analysis method.
Table A2. HPLC analysis method.
HPLC Analysis Performed Using Our Previous Study [25]
EquipmentNS-4000 HPLC apparatus (Futecs, Daejeon, Korea)
DetectorUV-Vis
Column optimapak C18 column (250 mm × 4.6 mm, 5 µm; RStech, Daejon, Korea)
Detector wavelength275 nm
Oven temperature30 °C
Flow rate1.0 mL/min
Mobile phase Acetonitrile, solvent A and 0.2% (v/v) acetic acid, solvent B
Gradient program Solvent B 90%; 0 min,
solvent B 80%; 10 min,
solvent B 80%; 15 min,
solvent B 75%; 20 min,
solvent B 75%; 25 min,
solvent B 40%; 50 min,
solvent B 90%; 50.1–60 min

References

  1. Li, H.-B.; Jiang, Y.; Chen, F. Separation methods used for Scutellaria baicalensis active components. J. Chromatogr. B 2004, 812, 277–290. [Google Scholar] [CrossRef]
  2. Zhang, D.Y.; Wu, J.; Ye, F.; Xue, L.; Jiang, S.; Yi, J.; Zhang, W.; Wei, H.; Sung, M.; Wang, W. Inhibition of cancer cell proliferation and prostaglandin E2 synthesis by Scutellaria baicalensis. Cancer Res. 2003, 63, 4037–4043. [Google Scholar]
  3. Middleton, E., Jr. The impact of plant flavonoids on mammalian biology: Implications for immunity, inflammation and cancer. In The Flavonoids: Advances in Research Since 1986; Harborne, J.B., Ed.; Chapman & Hall: London, UK, 1993; pp. 619–652. [Google Scholar]
  4. Grange, J.M.; Davey, R.W. Antibacterial properties of propolis (bee glue). J. R. Soc. Med. 1990, 83, 159–160. [Google Scholar] [CrossRef]
  5. Lee, W.H.; Ku, S.-K.; Bae, J.-S. Anti-inflammatory effects of Baicalin, Baicalein, and Wogonin in vitro and in vivo. Inflammation 2015, 38, 110–125. [Google Scholar] [CrossRef]
  6. Yuan, Y.; Wu, C.; Liu, Y.; Yang, J.; Huang, L. The Scutellaria baicalensis R2R3-MYB transcription factors modulates flavonoid biosynthesis by regulating GA metabolism in transgenic tobacco plants. PLoS ONE 2013, 8, e77275. [Google Scholar] [CrossRef] [Green Version]
  7. Chen, C.-H.; Huang, T.-S.; Wong, C.-H.; Hong, C.-L.; Tsai, Y.-H.; Liang, C.-C.; Lu, F.-J.; Chang, W.-H. Synergistic anti-cancer effect of baicalein and silymarin on human hepatoma HepG2 Cells. Food Chem. Toxicol. 2009, 47, 638–644. [Google Scholar] [CrossRef] [PubMed]
  8. Hui, K.M.; Huen, M.S.; Wang, H.Y.; Zheng, H.; Sigel, E.; Baur, R.; Ren, H.; Li, Z.W.; Wong, J.T.-F.; Xue, H. Anxiolytic effect of wogonin, a benzodiazepine receptor ligand isolated from Scutellaria baicalensis Georgi. Biochem. Pharmacol. 2002, 64, 1415–1424. [Google Scholar] [CrossRef]
  9. Kimura, Y.; Sumiyoshi, M. Anti-tumor and anti-metastatic actions of wogonin isolated from Scutellaria baicalensis roots through anti-lymphangiogenesis. Phytomedicine 2013, 20, 328–336. [Google Scholar]
  10. Yeo, H.J.; Park, C.H.; Lee, K.B.; Kim, J.K.; Park, J.S.; Lee, J.-W.; Park, S.U. Metabolic analysis of Vigna unguiculata sprouts exposed to different light-emitting diodes. Nat. Prod. Commun. 2018, 13, 1934578X1801301029. [Google Scholar]
  11. Park, C.H.; Park, Y.E.; Yeo, H.J.; Kim, J.K.; Park, S.U. Effects of Light-Emitting Diodes on the Accumulation of Phenolic Compounds and Glucosinolates in Brassica juncea Sprouts. Horticulturae 2020, 6, 77. [Google Scholar] [CrossRef]
  12. Cuong, D.M.; Ha, T.W.; Park, C.H.; Kim, N.S.; Yeo, H.J.; Chun, S.W.; Kim, C.S.; Park, S.U. Effects of LED lights on expression of genes involved in phenylpropanoid biosynthesis and accumulation of phenylpropanoid in wheat sprout. Agronomy 2019, 9, 307. [Google Scholar] [CrossRef] [Green Version]
  13. Tuan, P.A.; Park, C.H.; Park, W.T.; Kim, Y.B.; Kim, Y.J.; Chung, S.O.; Kim, J.K.; Park, S.U. Expression levels of carotenoid biosynthetic genes and carotenoid production in the callus of scutellaria baicalensis exposed to white, blue, and red light-emitting diodes. Appl. Biol. Chem. 2017, 60, 591–596. [Google Scholar] [CrossRef]
  14. Park, C.H.; Yeo, H.J.; Kim, N.S.; Eun, P.Y.; Kim, S.-J.; Arasu, M.V.; Al-Dhabi, N.A.; Park, S.-Y.; Kim, J.K.; Park, S.U. Metabolic profiling of pale green and purple kohlrabi (Brassica oleracea var. gongylodes). Appl. Biol. Chem. 2017, 60, 249–257. [Google Scholar] [CrossRef]
  15. Zulak, K.G.; Weljie, A.M.; Vogel, H.J.; Facchini, P.J. Quantitative 1 H NMR metabolomics reveals extensive metabolic reprogramming of primary and secondary metabolism in elicitor-treated opium poppy cell cultures. BMC Plant Biol. 2008, 8, 1–19. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Park, W.T.; Yeo, S.K.; Sathasivam, R.; Park, J.S.; Kim, J.K.; Park, S.U. Influence of light-emitting diodes on phenylpropanoid biosynthetic gene expression and phenylpropanoid accumulation in Agastache rugosa. Appl. Biol. Chem. 2020, 63, 1–9. [Google Scholar] [CrossRef]
  17. Tuan, P.A.; Thwe, A.A.; Kim, Y.B.; Kim, J.K.; Kim, S.-J.; Lee, S.; Chung, S.-O.; Park, S.U. Effects of white, blue, and red light-emitting diodes on carotenoid biosynthetic gene expression levels and carotenoid accumulation in sprouts of tartary buckwheat (Fagopyrum tataricum Gaertn.). J. Agric. Food Chem. 2013, 61, 12356–12361. [Google Scholar] [CrossRef] [PubMed]
  18. Park, C.H.; Kim, N.S.; Park, J.S.; Lee, S.Y.; Lee, J.-W.; Park, S.U. Effects of light-emitting diodes on the accumulation of glucosinolates and phenolic compounds in sprouting canola (Brassica napus L.). Foods 2019, 8, 76. [Google Scholar] [CrossRef] [Green Version]
  19. Azad, M.O.K.; Kim, W.W.; Park, C.H.; Cho, D.H. Effect of artificial LED light and far infrared irradiation on phenolic compound, isoflavones and antioxidant capacity in soybean (Glycine max L.) sprout. Foods 2018, 7, 174. [Google Scholar] [CrossRef] [Green Version]
  20. Ma, G.; Zhang, L.; Kato, M.; Yamawaki, K.; Kiriiwa, Y.; Yahata, M.; Ikoma, Y.; Matsumoto, H. Effect of blue and red LED light irradiation on β-cryptoxanthin accumulation in the flavedo of citrus fruits. J. Agric. Food Chem. 2012, 60, 197–201. [Google Scholar] [CrossRef]
  21. Cioć, M.; Szewczyk, A.; Żupnik, M.; Kalisz, A.; Pawłowska, B. LED lighting affects plant growth, morphogenesis and phytochemical contents of Myrtus communis L. in vitro. Plant Cell Tiss. Organ Cult. 2018, 132, 433–447. [Google Scholar] [CrossRef] [Green Version]
  22. Galili, S.; Amir, R.; Galili, G. Genetic engineering of amino acid metabolism in plants. Adv. Plant Biochem. Mol. Biol. 2008, 1, 49–80. [Google Scholar]
  23. Miflin, B.J.; Habash, D.Z. The role of glutamine synthetase and glutamate dehydrogenase in nitrogen assimilation and possibilities for improvement in the nitrogen utilization of crops. J. Exp. Bot. 2002, 53, 979–987. [Google Scholar] [CrossRef] [Green Version]
  24. Stitt, M.; Muller, C.; Matt, P.; Gibon, Y.; Carillo, P.; Morcuende, R.; Scheible, W.R.; Krapp, A. Steps towards an integrated view of nitrogen metabolism. J. Exp. Bot. 2002, 53, 959–970. [Google Scholar] [CrossRef]
  25. Park, C.H.; Xu, H.; Yeo, H.J.; Park, Y.E.; Hwang, G.-S.; Park, N.I.; Park, S.U. Enhancement of the flavone contents of Scutellaria baicalensis hairy roots via metabolic engineering using maize Lc and Arabidopsis PAP1 transcription factors. Metab. Eng. 2021, 64, 64–73. [Google Scholar] [CrossRef]
  26. Park, C.H.; Park, S.-Y.; Park, Y.J.; Kim, J.K.; Park, S.U. Metabolite Profiling and Comparative Analysis of Secondary Metabolites in Chinese Cabbage, Radish, and Hybrid ×Brassicoraphanus. J. Agric. Food Chem. 2020, 68, 13711–13719. [Google Scholar] [CrossRef] [PubMed]
  27. Zhao, S.; Park, C.H.; Yang, J.; Yeo, H.J.; Kim, T.J.; Kim, J.K.; Park, S.U. Molecular characterization of anthocyanin and betulinic acid biosynthesis in red and white mulberry fruits using high-throughput sequencing. Food Chem. 2019, 279, 364–372. [Google Scholar] [CrossRef] [PubMed]

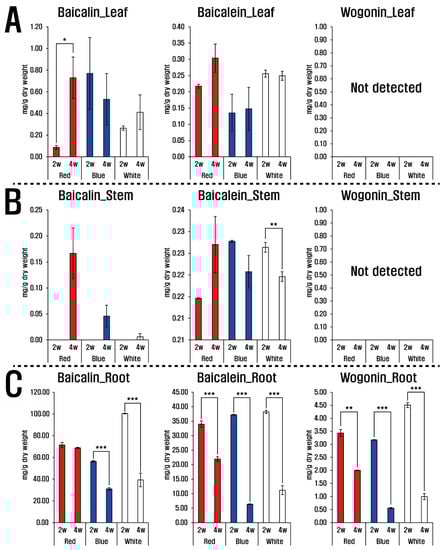

Figure 1. Flavone contents of the leaf (A), stem (B), and root (C) of S. baicalensis seedlings grown under LED treatment of varying duration. 2 w and 4 w indicate 2 weeks and 4 weeks, respectively (t-test, * p < 0.05, ** p < 0.01, *** p < 0.005).
Figure 1. Flavone contents of the leaf (A), stem (B), and root (C) of S. baicalensis seedlings grown under LED treatment of varying duration. 2 w and 4 w indicate 2 weeks and 4 weeks, respectively (t-test, * p < 0.05, ** p < 0.01, *** p < 0.005).
Plants 10 00940 g001

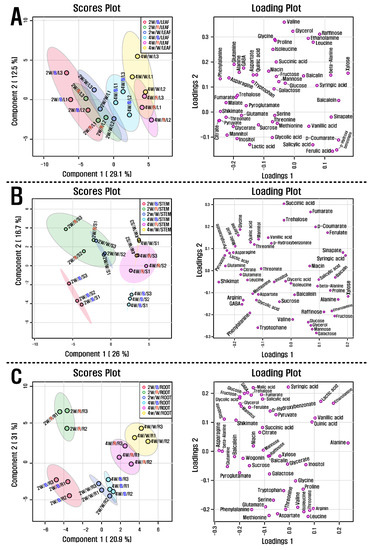

Figure 2. (A) Scores and loading plots of the PCA model using metabolites from the leaves of S. baicalensis seedlings grown under the LED treatment of varying duration, (B) Scores and loading plots of the PCA model using metabolites from the stem of S. baicalensis seedlings grown under the LED treatment of varying duration, and (C) Scores and loading plots of the PCA model using metabolites from the root of S. baicalensis seedlings grown under the LED treatment of varying duration. 2 w and 4 w indicate 2 weeks and 4 weeks, respectively, as well as B, R, and W indicate blue, red, and white, respectively.
Figure 2. (A) Scores and loading plots of the PCA model using metabolites from the leaves of S. baicalensis seedlings grown under the LED treatment of varying duration, (B) Scores and loading plots of the PCA model using metabolites from the stem of S. baicalensis seedlings grown under the LED treatment of varying duration, and (C) Scores and loading plots of the PCA model using metabolites from the root of S. baicalensis seedlings grown under the LED treatment of varying duration. 2 w and 4 w indicate 2 weeks and 4 weeks, respectively, as well as B, R, and W indicate blue, red, and white, respectively.
Plants 10 00940 g002

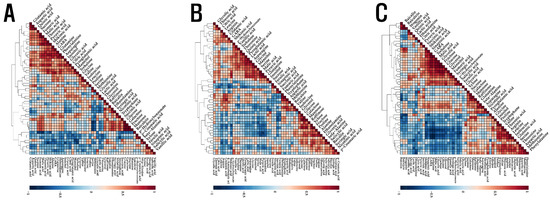

Figure 3. Correlation matrix (A) of metabolites obtained from the leaf of S. baicalensis seedlings grown under the LED treatment of varying duration, correlation matrix (B) of metabolites obtained from the stem of S. baicalensis seedlings grown under the LED treatment of varying duration, and correlation matrix (C) of metabolites obtained from the root of S. baicalensis seedlings grown under the LED treatment of varying duration. Each square indicates the Pearson’s correlation coefficient for a pair of compounds, and the value of the correlation coefficient is represented by the intensity of the deep blue or deep red color, as indicated on the color scale.
Figure 3. Correlation matrix (A) of metabolites obtained from the leaf of S. baicalensis seedlings grown under the LED treatment of varying duration, correlation matrix (B) of metabolites obtained from the stem of S. baicalensis seedlings grown under the LED treatment of varying duration, and correlation matrix (C) of metabolites obtained from the root of S. baicalensis seedlings grown under the LED treatment of varying duration. Each square indicates the Pearson’s correlation coefficient for a pair of compounds, and the value of the correlation coefficient is represented by the intensity of the deep blue or deep red color, as indicated on the color scale.
Plants 10 00940 g003
