# Urban Parcel Grouping Method Based on Urban Form and Functional Connectivity Characterisation

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Related Work

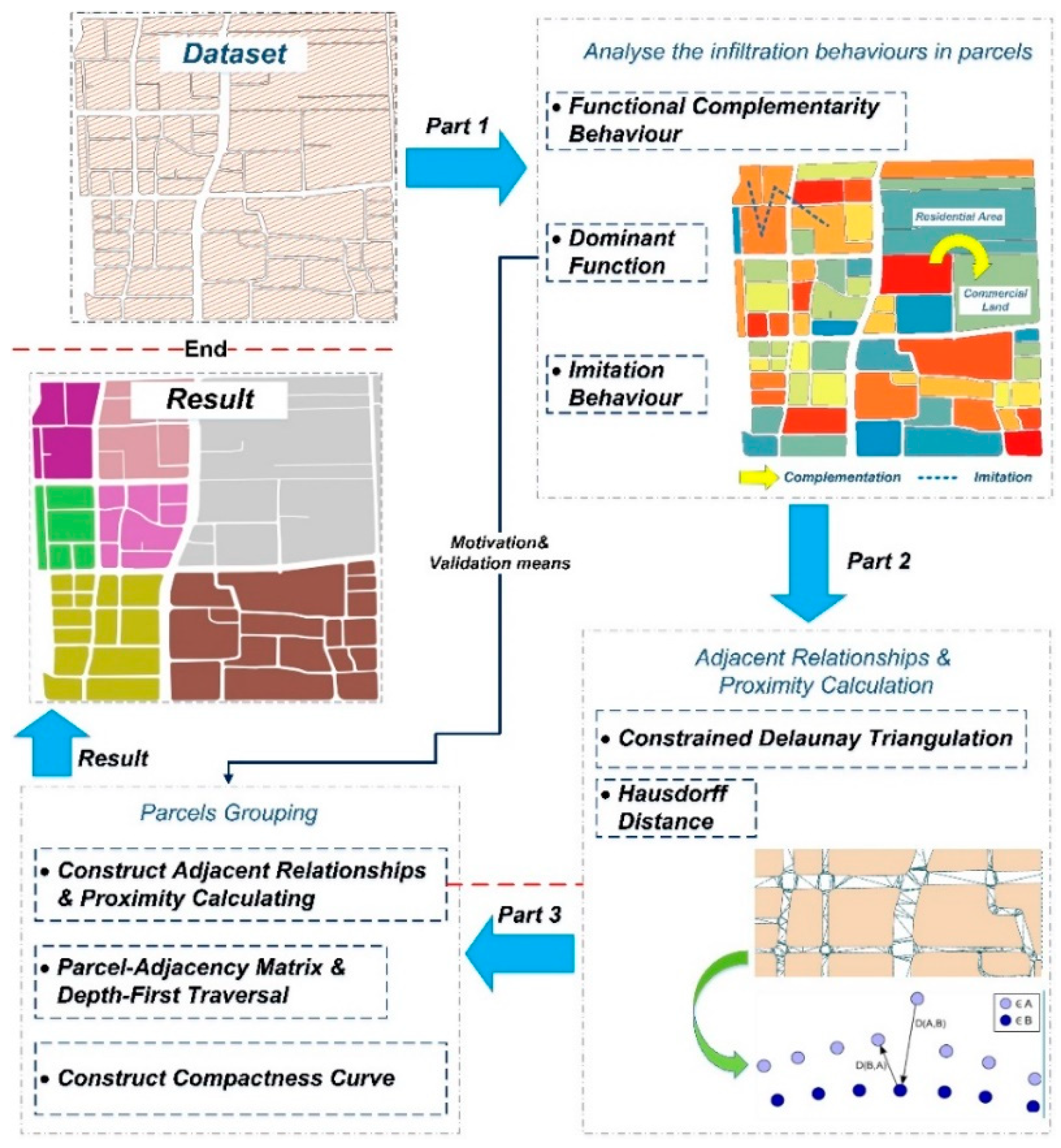

## 3. Materials and Methods

#### 3.1. Study Area and Data Source

#### 3.1.1. Study Area

#### 3.1.2. Experimental Urban Parcel Datasets and Environment

#### 3.2. Infiltration Behaviours of Components among Urban Parcels

**Definition**

**1.**

**Dominant function**: Urban function for individual parcels is identified by examining dominant POI types within the parcels. A dominant function within a parcel is defined as the POI type that has accounted for more than 50% of all POIs within the parcel.

**Definition**

**2.**

**Functional complementarity behaviour**: In different parcels, the types of functions and the degree of functional mixing usually differ, which produces a functional requirement between adjacent parcels. A fine-grained mixing of residential, commercial, and recreational land use may enable local residents to walk or bike to desired destinations, which increases the frequency of interaction among parcels. Over time, a functional complementarity behaviour is formed between adjacent parcels.

_{ij}= Percent of land use i in parcel j.

_{j}= Number of represented land uses in all parcels.

**Definition**

**3.**

**Imitation behaviour**: This kind of behaviour describes the similarity of the components between adjacent parcels. When two parcels are adjacent and both parcels are composed of three parts—residential area, shopping centre, and catering service—then we conclude that there are imitation behaviours between two parcels. Thus, we can construct a vector to describe the composition of a parcel. Each attribute (dimension) in the vector corresponds to a land use type. The value of each attribute is 1 or 0, where “1” indicates that a certain land use type exists in the current parcel, and “0” indicates that it does not exist (Figure 4).

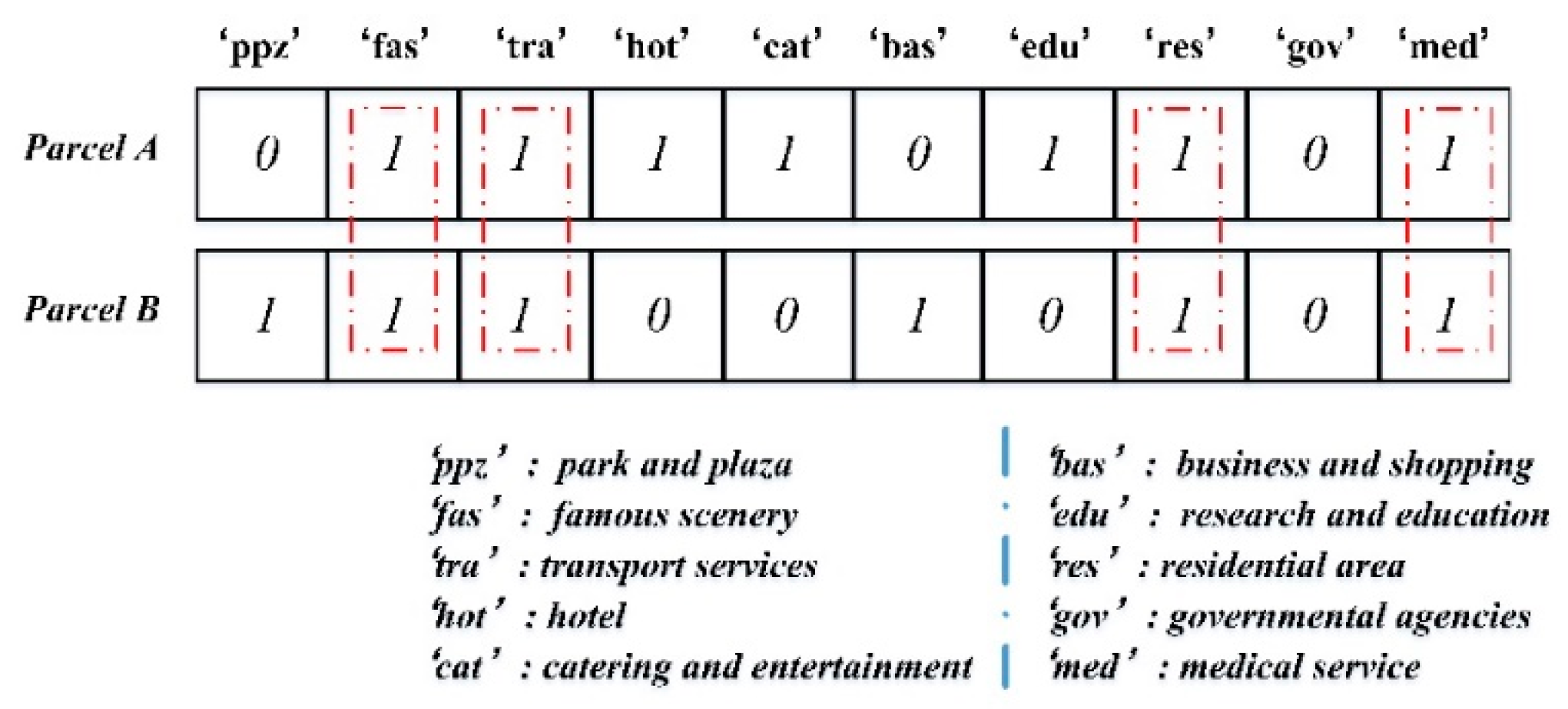

#### 3.3. Expression and Establishment of Adjacent Parcel Relationship

#### 3.3.1. Identification of Adjacent Relationships among Parcels

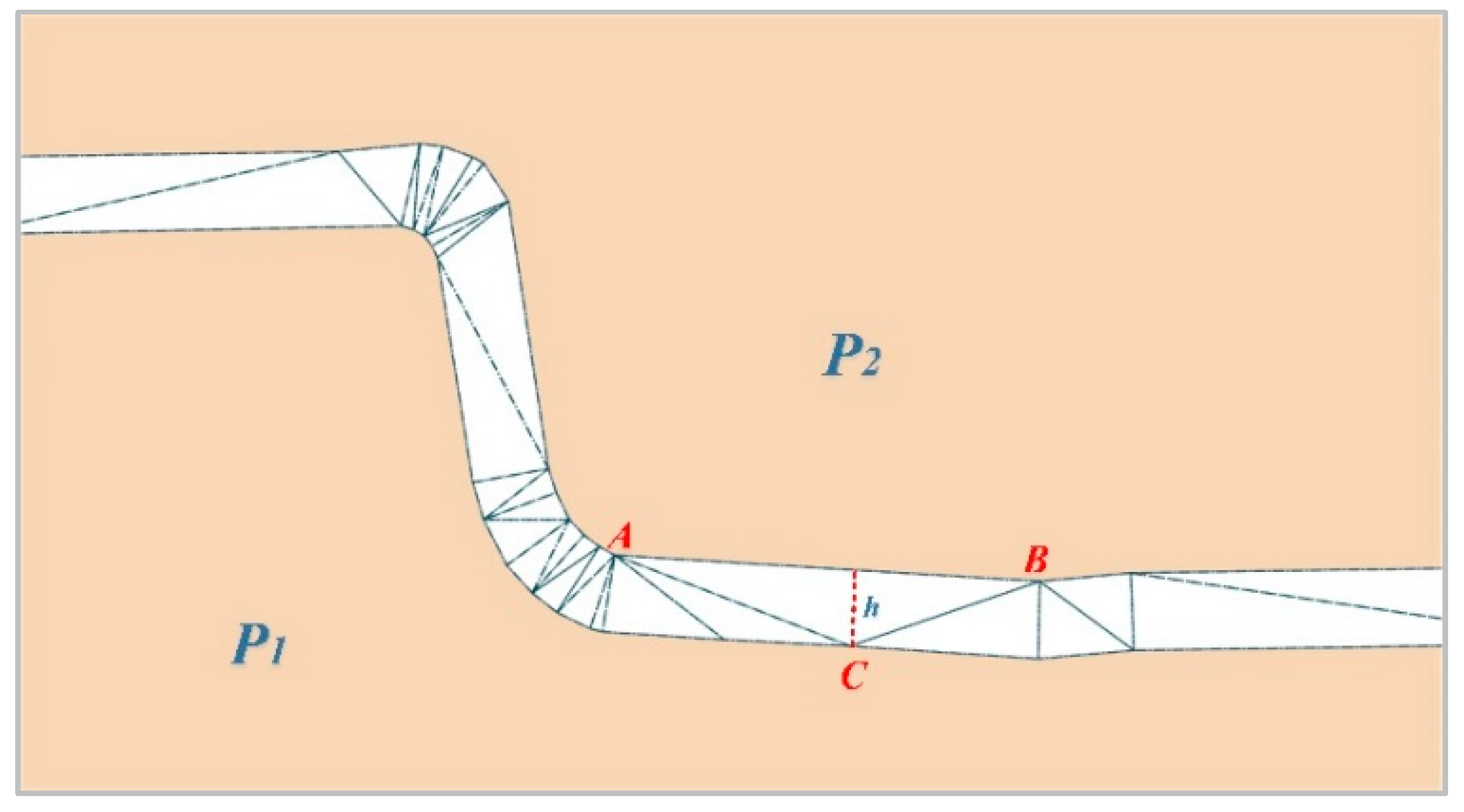

**connecting triangle**. If two parcels were connected by connecting triangles, we named the two parcels

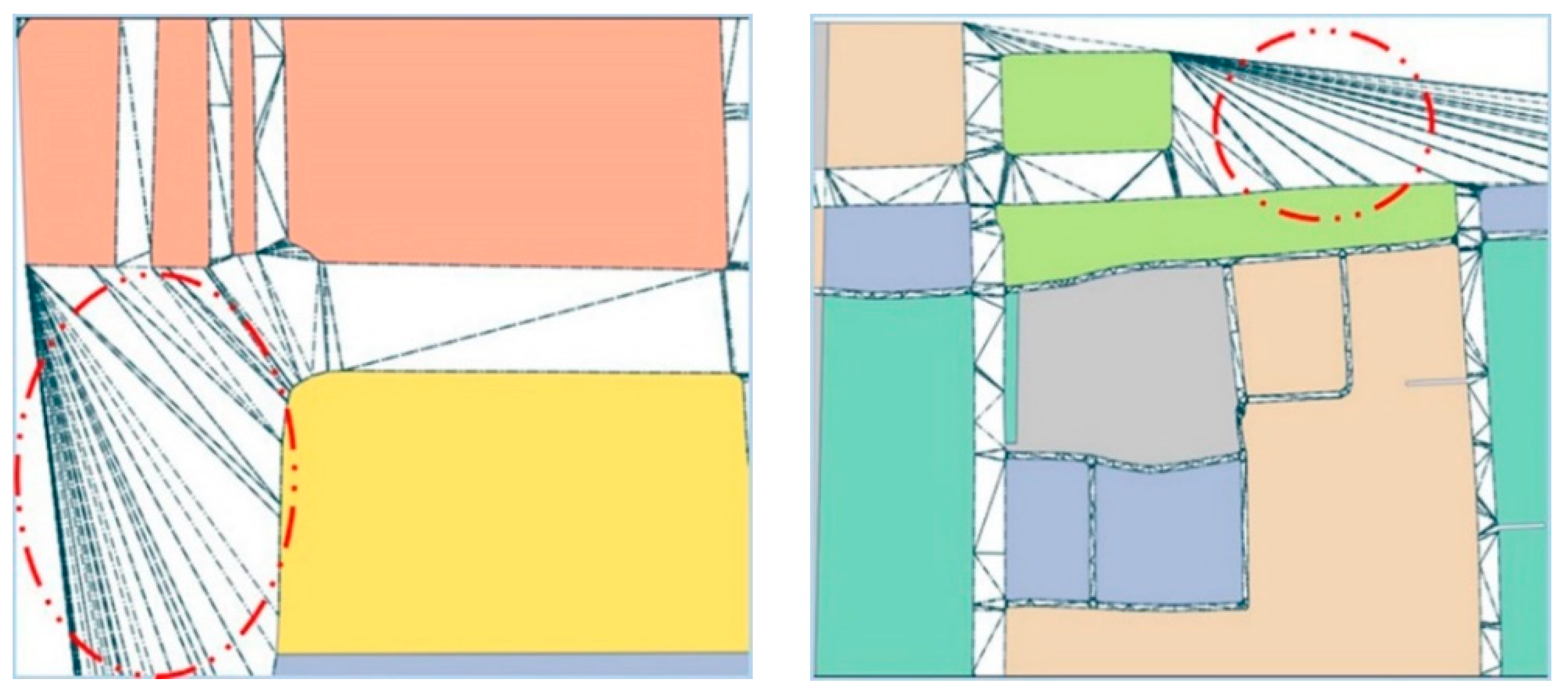

**conflicting parcels**, which were evaluated based on the condition of ‘whether the three vertices of a triangle belong to the same polygon boundary’. When two parcels consisted of conflicting parcels, we considered them to have an adjacent relationship. The CDT was constructed for all parcels by analysing whether an adjacent relationship existed between any two parcels. Considering that a long and thin triangle easily produces an incorrect assessment of the adjacency relationship between two parcels (refer to Figure 5), it was necessary to eliminate the long and thin triangles in connecting triangles.

_{1}and P

_{2}is obtained from the edges of the connecting triangles, such as triangle ABC (AB). The heights (h) of all connecting triangles between two adjacent parcels are calculated and used to calculate the proximity between two adjacent parcels.

#### 3.3.2. Method for Measuring the Proximity of Parcels

#### 3.4. Urban Parcel Grouping Method

#### 3.4.1. Description of Urban Parcel Grouping (UPG) Algorithm

_{1}to S

_{i}belong to the first level, S

_{i+1}belongs to the second level,

_{i+1}to S

_{i+j}belongs to the second level and S

_{i+1+j}belongs to the third level. By analogy, we obtained a hierarchical proximity sequence. The result of level-by-level tuning is illustrated in Figure 8. According to the results, we observed that the number of groups easily changed with the levels. For example, at level 1, each parcel constituted a group (see Figure 8a) or, at level 13, all parcels formed only one group (see Figure 8c). According to Gestalt theory, this was not a very good means of grouping, and could not effectively convey the compactness and proximity mutation. Therefore, an optimum number of groups should be set to make the grouping process more automated and obtain a reasonable grouping result.

#### 3.4.2. Method of Obtaining the Optimum Grouping Result

**DT**) is set for a parcel that conflicts with parcel i, the proximity is less than the DT, which is referred to as the intra-group distance (

**INDIS**), while the proximity is greater than the DT, which is referred to as the inter-group distance (

**OUTDIS**).

**mutation value**, which corresponds to the grouping result, as illustrated in Figure 10c. Among all grouping results, Figure 10c showed that the intergroup distance was larger than the intragroup distance, which was consistent with the cognitive habit and satisfies the requirements of compactness and continuity in Gestalt theory. We determined that the reason for the mutation value was that Avg_OUTDIS(i) was larger than Avg_OUTDIS(i). Therefore, to obtain a reasonable parcel grouping result, we should determine the proximity threshold, which has a mutation value in the compactness curve. Through the analysis of Table 3, we also determined that the compactness of the internal parcel grouping increased gradually, as in P1. If the number of such parcels in the grouping result also increases gradually, then the value of the curve may increase.

## 4. Results

#### 4.1. Analysis of Infiltration Behaviour

**Definition 3**(refer to Section 3.2), in this study, values greater than 0.5 represent a high degree of similarity, which is denoted by the red line in the figures (Figure 12); 0.3 to 0.5 indicates a moderate similarity, which is denoted by the blue line; and less than 0.3 represents a low degree of similarity or dissimilarity, which is denoted by the grey line. According to the results (refer to Figure 12), Parcel 1 has 33 instances of high-degree imitation behaviours, and Parcel 2 has 192 instances of high-degree imitation behaviours. The higher degree of similarity primarily occurred in clusters, and a large proportion occurred in adjacent parcels, from a global perspective. In addition, a dissimilarity or lower similarity of components existed in parcels that were not directly adjacent.

#### 4.2. Results of Urban Parcel grouping Method

#### 4.2.1. Parcel grouping Method Based on the Centroid Proximity

#### 4.2.2. Analysis of the UPG Method

#### 4.3. Practical Application of the UPG

## 5. Discussion

## 6. Conclusions and Further Research

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## References

- Liu, X.; Long, Y. Automated identification and characterization of parcels with OpenStreetMap and points of interest. Environ. Plan. B Plan. Des.
**2015**, 43, 341–360. [Google Scholar] [CrossRef] - Krier, R. Town Spaces: Contemporary Interpretations in Traditional Urbanism: Krier-Kohl-Architects; Birkhauser: Basel, Switzerland, 2006; pp. 8–18. [Google Scholar]
- Cheng, J.; Turkstra, J.; Peng, M.; Du, N.; Ho, P. Urban land administration and planning in China: Opportunities and constraints of spatial data models. Land Use Policy
**2006**, 23, 604–616. [Google Scholar] [CrossRef] - Stevens, D.; Dragicevic, S. A GIS-based irregular cellular automata model of land-use change. Environ. Plan. B Plan. Des.
**2007**, 34, 708–724. [Google Scholar] [CrossRef] - Pinto, N.N.; Antunes, A.P. A cellular automata model based on irregular cells: Application to small urban areas. Environ. Plan. B Plan. Des.
**2010**, 37, 1095–1114. [Google Scholar] [CrossRef] - Frank, L.D.; Sallis, J.F.; Conway, T.L.; Chapman, J.E.; Saelens, B.E.; Bachman, W. Many pathways from land use to health: Associations between neighborhood walkability and active transportation, body mass index, and air quality. J. Am. Plan. Assoc.
**2006**, 72, 75–87. [Google Scholar] [CrossRef] - Jabareen, Y.R. Sustainable urban forms: Their typologies, models, and concepts. J. Plan. Educ. Res.
**2006**, 26, 38–52. [Google Scholar] [CrossRef] - Alberti, M.; Booth, D.; Hill, K.; Coburn, B.; Avolio, C.; Coe, S.; Spirandelli, D. The impact of urban patterns on aquatic ecosystems: An empirical analysis in Puget lowland sub-basins. Landsc. Urban Plan.
**2007**, 80, 345–361. [Google Scholar] [CrossRef] - Moudon, A.V. Urban morphology as an emerging interdisciplinary field. Urban Morphol.
**1997**, 1, 3–10. [Google Scholar] - Gil, J.; Beirao, J.N.; Montenegro, N.; Duarte, J.P. On the discovery of urban typologies: Data mining the many dimensions of urban form. Urban Morphol.
**2012**, 16, 27–40. [Google Scholar] - Yoshida, H.; Omae, M. An approach for analysis of urban morphology: Methods to derive morphological properties of city blocks by using an urban landscape model and their interpretations. Comput. Environ. Urban Syst.
**2005**, 29, 223–247. [Google Scholar] [CrossRef] - Ariza-Villaverde, A.B.; Jiménez-Hornero, F.J.; Ravé, E.G.D. Multifractal analysis of axial maps applied to the study of urban morphology. Comput. Environ. Urban Syst.
**2013**, 38, 1–10. [Google Scholar] [CrossRef] - Batty, M. Building a science of cities. Cities
**2012**, 29, S9–S16. [Google Scholar] [CrossRef] [Green Version] - Jiang, B.; Liu, X. Scaling of geographic space from the perspective of city and field blocks and using volunteered geographic information. Int. J. Geogr. Inf. Sci.
**2012**, 26, 215–229. [Google Scholar] [CrossRef] [Green Version] - Long, Y.; Shen, Y.; Jin, X. Mapping Block-Level Urban Areas for All Chinese Cities. Ann. Am. Assoc. Geogr.
**2016**, 106, 96–113. [Google Scholar] [CrossRef] - Jacobs, P. Human Aspects of Urban form: Towards a Man—Environment Approach to Urban form and Design, 1st ed.; Amos Rapoport; Urban and Regional Planning Series; Pergamon Press: Oxford, UK, 1977; Volume 15, p. viii + 438. ISBN 0-08-017974-6. [Google Scholar] [CrossRef]
- Handy, S. Methodologies for exploring the link between urban form and travel behavior. Transp. Res. Part D Transp. Environ.
**1996**, 1, 151–165. [Google Scholar] [CrossRef] - Maoh, H.; Kanaroglou, P. Geographic clustering of firms and urban form: A multivariate analysis. J. Geogr. Syst.
**2007**, 9, 29–52. [Google Scholar] [CrossRef] - Tratalos, J.; Fuller, R.A.; Warren, P.H.; Davies, R.G.; Gaston, K.J. Urban form, biodiversity potential and ecosystem services. Landsc. Urban Plan.
**2007**, 83, 308–317. [Google Scholar] [CrossRef] - Liu, Y.; Wu, J.; Yu, D.; Ma, Q. The relationship between urban form and air pollution depends on seasonality and city size. Environ. Sci. Pollut. Res.
**2018**, 25, 15554–15567. [Google Scholar] [CrossRef] - Li, C.; Wang, Z.; Li, B.; Peng, Z.-R.; Fu, Q. Investigating the relationship between air pollution variation and urban form. Build. Environ.
**2019**, 147, 559–568. [Google Scholar] [CrossRef] - Schepers, P.; Lovegrove, G.; Helbich, M. Urban form and road safety: Public and active transport enable high levels of road safety. In Integrating Human Health into Urban and Transport Planning; Springer: Cham, Switzerland, 2019; pp. 383–408. [Google Scholar]
- Najaf, P.; Thill, J.-C.; Zhang, W.; Fields, M.G. City-level urban form and traffic safety: A structural equation modeling analysis of direct and indirect effects. J. Transp. Geogr.
**2018**, 69, 257–270. [Google Scholar] [CrossRef] - Yu, B.; Shu, S.; Liu, H.; Song, W.; Wu, J.; Wang, L.; Chen, Z. Object-based spatial cluster analysis of urban landscape pattern using nighttime light satellite images: A case study of China. Int. J. Geogr. Inf. Sci.
**2014**, 28, 2328–2355. [Google Scholar] [CrossRef] - Ubaura, M. Changes in Land Use After the Great East Japan Earthquake and Related Issues of Urban Form. In The 2011 Japan Earthquake and Tsunami: Reconstruction and Restoration; Springer: Berlin/Heidelberg, Germany, 2018; pp. 183–203. [Google Scholar]
- Zheng, Y.; Capra, L.; Wolfson, O.; Yang, H. Urban computing: Concepts, methodologies, and applications. ACM Trans. Intell. Syst. Technol.
**2014**, 5, 1–55. [Google Scholar] [CrossRef] - Yuan, N.J.; Zheng, Y.; Xie, X.; Wang, Y.; Zheng, K.; Xiong, H. Discovering Urban Functional Zones Using Latent Activity Trajectories. IEEE Trans. Knowl. Data Eng.
**2015**, 27, 712–725. [Google Scholar] [CrossRef] - Montgomery, J. Making a city: Urbanity, vitality and urban design. J. Urban Des.
**1998**, 3, 93–116. [Google Scholar] [CrossRef] - Long, Y.; Liu, X. Featured graphic. How mixed is Beijing, China? A visual exploration of mixed land use. Environ. Plan. A
**2013**, 45, 2797–2798. [Google Scholar] [CrossRef] - Liu, X.; He, J.; Yao, Y.; Zhang, J.; Liang, H.; Wang, H.; Hong, Y. Classifying urban land use by integrating remote sensing and social media data. Int. J. Geogr. Inf. Sci.
**2017**, 31, 1675–1696. [Google Scholar] [CrossRef] - Fotheringham, A.S.; Wong, D.W.S. The Modifiable Areal Unit Problem in Multivariate Statistical Analysis. Environ. Plan. A Econ. Space
**1991**, 23, 1025–1044. [Google Scholar] [CrossRef] - Longley, P.A.; Goodchild, M.F.; Maguire, D.J.; Rhind, D.W. Geographic Information Science and Systems; John Wiley & Sons: Hoboken, NJ, USA, 2015. [Google Scholar]
- Kwan, M.-P. The uncertain geographic context problem. Ann. Assoc. Am. Geogr.
**2012**, 102, 958–968. [Google Scholar] [CrossRef] - Zhao, P.; Kwan, M.-P.; Zhou, S. The Uncertain Geographic Context Problem in the Analysis of the Relationships between Obesity and the Built Environment in Guangzhou. Int. J. Environ. Res. Public Health
**2018**, 15, 308. [Google Scholar] [CrossRef] - Amrhein, C.G. Searching for the elusive aggregation effect: Evidence from statistical simulations. Environ. Plan. A Econ. Space
**1995**, 27, 105–119. [Google Scholar] [CrossRef] - Ferrari, L.; Rosi, A.; Mamei, M.; Zambonelli, F. Extracting urban patterns from location-based social networks. In Proceedings of the 3rd ACM SIGSPATIAL International Workshop on Location-Based Social Networks, Chicago, IL, USA, 1 November 2011; ACM: New York, NY, USA, 2011; pp. 9–16. [Google Scholar]
- Gao, S.; Janowicz, K.; Couclelis, H. Extracting urban functional regions from points of interest and human activities on location-based social networks. Trans. GIS
**2017**, 21, 446–467. [Google Scholar] [CrossRef] - Tu, W.; Hu, Z.; Li, L.; Cao, J.; Jiang, J.; Li, Q.; Li, Q. Portraying Urban Functional Zones by Coupling Remote Sensing Imagery and Human Sensing Data. Remote Sens.
**2018**, 10, 141. [Google Scholar] [CrossRef] - Wang, Y.; Gu, Y.; Dou, M.; Qiao, M. Using Spatial Semantics and Interactions to Identify Urban Functional Regions. ISPRS Int. J. Geo-Inf.
**2018**, 7, 130. [Google Scholar] [CrossRef] - Ratti, C.; Sobolevsky, S.; Calabrese, F.; Andris, C.; Reades, J.; Martino, M.; Claxton, R.; Strogatz, S.H. Redrawing the Map of Great Britain from a Network of Human Interactions. PLoS ONE
**2010**, 5, e14248. [Google Scholar] [CrossRef] [PubMed] - Liu, X.; Kang, C.; Gong, L.; Liu, Y. Incorporating spatial interaction patterns in classifying and understanding urban land use. Int. J. Geogr. Inf. Sci.
**2016**, 30, 334–350. [Google Scholar] [CrossRef] - Yu, L. Revisiting several basic geographical concepts: A social sensing perspective. Acta Geogr. Sin.
**2016**, 4, 4. [Google Scholar] - Regnauld, N. Contextual building typification in automated map generalization. Algorithmica
**2001**, 30, 312–333. [Google Scholar] [CrossRef] - Steinhauer, J.H.; Wiese, T.; Freksa, C.; Barkowsky, T. Recognition of abstract regions in cartographic maps. In Lecture Notes in Computer Science, Proceedings of the International Conference on Spatial Information Theory, Morro Bay, CA, USA, 19–23 September 2001; Springer: Berlin/Heidelberg, Germany, 2001; pp. 306–321. [Google Scholar]
- Rainsford, D.; Mackaness, W. Template matching in support of generalisation of rural buildings. In Advances in Spatial Data Handling; Springer: Berlin/Heidelberg, Germany, 2002; pp. 137–151. [Google Scholar]
- Christophe, S.; Ruas, A. Detecting building alignments for generalisation purposes. In Advances in Spatial Data Handling; Springer: Berlin/Heidelberg, Germany, 2002; pp. 419–432. [Google Scholar]
- Ware, J.M.; Jones, C.B. Conflict reduction in map generalization using iterative improvement. GeoInformatica
**1998**, 2, 383–407. [Google Scholar] [CrossRef] - Li, Z.; Yan, H.; Ai, T.; Chen, J. Automated building generalization based on urban morphology and Gestalt theory. Int. J. Geogr. Inf. Sci.
**2004**, 18, 513–534. [Google Scholar] [CrossRef] - Boffet, A.; Serra, S.R. Identification of spatial structures within urban blocks for town characterization. In Proceedings of the 20th International Cartographic Conference, Beijing, China, 6–10 August 2001; pp. 1974–1983. [Google Scholar]
- Cetinkaya, S.; Basaraner, M.; Burghardt, D. Proximity-based grouping of buildings in urban blocks: A comparison of four algorithms. Geocarto Int.
**2015**, 30, 618–632. [Google Scholar] [CrossRef] - Yan, H.; Weibel, R.; Yang, B. A multi-parameter approach to automated building grouping and generalization. Geoinformatica
**2008**, 12, 73–89. [Google Scholar] [CrossRef] - Wang, Y.; Zhang, L.; Mathiopoulos, P.T.; Deng, H. A Gestalt rules and graph-cut-based simplification framework for urban building models. Int. J. Appl. Earth Obs. Geoinf.
**2015**, 35, 247–258. [Google Scholar] [CrossRef] - Chen, J.; Hu, Y.; Li, Z.; Zhao, R.; Meng, L. Selective omission of road features based on mesh density for automatic map generalization. Int. J. Geogr. Inf. Sci.
**2009**, 23, 1013–1032. [Google Scholar] [CrossRef] - Yang, B.; Luan, X.; Li, Q. Generating hierarchical strokes from urban street networks based on spatial pattern recognition. Int. J. Geogr. Inf. Sci.
**2011**, 25, 2025–2050. [Google Scholar] [CrossRef] - Li, C.; Yin, Y.; Liu, X.; Wu, P. An Automated Processing Method for Agglomeration Areas. ISPRS Int. J. Geo-Inf.
**2018**, 7, 204. [Google Scholar] [CrossRef] - Haunert, J.-H.; Wolff, A. Area aggregation in map generalisation by mixed-integer programming. Int. J. Geogr. Inf. Sci.
**2010**, 24, 1871–1897. [Google Scholar] [CrossRef] - Luan, X.; Yang, B.; Qiuping, L.I. A mixed integer programming model of block aggregation for grid pattern maintenance in urban network. Acta Geod. Cartogr. Sin.
**2014**. [Google Scholar] [CrossRef] - Shen, Y.; Karimi, K. Urban function connectivity: Characterisation of functional urban streets with social media check-in data. Cities
**2016**, 55, 9–21. [Google Scholar] [CrossRef] [Green Version] - Manaugh, K.; Kreider, T. What is mixed use? Presenting an interaction method for measuring land use mix. J. Transp. Land Use
**2013**, 6, 63–72. [Google Scholar] [CrossRef] - Ortega-Álvarez, R.; MacGregor-Fors, I. Living in the big city: Effects of urban land-use on bird community structure, diversity, and composition. Lands. Urban Plan.
**2009**, 90, 189–195. [Google Scholar] [CrossRef] - Guéziec, A. Surface Simplification Inside a Tolerance Volume; IBM TJ Watson Research Center: New York, NY, USA, 1996. [Google Scholar]
- Joshi, D.; Samal, A.K.; Soh, L.-K. Density-based clustering of polygons. In Proceedings of the 2009 IEEE Symposium on Computational Intelligence and Data Mining, Nashville, TN, USA, 30 March–2 April 2009; IEEE: Piscataway, NJ, USA, 2009; pp. 171–178. [Google Scholar] [CrossRef] [Green Version]
- Joshi, D.; Soh, L.-K.; Samal, A. Redistricting using heuristic-based polygonal clustering. In Proceedings of the 2009 Ninth IEEE International Conference on Data Mining, Miami, FL, USA, 6–9 December 2009; IEEE: Piscataway, NJ, USA, 2009; pp. 830–835. [Google Scholar] [CrossRef]
- Atallah, M.J. A linear time algorithm for the Hausdorff distance between convex polygons. Inform. Process. Lett.
**1983**, 17, 207–209. [Google Scholar] [CrossRef] [Green Version] - Bai, Y.-B.; Yong, J.-H.; Liu, C.-Y.; Liu, X.-M.; Meng, Y. Polyline approach for approximating Hausdorff distance between planar free-form curves. Comput.-Aided Des.
**2011**, 43, 687–698. [Google Scholar] [CrossRef] - Rousseeuw, P.J. Silhouettes: A graphical aid to the interpretation and validation of cluster analysis. J. Comput. Appl. Math.
**1987**, 20, 53–65. [Google Scholar] [CrossRef] [Green Version] - Yang, Z.; Cai, J.; Ottens, H.F.L.; Sliuzas, R. Beijing. Cities
**2013**, 31, 491–506. [Google Scholar] [CrossRef] - Gehl, J. Life between Buildings: Using Public Space; Island Press: Washington, DC, USA, 2011. [Google Scholar]

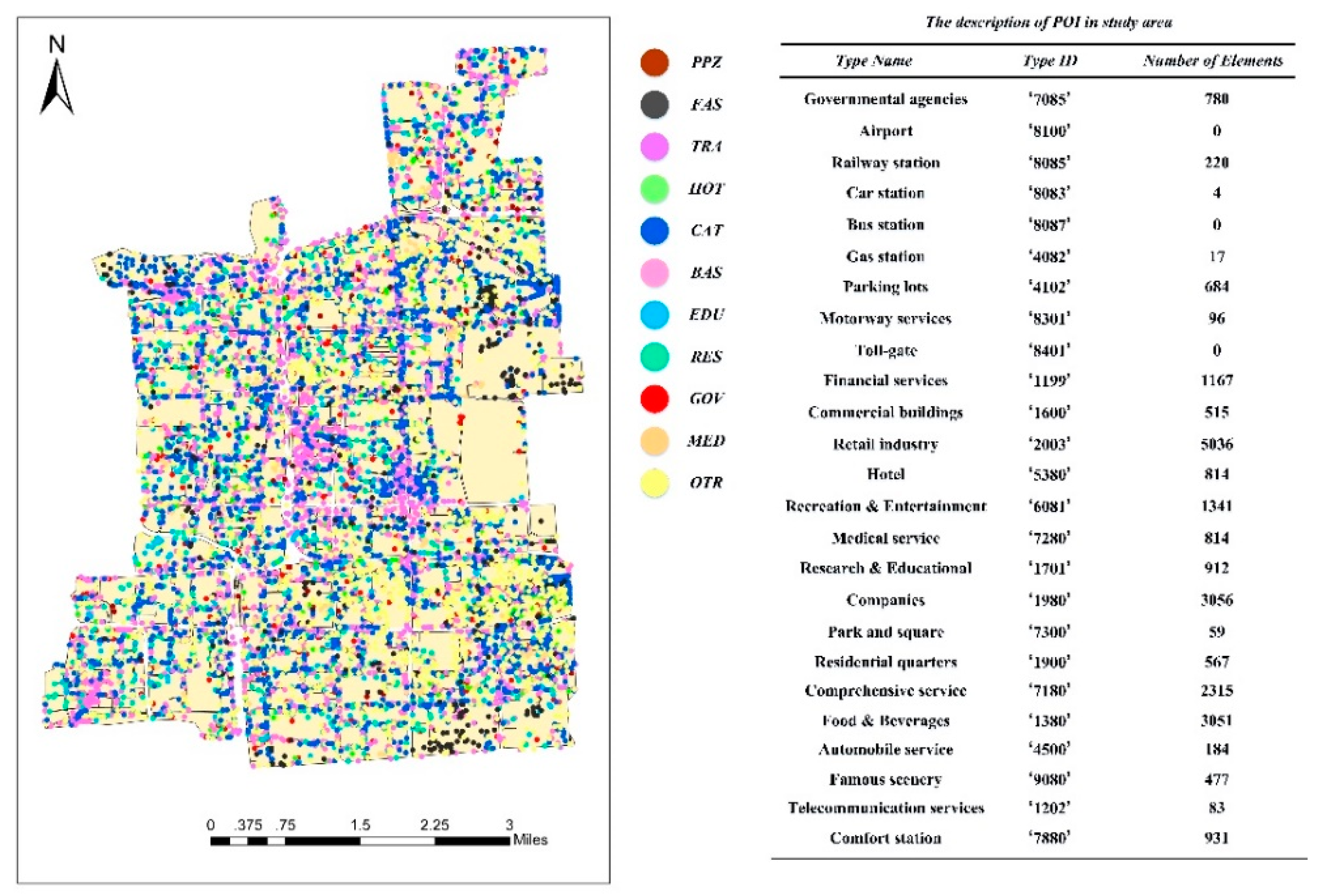

**Figure 1.**Illustration of study area (Xicheng District, Beijing) and the description of POI data. (Key to abbreviated names is in Table 1).

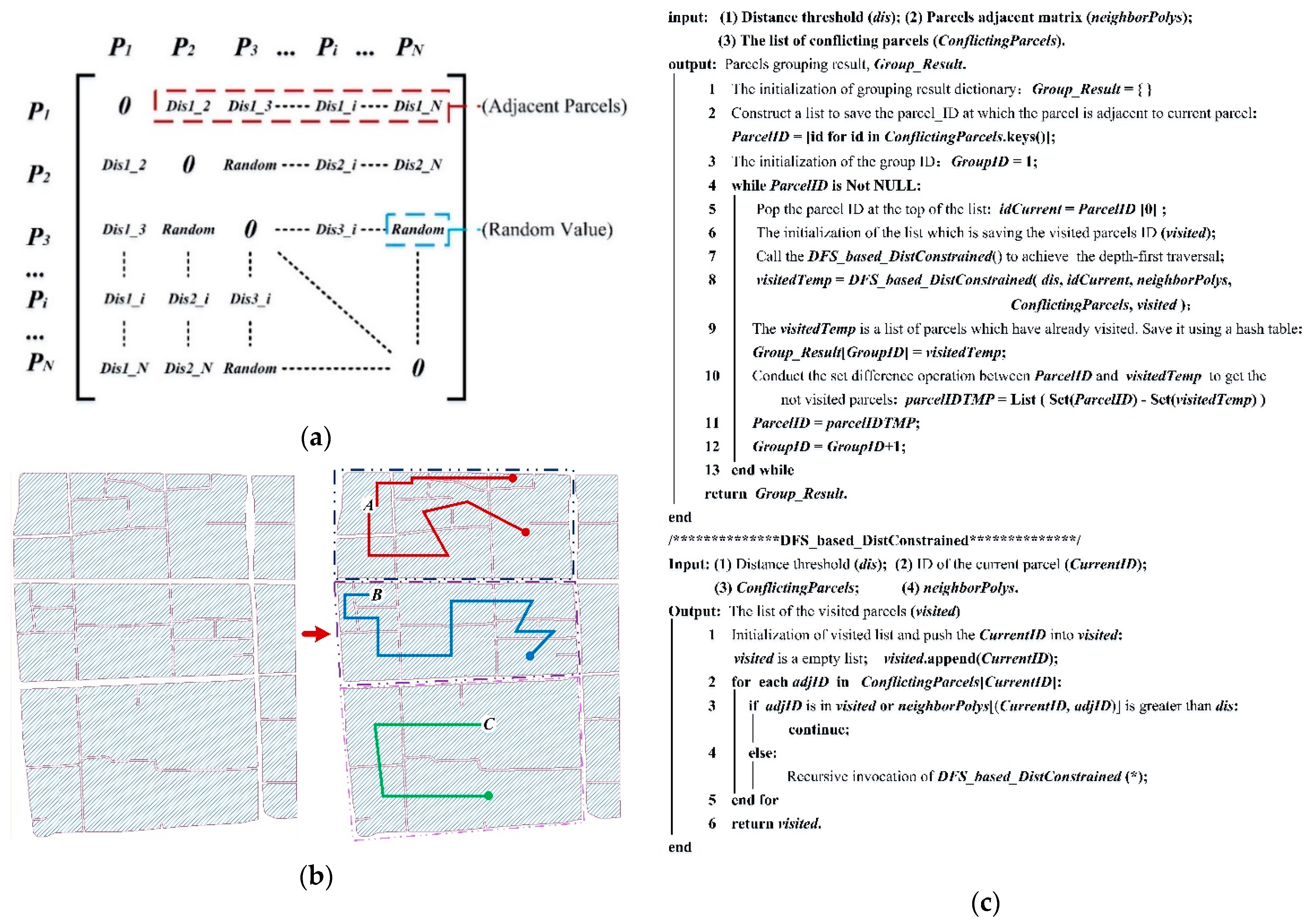

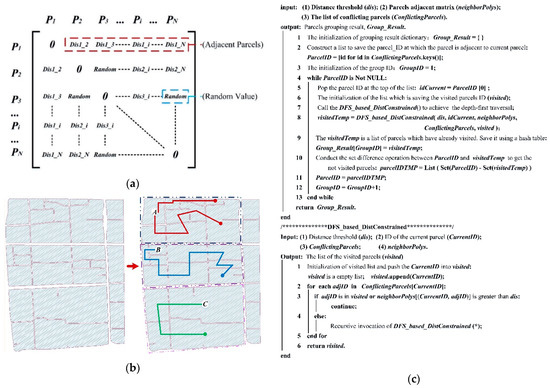

**Figure 7.**Urban parcel grouping method: (

**a**) Construction process of the parcels adjacent matrix; (

**b**) diagrammatic sketch of parcel grouping trees; and (

**c**) description of parcel grouping algorithm.

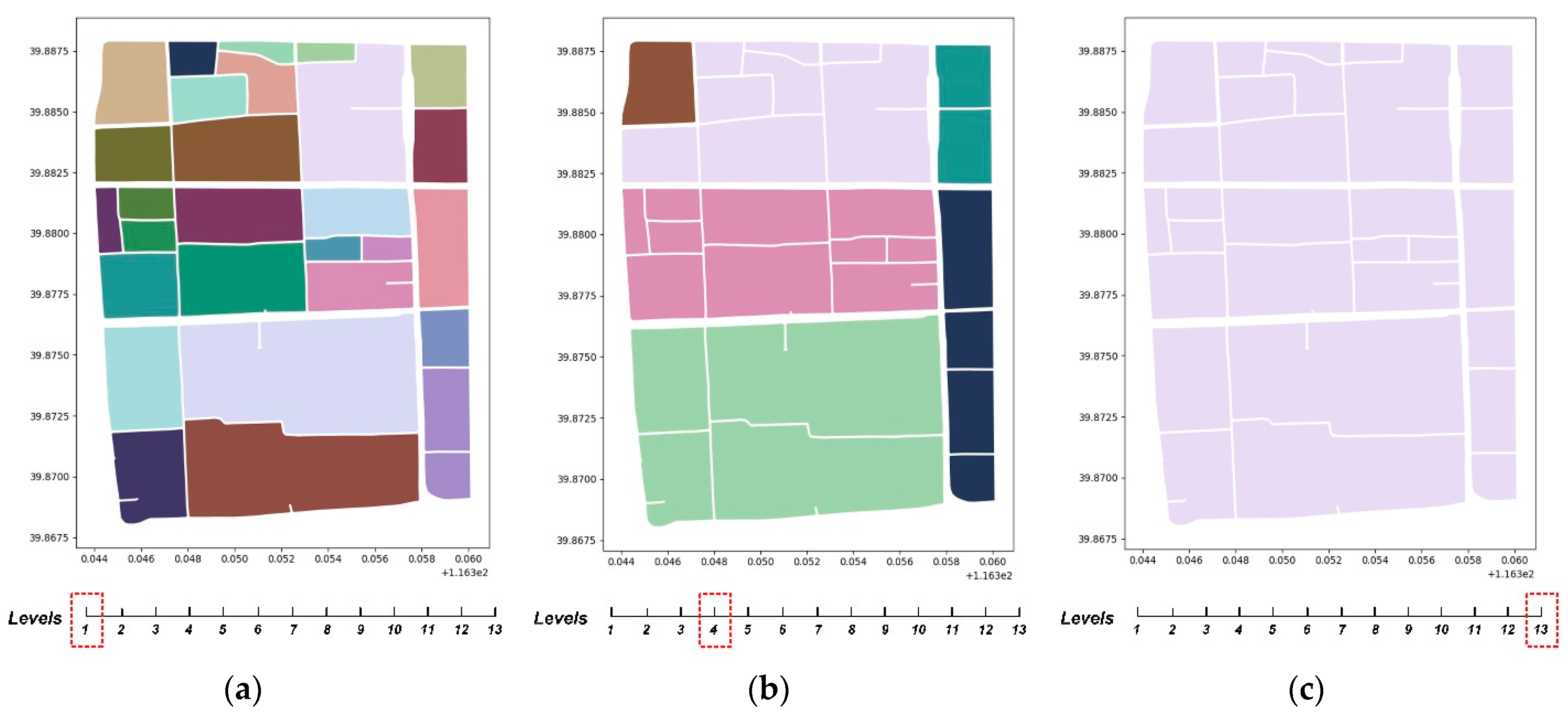

**Figure 8.**Illustration of step-by-step tuning within 13 levels: (

**a**) parcel grouping at level 1; (

**b**) parcel grouping at level 4; (

**c**) parcel grouping at level 13.

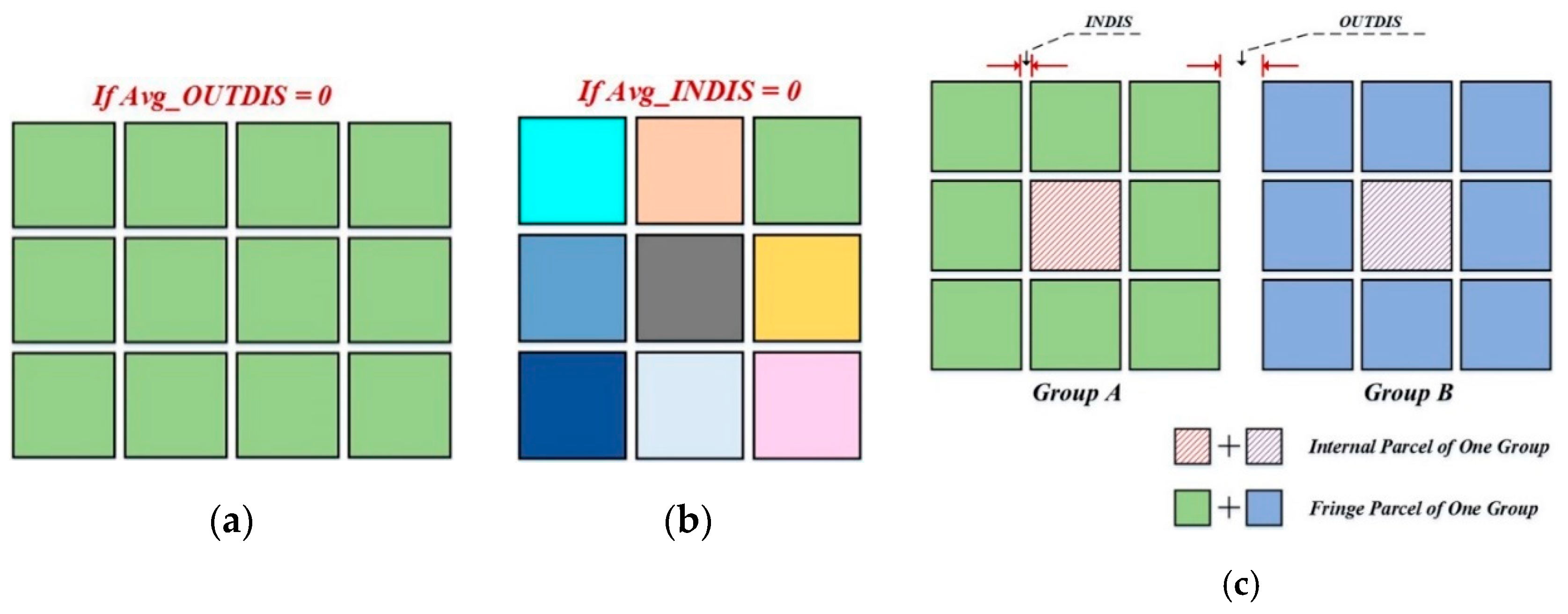

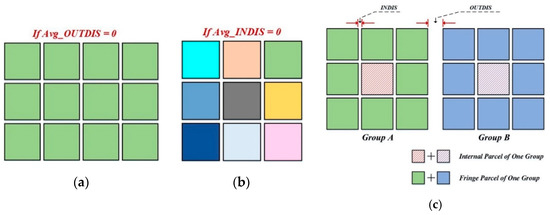

**Figure 9.**Illustration of three types of grouping results: (

**a**) grouping result when Avg_OUTDIS is 0; (

**b**) grouping result when Avg_INDIS is 0; (

**c**) grouping result when Avg_OUTDIS is greater than Avg_INDIS.

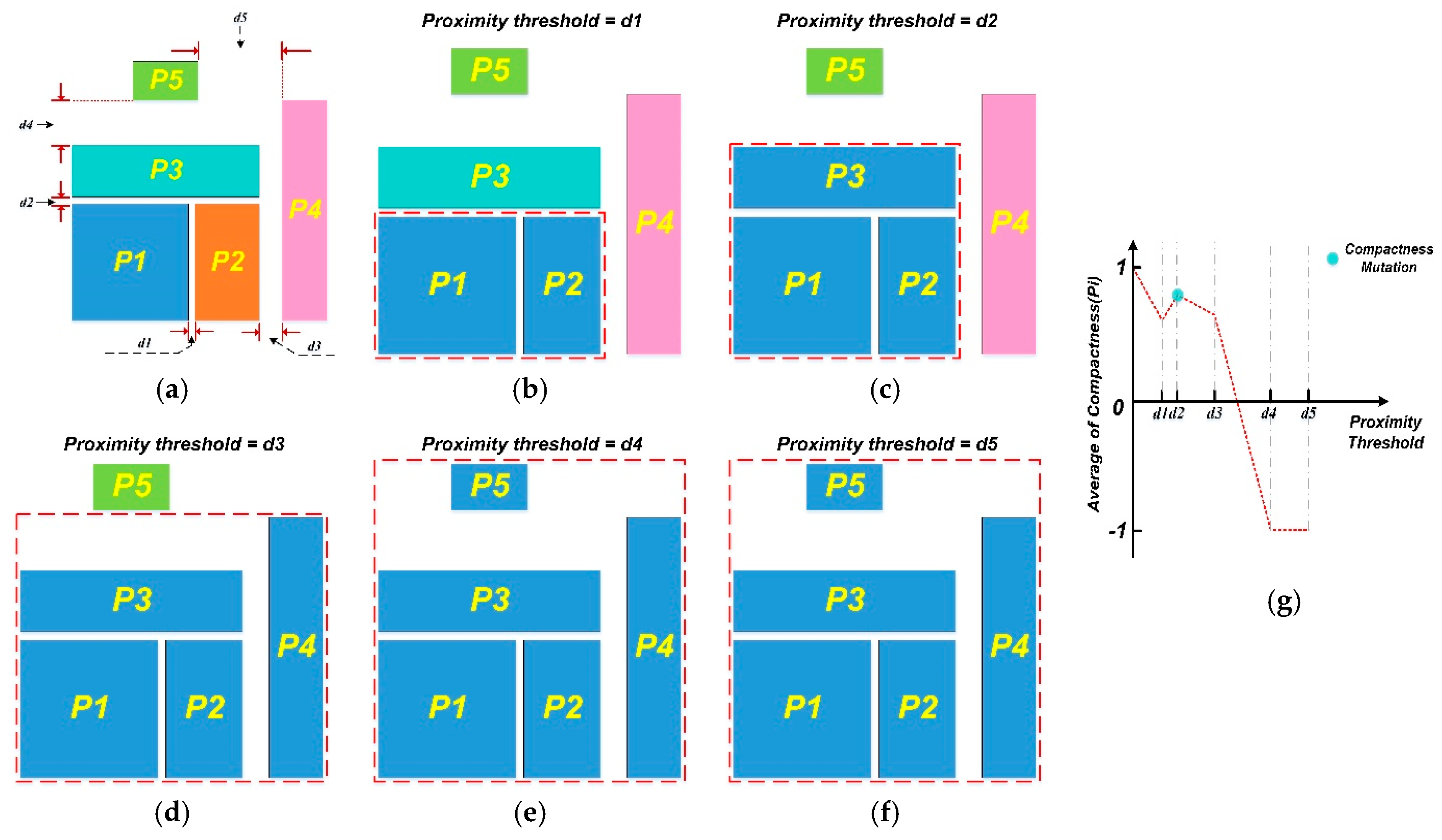

**Figure 10.**Illustration of grouping results with different proximity thresholds: (

**a**) ungrouped parcels; (

**b**) proximity threshold = d1; (

**c**) proximity threshold = d2; (

**d**) proximity threshold = d3; (

**e**) proximity threshold = d4; (

**f**) proximity threshold = d5; (

**g**) the relationship between compactness and proximity threshold.

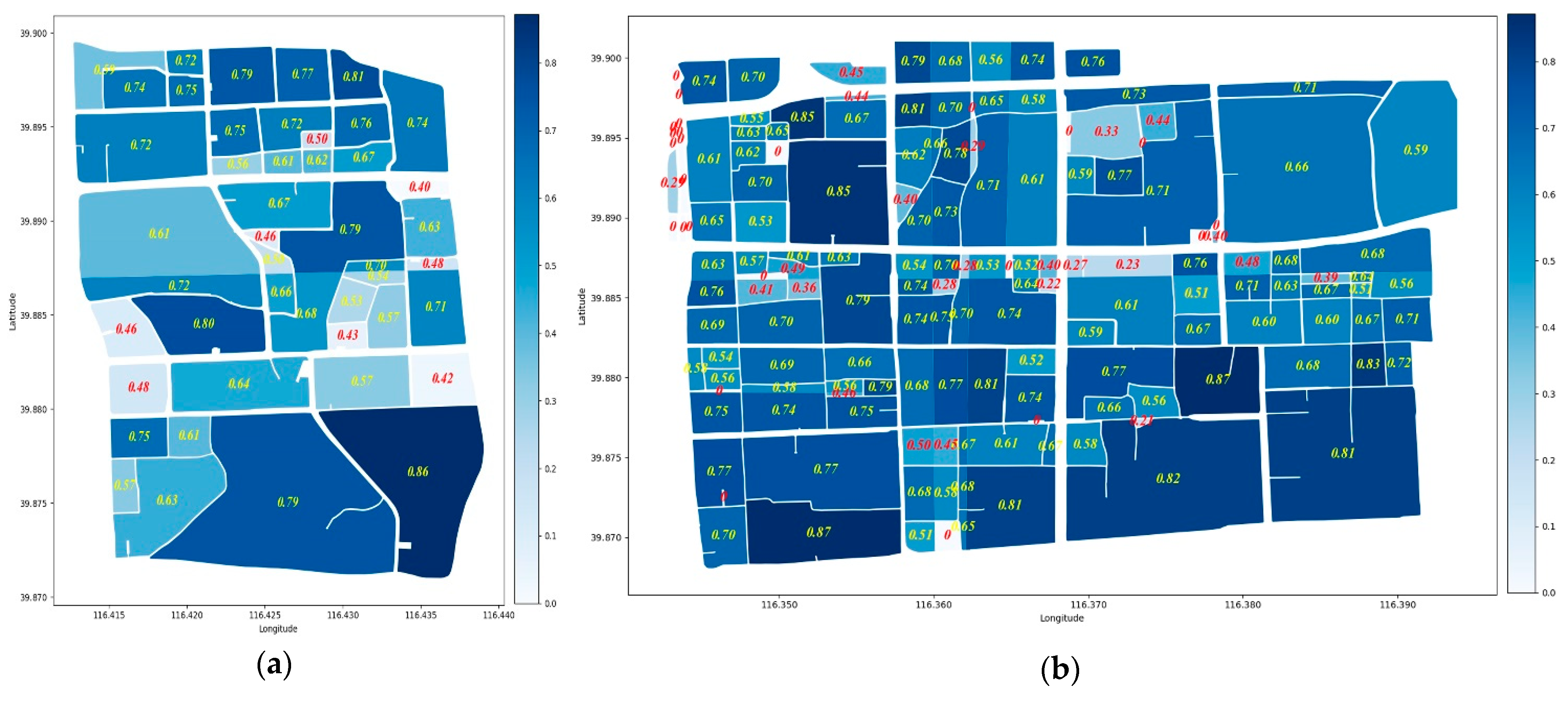

**Figure 11.**Illustration of mixed land use (red numbers within parcels represent the MLU less than 0.5): (

**a**) MLU of Parcel 1, and (

**b**) MLU of Parcel 2.

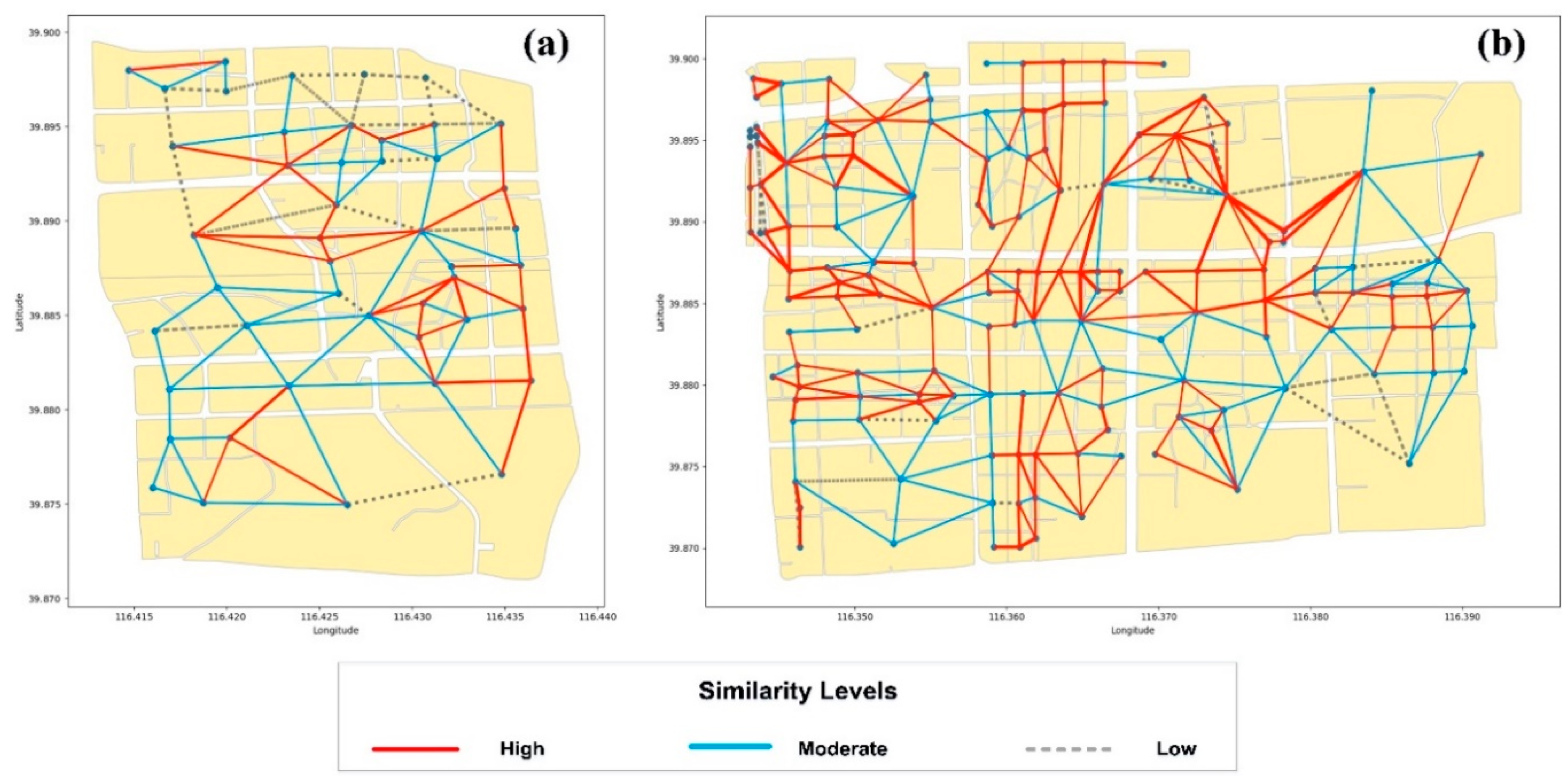

**Figure 12.**Illustration of imitation behaviour among parcels: (

**a**) imitation behaviour of Parcel 1, and (

**b**) imitation behaviour of Parcel 2.

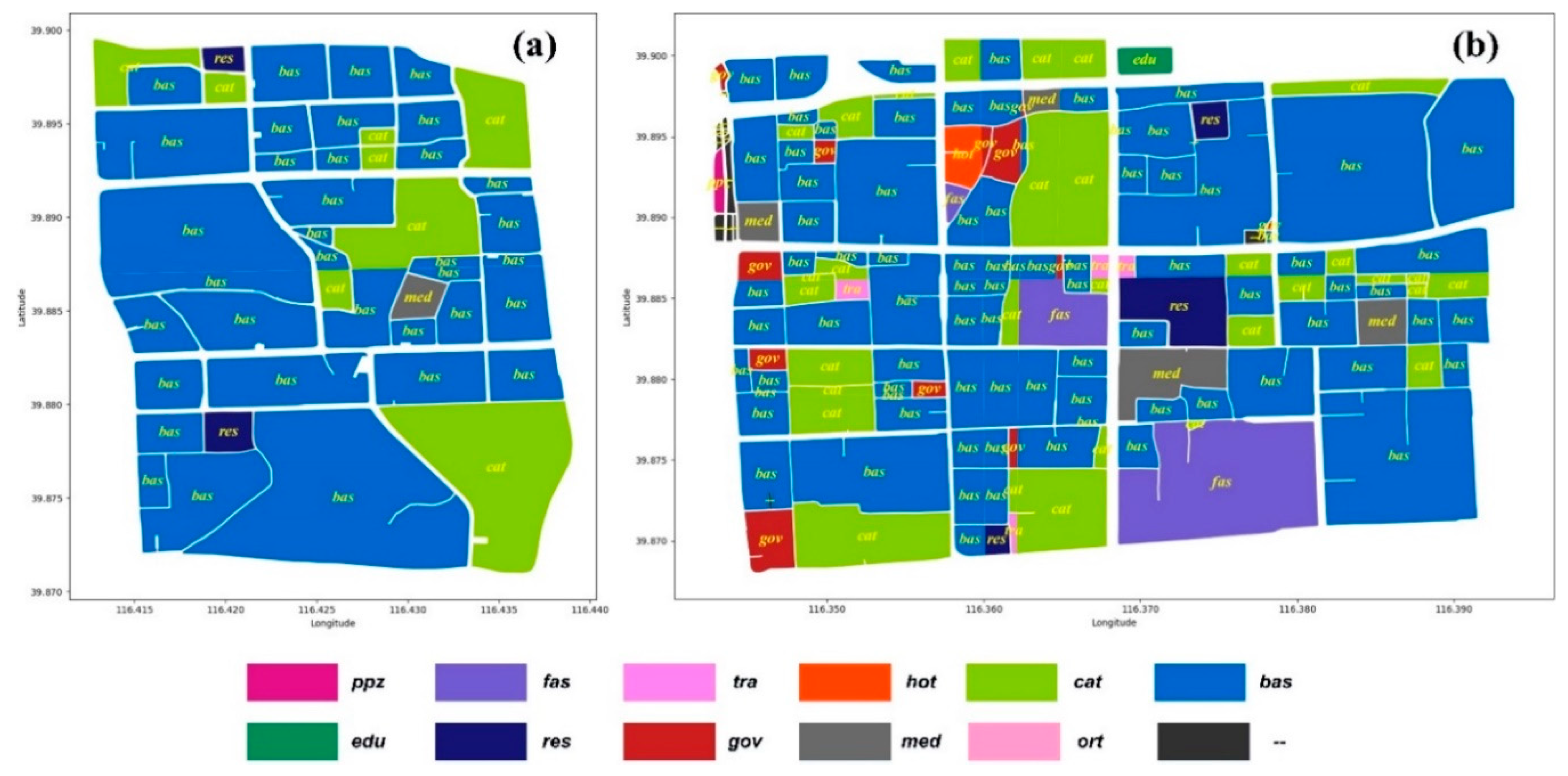

**Figure 13.**Illustration of dominant function within parcels: (

**a**) dominant functions of Parcel 1, and (

**b**) dominant functions of Parcel 2. In the legend, “--” represents that there is no POI in this parcel.

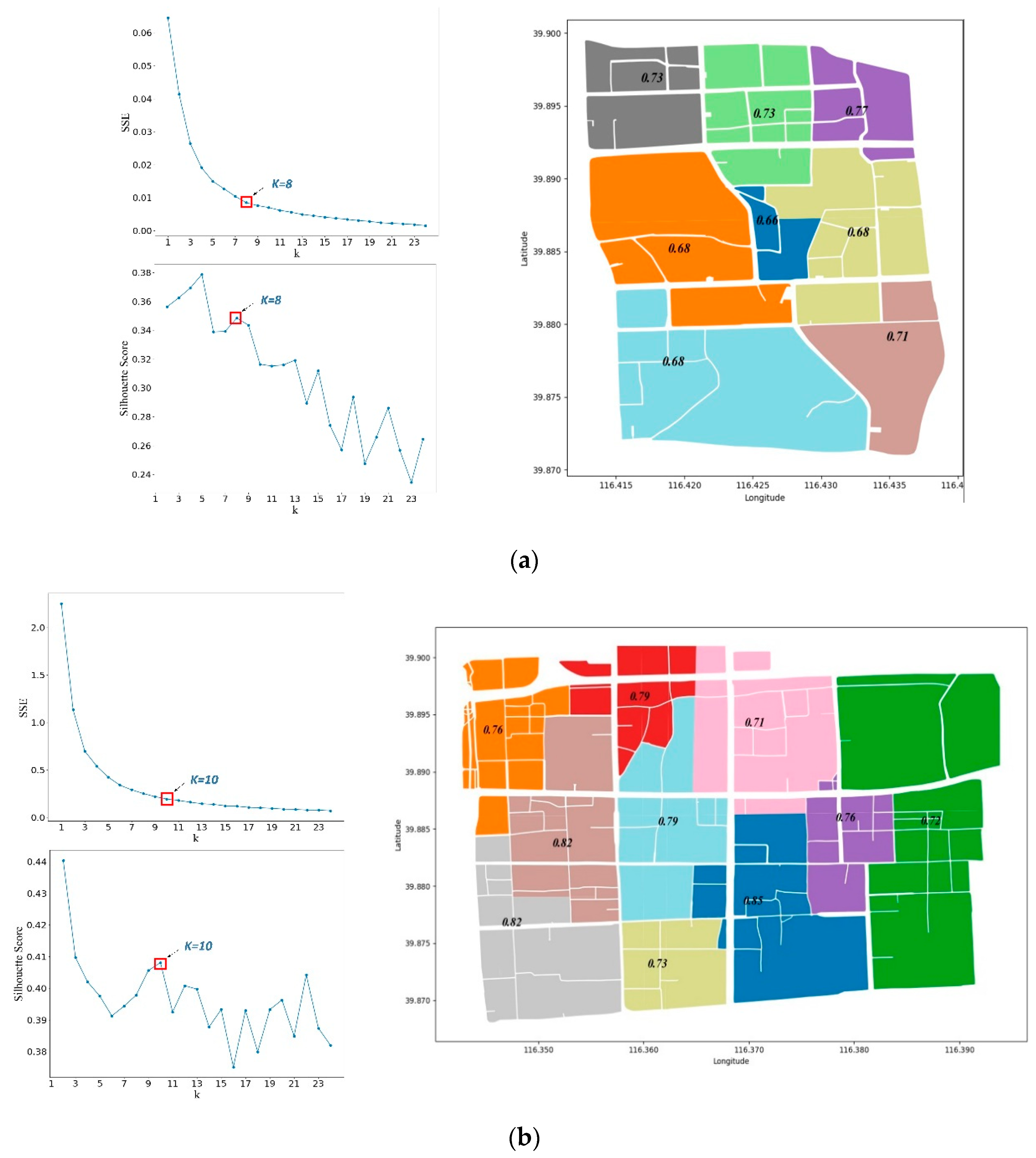

**Figure 14.**Illustration of parcel grouping results based on the k-means++ algorithm: (

**a**) grouping result of Parcel 1 (k = 8) and (

**b**) grouping result of Parcel 2 (k = 10). Numbers within a group illustrate the MLU index of the group. The left part of the figures illustrates the process of choosing the optimal cluster number.

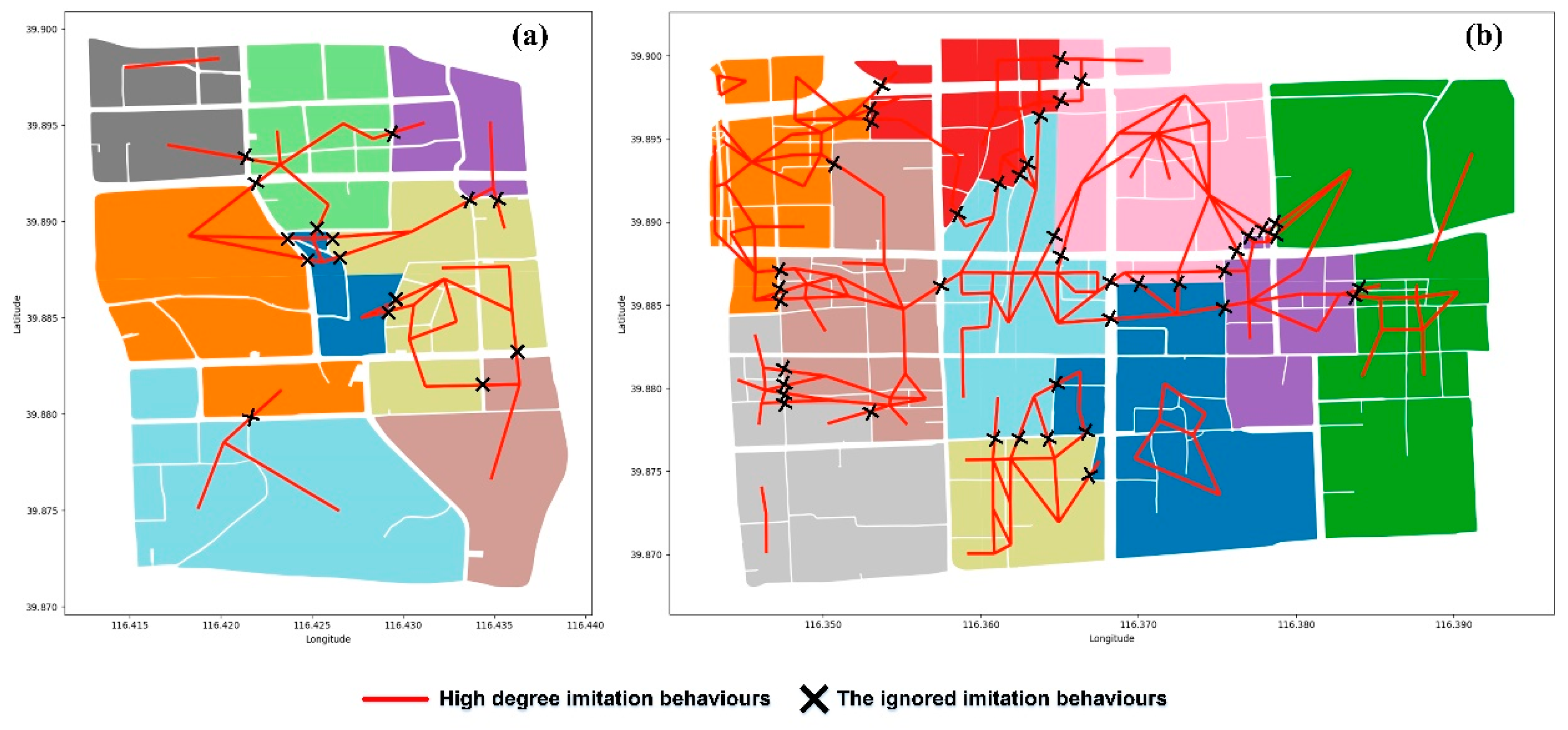

**Figure 15.**The ignored imitation behaviours among groups: (

**a**) grouping result of Parcel 1 and (

**b**) grouping result of Parcel 2.

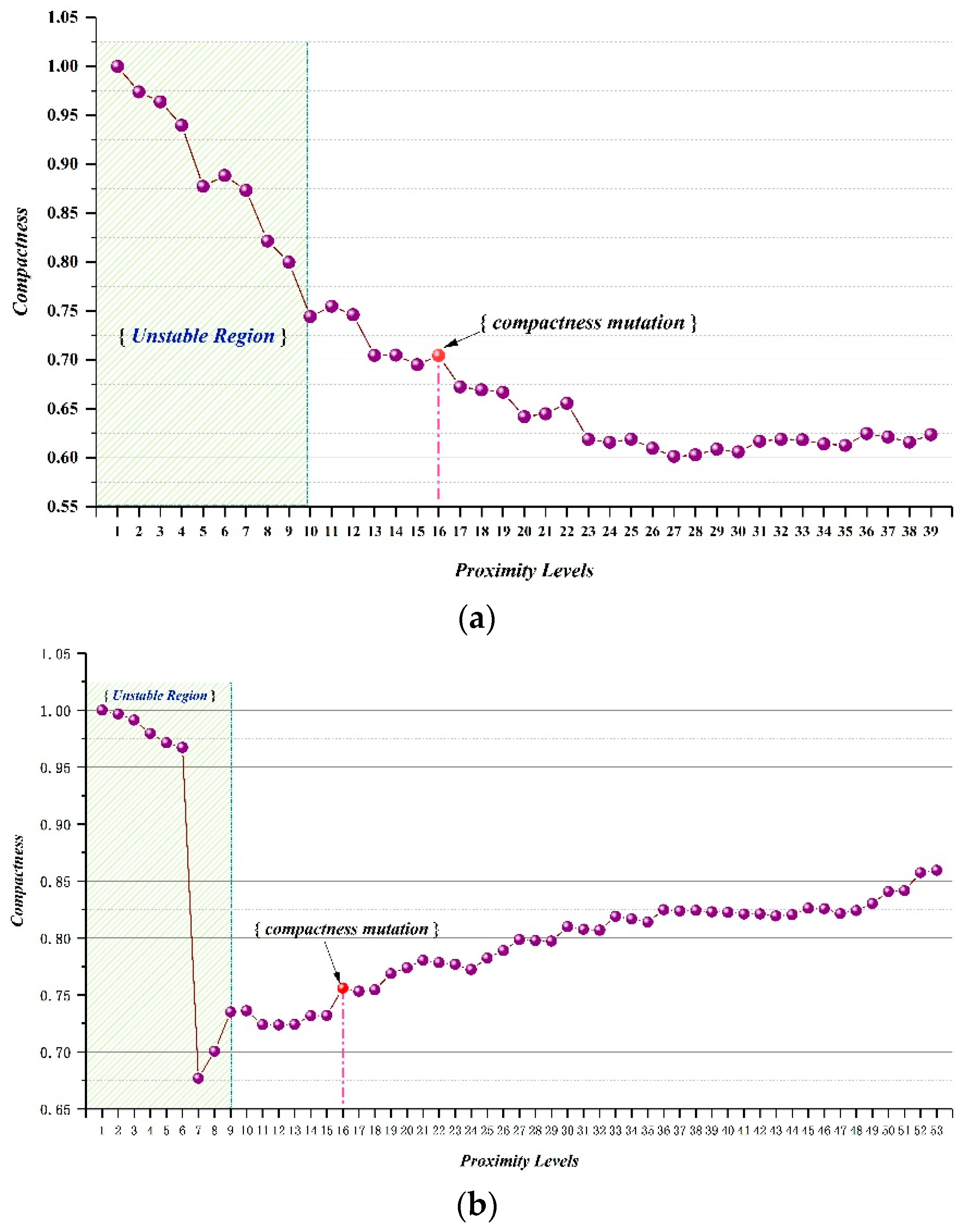

**Figure 16.**Compactness curve generated by two datasets: (

**a**) compactness curve of parcel 1; (

**b**) compactness curve of Parcel 2.

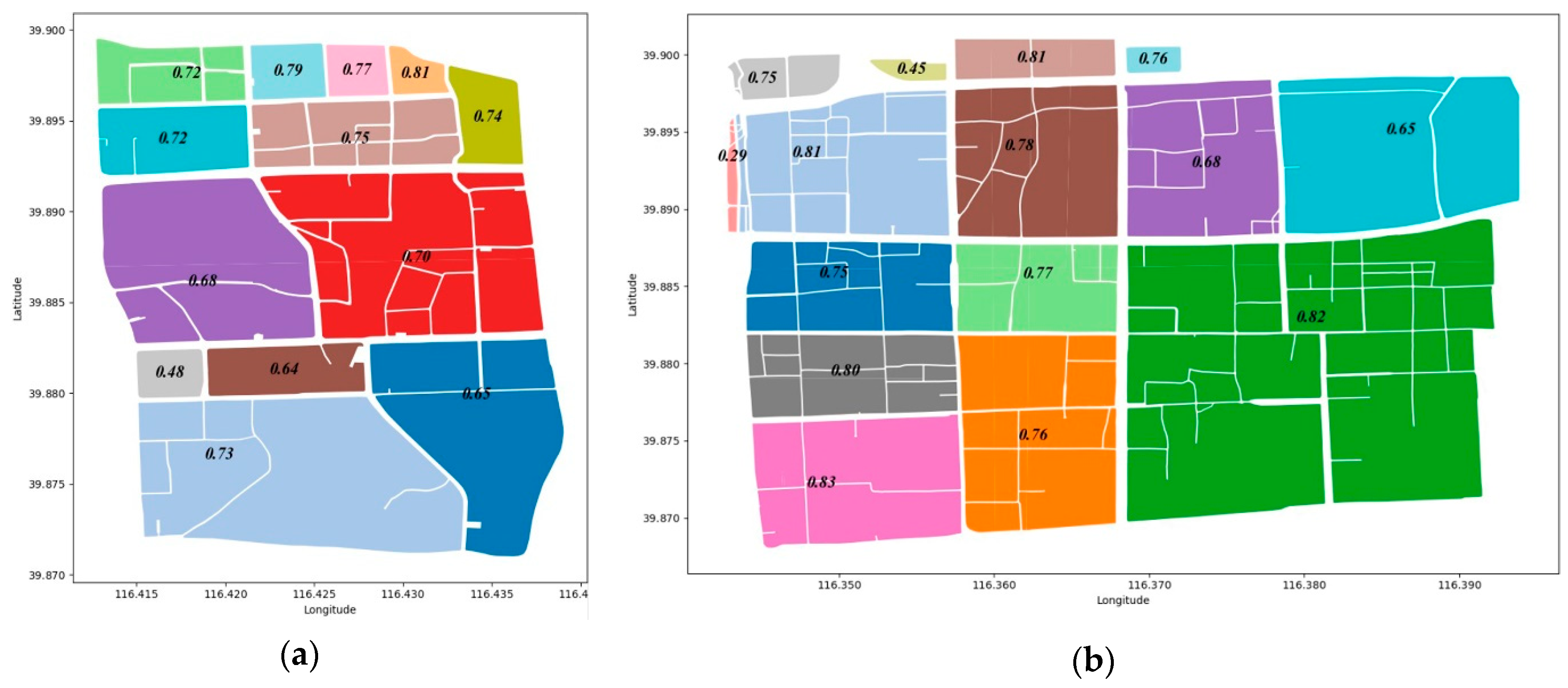

**Figure 17.**Illustration of grouping results based on UPG: (

**a**) grouping result of Parcel 1 and (

**b**) grouping result of Parcel 2. Numbers within groups represent the MLU index.

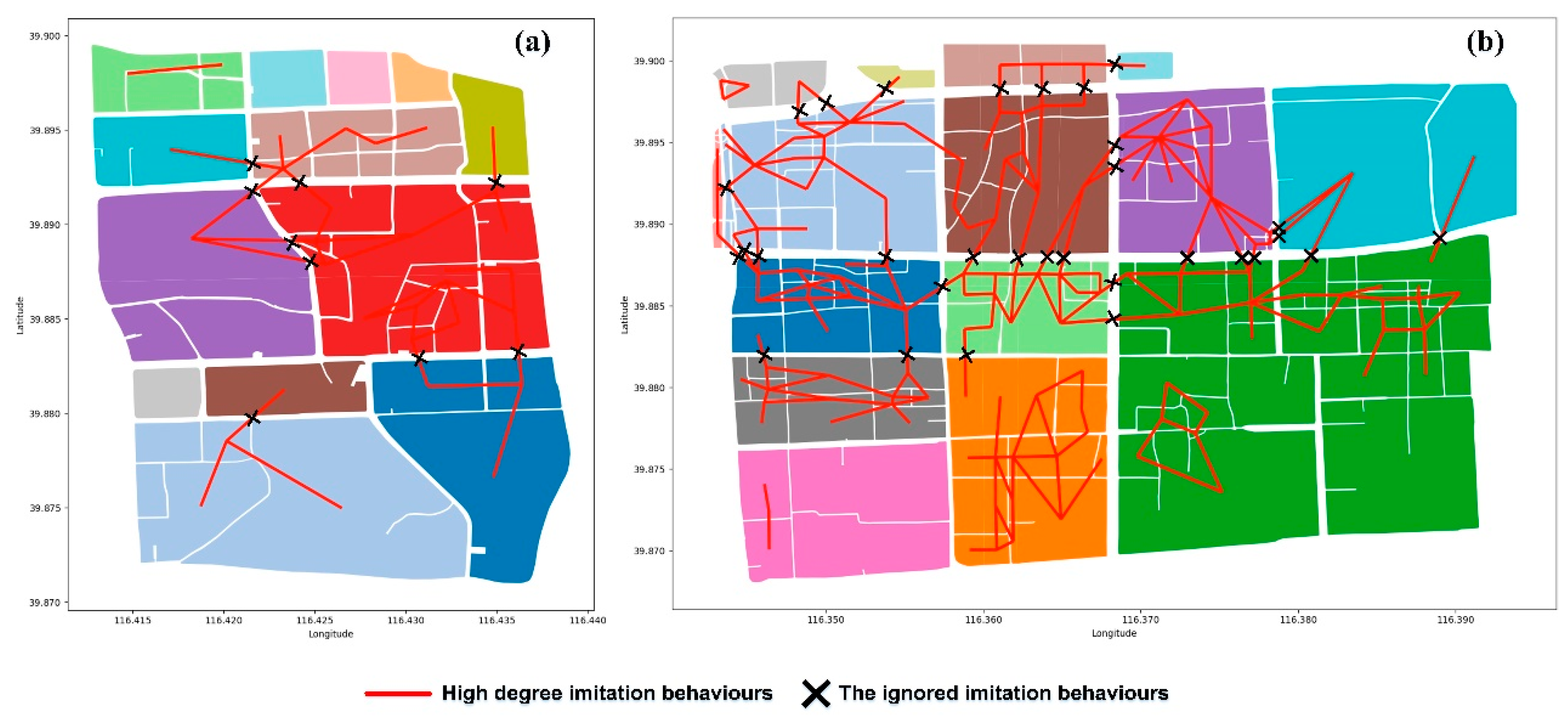

**Figure 18.**The ignored imitation behaviours among parcel group: (

**a**) grouping result of Parcel 1 and (

**b**) grouping result of Parcel 2.

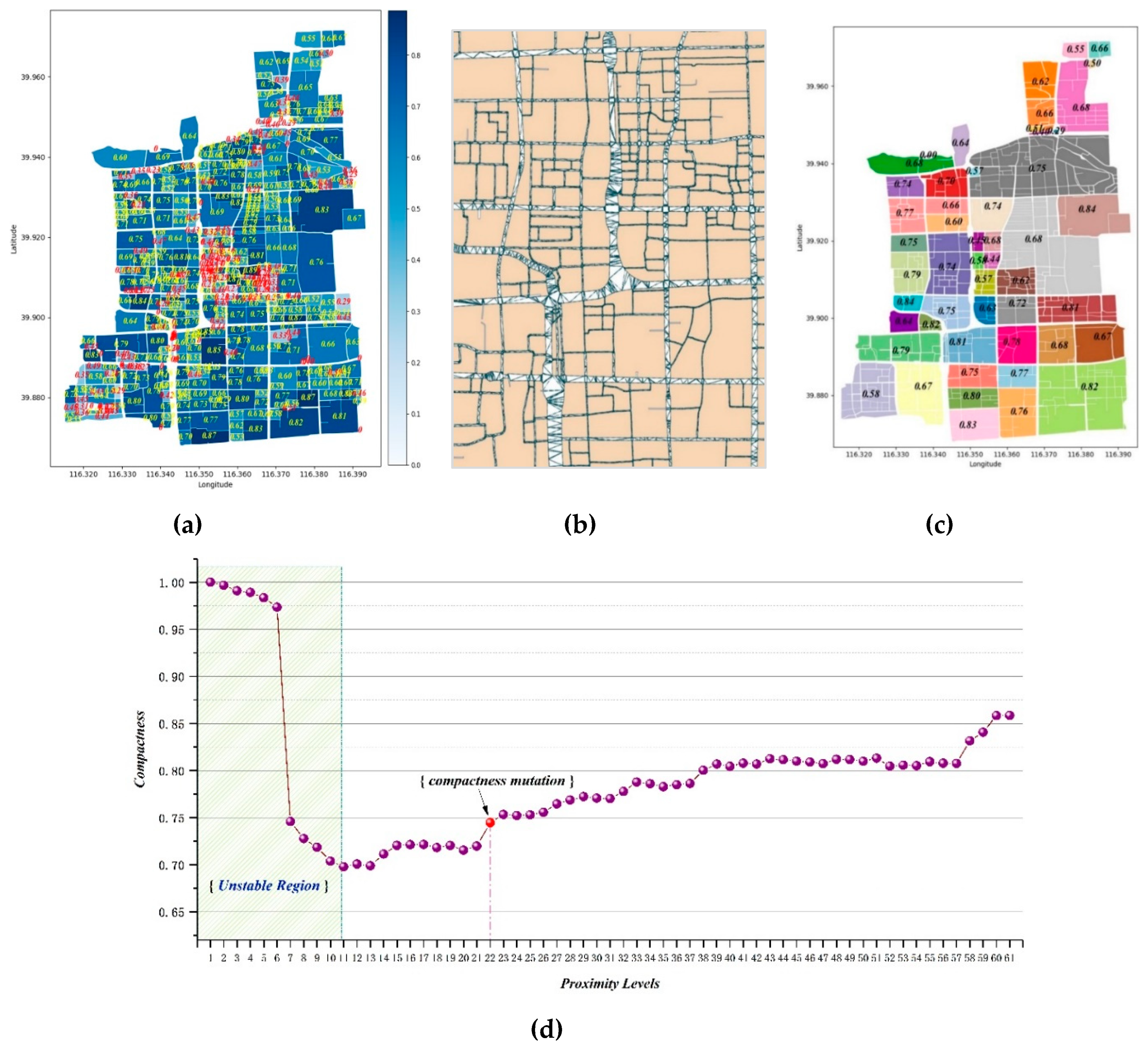

**Figure 19.**Xicheng District’s parcel grouping results are generated by UGP: (

**a**) mixed land use of Xicheng District (red numbers within parcels represent the MLU less than 0.5); (

**b**) a CDT constructed for the study area; (

**c**) parcel grouping result at level 22, numbers within groups represent the MLU index; and (

**d**) compactness curve.

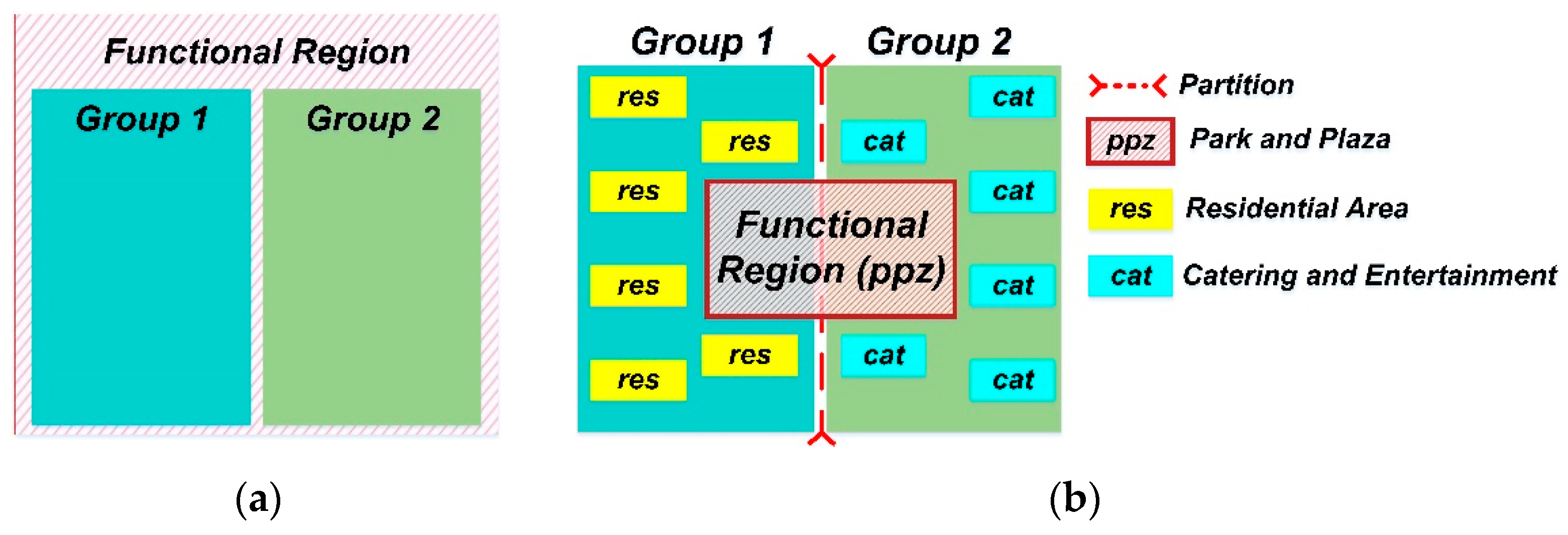

**Figure 20.**Illustration of relationship between parcel groups and functional region: (

**a**) two groups merge into a large functional region; (

**b**) hard segmentation.

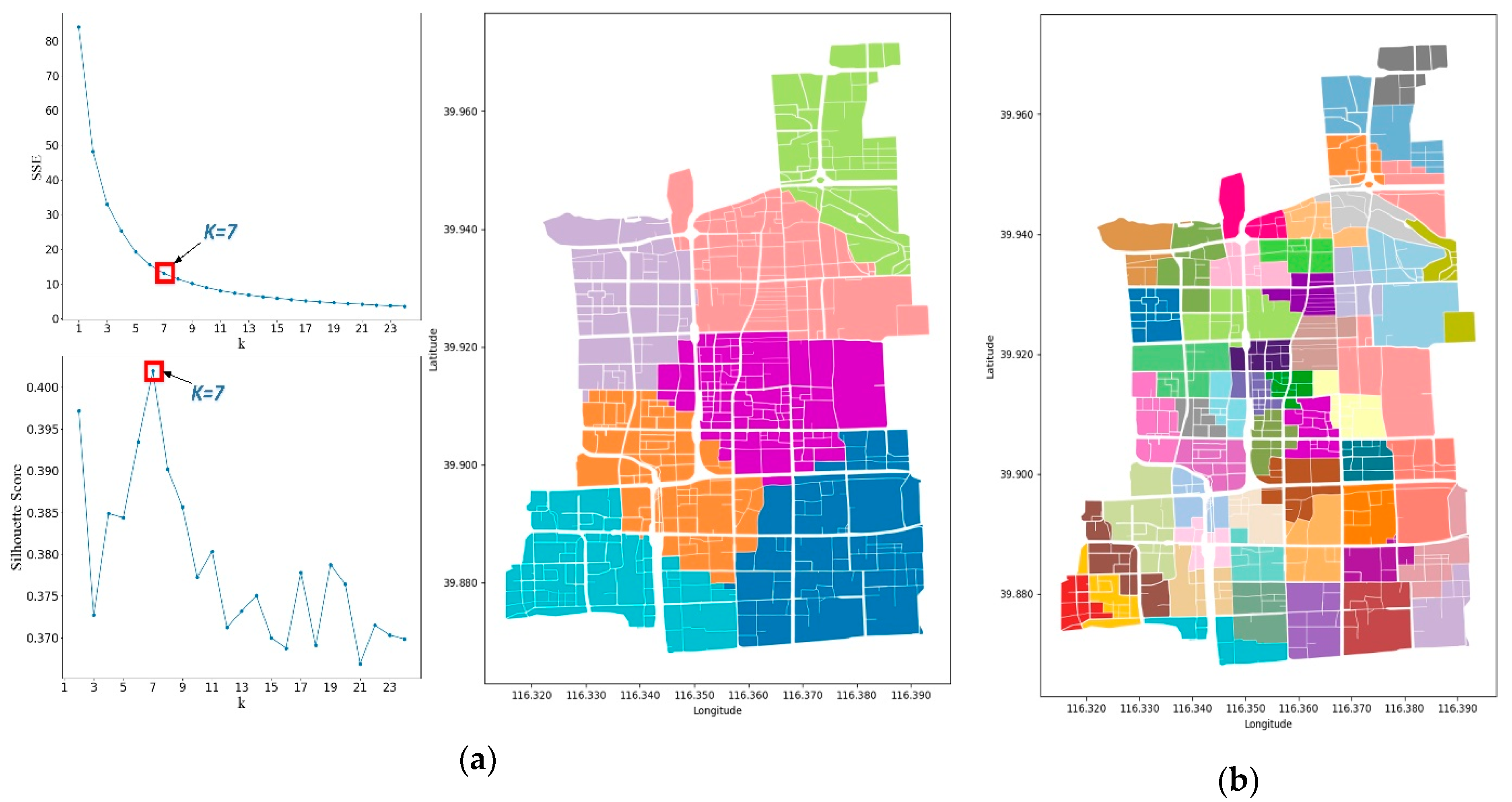

**Figure 21.**Illustration of contrast experiment results: (

**a**) k-means++ result (k = 7), the left parts of the figures illustrate the process of choosing the optimal cluster number; (

**b**) k-means++ result (k = 51).

Category | Subclass ID | Abbreviated Name |
---|---|---|

Park and Plaza | ‘7300’ | PPZ |

Famous Scenery | ‘9080’ | FAS |

Transport Services | ‘4102’, ‘1202’, ‘4500’, ‘8085’, ‘4082’, ‘8087’, ‘8083’, ‘8100’, ‘8301’, ‘8401’ | TRA |

Hotel | ‘5380’ | HOT |

Catering and Entertainment | ‘1380’, ‘6081’ | CAT |

Business and Shopping | ‘1199’, ‘1600’, ‘2003’, ‘1980’ | BAS |

Research and Education | ‘1701’ | EDU |

Residential Area | ‘1900’ | RES |

Governmental Agencies | ‘7085’ | GOV |

Medical Service | ‘7280’ | MED |

Others | ‘7180’, ‘7880’ | OTR |

Parcel ID | Number of Parcels | Number of POIs | Main Components |
---|---|---|---|

parcel 1 | 46 | 3182 | ① Business & Shopping; ② Catering & Entertainment |

parcel 2 | 157 | 6527 | ① Business & Shopping; ② Catering & Entertainment; ③ Famous Scenery; ④ Residential Area |

Proximity Threshold | Compactness(P_{i}) | Average of Compactness(Pi) | ||||
---|---|---|---|---|---|---|

P1 | P2 | P3 | P4 | P5 | ||

d1 | $1-\frac{d1}{d2}$↓^{1} | $1-\frac{2*d1}{d2+d3}$↓ | 1 | 1 | 1 | ≈ $1-\frac{3*d1}{10*d2}$≈ 0.7 |

d2 | $1-\frac{d1+d2}{2*d3}$↑ | $1-\frac{d1+d2}{2*d3}$↑ | $1-\frac{2*d2}{d3+d4}$↓ | 1 | 1 | ≈$0.89-\frac{d1}{15*d2}$ ≈ 0.82 |

d3 (≈3*d2) | $1-\frac{d1+d2}{2*d4}$↑ | $1-\frac{d1+d2+d3}{3*d4}$↑ | $1-\frac{d2+d2+d3}{3*d4}$↓ | $1-\frac{2*d3}{d5}$↓ | 1 | ≈$0.75-\frac{d1}{36*d2}$≈ 0.72 |

d4 (≈2*d3) | −1 | −1 | −1 | −1 | −1 | −1 |

d5 (≈1.5*d4) | −1 | −1 | −1 | −1 | −1 | −1 |

**Red arrows represent changes in Compactness(Pi) compared with previous grouping results: upward pointing arrows indicate larger values and downward pointing arrows indicate smaller values.**

^{1}Parcel ID | Average Increase of MLU within Groups | Whether Same Dominant Functions were Separated | Ratio (times) of Ignored the High-Degree Imitation Behaviours |
---|---|---|---|

Parcel 1 | +0.38 | No | 45.45% (15) |

Parcel 2 | +3.87 | Yes | 21.88% (42) |

Parcel ID | Average Increase of MLU within Groups | Whether Same Dominant Functions were Separated | Ratio (times) of Ignored the High-Degree Imitation Behaviours |
---|---|---|---|

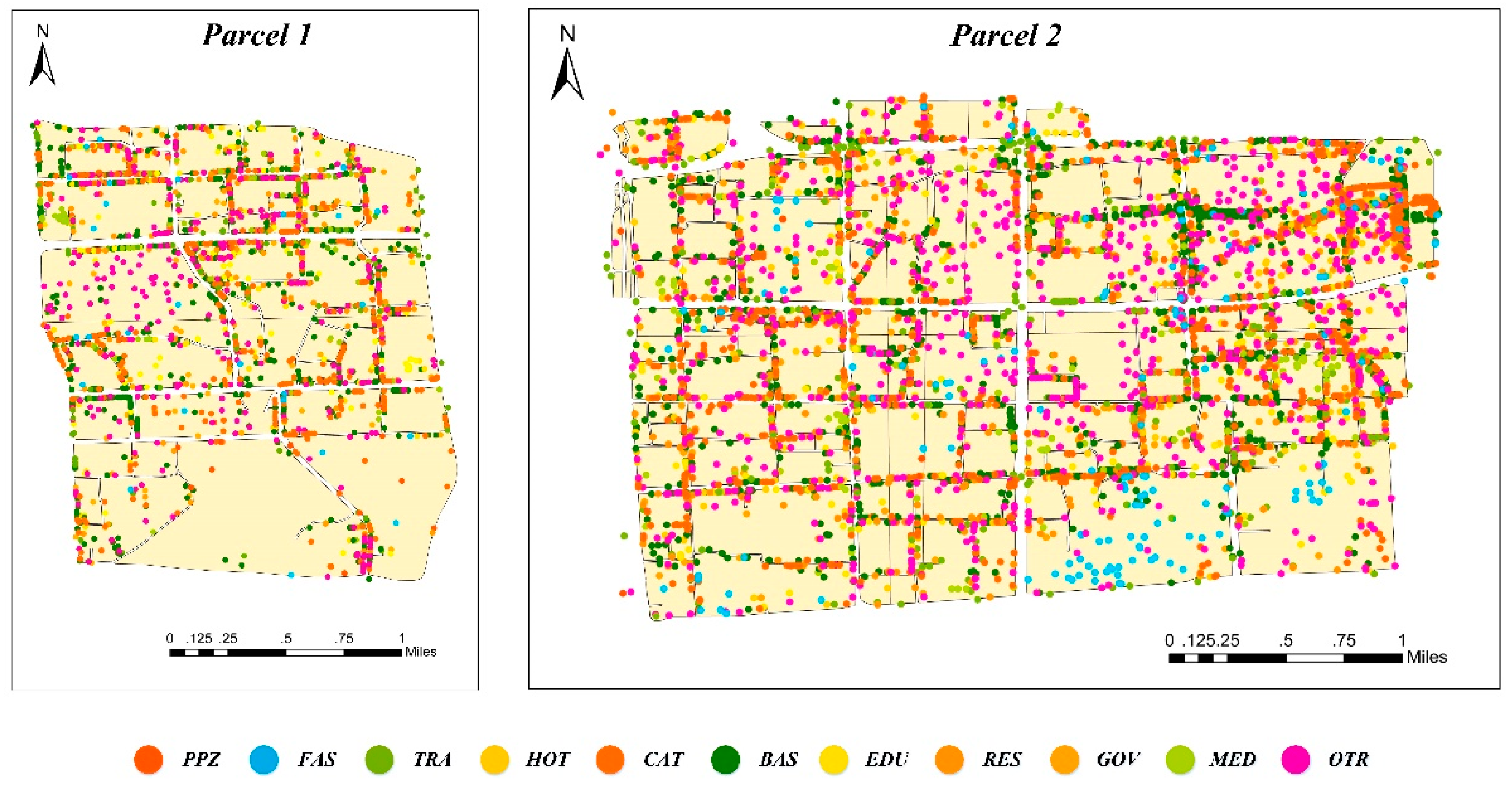

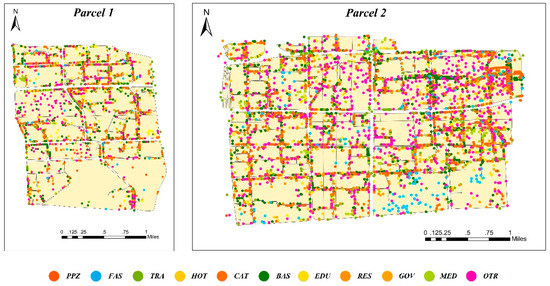

Parcel 1 | +0.24 | No | 27.27% (9) |

Parcel 2 | +2.45 | No | 16.15% (31) |

Method | Number of Groups (k) | Number of Hard Segmentations | Ratio (Number of Hard Segmentation/k) |
---|---|---|---|

k-means++ | k = 7 | 4 | 57.14% |

k-means++ | k = 51 | 20 | 39.22% |

UPG | k = 51 | 5 | 9.80% |
