# Spatio-Temporal Change Characteristics of Spatial-Interaction Networks: Case Study within the Sixth Ring Road of Beijing, China

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Data Description and Processing

#### 2.1. Study Area and Data Description

^{2}. Its spatial structure is relatively stable. We chose the area within Beijing’s Sixth Ring Road as the study area, which covers 2267 km

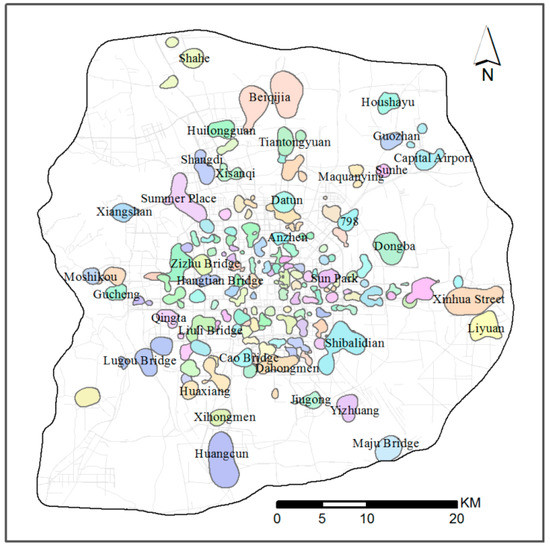

^{2}and accounts for 8% of the total area of Beijing (Figure 1). As the main urban area of Beijing, it is the core area of economic development in Beijing, comprising many financial institutions, large enterprises, scientific-research institutions, and medical institutions. The area within the Sixth Ring Road in Beijing with a large population has a well-developed street network. Even though the subway is the main mode of public transportation, taxis have been an important component of the urban transportation system in recent years. Taxi data are widely used in analyzing urban functions, urban structures, and human mobility patterns. This research applies a taxi dataset collected from Beijing, China, including more than 15,000 taxis from several anonymous taxi companies in consecutive weeks (6 June to 3 July 2016). The data contain each taxi’s ID, location, sampling time, velocity, and status (vacancy or occupancy of passengers). In this paper, we only extracted the taxi’s ID, the time when the passengers were picked up and dropped off, and the location where the passengers were picked up and dropped off. Usually, the locations of these activities are viewed as the OD of a trip. These extracted trips together reflect the spatial interaction between places. Table 1 shows an example of the processed taxi data.

#### 2.2. Extracting Place Footprints

#### 2.3. Construction of Spatial-Interaction Networks

#### 2.4. Framework Overview

## 3. Methods

#### 3.1. Jensen–Shannon Distance between Snapshots

^{th}eigenvalue of $\mathrm{p}$. Neumann entropy ${\mathrm{S}}_{\left(\mathrm{r}\right)}$ and ${\mathrm{S}}_{\left(\mathrm{q}\right)}$ corresponds to matrices $\mathrm{p}$ and r, respectively.

#### 3.2. Hierarchical-Clustering Method

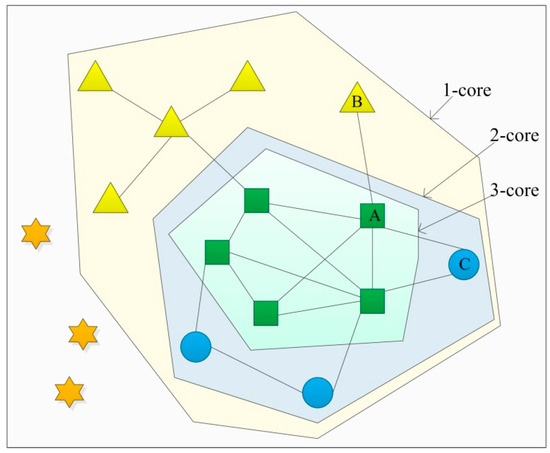

#### 3.3. Weighted K-Core Decomposition Method

#### 3.4. Additional Methods

_{c}is the number of nodes of the core layer. Similarly, the link ratio of the node within the bridge layer and the periphery layer are quantified by ${\mathrm{r}}_{\mathrm{b}}={\mathrm{l}}_{\mathrm{b}}/{\mathrm{n}}_{\mathrm{b}}$ and ${\mathrm{r}}_{\mathrm{p}}={\mathrm{l}}_{\mathrm{p}}/{\mathrm{n}}_{\mathrm{p}}$, respectively. In addition, we considered the ratio of connections from every layer to its neighbors and defined ${\mathrm{r}}_{\mathrm{cb}}$ as the ratio between the core layer and the bridge layer, which is

## 4. Results

#### 4.1. SINB Layer Aggregation

#### 4.2. SINB Change Properties on Weekdays

#### 4.2.1. Properties of Each Layer

#### 4.2.2. Evolving Topological SINB Characteristics on Weekdays

#### 4.2.3. Connection Patterns between Layers and Their Neighbors on Weekdays

#### 4.3. SINB Change Properties on Weekends

#### 4.3.1. Properties of Each Layer

#### 4.3.2. Evolving SINB Topological Characteristics on Weekends

#### 4.3.3. Connections between Nodes and Their Neighbors

## 5. Summary and Discussion

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## References

- Liu, Y.; Liu, X.; Gao, S.; Gong, L.; Kang, C.; Zhi, Y.; Chi, G.; Shi, L. Social sensing: A new approach to understanding our socioeconomic environments. Ann. Assoc. Am. Geogr.
**2015**, 105, 512–530. [Google Scholar] [CrossRef] - Liu, Y.; Sui, Z.; Kang, C.; Gong, L. Uncovering patterns of inter-urban trip and spatial interaction from social media check-in data. PLoS ONE
**2014**, 9, e86026. [Google Scholar] [CrossRef] [PubMed] - Xu, J.; Li, A.; Li, D.; Liu, Y.; Du, Y.; Pei, T.; Ma, T.; Zhou, C. Difference of urban development in China from the perspective of passenger transport around Spring Festival. Appl. Geogr.
**2017**, 87, 85–96. [Google Scholar] [CrossRef] - Kang, C.; Zhang, Y.; Ma, X.; Liu, Y. Inferring properties and revealing geographical impacts of intercity mobile communication network of China using a subnet data set. Int. J. Geogr. Inf. Sci.
**2013**, 27, 431–448. [Google Scholar] [CrossRef] - Liu, X.; Gong, L.; Gong, Y.; Liu, Y. Revealing travel patterns and city structure with taxi trip data. J. Trans. Geogr.
**2015**, 43, 78–90. [Google Scholar] [CrossRef] [Green Version] - Guimera, R.; Mossa, S.; Turtschi, A.; Amaral, L. The worldwide air transportation network: Anomalous centrality, community structure, and cities’ global roles. Proc. Natl. Acad. Sci. USA
**2005**, 102, 7794–7799. [Google Scholar] [CrossRef] - Chi, L.; Wang, R.; Su, H.; Xu, X.; Zhao, J.; Li, W.; Cai, M. Structural properties of US flight network. Chin. Phys. Lett.
**2003**, 20, 1393–1396. [Google Scholar] - Bagler, G. Analysis of the airport network of India as a complex weighted network. Physica A
**2008**, 387, 2972–2980. [Google Scholar] [CrossRef] [Green Version] - Lordan, O.; Sallan, J.M. Analyzing the multilevel structure of the European airport network. Chin. J. Aeronaut.
**2017**, 30, 554–560. [Google Scholar] [CrossRef] [Green Version] - Du, W.B.; Zhou, X.L.; Lordan, O.; Wang, Z.; Zhao, C.; Zhu, Y.B. Analysis of the Chinese Airline Network as multi-layer networks. Trans. Res. Part E
**2016**, 89, 108–116. [Google Scholar] [CrossRef] [Green Version] - Wang, J.; Mo, H.; Wang, F. Evolution of air transport network of China 1930–2012. J. Trans. Geogr.
**2014**, 40, 145–158. [Google Scholar] [CrossRef] - Liu, J.; Ren, Z.; Guo, Q.; Chen, D. Evolution characteristics of the network core in the Facebook. PLoS ONE
**2014**, 9, e104028. [Google Scholar] [CrossRef] [PubMed] - Seidman, S.B. Network structure and minimum degree. Soc. Netw.
**1983**, 5, 269–287. [Google Scholar] [CrossRef] - Kitsak, M.; Gallos, L.; Havlin, S.; Liljeros, F.; Muchnik, L.; Stanley, H.; Makse, H. Identification of influential spreaders in complex networks. Nat. phys.
**2010**, 6, 888. [Google Scholar] [CrossRef] - Alvarez-Hamelin, J.; Dall’Asta, L.; Barrat, A.; Vespignani, A. Large scale networks fingerprinting and visualization using the k-core decomposition. In Advances in Neural Information Processing Systems; The MIT Press: Colorado, CO, USA, 2006; pp. 41–50. [Google Scholar]
- Orsini, C.; Gregori, E.; Lenzini, L.; Krioukov, D. Evolution of the internet k-dense structure. IEEE/ACM Trans. Netw.
**2014**, 22, 1769–1780. [Google Scholar] [CrossRef] - Eidsaa, M.; Almaas, E. S-core network decomposition: A generalization of k-core analysis to weighted networks. Phys. Rev. E
**2013**, 88, 062819. [Google Scholar] [CrossRef] - Giatsidis, C.; Thilikos, D.M.; Vazirgiannis, M. D-cores: Measuring collaboration of directed graphs based on degeneracy. Knowl. Inf. Syst.
**2013**, 35, 311–343. [Google Scholar] [CrossRef] - Garas, A.; Schweitzer, F.; Havlin, S. A k-shell decomposition method for weighted networks. New J. Phys.
**2012**, 14, 083030. [Google Scholar] [CrossRef] - Longley, P.A.; Goodchild, M., F.; Maguire, D.J.; Rhind, D.W. Geographic Information Science and Systems; John Wiley & Sons: New York, NY, USA, 2015. [Google Scholar]
- Fan, Z.; Pei, T.; Ma, T.; Du, Y.; Song, C.; Liu, Z.; Zhou, C. Estimation of urban crowd flux based on mobile phone location data: A case study of Beijing, China. Comput. Environ. Urban Syst.
**2018**, 69, 114–123. [Google Scholar] [CrossRef] - Shi, L.; Chi, G.; Liu, X.; Liu, Y. Human mobility patterns in different communities: A mobile phone data-based social network approach. Ann. GIS
**2015**, 21, 15–26. [Google Scholar] [CrossRef] - Zhu, D.; Wang, N.; Wu, L.; Liu, Y. Street as a big geo-data assembly and analysis unit in urban studies: A case study using Beijing taxi data. Appl. Geogr.
**2017**, 86, 152–164. [Google Scholar] [CrossRef] - Liu, K.; Gao, S.; Lu, F. Identifying spatial interaction patterns of vehicle movements on urban road networks by topic modelling. Comput. Environ. Urban Syst.
**2019**, 74, 50–61. [Google Scholar] [CrossRef] - Agnew, J.A. Place and politics: The geographical mediation of state and society. Trans. Ins. British Geogr.
**1987**, 13, 251. [Google Scholar] - Li, L.; Goodchild, M.F. Constructing places from spatial footprints. In Proceedings of the 1st ACM SIGSPATIAL International Workshop on Crowdsourced and Volunteered Geographic Information, Redondo Beach, CA, USA, 6 November 2012; pp. 15–21. [Google Scholar]
- Liu, Y.; Yuan, Y.; Xiao, D.; Zhang, Y.; Hu, J. A point-set-based approximation for areal objects: A case study of representing localities. Comput. Environ. Urban Syst.
**2010**, 34, 28–39. [Google Scholar] [CrossRef] - Gao, S.; Janowicz, K.; Montello, D.R.; Hu, Y.; Yang, J.; Mckenzie, G. A data-synthesis-driven method for detecting and extracting vague cognitive regions. Int. J. Geogr. Inf. Sci.
**2017**, 31, 1245–1271. [Google Scholar] [CrossRef] - Zadeh, L.A. Fuzzy sets. Inf. Control
**1965**, 8, 338–353. [Google Scholar] [CrossRef] [Green Version] - Montello, D.R.; Goodchild, M.F.; Gottsegen, G.; Fohl, P. Where’s downtown?: Behavioral methods for determining referents of vague spatial queries. Spat. Cognit. Comput.
**2003**, 3, 185–204. [Google Scholar] - Liu, Y.; Yuan, Y.; Zhang, Y. A cognitive approach to modeling vague geograohical features: A case study of Zhongguancun. J. Remote Sens.
**2008**, 12, 370–377. [Google Scholar] - Wang, S.; Liu, Y.; Chen, Z.; Shi, L.; Zhang, J. Representing multiple urban places’ footprints from Dianping.com data. Acta Geod. Cartogr. Sin.
**2018**, 47, 1105–1113. [Google Scholar] - Masuda, N.; Holme, P. Detecting sequences of system states in temporal networks. Sci. Rep.
**2019**, 9, 795. [Google Scholar] [CrossRef] - De Domenico, M.; Biamonte, J. Spectral entropies as information-theoretic tools for complex network comparison. Phys. Rev. X
**2016**, 6, 041062. [Google Scholar] [CrossRef] - De Domenico, M.; Nicosia, V.; Arenas, A.; Latora, V. Structural reducibility of multilayer networks. Nat. Commun.
**2015**, 6, 6864. [Google Scholar] [CrossRef] [PubMed] - Duda, R.O.; Hart, P.E. Pattern Classification and Scene Analysis; Wiley: New York, NY, USA, 1973. [Google Scholar]
- Li, B.; Cai, Z.; Jiang, L.; Su, S.; Huang, X. Exploring urban taxi ridership and local associated factors using GPS data and geographically weighted regression. Cities
**2019**, 87, 68–86. [Google Scholar] [CrossRef] - Li, J.; Li, J.; He, H. A simple and accurate approach to hierarchical clustering. J. Comput. Infor. Syst.
**2011**, 7, 2577–2584. [Google Scholar] - Carmi, S.; Havlin, S.; Kirkpatrick, S.; Shavitt, Y.; Shir, E. A model of Internet topology using k-shell decomposition. Proc. Natl. Acad. Sci. USA
**2007**, 104, 11150–11154. [Google Scholar] [CrossRef] [PubMed] - Batagelj, V.; Zaversnik, M. An O(m) algorithm for cores decomposition of networks. arXiv
**2003**, arXiv:0310049. [Google Scholar] - Liu, Y.; Wang, F.; Xiao, Y.; Gao, S. Urban land uses and traffic ‘source-sink areas’: Evidence from GPS-enabled taxi data in Shanghai. Landsc. Urban Plann.
**2012**, 106, 73–87. [Google Scholar] [CrossRef] - Alhazzani, M.; Alhasoun, F.; Alawwad, Z.; González, M. Urban Attractors: Discovering patterns in regions of attraction in cities. arXiv
**2003**, arXiv:1701.08696. [Google Scholar] - Liu, Y.; Kang, C.; Gao, S.; Xiao, Y.; Tian, Y. Understanding intra-urban trip patterns from taxi trajectory data. J. Geogr. Syst.
**2012**, 14, 463–483. [Google Scholar] [CrossRef]

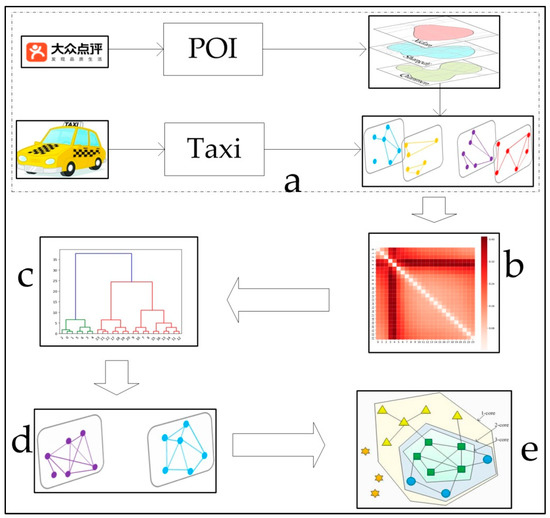

**Figure 3.**Overall research structure and data-preprocessing flowchart. (

**a**) Extracting place footprints; (

**b**) Jensen–Shannon distance between snapshots; (

**c**) hierarchical-clustering method; (

**d**) aggregating the layers; and (

**e**) weighted K-core decomposition method.

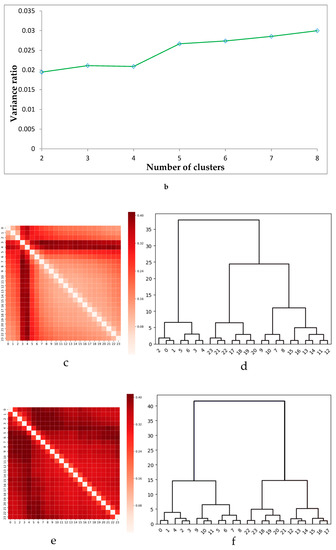

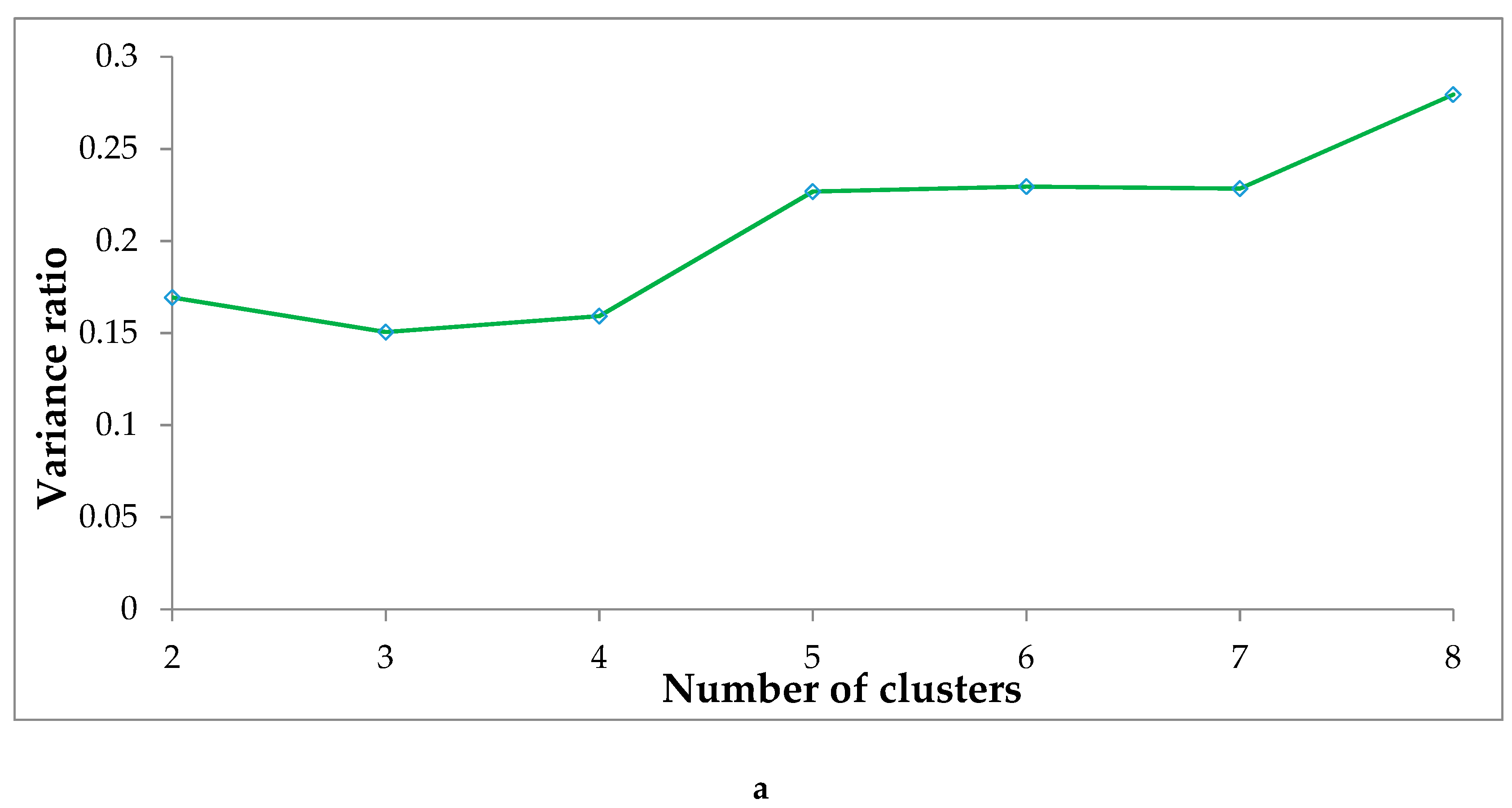

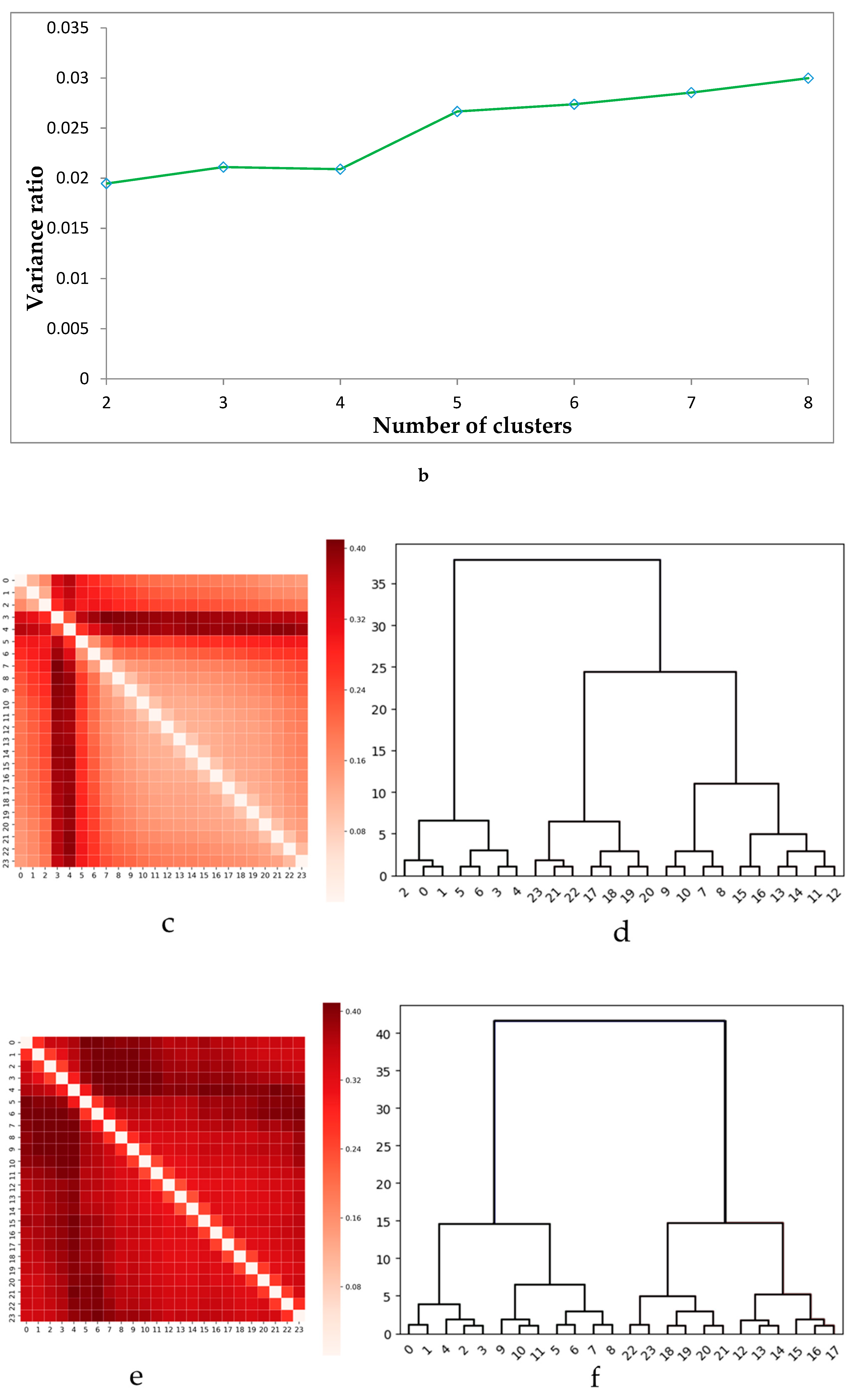

**Figure 5.**Layer aggregation of Spatial-Interaction Networks of Beijing (SINB). (

**a**) Ratio of within-cluster variance to total variance for each possible choice of k (number of clusters) on weekdays; (

**b**) ratio of within-cluster variance to total variance for each possible choice of k (number of clusters) on weekends; (

**c**) dissimilarity matrix between snapshots on weekdays; (

**d**) hierarchical clustering on weekdays; (

**e**) dissimilarity matrix between snapshots on weekends; and (

**f**) hierarchical clustering on weekends.

**Figure 6.**Distribution of all places in different periods in three layers on weekdays. (

**a**) Early morning; (

**b**) morning; (

**c**) afternoon; and (

**d**) evening.

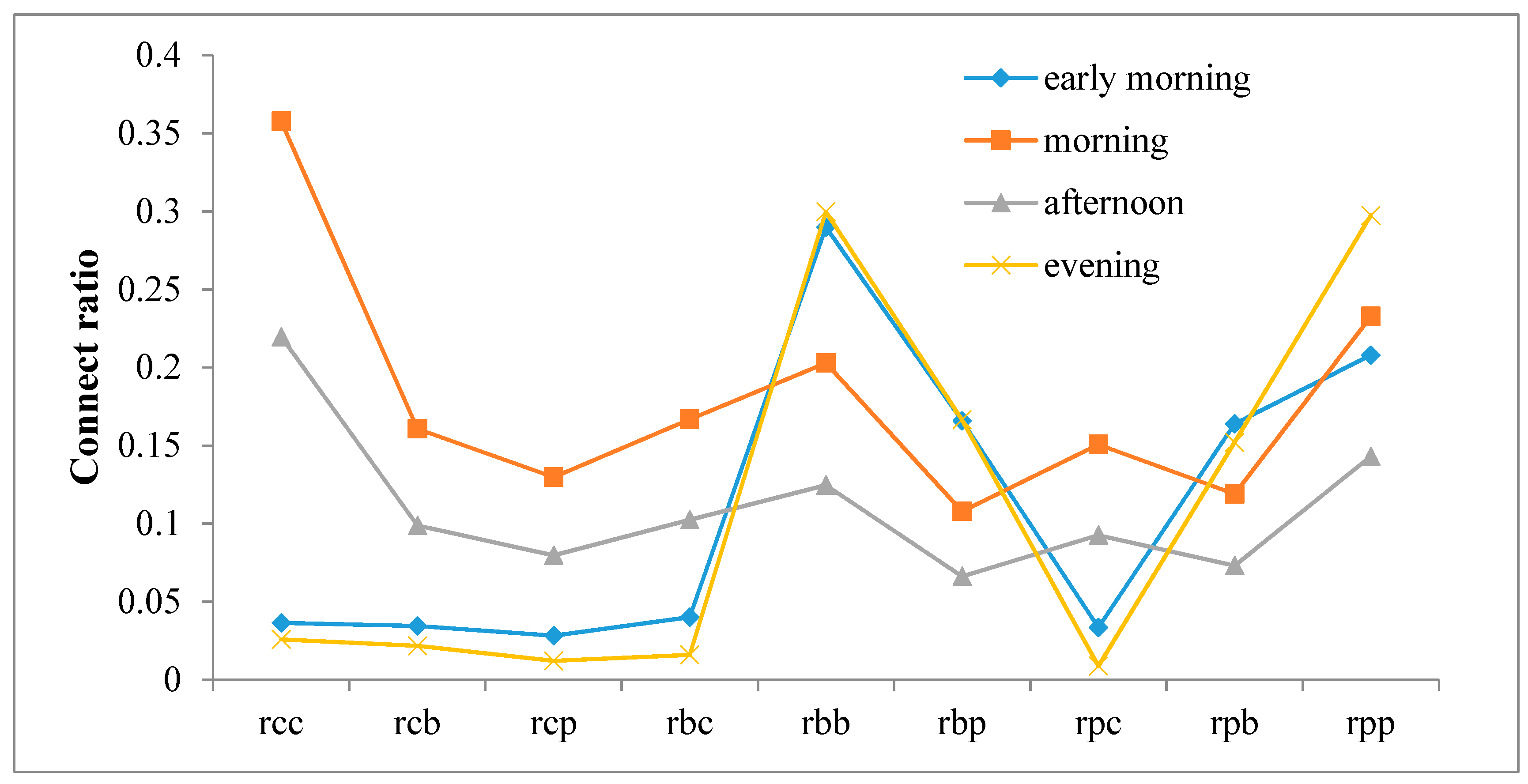

**Figure 7.**Distribution connection ratio of the core layer, the bridge layer, and the periphery layer on weekdays.

**Figure 8.**Distribution of all places in different periods in three layers on weekends. (

**a**) Early morning; (

**b**) morning; (

**c**) afternoon; and (

**d**) evening.

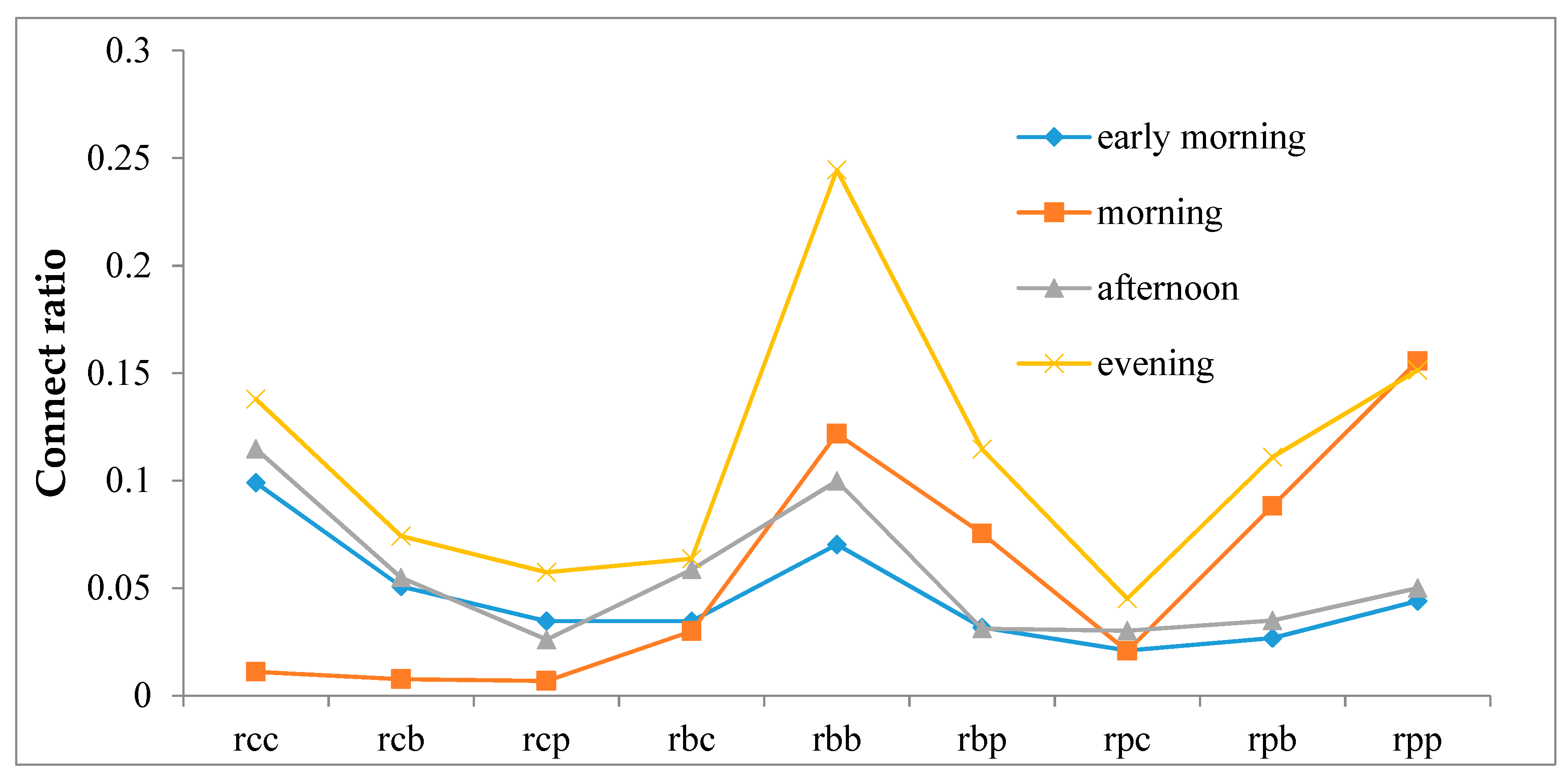

**Figure 9.**Connection ratio of the core layer, the bridge layer, and the periphery layer on weekends.

Taxi ID | Pick-Up Time | Pick-Up Coordinates | Drop-Off Time | Drop-Off Coordinates |
---|---|---|---|---|

158 | 6-6-2016 6:27:21 | 116.45806 E 39.98764 N | 2013-6-6 6:44:5 | 116.40218 E 39.94539 N |

2056 | 10-6-2016 0:2:44 | 116.58275 E 40.07931 N | 2013-6-10 0:31:47 | 116.28463 E 40.02774 N |

30024 | 29-6-2016 6:40:2 | 116.45534 E 39.94887 N | 2013-6-29 7:11:26 | 116.58095 E 40.07179 N |

Place Name | Business Name | Latitude | Longitude |
---|---|---|---|

Wudaokou | Yuye | 39.99102 N | 116.3353 E |

Wangjing | Bafu | 39.99644 N | 116.4815 E |

Sanlitun | Hema | 39.93144 N | 116.4535 E |

**Table 3.**The average cluster coefficient (C), average path length (S), and diameter (D) of SINB on weekdays.

C | S | D | |
---|---|---|---|

Early morning | 0.8259669 | 1.3944209 | 3 |

Morning | 0.7591855 | 1.5010729 | 3 |

Afternoon | 0.8049185 | 1.4240058 | 3 |

Evening | 0.8450749 | 1.3682659 | 3 |

**Table 4.**Top five places with the largest coreness values in the core layer, the bridge layer, and the periphery layer on weekdays. Value is the cluster coefficient of a place.

Early Morning | Morning | Afternoon | Evening | |
---|---|---|---|---|

Core layer | 0.000187 | 0.000221 | 0.000092 | 0.000059 |

0.000111 | 0.000521 | 0.000228 | 0.000657 | |

0.002032 | 0.000936 | |||

0.000513 | 0.000196 | |||

0.001762 | 0.000316 | |||

Bridge layer | 0.002022 | 0.001049 | 0.000689 | 0.000767 |

0.002474 | 0.001123 | 0.001070 | 0.000274 | |

0.005346 | 0.002169 | 0.001368 | 0.000447 | |

0.000386 | 0.004221 | 0.001873 | 0.000372 | |

0.002764 | 0.002141 | 0.000806 | 0.000179 | |

Periphery layer | 0.004975 | 0.004806 | 0.002203 | 0.001230 |

0.004348 | 0.007954 | 0.001953 | 0.001131 | |

0.004881 | 0.004186 | 0.002721 | 0.001210 | |

0.003932 | 0.007567 | 0.002327 | 0.001115 | |

0.004823 | 0.004240 | 0.002207 | 0.001146 |

**Table 5.**The average cluster coefficient (C), average path length (S), and diameter (D) of SINB on weekends.

C | S | D | |
---|---|---|---|

Early morning | 0.542549 | 1.837083 | 4 |

Morning | 0.576149 | 1.763341 | 4 |

Afternoon | 0.572588 | 1.800642 | 4 |

Evening | 0.581760 | 1.784302 | 4 |

**Table 6.**Top five places with the largest coreness in the core, bridge, and periphery layers on weekends. Value is the cluster coefficient of a place.

Early Morning | Morning | Afternoon | Evening | |
---|---|---|---|---|

Core layer | 0.000624 | 0.000480 | 0.000431 | 0.000445 |

0.000953 | 0.000330 | 0.002602 | 0.002483 | |

0.004744 | 0.000917 | 0.001010 | ||

0.000785 | 0.003006 | 0.002719 | ||

0.000937 | 0.001638 | 0.002119 | ||

Bridge layer | 0.009873 | 0.002981 | 0.003217 | 0.001839 |

0.003197 | 0.003591 | 0.008582 | 0.001667 | |

0.008192 | 0.001418 | 0.003176 | 0.003493 | |

0.009276 | 0.002487 | 0.004670 | 0.003904 | |

0.005565 | 0.001590 | 0.005999 | 0.004558 | |

Periphery layer | 0.012143 | 0.004031 | 0.006808 | 0.007372 |

0.019334 | 0.003653 | 0.008446 | 0.008036 | |

0.007584 | 0.005999 | 0.008629 | 0.006303 | |

0.008897 | 0.003227 | 0.017204 | 0.005884 | |

0.025682 | 0.004670 | 0.010522 | 0.009533 |

**Table 7.**Comparison of the number of different coreness values obtained by a previous method and our method. Spre and Sour, number of different coreness values obtained by the previous method and our method, respectively. Cpre and Cour, number of places in the core layer obtained by the previous method and our method, respectively.

Spre | Sour | Cpre | Cour | |
---|---|---|---|---|

Early morning | 91 | 133 | 57 | 3 |

Morning | 94 | 117 | 56 | 14 |

Afternoon | 90 | 120 | 60 | 34 |

Evening | 91 | 111 | 66 | 40 |
