ISPRS Int. J. Geo-Inf. 2019, 8(2), 83; doi:10.3390/ijgi8020083

Article
Accuracy Analysis of a 3D Model of Excavation, Created from Images Acquired with an Action Camera from Low Altitudes
Department of Remote Sensing, Photogrammetry, and Imagery Intelligence, Institute of Geodesy, Faculty of Civil Engineering and Geodesy, Military University of Technology, 01-476 Warsaw, Poland
*
Author to whom correspondence should be addressed.
Received: 5 December 2018 / Accepted: 11 February 2019 / Published: 13 February 2019

Abstract

:
In the last few years, Unmanned Aerial Vehicles (UAVs) equipped with compact digital cameras, have become a cheap and efficient alternative to classic aerial photogrammetry and close-range photogrammetry. Low-altitude photogrammetry has great potential not only in the development of orthophoto maps but is also increasingly used in surveying and rapid mapping. This paper presents a practical aspect of the application of the custom homemade low-cost UAV, equipped with an action camera, to obtain images from low altitudes and develop a digital elevation model of the excavation. The conducted analyses examine the possibilities of using low-cost UAVs to deliver useful photogrammetric products. The experiments were carried out on a closed excavation in the town of Mince (north-eastern Poland). The flight over the examined area was carried out autonomously. A photogrammetric network was designed, and the reference areas in the mine were measured using the Global Navigation Satellite System-Real Time Kinematic (GNSS-RTK) method to perform accuracy analyses of the excavation 3D model. Representation of the created numerical terrain model was a dense point cloud. The average height difference between the generated dense point cloud and the reference model was within the range of 0.01–0.13 m. The difference between the volume of the excavation measured by the GNSS kinematic method and the volume measured on the basis of a dense point cloud was less than 1%. The obtained results show that the application of the low-cost UAV equipped with an action camera with a wide-angle lens, allows for obtaining high-accuracy images comparable to classic, compact digital cameras.
Keywords:
UAV photogrammetry; dense image matching; surface reconstruction; rapid mapping; accuracy analysis

1. Introduction

The use of Unmanned Aerial Vehicles (UAV) equipped with high-resolution video cameras for photogrammetric surveying and 3D modelling has recently become increasingly popular. The use of multi-camera high-resolution video sets in UAV photogrammetry, offers a new range of application in many fields of research related to 3D modelling, production of high-resolution Digital Surface Models (DSMs) and orthophotos. The potential of this type of solution can be found, especially in mining [1,2,3], archeology [4], 3D modelling in an open-pit mine [5,6], 3D mapping, [7], forestry and agricultural mapping [8,9]. The accuracy of DSMs developed based on the UAV photogrammetry, is determined by many factors such as image quality, flight altitude, weather conditions, camera orientation as well as the number and distribution of Ground Control Points (GCPs) [10,11]. Many studies report that the number, distribution, and accuracies of the GCPs’ 3D coordinates are one of the main determinants of DSMs accuracy [12,13]. Opencast mines and gravel pits are usually characterised by the fact that they occupy several dozen or even several hundred hectares. In addition, access to them for ground-based measurements, i.e., terrestrial laser scanning or measurements using RTK/RTN technique or tachymetry (angular-linear and elevation measurements), is often difficult. Moreover, the cost of terrestrial measurements is quite high even if measurements are made using classical surveying techniques. Accurate mine range measurements are essential to assess how the use of the mine may affect the movements of the adjacent earth masses and the related adoption of future strategies related to the reclamation of post-mining sites. Periodic monitoring of the aggregate extraction is also crucial from the point of view of determining economic conditions assessing the costs of mineral extraction in relation to profits. Making accurate volume measurements is also important because of the impact of the mine’s work on the natural environment. Therefore, UAV platforms equipped with high-resolution digital cameras are increasingly used in opencast mines. The use of low altitude photogrammetry favours the optimisation of cubic measurement techniques in the areas of opencast mines, and thus reduces the costs of aggregate production while optimising the costs of its extraction. The use of technology of imaging from a low altitude enables the non-invasive development of accurate 3D models of excavations and conducting accurate and detailed analyses [2,3,7,9].
The automatic generation of accurate DSM based on images obtained from low altitudes is still an important and current topic of research. So far, many dense image matching algorithms have been proposed. Tools and algorithms for generating DTM/DSM have been available for over a dozen years. In the initial period of the development of digital photogrammetry, traditional image matching methods based on Area-Based Matching or Feature Based Matching were used [14,15,16]. New image dense matching methods are based on matching each image pixel. A revolutionary solution in image matching was algorithms development by Hirschmuller, like the Semi-GlobalMatching (SGM) using stereo pairs as proposed by References [17,18]. Another common approach is the identification of correspondences in multiple images, i.e., multi-view stereo (MVS). For example, Zhang [19] proposed using multi-view image matching for automatic DSM generation from linear array images. Toldo et al. [20] proposed using a novel multi-view stereo reconstruction method for the generation of 3D models of objects. In Reference [21] Remondino et al. described the state-of-the-art in high-density image matching. In turn, in Reference [22] Collins proposed a new space-sweep approach to true multi-image matching. The research in References [23,24] presents practical aspects of the application of MVS to the modelled 3D objects. Currently, most Structure from Motion (SfM) solutions [25] use point detectors that support the process of automatic image adjustment. In order to merge images, a scale invariant feature transform (SIFT) which matches characteristic feature points for the local features on images is often used [26]. Other frequently used detectors are the affine SIFT (ASIFT) and speeded up robust features algorithm (SURF) [27].
Currently, most matching algorithms can be assigned to two categories: binocular stereo matching, and multi-view stereo matching. Binocular stereo matching is performed in the image space on the base of two rectified images (epipolar images) and generates the disparity maps [28,29]. Binocular stereo matching is based on four basic steps: cost calculation, cost aggregation, optimisation, and refinement. Cost calculation is still an important and current topic of research [18].
For a long time, multi-view stereo matching (MVSM) has been commonly used in the UAV photogrammetry. In order to provide accurate results, this method requires high along-track and across-track coverage between images (minimum 70%). The MVSM has six basic properties: scene representation, photo-consistency measure, visibility model, shape prior, reconstruction algorithm and initialisation requirements [30]. Ideally, the best results can be obtained if all six criteria are met. According to scene representation, multi-view stereo matching can be classified to voxel-based methods in the object space and depth map-based methods in the photo space [28]. Compared to binocular stereo matching, the method of depth maps consists of choosing a reference image and simultaneously fitting all surrounding images so that it is possible to improve the photo-consistency measurement. In Reference [31] the authors presented the results of multi-camera scene reconstruction based on the stereo matching approach. In References [32,33] the authors proposed an accurate multi-view stereo method for image-based 3D reconstruction. However, depth map-based methods require the proper selection of reference images and merging of depth maps in order to obtain good results [34,35]. Still, the above-described method has limitations with the processing of large image data sets. That is dictated by a significant processing and memory cost. Another algorithm based on multi-view stereo matching is Patch-based Multi-View Stereo (PMVS) [36], which, in the initial stage of development, could only generate a semi-dense point-cloud. Currently, this algorithm has been improved and allows for the generation of dense point-cloud [37,38]. Nowadays, modern methods of DSM generation use binocular stereo matching and multi-view stereo matching. However, the final accuracy of the product depends on the quality of the data obtained and its pre-processing, but also on the software used (e.g., INPHO UASMaster, AgiSoft Photoscan, Pix4D, EnsoMOSAIC, etc.).
Recent research work on DSM accuracy analysis from UAV indicates the occurrence of systematic decimetre-level errors in the model, i.e., from a few to several centimetres. For example, in Reference [39], the accuracy of a dense point cloud from UAV images was 0.1 m. In other studies, an accuracy of 0.08–0.10 m was obtained [40,41]. Other determinants of the DSM accuracy are the radiometric quality of images [42,43], inaccurate camera internal orientation parameters, and the correct placement of Ground Control Points (GCP) [10,11,44].
The approach proposed in this paper is the use of images acquired from low altitudes using an action camera, and dense image matching algorithms to high accuracy determination of the volume of excavations. The presented approach has a practical application in geodetic industrial measurements. As part of the research work, an unmanned aerial vehicle was designed and equipped with a GoPro with a wide-angle lens.
The contents of the paper are organised as follows. Section 1 gives an introduction and a review of related works. In Section 2, methodology and a low-cost UAV system with an action camera are presented. In Section 3, research and data acquisition are presented. In Section 4, photogrammetric data processing is presented. Section 5 contains the results of tests from individual stages of image processing. Section 6 discusses the results in the context of experiments carried out by other researchers. Section 7 contains conclusions from the investigation and describes further research.

2. Methodology

The following section describes the homemade custom UAV platform with a fish-eye lens that has been used to obtain the photogrammetric image block for this study. The following subchapters also present the methodology of image processing steps to obtain a 3D model of the excavation.

2.1. Description of Low-Cost UAV Imaging System

The main design assumptions were to achieve the smallest UAV mass along with the longest flight time while allowing the camera and gimbal to be mounted.

2.1.1. The Frame Construction Used in a Quadcopter

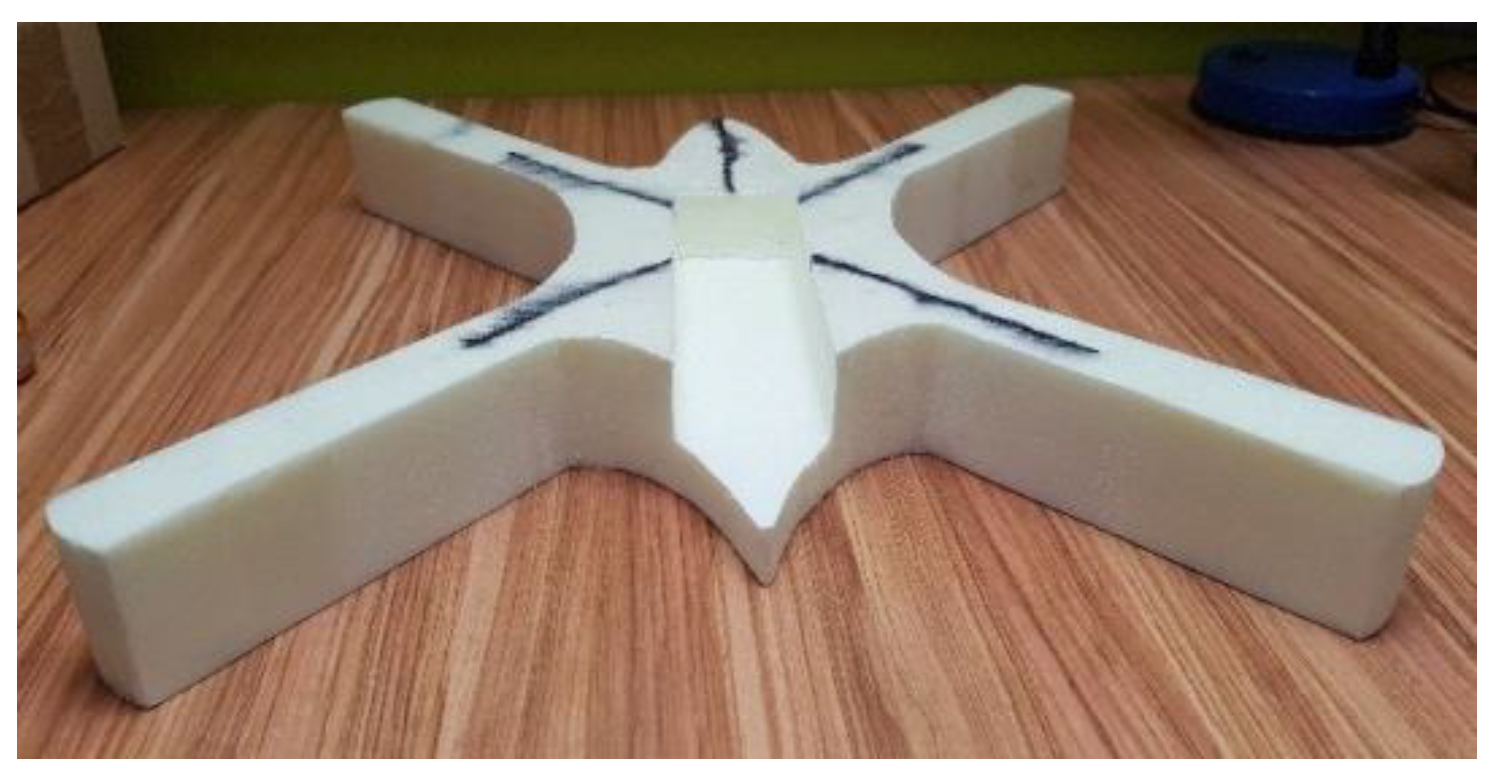

The frame in the quadcopter plays a significant role, keeping all its components in its entirety. Different frame constructions can be distinguished, each of which has certain advantages and disadvantages. It is assumed that a construction with more arms allows for a more stable flight—the more arms, the greater the mass and potential lifting capacity of the multirotor and the higher construction costs. The materials used to build the frame are usually carbon fibre, plastic, laminate, aluminium, and fibreglass. In the presented work, the frame used is in X configuration, having four independent motors. As part of the research work, a light frame of the UAV platform was constructed (Figure 1). Built from a laminate coated extruded polystyrene (styrofoam), the frame weighs only 105 grams and its dimensions are 450 mm × 450 mm. The frame has a cut out hole for the battery. Thanks to this, the flight time is 20% longer compared to similar constructions.

2.1.2. Drive and Power System

The drive system of the constructed multirotor consists of four brushless motors ABC-Power A2212 with a power of 180 W and a drag force of 830 g, four Electronic Speed Control (ESC) regulators Simonk 30A, and three cell Li-polymer battery (LiPo or Li-Poly) Tattu 11,1 V 5100 mAH 10C. Additionally, it is equipped with Buzzer LiPo, which is a voltage meter with an alarm which turns on when the voltage on one of the cells of the battery drops below 3.4 V, so when the battery is at 20% level. The wiring diagram of the drive system (see Figure 2) is shown below.
The motor control is integrated via the flight controller, thanks to which the UAV operator does not control the rotation of individual motors but only sends commands using special equipment that sends a radio signal to the receiver, from where it is transmitted to the APM 2.6 controller. The apparatus used in this work is Turnigy 9x with nine channels on the 2.4 GHz band. The range given by the manufacturer is 800 m.

2.1.3. Flight Controller

The flight controller is colloquially called the heart of each multirotor. It is a mini computer on board of the UAV, in the form of a control board, which, with the help of pre-programmed algorithms, enables the engine speed control. The flight controller is assisted by sensors such as-gyroscope, accelerometer, magnetometer, barometer, and navigational data from GPS/GLONASS. The navigation data was acquired by Ublox M8N. The accuracy of determining the position was 2.5 m. The accuracy of the angle determination by the Inertial Measurement Unit (IMU) was 2°. Using these sensors, the flight controller can adequately perform a flight on a previously planned route, as well as perform a take-off and landing.
In the built UAV the APM 2.6 flight controller ArduPilot Multiplatform based on ATMega 2560 and ATMega 32U-3 was used. It has a 6-axis gyroscope and accelerometer, an atmospheric pressure sensor, and a built-in 4 MB Flash memory.

2.1.4. Gimbal

The model uses a three-axis HSM-4206 V3 gimbal based on the BGC StorM32 controller (Figure 3). Each axis has its own technical designation. The stabilization precision is 0.3 deg. The axis that runs along the lens is called a roll, one that runs across the lens is a tilt or pitch, and one that determines the rotation of the camera is called yaw.

2.1.5. Camera Specification

During research, a GoPro 5 camera equipped with a wide-angle lens and rolling shutter was used. The CMOS sensor reads images by rows. The GoPro 5 camera can work in camera and video modes.
The GoPro camera allows the acquisition of images with different Field of View (FOV), Field. Superview, Wide (wide-angle), Normal, and Linear (corrects lens distortion) modes are available. In Linear mode, the field of view captures a straight horizon with a more natural perspective. This mode eliminates the barrel distortion (fish-eye effect) without compromising image quality (see Table 1) [46].
Additionally, sensors of the video are deprived of mechanical systems of the shutter for electronic rolling shutters. A Smart Remote-GoPro and UAV-Mission Planner software was used to synchronise the camera. Cameras with ultra-wide-angle lenses are used for studies where increased altitude accuracy of flat and exposed terrain is needed. Wide-angle cameras are used in outdoor agricultural areas and suburban areas with single-family housing [47,48]. Cameras equipped with a normal-angle lens should be used in mountainous and urban areas with medium and high buildings. For the experiment, it was decided to use the GoPro Linear mode to acquire images of the mine, because there are relatively significant differences in the height of the area.

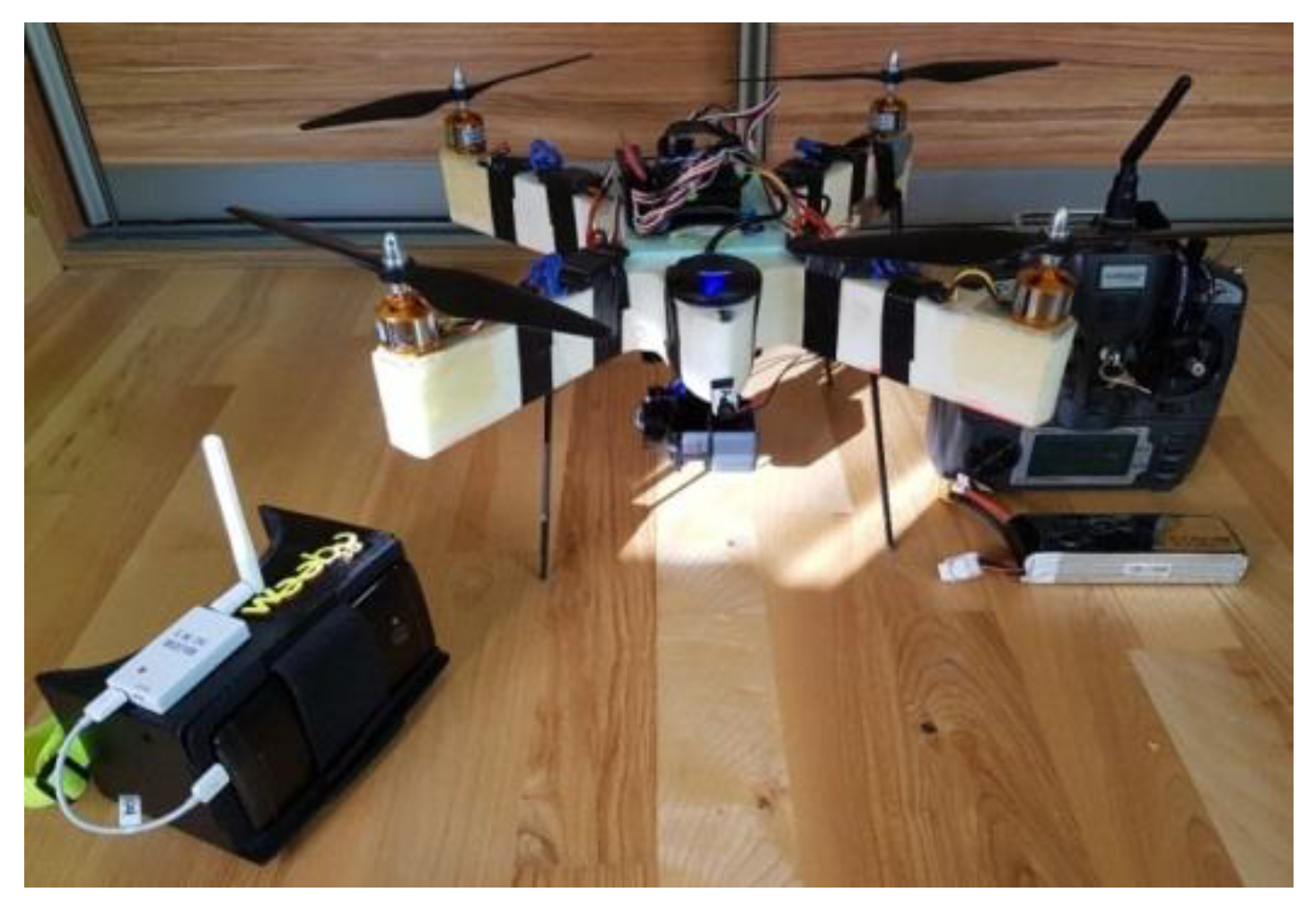

2.1.6. Technical Specification of the UAV Platform

The construction of a UAV from individual elements is not very time-consuming. Depending on knowledge and experience, the entire process can take from one to two days. In order to increase the flight time, the homemade custom frame was designed and made entirely of polystyrene. The frame was 271 grams lighter than the previously used Torrot FY-450 frame. A frame made of polystyrene coated with a laminate is much lighter than other such solutions. In addition to the flight time, tests were carried out with various types of propellers (characterised by different size and pitch). Technical specification of UAV is presented in Table 2. The complete UAV system (Figure 4) consists of the following elements:
  • The homemade customised frame,
  • Turnigy 9x 2,4 GHz with the 8ch receiver,
  • Flight controller APM 2.6 3DRobotics,
  • 3DR PowerModule,
  • Engine ABC-Power A2212 180 W 1400 KV,
  • Propeller blades HQProp MR 10 × 3.8,
  • GPS Ublox M8N,
  • Regulators Simonk 30 A,
  • Battery Tattu 11,1 V 5100 mAH 10C,
  • Transmitter FPV TS5838 5,8 GHz 600 mW,
  • Camera micro FPV 600TVL,
  • Receiver FPV OTG UVC,
  • Cardboard Weebo 3D,
  • Samsung Galaxy S7 for the display,
  • Gimbal HSM-4206 V3,
  • Camera GoPro Hero 5,
  • Buzzer LiPo.

3. Research

3.1. Study Site and Data Set

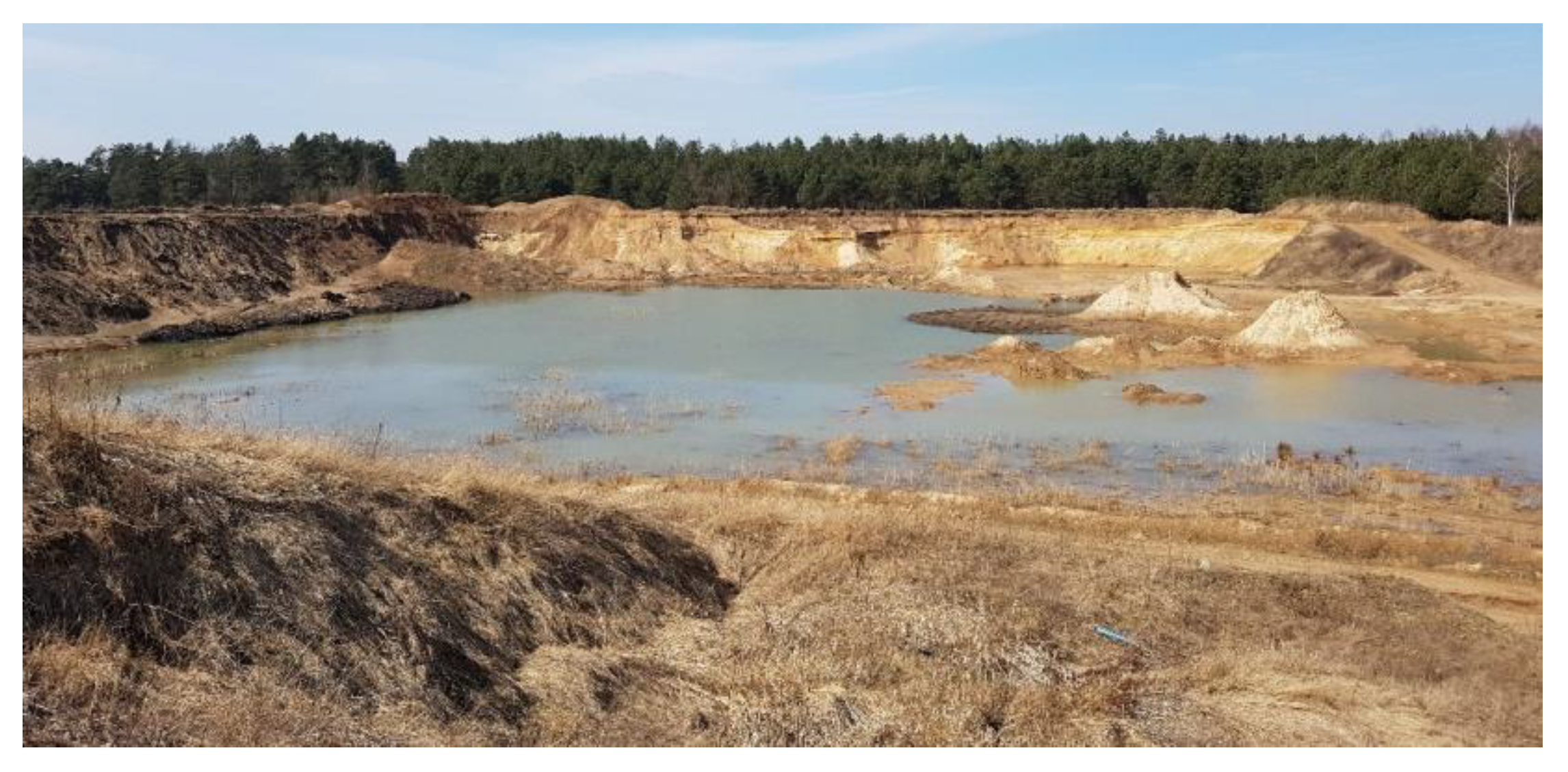

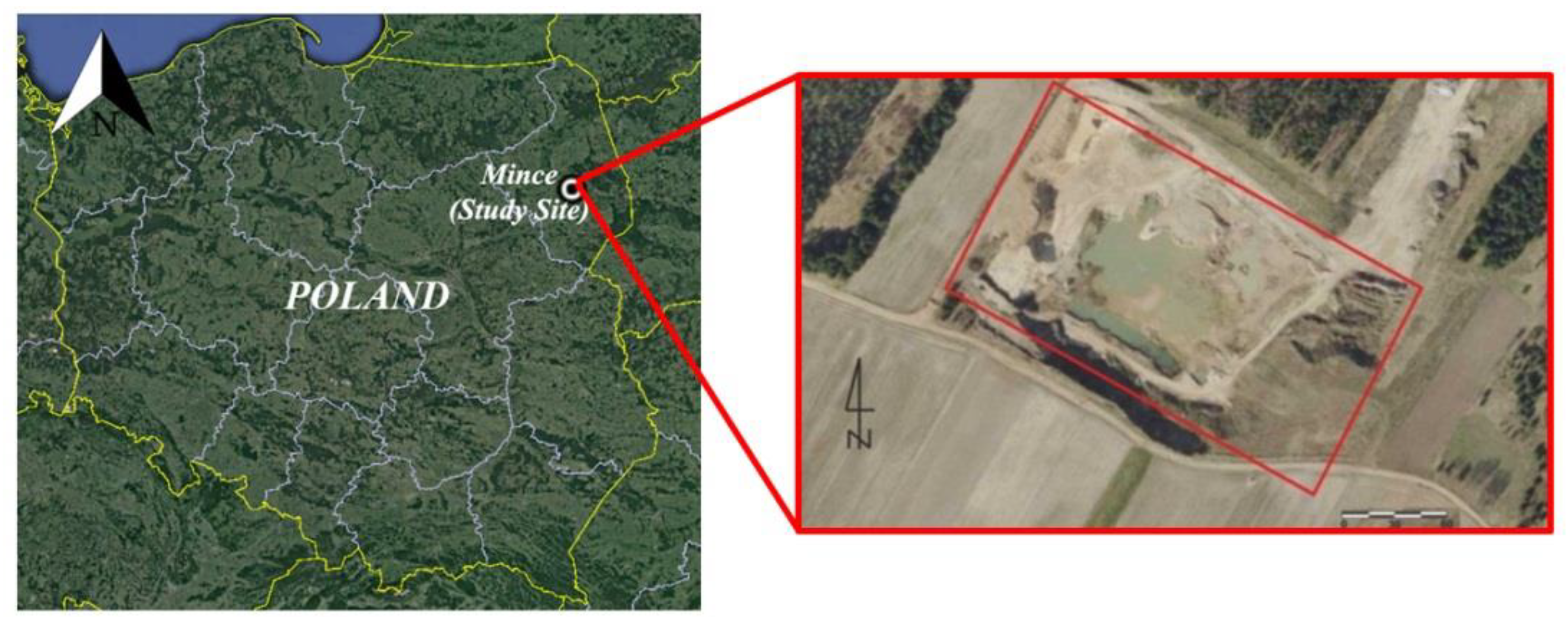

The selected object for DTM accuracy tests is the inactive opencast gravel mine, located in the Podlasie voivodship in the village of Mince (Poland) (Figure 5 marked with a red rectangle). The area south of the mine is completely exposed, there are no trees or bushes. About 50 m to the east and west of the mine is a high, mixed forest. The biggest problem for photogrammetric flight, is the northern part of the object, due to its proximity to the forest wall—approximately 20 m from the mine.
The mine itself is entirely free from high vegetation. On its surface, clay and yellow sands prevail and only some of the slopes are overgrown with thickets. The middle part of the mine, the lowest part, is flooded with shallow water (Figure 6). This object was selected due to the rather close location to the place of residence of the author of this work and due to the high denivelations of the area, up to 12 m between the highest and the lowest point of the excavation. In this area there are also slopes with different degrees of inclination and different land cover types—both grassy and sand areas can be distinguished.
The entire mine occupies about 6 hectares, and its shape is similar to a rectangle. The photo in Figure 6 was taken from the eastern part, showing the western part of the excavation.

3.2. Measurements of Photogrammetric Network

A fundamental issue in flight planning to obtain images from low altitudes is the design and in situ measurement of a photogrammetric network. The photogrammetric network is a set of points with specific coordinates that can be uniquely identified both in the field and in the image. As is well known, the disposition of the GCPs is one of the most influential factors in the precision of photogrammetric surveys from UAV. Because a nonmetric camera was used, we decided to distribute the GCP evenly or homogeneously in the edges of the photogrammetric block but also in the centre of the area [10,11]. In UAV photogrammetry, it is recommended to use signalised-Ground Control Points (GCPs). The use of signalised-(GCPs) in the form of a character with a white and black chessboard allows for the unequivocal identification of the point both in the image and in the field.

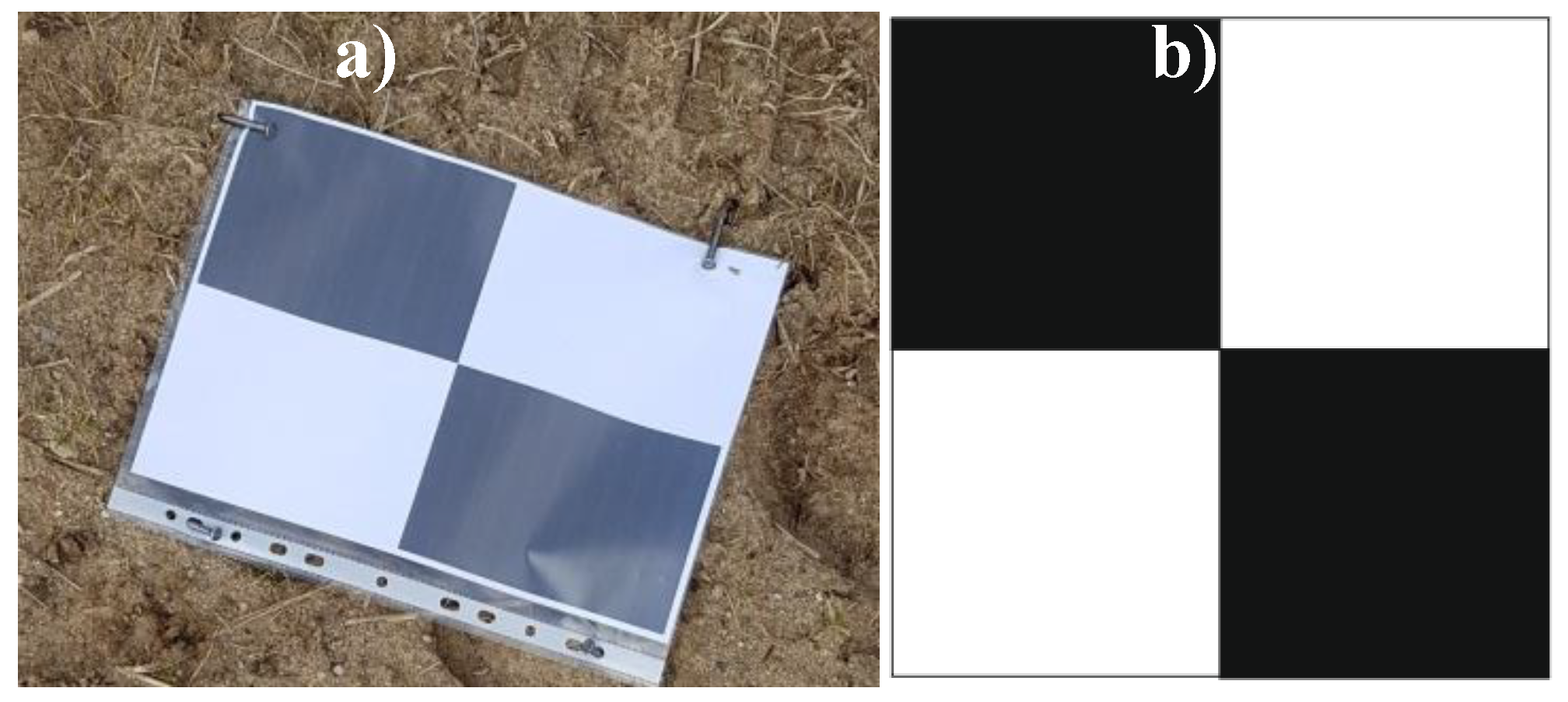

In this work, a photogrammetric network using GPS-RTK measurement techniques was established. Control points were marked with a special sign (Figure 7), and 28 evenly distributed throughout the photogrammetric block control points were measured.
The measurement of the network points was carried out with the Trimble SPS882 receiver in PL-2000 zone 8 coordinate system (EPSG: 2179), and in the PL-KRON86-NH elevation system. The correctness of the height measurements was verified by measuring the classic geodetic points- class III (points 819312-11120 and 819312-11220) located within 3 km from the tested object. Deviations on points did not exceed 5 cm. The average value of the position dilution of precision (PDOP) coefficient from the entire measurement was in the range from 1.2 to 1.8, and the number of satellites was from 12 to 17, which is a very favourable result. The standard deviation of 1σ average (68% confidence level) for 2D coordinates did not exceed 20 mm (average 10 mm), and for the height did not exceed the value of 25 mm (average 15 mm).

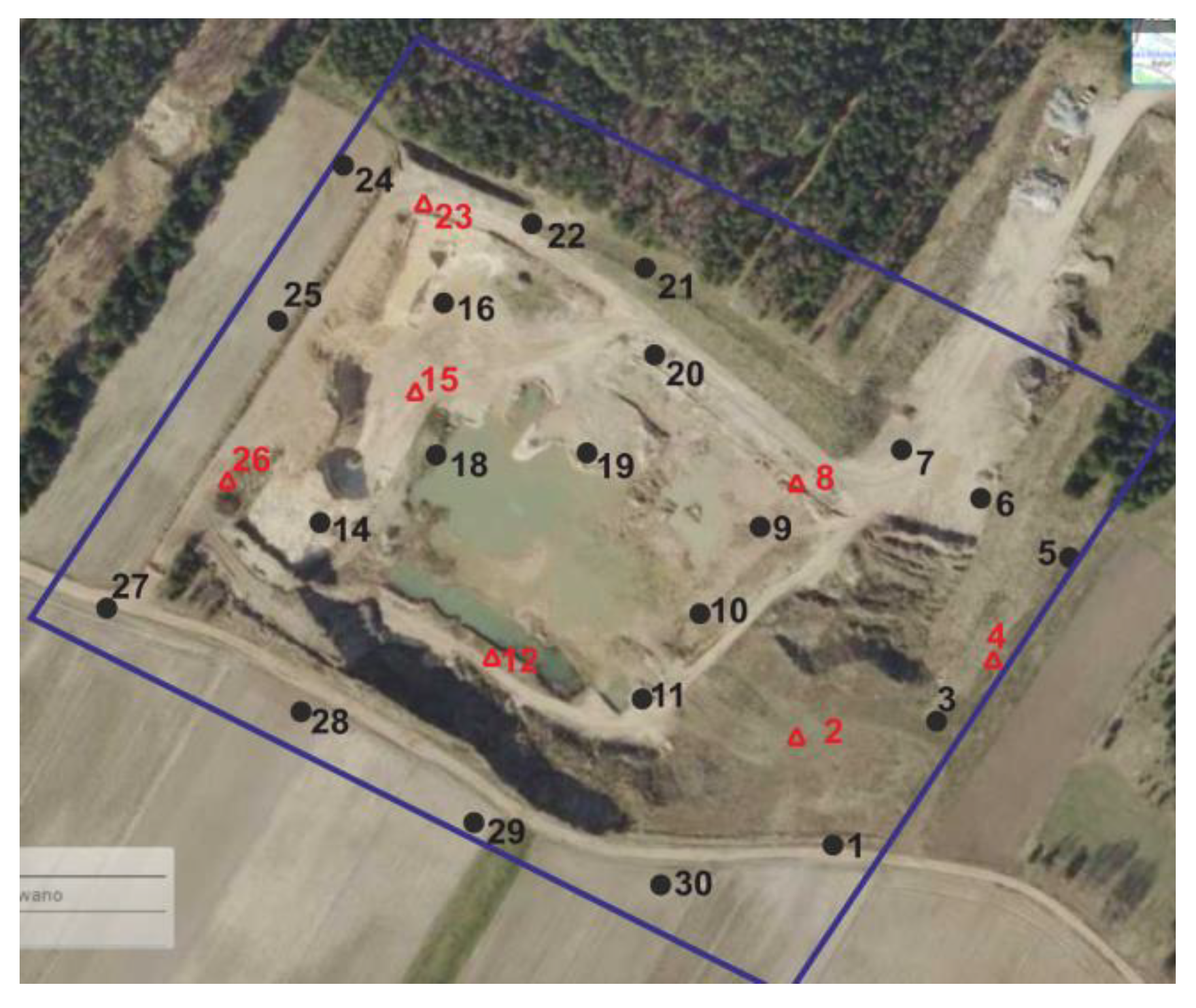

In the figure above (Figure 8), check points are marked in red, and the control points are in black.

3.3. Data Acquisition

The photogrammetric flight was planned in the Mission Planner software, which is adapted to the APM 2.6 flight controller. Next, the flight altitude of the above ground level (AGL) was determined as 70 m, the flight speed was 7 m/s, and the direction of the flight was set at 121°. The direction is equal to the azimuth value, which was chosen in order to reduce the number of rows as much as possible. This was done in order to increase the efficiency of the flight, and thus to minimise UAV flight time. The value of the longitudinal and transverse coverage was 80%. During the measurement campaign, 353 images in 10 strips were acquired. Each strip contained 35 images.

3.4. Reference Measurements of the Excavation

In order to carry out the accuracy analyses of the digital surface model of the excavation, it was decided to measure the cross-sections of four slopes located on the study site. The measured slope profiles differ from each other by the angle of inclination, length and type of land cover (two of them are sandy surfaces, and two further grassy ones). The measurement was made by the RTK method using the GNSS Trimble SPS882 receiver. In the first profile, 15 points were measured, in the second—24 points, in the third—33 points, and the fourth one—36 points (Figure 9).
The first test area was on the slope with the highest degree of inclination. This scarp was covered with high (about 30 cm), dry thicket. Five cross-sections were measured, in which each cross-section contained 3 points evenly spaced. The total area of this test area is 103 m2.
The second test area was on a slope with a slightly lower degree of inclination. This slope was also overgrown with 5 cm high grass. Eight cross-sections of the escarpment were measured on the entire surface of this area, in which each cross-section contained three points. The area of the area was 444 m2.
Test area number 3 was located in the driveway for trucks with a sandy surface. It is the longest of all the tested areas, and its surface area is 1189 m2. Eleven cross-sections of this driveway were measured, each of which had three points.
The last test area used for the analysis was the area with the smallest inclination. The total area is 123 m2. Four cross-sections were measured, each containing nine points. The area was sandy.
Additionally, the entire excavation area was measured to compare field measurements with numerical measurements made on a dense point cloud developed on the basis of images obtained from low altitudes. For this purpose, the entirety of the excavation was measured using the GPS-RTK method with a total of 652 points.

4. Photogrammetric Data Processing

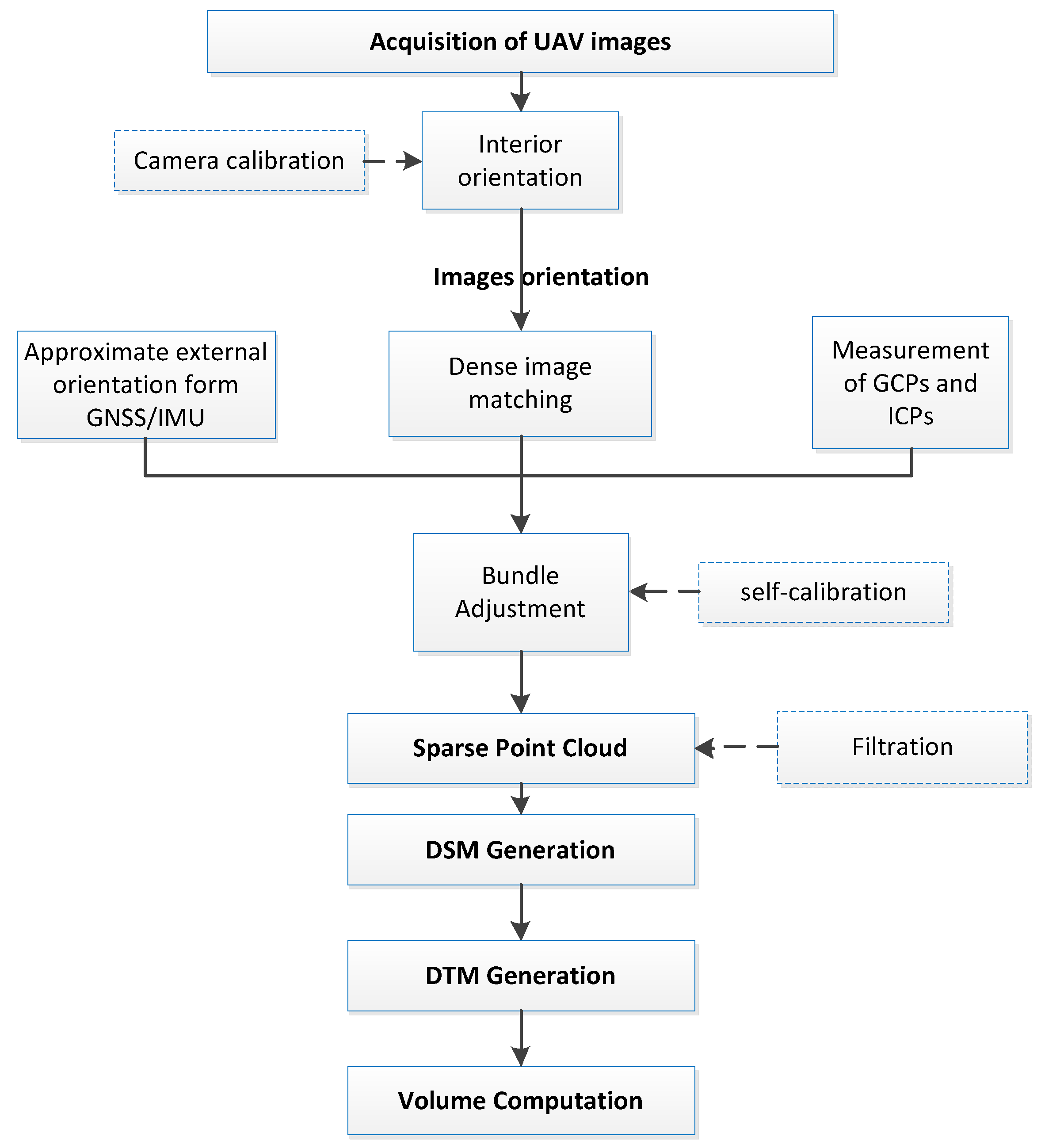

Photogrammetric data processing is necessary to generate a geo-referenced 3D point cloud based on oriented images acquired from low altitudes. Based on the Structure from Motion (SfM) algorithms, a dense tie points network is generated to help determine the interior (self-calibration) and exterior orientations in the process of bundle adjustment. This process includes feature extraction and feature matching, estimation of relative camera poses from known point correspondences. The first processing step is feature extraction on every image in all subsets. In Photoscan the process is very similar to the well-known SIFT approach [26], but uses different algorithms for a little bit higher alignment quality [49]. These descriptors are used later to detect correspondences across the photos. In the next stage, a dense point cloud is generated, which is subjected to filtration to remove noise. In the next stage, a dense point cloud is generated, which is subjected to filtration to remove noise. For the filtration Photoscan has a tool to automatically classify the point cloud into “ground” and “non-ground” classes, which also uses Axelsson’s filtering algorithm [50,51]. The following parameters were set: maximum angle of 25 degrees not to exclude the points on excavation, maximum distance of 0.5 m and cell size of 5 m. On the basis of the prepared set of data, the Digital Surface Model (DSM) is generated, and the volume of the excavation is then calculated (Figure 10).
The GNSS/INS system is installed in the multirotor model used in the study. Thanks to this, it is possible to determine the elements of the external orientation of the camera directly during the data acquisition. The approximate values of external orientation parameters (EOPs) allow the elimination of gross errors during the generation of tie points in coverage areas of images. Thanks to this, it is possible to accelerate the process images matching in the software, and also provide additional observations in the process of aerial-triangulation. The use of aerial-triangulation with additional observations (the approximate values of EOP) additionally strengthens the photogrammetric block and allows an increase in the accuracy of adjustment. The data from the navigation system mounted on the UAV board is characterised by low accuracy. Therefore, the strict determination of the position and orientation parameters (EOP) takes place only during the aerial-triangulation process after GCPs and tie points measurements.

4.1. Image Georeference

The APM 2.6 flight controller records all flight parameters in the LOG, which can be exported as TXT file after the UAV flight. In the file, there are, among others, the geographical ellipsoidal coordinates (B, L, H), where B is geographical latitude, L geographical longitude and H is ellipsoidal height in the WGS-84 flight system and three inclination angles ω, φ, κ. Because of this, it is possible to add georeference to images obtained from a UAV platform using the Mission Planner software. An important factor that allows the integration of flight parameters with photos is the appropriate synchronisation of the controller and camera clocks. The offset value between the time of the clocks is calculated so that the appropriate coordinates and angles of inclinations are adjusted to each photo. In addition, information that indicates the difference between the time the image was taken and the nearest, adjusted time of the recorded GPS position is displayed. In this study, the minimum value of this difference was 1 ms, and the maximum value was 216 ms (average 65 ms). These values result from the operating frequency of the GPS receiver. In practice, this means that with a flight speed of 7 m/s, the maximum position error caused by the difference of this time (for the size of 216 ms) is 1.5 m, because: 0.216 s * 7 m/s ≈ 1.5 m. Due to the low accuracy measurement of coordinates by the receiver (2.5 m), the offset between the location of the camera and the antenna of the GPS receiver (the difference in position is about 20 cm both horizontally and vertically) has not been corrected.

4.2. Bundle Adjustment of Images

The bundle adjustment of images obtained by a multirotor was carried out in the AgiSoft Photoscan [49] software. First, the acquired images were read and then a previously prepared text file containing approximate external orientation parameters was imported. Then, these elements were transformed from the geographical coordinate system WGS-84 to Mapping frame PL2000, in which the photogrammetric network and slope cross-sections were measured. The precision of the position of the image was set at 2.5 m and 3 degrees in the angular orientation. The align photos accuracy was established as high. The maximum number of characteristic points in each image that was taken into account during the mutual orientation was 20,000. The limit of tie points for each photo was set to 5000. The result of this process is a dense cloud created by tie points.

Camera Calibration—A Mathematical Model

Camera calibration is intended to reproduce the geometry of rays entering the camera through the projection centre at the moment of exposure. The calibration parameters of the camera are:
  • calibrated focal length—ck;
  • the projection centres in relation to the pictures, determined by x0 and y0—image coordinates of the principal point;
  • lens distortion: radial (k1, k2, k3) and decentering (p1 and p2) lens distortion coefficients.
In the case of action cameras, there is one large FOV in wide-angle viewing mode. The calibration process plays a very important role in modelling the distortion of the lens. The model of internal orientation used in the research was applied in the Agisoft Lens based on the modified mathematical Brown Calibration model [52].
In the case of large distortion, as in the wide-angle lens, radial distortion will be extended by additional distortion coefficients: 1 + k4r2 + k5r4 + k6r6. Ideally, radial distance will have the form:
r 2 =   x 2 + y 2
where:
  • r—radial distance;
  • x′, y′—are measured image coordinates referenced to the principal point.
When taking into account the influence of distortion, image coordinates will take the form of:
x = x ( 1 + k 1 r 2 + k 2 r 4 + k 3 r 6 ) + 2 p 1 x y + p 2 ( r 2 + 2 x 2 ) ,
y = y ( 1 + k 1 r 2 + k 2 r 4 + k 3 r 6 ) + p 1 ( r 2 + 2 y 2 ) + 2 p 2 x y ,
u = f x x + c x v = f y y + c y ,
where:
  • k1, k2, k3—polynomial coefficients of radial distortion;
  • p1, p2—coefficients describe the impact of tangential distortion;
  • x″, y″—image coordinates of point repositioning based on the distortion parameters;
  • fx, fy—are the focal lengths expressed in pixel units;
  • cx, cy—are the principal point offset in pixel units;
  • u, v—are the coordinates of the projection point in pixels.
In the process of the bundle adjustment of image block, the Interior Orientation Parameters of the camera were computed, i.e., f, x0, y0, k1, k2, k3, p1, p2. As we know, the process of laboratory calibration method is carried out indoors, free from the influences of weather and other environmental factors and specialised equipment. The values were compared because we want to check the correctness and accuracy of the internal orientation parameters (IOPs) of Camera. The values of these elements are presented in Table 3 and compared with the camera calibration results carried out in laboratory conditions based on a photographed chessboard.
It was assumed that the values of the elements of internal orientation from the self-calibration process were more accurate because a large number of photos and field points of the photogrammetric network were used, as well as a large number of tie points in the pictures. The results from the self-calibration process were used for further experiments. Furthermore, for this reason, previously estimated Internal Orientation (IO) parameters have been used as approximated values.
In the next step, relative and external orientation was made by generating a dense network of tie points, and then coordinates of Ground Control Points were imported and edited.
After generating a sparse point cloud, the task of which was to merge images into one block with tie points, it was necessary to do bundle adjustment. In the bundle adjustment procedure the projection of a 3D scene point X ϵ R4 to a 2D point x ϵ R3 is modelled as the perspective projection:
x = P X = K [ I | 0 ] [ R t 0 1 ] X
The calibration matrix K describes the internal orientation of camera, while R and t are models of the rotation and translation necessary for transformation from the world coordinate system to the camera coordinate system. The main task of the bundle adjustment process is to optimise all m cameras ( P ^ i , I = 1, …, m) as well as all points ( X ^ j   j = 1, …, n) simultaneously, starting from an initial estimation. This step is modelled as a least-squares minimisation of a cost function with nonlinearities in the parametrisation (the parameter vector θ contains structure and camera estimates, while x ^ (θ) describes the corresponding projection of 3D points in the image of each camera):
min P ^ i , X ^ j { i = 1 m m = 1 n ω i j d ( x j i , P ^ i X ^ j x ^   j   i ( θ ) ) = : f ( θ ) } ,
Based on this dependency, the reprojection error is modelled as the squared Euclidean distance d between image point x j i and projected point x ^ j i (in Euclidean coordinates).
For this purpose, the coordinates of the control points were imported and then identified and measured on each photo. The error value σ0 after block alignment was 2.25 pixels–3.44 μm. The total number of control points used during the alignment process was 21. Independent Check Points had been attempted to distribute most evenly across the block of images, and their total number was 7 [53,54].
The results of the block adjustment are shown in the tables below (Table 4, Table 5, Table 6 and Table 7).
The accuracy errors obtained on the control points are about 0.019 m to 0.022 m. On the other hand, the accuracy at the check points has slightly higher values and ranges from 0.025 m for the Y coordinate to 0.034 m for the height coordinate. Error values at check points are counted as the differences of the respective coordinates of points measured in the field with the coordinates determined during the block adjustment. The total error in the identification of the control points in the image was 1.1 pixel, and the check points 1.0 pixel.
The camera position error values measured by the inaccurate GPS mounted on the UAV reach values from 2.91 m for the Y coordinate to 5.32 m for the Z (height) coordinate. As mentioned earlier, the position data provided by the onboard GPS receiver were not very accurate and does not affect the accuracy compensate block of pictures or reduce the number of control points needed. These data significantly accelerate the initial process of matching images and also the process of coordinates measurement of control points in the images.
During the flight the camera was mounted on a gimbal the task of which was to keep it in the theoretical horizontal plane (the theoretical value of Pitch and Roll angles should be 0). The measurement accuracy of the gyro placed in the gimbal is 2–3 (°). The values of platform orientation errors in the pitch and roll directions are 2.81 and 0.84 degrees respectively, which means that they are within the range of measurement error of angles by the gyroscope used. During the flight, there were gusts of wind through which the UAV was subjected to twists, which resulted in the platform’s orientation error in each of the three directions, especially in the yaw direction at the level of 7.73 degrees.

4.3. Generation of 3D Point Clouds and DSM

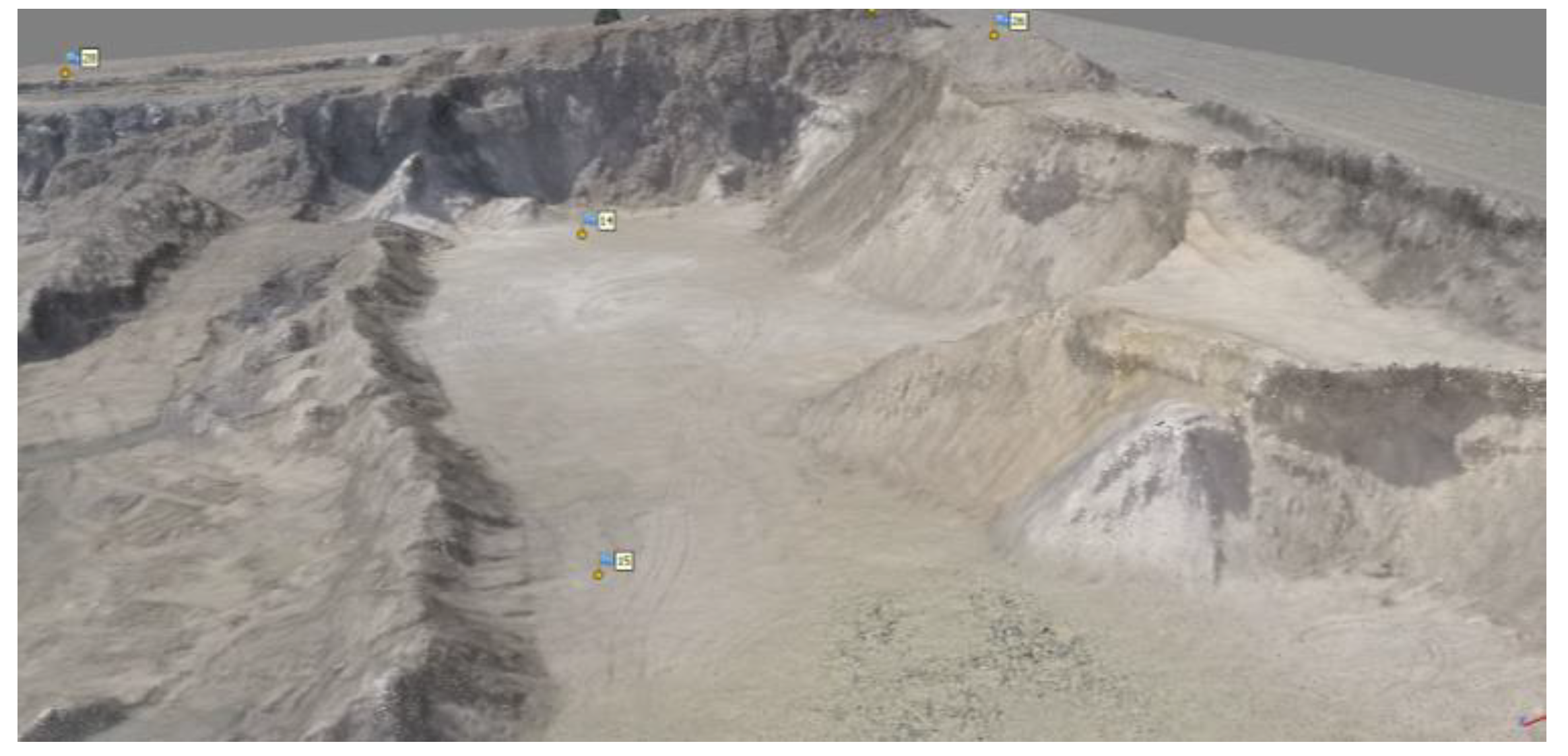

The generated digital surface model of the open cast mine based on dense point cloud (initially, a sparse cloud was generated). Before generating a dense point cloud, a Bounding Box was selected to define the boundaries of the study area. This range was marked to include the mine, but to exclude the forest. This allowed the acceleration of the process of building a dense point cloud. In order to obtain high-quality data, the following parameters were adopted to generate the point cloud: Quality—High (size of the source images was downscaled to 50%), Depth filtering—Aggressive (this filter mode removes vegetation and softens the surface).
When generating a dense point cloud in the areas where water was located, large errors occurred in the location of individual points (Figure 11). Theoretically, a flat surface should be created, but because the water in some of the photographs has been photographed in white (reflected sun from its surface), and in other pictures in green, the software wrongly selected the homological points in individual photos. Another reason is the incorrect generation of homological points in areas with the same texture, e.g., where there was only sand in the image (homogeneous areas). This resulted in errors in the component altitude of the points, reaching even 6–7 m. It was decided to completely remove these points from the point cloud during filtration because they were generated incorrectly.
In this way, a prepared point cloud was used to perform accuracy analyses (Figure 12).
The value of the reprojection error was 2.25 pixels. The value of this error is characterised by the accuracy of positioning points in the cloud. The number of points created is 20.58 million. The average density of point clouds is 229 points/m2, and its resolution is 0.066 m/pixel.

5. Results

This section presents the results of the accuracy analysis of dense point clouds and digital elevation models of excavation. The analyses focused on examining the correctness of terrain representation by the obtained point cloud. Moreover, the accuracy of the point cloud based on its density was examined. The volume of the entire excavation obtained from dense image matching and the volume calculated on the basis of GPS-RTK measurements was also compared.
The numerical model of the mine generated on the basis of the point cloud visually reproduced very well. DTM was obtained by the filtering process of point clouds by using geometrical values like distances and angles as filter criteria (based on Axelsson’s approach) [50].

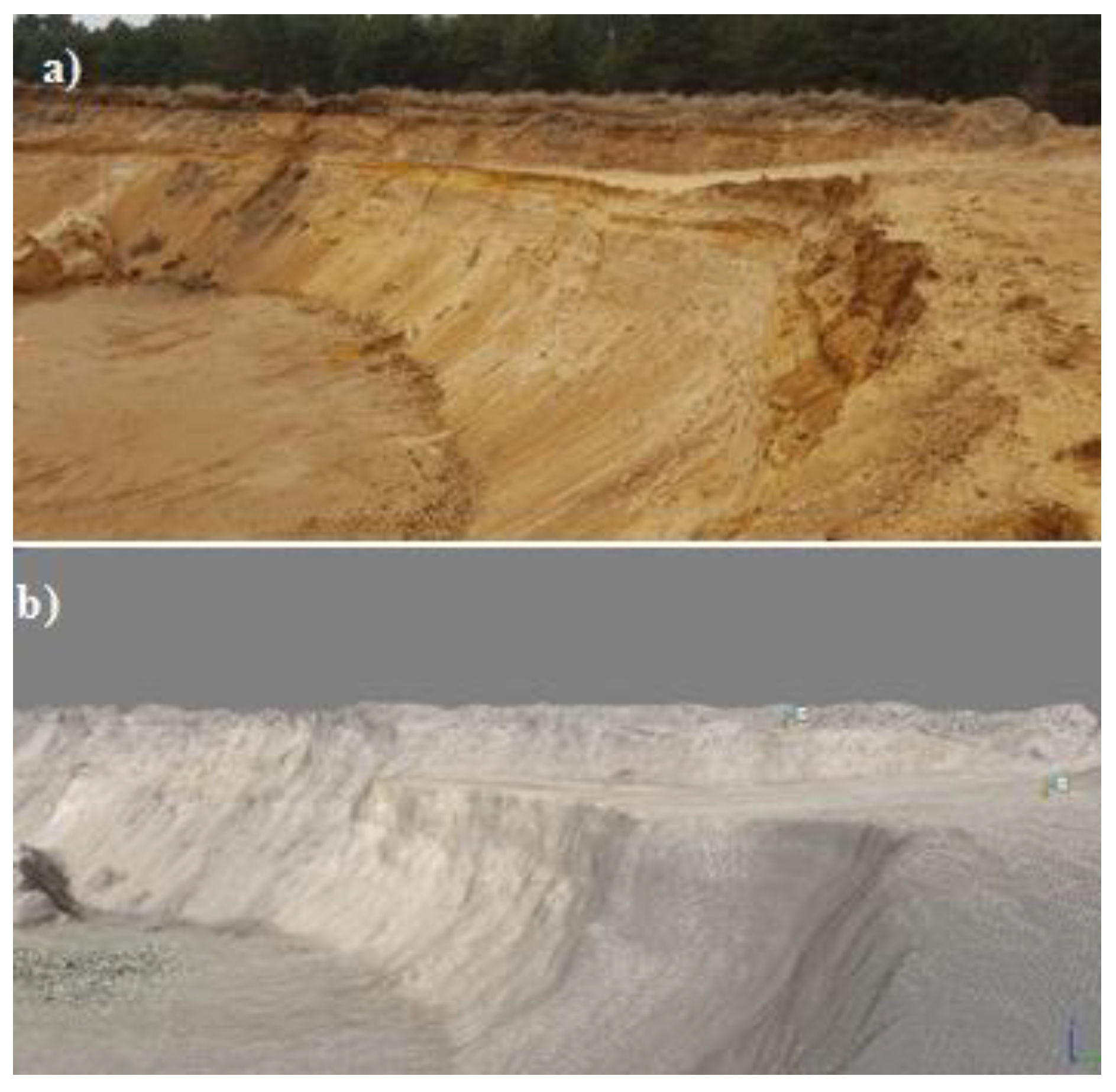

In the foreground in the figure below, lines of discontinuity can be seen (transition from a horizontal plane to a plane that is almost vertical), which reproduced quite correctly (Figure 13).

5.1. Comparison of the Volume

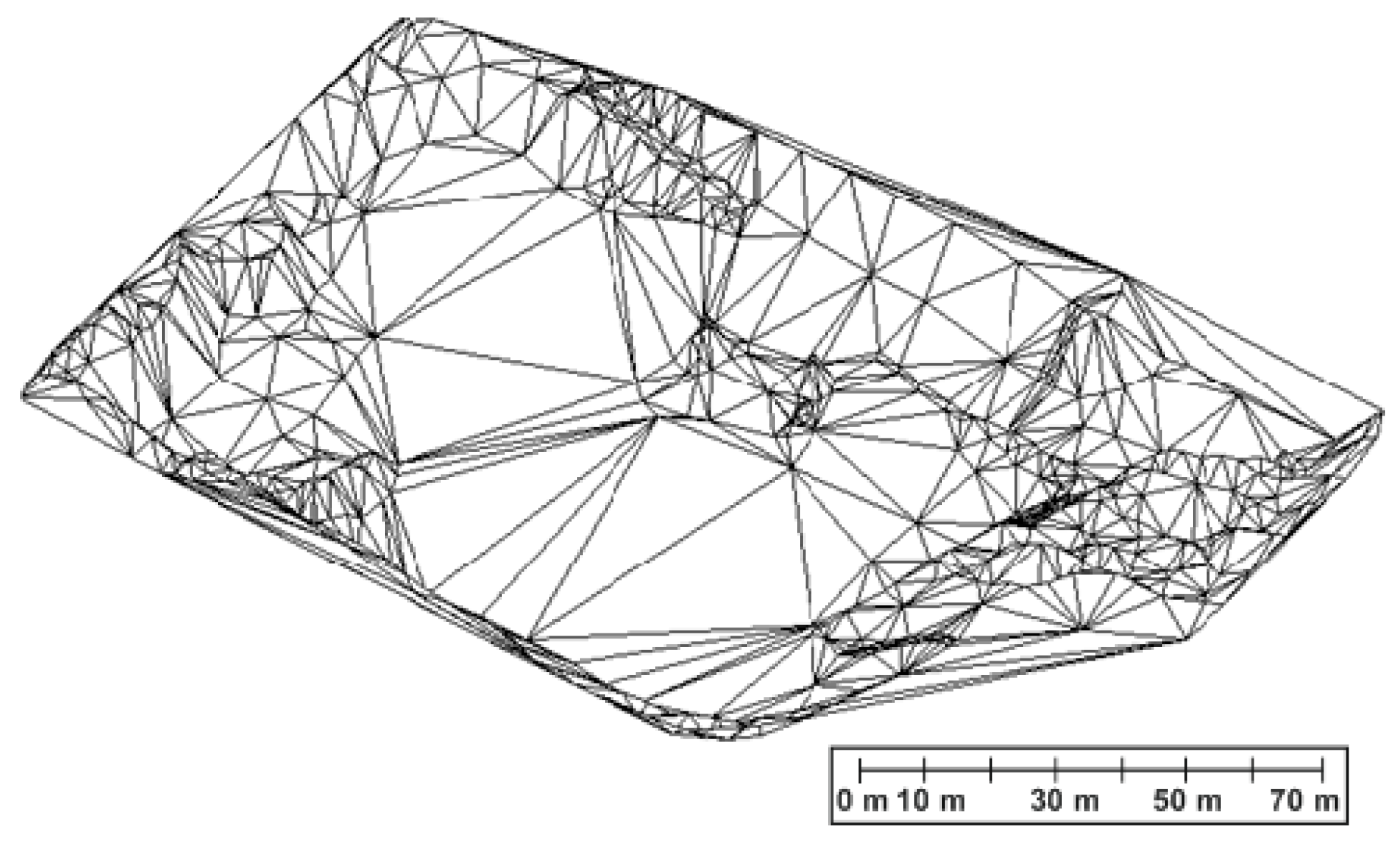

The volume of the excavation was calculated using two methods. The first way consisted of determining the volume based on a dense point cloud. The second one consisted of calculating the volume on the basis of previously measured characteristic points of the mine using the GPS-RTK method. The volume’s Equation (7) for each point will be:
V i = G S D 2 ( Z i j , T E R Z i j , U A V )
where:
  • Vi—partial volume at the point,
  • GSD—Ground Sampling Distance (m)
  • Zij, TER—is the elevation of the pixel of the flat terrain (reference)
  • Zij, UAV—is the elevation of pixel ij of the model based on photogrammetric procedure (SFM) using UAV images.

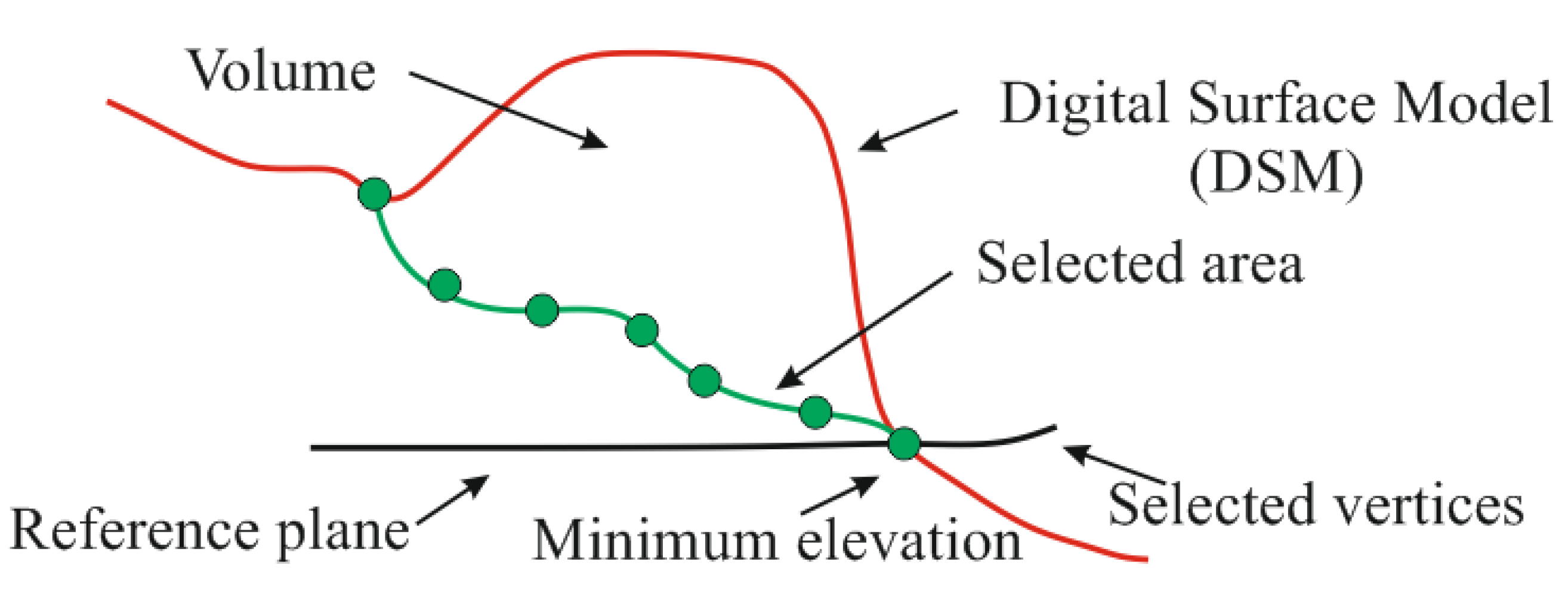

The above figure (Figure 14) shows the method of determining the volume above the reference plane assumed in the experiment. The volume is determined above the reference plane, which is the minimum elevation of the area of interest.
The results obtained were compared with each other. The calculated volume from the point cloud was 5,032,619 m3 whereas the volume calculated on the basis of 652 points measured by the GPS-RTK technique in the mine was 5,028,656 m3. Figure 15 shows the reference Triangular Irregular Network-Digital Terrain Model (TIN-DTM) model in generated on the basis of the GPS-RTK technique.
The difference between the calculated volumes from two different methods is 3963 m3, which is just under one percent of the difference in volume between them. Based on these results, it can be concluded that the volumes obtained do not differ significantly (volume difference below 1%), which means that the volume measurement by a photogrammetric method using low-cost UAV finds its application to this type of measurements.

5.2. Analysis of the Accuracy of Digital Eleveation Models (DEMs) by a Dense Point Cloud

Four test areas were used for this analysis, the size and distribution of which is shown in Figure 10. In the Global Mapper software [56], the points measured using the GPS-RTK technique of individual test areas were imported, and then the TIN model of these points was generated resulting in a vector model. In this way, the created model was used as a reference model to which the point cloud was compared. DEMs of difference (DoD) highlighting the differences between the UAV model and the reference measurement were created. Differences in models were determined based on Equation (8):
Δ Z i j = Z i j , G E O Z i j , U A V
where:
  • Zij, GEO is the elevation of pixel ij of the reference model measured by classical geodetic techniques;
  • Zij, UAV is the elevation of pixel ij of the model based on photogrammetric procedure (SFM) using UAV images.
On the basis of parts of the point cloud and the created reference models, proper analyses were carried out. In order to make a good visualisation, the red points represent points located above the reference model and the blue points are located below the reference model. For each test area, an appropriate visualisation was performed in the CloudCompare software [57], to show the distribution of differences in the height of the point cloud in relation to the reference model. Additionally, a graph of deviations was created.
For Area 1, the distribution of deviations is shown in Figure 16. Based on the following graphics, it can be stated that they best represent the measured model, the points of the cloud located in the north-east, and the south in the central part of the test area. The maximum values of height deviation reach 0.40 m and they concern the central part of the studied area. Such large deviations in this place are most likely caused by the fact that the highest thickets were in this place, which makes the point cloud altitude higher than the reference model measured in situ. Thickets have been found throughout this test area, which results in the fact that most of the cloud points are located above the reference model.
The number of points from which the cloud of the first test area was built is 15,184. Subsequently, the deviations obtained were analysed statistically and presented using a Gauss model (Figure 17).
The average deviation value was 0.13 m, and the standard deviation of 0.09 m.

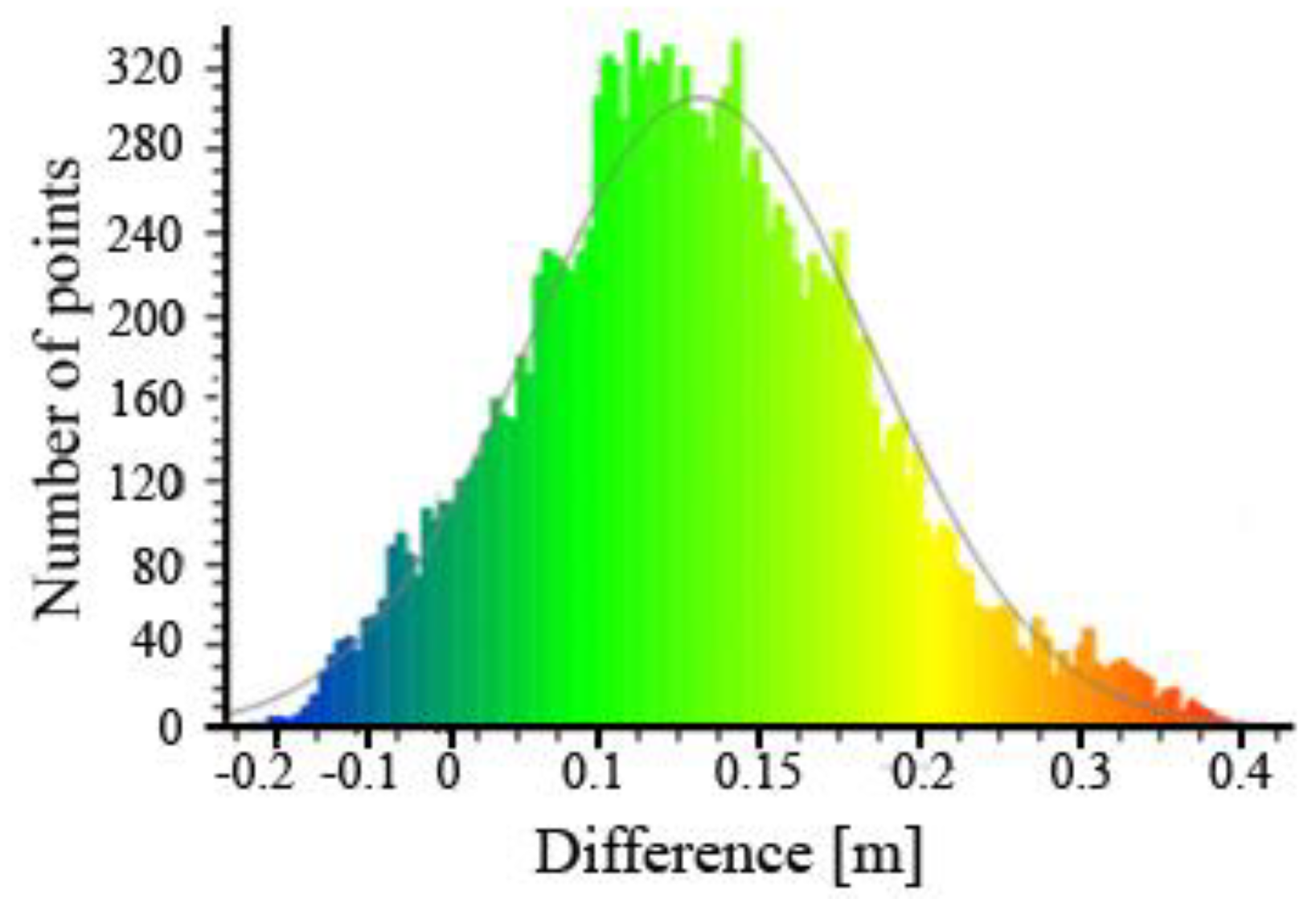

Figure 17 shows that most of the cloud points (as many as 3732) are in the range from 0.10 to 0.15 m above the reference area. It can also be seen that the number of cloud points located below the reference models is relatively small and amounts to only 955. The type of ground covering means that more points from the point cloud are found above the reference model. In this case, it is high thickets, which inflates the values of the height of the cloud points in relation to the reference model, despite the use of point cloud filtration to obtain DTM.

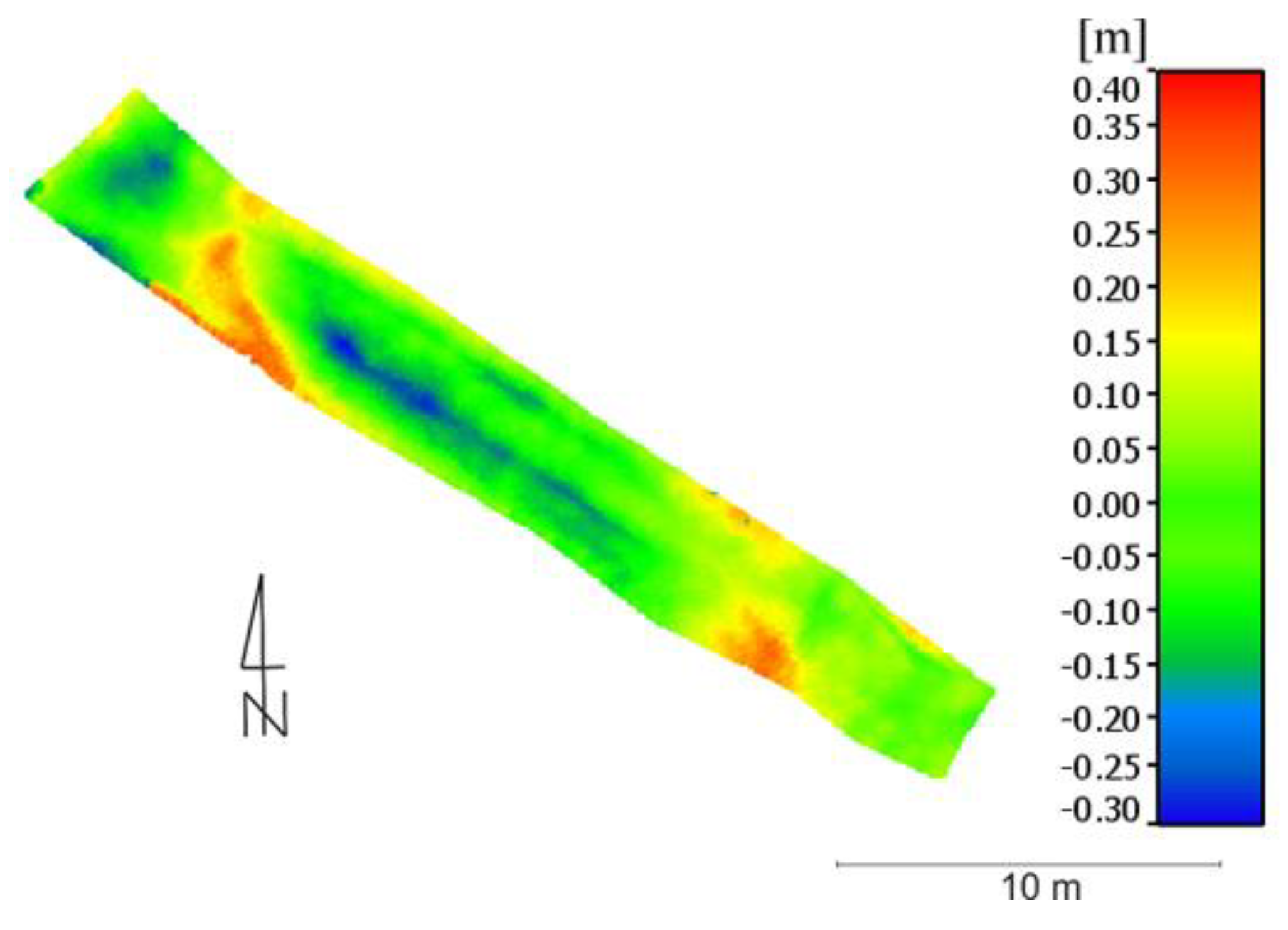

In the second test area (Figure 18), as in the previous one, there were also thickets, but much lower, because its maximum height was about 0.05 m. The entire test area was located on a slope with a reasonably large inclination. The values of the height difference between the point cloud and the reference model are in the range from −0.25 to 0.24 m. The most significant negative differences (cloud of points located below the reference model) are located in the central part of the studied area. The author of the work believes that this is the result of a small terrain gap caused by the tyres of off-road motorcycles, and the direct measurement of GNSS on this section was relatively rare which caused excessive generalisation of this area, whereas the most significant positive differences occurred in the south-eastern and south-western part of the studied area.
The total number of cloud points in this test area was 31,696. After using a Gauss model, an average deviation value of −0.02 m was obtained, while the standard deviation was 0.08 m (Figure 19).
Most points of the cloud in the case of Test Area No. 2 are in the range from −0.05 to 0 m. Figure 19 also shows that there are more clouds points below the reference model than the above.
The Third Test Area (Figure 20) was located on a sandy, sloping surface that was once used as an exit route from the mine for trucks and excavators. This area was quite flat, fairly uniform, with a sloping surface. In this test area the smallest test height deviations were obtained, which range from −0.10 to 0.10 m. The most significant are the positive deviations, which are mostly in the south-eastern part of the area. In the north-east part, the areas with the smallest deviations are dominant.
The Test Area No. 3 cloud had 55,925 points. The mean value of the height deviation was 0.03 m with a standard deviation of 0.04 m (Figure 21).

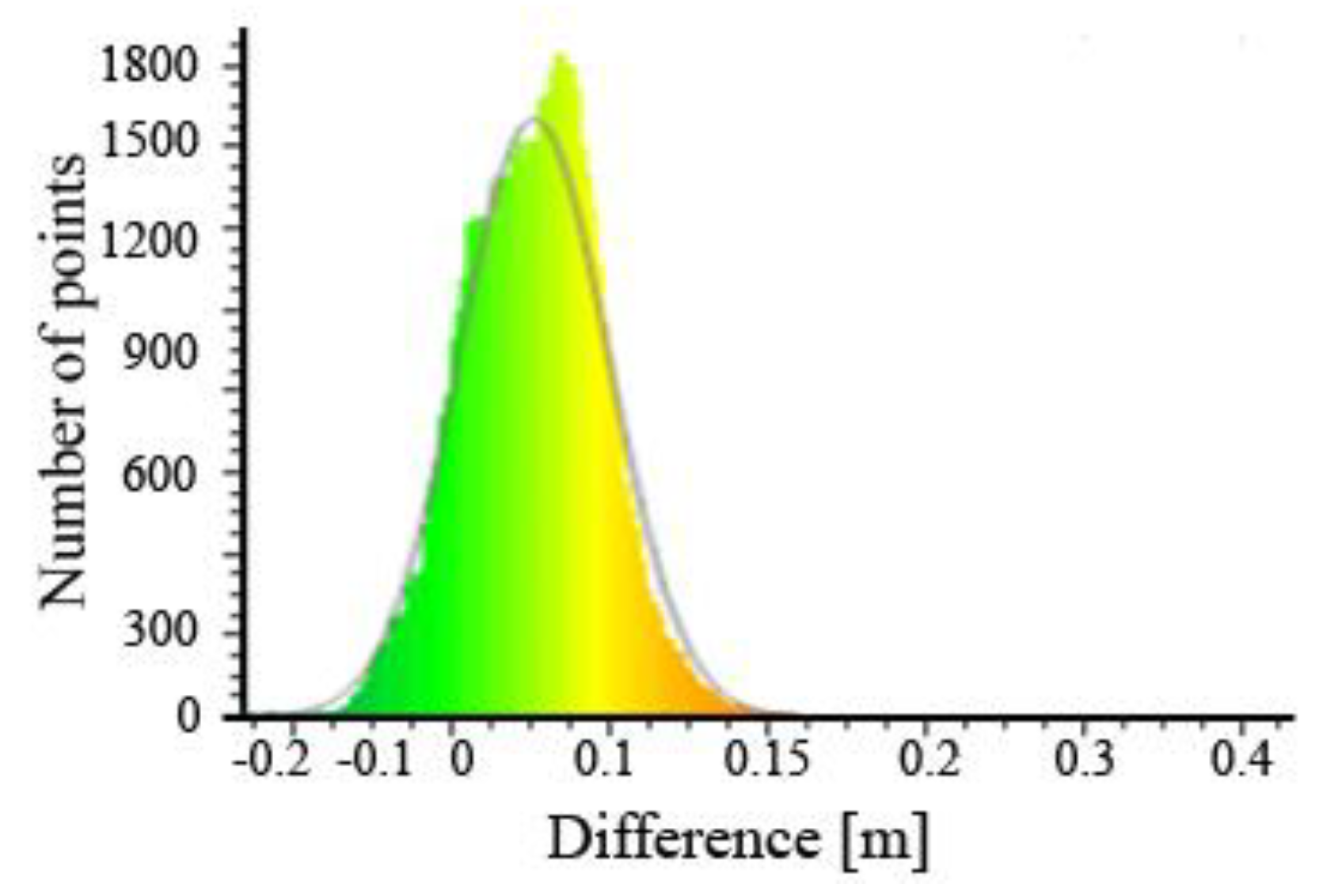

Figure 21 shows that most of the points of the cloud are in the range from 0 to 0.05 m. This means that in this test area a point cloud was obtained, mostly located above the created reference model.
The last (fourth) test area (Figure 22) is the lowest of all the previous ones. It presents a fragment of a sandy road. This area is also characterised by a very small slope (the smallest of all test areas). In the reference model created on the basis of the previous measurement of direct GNSS, ruts formed by trucks were taken into account, which means that additional points were measured in places where ruts were found. The highest height deviations between the point cloud and the reference model occur in places where the rut described above was located. In the graphic (Figure 22), it is clearly visible in orange, where the deviation value reaches 0.20 m. The points of the cloud do not clearly reflect these ruts, which are located higher than the reference model. In the remaining area of the studied area, altitude deviations are already lower and range from −0.05 m to 0.05 m.
The total number of points in the cloud of the Test Area No. 4 was 13,325. After using the Gauss model, the mean value of the altitude deviation is 0.01 m with a standard deviation of 0.06 m (Figure 23).

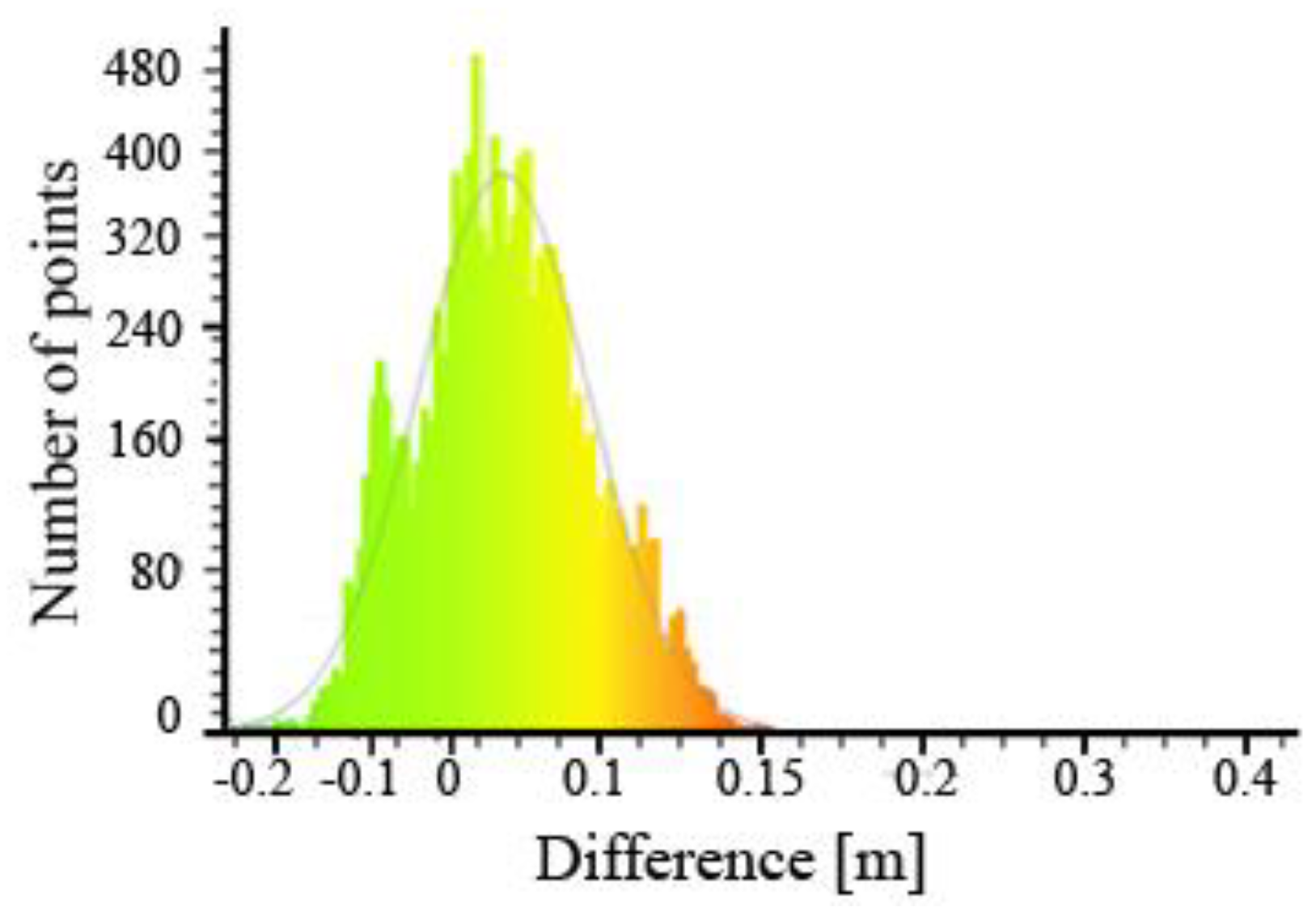

The results presented in Figure 23 confirm the fact that the cloud points were mapped above the reference model in rutted areas. This is evidenced by the overwhelming number of points above the reference model.

5.3. Density and Completeness of the Point Cloud

A dense point cloud is the result of the application of special algorithms for matching images in a balanced block of images. Due to the fact that the UAV performs a relatively low flight over the terrain, a high resolution of images is obtained, which significantly affects the density of the point cloud reached.
The quality of the digital model of the excavation depends on the completeness of the point cloud and its density. One of the important parameters for assessing the quality of obtained DTM is the density of point clouds. This parameter depends on: the ability to highlight details directly related to the site and the quality of identification of characteristic points. Most often the density of point clouds is determined by the number of points per unit of area. The accuracy of the point cloud as a form of representation of the object as a whole is closely related directly to its density.
Due to the fact that a dense cloud of points is obtained using the dense image matching technique, their quality depends on the algorithms used and UAV image quality. Very often, during the generation of homological points, photogrammetric algorithms suffer from problems due to either the image quality (homogeneous areas, noise, low radiometric shadows). The aforementioned factors may cause noisy point clouds or difficulties in the extraction. Therefore, in order to more accurately assess the obtained DTM, we have also examined the density of the obtained point clouds and its completeness considering geometric and topological fidelity, amid the amount of missing data.
In the case of Digital Elevation Model creation, interpolation (based on Delaunay triangulation) is performed using the points around it. The relation is important: the higher the density of point clouds with low noise, the greater accuracy of interpolated altitude.

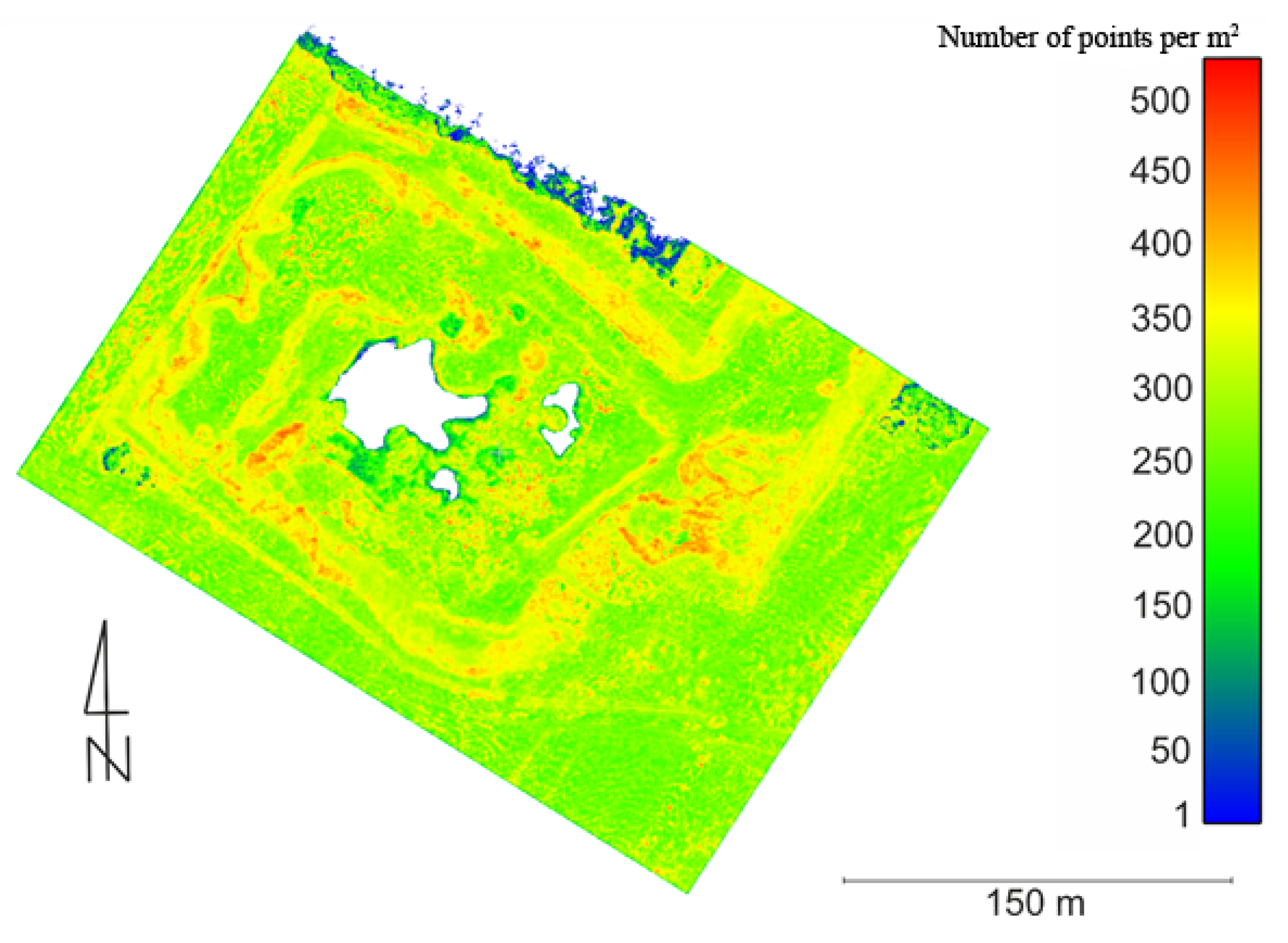

Figure 24 shows the distribution of the density of the point cloud, defined as the number of points per 1 m2.
A density of about 200 to 250 points per square metre prevails in the area of the entire mine. There are no points at all in the middle of the mine, because there was water on which the height of the points was interpolated. Therefore, these points were removed during the point cloud filtration process. The smallest number of points generated is found on the crowns of trees in the northern areas and near places where there was water. A more significant number of points (about 350–450 per m2) occurs at the tops of individual embankments and slopes.

6. Discussion

In the presented study, a method of acquiring images from low altitudes using light and an efficient UAV platform was shown for the needs of developing digital 3D models of excavations and testing their volume.
On the basis of the analysis of test results in individual test areas, the average value of the height deviation ranging from 0.01 to 0.13 m was obtained (the highest deviation was obtained in Test Area No. 1, and the smallest in Test Area No. 4). Obtaining the highest value of this deviation in Test Area No. 1 indicates that the accuracy of the DTM created on the basis of UAV images has the effectiveness of the filtration applied for the area covered with thickets to extract the correct DTM. As part of the experiment, the accuracy of the digital surface model was examined by performing appropriate analyses on the point cloud. In the case of thickets occurring in the test object, it is difficult to conduct an appropriate filtration of the point cloud, which results in obtaining higher values of the height component in the obtained point cloud.
An analysis of the accuracy of the digital surface model obtained from UAV images was carried out and also described in Fras et al. [58]. This article uses the quadcopter Microdrone md4-1000 and the Olympus PEN E-P2 camera. Next, the digital surface model was acquired and developed, obtained after the appropriate filtration of 11.17 million points of the point cloud. The accuracy analysis was carried out on the basis of check points measured with kinematic methods directly in the field. Eighteen check points were used whose heights were compared with the heights of the corresponding points on the point cloud. An average error value of 0.009 m was obtained on an altitude component with a standard deviation of 0.025 m. These values are lower than those obtained in the presented research. In the aforementioned work, the obtained photos have a resolution of 0.022 m/pixel, and they were acquired from 88 m (AGL height). Undoubtedly, the ground resolution of acquired images and altitude have a crucial role in the accuracy of the final results of the photogrammetry study.
In the case of the density distribution of the obtained point cloud, very similar results were obtained as in the article mentioned above. Lack of data in the point cloud is most often caused by insufficient coverage of photos or the presence of areas of homogeneous regions (e.g., sands). This causes problems in the correct operation of the automatic measurement of homologous points for the purpose of obtaining elevation data.
When analysing data on the accuracy of volume determination by UAV in the work of Raeva et al. [59] and the work of Cryderman et al. [60], and also the results obtained in the present experiment, it can be concluded that the use of UAV in this type of photogrammetric studies becomes an effective technology and less time-consuming in the case of volume measurement. Acquiring photographs of a given excavation are not as time-consuming as the physical measurement of points using the GNSS kinematic method. In this case, excavation photos in the village of Minka were obtained within 15 minutes, and the measurement of characteristic excavation points using traditional methods lasted almost the entire day (measured at 652 points with the GNSS kinematic method in about 8 hours). This is a huge difference in the length of time needed to obtain the appropriate measurements to calculate the volume. The results of these studies show that UAV images have the potential to provide adequate data for volume estimation with sufficient accuracy of around 1%.

7. Conclusions

The proposed method will allow the cheap and efficient monitoring of open pit mines and gravel pits. Thanks to the possibility of fast development of digital surface models of the excavation, it is possible to use them not only to calculate volume but also to track the construction process, monitor work progress and determine safety procedures (e.g., maximum slope level) during ongoing mining operations. The use of UAV technology allows the automatisation of the measurement process associated with the extraction, while reducing the error rates associated with the volume calculation. Using the appropriate method of filtering geospatial data, it is possible to achieve results that meet the accuracy criteria.
Analysing the accuracy of terrain mapping by a dense point cloud, the most accurate results were obtained in test areas where no vegetation was present. In the case of thicket in the test area, it is difficult to perform an appropriate filtration of the point cloud, whereby the heights obtained from digital measurements were characterised by a higher value than those obtained from direct measurements using the GNSS kinematic technique. Therefore, it can be concluded that the accuracy of terrain mapping by the point cloud is influenced by the type of surface of the studied area.
The use of UAV photogrammetry becomes an effective technology and less time-consuming when measuring volume. The acquisition of images by the UAV of a given excavation takes place much faster than the physical measurement of points by the GNSS kinematic method over its entire area. This is a big difference in the time needed to obtain the appropriate measurements to calculate the volume. The value of the obtained difference in the volume of the excavation of the study area obtained on the basis of data from the UAV, and the data from the physical measurement of points by the GNSS kinematic technique, differ by less than 1%. The use of unmanned systems does not require stopping work on the excavation and eliminates the need to enter a dangerous area, and also allows the measurement of inaccessible areas. The results of these studies show that the images obtained from UAV have the potential to provide adequate data to estimate the volume with sufficient accuracy. In the case of the photogrammetric method, irregular heaps do not pose a large technical problem, and the measured shapes are almost identical to those in reality, depending on the adopted photogrammetric assumptions.
The quality of the obtained digital surface model also depends on the completeness of the generated point cloud, because it affects the accuracy of the interpolated altitude. Lack of data in the point cloud is most often caused by insufficient coverage of photos or the result of filtration in which all protruding objects such as buildings or trees were removed in order to obtain a digital terrain model.
The results of the conducted research show that it is possible to build a low-cost UAV that will provide useful photogrammetric data. Based on the obtained results, it can be stated that the data obtained with a non-metric camera from the low-cost model of an unmanned aerial vehicle can be used to generate a three-dimensional point cloud using appropriate algorithms. Compared with the data obtained using traditional methods, satisfactory results were obtained, which indicate a high agreement between the compared models.
The quality of data provided by UAV does not differ from the data obtained by commercial unmanned ships of similar construction. The technical and measurement capabilities of the unmanned vehicle used in this work are therefore similar to commercial photogrammetric platforms of this category.
The performed tests are particularly important in the context of the use of images obtained from a low ceiling to accurately determine the volume of excavations. Future research will focus on the integration of two action cameras with mutual coverage in stereo mode, which will make it possible to increase the efficiency of imaging during one flight.

Author Contributions

Damian Wierzbicki conceived and designed the research; Marcin Nienaltowski performed the experiments; Damian Wierzbicki and Marcin Nienaltowski analysed the data; Damian Wierzbicki wrote the paper.

Funding

This paper has been supported by a grant co-financed by the Military University of Technology, the Faculty of Civil Engineering, and Geodesy, Geodesy Institute.

Acknowledgments

Many thanks to Michal Kedzierski from Faculty of Civil Engineering and Geodesy, Military University of Technology, Warsaw, Poland for his valuable advices. We also thank the three anonymous journal reviewers for their highly constructive feedback provided during the reviewing process that improved the manuscript.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Tong, X.; Liu, X.; Chen, P.; Liu, S.; Luan, K.; Li, L.; Liu, S.; Liu, X.; Xie, H.; Jin, Y.; et al. Integration of UAV-based photogrammetry and terrestrial laser scanning for the three-dimensional mapping and monitoring of open-pit mine areas. Remote Sens. 2015, 7, 6635–6662. [Google Scholar] [CrossRef]
  2. Beretta, F.; Shibata, H.; Cordova, R.; Peroni, R.D.L.; Azambuja, J.; Costa, J.F.C.L. Topographic modelling using UAVS compared with traditional survey methods in mining. Rem-Int. Eng. J. 2018, 71, 463–470. [Google Scholar] [CrossRef]
  3. Rossi, P.; Mancini, F.; Dubbini, M.; Mazzone, F.; Capra, A. Combining nadir and oblique UAV imagery to reconstruct quarry topography: Methodology and feasibility analysis. Eur. J. Remote Sens. 2017, 50, 211–221. [Google Scholar] [CrossRef]
  4. Campana, S. Drones in Archaeology. State-of-the-art and Future Perspectives. Archaeol. Prospect. 2017, 24, 275–296. [Google Scholar]
  5. Eltner, A.; Kaiser, A.; Castillo, C.; Rock, G.; Neugirg, F.; Abellán, A. Image-based surface reconstruction in geomorphometry—Merits, limits and developments. Earth Surf. Dyn. 2016, 4, 359–389. [Google Scholar] [CrossRef]
  6. McLeod, T.; Samson, C.; Labrie, M.; Shehata, K.; Mah, J.; Lai, P.; Elder, J.H. Using video acquired from an unmanned aerial vehicle (UAV) to measure fracture orientation in an open-pit mine. Geomatica 2013, 67, 173–180. [Google Scholar] [CrossRef]
  7. Nex, F.; Remondino, F. UAV for 3D mapping applications: A review. Appl. Geomat. 2014, 6, 1–15. [Google Scholar] [CrossRef]
  8. Guo, Q.; Su, Y.; Hu, T.; Zhao, X.; Wu, F.; Li, Y.; Zheng, Y. An integrated UAV-borne lidar system for 3D habitat mapping in three forest ecosystems across China. Int. J. Remote Sens. 2017, 38, 2954–2972. [Google Scholar] [CrossRef]
  9. Torresan, C.; Berton, A.; Carotenuto, F.; Di Gennaro, S.F.; Gioli, B.; Matese, A.; Wallace, L. Forestry applications of UAVs in Europe: A review. Int. J. Remote Sens. 2017, 38, 2427–2447. [Google Scholar] [CrossRef]
  10. Sanz-Ablanedo, E.; Chandler, J.; Rodríguez-Pérez, J.; Ordóñez, C. Accuracy of unmanned aerial vehicle (UAV) and SfM photogrammetry survey as a function of the number and location of ground control points used. Remote Sens. 2018, 10, 1606. [Google Scholar] [CrossRef]
  11. Martínez-Carricondo, P.; Agüera-Vega, F.; Carvajal-Ramírez, F.; Mesas-Carrascosa, F.J.; García-Ferrer, A.; Pérez-Porras, F.J. Assessment of UAV-photogrammetric mapping accuracy based on variation of ground control points. Int. J. Appl. Earth Obs. Geoinf. 2018, 72, 1–10. [Google Scholar] [CrossRef]
  12. Gindraux, S.; Boesch, R.; Farinotti, D. Accuracy Assessment of Digital Surface Models from Unmanned Aerial Vehicles’ Imagery on Glaciers. Remote Sens. 2017, 9, 186. [Google Scholar] [CrossRef]
  13. Shahbazi, M.; Sohn, G.; Théau, J.; Menard, P. Development and Evaluation of a UAV-Photogrammetry System for Precise 3D Environmental Modeling. Sensors 2015, 15, 27493–27524. [Google Scholar] [CrossRef] [PubMed]
  14. Förstner, W.; Gülch, E. A Fast Operator for Detection and Precise Location of Distinct Points, Corners and Centers of Circular Features. In Proceedings of the ISPRS Intercommission Workshop on Fast Processing of Photogrammetric Data, Interlaken, Switzerland, 2–4 June 1987; pp. 281–305. [Google Scholar]
  15. Grün, A. Adaptive least squares correlations: A powerful matching techniques. S. Afr. J. Photogramm. Remote Sens. Cartogr. 1985, 14, 175–187. [Google Scholar]
  16. Schenk, T. Digital Photogrammetry; TerraScience: Laurelville, OH, USA, 1999. [Google Scholar]
  17. Hirschmüller, H. Stereo processing by semiglobal matching and mutual information. IEEE Trans. Pattern Anal. Mach. Intell. 2008, 30, 328–341. [Google Scholar] [CrossRef] [PubMed]
  18. Hirschmüller, H.; Scharstein, D. Evaluation of stereo matching costs on images with radiometric differences. IEEE Trans. Pattern Anal. Mach. Intell. 2009, 31, 1582–1599. [Google Scholar] [CrossRef] [PubMed]
  19. Zhang, L. Automatic Digital Surface Model (DSM) Generation from Linear Array Images. Ph.D. Thesis, Institute of Geodesy and Photogrammetry, ETH Zurich, Switzerland, 2005. [Google Scholar]
  20. Toldo, R.; Fantini, F.; Giona, L.; Fantoni, S.; Fusiello, A. Accurate multiview stereo reconstruction with fast visibility integration and tight disparity bounding. Int. Arch. Photogramm. Remote Sens. Spat. Inf. Sci. 2013, 40, 243–249. [Google Scholar] [CrossRef]
  21. Remondino, F.; Spera, M.G.; Nocerino, E.; Menna, F.; Nex, F. State of the art in high density image matching. Photogramm. Rec. 2014, 29, 144–166. [Google Scholar] [CrossRef]
  22. Collins, R.T. A space-sweep approach to true multi-image matching. In Proceedings of the CVPR IEEE Computer Society Conference on Computer Vision and Pattern Recognition, San Francisco, CA, USA, 18–20 June 1996. [Google Scholar]
  23. Goesele, M.; Snavely, N.; Curless, B.; Hoppe, H.; Seitz, S.M. Multi-view stereo for community photo collections. In Proceedings of the 2007 IEEE 11th International Conference on Computer Vision, Rio de Janeiro, Brazil, 14–21 October 2007. [Google Scholar]
  24. Remondino, F.; El-Hakim, S.F.; Gruen, A.; Zhang, L. Turning images into 3D models—Development and performance analysis of image matching for detailed surface reconstruction of heritage objects. IEEE Signal Process. Mag. 2008, 25, 55–65. [Google Scholar] [CrossRef]
  25. Horn, B.K.P. Relative orientation. Int. J. Comput. Vis. 1990, 4, 59–78. [Google Scholar] [CrossRef]
  26. Lowe, D.G. Distinctive image features from scale invariant keypoints. Int. J. Comput. Vis. 2004, 60, 91–110. [Google Scholar] [CrossRef]
  27. Wenzel, M.R.K. SURE—Photogrammetric Surface Reconstruction from Imagery 2013. Available online: http://www.ifp.uni-stuttgart.de/publications/software/sure/index.en.html (accessed on 20 December 2018).
  28. Zhang, Y.; Zhang, Y.; Mo, D.; Zhang, Y.; Li, X. Direct Digital Surface Model Generation by Semi-Global Vertical Line Locus Matching. Remote Sens. 2017, 9, 214. [Google Scholar] [CrossRef]
  29. Scharstein, D.; Szeliski, R. A taxonomy and evaluation of dense two-frame stereo correspondence algorithms. Int. J. Comput. Vis. 2002, 47, 7–42. [Google Scholar] [CrossRef]
  30. Seitz, S.; Curless, B.; Diebel, J.; Scharstein, D.; Szeliski, R. A Comparison and evaluation of multi-view stereo reconstruction algorithms. In Proceedings of the Conference on Computer Vision and Pattern Recognition, New York, NY, USA, 17–22 June 2006. [Google Scholar]
  31. Kolmogorov, V.; Zabih, R. Multi-camera scene reconstruction via graph cuts. In Proceedings of the European Conference on Computer Vision, Copenhagen, Denmark, 28–31 May 2002. [Google Scholar]
  32. Bailer, C.; Finckh, M.; Lensch, H.P. Scale robust multi view stereo. In European Conference on Computer Vision; Springer: Berlin/Heidelberg, Germany, 2012; pp. 398–411. [Google Scholar]
  33. Zhu, Z.K.; Stamatopoulos, C.; Fraser, C.S. Accurate and occlusion-robust multi-view stereo. ISPRS J. Photogramm. Remote Sens. 2015, 109, 47–61. [Google Scholar] [CrossRef]
  34. Newcombe, R.; Izadi, S.; Hilliges, O.; Molyneaux, D. KinectFusion: Real-time dense surface mapping and tracking. In Proceedings of the International Symposium on Mixed and Augmented Reality, Basel, Switzerland, 26–29 October 2011. [Google Scholar]
  35. Rumpler, M.; Wendel, A.; Bischof, H. Probabilistic range image integration for DSM and true-orthophoto generation. In Proceedings of the Scandinavian Conference on Image Analysis, Espoo, Finland, 17–20 June 2013. [Google Scholar]
  36. Furukawa, Y.; Ponce, J. Accurate, dense, and robust multiview stereopsis. IEEE Trans. Pattern Anal. Mach. 2010, 32, 1362–1376. [Google Scholar] [CrossRef] [PubMed]
  37. Shan, Q.; Curless, B.; Furukawa, Y.; Hernandez, C.; Seitz, S.M. Occluding contours for multi-view stereo. In Proceedings of the IEEE International Conference on Computer Vision and Pattern Recognition, Columbus, OH, USA, 23–28 June 2014. [Google Scholar]
  38. Shao, Z.; Yang, N.; Xiao, X.; Zhang, L.; Peng, Z. A multi-view dense point cloud generation algorithm based on low-altitude remote sensing images. Remote Sens. 2016, 8, 381. [Google Scholar] [CrossRef]
  39. Rosnell, T.; Honkavaara, E. Point cloud generation from aerial image data acquired by a quadrocopter type micro unmanned aerial vehicle and a digital still camera. Sensors 2012, 12, 453–480. [Google Scholar] [CrossRef]
  40. Santise, M.; Fornari, M.; Forlani, G.; Roncella, R. Evaluation of DEM generation accuracy from UAS imagery. Int. Arch. Photogramm. Remote Sens. Spatial Inform. Sci. 2014, 40, 529–536. [Google Scholar] [CrossRef]
  41. Javernick, L.; Brasington, J.; Caruso, B. Modeling the topography of shallow braided rivers using structure-from-motion photogrammetry. Geomorphology 2014, 213, 166–182. [Google Scholar] [CrossRef]
  42. Wierzbicki, D.; Fryskowska, A.; Kedzierski, M.; Wojtkowska, M.; Delis, P. Method of radiometric quality assessment of NIR images acquired with a custom sensor mounted on an unmanned aerial vehicle. J. Appl. Remote Sens. 2018, 12, 015008. [Google Scholar] [CrossRef]
  43. Wierzbicki, D. Multi-Camera Imaging System for UAV Photogrammetry. Sensors 2018, 18, 2433. [Google Scholar] [CrossRef] [PubMed]
  44. James, M.R.; Robson, S. Mitigating systematic error in topographic models derived from UAV and ground-based image networks. Earth Surf. Proc. Land. 2014, 39, 1413–1420. [Google Scholar] [CrossRef]
  45. Pinetest, 2018. Available online: https://pinterest.com (accessed on 10 November 2018).
  46. GoPro 2018. Available online: https://gopro.com/ (accessed on 10 November 2018).
  47. Zongjian, L.; Feifei, X.; Guozhong, S. Accuracy analysis of low altitude photogrammetry with wide-angle camera. J. Geod. Geoinf. Sci. 2016. [Google Scholar] [CrossRef]
  48. Kasper, H. Some Considerations on the Application of Photogrammetry for Small-Scale Cartography. Photogramm. Eng. 1956, 875–891. Available online: https://www.asprs.org/wp-content/uploads/pers/1956journal/dec/1956_dec_875-891.pdf (accessed on 20 December 2018). [Google Scholar]
  49. Agisoft LCC. Agisoft PhotoScan 2018. Available online: http://www.agisoft.com (accessed on 20 November 2018).
  50. Axelsson, P. DEM Generation from Laser Scanner Data Using Adaptive TIN Models. Int. Arch. Photogramm. Remote Sens. 2000, XXXIII, 110–117. [Google Scholar]
  51. Salach, A.; Bakuła, K.; Pilarska, M.; Ostrowski, W.; Górski, K.; Kurczyński, Z. Accuracy Assessment of Point Clouds from LiDAR and Dense Image Matching Acquired Using the UAV Platform for DTM Creation. ISPRS Int. J. Geo-Inf. 2018, 7, 342. [Google Scholar] [CrossRef]
  52. Brown, D.C. Close-range camera calibration. Photogramm. Eng. 1971, 37, 855–866. [Google Scholar]
  53. Hänsch, R.; Drude, I.; Hellwich, O. Modern methods of bundle adjustment on the GPU. ISPRS Ann. Photogramm. Remote Sens. Spatial Inf. Sci. 2016, 43–50. [Google Scholar] [CrossRef]
  54. Triggs, B.; McLauchlan, P.F.; Hartley, R.I.; Fitzgibbon, A.W. Bundle adjustment—A modern synthesis. In Intnternational Workshop—Vision Algorithms; Springer: Berlin/Heidelberg, Germany, 1999; pp. 298–372. [Google Scholar]
  55. SenseFly Measuring. Available online: https://www.sensefly.com (accessed on 10 November 2018).
  56. Global Mapper User’s Manual. Available online: http://www.globalmapper.com/helpv12/Help_Main.html (accessed on 21 December 2018).
  57. Girardeau-Montaut, D. CloudCompare Version 2.9.1; Open Source 3D Point Cloud Processing Software. Available online: http://www.danielgm.net/cc/ (accessed on 21 December 2018).
  58. Fras, M.K.; Kerin, A.; Mesarič, M.; Peterman, V.; Grigillo, D. Assessment of the quality of digital terrain model produced from unmanned aerial system imagery. Int. Arch. Photogramm. Remote Sens. Spat. Inf. Sci. 2016, 41, 893–899. [Google Scholar] [CrossRef]
  59. Raeva, P.L.; Filipova, S.L.; Filipov, D.G. Volume computation of a stockpile—A study case comparing GPS and UAV measurements in an open pit quarry. Int. Arch. Photogramm. Remote Sens. Spat. Inf. Sci. 2016, 41, 999–1004. [Google Scholar] [CrossRef]
  60. Cryderman, C.; Mah, S.B.; Shufletoski, A. Evaluation of UAV photogrammetric accuracy for mapping and earthworks computations. Geomatica 2014, 68, 309–317. [Google Scholar] [CrossRef]
Figure 1. Ultralight frame of own design.
Figure 1. Ultralight frame of own design.
Ijgi 08 00083 g001
Figure 2. Wiring diagram of quadcopter basic components (based on Reference [45]).
Figure 2. Wiring diagram of quadcopter basic components (based on Reference [45]).
Ijgi 08 00083 g002
Figure 3. The method of attaching the three-axis gimbal together with the GoPro Hero 5 camera to the discussed multirotor–Unmanned Aerial Vehicle (UAV).
Figure 3. The method of attaching the three-axis gimbal together with the GoPro Hero 5 camera to the discussed multirotor–Unmanned Aerial Vehicle (UAV).
Ijgi 08 00083 g003
Figure 4. The designed UAV system (from the left: FPV receiver with cardboard, quadcopter with FPV system, mounted gimbal and GoPro camera, control equipment and LiPo battery).
Figure 4. The designed UAV system (from the left: FPV receiver with cardboard, quadcopter with FPV system, mounted gimbal and GoPro camera, control equipment and LiPo battery).
Ijgi 08 00083 g004
Figure 5. The study site.
Figure 5. The study site.
Ijgi 08 00083 g005
Figure 6. Photograph showing part of the tested excavation.
Figure 6. Photograph showing part of the tested excavation.
Ijgi 08 00083 g006
Figure 7. (a) Ground Control Point marked in the field with a white and black chessboard; (b) Project of the ground control point.
Figure 7. (a) Ground Control Point marked in the field with a white and black chessboard; (b) Project of the ground control point.
Ijgi 08 00083 g007
Figure 8. The arrangement of photogrammetric network points on the study site.
Figure 8. The arrangement of photogrammetric network points on the study site.
Ijgi 08 00083 g008
Figure 9. Distribution of measured cross-sections for further accuracy analyses.
Figure 9. Distribution of measured cross-sections for further accuracy analyses.
Ijgi 08 00083 g009
Figure 10. Overall methodology of data processing.
Figure 10. Overall methodology of data processing.
Ijgi 08 00083 g010
Figure 11. Errors on the point cloud created in areas flooded with water (marked in red ellipses).
Figure 11. Errors on the point cloud created in areas flooded with water (marked in red ellipses).
Ijgi 08 00083 g011
Figure 12. Dense point cloud of the study site.
Figure 12. Dense point cloud of the study site.
Ijgi 08 00083 g012
Figure 13. Mapping the discontinuity lines through a point cloud. (a) Photo of the area under analysis (b) Cloud of points in the analysed area.
Figure 13. Mapping the discontinuity lines through a point cloud. (a) Photo of the area under analysis (b) Cloud of points in the analysed area.
Ijgi 08 00083 g013
Figure 14. Volume calculation of reference plane method (based on Reference [55]).
Figure 14. Volume calculation of reference plane method (based on Reference [55]).
Ijgi 08 00083 g014
Figure 15. The generated Triangular Irregular Network-Digital Terrain Model (TIN-DTM) used to measure the volume of the excavation.
Figure 15. The generated Triangular Irregular Network-Digital Terrain Model (TIN-DTM) used to measure the volume of the excavation.
Ijgi 08 00083 g015
Figure 16. Distribution of differences in the height of the point cloud in relation to the reference model (Test Area No. 1).
Figure 16. Distribution of differences in the height of the point cloud in relation to the reference model (Test Area No. 1).
Ijgi 08 00083 g016
Figure 17. A graph showing a distribution of the cloud deviations of Test Area No. 1.
Figure 17. A graph showing a distribution of the cloud deviations of Test Area No. 1.
Ijgi 08 00083 g017
Figure 18. Distribution of differences in the height of the point cloud in relation to the reference model (Test Area No. 2).
Figure 18. Distribution of differences in the height of the point cloud in relation to the reference model (Test Area No. 2).
Ijgi 08 00083 g018
Figure 19. A graph showing a distribution of the cloud deviations of Test Area No. 2.
Figure 19. A graph showing a distribution of the cloud deviations of Test Area No. 2.
Ijgi 08 00083 g019
Figure 20. Distribution of differences in the height of the point cloud in relation to the reference model (Test Area No. 3).
Figure 20. Distribution of differences in the height of the point cloud in relation to the reference model (Test Area No. 3).
Ijgi 08 00083 g020
Figure 21. A graph showing a distribution of the cloud deviations of Test Area No. 3.
Figure 21. A graph showing a distribution of the cloud deviations of Test Area No. 3.
Ijgi 08 00083 g021
Figure 22. Distribution of differences in the height of the point cloud in relation to the reference model (Test Area No. 4).
Figure 22. Distribution of differences in the height of the point cloud in relation to the reference model (Test Area No. 4).
Ijgi 08 00083 g022
Figure 23. A graph showing a distribution of the cloud deviations of Test Area No. 4.
Figure 23. A graph showing a distribution of the cloud deviations of Test Area No. 4.
Ijgi 08 00083 g023
Figure 24. Density distribution of the entire generated point cloud.
Figure 24. Density distribution of the entire generated point cloud.
Ijgi 08 00083 g024
Table 1. Technical specification GoPro 5 Hero.
Table 1. Technical specification GoPro 5 Hero.
ItemDescription
Size (mm)44 × 64 × 24
Weight (g)118
Optical sensors typecomplementary metal–oxide–semiconductor (CMOS)
Digital Video FormatH.264
Nominal focal length (mm)3
Image Recording FormatJPEG
Max Resolution4000 × 3000
Effective Photo Resolution12.0 MPixMP
Sensor size (mm)6.17 × 4.55
Pixel pitch (µm)1.53
Table 2. Technical specification of UAV.
Table 2. Technical specification of UAV.
ItemDescription
Size (mm)450 × 450
Weight (g)1100
MTOM weight (g)2200
Flight time25 min with gimbal; with gimbal and camera 16 min
Maximum flight speed (m/s)22
Table 3. Comparison of camera calibration results.
Table 3. Comparison of camera calibration results.
ParameterCalibration Values (pix)Difference (pix)
Laboratory ConditionsSelf-Calibration Process
f2029.301995.7533.55
x039.1128.2710.84
y0−36.73−28.77−7.96
Distortion parametersLaboratory conditionsSelf-calibration processDifference
k1−0.01275−0.024450.01170
k20.003280.01010−0.00682
k30.00070−0.001350.00205
p1−0.004550.00383−0.00838
p20.00425−0.004480.00873
Table 4. Ground Control Points Root Mean Square Error (RMSE).
Table 4. Ground Control Points Root Mean Square Error (RMSE).
X RMSE (m)Y RMSE (m)Z RMSE (m)Total RMSE (m)Reprojection Error (pix)
0.0200.0220.0190.0351.1
Table 5. Check Points RMSE.
Table 5. Check Points RMSE.
X RMSE (m)Y RMSE (m)Z RMSE (m)Total RMSE (m)Reprojection Error (pix)
0.0290.0250.0340.0511.0
Table 6. Error values of camera position measurements by Global Navigation Satellite System (GNSS) system mounted on the UAV.
Table 6. Error values of camera position measurements by Global Navigation Satellite System (GNSS) system mounted on the UAV.
X RMSE (m)Y RMSE (m)Z RSME (m)Total RMSE (m)
4.732.915.327.69
Table 7. Error values of camera orientation parameters.
Table 7. Error values of camera orientation parameters.
Yaw RMSE (°)Pitch RMSE (°)Roll RMSE (°)Total RMSE (°)
7.732.810.848.27

© 2019 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
ISPRS Int. J. Geo-Inf. EISSN 2220-9964 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
