ISPRS Int. J. Geo-Inf. 2019, 8(11), 501; https://doi.org/10.3390/ijgi8110501

Article
Construction and Verification of a High-Precision Base Map for an Autonomous Vehicle Monitoring System
1
Korea Land and Geospatial Informatix Corporation, 163, Anjeon-ro, Iseo-myeon, Wanju-gun, Jeollabuk-do 55365, Korea
2
National Information Society Agency, 53, Cheomdan-ro, Dong-gu, Daegu 41068, Korea
*
Author to whom correspondence should be addressed.
Received: 20 September 2019 / Accepted: 31 October 2019 / Published: 6 November 2019

Abstract

:
For autonomous driving, a control system that supports precise road maps is required to monitor the operation status of autonomous vehicles in the research stage. Such a system is also required for research related to automobile engineering, sensors, and artificial intelligence. The design of Google Maps and other map services is limited to the provision of map support at 20 levels of high-resolution precision. An ideal map should include information on roads, autonomous vehicles, and Internet of Things (IOT) facilities that support autonomous driving. The aim of this study was to design a map suitable for the control of autonomous vehicles in Gyeonggi Province in Korea. This work was part of the project “Building a Testbed for Pilot Operations of Autonomous Vehicles”. The map design scheme was redesigned for an autonomous vehicle control system based on the “Easy Map” developed by the National Geography Center, which provides free design schema. In addition, a vector-based precision map, including roads, sidewalks, and road markings, was produced to provide content suitable for 20 levels. A hybrid map that combines the vector layer of the road and an unmanned aerial vehicle (UAV) orthographic map was designed to facilitate vehicle identification. A control system that can display vehicle and sensor information based on the designed map was developed, and an environment to monitor the operation of autonomous vehicles was established. Finally, the high-precision map was verified through an accuracy test and driving data from autonomous vehicles.
Keywords:
high-precision map; schema design; autonomous vehicle

1. Introduction

Autonomous vehicles have attracted significant research attention, with the research led by Google and global automotive companies such as Uber, Tesla, and Audi. Currently, semi-autonomous Level 3 automobiles can be purchased. This level, which has been set by the American Society of Automotive Engineers (SAE), allows drivers to enjoy semi-autonomous driving on specific roads, while maintaining a frontal gaze. For autonomous driving, a control system that supports a high-precision lane-level road map is required to monitor the operation status of autonomous vehicles in the research stage. Lane recognition using sensors, such as cameras, can be affected by various factors, such as climate and lighting, and requires considerable manual work; research on automating this process is ongoing. The demand for high-precision maps is increasing, for creating road maps not only from pointer clouds [1,2,3], but also from images acquired through UAVs [4].
Vector map-based systems [5,6,7] and tile map-based systems [8,9,10], such as Google Maps [11] and Map X [12], have been developed to monitor vehicle position. Studies [13,14] on creating lane-level maps for vehicle navigation and using high-precision maps for vehicle self-localization have also been conducted. However, the design of existing 19th-level Google and other map services has limitations when using the map as a high-resolution precision display for driving vehicle position at the lane-level. Moreover, an ideal map should provide information on roads, autonomous vehicles, and Internet of Things (IOT) facilities that support autonomous driving.
The purpose of this study was to construct a high-precision 20th-level map for autonomous driving, to test the accuracy of the high-precision map through actual operation and monitoring, and to design a 20th-level map suitable for controlling autonomous vehicles. In addition, this study aimed to review state-of-the-art technologies necessary for automating the construction of high-precision maps as the test bed expands. This study was part of the “Building a Testbed for Pilot Operation of Autonomous Vehicles” project. The study site was Gyeonggi Province, the most populous municipality in Korea.
This paper reports the definition and design process of the schema and the construction and editing of a high-precision digital map and unmanned aerial vehicle (UAV) orthoimages that constitute the map. Moreover, the accuracy of the map is evaluated, and it is verified whether a lane error occurs during the operation through the position data of the autonomous vehicles.
The rest of this paper is organized as follows. Section 2 presents a literature survey related to the monitoring system of driving vehicles, accuracy of maps, and automation technology of high-precision maps. Section 3 explains the data building process of the high-precision digital map and UAV orthoimages. Section 4 describes the base map design. In Section 5, a method to measure the accuracy of the high-precision map is presented, including the measurement results, and the lane errors in autonomous vehicles are verified through an built-in control system. Finally, Section 6 discusses the implications of the findings of the study and plans for future research.

2. Literature Survey

This section discusses previous studies related to the monitoring system of driving vehicles, accuracy of maps, and road marking extraction.

2.1. System and Map for Monitoring Vehicles

In the early 1990s, GPS (Global Positioning System)- and GSM (Global System for Mobile Communications)-based vehicle monitoring systems were used to prevent theft and fraud of expensive cars. At the time, GPS had a precision of up to 10 m for precise positioning service (PPS) and up to 30 m for standard positioning service (SPS) [15]. An accuracy of 30 m was sufficient to achieve the objectives, because the focus was on the approximate location of the vehicles and not on their control.
These vehicle monitoring systems have been developed as a system that can determine the real-time location of a moving vehicle, such as shuttles [6,16], or observe the movement trajectory through a PC environment [5,10,17] or the Web [8,9,18,19]. Moreover, they have been employed for urban traffic control, road engineering survey, and city control survey [16,17,18]. These were implemented as a system [8,9,18,19] using Google Maps and a system [5,10,17] using Map X, rather than creating a map directly. These studies were limited to the implementation of a system that simply displays the GPS position in the system, with no study on location accuracy. GPS has a problem in that the location accuracy of the vehicles is poor because of the reflection of radio waves from buildings and forests, and a map matching study [20,21,22] was conducted to minimize such errors.

2.2. Accuracy of the Generated Digital Map

Generally, the accuracy of precision maps depends on the accuracy of real time-kinematic (RTK). The error in the RTK position solution can be predicted using the dilution of precision (DOP) [23]. The DOP is a numerical representation of the expected position error due to the geometric constellation of the satellites. However, the DOP only indicates the level of expected position error, not the actual position error. The position error can be represented using the coordinate quality (CQ), which converts the DOP into meters [24,25]. CQ is the DOP matrix multiplied by the root mean square (RMS) of the range measurement error for each satellite. At this time, as the RMS cannot be calculated from the actual GPS receiver, the standard deviation is obtained and multiplied instead. Therefore, CQ does not include the bias components of the position error. However, normally, with a CQ of 0.1 or less, bias errors are rarely induced within a few centimeters. Therefore, we can assume that the RTK position solution is accurate when the CQ is small enough.
In this paper, the accuracy of the generated digital map was verified using the position information of the RTK. In a section with a CQ of 0.1 or less, the distance between the location of the RTK and the lane within the precision map was extracted to calculate the lateral position error. Assuming that the RTK position solution is correct, the calculated lateral position error can be considered an error in the precision map.

2.3. Road Marking Extraction from Three-Dimensional (3D) Mobile Laser Scanning

The technology of extracting road markings from point cloud data acquired through a mobile laser scanner (MLS) has been widely used in road management, providing improved navigation information for autonomous vehicles. However, the road marking extraction algorithm using statistical techniques has poor performance, because of subject distortion due to the difference in the materials, and roughness due to the curvature of the road surface. To solve this problem, studies are being conducted [26,27,28] on automatic lane extraction using point clouds, including the use of AI (Artificial Intelligence) technology.
Wen et al. [29] proposed a method consisting of three steps: Road sign detection, classification, and completion using deep learning. The road marking extraction step was simplified to a binary classification problem, which was divided into road and non-road marking points. Subsequently, they developed a road sign detection algorithm. To give robustness to the difference in illuminance, point cloud data collected based on various intensities were used as learning data. In the classification stage, multi-sized clustering and CNN (Convolutional Neural Network)-based classification techniques were developed to detect large road markings, such as lanes and crosswalks, and remaining small road markings. In the completion stage, they proposed a combination of deep learning-based and context-based methods to overcome the complexity of rule-based algorithms and limitations in actual application. The deep learning-based method uses a conditional generative adversarial network (cGAN) to infer complete road markings from incomplete road markings. Through experiments, the precision, recall, and F1-score for road marking extraction were 95.97, 87.52, and 91.55%, respectively, and the error rate of classification was 4.07%.

3. Creation of Base Map Data

Creating most base maps requires high-precision digital mapping. The maps themselves are based on a general map and orthoimages taken by a drone. This section describes the construction of high-precision digital maps (digital topographic maps) and orthoimages, which are the basic data for map creation, before explaining the map design and schema definition.

3.1. Creation of a High-Precision Digital Map

Precise maps for autonomous vehicles are being built by leading map builders. A precise map has its own structure that defines road information necessary for autonomous driving. The HERE map [30] describes the road map, road structure, and spatial composition based on the existing road centerline concept. The TomTom map [31] also defines information on the structure and composition of roads, lane markings, traffic signs, and surrounding facilities based on the concept of lanes. It also defines the properties of RoadDNA. In Korea, the National Geographic Information Institute is constructing a map with the precision required for autonomous driving. A high-precision digital map in this research was constructed following the guidelines of the National Geographical Institute’s precision map [32].
The high-precision digital map is created using the point cloud data, shown in Figure 1a, collected from the Global Navigation Satellite System (GNSS), inertial navigation unit (INS), and laser (Lidar) sensors. In general, urban regions (high buildings) are GPS shadow areas, with relatively large errors, as shown in Figure 1b. These errors were reduced mainly by post-processing the mobile mapping system (MMS)-measured Lidar data and GPS/INS data using the ground control point (GCP) as the reference point. In the plotting process, shown in Figure 1c, the data were loaded in a point cloud plotting instrument. With this instrument, lanes were extracted in lines using the solid dotted car lanes as a reference, and the center point of the traffic markings was extracted from the dotted data. Finally, in Figure 1d, the map was completed by field check editing, which involves extracting the objects and editing and correcting the entered data, and structural editing, which involves entering the attribute information.
Table 1 lists the 11 layers involved in constructing the high-precision map for autonomous vehicles. The items include road markings (e.g., lane markings), road facilities, road safety markings, road stripes signals, no-autonomous driving zones, and roadside facilities. Different layers have a link relationship through the LinkID property of A3_LINK layer as shown in Figure 2.

3.2. Creation of Orthoimages

3.2.1. Orthoimage Shooting

The orthoimages were taken using a rotor UAV (DJI matrice 210 model) equipped with a 2000-pixel camera(zenmuse x4s) and an RTK system.
The 35 GCPs, as shown in Figure 3c, were installed on the ground for picture matching and position correction. The flight altitude was maintained below 150 m, and the flight speed was maintained at 18 m/s. Figure 3a shows the operation of the UAV. Figure 3b shows the results.

3.2.2. Orthoimage Editing

A tile map was created from 15 to 20 levels in the previously created orthoimages using ArcGIS Desktop, and it was loaded into the monitoring system. Various problems occurred when magnifying the 4.8 cm image to the 20th level. These included overlapping of running cars and lanes, noise from road facilities due to different shooting angles, and differences in color tone with the 1:5000 map in regions other than the shooting target. In particular, the overlapping of cars and lanes caused visual inconvenience when monitoring the autonomous vehicles. Therefore, the overlapped vehicles and lanes were manually deleted from the 2840 individual images before matching. Finally, the images matched with Pix4d were corrected, as shown in Figure 4.

4. Base Map Design

This chapter explains the cycle of the base map that constitutes the monitoring system, including the definition of the dissemination layer used in the design of the base map. A literature review was conducted, and Google Maps, the Korean national map platform Baro e-map [33], and maps accessed via representative Korean portal sites [34,35] were analyzed. The maps showed little difference in terms of their design and schema. Currently, the information provided by the national and local traffic monitoring systems in Korea is based on web cam maps; no map has been specifically designed for traffic monitoring. The proposed design utilizes the Baro e-map, which has no restrictions on reuse. Significant differences in the map design and cycle would confuse users. Therefore, the existing schema was modified to suit autonomous vehicle monitoring, and the 20-level schema and design that are not included in the existing schema were added.

4.1. Definition of Dissemination Level Stage

In terms of the zoom-in/zoom-out level of the high-precision digital map, Web Map Service (WMS) levels were used. Considering the project coverage, the dataset was built in six stages to ensure that the map was properly expressed at 15–20 levels, as listed in Table 2. The dissemination cycle was distinguished between a fixed cycle and a general cycle. The dissemination in each level, labeling treatment, and icon insertion was set considering the cases of fixed dissemination at all levels or the dissemination at a certain level.

4.2. Detailed Editing of High-Precision Map

As shown in Figure 5, additional editing of the high-precision digital map described in the previous chapter was conducted to use it as a tile map for autonomous vehicle monitoring. For a smooth linear design pattern, the disconnected lines were connected. When connecting the lines, the actual appearance of the lines was used, because the meanings of the lines differ according to their shape, color, and type (i.e., double or single). Safety zones, green zones, traffic islands, and concrete curbs were depicted as closed areas. Crosswalks were edited in a rectangular shape and made to replicate those in the study area. Finally, duplication removal and line connection editing were applied to the stop lines, regardless of the type of stop line (signal stop line or crosswalk stop line). The endpoints of the stop lines were edited such that they touched the neighboring lane.

4.3. Design of Tile Map

Similar to the existing map, the base map in this study was created using a digital map and orthoimages. In addition, a hybrid type of base map was designed that combined the advantages of the high-precision digital maps and orthoimages. Figure 6 shows examples of three types of base maps. An orthoimage has an advantage in that it can realistically provide information about the area surrounding the roads. However, it gives rise to visual discomfort when providing information of 20-level high-resolution because of traces of roadworks and deleted lanes, even after removing noise by editing the road images. To solve this problem, a hybrid map was created, where the road part was inputted as high-precision digital data, and the surrounding area was built in an orthoimage.

4.4. Base Map Design and Tile Map Performance

In this study, the schema and design of the base map were based on the Baro e-map. As listed in Table 3, 84 designs were newly added for monitoring the autonomous vehicles. The following aspects were considered in the design: Synchronization with topography in the study area, delivery of monitoring information with intuitive design, and user readability based on the size of the monitoring system image.
Table 4 lists the performance results of the tile map of each base map. The high-precision digital map, hybrid map, and orthoimage are composed of 83, 38, and 8 layers, respectively. Table 5 gives an example of the composition of the layers of the high-precision digital map. The map tile service was built in compliance with OGC 07-057r7 [36].

5. Precision Verification for the High-Precision Digital Map

In the previous sections, we explained the process of acquiring map data and designing the map. In this section, the accuracy of the map is evaluated to check whether lane-level control is possible. The lane error is verified through the location of the vehicle using RTK and INS.

5.1. Precision Measurement of High-Precision Maps

In this study, the accuracy of the map was verified through the Korea Testing Laboratory (KTL), which is a government certification organization. For the verification method, after selecting four street lamps, as shown in Figure 7a, on the road, we measured the outline of the column using a laser tracker (Leica/AT401), as shown in Figure 7b, and compared it with the distance measured using the laser distance sensor of the MMS vehicle.
Table 6 lists the measured distances between the four streetlights obtained using the laser tracker. Table 7 lists the distances of the streetlights on the map drawn to the Lidar points of the MMS vehicle.
Table 8 lists the difference between the two distances. The maximum distance deviation was measured to be ±81.95 mm. This result satisfies the maximum deviation (±100 mm) of the precision map.

5.2. Lane Error Verification

The maps were then loaded into the monitoring system of an autonomous vehicle. As shown in Figure 8, the location of the autonomous vehicle, point of interest (POI), information about IOT sensors on the road, and up-to-date information on traffic lights were collected during autonomous driving on a real road.
The accuracy of the high-precision digital map was verified using the vehicle trajectory. The vehicle trajectory was obtained from GPS/INS, and the GPS/INS used was Ekinox2-D. The RTK/INS mode of Ekinox2-D has an accuracy of within 20 cm when the outage duration is 16 s [37]. Figure 9 shows the RTK/INS position projected onto a high-precision digital map. The RTK/INS trajectory can be well observed at the center of both the lanes. During the driving test, the vehicle traveled along the center of the two lanes.
Figure 10 shows the CQ for the RTK/INS position. CQ is an index indicating the precision of the GPS position [24,25]. Generally, when CQ is less than 0.1, the RTK position solution is mostly a fixed solution. The accuracy of the fixed solution is within 10 cm [38,39]. Therefore, when CQ is less than 0.1, the RTK position accuracy can be less than 10 cm. As the outage duration of the RTK is within 10 s in most cases, the position accuracy for the RTK/INS is within 30 cm in most sections. Figure 8 shows the result of dividing the vehicle driving trajectory into a lane change section and a lane keeping section.
Figure 11 shows the result of dividing the vehicle driving trajectory into lane change section and lane keeping section. The blue stars represent the lane change section, and the green stars represent the lane keeping section. Therefore, the lateral position error of the RTK/INS can be obtained by calculating the distance between the two lanes and the RTK/INS position in the green section. At this time, it is assumed that the vehicle travels along the center of the two lanes in the green section. Figure 12 shows the lateral position error of the RTK/INS for a high-precision digital map in the green section.
There are several methods of error analysis [40,41]. In this paper, we used root mean square error (RMSE) to find absolute. In the green section of Figure 11, the RMS lateral position error of RTK/INS is 13.9 cm. This is similar to the expected position error of the RTK/INS. From this result, we can indirectly verify the accuracy of the high-precision digital map. Therefore, a lane-level monitoring of autonomous vehicles can be made using a high-precision digital map.

6. Conclusions

This study defined and designed a schema that satisfies the requirements of a 20-level high-precision map as a base map for an autonomous vehicle monitoring system. The study was based on the schema of an existing national map platform (Baro e-map). The design and schema were modified to fulfill the requirements of autonomous vehicles, and 20 new levels were added. Finally, three types of base maps were constructed: A 20-level high-precision digital map, a UAV orthoimage map, and a hybrid map that combines the former maps.
The high-precision map created using the MMS vehicle was verified using a laser tracker through a national certification organization. The verification result was ±81.95 mm, which satisfied the target of ±100 mm. The accuracy of the high-precision digital map was also verified by analyzing the position error of the RTK/INS. The lateral position error of the RTK/INS was mostly within 30 cm, and the RMS error was 13.9 cm. This result was similar to the expected position error of the RTK/INS, thus demonstrating the accuracy of the high-precision digital map. Therefore, a high-precision digital map can be used for lane-level monitoring of autonomous vehicles.
We built a system for monitoring an autonomous vehicle moving along a planned lane, in addition to an existing control system for vehicle location only. Although much research has been conducted on technologies for mapping autonomous vehicles, this study, which was based on test bed and operation data, was conducted to determine whether high-precision maps and 20-level maps can help control autonomous vehicles.
The present study has some limitations. First, no survey on the needs of actual users of the controller was conducted because of the short project duration. This limitation will be addressed in the future when controllers operate the monitoring system. Second, much of the work during the data construction process of the high-precision digital map and UAV orthoimage was done manually. Updating the map is important in the case of map data for providing up-to-date information. Further studies are required to shed light on collecting up-to-date data, such as utilizing black boxes and communication technologies, and editing the same in a timely and cost-efficient manner.

Author Contributions

Conceptualization, Sungil Ham; formal analysis, Minjun Kim and Junhyuck Im; funding acquisition, Kuk Cho; writing—original draft, Sungil Ham; writing—review and editing, Kuk Cho.

Funding

This research was supported by a grant titled “Industrial Technology Innovation Project—Core Technology Development Project of Automobile Industry (10052941)” from the Korea Evaluation Institute of Industrial Technology.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Chen, X.; Kohlmeyer, B.; Stroila, M.; Alwar, N.; Wang, R.; Bach, J. Next generation map making: Geo-referenced ground-level LIDAR point clouds for automatic retro-reflective road feature extraction. In Proceedings of the 17th ACM SIGSPATIAL International Conference on Advances in Geographic Information Systems, Seattle, WA, USA, 4–6 November 2009; ACM: New York, NY, USA, 2009; pp. 488–491. [Google Scholar]
  2. He, B.; Ai, R.; Yan, Y.; Lang, X. Lane marking detection based on convolution neural network from point clouds. In Proceedings of the 2016 IEEE 19th International Conference on Intelligent Transportation Systems (ITSC), Rio de Janeiro, Brazil, 1–4 November 2016; IEEE: Piscataway, NJ, USA, 2016; pp. 2475–2480. [Google Scholar]
  3. Caltagirone, L.; Scheidegger, S.; Svensson, L.; Wahde, M. Fast LIDAR-based road detection using fully convolutional neural networks. In Proceedings of the 2017 IEEE Intelligent Vehicles Symposium (IV), Los Angeles, CA, USA, 11–14 June 2017; IEEE: Piscataway, NJ, USA, 2017; pp. 1019–1024. [Google Scholar]
  4. Park, C.H.; Choi, K.; Lee, I. Lane extraction through UAV mapping and its accuracy assessment. J. Korean Soc. Surv. Geod. Photogramm. Cartogr. 2016, 34, 11–19. [Google Scholar] [CrossRef]
  5. Hu, H.; Fang, L. Design and implementation of vehicle monitoring system based on GPS/GSM/GIS. In Proceedings of the Third International Symposium on Intelligent Information Technology Application, Shanghai, China, 21–22 November 2009; IEEE: Piscataway, NJ, USA, 2009; Volume 3, pp. 278–281. [Google Scholar]
  6. Hannan, M.A.; Mustapha, A.M.; Hussain, A.; Basri, H. Intelligent bus monitoring and management system. In Proceedings of the World Congress on Engineering and Computer Science, San Francisco, CA, USA, 24–26 October 2012; Volume 2, pp. 24–26. [Google Scholar]
  7. Xutao, L.; DongSen, C.; Zhijie, Z.; Yunqiang, S. Design of transport vehicles remote monitoring system. In Proceedings of the 2010 2nd International Conference on Education Technology and Computer, Shanghai, China, 22–24 June 2010; Volume 2, pp. V2-310–V2-312. [Google Scholar]
  8. Verma, P.; Bhatia, J.S. Design and development of GPS-GSM based tracking system with Google map based monitoring. Int. J. Comput. Sci. Eng. Appl. 2013, 3, 33. [Google Scholar] [CrossRef]
  9. Almomani, I.M.; Alkhalil, N.Y.; Ahmad, E.M.; Jodeh, R.M. Ubiquitous GPS vehicle tracking and management system. In Proceedings of the 2011 IEEE Jordan Conference on Applied Electrical Engineering and Computing Technologies (AEECT), Amman, Jordan, 6–8 December 2011; pp. 1–6. [Google Scholar]
  10. Chen, P.; Liu, S. Intelligent vehicle monitoring system based on GPS, GSM and GIS. In Proceedings of the 2010 WASE International Conference on Information Engineering, Beidaihe, China, 14–15 August 2010; IEEE: Piscataway, NJ, USA, 2010; Volume 1, pp. 38–40. [Google Scholar]
  11. Google. Google Map. Available online: https://www.google.com/maps (accessed on 20 September 2018).
  12. MapX. Available online: https://www.mapx.org (accessed on 12 February 2019).
  13. Chen, A.; Ramanandan, A.; Farrell, J.A. High-precision lane-level road map building for vehicle navigation. In Proceedings of the Position Location and Navigation Symposium (PLANS), Indian Wells, CA, USA, 4–6 May 2010; pp. 1035–1042. [Google Scholar]
  14. Schindler, A. Vehicle self-localization with high-precision digital maps. In Proceedings of the IEEE Intelligent Vehicles Symposium Workshops (IV Workshops), Gold Coast, Australia, 23 June 2013; pp. 134–139. [Google Scholar]
  15. Stewart, J.M. Vehicle location and position monitoring system using satellite navigation and cellular telephone. In Proceedings of the Vehicle Location and Fleet Management Systems, IEE Colloquium on, London, UK, 8 June 1993; IET: London, UK, 1993; pp. 1–7. [Google Scholar]
  16. Qin, K.; Xing, J.; Chen, G.; Wang, L.; Qin, J. The design of intelligent bus movement monitoring and station reporting system. In Proceedings of the 2008 IEEE International Conference on Automation and Logistics, Qingdao, China, 1–3 September 2008; pp. 2822–2827. [Google Scholar]
  17. Deng, C.; Xue, L.; Li, W.; Zhou, Z. The real-time monitoring system for inspecting car based on RFID, GPS and GIS. In Proceedings of the 2010 The 2nd Conference on Environmental Science and Information Application Technology, Wuhan, China, 17–18 July 2010; IEEE: Piscataway, NJ, USA, 2010; Volume 2, pp. 772–775. [Google Scholar]
  18. US Fleet Tracking GPS Tracking Solution. Available online: https://app.usfleettracking.com/?demo=true&mobile=false (accessed on 8 July 2019).
  19. Advanced Tracking Technologies, Inc. Available online: http://www.advantrack.com/ (accessed on 8 July 2019).
  20. Velaga, N.R.; Quddus, M.A.; Bristow, A.L.; Zheng, Y. Map-aided integrity monitoring of a land vehicle navigation system. IEEE Trans. Intell. Transp. Syst. 2012, 13, 848–858. [Google Scholar] [CrossRef]
  21. Skog, I.; Handel, P. In-car positioning and navigation technologies—A survey. IEEE Trans. Intell. Transp. Syst. 2009, 10, 4–21. [Google Scholar] [CrossRef]
  22. Binjammaz, T.; Al-Bayatti, A.; Al-Hargan, A. GPS integrity monitoring for an intelligent transport system. In Proceedings of the 2013 10th Workshop on Positioning, Navigation and Communication (WPNC), Dresden, Germany, 20–21 March 2013; IEEE: Piscataway, NJ, USA, 2013; pp. 1–6. [Google Scholar]
  23. Langley, R.B. Dilution of precision. GPS World 1999, 10, 52–59. [Google Scholar]
  24. Ayers, H.B. GNSS (GPS and GLONASS) Positioning used in Land Surveying and Engineering. In Proceedings of the Joint AMLS/APEGM Professional Development Seminar on GPS Best Practices Workshop, Winnipeg, MB, Canada, 18 January 2011. [Google Scholar]
  25. Luo, X.; Richter, B.; Cole, A. GLONASS only and BeiDou only RTK Positioning. In Proceedings of the ION GNSS+ 2014, Tampa, FL, USA, 8–12 September 2014. [Google Scholar]
  26. Yu, Y.; Li, J.; Guan, H.; Wang, C.; Yu, J. Semiautomated extraction of street light poles from mobile LiDAR point-clouds. IEEE Trans. Geosci. Remote Sens. 2014, 53, 1374–1386. [Google Scholar] [CrossRef]
  27. Pu, S.; Rutzinger, M.; Vosselman, G.; Elberink, S.O. Recognizing basic structures from mobile laser scanning data for road inventory studies. ISPRS J. Photogramm. Remote Sens. 2011, 66, S28–S39. [Google Scholar] [CrossRef]
  28. Yang, B.; Fang, L.; Li, Q.; Li, J. Automated extraction of road markings from mobile LiDAR point clouds. Photogramm. Eng. Remote Sens. 2012, 78, 331–338. [Google Scholar] [CrossRef]
  29. Wen, C.; Sun, X.; Li, J.; Wang, C.; Guo, Y.; Habib, A. A deep learning framework for road marking extraction, classification and completion from mobile laser scanning point clouds. ISPRS J. Photogramm. Remote Sens. 2019, 147, 178–192. [Google Scholar] [CrossRef]
  30. Here HD Live Map. Available online: https://www.here.com/products/automotive/hd-maps (accessed on 10 October 2019).
  31. TomTom. Powers Automated Driving. Available online: https://www.tomtom.com/automotive/automotive-solutions/automated-driving/ (accessed on 10 October 2019).
  32. National Geographical Institute’s Precision Map. Available online: http://map.ngii.go.kr/ms/pblictn/preciseRoadMap.do (accessed on 10 October 2019).
  33. Information National Geographic Institute Baro E-Map. Available online: http://emap.ngii.go.kr/mapSvc/mapSvcMain.do (accessed on 20 September 2018).
  34. Naver Naver Map. Available online: https://map.naver.com (accessed on 20 September 2018).
  35. Daum Daum Map. Available online: http://map.daum.net (accessed on 20 September 2018).
  36. Masó, J.; Pomakis, K.; Julia, N. OGC Web Map Tile Service (WMTS) Implementation Standard; Ver 1.0, OGC 07-057r7; Open Geospatial Consortium: Wayland, MA, USA, 2015. [Google Scholar]
  37. SBG Systems Ekinox Test Results. Available online: https://www.sbg-systems.com/wp-content/uploads/2018/07/Ekinox_INS-Automotive-Test-Result.pdf (accessed on 20 September 2018).
  38. Feng, Y.; Wang, J. GPS RTK performance characteristics and analysis. J. Glob. Position. Syst. 2008, 7, 1–8. [Google Scholar] [CrossRef]
  39. Lachapelle, G.; Alves, P.; Fortes, L.P.; Cannon, M.E.; Townsend, B. DGPS RTK positioning using a reference network. In Proceedings of the ION-GPS 2000, Salt Lake City, UT, USA, 19–22 September 2000; pp. 19–22. [Google Scholar]
  40. Castaño, F.; Beruvides, G.; Villalonga, A.; Haber, R. Self-tuning method for increased obstacle detection reliability based on internet of things LiDAR sensor models. Sensors 2018, 18, 1508. [Google Scholar] [CrossRef] [PubMed]
  41. Castaño, F.; Strzelczak, S.; Villalonga, A.; Haber, R.E.; Kossakowska, J. Sensor Reliability in Cyber-Physical Systems Using Internet-of-Things Data: A Review and Case Study. Remote Sens. 2019, 11, 2252. [Google Scholar] [CrossRef]
Figure 1. Creation of a high-precision digital map.
Figure 1. Creation of a high-precision digital map.
Ijgi 08 00501 g001
Figure 2. Link relationships between different layers in a high-precision road map.
Figure 2. Link relationships between different layers in a high-precision road map.
Ijgi 08 00501 g002

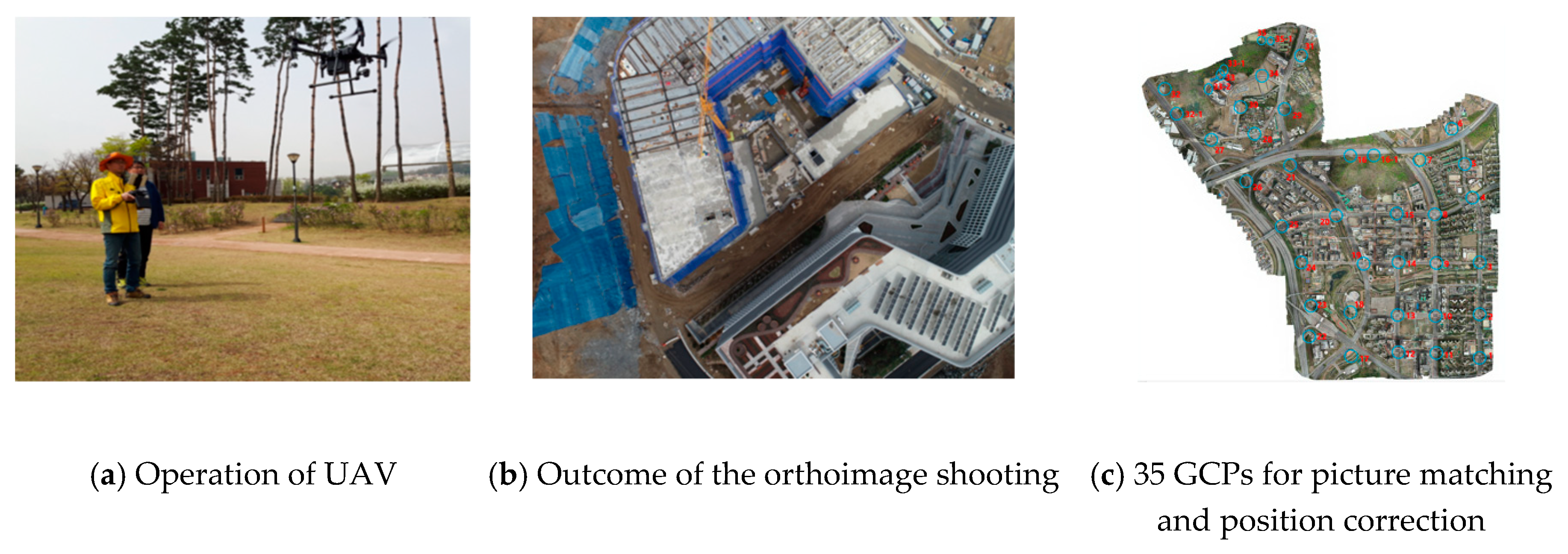

Figure 3. Orthoimage shooting. Abbreviations: UAV, unmanned aerial vehicle; GCP, ground control point.
Figure 3. Orthoimage shooting. Abbreviations: UAV, unmanned aerial vehicle; GCP, ground control point.
Ijgi 08 00501 g003

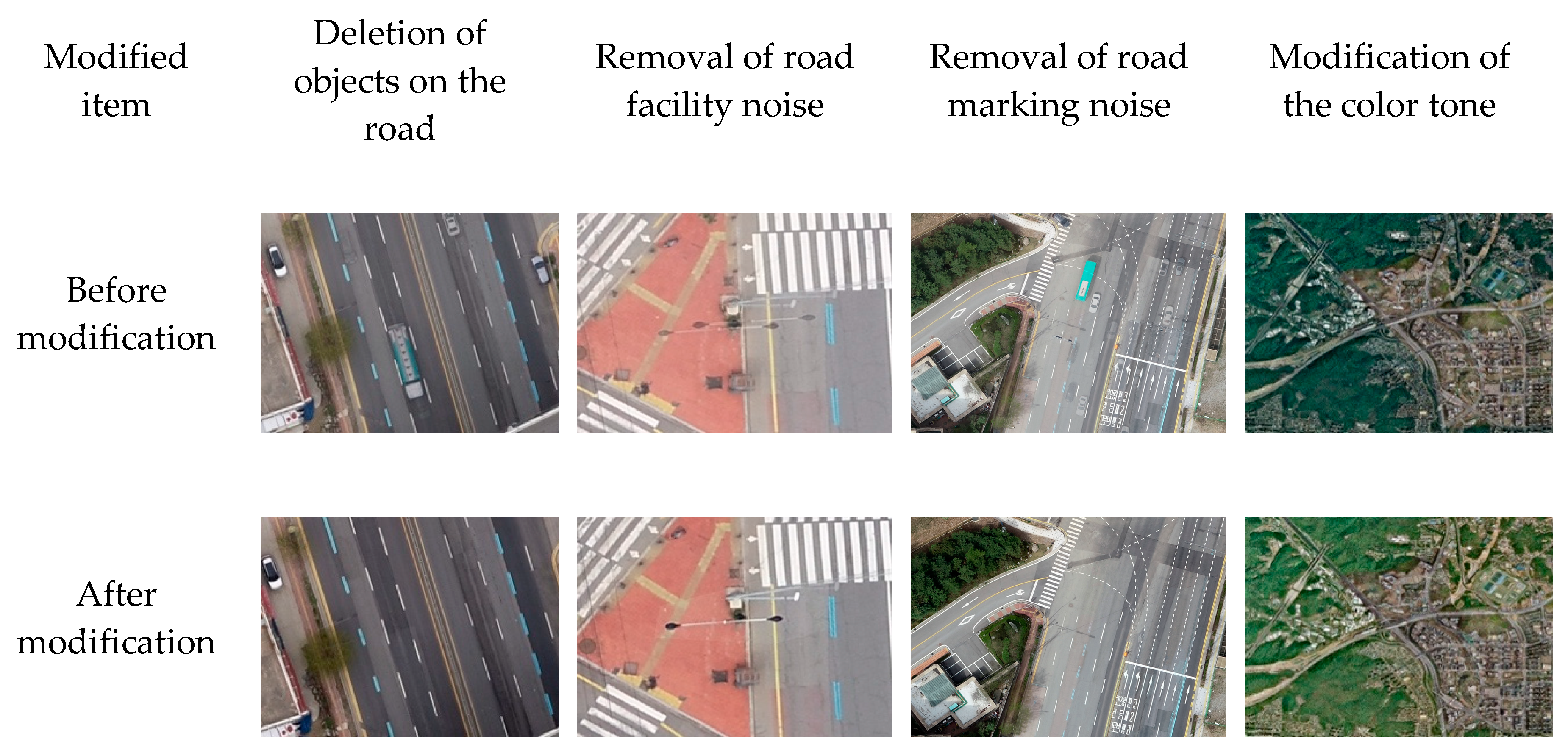

Figure 4. Orthoimage editing.
Figure 4. Orthoimage editing.
Ijgi 08 00501 g004

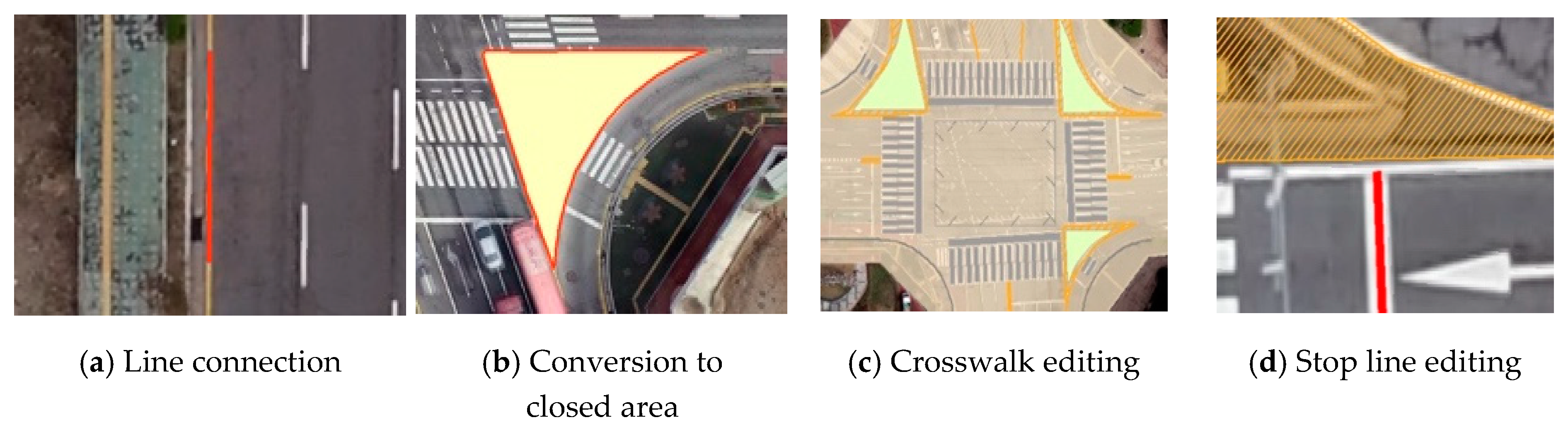

Figure 5. Detailed editing of a high-precision digital map.
Figure 5. Detailed editing of a high-precision digital map.
Ijgi 08 00501 g005
Figure 6. Final outcome of three types of base maps.
Figure 6. Final outcome of three types of base maps.
Ijgi 08 00501 g006
Figure 7. Operation of monitoring system of an autonomous vehicle.
Figure 7. Operation of monitoring system of an autonomous vehicle.
Ijgi 08 00501 g007

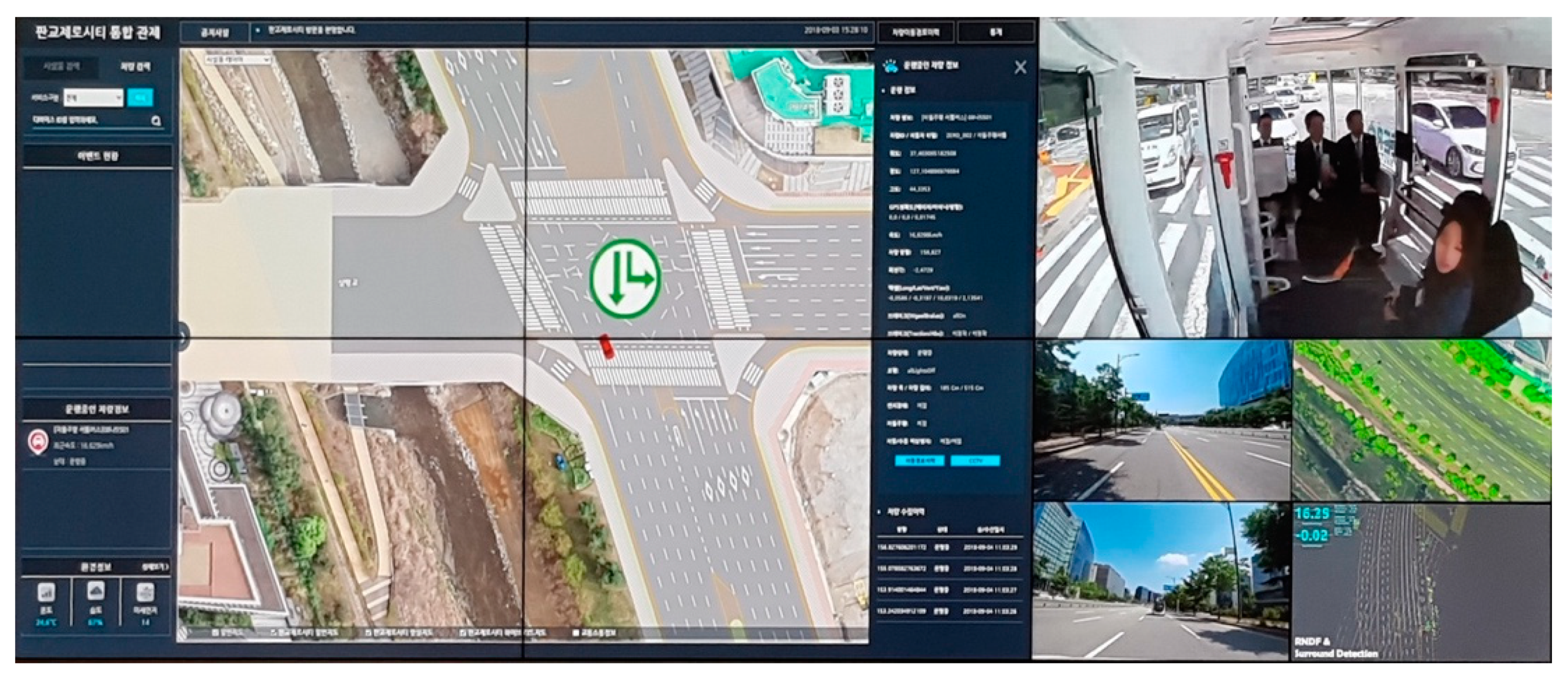

Figure 8. Operation of monitoring system of an autonomous vehicle.
Figure 8. Operation of monitoring system of an autonomous vehicle.
Ijgi 08 00501 g008

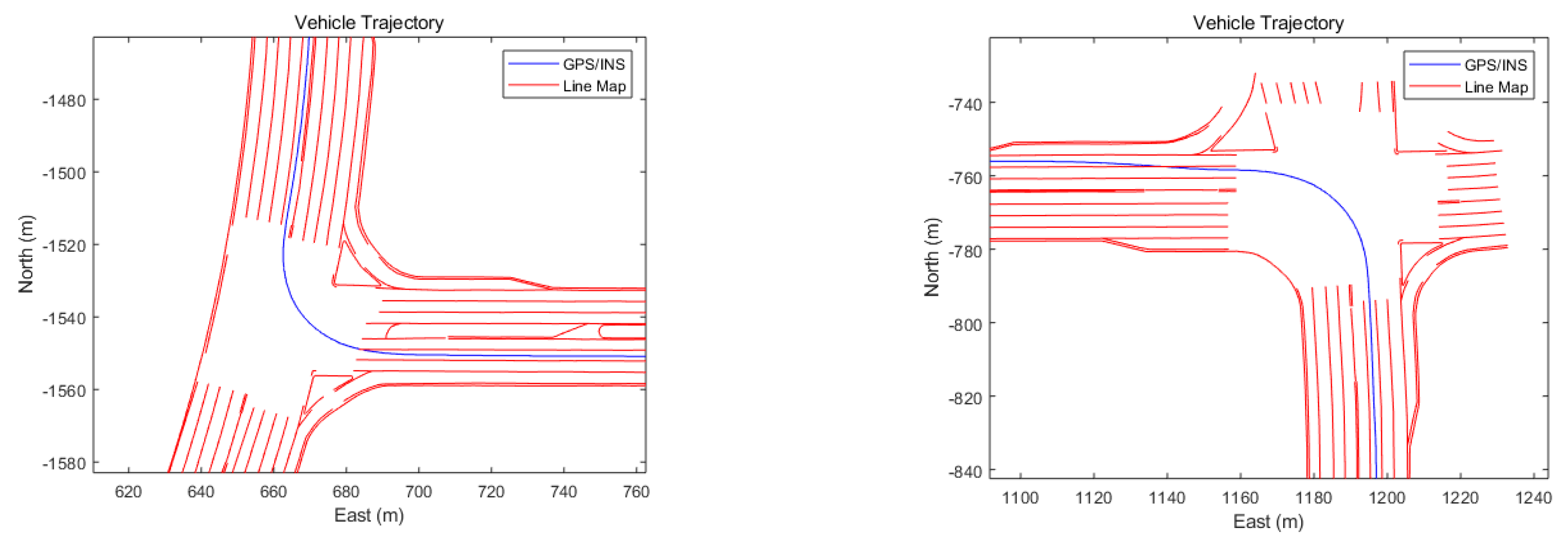

Figure 9. Real time-kinematic (RTK)/inertial navigation unit (INS) position projected onto a high-precision digital map.
Figure 9. Real time-kinematic (RTK)/inertial navigation unit (INS) position projected onto a high-precision digital map.
Ijgi 08 00501 g009

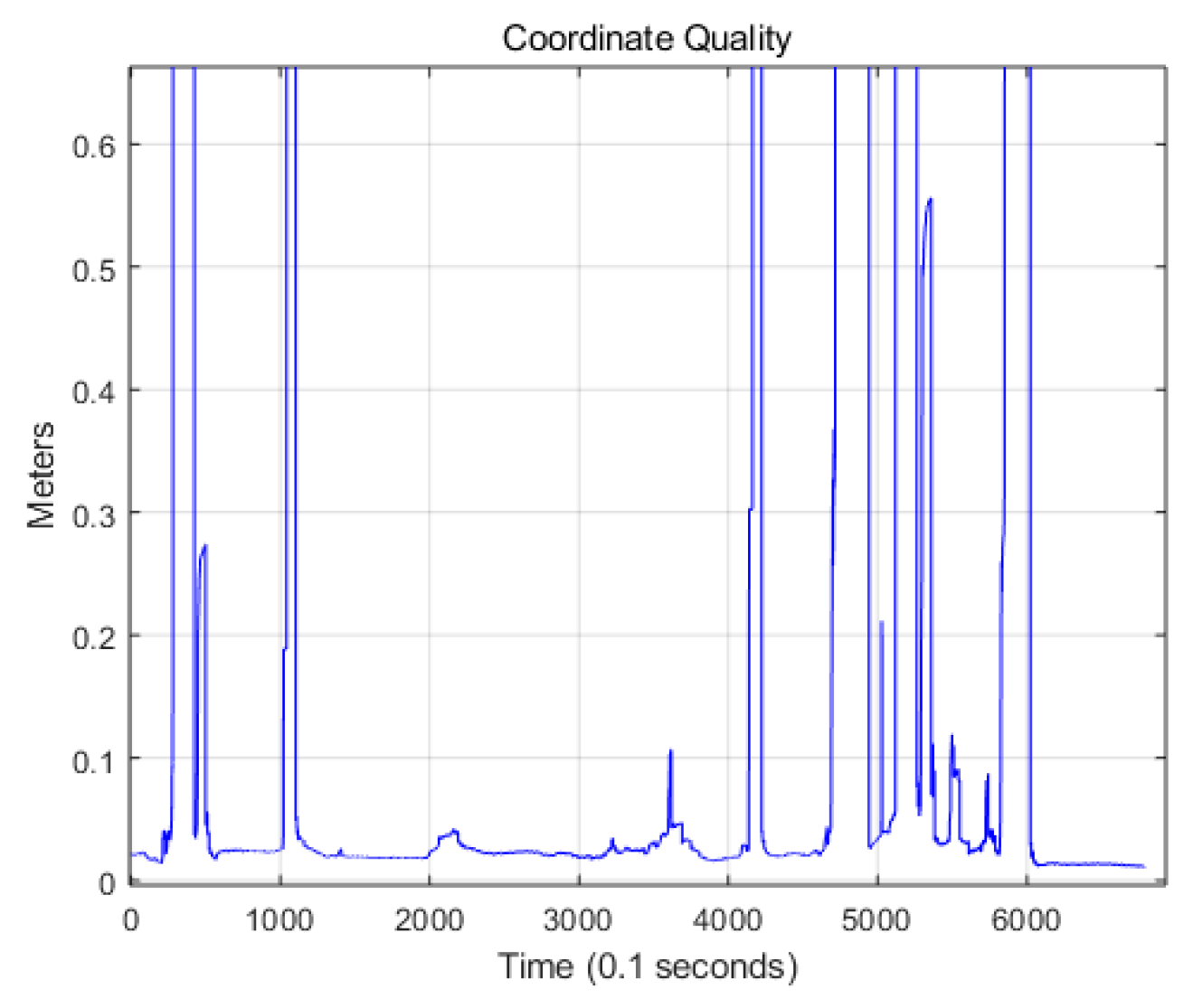

Figure 10. Coordinate quality (CQ) of Ekinox2-D RTK/INS.
Figure 10. Coordinate quality (CQ) of Ekinox2-D RTK/INS.
Ijgi 08 00501 g010
Figure 11. Result of dividing the vehicle trajectory into lane change and lane keeping sections.
Figure 11. Result of dividing the vehicle trajectory into lane change and lane keeping sections.
Ijgi 08 00501 g011

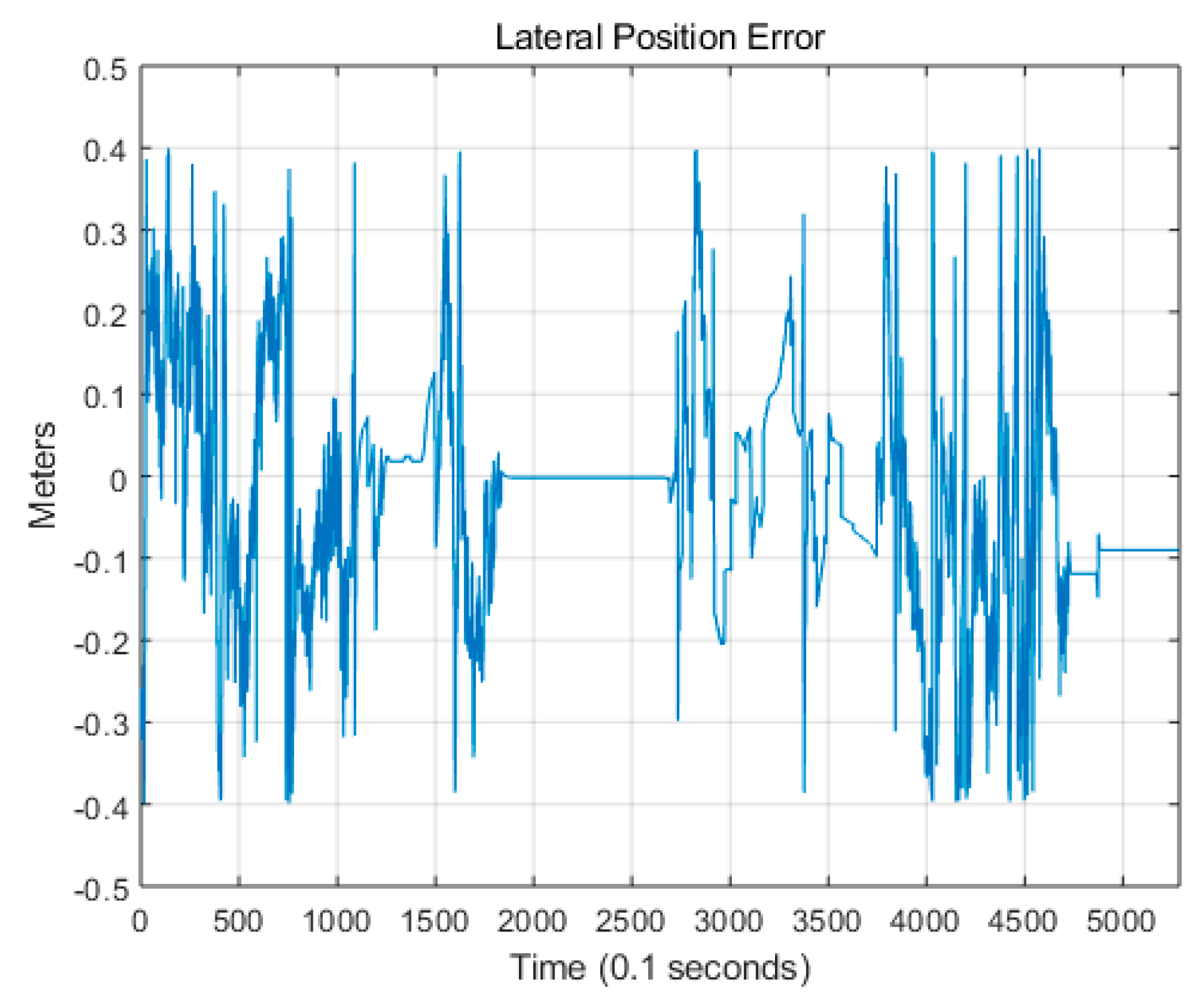

Figure 12. Lateral position error of the RTK/INS for a high-precision digital map.
Figure 12. Lateral position error of the RTK/INS for a high-precision digital map.
Ijgi 08 00501 g012
Table 1. Specific items used in building a high-precision road map.
Table 1. Specific items used in building a high-precision road map.
NumberTable NameTABLE NAMEExplanationType
1Lane markingA1_LANELeft and right lanes, lane color, centerline, bus-only laneLine
2Road facilitiesA2_STOPSignal stop line, crosswalk stop lineLine
3Centerline of laneA3_LINKHighway, national highway, local road, city road, country roadLine
4Sign facilitiesB1_SIGN_POINTAttention, regulation, indication, subsidiary signDot
5SignalB1_SIGNAL_POINTSignalDot
6Road directionB2_SURFSIGN_POINTRoad marking, direction markingDot
7Guide lineB2_SURFSIGN_LINE.Guide line for left turnLine
8CrosswalkB2_SURFSIGN_PLANENo stopping zone, guide zone, uphill road, crosswalkArea
9No-autonomous driving zoneB2_NOAUTONOMOUS_PLANEProtection zones (children, disabled, elderly, and others)Area
10Roadside facilitiesB3_POST_POINTRoadside facilities such as streetlamps and road signsDot
11NodeC1_NODENodeDot
Table 2. Stages of map dissemination levels.
Table 2. Stages of map dissemination levels.
Dissemination Level StageClassificationLevelMap Tile Rendering Scale (UTMK)Distance on Map by Each Level (m)Distance in 1 Pixel (m)Distance in 100 Pixels (m)
Stage 6Top detail201:4516.5012
Stage 5Detail191:90213024
Stage 4Real estate181:180425048
Stage 3-171:360750195
Stage 2Street161:72141002191
Stage 1-151:14,4292004
Table 3. Design performance. Abbreviations: IOT, Internet of Things.
Table 3. Design performance. Abbreviations: IOT, Internet of Things.
ItemDesign ConceptNumber
Precision road map, area, and line layerSynchronization with topography in the study area32
Precision road map, dot layerUser readability considering the sizes of the images in the monitoring system37
IOT facilities, dot layerIntuitive design to enhance user understanding15
Sum84
Table 4. Performance of the tile map.
Table 4. Performance of the tile map.
ItemHigh-Precision Digital MapHybrid MapUAV Orthoimage Map
Tile base typeVector SHP fileUAV image + vector SHP fileUAV image + vector SHP file
Number of tiles28,11827,960 27,960
Tile capacity23.7 MB2.00 GB2.24 GB
Number of constructed layers83388
Table 5. Composition of the layers of a high-precision digital map.
Table 5. Composition of the layers of a high-precision digital map.
Large CategoryMedium CategoryLayerForm15l v16l v17l v18l v19l v20l v
Precise road mapLane Generalized centerlineLineooo---
CenterlineLine---ooo
U-turn zone line Line----oo
Bus-only laneLine--- oo
No lane-changing line Line----oo
LaneLine----oo
No parking lineLine----oo
No parking or stopping line Line----oo
Roadside zone lineLine----oo
Car guide line Line----oo
FacilitiesGreen zonePolygon---ooo
Traffic islandPolygon---ooo
Safety zonePolygon---ooo
Concrete curbPolygon---ooo
Concrete protective wallLine----oo
Jaywalking-preventing facilitiesLine---ooo
GuardrailLine---ooo
CurbLine---ooo
Stop lineStop lineLine----oo
CrosswalkBicycle crosswalk Polygon----oo
No stopping zonePolygon----oo
Generalized crosswalkPolygon---oo-
CrosswalkPolygon-----o
Road markingRoad direction markingPolygon-----o
Table 6. Distances (mm) measured by a laser tracker (Leica/AT401).
Table 6. Distances (mm) measured by a laser tracker (Leica/AT401).
Streetlamp 1Streetlamp 2Streetlamp 3Streetlamp 4
Streetlamp 10.049,661.299,614.310,846.4
Streetlamp 249,661.20.052,410.555,853.1
Streetlamp 399,614.352,410.50.012,077.7
Streetlamp 410,846.455,853.112,077.70.0
Table 7. Distances (mm) measured by the laser distance sensor of the MMS vehicle.
Table 7. Distances (mm) measured by the laser distance sensor of the MMS vehicle.
Streetlamp 1Streetlamp 2Streetlamp 3Streetlamp 4
Streetlamp 10.049,662.399,522.410,775.4
Streetlamp 249,662.30.052,457.455,925.1
Streetlamp 399,522.452,457.40.012,124.0
Streetlamp 410,775.455,925.112,124.00.0
Table 8. Difference (mm) between the results listed in Table 6 and Table 7.
Table 8. Difference (mm) between the results listed in Table 6 and Table 7.
Streetlamp 1Streetlamp 2Streetlamp 3Streetlamp 4
Streetlamp 10.0−1.191.971.0
Streetlamp 2−1.10.0−46.9−72.0 *
Streetlamp 391.9 *−46.90.0−46.3
Streetlamp 471.0−72.0−46.30.0
* Maximum deviation = |91.9| + |–72.0| = 163.9 mm = ±81.95 mm.

© 2019 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
Back to TopTop
