A High-performance Cross-platform Map Rendering Engine for Mobile Geographic Information System (GIS)
Previous Article in Journal
Social Media Use in American Counties: Geography and Determinants
Open AccessArticle

Real-Time Displacement of Point Symbols Based on Spatial Distribution Characteristics

by 1,2,3, Ling Zhang 1,2,3,*, 1,2,3 and 4
1
Key Laboratory of Virtual Geographic Environment (Nanjing Normal University), Ministry of Education, Nanjing 210023, China
2
State Key Laboratory Cultivation Base of Geographical Environment Evolution (Jiangsu Province), Nanjing 210023, China
3
Jiangsu Center for Collaborative Innovation in Geographical Information Resource Development and Application, Nanjing 210023, China
4
Institute of Space and Earth Information Science, The Chinese University of Hong Kong, Hong Kong 999077, China
*
Author to whom correspondence should be addressed.
ISPRS Int. J. Geo-Inf. 2019, 8(10), 426; https://doi.org/10.3390/ijgi8100426
Received: 21 August 2019 / Revised: 11 September 2019 / Accepted: 16 September 2019 / Published: 20 September 2019

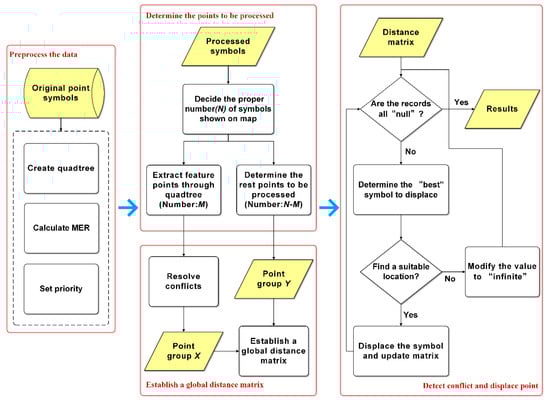

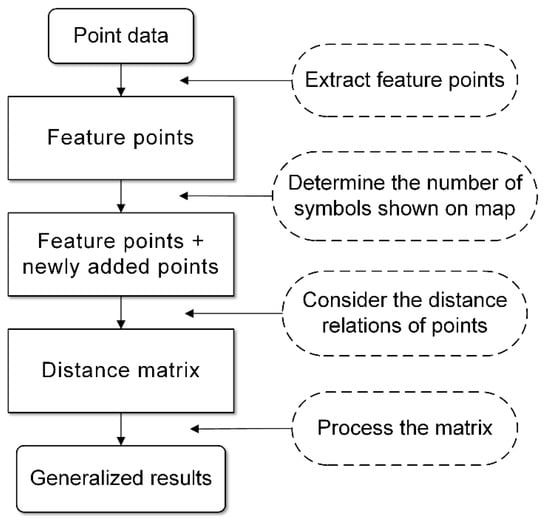

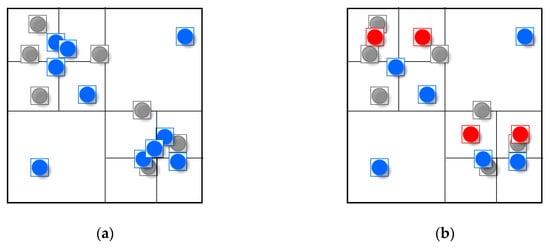

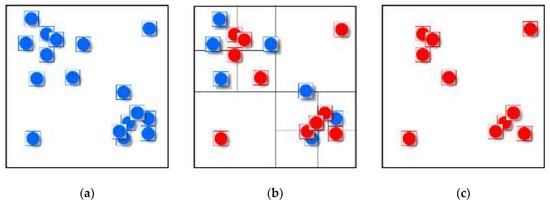

Maps at different scales have different emphases on the information representation of point data. With a focus on large scales, this paper proposes an improved sequential displacement method. While existing approaches mostly use a fixed order to place points during displacement, the proposed method takes into consideration the spatial distribution characteristics, including the spatial structure and the holistic distance relations of a point group. This method first rapidly extracts feature points through a quadtree index to capture the spatial structure of a point group. Then, it uses map information content to determine the points to be processed. Finally, a global distance matrix for the above two sets of points is established. Overlapping of symbols is resolved by processing the global distance matrix. The algorithm is estimated by comparing with the latest strategy, which has overcome the position drift drawback of traditional sequential displacement methods and the results show that the proposed method can improve the effects of map expression and meet the requirements of real-time processing. View Full-Text
Keywords: map generalization; real-time generalization; POI; displacement map generalization; real-time generalization; POI; displacement
Show Figures

Figure 1

MDPI and ACS Style

Liu, H.; Zhang, L.; Long, Y.; Zheng, Y. Real-Time Displacement of Point Symbols Based on Spatial Distribution Characteristics. ISPRS Int. J. Geo-Inf. 2019, 8, 426.
