Close-Range Photogrammetry and Infrared Imaging for Non-Invasive Honeybee Hive Population Assessment

1
Department of Cartographic and Land Engineering, University of Salamanca, Hornos Caleros 50, 05003 Ávila, Spain
2
Department of Mining Technology, Topography and Structures, University of Leon, Astorga, s/n, 24401 Ponferrada, Spain
*
Author to whom correspondence should be addressed.
ISPRS Int. J. Geo-Inf. 2018, 7(9), 350; https://doi.org/10.3390/ijgi7090350
Received: 20 July 2018 / Revised: 17 August 2018 / Accepted: 21 August 2018 / Published: 26 August 2018
  |
PDF [5726 KB, uploaded 26 August 2018]
  |

Abstract

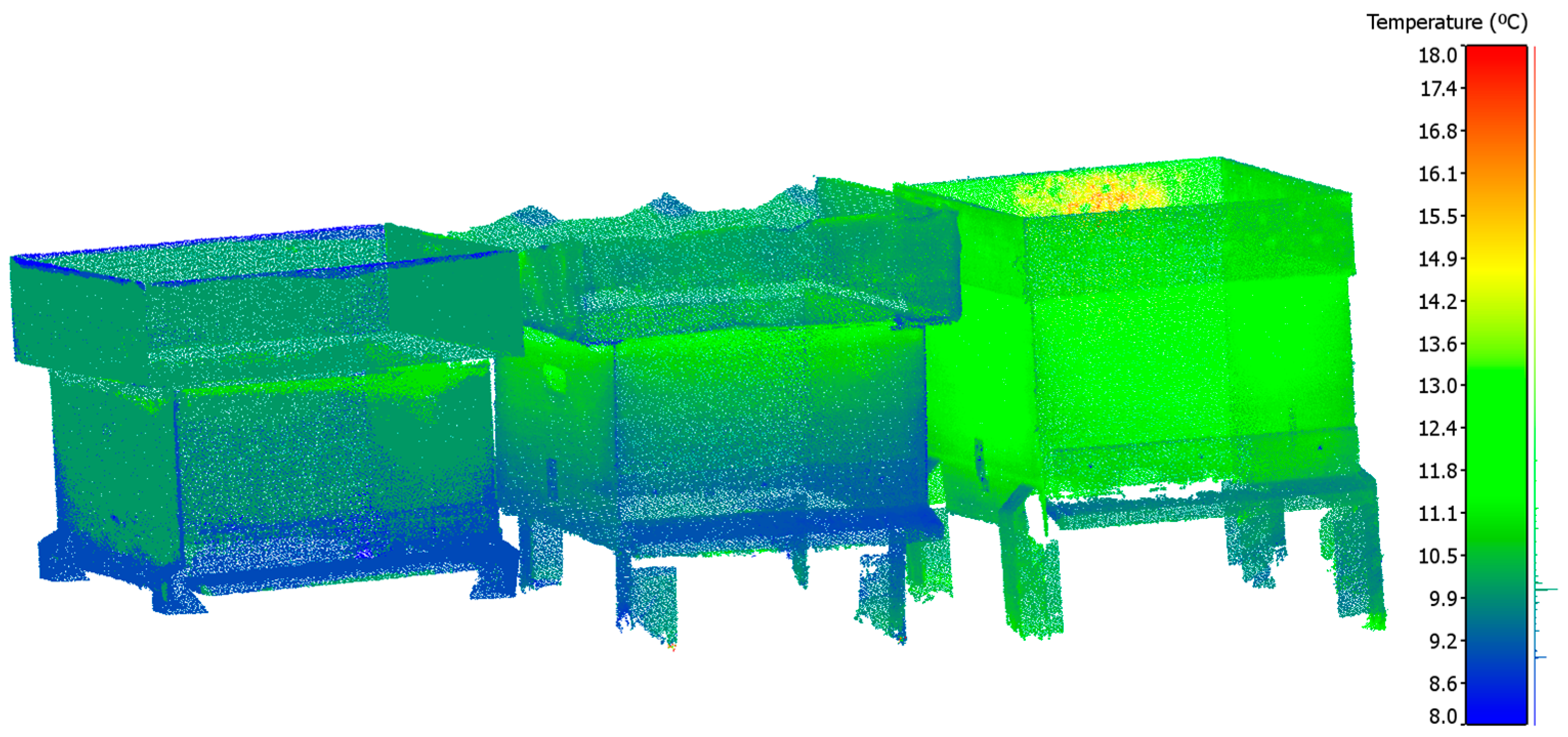

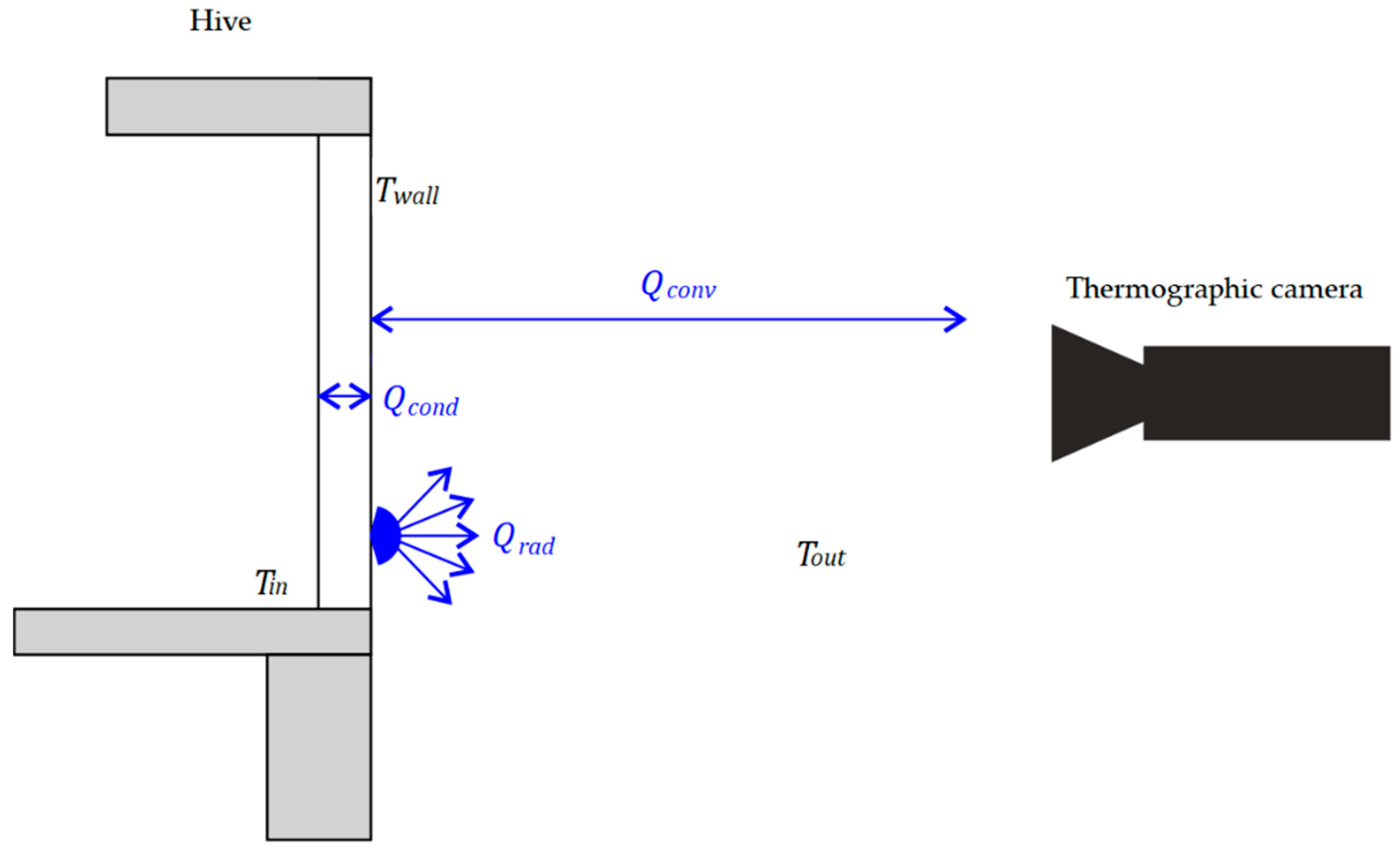

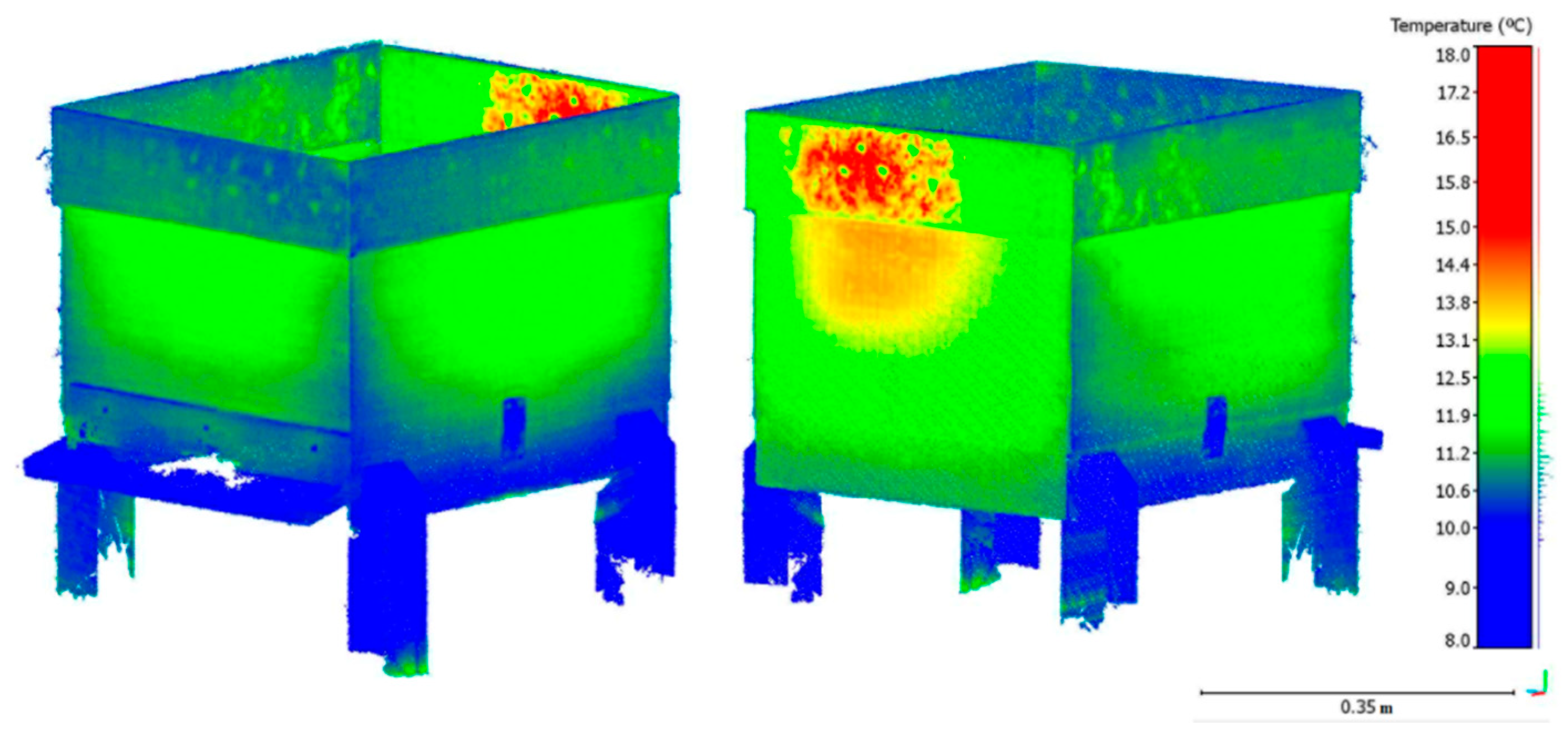

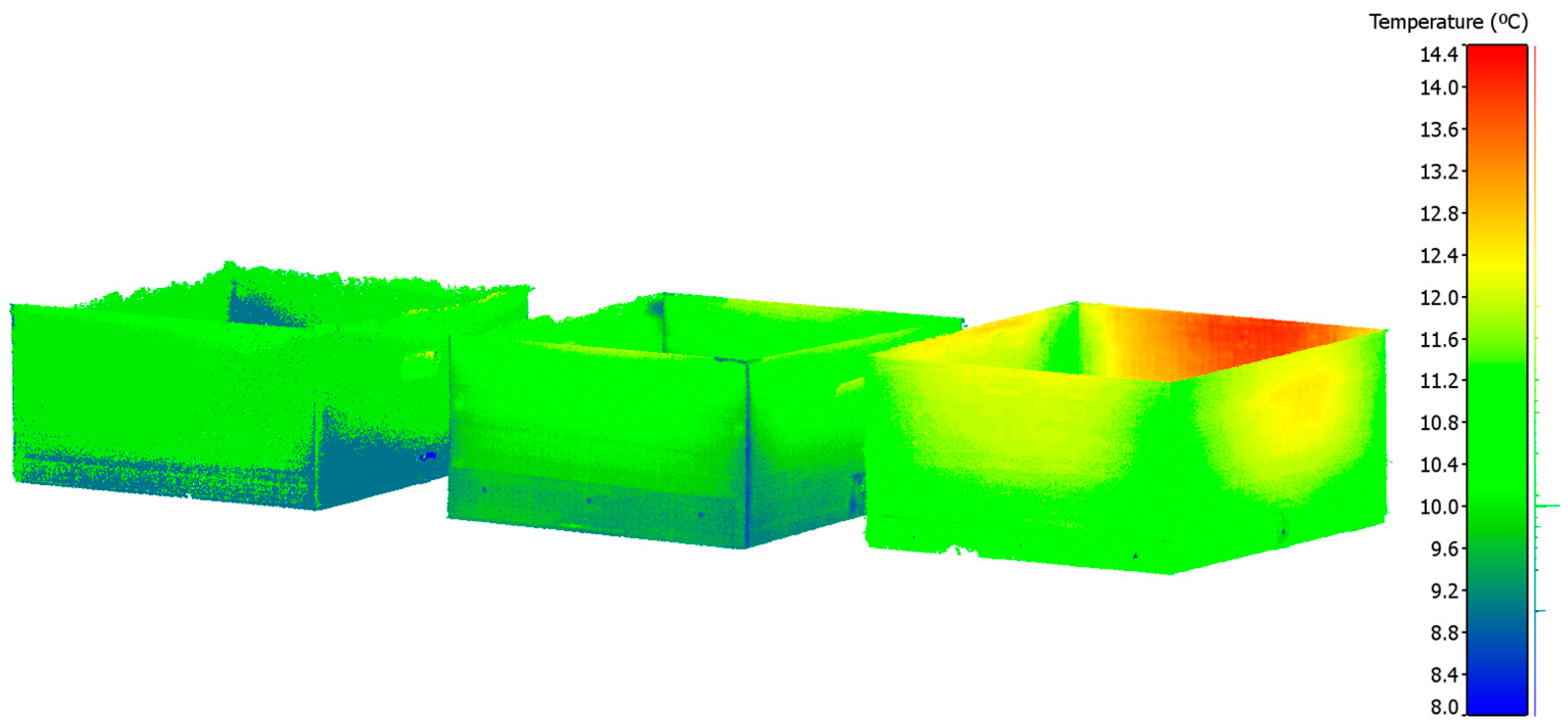

Close-range photogrammetry and thermographic imaging techniques are used for the acquisition of all the data needed for the non-invasive assessment of a honeybee hive population. Temperature values complemented with precise 3D geometry generated using novel close-range photogrammetric and computer vision algorithms are used for the computation of the inner beehive temperature at each point of its surface. The methodology was validated through its application to three reference beehives with different population levels. The temperatures reached by the exterior surfaces of the hives showed a direct correlation with the population level. In addition, the knowledge of the 3D reality of the hives and the position of each temperature value allowed the positioning of the bee colonies without the need to open the hives. This way, the state of honeybee hives regarding the growth of population can be estimated without disturbing its natural development. View Full-Text
Keywords: 3D reconstruction; computer vision; close-range; photogrammetry; infrared thermography; point cloud; honeybee 3D reconstruction; computer vision; close-range; photogrammetry; infrared thermography; point cloud; honeybee
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
