Open AccessArticle
ISPRS Int. J. Geo-Inf. 2018, 7(6), 215; https://doi.org/10.3390/ijgi7060215

Construction and Optimization of Three-Dimensional Disaster Scenes within Mobile Virtual Reality

1
Faculty of Geosciences and Environmental Engineering, Southwest Jiaotong University, Chengdu 610031, China
2
College of Physics and Engineering, Chengdu Normal University, Chengdu 611130, China
3
Sichuan Geomatics Center, Chengdu 610041, China
4
Guangzhou Urban Planning & Design Survey Research Institute, Guangzhou 510060, China
*
Author to whom correspondence should be addressed.
Received: 14 April 2018 / Revised: 31 May 2018 / Accepted: 12 June 2018 / Published: 14 June 2018
Full-Text   |   PDF [2243 KB, uploaded 14 June 2018]   |

Abstract

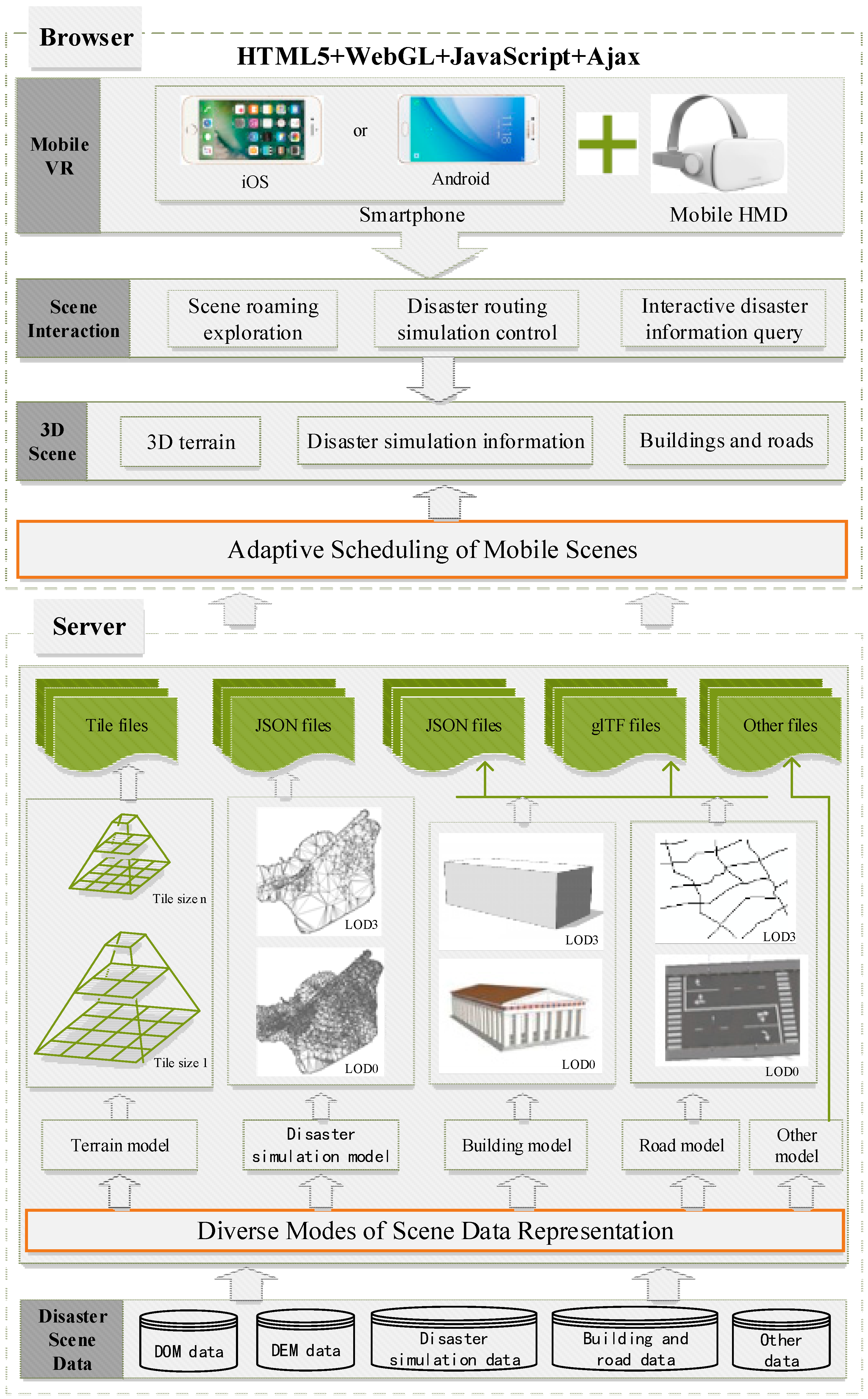

Because mobile virtual reality (VR) is both mobile and immersive, three-dimensional (3D) visualizations of disaster scenes based in mobile VR enable users to perceive and recognize disaster environments faster and better than is possible with other methods. To achieve immersion and prevent users from feeling dizzy, such visualizations require a high scene-rendering frame rate. However, the existing related visualization work cannot provide a sufficient solution for this purpose. This study focuses on the construction and optimization of a 3D disaster scene in order to satisfy the high frame-rate requirements for the rendering of 3D disaster scenes in mobile VR. First, the design of a plugin-free browser/server (B/S) architecture for 3D disaster scene construction and visualization based in mobile VR is presented. Second, certain key technologies for scene optimization are discussed, including diverse modes of scene data representation, representation optimization of mobile scenes, and adaptive scheduling of mobile scenes. By means of these technologies, smartphones with various performance levels can achieve higher scene-rendering frame rates and improved visual quality. Finally, using a flood disaster as an example, a plugin-free prototype system was developed, and experiments were conducted. The experimental results demonstrate that a 3D disaster scene constructed via the methods addressed in this study has a sufficiently high scene-rendering frame rate to satisfy the requirements for rendering a 3D disaster scene in mobile VR. View Full-Text
Keywords: 3D disaster scenes; mobile VR; diverse scene data representation; scene optimization; adaptive scheduling 3D disaster scenes; mobile VR; diverse scene data representation; scene optimization; adaptive scheduling
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
