Landsat-Based Land Cover Change in the Beijing-Tianjin-Tangshan Urban Agglomeration in 1990, 2000 and 2010

1,* and 1,2
State Key Laboratory of Remote Sensing Science, Institute of Remote Sensing and Digital Earth, Chinese Academy of Sciences, Beijing 100101, China
Department of Geographical Sciences, University of Maryland, College Park, MD 20742, USA
Author to whom correspondence should be addressed.
Academic Editor: Wolfgang Kainz
ISPRS Int. J. Geo-Inf. 2017, 6(3), 59;
Received: 29 November 2016 / Revised: 17 February 2017 / Accepted: 20 February 2017 / Published: 24 February 2017
PDF [16857 KB, uploaded 24 February 2017]

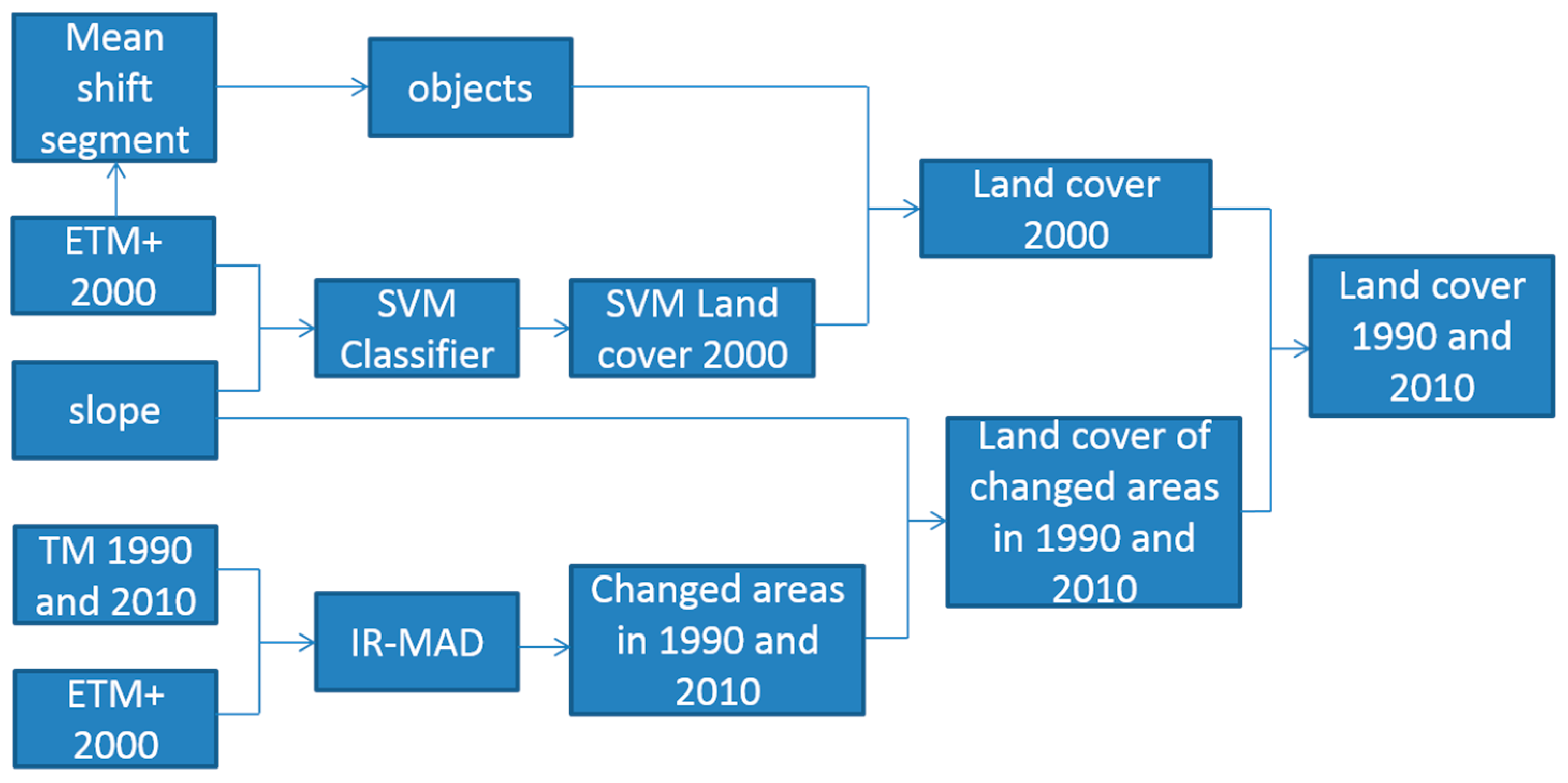

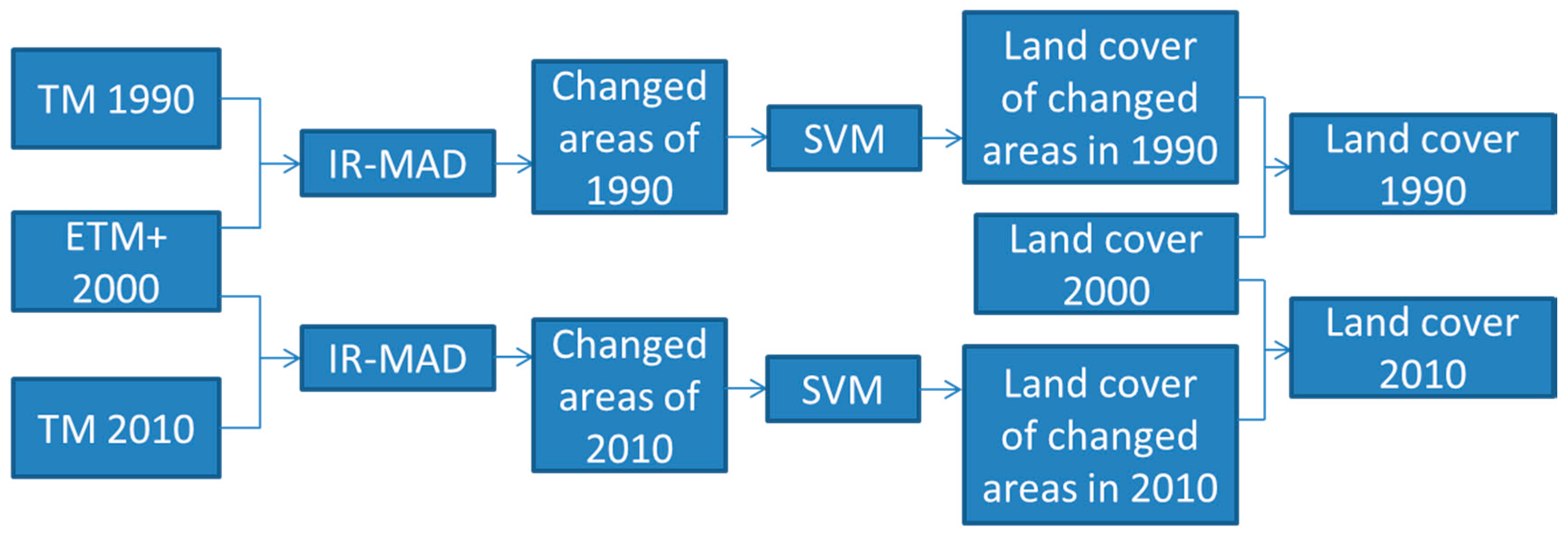

Rapid urbanization dramatically changes the local environment. A hybrid classification method is designed and applied to multi-temporal Landsat images and ancillary data to obtain land cover change datasets. A support vector machine (SVM) classifier is used to classify multi-temporal Landsat Enhanced Thematic Mapper Plus (ETM+) images that were collected in 2000 at the pixel level. These images are also segmented with the mean shift method. The impervious surface is refined based on a combination of the segmented objects and the SVM classification results. The changed areas in 1990 and 2010 are determined by comparing the Thematic Mapper (TM) and ETM+ images via the re-weighted multivariate alteration detection transformation method. The TM images that were masked as changed areas in 1990 and 2000 are input into the SVM classifier. Land cover maps for 1990 and 2010 are produced by combining the unchanged area in 2000 with the new classes of the changed areas in 1990 and 2010. Land cover change has continuously accelerated since 1990. Remarkably, arable land decreased, while the impervious surface area significantly increased. View Full-Text
Keywords: land cover; mean shift; segment land cover; mean shift; segment

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
