TriangleConv: A Deep Point Convolutional Network for Recognizing Building Shapes in Map Space
Abstract
:1. Introduction
2. The Deep Point Convolutional Network
2.1. The Framework of DPCN
- Point feature extraction module: this module aims to learn and extract the feature representations of each point of the input building. As shown in Figure 1, it stacks two TriangleConv layers. Each TriangleConv layer performs the TriangleConv operator on the points. The first TriangleConv layer generates a feature representation with 64 dimensions for each point. Taking this new feature representation as input, the second TriangleConv layer extracts a higher dimensional feature representation with 1024 dimensions for each point. Through these TriangleConv layers, DPCN embeds each point of the input building into a high dimensional space.
- Building feature extraction module: this module is to aggregate the features of the points and obtain the feature representation of the input building. To achieve this purpose, a max pooling layer is used, which executes the max operation on each dimension of the feature representations of the points. Accordingly, a tensor with 1024 dimensions is derived to represent the deep features of the shape of the building. This feature representation will be used by the building shape recognition module to predict the shape of the input building.
- Building shape recognition module: this module aims to predict the shape of the input building with its feature representation. It usually stacks several fully connected layers and one softmax layer. As shown in Figure 1, there are three fully connected layers in DPCN. The fully connected layers transform a feature of one space into a new feature of another space and aggregate the information of different dimensions in this process. With three fully connected layers, the building shape feature representation with 1024 dimensions is transformed into a k dimensional representation where k is the number of shape classes. Finally, the softmax layer executes the softmax operation on the k dimensional representation to output the possibility scores that the input object belongs to different shape classes.

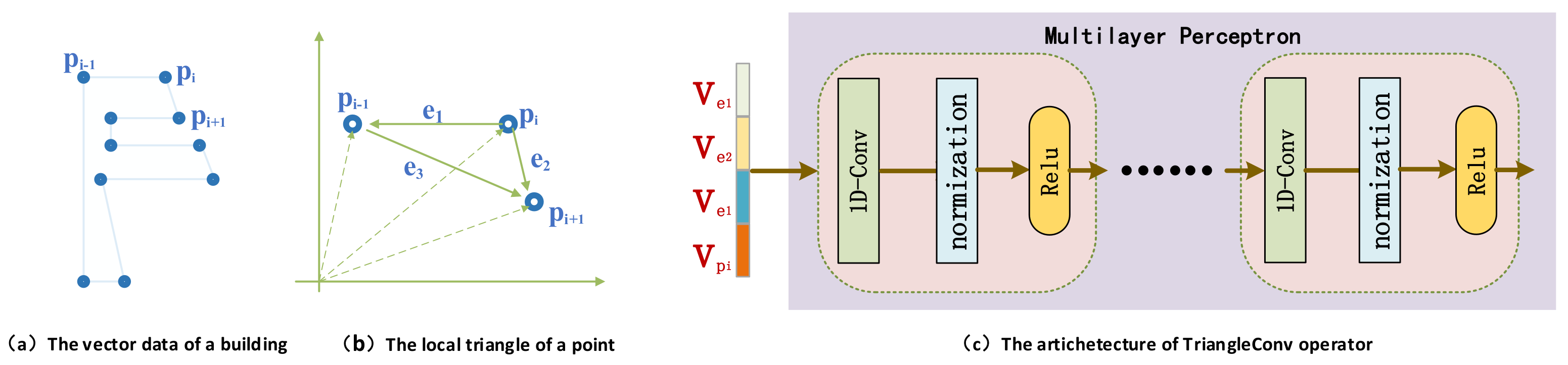

2.2. The TriangleConv Operator
2.3. The Implementation and the Parameters of Training
3. Dataset and Metrics
3.1. Experimental Dataset and Preprocessing
3.2. The Evaluation Metrics
4. Results and Analysis
4.1. The Sensitivity Analysis of the Number of Input Points of Each Building
4.2. The Performance Analysis of the Candidate Convolution Methods
4.3. Comparison with Related Methods
4.4. The Application of DPCN
5. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
