# Three-Dimensional Flight Corridor: An Occupancy Checking Process for Unmanned Aerial Vehicle Motion Planning inside Confined Spaces

^{1}

^{2}

^{*}

## Abstract

**:**

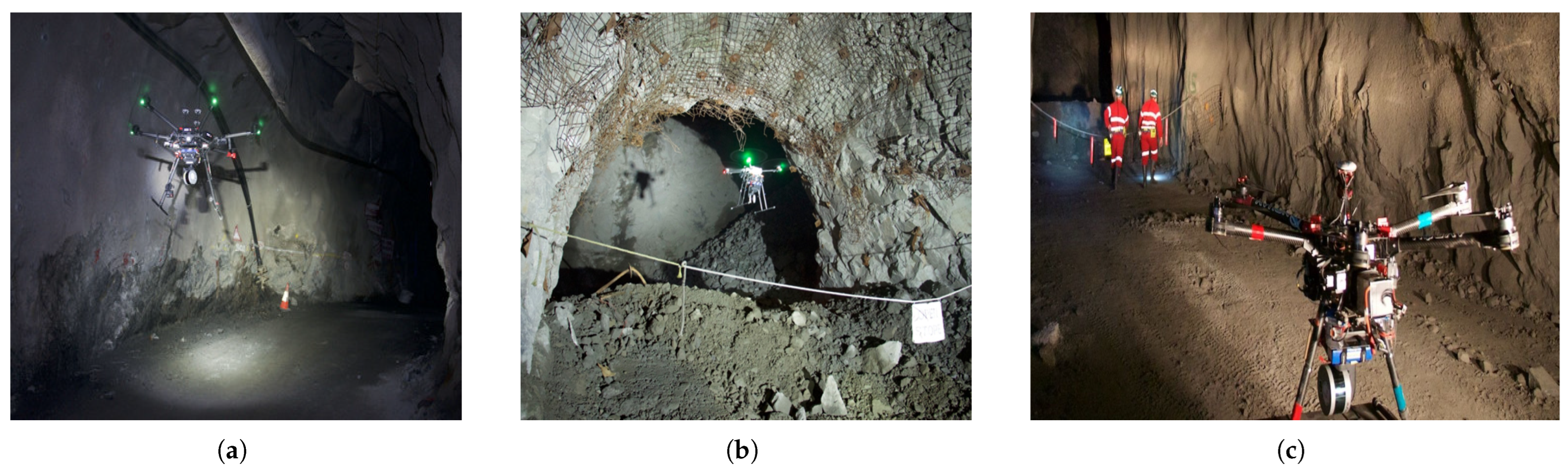

## 1. Introduction

## 2. Prior Work (Literature Review)

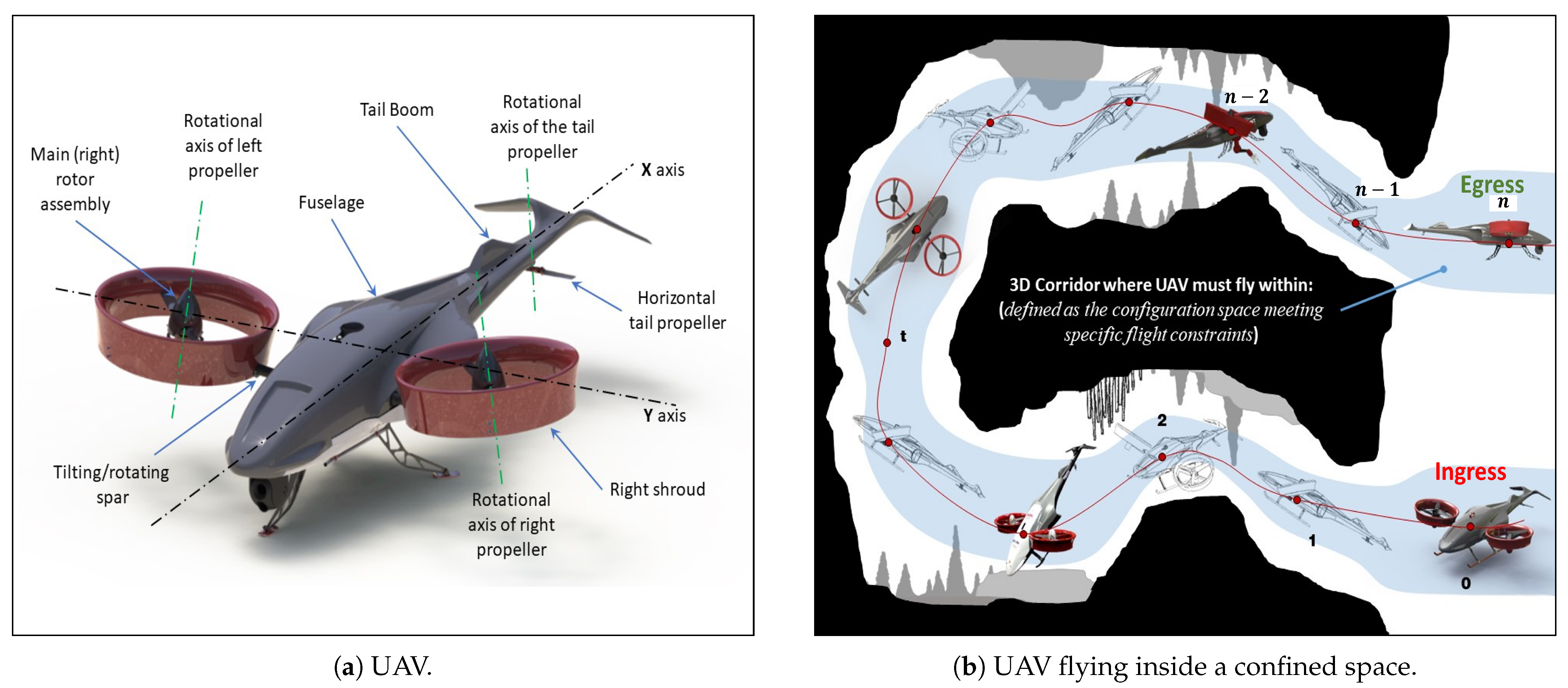

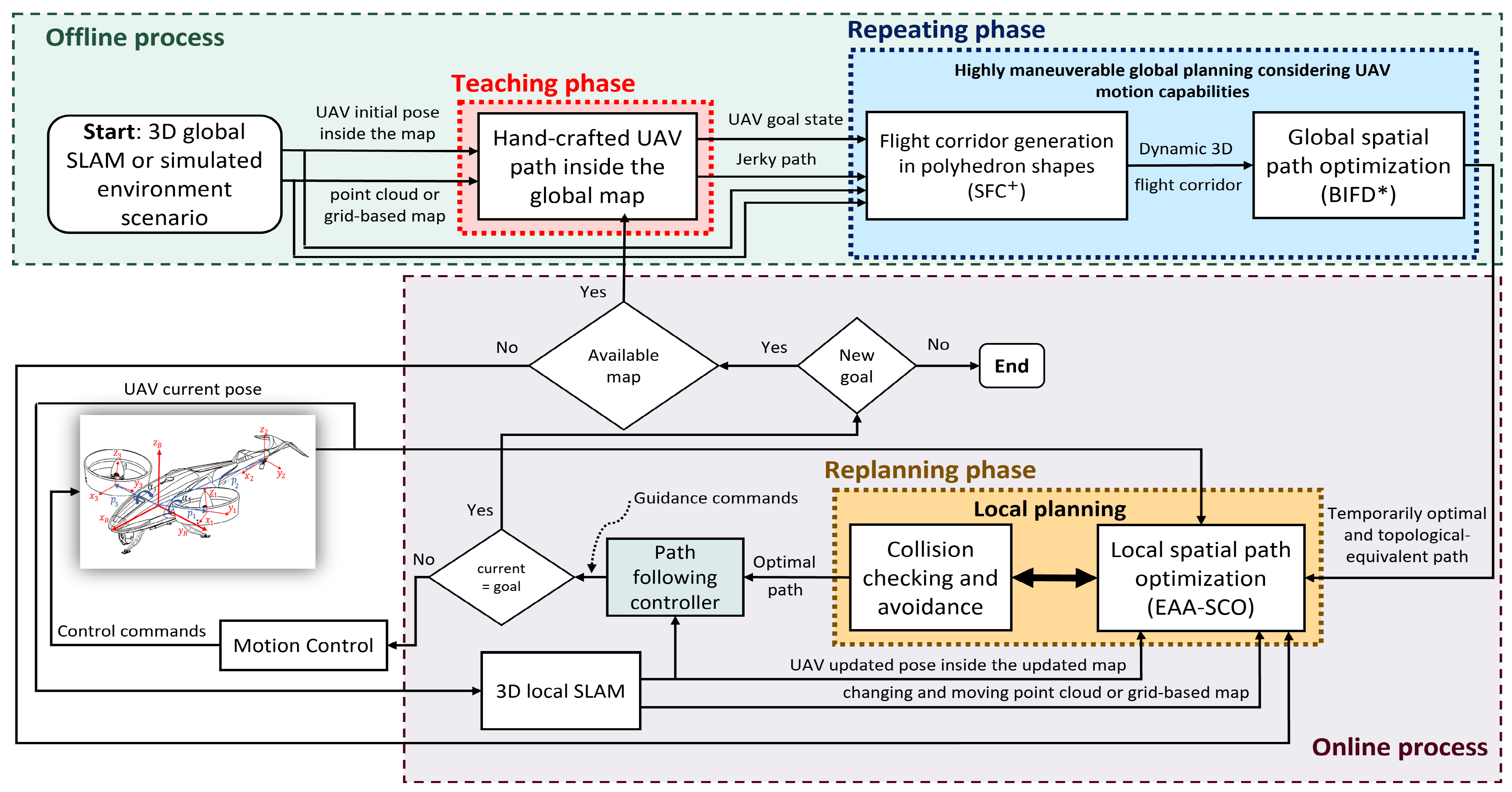

#### Proposed Methodology

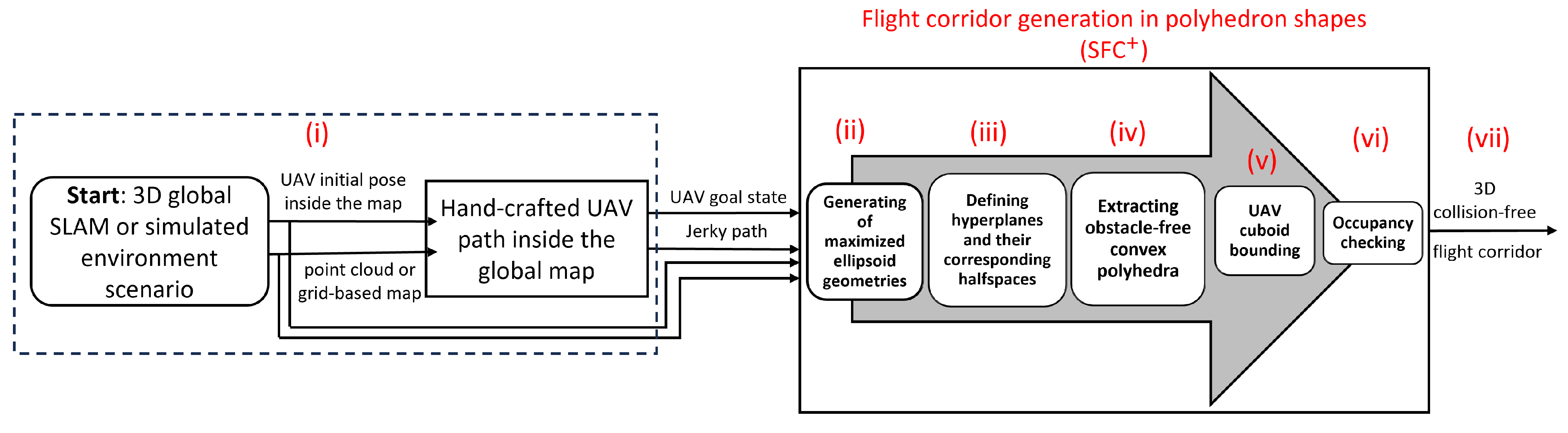

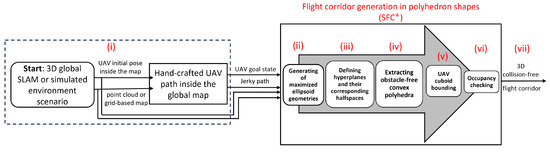

## 3. Novel 3D Flight Corridor Generation

- (i)
- Given an environmental map, generate a hand-crafted flight path composed of multiple path segments.
- (ii)
- Generate suitable maximized ellipsoid geometries containing the hand-crafted path segments while avoiding obstacles.
- (iii)
- Define a set of hyperplanes for each path segment and their corresponding halfspaces based on the generated ellipsoids.
- (iv)
- Extract the intersection of the hyperplanes obtained from step (iii) as obstacle-free convex polyhedra surrounding each segment of the path.
- (v)
- Perform a cuboid bounding surrounding the UAV based on its dimensions to reduce the number of collision checks required during the polyhedra construction process (step (vi)).
- (vi)
- Add an augmenting occupancy checking process to reduce the search space by identifying regions free from obstacles and replace the previously constructed convex polyhedra with alternate reduced-in-volume convex polyhedra.
- (vii)
- Generate the 3D Collision-Free Safe Flight Corridor.

#### 3.1. Generation of Convex Polyhedra

#### 3.1.1. Generation of Ellipsoids

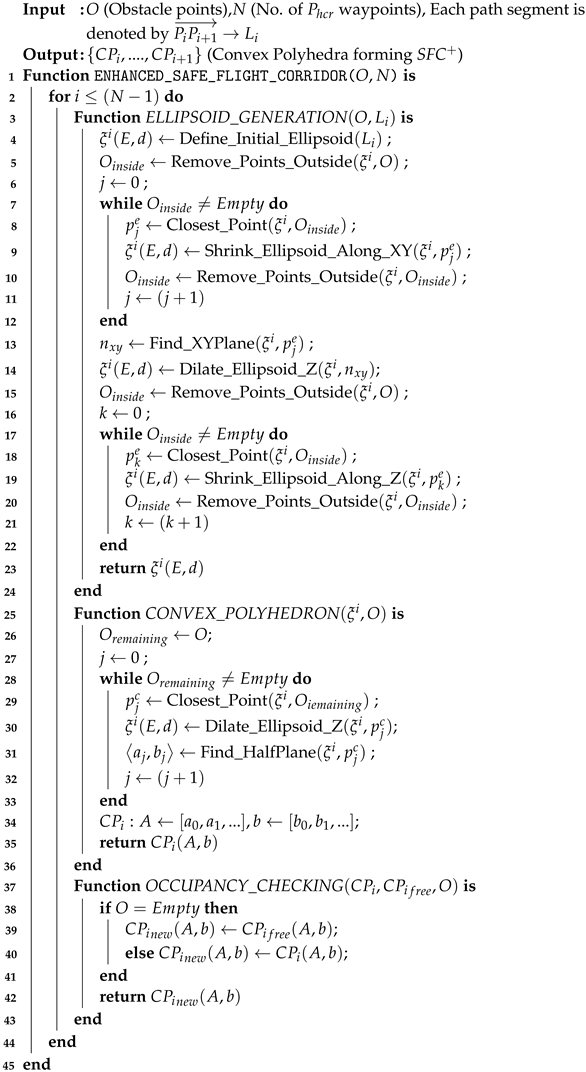

Algorithm 1: Pseudo-code of the proposed SFC${}^{+}$ flight corridor generation process. |

#### 3.1.2. Intersection of Hyperplanes

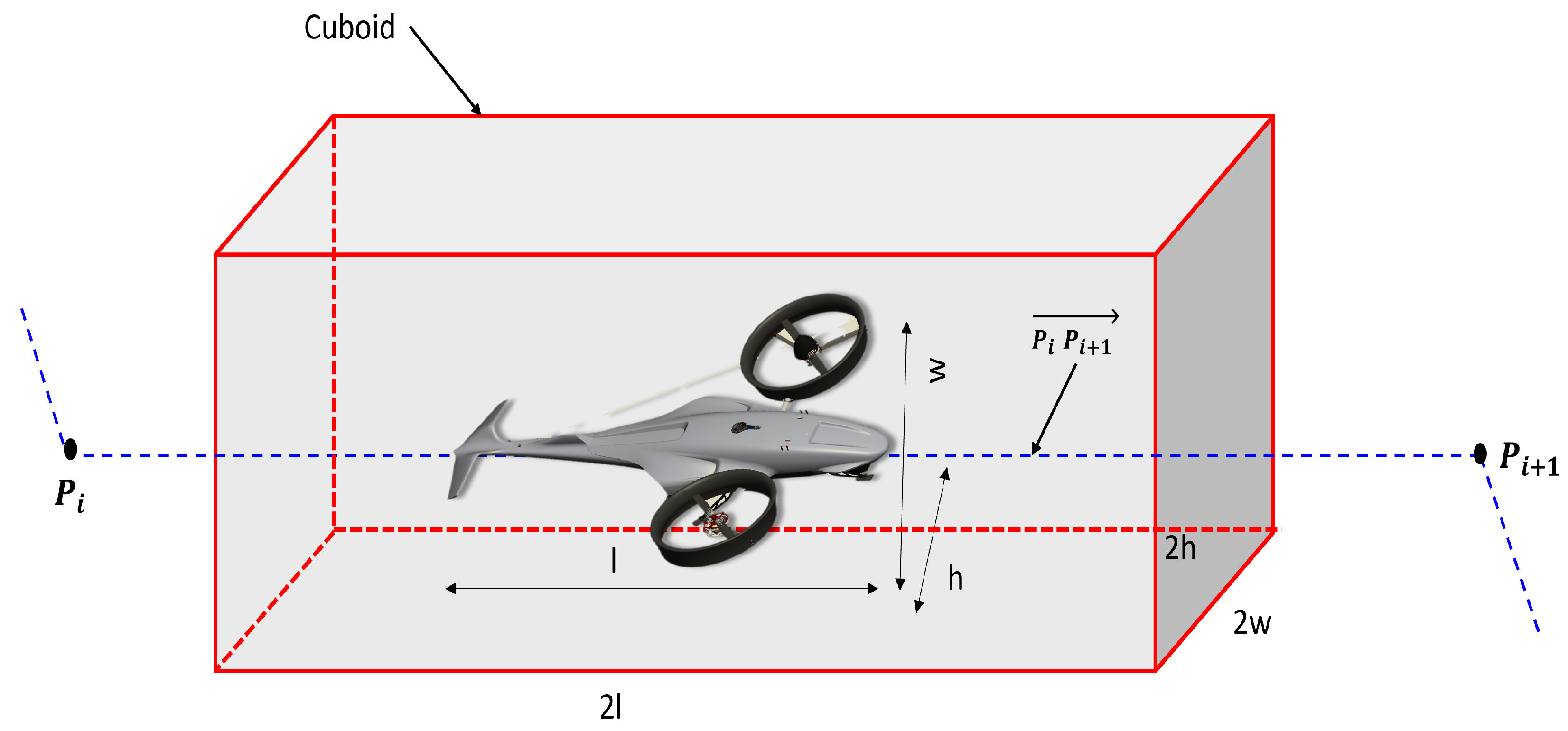

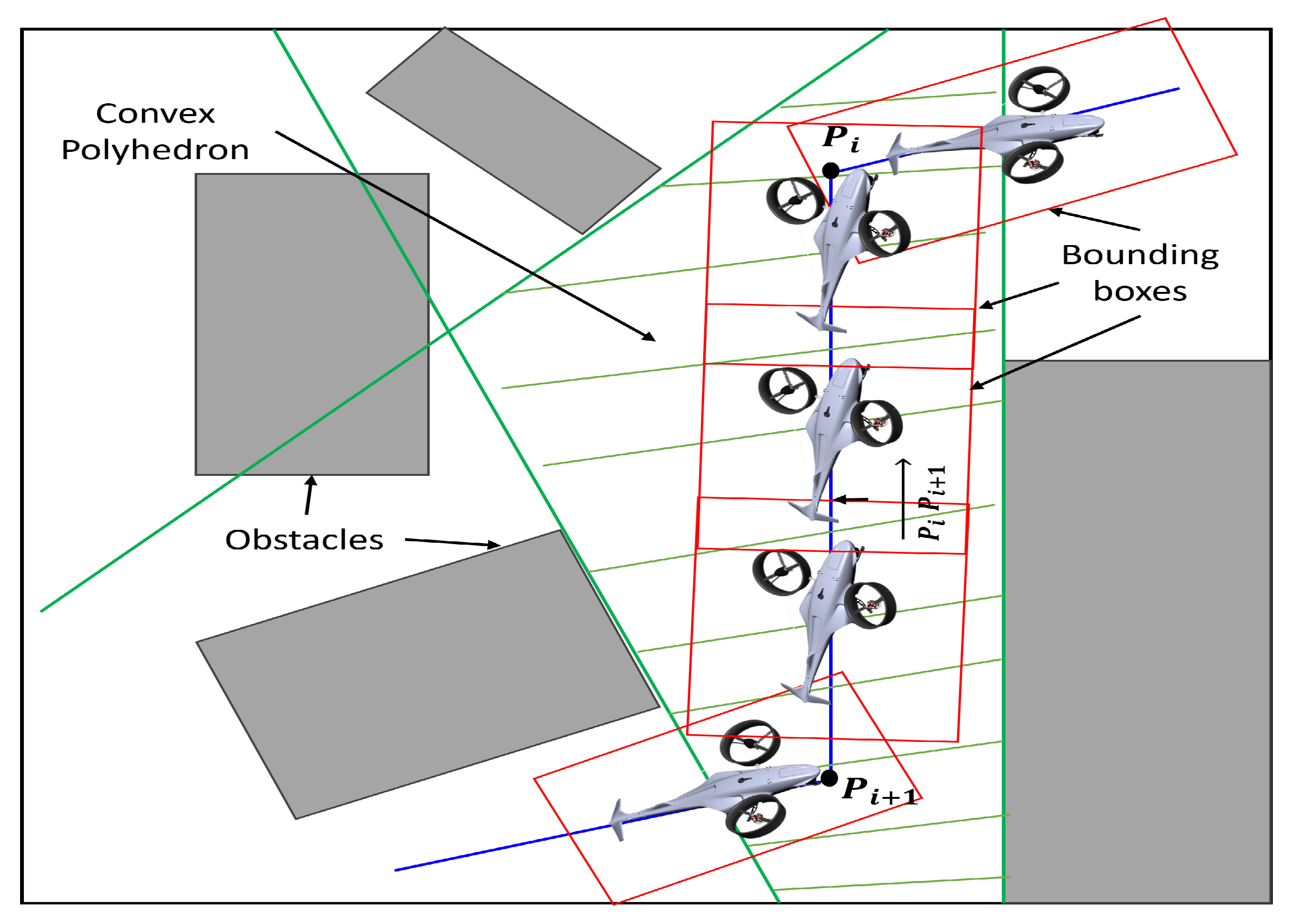

#### 3.1.3. Cuboid Bounding

#### 3.1.4. Occupancy Checking

#### 3.1.5. Final Flight Corridor

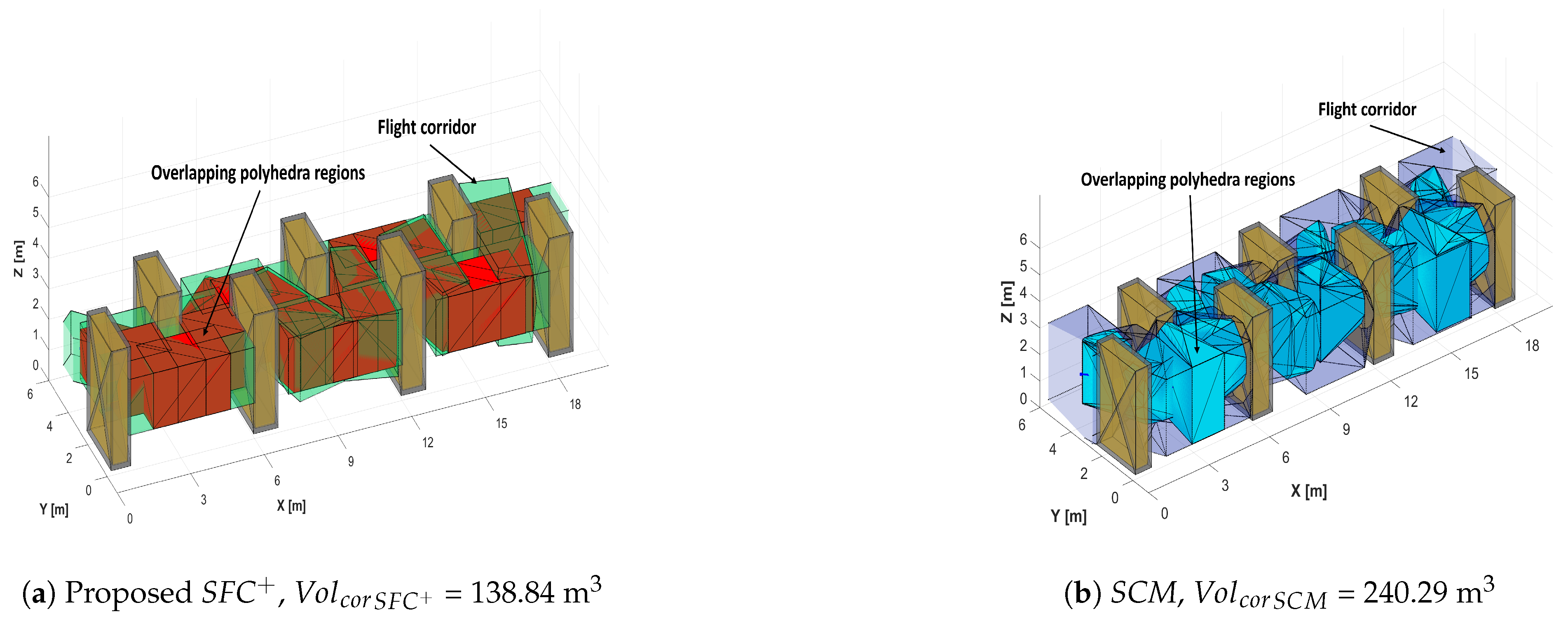

#### 3.2. Calculation of Corridor Volume

## 4. Simulation Results and Discussion

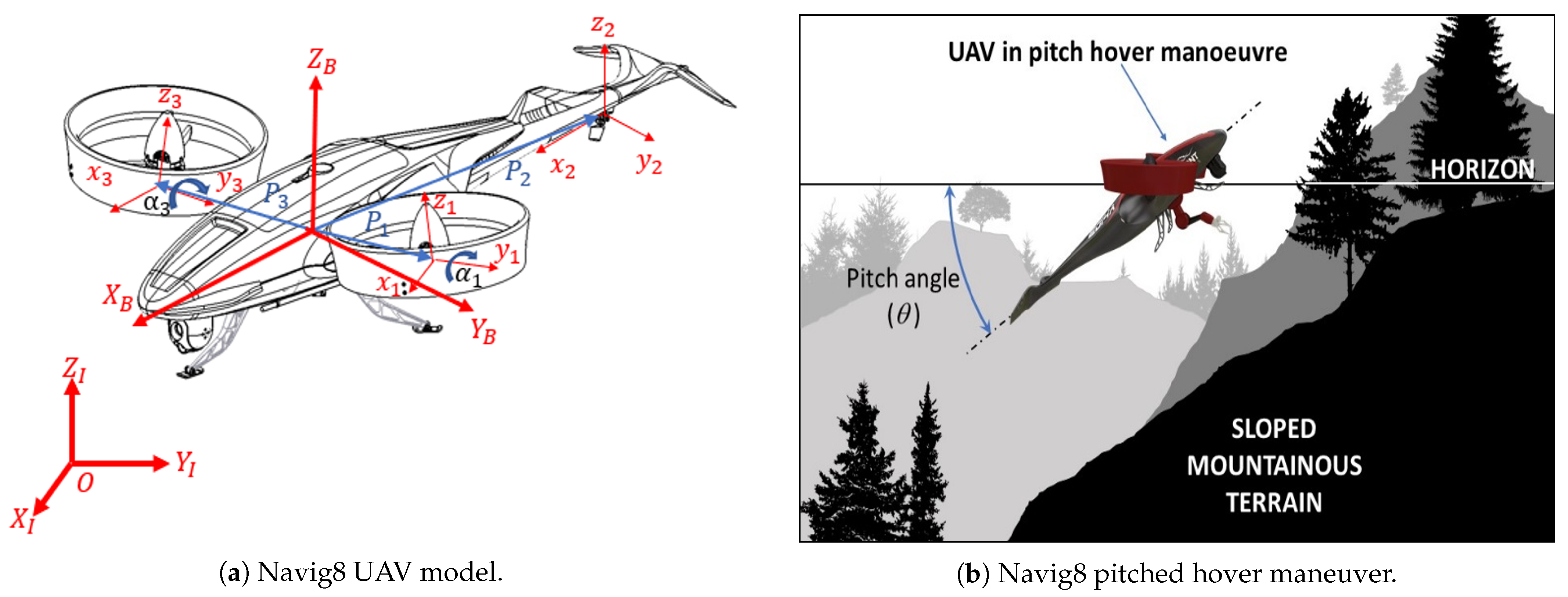

#### 4.1. Selected UAV

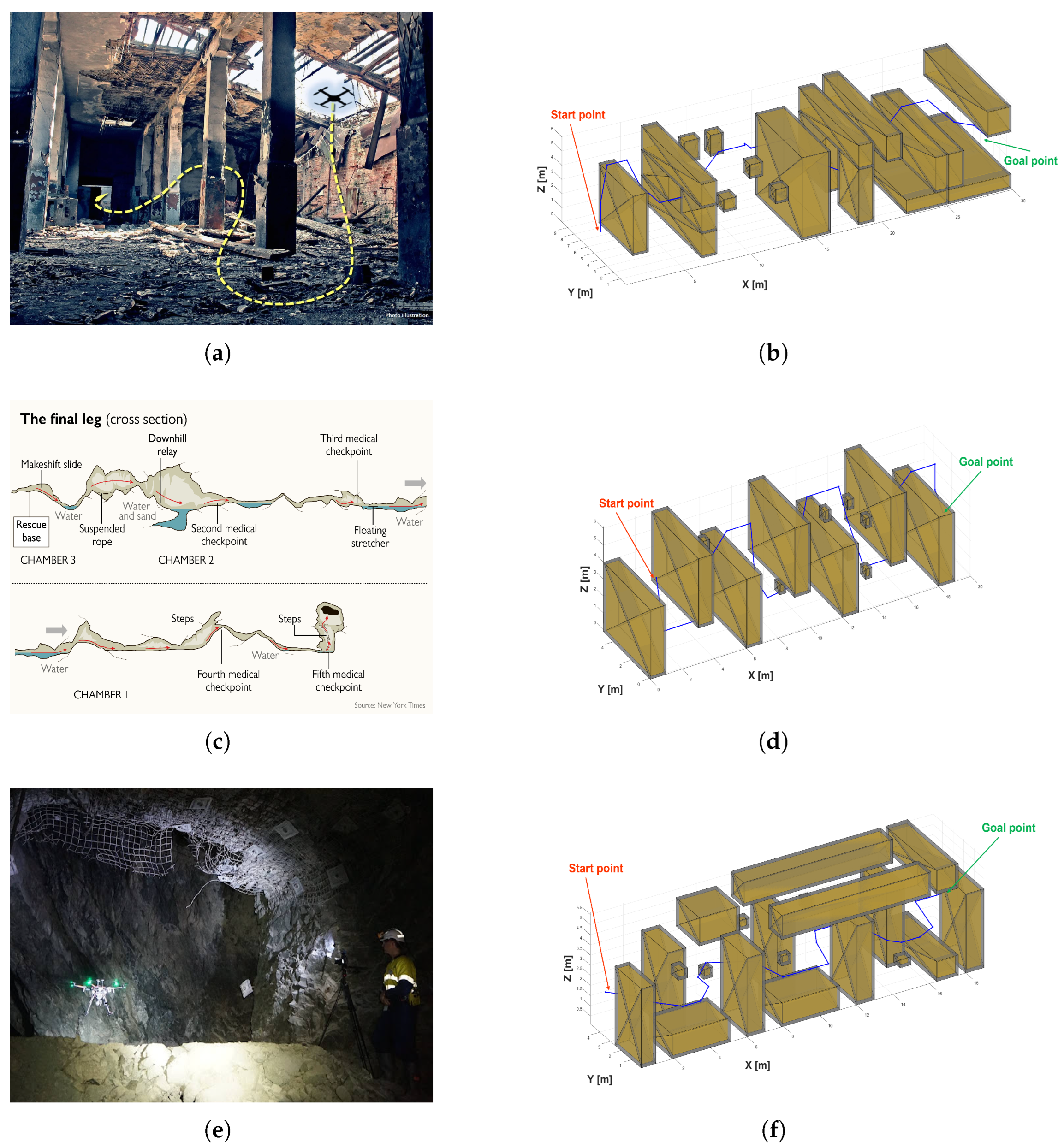

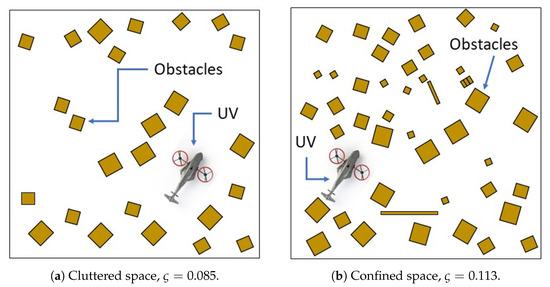

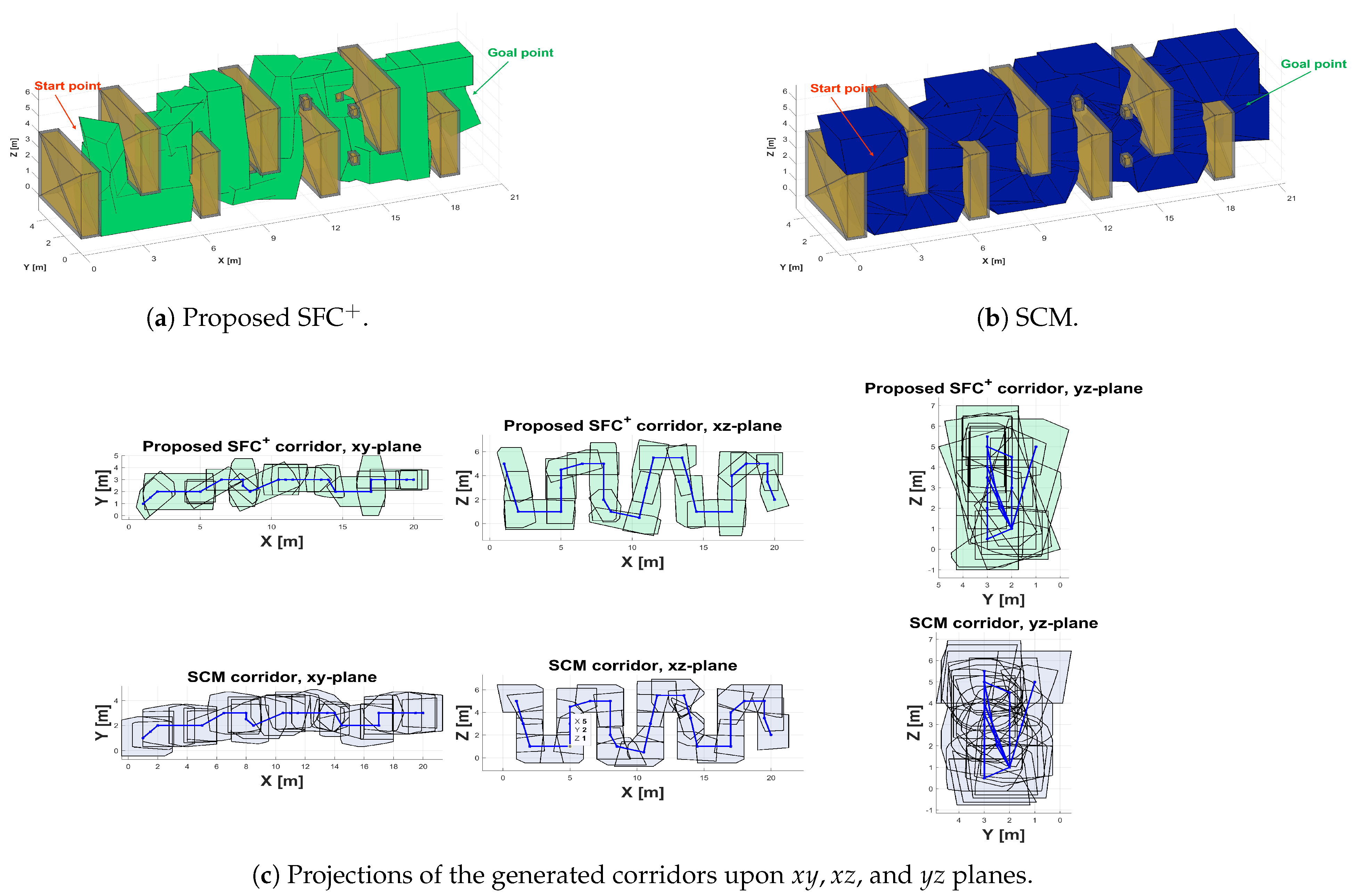

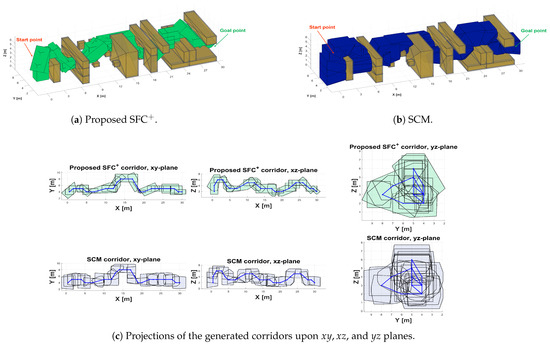

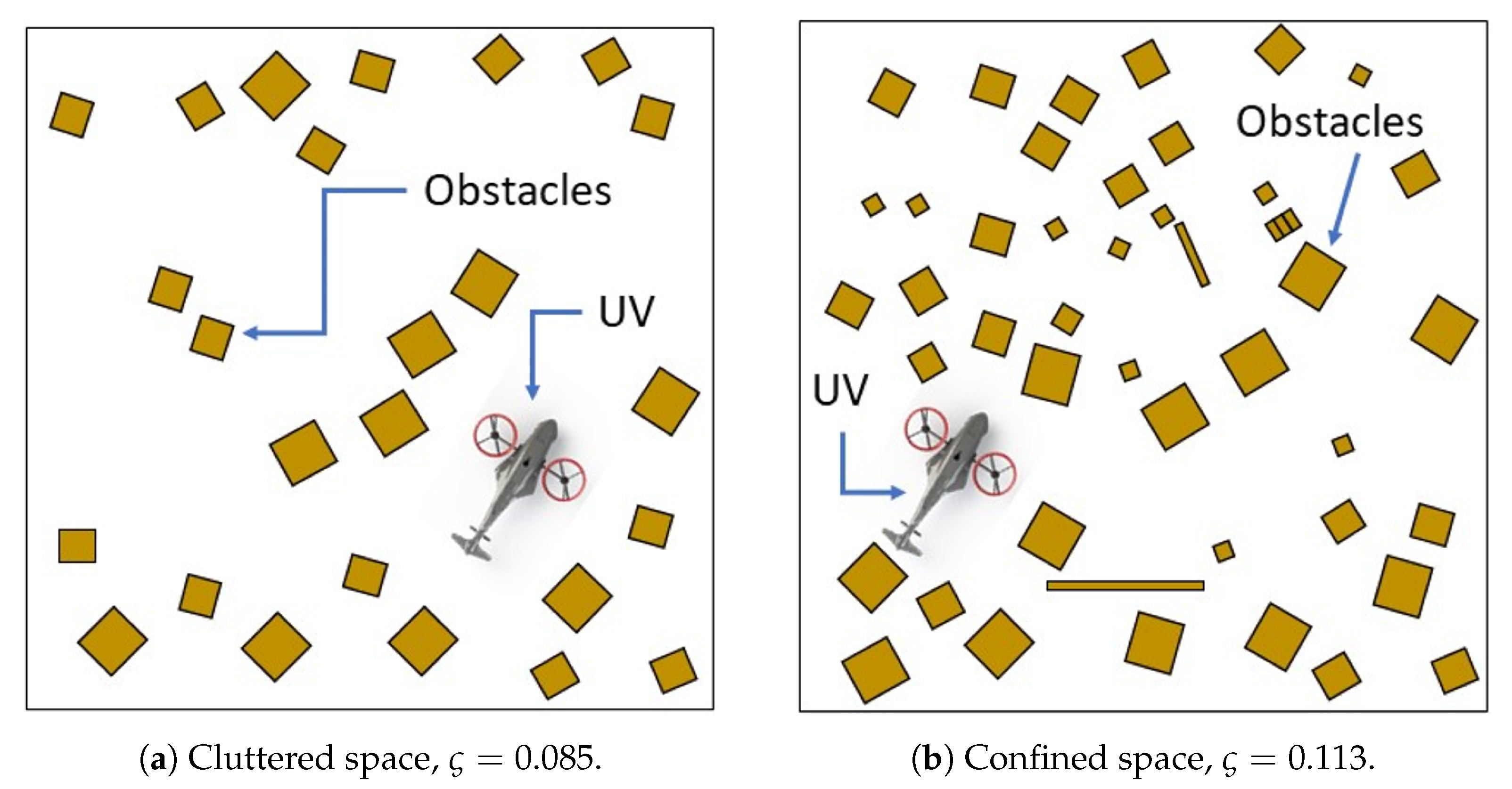

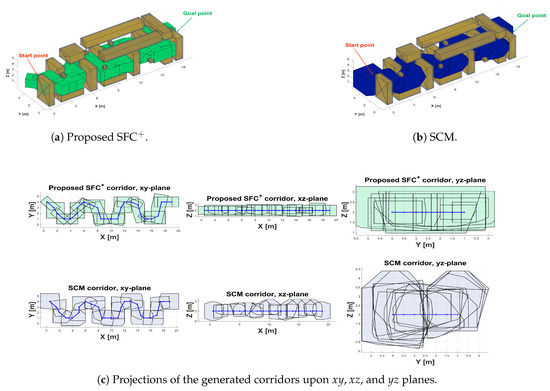

#### 4.2. Testing Scenarios

## 5. Conclusions

## Author Contributions

## Funding

## Data Availability Statement

## Conflicts of Interest

## Abbreviations

CP | Convex Polyhedron |

IRIS | Iterative Regional Inflation by Semi-Definite Programming |

I-TRP | Improved “Teach-Repeat-Replan” |

SCM | Star Convex Method |

SFC${}^{+}$ | Enhanced Safe Flight Corridor |

SLAM | Simultaneous Localization and Mapping |

UAV | Unmanned Aerial Vehicle |

USAR | Urban Search and Rescue |

VTOL | Vertical Take-off and Landing |

## References

- Shahmoradi, J.; Talebi, E.; Roghanchi, P.; Hassanalian, M. A comprehensive review of applications of drone technology in the mining industry. Drones
**2020**, 4, 34. [Google Scholar] [CrossRef] - Ren, H.; Zhao, Y.; Xiao, W.; Hu, Z. A review of UAV monitoring in mining areas: Current status and future perspectives. Int. J. Coal Sci. Technol.
**2019**, 6, 320–333. [Google Scholar] [CrossRef] - Półka, M.; Ptak, S.; Kuziora, Ł. The use of UAV’s for search and rescue operations. Procedia Eng.
**2017**, 192, 748–752. [Google Scholar] [CrossRef] - Neubauer, M.; Günther, G.; Füllhas, K. Structural Design Aspects and Criteria for Military UAV; Technical Report; European Aeronautic Defence and Space (EADS): Munich, Germany, 2007. [Google Scholar]
- Gupta, S.G.; Ghonge, D.M.; Jawandhiya, P.M. Review of unmanned aircraft system (UAS). Int. J. Adv. Res. Comput. Eng. Technol. (IJARCET)
**2013**, 2, 1646–1658. [Google Scholar] [CrossRef] - Innocente, M.S.; Grasso, P. Self-organising swarms of firefighting drones: Harnessing the power of collective intelligence in decentralised multi-robot systems. J. Comput. Sci.
**2019**, 34, 80–101. [Google Scholar] [CrossRef] - CSIRO Head Office; Westwick-Farrow Pty Ltd. Researchers Deploy Autonomous Drone to Improve Operations for Mining Industry. November 2017. Available online: https://www.processonline.com.au/content/business/news/researchers-deploy-autonomous-drone-to-improve-operations-for-mining-industry-1267356273 (accessed on 24 September 2023).
- Coldewey, D. Subterranean Drone Mapping Startup Emesent Raises $2.5 M to Autonomously Delve the Deep. TechCrunch; November 2018. Available online: https://techcrunch.com/2018/11/05/subterranean-drone-mapping-startup-emesent-raises-2-5m-to-autonomously-delve-the-deep/ (accessed on 24 September 2023).
- Reporter, S. Mapping the Underground with Drones, Legged Robots. Aspermont Media Ltd. October 2018. Available online: https://www.miningmagazine.com/innovation/news/1347934/mapping-the-underground-with-drones-legged-robots (accessed on 24 September 2023).
- Liang, H.; Lee, S.C.; Bae, W.; Kim, J.; Seo, S. Towards UAVs in Construction: Advancements, Challenges, and Future Directions for Monitoring and Inspection. Drones
**2023**, 7, 202. [Google Scholar] [CrossRef] - Liu, S.; Watterson, M.; Mohta, K.; Sun, K.; Bhattacharya, S.; Taylor, C.J.; Kumar, V. Planning dynamically feasible trajectories for quadrotors using safe flight corridors in 3-d complex environments. IEEE Robot. Autom. Lett.
**2017**, 2, 1688–1695. [Google Scholar] [CrossRef] - Zinage, V.; Arul, S.H.; Manocha, D.; Ghosh, S. 3D-Online Generalized Sensed Shape Expansion: A Probabilistically Complete Motion Planner in Obstacle-Cluttered Unknown Environments. IEEE Robot. Autom. Lett.
**2023**, 8, 3334–3341. [Google Scholar] [CrossRef] - Chen, J.; Liu, T.; Shen, S. Online generation of collision-free trajectories for quadrotor flight in unknown cluttered environments. In Proceedings of the 2016 IEEE International Conference on Robotics and Automation (ICRA), Stockholm, Sweden, 16–21 May 2016; pp. 1476–1483. [Google Scholar]
- Gao, F.; Wang, L.; Zhou, B.; Zhou, X.; Pan, J.; Shen, S. Teach-repeat-replan: A complete and robust system for aggressive flight in complex environments. IEEE Trans. Robot.
**2020**, 36, 1526–1545. [Google Scholar] [CrossRef] - Gao, F.; Wang, L.; Wang, K.; Wu, W.; Zhou, B.; Han, L.; Shen, S. Optimal trajectory generation for quadrotor teach-and-repeat. IEEE Robot. Autom. Lett.
**2019**, 4, 1493–1500. [Google Scholar] [CrossRef] - Lien, J.M.; Amato, N.M. Approximate convex decomposition of polygons. In Proceedings of the Twentieth Annual Symposium on Computational Geometry, Brooklyn, NY, USA, 9–11 June 2004; pp. 17–26. [Google Scholar]
- Liu, H.; Liu, W.; Latecki, L.J. Convex shape decomposition. In Proceedings of the 2010 IEEE Computer Society Conference on Computer Vision and Pattern Recognition, San Francisco, CA, USA, 13–18 June 2010; pp. 97–104. [Google Scholar]
- Eidenbenz, S.J.; Widmayer, P. An approximation algorithm for minimum convex cover with logarithmic performance guarantee. SIAM J. Comput.
**2003**, 32, 654–670. [Google Scholar] [CrossRef] - Feng, H.Y.; Pavlidis, T. Decomposition of polygons into simpler components: Feature generation for syntactic pattern recognition. IEEE Trans. Comput.
**1975**, 100, 636–650. [Google Scholar] [CrossRef] - Deits, R.; Tedrake, R. Computing large convex regions of obstacle-free space through semidefinite programming. In Proceedings of the Algorithmic Foundations of Robotics XI: Selected Contributions of the Eleventh International Workshop on the Algorithmic Foundations of Robotics, Istanbul, Turkey, 3–5 August 2015; pp. 109–124. [Google Scholar]
- Deits, R.; Tedrake, R. Efficient mixed-integer planning for UAVs in cluttered environments. In Proceedings of the 2015 IEEE International Conference on Robotics and Automation (ICRA), Washington, DC, USA, 26–30 May 2015; pp. 42–49. [Google Scholar]
- Tan, L.; Hu, M.; Lin, H. Agent-based simulation of building evacuation: Combining human behavior with predictable spatial accessibility in a fire emergency. Inf. Sci.
**2015**, 295, 53–66. [Google Scholar] [CrossRef] - Mamou, K.; Ghorbel, F. A simple and efficient approach for 3D mesh approximate convex decomposition. In Proceedings of the 2009 16th IEEE International Conference on Image Processing (ICIP), Cairo, Egypt, 7–10 November 2009; pp. 3501–3504. [Google Scholar]
- Sarmientoy, A.; Murrieta-Cidz, R.; Hutchinsony, S. A sample-based convex cover for rapidly finding an object in a 3-D environment. In Proceedings of the 2005 IEEE International Conference on Robotics and Automation, Barcelona, Spain, 18–22 April 2005; pp. 3486–3491. [Google Scholar]
- Savin, S. An algorithm for generating convex obstacle-free regions based on stereographic projection. In Proceedings of the 2017 International Siberian Conference on Control and Communications (SIBCON), Astana, Kazakhstan, 29–30 June 2017; pp. 1–6. [Google Scholar]
- Zhong, X.; Wu, Y.; Wang, D.; Wang, Q.; Xu, C.; Gao, F. Generating large convex polytopes directly on point clouds. arXiv
**2020**, arXiv:2010.08744. [Google Scholar] - Jansen, F.; Ramirez-Serrano, A. Extended MPC Strategy for Maneuvering Unmanned Vehicles in Restricted 3D Environments. In Proceedings of the Unmanned Systems Canada Conference, Montreal, QC, Canada, 12 November 2011. [Google Scholar]
- Hosseini, Z.; Ramirez-Serrano, A.; Martinuzzi, R.J. Ground/wall effects on a tilting ducted fan. Int. J. Micro Air Veh.
**2011**, 3, 119–141. [Google Scholar] [CrossRef] - Jansen, F. Manoeuvring Unmanned Vehicles through Confined 3D Environments Using Model Predictive Control. Master’s Thesis, University of Calgary, Calgary, AB, Canada, 2011. [Google Scholar]
- Lay, S.R. Convex Sets and Their Applications; Courier Corporation: Chelmsford, MA, USA, 2007. [Google Scholar]
- Boyd, S.P.; Vandenberghe, L. Convex Optimization; Cambridge University Press: Cambridge, UK, 2004. [Google Scholar]
- Cherney, M. Drones Are Now Operating Underground: Mining Companies Look to Automation to Help Companies Dig Out More Ore and Save Lives. Kathryn Report Company. November 2017. Available online: http://www.kathrynsreport.com/2017/11/drones-are-now-operating-underground.html (accessed on 24 September 2023).
- Hannah Beech, R.C.P.; Suhartono, M. Still Can’t Believe It Worked’: The Story of the Thailand Cave Rescue. The New York Times, 12 July 2018. [Google Scholar]

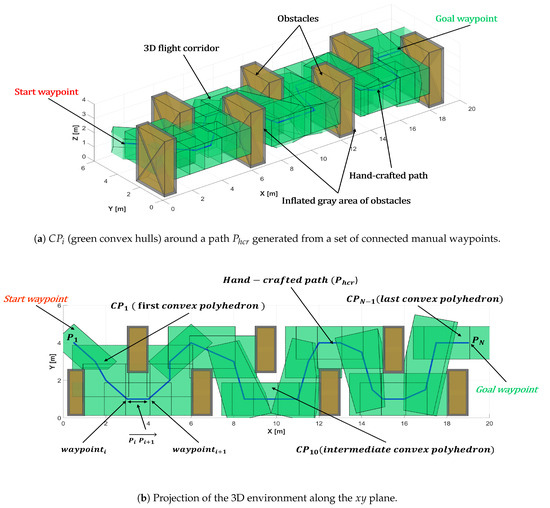

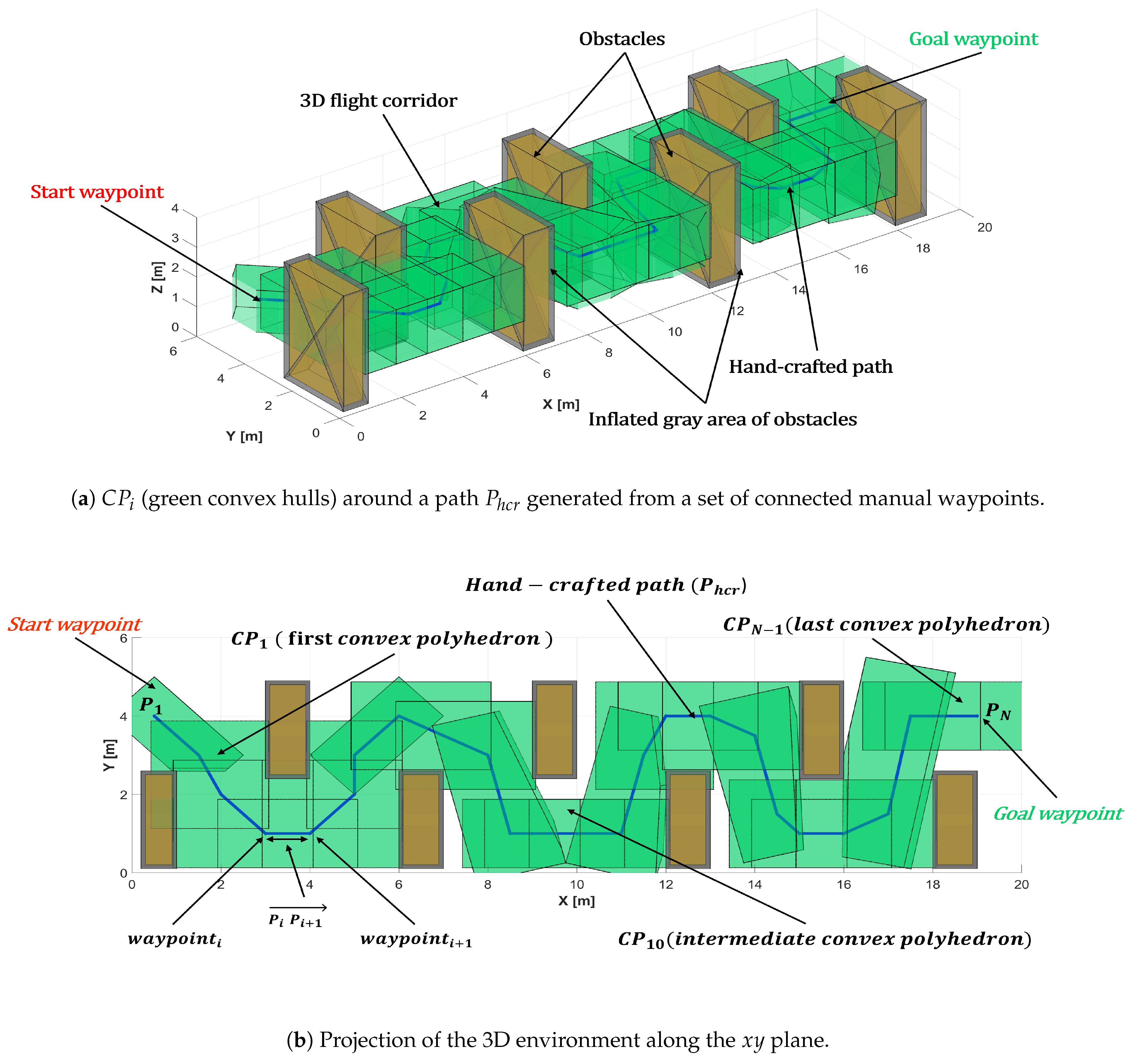

**Figure 5.**An example of generating a flight corridor $FC\left({P}_{hcr}\right)$ composed of connected polyhedra.

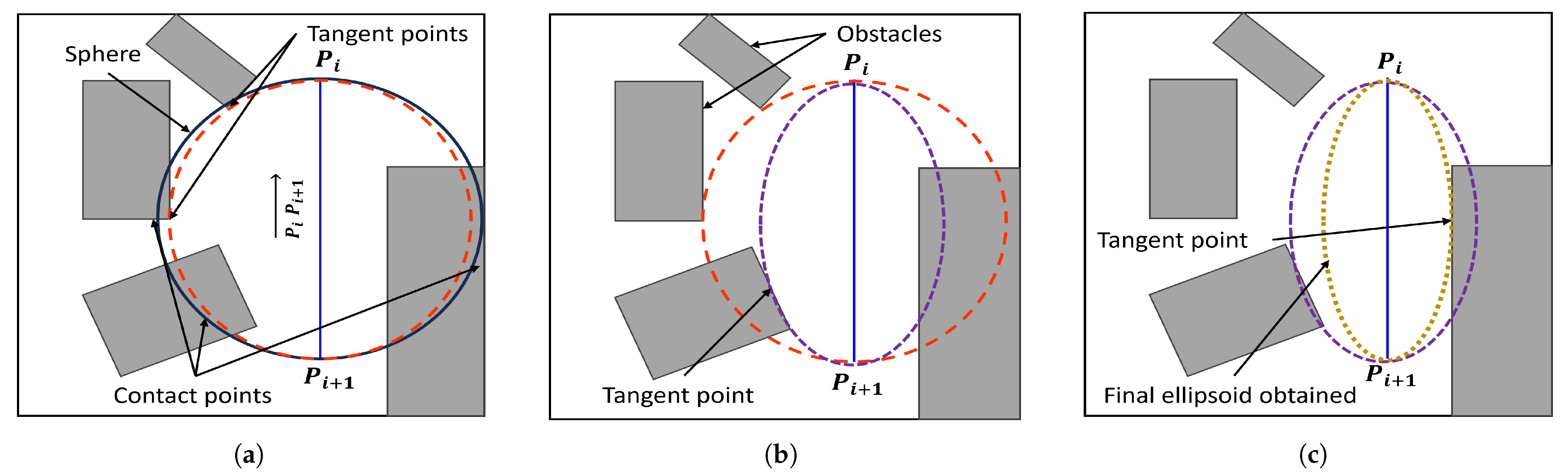

**Figure 6.**The process of finding an ellipsoid around $\overrightarrow{{P}_{i}{P}_{i+1}}$ by shrinking to form a collision-free one shown in 2D setting: (

**a**) an initial solid blue sphere is surrounding a path segment $\overrightarrow{{P}_{i}{P}_{i+1}}$; (

**b**) the initial sphere is gradually shrinking until it has no obstacle points by repeating the same shrinking process; (

**c**) the final phase of obtaining the maximal collision-free ellipse in size/area (dashed yellow).

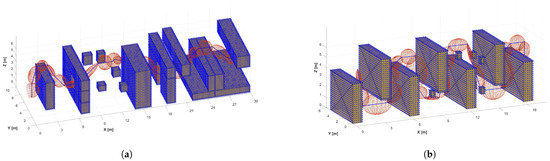

**Figure 7.**Examples for finding ellipsoids around the provided ${P}_{hcr}$ segments in two environmental scenarios: (

**a**) $30\times 10\times 6$ m environment with 18 convex and concave obstacles, some with opening holes, (

**b**) $18\times 6\times 6$ m environment with 7 large and 5 small convex obstacles.

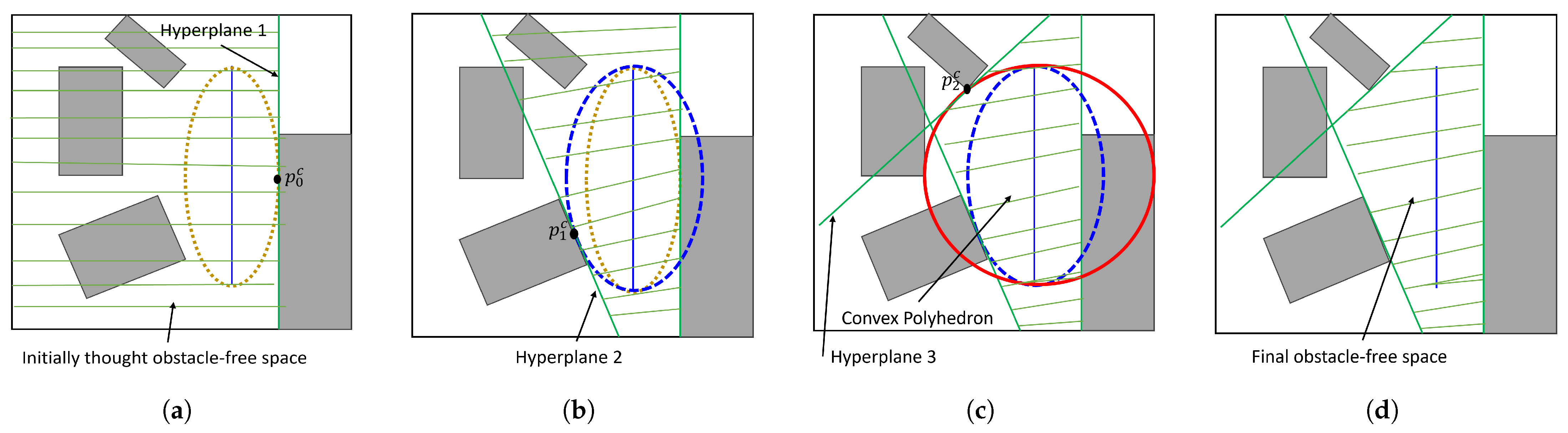

**Figure 8.**The process of finding a convex polyhedron $C{P}_{i}$ around $\overrightarrow{{P}_{i}{P}_{i+1}}$: (

**a**) an initial dashed yellow ellipse touching an obstacle point to generate the first hyperplane; (

**b**) a dashed blue dilated ellipse until touching the second obstacle point to generate the second hyperplane; (

**c**) a third dilated ellipse (solid red) to generate the third hyperplane; (

**d**) the final obstacle-free polyhedron (dashed green).

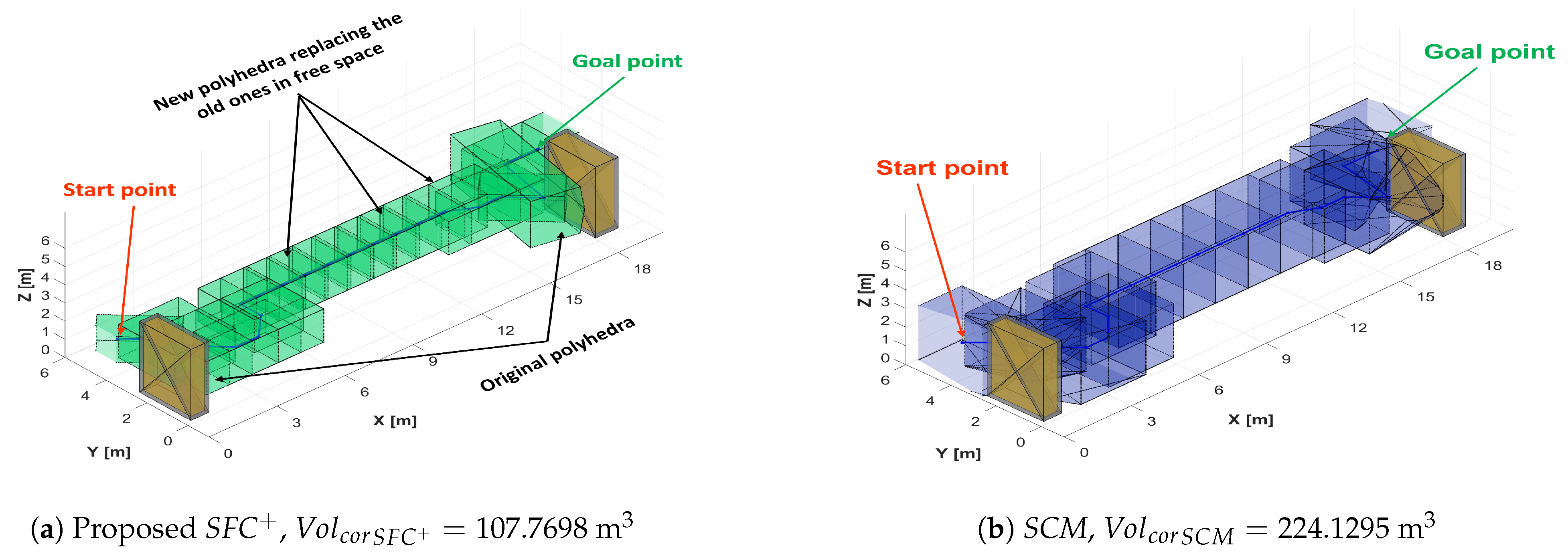

**Figure 11.**Example of generated polyhedra in an obstacle-free space using occupancy checking process.

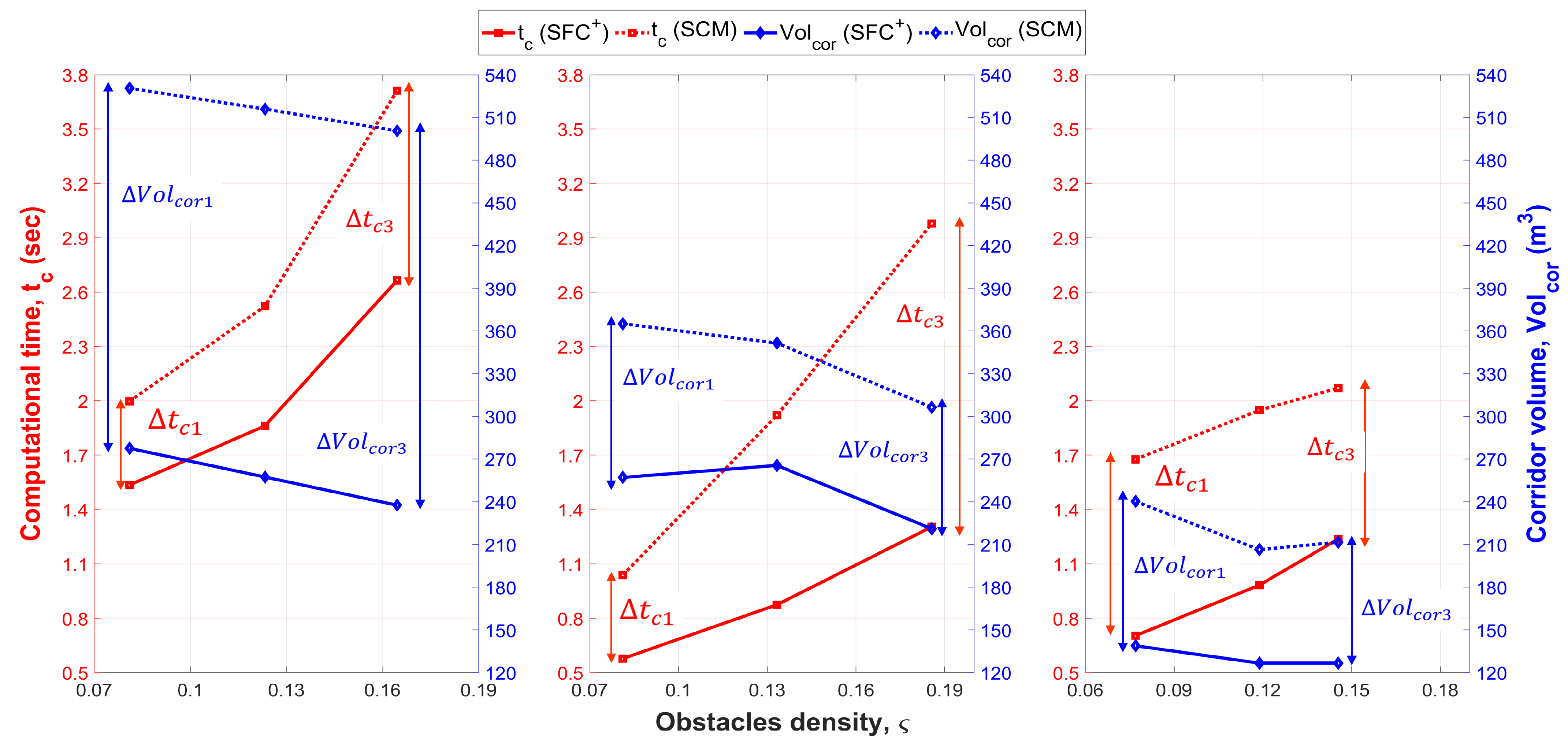

**Figure 21.**Performance comparison (${t}_{c},{Vol}_{cor}$) for three different map scenarios against obstacle density ($\varsigma $):

**left**: collapsed building scenario,

**middle**: cave scenario,

**right**: obstructed mine corridor.

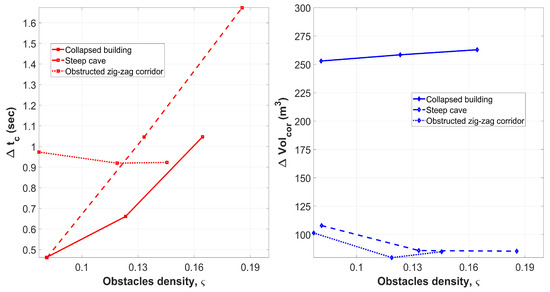

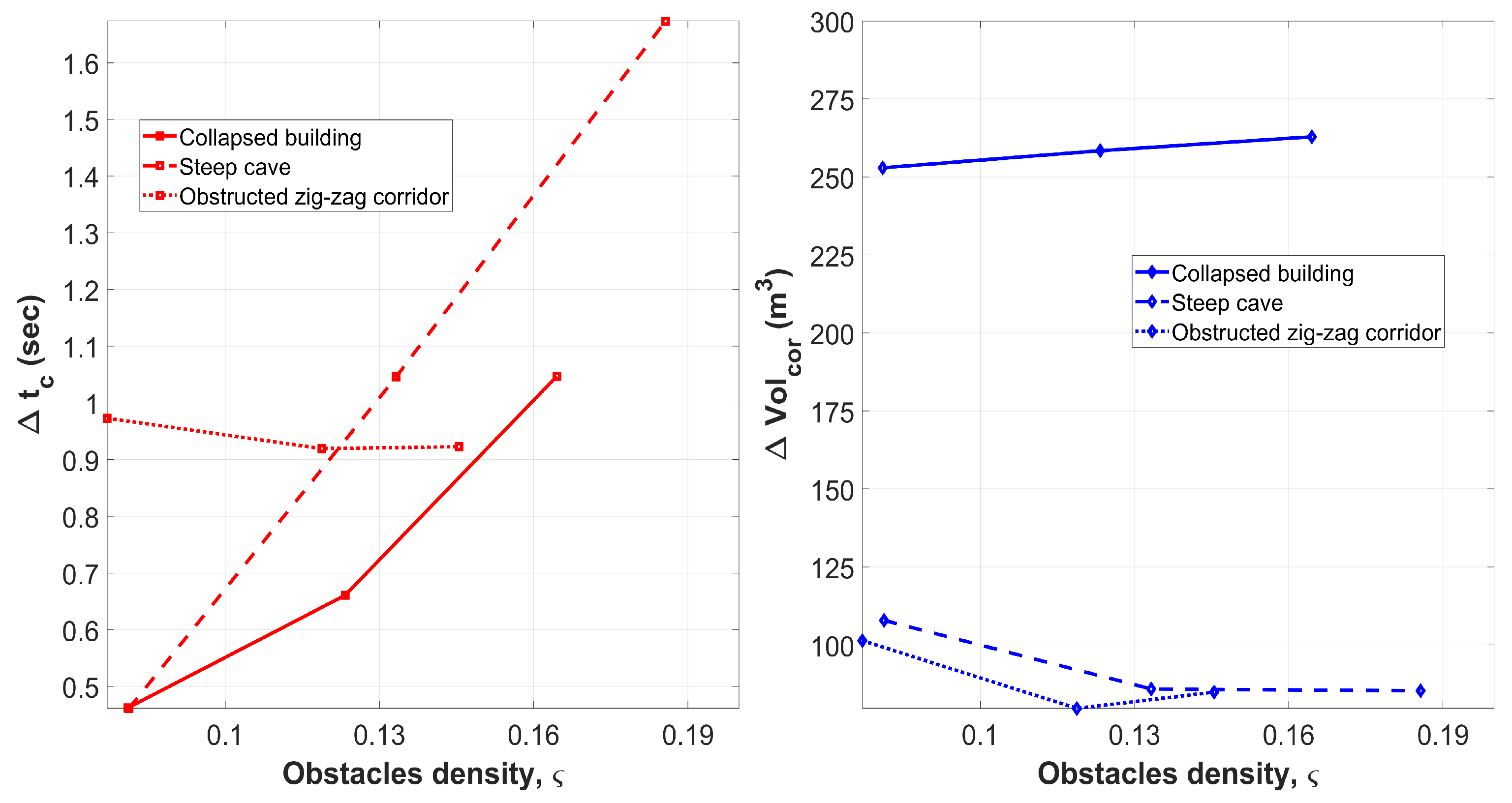

**Figure 22.**Performance comparison ($\Delta {t}_{c},\Delta {Vol}_{cor}$) for three different map scenarios against obstacle density ($\varsigma $):

**left**: computational time difference,

**right**: corridor volume difference.

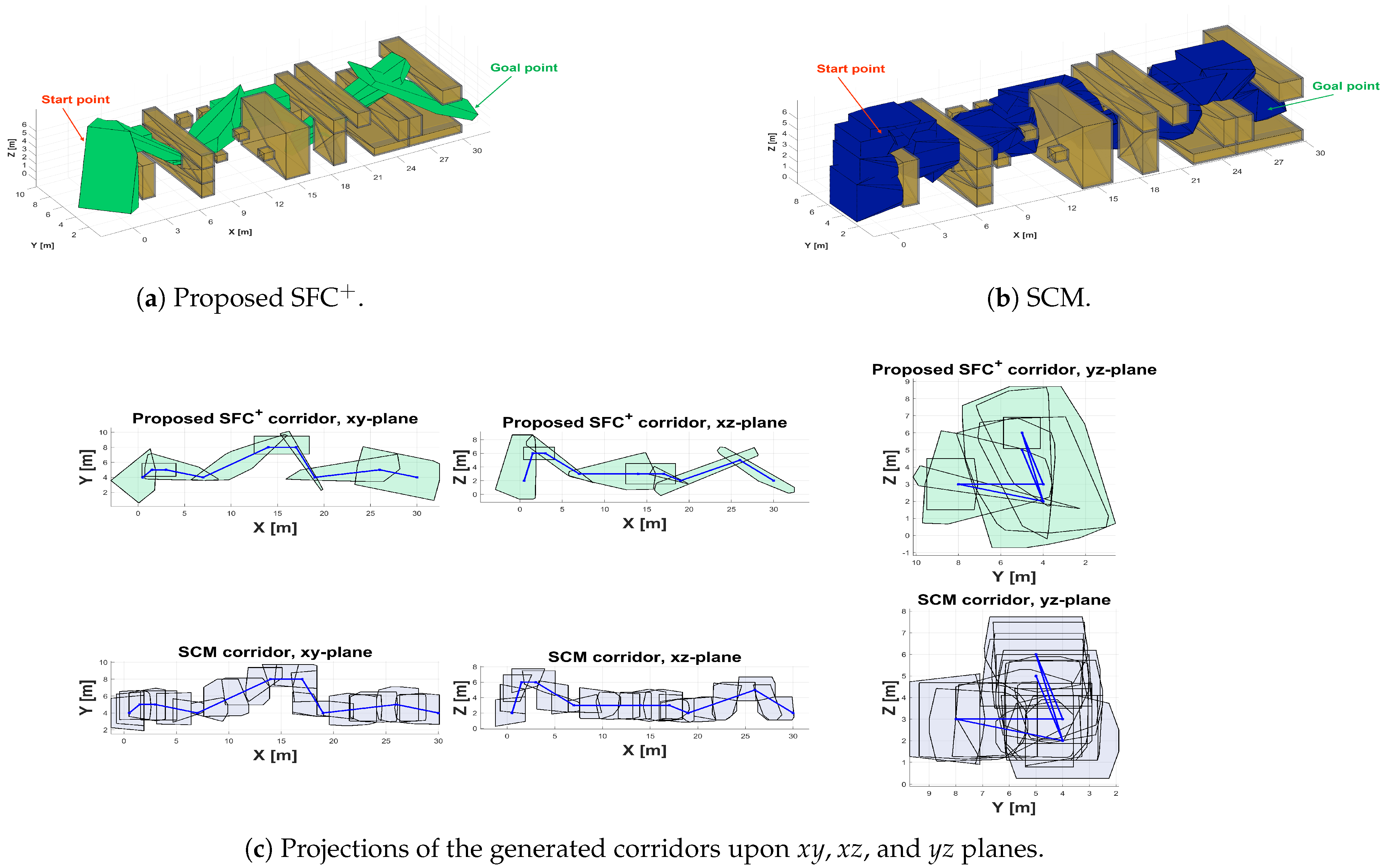

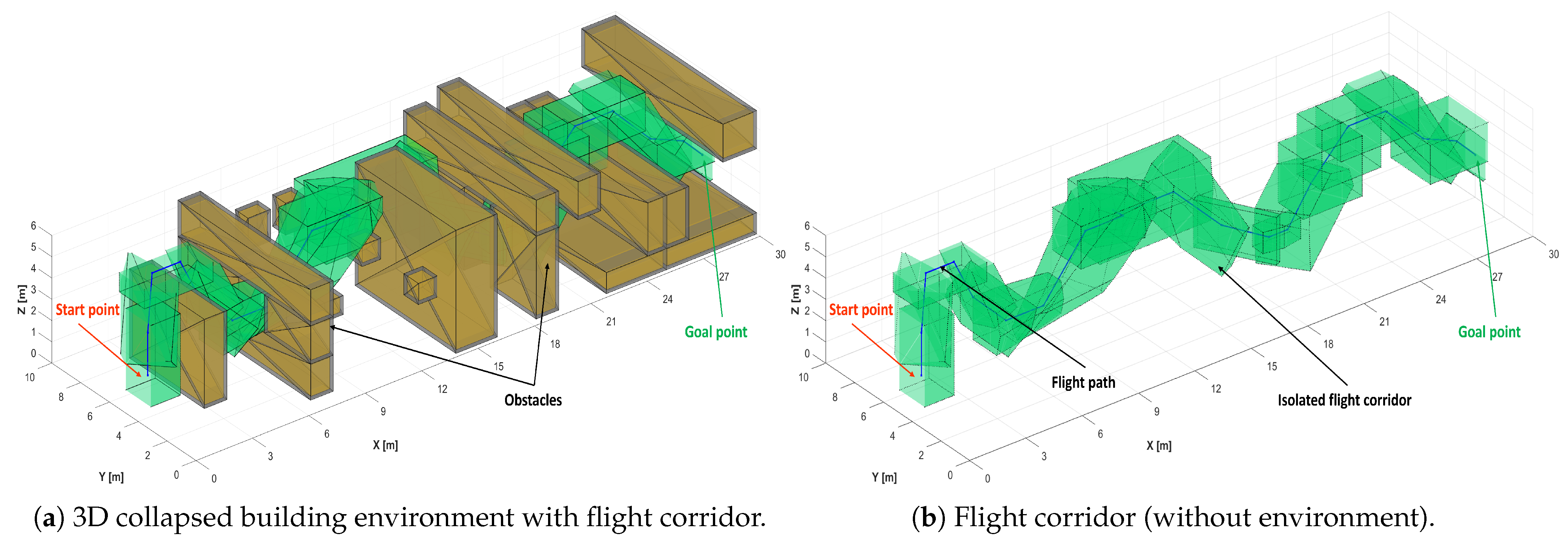

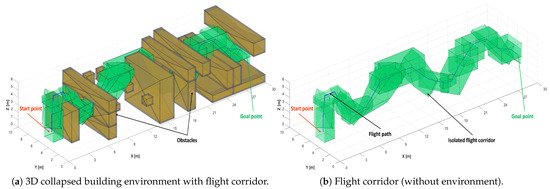

**Figure 23.**Results from a 3D collapsed building environment ($\varsigma =0.1645$) based on a post-processed hand-crafted path.

Environment | Obstacle Density ($\mathit{\varsigma}$) | No. of Obstacles | Overall Size of the Space (w × h × d, m) | Coordinates of Entry Point (m) | Coordinates of Exit Points (m) |
---|---|---|---|---|---|

Collapsed building | $\varsigma =0.1645$ (confined space) | 20 | 30 × 10 × 6 | [0.5,4,2] | [30,4,2] |

$\varsigma =0.1233$ (confined space) | 10 | ||||

$\varsigma =0.081$ (cluttered space) | 9 | ||||

Steep cave | $\varsigma =0.18567$ (confined space) | 14 | 20 × 5 × 6 | [1,1,5] | [20,3,2] |

$\varsigma =0.13325$ (confined space) | 5 | ||||

$\varsigma =0.08125$ (cluttered space) | 3 | ||||

Obstructed mine corridor | $\varsigma =0.1455$ (confined space) | 21 | 20 × 5 × 6 | [0.5,4,2] | [19,4,2] |

$\varsigma =0.1188$ (confined space) | 19 | ||||

$\varsigma =0.077$ (cluttered space) | 17 |

**Table 2.**Performance comparison between the proposed SFC${}^{+}$ and SCM for 3D flight corridor generation based on a hand-crafted path.

Computational Time (${\mathit{t}}_{\mathit{c}}$, s) | Corridor Volume (m ^{3}) | No. of Generated Polyhedra | ||||||
---|---|---|---|---|---|---|---|---|

Obstacle Density ($\mathbf{\varsigma}$) | Map Resolution (Voxel Size, $\mathrm{cm}$) | Proposed SFC${}^{+}$ | SCM | Proposed SFC${}^{+}$ | SCM | Proposed SFC${}^{+}$ | SCM | |

Collapsed building map scenario | $\varsigma =0.1645$ | $20\times 20\times 20$ | 2.5818 | 3.5284 | 237.6235 | 500.5325 | 21 | 27 |

$10\times 10\times 10$ | 2.6651 | 3.712 | 237.6235 | 500.5325 | 21 | 27 | ||

$\varsigma =0.1233$ | $20\times 20\times 20$ | 1.8453 | 2.5013 | 257.3771 | 515.8238 | 21 | 25 | |

$10\times 10\times 10$ | 1.862 | 2.5227 | 257.3771 | 515.8238 | 21 | 25 | ||

$\varsigma =0.081$ | $20\times 20\times 20$ | 1.5007 | 2.0604 | 277.559 | 530.5415 | 21 | 24 | |

$10\times 10\times 10$ | 1.5351 | 1.9972 | 277.559 | 530.5415 | 21 | 24 | ||

Cave map scenario | $\varsigma =0.18567$ | $20\times 20\times 20$ | 1.3274 | 2.8754 | 221.0281 | 306.3768 | 21 | 33 |

$10\times 10\times 10$ | 1.3054 | 2.9787 | 221.0281 | 306.3768 | 21 | 33 | ||

$\varsigma =0.13325$ | $20\times 20\times 20$ | 0.90729 | 1.9332 | 265.5472 | 351.4842 | 21 | 28 | |

$10\times 10\times 10$ | 0.87448 | 1.9204 | 265.5472 | 351.4842 | 21 | 28 | ||

$\varsigma =0.08125$ | $20\times 20\times 20$ | 0.62353 | 1.0092 | 257.136 | 365.0643 | 21 | 27 | |

$10\times 10\times 10$ | 0.5778 | 1.0391 | 257.136 | 365.0643 | 21 | 27 | ||

Obstructed mining map scenario | $\varsigma =0.1455$ | $20\times 20\times 20$ | 1.196 | 2.0492 | 126.6911 | 211.6088 | 24 | 18 |

$10\times 10\times 10$ | 1.1476 | 2.0704 | 126.6911 | 211.6088 | 24 | 18 | ||

$\varsigma =0.1188$ | $20\times 20\times 20$ | 1.1009 | 1.9819 | 126.6911 | 206.3995 | 24 | 19 | |

$10\times 10\times 10$ | 1.0287 | 1.9481 | 126.6911 | 206.3995 | 24 | 19 | ||

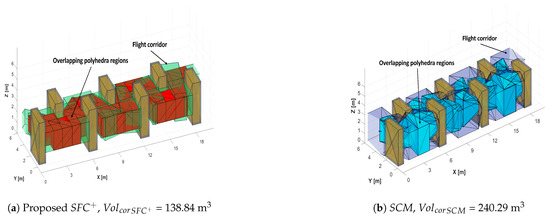

$\varsigma =0.077$ | $20\times 20\times 20$ | 0.71836 | 1.5541 | 138.8408 | 240.288 | 24 | 19 | |

$10\times 10\times 10$ | 0.70418 | 1.6772 | 138.8408 | 240.288 | 24 | 19 |

**Table 3.**Performance comparison between the proposed SFC${}^{+}$ and SCM for 3D flight corridor generation based on a post-processed hand-crafted path.

Computational Time (${\mathit{t}}_{\mathit{c}}$, s) | Corridor Volume (m ^{3}) | No. of Generated Polyhedra | ||||||
---|---|---|---|---|---|---|---|---|

Obstacle Density ($\mathbf{\varsigma}$) | Map Resolution (Voxel Size, cm) | Proposed SFC${}^{+}$ | SCM | Proposed SFC${}^{+}$ | SCM | Proposed SFC${}^{+}$ | SCM | |

Collapsed building map scenario | $\varsigma =0.1645$ | $20\times 20\times 20$ | 2.1929 | 2.7444 | 231.7023 | 358.8962 | 7 | 24 |

$10\times 10\times 10$ | 1.9182 | 2.9326 | 309.0498 | 423.968 | 8 | 23 | ||

Cave map scenario | $\varsigma =0.18567$ | $20\times 20\times 20$ | 1.0666 | 2.7866 | 370.3862 | 307.041 | 13 | 32 |

$10\times 10\times 10$ | 1.0577 | 2.6848 | 362.4562 | 288.697 | 13 | 30 | ||

Obstructed mining environment | $\varsigma =0.1455$ | $20\times 20\times 20$ | 0.66375 | 1.806 | 113.088 | 177.5656 | 7 | 18 |

$10\times 10\times 10$ | 0.70554 | 1.6912 | 93.0473 | 172.254 | 6 | 19 |
