Novel Inhibitory Role of Fenofibric Acid by Targeting Cryptic Site on the RBD of SARS-CoV-2

by
Jianxiang Huang
1,
Kevin C. Chan
1,2 and
Ruhong Zhou
1,2,3,4,*
1
Institute of Quantitative Biology, College of Life Sciences, Zhejiang University, Hangzhou 310027, China
2
Shanghai Institute for Advanced Study, Zhejiang University, Shanghai 201203, China
3
The First Affiliated Hospital, School of Medicine, Zhejiang University, Hangzhou 310058, China
4
Department of Chemistry, Colombia University, New York, NY 10027, USA
*
Author to whom correspondence should be addressed.
Biomolecules 2023, 13(2), 359; https://doi.org/10.3390/biom13020359
Submission received: 9 December 2022 / Revised: 5 February 2023 / Accepted: 7 February 2023 / Published: 14 February 2023
(This article belongs to the Special Issue State-of-the-Art Biophysics, Biochemistry and Molecular Biology in China)
Browse Figures
Review Reports Versions Notes

Abstract

:
The emergence of the recent pandemic causing severe acute respiratory syndrome coronavirus 2 (SARS-CoV-2) has created an alarming situation worldwide. It also prompted extensive research on drug repurposing to find a potential treatment for SARS-CoV-2 infection. An active metabolite of the hyperlipidemic drug fenofibrate (also called fenofibric acid or FA) was found to destabilize the receptor-binding domain (RBD) of the viral spike protein and therefore inhibit its binding to human angiotensin-converting enzyme 2 (hACE2) receptor. Despite being considered as a potential drug candidate for SARS-CoV-2, FA’s inhibitory mechanism remains to be elucidated. We used molecular dynamics (MD) simulations to investigate the binding of FA to the RBD of the SARS-CoV-2 spike protein and revealed a potential cryptic FA binding site. Free energy calculations were performed for different FA-bound RBD complexes. The results suggest that the interaction of FA with the cryptic binding site of RBD alters the conformation of the binding loop of RBD and effectively reduces its binding affinity towards ACE2. Our study provides new insights for the design of SARS-CoV-2 inhibitors targeting cryptic sites on the RBD of SARS-CoV-2.

1. Introduction

The severe acute respiratory syndrome coronavirus (SARS-CoV-2) is the causative agent of the prolonged COVID-19 pandemic and remains widespread among the human population. To date, more than 600 million people have been infected and more than 6 million deaths have been recorded worldwide. Efforts have been devoted to vaccine development and effective interventions against COVID-19. Consequently, COVID-19 vaccines have been found to effectively reduce the spread of viral infection and associated morbidity and mortality [1,2,3,4,5]. However, advanced efforts in finding alternate treatments are still highly desired to cure COVID-19 patients with severe symptoms and reduce the death rate [6,7].
To date, the US Food and Drug Administration (FDA) has approved several small molecule antivirals for SARS-CoV-2, including remdesivir (VekluryTM), a ribonucleotide inhibitor of SARS-CoV-2 RNA-dependent RNA polymerase (RdRp) [8], baricitinib (OlumiantTM), a selective inhibitor of host proteins JAK1 and JAK2 [9], ritonavir-boosted nirmatrelvir (PaxlovidTM), and molnupiravir (LagevrioTM). Nirmatrelvir is a reversible covalent inhibitor of SARS-CoV-2 major protease (Mpro) [10], which is boosted by ritonavir, an HIV-1 protease inhibitor that allows nirmatrelvir to be active for a longer period by decreasing its cytochrome P450 3A-mediated metabolism. Molnupiravir, like remdesivir, targets SARS-CoV-2 RdRp; however, unlike remdesivir, which acts as a delayed chain terminator to halt viral RNA synthesis, molnupiravir acts as a mutagenizing agent during viral replication, causing dysfunctional virus copies [11].
Advanced research involving drug repurposing could be utilized for the potential identification of new drugs against COVID-19. Recently, numerous strategies of drug repurposing for COVID-19 have been summarized in the literature [12,13,14,15]. In the drug repurposing study by Hu et al. [16], they reported that antibiotics cefotaxime and cefuroxime have high binding affinities towards the spike receptor-binding domain (RBD) of SARS-CoV-2 through large-scale molecular chip screening, and further ensemble docking analysis suggests that cefotaxime and cefuroxime can influence the critical interface sites at the interface of RBD and ACE2 complex. A study by Davies et al. [17] shows that the metabolite of fenofibrate (fenofibric acid or FA) destabilized the RBD protein of SARS-CoV-2 and significantly reduced infection rates in vitro. The study suggested that FAs inhibit SARS-CoV-2 infections by inhibiting the binding of spike RBD to ACE2 receptor. According to the study, the inhibition process mainly involves the destabilization of the spike RBD [17]. However, the detailed inhibitory mechanism is yet to be fully explored.
Previous evidence suggests that FA has a novel mechanism of action to interfere with ACE2-mediated binding and cellular entry of SARS-CoV-2. Herein, we hypothesized that the binding of FA to the spike RBD contributes to this inhibition process. In this study, we explored the potential binding mechanism of FA binding to the RBD of SARS-CoV-2 through molecular dynamics (MD) simulation. The MD simulation results showed that the FA induces a conformational change in the RBD by stabilizing a potential cryptic binding site around the T470-F490 loop. This cryptic binding site was then verified through molecular docking and MM/GBSA (Molecular Mechanics with Generalized Born and Surface-Area solvation) calculations. Furthermore, a comparative analysis of the RBD-ACE2 and FA-bound RBD-ACE2 was also performed. The results showed that the FA-bound RBD possesses a weaker binding affinity to ACE2, attributed to the reduced contacts at the interaction interface.

2. Systems and Methods

2.1. Cavity Search

CavityPlus [18,19] is a website that offers protein cavity detection and various functional analyses. CavityPlus employs CAVITY [20] to discover possible binding sites on the surface of a given protein structure using a structural geometry-based algorithm and then rank them based on ligandability and druggability scores using protein three-dimensional structural information as input. These possible binding sites may be investigated further with the help of three submodules: CavPharmer [21], CorrSite [22], and CovCys [23]. CavPharmer extracts pharmacophore characteristics within cavities using Pocket, a receptor-based pharmacophore modeling application. CorrSite uses motion correlation analysis between cavities to identify possible allosteric ligand-binding sites. CovCys discovers druggable cysteine residues. Overall, CavityPlus is a comprehensive platform for analyzing the features of protein binding cavities. CavityPlus webserver was employed for the detection of ligand-binding sites on the RBD of SARS-CoV-2 with default parameters. The three-dimensional protein model of RBD was downloaded from the protein data bank using the PDB code of 6VW1 [24] with the 2.68 Å X-ray resolution. The detected binding sites were graded using the metrics maximum pKd, DrugScore, and Druggability.

2.2. MD Simulation System and Setup

Initially, the missing residues of the RBD protein structure were added using PDBfixer [25]. Similarly, the initial structure of fenofibrate was downloaded from the database ChemSpider [26]. Subsequently, the fenofibrate structure was edited using Avogadro software [27] to generate the initial FA structure (Figure S1) and was then subjected to geometrical optimization using MMFF94 force field [28].
Several parameters from the General Amber Force Field (GAFF) [29] were utilized to describe the FA. Based on the pKa value (4.0) of FA, deprotonation of the structure (carrying one negative charge) was performed under physiological conditions [30], while the partial charges for FA were derived by the AM1-BCC method [31]. The parameters were set for the protein according to the AMBER 99SB-ildn force field [32] and used in combination with the TIP3P explicit water model [33]. Following similar protocols used in our previous studies [34,35,36,37,38], addition of ions (Na+ and Cl-) was achieved to neutralize the system and yield an ionic concentration of 150 mM. All the MD simulations were performed using the GROMACS 2020.4 [39] simulation package whereas the temperature (T = 310 K) and pressure (p = 1 atm) were maintained using a stochastic velocity rescaling thermostat [40] and a Parrinello–Rahman barostat [41], respectively. The short-range electrostatic and van der Waals interactions were calculated at a cut-off distance of 1.2 nm, while long-range electrostatic interactions were treated via the particle mesh Ewald (PME) method [42]. The periodic boundary conditions were applied to each of the systems in all directions. Furthermore, the use of the LINCS algorithm enabled a standard integration time step of 2 fs [43]. Finally, 2000 ns MD simulations were performed for RBD and the four FA molecules. The MD simulations of RBD-ACE2 and FA-bound RBD-ACE2 were separately performed for 500 ns. The detailed information of the simulated systems was summarized in Table S1. Similarly, all the simulation snapshots were rendered with VMD [44].

2.3. Molecular Docking and MM/GBSA Calculation

Molecular docking of FA to the RBD of SARS-CoV-2 was performed using AutoDock Vina [45]. The 2000 ns MD trajectory of RBD and four FA molecules were extracted every 2 ns to obtain a total of 1000 frames of RBD structures. The protein and ligand structures were converted into PDBQT format files using the AutoDock tools software [46]. Subsequently, a grid box of size 3 × 3 × 3 nm3 and an exhaustiveness value of 128 with other default parameters were adopted for the molecular docking calculations. The obtained molecular docking results were then ranked on the basis of predicted binding affinity. The complex structures selected from the top docking poses were then subjected to further MD simulations. Both the ligand–protein and protein–protein binding affinities were calculated by using the MM/GBSA method [47,48]. The MM/GBSA calculations were performed with the gmx_MMPBSA software [49]. Briefly, binding free energy (ΔG) was calculated by summing up the changes in electrostatic energies (ΔEele), the van der Waals energies (ΔEvdW), the electrostatic solvation energy (ΔGGB, polar contribution), the nonpolar contribution (ΔGSA) between the solute and the continuum solvent, and conformational entropy (–TΔS) upon ligand binding [47,48].

3. Results and Discussion

3.1. Identifying Binding Sites on the RBD of SARS-CoV-2 Spike Protein

The core of the SARS-CoV-2 RBD is a twisted five-stranded antiparallel sheet with short connecting helices and loops [50,51] and the receptor-binding motif (RBM) of RBD consists mostly of the upper loops, including the T470-F490 loop (shown in orange in Figure 1A). The potential binding sites on the RBD of SARS-CoV-2 spike protein were first explored by using CavityPlus [18]. As shown in Figure 1B, a total of six binding sites were predicted and each ranked based on DrugScore14. Cavity 1 had the highest DrugScore and largest vacant volume of 372.5 Å3 (Table S2) and was therefore identified as the most favorable binding pocket for the FA molecule. Residues of the RBD protein surrounding the cavities are listed in Table S3.
Next, we performed MD simulations of the RBD in the presence of four FA molecules randomly placed in solvent (Figure 2A). We also noticed that the T470-F490 loop of the RBD shows a relatively large conformational change during MD simulations. This conformation change was further quantified through root mean square deviation (RMSD) analysis (Figure 2B). The RMSD of the RBD was found to increase to ~0.6 nm upon binding of FA I. These conformational changes are illustrated as representative snapshots during the time evolutions of RMSD and shown in Figure 2C. To corroborate the observations, four more replicas of MD simulations were performed and the results of RMSD are shown in Figure S2A. The RMSD of the RBD protein stays within 0.2–0.25 nm during the entire 2000 ns simulation time for all the four replicas, indicating an overall stable protein system in our simulations. The T470-F490 loop of the RBD protein of course shows more pronounced conformational changes, as expected (Figure S2B). These additional simulations show very similar behaviors and trends with the one mentioned above (Figure 2), thus we stayed with that one as the representative for the rest of the analyses in this study.
To detect the potential contact between the RBD and FAs, we calculated the time evolution of center-of-mass (COM) distances between the RBD and each of the four FAs (Figure S3). The COM distance result suggests FA I contact with RBD (with COM distances of ~4 nm). A closer examination of the simulation trajectory (Movie S1) and the time evolution of the COMs of the four FA molecules (Figure S4) suggested that FA I wandered around and formed many contacts with the RBD protein. On the other hand, Figures S3 and S4 suggest that the other three FA molecules (i.e., FA II, III, and IV) bound to RBD within the first 50 ns and remained bound to RBD until at least ~1500 ns (with COM distances of ~4 nm). Furthermore, we calculated the contact probability for each FA molecule to the RBD (Figure S5). It can be seen from Figure S5 that there is noticeable contact between FA I and the T470-F490 loop of the RBD protein. While FA II preferentially binds to cavity 6, both FA III and IV have a greater tendency to bind to cavity 1 (also see Figure 1 and Table S3). Meanwhile, although the RMSD result of RBD shows a subtle conformational change of the protein at ~140 ns in comparison to the structure at 100 ns (Figure 2C), FA I remains in the solution and stays away from the T470-F490 loop of RBD from 100 ns to 140 ns (Figure S6). The FA I also forms contacts with RBD only after 400 ns of MD simulations. These close interactions between the FAs and the T470-F490 loop are displayed in the representative snapshots at 338, 440, and 1772 ns (Figure 2C). Meanwhile, the increased RMSD of the protein at these time points suggests that the conformational change of the T470-F490 loop of the RBD is potentially induced by the FA I molecule (Movie S1).

3.2. Principal Component Analysis (PCA) of MD Simulation Trajectory and FTMap Analysis

Next, we explored the effects of FAs on the conformational change in the RBD of the spike protein. The time evolution of the protein structures is presented in Figure 3A which represents different structures colored on the basis of simulation time from red to white and blue. The T470-F490 loop region showed the largest conformational changes, while the rest of the protein remains quite rigid. Additionally, we also performed principal component analysis (PCA) analysis to reveal protein conformational changes along the MD trajectories. Two top PCs used for projection analysis of the MD trajectory allow the detection of conformational change (Figure 3B). Consistent with the findings of the RMSD result (Figure 2B), we observed three different trajectory projections (i.e., three clusters) in the PCA result and colored these as red (0−388 ns) to gray (389−1769 ns) and blue (1770−2000 ns), respectively. The relatively long difference between the early and the late stage of the trajectory confirms that the T470-F490 loop of RBD underwent large conformational changes. This result is also consistent with the anisotropic network model (ANM) [52] analysis of RBD, where the collective motions in the RBD were predicted using coarse-grained normal mode analysis (Figure S7). The ANM analysis also suggests that the largest mean fluctuation is located at the T470-F490 loop of RBD. Moreover, the T470-F490 loop fluctuations are also in line with the simulation results of the previous different studies [53,54,55].
Furthermore, we adopted a centroid-based clustering method to determine the representative structures of the three clusters. To begin with, centers of the three clusters were determined by averaging the two PCs and then the RBD structures with the minimum distances to the three cluster centers on the two-dimensional PCA were taken as the representative ones. Finally, the RBD protein structures at 70, 464 and 1996 ns were determined as representative ones for the three clusters (Figure S8). Interestingly, while no contact between FA I molecule with the T470-F490 loop of the RBD protein at 70 ns was observed and the RBD protein remained similar to its crystal structure, direct contacts between FA I molecule with the T470-F490 loop of the RBD protein were heavily observed around the 464 and 1996 ns clusters, suggesting the potentially important role of FA molecule in inducing the conformational change of RBD.
We observed the binding of FA I to the T470-F490 loop of RBD after 1807 ns of MD simulations (Figure 3C). This observation was compelling to explore whether this loop region could be a potential cryptic binding site [56]. By definition, cryptic binding sites are not formed in protein targets without a ligand and only become visible upon the binding of ligands [57]. Herein, we additionally performed FTMap analysis [58] for the RBD protein structure at 1807 ns to detect any potential cryptic binding site. FTMap utilizes small organic molecules as probes to scan for pockets on the surface of a target protein. Moreover, it also helps in exploring favorable positions, clustering conformations, and ranking based on average energies [58]. Here, two major consensus sites (CS) were detected by FTMap (Figure 3D). We found that CS1 was in place with Cavity 1 detected by CavityPlus (Figure 1B). CS2 was in close proximity to the T470-F490 loop, suggesting that the T470-F490 loop can indeed be a potential cryptic site for ligand binding.
Note that FA consists of two hydrophobic benzene moieties and one carboxyl group (Figure S1). The simulated system of one RBD and four FA molecules is similar to the use of cosolvent method to detect cryptic binding sites [57,59], where a number of organic solvents, such as phenol were added to MD simulations of the targeted protein. Due to the hydrophobic features of the cryptic site [56], organic solvents with hydrophobic moieties are likely to induce the opening of cryptic sites during the MD simulations. Therefore, FA plays a similar role to the organic solvent adopted for the cosolvent MD simulations. This analogue explains the above observation that FA I induces the fluctuations of the T470-F490 loop and the exposure of the potential cryptic site that is closed in the apo crystal structure.

3.3. Molecular Docking of FA to RBD and Binding Affinities Calculated by the MM/GBSA Method

Next, we also analyzed the binding of FA to the potential cryptic site in the loop region of RBD by performing molecular docking of FAs to the RBD structure (Figure 4A). The 2000 ns MD trajectory was then extracted every 2 ns to obtain a total of 1000 representative frames of the protein structures. Herein, the molecular docking of FA to the loop region of RBD was performed using AutoDock Vina [45]. The docking poses were then ranked by the predicted binding affinity (Figure S9). Interestingly, we observed that the docking poses with relatively high binding affinities are mainly centered towards RBD structures at ~400 ns and ~1800 ns and were found consistent with the time points of the RMSD increase (Figure 2B). This increase in RMSD also implies the formation of the potential cryptic site and may result in the higher binding affinities with the RBD structures at ~400 ns and ~1800 ns.
We selected the top 43 poses with predicted binding affinities lower than or equal to −7.2 kcal/mol and each performed 100 ns of MD simulations. The COM distances between RBD and FA were monitored for all the systems and only those with close and stable COM distances were subjected to the MM/GBSA calculations. The binding free energies of the top 17 systems calculated by the MM/GBSA are shown in Table S4. The top four binding poses, denoted from pose a to d, are shown in Figure 4B and the corresponding binding affinities are shown in Figure 4C. Based on the related binding affinities of the top four complex structures, the MD simulations of these complexes were extended by another 400 ns. The binding affinities calculated by the MM/GBSA on the extended MD trajectories are shown in Figure 4C with the pose d showing the strongest ligand–protein binding affinity.
Furthermore, we also performed the molecular docking of FA to the CS1 site predicted by FTMap. During this analysis, the binding pose with the highest binding affinity of −7.2 kcal/mol (Figure S10) was adopted for the 100 ns MD simulations. The results of the binding affinity of FA to the CS1 pocket by the MM/GBSA method are listed in Table S5. We obtained a significantly weaker binding affinity of −2.40 kcal/mol in comparison with that from CS2. This comparison suggests that CS2 is more favorable for the binding of FA molecules.

3.4. Structural Analysis of the Complex with the Highest Binding Affinity

A detailed examination of the binding pose d suggested the two benzene ring moieties of FAs are surrounded by several hydrophobic residues (Figure 5A) which may contribute towards the hydrophobic interactions between FA and RBD. To comprehend the ligand–protein interactions, we further analyzed the extended 400 ns MD simulations of the pose d using the MD-IFP tool [60] (Figure 5B). Hydrophobic interactions and aromatic contacts were denoted by HY and AR, respectively, and HD denotes residues which serve as hydrogen bond donors. FAs were able to form stable hydrophobic contacts with residues of RBD including ILE472, TYR473, GLN474, THR478, and PHE486. Consistently, the hydrophobic interactions within the T470-F490 loop of RBD were well characterized in the previous studies [61,62] and these hydrophobic interactions in the T470-F490 loop are important for allosteric effects between residues at the ACE2-binding interface [63,64]. FAs also formed hydrogen bonds with residues including TYR473, GLN474, SER477, and THR478. These residues in the T470-F490 loop also play important roles in the binding to the ACE2 protein [61,62,63,65].

3.5. Potential Mechanism of FA Reducing the Complexation of RBD and Human ACE2

The binding of FA to the loop region of RBD can have significant influences on the binding of RBD to hACE2. In the crystal structure of RBD-ACE2 complex, the T470-F490 loop stably interacts with the ACE2 (Figure 6A), which involves residues pairs Y473-T27, F486-F28, F486-L79, F486-F28, Y489-Y83, Y489-F28, and A475-T27 (the upper right enlarged figure of Figure 6A). By contrast, the binding of FA disrupted the binding interface of RBD for ACE2 near the T470-F490 loop (the lower right enlarged figure of Figure 6A). As a result, the residue contacts between RBD and ACE2 were significantly reduced in the FA-bound RBD-ACE2 complex.
We further investigated the energetic contributions caused by the binding of FA to the T470-F490 loop of RBD to RBD-ACE2 interactions. Herein, both the structures of RBD-ACE2 and FA-bound RBD-ACE2 complexes were subjected to 500 ns MD simulations. The protein–protein binding affinities calculated by the MM/GBSA are shown in Figure 6B and Table 1. The entropy terms were omitted due to the difficulty in the entropy calculation for the relatively large protein complex. The calculated binding free energies are termed as effective binding free energies as shown in a previous study by He et al. [66]. The effective free energy of FA-bound RBD-ACE2 was −33.32 kcal/mol which is ~15 kcal/mol weaker than that of RBD-ACE2 (−47.35 kcal/mol), demonstrating a significant abolishment in ACE-binding induced by FA. This difference can be attributed to the deviations in vdW (ΔEvdW) and electrostatic (ΔEele) terms due to the restraint of loop residues from the binding interface by the bound FA. Our results are in good agreement with the previous computational study by He et al. [66], in which they studied the molecular mechanisms of human infection with SARS-CoV-2 and SARS-CoV by using MM/GBSA calculations and they reported a binding affinity of −50.43 kcal/mol for the apo SARS-CoV-2 RBD-ACE2 complex. By decomposing MM/GBSA results, we clearly showed that the weakened ACE2-binding caused by FA was mainly contributed by fewer van der Waals interactions between RBD and ACE2.

4. Conclusions

We systematically investigated the interactions between FAs and RBD by utilizing molecular docking, MD simulations, and MM/GBSA calculations. We found that FA interacts with the T470-F490 loop of RBD which is a potential cryptic site and remains closed in the apo crystal structure. The relatively higher binding affinities confirmed that FA binds to the loop region instead of other predicted pockets. Further analysis revealed the significant role of hydrophobic interactions, hydrogen bonding, and electrostatic interactions involved in the binding of FA to the RBD protein. Moreover, the protein–protein binding affinities calculated by MM/GBSA illustrate that the FA-bound RBD possesses a weakened binding affinity towards ACE2 in comparison to apo RBD. These findings suggested that the binding of FA affects interactions between the RBD of SARS-CoV-2 spike and hACE2 receptor through stabilizing an alternative conformation of the T470-F490 loop of RBD. By revealing a cryptic site on SARS-CoV-2 RBD, we emphasized the potential of targeting cryptic pockets on SARS-CoV-2 for the development of novel drug candidates for COVID-19 [67,68]. Since the current study was conducted using computational approaches, it is highly desired to have these findings validated with wet-lab experimentation in future studies.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/biom13020359/s1, Figure S1. The chemical structures of fenofibrate and fenofibric acid.; Figure S2. The RMSD results of the simulated RBD protein in the four replica systems (A). The final RBD protein structures are aligned to the initial RBD structure before the MD simulations (shown in white). The T470-F490 loops of the final RBD protein structures of replica 1 to 4 are shown in orange, while the rest of the proteins of replica 1 to 4 are displayed in green, pink, iceblue and purple, respectively (B); Figure S3. The COM distances between RBD and each of FAs, whereas the labels I, II, III and IV denote the data for the four FA molecules; Figure S4. Time evolution of the COMs of the four FA molecules (shown as spheres). The COMs of each FA are colored according to the simulation time. COMs of frames at 0 to 2000 ns are colored from white to blue. For clarity, a total of 1250 frames with a time interval of 1.6 ns are adopted for the illustration; Figure S5. Contact probability of each FA molecule with the residue of the RBD protein. The calculation of contact probability is performed on the 2000 ns trajectory. To be specific, the calculation is based on a total of 25,000 frames with a time interval of 0.08 ns. The contact between FA I and the T470-F490 loop of the RBD protein is marked by the dashed orange rectangle; Figure S6. (A). The COM distance between RBD and FA I from 90 ns to 150 ns and RMSD of RBD from 90 ns to 150 ns (B). Representative snapshots of the representative fluctuating T470-F490 loop along the trajectory. Distances between alpha carbons of ILE472 and VAL483 are marked with dashed lines and the distances are labelled in angstrom. The disulfide bond near to the ILE472 and VAL483 is also displayed; Figure S7. The ANM analysis of the RBD of SARS-CoV-2 involving submission of the RBD protein structure to the ANM server (http://anm.csb.pitt.edu/). The root mean-square fluctuations of the slowest ANM modes are color mapped onto the residues. Residues with low mean-square fluctuations are colored blue, while residues with high mean-square fluctuations are colored red. The arrow length indicates fluctuant magnitude, while the arrow orientation indicates fluctuant direction; Figure S8. Representative snapshots at 70, 464 and 1996 ns for the three different trajectory projections in the PCA result; Figure S9. The FA-RBD binding affinities predicted by molecular docking calculations and data are represented by different symbols. The data with predicted binding affinities lower or equal to −7.7 kcal/mol are shown by upright red triangles. Whereas the data with predicted binding affinities lower or equal to −7.4 kcal/mol and greater than or equal to −7.6 kcal/mol are shown as upside-down blue triangles. Similarly, the data with predicted binding affinities lower or equal to −7.1 kcal/mol and greater than or equal to −7.3 kcal/mol are shown as green dots; Figure S10. The selected representative docking pose on the CS1 pocket with a predicted binding affinity of −7.2 kcal/mol; Table S1. The system details for MD simulations performed in this study; Table S2. The output of the CavityPlus with the RBD domain of SARS-CoV-2; Table S3. Residues of the RBD protein surrounding the cavities identified by CavityPlus; Table S4. The free energy results from MM/GBSA calculations of the top 17 complex structures; Table S5. The free energy results from MM/GBSA calculations based on the MD simulations of the representative pose on CS1; Movie S1: MD trajectory of the RBD of SARS-CoV-2 and four FA molecules. References [18,52] are cited in the Supplementary Materials.

Author Contributions

Conceptualization, J.H. and R.Z.; methodology, J.H. and R.Z.; formal analysis, J.H.; data curation, J.H.; writing-original draft preparation, J.H.; writing—review and editing, J.H., K.C.C. and R.Z.; funding acquisition, R.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This work was partially supported by National Key R&D Program of China (2021YFF1200404 and 2021YFA1201200), National Natural Science Foundation of China (U1967217), National Center of Technology Innovation for Biopharmaceuticals (NCTIB2022HS02010), The Fundamental Research Funds for Central Universities (226-2022-00043, 226-2022-00192), National Independent Innovation Demonstration Zone Shanghai Zhangjiang Major Projects (ZJZX2020014), Shanghai Artificial Intelligence Lab (P22KN00272), Starry Night Science Fund of Zhejiang University Shanghai Institute for Advanced Study (SN-ZJU-SIAS-003), and BirenTech Research (BR-ZJU-SIAS-001). R.Z. also acknowledges the financial support from W. M. Keck Foundation (Grant award 2019–2022).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The PDB structure was downloaded from https://www.rcsb.org/. The data presented in this study are available upon request from the corresponding author.

Acknowledgments

We thank Taimoor Khan and Dong Zhang for helpful discussions. We thank the Institute of Quantitative Biology, Zhejiang University for providing the computational resources.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Krammer, F. SARS-CoV-2 vaccines in development. Nature 2020, 586, 516–527. [Google Scholar] [CrossRef] [PubMed]
  2. Dong, Y.; Dai, T.; Wang, B.; Zhang, L.; Zeng, L.-H.; Huang, J.; Yan, H.; Zhang, L.; Zhou, F. The way of SARS-CoV-2 vaccine development: Success and challenges. Signal Transduct. Target. Ther. 2021, 6, 387. [Google Scholar] [CrossRef] [PubMed]
  3. Ali, K.; Berman, G.; Zhou, H.; Deng, W.; Faughnan, V.; Coronado-Voges, M.; Ding, B.; Dooley, J.; Girard, B.; Hillebrand, W.; et al. Evaluation of mRNA-1273 SARS-CoV-2 Vaccine in Adolescents. N. Engl. J. Med. 2021, 385, 2241–2251. [Google Scholar] [CrossRef] [PubMed]
  4. El Sahly, H.M.; Baden, L.R.; Essink, B.; Doblecki-Lewis, S.; Martin, J.M.; Anderson, E.J.; Campbell, T.B.; Clark, J.; Jackson, L.A.; Fichtenbaum, C.J.; et al. Efficacy of the mRNA-1273 SARS-CoV-2 Vaccine at Completion of Blinded Phase. N. Engl. J. Med. 2021, 385, 1774–1785. [Google Scholar] [CrossRef]
  5. Golob, J.L.; Lugogo, N.; Lauring, A.S.; Lok, A.S. SARS-CoV-2 vaccines: A triumph of science and collaboration. JCI Insight 2021, 6, e149187. [Google Scholar] [CrossRef]
  6. Gordon, D.E.; Jang, G.M.; Bouhaddou, M.; Xu, J.; Obernier, K.; White, K.M.; O’Meara, M.J.; Rezelj, V.V.; Guo, J.Z.; Swaney, D.L.; et al. A SARS-CoV-2 protein interaction map reveals targets for drug repurposing. Nature 2020, 583, 459–468. [Google Scholar] [CrossRef]
  7. Zhou, Y.; Hou, Y.; Shen, J.; Huang, Y.; Martin, W.; Cheng, F. Network-based drug repurposing for novel coronavirus 2019-nCoV/SARS-CoV-2. Cell Discov. 2020, 6, 14. [Google Scholar] [CrossRef]
  8. Beigel, J.H.; Tomashek, K.M.; Dodd, L.E.; Mehta, A.K.; Zingman, B.S.; Kalil, A.C.; Hohmann, E.; Chu, H.Y.; Luetkemeyer, A.; Kline, S.; et al. Remdesivir for the Treatment of Covid-19—Final Report. N. Engl. J. Med. 2020, 383, 1813–1826. [Google Scholar] [CrossRef]
  9. Akbarzadeh-Khiavi, M.; Torabi, M.; Rahbarnia, L.; Safary, A. Baricitinib combination therapy: A narrative review of repurposed Janus kinase inhibitor against severe SARS-CoV-2 infection. Infection 2022, 50, 295–308. [Google Scholar] [CrossRef]
  10. Ullrich, S.; Ekanayake, K.B.; Otting, G.; Nitsche, C. Main protease mutants of SARS-CoV-2 variants remain susceptible to nirmatrelvir. Bioorg. Med. Chem. Lett. 2022, 62, 128629. [Google Scholar] [CrossRef]
  11. Kabinger, F.; Stiller, C.; Schmitzová, J.; Dienemann, C.; Kokic, G.; Hillen, H.S.; Höbartner, C.; Cramer, P. Mechanism of molnupiravir-induced SARS-CoV-2 mutagenesis. Nat. Struct. Mol. Biol. 2021, 28, 740–746. [Google Scholar] [CrossRef] [PubMed]
  12. Singh, T.U.; Parida, S.; Lingaraju, M.C.; Kesavan, M.; Kumar, D.; Singh, R.K. Drug repurposing approach to fight COVID-19. Pharm. Rep. 2020, 72, 1479–1508. [Google Scholar] [CrossRef]
  13. Dotolo, S.; Marabotti, A.; Facchiano, A.; Tagliaferri, R. A review on drug repurposing applicable to COVID-19. Brief. Bioinform. 2021, 22, 726–741. [Google Scholar] [CrossRef]
  14. Ng, Y.L.; Salim, C.K.; Chu, J.J.H. Drug repurposing for COVID-19: Approaches, challenges and promising candidates. Pharmacol. Ther. 2021, 228, 107930. [Google Scholar] [CrossRef] [PubMed]
  15. Parvathaneni, V.; Kulkarni, N.S.; Muth, A.; Gupta, V. Drug repurposing: A promising tool to accelerate the drug discovery process. Drug Discov. Today 2019, 24, 2076–2085. [Google Scholar] [CrossRef]
  16. Hu, X.; Zhou, Z.; Li, F.; Xiao, Y.; Wang, Z.; Xu, J.; Dong, F.; Zheng, H.; Yu, R. The study of antiviral drugs targeting SARS-CoV-2 nucleocapsid and spike proteins through large-scale compound repurposing. Heliyon 2021, 7, e06387. [Google Scholar] [CrossRef] [PubMed]
  17. Davies, S.P.; Mycroft-West, C.J.; Pagani, I.; Hill, H.J.; Chen, Y.-H.; Karlsson, R.; Bagdonaite, I.; Guimond, S.E.; Stamataki, Z.; De Lima, M.A.; et al. The Hyperlipidaemic Drug Fenofibrate Significantly Reduces Infection by SARS-CoV-2 in Cell Culture Models. Front. Pharmacol. 2021, 12, 660490. [Google Scholar] [CrossRef]
  18. Xu, Y.; Wang, S.; Hu, Q.; Gao, S.; Ma, X.; Zhang, W.; Shen, Y.; Chen, F.; Lai, L.; Pei, J. CavityPlus: A web server for protein cavity detection with pharmacophore modelling, allosteric site identification and covalent ligand binding ability prediction. Nucleic Acids Res. 2018, 46, W374–W379. [Google Scholar] [CrossRef]
  19. Fernandes, M.S.; da Silva, F.S.; Freitas, A.C.S.G.; de Melo, E.B.; Trossini, G.H.G.; Paula, F.R. Insights on 3D Structures of Potential Drug-targeting Proteins of SARS-CoV-2: Application of Cavity Search and Molecular Docking. Mol. Inform. 2021, 40, 2000096. [Google Scholar] [CrossRef]
  20. Yuan, Y.; Pei, J.; Lai, L. Binding Site Detection and Druggability Prediction of Protein Targets for Structure- Based Drug Design. Curr. Pharm. Des. 2013, 19, 2326–2333. [Google Scholar] [CrossRef]
  21. Chen, J.; Lai, L. Pocket v.2:  Further Developments on Receptor-Based Pharmacophore Modeling. J. Chem. Inf. Model. 2006, 46, 2684–2691. [Google Scholar] [CrossRef] [PubMed]
  22. Ma, X.; Meng, H.; Lai, L. Motions of Allosteric and Orthosteric Ligand-Binding Sites in Proteins are Highly Correlated. J. Chem. Inf. Model. 2016, 56, 1725–1733. [Google Scholar] [CrossRef] [PubMed]
  23. Zhang, W.; Pei, J.; Lai, L. Statistical Analysis and Prediction of Covalent Ligand Targeted Cysteine Residues. J. Chem. Inf. Model. 2017, 57, 1453–1460. [Google Scholar] [CrossRef]
  24. Shang, J.; Ye, G.; Shi, K.; Wan, Y.; Luo, C.; Aihara, H.; Geng, Q.; Auerbach, A.; Li, F. Structural basis of receptor recognition by SARS-CoV-2. Nature 2020, 581, 221–224. [Google Scholar] [CrossRef]
  25. Eastman, P.; Friedrichs, M.S.; Chodera, J.D.; Radmer, R.J.; Bruns, C.M.; Ku, J.P.; Beauchamp, K.A.; Lane, T.J.; Wang, L.-P.; Shukla, D.; et al. OpenMM 4: A Reusable, Extensible, Hardware Independent Library for High Performance Molecular Simulation. J. Chem. Theory Comput. 2013, 9, 461–469. [Google Scholar] [CrossRef]
  26. Pence, H.E.; Williams, A. ChemSpider: An Online Chemical Information Resource. J. Chem. Educ. 2010, 87, 1123–1124. [Google Scholar] [CrossRef]
  27. Hanwell, M.D.; Curtis, D.E.; Lonie, D.C.; Vandermeersch, T.; Zurek, E.; Hutchison, G.R. Avogadro: An advanced semantic chemical editor, visualization, and analysis platform. J. Cheminform. 2012, 4, 17. [Google Scholar] [CrossRef] [PubMed]
  28. Halgren, T.A. Merck molecular force field. I. Basis, form, scope, parameterization, and performance of MMFF94. J. Comput. Chem. 1996, 17, 490–519. [Google Scholar] [CrossRef]
  29. Wang, J.M.; Wolf, R.M.; Caldwell, J.W.; Kollman, P.A.; Case, D.A. Development and testing of a general amber force field. J. Comput. Chem. 2004, 25, 1157–1174. [Google Scholar] [CrossRef]
  30. Mannhold, R.; Kubinyi, H.; Folkers, G. Prodrugs and Targeted Delivery: Towards Better ADME Properties; John Wiley & Sons: Hoboken, NJ, USA, 2011. [Google Scholar]
  31. Jakalian, A.; Bush, B.L.; Jack, D.B.; Bayly, C.I. Fast, efficient generation of high-quality atomic charges. AM1-BCC model: I. Method. J. Comput. Chem. 2000, 21, 132–146. [Google Scholar] [CrossRef]
  32. Shaw, D.E.; Maragakis, P.; Lindorff-Larsen, K.; Piana, S.; Dror, R.O.; Eastwood, M.P.; Bank, J.A.; Jumper, J.M.; Salmon, J.K.; Shan, Y.; et al. Atomic-Level Characterization of the Structural Dynamics of Proteins. Science 2010, 330, 341–346. [Google Scholar] [CrossRef] [PubMed]
  33. Jorgensen, W.L.; Chandrasekhar, J.; Madura, J.D.; Impey, R.W.; Klein, M.L. Comparison of simple potential functions for simulating liquid water. J. Chem. Phys. 1983, 79, 926–935. [Google Scholar] [CrossRef]
  34. Ahmed, R.; Omidian, Z.; Giwa, A.; Cornwell, B.; Majety, N.; Bell, D.R.; Lee, S.; Zhang, H.; Michels, A.; Desiderio, S.; et al. A Public BCR Present in a Unique Dual-Receptor-Expressing Lymphocyte from Type 1 Diabetes Patients Encodes a Potent T Cell Autoantigen. Cell 2019, 177, 1583–1599. [Google Scholar] [CrossRef]
  35. Luan, B.Q.; Zhou, R.H. Spontaneous ssDNA stretching on graphene and hexagonal boron nitride in plane heterostructures. Nat. Commun. 2019, 10, 4610. [Google Scholar] [CrossRef]
  36. Luan, B.Q.; Zhou, R.H. Atomic-Scale Fluidic Diodes Based on Triangular Nanopores in Bilayer Hexagonal Boron Nitride. Nano Lett. 2019, 19, 977–982. [Google Scholar] [CrossRef] [PubMed]
  37. Li, X.; Li, J.; Eleftheriou, M.; Zhou, R. Hydration and dewetting near fluorinated superhydrophobic plates. J. Am. Chem. Soc. 2006, 128, 12439–12447. [Google Scholar] [CrossRef]
  38. Xia, Z.; Clark, P.; Huynh, T.; Loher, P.; Zhao, Y.; Chen, H.W.; Rigoutsos, I.; Zhou, R. Molecular dynamics simulations of Ago silencing complexes reveal a large repertoire of admissible ‘seed-less’ targets. Sci. Rep. 2012, 2, 569. [Google Scholar] [CrossRef] [PubMed]
  39. Abraham, M.J.; Murtola, T.; Schulz, R.; Páll, S.; Smith, J.C.; Hess, B.; Lindahl, E. GROMACS: High performance molecular simulations through multi-level parallelism from laptops to supercomputers. SoftwareX 2015, 1-2, 19–25. [Google Scholar] [CrossRef]
  40. Bussi, G.; Donadio, D.; Parrinello, M. Canonical sampling through velocity rescaling. J. Chem. Phys. 2007, 126, 014101. [Google Scholar] [CrossRef]
  41. Parrinello, M.; Rahman, A. Polymorphic Transitions in Single-Crystals—A New Molecular-Dynamics Method. J. Appl. Phys. 1981, 52, 7182–7190. [Google Scholar] [CrossRef]
  42. Darden, T.; York, D.; Pedersen, L. Particle mesh ewald—An n.log(n) method for ewald sums in large systems. J. Chem. Phys. 1993, 98, 10089–10092. [Google Scholar] [CrossRef]
  43. Hess, B.; Bekker, H.; Berendsen, H.J.C.; Fraaije, J.G.E.M. LINCS: A linear constraint solver for molecular simulations. J. Comput. Chem. 1997, 18, 1463–1472. [Google Scholar] [CrossRef]
  44. Humphrey, W.; Dalke, A.; Schulten, K. VMD: Visual molecular dynamics. J. Mol. Graph. 1996, 14, 33–38. [Google Scholar] [CrossRef] [PubMed]
  45. Trott, O.; Olson, A.J. Software News and Update AutoDock Vina: Improving the Speed and Accuracy of Docking with a New Scoring Function, Efficient Optimization, and Multithreading. J. Comput. Chem. 2010, 31, 455–461. [Google Scholar] [CrossRef] [PubMed]
  46. Morris, G.M.; Huey, R.; Lindstrom, W.; Sanner, M.F.; Belew, R.K.; Goodsell, D.S.; Olson, A.J. AutoDock4 and AutoDockTools4: Automated docking with selective receptor flexibility. J. Comput. Chem. 2009, 30, 2785–2791. [Google Scholar] [CrossRef]
  47. Wang, E.; Sun, H.; Wang, J.; Wang, Z.; Liu, H.; Zhang, J.Z.H.; Hou, T. End-Point Binding Free Energy Calculation with MM/PBSA and MM/GBSA: Strategies and Applications in Drug Design. Chem. Rev. 2019, 119, 9478–9508. [Google Scholar] [CrossRef]
  48. Genheden, S.; Ryde, U. The MM/PBSA and MM/GBSA methods to estimate ligand-binding affinities. Expert Opin. Drug Discov. 2015, 10, 449–461. [Google Scholar] [CrossRef]
  49. Valdés-Tresanco, M.S.; Valdés-Tresanco, M.E.; Valiente, P.A.; Moreno, E. gmx_MMPBSA: A New Tool to Perform End-State Free Energy Calculations with GROMACS. J. Chem. Theory Comput. 2021, 17, 6281–6291. [Google Scholar] [CrossRef]
  50. Yan, R.; Zhang, Y.; Li, Y.; Xia, L.; Guo, Y.; Zhou, Q. Structural basis for the recognition of SARS-CoV-2 by full-length human ACE2. Science 2020, 367, 1444–1448. [Google Scholar] [CrossRef]
  51. Lan, J.; Ge, J.; Yu, J.; Shan, S.; Zhou, H.; Fan, S.; Zhang, Q.; Shi, X.; Wang, Q.; Zhang, L.; et al. Structure of the SARS-CoV-2 spike receptor-binding domain bound to the ACE2 receptor. Nature 2020, 581, 215–220. [Google Scholar] [CrossRef] [Green Version]
  52. Eyal, E.; Lum, G.; Bahar, I. The anisotropic network model web server at 2015 (ANM 2.0). Bioinformatics 2015, 31, 1487–1489. [Google Scholar] [CrossRef] [PubMed]
  53. Chen, H.; Kang, Y.; Duan, M.; Hou, T. Regulation Mechanism for the Binding between the SARS-CoV-2 Spike Protein and Host Angiotensin-Converting Enzyme II. J. Phys. Chem. Lett. 2021, 12, 6252–6261. [Google Scholar] [CrossRef] [PubMed]
  54. Williams, J.K.; Wang, B.; Sam, A.; Hoop, C.L.; Case, D.A.; Baum, J. Molecular dynamics analysis of a flexible loop at the binding interface of the SARS-CoV-2 spike protein receptor-binding domain. Proteins Struct. Funct. Bioinf. 2022, 90, 1044–1053. [Google Scholar] [CrossRef] [PubMed]
  55. Choudhury, A.R.; Maity, A.; Chakraborty, S.; Chakrabarti, R. Computational design of stapled peptide inhibitor against SARS-CoV-2 receptor binding domain. Pept. Sci. 2022, 114, e24267. [Google Scholar] [CrossRef]
  56. Beglov, D.; Hall David, R.; Wakefield Amanda, E.; Luo, L.; Allen Karen, N.; Kozakov, D.; Whitty, A.; Vajda, S. Exploring the structural origins of cryptic sites on proteins. Proc. Natl. Acad. Sci. USA 2018, 115, E3416–E3425. [Google Scholar] [CrossRef]
  57. Kuzmanic, A.; Bowman, G.R.; Juarez-Jimenez, J.; Michel, J.; Gervasio, F.L. Investigating Cryptic Binding Sites by Molecular Dynamics Simulations. Acc. Chem. Res. 2020, 53, 654–661. [Google Scholar] [CrossRef]
  58. Ngan, C.H.; Bohnuud, T.; Mottarella, S.E.; Beglov, D.; Villar, E.A.; Hall, D.R.; Kozakov, D.; Vajda, S. FTMAP: Extended protein mapping with user-selected probe molecules. Nucleic Acids Res. 2012, 40, W271–W275. [Google Scholar] [CrossRef]
  59. Kimura, S.R.; Hu, H.P.; Ruvinsky, A.M.; Sherman, W.; Favia, A.D. Deciphering Cryptic Binding Sites on Proteins by Mixed-Solvent Molecular Dynamics. J. Chem. Inf. Model. 2017, 57, 1388–1401. [Google Scholar] [CrossRef]
  60. Kokh, D.B.; Doser, B.; Richter, S.; Ormersbach, F.; Cheng, X.; Wade, R.C. A workflow for exploring ligand dissociation from a macromolecule: Efficient random acceleration molecular dynamics simulation and interaction fingerprint analysis of ligand trajectories. J. Chem. Phys. 2020, 153, 125102. [Google Scholar] [CrossRef]
  61. Wang, Y.; Liu, M.; Gao, J. Enhanced receptor binding of SARS-CoV-2 through networks of hydrogen-bonding and hydrophobic interactions. Proc. Natl. Acad. Sci. USA 2020, 117, 13967–13974. [Google Scholar] [CrossRef]
  62. Taka, E.; Yilmaz, S.Z.; Golcuk, M.; Kilinc, C.; Aktas, U.; Yildiz, A.; Gur, M. Critical Interactions Between the SARS-CoV-2 Spike Glycoprotein and the Human ACE2 Receptor. J. Phys. Chem. B 2021, 125, 5537–5548. [Google Scholar] [CrossRef] [PubMed]
  63. Gheeraert, A.; Vuillon, L.; Chaloin, L.; Moncorgé, O.; Very, T.; Perez, S.; Leroux, V.; Chauvot de Beauchêne, I.; Mias-Lucquin, D.; Devignes, M.-D.; et al. Singular Interface Dynamics of the SARS-CoV-2 Delta Variant Explained with Contact Perturbation Analysis. J. Chem. Inf. Model. 2022, 62, 3107–3122. [Google Scholar] [CrossRef] [PubMed]
  64. Chan, K.C.; Song, Y.; Xu, Z.; Shang, C.; Zhou, R. SARS-CoV-2 Delta Variant: Interplay between Individual Mutations and Their Allosteric Synergy. Biomolecules 2022, 12, 1742. [Google Scholar] [CrossRef] [PubMed]
  65. Hou, X.; Zhang, Z.; Gao, J.; Wang, Y. SARS-CoV-2 spike protein N501Y mutation causes differential species transmissibility and antibody sensitivity: A molecular dynamics and alchemical free energy study. Mol. Syst. Des. Eng. 2021, 6, 964–974. [Google Scholar] [CrossRef]
  66. He, J.; Tao, H.; Yan, Y.; Huang, S.-Y.; Xiao, Y. Molecular Mechanism of Evolution and Human Infection with SARS-CoV-2. Viruses 2020, 12, 428. [Google Scholar] [CrossRef]
  67. Zuzic, L.; Samsudin, F.; Shivgan, A.T.; Raghuvamsi, P.V.; Marzinek, J.K.; Boags, A.; Pedebos, C.; Tulsian, N.K.; Warwicker, J.; MacAry, P.; et al. Uncovering cryptic pockets in the SARS-CoV-2 spike glycoprotein. Structure 2022, 30, 1062–1074. [Google Scholar] [CrossRef]
  68. Zimmerman, M.I.; Porter, J.R.; Ward, M.D.; Singh, S.; Vithani, N.; Meller, A.; Mallimadugula, U.L.; Kuhn, C.E.; Borowsky, J.H.; Wiewiora, R.P.; et al. SARS-CoV-2 simulations go exascale to predict dramatic spike opening and cryptic pockets across the proteome. Nat. Chem. 2021, 13, 651–659. [Google Scholar] [CrossRef]
Biomolecules 13 00359 g001 550

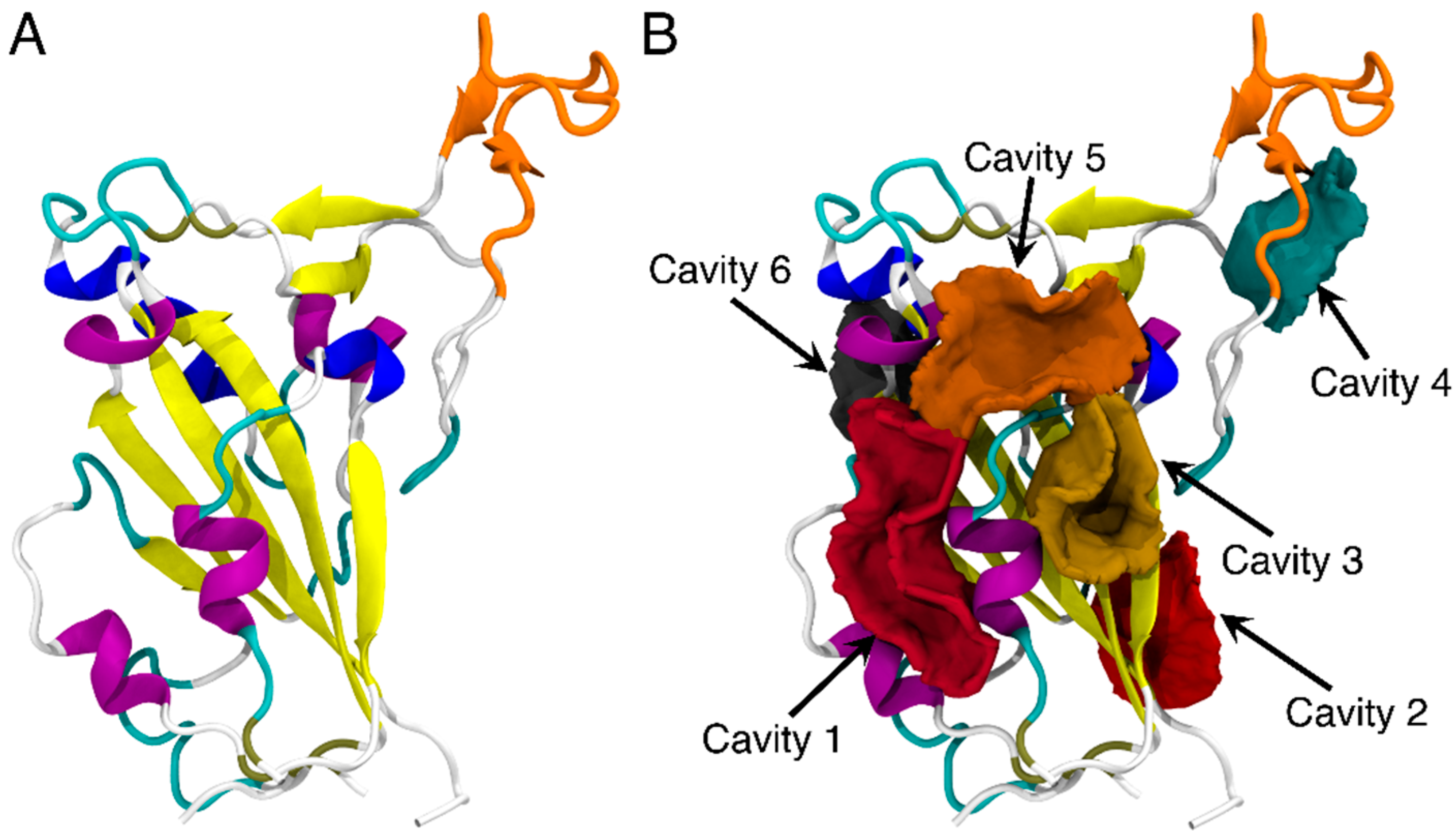

Figure 1. The structure of RBD of SARS-CoV-2 (A) and the predicted binding sites of RBD through CavityPlus analysis (B). The detected cavities are distinguished and represented in different colors. The RBD protein is shown in the cartoon representation. The T470-F490 loop is shown in orange, while the rest of the protein is colored by the secondary structures.
Figure 1. The structure of RBD of SARS-CoV-2 (A) and the predicted binding sites of RBD through CavityPlus analysis (B). The detected cavities are distinguished and represented in different colors. The RBD protein is shown in the cartoon representation. The T470-F490 loop is shown in orange, while the rest of the protein is colored by the secondary structures.
Biomolecules 13 00359 g001
Biomolecules 13 00359 g002 550

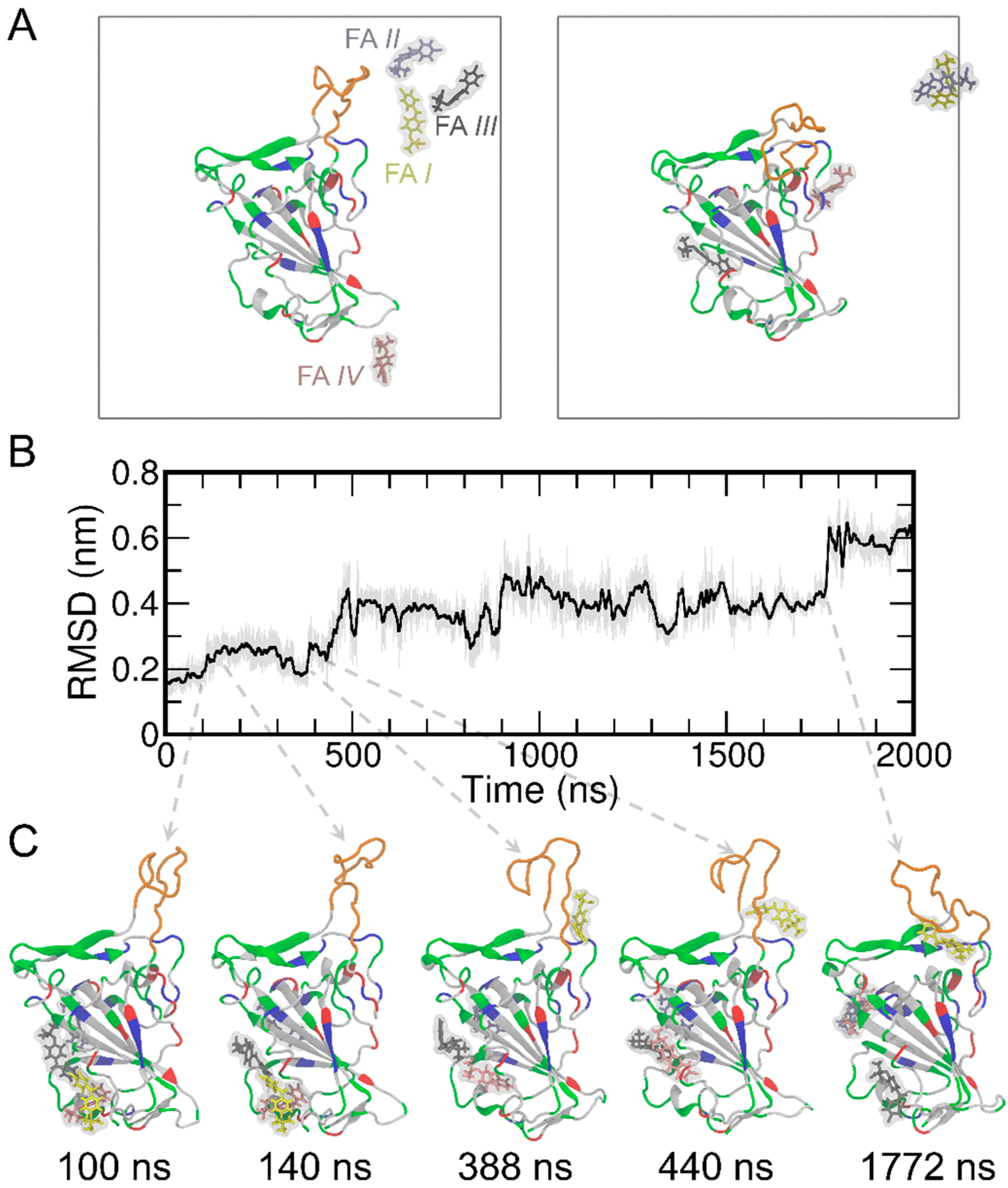

Figure 2. The initial and final structures of the MD simulations of RBD and four FA molecules (A) where the simulation boxes are outlined in gray. For clarity, the water molecules and ions were not displayed in the figure. The RBD protein is shown in the cartoon representation. The T470-F490 loop is shown in orange, while the rest of the protein are colored by the residue types (positively charged, negatively charged, polar, and nonpolar residues are shown in blue, red, green, and white, respectively). The FA molecules are shown in the stick representation and the surfaces are shown in transparent gray. The FA I, II, III, IV are shown in yellow, ice blue, gray, and pink, respectively. The RMSD results of the simulated RBD protein (B) and representative snapshots (C) are shown along the MD simulations.
Figure 2. The initial and final structures of the MD simulations of RBD and four FA molecules (A) where the simulation boxes are outlined in gray. For clarity, the water molecules and ions were not displayed in the figure. The RBD protein is shown in the cartoon representation. The T470-F490 loop is shown in orange, while the rest of the protein are colored by the residue types (positively charged, negatively charged, polar, and nonpolar residues are shown in blue, red, green, and white, respectively). The FA molecules are shown in the stick representation and the surfaces are shown in transparent gray. The FA I, II, III, IV are shown in yellow, ice blue, gray, and pink, respectively. The RMSD results of the simulated RBD protein (B) and representative snapshots (C) are shown along the MD simulations.
Biomolecules 13 00359 g002
Biomolecules 13 00359 g003 550

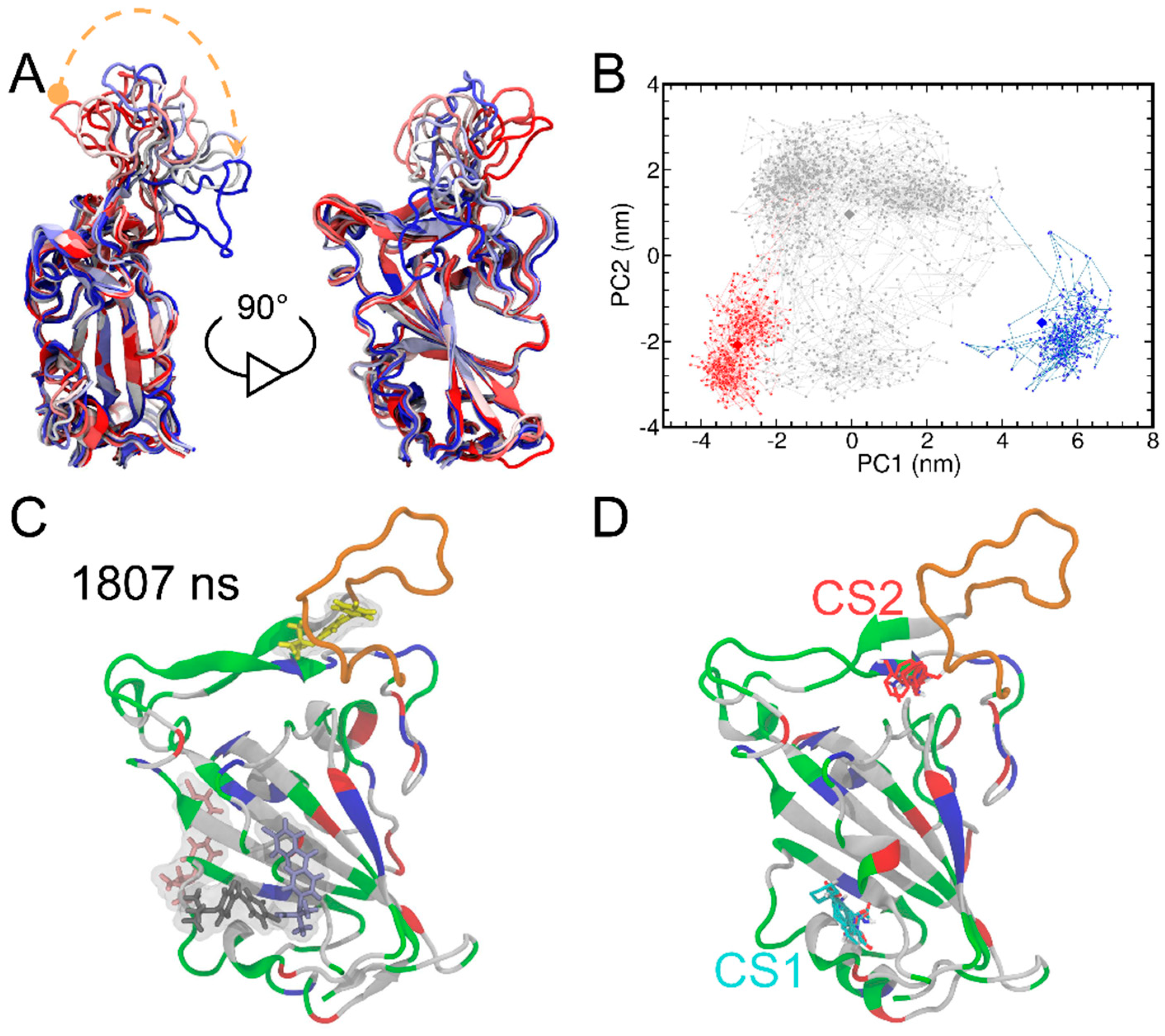

Figure 3. The superimposition of the RBD structures from MD simulations (A). The RBD protein is shown in the cartoon representation. The structures are colored on the basis of simulation time from red to white and blue. The curved dashed orange arrow highlights the time evolution of the loop fluctuations. The principal component analysis of the RBD structures from MD simulations is also shown (B). PCA results include graphs of PC1 vs. PC2 colored from red (0−388 ns) to gray (389−1769 ns) and blue (1770−2000 ns). The RBD structures at 70, 464 and 1996 ns (shown as diamonds) were determined as representative ones for the three clusters by using the centroid-based clustering method. The system snapshot at 1807 ns where FA I bind to the T470-F490 loop of RBD (C). The T470-F490 loop is shown in orange, while the rest of the protein is colored by the residue types (positively charged, negatively charged, polar, and nonpolar residues are shown in blue, red, green, and white, respectively). The FTMap analysis of the RBD protein structure at 1807 ns (D). The two major consensus sites (CS) (i.e., CS1 and CS2) indicated and small molecular probes in CS1 and CS2 are shown as cyan and red, respectively.
Figure 3. The superimposition of the RBD structures from MD simulations (A). The RBD protein is shown in the cartoon representation. The structures are colored on the basis of simulation time from red to white and blue. The curved dashed orange arrow highlights the time evolution of the loop fluctuations. The principal component analysis of the RBD structures from MD simulations is also shown (B). PCA results include graphs of PC1 vs. PC2 colored from red (0−388 ns) to gray (389−1769 ns) and blue (1770−2000 ns). The RBD structures at 70, 464 and 1996 ns (shown as diamonds) were determined as representative ones for the three clusters by using the centroid-based clustering method. The system snapshot at 1807 ns where FA I bind to the T470-F490 loop of RBD (C). The T470-F490 loop is shown in orange, while the rest of the protein is colored by the residue types (positively charged, negatively charged, polar, and nonpolar residues are shown in blue, red, green, and white, respectively). The FTMap analysis of the RBD protein structure at 1807 ns (D). The two major consensus sites (CS) (i.e., CS1 and CS2) indicated and small molecular probes in CS1 and CS2 are shown as cyan and red, respectively.
Biomolecules 13 00359 g003
Biomolecules 13 00359 g004 550

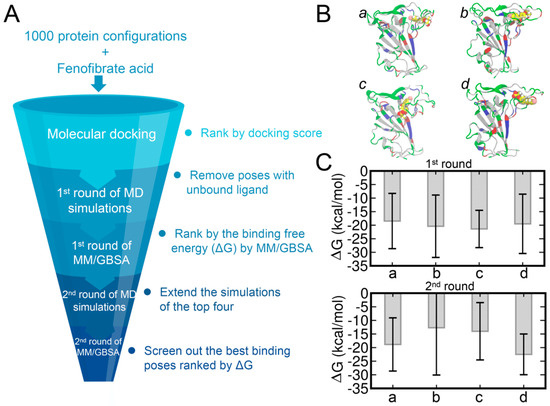

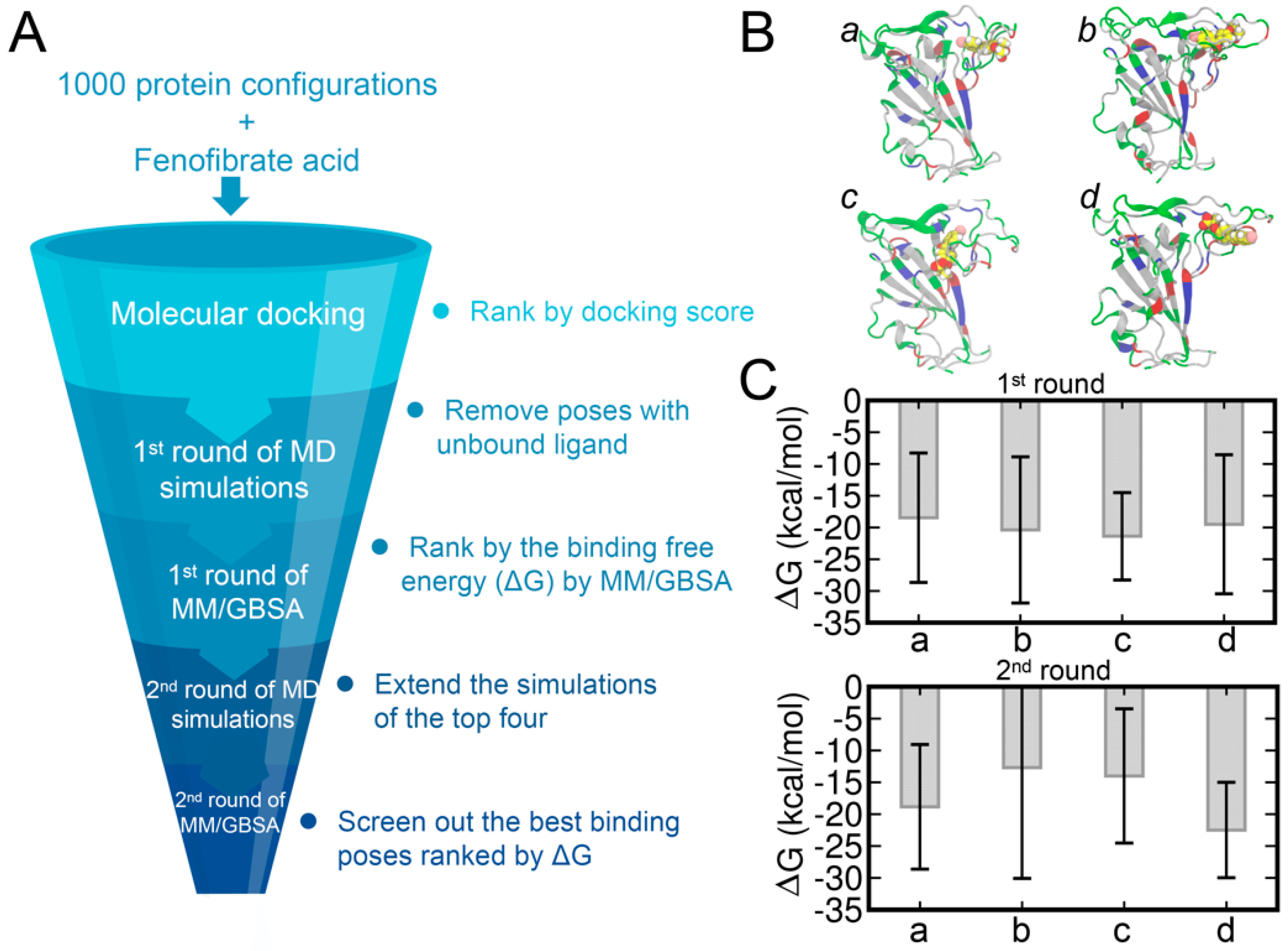

Figure 4. The workflow adopted for screening the best binding poses and results of MM/GBSA calculations (A). The top four binding poses (denoted as poses a, b, c, and d) (B). The protein structures were extracted from the time of 1774 ns (a), 1776 ns (b), 1786 ns (c), and 1788 ns (d). The FA molecules are shown in the sphere representation and the hydrogen, carbon, oxygen, and chloride atoms of FA are shown in white, yellow, red, and pink, respectively. Binding affinities of FA−RBD calculated by the MM/GBSA method (C).
Figure 4. The workflow adopted for screening the best binding poses and results of MM/GBSA calculations (A). The top four binding poses (denoted as poses a, b, c, and d) (B). The protein structures were extracted from the time of 1774 ns (a), 1776 ns (b), 1786 ns (c), and 1788 ns (d). The FA molecules are shown in the sphere representation and the hydrogen, carbon, oxygen, and chloride atoms of FA are shown in white, yellow, red, and pink, respectively. Binding affinities of FA−RBD calculated by the MM/GBSA method (C).
Biomolecules 13 00359 g004
Biomolecules 13 00359 g005 550

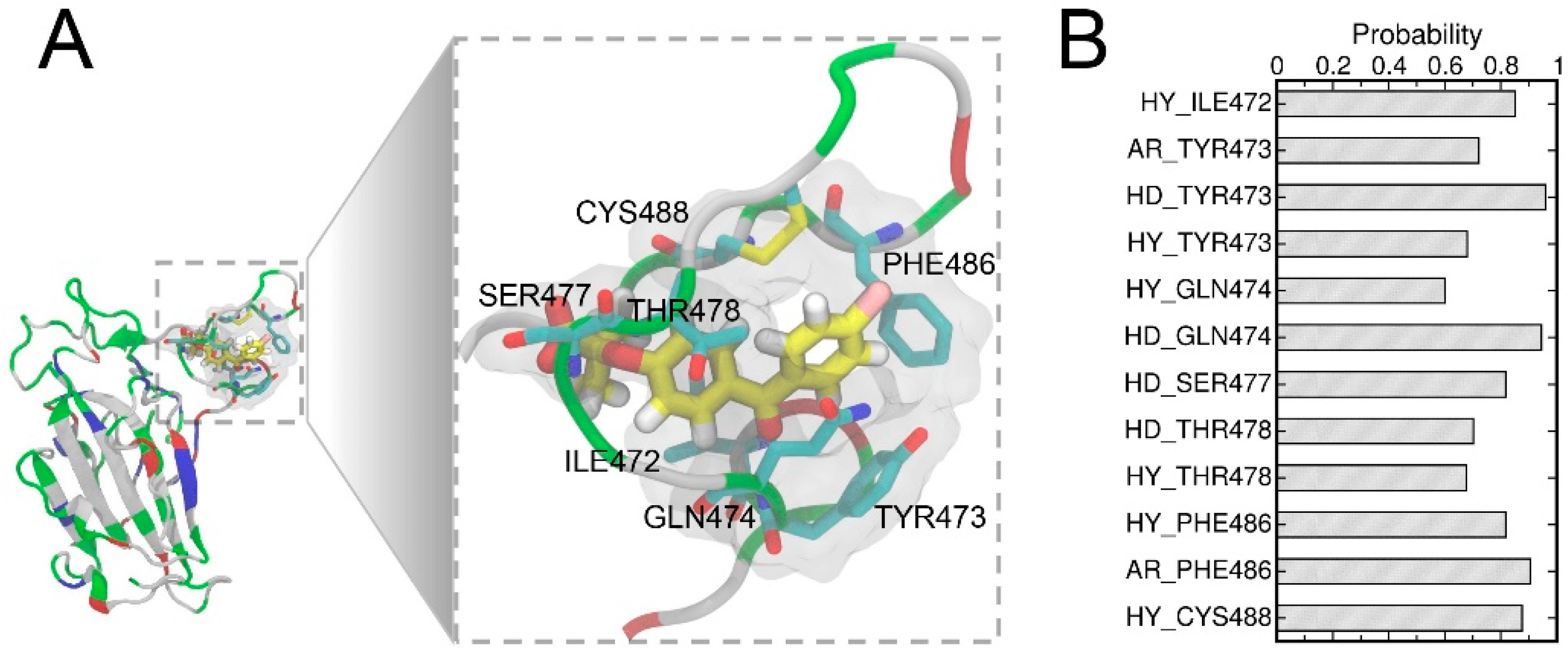

Figure 5. The binding pocket in a close view (A) showing the important labeled residues. The FA molecule is shown in the stick representation and the hydrogen, carbon, oxygen, and chloride atoms of FA are shown in white, yellow, red, and pink, respectively. The important protein–ligand interactions were analyzed using the MD-IFP tool [60], whereas HY and AR denote hydrophobic interactions and aromatic contacts with the protein residues, respectively, while HD denotes residues acting as hydrogen bond donors (B).
Figure 5. The binding pocket in a close view (A) showing the important labeled residues. The FA molecule is shown in the stick representation and the hydrogen, carbon, oxygen, and chloride atoms of FA are shown in white, yellow, red, and pink, respectively. The important protein–ligand interactions were analyzed using the MD-IFP tool [60], whereas HY and AR denote hydrophobic interactions and aromatic contacts with the protein residues, respectively, while HD denotes residues acting as hydrogen bond donors (B).
Biomolecules 13 00359 g005
Biomolecules 13 00359 g006 550

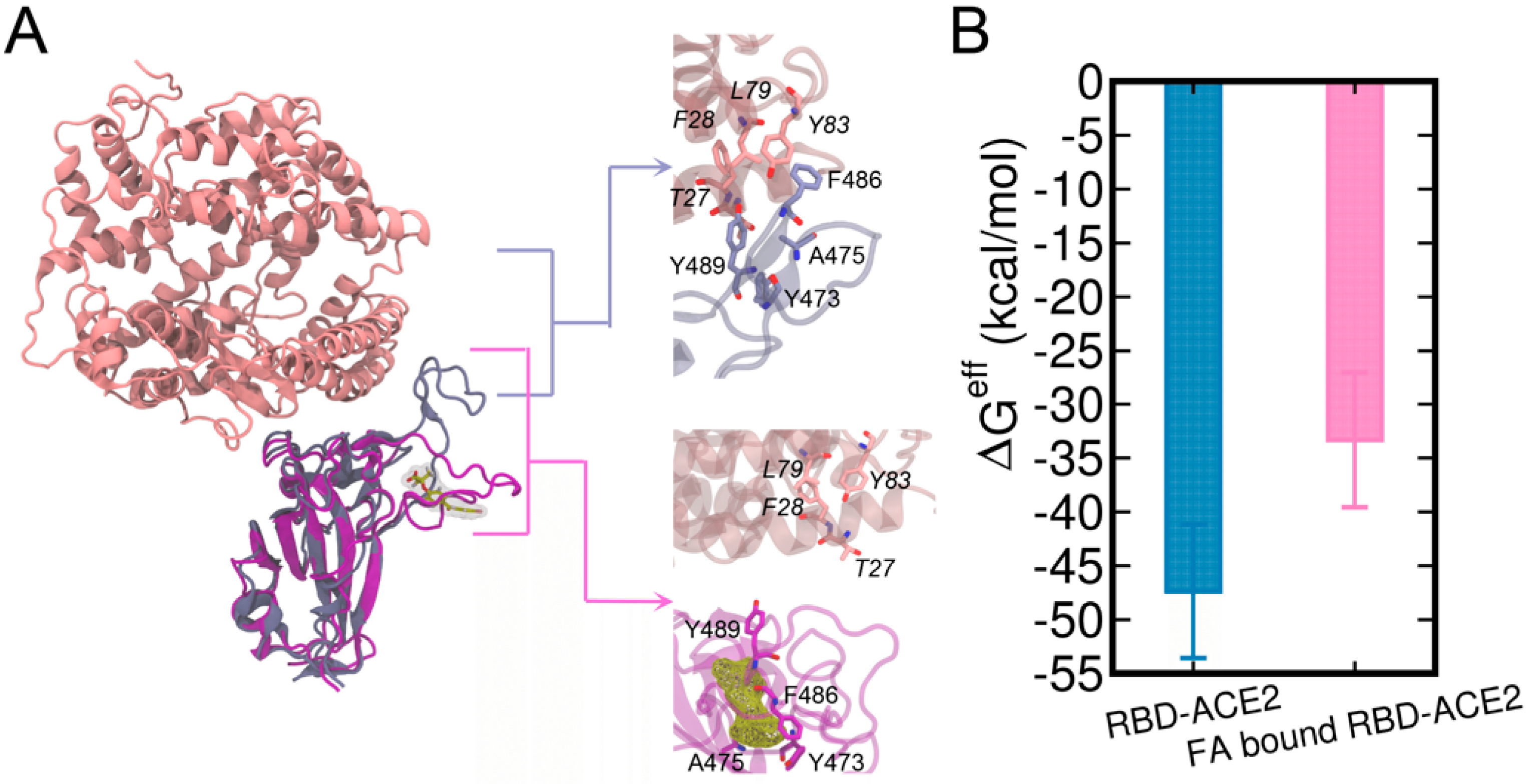

Figure 6. RBD-ACE2 complex and FA-bound RBD-ACE2 complex are aligned by the RBD (A). The structures of ACE2 and RBD are shown in pink and ice blue cartoons while the FA-bound RBD is shown in purple, respectively. FA molecule is shown in the yellow meshed surface. The effective binding free energies (ΔGeff) [66] calculated using the MM/GBSA method are also shown (B).
Figure 6. RBD-ACE2 complex and FA-bound RBD-ACE2 complex are aligned by the RBD (A). The structures of ACE2 and RBD are shown in pink and ice blue cartoons while the FA-bound RBD is shown in purple, respectively. FA molecule is shown in the yellow meshed surface. The effective binding free energies (ΔGeff) [66] calculated using the MM/GBSA method are also shown (B).
Biomolecules 13 00359 g006
Table
Table 1. The free energy results obtained from MM/GBSA calculations.
Table 1. The free energy results obtained from MM/GBSA calculations.
ComplexΔEeleΔEvdWΔGGBΔGSAΔGeff *
FA-bound RBD-ACE2 −535.22 −65.21 577.13 −9.03 −33.32
RBD-ACE2 −551.12 −89.79 607.62 −13.06 −47.35
*: ΔGeff: effective free energy calculated by the sum of ΔEele, ΔEvdW, ΔGGB, and ΔGSA.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Huang, J.; Chan, K.C.; Zhou, R. Novel Inhibitory Role of Fenofibric Acid by Targeting Cryptic Site on the RBD of SARS-CoV-2. Biomolecules 2023, 13, 359. https://doi.org/10.3390/biom13020359

AMA Style

Huang J, Chan KC, Zhou R. Novel Inhibitory Role of Fenofibric Acid by Targeting Cryptic Site on the RBD of SARS-CoV-2. Biomolecules. 2023; 13(2):359. https://doi.org/10.3390/biom13020359

Chicago/Turabian Style

Huang, Jianxiang, Kevin C. Chan, and Ruhong Zhou. 2023. "Novel Inhibitory Role of Fenofibric Acid by Targeting Cryptic Site on the RBD of SARS-CoV-2" Biomolecules 13, no. 2: 359. https://doi.org/10.3390/biom13020359

APA Style

Huang, J., Chan, K. C., & Zhou, R. (2023). Novel Inhibitory Role of Fenofibric Acid by Targeting Cryptic Site on the RBD of SARS-CoV-2. Biomolecules, 13(2), 359. https://doi.org/10.3390/biom13020359

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
