Multicenter 18F-PI-2620 PET for In Vivo Braak Staging of Tau Pathology in Alzheimer’s Disease

Department of Nuclear Medicine, University of Leipzig, 04103 Leipzig, Germany
Department of Nuclear Medicine, University Hospital of Munich, LMU Munich, 80336 Munich, Germany
Clinic for Cognitive Neurology, University of Leipzig, 04103 Leipzig, Germany
Max Planck Institute for Human Cognitive and Brain Sciences, 04103 Leipzig, Germany
Department of Neurology, University of Leipzig, 04103 Leipzig, Germany
Department of Neurology, University Hospital of Munich, LMU Munich, 81377 Munich, Germany
Munich Cluster for Systems Neurology (SyNergy), 81377 Munich, Germany
German Center for Neurodegenerative Disorders (DZNE) Munich, 81377 Munich, Germany
Department of Psychiatry and Psychotherapy, University Hospital, LMU Munich, 80336 Munich, Germany
Ageing Epidemiology (AGE) Research Unit, School of Public Health, Imperial College London, London W6 8RP, UK
Sheffield Institute for Translational Neuroscience (SITraN), University of Sheffield, Sheffield S10 2HQ, UK
Life Molecular Imaging GmbH, 13353 Berlin, Germany
Department of Psychiatry, University of Pittsburgh, Pittsburgh, PA 15213, USA
Author to whom correspondence should be addressed.
These authors contributed equally to this work.
German Imaging Initiative for Tauopathies (GII4T) are list in acknowledgments.
Biomolecules 2022, 12(3), 458;
Received: 25 January 2022 / Revised: 9 March 2022 / Accepted: 12 March 2022 / Published: 16 March 2022


Tau aggregates accumulate in the Alzheimer’s disease (AD) brain according to the established Braak staging scheme and spread from transentorhinal over limbic regions to the neocortex. To impact the management of AD patients, an in vivo tool for tau Braak staging is needed. First-generation tau tracers have limited performance in detecting early stages of tau. Therefore, we tested the corresponding capability of the next-generation tau tracer, 18F-PI-2620. We analyzed 18F-PI-2620 multicenter PET data from 37 beta-amyloid-positive AD dementia patients and those from 26 healthy controls. We applied kinetic modeling of the 0–60 min p.i. PET data using MRTM2 with the lower cerebellum as the reference region to extract Braak stage-dependent distribution volume ratios, whereas controls were used to define Braak stage PET positivity thresholds. Stage-dependent PET positivity widely followed the Braak scheme (except Braak stage III) presenting descending frequency of PET positivity from Braak I (43%), II (38%), III (49%), IV (35%), V (30%) to VI (14%). A strictly hierarchical model was met by 64% of AD dementia cases. Nineteen percent showed a hippocampal sparing tauopathy pattern. Thus, we could assign 87% to the six-stage hierarchical Braak model including tauopathy variants. 18F-PI-2620 PET appears to be able to perform Braak tau staging of AD in vivo.

1. Introduction

Tau neurofibrillary tangles accumulate in Alzheimer’s disease (AD) brain in a stereo-typical pattern according to the established Braak staging scheme and spread from trans-entorhinal cortex over entorhinal and hippocampal cortices medially, then laterally around temporal lobe and finally into association and primary sensory regions of the frontal, parietal and occipital cortices [1,2,3,4]. Since Braak staging is also closely associated with cognitive impairment in AD, the staging scheme is part of the NIA-AA guidelines [5]. Braak staging is used to classify patients suffering from AD according to their propagation and progression of tau pathology, which ideally supports AD management and clinical trials as a framework to characterize the individual disease stage.
In vivo studies using early-generation tau tracers allowed for the first time to visualize anatomical distribution of tau directly in the living human brain [6,7]. Unfortunately, off-target binding, a key problem of those first-generation tau tracers, restrained the performance in detecting early tau stages [8,9,10,11]. Second-generation tau tracer overcome those drawbacks [12,13] and should be tested if they can recapitulate early and late Braak stages in vivo.
18F-PI-2620 is a next-generation tau imaging tracer with high affinity to 3/4R tau in AD [13], showing significant results in discrimination of patients with AD [14], excellent selectivity and proven absent off-target binding [13]. In the present study, we aimed to assess the capability of detecting early and late Braak stages with the second-generation tau PET tracer 18F-PI-2620 in vivo. We hypothesized that 18F-PI-2620 PET can detect tau accumulations in each single Braak stage in a descending distribution of the stages, so that we can map the vast majority of cases into the Braak scheme. We also expected an association of Braak staging and its respective tau accumulation to global cognition.

2. Materials and Methods

We included 38 patients with probable AD dementia according to the NINCDS–ADRDA criteria and 26 healthy controls (HC) in the analysis of this study. All patients with AD dementia showed amyloid pathophysiology as indicated by low beta-amyloid in CSF or amyloid deposition in PET. All participants (or their legal representatives) provided written informed consent. We recruited all subjects at four different centers in three different countries (Leipzig, Germany, AD n = 14; Melbourne, Australia, HC n = 5; Munich, Germany, AD n = 12, HC n = 11; New Haven, USA, AD n = 12, HC n = 10). The study was conducted according to the guidelines of the Declaration of Helsinki, and was approved by the Institutional Review Board (or Ethics Committee) of LMU Munich (application numbers 17-569 and 19-022).
Radiosynthesis of 18F-PI-2620 was done as described elsewhere [15].
PET imaging with 18F-PI-2620 was collected on different scanners with established standard parameters at the above mentioned specialized PET imaging sites as previously described [15]. Briefly, after intravenous injection of a single dose of ~300 MBq 18F-PI-2620, dynamic brain imaging was performed (0–60 min p.i.). Resulting dynamic PET data were reconstructed into 23 frames: 6 × 30 s, 4 × 60 s, 4 × 120 s and 9 × 300 s. All dynamic images were corrected for motion and registered to their individual T1-MRI map, if available. To generate parametric images expressed as distribution volume ratio (DVR) we applied MRTM2 [16] with lower cerebellum as reference region using PMOD (version 3.5, PMOD Technologies LLC, Zurich, Switzerland). For atlas application, we calculated the spatial normalization and its inverse transformation, which we used to transform the atlas file to the individual space. Spatial normalization was either computed MR-based or, if no individual MRI map was available, based on an averaged early PET map (sum of the first 15 min p.i.).
We applied seven regions of interest [8], which closely correspond to the staging scheme defined by Braak and Braak [1]. In vivo Braak stages were categorized according to the decision rules of Schwarz et al. [8]: Transentorhinal cortex (Braak stage I), Hippocampus (Braak stage II), fusiform gyrus (Braak stage III), middle temporal gyrus and extrastriate visual cortex (Braal stage IV), superior temporal gyrus (Braak stage V), primary visual cortex (Braak stage VI). Positivity for each Braak stage was defined as DVRs above mean value plus 2.5 times the standard deviation of the healthy controls, which corresponds to a theoretical maximum of ≈1.2% false positive. Additionally, we condensed the six-stage model data into an established three-class scheme (B1 for Braak stage I + II, B2 for III + IV and B3 for V + VI) [5]. We also implemented a hierarchical scheme, where a stage may only be positive if the previous stage was also positive. Other tauopathy variants, like hippocampal and visual cortex sparing, were defined inside the hierarchical rules and allowed a negative Braak stage I or II, and V or VI, respectively.
Application of Braak atlas and statistics was done in Matlab (version 9.6, The Mathworks Inc., Natick, MA, USA) and SPM (version 12, The Wellcome Centre for Human Neuroimaging, University College London, UK) if applicable. Demographic parameters were compared using Student’s t test or exact Fisher test. Associations between Braak stage and global measure of cognition (MMSE) were assessed with either Pearson’s correlation or partial correlations to correct for confounding effects of age. We also computed sensitivity for discriminating AD dementia cases in three scenarios: based on B1–B3 positivity, B2–B3 positivity and B3 positivity.

3. Results

In both of our examined groups, we found no sex or age differences, whereas MMSE was significantly lower in the AD dementia group (Table 1).
Braak stage-dependent positivity was defined at following DVR thresholds: 1.29, 1.13, 1.21, 1.24, 1.23 and 1.18. Except for Braak stage III, PET positivity widely followed the Braak scheme (Figure 1A) and its frequency declined from Braak I (45%), II (39%), III (50%), IV (37%), V (32%) to VI (13%). The combined three-class scheme showed similar behavior (Figure 1B). Both frequency distributions underpinned that 18F-PI-2620 depositions begins in Braak stage I with its final stage at Braak VI. A voxel-wise frequency mapping representing the amount of tau positive voxels in the whole brain confirmed that distribution (Figure 2). Mean parametric DVR images of both cohorts are shown in Figure 3.
Transferring the data into a hierarchical model, 65% of the AD dementia cases met the hierarchical criterion in the six-stage and 79% in the three-class model.
We found no correlation of highest Braak stage with either age (R = −0.28, p = 0.09) or MMSE (R = 0.24, p = 0.2), but within each stage we found negative correlations of DVR and MMSE while correcting for age except for Braak VI (Figure 4).
The hippocampal sparing tauopathy variant was found in seven (18%) and six (16%) cases for the six- and three-class scheme, respectively. Sole visual cortex sparing was not evident in our cohort. A combination of both tauopathy variants was present in one case (3%).
All in all, we could assign 33 AD dementia cases (87%) to the six-stage and 36 AD dementia cases (95%) to the three-stage hierarchical Braak model including tauopathy variants.
Example cases for each Braak stage are shown in Figure 5. For each stage, an example fused PET-MR image is presented along with the corresponding Braak atlas region and the individual Braak profile plot.
Sensitivity of 18F-PI-2620 tau PET for discriminating AD dementia patients from healthy controls increased from 37% when considering positivity in the B3 stage as positivity for AD dementia to 58% when including the B2 stage, and to 66% when including the B1+B2 stages, with the specificity values equaling 96%.

4. Discussion

We assessed whether the next-generation PET tracer 18F-PI-2620 is able to detect the histopathologically defined Braak stages in vivo in a cohort of 38 amyloid-positive AD dementia patients. We found that 18F-PI-2620 accumulation widely recapitulates the six-stage Braak model [1,2,3,4] including variants of visual cortex and hippocampal sparing [17].
The overwhelming majority of our cases categorized by its 18F-PI-2620 tau depositions followed the histological patterns proposed Braak [1]. Those findings are in line with previous studies using 18F-flortaucipir [8] or 18F-MK-6240 [12]. In comparison to the latter study, we only included beta-amyloid positive participants, which is why we cannot compare their findings regarding tau accumulation in absence of prominent beta-amyloid pathology. Pascoal et al. [12] emphasize the application of a multi-stage in vivo system (e.g., Braak staging) in favor of a dichotomization into tau positive and negative classes as used in the FDA package insert of 18F-flortaucipir [18]. This would allow therapeutic effects to be monitored more precisely in clinical trials or provide a more detailed characterization of longitudinal tau progression [19]. The underlying topographical neurofibrillary tangle progression in AD is suggested to be supported trans-synaptically by misfolded tau protein [20] and trans-neurally by network connections [21]. Recent findings relate the tau propagation to microglial activation, which jointly spread along the Braak stages [22]. In comparison to 18F-flortaucipir and their dichotomization approach [18], where a positive scan was defined as a B3 level of tau pathology, we also demonstrated that additional inclusion of B1 and B2 levels increased sensitivity for distinguishing AD dementia.
The Braak staging scheme represents certain steps of disease progression but does not incorporate DVR intensity variations above the binarization threshold, whereas an elevated DVR signal could offer relevant extra information. E.g., MMSE values correlated with DVR values but not with the corresponding highest Braak stage, indicating that the DVR tau signal reveals more information than the pure level of tau spreading in the brain itself.
A similar quantization aspect is imaginable on a histopathological level. While the applied Braak atlas had the goal of replicating Braak’s histopathological sections as closely as possible [8], the potential of whole brain in vivo quantification had not been fully exploited. Instead of a rather limited selection of sections, imaging studies could assess a broader spectrum of regions that can be fully quantified to reveal additional information about intra-individual spreading.
We found a relation of DVR signal intensity and MMSE, a measure of global cognition in our cohort of amyloid positive participants with Alzheimer’s dementia. Here, higher DVR tau signal was associated with worse MMSE scores in each Braak stage except stage VI, where we only found a statistical trend. This finding is consistent with the hypothesis that tau is a significant impetus of the AD progression [4,23,24] and is in line with the known floor effects of the MMSE in advanced disease stages. Since all of our AD dementia patients were beta-amyloid positive (A+ according to [25]), we did not observe cases of primary age-related tauopathy (PART) [26] or suspected non-alzheimer’s pathology (SNAP) [27]. Compared to MMSE, more specific measurement tools for cognition could deliver a more detailed view on the relation of Braak level progressing, tau load and specific cognitive functions. It also seems worth studying tau Braak staging not only in classical AD but also in patients with MCI or AD subtypes such as visual-variants (PCA), language-variant (LPA) or genetic variants (ADAD) to distinguish potential subtype profiles as already suggested [28].
We found no significant age effect on highest Braak stage in our cohort. While other groups found divergent effects of age related tau signal, our sample size is substantially smaller compared to e.g., Lowe et al. [28], who found modest correlations: positive in cognitively unimpaired (n = 601), negative in cognitively impaired (n = 86). Also other groups report age effects at least in the medial temporal lobe [29,30], but there are also studies, which found no age association with tau PET signal [8,31]. In all those studies, the proposed relations seem to be coupled to beta-amyloid status and cognitive impairment. A comparison to our demented beta-amyloid positive AD participants is complex, but in line with Lowe et al. [28] and Pontecorvo et al. [32], if we interpret our negative correlation with p = 0.09 as a statistical trend being aware of our smaller sample size.
Some limitations of this present study should be mentioned. We applied an atlas-based approach to assess DVR signal in each Braak stage. While transforming the atlas template to the individual brain, minor discrepancies are possible after non-linear transformation. A gray matter masking, which could improve quantification, was not considered since an MRI dataset was not available for all participants. The atlas itself was exactly applied as introduced by Schwarz and colleagues [8]. While an atlas optimization was outside the scope of this study, it is conceivable, that some ROIs are potentially biased by off-target binding (e.g., Braak III by choroid plexus) and an optimized data-driven ROI staging approach could improve Braak staging. Instead of SUVR maps, we used kinetic modeling and its resulting DVR maps for Braak staging. While we do not see this as a limitation, we do recognize the problem of applying kinetic modeling in clinical practice and thus the limited transferability of our results to the clinic. In our multicenter study, different PET scanners with different reconstruction methods were used to acquire 18F-PI-2620 data. We did not evaluate or correct for that multicenter effect, but rather see this as a strength of our study and demonstrate the applicability of in vivo Braak staging independent of technical setup. The MMSE was the only psychometric endpoint available across the included cohorts, restricting more detailed cognitive phenotyping due to the limited sensitivity, especially in early disease stages. At the same time, the MMSE was shown to correlate well with the dementia stages of AD [33].
To conclude, 18F-PI-2620 tau PET seems capable of Braak tau staging in AD in vivo providing a marker of tau deposition and disease progress. It seems worth expanding the concept of in vivo tau staging by 18F-PI-2620 to other tauopathies apart from AD.

Author Contributions

Conceptualization, M.R., O.S. and H.B.; methodology, M.R. and H.B.; validation, M.R., H.B. and O.S.; formal analysis, M.R.; investigation, M.R., M.B., M.L.S., D.S., J.L., R.G.P., S.T., V.L.V., J.C., O.S. and H.B.; resources, M.B., M.P., V.L.V., J.C., A.M., A.W.S. and O.S.; data curation, M.R., M.B., V.L.V. and H.B.; writing—original draft preparation, M.R., O.S. and H.B.; writing—review and editing, all authors; visualization, M.R.; supervision, H.B.; project administration, O.S. and H.B. All authors have read and agreed to the published version of the manuscript.


The APC was funded by University of Leipzig for Open Access Publishing. Otherwise, this research received no external funding.

Institutional Review Board Statement

The study was conducted according to the guidelines of the Declaration of Helsinki, and approved by the Institutional Review Board (or Ethics Committee) of LMU Munich (application numbers 17-569 and 19-022).

Informed Consent Statement

Informed consent was obtained from all subjects involved in the study.

Data Availability Statement

The data presented in this study are available on request from the corresponding author. The data are not publicly available due to their containing information that could compromise the privacy of the participants.


German Imaging Initiative for Tauopathies (GII4T) members are LMU Munich, Department of Neurology: Johannes Levin, Jonathan Vöglein, Urban Fietzek, Sonja Schönecker, Georg Nübling, Catharina Prix, Kai Bötzel, Adrian Danek, Carla Palleis, Endy Weidinger, Sabrina Katzdobler; LMU Munich, Department of Nuclear Medicine: Matthias Brendel, Mengmeng Song, Alexander Nitschmann, Maike Kern, Gloria Biechele, Anika Finze, Leonie Beyer, Peter Bartenstein, Stefanie Harris, Julia Schmitt, Florian Eckenweber, Simon Lindner, Franz-Joseph Gildehaus, Emanuel Joseph, Maximilian Scheifele, Christian Zach; LMU Munich, Department of Psychiatry and Psychotherapy: Robert Perneczky, Jan Häckert; LMU Munich, Department of Radiology: Boris-Stephan Rauchmann, Sophia Stöcklein; Hannover Medical School, Department of Neurology: Günter Höglinger, Gesine Respondek; University of Leipzig, Department of Nuclear Medicine: Henryk Barthel, Marianne Patt, Andreas Schildan, Osama Sabri, Michael Rullmann; University of Leipzig, Department of Neurology: Joseph Classen, Dorothee Saur, Jost-Julian Rumpf; Max-Plank-Institute of Human Cognitive and Brain Sciences Leipzig: Matthias L. Schroeter; Technical University of Munich, Department of Neurology: Matthias Höllerhage; University of Cologne, Department of Nuclear Medicine and Forschungszentrum Jülich: Alexander Drzezga, Thilo van Eimeren, Jochen Hammes, Bernd Neumaier; University of Cologne, Department of Neurology: Michael T. Barbe, Oezguer Onur; DZNE Munich/Bonn: Estrella Morenas-Rodriguez, Jochen Herms, Sigrun Roeber, Thomas Arzberger, Christian Haass, Frank Jessen; Life Molecular Imaging: Andrew Stephens, Norman Koglin, Andre Mueller.

Conflicts of Interest

A.M. and A.W.S. are full-time employees of Life Molecular Imaging GmbH. M.B. received speaker honoraria from Roche, GE healthcare and LMI and is an advisor of LMI. R.G.P. received speaker honoraria, advisory fees and research support from Janssen, Biogen, Eli Lilly, Novo Nordisk, Schwabe, Bayer, Grifols and Roche. J.L. reports speaker fees from Bayer Vital, Biogen and Roche, consulting fees from Axon Neuroscience and Biogen, author fees from Thieme medical publishers and W. Kohlhammer GmbH medical publishers, non-financial support from Abbvie and compensation for duty as part-time CMO from MODAG, outside the submitted work. All other authors declare no conflict of interest.


  1. Braak, H.; Braak, E. Neuropathological stageing of Alzheimer-related changes. Acta Neuropathol. 1991, 82, 239–259. [Google Scholar] [CrossRef] [PubMed]
  2. Braak, H.; Braak, E. Frequency of stages of Alzheimer-related lesions in different age categories. Neurobiol. Aging 1997, 18, 351–357. [Google Scholar] [CrossRef]
  3. Braak, H.; Alafuzoff, I.; Arzberger, T.; Kretzschmar, H.; Del Tredici, K. Staging of Alzheimer disease-associated neurofibrillary pathology using paraffin sections and immunocytochemistry. Acta Neuropathol. 2006, 112, 389–404. [Google Scholar] [CrossRef] [PubMed][Green Version]
  4. Braak, H.; Thal, D.R.; Ghebremedhin, E.; Del Tredici, K. Stages of the pathologic process in Alzheimer disease: Age categories from 1 to 100 years. J. Neuropathol. Exp. Neurol. 2011, 70, 960–969. [Google Scholar] [CrossRef]
  5. Hyman, B.T.; Phelps, C.H.; Beach, T.G.; Bigio, E.H.; Cairns, N.J.; Carrillo, M.C.; Dickson, D.W.; Duyckaerts, C.; Frosch, M.P.; Masliah, E.; et al. National Institute on Aging-Alzheimer’s Association guidelines for the neuropathologic assessment of Alzheimer’s disease. Alzheimers. Dement. 2012, 8, 1–13. [Google Scholar] [CrossRef][Green Version]
  6. Chien, D.T.; Bahri, S.; Szardenings, A.K.; Walsh, J.C.; Mu, F.; Su, M.-Y.; Shankle, W.R.; Elizarov, A.; Kolb, H.C. Early clinical PET imaging results with the novel PHF-tau radioligand F-18-T807. J. Alzheimers. Dis. 2013, 34, 457–468. [Google Scholar] [CrossRef] [PubMed][Green Version]
  7. Villemagne, V.L.; Okamura, N. In vivo tau imaging: Obstacles and progress. Alzheimers. Dement. 2014, 10, S254–S264. [Google Scholar] [CrossRef] [PubMed][Green Version]
  8. Schwarz, A.J.; Yu, P.; Miller, B.B.; Shcherbinin, S.; Dickson, J.; Navitsky, M.; Joshi, A.D.; Devous, M.D.; Mintun, M.S. Regional profiles of the candidate tau PET ligand 18F-AV-1451 recapitulate key features of Braak histopathological stages. Brain 2016, 139, 1539–1550. [Google Scholar] [CrossRef][Green Version]
  9. Herholz, K. Spread of tau deposits: Can we trust in vivo findings? Brain 2018, 141, 10–12. [Google Scholar] [CrossRef] [PubMed][Green Version]
  10. Soleimani-Meigooni, D.N.; Iaccarino, L.; La Joie, R.; Baker, S.; Bourakova, V.; Boxer, A.L.; Edwards, L.; Eser, R.; Gorno-Tempini, M.-L.; Jagust, W.J.; et al. 18F-flortaucipir PET to autopsy comparisons in Alzheimer’s disease and other neurodegenerative diseases. Brain 2020, 143, 3477–3494. [Google Scholar] [CrossRef] [PubMed]
  11. Baker, S.L.; Harrison, T.M.; Maass, A.; La Joie, R.; Jagust, W.J. Effect of Off-Target Binding on 18F-Flortaucipir Variability in Healthy Controls Across the Life Span. J. Nucl. Med. 2019, 60, 1444–1451. [Google Scholar] [CrossRef] [PubMed][Green Version]
  12. Pascoal, T.A.; Therriault, J.; Benedet, A.L.; Savard, M.; Lussier, F.Z.; Chamoun, M.; Tissot, C.; Qureshi, M.N.I.; Kang, M.S.; Mathotaarachchi, S.; et al. 18F-MK-6240 PET for early and late detection of neurofibrillary tangles. Brain 2020, 143, 2818–2830. [Google Scholar] [CrossRef] [PubMed]
  13. Kroth, H.; Oden, F.; Molette, J.; Schieferstein, H.; Capotosti, F.; Mueller, A.; Berndt, M.; Schmitt-Willich, H.; Darmency, V.; Gabellieri, E.; et al. Discovery and preclinical characterization of 18FPI-2620, a next-generation tau PET tracer for the assessment of tau pathology in Alzheimer’s disease and other tauopathies. Eur. J. Nucl. Med. Mol. Imaging 2019, 46, 2178–2189. [Google Scholar] [CrossRef] [PubMed][Green Version]
  14. Mueller, A.; Bullich, S.; Barret, O.; Madonia, J.; Berndt, M.; Papin, C.; Perrotin, A.; Koglin, N.; Kroth, H.; Pfeifer, A.; et al. Tau PET imaging with 18F-PI-2620 in Patients with Alzheimer Disease and Healthy Controls: A First-in-Humans Study. J. Nucl. Med. 2020, 61, 911–919. [Google Scholar] [CrossRef] [PubMed]
  15. Brendel, M.; Barthel, H.; van Eimeren, T.; Marek, K.; Beyer, L.; Song, M.; Palleis, C.; Gehmeyr, M.; Fietzek, U.; Respondek, G.; et al. Assessment of 18F-PI-2620 as a Biomarker in Progressive Supranuclear Palsy. JAMA Neurol 2020, 77, 1408–1419. [Google Scholar] [CrossRef] [PubMed]
  16. Ichise, M.; Liow, J.-S.; Lu, J.-Q.; Takano, A.; Model, K.; Toyama, H.; Suhara, T.; Suzuki, K.; Innis, R.B.; Carson, R.E. Linearized reference tissue parametric imaging methods: Application to 11CDASB positron emission tomography studies of the serotonin transporter in human brain. J. Cereb. Blood Flow Metab. 2003, 23, 1096–1112. [Google Scholar] [CrossRef][Green Version]
  17. Murray, M.E.; Graff-Radford, N.R.; Ross, O.A.; Petersen, R.C.; Duara, R.; Dickson, D.W. Neuropathologically defined subtypes of Alzheimer’s disease with distinct clinical characteristics: A retrospective study. Lancet Neurol. 2011, 10, 785–796. [Google Scholar] [CrossRef][Green Version]
  18. Mattay, V.S.; Fotenos, A.F.; Ganley, C.J.; Marzella, L. Brain Tau Imaging: Food and Drug Administration Approval of 18F-Flortaucipir Injection. J. Nucl. Med. 2020, 61, 1411–1412. [Google Scholar] [CrossRef] [PubMed]
  19. Pascoal, T.A.; Benedet, A.L.; Tudorascu, D.L.; Therriault, J.; Mathotaarachchi, S.; Savard, M.; Lussier, F.Z.; Tissot, C.; Chamoun, M.; Kang, M.S.; et al. Longitudinal 18F-MK-6240 tau tangles accumulation follows Braak stages. Brain 2021, 144, 3517–3528. [Google Scholar] [CrossRef]
  20. Guo, J.L.; Lee, V.M.-Y. Seeding of normal Tau by pathological Tau conformers drives pathogenesis of Alzheimer-like tangles. J. Biol. Chem. 2011, 286, 15317–15331. [Google Scholar] [CrossRef][Green Version]
  21. Stancu, I.-C.; Vasconcelos, B.; Ris, L.; Wang, P.; Villers, A.; Peeraer, E.; Buist, A.; Terwel, D.; Baatsen, P.; Oyelami, T.; et al. Templated misfolding of Tau by prion-like seeding along neuronal connections impairs neuronal network function and associated behavioral outcomes in Tau transgenic mice. Acta Neuropathol. 2015, 129, 875–894. [Google Scholar] [CrossRef] [PubMed][Green Version]
  22. Pascoal, T.A.; Benedet, A.L.; Ashton, N.J.; Kang, M.S.; Therriault, J.; Chamoun, M.; Savard, M.; Lussier, F.Z.; Tissot, C.; Karikari, T.K.; et al. Microglial activation and tau propagate jointly across Braak stages. Nat. Med. 2021, 27, 1592–1599. [Google Scholar] [CrossRef] [PubMed]
  23. Jack, C.R.; Knopman, D.S.; Jagust, W.J.; Shaw, L.M.; Aisen, P.S.; Weiner, M.W.; Petersen, R.C.; Trojanowski, J.Q. Hypothetical model of dynamic biomarkers of the Alzheimer’s pathological cascade. Lancet Neurol. 2010, 9, 119–128. [Google Scholar] [CrossRef][Green Version]
  24. Jack, C.R.; Wiste, H.J.; Botha, H.; Weigand, S.D.; Therneau, T.M.; Knopman, D.S.; Graff-Radford, J.; Jones, D.T.; Ferman, T.J.; Boeve, B.F.; et al. The bivariate distribution of amyloid-β and tau: Relationship with established neurocognitive clinical syndromes. Brain 2019, 142, 3230–3242. [Google Scholar] [CrossRef] [PubMed]
  25. Jack, C.R.; Bennett, D.A.; Blennow, K.; Carrillo, M.C.; Feldman, H.H.; Frisoni, G.B.; Hampel, H.; Jagust, W.J.; Johnson, K.A.; Knopman, D.S.; et al. A/T/N: An unbiased descriptive classification scheme for Alzheimer disease biomarkers. Neurology 2016, 87, 539–547. [Google Scholar] [CrossRef] [PubMed]
  26. Crary, J.F.; Trojanowski, J.Q.; Schneider, J.A.; Abisambra, J.F.; Abner, E.L.; Alafuzoff, I.; Arnold, S.E.; Attems, J.; Beach, T.G.; Bigio, E.H.; et al. Primary age-related tauopathy (PART): A common pathology associated with human aging. Acta Neuropathol. 2014, 128, 755–766. [Google Scholar] [CrossRef] [PubMed][Green Version]
  27. Jack, C.R. PART and SNAP. Acta Neuropathol. 2014, 128, 773–776. [Google Scholar] [CrossRef] [PubMed][Green Version]
  28. Lowe, V.J.; Wiste, H.J.; Senjem, M.L.; Weigand, S.D.; Therneau, T.M.; Boeve, B.F.; Josephs, K.A.; Fang, P.; Pandey, M.K.; Murray, M.E.; et al. Widespread brain tau and its association with ageing, Braak stage and Alzheimer’s dementia. Brain 2018, 141, 271–287. [Google Scholar] [CrossRef] [PubMed]
  29. Schöll, M.; Lockhart, S.N.; Schonhaut, D.R.; O’Neil, J.P.; Janabi, M.; Ossenkoppele, R.; Baker, S.L.; Vogel, J.W.; Faria, J.; Schwimmer, H.D.; et al. PET Imaging of Tau Deposition in the Aging Human Brain. Neuron 2016, 89, 971–982. [Google Scholar] [CrossRef][Green Version]
  30. Maass, A.; Lockhart, S.N.; Harrison, T.M.; Bell, R.K.; Mellinger, T.; Swinnerton, K.; Baker, S.L.; Rabinovici, G.D.; Jagust, W.J. Entorhinal Tau Pathology, Episodic Memory Decline, and Neurodegeneration in Aging. J. Neurosci. 2018, 38, 530–543. [Google Scholar] [CrossRef] [PubMed][Green Version]
  31. Brier, M.R.; Gordon, B.; Friedrichsen, K.; McCarthy, J.; Stern, A.; Christensen, J.; Owen, C.; Aldea, P.; Su, Y.; Hassenstab, J.; et al. Tau and Aβ imaging, CSF measures, and cognition in Alzheimer’s disease. Sci. Transl. Med. 2016, 8, 338ra66. [Google Scholar] [CrossRef] [PubMed][Green Version]
  32. Pontecorvo, M.J.; Devous, M.D.; Navitsky, M.; Lu, M.; Salloway, S.; Schaerf, F.W.; Jennings, D.; Arora, A.K.; McGeehan, A.; Lim, N.C.; et al. Relationships between flortaucipir PET tau binding and amyloid burden, clinical diagnosis, age and cognition. Brain 2017, 140, 748–763. [Google Scholar] [CrossRef] [PubMed]
  33. Perneczky, R.; Wagenpfeil, S.; Komossa, K.; Grimmer, T.; Diehl, J.; Kurz, A. Mapping scores onto stages: Mini-mental state examination and clinical dementia rating. Am. J. Geriatr. Psychiatry 2006, 14, 139–144. [Google Scholar] [CrossRef] [PubMed]

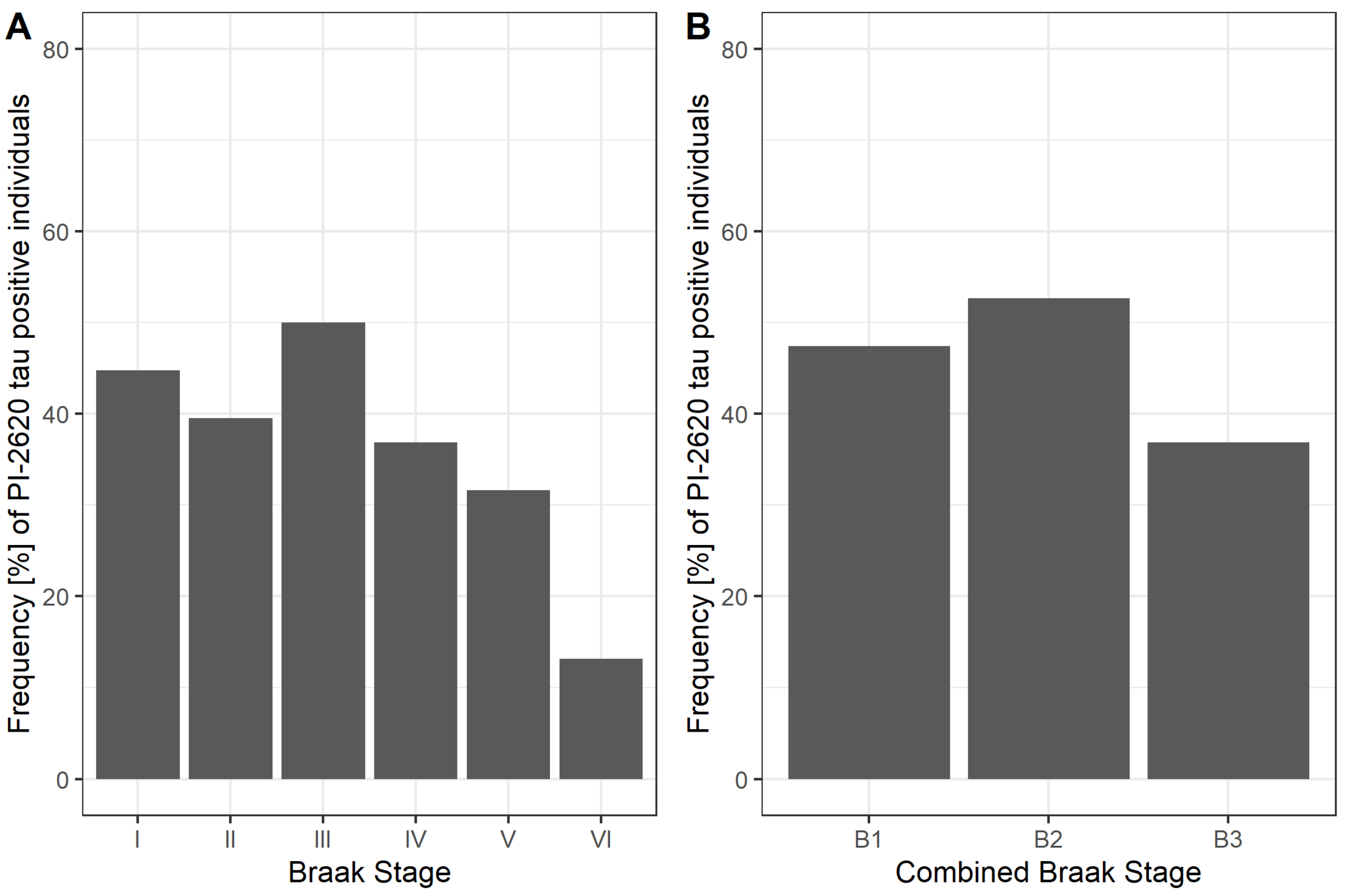

Figure 1. Frequency of 18F-PI-2620 tau PET positivity for (A) each Braak stage and (B) the combined Braak stage model.
Figure 1. Frequency of 18F-PI-2620 tau PET positivity for (A) each Braak stage and (B) the combined Braak stage model.
Biomolecules 12 00458 g001

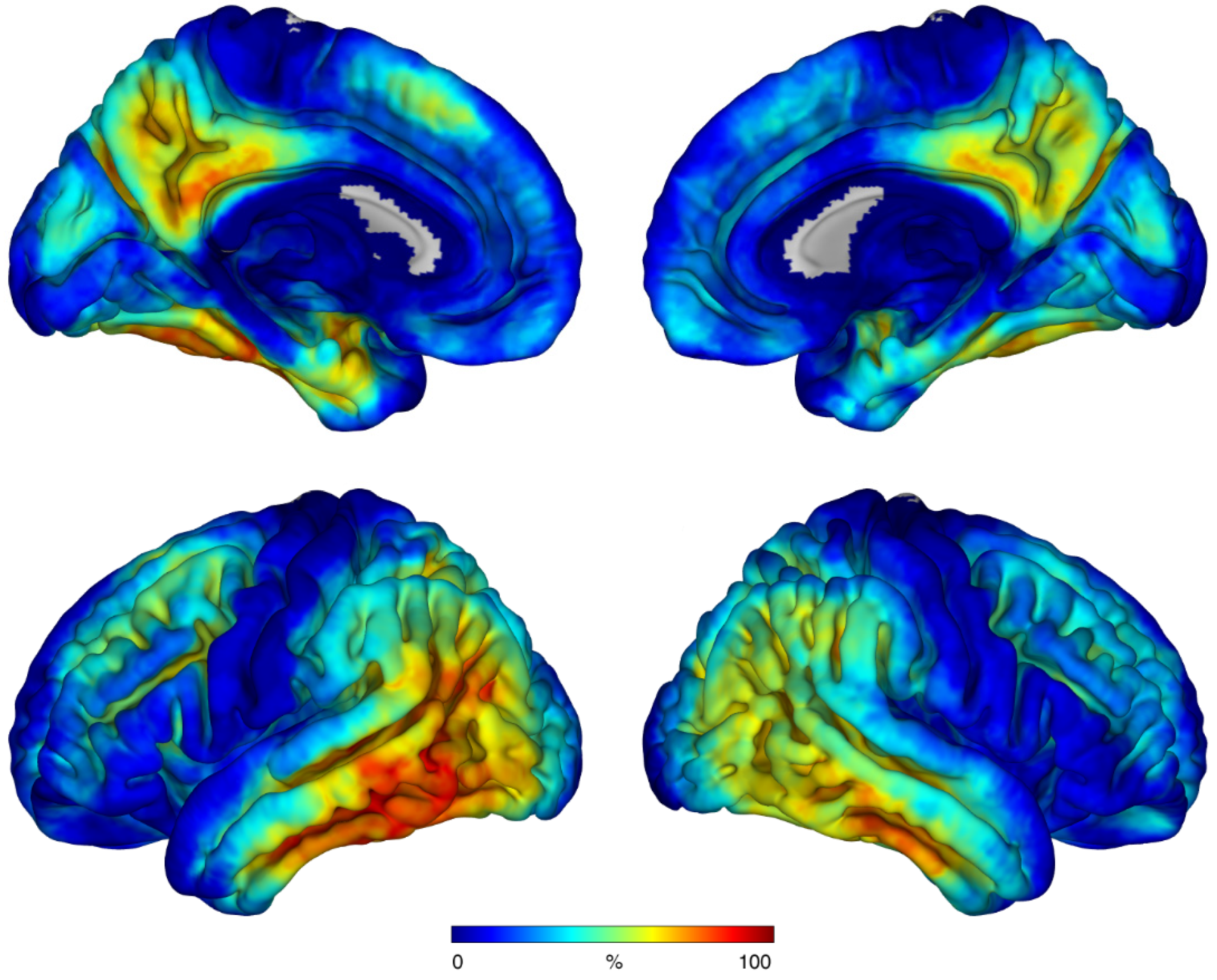

Figure 2. Voxel-wise frequency map of tau positivity of all voxels from all AD dementia cases projected on a cortex surface.
Figure 2. Voxel-wise frequency map of tau positivity of all voxels from all AD dementia cases projected on a cortex surface.
Biomolecules 12 00458 g002

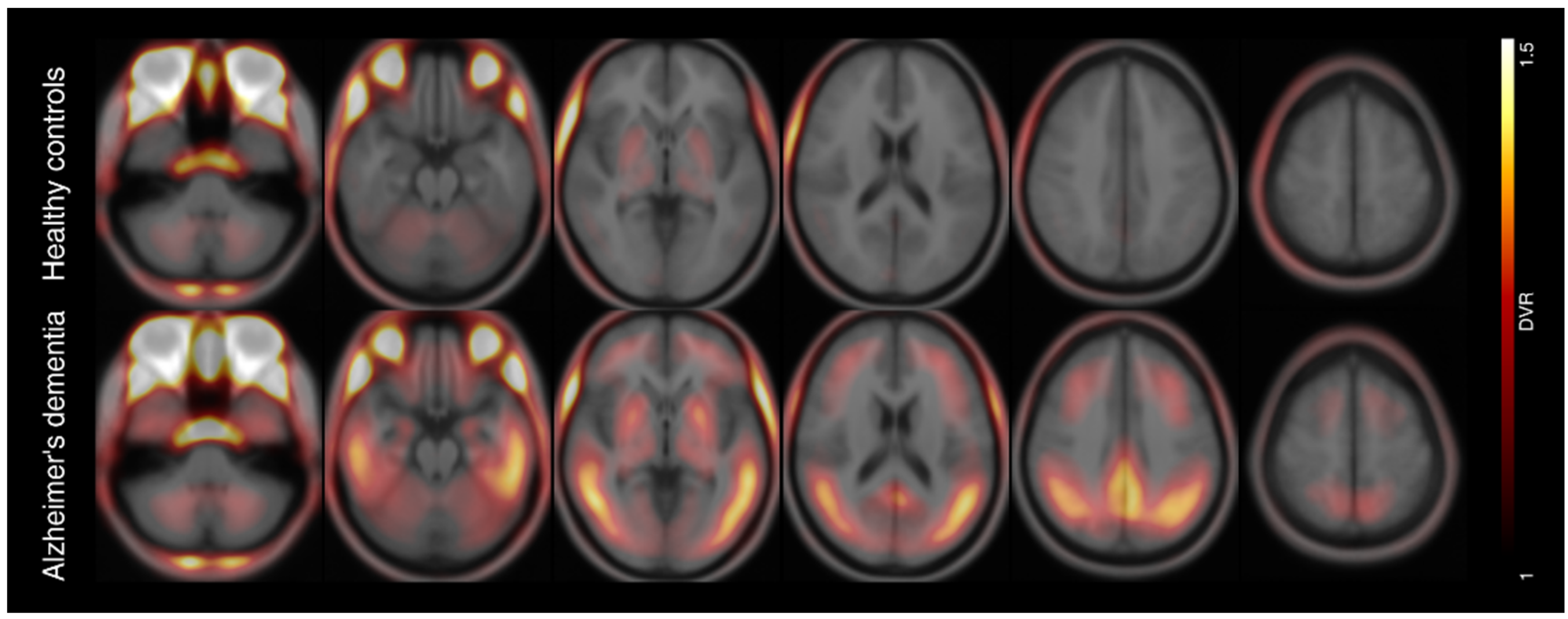

Figure 3. Mean parametric 18F-PI-2620 PET distribution volume ratio (DVR) images of healthy controls (top row) and patients with Alzheimer’s dementia (bottom row) overlayed on an averaged anatomical MRI scan in standard space of the Montreal Neurological Institute (MNI).
Figure 3. Mean parametric 18F-PI-2620 PET distribution volume ratio (DVR) images of healthy controls (top row) and patients with Alzheimer’s dementia (bottom row) overlayed on an averaged anatomical MRI scan in standard space of the Montreal Neurological Institute (MNI).
Biomolecules 12 00458 g003

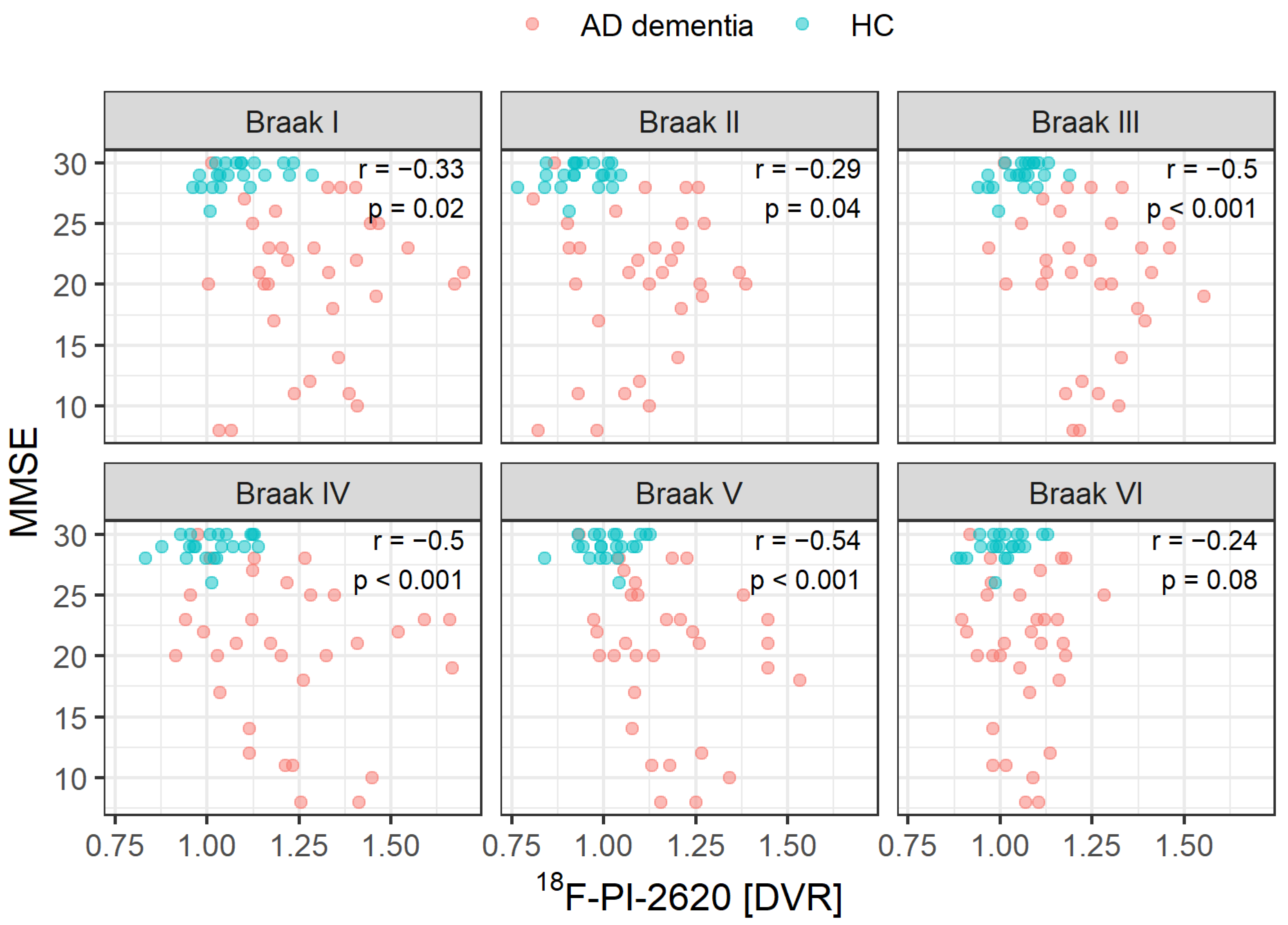

Figure 4. Association between 18F-PI-2620 DVR and MMSE score. Partial correlation was adjusted for age. AD dementia: participants with Alzheimer’s dementia. HC: healthy controls.
Figure 4. Association between 18F-PI-2620 DVR and MMSE score. Partial correlation was adjusted for age. AD dementia: participants with Alzheimer’s dementia. HC: healthy controls.
Biomolecules 12 00458 g004

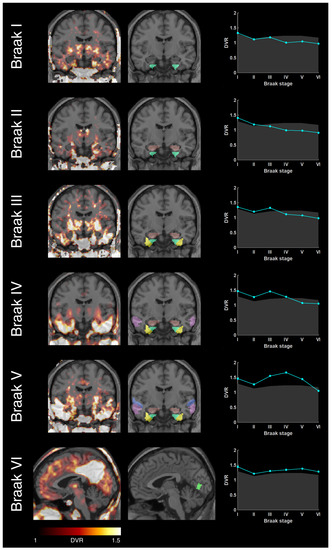

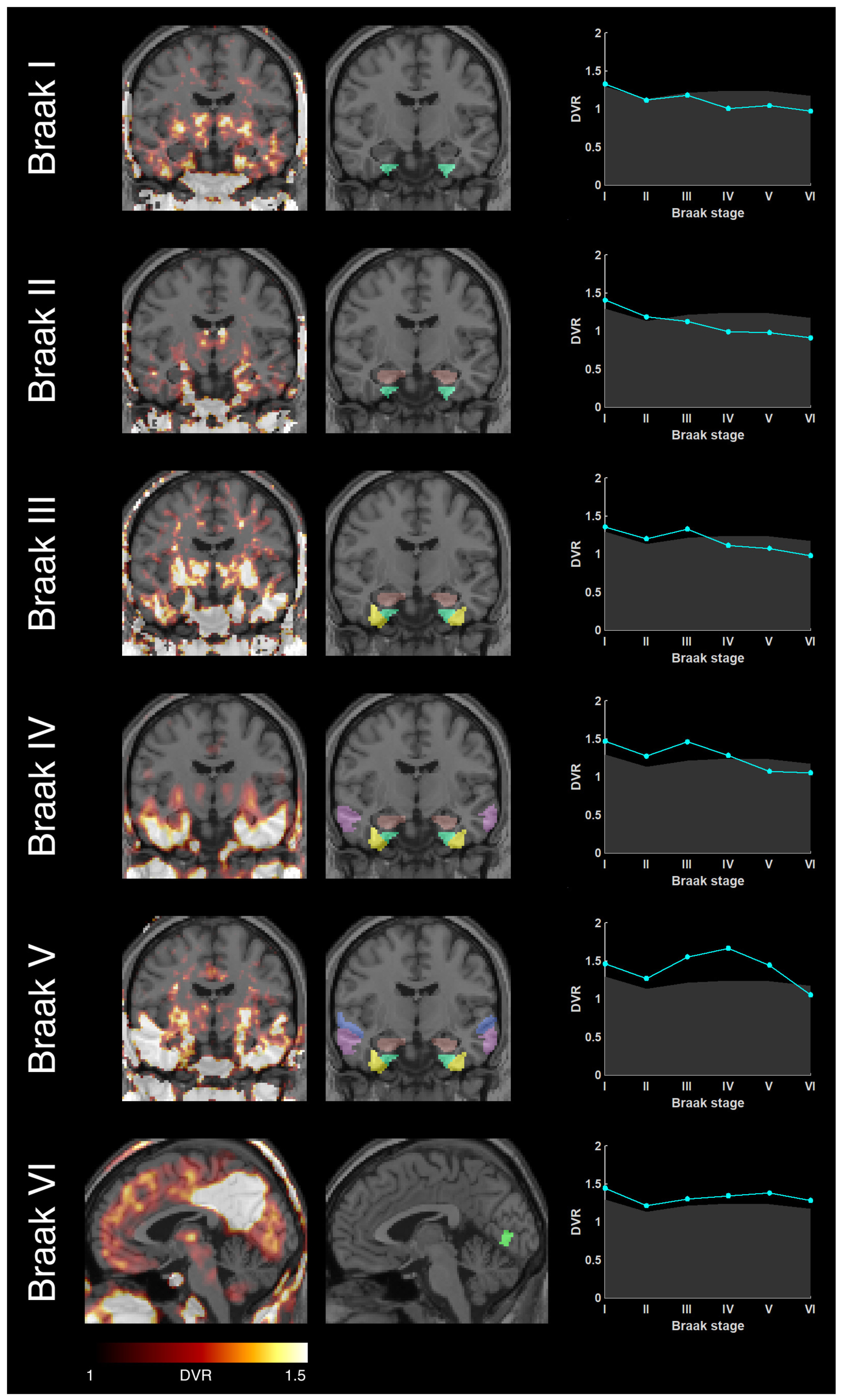

Figure 5. Example AD dementia cases for each Braak stage showing parametric tau PET image fused with a standard MRI (left), MRI including Braak atlas regions (middle) and individual Braak profile (right). The plot shows mean DVR values of each Braak stage (cyan) in relation to the normal DVR (gray) defined by the healthy controls.
Figure 5. Example AD dementia cases for each Braak stage showing parametric tau PET image fused with a standard MRI (left), MRI including Braak atlas regions (middle) and individual Braak profile (right). The plot shows mean DVR values of each Braak stage (cyan) in relation to the normal DVR (gray) defined by the healthy controls.
Biomolecules 12 00458 g005
Table 1. Demographic information of all participants.
Table 1. Demographic information of all participants.
ParameterPatients with
Alzheimer’s Dementia
Healthy Controlsp
Sex (female/male)21/1713/130.8 1
Age (years)69 ± 967 ± 110.24 2
MMSE (if available)20 ± 6 (n = 32)29 ± 1 (n = 22)6 × 10−8 2
1 Exact Fisher test. 2 Student’s t test.
