Physiological and Pathophysiological Roles of Mitochondrial Na⁺-Ca²⁺ Exchanger, NCLX, in Hearts

Abstract

It has been over 10 years since SLC24A6/SLC8B1, coding the Na⁺/Ca²⁺/Li⁺ exchanger (NCLX), was identified as the gene responsible for mitochondrial Na⁺-Ca²⁺ exchange, a major Ca²⁺ efflux system in cardiac mitochondria. This molecular identification enabled us to determine structure–function relationships, as well as physiological/pathophysiological contributions, and our understandings have dramatically increased. In this review, we provide an overview of the recent achievements in relation to NCLX, focusing especially on its heart-specific characteristics, biophysical properties, and spatial distribution in cardiomyocytes, as well as in cardiac mitochondria. In addition, we discuss the roles of NCLX in cardiac functions under physiological and pathophysiological conditions—the generation of rhythmicity, the energy metabolism, the production of reactive oxygen species, and the opening of mitochondrial permeability transition pores.

1. Introduction

It has been almost a half century since a mitochondrial Na⁺-Ca²⁺ exchange (NCX_mit) system was discovered in the heart [1], and it has been more than 10 years since SLC24A6/SLC8B1, coding the Na⁺/Ca²⁺/Li⁺ exchanger (NCLX), was identified as the gene responsible for the system [2]. Owing to this molecular identification, our understanding of physiological and pathophysiological roles of NCX_mit has dramatically increased in various types of cells, including cardiomyocytes, neurons, astrocytes, B lymphocytes, pancreatic β cells, and brown adipocytes [3,4,5,6,7,8,9,10]; see also reviews [11,12,13]. In the heart, NCX_mit comprises the major Ca²⁺ efflux mechanism to balance against Ca²⁺ influx via mitochondrial Ca²⁺ uniport (CU_mit) activity. For the physiological functions of cardiomyocytes, it is vital for mitochondrial matrix Ca²⁺ to be maintained within an appropriate range because several metabolic enzymes are activated by Ca²⁺ to supply ATP, meeting cellular ATP demand, but excess Ca²⁺ causes mitochondrial dysfunction via opening of mitochondrial permeability transition pores (mPTP) (see other reviews for details [14,15]). In this review, we provide an overview of recent findings regarding NCX_mit, especially focusing on its biophysical properties, distributions, and physiological and pathophysiological roles in the heart.

2. Tissue-Specific Characteristics of Mitochondrial Ca²⁺ Dynamics

The mitochondrial Ca²⁺ handling system varies from tissue to tissue, which may contribute to tissue-specific tuning of mitochondrial as well as cellular functions. It is well accepted that CU_mit activity is lower in the heart than in other tissues [16]. This lower CU_mit activity may be due to differences in stoichiometry among a pore-forming protein (MCU), a dominant negative subunit (MCUb), and/or an EF-hand containing Ca²⁺-sensitive regulator (MICU1)—an MCUb:MCU ratio that is higher and an MICU1:MCU ratio that is lower in the heart [17,18,19]. In addition, Wescott et al. [20] reported that “gate-keeping” of CU_mit via a certain cytosolic Ca²⁺ threshold was not observed in heart, though it has been well described functionally and structurally in other tissues or cell types (see review [21]). These heart-specific characteristics of the mitochondrial Ca²⁺ influx system may contribute to preventing mitochondrial Ca²⁺ overload in the heart, where cytosolic Ca²⁺ periodically rises.

In order to balance against the mitochondrial Ca²⁺ influx, NCX_mit and H⁺-Ca²⁺ exchange (HCX_mit) extrude Ca²⁺ from mitochondria, with the former accounting for the major component in excitable tissues such as the heart and brain, and the latter being dominant in non-excitable tissues such as the liver and kidney (see review [22]). Rysted et al. [23] quantitatively compared the NCX_mit activity in mitochondria isolated from mouse brains, livers, and hearts. By evaluating extra-mitochondrial Ca²⁺ using Calcium Green-5N, they demonstrated that the rate of Na⁺-dependent Ca²⁺ efflux from mitochondria was ~3-fold larger in the brain than in the heart. This well agrees with the lower CU_mit activity in the heart compared with other tissues [16,18]. Interestingly, the NCX_mit activity in the liver was negligible, despite the fact that it has the highest mRNA expression level of NCLX. The authors attributed this to extra-mitochondrial expression of NCLX protein in the liver.

In the heart, the fraction of Na⁺-dependent Ca²⁺ efflux to total Ca²⁺ efflux is 60–100%, depending on species and experimental conditions [8,23,24,25]. The remaining fraction should be mediated by HCX_mit, though its contribution in the heart has been controversial. Leucine-zipper-EF hand-containing transmembrane (Letm1), which was initially shown to mediate H⁺-dependent Ca²⁺ influx into mitochondria [26,27], was proposed as the gene responsible for HCX_mit. Natarajan et al. [28] detected H⁺-induced Ca²⁺ efflux from rat cardiac mitochondria, which were dependent on the free matrix Ca²⁺ concentration. Furthermore, they confirmed Letm1-mediated Ca²⁺ efflux from mitochondria by demonstrating a diminished Ca²⁺ efflux rate in permeabilized H9c2 cells due to Letm1 knockdown. Interestingly, they found that the expression level of the Letm1 protein in mitochondria was higher in the heart than in the liver, though the functional contribution of HCX_mit was much higher in the liver than in the heart. Post-translational modifications or extra-mitochondrial localization of Letm1 protein in the heart, just as reported for NCLX [23], may explain the disparity between the expression level and function.

3. Biophysical Properties of NCX_mit

The electrogenicity of NCX_mit had been controversial [29,30,31,32]. These controversies were raised largely because mitochondrial membrane potential (∆Ψ) is affected by H⁺ movements across the mitochondrial inner membrane via the electron transport chain, F₁F_o-ATP synthase, and so on. Therefore, detecting an NCX_mit-mediated ∆Ψ change with the exclusion of the ∆Ψ change via the fluctuation of energy metabolism was challenging. In order to overcome this problem, it is necessary to clamp ∆Ψ. Recently, our group succeeded in recording membrane currents through NCX_mit in mouse cardiac mitochondria using whole-mitoplast patch clamp methods, thus settling the controversy [8].

The characteristics of the NCX_mit current in forward mode, i.e., an extra-mitochondrial Na⁺-induced inward current with Ca²⁺ in the pipette, corresponded well to those in previous reports—the currents were diminished by the NCX_mit inhibitor CGP-37157 [32,33], the Hill coefficient for cytosolic Na⁺ was around 3–4 [29,32], and Li⁺ can be substitutable for Na⁺ with ~70% lower efficacy [23,24]. One deviation was that the half-maximum concentration for Na⁺, 35.6 mM, was higher than the reported value of 1–8 mM in the heart (8 mM in [29]; 1 mM in [32]), possibly because the Na⁺-permeable background current could exist in the mitoplast preparations. The lower efficacy of Li⁺ compared to Na⁺ in exchanging for Ca²⁺ was also reported in brain mitochondria, to a similar extent as in the heart [10,23]. Through molecular modeling analysis based on Metanococcus jannaschii NCX_Mj and Archaeoglobus fulgidus CAX_Af, combined with functional analysis of human NCLX mutants, distinct amino acid residues in NCLX were identified as determining Na⁺ or Li⁺ binding [34]. That is, N149, P152, D153, N467, S468, and G494 were proposed to render Li⁺ selectivity, whereas D471 was proposed to render Na⁺ selectivity [34]. Giladi et al. [35] independently analyzed NCX_Mj-derived mutant NCLX_Mj, with nine substituted resides causing a NCLX-like phenotype, and found that peptides 248–255 were sensitive only to Li⁺ binding, but not to Na⁺ nor Ca²⁺ binding. Therefore, it is reasonable that the efficacy of exchanging for Ca²⁺ was different between Na⁺ and Li⁺. Although the three-dimensional (3D) structure of NCLX has not been solved yet, recent advances in artificial intelligence-based structure prediction methods makes it possible to easily visualize a putative 3D structure of NCLX. Figure 1 shows a putative 3D structure of human NCLX (Q6J4K2), predicted using AlphaFold [36], with specific residues highlighted that are suggested to be functionally important.

In the whole-mitoplast patch clamp experiments, the NCX_mit current in reverse mode—an extra-mitochondrial Ca²⁺-induced outward current with Na⁺ in the pipette—could not be recorded [8]. This was rather surprising to us because the reverse mode of NCX_mit activity was previously reported to exist in mitochondria of rat cardiomyocytes [32,37]. Further evaluation of intra-mitochondrial Ca²⁺ using Fluo-8 in isolated mitochondria revealed that the reverse mode of NCX_mit activity did exist in the heart. That is, CGP-37157-sensitive and intra-mitochondrial Na⁺-dependent Ca²⁺ influx was detected, but the rate was too slow to be recorded electrophysiologically [8]. What is the mechanism underlying the slow NCX_mit activity in reverse mode? One possible explanation may be an allosteric regulation of NCLX by ∆Ψ, as reported in SH-SY5Y neuronal cells and in HEK-293T cells [38]. The authors showed that mild ∆Ψ depolarization inhibited NCX_mit via two clusters of positively charged residues, which are putatively located in the regulatory loop around the inner membrane (yellow sticks in Figure 1). They also showed that phosphorylation of S258 in human NCLX, known to be a protein kinase A (PKA) target site [39] (blue sticks in Figure 1), could override the regulation. Since mitoplasts and isolated mitochondria were free of cytosolic ingredients, it could be possible that phosphorylation at the residue was not sufficient to override the depolarization-mediated inhibition under the experimental conditions of [8]. The unfavorable reversal of NCX_mit was also reported in leukotriene C₄-stimulated mast cells with depolarized mitochondria [40]. Interestingly, however, mitochondrial fusion protein mitofusin (MFN) 2 knockdown caused repetitive reversal of NCX_mit even under depolarized conditions, resulting in mitochondrial and cytosolic Ca²⁺ oscillation. It is worth examining phosphorylation status at NCLX S258 in MFN2-knockdown cells.

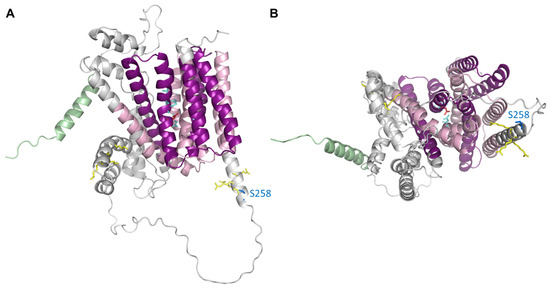

In dopaminergic neurons, it was demonstrated that PTEN-induced putative kinase 1 (PINK1) at mitochondria activated PKA, thereby phosphorylating S258 of NCLX [39]. PINK1 deficiency is closely associated with mitochondrial abnormalities and the progression of early-onset familial Parkinson’s disease [41,42]. In addition, recent studies demonstrated deficiencies of PINK1 and mitochondrial function in failing hearts, such as in hearts with late stages of dystrophic cardiomyopathy and sepsis [43,44]. Abnormal NCX_mit activity via PINK1 deficiency may be associated with mitochondrial dysfunction in these failing hearts.

4. Spatial Distribution of NCX_mit in Cardiomyocytes

Mitochondria are physically and electrically connected with each other via intermitochondrial junctions and form “mitochondrial reticulum” throughout the cell in the skeletal and cardiac muscles [45,46]. However, there is still functional heterogeneity depending on their spatial distributions—one just beneath the sarcolemmal membrane (subsarcolemmal mitochondria, SSM), one between myofibrils (interfibrillar mitochondria, IFN), and one near the nucleus (perinuclear mitochondria, PNM). This heterogeneity may contribute to dealing with region-specific energy demands, sensitivity to oxidative stress, Ca²⁺ handling, and so on [47,48].

Using mitochondrial Ca²⁺ indicator Myticam-expressing rabbit cardiomyocytes, Lu et al. [49] demonstrated that 1 Hz electrical stimulation induced faster Ca²⁺ uptake in IFM than in PNM, whereas the post-stimulation Ca²⁺ efflux was comparable. The higher uptake but comparable efflux of mitochondrial Ca²⁺ in IFM than in PNM resulted in the higher sensitivity to phenylarsine oxide for the opening of mPTP, shown as faster ∆Ψ depolarization. In addition, the spatial difference of CU_mit activity was preserved in permeabilized cardiomyocytes under the conditions of a clamped cytosolic Ca²⁺ concentration with a disabled sarcoplasmic reticulum (SR) Ca²⁺ pump (SERCA), but the efficacy was lower than that observed in intact cardiomyocytes. Therefore, an intrinsic difference in CU_mit activity may be further amplified by local SR Ca²⁺ release-associated excitation–contraction coupling in intact cardiomyocytes.

While Ca²⁺ efflux activity was comparable in IFM and PNM [49], it was shown to be larger in SSM than in IFM [50]. Immunofluorescence analyses using stochastic optical reconstruction microscopy revealed that NCLX localized mainly in SSM near (<20 nm) voltage-dependent Na⁺ channel Na_v1.5 clusters, and hardly existed in IFM of rabbit ventricular myocytes. Functional analyses showed that the treatment of cells with a Na⁺ channel blocker, tetrodotoxin, increased intensity of Rhod-2, an indicator of mitochondrial Ca²⁺, in SSM but not in IFM. Since NCX_mit inhibition by CGP-37157 produced similar results as those obtained using tetrodotoxin, it was suggested that Na⁺ accumulation at the subsarcolemmal space via Na_v1.5 potentiated NCLX-mediated Ca²⁺ efflux from mitochondria, preventing mitochondrial Ca²⁺ accumulation. The authors further examined the contribution of the physical and functional coupling of Na_v1.5-NCLX to reactive oxygen species (ROS) production in mitochondria, which is closely associated with mitochondrial Ca²⁺, as will be described in Section 5.3. However, they failed to detect spatial differences in mitochondrial ROS production, possibly due to the propagation of ROS via the mitochondrial reticulum [45,46,51]. Further analyses are necessary to prove the physiological and pathophysiological roles of this Na_v1.5–NCLX coupling. Quantitative analysis of spatial Na⁺ regulation via the Na⁺-K⁺ ATPase and Na⁺ channel, as performed by Skogestad et al. [52] would help in understanding this subject.

In addition to the heterogeneities of mitochondrial Ca²⁺ dynamics at differentially localized cardiac mitochondria, intra-mitochondrial heterogeneities were also reported. Lu et al. [53] evaluated mitochondrial Ca²⁺ transients using Myticam-expressing rat ventricular myocytes. They analyzed 0.2 Hz stimulation-induced small mitochondrial Ca²⁺ transients, which increased from ~150 nM by ~30 nM and found that the upstroke was faster at position near the Z-line than near the M-line but the decay was comparable. Although MCU immunofluorescence showed a uniform distribution over the mitochondrion, it was suggested that CU_mit activity was higher at mitochondria facing junctional SR (jSR) than at those facing bulk cytosol, whereas Ca²⁺ efflux activity was comparable. This is reasonable because mitochondria–jSR association creates high Ca²⁺ microdomains near the dyadic space, which enables them to meet the low affinity of CU_mit for Ca²⁺ uptake (see review [54]).

De La Fuente et al. [55,56] further explored the spatial heterogeneities of mitochondrial Ca²⁺ dynamics. Using conventional and super-resolution immunofluorescence analyses of isolated cardiac mitochondria and isolated cardiomyocytes, they demonstrated that about 50% of MCU were closely co-localized with the SR Ca²⁺ release channel ryanodine receptor (RyR) 2 [55]. The authors explained that the divergence of this biased MCU distribution from the previously reported uniform distribution [53] was attributable to the antibodies chosen, since one used in [53] gave non-specific signals in MCU knockout mouse-derived cardiomyocytes. Supporting the idea of MCU-RyR2 colocalization, MCU and EMRE, which are essential CU_mit regulator proteins, were more abundant in crude mitochondria than in Percoll-purified mitochondria, and were also found in jSR [55]. On the other hand, the NCLX protein was more abundant in pure mitochondria than in crude mitochondria, and was not found in jSR [56]. Moreover, the authors strengthened their findings on distinct distributions of MCU and NCLX by means of functional assays. CU_mit activity—CU_mit inhibitor Ru360-sensitive ⁴⁵Ca²⁺ uptake corrected with citrate synthase activity—was much higher in isolated jSR than that in isolated mitochondria. On the contrary, ⁴⁵Ca²⁺ retention assays revealed that Na⁺- and CGP-37157-sensitive mitochondrial Ca²⁺ efflux activity was much higher in pure mitochondria than that in jSR. This ⁴⁵Ca²⁺ efflux activity became larger and smaller in heart-specific NCLX overexpressing and knockout mice, respectively. The authors proposed that the spatially separated distribution of MCU-RyR2 and NCLX contributes to minimizing the energy cost for maintaining ∆Ψ. In other word, if MCU-RyR2 were near NCLX, ∆Ψ would depolarize both due to Ca²⁺ influx via CU_mit and due to Ca²⁺ efflux via NCX_mit. Accordingly, the spatial separation of MCU-RyR2 and NCLX should be necessary for optimizing mitochondrial Ca²⁺ signals and energy cost. Interestingly, it was demonstrated that NCLX efficiently supplies Ca²⁺ from mitochondria to the SR/endoplasmic reticulum (ER) via SERCA, thereby regulating the automaticity of HL-1 cardiomyocytes, as well as antigen receptor-mediated Ca²⁺ signaling of B lymphocytes [3,5]. It is worth evaluating the physical coupling of NCLX and SERCA in cardiomyocytes, which would fill in the last piece in our understanding of the efficient Ca²⁺ cycling between SR and mitochondria.

5. Role of NCX_mit in Cardiomyocyte Functions

5.1. Role of NCX_mit in Cardiac Rhythmicity

Since CU_mit comprises only 1–2% of total Ca²⁺ removal from cardiomyocytes [53,57,58], the contribution of NCX_mit to cytosolic Ca²⁺ transients and to action potential generation has been considered negligible. However, in a spontaneously beating cell line, HL-1, originating from mouse atrial myocytes, NCLX knockdown by siRNA significantly decelerated the upstrokes of action potentials and Ca²⁺ transients, and prolonged the cycle lengths [5]. Consistently with the results of other studies [53,57,58], NCLX knockdown did not change the rest and peak fluorescence ratios of Indo-1, an indicator of the cytosolic Ca²⁺ level. Rather, it was demonstrated that NCLX knockdown decreased caffeine-responsive SR Ca²⁺ content and slowed subsequent SR Ca²⁺ reuptake rate, evaluated using a FRET protein Cameleon D1ER. Further analyses of a mathematical model combined with experimental validation revealed that (1) the automaticity of HL-1 cells was driven by the so-called “Ca²⁺ clock” mechanism, in which a Ca²⁺ leak from SR potentiates the inward current via sarcolemmal Na⁺-Ca²⁺ exchange to facilitate membrane depolarization, (2) NCLX knockdown decreased the Ca²⁺ supply from mitochondria to SR, thereby decelerating SR Ca²⁺ leak, delaying the activation of the inward current through sarcolemmal Na⁺-Ca²⁺ exchange, and thus delaying the activations of voltage-dependent Na⁺ and Ca²⁺ currents, causing a cycle length prolongation.

Considering that HL-1 cells are derived from atrial myocytes, which are quiescent under physiological conditions, NCX_mit may be involved in abnormal automaticity of atria, such as atrial flutter and atrial ectopic tachycardia. In addition, it may also be plausible that abnormal NCX_mit function causes ventricular arrhythmias. In fact, the involvement of abnormal NCX_mit activity in altered rhythmicity was suggested in mouse embryonic stem cell-derived as well as in human induced pluripotent stem cell-derived ventricular myocytes, where the “Ca²⁺ clock” drives the automaticity [59]. In addition, arrhythmic evens with QRS interval widening were observed in tamoxifen-induced heart-specific conditional NCLX-knockout mice, though the events only occurred immediately before death [25].

The question of whether NCX_mit participates in the automaticity of normal pacemaker cells, i.e., sinoatrial (SA) node cells, is still a big issue. The automaticity of SA node cells has been proposed to be driven by a “coupled-clock” pacemaking system, which is composed of a sarcolemmal ion channel/transporter-derived rhythm (“membrane clock”) and subsarcolemmal Ca²⁺ release (LCR)-related rhythm (“Ca²⁺ clock”) [60,61,62]. In the former, pacemaker channels such as the hyperpolarization-activated cation channel and various other inward membrane currents at the plasma membrane drive diastolic depolarization. In the latter, LCR from SR activates the inward current via sarcolemmal Na⁺-Ca²⁺ exchange to drive diastolic depolarization. NCX_mit may modulate the “Ca²⁺ clock” part in SA node cells, as observed in HL-1 cells [5]. In fact, application of an NCX_mit inhibitor, CGP-37157, slowed the firing rate of rabbit as well as mouse SA node cells [63,64]. However, recent imaging studies of mouse SA node preparations revealed marked heterogeneity of LCR and action potential-induced Ca²⁺ transients within and among SA node cells [65]. That is, some SA node cells generated only LCR and did not fire; some only generated action potential-induced Ca²⁺ transients and did not generate LCR; and some generated LCR during the diastolic phase before an occurrence of action potential-induced Ca²⁺ transients. These data suggest that the coupling degree of the “coupled-clock” system may differ among SA node cells in vivo. Our model analyses suggested that NCX_mit reduction in an SA node cell which is solely driven by the “membrane clock” accelerates, instead of decelerating, the firing rate [11]. NCX_mit reduction-mediated slowing of automaticity in “Ca²⁺ clock”-driven cells may be compromised by NCX_mit-mediated acceleration of automaticity in “membrane clock” cells in the SA node region. In fact, tamoxifen-induced NCLX deletion in the adult mouse heart, with a 70% reduction of NCLX protein 3 days after tamoxifen treatment, did not show altered sinus rhythms except for on the date of death, 8–10 days after tamoxifen treatment [25]. In vivo imaging of the SA node of NCLX-knockout mice would clarify the quantitative roles of NCX_mit in pacemaking activity.

5.2. Role of NCX_mit in Cardiac Energetics

The heart is continuously pumping blood around the body, which is energetically driven by ATP hydrolysis. In the healthy adult heart, ATP synthesis is mainly dependent on mitochondrial oxidative phosphorylation, and the process is strictly regulated to balance the large, dynamically changing energy demands [66]. One candidate factor for the regulation is Ca²⁺, which activates three mitochondrial dehydrogenases—pyruvate dehydrogenase complex (PDHC), isocitrate dehydrogenase, and 2-oxoglutarate dehydrogenase (OGDH) [67] (Figure 2). The product NADH is oxidized in the electron transport chain, causing the proton motive force to be utilized for ATP synthesis via F₁F_o ATP synthase. Therefore, the contribution of NCX_mit, as one of the determinants of the mitochondrial Ca²⁺ level, to cardiac energetics has been an issue to be clarified.

This was first shown in whole-cell patch clamp experiments using guinea pig ventricular myocytes loaded with Rhod-2 for evaluating mitochondrial Ca²⁺ changes [68]. It was demonstrated that when NCX_mit became more active with 15 mM compared with 5 mM Na⁺ in the pipette, the mitochondrial Ca²⁺ increase induced by an abrupt workload increase (3–4 Hz pacing in the presence of isoproterenol) was diminished. At the same time, under the condition of 15 mM Na⁺ in the pipette, NADH autofluorescence decreased upon the workload increase, indicating that mitochondrial Ca²⁺ was not sufficient enough to activate NADH production by mitochondrial dehydrogenases. An NCX_mit inhibitor, CGP-37157, restored the workload-induced Ca²⁺ accumulation in mitochondria and attenuated the NADH decrease [69]. Since a cytosolic Na⁺ increase and energy starvation are characteristic properties of failing heart [70], the authors further studied a guinea pig model of heart failure which was induced by aortic constriction with/without β-adrenergic receptor stimulation [69,71]. In ventricular myocytes from failing hearts, where cytosolic Na⁺ evaluated from SBFI ratio image was ~15 mM compared to ~5 mM in sham myocytes, the abrupt workload increase caused essentially the same responses of mitochondrial Ca²⁺ (Rhod-2 or Myticam) and NADH as those reported with 15 mM Na⁺ in the pipette [68,69]—the diminished increase of mitochondrial Ca²⁺ and the subsequent NADH starvation upon the workload increase. More importantly, the changes were restored in the presence of an NCX_mit inhibitor, CGP-37157, to levels similar to those observed in sham myocytes. These results suggested a causative role of NCX_mit in the energy starvation of the failing heart. In addition, as will be explained in Section 5.3, chronic treatment of the animals with CGP-37157 partially prevented cardiac dysfunctions. Accordingly, the authors proposed that blocking of NCX_mit is a novel strategy for treating heart failure [71].

However, the contribution of NCX_mit to cardiac energetics in the failing heart may not be as large as that expected from experiments using cardiomyocytes, where an extreme workload change was applied—rapid 3–4 Hz pacing from a quiescent state, which hearts in situ never experience [68,69,71]. Recently, the effects of chronic and acute myocardial Na⁺ loads on cardiac energetics were extensively studied in Langendorff-perfused mouse hearts with ²³Na, ³¹P, ¹³C NMR, and ¹H-NMR metabolomic profiling [72]. Chronic (phospholemman PLM^3SA mouse) and acute (treatment with ouabain and blebbistatin) inhibition of Na⁺-K⁺ ATPase, as well as pressure-overload-induced cardiac hypertrophy caused a cytosolic Na⁺ increase, and switched the substrate preference from fatty acid to carbohydrate oxidation, which are characteristic features frequently observed in failing hearts [70,73]. The acute Na⁺ elevation resulted in the most severe metabolic alterations, such as decreased metabolite levels of tricarboxylic acid (TCA) cycle intermediates downstream from OGDH (succinate, fumarate, and malate), suggesting the reduced Ca²⁺-dependent activation of TCA cycle dehydrogenases. However, regardless of the strategy for cytosolic Na⁺ elevations, the energy supply was maintained, as is evident from the preserved ATP, phosphocreatine (PCr), PCr/ATP ratio, NADH, and pH. Metabolome profiles obtained with NMR, as well as in silico predictions using CardiNet, revealed that they were achieved at the cost of extensive metabolic flux remodeling. Therefore, the impact of impaired cytosolic Na⁺ homeostasis on mitochondrial ATP production should be mechanistically more complex than what has been suggested in isolated cardiomyocytes. In all three sets of hearts with elevated cytosolic Na⁺, treatment with CGP-37157 reversed the substrate preference from carbohydrate to fatty acid oxidation with normalized levels of the depleted metabolites. This suggests a therapeutic potential for CGP-37157 in the treatment of the metabolic reprograming that occurs before energetic impairments.

To the contrary, detrimental contributions of NCX_mit to cardiac energetics were not suggested in heart-specific NCLX-overexpression mice [25]. There were no apparent differences between control and NCLX-overexpression mice’s ventricular myocytes in terms of the NAD⁺/NADH ratio, oxidative phosphorylation evaluated by seahorse analyses with either pyruvate or palmitate as energy substrates (basal, ATP-linked and maximum respirations, spare capacity, and proton leak), nor in the phosphorylation level of mitochondrial Ca²⁺-responsive PDHC. These findings suggested that NCLX overexpression had marginal effects on cardiac energetics. Rather, as will be explained in Section 5.3, NCLX overexpression prevented the cardiac dysfunctions of ischemia-reperfusion injury and ischemic heart failure. It should be noted that the basal mitochondrial Ca²⁺ level, evaluated as carbonyl cyanide 4-(trifluoromethoxy)phenylhydrazone)-responsive Fura-2 intensity, was comparable between control and NCLX-overexpressing cardiomyocytes, indicating that NCLX overexpression did not cause excessive deprivation of mitochondrial Ca²⁺, in spite of an increase in mitochondrial Ca²⁺ efflux rate by 88%. Our model analyses suggested that cytosolic Ca²⁺ within its physiological range, 100 nM–2 μM, does not largely affect steady-state levels of energy substrates, though a lower cytosolic Ca²⁺ level collapsed the system because of mitochondrial Ca²⁺ deprivation [74,75]. Therefore, some compensation or backup mechanisms may work to prevent mitochondrial Ca²⁺ deprivation via NCLX overexpression. It would be informative to further evaluate the mitochondrial Ca²⁺ level, cytosolic Na⁺ level, and metabolome profiles in failing hearts with or without NCLX overexpression.

5.3. Role of NCX_mit in ROS Production and mPTP Opening

Mitochondria are a major source of ROS, the production of which is tightly coupled with ATP synthesis—Complex I and Complex III in the electron transport chain produce O₂⁻ from O₂ oxidation. Then, manganese-dependent superoxide dismutase converts O₂⁻ to H₂O₂, which is eliminated by antioxidant scavenge systems, such as glutathione peroxidase and peroxiredoxin [76] (Figure 2). Excessive amounts of ROS, either via overproduction or via reduced scavenging pathways, exert detrimental effects on mitochondrial function, such as uncoupling of the electron transport chain to reduce ATP production, and triggering mPTP opening by sensitizing mPTP to mitochondrial Ca²⁺. mPTP opening causes a burst of ROS released from mitochondria, in a process named ROS-induced ROS release, which impairs excitation–contraction coupling via modulating multiple ion channels and transporters, as well as via chronic remodeling [77,78] (Figure 2). Based on the fact that mitochondrial Ca²⁺ activates three dehydrogenases and the product NADH promotes ROS by-production via the electron transport chain, and that mitochondrial Ca²⁺ overload is a key trigger for mPTP opening, followed by a burst ROS release, altered mitochondrial Ca²⁺ dynamics have been implicated to be closely associated with ROS dynamics in failing and injured hearts [79,80].

Hamilton et al. [81] demonstrated the involvement of NCX_mit in ROS production, SR Ca²⁺ handling, and arrhythmogenesis in rat ventricular myocytes. They monitored mitochondrial Ca²⁺ using a biosensor mtRCamp1h, and showed that NCX_mit inhibition by CGP-37157 decelerated mitochondrial Ca²⁺ decay, thereby enhancing mitochondrial Ca²⁺ accumulation triggered by 2 Hz electrical stimulation in the presence of isoproterenol. This resulted in larger ∆Ψ depolarization monitored by TMRM, increased ROS in the mitochondria-SR microdomain evaluated using ER-tuned redox sensor ERroGFP_iE, increased RyR oxidation as evident from increased immunoprecipitation with anti-dinitrophenyl-antibody, and increased proarrhythmic Ca²⁺ waves. The authors also showed that this cascade further exacerbated proarrhythmic-triggered activity in hypertrophied hearts, which were induced by thoracic aortic banding.

The detrimental consequences of NCX_mit inhibition were more prominent in NCLX-knockout mice. The germline NCLX knockout was unsuccessful, and adult acute heart-specific NCLX knockout, in which NCLX protein expression was reduced by ~70%, caused ~87% lethality within 2 weeks due to severe myocardial dysfunction accompanying increased ROS, evaluated with dihydroethidium and MitoSox red, and mitochondrial swelling [25]. This lethality was attributable to mitochondrial Ca²⁺ overload-mediated mPTP opening, because the depletion of the mPTP component cyclophilin D on the NCLX conditional knockout background rescued the myocardial dysfunction and lethality following tamoxifen-induced NCLX ablation. Those authors suggested that NCLX-mediated Ca²⁺ efflux was necessary to maintain an appropriate mitochondrial Ca²⁺ level, which was vital for preventing mPTP opening and excessive ROS production, and for survival. The idea was further confirmed in heart-specific NCLX-overexpression mice subjected to ischemia-reperfusion [25]. Accordingly, NCLX overexpression reduced the ROS level evaluated using dihydroethidium in hearts with 40 min-left coronary artery ligation followed by 24 h reperfusion, and tended to decrease it 4 weeks after permanent occlusion of the left coronary artery. In addition, cardiac dysfunctions characterized by TUNEL-positive interstitial cells, fibrosis, and contractile dysfunction were all improved by NCLX overexpression. The above findings clearly indicated beneficial contributions of NCX_mit in ischemia-induced failing hearts.

However, a contradictory mechanism was proposed by Liu et al. [71]. As explained in Section 5.2, an abrupt workload increase resulted in a diminished increase in mitochondrial Ca²⁺, followed by NADH starvation, in failing ventricular myocytes, possibly because elevated cytosolic Na⁺ excessively extruded Ca²⁺ from mitochondria via NCX_mit [71]. Interestingly, dichlorodihydrofluorescein diacetate oxidation, an index of the ROS level, was dramatically increased upon an abrupt workload increase in the failing cardiomyocytes but not in the sham cardiomyocytes and this ROS production was completely diminished in the presence of an NCX_mit inhibitor, CGP-37157. Moreover, chronic treatment of the animals with CGP-37157 using an osmotic pump partially prevented the animals from developing heart failure, as evident from improved hypertrophic remodeling, interstitial fibrosis, contractile dysfunction, and occurrence of arrhythmia. The authors attributed the mechanism to reduced ROS scavenging capacity due to the reduced NAD(P)H levels in failing cardiomyocytes. Accordingly, these findings indicated a detrimental contribution of NCX_mit in failing hearts.

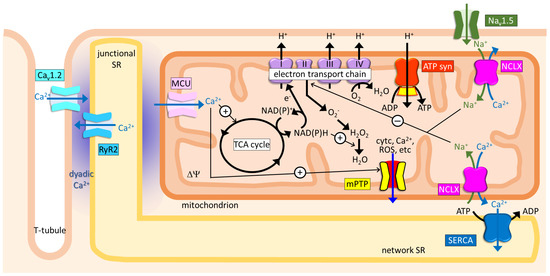

The abovementioned contradictory roles of NCX_mit in failing hearts suggested that mitochondrial Ca²⁺ did not simply correlate with ROS production. Recently, a brand-new mechanism underlying hypoxia-induced ROS production via NCX_mit was proposed—Na⁺–phospholipid interaction-mediated ROS regulation [82] (Figure 2). The authors first confirmed that NCX_mit was involved in hypoxia-induced ROS production in primary bovine aortic endothelial cells and mouse embryonic fibroblasts. Pharmacological inhibition with CGP-37157 or genetical reduction (siRNA or knockout) of NCLX diminished the cytosolic Ca²⁺ increase and cytosolic Na⁺ decrease, attenuated the reduction of the inner mitochondrial membrane fluidity and the mitochondrial ROS production caused by exposure of the cells to hypoxia (exposure of the cells to 1% O₂). Then, the authors showed that hypoxia-induced matrix acidification via Complex I inhibition caused Ca²⁺ solubilization from calcium phosphate precipitation in the matrix, as evident from morphological (electron microscopy images) as well as from functional assays (measurements of free mitochondrial Ca²⁺ in isolated mitochondria as well as in cells). Since a mitochondrial free Ca²⁺ increase enables NCX_mit to extrude Ca²⁺ in exchange for Na⁺, the authors then focused on the roles of matrix Na⁺ on electron transport chains and found that only Complex II-dependent respirations were decreased by Na⁺, which was NCX_mit-dependent, resulting in increased ROS production. The authors filled in the final piece by showing that Na⁺ directly bound to the phospholipid bilayer, as evident from infrared spectroscopy, which reduced the fluidity of the inner mitochondrial membrane for ubiquinone diffusion in the inner mitochondrial membrane, increasing the ROS production. Taken together, these findings clarified a distinct scheme of ROS production—regulation by matrix Na⁺ via NCX_mit—from those proposed in previous reports.

6. Future Perspectives

As has been described so far, knowledge on the biophysical properties, distributions, and the physiological and pathophysiological significance of NCX_mit in the heart is rapidly increasing. The more knowledge is accumulated, the more complicated systems are elucidated, sometimes introducing difficulties into our understanding as a whole. Taking ROS dynamics under pathological conditions as an example, some experimental evidence supports the roles of NCX_mit in increasing ROS production [82], whereas others support its preventive roles in relation to ROS increases [25,81]. NCX_mit directly modulates and is affected by cytosolic and mitochondrial concentrations of Na⁺ and Ca²⁺ ions, and ∆Ψ, which are associated with ROS balance regulation via different pathways (Figure 2). Therefore, differences in ionic conditions and mitochondrial viability under different experimental conditions or diseased states would result in different contributions of NCX_mit.

In order to understand these complicated networks, the integration of NCX_mit activity and cellular/mitochondrial functions with mathematical modeling could be a powerful tool. Very recently, Cortassa et al. [83] succeeded in reconciling the apparently paradoxical roles of NCX_mit in ROS dynamics (see details [83]). In brief, they built two scenarios, the “Na⁺-driven oxidized scenario” and the “Ca²⁺-driven reduced scenario”, and demonstrated that variations in redox status, cytoplasmic Na⁺ concentrations and energetic capacity resulted in different mitochondrial Ca²⁺ levels and bioenergetic responses driving ATP supply and oxidative stress. The former scenario could be represented by heart failure with a reduced ejection fraction (HFrEF) in which considerable cytosolic Na⁺ overload occurs, and the latter by heart failure with a preserved or moderate ejection fraction (HFpEF, HFmEF) in which only a modest Na⁺ increase is expected. Integrating the model of matrix Ca²⁺ solubilization and precipitation from and to calcium phosphate [84] into Cortassa’s model [83] would further facilitate our understandings in this area.

The discrepancies in experimental findings obtained from isolated mitochondria, isolated cardiomyocytes, and whole hearts are other issues that remain to be solved. Recent advances in imaging techniques used to evaluate electrophysiological and metabolic properties of single cells and even organelles in tissue are promising [65,85]. By utilizing these techniques, it is expected that our understandings of the roles of NCX_mit in healthy as well as in failing hearts will be further deepened.
