Systematic Observation of EUV Spectra from Highly Charged Lanthanide Ions in the Large Helical Device

Abstract

We have systematically observed extreme ultraviolet (EUV) spectra from highly charged ions of nine lanthanide elements with atomic numbers from 60–70 in optically thin plasmas produced in the Large Helical Device (LHD). Discrete spectral features with isolated lines from relatively higher charge states around Cu-like ions are observed under high temperature conditions around 2 keV, while narrowed quasicontinuum features from charge states around Ag-like ions are observed under low temperature conditions below 1 keV. The positions of the lines and the quasicontinuum features systematically move to shorter wavelengths as the atomic number increases. The wavelengths of the main peaks in the quasicontinuum features agree well with those of singlet transitions of Pd-like ions reported previously. We have easily identified discrete spectral lines from Cu-like and Ag-like ions, some of which are experimentally identified for the first time in the LHD. Their wavelengths are compared with theoretical calculations using a GRASP family of atomic codes. The theoretical values are synthesized to the LHD experimental data for the cases of Ag- and Pd-like ions.

1. Introduction

It is well known that bright emission spectra from highly charged ions of lanthanide elements (Z = 57–71) appear in the extreme ultraviolet (EUV) or soft X-ray wavelength range [1,2]. In particular, emissions due to n = 4–4 transitions of lanthanide ions having N shell outermost electrons mainly fall into the wavelength range of 5–12 nm. The emission spectra corresponding to this type of transition attract interest in the field of basic atomic physics because of the more pronounced influences of the relativistic effects and multi-electron correlation [3,4]. In addition, another interest has recently been prompted by their possible application to the next generation light sources for EUV lithography [5,6,7,8,9,10,11].

The spectral features of this type of emission have systematically been investigated so far using laser-produced plasmas. O’Sullivan and Carroll [1] carried out systematic observations of EUV spectra involving lanthanide elements through lutetium (Lu) using photographic plates. More recently, Zeng et al. [2] recorded a similar series of spectra for the elements with atomic numbers Z = 57–82 using a microchannel plate detector. In these studies, quasicontinuum band emissions, the so-called unresolved transition array (UTA) [12], originating from ion stages with 4d and 4f outermost electrons have been observed with fewer isolated lines. Reader and Luther [13,14] observed the spectra of some of the lanthanide elements using a high-energy laser-produced plasma, which resulted in the identifications of some isolated lines of the n = 4–4 transitions of highly charged Cu-like ions. However, it is generally difficult to investigate emission spectra from laser-produced plasmas because higher opacities often make the spectra quite complex with less structure.

Magnetically-confined plasmas for fusion research having higher electron temperatures ($T_{\mathrm{e}}$ > 1 keV) and lower electron densities ($n_{\mathrm{e}}$ ≃ 10${}^{19}$ m${}^{-3}$) would be good complementary light sources for this kind of spectroscopic study because of their lower opacities. In the Texas Experimental Tokamak (TEXT), the lanthanide elements of praseodymium (Pr), europium (Eu), gadolinium (Gd), dysprosium (Dy) and ytterbium (Yb) have been injected into plasmas by the laser blow off technique. The UTA features with bandwidths of about 1 nm were observed together with some isolated lines of highly charged Cu-, Zn- and Ga-like ions [15,16,17,18]. On the other hand, charge-separated EUV spectra from samarium (Sm), Gd, Dy, erbium (Er) and Yb have recently been observed in electron beam ion trap (EBIT) facilities for relatively higher electron beam energies [19,20,21,22].

We have already reported the observations of EUV spectra from highly charged ions of neodymium (Nd), Gd, terbium (Tb) and Dy in the Large Helical Device (LHD), a large-scale facility for magnetically-confined plasmas at the National Institute for Fusion Science [23,24,25]. Our studies are different from the earlier works in TEXT; we injected the elements directly deep inside the plasmas by a tracer encapsulated solid pellet (TESPEL) [26,27], which leads to a more dynamic change in electron temperature followed by the formation of plasmas with hollow temperature profiles. This gives rise to absolutely discrete features and very narrowed UTA features unlike those in the earlier works.

We have recently extended similar experiments to the other lanthanide elements, which results in new experimental identifications of some of the isolated spectral lines, as briefly reported in [28]. In this article, we describe the details of a series of EUV spectra observed in the LHD for the elements with atomic numbers Z = 60–70 in terms of Z dependence. To help the present identification of the spectral lines, we have also carried out atomic structure calculations based on a multi-configuration Dirac–Fock (MCDF) approximation. The results have been compared with the present experiment, as well as previous ones in the literature. For the cases of Ag-like and Pd-like ions, we have fitted the theoretical values to the LHD experiments and have obtained a set of synthesized spectral wavelengths that are predictable for all the lanthanide elements.

2. Experimental

The experimental setup and procedure for all the lanthanide elements are the same as those in our previous works [23,24,25]. The LHD is one of the so-called helical devices dedicated for magnetically-confined fusion research. High temperature hydrogen (or its isotopes) plasmas are confined in nested magnetic flux surfaces produced in a torus-shape vacuum chamber, in a similar way to the so-called tokamaks. Unlike tokamaks, however, the magnetic flux surfaces for the plasma confinement are produced only by external coils without any plasma current drive in helical devices. In the LHD, the magnetic fields of about 2.7 T are stably sustained by several superconducting coil systems. An overview of the recent results in the LHD can be found in [29].

In the present experiments, optically thin hydrogen plasmas are produced by neutral beam injection (NBI) heating in the LHD. The duration of the neutral beams is typically 2–3 s. Small amounts (≃10${}^{17}$ atoms) of powders or fragments of pure lanthanide metals were introduced into the hydrogen plasmas using the TESPEL injection system [26,27]. Typical electron temperature and density in the plasma core are 2 keV and 3 × 10${}^{19}$ m${}^{-3}$ before the TESPEL injection, respectively. If we assume the uniform distribution of the injected elements over the entire plasma, the concentration of the impurity ion is less than 0.1% because the volume of the LHD plasma is approximately 30 m${}^3$. In order to investigate a wide range of electron temperature in a single discharge, the NBI heating power is usually reduced by several tens of percent from the initial value (≃10–13 MW) at some timing after the TESPEL injection. In general, the temperature begins to drop from the plasma core after the reduction of the heating power, which is often followed by the formation of hollow plasmas, in which the core temperature is zero, but a cold plasma is still maintained in the surrounding region. Examples of this phenomenon for Gd and Tb injections have been described in [23,25].

Time evolutions of EUV spectra are recorded by a 2-m Schwob–Fraenkel grazing incidence spectrometer [30] with a frame rate of 5 or 10 Hz. A grating with a 600-mm${}^{-1}$ groove density is selected for better wavelength resolution (≃0.01 nm) and a moderate width of the wavelength coverage (≃3 nm) with a 50 mm-long microchannel plate detector movable along a Rowland circle. The wavelength range was tuned to where the UTA emissions of n = 4–4 transitions of open 4d subshell ions are expected to appear. Therefore, the choice of the wavelength range depends on the element. The FWHM (full width at half maximum) of the measured spectral lines in these wavelength ranges is roughly 0.015–0.020 nm, which primarily originates from the instrumental width due to a spread of an electron cloud at the exit of the microchannel plate. Stark or other line broadenings are ignorable in comparison with the instrumental width because the electron density is as low as 10${}^{19}$ m${}^{-3}$. The line of sight of the spectrometer was fixed along a line passing through the plasma center. Electron density and temperature distributions along the line of sight are measured by a Thomson scattering diagnostic system with high spatial and temporal resolutions [31,32]. Line-averaged electron density is measured by a far infrared (FIR) interferometer, which can be utilized for the absolute calibration of the electron density distributions measured by the Thomson scattering. The absolute wavelength has been calibrated using the positions of well-known lines of intrinsic (boron, carbon, iron and nickel) and intentionally injected (nitrogen and neon) impurity ions. The uncertainty of the calibrated wavelength depends on the wavelength range and the choice of the reference lines. Judging from the discrepancy between the fitting curves and the reference lines, the wavelength uncertainty for all the lanthanide elements in this study is approximately less than 0.004 nm.

3. Theoretical Calculation

To help the present spectral line analysis, we have carried out atomic structure calculations based on the MCDF approximation. We employed the General purpose Relativistic Atomic Structure Program 92 (GRASP92) [33] with a modification for the electronic structure, and the Relativistic Atomic Transition and Ionization Properties (RATIP) code [34] for the transition wavelengths and strengths. One of the advantages of these programs is that we can treat the two electron non-local exchange integrals as they are [35]; we can properly evaluate the electron correlations through the interactions between the relevant configuration state functions (CSFs). Though the Breit interactions and quantum electrodynamics (QED) corrections are also included in the codes as perturbation, their effects are unimportant in the present case.

An atomic state function (ASF) $\mathsf{\Psi }$, which is the target for the optimization in an MCDF calculation, is a linear combination of the CSFs ${\mathsf{\Phi }}_{\alpha }$. That is, $\mathsf{\Psi }={\sum }_{\alpha }{c}_{\alpha }{\mathsf{\Phi }}_{\alpha },$ where $c_{\alpha }$ is the expansion coefficient, which reflects the interactions between the CSFs and can be called the mixing coefficient due to the configuration interactions (CIs). Both $c_{\alpha }$ and the single electron orbitals in ${\mathsf{\Phi }}_{\alpha }$ are optimized simultaneously in the MCDF procedure. We optimize multiple ASFs simultaneously with equal weights in the present calculation. Although we can take into account the orbital relaxations in RATIP, we adopt a common basis orbital set in both states before and after the optical transitions. Because we are considering the intra-N-shell transitions of open N-shell atomic ions, the relaxation of the inner-shell orbitals due to the transition is expected to be quite small. Further on, by using the common basis orbitals, we can avoid the risk of large errors in the energy offset that comes from the core electrons.

In the MCDF procedure of the present calculation, we included all the CSFs with one electron excitations to the subshell orbitals in the N-shell from the N-shell orbitals in the ground states, and further, $5\mathrm{f}$ orbitals are also considered as correlation orbitals. For instance, to calculate ${\mathrm{Er}}^{21+}$ $1{\mathrm{s}}^{2}2{\mathrm{s}}^{2}2{\mathrm{p}}^{6}3{\mathrm{s}}^{2}3{\mathrm{p}}^{6}3{\mathrm{d}}^{10}4{\mathrm{s}}^{2}4{\mathrm{p}}^{6}4{\mathrm{d}}^{10}4\mathrm{f}=\left[\mathrm{Ni}\right]4{\mathrm{s}}^{2}4{\mathrm{p}}^{6}4{\mathrm{d}}^{10}4\mathrm{f}$, we considered the configurations $\left[\mathrm{Ni}\right]4{\mathrm{s}}^{2}4{\mathrm{p}}^{6}4{\mathrm{d}}^{10}4\mathrm{f}$, $\left[\mathrm{Ni}\right]4{\mathrm{s}}^{2}4{\mathrm{p}}^{6}4{\mathrm{d}}^{9}4{\mathrm{f}}^2$, $\left[\mathrm{Ni}\right]4{\mathrm{s}}^{2}4{\mathrm{p}}^{6}4{\mathrm{d}}^{8}4\mathrm{f}5{\mathrm{f}}^2$ and $\left[\mathrm{Ni}\right]4{\mathrm{s}}^{2}4{\mathrm{p}}^{6}4{\mathrm{d}}^{7}4{\mathrm{f}}^{2}5{\mathrm{f}}^2$ as reference configurations. To gain better accuracy, we further tried to carry out the MCDF optimization restricting the ASFs to a pair of lower and upper energy levels of the relevant optical transition. In the second step, we performed a CI procedure allowing for the excitations of up to two electrons from the ground state configuration. By using the RATIP package [34], we calculated the wavelengths and the strengths of electric dipole transitions for the combinations of the ASFs relevant to the desired transition.

4. Z Dependence of the Spectra

As mentioned in Section 2, the control of the NBI heating power makes it possible to measure a number of different types of EUV spectra under a wide range of electron temperatures in a single discharge. In general, the spectral feature tends to be discrete with less of a continuum structure under a high temperature condition around 2 keV, while the quasicontinuum UTA feature is dominant under a low temperature condition below 1 keV. Figure 1 summarizes typical EUV spectra measured in the LHD for nine lanthanide elements with Z from 60–70 under high- and low temperature conditions. Each pair of high-/low temperature spectra for each element is taken from different frames in the same discharge. Note that all the spectra are normalized to each maximum, and the intensities of the UTA emissions in Figure 1b are generally much stronger than those of the discrete features in Figure 1a. Though the spectra of Nd, Gd, Tb and Dy have already been published [23,25], those are replotted in Figure 1 for comparison with the other elements on the same wavelength scale. The high temperature ($T_{\mathrm{e}}$ > 1.5 keV at peak) spectra in Figure 1a were taken at the timings between the TESPEL injection and the reduction of the NBI heating power, while the low temperature ($T_{\mathrm{e}}$ < 0.65 keV at peak) spectra in Figure 1b were chosen from the timings when the extremely narrowed UTA features were observed. The peak electron temperatures along the line of sight of the spectrometer are also shown in each panel of Figure 1. With the exception of the case of Yb, the temperature profiles were hollow shaped when the low temperature spectra in Figure 1b were observed. All the spectra in Figure 1 seem to be accompanied by weak continuum backgrounds, which originate probably from bound-free or free-free transitions from proton or intrinsic impurity (carbon, iron, etc.) ions.

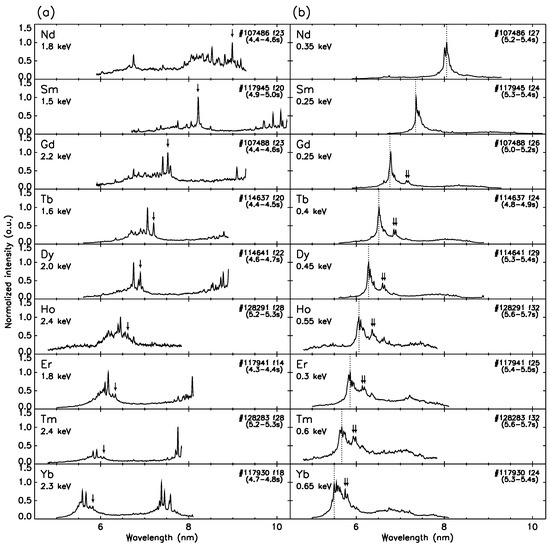

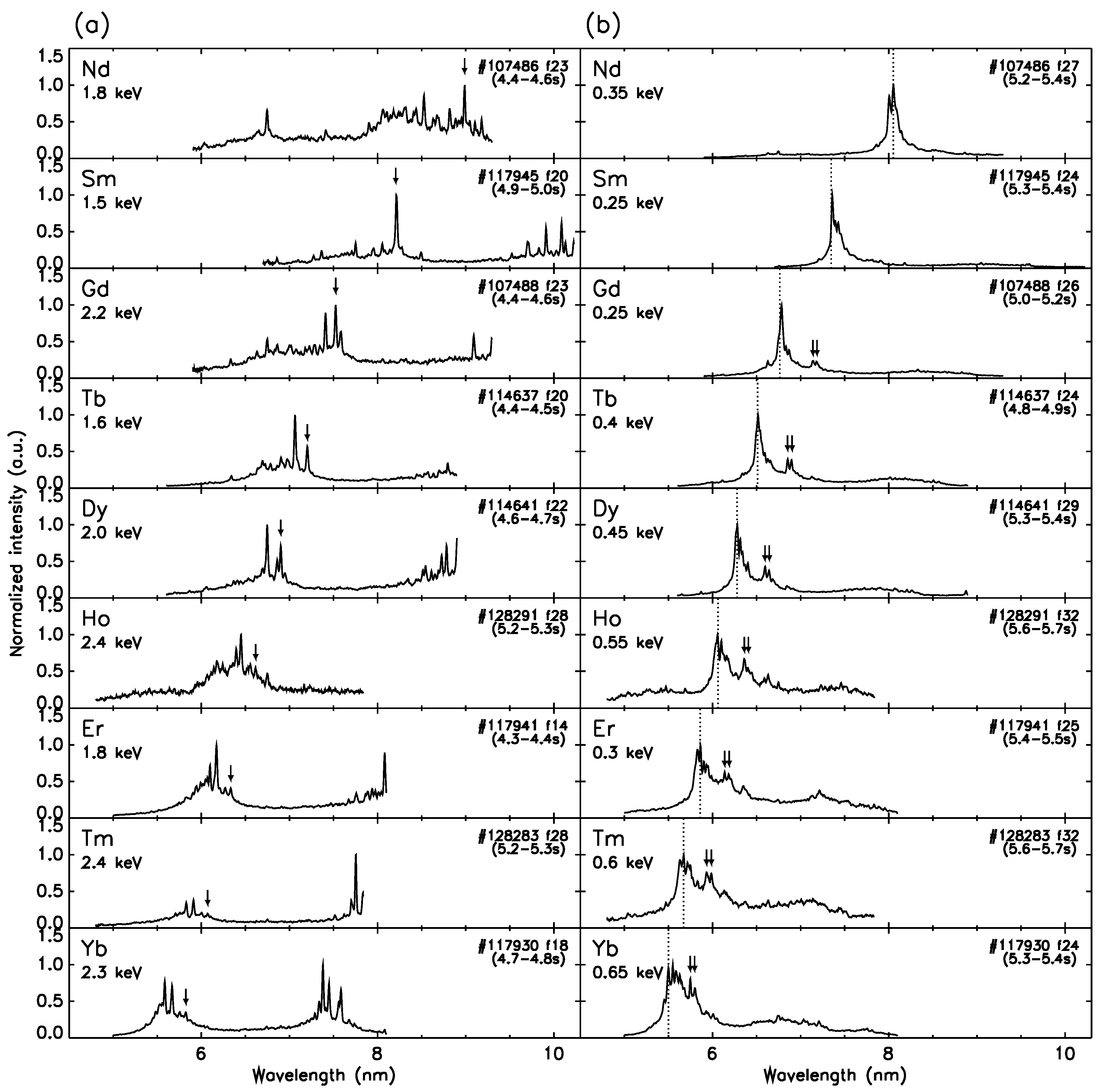

As clearly shown in Figure 1a, discrete spectral features with a number of isolated lines are observed in the high temperature conditions for all the elements in this study. Though the longer wavelength sides are truncated due to the limited coverage of the detector, two blocks of the isolated lines separated in wavelength, the position of which moves systematically to a shorter wavelength as Z increases, are clearly seen in Figure 1a. According to the previous studies for Sm, Gd, Dy and Er in TEXT and EBITs [15,16,17,18,19,20,21,22], these isolated lines mostly originate from n = 4–4 transitions of open 4s or 4p subshell ions such as Cu-, Zn-, Ga- and Ge-like ions. Indeed, the lines due to the 4p-4d transitions of Cu-like ions are easily identified, as marked by the arrows in Figure 1a, which will be discussed in detail in Section 5. The further discussions including the other charge states based on the comparisons with atomic structure calculations and the collisional radiative models will be given in separate papers. As discussed in [24], the spectral feature tends to be discrete for open 4s or 4p subshell ions, while quasicontinuum UTA is formed for open 4d or 4f subshell ions, mainly because of the difference in the numbers of relevant energy levels. Unlike the spectra recorded in TEXT, the UTA feature expected from 4p-4d transitions of open 4d or 4f ions is well suppressed in the spectra in Figure 1a, despite the fact that the line of sight also passes through the low temperature region. This is probably because the impurities are directly introduced by TESPEL into the core plasmas and are well accumulated in the central region where the electron temperature is around 1–2 keV, which is higher than that in TEXT. As a result, open 4s or 4p subshell ions seem to be the dominant emitters in these conditions.

In contrast, the low temperature spectra shown in Figure 1b are characterized by the narrowed UTA feature on which some discrete structure is superposed, the center position of which again moves to shorter wavelength as Z increases. Though the bandwidth of the UTA largely depends on the electron temperature as described in [25] for Tb, the spectra with the most narrowed bandwidth are drawn in Figure 1b. The bandwidth of this UTA is clearly narrower than that recorded in the TEXT tokamak and that expected from the contributions of all the 4p subshell ions. Furthermore, the peak positions of this UTA are very close to the expected positions of the resonance lines of 4d${}^{10}$ ${}^1$S${}_0$–4d${}^9$4f ${}^1$P${}_1$ transitions of Pd-like ions having ground states with the 4d${}^{10}$ closed shell, as shown by the vertical dotted lines in Figure 1b. This indicates that the dominant emitters are a small number of charge states around Pd-like ions, including Ag- and Rh-like ions. Indeed, as indicated by the arrows in Figure 1b, the characteristic doublet peak due to the 4d-4f transition of Ag-like ions is easily identified for higher Z elements from Gd–Yb at the longer wavelength side of the narrowed UTA, which could not be clearly seen in TEXT due to wider UTA bandwidths. These structures of Ag- and Pd-like ions are discussed again in Section 5. Furthermore, the bandwidth gradually increases from about 0.12 nm–0.37 nm as Z increases from 60–70. This trend qualitatively agrees with that in the theoretical calculations of the distributions of line strengths.

5. Wavelengths of the Lines from Simple Ions

Because the ground state of Cu-like ions has a single 4s electron outside a closed shell, their spectral lines are expected to be simple and well isolated. Though the resonance lines of the 4s-4p transitions of Cu-like ions should be very strong, they appear in the wavelength region much longer than that in this study (e.g., 10.247 nm for Gd${}^{35+}$ [19]). Nevertheless, isolated lines due to the 4p-4d or 4d-4f transitions between excited states are easily found with enough intensity in the LHD. For example, the wavelengths of the identified lines of Cu-like ions due to the transition 3d${}^{10}$4p ${}^2$P${}_{1/2}$– 3d${}^{10}$4d ${}^2$D${}_{3/2}$ are listed in

Table 1. Wavelengths of the identified lines of 3d${}^{10}$4p ${}^2$P${}_{1/2}$–3d${}^{10}$4d ${}^2$D${}_{3/2}$ transitions of Cu-like ions. The wavelengths observed in the present study (LHD) are listed with those in the previous experiments and those calculated with GRASP92 and RATIP. The uncertainty of the wavelengths measured in the LHD is estimated to be less than ±0.004 nm. The discrepancies of the calculated values from the LHD values are listed in the last column. References: a [14], b [36], c [22], d [19], e [21], f [37].

Z	Ion	Wavelength (nm)
		LHD	Previous	Calculated	Discrepancy
60	Nd${}^{31+}$	8.987	8.9844 ${}^a$	8.984	−0.003
61	Pm${}^{32+}$		—	8.591
62	Sm${}^{33+}$	8.215	8.2206 ${}^a$, 8.2155 ${}^b$, 8.2176 ${}^c$	8.218	+0.003
63	Eu${}^{34+}$		—	7.864
64	Gd${}^{35+}$	7.524	7.5316 ${}^a$, 7.5259 ${}^b$, 7.527 ${}^d$	7.528	+0.004
65	Tb${}^{36+}$	7.203 *	—	7.209	+0.006
66	Dy${}^{37+}$	6.902 *	6.9080 ${}^a$, 6.905 e	6.905	+0.003
67	Ho${}^{38+}$	6.614	—	6.614	+0.000
68	Er${}^{39+}$	6.334	6.3403 ${}^a$, 6.3391 ${}^c$	6.338	+0.004
69	Tm${}^{40+}$	6.072	—	6.074	+0.002
70	Yb${}^{41+}$	5.824	5.8265 ${}^a$, 5.8190 ${}^b$, 5.8209 ${}^f$	5.822	−0.002

* Slightly changed (±0.001 nm) from [25] due to recalibration.

together with the available literature values [14,19,21,22,36,37]. We also listed the wavelengths calculated with GRASP92 [33] and RATIP [34], as well as their deviations from the present experimental values. The GRASP92/RATIP calculations were performed as noted in Section 3 for all the lanthanide elements. The wavelengths measured in the LHD are in excellent agreement with the literature values and the calculations. Though no earlier experimental data are available for the lines for Tb, holmium (Ho) and thulium (Tm), they are easily found by the comparisons with the calculation and the prediction from the interpolation. Consequently, we could identify the lines of Cu-like Tb${}^{36+}$, Ho${}^{38+}$ and Tm${}^{40+}$ ions for the first time in the LHD [28]. Note that the line of Sm${}^{33+}$ at 8.215 nm is suggested to be blended with a 4s-4p resonance transition of Ga-like Sm${}^{31+}$ according to the recent EBIT data [22]. The positions of these lines are marked by the arrows in Figure 1a, which indicates that the intensity of the line decreases as Z increases. This is reasonable because the fractional abundance of Cu-like ions should decrease with increasing Z at a similar electron temperature.

Similarly, spectra from Ag-like ions should be simple because their ground states have a single 4f electron outside a closed 4d subshell for the elements from Sm onward [38,39,40]. As mentioned in Section 4, the narrowing of the UTA in the low temperature spectra makes it possible to easily identify the doublet peak due to the 4d${}^{10}$4f ${}^2$F–4d${}^9$4f${}^2$ ${}^2$G transition of Ag-like ions for higher Z elements from Gd onward, as marked by the arrows in Figure 1b. The wavelengths of the doublet are summarized in

Table 2. Wavelengths of the identified lines of the 4d${}^{10}$4f ${}^2$F–4d${}^9$4f${}^2$ ${}^2$G transitions of Ag-like ions. The wavelengths observed in the present study (LHD) are listed with those in the previous experiments and those calculated with GRASP92 and RATIP. The lines of Nd${}^{13+}$ and Sm${}^{15+}$ are unclear and hardly observed in the LHD spectra. The uncertainty of the wavelengths measured in the LHD is estimated to be less than ±0.004 nm. The synthesized wavelengths are also listed (see the text for details). The discrepancies of the synthesized values from the LHD values are listed in the last column. References: a [39], b [41].

Z	Ion	Wavelength (nm)
		LHD	Previous	Calculated	Synthesized	Discrepancy
4d${}^{10}$4f ${}^2$F${}_{7/2}$–4d${}^9$4f${}^2$ ${}^2$G${}_{9/2}$
60	Nd${}^{13+}$	(unclear)	8.5302 ${}^a$	8.273	8.538	—
61	Pm${}^{14+}$		—	7.887	8.131
62	Sm${}^{15+}$	(unclear)	7.9170 ${}^a$	7.542	7.765	—
63	Eu${}^{16+}$		7.4741 ${}^a$	7.230	7.434
64	Gd${}^{17+}$	7.139 *	7.1430 ${}^a$	6.945	7.132	−0.007
65	Tb${}^{18+}$	6.852	6.8578 ${}^a$	6.685	6.855	+0.003
66	Dy${}^{19+}$	6.595	6.5967 ${}^a$	6.445	6.599	+0.004
67	Ho${}^{20+}$	6.361	6.3590 ${}^a$	6.222	6.362	+0.001
68	Er${}^{21+}$	6.138	6.1394 ${}^b$	6.015	6.141	+0.003
69	Tm${}^{22+}$	5.933	—	5.821	5.935	+0.002
70	Yb${}^{23+}$	5.748	5.7451 ${}^b$	5.639	5.741	−0.007
4d${}^{10}$4f ${}^2$F${}_{5/2}$–4d${}^9$4f${}^2$ ${}^2$G${}_{7/2}$
60	Nd${}^{13+}$	(unclear)	8.5610 ${}^a$	8.320	8.573	—
61	Pm${}^{14+}$		—	7.934	8.166
62	Sm${}^{15+}$	(unclear)	7.9287 ${}^a$	7.589	7.802	—
63	Eu${}^{16+}$		7.5103 ${}^a$	7.278	7.473
64	Gd${}^{17+}$	7.181 *	7.1853 ${}^a$	6.994	7.173	−0.008
65	Tb${}^{18+}$	6.896 *	6.9029 ${}^a$	6.734	6.898	+0.002
66	Dy${}^{19+}$	6.642 *	6.6437 ${}^a$	6.495	6.644	+0.002
67	Ho${}^{20+}$	6.401	6.4073 ${}^a$	6.273	6.408	+0.007
68	Er${}^{21+}$	6.184	6.1887 ${}^b$	6.067	6.190	+0.006
69	Tm${}^{22+}$	5.986	—	5.874	5.985	−0.001
70	Yb${}^{23+}$	5.801	5.7973 ${}^b$	5.693	5.792	−0.009

* Slightly changed (±0.001 nm) from [25] due to recalibration.

with the previous experimental values and the calculated values in a similar way to Table 1. The measured wavelengths agree very well with the literature values given by Sugar et al. [39,41] in which the values for Tm${}^{22+}$ are missing. Comparing with the expected wavelengths for Tm${}^{22+}$ from an interpolation of Z dependence, we could newly identify the doublet of Tm${}^{22+}$ at 5.933 nm (${}^2$F${}_{7/2}$–${}^2$G${}_{9/2}$) and 5.986 nm (${}^2$F${}_{5/2}$–${}^2$G${}_{7/2}$) for the first time in the LHD [28]. As shown in Figure 1b, the doublet peak is unclear or missing for Nd and Sm. This is probably because the ground state configuration is not 4d${}^{10}$4f, but 4d${}^{10}$5s for Nd${}^{13+}$, and probably because the 4d${}^9$4f${}^2$ term energies are strongly perturbed by the configuration interaction with the 4d${}^{10}$5g term for Sm${}^{15+}$, as discussed in the previous papers [38,39,40]. In contrast to Cu-like ions, the calculated wavelengths for this transition of Ag-like ions are systematically shifted to shorter wavelengths by 0.19–0.11 nm. This discrepancy could be attributed to the difficulty in the exact evaluation of the correlation energy among N shell electrons in inner subshell excited configurations such as 4d${}^9$4f${}^2$. The 4f orbital in 4d${}^9$4f${}^2$ should be slightly different from the one in 4d${}^{10}$4f due to the 4f-4f correlations in the upper state 4f${}^2$ configuration. Although this type of interaction could be evaluated by the CI from the higher lying configurations such as 5f${}^2$, 6f${}^2$ or others, we were unsuccessful in including such configurations in the present calculation.

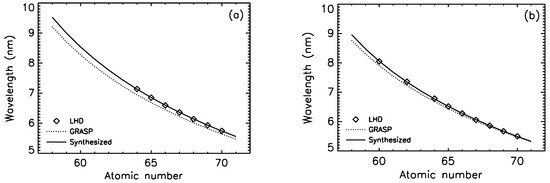

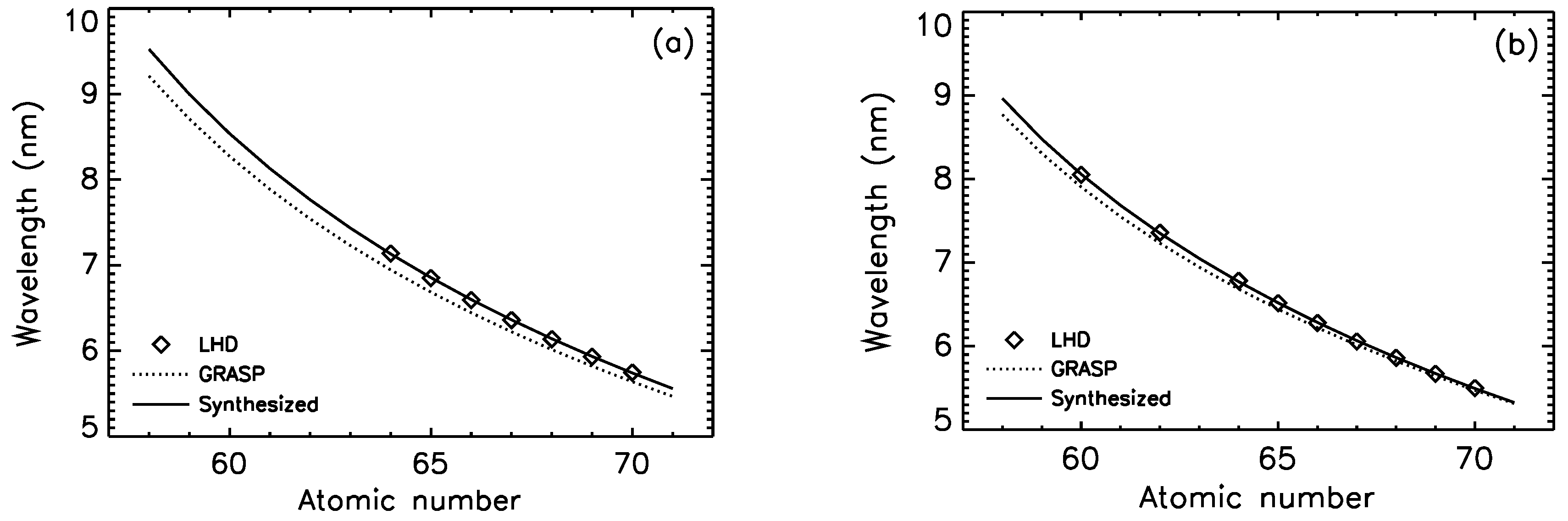

We further analyzed the difference between the results of the LHD experiment and the present GRASP92/RATIP calculation, which is suspected to consist of a constant offset and a term proportional to the inverse square of the effective nuclear charge. To synthesize the data, we have fitted this difference to a function of the form $A+B/{(Z-\sigma )}^2$ by means of the ${\chi }^2$ analysis, where A and B are fitting parameters and $\sigma$ is a screening constant, which has been fixed at $\sigma =20$ after several trial fittings. Since ${\chi }^2$ is quite insensitive to the value of $\sigma$, we may fix $\sigma$ at a rather arbitrary value. The present value $\sigma =20$ is roughly about a half of the number of electrons of the Ag-like system (47), which may be accepted as a screening constant for valence electrons. We have obtained $-0.188675+726.588/{(Z-20)}^2$ with ${\chi }^2$ = 1.4 × 10${}^{-4}$ for ${}^2$F${}_{7/2}$ – ${}^2$G${}_{9/2}$ transitions and $-0.173679+682.813/{(Z-20)}^2$ with ${\chi }^2$ = 2.2 × 10${}^{-4}$ for ${}^2$F${}_{5/2}$ – ${}^2$G${}_{7/2}$ transitions. The synthesized transition wavelengths and their discrepancy from the measurements are also tabulated in Table 2, including the elements that are not measured in the present LHD experiment. Atomic number dependences of the measured, calculated and synthesized wavelengths for Z=58–71 are plotted in Figure 2a for the ${}^2$F${}_{7/2}$–${}^2$G${}_{9/2}$ transitions. We find that the synthesized wavelengths agree quite well with the wavelengths measured in the LHD, suggesting that the wavelengths for the other elements are also quite reliable. Exceptionally, the previous experimental wavelengths for Sm, which are not found in the LHD, are largely red-shifted from the synthesized ones. This suggests that the previous values for these lines need to be evaluated more carefully.

A singlet resonance transition 4d${}^{10}$ ${}^1$S${}_0$–4d${}^9$4f ${}^1$P${}_1$ of Pd-like ions is predicted to be very strong because of the closed shell of the ground state. However, this transition tends to be blended with the lines from adjacent charge states such as Ag- and Rh-like ions because the positions of this resonance are close to the center of the UTA as illustrated in Figure 1b by vertical dotted lines. Nevertheless, we have made comparisons between the previous values [42,43,44] and the peak positions nearest to them in the LHD, as listed in

Table 3. Comparisons of the reported wavelengths of the 4d${}^{10}$ ${}^1$S${}_0$–4d${}^9$4f ${}^1$P${}_1$ transitions of Pd-like ions with the nearest peak measured in the LHD. The wavelengths calculated by GRASP92 and RATIP are listed, as well. The uncertainty of the wavelengths measured in the LHD is estimated to be less than ±0.004 nm. The synthesized wavelengths are also listed (see the text for details). The discrepancies of the synthesized values from the LHD values are listed in the last column. References: a [42], b [43], c [44].

Z	Ion	Wavelength (nm)
		LHD Peak	Previous	Calculated	Synthesized	Discrepancy
60	Nd${}^{14+}$	8.053	8.0512 ${}^a$, 8.0508 ${}^b$	7.904	8.057	+0.004
61	Pm${}^{15+}$		—	7.549	7.684
62	Sm${}^{16+}$	7.359	7.3462 ${}^a$	7.232	7.351	-0.008
63	Eu${}^{17+}$		7.0404 ${}^a$	6.945	7.049
64	Gd${}^{18+}$	6.784	6.7636 ${}^a$	6.683	6.772	-0.012
65	Tb${}^{19+}$	6.517	6.5122 ${}^a$	6.443	6.519	+0.002
66	Dy${}^{20+}$	6.280	6.2778 ${}^a$	6.221	6.284	+0.004
67	Ho${}^{21+}$	6.058	6.0626 ${}^a$	6.015	6.067	+0.009
68	Er${}^{22+}$	5.863	5.8609 ${}^c$	5.823	5.864	+0.001
69	Tm${}^{23+}$	5.672	—	5.643	5.673	+0.001
70	Yb${}^{24+}$	5.500	5.4996 ${}^c$	5.473	5.494	-0.006

with the values calculated by GRASP92/RATIP. The peak positions measured in the LHD are generally in good agreement with the previous values, which implies that the individual lines are well resolved in the narrowed UTA features observed in the LHD. The calculated wavelengths are systematically shifted to shorter wavelengths by 0.15–0.03 nm, probably due to insufficient evaluation of the relaxation of the 4d subshell at the excitation of one 4d electron to the 4f orbital. We have tried to evaluate such a relaxation effect by including 5f as a correlation orbital. However, the improvement to the transition energy was not very significant; for instance, 0.004 nm for Sm${}^{16+}$ and 0.002 nm for Er${}^{22+}$. We have tried to synthesize the wavelength also for the present Pd-like ions. We have obtained $-0.214245+587.523/{(Z-20)}^2$ with ${\chi }^2$ = 3.0 × 10${}^{-4}$ for the difference between the LHD and the GRASP92/RATIP wavelengths. The synthesized transition wavelengths are also tabulated in Table 3 and plotted in Figure 2b. The synthesized wavelengths agree quite well with the LHD wavelengths, suggesting that the wavelengths for the other elements are also quite reliable.

6. Summary

We have recorded a series of EUV spectra from highly charged lanthanide ions with atomic numbers from 60–70 under high and low temperature conditions using the LHD plasmas. The control of the heating power combined with the TESPEL injection system is helpful for the measurements of extremely discrete or narrowed UTA features depending on the electron temperature, unlike the earlier experiments. Consequently, we could identify some of the spectral lines of Cu- and Ag-like ions, including new experimental identifications in the series of measurements in the LHD. Furthermore, we have found strong peaks that can be assigned to the singlet resonance transitions of Pd-like ions in the narrowed UTA features.
