Bond Rearrangement Produces Oxygen from Carbon Dioxide

Abstract

We present a direct observation where fragmentation of the ${\mathrm{CO}}_2^{2+}$ dication, upon highly charged ion impact, leads to the formation of molecular oxygen. We assert that molecular bending and bond stretching modes of the dication represent the underlying mechanisms driving the generation of ${\mathrm{O}}_2^{+}$. We conducted ab initio quantum chemistry calculations for the electronic state of the dication and found that the${ }^5{A}_1$ state is responsible for the bond-rearrangement reaction. The branching ratios of this channel for multiple projectile beams of varying charge and velocity have been reported and are found to be independent of the projectile’s charge and velocity.

1. Introduction

The essential role of organisms like plants and algae in producing ${\mathrm{O}}_2$ through photosynthesis is vital for sustaining life on Earth. Due to the dominant presence of ${\mathrm{CO}}_2$ gas on Mars, research has been going on to produce oxygen from ${\mathrm{CO}}_2$, to consider Mars as a habitable planet other than Earth [1]. ${\mathrm{CO}}_2$ is a linear triatomic molecule, and its two- and three-body fragmentation has been studied from a fundamental point-of-view by various groups in the recent past [2,3,4,5].

Initially, Chueh et al. [6] documented the generation of CO and O from ${\mathrm{CO}}_2$ through photon absorption. However, subsequent theoretical simulations in [7,8] introduced the possibility of producing ${\mathrm{O}}_2$ from ${\mathrm{CO}}_2$. A later study by Lu et al. [9] revealed the creation of ${\mathrm{O}}_2$ through a roaming mechanism during the photo-dissociation of ${\mathrm{CO}}_2$ molecules.

Wang et al. [10] reported the formation of molecular oxygen by dissociative electron attachment to ${\mathrm{CO}}_2$. They used velocity map imaging to detect ${\mathrm{C}}^{-}$ anions and ${\mathrm{O}}_2$$\left(X^3{\Sigma }_g^{-}\right)$. They have reported that the roaming mechanism was responsible for ${\mathrm{O}}_2$ production. Several investigations have also highlighted the production of ${\mathrm{O}}_2^{+}$ via bond rearrangement through laser–molecule interaction [11,12,13], due to core hole excitation by photons [14,15,16], with the excitation pathways involving C 1s $\to {\pi }^{\ast }$ or O 1s $\to {\pi }^{\ast }$ transitions, the lifted degeneracy of the Renner–Teller split initially bent ${\mathrm{A}}_1$ and linear ${\mathrm{B}}_1$ states is responsible for the bond rearrangement [14,15]. Additionally, ${\mathrm{O}}_2^{+}$ was observed as the fragmentation product of the core-level photo-excitation of ${\mathrm{CO}}_2$ [14]. Furthermore, Larimian et al. [11] observed ${\mathrm{O}}_2^{+}$ signatures during photo-double-ionization. They explained the production of ${\mathrm{O}}_2^{+}$ as a two-step process involving the cation populating an electronic state with a bent geometry, followed by a second ionization leading to the new bond formation and fragmentation into ${\mathrm{C}}^{+}$ and ${\mathrm{O}}_2^{+}$. Surface-collision-induced transformation of ${\mathrm{CO}}_2$ into ${\mathrm{O}}_2$ was also reported by Yao et al. [17]. Recently, Ganguly et al. [18] reported enhanced ${\mathrm{O}}_2^{+}$ production from ${\mathrm{CO}}_2$ clusters induced by X-ray core-electron ionization. They attributed this enhancement to intra-cluster collisions. To date, all the reported studies have centered on light-molecule interactions for molecular oxygen production. Notably, there is one study, to the best of our knowledge, by Yuan et al. [19], in which the authors reported on molecular oxygen formation due to ion–molecule interaction. They observed ${\mathrm{O}}_2^{+}$ coinciding with ${\mathrm{C}}^{+}$ upon a 1 keV/u ${\mathrm{Ar}}^{2+}$ beam. However, the dynamics underlying ${\mathrm{O}}_2^{+}$ formation upon ion impact were not presented in their study. Also, the electronic state responsible for the channel was not reported. In addition, the effect of the projectile’s charge and velocity on the strength of this bond rearrangement channel has also not been studied anywhere.

A study of the systematic variation of the fragmentation process by various projectile ions having different velocities and charge states in highly charged ion (HCI) molecule collisions is desirable. In HCI collisions, perturbation strength ($\eta =q/v_p$), where q is the charge state, and $v_p$ is the velocity of the projectile ion is the governing parameter in the collision process. It also is a control parameter for the energy deposition into the system. Therefore, it is expected to influence the population of the different excited states of the molecule.

In this study, we conducted a comprehensive investigation combining experimental and theoretical approaches to understand the dynamics involved in the generation of ${\mathrm{O}}_2^{+}$ upon interaction with highly charged ions with the neutral ${\mathrm{CO}}_2$ molecules. Our study also specified the electronic state that plays a pivotal role in this process. We also studied the branching ratio between the ${\mathrm{C}}^{+}+{\mathrm{O}}_2^{+}$ channel and the summation of the bond rearrangement channel with the most probable ${\mathrm{O}}^{+}+{\mathrm{CO}}^{+}$ channel for projectile ions of different charges and velocities.

2. Experimental Methods

We employ coincidence detection measurement between fragmented ions and scattered projectile ions. The present experiments were performed in a cold target recoil ion momentum spectrometer (COLTRIMS) [20,21]. We used the 14.5 GHz Electron Cyclotron Resonance based Ion Accelerator (ECRIA) facility at TIFR Mumbai [22] to produce projectile beams of different velocities and charges. The target beam of ${\mathrm{CO}}_2$ was prepared by a supersonic molecular jet setup, which consists of a nozzle of 30 $\mathsf{\mu }$m, and two subsequent skimmers of the inner diameter of 400 $\mathsf{\mu }$m and 1500 $\mathsf{\mu }$m, respectively. A zone of silence was created just behind the first skimmer, and the high diverging part of the beam was cut down by the second skimmer placed at a distance of 100 mm from the first one. All the chambers were differentially pumped. Projectile and target beams were crossed with each other at the interaction region of our COLTRIMS setup [23,24] at TIFR Mumbai. After the interaction, the scattered projectile beam, which captured one or two electrons, passes through an electrostatic charge state deflector and is detected on a time- and position-sensitive MCP-DLD (micro-channel plate-delay line anode) detector in Chevron configuration, with MCP having a diameter of 80 mm. For the detection of recoil ions, we used a Wiley–McLaren type double field spectrometer with MCP-DLD. The length of the extraction region, acceleration region, and field-free drift region are 15 mm, 90 mm, and 520 mm, respectively. The electric field in the extraction and acceleration regions were set to 173.33 V/cm and 250.67 V/cm, respectively. With this configuration, singly charged ions up to 13 eV kinetic energy were recorded with 4$\pi$ collection, and a KER resolution of around 250 meV was achieved for this channel of interest. Background pressure of 6.2 × ${10}^{-9}$ mbar was maintained in the interaction chamber. While performing the experiment with a ${\mathrm{Xe}}^{10+}$ ion beam, the interaction chamber pressure increased to 6.48 × ${10}^{-9}$ mbar. The projectile beam current during experiments was kept in the range of 50–250 pA. For data acquisition, the signal from the projectile MCP was used to start the data acquisition, and the last recoil ion hitting the target MCP gave the stop signal. Data were recorded in list mode files (.lmf) in an event-by-event mode for further offline analysis. From the recorded time- and position information, we calculated the momenta of each recoil ion along the three axes and calculated physical quantities of interest, such as KER and angular distribution of fragments.

In order to find the branching ratio between the two channels, an accurate estimation of the yields of a particular channel is crucial. The coincident events were selected from the coincident time-of-flight spectrum. The coincidence spectrum may also include random coincidence events. To subtract the random coincidence events, we used the conservation of momentum between ions created from the fragmentation of a single molecule.

3. Results and Discussion

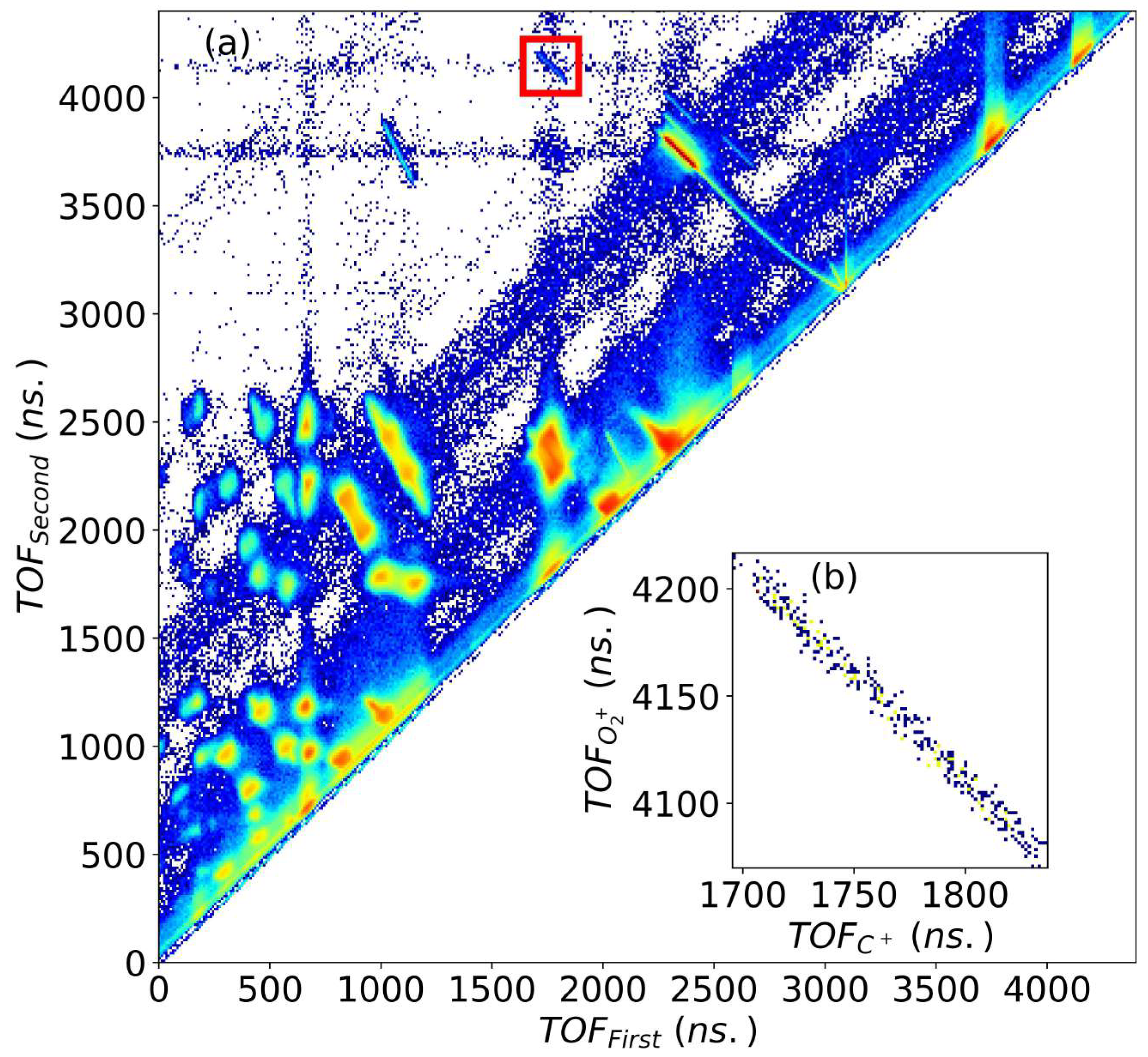

The coincidence map, which is a two-dimensional plot between times-of-flight of the first and second fragment ions is shown in Figure 1. The channel of interest is shown inside a red square in Figure 1a for ${\mathrm{Xe}}^{10+}$ impact. ${\mathrm{O}}_2^{+}$ can be generated from two different channels, first, after the breakup of ${\mathrm{CO}}_2^{2+}$, which would contribute to true coincidences, and second, from the single electron capture of background oxygen which might blend with ${\mathrm{C}}^{+}$. To remove the background contamination and random coincidences, we selected the events using the conservation of momentum. After removing the background, Figure 1b displays the noise-free coincidence trace of the channel.

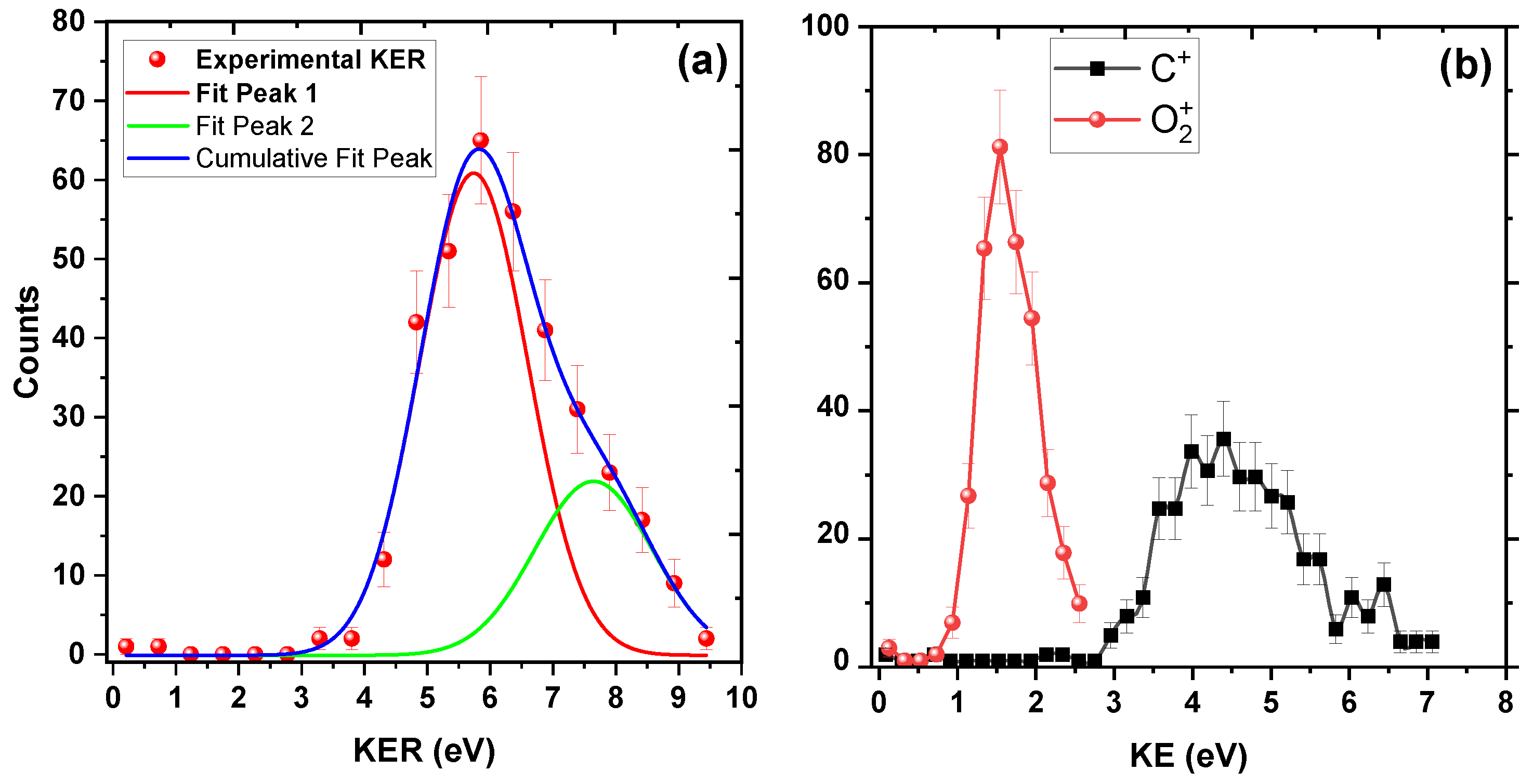

In a further analysis, we plotted the KER distribution in Figure 2a. KER is the sum of the kinetic energies of the individual fragments in a dissociation process. The spectrum starts from around 3 eV and extends up to 10 eV. There is a prominent peak around 6 eV and a broad structure from 7 eV to 10 eV, which indicates that many electronic states might contribute to this channel. We have fitted these two peaks in the KER distribution with Gaussian profiles, one at around 6 eV and the other at around 8 eV. Peak 1 is centered at 5.74 ± 0.20 eV and Peak 2 at 7.64 ± 0.62 eV. However, because of low statistics for Peak 2, we would focus on the prominent peak at 5.74 ± 0.20 eV only.

3.1. Dynamics

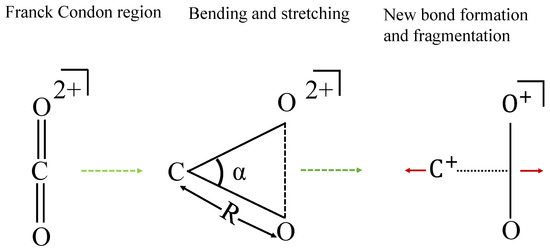

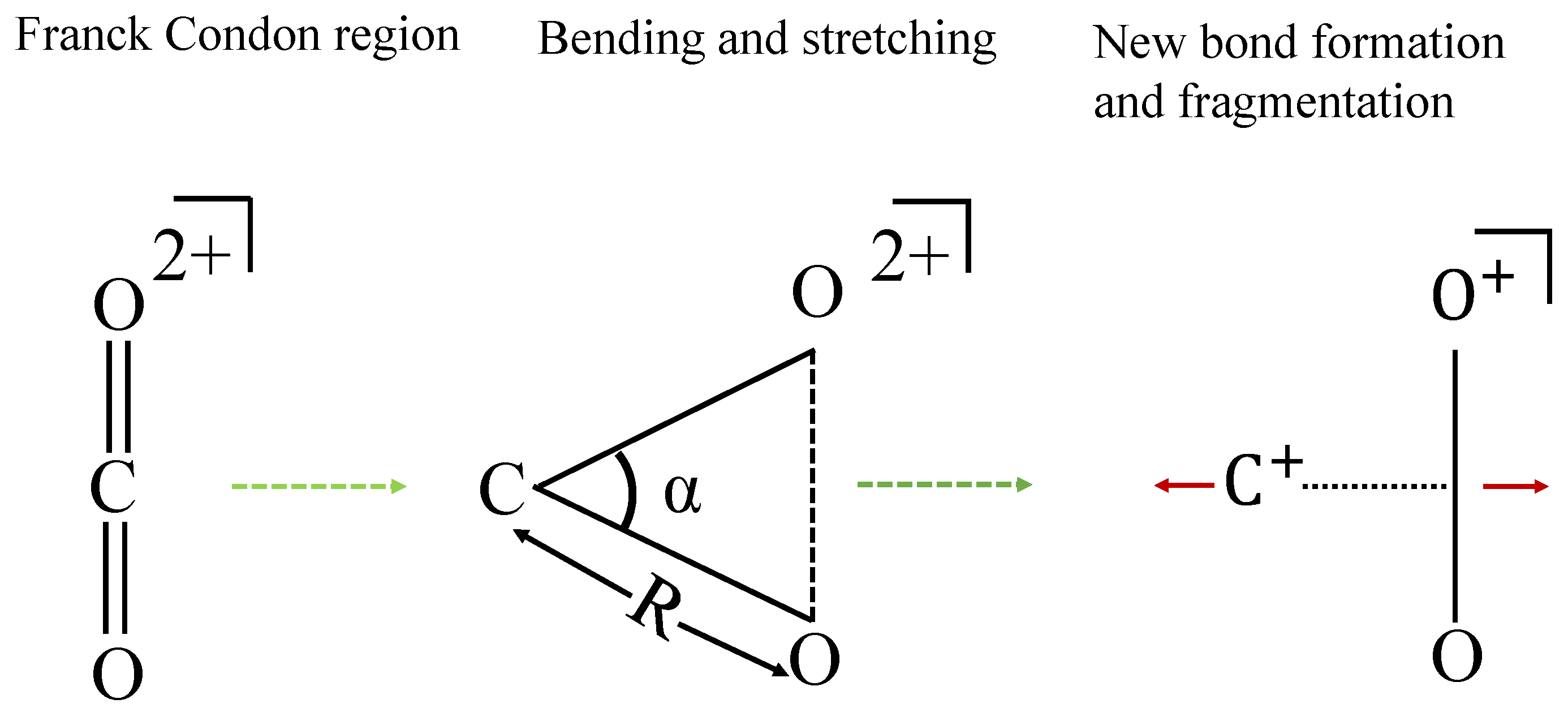

We propose that the symmetrical stretching and bending of the two C–O bonds lead to new bond formation between the two O atoms. To support this proposal, we utilize the following approach to provide insights into the bond-rearrangement dynamics: following the collision with ${\mathrm{Xe}}^{10+}$, the ${\mathrm{CO}}_2^{2+}$ dication emerges, either in its ground state or in one of the excited electronic states in the Franck–Condon region. Subsequently, this dication undergoes stretching and bending motion, eventually leading to the formation of a new bond between two O atoms, following which the ${\mathrm{C}}^{+}$ and ${\mathrm{O}}_2^{+}$ fragments separate. A visual representation of this mechanism can be found in Figure 3. Since neutral carbon dioxide is a linear molecule, if this molecule breaks into O, C, and O atoms, the central C atom would carry almost negligible energy, and the two O atomic fragments would share all the deposited energy. From Figure 2b, the ${\mathrm{C}}^{+}$ ion carries kinetic energy of around 4.2 eV, which experimentally proves our assertion that there lies an intermediate ${\mathrm{CO}}_2^{2+}$ ion that is bent, because of which after fragmentation the ${\mathrm{C}}^{+}$ carries non-negligible kinetic energy.

3.2. Theoretical Calculations

Following the approach mentioned in Figure 3, we first identified the electronic state responsible for KER at around 5.74 ± 0.20 eV, using CFOUR software program [25]. We employed equation-of-motion coupled cluster singles and doubles (EOM-CCSD) method [26,27,28,29], with correlation-consistent polarized valence double zeta (cc-pVTZ) [30] basis set. We calculated single-point energies at the Franck–Condon region and at the dissociation limit, in order to match the experimental KER with the computed one. We calculated the single point energies in singlet, triplet, and quintet manifolds, of which we found out that the${ }^5{\mathrm{A}}_1$ state which is the first excited state with the quintet multiplicity, corresponds to the KER value of 5.57 eV; this calculated KER lies close to the experimental one of 5.74 ± 0.20 eV. During the collision process the transition from singlet neutral ground state to the quintet excited state of ${\mathrm{CO}}_2^{2+}$ appears to violate spin conservation. We note that in the electron-capture process in the present experiments, the spin of captured electrons is not known, therefore, we can not deduce whether the bond-rearrangement process in present experiments is the spin-allowed or spin-forbidden process. The electronic configuration of the${ }^1{\Sigma }_g^{+}$ ground state of ${\mathrm{CO}}_2$ neutral is ${\left(1{\sigma }_g\right)}^2{\left(1{\sigma }_u\right)}^2{\left(2{\sigma }_g\right)}^2{\left(3{\sigma }_g\right)}^2{\left(2{\sigma }_u\right)}^2{\left(4{\sigma }_g\right)}^2{\left(3{\sigma }_u\right)}^2{\left(1{\pi }_u\right)}^4{\left(1{\pi }_g\right)}^4$ and that of the${ }^5{\mathrm{A}}_1$ state of ${\mathrm{CO}}_2^{2+}$ is ${\left(1{\sigma }_g\right)}^2{\left(1{\sigma }_u\right)}^2{\left(2{\sigma }_g\right)}^2{\left(3{\sigma }_g\right)}^2{\left(2{\sigma }_u\right)}^2{\left(4{\sigma }_g\right)}^2{\left(3{\sigma }_u\right)}^2{\left(1{\pi }_u\right)}^2{\left(1{\pi }_u\right)}^1{\left(1{\pi }_g\right)}^1{\left(1{\pi }_g\right)}^1{\left(2{\pi }_u\right)}^1$.

We tried to find out any existing transition state for the bond-formation reaction. We used second-order Moller–Plesset (MP2) theory [31] accompanied with cc-pVDZ [30] basis set to find out the minimum of the potential for${ }^5{\mathrm{A}}_1$ state and searched for any existing transition state for this channel. All calculations including single point energy, optimization, and transition state search were performed under the unrestricted Hartree–Fock (UHF) method [32], and the two C–O bonds and the $\angle \mathrm{OCO}$ were considered the free parameters. The potential energy diagram for the reaction proceeding via ${\mathrm{CO}}_2^{2+}$${(}^5{A}_1)$ to the final products ${\mathrm{C}}^{+}{(}^2\mathrm{P})+{\mathrm{O}}_2^{+}$${(}^2{\Pi }_g)$ is shown in Figure 4.

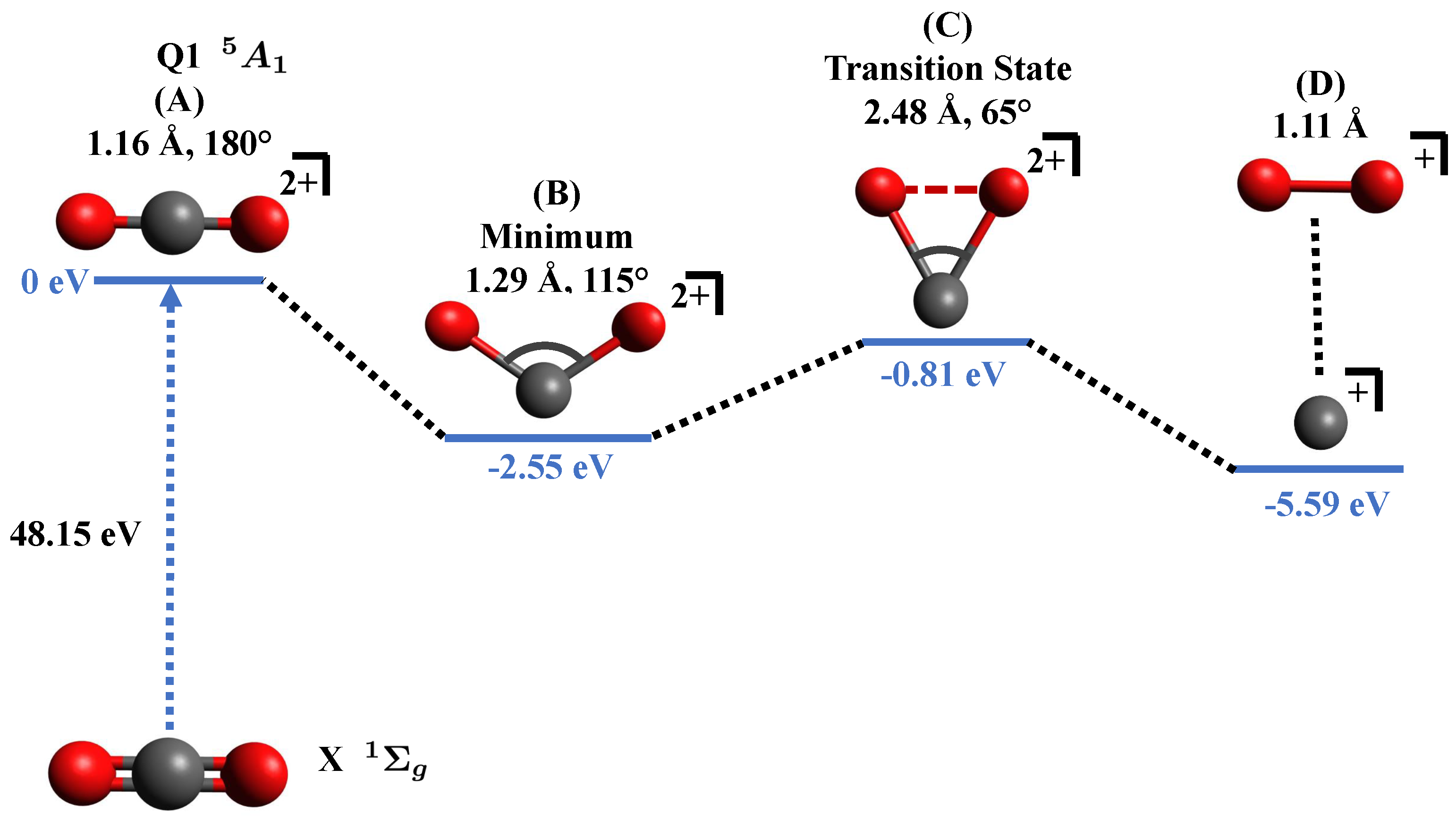

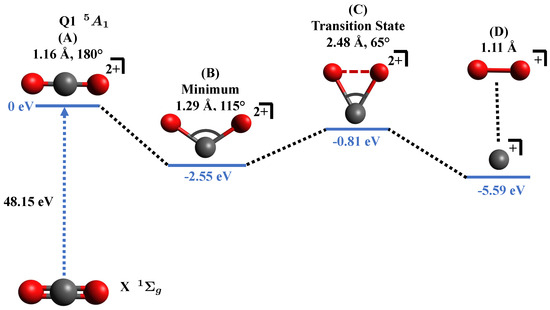

After the collision with the projectile, (A) the neutral ${\mathrm{CO}}_2$ molecule becomes a dication within the Franck–Condon region, further, the molecular ion dynamically approaches (B) the minimum of the potential energy surface at R = 1.29 Å, $\angle \mathrm{OCO}={115}^{\circ }$, and passing through the (C) transition state at R = 2.48 Å, $\angle \mathrm{OCO}={65}^{\circ }$ to finally dissociate to (D) the products ${\mathrm{C}}^{+}{(}^2\mathrm{P})$ and ${\mathrm{O}}_2^{+}$${(}^2{\Pi }_g)$.

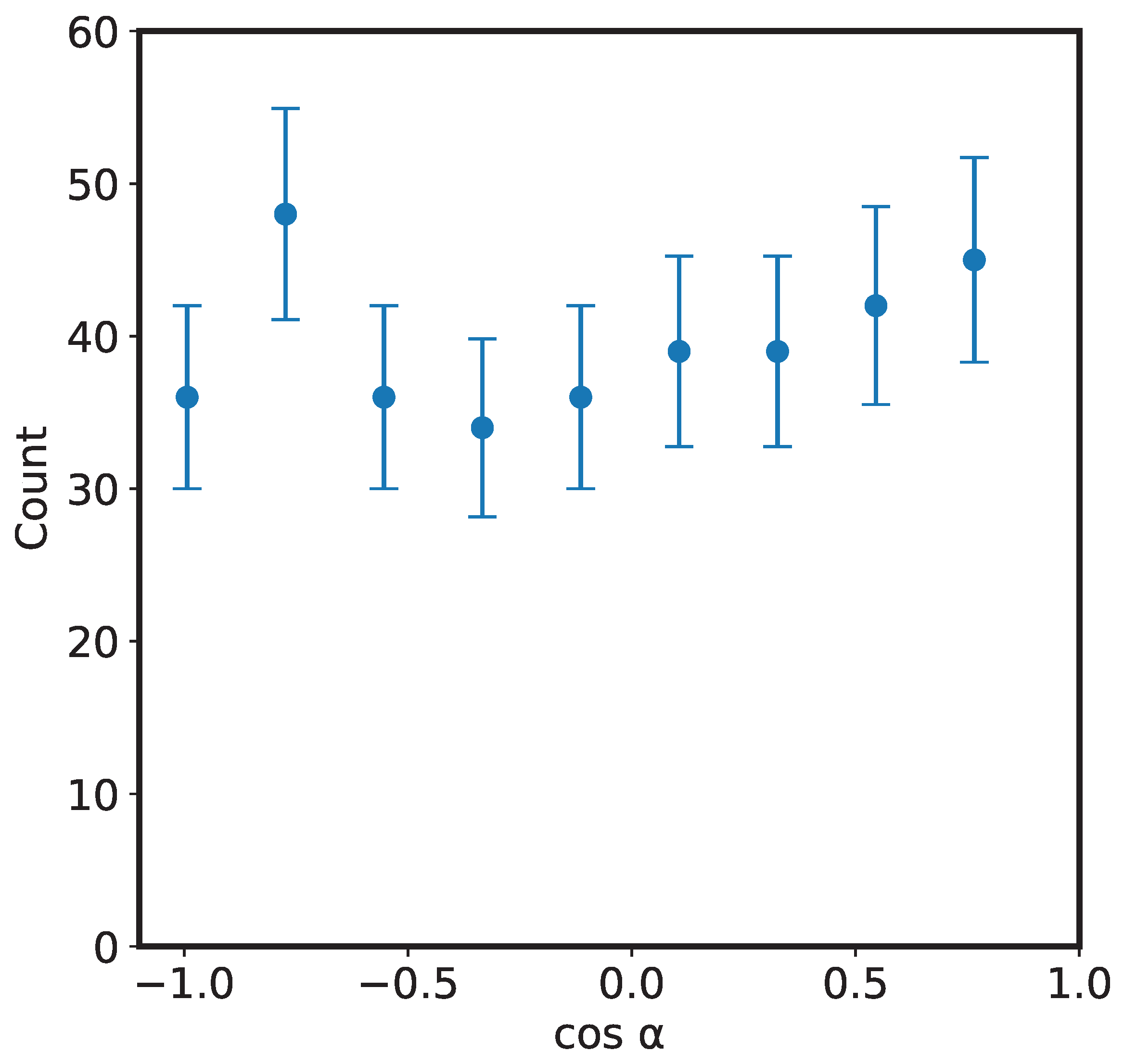

To check for any angular dependence of the fragments, we show in Figure 5 the angular distribution of the ${\mathrm{C}}^{+}$ and ${\mathrm{O}}_2^{+}$ daughter ions. The result is consistent with that reported by Zhao et al. [13] that the fragments are distributed isotropically with respect to the projectile beam axis. The reason for this, as mentioned by Zhao et al. is that the lifetime of the ${\mathrm{CO}}_2^{2+}$ ion is larger than its rotational period; during bending and bond rearrangement, the molecular ion is rotating, thus losing any angular information.

4. Branching Ratio

As is vital from an environmental perspective, the transformation of pollutant ${\mathrm{CO}}_2$ into ${\mathrm{O}}_2$ makes it possible to study this channel in a deeper sense. One of the fundamental questions to address is about the strength of this channel. In their study on the bond rearrangement of ${\mathrm{CO}}_2$ molecules, Zhao et al. [13] reported a branching ratio of 0.0796 ± 0.0058%, among all the fragmentation channels of the dication following strong field ionization of the neutral ${\mathrm{CO}}_2$ molecules. In another study, Yuan et al. [19] reported a 1.7% branching ratio of the ${\mathrm{C}}^{+}+{\mathrm{O}}_2^{+}$ channel fragmenting into ${\mathrm{C}}^{+}+{\mathrm{O}}^{+}+\mathrm{O}$. Other than these two studies, to the best of our knowledge, the branching ratio for this channel is not mentioned anywhere else. In this subsection, we report the branching ratio of this channel with respect to the sum of bond rearrangement and the most probable channel ${\mathrm{O}}^{+}+{\mathrm{CO}}^{+}$, which is shown in

Table 1. Branching ratio between ${\mathrm{C}}^{+}+{\mathrm{O}}_2^{+}$ and ${\mathrm{O}}^{+}+{\mathrm{CO}}^{+}$ channels across different projectile ion impacts, to the second decimal point, estimated with the present experimental data. Counts in both the channels are added and the branching ratio with respect to the sum is tabulated. The uncertainties are statistical uncertainties. Perturbation strength ($q/v_p$) is also listed, rounded to the nearest integer.

			Branching Ratio
S. No.	Beam	$\mathit{q}/{\mathit{v}}_{\mathit{p}}$	${\mathbf{C}}^{+}+{\mathbf{O}}_2^{+}$ : ${\mathbf{O}}^{+}+{\mathbf{CO}}^{+}$
1	240 keV ${\mathrm{Ar}}^{3+}$	6	0.15 ± 0.01 : 99.85 ± 0.01
2	62 keV ${\mathrm{Ar}}^{3+}$	12	0.17 ± 0.01 : 99.83 ± 0.01
3	240 keV ${\mathrm{Ar}}^{6+}$	12	0.17 ± 0.01 : 99.83 ± 0.01
4	240 keV ${\mathrm{Ar}}^{8+}$	16	0.18 ± 0.01 : 99.83 ± 0.01
5	160 keV ${\mathrm{Ar}}^{8+}$	20	0.17 ± 0.02 : 99.83 ± 0.02
6	200 keV ${\mathrm{Xe}}^{10+}$	40	0.15 ± 0.01 : 99.85 ± 0.01

. From this table, we observe that for all ion impacts, the branching ratio of this channel with respect to ${\mathrm{O}}^{+}+{\mathrm{CO}}^{+}$ remains almost the same. In the current velocity regime of the projectile ions (≤1 a.u.), electron capture is the most dominant mechanism of preparing the dication. It is well known that during electron capture, the projectile ion mostly interacts with the valence electrons of the target, thus leading to populations in ground or lower excited states. Such collisions are also termed soft collisions. The independence of the strength of the bond rearrangement channel on projectile charge and velocity reflects that in the present velocity regime, soft collisions during electron capture populate the molecular dication in the${ }^5{\mathrm{A}}_1$ electronic state with almost equal strength, responsible for the bond rearrangement channel. It requires more such experiments to study the cross-section of the bond-rearrangement channel in velocity higher than 1 a.u.

5. Conclusions

We observed the signatures of molecular oxygen formation as a consequence of bond rearrangement, due to electron-capture-induced fragmentation of ${\mathrm{CO}}_2$ molecules. We proposed that symmetric stretching of the two C–O bonds and bending are the responsible mechanisms of the bond rearrangement. With ab initio quantum chemistry calculations, we found out that${ }^5{\mathrm{A}}_1$ is the electronic state responsible for KER around $5.74\pm 0.2$ eV. We found a transition state in the potential energy surface of this state with no energy barrier to the reaction. We hope that the electronic state found here will be of use to enhance the cross-section of this channel using state-selective ionization methods.

The branching ratios of the bond-rearrangement channel are found to be independent of the perturbation strength, reflecting that in the present velocity regime, the${ }^5{\mathrm{A}}_1$ electronic state is populated with similar strength during the collision. More experiments are required to explore this channel in the high-velocity regime.
